ZRE185

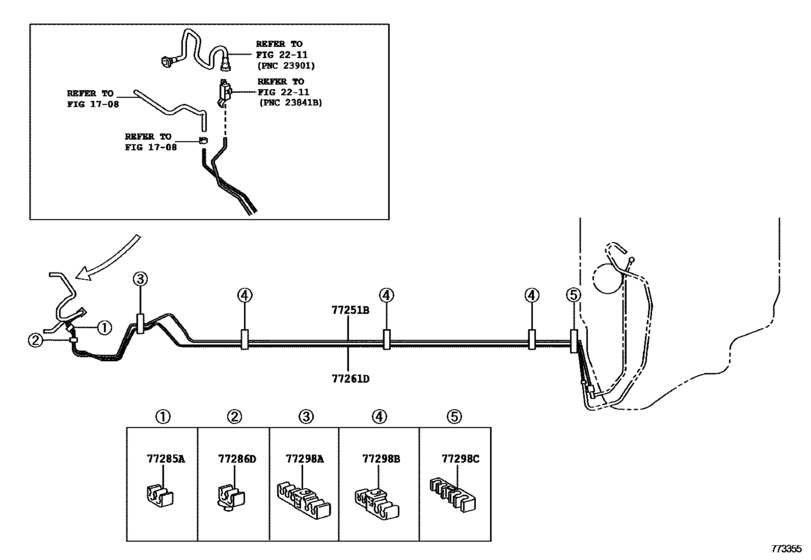

Fuel Tank & Tube ([10.2012 - ] FUEL TUBE (1210- )NRE180,ZRE185) 7
| # | OEM | Part name |
|---|---|---|
| 77251 | 77251-02440 | Tube, Fuel Main |
| 77261 | 77261-02460 | Tube, Fuel Tank To Canister |
| 77285 | 77285-02080 | Support, Fuel Return And Main Tube |
| 77286 | 77286-02030 | Clamp, Fuel Tube, No.2 |
| 77298 | 77298-68010 | Clamp, Fuel Tube, No.1 |
| 77298 | 77298-02050 | Clamp, Fuel Tube, No.4 |
| 77298 | 77298-02040 | Clamp, Fuel Tube, No.4 |
| OEM | Part name | Category |
|---|---|---|
| 77251-02440 | Tube, Fuel Main | Fuel Tank & Tube ([10.2012 - ] FUEL TUBE (1210- )NRE180,ZRE185) |
| 77261-02460 | Tube, Fuel Tank To Canister | Fuel Tank & Tube ([10.2012 - ] FUEL TUBE (1210- )NRE180,ZRE185) |
| 77285-02080 | Support, Fuel Return And Main Tube | Fuel Tank & Tube ([10.2012 - ] FUEL TUBE (1210- )NRE180,ZRE185) |
| 77286-02030 | Clamp, Fuel Tube, No.2 | Fuel Tank & Tube ([10.2012 - ] FUEL TUBE (1210- )NRE180,ZRE185) |
| 77298-02040 | Clamp, Fuel Tube, No.4 | Fuel Tank & Tube ([10.2012 - ] FUEL TUBE (1210- )NRE180,ZRE185) |
| 77298-02050 | Clamp, Fuel Tube, No.4 | Fuel Tank & Tube ([10.2012 - ] FUEL TUBE (1210- )NRE180,ZRE185) |
| 77298-68010 | Clamp, Fuel Tube, No.1 | Fuel Tank & Tube ([10.2012 - ] FUEL TUBE (1210- )NRE180,ZRE185) |
