ZRE172

Toyota COROLLA · 2013 · 2,812 parts · 172 categories

2,812 items

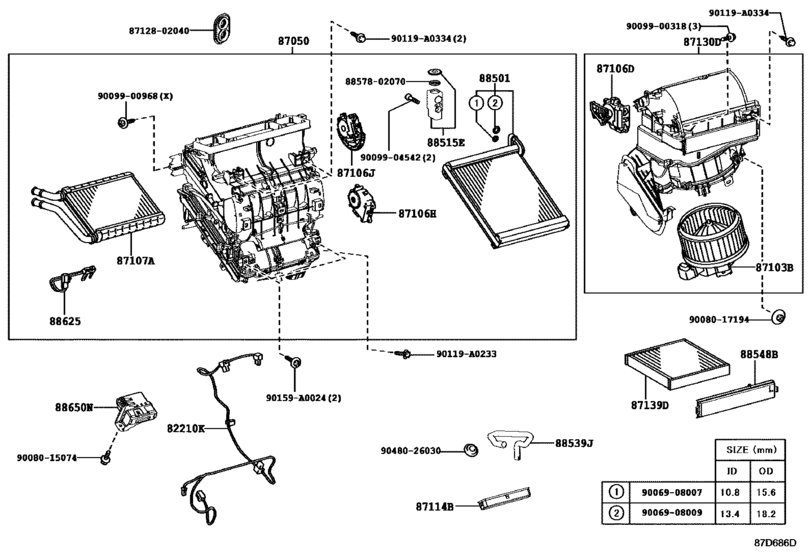

Heating & Air Conditioning - Cooler Unit ([08.2013 - ] AUTO AIR CONDITIONER (1308- )LE..HTWC ; (1308- )ATM,CVT..S ; (1 308- )6F..S..HTWC) 35

#	OEM	Part name
82210	82212-02040	Harness Assy, Air Conditioner
87050	87050-02B70	Radiator Assy, Air Conditioner
87050	87050-02B80	Radiator Assy, Air Conditioner
87103	87103-02200	Motor Sub-Assy, Blower W/fan
87103	87103-02210	Motor Sub-Assy, Blower W/fan
87106	87106-02210	Servo Sub-Assy, Damper, No.1
87106	87106-02220	Servo Sub-Assy, Damper, No.1
87106	87106-02190	Servo Sub-Assy, Damper(For Airmix)
87106	87106-02200	Damper Servo Sub-Assy, Air Conditioner Radiator, No.1
87107	87107-02230	Unit Sub-Assy, Heater Radiator
87114	87114-02030	Cover, Heater
87130	87130-02A10	Blower Assy
87130	87130-02A20	Blower Assy
87139	87139-07020	Filter, Clean Air
87139	87139-50100	Clean Air Filter (Charcoal type)
88501	88501-02222	Evaporator Sub-Assy, Cooler, No.1
88515	88515-02530	Valve, Cooler Expansion
88539	88539-02270	Hose, Drain Cooler
88548	88548-02110	Case, Air Filter
88625	88625-02120	Thermistor, Cooler, No.1
88650	88650-02B11	Amplifier Assy, Air Conditioner
88650	88650-02F80	Amplifier Assy, Air Conditioner
90119	90119-A0233	New Genuine Part
90119	90119-A0334	New Genuine Part
90159	90159-A0024	New Genuine Part
8712802040	87128-02040	Grommet, Heater
8857802070	88578-02070	Paking, Cooler Air Duct
9006908007	90069-08007	AC ORING
9006908009	90069-08009	GASKET
9008015074	90080-15074	New Genuine Part
9008017194	90080-17194	New Genuine Part
9009900318	90099-00318	New Genuine Part
9009900968	90099-00968	Screw(For Air Conditioner Unit)
9009904542	90099-04542	Bolt(For Cooler Expansion Valve)
9048026030	90480-26030	Grommet (For Cooler Unit Drain Hose)

OEM	Part name	Category
82212-02040	Harness Assy, Air Conditioner	Heating & Air Conditioning - Cooler Unit ([08.2013 - ] AUTO AIR CONDITIONER (1308- )LE..HTWC ; (1308- )ATM,CVT..S ; (1 308- )6F..S..HTWC)
87050-02B70	Radiator Assy, Air Conditioner	Heating & Air Conditioning - Cooler Unit ([08.2013 - ] AUTO AIR CONDITIONER (1308- )LE..HTWC ; (1308- )ATM,CVT..S ; (1 308- )6F..S..HTWC)
87050-02B80	Radiator Assy, Air Conditioner	Heating & Air Conditioning - Cooler Unit ([08.2013 - ] AUTO AIR CONDITIONER (1308- )LE..HTWC ; (1308- )ATM,CVT..S ; (1 308- )6F..S..HTWC)
87103-02200	Motor Sub-Assy, Blower W/fan	Heating & Air Conditioning - Cooler Unit ([08.2013 - ] AUTO AIR CONDITIONER (1308- )LE..HTWC ; (1308- )ATM,CVT..S ; (1 308- )6F..S..HTWC)
87103-02210	Motor Sub-Assy, Blower W/fan	Heating & Air Conditioning - Cooler Unit ([08.2013 - ] AUTO AIR CONDITIONER (1308- )LE..HTWC ; (1308- )ATM,CVT..S ; (1 308- )6F..S..HTWC)
87106-02190	Servo Sub-Assy, Damper(For Airmix)	Heating & Air Conditioning - Cooler Unit ([08.2013 - ] AUTO AIR CONDITIONER (1308- )LE..HTWC ; (1308- )ATM,CVT..S ; (1 308- )6F..S..HTWC)
87106-02200	Damper Servo Sub-Assy, Air Conditioner Radiator, No.1	Heating & Air Conditioning - Cooler Unit ([08.2013 - ] AUTO AIR CONDITIONER (1308- )LE..HTWC ; (1308- )ATM,CVT..S ; (1 308- )6F..S..HTWC)
87106-02210	Servo Sub-Assy, Damper, No.1	Heating & Air Conditioning - Cooler Unit ([08.2013 - ] AUTO AIR CONDITIONER (1308- )LE..HTWC ; (1308- )ATM,CVT..S ; (1 308- )6F..S..HTWC)
87106-02220	Servo Sub-Assy, Damper, No.1	Heating & Air Conditioning - Cooler Unit ([08.2013 - ] AUTO AIR CONDITIONER (1308- )LE..HTWC ; (1308- )ATM,CVT..S ; (1 308- )6F..S..HTWC)
87107-02230	Unit Sub-Assy, Heater Radiator	Heating & Air Conditioning - Cooler Unit ([08.2013 - ] AUTO AIR CONDITIONER (1308- )LE..HTWC ; (1308- )ATM,CVT..S ; (1 308- )6F..S..HTWC)
87114-02030	Cover, Heater	Heating & Air Conditioning - Cooler Unit ([08.2013 - ] AUTO AIR CONDITIONER (1308- )LE..HTWC ; (1308- )ATM,CVT..S ; (1 308- )6F..S..HTWC)
87128-02040	Grommet, Heater	Heating & Air Conditioning - Cooler Unit ([08.2013 - ] AUTO AIR CONDITIONER (1308- )LE..HTWC ; (1308- )ATM,CVT..S ; (1 308- )6F..S..HTWC)
87130-02A10	Blower Assy	Heating & Air Conditioning - Cooler Unit ([08.2013 - ] AUTO AIR CONDITIONER (1308- )LE..HTWC ; (1308- )ATM,CVT..S ; (1 308- )6F..S..HTWC)
87130-02A20	Blower Assy	Heating & Air Conditioning - Cooler Unit ([08.2013 - ] AUTO AIR CONDITIONER (1308- )LE..HTWC ; (1308- )ATM,CVT..S ; (1 308- )6F..S..HTWC)
87139-07020	Filter, Clean Air	Heating & Air Conditioning - Cooler Unit ([08.2013 - ] AUTO AIR CONDITIONER (1308- )LE..HTWC ; (1308- )ATM,CVT..S ; (1 308- )6F..S..HTWC)
87139-50100	Clean Air Filter (Charcoal type)	Heating & Air Conditioning - Cooler Unit ([08.2013 - ] AUTO AIR CONDITIONER (1308- )LE..HTWC ; (1308- )ATM,CVT..S ; (1 308- )6F..S..HTWC)
88501-02222	Evaporator Sub-Assy, Cooler, No.1	Heating & Air Conditioning - Cooler Unit ([08.2013 - ] AUTO AIR CONDITIONER (1308- )LE..HTWC ; (1308- )ATM,CVT..S ; (1 308- )6F..S..HTWC)
88515-02530	Valve, Cooler Expansion	Heating & Air Conditioning - Cooler Unit ([08.2013 - ] AUTO AIR CONDITIONER (1308- )LE..HTWC ; (1308- )ATM,CVT..S ; (1 308- )6F..S..HTWC)
88539-02270	Hose, Drain Cooler	Heating & Air Conditioning - Cooler Unit ([08.2013 - ] AUTO AIR CONDITIONER (1308- )LE..HTWC ; (1308- )ATM,CVT..S ; (1 308- )6F..S..HTWC)
88548-02110	Case, Air Filter	Heating & Air Conditioning - Cooler Unit ([08.2013 - ] AUTO AIR CONDITIONER (1308- )LE..HTWC ; (1308- )ATM,CVT..S ; (1 308- )6F..S..HTWC)
88578-02070	Paking, Cooler Air Duct	Heating & Air Conditioning - Cooler Unit ([08.2013 - ] AUTO AIR CONDITIONER (1308- )LE..HTWC ; (1308- )ATM,CVT..S ; (1 308- )6F..S..HTWC)
88625-02120	Thermistor, Cooler, No.1	Heating & Air Conditioning - Cooler Unit ([08.2013 - ] AUTO AIR CONDITIONER (1308- )LE..HTWC ; (1308- )ATM,CVT..S ; (1 308- )6F..S..HTWC)
88650-02B11	Amplifier Assy, Air Conditioner	Heating & Air Conditioning - Cooler Unit ([08.2013 - ] AUTO AIR CONDITIONER (1308- )LE..HTWC ; (1308- )ATM,CVT..S ; (1 308- )6F..S..HTWC)
88650-02F80	Amplifier Assy, Air Conditioner	Heating & Air Conditioning - Cooler Unit ([08.2013 - ] AUTO AIR CONDITIONER (1308- )LE..HTWC ; (1308- )ATM,CVT..S ; (1 308- )6F..S..HTWC)
90069-08007	AC ORING	Heating & Air Conditioning - Cooler Unit ([08.2013 - ] AUTO AIR CONDITIONER (1308- )LE..HTWC ; (1308- )ATM,CVT..S ; (1 308- )6F..S..HTWC)
90069-08009	GASKET	Heating & Air Conditioning - Cooler Unit ([08.2013 - ] AUTO AIR CONDITIONER (1308- )LE..HTWC ; (1308- )ATM,CVT..S ; (1 308- )6F..S..HTWC)
90080-15074	New Genuine Part	Heating & Air Conditioning - Cooler Unit ([08.2013 - ] AUTO AIR CONDITIONER (1308- )LE..HTWC ; (1308- )ATM,CVT..S ; (1 308- )6F..S..HTWC)
90080-17194	New Genuine Part	Heating & Air Conditioning - Cooler Unit ([08.2013 - ] AUTO AIR CONDITIONER (1308- )LE..HTWC ; (1308- )ATM,CVT..S ; (1 308- )6F..S..HTWC)
90099-00318	New Genuine Part	Heating & Air Conditioning - Cooler Unit ([08.2013 - ] AUTO AIR CONDITIONER (1308- )LE..HTWC ; (1308- )ATM,CVT..S ; (1 308- )6F..S..HTWC)
90099-00968	Screw(For Air Conditioner Unit)	Heating & Air Conditioning - Cooler Unit ([08.2013 - ] AUTO AIR CONDITIONER (1308- )LE..HTWC ; (1308- )ATM,CVT..S ; (1 308- )6F..S..HTWC)
90099-04542	Bolt(For Cooler Expansion Valve)	Heating & Air Conditioning - Cooler Unit ([08.2013 - ] AUTO AIR CONDITIONER (1308- )LE..HTWC ; (1308- )ATM,CVT..S ; (1 308- )6F..S..HTWC)
90119-A0233	New Genuine Part	Heating & Air Conditioning - Cooler Unit ([08.2013 - ] AUTO AIR CONDITIONER (1308- )LE..HTWC ; (1308- )ATM,CVT..S ; (1 308- )6F..S..HTWC)
90119-A0334	New Genuine Part	Heating & Air Conditioning - Cooler Unit ([08.2013 - ] AUTO AIR CONDITIONER (1308- )LE..HTWC ; (1308- )ATM,CVT..S ; (1 308- )6F..S..HTWC)
90159-A0024	New Genuine Part	Heating & Air Conditioning - Cooler Unit ([08.2013 - ] AUTO AIR CONDITIONER (1308- )LE..HTWC ; (1308- )ATM,CVT..S ; (1 308- )6F..S..HTWC)
90480-26030	Grommet (For Cooler Unit Drain Hose)	Heating & Air Conditioning - Cooler Unit ([08.2013 - ] AUTO AIR CONDITIONER (1308- )LE..HTWC ; (1308- )ATM,CVT..S ; (1 308- )6F..S..HTWC)
