Search › Model › ZRE172
ZRE172

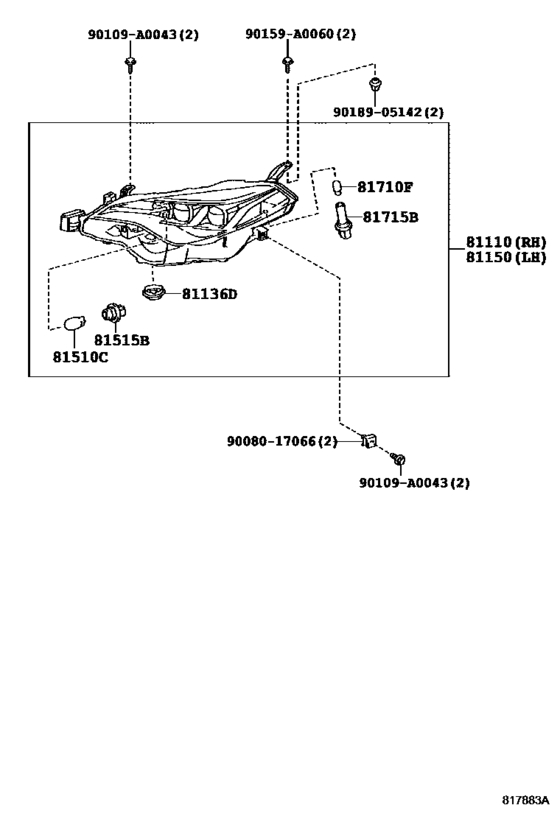

Headlamp ([08.2016 - ] (1608- )S) 12
| # | OEM | Part name |
|---|---|---|
| 81110 | 81110-02M90 | Headlamp Assy, Rh |
| 81136 | 90075-66016 | Cover, Headlamp |
| 81150 | 81150-02M90 | Headlamp Assy, Lh |
| 81510 | 90981-15021 | Bulb (For Front Turn Signal Lamp) |
| 81515 | 90075-60028 | Socket, Headlamp, Bulb |
| 81710 | 99132-12050 | Bulb (12V 5W) |
| 81710 | 90080-81053 | Bulb(For Clearance Lamp) |
| 81715 | 90075-60089 | Socket, Clearance Lamp |
| 90109 | 90109-A0043 | New Genuine Part |
| 90159 | 90159-A0060 | SCREW WWASHER |
| 9008017066 | 90080-17066 | Nut |
| 9018905142 | 90189-05142 | GROMMET, SCREW |
| OEM | Part name | Category |
|---|---|---|
| 81110-02M90 | Headlamp Assy, Rh | Headlamp ([08.2016 - ] (1608- )S) |
| 81150-02M90 | Headlamp Assy, Lh | Headlamp ([08.2016 - ] (1608- )S) |
| 90075-60028 | Socket, Headlamp, Bulb | Headlamp ([08.2016 - ] (1608- )S) |
| 90075-60089 | Socket, Clearance Lamp | Headlamp ([08.2016 - ] (1608- )S) |
| 90075-66016 | Cover, Headlamp | Headlamp ([08.2016 - ] (1608- )S) |
| 90080-17066 | Nut | Headlamp ([08.2016 - ] (1608- )S) |
| 90080-81053 | Bulb(For Clearance Lamp) | Headlamp ([08.2016 - ] (1608- )S) |
| 90109-A0043 | New Genuine Part | Headlamp ([08.2016 - ] (1608- )S) |
| 90159-A0060 | SCREW WWASHER | Headlamp ([08.2016 - ] (1608- )S) |
| 90189-05142 | GROMMET, SCREW | Headlamp ([08.2016 - ] (1608- )S) |
| 90981-15021 | Bulb (For Front Turn Signal Lamp) | Headlamp ([08.2016 - ] (1608- )S) |
| 99132-12050 | Bulb (12V 5W) | Headlamp ([08.2016 - ] (1608- )S) |
