Search › Model › ZRE172

ZRE172

Toyota COROLLA · 2013 · 2,812 parts · 172 categories

2,812 items

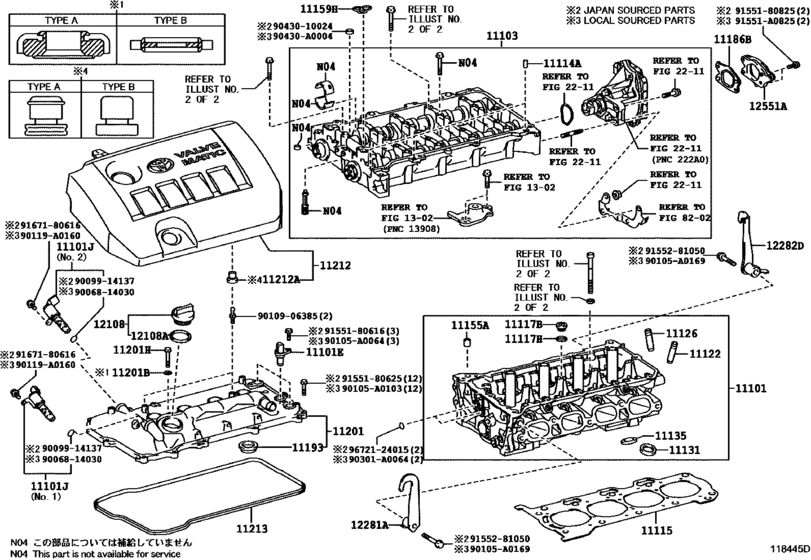

Cylinder Head ([08.2016 - ] (1608- )2ZRFAE) 59

#	OEM	Part name
11101	11101-09310	Head Sub-Assy, Cylinder
11101	11101-39686	Head Sub-Assy, Cylinder
11101	90919-05060	Sensor, Cam Position
11101	15330-0T010	Valve Assy, Camshaft Timing Oil Control
11101	15330-0T020	Valve Assy, Camshaft Timing Oil Control
11101	15330-37010	Valve Assy, Camshaft Timing Oil Control
11101	15330-37020	Valve Assy, Camshaft Timing Oil Control
11103	11107-0T013	Housing Sub-Assy, Camshaft
11114	90250-06001	Pin, Straight
11115	11115-37061	Gasket, Cylinder Head
11115	11115-37062	Gasket, Cylinder Head
11117	90341-20002	Plug, W/head Taper Screw, No.1
11117	90341-A0008	Plug, W/head Taper Screw, No.2
11117	90430-20004	Gasket(For Cylinder Head Screw Plug)
11122	11122-31050	Bush, Intake Valve Guide
11122	11123-31050	Bush, Intake Valve Guide
11126	11126-31030	Bush, Exhaust Valve Guide
11126	11127-31030	Bush, Exhaust Valve Guide
11131	11131-0T010	Seat, Intake Valve
11131	11132-0T010	Seat, Intake Valve
11135	11135-0T010	Seat, Exhaust Valve
11135	11136-0T010	Seat, Exhaust Valve
11155	90253-12002	Pin, Ring
11159	11159-37010	Gasket, Camshaft Bearing Cap Oil Hole
11186	11186-37010	Gasket, Camshaft Housing Rear Cover
11193	11193-0T020	Gasket, Spark Plug Tube
11193	11193-37020	Gasket, Spark Plug Tube
11201	11201-0T060	Cover Sub-Assy, Cylinder Head
11201	16258-37010	Washer, Seal(For Cylinder Head Cover)
11201	90210-06013	Washer, Seal(For Cylinder Head Cover)
11201	90105-A0217	Bolt(For Cylinder Head Cover)
11201	91551-80670	Bolt(For Cylinder Head Cover)
11212	11212-0T060	Cover, Cylinder Head, No.2
11212	11212-37031	Cover, Cylinder Head, No.2
11212	90480-07008	Cushion, Cylinder Head Cover
11212	90480-16049	Cushion, Cylinder Head Cover
11213	11213-37021	Gasket, Cylinder Head Cover
12108	12180-38010	Cap Sub-Assy, Oil Filler
12108	90430-35001	Gasket(For Oil Filler Cap)
12281	12281-37021	Hanger, Engine, No.1
12282	12282-37011	Hanger, Engine, No.2
12551	12551-0T010	Bracket, Vacuum Pump, No.1
12551	12551-37010	Bracket, Vacuum Pump, No.1
90105	90105-A0064	New Genuine Part
90105	90105-A0103	Bolt(For Camshaft Housing Set)
90105	90105-A0169	New Genuine Part
90119	90119-A0160	New Genuine Part
90430	90430-A0004	New Genuine Part
91551	91551-A0825	New Genuine Part
9006814030	90068-14030	Ring, O(For Cam Timing Oil Control Valve)
9006814030	90099-14137	Ring, O(For Cam Timing Oil Control Valve)
9010906385	90109-06385	Bolt , V-Bank Cover, No.1
9043010024	90430-10024	Gasket, Camshaft Bearing Cap Oil Hole
9155180616	91551-80616	BOLT FLANGE
9155180625	91551-80625	Bolt(For Camshaft Housing Set)
9155180825	91551-80825	Bolt(For Cylinder Head Set Sub)
9155281050	91552-81050	Bolt, No.2(For Alternator)
9167180616	91671-80616	BOLT FLANGE
9672124015	96721-24015	Ring, O(For Oil Strainer)

OEM	Part name	Category
11101-09310	Head Sub-Assy, Cylinder	Cylinder Head ([08.2016 - ] (1608- )2ZRFAE)
11101-39686	Head Sub-Assy, Cylinder	Cylinder Head ([08.2016 - ] (1608- )2ZRFAE)
11107-0T013	Housing Sub-Assy, Camshaft	Cylinder Head ([08.2016 - ] (1608- )2ZRFAE)
11115-37061	Gasket, Cylinder Head	Cylinder Head ([08.2016 - ] (1608- )2ZRFAE)
11115-37062	Gasket, Cylinder Head	Cylinder Head ([08.2016 - ] (1608- )2ZRFAE)
11122-31050	Bush, Intake Valve Guide	Cylinder Head ([08.2016 - ] (1608- )2ZRFAE)
11123-31050	Bush, Intake Valve Guide	Cylinder Head ([08.2016 - ] (1608- )2ZRFAE)
11126-31030	Bush, Exhaust Valve Guide	Cylinder Head ([08.2016 - ] (1608- )2ZRFAE)
11127-31030	Bush, Exhaust Valve Guide	Cylinder Head ([08.2016 - ] (1608- )2ZRFAE)
11131-0T010	Seat, Intake Valve	Cylinder Head ([08.2016 - ] (1608- )2ZRFAE)
11132-0T010	Seat, Intake Valve	Cylinder Head ([08.2016 - ] (1608- )2ZRFAE)
11135-0T010	Seat, Exhaust Valve	Cylinder Head ([08.2016 - ] (1608- )2ZRFAE)
11136-0T010	Seat, Exhaust Valve	Cylinder Head ([08.2016 - ] (1608- )2ZRFAE)
11159-37010	Gasket, Camshaft Bearing Cap Oil Hole	Cylinder Head ([08.2016 - ] (1608- )2ZRFAE)
11186-37010	Gasket, Camshaft Housing Rear Cover	Cylinder Head ([08.2016 - ] (1608- )2ZRFAE)
11193-0T020	Gasket, Spark Plug Tube	Cylinder Head ([08.2016 - ] (1608- )2ZRFAE)
11193-37020	Gasket, Spark Plug Tube	Cylinder Head ([08.2016 - ] (1608- )2ZRFAE)
11201-0T060	Cover Sub-Assy, Cylinder Head	Cylinder Head ([08.2016 - ] (1608- )2ZRFAE)
11212-0T060	Cover, Cylinder Head, No.2	Cylinder Head ([08.2016 - ] (1608- )2ZRFAE)
11212-37031	Cover, Cylinder Head, No.2	Cylinder Head ([08.2016 - ] (1608- )2ZRFAE)
11213-37021	Gasket, Cylinder Head Cover	Cylinder Head ([08.2016 - ] (1608- )2ZRFAE)
12180-38010	Cap Sub-Assy, Oil Filler	Cylinder Head ([08.2016 - ] (1608- )2ZRFAE)
12281-37021	Hanger, Engine, No.1	Cylinder Head ([08.2016 - ] (1608- )2ZRFAE)
12282-37011	Hanger, Engine, No.2	Cylinder Head ([08.2016 - ] (1608- )2ZRFAE)
12551-0T010	Bracket, Vacuum Pump, No.1	Cylinder Head ([08.2016 - ] (1608- )2ZRFAE)
12551-37010	Bracket, Vacuum Pump, No.1	Cylinder Head ([08.2016 - ] (1608- )2ZRFAE)
15330-0T010	Valve Assy, Camshaft Timing Oil Control	Cylinder Head ([08.2016 - ] (1608- )2ZRFAE)
15330-0T020	Valve Assy, Camshaft Timing Oil Control	Cylinder Head ([08.2016 - ] (1608- )2ZRFAE)
15330-37010	Valve Assy, Camshaft Timing Oil Control	Cylinder Head ([08.2016 - ] (1608- )2ZRFAE)
15330-37020	Valve Assy, Camshaft Timing Oil Control	Cylinder Head ([08.2016 - ] (1608- )2ZRFAE)
16258-37010	Washer, Seal(For Cylinder Head Cover)	Cylinder Head ([08.2016 - ] (1608- )2ZRFAE)
90068-14030	Ring, O(For Cam Timing Oil Control Valve)	Cylinder Head ([08.2016 - ] (1608- )2ZRFAE)
90099-14137	Ring, O(For Cam Timing Oil Control Valve)	Cylinder Head ([08.2016 - ] (1608- )2ZRFAE)
90105-A0064	New Genuine Part	Cylinder Head ([08.2016 - ] (1608- )2ZRFAE)
90105-A0103	Bolt(For Camshaft Housing Set)	Cylinder Head ([08.2016 - ] (1608- )2ZRFAE)
90105-A0169	New Genuine Part	Cylinder Head ([08.2016 - ] (1608- )2ZRFAE)
90105-A0217	Bolt(For Cylinder Head Cover)	Cylinder Head ([08.2016 - ] (1608- )2ZRFAE)
90109-06385	Bolt , V-Bank Cover, No.1	Cylinder Head ([08.2016 - ] (1608- )2ZRFAE)
90119-A0160	New Genuine Part	Cylinder Head ([08.2016 - ] (1608- )2ZRFAE)
90210-06013	Washer, Seal(For Cylinder Head Cover)	Cylinder Head ([08.2016 - ] (1608- )2ZRFAE)
90250-06001	Pin, Straight	Cylinder Head ([08.2016 - ] (1608- )2ZRFAE)
90253-12002	Pin, Ring	Cylinder Head ([08.2016 - ] (1608- )2ZRFAE)
90341-20002	Plug, W/head Taper Screw, No.1	Cylinder Head ([08.2016 - ] (1608- )2ZRFAE)
90341-A0008	Plug, W/head Taper Screw, No.2	Cylinder Head ([08.2016 - ] (1608- )2ZRFAE)
90430-10024	Gasket, Camshaft Bearing Cap Oil Hole	Cylinder Head ([08.2016 - ] (1608- )2ZRFAE)
90430-20004	Gasket(For Cylinder Head Screw Plug)	Cylinder Head ([08.2016 - ] (1608- )2ZRFAE)
90430-35001	Gasket(For Oil Filler Cap)	Cylinder Head ([08.2016 - ] (1608- )2ZRFAE)
90430-A0004	New Genuine Part	Cylinder Head ([08.2016 - ] (1608- )2ZRFAE)
90480-07008	Cushion, Cylinder Head Cover	Cylinder Head ([08.2016 - ] (1608- )2ZRFAE)
90480-16049	Cushion, Cylinder Head Cover	Cylinder Head ([08.2016 - ] (1608- )2ZRFAE)
90919-05060	Sensor, Cam Position	Cylinder Head ([08.2016 - ] (1608- )2ZRFAE)
91551-80616	BOLT FLANGE	Cylinder Head ([08.2016 - ] (1608- )2ZRFAE)
91551-80625	Bolt(For Camshaft Housing Set)	Cylinder Head ([08.2016 - ] (1608- )2ZRFAE)
91551-80670	Bolt(For Cylinder Head Cover)	Cylinder Head ([08.2016 - ] (1608- )2ZRFAE)
91551-80825	Bolt(For Cylinder Head Set Sub)	Cylinder Head ([08.2016 - ] (1608- )2ZRFAE)
91551-A0825	New Genuine Part	Cylinder Head ([08.2016 - ] (1608- )2ZRFAE)
91552-81050	Bolt, No.2(For Alternator)	Cylinder Head ([08.2016 - ] (1608- )2ZRFAE)
91671-80616	BOLT FLANGE	Cylinder Head ([08.2016 - ] (1608- )2ZRFAE)
96721-24015	Ring, O(For Oil Strainer)	Cylinder Head ([08.2016 - ] (1608- )2ZRFAE)
