ZRE120

Toyota COROLLA · 2007 · 3,997 parts · 221 categories

3,997 items

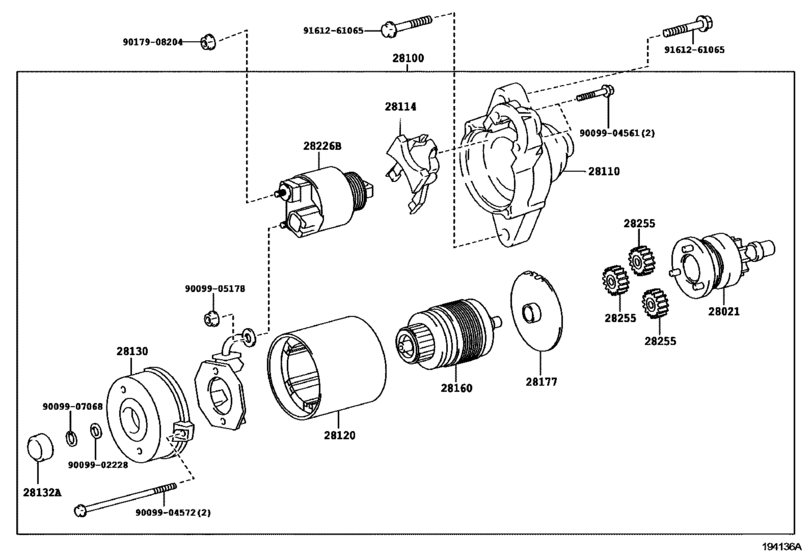

Starter ([01.2013 - ] 12V 1.6KW (1301- )) 29

#	OEM	Part name
28021	28021-21060	Clutch Sub-Assy, Starter Center Bearing
28021	28021-37050	Clutch Sub-Assy, Starter Center Bearing
28100	28100-0T020	Starter Assy
28100	28100-0T300	Starter Assy
28110	28110-0T020	Housing Assy, Starter Drive
28110	28110-37040	Housing Assy, Starter Drive
28114	28114-21060	Pin, Starter Drive Lever Set
28120	28120-28060	Yoke Assy, Starter
28120	28120-37050	Yoke Assy, Starter
28130	28130-0T020	Frame Assy, Starter Commutator End
28130	28130-37120	Frame Assy, Starter Commutator End
28132	28132-28040	Cover, Starter Bearing(For Drive Housing)
28160	28160-0T020	Armature Assy, Starter
28160	28160-21060	Armature Assy, Starter
28160	28160-37050	Armature Assy, Starter
28177	28177-0T020	Plate(For Starter Armature)
28177	28177-28040	Plate(For Starter Armature)
28226	28226-37120	Starter Kit, Repair Service
28255	28255-28040	Gear, Planet
28255	28255-37050	Gear, Planet
9009902228	90099-02228	WASHER
9009904561	90099-04561	BOLT
9009904572	90099-04572	BOLT
9009905178	90099-05178	New Genuine Part
9009907068	90099-07068	RING SNAP
9017908204	90179-08204	Nut
9017908204	90080-18070	NUT, WWASHER
9161261065	91612-61065	Bolt(For Transaxle & Engine Setting)
9161261065	90119-A0104	Bolt with Washer

OEM	Part name	Category
28021-21060	Clutch Sub-Assy, Starter Center Bearing	Starter ([01.2013 - ] 12V 1.6KW (1301- ))
28021-37050	Clutch Sub-Assy, Starter Center Bearing	Starter ([01.2013 - ] 12V 1.6KW (1301- ))
28100-0T020	Starter Assy	Starter ([01.2013 - ] 12V 1.6KW (1301- ))
28100-0T300	Starter Assy	Starter ([01.2013 - ] 12V 1.6KW (1301- ))
28110-0T020	Housing Assy, Starter Drive	Starter ([01.2013 - ] 12V 1.6KW (1301- ))
28110-37040	Housing Assy, Starter Drive	Starter ([01.2013 - ] 12V 1.6KW (1301- ))
28114-21060	Pin, Starter Drive Lever Set	Starter ([01.2013 - ] 12V 1.6KW (1301- ))
28120-28060	Yoke Assy, Starter	Starter ([01.2013 - ] 12V 1.6KW (1301- ))
28120-37050	Yoke Assy, Starter	Starter ([01.2013 - ] 12V 1.6KW (1301- ))
28130-0T020	Frame Assy, Starter Commutator End	Starter ([01.2013 - ] 12V 1.6KW (1301- ))
28130-37120	Frame Assy, Starter Commutator End	Starter ([01.2013 - ] 12V 1.6KW (1301- ))
28132-28040	Cover, Starter Bearing(For Drive Housing)	Starter ([01.2013 - ] 12V 1.6KW (1301- ))
28160-0T020	Armature Assy, Starter	Starter ([01.2013 - ] 12V 1.6KW (1301- ))
28160-21060	Armature Assy, Starter	Starter ([01.2013 - ] 12V 1.6KW (1301- ))
28160-37050	Armature Assy, Starter	Starter ([01.2013 - ] 12V 1.6KW (1301- ))
28177-0T020	Plate(For Starter Armature)	Starter ([01.2013 - ] 12V 1.6KW (1301- ))
28177-28040	Plate(For Starter Armature)	Starter ([01.2013 - ] 12V 1.6KW (1301- ))
28226-37120	Starter Kit, Repair Service	Starter ([01.2013 - ] 12V 1.6KW (1301- ))
28255-28040	Gear, Planet	Starter ([01.2013 - ] 12V 1.6KW (1301- ))
28255-37050	Gear, Planet	Starter ([01.2013 - ] 12V 1.6KW (1301- ))
90080-18070	NUT, WWASHER	Starter ([01.2013 - ] 12V 1.6KW (1301- ))
90099-02228	WASHER	Starter ([01.2013 - ] 12V 1.6KW (1301- ))
90099-04561	BOLT	Starter ([01.2013 - ] 12V 1.6KW (1301- ))
90099-04572	BOLT	Starter ([01.2013 - ] 12V 1.6KW (1301- ))
90099-05178	New Genuine Part	Starter ([01.2013 - ] 12V 1.6KW (1301- ))
90099-07068	RING SNAP	Starter ([01.2013 - ] 12V 1.6KW (1301- ))
90119-A0104	Bolt with Washer	Starter ([01.2013 - ] 12V 1.6KW (1301- ))
90179-08204	Nut	Starter ([01.2013 - ] 12V 1.6KW (1301- ))
91612-61065	Bolt(For Transaxle & Engine Setting)	Starter ([01.2013 - ] 12V 1.6KW (1301- ))
