検索 › 型式 › ZRE120

ZRE120

Toyota カローラ · 2007 · 3,997 部品 · 221 カテゴリ

3,997 件

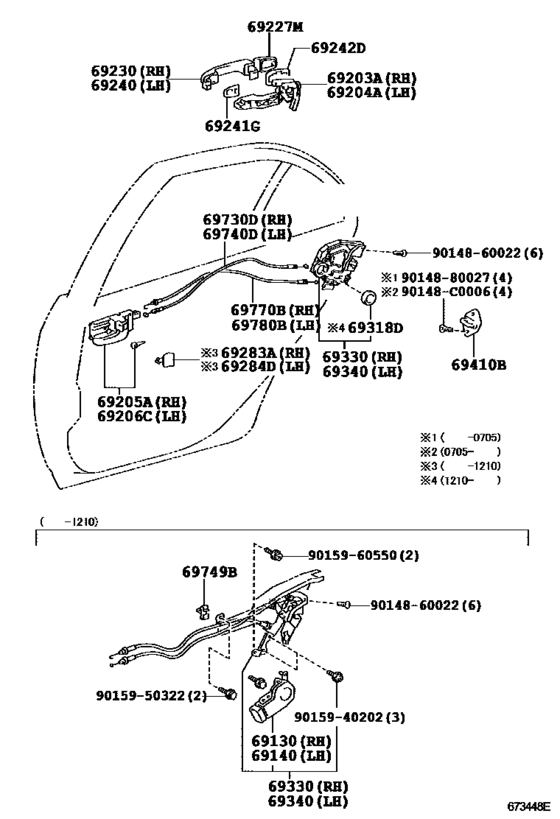

Rear Door Lock & Handle ([02.2004 - ] (0402- )) 47

#	OEM	部品名
69130	69130-12040	Actuator Assy, Rear Door Lock, Rh
69130	69130-12070	Actuator Assy, Rear Door Lock, Rh
69140	69140-12040	Actuator Assy, Rear Door Lock, Lh
69140	69140-12070	Actuator Assy, Rear Door Lock, Lh
69203	69203-02190	Frame Sub-Assy, Rear Door Outside Handle, Rh
69203	69203-YK010	Frame Sub-Assy, Rear Door Outside Handle, Rh
69204	69204-02190	Frame Sub-Assy, Rear Door Outside Handle, Lh
69204	69204-YK010	Frame Sub-Assy, Rear Door Outside Handle, Lh
69205	69205-0D040-A0	Handle Sub-Assy, Front Door Inside, Rh
69206	69206-0D040-A0	Handle Sub-Assy, Front Door Inside, Lh
69227	69227-02160-A0	Cover, Rear Door Outside Handle, Rh
69227	69227-02160-B0	Cover, Rear Door Outside Handle, Rh
69227	69227-02160-B1	Cover, Rear Door Outside Handle, Rh
69227	69227-02160-B2	Cover, Rear Door Outside Handle, Rh
69227	69227-02160-C0	Cover, Rear Door Outside Handle, Rh
69227	69227-02160-D0	Cover, Rear Door Outside Handle, Rh
69227	69227-02160-F0	Cover, Rear Door Outside Handle, Rh
69227	69227-02160-J3	Cover, Rear Door Outside Handle, Rh
69230	69211-02190-A0	Handle Assy, Front Door, Outside Rh
69230	69211-02190-B0	Handle Assy, Front Door, Outside Rh
69230	69211-02190-B1	Handle Assy, Front Door, Outside Rh
69230	69211-02190-B2	Handle Assy, Front Door, Outside Rh
69230	69211-02190-C0	Handle Assy, Front Door, Outside Rh
69230	69211-02190-D0	Handle Assy, Front Door, Outside Rh
69230	69211-02190-F0	Handle Assy, Front Door, Outside Rh
69230	69211-02190-J3	Handle Assy, Front Door, Outside Rh
69241	69241-02070	Pad, Front Door Outside Handle, Rh
69242	69242-02070	Pad, Front Door Outside Handle, Lh
69283	69283-12040-A0	Plug, Rear Door Inside Handle Bezel, Rh
69318	69318-51010	Seal, Front Door Lock Hole, Rh
69330	69050-02161	Lock Assy, Rear Door, Rh
69330	69050-02310	Lock Assy, Rear Door, Rh
69330	69050-YK010	Lock Assy, Rear Door, Rh
69340	69060-02151	Lock Assy, Rear Door, Lh
69340	69060-02310	Lock Assy, Rear Door, Lh
69340	69060-YK010	Lock Assy, Rear Door, Lh
69410	69410-0D020	Plate Assy, Front Door Lock Striker
69730	69730-YK010	Cable Assy, Rear Door Lock Remote Control, Rh
69749	69749-32040	Clamp, Front Door Lock Link
69770	69770-YK010	Cable Assy, Rear Door Inside Locking, Rh
90148	90148-C0006	New Genuine Part
9014860022	90148-60022	BOLT
9014860022	90148-A0005	Hexalobular Screw
9014880027	90148-80027	Screw Hex Lobular
9015940202	90159-40202	SCREW WWASHER
9015950322	90159-50322	SCREW WWASHER
9015960550	90159-60550	New Genuine Part

OEM	部品名	カテゴリ
69050-02161	Lock Assy, Rear Door, Rh	Rear Door Lock & Handle ([02.2004 - ] (0402- ))
69050-02310	Lock Assy, Rear Door, Rh	Rear Door Lock & Handle ([02.2004 - ] (0402- ))
69050-YK010	Lock Assy, Rear Door, Rh	Rear Door Lock & Handle ([02.2004 - ] (0402- ))
69060-02151	Lock Assy, Rear Door, Lh	Rear Door Lock & Handle ([02.2004 - ] (0402- ))
69060-02310	Lock Assy, Rear Door, Lh	Rear Door Lock & Handle ([02.2004 - ] (0402- ))
69060-YK010	Lock Assy, Rear Door, Lh	Rear Door Lock & Handle ([02.2004 - ] (0402- ))
69130-12040	Actuator Assy, Rear Door Lock, Rh	Rear Door Lock & Handle ([02.2004 - ] (0402- ))
69130-12070	Actuator Assy, Rear Door Lock, Rh	Rear Door Lock & Handle ([02.2004 - ] (0402- ))
69140-12040	Actuator Assy, Rear Door Lock, Lh	Rear Door Lock & Handle ([02.2004 - ] (0402- ))
69140-12070	Actuator Assy, Rear Door Lock, Lh	Rear Door Lock & Handle ([02.2004 - ] (0402- ))
69203-02190	Frame Sub-Assy, Rear Door Outside Handle, Rh	Rear Door Lock & Handle ([02.2004 - ] (0402- ))
69203-YK010	Frame Sub-Assy, Rear Door Outside Handle, Rh	Rear Door Lock & Handle ([02.2004 - ] (0402- ))
69204-02190	Frame Sub-Assy, Rear Door Outside Handle, Lh	Rear Door Lock & Handle ([02.2004 - ] (0402- ))
69204-YK010	Frame Sub-Assy, Rear Door Outside Handle, Lh	Rear Door Lock & Handle ([02.2004 - ] (0402- ))
69205-0D040-A0	Handle Sub-Assy, Front Door Inside, Rh	Rear Door Lock & Handle ([02.2004 - ] (0402- ))
69206-0D040-A0	Handle Sub-Assy, Front Door Inside, Lh	Rear Door Lock & Handle ([02.2004 - ] (0402- ))
69211-02190-A0	Handle Assy, Front Door, Outside Rh	Rear Door Lock & Handle ([02.2004 - ] (0402- ))
69211-02190-B0	Handle Assy, Front Door, Outside Rh	Rear Door Lock & Handle ([02.2004 - ] (0402- ))
69211-02190-B1	Handle Assy, Front Door, Outside Rh	Rear Door Lock & Handle ([02.2004 - ] (0402- ))
69211-02190-B2	Handle Assy, Front Door, Outside Rh	Rear Door Lock & Handle ([02.2004 - ] (0402- ))
69211-02190-C0	Handle Assy, Front Door, Outside Rh	Rear Door Lock & Handle ([02.2004 - ] (0402- ))
69211-02190-D0	Handle Assy, Front Door, Outside Rh	Rear Door Lock & Handle ([02.2004 - ] (0402- ))
69211-02190-F0	Handle Assy, Front Door, Outside Rh	Rear Door Lock & Handle ([02.2004 - ] (0402- ))
69211-02190-J3	Handle Assy, Front Door, Outside Rh	Rear Door Lock & Handle ([02.2004 - ] (0402- ))
69227-02160-A0	Cover, Rear Door Outside Handle, Rh	Rear Door Lock & Handle ([02.2004 - ] (0402- ))
69227-02160-B0	Cover, Rear Door Outside Handle, Rh	Rear Door Lock & Handle ([02.2004 - ] (0402- ))
69227-02160-B1	Cover, Rear Door Outside Handle, Rh	Rear Door Lock & Handle ([02.2004 - ] (0402- ))
69227-02160-B2	Cover, Rear Door Outside Handle, Rh	Rear Door Lock & Handle ([02.2004 - ] (0402- ))
69227-02160-C0	Cover, Rear Door Outside Handle, Rh	Rear Door Lock & Handle ([02.2004 - ] (0402- ))
69227-02160-D0	Cover, Rear Door Outside Handle, Rh	Rear Door Lock & Handle ([02.2004 - ] (0402- ))
69227-02160-F0	Cover, Rear Door Outside Handle, Rh	Rear Door Lock & Handle ([02.2004 - ] (0402- ))
69227-02160-J3	Cover, Rear Door Outside Handle, Rh	Rear Door Lock & Handle ([02.2004 - ] (0402- ))
69241-02070	Pad, Front Door Outside Handle, Rh	Rear Door Lock & Handle ([02.2004 - ] (0402- ))
69242-02070	Pad, Front Door Outside Handle, Lh	Rear Door Lock & Handle ([02.2004 - ] (0402- ))
69283-12040-A0	Plug, Rear Door Inside Handle Bezel, Rh	Rear Door Lock & Handle ([02.2004 - ] (0402- ))
69318-51010	Seal, Front Door Lock Hole, Rh	Rear Door Lock & Handle ([02.2004 - ] (0402- ))
69410-0D020	Plate Assy, Front Door Lock Striker	Rear Door Lock & Handle ([02.2004 - ] (0402- ))
69730-YK010	Cable Assy, Rear Door Lock Remote Control, Rh	Rear Door Lock & Handle ([02.2004 - ] (0402- ))
69749-32040	Clamp, Front Door Lock Link	Rear Door Lock & Handle ([02.2004 - ] (0402- ))
69770-YK010	Cable Assy, Rear Door Inside Locking, Rh	Rear Door Lock & Handle ([02.2004 - ] (0402- ))
90148-60022	BOLT	Rear Door Lock & Handle ([02.2004 - ] (0402- ))
90148-80027	Screw Hex Lobular	Rear Door Lock & Handle ([02.2004 - ] (0402- ))
90148-A0005	Hexalobular Screw	Rear Door Lock & Handle ([02.2004 - ] (0402- ))
90148-C0006	New Genuine Part	Rear Door Lock & Handle ([02.2004 - ] (0402- ))
90159-40202	SCREW WWASHER	Rear Door Lock & Handle ([02.2004 - ] (0402- ))
90159-50322	SCREW WWASHER	Rear Door Lock & Handle ([02.2004 - ] (0402- ))
90159-60550	New Genuine Part	Rear Door Lock & Handle ([02.2004 - ] (0402- ))
