ZRE120

Toyota COROLLA · 2007 · 3,997 parts · 221 categories

3,997 items

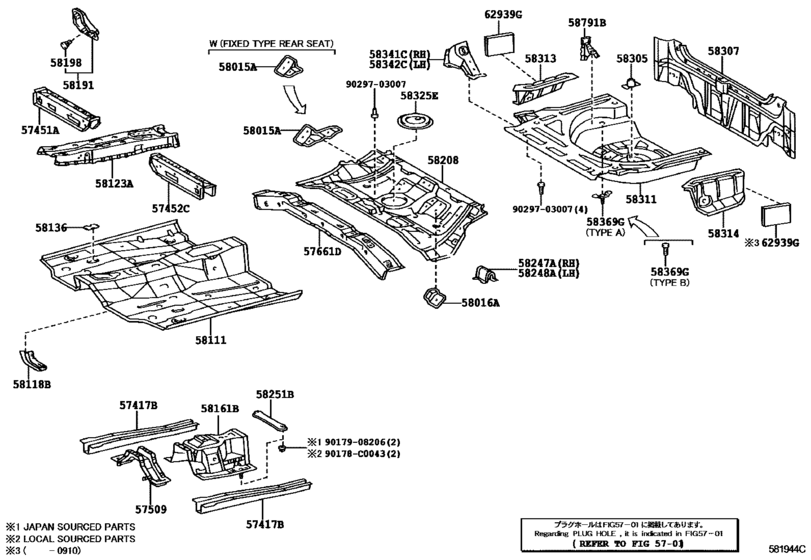

Floor Pan & Lower Back Panel ([02.2004 - 10.2012] (0402-1210)) 48

#	OEM	Part name
57417	57505-02020	Reinforcement, Front Floor Under
57451	57451-02130	Member, Front Floor Cross, Rh
57452	57452-02070	Member, Front Floor Cross, Lh
57509	57509-12040	Reinforcement Sub-Assy, Front Floor, Center
57509	57509-YK010	Reinforcement Sub-Assy, Front Floor, Center
57661	57661-02100	Member, Rear Floor Cross, Front
58015	58015-12060	Reinforce Sub-Assy, Belt Anchor, No.3 Rh
58015	58015-YK010	Reinforce Sub-Assy, Belt Anchor, No.3 Rh
58016	58016-32050	Reinforce Sub-Assy, Belt Anchor, No.3 Lh
58016	58016-YK010	Reinforce Sub-Assy, Belt Anchor, No.3 Lh
58111	58111-02100	Pan, Front Floor
58118	58118-20011	Reinforcement, Front Floor Panel, No.2
58118	58118-YK020	Reinforcement, Front Floor Panel, No.2
58123	58013-02100	Support, Shift & Select Lever
58123	58013-YK010	Support, Shift & Select Lever
58136	58136-33010	Cover, Front Floor Hole
58136	58136-YK010	Cover, Front Floor Hole
58161	57805-12080	Reinforcement, Belt Anchor To Floor Pan
58161	57805-YK010	Reinforcement, Belt Anchor To Floor Pan
58191	58192-02090	Footrest, Front Floor
58198	90467-09220	Clip, Footrest
58208	58211-02240	Pan, Center Floor
58247	58247-02140	Reinforcement, Rear Seat Cushion Hinge, Rh
58247	58247-12070	Reinforcement, Rear Seat Cushion Hinge, Rh
58251	58251-02050	Brace, Floor Panel, Front
58251	58251-12030	Brace, Floor Panel, Front
58305	58351-02030	Bracket Sub-Assy, Spare Wheel Clamp
58305	58351-33010	Bracket Sub-Assy, Spare Wheel Clamp
58307	58307-02160	Panel Sub-Assy, Body Lower Back
58311	58311-02170	Pan, Rear Floor
58313	58313-02080	Panel, Rear Floor Side, Rh
58314	58314-02080	Panel, Rear Floor Side, Lh
58325	58325-12110	Cover, Rear Floor Service Hole
58325	58325-YK010	Cover, Rear Floor Service Hole
58341	58341-02080	Bracket, Rear Absorber Mounting, No.1 Rh
58341	58341-12020	Bracket, Rear Absorber Mounting, No.1 Rh
58342	58342-02010	Bracket, Rear Absorber Mounting, No.1 Lh
58342	58342-02090	Bracket, Rear Absorber Mounting, No.1 Lh
58369	58369-02010	Bracket, Fuel Tube, No.3
58369	58369-12020	Bracket, Fuel Tube, No.3
58369	90115-06166	Bolt, Weld(For Front Floor Pan)
58369	90115-C0014	Bolt, Weld(For Front Floor Pan)
58791	58791-02080	Carrier, Jack
58791	58791-12200	Carrier, Jack
62939	62939-02030	Silencer, Quarter Vent
90178	90178-C0043	New Genuine Part
9017908206	90179-08206	Nut(For Front Suspension Support)
9029703007	90297-03007	Retainer, Rear Heater Mounting

OEM	Part name	Category
57451-02130	Member, Front Floor Cross, Rh	Floor Pan & Lower Back Panel ([02.2004 - 10.2012] (0402-1210))
57452-02070	Member, Front Floor Cross, Lh	Floor Pan & Lower Back Panel ([02.2004 - 10.2012] (0402-1210))
57505-02020	Reinforcement, Front Floor Under	Floor Pan & Lower Back Panel ([02.2004 - 10.2012] (0402-1210))
57509-12040	Reinforcement Sub-Assy, Front Floor, Center	Floor Pan & Lower Back Panel ([02.2004 - 10.2012] (0402-1210))
57509-YK010	Reinforcement Sub-Assy, Front Floor, Center	Floor Pan & Lower Back Panel ([02.2004 - 10.2012] (0402-1210))
57661-02100	Member, Rear Floor Cross, Front	Floor Pan & Lower Back Panel ([02.2004 - 10.2012] (0402-1210))
57805-12080	Reinforcement, Belt Anchor To Floor Pan	Floor Pan & Lower Back Panel ([02.2004 - 10.2012] (0402-1210))
57805-YK010	Reinforcement, Belt Anchor To Floor Pan	Floor Pan & Lower Back Panel ([02.2004 - 10.2012] (0402-1210))
58013-02100	Support, Shift & Select Lever	Floor Pan & Lower Back Panel ([02.2004 - 10.2012] (0402-1210))
58013-YK010	Support, Shift & Select Lever	Floor Pan & Lower Back Panel ([02.2004 - 10.2012] (0402-1210))
58015-12060	Reinforce Sub-Assy, Belt Anchor, No.3 Rh	Floor Pan & Lower Back Panel ([02.2004 - 10.2012] (0402-1210))
58015-YK010	Reinforce Sub-Assy, Belt Anchor, No.3 Rh	Floor Pan & Lower Back Panel ([02.2004 - 10.2012] (0402-1210))
58016-32050	Reinforce Sub-Assy, Belt Anchor, No.3 Lh	Floor Pan & Lower Back Panel ([02.2004 - 10.2012] (0402-1210))
58016-YK010	Reinforce Sub-Assy, Belt Anchor, No.3 Lh	Floor Pan & Lower Back Panel ([02.2004 - 10.2012] (0402-1210))
58111-02100	Pan, Front Floor	Floor Pan & Lower Back Panel ([02.2004 - 10.2012] (0402-1210))
58118-20011	Reinforcement, Front Floor Panel, No.2	Floor Pan & Lower Back Panel ([02.2004 - 10.2012] (0402-1210))
58118-YK020	Reinforcement, Front Floor Panel, No.2	Floor Pan & Lower Back Panel ([02.2004 - 10.2012] (0402-1210))
58136-33010	Cover, Front Floor Hole	Floor Pan & Lower Back Panel ([02.2004 - 10.2012] (0402-1210))
58136-YK010	Cover, Front Floor Hole	Floor Pan & Lower Back Panel ([02.2004 - 10.2012] (0402-1210))
58192-02090	Footrest, Front Floor	Floor Pan & Lower Back Panel ([02.2004 - 10.2012] (0402-1210))
58211-02240	Pan, Center Floor	Floor Pan & Lower Back Panel ([02.2004 - 10.2012] (0402-1210))
58247-02140	Reinforcement, Rear Seat Cushion Hinge, Rh	Floor Pan & Lower Back Panel ([02.2004 - 10.2012] (0402-1210))
58247-12070	Reinforcement, Rear Seat Cushion Hinge, Rh	Floor Pan & Lower Back Panel ([02.2004 - 10.2012] (0402-1210))
58251-02050	Brace, Floor Panel, Front	Floor Pan & Lower Back Panel ([02.2004 - 10.2012] (0402-1210))
58251-12030	Brace, Floor Panel, Front	Floor Pan & Lower Back Panel ([02.2004 - 10.2012] (0402-1210))
58307-02160	Panel Sub-Assy, Body Lower Back	Floor Pan & Lower Back Panel ([02.2004 - 10.2012] (0402-1210))
58311-02170	Pan, Rear Floor	Floor Pan & Lower Back Panel ([02.2004 - 10.2012] (0402-1210))
58313-02080	Panel, Rear Floor Side, Rh	Floor Pan & Lower Back Panel ([02.2004 - 10.2012] (0402-1210))
58314-02080	Panel, Rear Floor Side, Lh	Floor Pan & Lower Back Panel ([02.2004 - 10.2012] (0402-1210))
58325-12110	Cover, Rear Floor Service Hole	Floor Pan & Lower Back Panel ([02.2004 - 10.2012] (0402-1210))
58325-YK010	Cover, Rear Floor Service Hole	Floor Pan & Lower Back Panel ([02.2004 - 10.2012] (0402-1210))
58341-02080	Bracket, Rear Absorber Mounting, No.1 Rh	Floor Pan & Lower Back Panel ([02.2004 - 10.2012] (0402-1210))
58341-12020	Bracket, Rear Absorber Mounting, No.1 Rh	Floor Pan & Lower Back Panel ([02.2004 - 10.2012] (0402-1210))
58342-02010	Bracket, Rear Absorber Mounting, No.1 Lh	Floor Pan & Lower Back Panel ([02.2004 - 10.2012] (0402-1210))
58342-02090	Bracket, Rear Absorber Mounting, No.1 Lh	Floor Pan & Lower Back Panel ([02.2004 - 10.2012] (0402-1210))
58351-02030	Bracket Sub-Assy, Spare Wheel Clamp	Floor Pan & Lower Back Panel ([02.2004 - 10.2012] (0402-1210))
58351-33010	Bracket Sub-Assy, Spare Wheel Clamp	Floor Pan & Lower Back Panel ([02.2004 - 10.2012] (0402-1210))
58369-02010	Bracket, Fuel Tube, No.3	Floor Pan & Lower Back Panel ([02.2004 - 10.2012] (0402-1210))
58369-12020	Bracket, Fuel Tube, No.3	Floor Pan & Lower Back Panel ([02.2004 - 10.2012] (0402-1210))
58791-02080	Carrier, Jack	Floor Pan & Lower Back Panel ([02.2004 - 10.2012] (0402-1210))
58791-12200	Carrier, Jack	Floor Pan & Lower Back Panel ([02.2004 - 10.2012] (0402-1210))
62939-02030	Silencer, Quarter Vent	Floor Pan & Lower Back Panel ([02.2004 - 10.2012] (0402-1210))
90115-06166	Bolt, Weld(For Front Floor Pan)	Floor Pan & Lower Back Panel ([02.2004 - 10.2012] (0402-1210))
90115-C0014	Bolt, Weld(For Front Floor Pan)	Floor Pan & Lower Back Panel ([02.2004 - 10.2012] (0402-1210))
90178-C0043	New Genuine Part	Floor Pan & Lower Back Panel ([02.2004 - 10.2012] (0402-1210))
90179-08206	Nut(For Front Suspension Support)	Floor Pan & Lower Back Panel ([02.2004 - 10.2012] (0402-1210))
90297-03007	Retainer, Rear Heater Mounting	Floor Pan & Lower Back Panel ([02.2004 - 10.2012] (0402-1210))
90467-09220	Clip, Footrest	Floor Pan & Lower Back Panel ([02.2004 - 10.2012] (0402-1210))

Source: Public OEM parts-catalog data
Variants: 2 / 2
Category: 221
Collected: 2026-08-02
