Search › Model › ZNR10

ZNR10

Toyota COROLLA-VERSO · 2004 · 3,569 parts · 182 categories

3,569 items

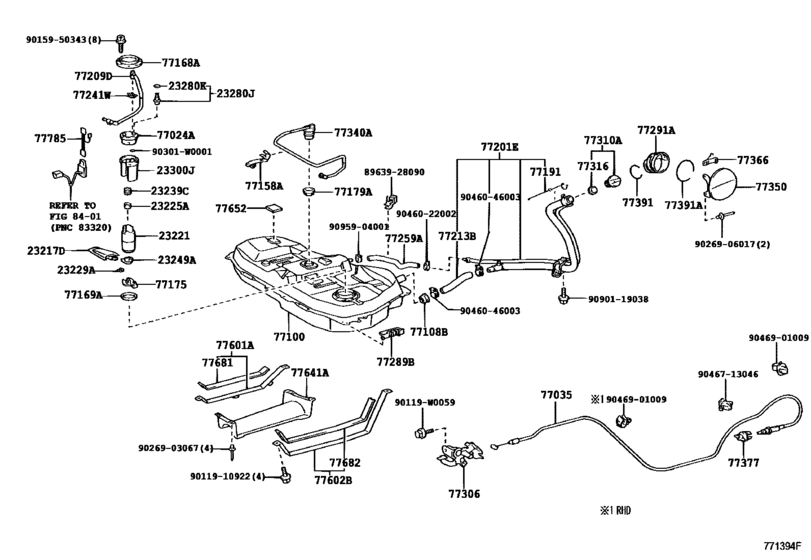

Fuel Tank & Tube ([02.2004 - ] FUEL TANK (0402- )ZNR1#) 65

#	OEM	Part name
23217	23217-0D070	Filter, Fuel Pump
23221	23221-0D080	Pump, Fuel
23221	23221-0D081	Pump, Fuel
23225	23225-0D020	Spacer, Fuel Pump
23225	23225-21010	Spacer, Fuel Pump
23229	23229-16010	Clip(For Fuel Pump Filter)
23229	23219-03010	Clip(For Fuel Pump Filter)
23239	23239-0D020	Seal, Fuel Pump Filter
23239	23239-21010	Seal, Fuel Pump Filter
23249	23249-74610	Rubber, Cushion(For Fuel Pump)
23280	23280-22010	Regulator Assy, Fuel Pressure
23280	90301-07020	Ring, O(For Fuel Pressure Regulator)
23300	23300-28040	Filter Assy, Fuel
77024	77024-0F010	Plate Sub-Assy, Fuel Suction
77035	77035-0F010	Cable Sub-Assy, Fuel Lid Lock Control
77100	77001-0F010	Tank Assy, Fuel
77108	77108-12040	Valve Sub-Assy, Fuel Tank Filler Check
77158	77158-68010	Support, Tank Suction Tube
77168	77168-02010	Plate, Fuel Tank Vent Tube Set
77169	77169-33020	Gasket, Fuel Pump Bracket
77175	77175-0F010	Support, Fuel Suction, No.2
77175	77175-52020	Support, Fuel Suction, No.2
77179	77179-33010	Gasket, Fuel Tank Evap/vent Tube
77191	77191-02020	Wire, Fuel Tank Earth
77201	77210-0F010	Pipe Sub-Assy, Fuel Tank Filler
77201	77210-0F012	Pipe Sub-Assy, Fuel Tank Filler
77201	77210-0F011	Pipe Sub-Assy, Fuel Tank Filler
77209	77209-0F010	Tube Sub-Assy, Fuel Tank Main
77213	77213-64010	Hose, Fuel Tank To Filler Pipe
77241	77241-0F010	Clip, Tube Joint
77259	77259-64010	Hose, Fuel(For Breather Tube)
77289	77289-68010	Clamp, Fuel Tube, No.3
77291	77291-0F010	Shield, Fuel Tank Filler Pipe
77306	77306-0F010	Lever Sub-Assy, Fuel Lid Lock Open
77310	77300-28010	Cap Assy, Fuel Tank
77316	77316-16010	Gasket (For Fuel Tank Cap)
77340	77340-0F010	Valve Assy, Fuel Cut Off W/tube
77350	77350-64010	Lid Assy, Fuel Filler Opening
77366	77360-21010	Spring, Fuel Filler Opening Lid Hinge
77377	77377-02020	Retainer, Fuel Filler Opening Lid Lock
77391	77391-12020	Ring, Fuel Inlet Box
77391	77391-63010	Ring, Fuel Inlet Box
77601	77601-0F010	Band Sub-Assy, Fuel Tank, No.1
77602	77602-0F010	Band Sub-Assy, Fuel Tank, No.1 Lh
77641	77641-0F010	Protector, Fuel Tank, No.1
77652	77651-20090	Cushion, Fuel Tank, No.1
77681	77681-02030	Seat, Fuel Tank Band, Rh
77682	77682-0F010	Seat, Fuel Tank Band, Lh
77785	77785-0F010	Harness, Fuel Pump
90119	90119-W0059	New Genuine Part
90301	90301-W0001	New Genuine Part
8963928090	89639-28090	Wire, Brake Control
9011910922	90119-10922	BOLT WWASHER
9011910922	90080-11654	New Genuine Part
9015950343	90159-50343	SCREW, W-WASHER
9026903067	90269-03067	RIVET
9026906017	90269-06017	RIVET
9046022002	90460-22002	CLAMP
9046022002	90460-22001	CLAMP
9046046003	90460-46003	Clamp (For Fuel Filler Pipe)
9046046003	90460-46005	Clamp (For Fuel Filler Pipe)
9046713046	90467-13046	New Genuine Part
9046901009	90469-01009	Clamp(For Hood Lock Control Cable)
9090119038	90901-19038	New Genuine Part
9095904001	90959-04001	Clip, Fuel Hose

OEM	Part name	Category
23217-0D070	Filter, Fuel Pump	Fuel Tank & Tube ([02.2004 - ] FUEL TANK (0402- )ZNR1#)
23219-03010	Clip(For Fuel Pump Filter)	Fuel Tank & Tube ([02.2004 - ] FUEL TANK (0402- )ZNR1#)
23221-0D080	Pump, Fuel	Fuel Tank & Tube ([02.2004 - ] FUEL TANK (0402- )ZNR1#)
23221-0D081	Pump, Fuel	Fuel Tank & Tube ([02.2004 - ] FUEL TANK (0402- )ZNR1#)
23225-0D020	Spacer, Fuel Pump	Fuel Tank & Tube ([02.2004 - ] FUEL TANK (0402- )ZNR1#)
23225-21010	Spacer, Fuel Pump	Fuel Tank & Tube ([02.2004 - ] FUEL TANK (0402- )ZNR1#)
23229-16010	Clip(For Fuel Pump Filter)	Fuel Tank & Tube ([02.2004 - ] FUEL TANK (0402- )ZNR1#)
23239-0D020	Seal, Fuel Pump Filter	Fuel Tank & Tube ([02.2004 - ] FUEL TANK (0402- )ZNR1#)
23239-21010	Seal, Fuel Pump Filter	Fuel Tank & Tube ([02.2004 - ] FUEL TANK (0402- )ZNR1#)
23249-74610	Rubber, Cushion(For Fuel Pump)	Fuel Tank & Tube ([02.2004 - ] FUEL TANK (0402- )ZNR1#)
23280-22010	Regulator Assy, Fuel Pressure	Fuel Tank & Tube ([02.2004 - ] FUEL TANK (0402- )ZNR1#)
23300-28040	Filter Assy, Fuel	Fuel Tank & Tube ([02.2004 - ] FUEL TANK (0402- )ZNR1#)
77001-0F010	Tank Assy, Fuel	Fuel Tank & Tube ([02.2004 - ] FUEL TANK (0402- )ZNR1#)
77024-0F010	Plate Sub-Assy, Fuel Suction	Fuel Tank & Tube ([02.2004 - ] FUEL TANK (0402- )ZNR1#)
77035-0F010	Cable Sub-Assy, Fuel Lid Lock Control	Fuel Tank & Tube ([02.2004 - ] FUEL TANK (0402- )ZNR1#)
77108-12040	Valve Sub-Assy, Fuel Tank Filler Check	Fuel Tank & Tube ([02.2004 - ] FUEL TANK (0402- )ZNR1#)
77158-68010	Support, Tank Suction Tube	Fuel Tank & Tube ([02.2004 - ] FUEL TANK (0402- )ZNR1#)
77168-02010	Plate, Fuel Tank Vent Tube Set	Fuel Tank & Tube ([02.2004 - ] FUEL TANK (0402- )ZNR1#)
77169-33020	Gasket, Fuel Pump Bracket	Fuel Tank & Tube ([02.2004 - ] FUEL TANK (0402- )ZNR1#)
77175-0F010	Support, Fuel Suction, No.2	Fuel Tank & Tube ([02.2004 - ] FUEL TANK (0402- )ZNR1#)
77175-52020	Support, Fuel Suction, No.2	Fuel Tank & Tube ([02.2004 - ] FUEL TANK (0402- )ZNR1#)
77179-33010	Gasket, Fuel Tank Evap/vent Tube	Fuel Tank & Tube ([02.2004 - ] FUEL TANK (0402- )ZNR1#)
77191-02020	Wire, Fuel Tank Earth	Fuel Tank & Tube ([02.2004 - ] FUEL TANK (0402- )ZNR1#)
77209-0F010	Tube Sub-Assy, Fuel Tank Main	Fuel Tank & Tube ([02.2004 - ] FUEL TANK (0402- )ZNR1#)
77210-0F010	Pipe Sub-Assy, Fuel Tank Filler	Fuel Tank & Tube ([02.2004 - ] FUEL TANK (0402- )ZNR1#)
77210-0F011	Pipe Sub-Assy, Fuel Tank Filler	Fuel Tank & Tube ([02.2004 - ] FUEL TANK (0402- )ZNR1#)
77210-0F012	Pipe Sub-Assy, Fuel Tank Filler	Fuel Tank & Tube ([02.2004 - ] FUEL TANK (0402- )ZNR1#)
77213-64010	Hose, Fuel Tank To Filler Pipe	Fuel Tank & Tube ([02.2004 - ] FUEL TANK (0402- )ZNR1#)
77241-0F010	Clip, Tube Joint	Fuel Tank & Tube ([02.2004 - ] FUEL TANK (0402- )ZNR1#)
77259-64010	Hose, Fuel(For Breather Tube)	Fuel Tank & Tube ([02.2004 - ] FUEL TANK (0402- )ZNR1#)
77289-68010	Clamp, Fuel Tube, No.3	Fuel Tank & Tube ([02.2004 - ] FUEL TANK (0402- )ZNR1#)
77291-0F010	Shield, Fuel Tank Filler Pipe	Fuel Tank & Tube ([02.2004 - ] FUEL TANK (0402- )ZNR1#)
77300-28010	Cap Assy, Fuel Tank	Fuel Tank & Tube ([02.2004 - ] FUEL TANK (0402- )ZNR1#)
77306-0F010	Lever Sub-Assy, Fuel Lid Lock Open	Fuel Tank & Tube ([02.2004 - ] FUEL TANK (0402- )ZNR1#)
77316-16010	Gasket (For Fuel Tank Cap)	Fuel Tank & Tube ([02.2004 - ] FUEL TANK (0402- )ZNR1#)
77340-0F010	Valve Assy, Fuel Cut Off W/tube	Fuel Tank & Tube ([02.2004 - ] FUEL TANK (0402- )ZNR1#)
77350-64010	Lid Assy, Fuel Filler Opening	Fuel Tank & Tube ([02.2004 - ] FUEL TANK (0402- )ZNR1#)
77360-21010	Spring, Fuel Filler Opening Lid Hinge	Fuel Tank & Tube ([02.2004 - ] FUEL TANK (0402- )ZNR1#)
77377-02020	Retainer, Fuel Filler Opening Lid Lock	Fuel Tank & Tube ([02.2004 - ] FUEL TANK (0402- )ZNR1#)
77391-12020	Ring, Fuel Inlet Box	Fuel Tank & Tube ([02.2004 - ] FUEL TANK (0402- )ZNR1#)
77391-63010	Ring, Fuel Inlet Box	Fuel Tank & Tube ([02.2004 - ] FUEL TANK (0402- )ZNR1#)
77601-0F010	Band Sub-Assy, Fuel Tank, No.1	Fuel Tank & Tube ([02.2004 - ] FUEL TANK (0402- )ZNR1#)
77602-0F010	Band Sub-Assy, Fuel Tank, No.1 Lh	Fuel Tank & Tube ([02.2004 - ] FUEL TANK (0402- )ZNR1#)
77641-0F010	Protector, Fuel Tank, No.1	Fuel Tank & Tube ([02.2004 - ] FUEL TANK (0402- )ZNR1#)
77651-20090	Cushion, Fuel Tank, No.1	Fuel Tank & Tube ([02.2004 - ] FUEL TANK (0402- )ZNR1#)
77681-02030	Seat, Fuel Tank Band, Rh	Fuel Tank & Tube ([02.2004 - ] FUEL TANK (0402- )ZNR1#)
77682-0F010	Seat, Fuel Tank Band, Lh	Fuel Tank & Tube ([02.2004 - ] FUEL TANK (0402- )ZNR1#)
77785-0F010	Harness, Fuel Pump	Fuel Tank & Tube ([02.2004 - ] FUEL TANK (0402- )ZNR1#)
89639-28090	Wire, Brake Control	Fuel Tank & Tube ([02.2004 - ] FUEL TANK (0402- )ZNR1#)
90080-11654	New Genuine Part	Fuel Tank & Tube ([02.2004 - ] FUEL TANK (0402- )ZNR1#)
90119-10922	BOLT WWASHER	Fuel Tank & Tube ([02.2004 - ] FUEL TANK (0402- )ZNR1#)
90119-W0059	New Genuine Part	Fuel Tank & Tube ([02.2004 - ] FUEL TANK (0402- )ZNR1#)
90159-50343	SCREW, W-WASHER	Fuel Tank & Tube ([02.2004 - ] FUEL TANK (0402- )ZNR1#)
90269-03067	RIVET	Fuel Tank & Tube ([02.2004 - ] FUEL TANK (0402- )ZNR1#)
90269-06017	RIVET	Fuel Tank & Tube ([02.2004 - ] FUEL TANK (0402- )ZNR1#)
90301-07020	Ring, O(For Fuel Pressure Regulator)	Fuel Tank & Tube ([02.2004 - ] FUEL TANK (0402- )ZNR1#)
90301-W0001	New Genuine Part	Fuel Tank & Tube ([02.2004 - ] FUEL TANK (0402- )ZNR1#)
90460-22001	CLAMP	Fuel Tank & Tube ([02.2004 - ] FUEL TANK (0402- )ZNR1#)
90460-22002	CLAMP	Fuel Tank & Tube ([02.2004 - ] FUEL TANK (0402- )ZNR1#)
90460-46003	Clamp (For Fuel Filler Pipe)	Fuel Tank & Tube ([02.2004 - ] FUEL TANK (0402- )ZNR1#)
90460-46005	Clamp (For Fuel Filler Pipe)	Fuel Tank & Tube ([02.2004 - ] FUEL TANK (0402- )ZNR1#)
90467-13046	New Genuine Part	Fuel Tank & Tube ([02.2004 - ] FUEL TANK (0402- )ZNR1#)
90469-01009	Clamp(For Hood Lock Control Cable)	Fuel Tank & Tube ([02.2004 - ] FUEL TANK (0402- )ZNR1#)
90901-19038	New Genuine Part	Fuel Tank & Tube ([02.2004 - ] FUEL TANK (0402- )ZNR1#)
90959-04001	Clip, Fuel Hose	Fuel Tank & Tube ([02.2004 - ] FUEL TANK (0402- )ZNR1#)

Source: Public OEM parts-catalog data
Variants: 2 / 7
Category: 182
Collected: 2026-08-02
