ZN6EC

Toyota GT86 · 2016 · 96 parts · 6 categories
ZN6EC ×
96 items

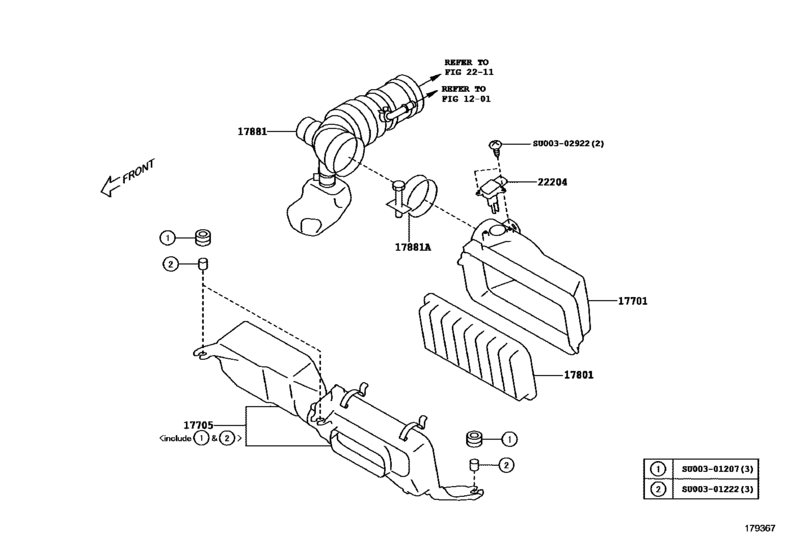

Air Cleaner ([08.2016 - ] (1608- )) 1
#OEMPart name
17801 17801-22020 Element Sub-Assy, Air Cleaner Filter
Front Seat & Seat Track ([08.2016 - ] CLIP (1608- )) 2
#OEMPart name
9046816019 90468-16019 Clip (For Rear Seat Back)
9046818008 90468-18008 Clip (For Rear Seat Back)

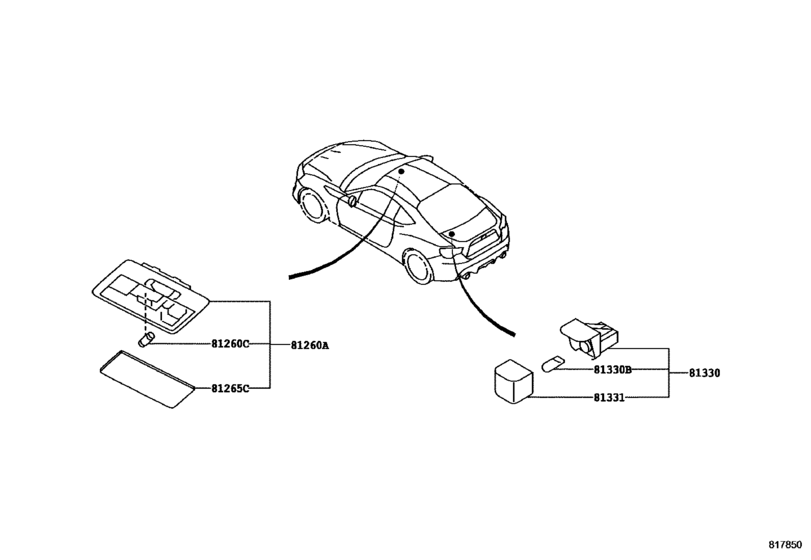

Interior Lamp ([08.2016 - ] MAP & LUGGAGE LAMP (1608- )) 1
#OEMPart name
81330 99132-12050 Bulb (12V 5W)
Rear Axle Housing & Differential ([08.2016 - ] (1608- )) 92
#OEMPart name
41110 41110-18021 Carrier Assy, Differential, Rear
41110 90341-18035 Plug, No.1 (With Magnet)
41110 12157-10010 Gasket (For Drain Plug)
41110 90930-03077 Plug, Breather (For Automatic Transmission Case)
41111 90250-08120 Pin, Straight, No.1
41114 90105-12164 Bolt (For Rear Differential Carrier)
41181 41108-53021 Cover, Rear Differential Carrier
41181 90105-10417 Bolt (For Front Differential Carrier Cover Setting)
41183 41183-53020 Deflector, Rear Differential Breather Plug Oil
41183 91611-B0614 Bolt (For Rear Differential Breather Plug Oil Deflector)
41201 41201-19606 Final Gear Kit, Differential, Rear
41201 90366-35170 Bearing (For Rear Drive Pinion Rear)
41201 90366-30108 Bearing (For Rear Drive Pinion Front)
41201 90311-38070 Seal, Oil (For Rear Differential Carrier)
41201 90201-35497 Washer, Plate (For Rear Differential Drive Pinion)
41201 90201-35498 Washer, Plate (For Rear Differential Drive Pinion)
41201 90201-35499 Washer, Plate (For Rear Differential Drive Pinion)
41201 90201-35500 Washer, Plate (For Rear Differential Drive Pinion)
41201 90201-35501 Washer, Plate (For Rear Differential Drive Pinion)
41201 90201-35502 Washer, Plate (For Rear Differential Drive Pinion)
41201 90201-35503 Washer, Plate (For Rear Differential Drive Pinion)
41201 90201-35504 Washer, Plate (For Rear Differential Drive Pinion)
41201 90201-35505 Washer, Plate (For Rear Differential Drive Pinion)
41201 90201-35506 Washer, Plate (For Rear Differential Drive Pinion)
41201 90201-35507 Washer, Plate (For Rear Differential Drive Pinion)
41201 90201-35508 Washer, Plate (For Rear Differential Drive Pinion)
41201 90201-35509 Washer, Plate (For Rear Differential Drive Pinion)
41201 90201-35510 Washer, Plate (For Rear Differential Drive Pinion)
41201 90201-35511 Washer, Plate (For Rear Differential Drive Pinion)
41201 90201-35512 Washer, Plate (For Rear Differential Drive Pinion)
41201 90201-35513 Washer, Plate (For Rear Differential Drive Pinion)
41201 90201-35514 Washer, Plate (For Rear Differential Drive Pinion)
41201 90201-35515 Washer, Plate (For Rear Differential Drive Pinion)
41201 90201-35516 Washer, Plate (For Rear Differential Drive Pinion)
41201 90201-35517 Washer, Plate (For Rear Differential Drive Pinion)
41201 90201-35518 Washer, Plate (For Rear Differential Drive Pinion)
41204 41204-35041 Flange Sub-Assy, Rear Drive Pinion Companion, Rear
41204 90179-20018 Nut (For Rear Drive Pinion)
41214 41214-26010 Slinger, Rear Differential Drive Pinion Oil
41222 41222-22010 Plate, Rear Differential Ring Gear Set Bolt Lock
41222 90101-11353 Bolt (For Rear Differential Ring Gear Set)
41231 41231-24010 Spacer, Rear Differential Drive Pinion Bearing
41252 41252-35020 Deflector, Dust (For Rear Differential)
41301 41301-53020 Case Sub-Assy, Rear Differential
41301 90366-50001 Bearing(For Rear Differential Case)
41334 90311-43009 Seal, Oil (For Rear Differential Side Gear Shaft)
41334 90201-52001 Washer, Plate (For Front Differential Case)
41334 90201-52003 Washer, Plate (For Front Differential Case)
41334 90201-52005 Washer, Plate (For Front Differential Case)
41334 90201-52007 Washer, Plate (For Front Differential Case)
41334 90201-52009 Washer, Plate (For Front Differential Case)
41334 90201-52011 Washer, Plate (For Front Differential Case)
41334 90201-52013 Washer, Plate (For Front Differential Case)
41334 90201-52015 Washer, Plate (For Front Differential Case)
41334 90201-52017 Washer, Plate (For Front Differential Case)
41334 90201-52019 Washer, Plate (For Front Differential Case)
41334 90201-52021 Washer, Plate (For Front Differential Case)
41334 90201-52023 Washer, Plate (For Front Differential Case)
41334 90201-52025 Washer, Plate (For Front Differential Case)
41334 90201-52027 Washer, Plate (For Front Differential Case)
41334 90201-52029 Washer, Plate (For Front Differential Case)
41334 90201-52031 Washer, Plate (For Front Differential Case)
41334 90564-46014 Washer, Plate (For Front Differential Case)
41334 90564-46015 Washer, Plate (For Front Differential Case)
41334 90564-46016 Washer, Plate (For Front Differential Case)
41334 90564-46017 Washer, Plate (For Front Differential Case)
41334 90564-46018 Washer, Plate (For Front Differential Case)
41334 90564-46019 Washer, Plate (For Front Differential Case)
41334 90564-46020 Washer, Plate (For Front Differential Case)
41334 90564-46021 Washer, Plate (For Front Differential Case)
41334 90564-46022 Washer, Plate (For Front Differential Case)
41334 90564-46023 Washer, Plate (For Front Differential Case)
41334 90564-46024 Washer, Plate (For Front Differential Case)
41334 90564-46025 Washer, Plate (For Front Differential Case)
41334 90564-46026 Washer, Plate (For Front Differential Case)
41334 90564-46027 Washer, Plate (For Front Differential Case)
41334 90564-46028 Washer, Plate (For Front Differential Case)
41334 90564-46029 Washer, Plate (For Front Differential Case)
41334 90564-46030 Washer, Plate (For Front Differential Case)
41334 90564-46031 Washer, Plate (For Front Differential Case)
41334 90564-46032 Washer, Plate (For Front Differential Case)
41334 90564-46033 Washer, Plate (For Front Differential Case)
41334 90564-46034 Washer, Plate (For Front Differential Case)
41334 90564-46035 Washer, Plate (For Front Differential Case)
41334 90564-46036 Washer, Plate (For Front Differential Case)
41334 90564-46037 Washer, Plate (For Front Differential Case)
41334 90564-46038 Washer, Plate (For Front Differential Case)
41334 90564-46039 Washer, Plate (For Front Differential Case)
41334 90564-46040 Washer, Plate (For Front Differential Case)
41334 90564-46041 Washer, Plate (For Front Differential Case)
41334 90564-46042 Washer, Plate (For Front Differential Case)
41334 90564-46043 Washer, Plate (For Front Differential Case)
Rear License Plate Lamp ([08.2016 - ] (1608- )) 1
#OEMPart name
81270 99132-12050 Bulb (12V 5W)
Rear Seat & Seat Track ([08.2016 - ] CLIP (1608- )) 2
#OEMPart name
9046816019 90468-16019 Clip (For Rear Seat Back)
9046818008 90468-18008 Clip (For Rear Seat Back)
