Air cleaner 26

#	OEM	部品名
1	17136-REJ-W00	Grommet - BREATHER PIPE
2	17201-RBJ-000	Case set - AIR CLEANER
3	17210-RBJ-000	Cover comp. - AIR CLEANER
4	17212-PN3-000	Rubber, AIR CLEANER MOUNTING
4	17212-P2J-J00	Rubber, AIR CLEANER MOUNTING
5	17212-RBJ-000	Tube - AIR CLEANER
6	17214-RBJ-000	Stay - AIR CLEANER
7	17215-RBJ-000	Stay comp. a - AIR CLEANER
8	17216-PN3-000	Collar - AIR CLEANER MOUNTING
9	17217-PN4-300	Clip - WIRE
10	17217-P2J-300	Clip - AIR CLEANER
11	17218-PN4-300	Collar - CLIP BRACKET
12	17219-P65-000	Clip - AIR CLEANER
13	17220-RBJ-000	AIR FILTER
14	17228-RBJ-000	Joint - THROTTLE RUBBER
15	17243-RBJ-000	Tube - AIR INTAKE
16	17255-RBJ-000	Stay - AIR INTAKE
17	17315-RAA-A00	Clamp - AIR FLOW (74)
18	17315-RMA-E01	Clamp - AIR FLOW (66)
19	37980-RC0-M01	Meter assy - AIR FLOW
20	37985-RAD-L11	Gasket
21	90001-P0A-000	Bolt-washer - SPECIAL, 6X35
22	90005-RGA-000	Bolt - CLAMP, 4X25
23	90006-RB0-003	Nut - INSERT, 6MM
24	91405-PG7-003	Clip - HOSE (D13)
25	91503-SZ3-003	Clip A

Air conditioner (COMPRESSOR) 10

#	OEM	部品名
1	38801-RK8-006	Valve sub assy. - SAFETY
2	38810-RBJ-006	Compressor comp.
3	38829-RB0-006	Nut
4	38900-RBJ-006	Clutch set - COMPRESSOR
5	38908-RBJ-006	Protector set - THERMAL
6	38912-RB0-006	Shim set
7	38913-RB0-006	Circlip - EXTERNAL, 45MM
8	38914-RB0-006	Circlip - EXTERNAL, 35MM
9	38924-RBJ-006	Coil set - SOLENOID
10	90023-PWA-000	Bolt - FLANGE, 8X102

Air conditioner (CONDENSER) 12

#	OEM	部品名
1	38611-RBB-003	Fan - COOLING
2	38615-RBJ-003	Shroud comp. - AIR CONDITIONER
3	38616-RBJ-003	Motor - COOLING FAN
4	80101-SFE-003	Filter sub assy.
5	80107-S2X-000	Mount - CONDENSER UPPER
6	80110-TM8-A01	Condenser sub assy.
7	80115-TM8-A00	Bracket - CONDENSER UPPER
8	80117-TM8-A01	Rubber a - SEAL
9	80118-TM8-A01	Rubber b - SEAL
10	80175-SE0-000	Mount - CONDENSER
11	90041-P3G-003	Screw-washer - 5X11
12	90043-PD2-003	Nut - HEX., 5MM (DENSO)

Air conditioner (HOSES/PIPES; LH) 16

#	OEM	部品名
1	80050-SP0-000	Label - AIR CONDITIONER CAUTION (HFC134A)
2	80311-TM8-A01	Hose comp. - SUCTION
3	80315-SZT-G01	Hose comp. - DISCHARGE
4	80321-TM8-A01	Pipe comp - AIR CONDITIONER
5	80341-TM8-A01	Pipe comp - RECEIVER
6	80361-TM8-A00	Clamp - AIR CONDITIONER PIPE
7	80450-S7S-003	Sensor assy - PRESSURE
8	80865-ST0-003	Cap h - VALVE (NICHIRIN)
9	80866-ST0-003	Cap l - VALVE (NICHIRIN)
10	80871-SN7-003	O-ring - 5/8"
11	80871-ST7-000	O-ring - 5/8"
12	80872-ST7-000	O-ring - 1/2"
13	80873-SN7-003	O-ring - 8MM
14	80873-ST7-000	O-ring - 8MM
15	91548-S3N-003	Clip - RECEIVER PIPE
16	91901-S0X-A00	Screw - PAN, 4X8

Air conditioner (SENSOR) 5

#	OEM	部品名
1	80510-S0A-941	Sensor - SUN BEAM
2	80525-S30-941	Sensor assy - AMBIENT
3	80541-TM8-A02	Hose - ASPIRATOR
5	80590-TF0-941	Sensor assy - HUMIDITY
7	91555-S2R-003	Clip - AMBIENT SENSOR

Auto air conditioner control (LH) 1

#	OEM	部品名
4	91640-SM4-003	Grommet - SCREW, 4MM

Auto tensioner 6

#	OEM	部品名
1	19230-RBJ-003	BELT, WATER PUMP(BANDO)
1	19230-RBJ-004	BELT, WATER PUMP(MITSUBOSHI)
2	31170-RBJ-003	Tensioner assy, Auto
3	31180-RBJ-003	Pulley comp - IDLER
4	31185-RBJ-003	Cover - BEARING
5	90002-P8A-A01	Bolt - SPECIAL, 10X30

Battery 20

#	OEM	部品名
1	31500-SAA-E01	Battery assy - 38B19L-MF) (FURUKAWA
1	31500-SAA-E02	Battery assy - 38B19L-MF) (YUASA
2	31512-TF0-000	Plate - BATTERY SETTING
3	31513-SP0-010	Bolt - BATTERY SETTING (210MM)
4	31521-TF0-000	Box - BATTERY
5	31522-TM8-000	Cover - BATTERY
6	31542-SA5-666	Plug - VENT (MF) (FURUKAWA)
6	31542-TM8-A01	Plug - VENT (MF) (YUASA)
7	32113-R60-003	Holder - CORRUGATED(BLACK) (10MM)
8	32410-TM8-000	Cable assy - STARTER
9	32415-RNA-A01	Nut - M6
10	32416-RNA-A01	Bolt - SQUARE (M6)
11	32418-TF0-003	Cover - BATTERY TERMINAL
12	32600-TM8-000	Cable assy - BATTERY EARTH
13	32601-SK7-900	Bolt - BATTERY TERMINAL
14	32602-SK7-900	Nut - BATTERY TERMINAL
15	38210-TF0-003	Terminal assy - BATTERY FUSE
16	90149-SE0-003	Bolt - EARTH, 6X16
17	90337-SJ4-003	Nut - A.L.B.
18	91540-TA0-003	Clip - HARNESS BAND(NATURAL) (100.1MM)

Brake master cylinder/ master power (LH) 32

#	OEM	部品名
1	01462-SDB-A01	Cylinder set - MASTER (20.64MM)
1	01462-SDB-A03	Cylinder set
2	01469-TM8-G50	Power set - MASTER (9")
3	46017-TF0-G50	Hose set - RESERVE TANK
4	46018-TF0-G50	Hose set - RESERVE TANK
5	46100-TF0-G51	Cylinder assy. - MASTER
6	46135-SDA-A01	Guide assy - PISTON
7	46151-SB2-003	Yoke - PUSH ROD (NISSIN)
8	46185-SE0-003	Seal - ROD
9	46191-S2K-000	Packing - MASTER POWER
10	46401-TM8-A01	Sensor a - MASTER POWER PRESSURE
11	46401-TM8-H01	Sensor b - MASTER POWER PRESSURE
12	46402-TM8-G02	Tube assy - MASTER POWER
13	46403-TM8-A00	Tube a - MAP SENSOR
14	46403-TM8-A10	Tube b - MAP SENSOR
15	46468-TM8-A00	Bracket - MASTER POWER TUBE
16	46512-S70-000	Pin - PEDAL
17	46661-TF0-G50	Reservoir set
18	46662-S9A-003	Cap comp. - RESERVE TANK
19	46665-S04-J01	Grommet
20	46666-S2K-003	Filter - BRAKE RESERVOIR
21	46669-S5A-003	Diaphragm
22	46674-TM8-A00	Bracket - BRAKE RESERVE TANK
23	46680-TF0-G51	Union - RESERVOIR
24	46911-S70-003	Pin, LOCK(8MM)
25	53729-671-003	Clamp d - 15.5MM
26	57173-SB0-801	O-ring - CONNECTOR
27	57515-S30-003	Pin - STOP
28	57520-SDB-A01	Piston assy. - PRIMARY
29	57540-SDB-A02	Piston assy. - SECONDARY
30	57562-SF1-003	Circlip
31	90361-SV4-003	Nut - PAINT CUTTING, 6MM

Brake pipe/hose (LH; VSA) 24

#	OEM	部品名
1	01464-TF0-000	Hose set - R. FR. BRAKE
2	01465-TF0-000	Hose set - L. FR. BRAKE
3	01466-TM8-G00	Hose set - R. RR. BRAKE
3	01466-TM8-G01	Hose set, R. Rr. brake
4	01468-TM8-G00	Hose set - L. RR. BRAKE
4	01468-TM8-G01	Hose set, L. Rr. Brake
5	46330-TM8-G00	Pipe comp. c - BRAKE
6	46340-TM8-G00	Pipe comp. d - BRAKE
9	46376-TM8-A02	Pipe comp. w - BRAKE
10	46377-TM8-A01	Pipe comp. x - BRAKE
11	46380-SH3-000	Grommet a - BRAKE PIPE
12	46391-TF0-003	Clip - BRAKE PIPE
13	46391-TF0-951	Clip - BRAKE PIPE
14	46392-TF0-003	Clip - BRAKE PIPE
15	46393-TM8-A01	Clip - BRAKE PIPE
16	46394-SYY-003	Clip - BRAKE PIPE
17	46395-TM8-A00	Stay - CLIP
18	46395-TM8-G01	Clip - BRAKE PIPE
19	46395-TM8-G51	Clip - BRAKE PIPE
20	46462-SE0-000	Bolt - OIL
21	46472-568-000	Packing - OIL BOLT
22	90651-538-000	Clip - BRAKE HOSE
24	46374-TM8-A01	Pipe comp. u - BRAKE
25	46375-TM8-A01	Pipe comp. v - BRAKE

Camshaft/cam chain 11

#	OEM	部品名
1	14110-RBJ-000	Camshaft comp.
2	14211-RB0-J00	Sprocket - CAM CHAIN DRIVEN (46T)
3	14221-RB0-003	Plate - TDC PULSER
4	14222-PWA-004	Bolt - TDC PULSER PLATE
5	14401-RB0-003	Chain - 126L
6	14510-RBJ-004	Tensioner comp - CAM CHAIN
7	14512-RMX-000	Slider comp. - CAM CHAIN TENSIONER
8	14530-RBJ-004	Guide comp - CAM CHAIN
9	90003-PNA-000	Bolt - TENSIONER PIVOT
10	90031-RNA-A01	Bolt-washer - 10X30
11	90703-PWA-003	Dowel pin - 2.5X10

Canister 7

#	OEM	部品名
1	17300-SNA-023	Canister assy
2	17358-TM8-000	Bracket - CANISTER
3	17371-SLJ-003	Valve - TWO WAY
4	17723-TA0-G00	Tube c - FUEL VENT
5	17743-TM8-G01	Tube assy. b - DRAIN
6	91404-TA0-G01	Clamp - FUEL TUBE (D10)
7	91593-SDE-T01	Clip - DRAIN TUBE

Chain case 11

#	OEM	部品名
1	11410-RBJ-000	Case assy. - CHAIN
2	12513-P72-003	Plug - CYLINDER HEAD
3	15302-PE0-300	Washer - SEALING, 14MM
4	90015-PF0-000	Bolt - FLANGE, 8X53
5	90021-PWA-003	Bolt - SPECIAL, 8X41
6	90081-PZA-000	Bolt - SEALING, 14MM
7	90107-P4V-000	Bolt - FLANGE, 8X40
8	90162-RB0-000	Bolt - STUD, 12X72.5
9	90380-RBJ-000	Bolt - STUD, 12X74.5
10	91212-RB0-004	Oil seal - 40X55X7 (ARAI)
10	91212-PWA-003	Oil seal - 40X55X7 (NOK)

Combination switch 5

#	OEM	部品名
1	35251-TA0-B11	Sensor assy - STEERING & BODY SWITCH
2	35255-SNA-S01	Switch assy - LIGHTING & TURN SIGNAL
3	35256-SWA-A02	Switch assy - WIPER
4	35400-S6A-003	Switch assy - DOOR (DAIICHI)
5	90132-SFE-003	Screw - EARTH, 5X18

Console 10

#	OEM	部品名
1	32142-TM8-G00	Cord - CENTER CONSOLE SUB
4	35600-TF0-003	Switch assy - R. HEATED SEAT
5	35650-TF0-003	Switch assy - L. HEATED SEAT
12	77234-TM8-003	Feeling
21	83410-TM8-G01	Spacer - R. SWITCH
22	83415-TM8-G01	Spacer - L. SWITCH
28	90140-TM8-000	Bolt-washer - 5X20
30	90666-SDA-A01	Clip, Snap Fitting - SNAP FITTING(PO) (NATURAL)
32	91534-SWA-003	Clip - COUPLER(DARK GRAY)
34	91542-SNA-003	Clip - HARNESS BAND(DARK BLUE) (164.5MM)

Control unit (CABIN; 1; LH) 20

#	OEM	部品名
1	38200-TM8-S02	Box assy - FUSE
1	38200-TM8-G02	Box assy - FUSE
2	38211-SNA-A11	Fuse - BLOCK (30A)
3	38211-SNA-A21	Fuse - BLOCK (40A)
4	38221-SNA-A31	Fuse - BLADE(7.5A)
5	38221-SNA-A41	Fuse - BLADE(10A)
6	38221-SNA-A51	Fuse - BLADE(15A)
7	38221-SNA-A61	Fuse - BLADE(20A)
8	38221-SNA-A81	Fuse - BLADE(30A)
9	38232-TM8-A01	Fuse b - MULTI BLOCK(30A/50A)
10	38235-SNA-A01	Puller - MINI FUSE
11	38255-TF0-003	Detector unit - ELECTRONIC LOAD
18	39794-SDA-A05	Relay assy - POWER(MICRO ISO) (MITSUBA)
18	39794-SDA-A02	Relay assy - POWER(MICRO ISO) (DENSO)
19	39794-S10-003	Relay assy - POWER(5P) (MICRO ISO)(MITSUBA)
20	39965-TM8-G01	Sensor assy - YAW & G
21	39980-TM8-G21	Eps unit
22	90130-TF0-003	Screw-washer - 5X16
23	90137-SF1-000	Bolt-washer - 6X25
24	90361-SV4-003	Nut - PAINT CUTTING, 6MM

Control unit (CABIN; 2) 4

#	OEM	部品名
1	39794-SDA-A02	Relay assy - POWER(MICRO ISO) (DENSO)
1	39794-SDA-A05	Relay assy - POWER(MICRO ISO) (MITSUBA)
8	39794-SDA-901	Relay assy, ENGINE CONTROL MODULE (MITSUBA)
8	39794-SDA-902	Relay assy, ENGINE CONTROL MODULE (DENSO)

Control unit (ENGINE ROOM; LH) 18

#	OEM	部品名
1	37820-RBJ-E69	Control module - ENGINE (REWRITABLE)
2	37821-RBJ-000	Bracket comp. - ENGINE CONTROL MODULE
3	37823-RBJ-000	Cover - ENGINE CONTROL MODULE
4	38100-TM8-G01	Horn assy - LOW
5	38101-TM8-000	Bracket - HORN
6	38102-TM8-000	Bracket - SECURITY HORN
7	38150-SNA-K02	Horn assy - HIGH
8	38182-TM8-911	Cover - RELAY BLOCK UPPER
9	38182-TF0-003	Cover - RELAY BLOCK UPPER(3P)
11	38186-TM8-000	Bracket - MULTI RELAY BOX (4P) (R. SIDE)
12	38187-TM8-000	Bracket - L. MULTI RELAY BOX
13	38221-SNA-A51	Fuse - BLADE(15A)
14	39794-SDA-A02	Relay assy - POWER(MICRO ISO) (DENSO)
14	39794-SDA-A05	Relay assy - POWER(MICRO ISO) (MITSUBA)
18	39794-SDA-003	Relay assy - FUEL PUMP (MITSUBA)
18	39794-SDA-004	RELAY ASSY., FUEL PUMP (DENSO)
19	39794-S10-003	Relay assy - POWER(5P) (MICRO ISO)(MITSUBA)
20	90150-S84-003	Bolt - EARTH, 8X16

Converter 12

#	OEM	部品名
1	11941-RBJ-A00	Stay comp - CONVERTER
2	18115-RB0-004	Gasket - CONVERTER (NIPPON LEAKLESS)
2	18115-RB0-007	Gasket - CONVERTER (NOK)
3	18120-RBJ-010	Cover - CONVERTER
4	18190-RBJ-G00	Converter comp.
5	18716-RB0-G01	Gasket a - EGR PIPE
6	18717-RBJ-000	Pipe comp - EGR
7	18719-RNA-A01	Gasket b - EGR PIPE
8	18720-RNA-A00	Bolt - FLANGE, 8X20
9	36531-RBJ-003	Sensor - AIR FUEL RATIO
10	90001-RB0-000	Bolt - FLANGE, 8X22
11	90004-PLC-000	Bolt-washer - 10X25

Crankshaft/piston 44

#	OEM	部品名
1	13010-RBJ-J00	Piston set - STD.
1	13020-RBJ-A00	Piston set - OS 0.25
2	13011-RBJ-004	Ring set - PISTON(STD.)(RIKEN)
2	13021-RBJ-A01	Ring set - PISTON (OS 0.25)
3	13111-PWA-000	Pin - PISTON
4	13204-PWA-003	Bolt - CONNECTING ROD
5	13210-RB0-000	Rod comp - CONNECTING
6	13218-PWA-003	Bearing h - CONNECTING ROD (WHITE) (DAIDO)
6	13215-PWA-004	Bearing e - CONNECTING ROD (YELLOW) (TAIHO)
6	13213-PWA-003	Bearing c - CONNECTING ROD (BROWN) (DAIDO)
6	13216-PWA-004	Bearing f - CONNECTING ROD (PINK) (TAIHO)
6	13214-PWA-003	Bearing d - CONNECTING ROD (GREEN) (DAIDO)
6	13217-PWA-004	Bearing g - CONNECTING ROD (RED) (TAIHO)
6	13215-PWA-003	Bearing e - CONNECTING ROD (YELLOW) (DAIDO)
6	13212-PWA-004	Bearing b - CONNECTING ROD (BLACK) (TAIHO)
6	13218-PWA-004	Bearing h - CONNECTING ROD (WHITE) (TAIHO)
6	13216-PWA-003	Bearing f - CONNECTING ROD (PINK) (DAIDO)
6	13213-PWA-004	Bearing c - CONNECTING ROD (BROWN) (TAIHO)
6	13217-PWA-003	Bearing g - CONNECTING ROD (RED) (DAIDO)
6	13214-PWA-004	Bearing d - CONNECTING ROD (GREEN) (TAIHO)
6	13212-PWA-003	Bearing b - CONNECTING ROD (BLACK) (DAIDO)
7	13310-RB0-000	Crankshaft comp.
8	13325-RB0-003	Bearing e - MAIN UPPER (YELLOW) (DAIDO)
8	13327-RB0-003	Bearing g - MAIN UPPER (RED) (DAIDO)
8	13322-RB0-003	Bearing b - MAIN UPPER (BLACK) (DAIDO)
8	13324-RB0-003	Bearing d - MAIN UPPER (GREEN) (DAIDO)
8	13326-RB0-003	Bearing f - MAIN UPPER (PINK) (DAIDO)
8	13321-RB0-003	BEARING A - MAIN UPPER (BLUE) (DAIDO)
8	13323-RB0-003	Bearing c - MAIN UPPER (BROWN) (DAIDO)
9	13331-PR3-004	Washer - THRUST (TAIHO)
9	13331-PR3-003	Washer - THRUST (DAIDO)
10	13346-RB0-003	Bearing f - MAIN LOWER (PINK) (DAIDO)
10	13341-RB0-003	BEARING A - MAIN LOWER (BLUE) (DAIDO)
10	13343-RB0-003	Bearing c - MAIN LOWER (BROWN) (DAIDO)
10	13345-RB0-003	Bearing e - MAIN LOWER (YELLOW) (DAIDO)
10	13347-RB0-003	Bearing g - MAIN LOWER (RED) (DAIDO)
10	13342-RB0-003	Bearing b - MAIN LOWER (BLACK) (DAIDO)
10	13344-RB0-003	Bearing d - MAIN LOWER (GREEN) (DAIDO)
11	13621-RB0-003	Sprocket - CAM CHAIN DRIVE
12	13623-RB0-000	Plate - CRANK PULSER
13	13810-RBJ-003	Pulley comp - CRANKSHAFT
14	90013-RB0-003	Bolt - SPECIAL, 8X9
15	90017-PWA-G02	Bolt-washer - 14X36
16	90704-PH7-000	Key, SPECIAL

Cylinder block/oil pan 36

#	OEM	部品名
1	11000-RB0-000	Block assy - CYLINDER
2	11103-RB0-004	Plate - PARTITION
3	11105-RBJ-000	Cover - BLOCK
4	11106-PWA-300	Bolt - SEALING, 24MM
5	11107-PWA-300	Washer - SEALING, 24MM
6	11200-RBJ-G00	Pan assy, Oil
7	11203-PWA-003	O-ring - 17.8X2.4 (NOK)
8	11252-PWA-000	Packing - OIL PAN
9	11850-RB0-000	Cover - BREATHER
10	15200-RB0-G00	Pipe comp - OIL LEVEL
11	15650-RB1-000	Gauge comp. - OIL LEVEL
12	30530-RB0-004	Sensor comp - KNOCK
13	32113-RBJ-010	Sub harness - CRANK SENSOR
14	32116-RB0-G00	Sub harness - OIL LEVEL SENSOR
15	32135-RB0-G00	Holder - ENGINE WIRE HARNESS(E)
16	32742-RB0-000	Stay - CRANK SENSOR HARNESS
17	32743-RB0-000	Clamp - CRANK SENSOR HARNESS TUBE
18	37241-RNA-A01	Switch assy, OIL PRESSURE
19	37310-RSA-G02	Sensor assy - OIL LEVEL
20	37311-RB0-G00	Cover - OIL LEVEL SENSOR
21	37312-RSA-G02	Packing - OIL LEVEL SENSOR
22	37500-RB0-006	Sensor assy - CRANK
23	37501-RSJ-E00	Cover - CRANK SENSOR
24	90001-PM3-003	Bolt - DRAIN PLUG, 28MM
25	90008-PM0-003	Bolt-washer - 10X112
26	90009-PY3-000	DRAIN PLUG BOLT, 14MM
27	90052-RGA-003	Bolt - SPECIAL, 6X17.8
28	90401-PR4-000	Washer - SEALING, 28MM
29	90702-PE0-000	Dowel pin - 12X18
30	90705-PT0-000	Dowel pin - 16X22
31	91214-PWA-003	Oil seal - 80X98X10 (NOK)
31	91214-RTA-004	Oil seal - 80X98X10 (ARAI)
31	91214-RNB-A01	Oil seal (80x98x10)
32	91308-PH9-000	O-ring - 8.8X1.9
32	91302-GE0-000	O-ring (8.8x1.9)
33	91333-PNC-006	O-ring

Cylinder head 25

#	OEM	部品名
1	12100-RBJ-J00	Head assy - CYLINDER
2	12204-PJ7-305	Guide - IN. VALVE (OS)
3	12205-PJ7-305	Guide - EX. VALVE (OS)
4	12208-PWA-003	Bolt - SEALING, 16MM
5	12209-PWA-000	Washer - SEALING, 16MM
6	12210-PZ1-004	SEAL A, VALVE STEM (NOK)
6	12210-PZ1-003	Seal a - VALVE STEM(ARAI)
7	12211-PZ1-004	Seal b - VALVE STEM(NOK)
7	12211-PZ1-003	Seal b - VALVE STEM(ARAI)
8	12251-RB0-004	Gasket comp - CYLINDER HEAD (NIPPON LEAKLESS)
9	12513-P72-003	Plug - CYLINDER HEAD
10	15810-RBJ-005	Valve assy. - SPOOL
11	15825-RBJ-005	Filter assy - SPOOL VALVE
12	30511-RBJ-000	Insulator - PLUG TOP COIL HEAT
13	32743-RBJ-000	Stay - SPOOL VALVE ENGINE HARNESS
14	37260-RNA-A01	Sensor - OIL PRESSURE
15	37510-RB0-003	Sensor assy - TDC
16	90003-RBJ-000	Bolt - STUD, 8X73
17	90006-PZA-004	Bolt - 8X38
18	90008-PWA-003	Bolt-washer - 9X155
19	90008-RMX-003	Bolt-washer - 9X165
20	90015-PWA-000	Bolt-washer - 6X14
21	90026-RMX-000	Bolt - STUD, 8X22
22	91319-PAA-A01	O-ring - 13X1.5
23	91333-PNA-003	O-ring - 15X1.9

Cylinder head cover 9

#	OEM	部品名
5	15610-PFB-000	Cap assy. - OIL FILLER
6	15613-PC6-000	Packing, Oil Filler
9	12030-RBJ-003	Packing set - HEAD COVER
10	12310-RBJ-003	Cover comp. - CYLINDER HEAD
11	12341-RBJ-003	Packing - HEAD COVER
12	12343-RBJ-003	Seal set - HEAD COVER PLUG PIPE
13	12345-RGA-003	Washer - SEALING
14	12347-RBJ-003	Bolt set - HEAD COVER PLUG SEAL
15	90013-RGA-000	Bolt - HEAD COVER

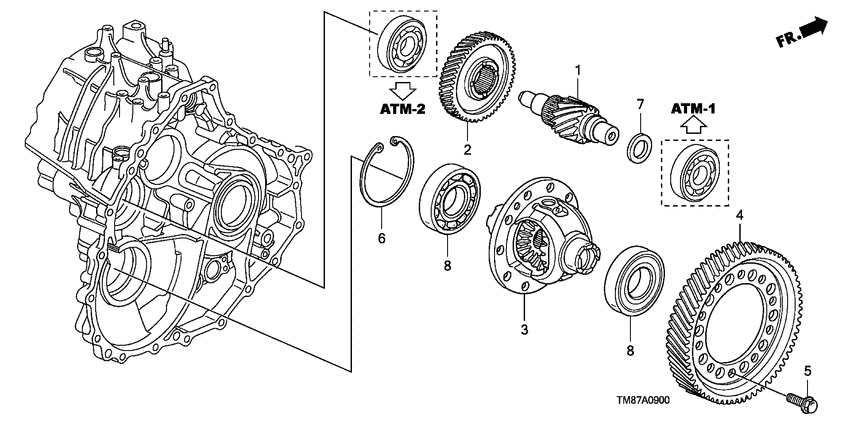

Differential 25

#	OEM	部品名
1	23221-RBL-000	Shaft - FINAL DRIVE
2	23232-RPS-000	Gear - SECONDARY DRIVEN
3	41100-RBL-000	Differential comp.
4	41233-RBL-000	Gear - FINAL DRIVEN
5	90003-PA9-003	Bolt - FLANGE, 10MM
6	90419-PH8-000	Ring 6 - SNAP, 80X3.0
6	90414-689-000	Ring 1 - SNAP, 80X2.5
6	90416-689-000	Ring 3 - SNAP, 80X2.7
6	90418-689-000	Ring 5 - SNAP, 80X2.9
6	90415-689-000	Ring 2 - SNAP, 80X2.6
6	90417-689-000	Ring 4 - SNAP, 80X2.8
7	90560-P4V-000	Shim j - 25X35 (3.7)
7	90555-P4V-000	Shim e - 25X35 (3.2)
7	90562-PWR-000	Shim l - 25X35 (3.9)
7	90557-P4V-000	Shim g - 25X35 (3.4)
7	90552-P4V-000	Shim b - 25X35 (2.9)
7	90559-P4V-000	Shim i - 25X35 (3.6)
7	90554-P4V-000	Shim d - 25X35 (3.1)
7	90561-P4V-000	Shim k - 25X35 (3.8)
7	90556-P4V-000	Shim f - 25X35 (3.3)
7	90551-P4V-000	Shim a - 25X35 (2.8)
7	90563-PWR-000	Shim m - 25X35 (4.0)
7	90558-P4V-000	Shim h - 25X35 (3.5)
7	90553-P4V-000	Shim c - 25X35 (3.0)
8	91005-RBL-003	Bearing - SPECIAL BALL, 40X80X18

Duct 5

#	OEM	部品名
1	77400-TM8-A01	Duct assy - INSTRUMENT
2	83331-TM8-A01	Duct assy - R. RR. HEATER LOWER
3	83332-TM8-A01	Duct assy - L. RR. HEATER LOWER
4	83333-TM8-A01	Duct - RR. HEATER UPPER
5	91560-STK-A01	Clip - GARNISH (SEAL)

Emblem/caution label 9

#	OEM	部品名
3	17669-SS0-X30	Label - FUEL FILLER CAUTION (UNLEADED FUEL ONLY)
3	17669-SV5-P00	Label - FUEL FILLER CAUTION (PORTUGAL)
4	19043-PWA-P00	Label - COOLANT INFORMATION (PORTUGAL)
4	19043-PLA-E00	Label - COOLANT INFORMATION
5	42760-TM8-E00	Plate - TIRE PRESSURE CAUTION (15 INCH)
5	42760-TM8-G01	Plate - TIRE PRESSURE CAUTION (15 INCH/T-TYPE)
6	75722-TM8-A01	Emblem - RR. (INSIGHT)
7	75723-TM8-A01	Emblem - RR. (HYBRID)
8	78031-SDA-G80	Label - SIDE AIRBAG CAUTION

Engine assy./ transmission assy. 3

#	OEM	部品名
1	10002-RBJ-E00	General assy. - CYLINDER BLOCK
2	10003-RBJ-A01	General assy. - CYLINDER HEAD
3	20031-RBL-G01	Transmission assy - CVT

Engine cover 5

#	OEM	部品名
1	17121-RBJ-000	Cover comp. - ENGINE
2	17125-RBJ-000	Emblem - ENGINE COVER
3	17126-RBJ-000	Rubber a
4	17212-PE2-000	Rubber a - AIR CLEANER CASE MOUNTING
5	17213-RBJ-000	Rubber - ENGINE COVER MOUNTING

Engine hood (LH) 27

#	OEM	部品名
1	38562-SA0-003	Joint l - WASHER TUBE(MITSUBA)
6	74120-TM8-A11	Lock assy - HOOD
7	74130-TM8-A01	Wire assy. - HOOD
9	74141-TM8-A00	Insulator - HOOD
10	74143-TM8-A00	Rubber - RR. HOOD SEAL
11	74145-TM8-A00	Stay - HOOD OPENER
12	74146-TM8-A01	Rubber - HOOD SEAL
13	74205-TM8-A00	Seal - FR.
14	74206-TM8-A00	Seal - RR.
15	74212-TM8-A00	Cover - DRIVER HOOD HINGE
16	74218-TM8-G00	Cowl top assy. - FR.
17	74222-TM8-A00	Cover - PASSENGER HOOD HINGE
18	76810-TM8-A01	Nozzle assy.
19	76828-SMA-003	Tube - 380MM
20	76830-SL0-003	Joint y - TUBE (MITSUBA)
21	76834-SJK-003	Tube - 150MM
22	76842-SNA-003	Tube - 610MM
23	90108-S0A-003	Bolt - FLANGE, 6X15
24	90601-S84-A01	Grommet - HOOD OPEN STAY
25	90602-SYP-003	Clip - COWL TOP
26	90602-S10-003	Holder - ROD
27	90602-TA0-003	Clip - COWL TOP
28	90654-SA4-003	Clip - WIRE HARNESS, 6MM (WHITE)
29	91501-SL4-003	Clip - FR. COWL
30	91501-SYP-000	Plug - HOLE (15X19)
31	91501-STK-003	Clip - ENGINE HOOD INSULATOR
32	91518-SM4-003	Clip - TRUNK MOLDING

Engine mounts 19

#	OEM	部品名
1	50620-TM8-003	Bracket - ENGINE SIDE MOUNTING
2	50650-TM8-900	Bracket - TRANSMISSION MOUNTING (CVT)
3	50690-TM8-900	Bracket - TORQUE ROD(CVT)
4	50822-TM8-013	Rubber sub assy. - ENGINE SIDE MOUNTING
5	50850-TM8-003	Rubber assy.TRANSMISSION MOUNTING
6	50890-TM8-013	Rod, torque (CVT)
7	90161-SLD-000	Bolt - FLANGE, 14X34
8	90164-TM8-000	Bolt - FLANGE, 12X55
9	90165-SDA-A00	Bolt - FLANGE, 12X45
10	90165-TM8-000	Bolt - FLANGE, 12X130
11	90166-TF0-003	Bolt - GUIDE, 14X91
12	90167-TK6-010	Bolt - FLANGE, 12X21
13	90171-TF0-000	Bolt - FLANGE, 10X119
14	90174-TK6-000	Bolt - FLANGE, 12X45
15	90174-TM5-000	Bolt - FLANGE, 12X45
16	90177-TF0-010	Bolt - FLANGE, 12X107
17	90213-SAA-000	Nut - FLANGE, 12MM
18	90371-SAA-010	Nut - FLANGE, 12MM
19	90371-TF0-003	Nut - FLANGE, 14MM

Engine wire harness 18

#	OEM	部品名
1	32110-RBJ-E01	Harness - ENGINE WIRE
2	32113-TA0-003	Band - CABLE(BLACK)(100MM)
3	32116-RKG-003	Holder - CORRUGATED (DARK GREEN) (13MM)
4	32121-RBJ-000	Holder a - ENGINE HARNESS UPPER
5	32127-RBJ-000	Holder g - ENGINE HARNESS UPPER
6	32131-RBJ-000	Holder a - ENGINE HARNESS LOWER
8	32133-RBJ-000	Holder c - ENGINE HARNESS
9	32134-RBJ-000	Holder d - ENGINE HARNESS
10	32135-RBJ-000	Holder e - ENGINE HARNESS
11	32136-RBJ-000	Holder f - ENGINE HARNESS
12	32137-RBJ-000	Holder g - ENGINE HARNESS LOWER
13	32138-RBJ-000	Holder h - ENGINE HARNESS
14	90051-PNA-000	Bolt - SPECIAL, 6X28
16	91507-RTA-003	Clip b - HARNESS BAND (DARK GREEN) (129.4MM)
17	91558-ST5-003	Clip - HARNESS BAND(NATURAL) (135MM)(7MM HOLE)
18	91705-RBJ-000	Cover, ECU COUPLER
20	32132-RBJ-010	Holder b - ENGINE HARNESS
21	90051-RGA-003	Bolt - SPECIAL, 6X20.8

Engine wire harness stay 1

#	OEM	部品名
1	32750-RB0-000	Stay - SHOCK ABSORBER HOUSING (ENGINE HARNESS)

Exhaust pipe/silencer 21

#	OEM	部品名
1	18160-RBJ-G00	Converter comp.
2	18181-RBJ-000	Cover comp. - LOWER
3	18215-TF0-003	Rubber - EX. MOUNTING
4	18215-TF0-911	Rubber - EX. MOUNTING
5	18220-TM8-003	Pipe b - EX.
6	18229-SNA-A01	Gasket, EX. FLEXIBLE
7	18229-TF0-013	Gasket - EX. FLEXIBLE
8	18230-SA0-930	Spring - FLEXIBLE JOINT
9	18231-SNA-A00	Bolt b - FLEXIBLE JOINT
10	18303-SM4-020	Gasket - SILENCER
11	18307-TM8-023	Silencer comp - EX.
12	36532-RB0-004	Sensor - RR. OXYGEN
13	36533-RB0-G00	Clamp - OXYGEN SENSOR
14	36535-TF0-000	Clamp - OXYGEN SENSOR
15	74600-TF0-000	Plate comp - FLOOR HEAT BAFFLE (A)
16	74602-TM8-A00	Plate - FR. FLOOR HEAT BAFFLE
17	74605-TM8-A00	Plate, Muffler Baffle
18	90023-PR7-A01	BOLT, FLANGE (6X12) - 6X12 (IWATA BOLT)
19	90151-S3N-003	Rivet - BAFFLE PLATE
20	90212-SA5-003	Nut - SELF-LOCK, 10MM
21	90301-SV7-000	Nut - PAINT CUTTING, 6MM

Floor mat 8

#	OEM	部品名
1	74251-TM8-A00	Insulator - DASHBOARD OUTER
3	74260-TM8-A00	Insulator - DASHBOARD
6	83306-TM8-G00	Stopper assy - HEEL
11	90610-TM8-A01	Clip - SIDE GARNISH
12	90676-SB2-003	Clip - DASHBOARD INSULATOR
14	91517-SE0-003	Clip - LOWER OUTER DASHBOARD INSULATOR
15	91560-STK-A01	Clip - GARNISH (SEAL)
16	91560-TL0-G01	Clip - DOOR END GARNISH (LIGHT BROWN)

Floor/inner panels 8

#	OEM	部品名
28	74610-TM8-A00	Beam comp - SPARE TIRE
32	90101-SFA-000	Bolt - FLANGE, 10X20
33	90108-SJA-A00	Bolt - FLANGE, 8X16
34	90108-S0A-003	Bolt - FLANGE, 6X15
35	90178-TF6-000	Bolt - FLANGE, 10X41
41	74630-TM8-A10	Rod comp. r - TRAILING ARM PERFORMANCE
42	74640-TM8-A10	Rod comp. l - TRAILING ARM PERFORMANCE
43	90002-S10-000	Nut - FLANGE, 10MM

Flywheel 3

#	OEM	部品名
1	22100-RBJ-000	Flywheel comp.
2	26250-RMX-000	Plate comp - DRIVE
3	26252-PZA-000	Support - DUAL MASS FLYWHEEL

Flywheel case 15

#	OEM	部品名
1	21111-RPS-010	Case - FLYWHEEL
2	21811-RPS-000	Packing - FLYWHEEL CASE
3	22731-P4V-300	Pipe e - FEED
4	22734-PWR-000	Guide - FEED PIPE
5	23225-PZC-000	Plate - OIL GUIDE
6	90004-PE2-005	Bolt - SEALING, 10MM
7	90004-PWR-000	Bolt - FLANGE, 8X45
8	90005-PWR-000	Bolt - FLANGE, 8X60
9	90471-PW7-A00	PACKING, 10MM
10	91002-RBL-003	Bearing - SPECIAL BALL, 25X62X17
11	91206-PHR-003	Oil seal - 35X58X8 (NOK)
12	91207-PWR-003	Oil seal - 19X37X7(NOK)
13	91301-PWR-003	O-ring - 16.7X1.9 (NOK)
14	91314-PC9-003	O-ring - 8.5X1.9 (ARAI)
14	91314-PC9-004	O-ring - 8.5X1.9 (NOK)

Fog light/turn light 6

#	OEM	部品名
2	33300-TM8-003	Light assy - R. FR. TURN
3	33302-S7A-003	Socket comp - T20
4	33303-SCK-003	Bulb - WEDGE(12V 21W)(AMBER)
5	33350-TM8-003	Light assy - L. FR. TURN
10	90103-S5A-000	Tapping - SPECIAL, 5X18
12	90331-S3Y-003	Nut - SPRING, 5MM

Front brake 22

#	OEM	部品名
1	01463-S2A-000	Caliper set
2	06455-TF0-G00	Shim set - FR.
3	43352-SM4-951	Screw - BLEEDER
4	43353-SD5-003	Cap - BLEEDER SCREW
5	44300-TF0-951	Bearing assy - HUB
6	44600-SLN-A00	Hub assy, Front
7	45018-TF0-G00	Caliper sub assy. - R. FR.
8	45019-TF0-G00	Caliper sub assy. - L. FR.
9	45022-TM8-G00	Pad set - FR.
10	45216-S5H-T01	Piston
11	45235-S0A-003	Pin a
12	45237-TG5-H01	Retainer
13	45237-TK6-A01	Retainer
14	45240-SC2-003	Bolt - FLANGE, 8X22
15	45251-SCC-900	Disk - FR. BRAKE
16	45255-TF0-950	Guard - SPLASH
17	45263-TF0-G01	Pin comp - B
18	90107-SM4-000	Bolt - CALIPER MOUNTING (12X21)
19	90113-SM1-005	Bolt - WHEEL (ROCKNEL FASTENER)
19	90113-SA0-025	Bolt - WHEEL (NAGOYA RASHI)
19	90113-S5H-005	Bolt - WHEEL (THAI MEIRA)
19	90113-SA0-006	Bolt - WHEEL (SAGA)

Front bulkhead/dashboard 6

#	OEM	部品名
42	74290-TM8-G00	Lid comp - DASHBOARD UPPER
43	90101-SFA-000	Bolt - FLANGE, 10X20
44	90105-634-000	Bolt-washer (8x20)
45	90108-SJA-A00	Bolt - FLANGE, 8X16
46	90108-S0A-003	Bolt - FLANGE, 6X15
47	90122-TF0-000	Bolt-washer - 6X14 (WITH GUIDE)

Front bumper 15

#	OEM	部品名
2	71102-TM8-A00	Garnish - R. FR. BUMPER SIDE
7	71107-TM8-A00	Garnish - L. FR. BUMPER SIDE
13	71140-TM8-A01	Beam - R. FR. BUMPER UPPER
14	71145-TM8-G00	Base - FR. LICENSE PLATE
15	71190-TM8-A01	Beam - L. FR. BUMPER UPPER
16	71193-TM8-A01	Spacer - R. FR. BUMPER SIDE
17	71198-TM8-A01	Spacer - L. FR. BUMPER SIDE
18	90101-SAA-003	Tapping - SPECIAL, 5X18
19	90103-SP0-000	Bolt - CORNER CLIP
20	90103-TA0-000	Screw - TAPPING, 5X20
21	90113-SJA-A00	Screw - TAPPING, 5X14
22	90144-SA0-020	Bolt - BUMPER SETTING (6X15) (BLACK)
22	90111-SM4-003	Bolt - BUMPER
23	91503-S7A-003	Clip - FR. GRILLE
25	91506-S9A-003	Clip b - BUMPER

Front door glass/ regulator 20

#	OEM	部品名
1	39885-S5A-G01	Label - IMMOBILIZER
2	72211-TM8-003	Regulator assy - R. FR. DOOR
3	72215-SZH-003	Motor assy. - WINDOW
4	72230-TM8-A01	Sash - R. FR. DOOR QUARTER
5	72231-TM8-A01	Sash - R. FR. DOOR CENTER LOWER
6	72235-TM8-003	Runchannel - R. FR. DOOR
7	72251-TM8-003	Regulator assy - L. FR. DOOR
8	72255-TM8-E01	Motor assy. - L. FR. WINDOW
9	72270-TM8-A01	Sash - L. FR. DOOR QUARTER
10	72271-TM8-A01	Sash - L. FR. DOOR CENTER LOWER
11	72275-TM8-003	Runchannel - L. FR. DOOR
12	73300-TM8-G00	Glass assy - R. FR. DOOR (GREEN) (AGC)
13	73330-TM8-G00	Glass - R. FR. DOOR CORNER (GREEN) (AGC)
14	73335-TM8-A01	Seal - R. FR. DOOR CORNER
15	73350-TM8-G00	Glass assy - L. FR. DOOR (GREEN) (AGC)
16	73370-TM8-G00	Glass - L. FR. DOOR CORNER (GREEN) (AGC)
17	73375-TM8-A01	Seal - L. FR. DOOR CORNER
18	90021-SFA-000	Bolt - FLANGE, 6X10
19	90102-SZH-003	Screw - TAPPING,
20	90115-SZH-003	Bolt - FLANGE, 6X12

Front door lining (LH) 8

#	OEM	部品名
4	35750-TM8-A11	Switch assy - POWER WINDOW MASTER
5	35760-SWA-J01	Sub switch assy. - POWER WINDOW
6	72335-TM8-013	Weatherstrip - R. FR. DOOR INNER
7	72375-TM8-013	Weatherstrip - L. FR. DOOR INNER
17	90101-S2K-000	Screw - TAPPING, 4X16(IT)
18	90662-SB2-003	Grommet - SCREW, 5MM
19	90666-SDA-A01	Clip, Snap Fitting - SNAP FITTING(PO) (NATURAL)
22	91560-SAA-003	Clip - PILLAR GARNISH

Front door lock/ outer handle (LH) 30

#	OEM	部品名
1	72110-TM8-G01	Latch assy - R. FR. DOOR POWER
2	72111-SEN-H01	Fastener - BLACK
3	72112-SWA-A01	Cover - R. LEVER
4	72113-SYP-003	Seal - DOOR LATCH
5	72114-SYP-003	Seal - COUPLER
6	72115-SWA-A01	Seal - DOOR LOCK
7	72118-SJK-003	Screw - TAPPING
8	72119-TF0-004	Stopper
11	72130-TM8-003	Protector - R. FR. DOOR OUTER HANDLE
12	72131-TM8-A01	Cable - FR. INSIDE HANDLE
13	72133-TM8-A01	Cable - FR. DOOR LOCK
14	72134-SHJ-003	Clip s - CABLE END (NATURAL)
15	72135-SDA-A01	Striker assy - DOOR LOCK
16	72139-SR3-003	Fastener - NATURAL
18	72141-TK6-004	Bush - R. JOINT
19	72143-S04-003	Packing
20	72144-SJD-003	Retainer
21	72150-TM8-G01	Latch assy - L. FR. DOOR
22	72152-SWA-A01	Cover - L. LEVER
25	72170-TM8-003	Protector - L. FR. OUTER HANDLE
26	72174-SHJ-003	Clip t - CABLE END (BLACK)
28	72181-TK6-004	Bush - L. JOINT
29	72185-TM8-A01	Cylinder - L. DOOR
30	90101-SJK-003	Screw - TAPPING (ONE WAY)
31	90103-S7S-003	Screw - FLAT, 6X18.5
32	90120-SV4-000	Bolt - LOCK STRIKER
33	90141-SDA-000	Screw - TAPPING, 5X12
34	90141-SWA-A01	Screw - TAPPING
35	90662-SB2-003	Grommet - SCREW, 5MM
36	90691-SJD-003	Clip - LATCH CABLE

Front door panel 21

#	OEM	部品名
5	67325-TM8-A01	Tape - R. FR. DOOR SASH UPPER
6	67365-TM8-A01	Tape - L. FR. DOOR SASH UPPER
11	72142-TM8-A00	Stopper - DOOR
12	72241-TM8-000	Pad - R. FR. DOOR
13	72281-TM8-000	Pad - L. FR. DOOR
14	72310-TM8-A01	Weatherstrip R. FR. DOOR
15	72321-TM8-000	Seal - R. FR. DOOR HOLE
16	72340-TM8-A01	Checker comp. - R. FR. DOOR
17	72350-TM8-A01	Weatherstrip, L. FR. DOOR
18	72361-TM8-000	Seal - L. FR. DOOR HOLE
19	72380-TM8-A01	Checker comp. - L. FR. DOOR
20	75891-SA7-000	Stopper - DOOR
21	90101-SZ3-000	Bolt - FLANGE, 8X22 (8.5MM)
22	90102-S3N-003	Bolt - FLANGE, 8X24.5 (10.5MM)
22	90102-SFA-305	Bolt - FLANGE, 8X18 (SERVICE)
23	90112-SB4-000	Bolt - FLANGE, 6X14
24	90141-S04-000	Bolt - FLANGE, 8X22
25	90362-SLJ-003	Nut - PAINT CUTTING, 6MM
26	90651-S4N-003	Clip
27	91561-SZ3-003	Clip
28	91563-SFA-003	Clip - DOOR WEATHERSTRIP OFFSET

Front driveshaft 19

#	OEM	部品名
1	44014-TF6-N12	Joint set - OUTBOARD
2	44017-TF6-N10	Boot set - INBOARD
3	44018-TF6-N12	Boot set - OUTBOARD
4	44305-TM8-A00	Driveshaft assy. - R.
5	44306-TM8-A00	Driveshaft assy. - L.
6	44310-TF0-J00	Joint comp - INBOARD
7	44310-TF0-300	Joint comp - INBOARD
8	44319-S04-300	Set ring - 26X1.8
8	44319-SR1-003	Set ring - 26X1.8 (GKN)
9	44327-SMA-003	Band b - DRIVESHAFT
10	44327-SV4-305	Band - JOINT BOOT (DOUBLE ROLLED BAND)
11	44329-SV4-305	Band - SHAFT BOOT (DOUBLE ROLLED BAND)
12	44329-TF0-003	Band c - DRIVESHAFT
13	44337-SA7-300	Ring - OUTBOARD STOPPER
14	44338-SA7-300	Circlip - 22MM
15	44351-TF0-003	Damper - DYNAMIC
16	44517-TM8-A00	Cover comp. - HEAT
17	90165-TF0-J01	Bolt - FLANGE, 8X35
18	90305-692-010	Nut

Front fender 18

#	OEM	部品名
3	74101-TM8-A01	Fender - R. FR. INNER
4	74105-TM8-A00	Enclosure - R. FR. FENDER
5	74111-TM8-A00	Cover - ENGINE UNDER
6	74115-TM8-A00	Guard - R. FR. SPLASH
7	74116-TM8-A00	Lid - TRANSMISSION MAINTENANCE
8	74151-TM8-A01	Fender - L. FR. INNER
9	74155-TM8-A00	Enclosure - L. FR. FENDER
10	74165-TM8-A01	Guard - L. FR. SPLASH
11	74208-TM8-A00	Cover - R. FR. FENDER
12	74209-TM8-A00	Cover - L. FR. FENDER
13	90114-SE0-000	Screw - TAPPING, 5X20
14	90114-SP0-000	Screw-washer - 5X25 (TAPPING)
15	90308-SB2-013	Nut - SUSPENSION, 5MM
16	90682-SEA-003	Clip - TAPPING SCREW, 5MM
17	91501-S04-003	Clip - INNER FENDER
18	91506-S9A-003	Clip b - BUMPER
20	91514-TM8-003	Clip - UNDER COVER
21	91545-SE0-003	Clip assy. - 8MM

Front grille 7

#	OEM	部品名
1	17249-RBJ-000	Guide - COOLING
2	71121-TM8-G01	Base - FR. GRILLE
4	71125-TM8-A01	Cover - FR. GRILLE
5	75701-TF0-003	Emblem - H
6	90113-SJA-A00	Screw - TAPPING, 5X14
7	90301-ST0-003	push nut, 3mm
8	91505-S9A-003	Clip A - BUMPER

Front lower arm 18

#	OEM	部品名
1	42533-SMG-E01	Grommet - HARNESS
2	51211-TM8-A10	Knuckle - R. FR.
3	51216-TM8-A10	Knuckle - L. FR.
4	51225-TF0-003	Boot - FR. LOWER ARM
5	51300-TM8-A01	Spring - FR. STABILIZER
6	51306-TM8-G01	Bush - FR. STABILIZER HOLDER
7	51308-TF0-010	Bracket - FR. STABILIZER
8	51320-TF0-003	FR. STABILIZER LINK
9	51350-TF0-030	Arm assy. - R. FR. LOWER
10	51360-TF0-030	Arm assy. - L. FR. LOWER
11	57450-TF0-003	SENSOR ASSY., RH FRONT
12	57455-TF0-003	SENSOR ASSY., LH FRONT
13	90002-S10-000	Nut - FLANGE, 10MM
14	90118-S5A-000	Bolt - FLANGE, 14X91
15	90119-TF0-000	Bolt - FLANGE, 14X65
16	90306-SB2-013	Nut - SELF-LOCK, 10MM (CLINCH)
17	90363-S3V-A01	Nut - CASTLE, 14MM
18	90701-SKC-003	Pin - SPLIT(M14)

Front seat (L.) 18

#	OEM	部品名
2	78055-TM8-T00	Module assy. - L. SIDE
3	81134-TM8-G21	Heater comp. - FR. CUSHION
7	81291-TA0-A01	Clip
8	81524-TM8-G21	Heater comp. - L. FR. SEATBACK
9	81527-TM8-A01	Pad comp - L. FR. SEATBACK
9	81527-TM8-G21	Pad comp - L. FR. SEATBACK
11	81537-TM8-A01	Pad comp - L. FR. SEAT CUSHION
11	81537-TM8-G21	Pad comp - L. FR. SEAT CUSHION
18	81685-TA0-J01	Wire a - L. FR. SEATBACK AIRBAG
19	81686-TA0-J01	Wire b - L. FR. SEATBACK AIRBAG
20	82178-SAA-J01	Band - OIL HOSE
21	90134-SE3-003	Screw - TAPPING, 5X10
22	90321-SP0-A80	Nut-washer - 6MM
23	90610-S10-003	Clip - GARNISH
25	91532-S10-003	Clip - BAND(NATURAL)(149.8MM)
26	91533-STK-003	Clip - COUPLER(NATURAL)
27	91534-SWA-003	Clip - COUPLER(DARK GRAY)
28	91540-STK-003	Clip - HARNESS BAND (BLACK) (155.3MM)

Front seat (R.) 18

#	OEM	部品名
2	78050-TM8-T00	Module assy. - R. SIDE
3	81124-TM8-G21	Heater comp. - R. FR. SEATBACK
4	81127-TM8-G01	Pad comp - R. FR. SEATBACK
4	81127-TM8-G21	Pad comp - R. FR. SEATBACK
6	81134-TM8-G21	Heater comp. - FR. CUSHION
7	81137-TM8-G11	Pad comp - R. FR. SEAT CUSHION
7	81137-TM8-G31	Pad comp - R. FR. SEAT CUSHION
17	81285-TA0-J01	Wire a - R. FR. SEATBACK AIRBAG
18	81286-TA0-J01	Wire b - R. FR. SEATBACK AIRBAG
19	81291-TA0-A01	Clip
20	82178-SAA-J01	Band - OIL HOSE
21	90134-SE3-003	Screw - TAPPING, 5X10
22	90321-SP0-A80	Nut-washer - 6MM
23	90610-S10-003	Clip - GARNISH
25	91532-S10-003	Clip - BAND(NATURAL)(149.8MM)
26	91533-STK-003	Clip - COUPLER(NATURAL)
27	91534-SWA-003	Clip - COUPLER(DARK GRAY)
28	91540-STK-003	Clip - HARNESS BAND (BLACK) (155.3MM)

Front seat components (L.) 11

#	OEM	部品名
1	39794-SDA-A05	Relay assy - POWER(MICRO ISO) (MITSUBA)
2	39794-SNB-E01	Relay assy - POWER(5P) (MICRO ISO)
3	81133-TF0-G41	Cord - FR. SEAT CUSHION HEATER
4	81139-TF0-J01	Lever comp - FR. SEAT CUSHION
5	81262-SNA-A01	Cap - SLIDE ADJUSTER UPPER END
9	81526-TM8-E01	Frame comp - L. FR. SEAT
13	90134-SE3-003	Screw - TAPPING, 5X10
14	90135-S5A-003	Bolt-washer - 10X27
16	91533-STK-003	Clip - COUPLER(NATURAL)
17	91536-STK-003	Clip - RELAY HOLDER(NATURAL)
18	91540-STK-003	Clip - HARNESS BAND (BLACK) (155.3MM)

Front seat components (R.) 10

#	OEM	部品名
1	39794-SDA-A05	Relay assy - POWER(MICRO ISO) (MITSUBA)
2	39794-SNB-E01	Relay assy - POWER(5P) (MICRO ISO)
5	81126-TM8-G11	Frame comp - R. FR. SEAT
6	81133-TF0-G41	Cord - FR. SEAT CUSHION HEATER
7	81139-TF0-J01	Lever comp - FR. SEAT CUSHION
10	81262-SNA-A01	Cap - SLIDE ADJUSTER UPPER END
14	90135-S5A-003	Bolt-washer - 10X27
16	91533-STK-003	Clip - COUPLER(NATURAL)
17	91536-STK-003	Clip - RELAY HOLDER(NATURAL)
18	91540-STK-003	Clip - HARNESS BAND (BLACK) (155.3MM)

Front shock absorber 19

#	OEM	部品名
1	51401-TM8-A11	Spring - FR.
2	51402-SLA-003	Seat - FR. SPRING UPPER CLIP
3	51608-SLJ-000	Cap - FR. DAMPER
4	51610-TM8-G11	Absorber assy - R. FR. SHOCK
5	51611-TM8-G11	Absorber unit - R. FR. SHOCK
6	51620-TM8-G11	Absorber assy - L. FR. SHOCK
7	51621-TM8-G11	Absorber unit - L. FR. SHOCK
8	51684-TM8-003	Rubber - SPRING SEAT
9	51686-SAA-E02	Sleeve - FR. DUST COVER
10	51688-SCC-004	Seat comp - SPRING UPPER
11	51722-TF0-014	Rubber - FR. BUMP STOPPER
12	51726-SFA-005	Bearing, Shock Absorber Mounting
13	51920-SCC-015	FR. SHOCK ABSORBER MOUNTING RUBBER
14	51925-TK6-A01	Damper comp - REBOUND STOP
15	90188-SCC-000	Bolt - FLANGE, 14X57.3
15	90188-SCC-A00	Bolt - FLANGE, 14X57.3
16	90213-SMA-003	Nut - SELF-LOCK, 14MM (CLINCH)
17	90215-TF0-000	Nut - HEX., 22MM
18	90551-SAA-000	Washer - WAVE, 12MM

Front sub frame 7

#	OEM	部品名
1	50200-TM8-G01	Sub frame comp. - FR.
3	50290-TF0-000	Stay - R. GEAR BOX
4	50295-TF0-G00	Stay - L. GEAR BOX
6	90160-SAA-000	Bolt - FLANGE, 14X67
7	90162-TF0-000	Bolt - FLANGE, 14X28
8	90163-S5A-000	Bolt - FLANGE, 10X20
9	90165-TF0-000	Bolt - FLANGE, 14X82

Front windshield 7

#	OEM	部品名
2	73111-TM8-G11	Glass set - FR. WINDSHIELD (GREEN) (AGC)
3	73125-TM8-A00	Rubber a - FR. WINDSHIELD DAM
4	73127-TM8-A00	Rubber c - FR. WINDSHIELD DAM
5	73128-TM8-000	Rubber d - FR. WINDSHIELD DAM
6	73150-TM8-A01	Molding - FR. WINDSHIELD
7	76441-S84-A01	Spring
8	91568-TF0-003	Clip - FR. WINDSHIELD UPPER

Front windshield wiper (LH) 28

#	OEM	部品名
1	76505-TM8-A01	Motor comp - FR. WIPER
2	76506-SMA-004	Cap - SHIELD
3	76506-S7A-004	Bolt-washer - 6X14
4	76510-TM8-A01	Harness assy - FR. WIPER MOTOR
5	76511-SMA-004	Nut - HEX., 8MM
6	76511-TM8-A01	Clip - CORD
7	76515-SMA-004	Seal a
8	76516-SFE-J02	Rubber a - MOUNTING
9	76516-SFE-004	Rubber b - MOUNTING
10	76517-SFE-004	Collar b
11	76517-S7A-J11	Collar c
12	76517-S7A-004	Collar a
13	76517-TF0-004	Mount - RUBBER (D)
14	76520-SMA-004	Link assy. a
15	76524-S7A-004	Dust seal a
16	76530-TM8-A01	Link comp - FR. WIPER
17	76540-TM8-A01	Rod unit a
18	76550-TM8-A01	Rod unit b
19	76561-TM8-A01	Washer a - PIVOT
20	76561-TM8-A11	Washer b - PIVOT
21	76600-TM8-A01	Arm - WINDSHIELD WIPER (DRIVER SIDE)
22	76610-TM8-G01	Arm - WINDSHIELD WIPER (PASSENGER SIDE)
23	76620-TF0-G01	Blade - WINDSHIELD WIPER(650MM)
24	76622-SMA-004	Rubber - BLADE (650MM)
25	76630-TM8-G01	Blade - WINDSHIELD WIPER (425MM)
26	76632-TM8-003	Rubber - BLADE (425MM)
27	90126-SR3-000	Bolt-washer - 6X32
28	91611-S5A-000	Cap - FR. WIPER

Fuel pipe (LH) 36

#	OEM	部品名
1	16720-RBJ-003	Hose comp. - FUEL FEED
2	16723-RBJ-A00	Bracket comp. - FUEL FEED HOSE
3	16725-RAA-004	Cover a - FUEL CONNECTOR (LIGHT GRAY)
4	16725-RAC-003	Clamp - FUEL HOSE (NATURAL)
5	16727-PWA-004	Clamp - FUEL HOSE
6	17700-TM8-G01	Pipe comp - FUEL FEED
7	17710-TM8-003	Pipe - FUEL VENT
8	17711-S0X-A31	Retainer - GREEN)(TOKAI
9	17711-S84-004	Retainer - WHITE)(SANOH
10	17717-TM8-010	Hose assy - FUEL PURGE
11	17720-TM8-G01	Pipe - FUEL PURGE
12	17721-TM8-000	Tube assy. a - FUEL VENT
13	17722-TM8-000	Tube assy. b - FUEL VENT
14	17724-TM8-000	Tube assy - FUEL PURGE
15	17744-TM8-013	Tube assy. a - DRAIN
16	17761-TM8-L00	Stay a - FUEL PIPE
17	17762-TM8-L00	Stay b - FUEL PIPE
18	17763-TM8-L00	Stay c - FUEL PIPE
19	17764-TM8-L01	Stay d - FUEL PIPE
20	90301-SV7-000	Nut - PAINT CUTTING, 6MM
21	90361-SV4-003	Nut - PAINT CUTTING, 6MM
22	91393-TL0-G01	O-ring - 9.8X2.4
23	91404-SDC-000	Clamp - TUBE (D10)
24	91404-TA0-G01	Clamp - FUEL TUBE (D10)
25	91405-SDA-000	Clamp - TUBE(D10.5)
26	91407-SDB-000	Clamp - TUBE (D12.5)
27	91591-SMA-931	Clamp - TUBE (D11)
28	91592-TA0-G01	Clamp - FUEL PIPE
29	91592-TM8-003	Clamp a - FUEL PIPE
30	91593-SDE-T01	Clip - DRAIN TUBE
31	91594-TM8-000	Insulator rubber a - FUEL PIPE
32	91595-S7A-931	Clamp a - FUEL PIPE
33	91595-TM8-003	Clamp - DRAIN TUBE
34	91596-TM8-003	Clamp c - FUEL PIPE
35	91599-SDC-E00	Rubber e - FUEL PIPE INSULATOR
36	91599-S7A-931	Clamp b - FUEL PIPE

Fuel tank 22

#	OEM	部品名
1	17044-TM8-000	Tank set - FUEL
2	17046-SNA-000	Nut & packing set - FUEL LOCK
3	17513-S0E-003	Circlip
4	17518-TM8-L01	Protector - L. FUEL TANK
5	17519-TM8-L00	Protector - R. FUEL TANK
6	17521-TM8-000	Band - FUEL TANK MOUNTING
7	17525-SM4-000	Bolt-washer - 10X35
8	17525-S0X-A00	Bolt-washer - 10X25
9	17651-TM8-000	Tube - FILLER NECK
10	17652-SDA-A31	Clip - FILLER TUBE
11	17652-SEL-003	Clip - FILLER TUBE (39MM)
12	17653-TM8-000	Tube assy - BREATHER
13	17660-TM8-G03	Pipe comp - FUEL FILLER
15	17670-SJA-013	Cap comp. FUEL FILLER
15	17670-T3W-003	CAP, FUEL FILLER
16	74660-SFE-000	Cap assy. - FLOOR MAINTENANCE HOLE
17	90150-S04-003	Bolt - EARTH, 6X16
18	91413-S5A-003	Clamp - FUEL TUBE (D17)
19	91462-SDA-003	Clamp - FUEL TUBE (D18)
21	91593-TF0-003	Clip - FILLER CAP
22	91598-TM8-003	Clamp - BREATHER TUBE
23	91601-SH3-013	Grommet - SCREW, 5MM (BLACK)

Fuel tank set short parts 4

#	OEM	部品名
1	17045-TM8-950	Module set - FUEL PUMP
2	17047-TM8-950	Meter set
3	17048-TM8-000	Strainer set - FUEL
4	17052-TM8-000	Regulator set - PRESSURE

Gasket kit 4

#	OEM	部品名
1	06110-RBJ-J00	Gasket kit - CYLINDER HEAD
2	06111-RB0-000	Gasket kit - CYLINDER BLOCK
3	06112-RBL-010	Gasket kit - CVT TRANSMISSION
4	06114-RB0-000	Gasket kit - CHAIN CASE

Grommet (FRONT) 10

#	OEM	部品名
1	74144-SR3-000	Cushion - HOOD
2	82871-671-000	Grommet - DRAIN HOLE, 25MM
3	90615-SR3-000	Cap - WELD HOLE, 51X77
4	90651-S0A-003	Cap - BOLT, 8MM
6	91601-SZ5-000	Cushion - HOOD (30MM)
7	91611-SS0-003	Plug - HOLE, 25MM
8	91611-TA0-003	Plug - FLOOR HOLE, 25MM
9	91612-TA0-003	Plug - FLOOR HOLE, 25MM
10	91615-SH3-000	Cap - FLOOR HOLE, 49MM
11	91618-TM8-A00	Block - CENTER PILLAR LOWER

Grommet (LOWER) 4

#	OEM	部品名
1	82871-671-000	Grommet - DRAIN HOLE, 25MM
2	85268-SA0-000	Protection - TAILGATE, 20MM (CIRCLE)
3	90810-SB2-660	Grommet - TIE DOWN, 20X35
4	91606-SK7-003	Plug - BLIND, 25MM

Grommet (REAR) 6

#	OEM	部品名
1	85268-SA0-000	Protection - TAILGATE, 20MM (CIRCLE)
2	90615-S5A-003	Plug - HOLE, 27X56
3	82871-671-000	Grommet - DRAIN HOLE, 25MM
4	91610-SD4-000	Plug - HOLE, 28MM
5	91616-TM8-A00	Block - FR. PILLAR INNER LOWER
7	90810-TM8-A01	Plug - HOLE(10MM)

Harness band/bracket (LH) 42

#	OEM	部品名
1	32101-TM8-A00	Bracket - HARNESS CLAMP (LH)
3	32117-P65-003	Holder - CORRUGATED(DARK BLUE) (15MM)
4	32119-TM8-003	Holder - CORRUGATED(DARK GREEN) (22MM)
5	32125-TL0-003	Holder - CORRUGATED(DARK BROWN) (28MM)
6	32128-RTA-003	Cover - ENGINE CONTROL MODULE COUPLER (A,B)
7	32134-SM4-003	Band - HARNESS OFFSET (10) (BROWN) (122.5MM)
8	32146-SH3-003	Connector - DIODE(2P)
9	39158-TM8-A01	Cover - ANTENNA TERMINAL
10	39169-TM8-003	Cover - TAILGATE CORD EDGE
11	90361-SV4-003	Nut - PAINT CUTTING, 6MM
12	90627-SA5-003	Clip - WIRE HARNESS(BLUE) (HARNESS TAPING)(50MM)
13	91506-SA5-000	Clip - WIRE HARNESS (BLACK) (WITH SEAL)
14	91507-RTA-003	Clip b - HARNESS BAND (DARK GREEN) (129.4MM)
15	91507-SNA-003	Clip - HARNESS BAND(BROWN) (164.5MM)
17	91510-SA5-003	Clip - OFFSET(10)(BROWN)(50MM)
18	91531-SDA-003	Clip - HARNESS BAND (NATURAL) (145MM)
20	91531-S04-003	Clip - WIRE HARNESS(NATURAL) (44MM)
21	91533-STK-003	Clip - COUPLER(NATURAL)
22	91534-STK-003	Clip - COUPLER(NATURAL) (WITH SEAL)
23	91534-SWA-003	Clip - COUPLER(DARK GRAY)
25	91536-STK-003	Clip - RELAY HOLDER(NATURAL)
26	91540-STK-003	Clip - HARNESS BAND (BLACK) (155.3MM)
27	91540-SV4-003	Clip - HARNESS BAND (NATURAL) (145.2MM)
28	91540-TA0-003	Clip - HARNESS BAND(NATURAL) (100.1MM)
29	91542-SNA-003	Clip - HARNESS BAND(DARK BLUE) (164.5MM)
30	91545-SCC-003	Clip - HARNESS BAND (WITH SEAL) (BROWN)(151MM)
31	91545-SNA-003	Clip - HARNESS BAND(DARK BLUE) (164.5MM)(WITH SEAL)
32	91545-SV4-003	Clip - HARNESS BAND (NATURAL) (145.2MM) (WITH SEAL)
33	91545-TA0-003	Clip - HARNESS BAND(NATURAL) (100.1MM)(WITH SEAL)
34	91547-SH3-003	Clip - BAND(NATURAL)(160MM)
35	91549-STK-003	Holder - HARNESS (NATURAL) (113MM)
36	91549-TA0-003	Clip - HARNESS BAND(BLACK) (140.3MM)
37	91551-SW5-003	Clip - HARNESS BAND (BROWN) (151MM)
38	91556-SM4-003	Clip - BAND (BLACK) (100MM)
39	91558-SAA-003	Clip - HARNESS BAND(30)(BLACK) (151.5MM)
40	91559-ST5-003	Clip - HARNESS BAND OFFSET(30) (NATURAL)
41	91559-S47-003	Clip - HARNESS BAND(NATURAL) (167MM)
43	91571-S10-003	Clip - WIRE HARNESS (NATURAL) (130MM)
45	91902-S2X-003	Plaster - WIRE HARNESS(50X100)
46	91902-TF0-J01	Plaster - WIRE HARNESS(50X50)
47	91551-PNA-003	Band - WIRE HARNESS (BLACK) (172MM)
48	91531-S84-003	Clip - WIRE HARNESS(NATURAL) (44MM)(WITH SEAL)

Headlight (HALOGEN) 22

#	OEM	部品名
1	06100-TM8-A01	Leg kit a - R. HEADLIGHT MOUNTING
2	06100-TM8-A11	Leg kit b - R. HEADLIGHT MOUNTING
3	06100-TM8-A21	Leg kit c - R. HEADLIGHT MOUNTING
4	06150-TM8-A01	Leg kit a - L. HEADLIGHT MOUNTING
5	06150-TM8-A11	Leg kit b - L. HEADLIGHT MOUNTING
6	06150-TM8-A21	Leg kit c - L. HEADLIGHT MOUNTING
7	33100-TM8-G01	Headlight assy - R.
8	33107-S7A-003	Nut - SPECIAL
10	33115-S7A-003	Bulb - HEADLIGHT(HB3)(12V 60W) (KOITO)
11	33126-SLA-003	Cover - RUBBER
12	33127-SLA-003	Cover comp. - BACK
13	33130-SYP-003	Adjuster unit, Headlight
14	33131-S3A-N01	O-ring
15	33145-S2A-003	O-ring
16	33150-TM8-G01	Headlight assy - L.
17	33165-SAA-003	Bulb - H11) (12V 55W) (KOITO
18	33301-S5H-T01	Bulb - WEDGE BASE (WY 12V 5W) (STANLEY) (AMBER)
19	33304-SEY-901	Socket comp - T10
20	33304-S5A-003	Socket comp - T10
21	34301-S5H-T02	Lamp unit
22	34908-SB6-741	Bulb - 12V 5W
22	34351-657-921	Bulb - 12V/5W) (STANLEY

Headlight washer (1) 25

#	OEM	部品名
1	38521-SB0-761	Hose a
2	76803-SH2-S10	Clip - WASHER HOSE
3	76803-TA1-M01	Clip - WASHER HOSE
4	76804-S2A-G01	Bolt-washer
5	76806-SJD-S01	Pump - WASHER
6	76825-SJD-S01	Joint assy.
7	76826-SJD-S01	Joint
8	76828-SH3-S03	Joint l
9	76828-SJD-S41	Joint
10	76829-SJD-S01	Joint
11	76845-SMG-S01	Bracket - MOTOR
12	76880-TM8-S01	Nozzle assy. - R. HEADLIGHT WASHER
14	76885-TM8-S01	Nozzle assy. - L. HEADLIGHT WASHER
16	76892-SJA-C41	Hose - 110-60
17	76893-SJA-G01	Hose
18	76893-SMG-S01	Cushion
19	76894-SR2-S03	Hose d
20	76894-S5A-S11	Hose
21	76894-TM8-S01	Hose
22	76895-TM8-S01	Joint
23	76895-TM8-S11	Hose
24	76898-TM8-S01	Cushion
25	90118-S9A-S01	Bolt-washer - 5X8
26	90132-SEA-003	Screw - PAN, 5X12
27	91561-TM8-S01	Clip - HEADLIGHT WASHER HOSE

Heater blower (LH) 14

#	OEM	部品名
1	79121-SW5-003	Screw-washer
2	79305-TM8-A41	Blower sub assy.
3	79306-TF0-003	Seal - BLOWER OUTER
4	79307-TF0-003	Packing - AIR INTAKE
5	79310-TJ5-F02	Motor assy. - FAN
6	79350-TJ0-M41	Motor assy. - FRESH & RECIRCULAR
7	79810-TM8-A01	Duct - INTAKE
8	80291-TF0-E01	ELEMENT. FILTER
8	80291-TF0-405	ELEMENT. FILTER
9	80292-TF0-003	Lid - BLOWER
10	90127-S3N-003	Screw - TAPPING, 4X16
11	90132-SR3-003	Screw - TAPPING, 5X16
12	90321-SV4-003	Nut-washer - 6MM (PAINT CUTTING)
13	90665-SM4-000	Grommet - SCREW, 4MM (YELLOW)

Heater unit (LH) 31

#	OEM	部品名
1	32157-TF0-G00	Sub cord - HEATER
2	39248-692-003	Packing - HEATER
3	79101-TM8-A41	Duct a
4	79102-TM8-A41	Duct b
5	79103-TF0-003	Packing set - VENT
6	79106-TM8-A41	Heater sub assy.
7	79108-TF0-003	Clamp - HEATER PIPE
8	79110-TJ5-F01	Core comp - HEATER
9	79140-TM8-A41	Motor assy. - MODE
10	79160-TM8-A41	Motor assy. - AIR MIX
11	79191-SAA-003	Packing
12	79308-TM8-A41	Joint set - DUCT
13	79330-SCA-A02	Transistor - POWER
14	79731-S0X-A00	Grommet - HEATER PIPE
15	80211-TM8-003	Evaporator comp.
16	80216-TM8-003	Pipe assy.
17	80218-TF0-003	Tray - EVAPORATOR
18	80222-TM8-A01	Valve sub assy. - EXPANSION
20	80271-TJ5-F00	Hose - DRAIN
21	80381-TF0-G01	Clip - DRAIN HOSE
22	80534-SAA-941	Aspirator
23	80560-TJ5-F01	Thermistor sub assy.
24	80871-SN7-003	O-ring - 5/8"
25	80872-SN7-003	O-ring - 1/2"
26	80873-SN7-003	O-ring - 8MM
27	90110-SAA-003	Bolt - SOCKET
28	90127-S3N-003	Screw - TAPPING, 4X16
29	90321-SV4-003	Nut-washer - 6MM (PAINT CUTTING)
30	91533-STK-003	Clip - COUPLER(NATURAL)
31	91548-SV4-003	Clip - BAND (6MM BOSS)(NATURAL) (127MM)
32	91580-SM4-003	Clip - COUPLER(ORANGE)

Ima battery 4

#	OEM	部品名
7	90667-RBJ-000	Clip - TRIM, 7MM
8	91533-S82-003	Clip - COUPLER(BLACK)
9	91540-S0A-003	Clip - HARNESS BAND(NATURAL) (96.9MM)
10	91564-RMX-000	Clip - TRIM, 5MM

Ima control unit/cover 7

#	OEM	部品名
14	32603-TM8-000	Cable assy - IPU EARTH
15	39794-SDA-A05	Relay assy - POWER(MICRO ISO) (MITSUBA)
16	90001-RBJ-000	Bolt - SPECIAL, 5X16.3
17	90120-PZA-000	Bolt - FLANGE, 6X12
18	90148-SE0-003	Bolt - EARTH, 6X16 (WASHER 12.5MM) (ZN)
19	91533-STK-003	Clip - COUPLER(NATURAL)
20	91540-TA0-003	Clip - HARNESS BAND(NATURAL) (100.1MM)

Ima ipu cooling unit 9

#	OEM	部品名
10	17212-P2F-A00	Rubber - AIR CLEANER MOUNTING
11	17216-PN3-000	Collar - AIR CLEANER MOUNTING
12	17216-P2F-A00	Collar - AIR CLEANER MOUNTING
13	90001-P0A-000	Bolt-washer - SPECIAL, 6X35
14	90122-PZA-003	Screw - TAPPING, 5X12
15	91560-SNA-A01	Clip - TRIM
16	91560-SYA-J01	Clip - PILLAR GARNISH (DARK GREEN)
17	91560-S04-003	Clip - SIDE GARNISH (NATURAL)
18	91560-S5H-003	Clip - SIDE GARNISH (NATURAL) (SEAL:BLACK)

Ima ipu frame 3

#	OEM	部品名
9	66844-SA7-000	Cap - INSTRUMENT PANEL STAY
10	90062-RTW-000	Bolt-washer - TORX, 6X20
11	90671-RBJ-003	Clip - COVER, 7MM

Ima junction board 3

#	OEM	部品名
12	90051-RGA-003	Bolt - SPECIAL, 6X20.8
13	90140-RCJ-000	Bolt - FLANGE, 6X10
14	91533-S82-003	Clip - COUPLER(BLACK)

Ima main cable/stay 4

#	OEM	部品名
14	32113-R60-003	Holder - CORRUGATED(BLACK) (10MM)
15	90120-PZA-000	Bolt - FLANGE, 6X12
16	90301-SV7-000	Nut - PAINT CUTTING, 6MM
17	90337-SJ4-003	Nut - A.L.B.

Ima motor 5

#	OEM	部品名
8	90005-RMX-000	Bolt - SPECIAL, 8X22
9	90006-RMX-000	Bolt - SPECIAL, 8X15
10	90007-PZA-000	Bolt - FLANGE, 6X12(FOR BUSBAR)
11	90011-PH3-000	Bolt - FLANGE, 12MM
12	91541-S0A-003	Clip - HARNESS BAND(BLACK) (145MM)

Input shaft/forward clutc h 59

#	OEM	部品名
1	22500-RBL-003	Clutch assy. - FORWARD
2	22533-PWR-010	Piston - REVERSE BRAKE
3	22540-PWR-000	Spring comp - REVERSE RETURN
4	22544-P4V-003	Plate - REVERSE BRAKE
5	22545-PWR-013	Disk - REVERSE BRAKE
6	22546-P4V-020	Spring - REVERSE BRAKE DISK
7	22556-P4V-003	Plate - REVERSE BRAKE END (6) (4.6MM)
7	22554-PWR-003	Plate - REVERSE BRAKE END (D) (4.3MM)
7	22558-P4V-003	Plate - REVERSE BRAKE END (8) (5.0MM)
7	22555-PWR-003	Plate - REVERSE BRAKE END (E) (4.5MM)
7	22552-P4V-003	Plate - REVERSE BRAKE END (2) (3.8MM)
7	22556-PWR-003	Plate - REVERSE BRAKE END (F) (4.7MM)
7	22553-P4V-003	Plate - REVERSE BRAKE END (3) (4.0MM)
7	22557-P4V-003	Plate - REVERSE BRAKE END (7) (4.8MM)
7	22554-P4V-003	Plate - REVERSE BRAKE END (4) (4.2MM)
7	22552-PWR-003	Plate - REVERSE BRAKE END (B) (3.9MM)
7	22555-P4V-003	Plate - REVERSE BRAKE END (5) (4.4MM)
7	22553-PWR-003	Plate - REVERSE BRAKE END (C) (4.1MM)
8	22816-P4V-003	Ring - SEAL
9	23210-RPS-000	Shaft comp. - INPUT
10	23500-RBL-000	Gear comp - PLANETARY
11	23511-RBL-000	Gear - SUN
12	23531-RBL-000	Gear - RING
13	90403-PLY-000	Washer - THRUST, 25X41.5X2.5
14	90405-P4V-000	Washer - THRUST, 25X41.5X1
15	90436-P4V-000	Retainer - CIRCLIP
16	90489-P4V-000	Shim v - 25X31 (1.71)
16	90484-P4V-000	Shim q - 25X31 (1.36)
16	90462-P4V-000	Shim l - 25X31 (1.82)
16	90457-P4V-000	Shim g - 25X31 (1.47)
16	90452-P4V-000	Shim b - 25X31 (1.12)
16	90486-P4V-000	Shim s - 25X31 (1.50)
16	90481-P4V-000	Shim n - 25X31 (1.15)
16	90459-P4V-000	Shim i - 25X31 (1.61)
16	90454-P4V-000	Shim d - 25X31 (1.26)
16	90488-P4V-000	Shim u - 25X31 (1.64)
16	90483-P4V-000	Shim p - 25X31 (1.29)
16	90461-P4V-000	Shim k - 25X31 (1.75)
16	90456-P4V-000	Shim f - 25X31 (1.40)
16	90451-P4V-000	Shim a - 25X31 (1.05)
16	90490-P4V-000	Shim w - 25X31 (1.78)
16	90485-P4V-000	Shim r - 25X31 (1.43)
16	90480-P4V-000	Shim m - 25X31 (1.08)
16	90458-P4V-000	Shim h - 25X31 (1.54)
16	90453-P4V-000	Shim c - 25X31 (1.19)
16	90487-P4V-000	Shim t - 25X31 (1.57)
16	90482-P4V-000	Shim o - 25X31 (1.22)
16	90460-P4V-000	Shim j - 25X31 (1.68)
16	90455-P4V-000	Shim e - 25X31 (1.33)
17	90606-P4V-000	Circlip - EXTERNAL, 35MM
18	90612-P4V-000	Circlip - EXTERNAL, 25MM
19	90613-P4V-000	Circlip - INTERNAL, 150MM
20	90614-RLS-000	Circlip - INTERNAL, 150MM
21	91104-P4V-013	Bearing - NEEDLE, 20X24X17
22	91131-P4V-003	Bearing - THRUST NEEDLE, 25X42X2
23	91304-PWR-003	O-ring - 86.6X2.3(NOK)
24	91307-PA9-003	O-ring 31.2X1.9 (ARAI)
25	91311-P4V-004	Ring - SEAL
26	91312-P4V-004	O-ring - 135X2.5 (ARAI)

Instrument panel (LH) 15

#	OEM	部品名
2	66844-SA7-000	Cap - INSTRUMENT PANEL STAY
4	77104-TM8-000	Felt - INSTRUMENT
7	77370-TM8-G00	Kneepad assy. - OUTSIDE
8	77375-TM8-G00	Kneepad assy. - INSIDE
11	77550-TM8-000	Frame - GLOVE BOX
16	78033-TL0-G80	Label - PASSENGER CUT OFF SWITCH WARNING
17	90106-S3N-000	Bolt-washer - 8X86
18	90107-S7S-000	Bolt-washer - 8X50
19	90108-SF1-000	Bolt-washer - 6X15
20	90111-SCC-003	Bolt-washer - 8X99
21	90111-SVA-A00	Bolt-washer - 8X56
22	90113-SAA-003	Bolt - SPECIAL, 6X14
23	90140-SH3-003	Bolt-washer - 5X18
24	90321-SP0-A80	Nut-washer - 6MM
25	90666-SDA-A01	Clip, Snap Fitting - SNAP FITTING(PO) (NATURAL)

Instrument panel garnish (DRIVER SIDE; LH) 7

#	OEM	部品名
1	38205-TM8-G01	Label - FUSE
2	77201-TM8-A01	Garnish - REMOTE CONTROL SWITCH
13	90101-S2K-000	Screw - TAPPING, 4X16(IT)
14	90666-SDA-A01	Clip, Snap Fitting - SNAP FITTING(PO) (NATURAL)
15	90666-TA0-A21	Clip - SNAP FITTING (PO) (ORANGE)
16	90669-SHJ-A01	Clip - SNAP FITTING
17	91640-SM4-003	Grommet - SCREW, 4MM

Instrument panel garnish (PASSENGER SIDE; LH) 17

#	OEM	部品名
6	39620-TA0-003	Cap assy.
7	39624-SZ3-L01	Socket assy
9	66418-SB2-000	Stopper - GLOVE BOX LID
11	77255-TM8-A00	Bracket comp. - AUDIO
15	77289-TM8-003	Stopper
20	77515-SZ3-A02	Hinge - GLOVE BOX
21	77530-TM8-G01	Damper assy. - GLOVE BOX
22	77541-TM8-000	Striker comp. - GLOVE BOX
23	90133-SM4-003	Bolt-washer - 5X16
24	90140-SH3-003	Bolt-washer - 5X18
25	90302-SA4-003	Nut - SPRING, 4MM
26	90666-SDA-A01	Clip, Snap Fitting - SNAP FITTING(PO) (NATURAL)
27	90666-SLJ-003	Clip - SNAP FITTING (PO)
28	90666-TA0-A11	Clip - SNAP FITTING (PO) (ORANGE)
29	90669-SHJ-A01	Clip - SNAP FITTING
33	77955-TM8-E01	Indicator assy. - PASSENGER SRS OFF
35	77240-S7S-000	Lid assy - AUDIO HOLE

Intake manifold 23

#	OEM	部品名
1	16450-RGA-003	Injector assy - FUEL
2	16451-PLC-000	Clip - INJECTOR
3	16620-RBJ-A01	Pipe comp - FUEL
4	16638-PT2-000	Insulator - FUEL PIPE
5	16680-PZA-L01	Damper assy. - PULSATION
6	16681-PRB-A00	Cap - PULSATION DAMPER
7	16705-PD1-003	Gasket - SILENCER
8	17000-RBJ-000	Manifold assy - INTAKE
9	17107-RB0-007	Packing - THROTTLE BODY
10	17116-RB0-000	Plate - THROTTLE FLANGE
11	17132-RBJ-000	Stay comp - INTAKE MANIFOLD
12	17145-RBJ-000	Plate comp - EGR
13	17146-RBJ-004	Gasket - EGR PLATE
14	18011-RBJ-000	Valve set - EGR
15	18715-PB2-000	GASKET, EGR VALVE (ISHINO GASKET)
16	19520-RBJ-000	Stay - WATER HOSE CLAMP
17	36164-RBJ-000	Stay - PURGE JOINT
18	37830-RNA-A01	Sensor assy - MAP
19	37835-PGK-A01	O-ring
20	90012-RBJ-000	Bolt-washer - 8X75
21	91301-PLC-000	O-ring - 7.47X3.6
22	91302-PNA-003	O-ring - 7.45X3.61(NOK)
32	17105-RBJ-007	Gasket - INTAKE MANIFOLD

Interior light 4

#	OEM	部品名
1	34251-S5A-003	Lens
3	34253-671-003	Bulb - 12V 8W)(DAIICHI
3	04110-SWA-305	BULB T10X318W
11	90148-S6A-013	Bolt - EARTH, 5X14

Intermediate plate 5

#	OEM	部品名
1	21300-RBL-G01	Plate assy. - INTERMEDIATE
2	21812-RBL-000	Packing - INTERMEDIATE PLATE
3	90024-612-000	Bolt - SEALING, 8MM
4	90471-580-000	Packing - 8MM
5	91307-PN0-003	O-ring - 25.5X1.9(NOK)

Key cylinder components 13

#	OEM	部品名
1	35102-SV4-003	Bolt - BREAK HEAD
2	35103-S04-003	Screw - RECESSED
3	35108-S30-003	Holder - COLUMN
4	35111-SWA-305	KEY COMP., IMMOBILIZER (MAIN) (BLANK) (H-MARK:SILVER) - IMMOBILIZER (MAIN) (BLANK)(H-MARK:SILVER)
5	35113-SMG-305	Key comp. - TRANSMITTER TOP CASE (BLANK)
6	35114-SWW-E01	Bottom comp. - TRANSMITTER KEY CASE
7	35116-SDA-A11	Screw - FLAT
8	35118-TM8-E00	Key comp. - IMMOBILIZER & TRANSMITTER (BLANK)
9	35130-SJA-A01	Switch comp - STEERING
10	39730-SWA-Y02	Immobilizer & keyless unit
11	72118-ST7-003	Screw - TAPPING, 3X5
12	72147-SWA-E01	Module assy. - KEYLESS
13	72148-S0A-000	Battery CR1616

Key cylinder set (LH) 2

#	OEM	部品名
1	06350-TM8-G01	Cylinder set - KEY
2	06351-TM8-911	Lock assy - STEERING

L. side cover 25

#	OEM	部品名
1	21240-RBL-000	Cover comp. - L. SIDE
2	21813-RBL-000	Packing - L. COVER
3	22711-P4V-000	Pipe a - FEED
4	22713-PWR-013	Guide a - FEED PIPE
5	22722-PHT-000	Guide - OIL FEED
6	22740-RPS-900	Pipe comp - 10.9X46
7	22742-P4V-000	Pipe - 10.9X18.6
8	22771-PW4-000	Pipe - 50
9	22771-RBL-000	Pipe comp. a - MANUAL VALVE BODY
10	22772-RBL-000	Pipe comp. b - MANUAL VALVE BODY
11	24621-PHT-000	Spring - DETENT
12	24624-P5H-000	Guide - DETENT SPRING
13	24626-P5H-003	Pin - DETENT
14	27400-PZC-000	Body assy - MANUAL VALVE
15	27412-PZC-000	Plate - MANUAL SEPARATING
16	90003-PLY-000	Bolt - FLANGE, 8X60
17	90024-612-000	Bolt - SEALING, 8MM
18	90383-TF0-000	Bolt - STUD, 12X50
19	90471-580-000	Packing - 8MM
20	90607-081-000	Circlip - 7MM
21	90702-PHT-003	Roller - 6X45.6
22	91046-P5H-003	Bearing - NEEDLE, 3.5X8X11
23	91302-PWR-003	O-ring - 30.6X1.9 (NOK)
24	91311-PA9-004	O-ring - 7.7X1.9 (NOK)
25	91314-PW4-003	O-ring - 11X1.9 (NOK)

Meter (DENSO) 7

#	OEM	部品名
1	78100-TM8-G14	Meter assy - COMBINATION
2	78101-TM8-J01	Lens - SP
3	78103-TM8-J01	Lens - MAIN 1KNOB
4	78113-TM8-J01	Knob - R
5	78157-TM8-J01	Felt
6	78175-SE3-004	Grommet - DENSO
7	91640-SM4-003	Grommet - SCREW, 4MM

Mirror (REMOTE CONTROL) 19

#	OEM	部品名
2	76202-TM8-A01	Cover - R. LOWER
3	76203-TM8-E01	Mirror sub assy. - R. (SR1400)
5	76206-SJA-A01	Screw - TORX, 5X11
6	76206-TM8-A01	Harness set - R.
7	76207-TM8-E02	Frame sub assy - R.
8	76210-SAP-J01	Actuator sub assy. - R.
9	76220-TM8-A00	Garnish - R. DOOR MIRROR
10	76222-S7S-003	Clip - DOOR MIRROR COVER
11	76222-TM8-A01	Clip
13	76252-TM8-A01	Cover - L. LOWER
14	76253-TM8-E01	Mirror sub assy. - L. (SR1400)
16	76256-TM8-A01	Harness set - L.
17	76257-TM8-E02	Frame sub assy - L.
18	76260-SAP-J01	Actuator sub assy. - L.
19	76270-TM8-A00	Garnish - L. DOOR MIRROR
20	76400-SDA-A03	Mirror assy - RR. VIEW (DAY/NIGHT)
21	90145-SAA-J51	Screw - TAPPING, 4X14
22	90145-SCK-J01	Screw - TAPPING, 4X18
23	91545-S2A-003	Clip - HARNESS BAND (BROWN) (151MM) (WITH SEAL)

Molding 33

#	OEM	部品名
1	72410-TM8-013	Molding assy. - R. FR. DOOR
2	72430-TM8-A01	Garnish - R. FR. DOOR SASH
3	72450-TM8-013	Molding assy. - L. FR. DOOR
4	72470-TM8-A01	Garnish - L. FR. DOOR SASH
5	72721-TM8-A01	Garnish - R. RR. DOOR RR. PILLAR
6	72761-TM8-A01	Garnish - L. RR. DOOR RR. PILLAR
7	72910-TM8-013	Molding assy. - R. RR. DOOR
8	72930-TM8-A01	Garnish - R. RR. DOOR SASH
9	72950-TM8-013	Molding assy. - L. RR. DOOR
10	72970-TM8-A01	Garnish - L. RR. DOOR SASH
11	74112-TM8-A00	Cover - FR. BULKHEAD LOWER
12	74117-TM8-A00	Guide - FR. BUMPER AIR
13	74306-TM8-A01	Molding assy. - R. ROOF
14	74316-TM8-A01	Molding assy. - L. ROOF
15	74475-TM8-A10	Strake - R. RR.
16	74485-TM8-A10	Strake - L. RR.
17	74551-TM8-G01	Cover - R. RR. FENDER
19	74591-TM8-G01	Cover - L. RR. FENDER
21	74641-TM8-A00	Cover - R. FR. FLOOR UNDER
22	74642-TM8-A00	Cover - L. FR. FLOOR UNDER
23	74645-TM8-A10	Cover - MIDDLE FLOOR UNDER
24	75490-TM8-A01	Garnish assy - R. FR. CORNER PILLAR
25	75491-SWA-003	Clip - FR. PILLAR CORNER GARNISH
26	75495-TM8-A01	Garnish assy - L. FR. CORNER PILLAR
30	90103-TA0-000	Screw - TAPPING, 5X20
31	90109-SE0-003	Bolt b - BUMPER
32	90135-SZ3-000	Bolt - FLANGE, 6X18
34	90142-S04-000	Screw - TAPPING, 4X10
35	90149-SA0-003	Bolt - BUMPER
36	90331-679-003	Nut - SPRING, 5MM
38	91505-S9A-003	Clip A - BUMPER
40	91506-S9A-003	Clip b - BUMPER
41	91513-SYP-003	Clip - OVER FENDER

Oil pump 36

#	OEM	部品名
1	15100-RB0-003	Pump assy. - OIL
1	22760-RPS-000	Pipe comp - OIL PASSAGE
2	15220-RB0-000	Strainer comp. - OIL
2	23954-RPS-000	Hub - DRIVE SPROCKET
3	15221-PZ1-000	Packing - OIL STRAINER
3	25010-P4V-305	Sprocket comp - OIL PUMP DRIVEN
4	15231-413-020	Valve - RELIEF
4	25100-PZC-305	Pump comp - OIL
5	15232-PHM-003	Spring - RELIEF VALVE
5	25161-P4V-000	Sprocket - OIL PUMP DRIVEN
6	15233-PFB-003	Bolt - SEALING, 18MM
6	25165-PLY-003	Chain - OIL PUMP DRIVE
7	15400-RTA-004	Cartridge - OIL FILTER (TOYO ROKI)
7	15400-PLM-A02	OIL FILTER (HONEYWELL)
7	15400-RTA-003	OIL FILTER (MAHLE TENNEX)
7	25631-RPS-000	Pipe - LUBRICATION
8	90015-PH1-013	Holder - OIL FILTER
8	90002-P4V-000	Bolt - 8X60
9	90042-PR3-000	Bolt - STUD, 6X28
9	90041-PA5-000	Bolt - STUD, 6X28
9	90402-PLY-000	Washer - THRUST, 22X35X1.5
10	91326-PF4-004	O-ring - 24.4X2.4 (NOK)
10	90574-P4V-000	Shim d - 22X28 (1.40)
10	90576-P4V-000	Shim f - 22X28 (1.90)
10	90578-P4V-000	Shim h - 22X28 (2.40)
10	90573-P4V-000	Shim c - 22X28 (1.15)
10	90575-P4V-000	Shim e - 22X28 (1.65)
10	90577-P4V-000	Shim g - 22X28 (2.15)
11	90607-P4V-000	Circlip - EXTERNAL, 24MM
12	90609-P4V-000	Circlip - EXTERNAL, 22MM
13	90703-P4V-000	Dowel pin - 22X10
14	90704-P4V-000	Dowel pin - 18X10
15	91131-PLY-005	Bearing - THRUST NEEDLE, 22X36X2
16	91302-P7W-A00	O-ring - 9.6X1.9
17	91307-PK4-003	O-ring - 12.8X1.9(NOK)
18	91327-P4V-003	O-ring - 20.7X2.4

Outer panels/rear panel 11

#	OEM	部品名
10	63109-TM8-A01	Separator - R. RR. WHEEL ARCH
12	63136-TM8-A01	Separator - R. FR. PILLAR INSIDE
13	63139-TM8-A01	Separator - FR. PILLAR OUTSIDE
15	63219-TM8-A01	Separator - CENTER PILLAR OUTSIDE
18	63509-TM8-A01	Separator - L. RR. WHEEL ARCH
20	63536-TM8-A01	Separator - L. FR. PILLAR INSIDE
25	74470-SAA-003	Packing - FUEL LID LOCK
27	74486-TF0-013	Lifter - FUEL LID PUSH
28	74490-TM8-G00	Grommet - FUEL FILLER ADAPTER
29	74700-TF0-003	Actuator assy - FUEL LID
30	75450-SMA-003	Outlet assy - RR. AIR

P.s. gear box (EPS; LH) 32

#	OEM	部品名
1	50298-TM8-G00	Stiffener - STEERING GEAR BOX CENTER
2	53010-TF0-003	End comp - RACK
3	53413-SCC-003	Spring - RACK GUIDE PRESSURE
4	53414-S04-003	Screw - RACK GUIDE
5	53416-TF0-003	Guide comp - STEERING RACK
6	53417-SCC-003	O-ring - RACK GUIDE
7	53418-S04-G51	Washer - DISK
8	53429-TF0-003	Seal set - TIE ROD DUST
9	53434-TF0-003	Clip - STEERING TIE ROD
10	53449-S5A-J01	Band a - BELLOWS
11	53458-S50-003	Nut - LOCK
12	53501-TF0-G00	Grommet - STEERING
13	53536-SDA-A02	Washer - TIE ROD LOCK
14	53537-S84-A01	Rubber - STOPPER
15	53540-TF0-003	End comp - R. TIE ROD
16	53546-S84-003	Boot - TIE ROD END (NOK)
17	53560-TF0-003	End comp - L. TIE ROD
18	53601-TM8-A03	Box comp - STEERING GEAR
19	53602-TM8-A02	Motor comp
20	53684-TF0-003	Bush - STEERING GEAR BOX MOUNTING
21	53685-TF0-003	Bush - STEERING GEAR BOX MOUNTING
22	53686-TF0-003	Bush - STEERING GEAR BOX MOUNTING
23	53692-TM8-A02	Heat guard
24	53693-TM8-A02	Heat guard
25	53752-TM8-A01	Stay b
26	90103-S0A-N01	Screw - PAN, 5X8
27	90108-TM8-000	Bolt - GEAR BOX MOUNTING
28	90163-S5A-000	Bolt - FLANGE, 10X20
29	90167-ST7-000	Bolt - FLANGE, 10X60
30	90428-S0A-003	Washer - DRAIN
31	91351-S5A-003	O-ring - MOTOR
32	91411-S84-A01	Nut - HEX., 14MM

Parking brake 9

#	OEM	部品名
2	47342-SX8-T01	Switch - PARKING BRAKE
3	47360-SB2-000	Equalizer
4	47365-538-000	Pin - EQUALIZER
5	47370-TF0-013	Guide - EQUALIZER
6	47510-TM8-G01	Wire b - R. PARKING BRAKE
7	47538-S2R-000	Nut - ADJUSTER
8	47560-TM8-G01	Wire b - L. PARKING BRAKE
9	47572-SAA-000	Base - WIRE GUIDE
10	90651-538-000	Clip - BRAKE HOSE

Pcv tube 6

#	OEM	部品名
1	11855-P72-000	Grommet, PCV Valve
2	17130-P07-G01	Valve assy. - PCV
3	17131-RBJ-000	Tube - PCV
4	17135-RBJ-000	Pipe comp - BREATHER
5	17153-RBJ-000	Tube - BREATHER
6	91412-SDC-L01	Clamp - FUEL TUBE(D15.5)

Pedal (LH) 11

#	OEM	部品名
1	17800-TF0-G01	Pedal assy - ACCELERATOR
2	35350-SAA-013	Switch assy - STOP (MATSUSHITA)
3	36760-SE0-003	Switch assy - CLUTCH(TEC)
4	46505-SA5-000	Pad - PEDAL STOPPER
5	46530-TM8-A51	Spring assy - PEDAL RETURN
6	46545-S1F-981	Cover - PEDAL
7	46600-TM8-A51	Pedal assy - BRAKE
8	46991-TM8-G00	Bracket - FOOTREST
9	46992-TF0-G01	Plate - FOOTREST
10	90361-SV4-003	Nut - PAINT CUTTING, 6MM
11	90361-S3C-003	Nut - PAINT CUTTING, 8MM

Pillar garnish 5

#	OEM	部品名
19	91560-SLJ-J01	Clip - DOOR LINING (LIGHT GRAY)
20	91560-SYA-J01	Clip - PILLAR GARNISH (DARK GREEN)
21	91560-TF0-013	Clip - PILLAR GARNISH
22	91560-S6A-003	Clip - DOOR LINING(ORANGE)
23	91561-TA0-A11	Clip - RR. PILLAR GARNISH

Plug top coil/plug 3

#	OEM	部品名
1	12290-RBJ-003	Plug - SPARK(DILFR6F11G)(NGK)
2	30520-RBJ-003	Coil assy. a - PLUG TOP
3	30521-RBJ-003	Coil assy. b - PLUG TOP

Purge control 3

#	OEM	部品名
1	36166-RBJ-003	Joint - PURGE
2	36168-RBJ-000	Tube b - PURGE
3	36169-RBJ-010	Pipe comp - PURGE

Radiator (T.RAD) 15

#	OEM	部品名
1	19010-RBJ-004	Radiator comp. - T.RAD
2	19011-PH2-004	Cock - DRAIN (T.RAD)
3	19012-PD2-004	Packing - DRAIN (T.RAD)
4	19015-RBJ-004	Shroud comp.
5	19020-RB0-004	Fan comp - COOLING
6	19030-RB0-004	Motor - COOLING FAN
7	19045-PWA-004	Cap comp. - RADIATOR (T.RAD)
8	19046-PT5-P00	Seal - CAP (PORTUGAL)
9	19046-RAA-A00	Label - RADIATOR CAP
10	37870-RWC-A01	Water Temp Sensor assy - (PANASONIC)
11	90041-PAA-A01	Nut - TOOTHED, 5MM
12	90042-PZ1-004	Bolt-washer - 6X20
13	90050-R40-A01	Screw - WASHER (5X12)
14	90403-P5M-004	Spacer - FAN, 8MM (MITSUBA)
15	91307-PLC-004	O-ring - 9.5X1.9 (MATSUSHITA)

Radiator hose/ reserve tank 23

#	OEM	部品名
1	19101-RB0-000	Tank comp. - RESERVE
2	19102-RNA-A00	Cap - RESERVE TANK
3	19103-PLC-000	Hose a - RESERVE TANK
4	19104-RBJ-000	Hose - RESERVE TANK
5	19106-RSH-E00	Joint - RESERVE TANK
6	19501-RBJ-000	Hose - WATER UPPER
7	19502-RBJ-000	Hose - WATER LOWER
8	19511-P08-004	Clip - WATER HOSE (KATO HATSUJO)
8	19511-PA6-003	Clip - WATER HOSE(CHUO SPRING)
9	25211-RJJ-003	Hose - ATF, 250MM(BRIDGESTONE)
10	25212-RAA-003	Hose - ATF, 210MM (BRIDGESTONE)
10	25212-RAA-007	HOSE ATF 210MM TO
11	25213-P48-J02	Hose comp. - ATF, 340MM (BRIDGESTONE)
11	25213-P48-007	Hose comp.
12	25430-PLR-003	Filter, ATF
13	25431-PNA-000	Stay a - ATF FILTER
14	25440-RBJ-000	Stay comp. b - ATF FILTER
15	74171-TM8-A00	Bracket - R. RADIATOR UPPER MOUNTING
16	74172-TA0-A10	Cushion - RADIATOR MOUNTING LOWER
17	74173-SJ4-000	Cushion - RADIATOR MOUNTING UPPER
18	74176-TM8-A00	Bracket - L. RADIATOR UPPER MOUNTING
19	90635-PT0-802	Clip, Oil Pipe
19	90635-RV0-003	CLIP, OIL PIPE

Radio antenna/speaker (LH) 13

#	OEM	部品名
3	39122-SYA-000	Seal - SPEAKER HOLE
4	39151-S6A-E02	Element assy. - YOKOO
4	39151-S6A-E03	ELEMENT ASSY YOKOO
5	39152-TM8-E01	Base comp. - ANTENNA
6	39153-TA0-A02	Nut assy. - ANTENNA (YOKOO)
7	39156-TM8-G11	Sub feeder assy. - ANTENNA
8	39160-TM8-A01	Feeder assy. - ANTENNA
13	90666-SD4-003	Clip - FITTING
14	91533-STK-003	Clip - COUPLER(NATURAL)
15	91534-SWA-003	Clip - COUPLER(DARK GRAY)
16	91542-SNA-003	Clip - HARNESS BAND(DARK BLUE) (164.5MM)
17	91902-SNA-003	Plaster - WIRE HARNESS(50X50)
18	91903-SNA-003	Plaster - WIRE HARNESS(50X100)

Rear axle 15

#	OEM	部品名
1	42100-TM8-G10	Beam assy - RR. AXLE (DISK)
2	42115-TM8-A01	Damper - RR. AXLE DYNAMIC
3	42522-SLJ-003	Clamp - WIRE (BLACK)
4	42524-SNA-003	Clip - COUPLER (BLACK)
5	52315-TM8-A02	Rubber - RR. STABILIZER
6	52745-TM8-A00	Cover - R. RR. SPRING SEAT LOWER
7	52746-TM8-A00	Cover - L. RR. SPRING SEAT LOWER
8	52748-TF0-020	Rubber - RR. SPRING MOUNTING LOWER
9	57470-TM8-A01	Sensor assy - R. RR.
10	57475-TM8-A01	Sensor assy - L. RR.
11	90114-SE0-000	Screw - TAPPING, 5X20
12	90115-659-003	Nut - SELF-LOCK, 8MM (CLINCH)
13	90164-SMG-E00	Bolt - FLANGE, 14X128
14	91503-SZ3-003	Clip A
15	91507-SWA-003	Clip - HARNESS BAND (GRAY) (96.9MM)

Rear brake 43

#	OEM	部品名
1	01473-SV4-000	Caliper set - RR.
1	01473-SV4-010	SET RR CALIPER
2	06435-S2A-000	Shim set - RR.
3	42200-TF0-N51	Bearing assy - RR. HUB UNIT
4	42326-SLA-000	Cap - HUB UNIT
5	42510-TM8-G00	Disk, Rear Brake
6	43018-TM8-G00	Caliper sub assy. - R. RR.
7	43019-TM8-G00	Caliper sub assy. - L. RR.
8	43022-TM8-G01	Pad set, Rear
9	43215-SM4-951	Piston assy.
10	43223-SD2-932	BEARING A
11	43224-SD2-931	Spring b - ADJUSTING
12	43227-SG0-013	Spring - PAD
13	43228-SD2-933	Shaft a
14	43229-SD2-931	Rod
15	43233-S5A-J01	Piston comp - SLEEVE
15	43233-TR0-A01	Piston, sleeve
16	43235-S84-A51	Pin a
17	43236-S04-003	Spacer
18	43238-SF1-003	Ring - RETAINING
19	43241-S5A-003	Guide - SPRING
20	43243-SD2-931	Nut - PARKING
21	43244-SG0-003	Retainer
22	43245-TM5-H01	Lever - R.
23	43246-TM5-H01	Spring - R. RETURN
24	43247-TM5-H01	Arm - R.
25	43248-SD2-933	Shaft b
26	43249-S04-003	Bolt - ADJUSTER
27	43253-TM5-H00	Guard - R. RR. BRAKE SPLASH
28	43254-TM5-H00	Guard - L. RR. BRAKE SPLASH
29	43262-S84-A51	Pin b
30	43265-TM5-H01	Lever - L.
31	43266-TM5-H01	Spring - L. RETURN
32	43267-TM5-H01	Arm - L.
33	43352-SM4-951	Screw - BLEEDER
34	43353-SD5-003	Cap - BLEEDER SCREW
35	45240-SC2-003	Bolt - FLANGE, 8X22
36	90103-SV4-013	Bolt - FLANGE, 10X30
37	90113-SA0-025	Bolt - WHEEL (NAGOYA RASHI)
37	90113-SM1-005	Bolt - WHEEL (ROCKNEL FASTENER)
37	90113-S5H-005	Bolt - WHEEL (THAI MEIRA)
37	90113-SA0-006	Bolt - WHEEL (SAGA)
38	90305-S30-003	Nut - SPINDLE

Rear bumper 14

#	OEM	部品名
1	33505-SLJ-013	Reflector assy - R. RR.
2	33555-SLJ-013	Reflector assy - L. RR.
5	71503-TM8-A00	Bracket - R. RR. BUMPER SIDE
6	71508-TM8-A00	Bracket - L. RR. BUMPER SIDE
8	71593-TM8-A02	Spacer - R. RR. BUMPER SIDE
9	71598-TM8-A02	Spacer - L. RR. BUMPER SIDE
10	90103-TA0-000	Screw - TAPPING, 5X20
11	90111-SM4-003	Bolt - BUMPER
12	90149-SAA-003	Bolt - BUMPER
13	90301-SP0-003	Nut - PAINT CUTTING, 6MM
14	90303-SA5-003	Nut - FR. COMBINATION LIGHT
15	90305-SM4-000	Nut - AIR SPOILER CLIP
16	90331-S3Y-003	Nut - SPRING, 5MM
17	91505-S9A-003	Clip A - BUMPER

Rear door glass/ regulator 18

#	OEM	部品名
1	72215-SZH-003	Motor assy. - WINDOW
2	72255-SZH-003	Motor assy. - WINDOW
3	72711-TM8-003	Regulator assy - R. RR. DOOR
4	72731-TM8-A01	Sash - R. RR. DOOR QUARTER
5	72735-TM8-003	Runchannel - R. RR. DOOR
6	72751-TM8-003	Regulator assy - L. RR. DOOR
7	72771-TM8-A01	Sash - L. RR. DOOR QUARTER
8	72775-TM8-003	Runchannel - L. RR. DOOR
9	73400-TM8-G00	Glass assy - R. RR. DOOR (GREEN) (AGC)
10	73405-TM8-G00	Glass - R. RR. DOOR QUARTER (GREEN) (AGC)
11	73441-TM8-A01	Seal - R. RR. DOOR QUARTER
12	73450-TM8-G00	Glass assy - L. RR. DOOR (GREEN) (AGC)
13	73455-TM8-G00	Glass - L. RR. DOOR QUARTER (GREEN) (AGC)
14	73491-TM8-A01	Seal - L. RR. DOOR QUARTER
15	76218-SB4-000	Collar b - RR. DOOR PANEL LOWER
16	90021-SFA-000	Bolt - FLANGE, 6X10
17	90102-SZH-003	Screw - TAPPING,
18	90115-SZH-003	Bolt - FLANGE, 6X12

Rear door lining 6

#	OEM	部品名
1	35760-SWA-J01	Sub switch assy. - POWER WINDOW
2	72835-TM8-013	Weatherstrip - RR. DOOR INNER
12	90101-S03-000	Screw - TAPPING, 4X16
13	90662-SB2-003	Grommet - SCREW, 5MM
14	90666-SDA-A01	Clip, Snap Fitting - SNAP FITTING(PO) (NATURAL)
15	91560-SAA-003	Clip - PILLAR GARNISH

Rear door lock/ outer handle (LH) 26

#	OEM	部品名
1	72111-SEN-H01	Fastener - BLACK
2	72112-SWA-A01	Cover - R. LEVER
3	72113-SYP-003	Seal - DOOR LATCH
4	72114-SYP-003	Seal - COUPLER
5	72119-TF0-004	Stopper
8	72134-SHJ-003	Clip s - CABLE END (NATURAL)
9	72135-SDA-A01	Striker assy - DOOR LOCK
10	72139-SR3-003	Fastener - NATURAL
11	72141-TK6-004	Bush - R. JOINT
12	72143-S04-003	Packing
13	72152-SWA-A01	Cover - L. LEVER
16	72174-SHJ-003	Clip t - CABLE END (BLACK)
17	72181-TK6-004	Bush - L. JOINT
18	72610-TM8-G01	Latch assy - R. RR. DOOR POWER
19	72612-SFA-000	Cap - CHILD LOCK
20	72612-SYP-003	Seal - DOOR LATCH
21	72630-TM8-003	Protector - R. RR. OUTER HANDLE
22	72631-TM8-A01	Cable - RR. INSIDE HANDLE
23	72633-TM8-A01	Cable - RR. DOOR LOCK
25	72650-TM8-G01	Latch assy - L. RR. DOOR POWER
26	72670-TM8-003	Protector - L. RR. OUTER HANDLE
28	90103-S7S-003	Screw - FLAT, 6X18.5
29	90120-SV4-000	Bolt - LOCK STRIKER
30	90141-SDA-000	Screw - TAPPING, 5X12
31	90141-SWA-A01	Screw - TAPPING
32	90662-SB2-003	Grommet - SCREW, 5MM

Rear door panel 18

#	OEM	部品名
5	67825-TM8-A01	Tape - R. RR. DOOR SASH UPPER
6	67865-TM8-A01	Tape - L. RR. DOOR SASH UPPER
11	72142-SM4-000	Stopper - DOOR
12	72367-SDA-A00	Seal - OUTER HANDLE HOLE
13	72810-TM8-A02	Weatherstrip, R. RR. DOOR
14	72821-TM8-A00	Seal - R. RR. DOOR HOLE
15	72840-TM8-A01	Checker comp. - R. RR. DOOR
16	72850-TM8-A02	Weatherstrip, L. RR. DOOR
17	72861-TM8-A00	Seal - L. RR. DOOR HOLE
18	72880-TM8-A01	Checker comp. - L. RR. DOOR
19	75891-SA7-000	Stopper - DOOR
20	90102-S3N-003	Bolt - FLANGE, 8X24.5 (10.5MM)
20	90102-SFA-305	Bolt - FLANGE, 8X18 (SERVICE)
21	90103-SLA-000	Bolt - FLANGE, 8X22 (TORX)
22	90141-S04-000	Bolt - FLANGE, 8X22
23	90651-S4N-003	Clip
24	91561-SZ3-003	Clip
25	91563-SFA-003	Clip - DOOR WEATHERSTRIP OFFSET

Rear seat back 18

#	OEM	部品名
1	04810-SB3-000	C clip set - TRIM FASTENER (30 PIECES)
2	81291-TA0-A01	Clip
5	82124-TM8-A01	Bracket a - RR. SEATBACK
6	82126-TM8-J01	Frame comp - R. RR. SEATBACK
7	82127-TM8-G02	Pad comp - R. RR. SEATBACK
9	82137-SDA-003	Clip - RR. SEAT CUSHION
10	82137-TM8-A01	Pad & frame comp. - RR. SEAT CUSHION
22	82193-TM8-A01	Garnish - CENTER WEBBING GUIDE
23	82194-STK-003	Damper
27	82280-TM8-A01	Striker comp. - R. RR. SEAT
30	82292-TM8-003	Collar - RR. SEAT
33	82526-TM8-J01	Frame comp - L. RR. SEATBACK
34	82527-TM8-G02	Pad comp - L. RR. SEATBACK
38	82680-TM8-A01	Striker comp. - L. RR. SEAT
42	90128-SA7-000	Bolt-washer - 6X25
43	90134-SE3-003	Screw - TAPPING, 5X10
44	90135-S5A-003	Bolt-washer - 10X27
46	90610-S10-003	Clip - GARNISH

Rear shock absorber 8

#	OEM	部品名
1	52441-TM8-J11	Spring - RR.
2	52610-TM8-J31	Absorber assy - RR. SHOCK
3	52621-SB2-004	Washer - RR. SHOCK ABSORBER MOUNTING (SHOWA)
4	52622-TG5-C01	Bush - RR. DAMPER LOWER
5	52691-SAA-000	Rubber - RR. SPRING UPPER MOUNTING
6	52725-TG5-C01	Rubber - RR. SHOCK ABSORBER MOUNTING
7	90172-SAA-010	Bolt - FLANGE, 10X73
8	90364-SG0-004	Nut - SELF-LOCK, 10MM (SHOWA) (NYLON)

Rear windshield 15

#	OEM	部品名
1	39159-TM8-A01	Base - ANTENNA TERMINAL
2	73211-TM8-G31	Glass set - RR. WINDSHIELD (GREEN) (AGC)
3	73225-TM8-000	Rubber a - WINDSHIELD DAM
4	73226-TM8-000	Rubber b - WINDSHIELD DAM
5	73229-TM8-000	Seal - RR. WINDSHIELD UPPER
6	73711-TM8-A01	Glass set - RR. WINDSHIELD (PRIVACY) (AGC)
7	73712-TM8-A01	Clip set - EXTRA WINDSHIELD
8	73725-TM8-000	Rubber a - WINDSHIELD DAM
9	73726-TM8-000	Rubber b - WINDSHIELD DAM
10	75717-SND-E01	Sticker - IMA
11	76707-TM8-000	Seal a
12	91501-S70-003	Fastener b - WINDSHIELD
13	91502-S70-003	Fastener b - RR. WINDSHIELD
14	91536-SS0-J01	Fastener a - WINDSHIELD
15	73228-TM8-000	Rubber c - WINDSHIELD DAM

Rear wiper 11

#	OEM	部品名
1	38448-SD2-003	Rubber - WIPER MOUNTING
2	76622-S3Y-A01	Rubber - BLADE (400MM)
3	76702-S9A-003	Collar
4	76706-SK7-003	Washer a - SPECIAL
5	76708-SE1-003	Washer b - SPECIAL
6	76709-SE0-A01	Nut - SPECIAL, 18MM
7	76710-TM8-003	Motor comp - RR. WINDSHIELD WIPER
8	76711-STK-003	Cap - PIVOT
9	76720-TM8-003	Arm - RR. WIPER
10	76721-TM8-003	Cover - ARM
11	76730-TM8-003	Blade - RR. WINDSHIELD WIPER (400MM)

Roof lining 2

#	OEM	部品名
8	83247-SNA-A01	Clip - GRAB RAIL
12	91560-S1C-E01	Clip - ROOF LINING (NATURAL)

Seatbelts 16

#	OEM	部品名
2	81441-S2G-N31	Collar - 3.5H
3	81441-S50-J22	Collar - 2H
11	82190-TM8-A01	Garnish - RR. SEATBACK BELT GUIDE
12	82191-TM8-A01	Cover - RR. SEATBACK ELR
18	90123-S04-J30	Washer - WAVE
19	90134-SE3-003	Screw - TAPPING, 5X10
20	90142-SNA-A21	Bolt - 7/16"X28
21	90142-S04-J32	Bolt - 7/16"X23.4
22	90142-S2G-J01	Bolt - 7/16"X48
23	90142-S6A-E01	Bolt - 7/16"X20
24	90142-TF0-J01	Bolt - 7/16"X28.5
25	90543-S2G-C21	Washer - PLAIN
26	90543-S2G-K31	Washer - PLAIN
28	90543-S50-004	Washer - SPRING
29	90543-S50-902	Washer - SPRING
33	81441-TM8-E01	Collar - 15H

Select lever 12

#	OEM	部品名
1	35505-692-003	Bulb - 14V 1.4W
2	37700-TF0-A82	Lamp assy. - SOLENOID & INDICATOR(AT)
3	47130-TM8-A52	Bracket comp. - BASE
5	54030-SAA-982	Release - SHIFT LOCK
6	54031-SAA-981	Spring - RELEASE SHIFT LOCK
7	54123-SLN-A82	Stopper comp - SHIFT LOCK
10	54200-TM8-A52	Bracket set - BASE
12	54315-TM8-A51	Wire - CONTROL
14	54903-SYA-981	SCREW, FLAT 5x8
15	90351-SB2-003	Nut - FLANGE, 8MM
16	90361-SV4-003	Nut - PAINT CUTTING, 6MM
17	91533-S04-003	Clip - COUPLER (NATURAL)

Side lining 3

#	OEM	部品名
3	83308-TF0-003	Latch
16	90666-SDA-A01	Clip, Snap Fitting - SNAP FITTING(PO) (NATURAL)
17	91560-SLJ-J01	Clip - DOOR LINING (LIGHT GRAY)

Srs unit (LH) 29

#	OEM	部品名
1	32134-SM4-003	Band - HARNESS OFFSET (10) (BROWN) (122.5MM)
2	77900-TM8-G11	Reel assy - CABLE(FURUKAWA)
3	77930-SZT-J01	Sensor assy - FR. CRASH
4	77960-TM8-G82	Srs unit - REWRITABLE
5	77962-TM8-G11	Harness - CENTER FLOOR WIRE
5	77962-TM8-G31	Harness - CENTER FLOOR WIRE
6	77963-TM8-003	Protector - FLOOR HARNESS
7	77970-STX-A01	Sensor assy - SIDE IMPACT (DENSO)
8	77971-TM8-A00	Cover - SAFING SENSOR
9	78819-STK-A81	Clip - SIDE CURTAIN AIRBAG (8.5MM)
10	78870-TM8-E80	Module assy. - R. SIDE CURTAIN AIRBAG
11	78875-TM8-E80	Module assy. - L. SIDE CURTAIN AIRBAG
12	83241-TM8-A10	Bracket comp. - GRAB RAIL (AIRBAG)
13	90133-SDC-003	Bolt-washer - 5X16
14	90137-S84-A01	Bolt - TORX EARTH, 6X20
15	90148-SE0-003	Bolt - EARTH, 6X16 (WASHER 12.5MM) (ZN)
16	90178-SNA-003	Bolt-washer - 6X19 (SIDE CURTAIN AIRBAG)
17	91510-SR2-003	Clip - OFFSET SEAL(10)(BROWN)
19	91531-S04-003	Clip - WIRE HARNESS(NATURAL) (44MM)
20	91533-STK-003	Clip - COUPLER(NATURAL)
21	91534-SHJ-003	Clip - COUPLER(SEAL)
22	91534-STK-003	Clip - COUPLER(NATURAL) (WITH SEAL)
23	91540-STK-003	Clip - HARNESS BAND (BLACK) (155.3MM)
24	91540-TA0-003	Clip - HARNESS BAND(NATURAL) (100.1MM)
25	91542-SNA-003	Clip - HARNESS BAND(DARK BLUE) (164.5MM)
26	91545-TA0-003	Clip - HARNESS BAND(NATURAL) (100.1MM)(WITH SEAL)
27	91619-SE0-000	Seal - DOOR HOLE, 30MM(BLACK)
28	91902-S2X-003	Plaster - WIRE HARNESS(50X100)
30	91531-S84-003	Clip - WIRE HARNESS(NATURAL) (44MM)(WITH SEAL)

Starter motor (MITSUBA) 15

#	OEM	部品名
1	31200-RBJ-J01	Motor assy. - STARTER (SM-74005) (MITSUBA)
2	31201-RBJ-J01	Gear cover set
3	31202-R0A-004	Bolt set
4	31206-RBJ-J01	Yoke assy.
5	31207-RMX-004	Armature assy.
6	31209-RL8-A01	Bracket unit - RR.
7	31210-RBJ-J01	Brush holder set
8	31211-R0A-004	Cover - SWITCH
9	31213-PHM-004	Spring - BRUSH
10	31220-R0A-004	Gear set - REDUCTION
11	31230-R0A-004	Plunger set
13	31292-RBJ-J01	Stay - ENGINE HARNESS
14	31261-RBJ-J01	Housing - TERMINAL
15	31262-RNA-A51	Nut - THIN, 8MM
16	31271-RBJ-J01	Washer - TERMINAL

Starting clutch 24

#	OEM	部品名
1	22020-RBL-305	Clutch set - STARTING
2	22813-P4V-003	Ring - SEAL
3	23240-RBL-000	Gear assy. - SECONDARY DRIVE
4	24410-RBL-000	Shaft comp. - CONTROL
5	24543-PWR-000	Holder - PARKING BRAKE ROD
6	24561-RPS-010	Pawl - PARKING BRAKE
7	24562-PN0-000	Shaft - PARKING
8	24563-PZC-000	Spring - PARKING PAWL
9	28900-RPS-003	Sensor assy - POSITION
10	28905-RPS-000	Cap - POSITION SENSOR
11	54313-TM8-A50	Lever comp - CONTROL
12	54314-SEL-T81	Pin - CONTROL WIRE
13	90001-PA9-000	Bolt - HEX., 6MM
14	90001-PY4-003	Bolt - HEX., 6MM
15	90175-SEL-T81	Pin - LOCK, 8MM
16	90429-P4V-000	Cotter - 25.5 (A) (2.9)
16	90431-P4V-000	Cotter - 25.5 (C) (3.1)
16	90430-P4V-000	Cotter - 25.5 (B) (3.0)
16	90432-P4V-000	Cotter - 25.5 (D) (3.2)
17	90433-639-000	Washer - LOCK, 6MM
18	90435-P4V-000	Retainer - COTTER
19	90448-P4V-010	Washer - TONGUED, 6MM
20	90611-P4V-000	Circlip - EXTERNAL, 29MM
21	91209-612-003	Oil seal - 12X22X7 (ARAI)

Steering column 5

#	OEM	部品名
1	53200-TM8-G02	Column assy - STEERING (LH)
2	53320-TF0-G00	Cover - STEERING JOINT
4	90135-SZT-000	Bolt - STEERING JOINT YOKE
5	90361-SR3-000	Nut - FLANGE, 8MM
6	90511-671-003	Washer - TOOTHED LOCK

Steering wheel (SRS) 7

#	OEM	部品名
5	36770-TM8-G02	Switch assy - MULTI INFORMATION
14	78520-TM0-N81	Damper comp - STEERING
15	78525-TM8-N81	Guide - CORD
20	90134-S6A-A80	Bolt - HEX., 6X23
21	90161-SV4-003	Bolt - STEERING HANDLE
22	90172-SL4-003	Screw-washer - 5X12
24	90178-SNB-A81	Screw - TAPPING, 3X16(PO)

Switch (LH) 14

#	OEM	部品名
1	35190-TM8-A01	Switch assy - REMOTE CONTROL MIRROR
3	35300-TK6-003	Switch assy - VSA OFF
4	35460-TM8-003	Switch assy - HEADLIGHT WASHER
5	35510-TM8-G01	Switch assy - HAZARD
6	35570-TM8-003	Switch assy - ECONOMY
7	35820-TM8-003	Switch assy - HEADLIGHT ADJUST
8	35850-TK6-003	Bulb comp. - 14V 80MA
9	35850-TM8-003	Bulb comp. a - 14V 80MA
10	35851-TM8-003	Bulb comp. b - 14V 80MA
11	35853-TM8-003	Bulb comp. - 14V 80MA
12	35854-TM8-003	Bulb comp. - 14V 60MA
13	35900-TL0-G01	Switch assy - AIRBAG
14	35910-S04-G01	Switch assy - INERTIA
15	35911-TM8-E01	Bracket - INERTIA SWITCH

Tailgate 26

#	OEM	部品名
1	04741-TM8-A10	Stay set - R. TAILGATE OPEN
2	04746-TM8-A10	Stay set - L. TAILGATE OPEN
3	34270-TM8-003	Light assy - HIGH MOUNT STOP
6	74440-TM8-A01	Weatherstrip - TAILGATE
7	74801-TM8-A01	Lock assy - TAILGATE
8	74806-S6M-003	Cover - TAILGATE
9	74810-TM8-003	Handle assy - TAILGATE
10	74813-S6M-Z01	Striker assy - TAILGATE
11	74815-TM8-A01	Protector - POWER
12	74828-SNA-000	Stopper - R. TRUNK LID LOWER
13	74829-SNA-000	Stopper - L. TRUNK LID LOWER
14	74829-TM8-A00	Stopper - TAILGATE
16	74899-TM8-A01	Damper - TAILGATE DYNAMIC
17	74900-TM8-A01	Garnish assy - TAILGATE SPOILER
18	75353-671-000	Lock - SCREW
19	90001-PZ1-000	Bolt - FLANGE, 6X16
20	90001-S10-A00	Bolt-washer - 5X16
21	90102-S47-003	Bolt - SPECIAL, 6X9
22	90108-S0A-003	Bolt - FLANGE, 6X15
23	90120-SV4-000	Bolt - LOCK STRIKER
24	90308-SMG-E01	Nut - GARNISH (M5)
25	90664-SB3-003	Grommet - SCREW, 5MM
26	90684-SD4-003	Clip - FUEL LID OPENER
28	90856-SDA-A01	Plug - TRUNK DRAIN
29	91513-SJK-003	Clip - TAILGATE GARNISH
35	74830-TM8-A02	Cable - TAILGATE OPENER

Tailgate lining 4

#	OEM	部品名
9	91560-SLJ-J01	Clip - DOOR LINING (LIGHT GRAY)
10	91560-S04-003	Clip - SIDE GARNISH (NATURAL)
11	91560-S6A-003	Clip - DOOR LINING(ORANGE)
12	91560-TL0-G01	Clip - DOOR END GARNISH (LIGHT BROWN)

Taillight/license light 25

#	OEM	部品名
1	33301-SNA-003	Bulb - 12V 5W) (STANLEY
2	33303-SCK-003	Bulb - WEDGE(12V 21W)(AMBER)
3	33303-SL4-003	Bulb - WEDGE (12V 21W) (STANLEY)
4	33303-S5A-003	Socket comp - T20 S
5	33501-TM8-013	Lamp unit - R. TAIL
6	33503-TM8-003	Bezel comp. - R.
7	33506-S8R-N51	Bulb - T16)(12V 16W
8	33551-TM8-013	Lamp unit - L. TAIL
9	33553-TM8-003	Bezel comp. - L.
10	34101-S60-013	Lens
11	34102-SWA-A01	Housing comp
12	34103-S60-003	Gasket
13	34400-TM8-G01	Light assy - RR. FOG
13	34400-TM8-G02	LIGHT ASSY RR FOG
14	72431-S2X-003	Clip - CENTER PILLAR GARNISH
16	75701-TM8-A00	Emblem - H
17	90001-S10-A00	Bolt-washer - 5X16
18	90133-SDC-003	Bolt-washer - 5X16
19	90137-SH3-000	Screw - TAPPING, 4X16
20	90301-ST0-003	push nut, 3mm
21	90308-SMG-E01	Nut - GARNISH (M5)
22	90650-TM8-003	Grommet - RR. COMBINATION LIGHT
23	90665-S47-003	Clip
24	91512-S50-003	Clip - LICENSE GARNISH
25	91513-SJK-003	Clip - TAILGATE GARNISH

Temper wheel kit 20

#	OEM	部品名
2	42700-TF0-E51	Disk - WHEEL(15X4T)(RING TECHS)
3	42751-SV4-926	Tire - T135/80D15 99M) (DUNLOP
3	42751-SV4-924	Tire - T135/80D15 99M) (BRIDGESTONE
4	42753-SE0-A02	Valve - RIM (SCHRADER)
4	42753-SB8-661	Valve - RIM (SCHRADER)
4	42753-SR1-003	Valve - RIM (US PACIFIC)
4	42753-671-003	Valve - RIM (TAIHEIYO)
4	42753-SB8-662	Valve - RIM (EATON)
4	42753-SH3-003	Valve - RIM (US PACIFIC)
4	42753-SVB-003	Valve - RIM (TAIHEIYO)
5	42760-TM8-E90	Plate - TIRE PRESSURE CAUTION (T-TYPE)
6	42767-SV4-A00	Label - SPARE TIRE CAUTION (T-TYPE) (ENGLISH)
7	74610-TM8-A00	Beam comp - SPARE TIRE
8	74654-SD5-000	Bolt - ANCHOR
9	83308-TF0-003	Latch
10	83850-TM8-A00	Plate - ANCHOR BOLT
13	84527-TM8-A00	Box comp - RR. TRUNK FLOOR
14	84528-TM8-A00	Cover comp. - SPARE TIRE
15	84540-TM8-A00	Box - SPARE TIRE
16	91560-SYA-J01	Clip - PILLAR GARNISH (DARK GREEN)

Throttle body 6

#	OEM	部品名
1	16400-RBJ-003	Throttle body - ELECTRONIC CONTROL(GME2A)
2	36162-RBJ-005	Valve assy. - PURGE CONTROL SOLENOID
3	36163-RBJ-000	Guard - PURGE CONTROL SOLENOID VALVE
4	36167-RBJ-000	Tube a - PURGE
5	36168-RAD-L10	Clip - PURGE
6	36221-PNC-005	O-ring

Tire/wheel disks 27

#	OEM	部品名
1	42700-TF0-E51	Disk - WHEEL(15X4T)(RING TECHS)
2	42700-TF0-N01	Disk - WHEEL (15X5 1/2J) (CHUO SEIKI) (BLACK)
5	42751-SV4-926	Tire - T135/80D15 99M) (DUNLOP
5	42751-SV4-924	Tire - T135/80D15 99M) (BRIDGESTONE
6	42751-TF0-G02	Tire - 175/65R15 84T) (YOKOHAMA
7	42753-671-003	Valve - RIM (TAIHEIYO)
7	42753-SB8-661	Valve - RIM (SCHRADER)
8	42767-SH3-E00	Plate - SPARE TIRE CAUTION (T-TYPE)
11	44721-SEA-004	Weight - BALANCE (10G) (TOHO)
11	44727-SEA-003	Weight - BALANCE (15G) (YAMATE)
11	44726-SEA-004	Weight - BALANCE (5G) (TOHO)
11	44723-SEA-004	Weight - BALANCE (30G) (TOHO)
11	44729-SEA-003	Weight - BALANCE (35G) (YAMATE)
11	44728-SEA-004	Weight - BALANCE (25G) (TOHO)
11	44721-SEA-003	Weight - BALANCE (10G) (YAMATE)
11	44726-SEA-003	Weight - BALANCE (5G) (YAMATE)
11	44723-SEA-003	Weight - BALANCE (30G) (YAMATE)
11	44722-SEA-004	Weight - BALANCE (20G) (TOHO)
11	44728-SEA-003	Weight - BALANCE (25G) (YAMATE)
11	44727-SEA-004	Weight - BALANCE (15G) (TOHO)
11	44729-SEA-004	Weight - BALANCE (35G) (TOHO)
11	44722-SEA-003	Weight - BALANCE (20G) (YAMATE)
13	44733-TM8-G01	Trim assy - WHEEL (15X5 1/2J)
14	74654-SD5-000	Bolt - ANCHOR
15	83850-TM8-A00	Plate - ANCHOR BOLT
16	84540-TM8-A00	Box - SPARE TIRE
18	90304-SC2-000	Nut - WHEEL (FUSE RASHI)

Tools/jack 10

#	OEM	部品名
1	38160-TF0-G02	Pump assy. - TIRE
2	42774-TF0-G02	Repair kit - TIRE PUNCTURE
3	74717-SMG-E00	Eyebolt
4	84524-TM8-000	Box - RR. TRUNK FLOOR
5	84527-TM8-A00	Box comp - RR. TRUNK FLOOR
6	84528-TM8-A00	Cover comp. - SPARE TIRE
7	89211-S05-003	Wrench - WHEEL
8	89310-SNB-E02	Jack assy - PANTOGRAPH
9	89311-SNB-E02	Plate - JACK CAUTION
10	89320-S2G-003	Bar - JACK

Transmission case 27

#	OEM	部品名
1	21151-RBL-000	Pan - OIL
2	21210-RBL-000	Case comp. - TRANSMISSION
3	21232-RBL-000	Hanger comp. - TRANSMISSION
4	21396-P20-000	Cap - BREATHER
5	21814-RPS-000	Packing, Oil Pan
6	25422-PN6-801	Magnet comp. - TRANSMISSION
7	25422-PY8-J11	Magnet comp. - TRANSMISSION
8	25610-RBL-A01	Gauge comp. - ATF
9	25613-RBL-000	Pipe comp - ATF GAUGE
10	25910-RBL-000	Pipe comp. a - ATF
11	25920-RBL-000	Pipe comp. b - ATF
12	25951-RGR-000	Bolt - JOINT
13	28810-RWE-003	Pick up assy. - MATSUSHITA
14	28810-RZH-004	Pick up assy.
15	32746-RBJ-000	Stay a - TRANSMISSION CASE (ENGINE HARNESS)
16	32747-RBJ-000	Stay b - TRANSMISSION CASE (ENGINE HARNESS)
17	90024-612-000	Bolt - SEALING, 8MM
18	90081-PX4-003	Bolt - PLUG, 18MM
19	90471-PX4-000	Washer - DRAIN PLUG, 18MM
20	90471-RGR-000	Washer - DRAIN PLUG, 12MM
21	90471-580-000	Packing - 8MM
22	90608-P4V-000	Circlip - EXTERNAL (73)
23	91006-PX4-003	Bearing - BALL, 63/32-27
24	91101-RTY-003	Bearing - NEEDLE, 44X73X17.5
25	91205-PWR-003	Oil seal - 35X76X8
26	91308-PH0-013	O-ring - 17.8X1.9 (NOK)
27	91309-PX4-003	O-ring - 16X2.1 (NOK)

Trunk lining 11

#	OEM	部品名
1	83308-S2G-003	Latch - FLOOR LID
2	83308-TF0-003	Latch
8	84516-TM8-000	Washer - TOOTHED (M8)
9	84517-TM8-000	Bracket - IPU DUCT COVER BASE
10	84518-TM8-000	Bracket assy - IPU DUCT COVER BASE
17	84526-SLC-003	Hook - TRUNK FLOOR LID
18	84526-TM8-000	Bracket comp. - TRUNK LID
22	91560-SAA-003	Clip - PILLAR GARNISH
23	91560-SLJ-J01	Clip - DOOR LINING (LIGHT GRAY)
24	91560-SYA-J01	Clip - PILLAR GARNISH (DARK GREEN)
29	91506-S9A-003	Clip b - BUMPER

Valve body 17

#	OEM	部品名
1	22743-PW4-000	Pipe - 8X40
2	25420-RBL-003	Strainer assy - ATF
3	27000-RBL-000	Body assy - MAIN VALVE
4	27200-RBL-003	Body assy - DRIVEN CONTROL VALVE
5	27212-RBL-000	Plate - DRIVEN CONTROL SEPARATING
6	27500-RBL-003	Body assy - DRIVE PULLEY CONTROL VALVE
7	27512-PZC-000	Plate - DRIVE PULLEY CONTROL SEPARATING
8	27600-RBL-003	Body assy - START CLUTCH CONTROL VALVE
9	27612-RBL-000	Plate - START CLUTCH CONTROL SEPARATING
10	27750-P4V-000	Filter - SECONDARY BODY
11	28365-PHT-000	Clamp a - SOLENOID HARNESS
12	28366-PLY-000	Clamp b - SOLENOID HARNESS
13	28400-PZC-003	Solenoid assy.
14	91301-P6H-003	O-ring - 7.6X1.9 (KEIHIN)
15	91301-P7X-003	O-ring - 19.20X1.90(NOK)
16	91303-P6H-003	O-ring - 11.7X1.9 (KEIHIN)
17	91329-P4V-003	O-ring - 27.5X2.4

Valve/rocker arm 14

#	OEM	部品名
1	14620-RBJ-000	Arm assy. - ROCKER
2	14631-RBJ-000	Shaft comp. - ROCKER
3	14711-RMX-000	Valve - IN.
4	14721-RMX-000	Valve - EX.
5	14744-PT0-004	Screw - TAPPET ADJUSTING
6	14761-RMX-003	Spring - IN. VALVE(YELLOW) (NIPPON HATSUJO)
6	14761-RMX-004	Spring - IN. VALVE(YELLOW) (CHUO SPRING)
7	14762-RMX-004	Spring - EX. VALVE(RED) (CHUO SPRING)
7	14762-RMX-007	Spring - EX. VALVE(RED) (SANKORU)
8	14765-RGA-000	Retainer - VALVE SPRING
9	14775-P08-000	Seat - VALVE SPRING
10	14781-RGM-A01	Cotter - VALVE (FUJI VALVE)
11	14820-PZA-003	Motion comp - LOST
12	90206-PT0-004	Nut - TAPPET ADJUSTING

Vsa modulator 6

#	OEM	部品名
1	57110-TM8-G12	Modulator assy - VSA
2	57115-TM8-A00	Bracket - MODULATOR
3	57116-TM8-A00	Bracket b - MODULATOR
4	57358-S04-003	Rubber - ABS MOUNTING
5	57376-S9A-003	Bolt - ABS MOUNTING
6	57377-TM8-A51	Bolt - MODULATOR MOUNTING

Water hose 13

#	OEM	部品名
1	79721-TM8-A00	Hose - WATER IN.
1	19506-RBJ-000	Hose - THROTTLE BODY IN.
2	79730-TM8-A00	Hose assy - WATER OUTLET
2	19508-RBJ-000	Hose - BYPASS
3	79746-TF0-003	Clip - HEATER HOSE
3	19509-P72-003	Clamp - ELECTRONIC AIR CONTROL VALVE HOSE
4	79754-TM8-A00	Bracket - HEATER HOSE
4	19512-PK2-003	Clip - HOSE, 18.7MM
5	91405-PK1-003	Clip, WATER HOSE, 24MM
5	19513-PE0-003	Clamp - WATER HOSE (21.7MM) (CHUO SPRING)
5	19527-RBJ-000	Hose a - BREATHER HEATER
6	91405-TF0-G01	Clip - WATER HOSE (24MM)
6	19528-RBJ-000	Hose b - BREATHER HEATER

Water pump 15

#	OEM	部品名
1	19200-RBJ-003	Pump comp - WATER
2	19222-RB0-003	Packing - WATER PUMP
3	19224-RBJ-003	Pulley - WATER PUMP
4	19301-RP3-305	Thermostat assy - NIPPON THERMOSTAT
5	19305-PT0-000	Rubber - THERMOSTAT MOUNTING
5	19305-PLC-A00	Rubber - THERMOSTAT MOUNTING
6	19311-RB0-000	Cover - THERMOSTAT
7	19315-RBJ-000	Cover comp. - WATER OUTLET
8	19320-RB0-000	Case comp. - THERMOSTAT
9	19500-PE0-000	Joint, Tube
10	19505-RB0-000	Pipe comp - CONNECTING
11	37870-RWC-A01	Water Temp Sensor assy - (PANASONIC)
12	90013-PCX-000	Bolt - SPECIAL, 6X12
13	91307-PLC-004	O-ring - 9.5X1.9 (MATSUSHITA)
14	91314-PH7-003	O-ring 31.2X4.1 (NOK)

Windshield washer (LH) 33

#	OEM	部品名
1	38513-SB0-961	Cap - WASHER MOUTH(MITSUBA)
1	76802-SS0-003	Cap - MOUTH
2	38514-692-731	Bush
3	38562-SA0-003	Joint l - WASHER TUBE(MITSUBA)
4	76802-SEF-003	Cap unit - MOUTH
5	76805-TM8-A01	Hose - WASHER
6	76809-SE0-003	Grommet - WASHER TANK
7	76809-S9A-003	Packing
8	76829-SM4-003	Joint i - WASHER
9	76832-SJD-003	Tube - 660MM
10	76834-SFE-003	Tube - 430MM
11	76834-TM8-G01	Tube - 750MM
12	76835-TM8-S11	Level sensor
13	76837-TM8-003	Tube - 830MM
14	76838-TM8-G01	Tube - 980MM
15	76840-TM8-S01	Tank set - WASHER (4.85L H/L)
16	76841-TM8-A01	Tank - WASHER (2.5L)
17	76842-S2K-J11	Bush - WASHER TANK
19	76846-TK6-A02	Pump set - WASHER
20	76850-TM8-003	Nozzle assy. - RR. WINDSHIELD
21	76851-TM8-G01	Tube - 1570MM
22	76853-TM8-G01	Grommet - WASHER TUBE
23	76854-TM8-C01	Tube - 1090MM
24	76856-TM8-003	Tube - 1060MM
26	76859-SYY-003	Tube - 320MM
27	90123-S3Y-003	Bolt - SHOULDER, 6X20(6.2)
28	90652-SB2-023	Clip - TUBE, 7MM
29	90676-TF0-003	Clip - WASHER TUBE
30	90697-SB2-003	Clip - HOOD WIRE
32	91501-SJ6-003	Clip - WASHER TUBE
33	91512-SX0-003	Clip - INNER FENDER CLIP
34	91565-SK7-003	Clip - WASHER TUBE
35	91902-S3N-003	Plaster - WIRE HARNESS (50X50)

Wire harness (LH; 1) 8

#	OEM	部品名
1	32107-TM8-G01	Harness - DRIVER SIDE WIRE
1	32107-TM8-G11	Harness - DRIVER SIDE WIRE
2	32155-TM8-G00	Cord - INTERIOR
4	32601-TM8-000	Cable assy - MISSION EARTH
5	32610-TM8-000	Cable - SUB EARTH
6	90148-SE0-003	Bolt - EARTH, 6X16 (WASHER 12.5MM) (ZN)
7	90149-SE0-003	Bolt - EARTH, 6X16
8	90153-SE0-003	Bolt - EARTH, 6X12

Wire harness (LH; 2) 12

#	OEM	部品名
1	32109-TM8-G10	Harness - TAILGATE WIRE
2	32119-TM8-A00	Cord - RR. GLASS GROUND
4	32120-TM8-G72	Harness - L. CABIN WIRE
4	32120-TM8-G62	Harness - L. CABIN WIRE
6	32129-TM8-G10	Harness - TAILGATE SUB WIRE
7	32751-TM8-G01	Harness - DRIVER DOOR WIRE
8	32752-TM8-G01	Harness - PASSENGER DOOR WIRE
9	32753-TM8-G01	Harness - R. RR. DOOR WIRE
10	32754-TM8-G01	Harness - L. RR. DOOR WIRE
12	90115-TF0-003	Bolt - SPECIAL, 6X33
13	90148-SE0-003	Bolt - EARTH, 6X16 (WASHER 12.5MM) (ZN)
14	90149-SE0-003	Bolt - EARTH, 6X16

Wire harness (LH; 3) 7

#	OEM	部品名
1	32100-TM8-G00	Harness - R. CABIN WIRE (INCLUDE WASHER TUBE)
1	32100-TM8-G10	Harness - R. CABIN WIRE (INCLUDE WASHER TUBE)
2	32117-TM8-G01	Harness - INSTRUMENT WIRE
2	32117-TM8-S01	Harness - INSTRUMENT WIRE
3	90137-S84-A01	Bolt - TORX EARTH, 6X20
4	90148-SE0-003	Bolt - EARTH, 6X16 (WASHER 12.5MM) (ZN)
5	90149-SE0-003	Bolt - EARTH, 6X16
