Abs modulator 4

#	OEM	部品名
1	57101-S2A-003	Rubber - ABS MOUNTING
2	57102-S2A-003	Bolt - ABS MOUNTING
3	57110-S3Y-023	Modulator assy
4	57115-S3Y-000	Bracket - MODULATOR

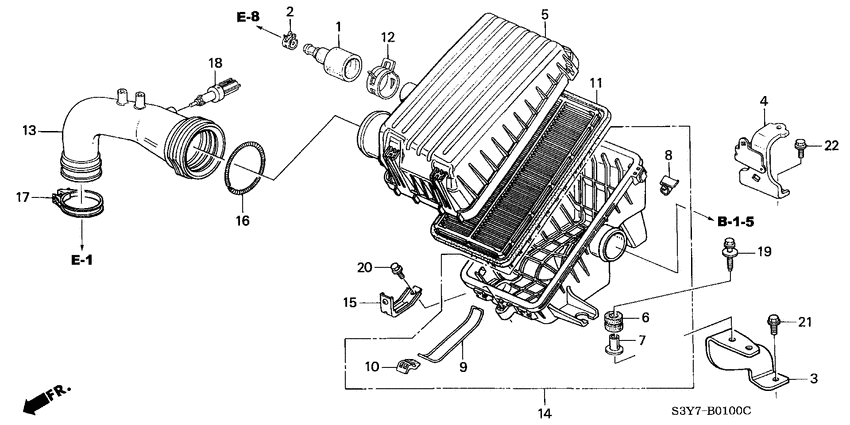

Air cleaner 19

#	OEM	部品名
1	17137-PHM-000	Rubber - BREATHER JOINT
2	17138-PHM-003	Clamp - TUBE (D14.8)
3	17202-PHM-000	Stay comp - AIR CLEANER FRONT
4	17203-PHM-000	Stay comp - AIR CLEANER REAR
5	17210-PHM-000	Cover - AIR CLEANER
6	17212-P2J-J00	Rubber, AIR CLEANER MOUNTING
7	17216-PN3-000	Collar - AIR CLEANER MOUNTING
8	17217-PHM-300	Clip - AIR CLEANER
9	17218-PHM-000	Wire - CLIP
10	17219-P65-000	Clip - AIR CLEANER
11	17220-PHM-000	Element assy. - AIR CLEANER
12	17222-PHM-003	Clip - HOSE (D36.5)
13	17228-PHM-000	Tube - AIR FLOW
14	17240-PHM-000	Case set - AIR CLEANER
15	17245-PHM-000	Stay - INTAKE PIPE
16	17249-PS4-000	Spring - AIR FLOW TUBE
17	17312-PHM-003	Clamp - AIR FLOW TUBE
18	37880-P2A-004	Sensor assy - AIR TEMP (MATSUSHITA DENSHI)
19	90001-P0A-000	Bolt-washer - SPECIAL, 6X35

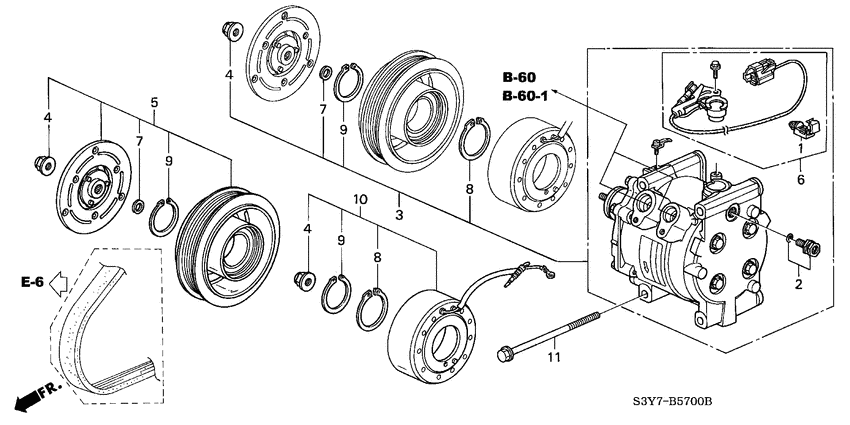

Air conditioner (COMPRESSOR) 11

#	OEM	部品名
1	38773-PJ7-003	Clip - WIRE HARNESS
2	38801-PHM-004	Valve sub assy. - SAFETY
3	38810-PHM-004	Compressor comp. - SANDEN
4	38829-PDF-E02	Nut - 9MM
5	38900-PHM-004	Clutch set - MAGNETIC
6	38908-PHM-004	Protector set - THERMAL
7	38912-PE1-702	Shim set
8	38913-PP4-E02	Ring - SNAP
9	38914-P07-004	Ring f - SNAP
10	38924-PHM-004	Coil set - FIELD
11	90022-PHM-000	Bolt - FLANGE, 8X110

Air conditioner (CONDENSER) 15

#	OEM	部品名
1	80110-S3Y-003	Condenser comp.
1	80110-S3Y-A01	Condenser comp.
2	80115-S3Y-010	Seal - CONDENSER
3	80116-S3Y-003	Seal - SIDE CONDENSER
4	80151-S3Y-003	Motor - COOLING FAN
5	80152-S3Y-003	Fan comp - COOLING
6	80161-S3Y-003	Shroud comp. - CONDENSER FAN
7	80175-SE0-000	Mount - CONDENSER
8	80176-SR3-000	Rubber - CONDENSER MOUNTING
9	90041-PAA-A01	Nut - TOOTHED, 5MM
10	90078-PR3-000	Screw - PAN, 4X8
11	90430-PAA-A01	Washer - PLAIN, 8MM
12	90659-PG6-000	Clip - WIRE HARNESS
13	91501-S04-003	Clip - INNER FENDER
14	91540-S30-003	Clip - HARNESS BAND(NATURAL) (151.5MM)

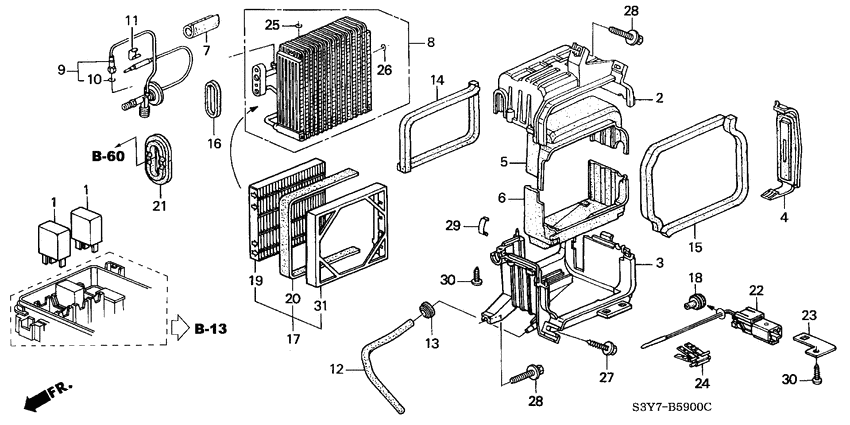

Air conditioner (COOLING UNIT) 45

#	OEM	部品名
1	39794-S04-003	Relay assy - POWER (4P) (MICRO ISO) (MITSUBA)
1	39794-S04-014	Relay assy - POWER (4P) (MICRO ISO) (MATSUSHITA)
2	80201-S01-G00	Case - EVAPORATOR UPPER (SAM)
2	80201-ST3-G00	Case - EVAPORATOR UPPER (SAK)
3	80202-ST3-G00	Case, EVAPORATOR LOWER (SAK)
3	80202-S01-G00	Case - EVAPORATOR LOWER (SAM)
4	80203-ST3-E00	Lid - EVAPORATOR UPPER CASE (SAK)
4	80203-S01-G00	Lid - EVAPORATOR UPPER CASE (SAM)
5	80205-S01-G00	Insulator - EVAPORATOR UPPER (SAM)
5	80205-ST3-G00	Insulator - EVAPORATOR UPPER (SAK)
6	80206-ST3-G00	Insulator - EVAPORATOR LOWER
7	80214-SL5-A01	Insulator - EXPANSION
8	80215-ST3-G11	Evaporator comp. - SAM
8	80215-ST3-G01	Evaporator comp. - SAK
9	80220-ST7-A03	Valve assy. - EXPANSION (10N) (FUJI KOKI)
9	80220-S84-A02	Valve assy. - EXPANSION (10N) (FUJI KOKI AMERICA)
10	80223-ST7-A01	O-ring - FUJI KOKI
10	80223-ST7-A11	O-ring - FUJI KOKI AMERICA
11	80225-SR3-010	Clamp
12	80271-S3Y-A00	Hose - DRAIN
13	80272-SF4-000	Grommet - DRAIN HOSE
14	80286-SR3-000	Seal - EVAPORATOR INNER
14	80286-S01-G00	Seal - EVAPORATOR INNER
15	80287-SR3-000	Seal - EVAPORATOR OUTER
15	80287-S01-G00	Seal - EVAPORATOR OUTER
16	80288-S01-G00	Seal - EVAPORATOR JOINT
16	80288-SR3-000	Seal - EVAPORATOR JOINT
17	80290-ST3-E01	Filter assy - AIR CONDITIONER
18	80291-SR3-000	Grommet - EVAPORATOR SENSOR
19	80291-ST3-E01	Element - FILTER
20	80293-ST3-E01	Seal
21	80460-S3Y-G00	Harness - AIR CONDITIONER WIRE
22	80464-S04-000	Grommet - AIR CONDITIONER PIPE
23	80560-ST0-941	Sensor, Evaporator
24	80561-ST0-000	Bracket - EVAPORATOR SENSOR
25	80566-SR3-003	Clip - EVAPORATOR SENSOR
26	80872-ST7-000	O-ring - 1/2"
27	80873-ST7-000	O-ring - 8MM
28	90155-SE0-003	Screw - TAPPING, 6X20
29	90156-SH3-000	Bolt-washer - 6X24
30	90659-692-000	Clamp - CASE
31	91541-S0A-003	Clip - HARNESS BAND(BLACK) (145MM)
32	91565-SD5-003	Clip - COUPLER(NATURAL)
33	91565-S0X-003	Clip - COUPLER (DARK GREEN)
35	80292-ST3-E01	Frame - FILTER

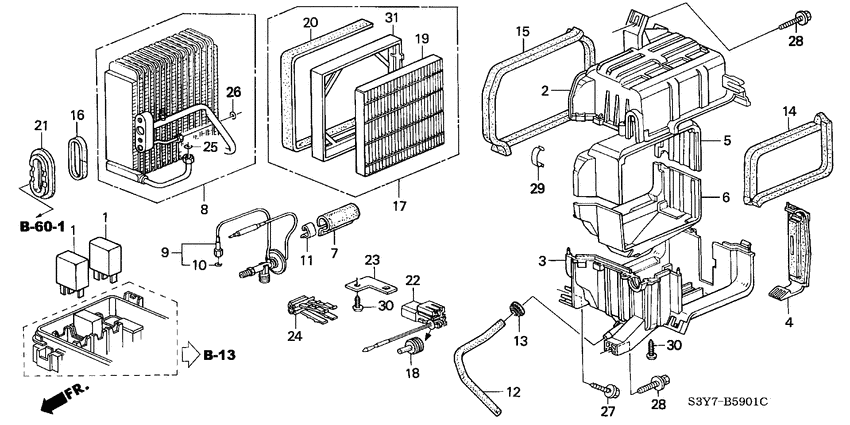

Air conditioner (COOLING UNIT; LH) 31

#	OEM	部品名
1	39794-S04-003	Relay assy - POWER (4P) (MICRO ISO) (MITSUBA)
1	39794-S04-014	Relay assy - POWER (4P) (MICRO ISO) (MATSUSHITA)
2	80201-ST3-G00	Case - EVAPORATOR UPPER (SAK)
3	80202-ST3-G00	Case, EVAPORATOR LOWER (SAK)
4	80203-ST3-E00	Lid - EVAPORATOR UPPER CASE (SAK)
5	80205-ST3-G00	Insulator - EVAPORATOR UPPER (SAK)
6	80206-ST3-G00	Insulator - EVAPORATOR LOWER
7	80214-SL5-A01	Insulator - EXPANSION
8	80215-ST3-G01	Evaporator comp. - SAK
9	80220-ST7-A03	Valve assy. - EXPANSION (10N) (FUJI KOKI)
10	80223-ST7-A01	O-ring - FUJI KOKI
11	80225-SR3-010	Clamp
12	80271-S3Y-A00	Hose - DRAIN
13	80272-SF4-000	Grommet - DRAIN HOSE
14	80286-SR3-000	Seal - EVAPORATOR INNER
15	80287-SR3-000	Seal - EVAPORATOR OUTER
16	80288-SR3-000	Seal - EVAPORATOR JOINT
17	80290-ST3-E01	Filter assy - AIR CONDITIONER
18	80291-SR3-000	Grommet - EVAPORATOR SENSOR
19	80291-ST3-E01	Element - FILTER
20	80293-ST3-E01	Seal
21	80464-S04-000	Grommet - AIR CONDITIONER PIPE
22	80560-ST0-941	Sensor, Evaporator
23	80561-ST0-000	Bracket - EVAPORATOR SENSOR
24	80566-SR3-003	Clip - EVAPORATOR SENSOR
25	80872-ST7-000	O-ring - 1/2"
26	80873-ST7-000	O-ring - 8MM
27	90155-SE0-003	Screw - TAPPING, 6X20
28	90156-SH3-000	Bolt-washer - 6X24
29	90659-692-000	Clamp - CASE
31	80292-ST3-E01	Frame - FILTER

Air conditioner (COOLING UNIT; RH) 31

#	OEM	部品名
1	39794-S04-003	Relay assy - POWER (4P) (MICRO ISO) (MITSUBA)
1	39794-S04-014	Relay assy - POWER (4P) (MICRO ISO) (MATSUSHITA)
2	80201-ST3-E00	Case - EVAPORATOR UPPER
3	80202-ST3-E00	Case - EVAPORATOR LOWER
4	80203-ST3-E00	Lid - EVAPORATOR UPPER CASE (SAK)
5	80205-ST3-E00	Insulator - EVAPORATOR UPPER
6	80206-ST3-E00	Insulator - EVAPORATOR LOWER
7	80214-SL5-A01	Insulator - EXPANSION
8	80215-ST3-E01	Evaporator comp. - SAK
9	80220-ST7-A03	Valve assy. - EXPANSION (10N) (FUJI KOKI)
10	80223-ST7-A01	O-ring - FUJI KOKI
11	80225-SR3-010	Clamp
12	80271-S3Y-000	Hose - DRAIN
13	80272-SF4-000	Grommet - DRAIN HOSE
14	80286-SR3-000	Seal - EVAPORATOR INNER
15	80287-SR3-000	Seal - EVAPORATOR OUTER
16	80288-SR3-000	Seal - EVAPORATOR JOINT
17	80290-ST3-E01	Filter assy - AIR CONDITIONER
18	80291-SR3-000	Grommet - EVAPORATOR SENSOR
19	80291-ST3-E01	Element - FILTER
20	80293-ST3-E01	Seal
21	80464-S04-000	Grommet - AIR CONDITIONER PIPE
22	80560-ST0-941	Sensor, Evaporator
23	80561-ST0-000	Bracket - EVAPORATOR SENSOR
24	80566-SR3-003	Clip - EVAPORATOR SENSOR
25	80872-ST7-000	O-ring - 1/2"
26	80873-ST7-000	O-ring - 8MM
27	90155-SE0-003	Screw - TAPPING, 6X20
28	90156-SH3-000	Bolt-washer - 6X24
29	90659-692-000	Clamp - CASE
31	80292-ST3-E01	Frame - FILTER

Air conditioner (HOSES/PIPES) 19

#	OEM	部品名
1	17727-SM4-003	Clamp - PURGE HOSE
2	80050-SP0-000	Label - AIR CONDITIONER CAUTION (HFC134A)
3	80311-S3Y-A02	Hose comp. - SUCTION
4	80315-S3Y-A01	Hose comp. - DISCHARGE
5	80331-S3Y-A02	Pipe - CONDENSER
6	80341-S3Y-G03	Pipe - RECEIVER
7	80351-S3Y-G01	Receiver comp
8	80352-S3Y-A01	Bracket - LIQUID TANK
9	80361-S3Y-A00	Clamp - SUCTION HOSE
10	80362-S3Y-A00	Stay - AIR CONDITIONER PIPE
11	80381-SV7-A01	Clamp - RECEIVER PIPE
12	80387-SM4-A01	Clip - RECEIVER PIPE
13	80440-SW5-A01	Switch - DUAL PRESSURE(KEIHIN)
13	80440-SW5-003	Switch - DUAL PRESSURE (HADSYS)
14	80865-SL0-003	Cap - VALVE (H)
15	80866-ST0-003	Cap l - VALVE (NICHIRIN)
16	80871-ST7-000	O-ring - 5/8"
17	80872-ST7-000	O-ring - 1/2"
18	80873-ST7-000	O-ring - 8MM

Air conditioner (HOSES/PIPES; LH) 19

#	OEM	部品名
1	17727-SM4-003	Clamp - PURGE HOSE
2	80050-SP0-000	Label - AIR CONDITIONER CAUTION (HFC134A)
3	80311-S3Y-A02	Hose comp. - SUCTION
4	80315-S3Y-A01	Hose comp. - DISCHARGE
5	80331-S3Y-A02	Pipe - CONDENSER
6	80341-S3Y-G03	Pipe - RECEIVER
7	80351-S3Y-G01	Receiver comp
8	80352-S3Y-A01	Bracket - LIQUID TANK
9	80361-S3Y-A00	Clamp - SUCTION HOSE
10	80362-S3Y-A00	Stay - AIR CONDITIONER PIPE
11	80381-SV7-A01	Clamp - RECEIVER PIPE
12	80387-SM4-A01	Clip - RECEIVER PIPE
13	80440-SW5-A01	Switch - DUAL PRESSURE(KEIHIN)
13	80440-SW5-003	Switch - DUAL PRESSURE (HADSYS)
14	80865-SL0-003	Cap - VALVE (H)
15	80866-ST0-003	Cap l - VALVE (NICHIRIN)
16	80871-ST7-000	O-ring - 5/8"
17	80872-ST7-000	O-ring - 1/2"
18	80873-ST7-000	O-ring - 8MM

Air conditioner (HOSES/PIPES; RH) 23

#	OEM	部品名
1	17727-SM4-003	Clamp - PURGE HOSE
2	17742-SX8-T31	Clip - DRAIN TUBE
3	80050-SP0-000	Label - AIR CONDITIONER CAUTION (HFC134A)
4	80311-S3Y-013	Hose comp. - SUCTION
5	80315-S3Y-003	Hose comp. - DISCHARGE
6	80321-S3Y-013	Pipe a - SUCTION
7	80331-S3Y-003	Pipe - CONDENSER
8	80341-S3Y-013	Pipe - RECEIVER
9	80351-S0D-003	Receiver comp
10	80352-S3Y-003	Bracket - LIQUID TANK
11	80361-S3Y-A00	Clamp - SUCTION HOSE
12	80361-S3Y-000	Clamp - SUCTION PIPE
13	80362-S3Y-010	Stay - AIR CONDITIONER PIPE
14	80363-S3Y-000	Stay - AIR CONDITIONER PIPE
15	80387-SM4-A01	Clip - RECEIVER PIPE
16	80440-SW5-A01	Switch - DUAL PRESSURE(KEIHIN)
16	80440-SW5-003	Switch - DUAL PRESSURE (HADSYS)
17	80865-SL0-003	Cap - VALVE (H)
18	80866-SL0-003	Cap - VALVE(L)
19	80871-ST7-000	O-ring - 5/8"
20	80872-ST7-000	O-ring - 1/2"
21	80873-ST7-000	O-ring - 8MM
22	91536-SR3-003	Clip - SUCTION PIPE (BLACK)

Air conditioner (KIT) 1

#	OEM	部品名
1	80000-S3Y-G03	General assy. - AIR CONDITIONER

Air conditioner (SENSOR) 12

#	OEM	部品名
1	80510-S0A-941	Sensor - SUN BEAM
1	35851-SP0-911	Bulb - 14V 40MA
2	80520-S2R-940	Sensor assy - AMBIENT
2	35851-SP0-921	Bulb
3	80525-S30-941	Sensor assy - AMBIENT
4	79601-S3Y-G02	Knob assy
5	80541-S3Y-A50	Hose - ASPIRATOR
5	79602-S3Y-003	Knob - TEMP
6	80541-S3Y-940	Hose - ASPIRATOR
6	79670-S0X-A01	Bulb - NEO WEDGE (14V 100MA)
7	91555-S2R-003	Clip - AMBIENT SENSOR
7	79670-S3Y-003	Bulb - NEO WEDGE

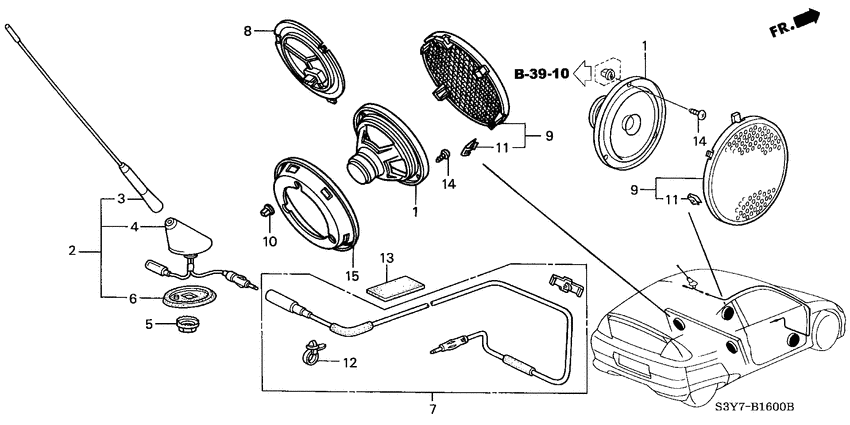

Antenna/speaker 11

#	OEM	部品名
1	39120-S84-A31	Speaker assy - 6.5" SINGLE) (MASTUSHITA
2	39150-S50-E01	Antenna assy - ROOF
3	39151-S50-J01	Mast assy.
4	39152-S50-E01	Base
5	39153-S50-J01	Nut
6	39154-S50-J01	Pad
7	39156-S3Y-003	Sub feeder
10	90670-SG0-003	Grommet - SCREW, 4MM
11	90678-SK7-003	Clip - SPEAKER
12	91540-S30-003	Clip - HARNESS BAND(NATURAL) (151.5MM)
13	91902-SB2-003	Cushion - WIRE HARNESS(50X100)

Auto air conditioner control (RH) 6

#	OEM	部品名
1	35851-SP0-911	Bulb - 14V 40MA
2	35851-SP0-921	Bulb
4	79601-S3Y-J02	Knob assy
5	79602-S3Y-003	Knob - TEMP
6	79670-S0X-A01	Bulb - NEO WEDGE (14V 100MA)
7	79670-S3Y-003	Bulb - NEO WEDGE

Battery 19

#	OEM	部品名
1	31500-S3Y-G01	Battery assy - 34B17R<S>-MF) (FURUKAWA
2	31512-S3Y-010	Plate - BATTERY SETTING
3	31521-SR3-000	Box assy - BATTERY
4	31542-S1F-003	Plug - VENT (MF) (FURUKAWA)
5	32115-P64-003	Holder - CORRUGATED (DARK BLUE) (10MM)
6	32410-S3Y-A00	Cable assy - STARTER
6	32410-S3Y-A01	Cable assy
6	32410-S3Y-G00	Cable assy - STARTER
7	32413-S30-000	Bracket - STARTER CABLE
7	32414-S3Y-G00	Bracket b - STARTER CABLE
7	32414-S3Y-G01	Bracket b
8	32413-S87-A00	Bracket a - STARTER CABLE
8	32413-S3Y-G00	Bracket a - STARTER CABLE
9	32600-S3Y-A00	Cable assy - BATTERY EARTH
10	32601-SK7-900	Bolt - BATTERY TERMINAL
11	32602-SK7-900	Nut - BATTERY TERMINAL
12	90149-SE0-902	Bolt - EARTH, 6X24(SN)
13	90182-SB6-000	Bolt-washer - 6X16
15	91541-S0A-003	Clip - HARNESS BAND(BLACK) (145MM)

Brake lines (ABS; LH) 26

#	OEM	部品名
1	01464-S3Y-000	Hose set - R. FR. BRAKE
2	01465-S3Y-000	Hose set - L. FR. BRAKE
3	01466-S3Y-000	Hose set - RR. BRAKE
4	46210-S3Y-003	Valve assy. - PROPORTIONING (ABS)
5	46330-S3Y-020	Pipe comp. c - BRAKE
6	46331-S3Y-020	Pipe comp. e - R. BRAKE
7	46340-S3Y-000	Pipe comp. d - BRAKE
8	46361-S3Y-020	Pipe comp. e - L. BRAKE
9	46375-S3Y-G00	Pipe comp. v - BRAKE
10	46374-S3Y-G01	Pipe comp. u - BRAKE
11	46376-S3Y-G00	Pipe comp. w - BRAKE
12	46377-S3Y-G01	Pipe comp. x - BRAKE
13	46378-S3Y-G01	Pipe comp. y - BRAKE
14	46379-S3Y-G00	Pipe comp. z - BRAKE
15	46380-SH3-000	Grommet a - BRAKE PIPE
16	46391-SX8-T01	Clip - BRAKE PIPE
17	46392-SK7-003	Clip d - BRAKE PIPE
18	46392-SR3-921	Clip - BRAKE PIPE
19	46392-S50-000	Clip - BRAKE PIPE
20	46394-SH3-A01	Clip - BRAKE PIPE
21	46394-SN7-003	Clip - BRAKE PIPE
22	46394-S04-003	Clip A
23	46396-SL5-A51	Clip - BRAKE PIPE
24	46462-SE0-000	Bolt - OIL
25	46472-568-000	Packing - OIL BOLT
26	90651-538-000	Clip - BRAKE HOSE

Brake lines (ABS; RH) 25

#	OEM	部品名
1	01464-S3Y-000	Hose set - R. FR. BRAKE
2	01465-S3Y-000	Hose set - L. FR. BRAKE
3	01466-S3Y-000	Hose set - RR. BRAKE
4	46210-S3Y-003	Valve assy. - PROPORTIONING (ABS)
5	46330-S3Y-020	Pipe comp. c - BRAKE
6	46331-S3Y-020	Pipe comp. e - R. BRAKE
7	46340-S3Y-000	Pipe comp. d - BRAKE
8	46361-S3Y-020	Pipe comp. e - L. BRAKE
9	46374-S3Y-000	Pipe comp. u - BRAKE
10	46375-S3Y-000	Pipe comp. v - BRAKE
11	46376-S3Y-000	Pipe comp. w - BRAKE
12	46377-S3Y-010	Pipe comp. x - BRAKE
13	46378-S3Y-010	Pipe comp. y - BRAKE
14	46379-S3Y-000	Pipe comp. z - BRAKE
15	46380-SH3-000	Grommet a - BRAKE PIPE
16	46391-SX8-T01	Clip - BRAKE PIPE
17	46392-SR3-921	Clip - BRAKE PIPE
18	46392-S50-000	Clip - BRAKE PIPE
19	46394-SH3-A01	Clip - BRAKE PIPE
20	46394-SN7-003	Clip - BRAKE PIPE
21	46394-S04-003	Clip A
22	46396-SL5-A51	Clip - BRAKE PIPE
23	46462-SE0-000	Bolt - OIL
24	46472-568-000	Packing - OIL BOLT
25	90651-538-000	Clip - BRAKE HOSE

Brake master cylinder/ master power (LH) 24

#	OEM	部品名
1	01469-S3Y-A00	Power set - MASTER
2	46401-S3Y-003	Sensor - MAP
3	46070-SL0-G01	Plate - SYMBOL MARK
4	46100-S3Y-A03	Cylinder assy. - MASTER (20.64MM)
5	46122-S04-J02	Piston assy. - SECONDARY
6	46151-S3Y-003	Yoke - PUSH ROD
7	46182-500-013	Circlip
8	46185-S04-J01	Seal - ROD
9	46191-S2K-000	Packing - MASTER POWER
10	46402-S3Y-A01	Tube assy - MASTER POWER
11	46406-S3Y-A00	Stay - MASTER POWER TUBE
12	46407-S3Y-A00	Stay - MAP SENSOR
13	46407-S84-A01	Clamp - TUBE
14	46512-S3Y-000	Pin - PEDAL
15	46661-SCC-000	Reservoir set
16	46662-S5A-003	Cap comp. - RESERVE TANK
17	46665-S04-J01	Grommet
18	46666-S2K-003	Filter - BRAKE RESERVOIR
19	46669-S5A-003	Diaphragm
20	46911-S70-003	Pin, LOCK(8MM)
21	53729-671-003	Clamp d - 15.5MM
22	57515-S30-003	Pin - STOP
23	57520-S50-952	Piston assy. - PRIMARY
32	46403-S1B-E00	Joint - THREE WAY

Brake master cylinder/ master power (RH) 24

#	OEM	部品名
1	01469-S3Y-E00	Power set - MASTER
2	46401-S3Y-003	Sensor - MAP
3	46070-SL0-G01	Plate - SYMBOL MARK
4	46100-S3Y-023	Cylinder assy. - MASTER (20.64MM)
5	46122-S04-J02	Piston assy. - SECONDARY
6	46151-S3Y-003	Yoke - PUSH ROD
7	46182-500-013	Circlip
8	46185-S04-J01	Seal - ROD
9	46191-S2K-000	Packing - MASTER POWER
10	46402-S3Y-003	Tube assy - MASTER POWER
11	46406-S3Y-000	Stay - MASTER POWER TUBE
12	46407-S84-A01	Clamp - TUBE
13	46407-S3Y-000	Stay - MASTER POWER TUBE
14	46512-S3Y-000	Pin - PEDAL
15	46661-S3Y-010	Reservoir set
16	46662-S5A-003	Cap comp. - RESERVE TANK
17	46665-S04-J01	Grommet
18	46666-S2K-003	Filter - BRAKE RESERVOIR
19	46669-S5A-003	Diaphragm
20	46911-S70-003	Pin, LOCK(8MM)
21	53729-671-003	Clamp d - 15.5MM
22	57515-S30-003	Pin - STOP
23	57520-S50-952	Piston assy. - PRIMARY
32	46403-S1B-E00	Joint - THREE WAY

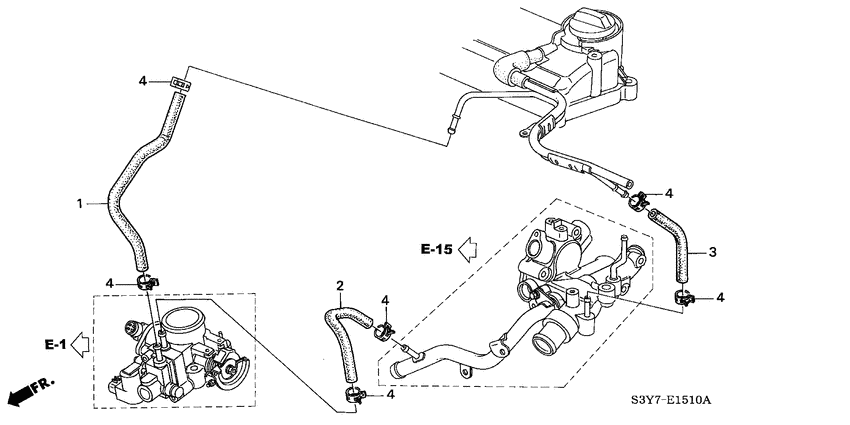

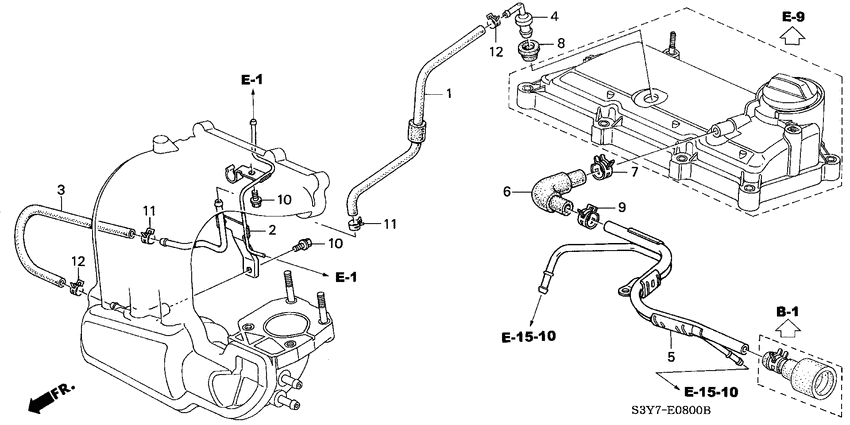

Breather tube 10

#	OEM	部品名
1	11856-PHM-020	Tube comp - PCV
1	11856-PHM-000	Tube comp - PCV
2	11857-PHM-000	Pipe comp, PCV
3	11858-PHM-000	Tube - PCV LOWER
4	17130-PM6-G01	Valve assy. - PCV
5	17135-PHM-000	Pipe comp - BREATHER
6	17136-PHM-000	Tube comp - BREATHER
7	17138-PHM-003	Clamp - TUBE (D14.8)
8	17139-PK1-000	Grommet - PCV VALVE
9	91405-PG7-003	Clip - HOSE (D13)

Bumpers 44

#	OEM	部品名
2	71102-S3Y-000	Bracket - FR. BUMPER LOWER
4	71105-S3Y-A00	Louver - FR. BUMPER
5	71110-S3Y-000	Strake - R. FR.
6	71120-S3Y-000	Strake - L. FR.
7	71131-S3Y-000	Beam - FR. BUMPER
8	71132-S3Y-000	Extension - R. FR. BUMPER
10	71137-S3Y-000	Extension - L. FR. BUMPER
11	71140-S3Y-000	Beam comp - FR. BUMPER UPPER
11	71140-S3Y-010	Beam comp
12	71143-S3Y-000	Beam comp - R. FR. BUMPER CORNER UPPER
13	71148-S3Y-000	Beam comp - L. FR. BUMPER CORNER UPPER
14	71170-S3Y-A00	Absorber - FR. BUMPER
15	71180-S3Y-G00	Base - FR. LICENSE
17	71503-S3Y-000	Bracket - R. RR. BUMPER SIDE
18	71510-S3Y-000	Skirt, RR. BUMPER
19	71511-S3Y-E00	Garnish - RR. FOG OUTSIDE
19	71511-S3Y-G00	Garnish - RR. FOG OUTSIDE
20	71513-S3Y-000	Bracket - L. RR. BUMPER SIDE
21	71515-SX0-010	Garnish - R. RR. FOG INSIDE
21	71516-SX0-010	Garnish - L. RR. FOG INSIDE
22	71540-S3Y-000	Beam comp - RR. BUMPER UPPER
23	75522-611-000	Grommet - SCREW, 4MM
24	90101-SL9-003	Screw - TAPPING, 4X14 (PO)
25	90103-S3Y-000	Bolt - CORNER CLIP
26	90109-SL9-000	Screw - TAPPING, 5X16
27	90123-S3Y-003	Bolt - SHOULDER, 6X20(6.2)
28	90124-S3Y-003	Bolt - SHOULDER, 6X20 (3.5)
29	90126-SR4-000	Screw-washer - 5X16
30	90129-SL0-000	Bolt-washer - 8X25 (WITH GUIDE)
31	90303-SA5-003	Nut - FR. COMBINATION LIGHT
32	90306-SL0-013	Nut - POP, 6MM
33	90319-SL0-000	Nut - CLIP, 8MM
34	90319-S3Y-000	Nut - CLIP, 8MM
35	90324-SM4-000	Nut - SUSPENSION, 5MM
36	90331-S3Y-003	Nut - SPRING, 5MM
37	90651-S03-Z00	Clip - BUMPER SPOILER
38	90670-SG0-003	Grommet - SCREW, 4MM
39	91503-SZ3-003	Clip A
40	91603-SL0-000	Grommet - SCREW, 5MM
43	90105-SL4-000	Bolt-washer - 6X20
51	71506-S3Y-000	Stay comp - RR. BUMPER LOWER
52	91609-SE0-A00	Protection - CUSHION
53	71504-S0X-A00	Cushion - RR. BUMPER
55	91503-SZ5-003	Clip - BUMPER FACE

Camshaft/cam chain 13

#	OEM	部品名
1	14111-PHM-010	Camshaft
2	14210-PHM-004	Sprocket comp - CAM CHAIN DRIVEN (50T)
3	14401-PHM-004	Chain - CAM
4	14510-PHM-004	Tensioner comp - CAM CHAIN
5	14511-PHM-003	Filter assy - CAM CHAIN TENSIONER
6	14512-PHM-000	Spacer - CAM CHAIN TENSIONER
7	14515-PHM-004	Gasket a - CAM CHAIN TENSIONER
8	14520-PHM-004	Arm comp - CAM CHAIN TENSIONER
9	14530-PHM-004	Guide - CAM CHAIN
10	32746-PHM-000	Stay g - ENGINE WIRE HARNESS
11	90003-PHM-000	Bolt - TENSIONER PIVOT, 8MM
12	90031-PV0-003	Bolt-washer - 10X30
12	90031-PV0-305	Bolt-washer (10x30)

Clutch 5

#	OEM	部品名
2	22100-PHM-005	Flywheel comp.
3	22200-PHM-005	Disk comp, FRICTION
4	22300-PHM-005	Disk comp - PRESSURE
5	90034-689-000	Bolt - TWELVE POINT, 8MM (TOKAI TRW)
6	91006-634-008	Bearing - CLUTCH PILOT (NTN)

Clutch case 9

#	OEM	部品名
1	21100-PHR-010	Case - CLUTCH
3	21102-PHR-000	Plate - MAGNET SETTING
4	21103-PHR-000	Plate c - OIL GUIDE
5	24601-PHR-000	Stay - CHANGE WIRE
6	25422-PN6-801	Magnet comp. - TRANSMISSION
7	91002-PHR-003	Bearing - BALL, 26X52X15
8	91101-PHR-003	Bearing - NEEDLE, 34X59X20
9	91206-PHR-003	Oil seal - 35X58X8 (NOK)
10	91216-PHR-003	Oil seal - 26X40X7(NOK)

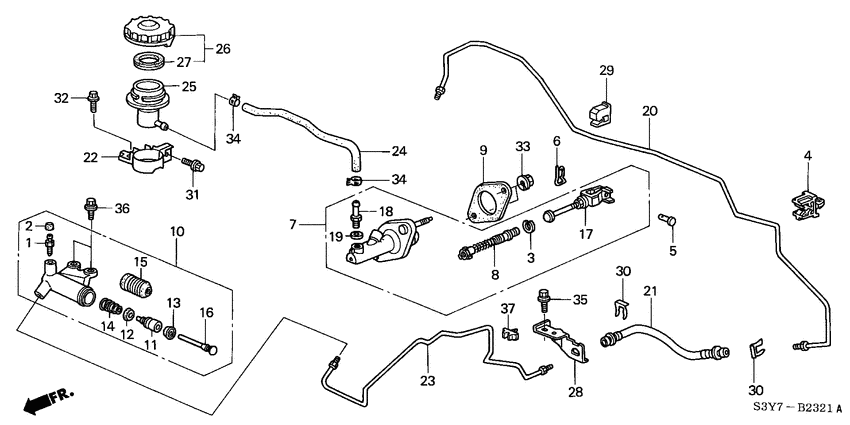

Clutch master cylinder (LH) 29

#	OEM	部品名
1	43352-567-000	Screw - BLEEDER
2	43353-SD5-003	Cap - BLEEDER SCREW
3	46182-500-013	Circlip
4	46394-S04-003	Clip A
5	46512-S70-000	Pin - PEDAL
6	46911-S70-003	Pin, LOCK(8MM)
7	46920-S3Y-A03	Cylinder assy. - CLUTCH MASTER
8	46926-SF1-003	Piston assy.
9	46928-SF1-000	Seal - CLUTCH MASTER CYLINDER
10	46930-S3Y-003	Cylinder assy. - SLAVE
11	46932-SD4-003	Piston - SLAVE CYLINDER
12	46933-SD4-013	Cup a - PISTON
13	46934-SD4-003	Cup b - PISTON
14	46935-SP0-000	Spring - SLAVE CYLINDER
15	46937-SR3-003	Boot - SLAVE CYLINDER
16	46938-SD4-003	Rod - PUSH
17	46950-S3Y-A02	Rod assy - PUSH
18	46952-SD4-003	Joint - TUBE
19	46953-SD4-003	Packing
20	46960-S3Y-A00	Pipe a - CLUTCH
21	46961-S3Y-023	Hose - CLUTCH
22	46966-SV4-A00	Holder - TANK
23	46970-S3Y-010	Pipe b - CLUTCH
24	46971-S3Y-A00	Tube - CLUTCH FLUID
25	46972-SD4-003	Tank - CLUTCH FLUID
26	46973-SD4-003	Cap comp. - RESERVE TANK
28	46996-S3Y-000	Bracket - CLUTCH PIPE
29	90651-538-000	Clip - BRAKE HOSE
36	46393-SE0-003	Clip s - BRAKE PIPE

Clutch master cylinder (RH) 30

#	OEM	部品名
1	43352-567-000	Screw - BLEEDER
2	43353-SD5-003	Cap - BLEEDER SCREW
3	46182-500-013	Circlip
4	46394-S04-003	Clip A
5	46512-S70-000	Pin - PEDAL
6	46911-S70-003	Pin, LOCK(8MM)
7	46920-S3Y-013	Cylinder assy. - CLUTCH MASTER
8	46926-SF1-003	Piston assy.
9	46928-SF1-000	Seal - CLUTCH MASTER CYLINDER
10	46930-S3Y-003	Cylinder assy. - SLAVE
11	46932-SD4-003	Piston - SLAVE CYLINDER
12	46933-SD4-013	Cup a - PISTON
13	46934-SD4-003	Cup b - PISTON
14	46935-SP0-000	Spring - SLAVE CYLINDER
15	46937-SR3-003	Boot - SLAVE CYLINDER
16	46938-SD4-003	Rod - PUSH
17	46950-S3Y-013	Rod assy - PUSH
18	46952-SD4-003	Joint - TUBE
19	46953-SD4-003	Packing
20	46960-S3Y-000	Pipe a - CLUTCH
21	46961-S3Y-023	Hose - CLUTCH
22	46966-S0A-000	Holder - TANK
23	46970-S3Y-010	Pipe b - CLUTCH
24	46971-S3Y-000	Tube - CLUTCH FLUID
25	46972-SD4-003	Tank - CLUTCH FLUID
26	46973-SD4-003	Cap comp. - RESERVE TANK
28	46996-S3Y-000	Bracket - CLUTCH PIPE
29	46997-S04-A01	Clip A - PIPE
30	90651-538-000	Clip - BRAKE HOSE
37	46393-SE0-003	Clip s - BRAKE PIPE

Clutch release 12

#	OEM	部品名
1	22810-PLW-003	Bearing - CLUTCH RELEASE (FUJIKOSHI)
1	22810-PLW-005	Bearing, CLUTCH RELEASE (NSK)
2	22821-P20-010	Fork - CLUTCH RELEASE
3	22825-PX5-A00	Bolt - RELEASE FORK
4	22835-P7N-000	Spring - RELEASE FORK SETTING
5	22841-PHR-000	Boot - RELEASE FORK
6	78410-S3Y-003	Sensor assy - SPEED
7	78419-S2R-003	Seal - RING
9	78415-S3Y-003	Gear
10	78416-S2R-003	Washer
11	78417-S2R-003	Ring - STOP (C-TYPE)
12	78418-S2R-003	Spring

Combination meter (COMPONENTS) 24

#	OEM	部品名
1	37103-SD2-003	Bulb & socket
2	37103-S2A-003	Socket assy - BULB (3W T6.5) (CAP:BLUE)
3	78102-S2A-003	Socket assy - BULB (1.12W T5) (LONG TYPE)
4	78103-S2A-003	Socket assy - BULB (1.12W T5) (SOCKET:GRAY)
5	78105-SZ3-003	Socket assy - BULB (1.4W)
6	78110-S3Y-G02	Case assy.
7	78130-S3Y-003	Lcd assy.
8	78131-S2A-003	Packing - LCD
9	78146-S3Y-E02	Panel - MAIN PRINT
9	78146-S3Y-G02	Panel - MAIN PRINT
10	78147-S3Y-003	Panel - PRINT (1)
11	78148-S3Y-A01	Panel - PRINT
12	78155-S3Y-A01	Visor
12	78155-S3Y-003	Visor
13	78159-S3Y-003	Plate - DIFFUSION
14	78166-S3Y-003	Cover
15	78170-S3Y-013	Lens assy - METER
16	78180-S3Y-003	Knob - SWITCH (1)
17	78181-S3Y-003	Knob - SWITCH (2)
18	78182-S3Y-003	Knob - SWITCH (3)
19	78183-S3Y-003	Knob - SWITCH (4)
20	78188-S73-A01	Spring - COIL
21	78190-S3Y-003	Seal - HOLE
23	91640-SM4-003	Grommet - SCREW, 4MM

Combination switch 23

#	OEM	部品名
1	06350-S3Y-E10	Cylinder set - KEY
1	06350-S3Y-G10	Cylinder set - KEY (###)
2	35100-S3Y-E03	Lock assy - STEERING
2	35100-S3Y-G03	Lock assy - STEERING
3	35102-SV4-003	Bolt - BREAK HEAD
4	35103-S04-003	Screw - RECESSED
5	35108-S30-003	Holder - COLUMN
6	35113-S84-G01	Key - BLANK (MAIN) (BLACK) (IMMOBILIZER)
7	35130-S3Y-J01	Switch comp - STEERING
7	35130-S3Y-A01	Switch comp - STEERING
8	35251-S2H-J02	Body - SWITCH
9	35255-S3Y-G02	Switch assy - LIGHTING & TURN
10	35256-S3Y-G01	Switch assy - WIPER (RR. WIPER)
11	35400-S0X-A01	Switch assy - DOOR
12	39730-S04-G02	Immobilizer unit
13	72118-ST7-003	Screw - TAPPING, 3X5
14	72146-S5A-G01	Cover - BATTERY
15	72147-SX0-G02	Transmitter assy - KEYLESS
16	72148-S10-003	Battery - CR2025
16	72148-S84-A10	Battery - CR2025
17	72149-S10-003	O-ring
18	90132-S3Y-A01	Screw - EARTH, 5X18
19	91540-S30-003	Clip - HARNESS BAND(NATURAL) (151.5MM)

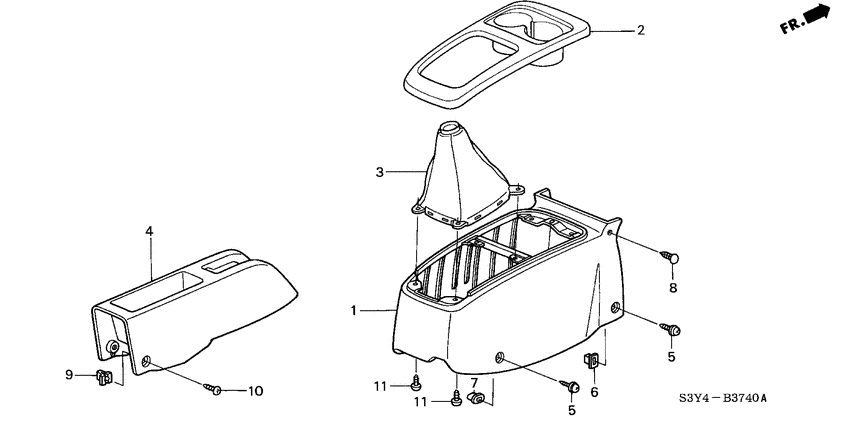

Console 4

#	OEM	部品名
5	90137-SH3-000	Screw - TAPPING, 4X16
6	90669-SB0-003	Grommet - SCREW, 4MM
7	90681-SS1-003	Grommet - SCREW, 4MM
9	91647-S04-003	Grommet - SCREW, 4MM

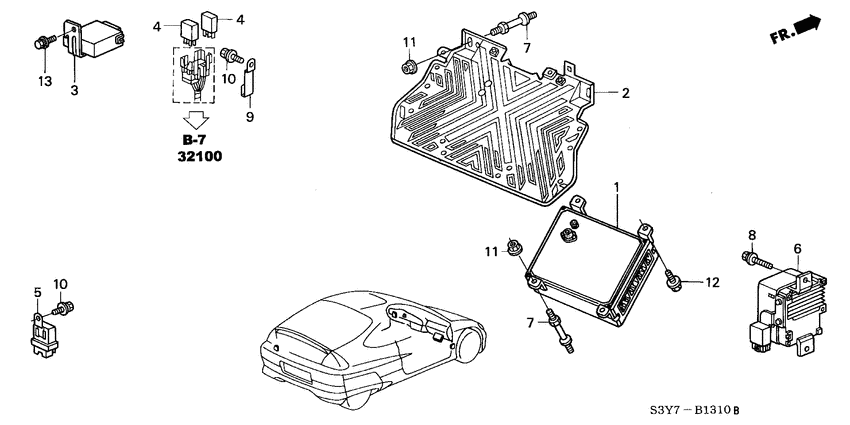

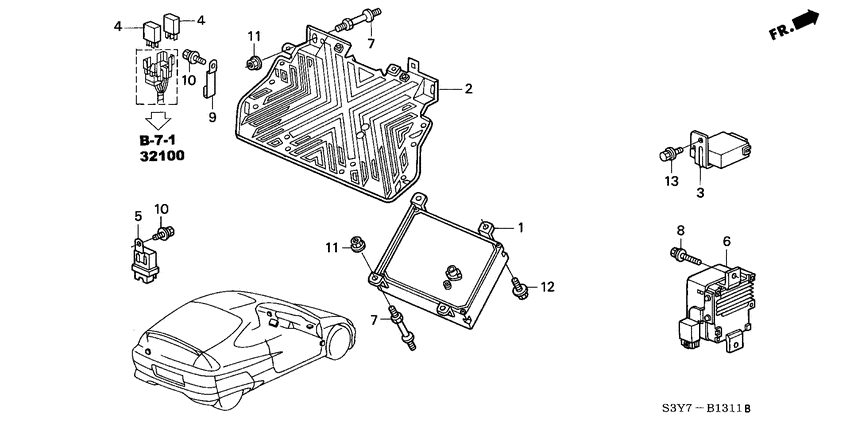

Control unit (CABIN; LH) 9

#	OEM	部品名
1	37820-PHM-G03	Control module - ENGINE
2	37821-PHM-A00	Cover comp. - ELECTRONIC CONTROL UNIT
3	38380-S3Y-G02	Control unit - DOOR LOCK & KEYLESS
4	39794-S2K-003	Relay assy - FUEL (4P) (DENSO) (BLUE)
5	39797-SE0-004	Relay assy - POWER (4P) (MITSUBA) (RC-2201)
6	39980-S3Y-003	Eps unit
7	90002-PHM-000	Bolt a - ENGINE CONTROL MODULE COVER
8	90149-SE0-902	Bolt - EARTH, 6X24(SN)
9	91755-SX0-010	Bracket - RELAY BLOCK (ISO)

Control unit (CABIN; RH) 9

#	OEM	部品名
1	37820-PHM-G04	Control module - ENGINE
2	37821-PHM-000	Cover - ENGINE CONTROL MODULE
3	38380-S3Y-E02	Control unit - DOOR LOCK & KEYLESS
4	39794-S2K-003	Relay assy - FUEL (4P) (DENSO) (BLUE)
5	39797-SE0-004	Relay assy - POWER (4P) (MITSUBA) (RC-2201)
6	39980-S3Y-003	Eps unit
7	90002-PHM-000	Bolt a - ENGINE CONTROL MODULE COVER
8	90149-SE0-902	Bolt - EARTH, 6X24(SN)
9	91755-SX0-010	Bracket - RELAY BLOCK (ISO)

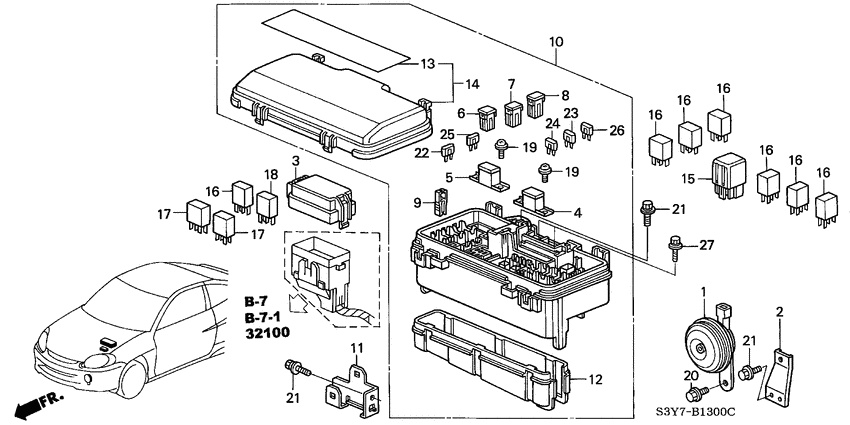

Control unit (ENGINE ROOM) 22

#	OEM	部品名
1	38100-S04-003	Horn assy - LOW (MITSUBA)
2	38101-S3Y-G00	Bracket - HORN
3	38182-S3Y-003	Cover - MULTI RELAY
4	38213-SM4-003	Fuse - BLOCK (50A)
5	38216-SM4-003	Fuse - BLOCK (80A)
6	38231-S04-003	Fuse - BLOCK (30A)
7	38231-S04-961	Fuse - BLOCK (40A)
8	38231-S10-003	Fuse - BLOCK (20A)
9	38235-S04-003	Puller - MINI FUSE (SUMITOMO)
10	38250-S3Y-G11	Box assy - RELAY (AUTO A.C.)
11	38251-S3Y-000	Bracket - RELAY BOX
12	38252-S3Y-J01	Cover - LOWER
13	38253-S3Y-003	Label - RELAY BOX
14	38254-S3Y-003	Cover - UPPER
15	39792-SE0-003	Relay assy - POWER(4P)(DENSO) (056700-7410)
16	39794-S04-003	Relay assy - POWER (4P) (MICRO ISO) (MITSUBA)
17	39794-S10-003	Relay assy - POWER(5P) (MICRO ISO)(MITSUBA)
18	39794-S2K-003	Relay assy - FUEL (4P) (DENSO) (BLUE)
19	90129-S84-000	Screw-washer - 5X14
20	90138-SM4-003	Bolt-washer - 8X14
21	90182-SB6-000	Bolt-washer - 6X16
27	90114-SM4-900	Bolt - 6X15

Countershaft 19

#	OEM	部品名
1	23221-PHR-A01	Countershaft
2	23421-PHR-R00	Gear - COUNTERSHAFT LOW
3	23431-PHR-R00	Gear - COUNTERSHAFT SECOND
4	23461-PHR-R00	Gear - COUNTERSHAFT FIFTH
5	23471-PHR-S00	Gear - COUNTERSHAFT THIRD
6	23481-PHR-R00	Gear - COUNTERSHAFT FOURTH
7	23521-PHR-315	Sleeve set - SYNCHRONIZER (1-2)
8	23912-PHR-000	Collar - DISTANCE, 34X40X27.5
9	23926-PB6-010	Washer - SPRING, 22MM
10	90201-PB6-010	Nut - FLANGE, 22MM
10	90201-PB6-020	Nut - FLANGE, 22MM
11	90603-PL3-000	Ring - SNAP, 52MM
12	91003-P21-003	Bearing - BALL, 25X52X14/15 (NTN)
13	91006-PHR-003	Bearing - SPECIAL BALL, 6205
14	91103-PHR-003	Bearing - NEEDLE, 38X43X22
15	91104-PHR-003	Bearing - NEEDLE, 40X45X22.5
16	91211-PHR-003	Damper - FRICTION (LOW)
17	91212-PHR-003	Damper - FRICTION (SECOND)
17	91212-PHR-013	Damper

Cylinder block/oil pan 30

#	OEM	部品名
1	11000-PHM-000	Block assy - CYLINDER
2	11106-PE0-300	Bolt - SEALING, 14MM
3	11106-PT0-300	Bolt - SEALING, 16MM
4	11126-PHM-300	Dowel pin - 16X20
5	11126-PK1-003	Bolt - SEALING, 22MM
6	11200-PHM-020	Pan comp - OIL
6	11200-PHM-000	Pan, Oil
7	11202-PHM-310	Base - OIL PAN DRAIN
8	11203-PHM-300	Collar - OIL PAN
9	11251-PHM-000	Packing a - OIL PAN
10	11252-PHM-000	Packing b - OIL PAN
11	12207-PC6-300	Washer - SEALING, 16MM
12	30530-PHM-003	Sensor assy - KNOCK
13	37240-PHM-003	Switch assy - OIL PRESSURE
14	37500-PHM-003	Sensor assy - CRANK
15	37501-PHM-000	Spacer - CRANK SENSOR
16	90001-PHM-000	Bolt - DRAIN PLUG, 28MM
17	90007-PHM-003	Bolt-washer - 9X113
18	90013-PHM-000	Bolt - PLUG DRAIN, 14MM
19	90031-PHM-000	Bolt-washer - SPECIAL, 6X22
20	90032-PHM-000	Bolt-washer - SPECIAL, 6X35
21	90033-PHM-000	Bolt-washer - SPECIAL, 8X84
22	90202-PHM-000	Nut - FLANGE SPECIAL, 8MM
23	90401-PR4-000	Washer - SEALING, 28MM
24	90415-PHM-000	Washer - SPECIAL, 8MM
25	90702-PE0-000	Dowel pin - 12X18
26	91214-PHM-013	Oil seal - 65X88X10
27	91307-PHM-003	O-ring - OIL PAN
28	91308-PA9-003	O-ring - 19.8X1.9 (ARAI)
29	91333-PCX-003	O-ring

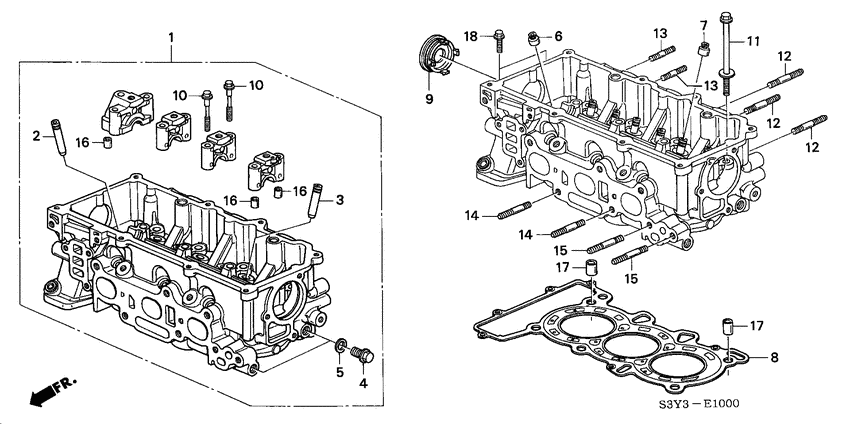

Cylinder head 14

#	OEM	部品名
1	12100-PHM-010	Head assy - CYLINDER
2	12204-PJ7-305	Guide - IN. VALVE (OS)
3	12205-PHM-305	Guide - EX. VALVE (OS)
4	12208-PHM-300	Bolt - SEALING, 12MM
5	12209-PHM-300	Washer - SEALING, 12MM
6	12210-PZ1-003	Seal a - VALVE STEM(ARAI)
6	12210-PZ1-004	SEAL A, VALVE STEM (NOK)
7	12211-PZ1-003	Seal b - VALVE STEM(ARAI)
7	12211-PZ1-004	Seal b - VALVE STEM(NOK)
8	12251-PHM-004	Gasket - CYLINDER HEAD
9	12320-PHM-003	Cover - R. CYLINDER HEAD
10	90002-P13-A00	Bolt - FLANGE, 6X48
11	90008-PHM-003	Bolt-washer - 9X150
12	90026-P8A-A00	Bolt - STUD, 8X41

Cylinder head cover 9

#	OEM	部品名
1	12310-PHM-000	Cover comp. - CYLINDER HEAD
2	12341-PHM-000	Packing - CYLINDER HEAD COVER
3	15610-P5G-000	Cap assy. - OIL FILLER
3	15610-RGA-000	Cap assy. - OIL FILLER
4	15613-PC6-000	Packing, Oil Filler
5	32742-PHM-000	Stay comp - ENGINE WIRE HARNESS (C)
6	90014-PHM-000	Bolt a - HEAD COVER
7	90035-PHM-000	Bolt - HARNESS STAY
8	90691-PM4-013	Clip - WIRE HARNESS

Differential gear 23

#	OEM	部品名
1	41100-PHR-000	Case comp. - DIFFERENTIAL
2	41233-PHR-A00	Gear - FINAL DRIVEN
3	41312-PHR-000	Gear - SPEEDOMETER DRIVE
4	41453-PL3-A00	Shim n - 72MM(1.35)
4	41448-PL3-A00	Shim h - 72MM(1.7)
4	41443-PL3-A00	Shim c - 72MM(1.2)
4	41455-PL3-A00	Shim q - 72MM(1.55)
4	41450-PL3-A00	Shim k - 72MM(1.05)
4	41445-PL3-A00	Shim e - 72MM(1.4)
4	41457-PL3-A00	Shim s - 72MM(1.75)
4	41452-PL3-A00	Shim m - 72MM(1.25)
4	41447-PL3-A00	Shim g - 72MM(1.6)
4	41442-PL3-A00	Shim b - 72MM(1.1)
4	41454-PL3-A00	Shim p - 72MM(1.45)
4	41449-PL3-A00	Shim j - 72MM(1.8)
4	41444-PL3-A00	Shim d - 72MM(1.3)
4	41456-PL3-A00	Shim r - 72MM(1.65)
4	41451-PL3-A00	Shim l - 72MM(1.15)
4	41446-PL3-A00	Shim f - 72MM(1.5)
4	41441-PL3-A00	Shim a - 72MM(1.0)
5	90018-PHR-000	Bolt - SPECIAL, 10MM
6	91005-PL0-008	Bearing - SEALED BALL, 6207 (NTN)
6	91005-PHR-003	Bearing - SEALED BALL, 6207 (NTN)

Door lining 6

#	OEM	部品名
1	72335-S3Y-003	Weatherstrip - R. FR. DOOR INNER
2	72375-S3Y-003	Weatherstrip - L. FR. DOOR INNER
11	90132-SS0-000	Screw - TAPPING, 4X10 (PO)
12	90670-SG0-003	Grommet - SCREW, 4MM
13	91560-S84-A01	CLIP, DOOR LINING (NATURAL)
14	91635-SE0-003	Grommet - SCREW, 5MM

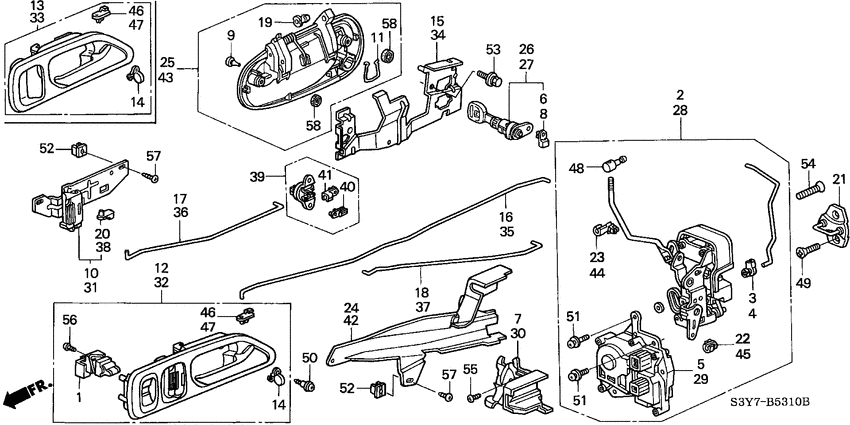

Door locks/outer handle 46

#	OEM	部品名
1	35760-SM3-003	Switch assy - R. POWER WINDOW
2	72110-S3Y-003	Lock assy - R. FR. DOOR POWER
2	72110-S3Y-A01	Lock assy - R. FR. DOOR POWER
3	72112-SR4-004	Snap - BROWN
4	72113-SR4-004	Snap - BLACK
5	72115-S84-A11	Actuator assy - DOOR LOCK
5	72115-S84-A01	Actuator assy - DOOR LOCK
6	72116-S04-003	Holder - ROD(SKY BLUE)
7	72117-SV2-003	Protector - R. DOOR LOCK
8	72117-S04-003	Holder - ROD (YELLOW)
9	72119-S04-003	Stopper a - OUTSIDE HANDLE
11	72123-SR0-003	Ring - OUTSIDE HANDLE
15	72130-S3Y-003	Protector - R. FR. DOOR OUTER HANDLE
16	72131-S3Y-003	Rod - R. FR. INSIDE HANDLE
17	72132-S3Y-003	Rod - R. FR. INSIDE LOCK
18	72133-S3Y-003	Rod - R. RR. INSIDE LOCK
19	72134-SM1-003	Bush - OUTSIDE HANDLE JOINT
20	72134-SM4-003	Snap - R. (VIOLET)
21	72135-S3Y-003	Striker assy - DOOR LOCK
22	72139-SR0-A01	Snap - VIOLET
24	72139-S3Y-000	Protector - R. FR. DOOR ROD
26	72145-S2G-003	Cylinder - R. DOOR
27	72146-S2G-003	Cylinder - L. DOOR
28	72150-S3Y-003	Lock assy - L. FR. DOOR POWER
28	72150-S3Y-A01	Lock assy - L. FR. DOOR POWER
29	72155-S84-A01	Actuator assy - DOOR LOCK
29	72155-S84-A11	Actuator assy - L. FR. DOOR LOCK
30	72157-SV2-003	Protector - L. DOOR LOCK
34	72170-S3Y-003	Protector - L. FR. DOOR OUTER HANDLE
35	72171-S3Y-003	Rod - L. FR. INSIDE HANDLE
36	72172-S3Y-003	Rod - L. FR. INSIDE LOCK
37	72173-S3Y-003	Rod - L. RR. INSIDE LOCK
38	72174-SM4-003	Snap - L. (YELLOW)
39	72175-S03-003	Crank assy - LOCK ROD
40	72176-S03-003	Holder - 3.5MM
41	72177-S03-003	Holder - 4.0MM
42	72179-S3Y-000	Protector - L. FR. DOOR ROD
44	72616-SM4-003	Snap - NATURAL
46	72634-SM4-003	Snap - R. (BLUE)
47	72674-SM4-003	Snap - L. (BROWN)
48	75411-634-000	Joint
49	90108-S3Y-000	Bolt - LOCK STRIKER
50	90111-SA0-000	Screw - TAPPING, 4X8
51	90141-S84-003	Screw - 3X10
52	90662-SB2-003	Grommet - SCREW, 5MM
58	72143-S04-003	Packing

Door panels 20

#	OEM	部品名
11	72142-SL0-000	Stopper - DOOR
12	72317-S3Y-003	Spacer - R. FR. DOOR WEATHERSTRIP
13	72321-S3Y-010	Seal - R. FR. DOOR HOLE
14	72325-S3Y-003	Sub seal - R. FR. DOOR
15	72327-S3Y-000	Seal - DOOR HOLE (30MM CLEAR)
16	72340-S3Y-003	Checker comp. - R. DOOR
17	72357-S3Y-003	Spacer - L. FR. DOOR WEATHERSTRIP
18	72361-S3Y-010	Seal - L. FR. DOOR HOLE
19	72365-S3Y-003	Sub seal - L. FR. DOOR
20	72380-S3Y-003	Checker comp. - L. DOOR
21	72435-S3Y-003	Seal - R. FR. DOOR LOWER SILL
22	72475-S3Y-003	Seal, L. FR. DOOR LOWER SILL
23	90105-S3Y-000	Bolt - FLANGE, 8X22
24	90119-SL0-010	Bolt-washer - 8X35
25	90686-692-003	Cap - LINING MOUNT
26	90851-SJ4-000	Seal - DOOR HOLE, 20MM
27	91530-SP1-003	Clip A - DOOR WEATHERSTRIP
28	91567-SR2-013	Clip
32	67324-S3Y-J01	Tape set - R. FR. DOOR SASH
33	67364-S3Y-J01	Tape set - L. FR. DOOR SASH

Door windows/regulator 14

#	OEM	部品名
1	39885-S5A-G01	Label - IMMOBILIZER
2	72210-S3Y-013	Regulator assy - R. FR. DOOR POWER
2	72210-S3Y-G02	Regulator assy - R. FR. DOOR POWER
3	72230-S3Y-003	Sash - R. FR. DOOR FR. LOWER
4	72231-S3Y-003	Sash - R. FR. DOOR CENTER LOWER
5	72235-S3Y-003	Runchannel - R. FR. DOOR
6	72237-S3Y-003	Clip - DOOR GLASS GUIDE
7	72250-S3Y-013	Regulator assy - L. FR. DOOR POWER
7	72250-S3Y-G02	Regulator assy - L. FR. DOOR POWER
8	72270-S3Y-003	Sash - L. FR. DOOR FR. LOWER
9	72271-S3Y-003	Sash - L. FR. DOOR CENTER LOWER
10	72275-S3Y-003	Runchannel - L. FR. DOOR
11	73300-S3Y-G01	Glass assy - R. FR. DOOR (GREEN) (ASAHI)
12	73350-S3Y-G01	Glass assy - L. FR. DOOR (GREEN) (ASAHI)

Duct (LH) 3

#	OEM	部品名
1	77400-S3Y-A01	Duct assy - AIR CONDITIONER
2	77450-S3Y-003	Duct assy - FR. DEFROSTER
3	90302-SA4-003	Nut - SPRING, 4MM

Duct (RH) 3

#	OEM	部品名
1	77400-S3Y-003	Duct assy - AIR CONDITIONER
2	77450-S3Y-003	Duct assy - FR. DEFROSTER
3	90302-SA4-003	Nut - SPRING, 4MM

Emblems/caution labels 5

#	OEM	部品名
1	17669-SM4-X30	Label - FUEL FILLER CAUTION (UNLEADED FUEL ONLY)
2	42760-S3Y-G01	Plate - TIRE PRESSURE CAUTION
4	77875-S84-G80	Label - SRS CAUTION
5	78527-S04-G80	Label - SRS CAUTION (CHILD SEAT)
9	19043-PAD-G00	Label - COOLANT INFORMATION

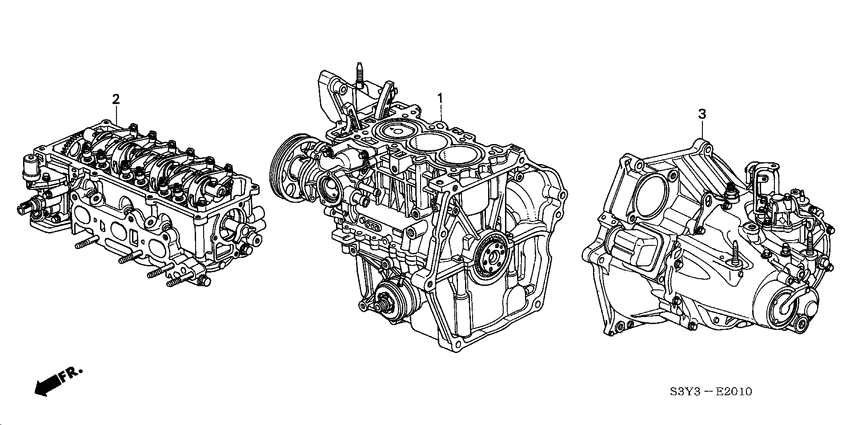

Engine assy./ transmission assy. 3

#	OEM	部品名
1	10002-PHM-A05	General assy. - CYLINDER BLOCK
2	10003-PHM-A03	General assy. - CYLINDER HEAD
3	20011-PHR-S00	Transmission assy - MT

Engine cover 6

#	OEM	部品名
1	32122-PHM-000	Rubber - INTAKE MANIFOLD COVER MOUNTING
2	17116-P0G-A00	Collar - INTAKE MANIFOLD COVER MOUNTING
3	17127-P8F-A00	Rubber - INTAKE MANIFOLD MOUNTING
4	17165-PH7-300	Washer - MANIFOLD COVER
5	32121-PHM-000	Cover comp. - ENGINE
6	32126-PHM-000	Emblem - ENGINE COVER

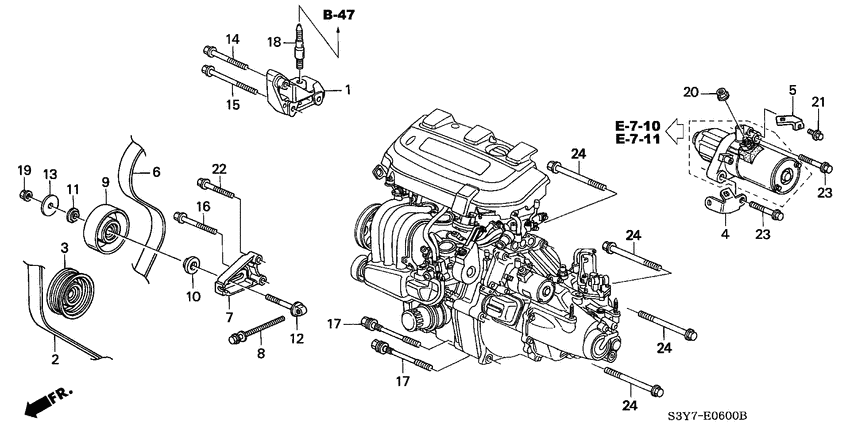

Engine mounting bracket 19

#	OEM	部品名
1	11910-PHM-000	Bracket - ENGINE MOUNTING
2	19230-PHM-004	Belt - WATER PUMP
3	19242-PHM-003	Pulley comp - IDLE
4	32744-PHM-010	Stay e - ENGINE WIRE HARNESS
5	32751-PHM-020	Stay m - ENGINE WIRE HARNESS
6	38920-PHM-003	Belt - COMPRESSOR
7	38926-PHM-000	Bracket - IDLE PULLEY
8	38927-PHM-000	Bolt - IDLE PULLEY ADJUSTER
9	38942-PWA-004	Pulley comp - IDLE
9	38942-PHM-004	Pulley comp - IDLE
10	38944-PHM-000	Collar - IDLE PULLEY
11	38945-PHM-000	Collar - IDLE PULLEY (B)
12	38946-PHM-000	Bolt - IDLE PULLEY
13	38947-PHM-000	Cover - BEARING
14	90009-PHM-000	Bolt - MOUNTING BRACKET, 8X50
15	90010-PHM-000	Bolt - MOUNTING BRACKET, 8X70
16	90024-PHM-000	Bolt - FLANGE, 8X55
17	90034-PHM-000	Bolt-washer - SPECIAL, 12X125
18	90041-PHM-000	Bolt - STUD, 10X63

Engine mounts 17

#	OEM	部品名
1	50805-S3Y-J02	Rubber assy. - TRANSMISSION MOUNTING (MT)
2	50810-S3Y-J01	Rubber - RR. ENGINE MOUNTING (MT)
3	50820-S3Y-J01	Rubber assy. - ENGINE SIDE MOUNTING (MT)
4	50825-S3Y-000	Bracket - TRANSMISSION MOUNTING
5	50827-S3Y-000	Bracket - ENGINE RR. MOUNTING
6	90161-S3Y-000	Bolt - FLANGE, 10X140
7	90165-S3Y-000	Bolt - FLANGE, 12X136
8	90171-S3Y-000	Bolt - FLANGE, 10X35
9	90174-S3Y-000	Bolt - FLANGE, 12X104.5
10	90176-S3Y-000	Bolt - FLANGE, 10X65
11	90177-S3Y-000	Bolt - FLANGE, 12X43.5
12	90178-S3Y-000	Bolt - FLANGE, 10X43
13	90300-S84-A00	Nut - SHOCK ABSORBER FLANGE (10MM)
14	90365-S3Y-000	Nut - YOKE, 12MM
15	90438-SE0-000	Washer - TRAILING, 12MM
16	91771-SH3-000	Washer - PLAIN, 10MM
17	50829-S3Y-000	Mass - RR. MOUNTING BRACKET

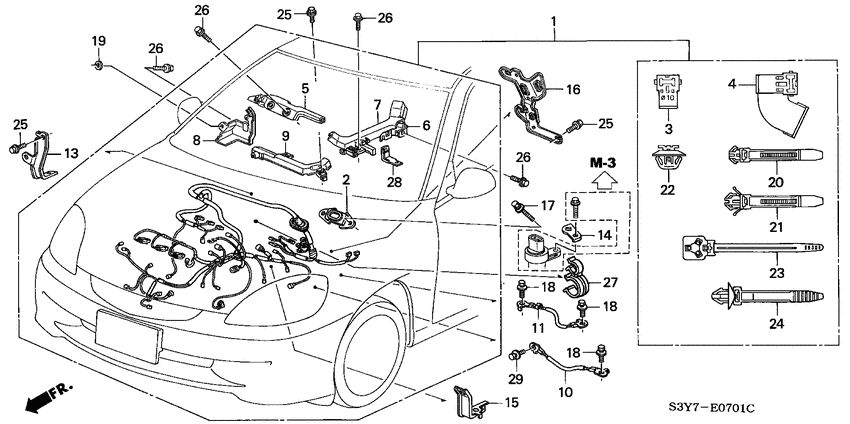

Engine wire harness (LH) 27

#	OEM	部品名
1	32110-PHM-G02	Harness - ENGINE WIRE
2	32111-PHM-003	Plate - WIRE HARNESS GROMMET (BLACK)
3	32115-P64-003	Holder - CORRUGATED (DARK BLUE) (10MM)
4	32119-P8E-A01	Holder - CORRUGATED TUBE (BLACK) (22MM)
5	32127-PHM-000	Holder comp - ENGINE HARNESS
6	32128-PHM-000	Holder, ENGINE WIRE HARNESS LOWER (B)
7	32129-PHM-000	Holder - ENGINE WIRE HARNESS UPPER
8	32130-PHM-000	Cover comp. - CRANK SENSOR
9	32131-PHM-000	Holder comp, ENGINE HARNESS (C)
10	32601-S3Y-J00	Cable assy - MISSION EARTH
11	32610-S3Y-000	Cable assy - SUB EARTH
12	32740-PHM-A00	Stay a - ENGINE WIRE HARNESS
13	32741-PHM-A00	Stay b - ENGINE WIRE HARNESS
14	32745-PHM-000	Stay f - ENGINE WIRE HARNESS
15	32747-PHM-000	Stay h - ENGINE WIRE HARNESS
16	32750-PHM-000	Stay l - ENGINE WIRE HARNESS
17	32752-PHM-000	Stay - JOINT CONNECTOR
18	32753-PHM-A00	Stay n - ENGINE WIRE HARNESS
19	90149-SE0-902	Bolt - EARTH, 6X24(SN)
20	90153-SE0-003	Bolt - EARTH, 6X12
21	90414-PHM-010	Washer - SPECIAL, 6MM
22	91506-P01-003	Clip A - HARNESS BAND (DARK GRAY) (129.4MM)
23	91507-P01-003	Clip b - HARNESS BAND (DARK BROWN) (129.4MM)
24	91533-S04-003	Clip - COUPLER (NATURAL)
25	91547-SH3-003	Clip - BAND(NATURAL)(160MM)
26	91558-ST5-003	Clip - HARNESS BAND(NATURAL) (135MM)(7MM HOLE)
29	36020-P36-003	Clamp - BREATHER HOSE

Engine wire harness (RH) 25

#	OEM	部品名
1	32110-PHM-E03	Harness - ENGINE WIRE
2	32111-PHM-003	Plate - WIRE HARNESS GROMMET (BLACK)
3	32115-P64-003	Holder - CORRUGATED (DARK BLUE) (10MM)
4	32119-P5A-003	Holder - CORRUGATED TUBE (DARK BLUE) (22MM)
5	32127-PHM-000	Holder comp - ENGINE HARNESS
6	32128-PHM-000	Holder, ENGINE WIRE HARNESS LOWER (B)
7	32129-PHM-000	Holder - ENGINE WIRE HARNESS UPPER
8	32130-PHM-000	Cover comp. - CRANK SENSOR
9	32131-PHM-000	Holder comp, ENGINE HARNESS (C)
10	32601-S3Y-J00	Cable assy - MISSION EARTH
11	32610-S3Y-000	Cable assy - SUB EARTH
13	32741-PHM-000	Stay b - ENGINE WIRE HARNESS
14	32745-PHM-000	Stay f - ENGINE WIRE HARNESS
15	32747-PHM-000	Stay h - ENGINE WIRE HARNESS
16	32753-PHM-000	Stay n - ENGINE WIRE HARNESS
17	90149-SE0-902	Bolt - EARTH, 6X24(SN)
18	90153-SE0-003	Bolt - EARTH, 6X12
19	90414-PHM-010	Washer - SPECIAL, 6MM
20	91506-P01-003	Clip A - HARNESS BAND (DARK GRAY) (129.4MM)
21	91507-P01-003	Clip b - HARNESS BAND (DARK BROWN) (129.4MM)
22	91533-S04-003	Clip - COUPLER (NATURAL)
23	91547-SH3-003	Clip - BAND(NATURAL)(160MM)
24	91558-ST5-003	Clip - HARNESS BAND(NATURAL) (135MM)(7MM HOLE)
27	36020-P36-003	Clamp - BREATHER HOSE
28	32752-PHM-000	Stay - JOINT CONNECTOR

Exhaust pipe 23

#	OEM	部品名
1	18030-S3Y-E00	Silencer set - EX.
1	11941-PHM-000	Stay - EX. MANIFOLD
2	18160-PHM-G00	Converter comp.
2	18100-PHM-010	Pipe comp - EX.
3	18176-P08-003	Bolt - CONVERTER
3	18115-PHM-004	Gasket - EX. MANIFOLD
4	18182-PHM-G00	Cover, UPPER
4	18122-PHM-000	Cover - RR. EX. MANIFOLD
5	18215-S3Y-J01	Rubber - EX. MOUNTING
5	36531-PHM-024	Sensor - LAF
6	18215-S3Y-J11	Rubber - EX. MOUNTING
7	18229-S3Y-J01	Gasket - EX. FLEXIBLE
7	90451-P13-000	Washer - SPECIAL, 11X24
8	18230-SV4-000	Spring - FLEXIBLE JOINT
9	18231-SR3-A22	Bolt b - FLEXIBLE JOINT
10	18393-SH3-S00	Gasket - PRE-CHAMBER (52.5MM-53.5MM)
11	36532-PHM-G01	Sensor - RR. OXYGEN
12	36538-P8F-A01	Clip - WIRE HARNESS
12	18120-PHM-000	Cover - EX. MANIFOLD
13	74602-S3Y-000	Plate - FLOOR HEAT BAFFLE
14	90023-PK1-000	Bolt - FLANGE, 6X10
14	90023-PR7-A01	BOLT, FLANGE (6X12) - 6X12 (IWATA BOLT)
15	90212-SA5-003	Nut - SELF-LOCK, 10MM

Floor mat 8

#	OEM	部品名
3	74260-S3Y-E00	Insulator - DASHBOARD
3	74260-S3Y-G00	Insulator - DASHBOARD
8	90676-SB2-003	Clip - DASHBOARD INSULATOR
9	90678-SB3-000	Clip - GUIDE INSULATOR
10	91512-S3Y-003	Clip - TRIM
11	91560-S06-003	Clip, PILLAR GARNISH(BLUE)
12	91560-S84-A01	CLIP, DOOR LINING (NATURAL)
13	77873-S04-G80	Label - STEERING COLUMN CAUTION (ENGLISH/FRENCH/GERMAN/DUTCH)

Front brake 27

#	OEM	部品名
1	01463-S3Y-000	Caliper set - FR.
2	06450-S3Y-E60	Pad set - FR. (WITHOUT SHIM) (###)
3	06455-S3Y-A00	Shim set - FR.
4	43352-568-003	SCREW, BLEEDER (NISSIN)
5	44200-S3Y-008	Bearing assy - FR. HUB UNIT
6	44600-S3Y-000	Hub assy - FR.
7	45018-S3Y-003	Caliper sub assy. - R. FR.
8	45019-S3Y-003	Caliper sub assy. - L. FR.
9	45022-S3Y-E60	Pad set - FR.
10	45216-S3Y-003	Piston
11	45235-S3Y-003	Sleeve
12	45236-S3Y-003	Retainer a - INNER
13	45237-S3Y-003	Retainer - R. OUTER
14	45238-S3Y-003	Retainer - L. OUTER
15	45239-S3Y-003	Retainer b - INNER
16	45240-S3Y-003	Bolt - FLANGE, 8X22
17	45241-S3Y-003	Bolt - FLANGE, 8X74
18	45251-SB2-940	Disk - FR. BRAKE
19	45255-S3Y-000	Guard - FR. BRAKE SPLASH
20	45262-S3Y-003	Pin b
21	45353-S3Y-003	Cap - BLEEDER
22	90107-S3Y-000	Bolt - CALIPER MOUNT
23	90113-SA0-025	Bolt - WHEEL (NAGOYA RASHI)
23	90113-SM1-005	Bolt - WHEEL (ROCKNEL FASTENER)
23	90113-SA0-006	Bolt - WHEEL (SAGA)
24	90164-S3Y-000	Bolt - FR. HUB UNIT, 10X46
27	90505-S3Y-000	Washer - PLAIN, 6MM

Front bulkhead/dashboard 25

#	OEM	部品名
15	60635-S3Y-000	Stay - BATTERY BASE
17	60645-S3Y-000	Plate - DAMPER BEAM
28	73260-S3Y-000	Protector - HARNESS
29	74265-S3Y-000	Insulator - DASHBOARD LOWER
29	74265-S3Y-A00	Insulator - DASHBOARD LOWER
30	74266-S3Y-000	Insulator - DASHBOARD UPPER
30	74266-S3Y-A00	Insulator - DASHBOARD UPPER
31	90109-S3Y-003	Stud - WELD, 15.5MM
32	90182-SB6-000	Bolt-washer - 6X16
33	90301-S3Y-A00	Nut - PIERCE, 6MM (INDENT MARK:3PLACE)
34	90301-S3Y-300	Nut - PIERCE, 6MM (INDENT MARK:1PLACE)
35	90301-S3Y-900	Nut - PIERCE, 6MM (INDENT MARK:2PLACE)
36	90303-S3Y-300	Nut - POP, 6MM
37	90306-SL0-013	Nut - POP, 6MM
38	90308-S3Y-300	Nut - PLATE, 6MM
39	90311-S3Y-300	Collar - L=20
40	90312-S3Y-300	Collar - RR. MOUNT
41	90313-S3Y-300	Nut assy. - FLOAT, 10MM
42	90315-S3Y-300	Nut - COLLAR, 8MM (L=52)
43	90318-S3Y-300	Nut assy. - FLOAT, 10MM(L=39)
44	90323-S3Y-300	Nut - PLATE, 10MM
45	90326-S3Y-000	Nut - POP, 6MM
47	91507-S3Y-003	Clip - INSULATOR
55	91501-SF1-003	Clip - HOOD INSULATOR
55	90700-SB2-003	Clip - HOOD INSULATOR

Front driveshaft 18

#	OEM	部品名
1	44014-S3Y-951	Joint set - OUTBOARD
2	44017-SAP-900	Boot set - INBOARD
3	44018-SAA-000	Boot set - OUTBOARD
4	44305-S3Y-951	Driveshaft assy. - R.
5	44306-S3Y-950	Driveshaft assy. - L.
6	44310-S3Y-300	Joint comp - INBOARD
6	44310-SFA-J00	Joint comp - INBOARD
7	44319-S04-300	Set ring - 26X1.8
7	44319-SR1-003	Set ring - 26X1.8 (GKN)
8	44327-SV4-305	Band - JOINT BOOT (DOUBLE ROLLED BAND)
9	44327-S2K-N02	Band b - DRIVESHAFT (OETIKER LIMITED)
9	44327-S2K-N01	Band b - DRIVESHAFT (NHK SPRING)
10	44329-SV4-305	Band - SHAFT BOOT (DOUBLE ROLLED BAND)
11	44329-SFA-003	Band c - DRIVESHAFT (OETIKER LIMITED)
12	44337-S2K-300	Ring b - STOPPER
13	44338-S71-300	Circlip - 20MM
14	44351-S3Y-003	Damper - DYNAMIC
15	90305-692-010	Nut

Front fenders 29

#	OEM	部品名
5	71161-S3Y-000	Plate - R. FR. BULKHEAD SIDE
6	71162-S3Y-000	Plate - FR. BULKHEAD LOWER
7	71165-S3Y-000	Plate - L. FR. BULKHEAD SIDE
8	74101-S3Y-000	Fender - R. FR. INNER
9	74115-S3Y-000	Cover - FR. UNDER
10	74117-S3Y-000	Beam - UNDER COVER
11	74118-S3Y-000	Cover - R. FR. SIDE
12	74119-S3Y-000	Cover - R. ENGINE UNDER
13	74149-S3Y-000	Cover - CONDENSER
14	74151-S3Y-000	Fender - L. FR. INNER
15	74160-S3Y-000	Cover comp. - R. FR. LOWER ARM
16	74168-S3Y-000	Cover - L. FR. SIDE
17	74169-S3Y-000	Cover - L. ENGINE UNDER
18	74170-S3Y-000	Cover comp. - L. FR. LOWER ARM
19	90105-SV4-000	Nut - FR. COMBINATION LIGHT
20	90113-S3Y-000	Bolt - FR. FENDER
21	90114-S3Y-000	Bolt assy - FR. FENDER
22	90121-SM4-003	Screw - TAPPING, 4X10
23	90122-S3Y-000	Bolt-washer - 8X25(WITH GUIDE)
24	90125-S3Y-000	Screw - TAPPING, 5X16
25	90133-S3Y-000	Bolt - FLANGE, 6X20
26	90305-SM4-000	Nut - AIR SPOILER CLIP
27	90306-SL0-013	Nut - POP, 6MM
28	90331-S3Y-003	Nut - SPRING, 5MM
29	90503-S3Y-000	Washer - FENDER
30	91501-S04-003	Clip - INNER FENDER
31	91503-SZ3-003	Clip A
32	91503-SZ5-003	Clip - BUMPER FACE
36	91513-S3Y-000	Clip - FR. UNDER COVER

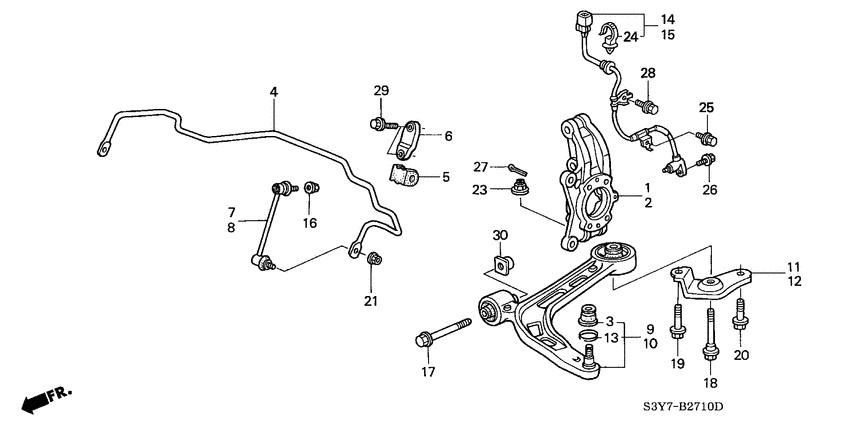

Front lower arm 26

#	OEM	部品名
1	51210-S3Y-000	Knuckle comp - R. FR.
2	51215-S3Y-000	Knuckle comp - L. FR.
3	51225-S84-A01	Boot - LOWER BALL DUST
4	51300-S3Y-013	Spring - FR. STABILIZER
5	51306-S3Y-003	Bush - STABILIZER HOLDER
6	51308-S3Y-J00	Holder - FR. STABILIZER
7	51320-S3Y-003	Link comp - R. FR. STABILIZER
8	51321-S3Y-003	Link comp - L. FR. STABILIZER
9	51350-S3Y-023	Arm comp - R. FR. LOWER
10	51360-S3Y-023	Arm comp - L. FR. LOWER
11	51393-S3Y-000	Bracket - R. FR. COMPLIANCE BUSH
12	51394-S3Y-000	Bracket - L. FR. COMPLIANCE BUSH
13	52226-SL0-003	Circlip - LOWER BALL(MUSASHI)
14	57450-S3Y-013	Sensor assy - R. FR.
14	57450-S3Y-003	Sensor assy - R. FR.
15	57455-S3Y-013	Sensor assy - L. FR.
15	57455-S3Y-003	Sensor assy - L. FR.
16	90002-S10-000	Nut - FLANGE, 10MM
17	90118-S3Y-010	Bolt - FLANGE, 12X115
18	90119-S3Y-000	Bolt - FLANGE, 12X93.5
19	90120-S3Y-010	Bolt - FLANGE, 12X68.5
20	90121-S3Y-010	Bolt - FLANGE, 12X53.5
21	90306-SB2-013	Nut - SELF-LOCK, 10MM (CLINCH)
23	90363-S3Y-003	Nut - CASTLE, 12MM
24	91507-SL9-003	Clip - WIRE HARNESS (GREEN) (110MM) (7MM HOLE)
30	90362-S3Y-000	Nut - FLOATING, 12MM

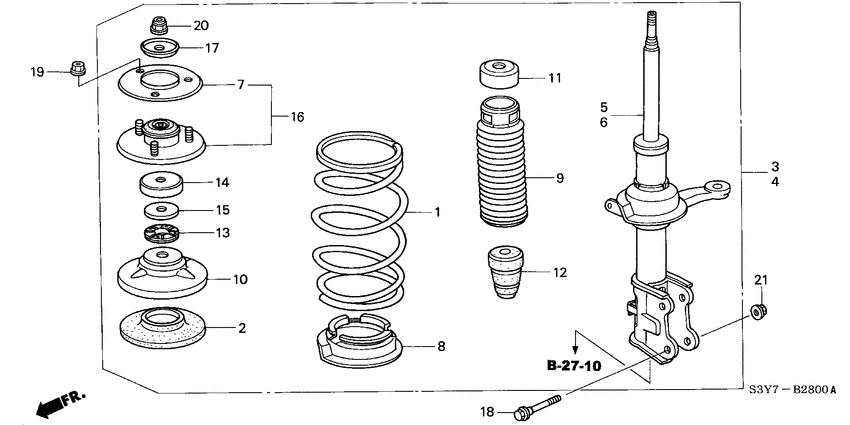

Front shock absorber 22

#	OEM	部品名
1	51401-S3Y-A01	Spring - FR. (MITSUBISHI)
2	51402-S3Y-003	Rubber - FR. SPRING MOUNTING
3	51601-S3Y-G03	Absorber assy - R. FR. SHOCK
4	51602-S3Y-G03	Absorber assy - L. FR. SHOCK
5	51605-S3Y-G03	Absorber unit - R. FR. SHOCK
6	51606-S3Y-G03	Absorber unit - L. FR. SHOCK
7	51676-S3Y-003	Plate - FR. SHOCK ABSORBER MOUNT
8	51684-S3Y-003	Mount - FR. DUST COVER LOWER
9	51687-S3Y-003	Cover - FR. SLEEVE DUST
10	51688-S3Y-003	Seat comp - SPRING UPPER
11	51689-S3Y-003	Cover - FR. END DUST
12	51722-S3Y-G02	Rubber - FR. BUMP STOPPER
13	51726-S2G-004	Bearing - SHOCK ABSORBER MOUNTING
14	51727-S3Y-003	Plate - SHOCK ABSORBER BEARING
15	51728-SD5-004	Plate - THRUST
16	51920-S3Y-013	Rubber - FR. SHOCK ABSORBER MOUNTING
17	51923-S3Y-003	Washer - FR. SHOCK ABSORBER MOUNTING
18	90117-S3Y-000	Bolt - FLANGE, 14X70
18	90117-S3Y-900	Bolt - FLANGE, 14X70 (SERVICE)
19	90182-SL0-004	Nut - SELF-LOCK, 10MM
20	90213-SJ6-004	Nut - SELF-LOCK, 12MM(NYLON)
21	90213-S3Y-000	Nut - FLANGE, 14MM

Front windshield 8

#	OEM	部品名
1	04731-S3Y-000	Rubber set - FR. WINDSHIELD DAM
2	73111-S3Y-E02	Glass - FR. WINDSHIELD (GREEN) (ASAHI)
2	73111-S3Y-G02	Glass - FR. WINDSHIELD (GREEN) (ASAHI)
3	73150-S3Y-003	Molding, FR. WINDSHIELD
4	77466-S3Y-000	Seal - FR. INSTRUMENT
5	78527-S04-E80	Label - SRS CAUTION (CHILD SEAT)
6	91568-SX0-003	Fastener a - WINDSHIELD
7	91569-SZ3-013	Fastener b - WINDSHIELD

Front windshield wiper (LH) 23

#	OEM	部品名
1	76505-S3Y-G01	Motor comp - FR. WIPER
2	76515-S50-003	Seal a
3	76516-S3Y-003	Rubber - MOUNTING
4	76517-S3Y-003	Bolt c
5	76518-S3Y-003	Cover - BREATHER
6	76520-S2G-003	Link assy
7	76521-S3Y-003	Plate - WASHER (BRACKET LESS)
8	76524-SD4-003	Dust seal
9	76524-SE0-013	Dust seal
10	76540-S3Y-A01	Rod unit A
11	76550-S3Y-A01	Rod unit b
12	76558-S2H-003	Cap - PIVOT
13	76560-S3Y-A01	Pivot assy. c
14	76561-S2H-003	Cap b - PIVOT
15	76570-S3Y-G01	Pivot assy. b
16	76580-S3Y-A01	Frame - CHANNEL
17	76600-S3Y-G01	Arm - WINDSHIELD WIPER (DRIVER SIDE)
18	76610-S3Y-G01	Arm - WINDSHIELD WIPER (PASSENGER SIDE)
19	76620-S3Y-G01	Blade - WINDSHIELD WIPER (500MM)
20	76630-S3Y-G01	Blade - WINDSHIELD WIPER (450MM) (PASSENGER SIDE)
21	76632-S30-G01	Rubber - BLADE (450MM)
22	76622-S30-G01	Rubber - BLADE (500MM)
23	90201-SK7-000	Nut - HEX. CAP, 10MM

Front windshield wiper (RH) 22

#	OEM	部品名
1	76505-S3Y-003	Motor comp - FR. WIPER
2	76515-S50-003	Seal a
3	76516-S3Y-003	Rubber - MOUNTING
4	76517-S3Y-003	Bolt c
5	76518-S3Y-003	Cover - BREATHER
6	76520-S3Y-003	Link assy
7	76521-S3Y-003	Plate - WASHER (BRACKET LESS)
8	76524-SD4-003	Dust seal
9	76524-SE0-013	Dust seal
10	76540-S3Y-003	Rod unit a
11	76550-S3Y-003	Rod unit b
12	76558-S2H-003	Cap - PIVOT
13	76560-S3Y-003	Pivot assy. c
14	76561-S2H-003	Cap b - PIVOT
15	76570-S3Y-003	Pivot assy. b
16	76600-S3Y-E02	Arm - WINDSHIELD WIPER (DRIVER SIDE)
17	76610-S3Y-E02	Arm - WINDSHIELD WIPER (PASSENGER SIDE)
18	76620-S3Y-E02	Blade - WINDSHIELD WIPER (500MM)
19	76632-S6M-003	Rubber - BLADE (500MM)
20	76630-S3Y-E02	Blade - WINDSHIELD WIPER (450MM)
21	76632-S5H-T01	Rubber - BLADE (450MM)
22	90201-SK7-000	Nut - HEX. CAP, 10MM

Fuel pipe 60

#	OEM	部品名
2	17300-S1A-E11	Canister assy
3	17301-S0X-A01	Port - VENT SERVICE
4	17315-S84-A02	Filter, Canister
5	17358-S3Y-000	Bracket - CANISTER
6	17359-S3Y-000	Stopper - CANISTER
7	17371-SR3-003	Valve - TWO WAY
8	17372-S3Y-000	Tube - CANISTER
9	17373-S3Y-J01	Tube - DRAIN
10	17374-S3Y-000	Tube - FILTER DRAIN
11	17378-S3Y-010	Stay - DUST FILTER
12	17700-S3Y-033	Pipe comp - FUEL FEED
12	17700-S3Y-023	Pipe comp, FUEL FEED
12	16040-S3Y-000	Pipe comp, FUEL FEED
12	17700-S3Y-A03	Pipe comp - FUEL FEED
12	16040-S3Y-A00	Pipe comp
13	17711-ST0-004	Retainer - WHITE) (SANOH
14	17711-S84-004	Retainer - WHITE)(SANOH
15	17716-S3Y-000	Tube - FUEL VENT
16	17720-S3Y-010	Pipe comp - FUEL VENT
16	17720-S3Y-G01	Pipe comp - FUEL VENT
17	17723-S3Y-020	Hose - PRESSURE REGULATOR RETURN
18	17724-S3Y-000	Tube c - PURGE
19	17727-S3Y-010	Tube - PURGE
19	17730-S3Y-A01	Tube c - PURGE
20	17728-S3Y-A01	Tube - PURGE
21	17731-S3Y-010	Pipe a - PURGE JOINT
22	17732-S3Y-A02	Pipe b - PURGE JOINT
23	17734-S3Y-000	Tube d - PURGE
24	17740-S3Y-033	Pipe - FUEL RETURN
24	17740-S3Y-023	Pipe, FUEL RETURN
24	16041-S3Y-000	Pipe, FUEL RETURN
24	17740-S3Y-A03	Pipe comp - FUEL RETURN
25	17743-S84-A01	Joint - DRAIN BYPASS TUBE
27	17761-S3Y-A01	Stay a - FUEL PIPE
28	17761-S3Y-000	Stay a - FUEL PIPE
29	17762-S3Y-000	Stay b - FUEL PIPE
30	17763-S3Y-000	Stay c - FUEL PIPE
31	17764-S3Y-000	Stay d - FUEL PIPE
35	91592-S3Y-013	Clamp - FUEL PIPE
37	91595-S3Y-003	Clamp a - FUEL PIPE
38	91596-S3Y-003	Clamp b - FUEL PIPE
39	91597-S3Y-003	Clamp c - FUEL PIPE
40	91599-S3Y-003	Clamp e - FUEL PIPE
44	91401-SDC-000	Clip - TUBE(B10)
45	91402-SDC-000	Clip - TUBE(B12)
46	91406-SAA-J00	Clamp - TUBE (D12)
49	90634-PA0-000	Cap - SEALING
50	17701-SA7-930	Rubber - FUEL PIPE INSULATOR
51	17729-S3Y-A00	Tube - PURGE
55	17743-S3Y-013	Joint - DRAIN
56	17701-S3Y-000	Rubber - FUEL PIPE INSULATOR
57	17758-S0X-J51	Rubber - FUEL PIPE
58	17760-S3Y-020	Stay e - FUEL PIPE
60	17762-S3Y-A00	Stay b - FUEL PIPE
61	91409-SZ3-003	Clamp - FUEL TUBE (D10.5)
62	01004-PHM-J00	Hose kit - FUEL FEED
63	90009-PE2-010	Bolt - SEALING, 6MM
63	90009-RMX-010	Bolt,sealing 6mm
64	90430-PD6-003	Washer - SEALING, 6MM
65	91305-PMS-A01	O-ring - 9.8X2.4

Fuel tank 38

#	OEM	部品名
1	16010-S3Y-000	Strainer set - FUEL
2	16711-S3Y-003	Rubber - FUEL PUMP INSULATOR
3	16715-S0X-A01	O-ring
4	17040-S3Y-000	Pump set - FUEL
5	17500-S3Y-003	Tank comp. - FUEL
6	17513-S3Y-003	Circlip - PROTECTOR
7	17516-S3Y-000	Filter set - FUEL PUMP
8	17519-S3Y-000	Protector - FUEL TANK
9	17520-S3Y-A00	Reflector - FUEL TANK
10	17521-S3Y-000	Band - R. FUEL TANK MOUNTING
11	17522-S3Y-000	Band - L. FUEL TANK MOUNTING
12	17525-SM4-000	Bolt-washer - 10X35
13	17574-S3Y-003	Packing - FUEL PUMP MODULE
14	17630-S3Y-003	Meter comp - FUEL
15	17651-S3Y-003	Tube - FILLER NECK
16	17652-SDA-A31	Clip - FILLER TUBE
17	17658-S3Y-000	Tube - BREATHER
18	17660-S3Y-E01	Pipe comp - FUEL FILLER
19	17662-SS1-010	Packing - FUEL FILLER PIPE
20	17664-SH4-010	Bush - FILLER PIPE MOUNT
21	17665-SK7-010	Collar - FILLER PIPE MOUNT
22	17667-S3Y-010	Grommet - FUEL FILLER PIPE
23	17668-S3Y-000	Holder - FUEL FILLER PIPE GROMMET
24	17670-S5A-E33	Cap comp. - FUEL FILLER (TOYODA)
25	17703-S3Y-000	Reservoir
26	17704-S3Y-003	Housing - CENTER
27	17705-S0X-A01	Grommet
28	17706-S3Y-003	Spring
29	17709-S3Y-000	Flange comp
30	17710-S3Y-013	Tube comp - VENT
31	17719-S3Y-003	Nut - FUEL PUMP MODULE LOCK
32	90011-SK7-010	Bolt - FILLER PIPE MOUNTING
33	90103-SB0-010	Nut - FLANGE, 5MM
34	90671-SB2-000	Bolt - FR. FENDER (DACRO COATING)
35	90700-SDA-003	Clamp - FUEL TUBE(D17.0)
36	91462-SDA-003	Clamp - FUEL TUBE (D18)
40	17652-SEB-003	Clip - FILLER TUBE
41	91404-SDC-000	Clamp - TUBE (D10)

Gasket kit 2

#	OEM	部品名
1	06110-PHM-000	Gasket kit - CYLINDER HEAD
2	06111-PHM-010	Gasket kit - CYLINDER BLOCK

Grommet 18

#	OEM	部品名
1	74514-S3Y-000	Seal - R. QUARTER HOLE
2	74536-S3Y-000	Insulator - CENTER PILLAR LOWER
3	74537-S3Y-000	Insulator - RR. WHEELHOUSE (A)
4	74538-S3Y-000	Insulator - RR. WHEELHOUSE (B)
5	74554-S3Y-000	Seal - L. QUARTER HOLE
6	74605-S3Y-000	Insulator - MIDDLE FLOOR
7	90854-SF1-G00	Grommet - FUEL TUBE
8	91601-S3Y-000	Cap - STAY
9	91602-S3Y-000	Seal - RR. PANEL
10	91603-SK7-000	Grommet - WAX HOLE, 25MM
11	91611-SS0-003	Plug - HOLE, 25MM
12	91616-SH3-000	Seal - FR. PILLAR INNER LOWER (110X110)
13	91619-SE0-000	Seal - DOOR HOLE, 30MM(BLACK)
19	74539-S3Y-000	Insulator c - RR. WHEEL ARCH
20	91601-SL0-000	Cap - FLOOR HOLE
21	91604-S3Y-000	Seal - RR. PANEL SIDE
22	91617-SZ3-000	Seal - HOLE, 40X40
23	91605-SL0-000	Cap - FLOOR HOLE (50MM)

Harness band/bracket 31

#	OEM	部品名
1	30510-SP0-A00	Condenser comp.
2	32120-P5L-A01	Holder - CORRUGATED (DARK GREEN) (25MM)
3	32132-SM4-003	Band - WIRE HARNESS OFFSET (20) (BLACK) (122.5MM)
4	32134-SM4-003	Band - HARNESS OFFSET (10) (BROWN) (122.5MM)
5	32147-SF1-003	Connector - DIODE(3P)
6	72327-SD5-000	Seal b - FR. DOOR HOLE (30X50)
7	90627-SA5-003	Clip - WIRE HARNESS(BLUE) (HARNESS TAPING)(50MM)
8	90681-SD4-003	Clip - WIRE HARNESS
9	91476-SB6-003	Clip - ROOF ARCH(NATURAL) (HARNESS TAPING)(60MM)
10	91476-SD4-003	Clip - OFFSET (21) (BROWN) (60MM)
11	91531-S04-003	Clip - WIRE HARNESS(NATURAL) (44MM)
12	91540-SV4-003	Clip - HARNESS BAND (NATURAL) (145.2MM)
13	91540-S0A-003	Clip - HARNESS BAND(NATURAL) (96.9MM)
14	91540-S30-003	Clip - HARNESS BAND(NATURAL) (151.5MM)
15	91541-S0A-003	Clip - HARNESS BAND(BLACK) (145MM)
16	91545-SV4-003	Clip - HARNESS BAND (NATURAL) (145.2MM) (WITH SEAL)
17	91545-S30-003	Clip - HARNESS BAND (NATURAL) (151.5MM) (WITH SEAL)
19	91555-SM4-003	Clip - COUPLER (RED)
20	91559-SE3-003	Clip - WIRE HARNESS (WHITE) (55MM)
21	91559-ST5-003	Clip - HARNESS BAND OFFSET(30) (NATURAL)
22	91559-S47-003	Clip - HARNESS BAND(NATURAL) (167MM)
23	91565-S0X-003	Clip - COUPLER (DARK GREEN)
24	91565-S3Y-003	Clip - COUPLER
25	91571-S10-003	Clip - WIRE HARNESS (NATURAL) (130MM)
26	91637-SF1-003	Cap - 090 2P
27	91902-SB2-003	Cushion - WIRE HARNESS(50X100)
28	32134-S3A-003	Cap - COUPLER (2P) (MALE)
29	91556-SP0-003	Clip - COUPLER(BROWN)
30	91558-SM4-003	Clip - TUBE(BLACK)(135MM)
31	91559-SX0-003	Clip - HARNESS BAND (NATURAL) (155MM)
32	91558-ST5-003	Clip - HARNESS BAND(NATURAL) (135MM)(7MM HOLE)

Headlight 18

#	OEM	部品名
1	33101-S3Y-E01	Headlight unit - R.
1	33101-S3Y-G01	Headlight unit - R.
2	33115-SM4-003	Bulb
2	33115-SV4-G01	Bulb - HEADLIGHT (H4/HB2) (12V 60/55W) (PHILIPS)
2	33115-SV4-003	Bulb - HEADLIGHT (H4) (12V 60/55W) (TUNGSRAM)
3	33126-SV4-003	Cover - RUBBER
4	33151-S3Y-E01	Headlight unit - L.
4	33151-S3Y-G01	Headlight unit - L.
5	33301-SA0-741	Bulb (12V 5W) - (12V 5W) (STANLEY)
6	33303-SL4-003	Bulb - WEDGE (12V 21W) (STANLEY)
7	33304-S47-003	Socket comp.
8	33304-S47-901	Socket
9	33305-S47-003	Seal - PACKING
10	34301-S3Y-G02	Lamp unit - R.
11	34303-SS1-003	Socket comp - 2P
12	34304-SH3-A01	Socket comp.
13	34351-S3Y-G02	Lamp unit - L.
15	33301-S5H-T01	Bulb - WEDGE BASE (WY 12V 5W) (STANLEY) (AMBER)

Heater blower (LH) 24

#	OEM	部品名
1	39246-671-003	Clamp - CASE HOLD
2	39797-S3Y-A01	Relay assy - POWER
3	79192-SR3-003	Bush - LINK
4	79194-ST3-E01	Clip - CASE
5	79305-S3Y-A41	Blower sub assy.
6	79309-S3Y-A00	Bracket - BLOWER
7	79310-SR3-A01	Motor assy. - BLOWER (DENSO)
8	79330-S10-A42	Transistor assy - POWER
9	79350-S04-G01	Motor assy. - FRESH & RECIRCULAR
10	79380-SR3-003	Damper sub assy
11	79810-ST3-G21	Duct - HEATER
12	79813-ST3-E01	Cover - DUCT
13	79830-S04-003	Filter assy - HEATER
14	79831-S04-003	Element - FILTER
15	79832-S04-003	Frame - FILTER
16	79833-S04-003	Seal
17	80286-ST3-S01	Seal - DUCT (INLET)
18	80287-ST3-S01	Seal - DUCT (OUTLET)
19	90121-SR3-003	Screw - TAPPING, 5X12
20	90122-SR3-003	Screw - TAPPING, 5X12
21	90132-SR3-003	Screw - TAPPING, 5X16
22	90133-SR3-003	Screw-washer - 4X16
23	90156-SH3-000	Bolt-washer - 6X24
24	91631-SR3-000	Plug - AIR CONDITIONER HOLE

Heater blower (RH) 15

#	OEM	部品名
1	39246-671-003	Clamp - CASE HOLD
2	39797-S3Y-003	Relay assy - POWER
3	79192-SR3-003	Bush - LINK
4	79305-S3Y-003	Blower sub assy.
5	79309-S3Y-000	Bracket - BLOWER
6	79310-SR3-003	Motor assy. - BLOWER (DENSO)
7	79330-SR3-942	Transistor - POWER (AUTO AIR CONDITIONER)
8	79350-S04-003	Motor assy. - FRESH & RECIRCULAR
9	79380-SR3-003	Damper sub assy
10	90121-SR3-003	Screw - TAPPING, 5X12
11	90121-S04-003	Screw - TAPPING, 4X14
12	90122-SR3-003	Screw - TAPPING, 5X12
13	90132-SR3-003	Screw - TAPPING, 5X16
14	90133-SR3-003	Screw-washer - 4X16
15	90156-SH3-000	Bolt-washer - 6X24

Heater control (LH) 7

#	OEM	部品名
1	35851-SP0-911	Bulb - 14V 40MA
2	35851-SP0-921	Bulb
4	79501-S3Y-A03	Knob comp.
5	79601-S3Y-G02	Knob assy
6	79602-S3Y-003	Knob - TEMP
7	79670-S0X-A01	Bulb - NEO WEDGE (14V 100MA)
8	79670-S3Y-003	Bulb - NEO WEDGE

Heater unit (LH) 23

#	OEM	部品名
1	39246-671-003	Clamp - CASE HOLD
2	79100-S3Y-A52	Heater unit
3	79110-S3Y-A02	Core comp - HEATER
4	79140-S04-G01	Motor assy. - MODE
5	79160-S3Y-A51	Motor assy. - AIR MIX
6	79161-S10-A41	Cover - AIR MIX MOTOR
7	79170-SW5-A01	Aspirator
8	79192-SR3-003	Bush - LINK
9	79195-SF1-003	Holder - ROD
10	79544-S3Y-000	Cable - WATER VALVE CONTROL
11	79671-SL0-A00	Grommet - WATER VALVE CABLE
12	80532-S3Y-A41	Hose - ASPIRATOR
13	80534-SV4-A41	Joint - ASPIRATOR
14	80550-S3Y-941	Sensor - WATER
15	80551-S3Y-003	Clamp
16	80552-S3Y-003	Packing
17	90121-S10-003	Screw-washer
18	90122-SR3-003	Screw - TAPPING, 5X12
19	90122-S04-003	Screw - TAPPING
20	90125-SR3-003	Screw - TAPPING, 5X15
21	90133-SR3-003	Screw-washer - 4X16
22	90156-SH3-000	Bolt-washer - 6X24
23	91580-SM4-003	Clip - COUPLER(ORANGE)

Heater unit (RH) 21

#	OEM	部品名
1	39246-671-003	Clamp - CASE HOLD
2	79100-S3Y-942	Heater unit
3	79110-S3Y-013	Core comp - HEATER
4	79140-S04-003	Motor assy. - MODE
5	79160-SV4-941	Motor assy. - AIR MIX
6	79170-SW5-003	Aspirator
7	79192-SR3-003	Bush - LINK
8	79195-SF1-003	Holder - ROD
9	79544-S3Y-000	Cable - WATER VALVE CONTROL
10	79671-SL0-A00	Grommet - WATER VALVE CABLE
11	80532-S04-941	Hose - ASPIRATOR
12	80534-SV4-941	Joint - ASPIRATOR
13	80550-S3Y-941	Sensor - WATER
14	80551-S3Y-003	Clamp
15	80552-S3Y-003	Packing
16	90122-SR3-003	Screw - TAPPING, 5X12
17	90122-S04-003	Screw - TAPPING
18	90125-SR3-003	Screw - TAPPING, 5X15
19	90133-SR3-003	Screw-washer - 4X16
20	90156-SH3-000	Bolt-washer - 6X24
21	91580-SM4-003	Clip - COUPLER(ORANGE)

Hood (LH) 29

#	OEM	部品名
1	17706-SC3-003	Clip - FUEL PIPE
5	74120-S3Y-A01	Lock assy - HOOD
7	74134-SH3-003	Grommet - HOOD WIRE
8	74141-S3Y-000	Insulator - HOOD
9	74143-S3Y-A00	Rubber - RR. HOOD SEAL
10	74144-SR3-000	Cushion - HOOD
11	74145-S3Y-000	Stay - HOOD OPENER
12	74146-S3Y-000	Rubber - FR. HOOD SEAL
13	74200-S3Y-A00	Cowl top assy.
14	74211-S3Y-000	Cover - R. HOOD HINGE
15	74231-S3Y-000	Valve - DRAIN
16	74261-S3Y-000	Cover - L. HOOD HINGE
17	90301-S3Y-A00	Nut - PIERCE, 6MM (INDENT MARK:3PLACE)
17	90301-S3Y-900	Nut - PIERCE, 6MM (INDENT MARK:2PLACE)
18	90601-S30-003	Grommet - COWL TOP
19	90602-SX0-003	Clip - COWL TOP
20	90602-S2A-003	Clip - COWL TOP
21	90603-S3Y-003	Grommet - COWL TOP
22	91501-SF1-003	Clip - HOOD INSULATOR
22	90700-SB2-003	Clip - HOOD INSULATOR
23	91501-S04-003	Clip - INNER FENDER
24	91502-S84-A01	Clip - SEAL RUBBER (ORANGE)
24	91502-S84-A11	Clip - SEAL RUBBER (BLACK)
26	91509-S3Y-003	Clip - TUBE
27	91530-SP1-003	Clip A - DOOR WEATHERSTRIP
28	91602-SZ5-000	Cushion - HOOD (11.6MM)
29	91604-SD2-013	Grommet - HOOD STAY
30	91604-SE3-000	Cushion - HOOD SIDE
34	91501-S1K-003	Clip - ENGINE HOOD INSULATOR

Hood (RH) 32

#	OEM	部品名
1	17706-SC3-003	Clip - FUEL PIPE
3	60120-S3Y-000	Hinge comp - R. HOOD
4	60170-S3Y-000	Hinge comp - L. HOOD
5	74120-S3Y-A01	Lock assy - HOOD
7	74134-SH3-003	Grommet - HOOD WIRE
8	74141-S3Y-000	Insulator - HOOD
9	74143-S3Y-000	Rubber - RR. HOOD SEAL
10	74144-SR3-000	Cushion - HOOD
11	74145-S3Y-000	Stay - HOOD OPENER
12	74146-S3Y-000	Rubber - FR. HOOD SEAL
13	74200-S3Y-000	Cowl top assy.
14	74211-S3Y-000	Cover - R. HOOD HINGE
15	74231-S3Y-000	Valve - DRAIN
16	74261-S3Y-000	Cover - L. HOOD HINGE
17	90301-S3Y-A00	Nut - PIERCE, 6MM (INDENT MARK:3PLACE)
17	90301-S3Y-900	Nut - PIERCE, 6MM (INDENT MARK:2PLACE)
18	90601-S30-003	Grommet - COWL TOP
19	90602-SX0-003	Clip - COWL TOP
20	90602-S2A-003	Clip - COWL TOP
21	90603-S3Y-003	Grommet - COWL TOP
22	91501-SF1-003	Clip - HOOD INSULATOR
22	90700-SB2-003	Clip - HOOD INSULATOR
23	91501-SL4-003	Clip - FR. COWL
24	91501-S04-003	Clip - INNER FENDER
25	91502-S84-A01	Clip - SEAL RUBBER (ORANGE)
25	91502-S84-A11	Clip - SEAL RUBBER (BLACK)
27	91509-S3Y-003	Clip - TUBE
28	91530-SP1-003	Clip A - DOOR WEATHERSTRIP
29	91602-SZ5-000	Cushion - HOOD (11.6MM)
30	91604-SD2-013	Grommet - HOOD STAY
31	91604-SE3-000	Cushion - HOOD SIDE
35	91501-S1K-003	Clip - ENGINE HOOD INSULATOR

Ignition coil 5

#	OEM	部品名
1	12290-PHM-003	Plug a - SPARK (ILZFR6A11) (STAMP A)
1	12292-PHM-003	Plug c - SPARK (ILZFR6A11) (STAMP C)
1	12291-PHM-003	Plug b - SPARK (ILZFR6A11) (STAMP B)
1	12293-PHM-003	Plug d - SPARK (ILZFR6A11) (STAMP D)
2	30520-PHM-003	Coil assy - PLUG TOP

Ima battery/ecu 9

#	OEM	部品名
23	32132-SM4-003	Band - WIRE HARNESS OFFSET (20) (BLACK) (122.5MM)
24	90136-SD4-003	Clip - MUDGUARD
25	90149-SA0-003	Bolt - BUMPER
26	90301-PHM-000	Nut - CLIP, 5MM
27	91533-S04-003	Clip - COUPLER (NATURAL)
28	91540-S30-003	Clip - HARNESS BAND(NATURAL) (151.5MM)
33	90101-PHM-000	Bolt - SPECIAL, 5MM
34	90401-PHM-000	Washer - PLAIN, FAN
35	90672-SA0-003	Strap - CABLE, 118MM(BLACK)

Ima main switch/ junction board 4

#	OEM	部品名
15	91533-S04-003	Clip - COUPLER (NATURAL)
36	39794-S04-014	Relay assy - POWER (4P) (MICRO ISO) (MATSUSHITA)
46	91540-S30-003	Clip - HARNESS BAND(NATURAL) (151.5MM)
47	91558-SJ6-003	Strap - HARNESS (30) (BLACK) (107.5MM)

Ima motor 4

#	OEM	部品名
15	21396-PX5-000	Cap - BREATHER
16	90011-689-000	Bolt - HEX., 10MM
17	90045-PHM-000	Bolt - FLANGE, 8X35
18	90062-PZA-000	Bolt-washer - TORX, 6X16

Ima pdu 4

#	OEM	部品名
23	90601-PHM-003	Clip - PDU COVER
26	91540-S30-003	Clip - HARNESS BAND(NATURAL) (151.5MM)
27	91580-SM4-003	Clip - COUPLER(ORANGE)
37	90602-PHM-003	Clip - PDU COVER (PLUNGER)

Ima pdu cooling unit 5

#	OEM	部品名
19	17212-PN3-000	Rubber, AIR CLEANER MOUNTING
19	17212-P2J-J00	Rubber, AIR CLEANER MOUNTING
20	17216-PN3-000	Collar - AIR CLEANER MOUNTING
21	90127-SX0-003	Screw - TAPPING, 4X16
22	90133-SR3-003	Screw-washer - 4X16

Ima unit case 2

#	OEM	部品名
12	90657-SA5-003	Clip - SIDE APRON MOLDING
23	90133-S3Y-000	Bolt - FLANGE, 6X20

Ima wire harness 7

#	OEM	部品名
8	32134-SM4-003	Band - HARNESS OFFSET (10) (BROWN) (122.5MM)
9	39794-S04-014	Relay assy - POWER (4P) (MICRO ISO) (MATSUSHITA)
10	90651-SA6-671	Clip - WIRE
11	91507-693-003	Clip - WIRE HARNESS (BLACK) (50MM) (HARNESS TAPING)
12	91533-S04-003	Clip - COUPLER (NATURAL)
13	91540-S30-003	Clip - HARNESS BAND(NATURAL) (151.5MM)
18	39794-S10-003	Relay assy - POWER(5P) (MICRO ISO)(MITSUBA)

Inner panels/floor panel 31

#	OEM	部品名
21	64243-S3Y-300	Plate - R. CENTER PILLAR LOWER
28	64643-S3Y-300	Plate - L. CENTER PILLAR LOWER
39	74603-S3Y-000	Cover - R. FR. FLOOR UNDER
40	74606-S3Y-000	Stay - R. FLOOR UNDER COVER
41	74613-S3Y-000	Cover - L. FR. FLOOR UNDER
42	74616-S3Y-000	Stay - L. FLOOR UNDER COVER
43	90104-S3Y-000	Rivet - POP, 2.4
44	90109-S3Y-003	Stud - WELD, 15.5MM
45	90133-S3Y-000	Bolt - FLANGE, 6X20
46	90301-S3Y-A00	Nut - PIERCE, 6MM (INDENT MARK:3PLACE)
47	90301-S3Y-900	Nut - PIERCE, 6MM (INDENT MARK:2PLACE)
48	90303-S3Y-J00	Nut - POP, 6MM
49	90303-S3Y-300	Nut - POP, 6MM
50	90306-SL0-013	Nut - POP, 6MM
51	90307-S3Y-000	Nut - PLATE, 7/16"
52	90309-S3Y-000	Nut - MIDDLE CROSSMEMBER
53	90309-S3Y-900	Nut - MIDDLE CROSSMEMBER
54	90313-S3Y-300	Nut assy. - FLOAT, 10MM
55	90314-S3Y-300	Nut assy. - PATCH, 8MM (P=50)
56	90318-S3Y-300	Nut assy. - FLOAT, 10MM(L=39)
57	90322-S3Y-300	Nut - DOOR HINGE
58	90324-S3Y-300	Nut - POP, 5MM
59	90326-S3Y-000	Nut - POP, 6MM
60	90327-S3Y-300	Nut assy. - PATCH, 8MM
61	90330-S3Y-300	Nut - PLATE, 6MM
62	90332-SL0-013	Nut - POP, 6MM
64	91501-S04-003	Clip - INNER FENDER
65	91503-SZ3-003	Clip A
66	90657-SA5-003	Clip - SIDE APRON MOLDING
74	74525-S3Y-000	Cushion - SHELF SUPPORT
75	91605-SL0-000	Cap - FLOOR HOLE (50MM)

Instrument panel (LH) 16

#	OEM	部品名
3	61150-S3Y-G00	Beam comp - STEERING HANGER
4	61170-S3Y-A00	Stay comp - HEATER HANGER
8	77105-S3Y-003	Seal - FR. INSTRUMENT (A)
11	77121-S3Y-A00	Bracket comp. - ASSISTANT SUPPORT
12	77122-S3Y-000	Bracket - PASSENGER SRS
17	77255-S3Y-A00	Bracket - R. RADIO
18	77256-S3Y-A00	Bracket - L. RADIO
19	77468-S3Y-000	Seal - INSTRUMENT STAY
20	77551-S3Y-000	Frame - GLOVE BOX
21	77982-S04-N81	Holder - COUPLER (2P)
22	90133-SH3-000	Bolt-washer - 5X16
23	90157-SA0-000	Bolt-washer - 8X25
26	90302-SA4-003	Nut - SPRING, 4MM
28	90321-SP0-A80	Nut-washer - 6MM
30	91641-SM4-003	Grommet - SCREW, 4MM
42	90110-SE7-000	Bolt-washer - 8X21

Instrument panel (RH) 15

#	OEM	部品名
3	61150-S3Y-000	Beam comp - STEERING HANGER
4	61170-S3Y-000	Stay comp - HEATER HANGER
8	77105-S3Y-003	Seal - FR. INSTRUMENT (A)
11	77121-S3Y-000	Bracket comp. - ASSISTANT SUPPORT
12	77122-S3Y-000	Bracket - PASSENGER SRS
17	77255-S3Y-000	Bracket - R. RADIO
18	77256-S3Y-000	Bracket - L. RADIO
19	77468-S3Y-000	Seal - INSTRUMENT STAY
20	77551-S3Y-000	Frame - GLOVE BOX
21	77982-S04-N81	Holder - COUPLER (2P)
22	90133-SH3-000	Bolt-washer - 5X16
23	90157-SA0-000	Bolt-washer - 8X25
26	90321-SP0-A80	Nut-washer - 6MM
28	91641-SM4-003	Grommet - SCREW, 4MM
40	90110-SE7-000	Bolt-washer - 8X21

Instrument panel garnish (LH) 17

#	OEM	部品名
1	38205-S3Y-000	Label - FUSE
2	39620-SZ3-003	Cap assy.
3	39624-SZ3-003	Socket assy
4	66417-SA0-000	Rubber - GLOVE BOX STOPPER
5	66418-SB2-000	Stopper - GLOVE BOX LID
6	77104-S3Y-000	Garnish assy - DOOR POCKET
8	77205-S0X-A01	Clip - SNAP FITTING
13	77371-SX0-A00	Ring - COLUMN COVER
15	77515-SZ3-A02	Hinge - GLOVE BOX
17	77541-S3Y-A00	Striker assy - GLOVE BOX
20	90133-SH3-000	Bolt-washer - 5X16
21	90302-SA4-003	Nut - SPRING, 4MM
22	90666-S84-A01	Clip - SNAP FITTING
23	90671-S2G-000	Clip - POCKET
24	91637-SD4-000	Stopper - CASSETTE BOX
25	91640-SM4-003	Grommet - SCREW, 4MM
26	91641-SM4-003	Grommet - SCREW, 4MM

Instrument panel garnish (RH) 17

#	OEM	部品名
1	38205-S3Y-000	Label - FUSE
2	39620-SZ3-003	Cap assy.
3	39624-SZ3-003	Socket assy
4	66417-SA0-000	Rubber - GLOVE BOX STOPPER
5	66418-SB2-000	Stopper - GLOVE BOX LID
6	77104-S3Y-000	Garnish assy - DOOR POCKET
8	77205-S0X-A01	Clip - SNAP FITTING
14	77371-SX0-A00	Ring - COLUMN COVER
16	77515-SZ3-A02	Hinge - GLOVE BOX
18	77541-S3Y-000	Striker assy - GLOVE BOX
21	90133-SH3-000	Bolt-washer - 5X16
22	90302-SA4-003	Nut - SPRING, 4MM
23	90666-S84-A01	Clip - SNAP FITTING
24	90671-S2G-000	Clip - POCKET
25	91637-SD4-000	Stopper - CASSETTE BOX
26	91640-SM4-003	Grommet - SCREW, 4MM
27	91641-SM4-003	Grommet - SCREW, 4MM

Intake manifold 16

#	OEM	部品名
1	06164-PHM-000	Packing set - INJECTOR
2	16472-PHM-005	Seal ring - INJECTOR
3	16473-P7A-004	Cushion ring - INJECTOR
4	16612-PHM-000	Pipe comp - FUEL RETURN
5	16613-PHM-010	Hose - FUEL RETURN
6	16620-PHM-J10	Pipe comp - FUEL
7	16740-PHM-003	Regulator assy - PRESSURE
8	16741-PG7-005	O-ring - PRESSURE REGULATOR
9	17000-PHM-006	Manifold assy - INTAKE
10	17106-PHM-006	Packing - INTAKE MANIFOLD
11	17107-PHM-006	Packing - THROTTLE BODY
12	17145-PHM-000	Spacer comp - EGR
13	17146-PHM-004	Gasket - EGR SPACER
14	90027-PHM-000	Bolt - FUEL PIPE
15	91301-RGB-004	O-ring - 7.8X1.9
16	91406-SL4-931	Clamp - FUEL HOSE (D10.5)

Interior light 5

#	OEM	部品名
2	34251-SZ3-003	Lens
3	34253-SZ3-003	Bulb - 12V 5W T10
4	34260-SH3-004	Light assy - TRUNK ROOM
5	34262-SH3-004	Lens
6	34295-SA5-003	Bulb - 12V 3.4W) (DAIICHI

Mainshaft 13

#	OEM	部品名
1	23211-PHR-R01	Mainshaft
2	23261-PHR-000	Shaft - REVERSE GEAR
3	23440-PHR-S00	Gear comp - MAINSHAFT THIRD
4	23450-PHR-R00	Gear comp - MAINSHAFT FOURTH
5	23540-PHR-000	Gear comp - REVERSE IDLE
6	23581-PHR-R00	Gear - MAINSHAFT FIFTH
7	23623-PHR-315	Sleeve set - SYNCHRONIZER (3-4)
8	23626-PHR-305	Sleeve set - SYNCHRONIZER (5)
9	23915-PHR-010	Collar - DISTANCE, 29X35X52
10	23927-PL3-000	Washer - SPRING, 36MM
11	23928-PL3-000	Washer - 26MM
12	91004-PHR-003	Bearing - BALL, 26X72X15.5/14.5
13	91105-PHR-003	Bearing - NEEDLE, 35X39X24

Middle mat 4

#	OEM	部品名
4	83321-S3Y-000	Panel comp - MIDDLE FLOOR
6	90120-SM4-000	Screw - TAPPING
7	90201-732-710	Nut - PUSH, 5MM
8	90670-SG0-003	Grommet - SCREW, 4MM

Mirror 14

#	OEM	部品名
2	76203-S3Y-J01	Mirror - R. (1400R)
3	76210-S3Y-J01	Actuator comp. - R.
6	76253-S3Y-J01	Mirror - L. (1400R)
7	76260-S3Y-J01	Actuator comp. - L.
11	76409-SL0-003	Washer - TOOTHED
12	76410-SL4-003	Bolt - LOCK
13	76419-SL4-003	Spring - HOLDER
14	76420-SL4-003	Plate - HOOK
15	90109-S70-003	Screw - TAPPING, 4X16 (TRUSS)
16	90145-S04-006	Screw - 3X16
17	90145-S50-003	Screw-washer - 5X12
18	90615-SK7-003	Clip - MIRROR GARNISH
19	91506-P01-003	Clip A - HARNESS BAND (DARK GRAY) (129.4MM)
20	91565-SW5-003	Clamp - HARNESS

Molding 35

#	OEM	部品名
2	71807-S3Y-000	Clip - SIDE SILL GARNISH UPPER
4	72410-S3Y-003	Molding, R. FR. DOOR
5	72430-S3Y-003	Garnish - R. FR. DOOR SASH
6	72450-S3Y-003	Molding, L. FR. DOOR
7	72470-S3Y-003	Garnish - L. FR. DOOR SASH
11	74422-S3Y-000	Tape - R. FR. PILLAR GARNISH
13	74431-S3Y-000	Tape - R. RR. SPATS
14	74434-S3Y-013	Fastener - RR. WHEELHOUSE SPATS
16	74472-S3Y-000	Tape - L. FR. PILLAR GARNISH
18	74481-S3Y-000	Tape - L. RR. SPATS
19	74551-S3Y-000	Fender - R. RR. INNER
20	74591-S3Y-000	Fender - L. RR. INNER
21	90106-S3Y-000	Screw - TAPPING, 4X10(PO)
22	90116-S3Y-003	Rivet - SEAL, 4MM
23	90123-S3Y-003	Bolt - SHOULDER, 6X20(6.2)
24	90328-S3Y-003	Receptacle - SLIP ON
25	90331-S3Y-003	Nut - SPRING, 5MM
26	90501-S3Y-000	Washer - 11MM
28	90651-S3Y-003	Clip - FR. PILLAR GARNISH (C)
29	90652-S3Y-003	Clip - FR. PILLAR GARNISH (D)
30	91501-S3Y-003	Clip - DOOR MOLDING
31	91502-SZ5-003	Clip - 7MM
32	91503-SZ3-003	Clip A
33	91503-S3Y-003	Clip - FR. PILLAR (A)
34	91504-S3Y-003	Clip - FR. PILLAR GARNISH (B)
35	91505-S3Y-003	Clip - FR. PILLAR GARNISH (E)
36	91508-S3Y-000	Clip - ROOF MOLDING
38	91511-S3Y-003	Clip - FR. PILLAR GARNISH (F)
39	91536-S3Y-003	Grommet - CENTER PILLAR GARNISH (4MM)
41	63312-S3Y-000	Stay comp - R. RR. WHEELHOUSE SPATS
42	63712-S3Y-000	Stay comp - L. RR. WHEELHOUSE SPATS
43	74427-S3Y-000	Tape - PROTECTION
44	74435-S3Y-000	Spacer - RR. WHEELHOUSE SKIRT (A)
45	74436-S3Y-000	Spacer - RR. WHEELHOUSE SKIRT (B)
46	74437-S3Y-000	Spacer - RR. WHEELHOUSE SKIRT (B)

Oil pump/oil strainer 19

#	OEM	部品名
1	15100-PHM-013	Pump assy. - OIL
2	15220-PHM-000	Strainer comp. - OIL
3	15221-PZ1-000	Packing - OIL STRAINER
4	15231-413-020	Valve - RELIEF
5	15232-PHM-003	Spring - RELIEF VALVE
6	15233-PFB-003	Bolt - SEALING, 18MM
7	15234-PC6-000	Washer - SEALING, 18MM
8	15301-PHM-000	Base - OIL FILTER
9	15400-RTA-004	Cartridge - OIL FILTER (TOYO ROKI)
9	15400-PLM-A02	OIL FILTER (HONEYWELL)
9	15400-RTA-003	OIL FILTER (MAHLE TENNEX)
12	15650-PHM-015	Gauge comp. - OIL LEVEL
13	90042-PR3-000	Bolt - STUD, 6X28
14	91202-PHM-003	Oil seal - 40X55X8
14	91212-PWA-003	Oil seal - 40X55X7 (NOK)
15	91308-PK1-003	O-ring - 26.2X2.4 (NOK)
16	91316-PT6-003	O-ring - 62.4X3.1
16	91316-PE7-730	O-ring - 62.4X3.1
22	15560-PHM-000	Bolt - OIL FILTER BASE

Outer panels/rear panel 18

#	OEM	部品名
8	63331-S3Y-300	Bracket - R. RR. WHEELHOUSE SPATS
9	63332-S3Y-300	Bracket - RR. WHEELHOUSE SPATS UPPER
13	63910-S3Y-000	Lid assy - FUEL FILLER
17	74411-S3Y-000	Cable - FUEL LID OPENER
17	74411-S3Y-A00	Cable - FUEL LID OPENER
18	74422-SM4-000	Cushion - FUEL FILLER LID
20	75450-S3Y-000	Outlet assy - RR. AIR
22	90103-SM4-010	Bolt - FLANGE, 6X18
23	90111-S3Y-000	Screw - SELF TAPPING, 6X16
24	90301-S3Y-300	Nut - PIERCE, 6MM (INDENT MARK:1PLACE)
25	90302-S3Y-900	Nut - PIERCE, 5MM
26	90306-SL0-013	Nut - POP, 6MM
27	90308-S3Y-300	Nut - PLATE, 6MM
28	90324-S3Y-300	Nut - POP, 5MM
29	91504-SL0-003	Clip - HOOD OPEN WIRE
30	91558-SE3-003	Clip - HOOD WIRE
31	91902-SB2-003	Cushion - WIRE HARNESS(50X100)
33	63731-S3Y-300	Bracket - L. RR. WHEELHOUSE SPATS

Parking brake 8

#	OEM	部品名
1	43115-ST5-004	Clip - WIRE
3	47342-S3Y-013	Switch - PARKING BRAKE
4	47360-SB2-000	Equalizer
5	47365-538-000	Pin - EQUALIZER
6	47510-S3Y-013	Wire - R. PARKING BRAKE
7	47522-594-000	Nut - PARKING BRAKE ADJUSTING
8	47537-671-670	Spring - PARKING BRAKE ROD
9	47560-S3Y-013	Wire - L. PARKING BRAKE

Pedal (LH) 19

#	OEM	部品名
1	17800-S3Y-A02	Pedal comp - ACCELERATOR
2	17910-S3Y-A01	Wire - THROTTLE
3	17921-SA4-730	Seal - THROTTLE CABLE
4	17931-S3Y-A00	Clamp b - THROTTLE WIRE
5	17932-S3Y-000	Clamp c - THROTTLE WIRE
6	35350-SE0-013	Switch assy - STOP (TEC)
7	35710-SE3-A01	Switch assy, CLUTCH (INHIBITER)
8	46504-S3Y-003	Bush
9	46505-SA7-000	Pad - PEDAL STOPPER
10	46505-S3Y-003	Pad - PEDAL STOPPER
11	46530-S3Y-N00	Spring assy - PEDAL RETURN
12	46545-S3Y-003	Cover - PEDAL
13	46600-S3Y-N01	Pedal assy - BRAKE
14	46900-S3Y-N51	Pedal assy - CLUTCH
15	46905-SK7-000	Stopper - CLUTCH PEDAL
16	46907-S3Y-003	Spring - CLUTCH ASSISTANT
17	46911-S3Y-003	Bush - PEDAL PIN
18	46981-S2A-003	Bush a - CLUTCH ASSISTANT
19	46982-S3Y-003	Bush b - CLUTCH ASSISTANT

Pedal (RH) 19

#	OEM	部品名
1	17800-S3Y-013	Pedal comp - ACCELERATOR
2	17910-S3Y-003	Wire - THROTTLE
3	17921-SA4-730	Seal - THROTTLE CABLE
4	17931-S3Y-000	Clamp a - THROTTLE WIRE
5	17932-S3Y-000	Clamp c - THROTTLE WIRE
6	35350-SE0-013	Switch assy - STOP (TEC)
7	35710-SE3-A01	Switch assy, CLUTCH (INHIBITER)
8	46504-S3Y-003	Bush
9	46505-SA7-000	Pad - PEDAL STOPPER
10	46505-S3Y-003	Pad - PEDAL STOPPER
11	46530-S3Y-N00	Spring assy - PEDAL RETURN
12	46545-S3Y-003	Cover - PEDAL
13	46600-S3Y-N00	Pedal assy - BRAKE
14	46900-S3Y-N00	Pedal assy - CLUTCH
15	46905-SK7-000	Stopper - CLUTCH PEDAL
16	46907-S3Y-003	Spring - CLUTCH ASSISTANT
17	46911-S3Y-003	Bush - PEDAL PIN
18	46981-S2A-003	Bush a - CLUTCH ASSISTANT
19	46982-S3Y-003	Bush b - CLUTCH ASSISTANT

Pillar garnish 7

#	OEM	部品名
1	72310-S3Y-013	Weatherstrip - R. FR. DOOR
2	72350-S3Y-003	Weatherstrip - L. FR. DOOR
9	90666-SM5-A00	Clip - TAILGATE
12	91560-S06-003	Clip, PILLAR GARNISH(BLUE)
13	91560-S84-A01	CLIP, DOOR LINING (NATURAL)
14	91560-S84-A11	Clip - PILLAR GARNISH(BLACK)
16	90201-732-710	Nut - PUSH, 5MM

Piston/crankshaft 28

#	OEM	部品名
1	13030-PHM-010	Piston set - OS 0.25
1	13010-PHM-010	Piston set - STD.
2	13011-PHM-004	Ring set - PISTON (STD.)
2	13021-PHM-004	Ring set - PISTON (OS 0.25)
3	13111-PHM-010	Pin - PISTON
4	13204-PHM-003	Bolt - CONNECTING ROD
5	13210-PHM-000	Rod comp - CONNECTING
6	13213-PHM-023	Bearing c - CONNECTING ROD (BROWN) (DAIDO)
6	13215-PHM-023	Bearing e - CONNECTING ROD (YELLOW) (DAIDO)
6	13217-PHM-023	Bearing g - CONNECTING ROD (RED) (DAIDO)
6	13212-PHM-023	Bearing b - CONNECTING ROD (BLACK) (DAIDO)
6	13214-PHM-023	Bearing d - CONNECTING ROD (GREEN) (DAIDO)
6	13216-PHM-023	Bearing f - CONNECTING ROD (PURPLE) (DAIDO)
6	13211-PHM-023	BEARING A - CONNECTING ROD (BLUE) (DAIDO)
7	13310-PHM-000	Crankshaft comp.
8	13325-PHM-013	Bearing e - MAIN (YELLOW) (DAIDO)
8	13322-PHM-013	Bearing b - MAIN (BLACK) (DAIDO)
8	13324-PHM-013	Bearing d - MAIN (GREEN) (DAIDO)
8	13326-PHM-013	Bearing f - MAIN (PURPLE) (DAIDO)
8	13321-PHM-013	BEARING A - MAIN (BLUE) (DAIDO)
8	13323-PHM-013	Bearing c - MAIN (BROWN) (DAIDO)
9	13331-679-003	Washer
10	13621-PHM-004	Sprocket - CHAIN DRIVE (25T)
11	13622-PHM-003	Plate - CRANK PULSER
12	13623-PHM-000	Collar - OIL SEAL
13	13810-PHM-003	Pulley comp - CRANKSHAFT
14	90017-PHM-003	Bolt-washer - 14X31
15	91301-PHM-003	O-ring - 27.9X1.8

Power steering gear box (LH) 26

#	OEM	部品名
1	53436-S3Y-000	Cushion b - GEAR BOX
2	53438-S3Y-000	Bracket b - GEAR BOX
3	53449-S3Y-003	Band a - BELLOWS
4	53449-S84-A01	Band - BELLOWS
5	53502-S3Y-010	Grommet b - STEERING
6	53534-S3Y-003	Dust seal - TIE ROD
7	53535-S3Y-003	Dust seal b - TIE ROD
8	53536-S3Y-003	Holder - DUST SEAL
9	53542-S3Y-020	End comp - L. TIE ROD
9	53541-S3Y-020	End comp - R. TIE ROD
10	53546-SA0-003	Boot - TIE ROD END (MUSASHI)
11	53547-S3Y-003	Bolt - TIE ROD
12	53548-SL0-A01	Circlip - TIE ROD
13	53601-S3Y-A04	Box comp - POWER STEERING GEAR
14	53603-S3Y-003	Seal set - DUST
15	53604-S3Y-023	Rod assy - R. TIE
15	53606-S3Y-023	Rod assy - L. TIE
16	53661-S3Y-003	Bolt - 12X64
17	53662-S3Y-003	Washer - SEAL
18	53663-S3Y-003	Plate - TIE ROD
19	53664-S3Y-003	Plate - STOPPER
20	90160-S3Y-000	Bolt - FLANGE, 10X73
21	90170-SL0-000	Bolt - FLANGE, 10X50
22	90301-S3Y-013	Nut - L. OCTOPUS, 14MM
23	90302-S3Y-013	Nut - R. OCTOPUS, 14MM
24	90506-S3Y-000	Washer - PLAIN, 10MM

Power steering gear box (RH) 26

#	OEM	部品名
1	53436-S3Y-000	Cushion b - GEAR BOX
2	53438-S3Y-000	Bracket b - GEAR BOX
3	53449-S3Y-003	Band a - BELLOWS
4	53449-S84-A01	Band - BELLOWS
5	53502-S3Y-010	Grommet b - STEERING
6	53534-S3Y-003	Dust seal - TIE ROD
7	53535-S3Y-003	Dust seal b - TIE ROD
8	53536-S3Y-003	Holder - DUST SEAL
9	53542-S3Y-020	End comp - L. TIE ROD
9	53541-S3Y-020	End comp - R. TIE ROD
10	53546-SA0-003	Boot - TIE ROD END (MUSASHI)
11	53547-S3Y-003	Bolt - TIE ROD
12	53548-SL0-A01	Circlip - TIE ROD
13	53601-S3Y-023	Box comp - POWER STEERING GEAR
14	53603-S3Y-003	Seal set - DUST
15	53604-S3Y-023	Rod assy - R. TIE
15	53606-S3Y-023	Rod assy - L. TIE
16	53661-S3Y-003	Bolt - 12X64
17	53662-S3Y-003	Washer - SEAL
18	53663-S3Y-003	Plate - TIE ROD
19	53664-S3Y-003	Plate - STOPPER
20	90160-S3Y-000	Bolt - FLANGE, 10X73
21	90170-SL0-000	Bolt - FLANGE, 10X50
22	90301-S3Y-013	Nut - L. OCTOPUS, 14MM
23	90302-S3Y-013	Nut - R. OCTOPUS, 14MM
24	90506-S3Y-000	Washer - PLAIN, 10MM

Power steering gear box components (LH) 16

#	OEM	部品名
1	53413-S3Y-003	Spring - RACK GUIDE PRESSURE
2	53414-S04-003	Screw - RACK GUIDE
3	53416-S5A-003	Guide - STEERING RACK
4	53418-S04-G51	Washer - DISK
5	53449-S3Y-003	Band a - BELLOWS
6	53449-S84-A01	Band - BELLOWS
7	53458-S04-J51	Nut - LOCK
8	53602-S3Y-A01	Motor comp
9	53660-S3Y-003	Guide - SLIDER
10	53670-S3Y-A01	Stay - COUPLER
11	53671-S3Y-003	Cable - GRAND
12	53672-S3Y-A01	Stay - CABLE
13	53685-S3Y-003	Bush - STEERING GEAR BOX MOUNTING
14	90149-SE0-902	Bolt - EARTH, 6X24(SN)
15	91351-S3Y-003	O-ring - MOTOR
17	90105-S50-003	Bolt - FLANGE, 8X28

Power steering gear box components (RH) 15

#	OEM	部品名
1	53413-S3Y-003	Spring - RACK GUIDE PRESSURE
2	53414-S04-003	Screw - RACK GUIDE
3	53416-S5A-003	Guide - STEERING RACK
4	53418-S04-G51	Washer - DISK
5	53449-S3Y-003	Band a - BELLOWS
6	53449-S84-A01	Band - BELLOWS
7	53458-S04-J51	Nut - LOCK
8	53602-S3Y-013	Motor comp
9	53660-S3Y-003	Guide - SLIDER
10	53670-S3Y-003	Stay - COUPLER
11	53671-S3Y-003	Cable - GRAND
12	53685-S3Y-003	Bush - STEERING GEAR BOX MOUNTING
13	90149-SE0-902	Bolt - EARTH, 6X24(SN)
14	91351-S3Y-003	O-ring - MOTOR
16	90105-S50-003	Bolt - FLANGE, 8X28

Purge control solenoid valve 6

#	OEM	部品名
1	17131-PHM-000	Pipe comp - POWER BRAKE
2	17133-PHM-000	Hose - POWER BRAKE
3	36162-PHM-003	Valve assy. - PURGE CONTROL SOLENOID
4	36169-PHM-000	Tube a - PURGE
5	53729-671-003	Clamp d - 15.5MM
6	91405-PE9-003	Clip - HOSE(D17)

Radiator (DENSO) 12

#	OEM	部品名
1	19010-PHM-003	Radiator comp - DENSO
2	19011-PH1-621	Bolt - DRAIN (DENSO)
3	19012-671-300	Packing - DRAIN (DENSO)
4	19015-PHM-003	Shroud comp.
5	19020-PT0-003	Fan - COOLING (DENSO)
6	19030-PAA-A01	Motor - COOLING FAN (DENSO)
7	19045-PAA-A01	Cap comp. - RADIATOR (DENSO)
8	19046-PAA-A00	Label - RADIATOR CAP
9	32175-PT0-003	Clip - COOLING FAN HARNESS
10	90041-P5A-003	Screw-washer - 4X11
11	90042-PAA-A01	Bolt-washer - 6X16 (DENSO)
12	90043-PD2-003	Nut - HEX., 5MM (DENSO)

Radiator hose 17

#	OEM	部品名
1	19101-PHM-000	Tank - RESERVE
2	19102-PM5-A00	Cap - RESERVE TANK
3	19104-PHM-000	Tube - RESERVE TANK
4	19104-PZ1-010	Tube - RESERVE TANK
5	19106-PA0-020	Joint - RESERVE TANK
6	19108-PHM-003	Clamp - RESERVE TANK TUBE (GRAY)
7	19109-PHM-000	Spacer - RESERVE TANK
8	19115-PT0-000	Bracket - RESERVE TANK
9	19501-PHM-000	Hose - WATER UPPER
10	19502-PHM-000	Hose - WATER LOWER
11	19511-P08-003	Clip - WATER HOSE (CHUO SPRING)
11	19511-PA6-003	Clip - WATER HOSE(CHUO SPRING)
12	19519-PHM-005	Clamp - WATER HOSE
13	74171-S3Y-000	Bracket - RADIATOR MOUNT UPPER
14	74172-SR3-000	Cushion - RADIATOR MOUNTING LOWER
15	74173-SJ4-000	Cushion - RADIATOR MOUNTING UPPER
16	90182-SB6-000	Bolt-washer - 6X16

Rear axle 9

#	OEM	部品名
1	42110-S3Y-020	Beam comp - RR. AXLE
2	42115-S3Y-025	Damper - RR. AXLE DYNAMIC
3	52677-S3Y-000	Bracket - R. RR. TRAILING ARM
4	52678-S3Y-000	Bracket - L. RR. TRAILING ARM
5	57470-S3Y-003	Sensor assy - R. RR.
6	57475-S3Y-003	Sensor assy - L. RR.
7	90020-S3Y-000	Bolt - TRAILING ARM, 12X114
8	90023-S3Y-000	Bolt - TRAILING ARM BRACKET, 12X31
9	91540-S30-003	Clip - HARNESS BAND(NATURAL) (151.5MM)

Rear brake (DRUM) 36

#	OEM	部品名
1	01433-S3Y-000	Cylinder set - RR. WHEEL
2	42200-S3Y-951	Bearing assy - RR. HUB UNIT
3	42326-SB2-000	Cap - HUB UNIT
3	42326-SFA-000	Cap - HUB UNIT
4	42610-S3Y-000	Drum - RR. BRAKE
5	43110-S3Y-952	Plate comp - R. RR. BRAKE BACK
6	43120-S3Y-952	Plate comp - L. RR. BRAKE BACK
9	43171-S3Y-003	Spring a - BRAKE
10	43172-S3Y-003	Spring b - BRAKE
11	43300-S3Y-003	Cylinder assy. - RR. WHEEL
12	43305-ST5-004	Bolt - FLANGE, 6MM
13	43321-ST5-812	Piston - WHEEL CYLINDER
14	43323-ST5-004	Spring - WHEEL CYLINDER
15	43345-S3Y-003	Plug - ADJUSTER
16	43346-S3Y-003	Plug - INSPECTION
17	43352-ST5-004	Screw - BLEEDER
18	43353-ST5-004	Cap - BLEEDER SCREW
19	43361-SAA-004	Lever - R. PARKING BRAKE
20	43366-S3Y-003	Lever comp - R. ADJUSTER
21	43367-S3Y-013	Adjuster assy - R.
22	43369-S3Y-003	Spring - ADJUSTER
23	43371-SAA-004	Lever - L. PARKING BRAKE
24	43375-S50-003	Ring - RETAINING
25	43376-S3Y-003	Lever comp - L. ADJUSTER
26	43377-S3Y-013	Adjuster assy - L.
27	45172-S3Y-003	Spring - SHOE CLAMP
28	45175-S3Y-003	Pin - TENSION
29	52200-S3Y-000	Spindle - RR. WHEEL
30	90113-SM1-005	Bolt - WHEEL (ROCKNEL FASTENER)
30	90113-SA0-025	Bolt - WHEEL (NAGOYA RASHI)
30	90113-SA0-006	Bolt - WHEEL (SAGA)
31	90163-S3Y-000	Bolt - RR. SPINDLE, 12X24.5
32	90305-S50-003	Nut - SPINDLE
33	90551-S3Y-003	O-ring - 22.1X1.9
34	90681-S3Y-000	Circlip - EXTERNAL, 25MM
35	43053-S3Y-E50	Shoe set - RR. BRAKE

Rear shock absorber 9

#	OEM	部品名
1	52441-S3Y-013	Spring - RR. (MITSUBISHI)
2	52610-S3Y-J02	Absorber assy - RR. SHOCK
3	52622-S3Y-003	Bush - RR. SHOCK ABSORBER LOWER
4	52623-S3Y-003	Bush - RR. SHOCK ABSORBER UPPER
5	52686-S3Y-003	Rubber - SPRING MOUNT
6	52722-S3Y-005	Rubber - BUMP STOPPER
7	90173-S3Y-000	Bolt - RR. DAMPER UPPER
8	90182-S3Y-000	Bolt - RR. DAMPER LOWER
9	90306-SB2-013	Nut - SELF-LOCK, 10MM (CLINCH)

Rear windshield /quarter windows 24

#	OEM	部品名
1	73211-S3Y-A02	Glass set - RR. WINDSHIELD (GREEN) (ASAHI)
1	73211-S3Y-A01	Glass set - RR. WINDSHIELD (GREEN) (ASAHI)
2	73222-SR4-000	Spacer b - RR. WINDSHIELD
3	73222-S3Y-000	Spacer b - RR. WINDSHIELD
4	73225-S3Y-000	Rubber - RR. WINDSHIELD DAM
5	73226-SK8-000	Spacer - RR. WINDSHIELD
6	73229-S3Y-000	Seal - RR. WINDSHIELD UPPER
7	73230-S3Y-000	Rubber - RR. EXTRA GLASS DAM
8	73235-S3Y-003	Molding - EXTRA WINDSHIELD
9	73245-S3Y-000	Molding - EXTRA WINDSHIELD SIDE
10	73250-S3Y-305	Molding - RR. WINDSHIELD
11	73255-S3Y-003	Glass set - RR. EXTRA WINDSHIELD (PRIVACY) (ASAHI)
12	73511-S3Y-003	Glass - R. QUARTER (GREEN) (ASAHI)
13	73526-S3Y-000	Rubber - WINDSHIELD DAM
14	73561-S3Y-003	Glass, L. QUARTER (GREEN) (ASAHI)
15	73810-S3Y-003	Garnish - R. QUARTER GLASS
16	73860-S3Y-003	Garnish - L. QUARTER GLASS
18	75711-S3Y-305	Sticker - RR. (HONDA)
20	76707-S3Y-000	Seal a
21	91501-S70-003	Fastener b - WINDSHIELD
22	91502-S3Y-003	Clip - QUARTER GARNISH
23	91506-S3Y-003	Fastener - RR. WINDSHIELD
25	91502-S3Y-004	Clip - QUARTER GARNISH
26	91515-S3Y-000	Fastener

Rear wiper 15

#	OEM	部品名
1	38422-SA0-003	Collar
2	38448-SD2-003	Rubber - WIPER MOUNTING
3	76622-S3Y-A01	Rubber - BLADE (400MM)
4	76706-SK7-003	Washer a - SPECIAL
5	76708-SE1-003	Washer b - SPECIAL
6	76709-SE0-A01	Nut - SPECIAL, 18MM
7	76710-S3Y-A02	Motor comp - RR. WINDSHIELD WIPER
7	76710-S3Y-A01	Motor comp - RR. WINDSHIELD WIPER
8	76711-SF1-003	Cap - PIVOT
9	76721-S0D-003	Cover - ARM
10	76722-S3Y-A02	Arm - RR. WIPER
10	76722-S3Y-A01	Arm, RR. WIPER
11	76730-S3Y-A02	Blade - WINDSHIELD WIPER (400MM)
11	76730-S3Y-A01	Blade - WINDSHIELD WIPER (400MM)
12	90141-S30-003	Bolt-washer - 6X25

Resonator chamber 13

#	OEM	部品名
1	17212-PE2-000	Rubber a - AIR CLEANER CASE MOUNTING
2	17212-P2J-J00	Rubber, AIR CLEANER MOUNTING
3	17216-PE2-003	Collar - AIR CLEANER(TOYO ROKI)
4	17216-PR7-A00	Collar - RESONATOR
5	17230-PHM-000	Chamber comp - RESONATOR
6	17242-PHM-000	Pipe comp - AIR INTAKE
7	17243-PHM-000	Pipe a - AIR INTAKE
8	17244-PHM-000	Tube - RESONATOR
9	17246-PHM-000	Clip - RESONATOR TUBE
10	17247-PHM-000	Clip - INTAKE TUBE
11	75353-671-000	Lock - SCREW
12	90028-PHM-000	Bolt-washer - 6X25
13	90029-PHM-000	Bolt-washer - SPECIAL, 6X35

Roof lining 3

#	OEM	部品名
2	83202-SZ3-000	Clip - ROOF LINING
3	83222-S3Y-003	Pad - ROOF SIDE
7	91560-S06-003	Clip, PILLAR GARNISH(BLUE)

Seat 7

#	OEM	部品名
1	04810-SB3-R00	C clip set - TRIM FASTENER (100 PIECES)
1	04810-SB3-000	C clip set - TRIM FASTENER (30 PIECES)
5	81122-S3Y-J02	Pad comp - FR. SEATBACK
6	81126-S3Y-J01	Frame comp - FR. SEATBACK
8	81132-S3Y-J01	Pad comp - R. FR. SEAT CUSHION
12	81532-S3Y-J01	Pad comp - L. FR. SEAT CUSHION
14	90134-SE3-003	Screw - TAPPING, 5X10

Seat components 6

#	OEM	部品名
1	81136-S3Y-J02	Reclining comp. - R. FRAME & SLIDE
3	81277-S3Y-003	Lever - SLIDE
4	81536-S3Y-J02	Reclining comp. - L. FRAME & SLIDE
6	90135-SK7-A01	Bolt-washer - 10X27
7	90155-SH3-000	Bolt-washer - 8X25
8	90142-S70-003	Bolt-washer - 10X18

Seatbelts 4

#	OEM	部品名
4	81491-S3Y-000	Protector - R. FR. SEATBELT
8	81891-S3Y-000	Protector - L. FR. SEATBELT
10	91533-S04-003	Clip - COUPLER (NATURAL)
11	91540-S30-003	Clip - HARNESS BAND(NATURAL) (151.5MM)

Shift arm 16

#	OEM	部品名
1	21321-689-000	Plug - BREATHER TUBE
2	21322-PHR-000	Tube - BREATHER
3	21500-PHR-000	Cover comp. - SHIFT ARM
4	24411-PHR-000	Arm - SHIFT
5	24430-PHR-000	Interlock comp.
6	24460-PHR-000	Lever comp - SELECT
7	24464-PHR-020	Spring - SELECT
8	24466-PHR-000	Collar - SELECT SPRING
9	24467-PLW-000	Plate - SELECT SPRING
10	24470-PHR-000	Lever comp - SHIFT
11	24475-PHR-000	Cover - DUST
12	24479-PHR-000	Cover - SHIFT LEVER
13	41936-P6R-003	Clamp - BREATHER TUBE
14	91209-PE9-003	Dust seal - 16X23X5(ARAI)
14	91209-PE9-005	Dust seal - 16X23X5(NOK)
15	91215-PHR-003	Oil seal - 18X30X7(NOK)

Shift fork 10

#	OEM	部品名
1	24201-PHR-000	Fork comp - FIFTH SHIFT
2	24207-PHR-000	Piece - MAINSHAFT BRAKE SYSTEM SHIFT
3	24210-PHR-000	Fork comp - GEARSHIFT (3-4)
4	24217-PHR-000	Piece - SHIFT (3-4)
5	24220-PHR-000	Fork comp - GEARSHIFT (1-2)
6	24230-PHR-010	Holder comp - REVERSE SHIFT
7	24240-PHR-010	Piece comp. - SHIFT (5-R)
8	24250-PHR-000	Holder comp - MAINSHAFT BRAKE SYSTEM CAM
9	24440-PHR-000	Cam comp - REVERSE LOCK
10	90028-PB6-010	Bolt - SPECIAL, 6X22.5

Shift lever 14

#	OEM	部品名
1	54100-S3Y-003	Lever sub assy. - CHANGE
3	54116-SV4-000	Pin - LINKAGE
4	54117-S30-003	Rubber - FLOATING
5	54119-S3Y-003	Collar - FLOATING
6	54310-S3Y-003	Wire comp - CHANGE
7	54316-S3Y-000	Clamp - CHANGE WIRE
8	54357-SF1-003	Plate - CHANGE WIRE
9	90114-SA0-000	Nut - SELF-LOCK, 6MM
10	90195-S3Y-003	Bolt-washer - 6X16
11	90551-SV4-000	Washer - SHIFT WIRE
12	90555-SF1-000	Washer a - SHIFT WIRE(1.6MM)
13	90556-SF1-000	Washer b - SHIFT WIRE (0.5MM)
14	90557-SF1-000	Washer a - SELECT WIRE (1.6MM)
15	90558-SF1-000	Washer b - SELECT WIRE (0.5MM)

Spool valve 11

#	OEM	部品名
1	15810-PHM-A02	Valve assy. - SPOOL
2	15825-P0A-005	Filter assy - SPOOL VALVE
2	15825-P0A-015	Filter, spool valve
3	18011-PFV-000	Valve set - EGR
4	18711-PHM-000	Passage, EGR
5	18714-PHM-003	Packing - EGR PASSAGE
6	18715-PB2-000	GASKET, EGR VALVE (ISHINO GASKET)
7	32123-PHM-000	Stay comp - ENGINE COVER
8	32748-PHM-010	Stay j - ENGINE WIRE HARNESS
9	37250-PHM-003	Switch assy - VALVE TIMING OIL PRESSURE
10	91319-PAA-A01	O-ring - 13X1.5

Srs unit (LH) 6

#	OEM	部品名
1	77900-S84-G02	Reel assy - CABLE (FURUKAWA)
1	77900-S84-G01	Reel assy - CABLE (SUMITOMO)
2	77907-S04-003	Holder - CONNECTOR (2P)
3	77960-S3Y-G02	Srs unit - KEIHIN
4	77963-S3Y-000	Cover - SRS UNIT
5	90137-S84-A01	Bolt - TORX EARTH, 6X20

Srs unit (RH) 5

#	OEM	部品名
1	77900-S84-G02	Reel assy - CABLE (FURUKAWA)
2	77907-S04-003	Holder - CONNECTOR (2P)
3	77960-S3Y-G02	Srs unit - KEIHIN
4	77963-S3Y-000	Cover - SRS UNIT
5	90137-S84-A01	Bolt - TORX EARTH, 6X20

Starter motor (DENSO) 24

#	OEM	部品名
1	30201-PH9-004	Ring - SNAP (DENSO)
2	30202-P3F-003	Collar - CLUTCH STOP
3	31200-PHM-G01	Motor assy. - STARTER (DS5E3) (1.0KW) (DENSO)
4	31201-PHM-G01	Housing comp - DRIVE SIDE
5	31202-PHM-G01	Endframe comp. - COMMUTATOR
6	31202-PM3-J01	Bolt - THROUGH (DENSO)
7	31203-P3F-003	Lever - PINION DRIVE
8	31204-PHM-G01	Switch assy - MAGNETIC
9	31205-P3F-003	Yoke comp.
10	31206-P3F-003	Armature comp.
11	31207-PHM-G01	Clutch comp. - OVERRUNNING
12	31208-P3F-003	Screw - PAN, 4MM
13	31213-PHM-G01	Shaft - DRIVE
14	31213-P64-N01	Cover
15	31214-P3F-003	Gear assy. - INTERNAL
16	31215-P3F-003	Gear comp - PLANETARY
17	31216-RAA-003	Absorber comp - SHOCK
18	31217-P3F-003	Plate - SEAL
19	31218-P3F-003	Washer a
20	31219-P3F-003	Washer b
21	31220-PH9-004	Nut - HEX., 8MM
22	31220-P3F-003	Washer c
23	31223-PA0-006	Nut - HEX.
24	31231-PHM-G01	Plate comp - BRUSH HOLDER

Starter motor (MITSUBA) 11

#	OEM	部品名
1	31200-PHM-A01	Motor assy. - STARTER (SM-61207-3N) (MITSUBA)
2	31201-PHM-A01	Cover set - GEAR
3	31202-PHM-A01	Bolt - SETTING
5	31206-PHM-004	Yoke assy.
6	31207-PHM-004	Armature assy.
7	31209-RAA-A51	Bracket unit - RR.
11	31213-PHM-004	Spring - BRUSH
13	31220-PHM-A01	Gear set - REDUCTION
17	31230-PSA-J51	Plunger set
23	31252-PD2-006	Rubber - BUSH (MITSUBA)
24	04312-PHM-305	Kit - BRUSH HOLDER

Steering column 7

#	OEM	部品名
1	53200-S3Y-013	Column assy - STEERING
2	53323-S50-003	Joint comp. b - STEERING
3	74250-S3Y-A00	Cover assy. - STEERING JOINT
4	74250-S3Y-000	Cover assy. - STEERING JOINT
5	90135-SB0-003	Bolt - STEERING YOKE, 8X28 (NIPPON SEIKO)
6	90361-SR3-000	Nut - FLANGE, 8MM
7	90511-671-003	Washer - TOOTHED LOCK

Steering wheel (SRS) 10

#	OEM	部品名
3	78502-S2A-A61	Plate comp - HORN
4	78503-S2A-A61	Plate comp - CONTACT
8	78521-S2A-A62	Cover - HORN PLATE
9	78522-SZ3-A51	Spacer
10	78522-S3A-N81	Washer
11	78523-SZ3-003	Spring - COIL
12	78523-S2A-N61	Spring b - COIL
13	78524-S3Y-N81	Screw - SLIDE
14	90134-S04-A81	Bolt - HEX., 6X12
15	90161-SV4-003	Bolt - STEERING HANDLE

Switch (LH) 14

#	OEM	部品名
1	35170-S3Y-G01	Switch assy - RR. FOG
2	35196-S3Y-000	Attachment
3	35510-S3Y-901	Switch assy - HAZARD
4	35750-S3Y-G02	Switch assy - POWER WINDOW MASTER
5	35753-S3Y-013	Switch assy - REMOTE CONTROL MIRROR
6	35754-SR2-003	Screw - TAPPING
7	35777-S3Y-013	Switch assy - MODE SELECT
8	35820-SX0-G03	Switch assy - HEADLIGHT ADJUSTER
9	35850-S3Y-003	Bulb comp. - 14V 40MA
10	35861-S0A-T01	Bulb - NEO WEDGE (14V 65MA)
11	35861-S84-T01	Bulb - NEO WEDGE (T3) (14V 60MA) (TOYO)
12	35910-S04-G01	Switch assy - INERTIA
13	35912-SN7-G00	Bracket - INERTIA SWITCH
16	35190-S3Y-J01	Switch assy - REMOTE CONTROL MIRROR

Switch (RH) 14

#	OEM	部品名
1	35170-S3Y-E01	Switch assy - RR. FOG
2	35196-S3Y-000	Attachment
3	35510-S3Y-901	Switch assy - HAZARD
4	35750-S3Y-J01	Switch assy - POWER WINDOW MASTER
5	35753-S3Y-013	Switch assy - REMOTE CONTROL MIRROR
6	35754-SR2-003	Screw - TAPPING
7	35777-S3Y-013	Switch assy - MODE SELECT
8	35820-S10-E03	Switch assy - HEADLIGHT ADJUSTER
9	35850-S3Y-003	Bulb comp. - 14V 40MA
10	35861-S0A-T01	Bulb - NEO WEDGE (14V 65MA)
11	35861-S84-T01	Bulb - NEO WEDGE (T3) (14V 60MA) (TOYO)
12	35910-S04-G01	Switch assy - INERTIA
13	35912-SN7-G00	Bracket - INERTIA SWITCH
16	35190-S3Y-J01	Switch assy - REMOTE CONTROL MIRROR

Tailgate 36

#	OEM	部品名
1	04741-S3Y-000	Stay set - R. TAILGATE OPEN
2	04746-S3Y-000	Stay set - L. TAILGATE OPEN
3	34271-S3Y-A01	Cap - R.
4	34272-S3Y-A01	Sub cord comp.
5	34276-S3Y-A01	Cap - L.
6	34277-S3Y-A01	Lens comp
7	35103-S04-003	Screw - RECESSED
10	74401-S3Y-000	Seal - R. RR. GUTTER
11	74405-S3Y-000	Seal - L. RR. GUTTER
12	74440-S3Y-003	Weatherstrip - TAILGATE
13	74800-S3Y-003	Lock assy - TAILGATE
14	74810-S3Y-003	Switch assy - TAILGATE OPENER
15	74813-S3Y-003	Striker - TAILGATE
16	74827-S3Y-000	Stopper - TAILGATE
17	74829-SH2-000	Cover - OPEN STAY END
18	74840-S3Y-003	Actuator assy - TAILGATE OPENER
19	74841-S3Y-003	Rod - KEY CYLINDER
20	74861-S3Y-003	Cylinder - TRUNK
21	74866-S3Y-003	Switch - TRUNK CYLINDER
22	74867-SW5-003	Holder - ROD
23	74892-SV5-A01	Snap - NATURAL
24	74900-S3Y-000	Garnish - TAILGATE SPOILER
25	75523-SS0-000	Packing - SEAL
26	83307-SD2-900	Shim - TAILGATE STRIKER (1.0)
26	83307-SD2-000	Shim - TAILGATE STRIKER (2.0)
27	90103-SH2-000	Bolt - TAILGATE OPENER STAY, 10MM
28	90110-S3Y-003	Bolt - INSERT (10MM)
29	90115-S3Y-000	Bolt-washer - 6X16 (TO RX)
30	90120-SV4-000	Bolt - LOCK STRIKER
31	90303-S3Y-003	Nut - 6MM
32	90303-S3Y-300	Nut - POP, 6MM
33	90310-S3Y-300	Nut assy. - FLOAT, 8MM
34	90321-ST7-003	Nut - SPECIAL, 5MM
35	90856-SK8-003	Snap - TRUNK LOCK
36	91507-SR2-003	Clip - ROOF RAIL GARNISH CENTER
37	91580-SM4-003	Clip - COUPLER(ORANGE)

Tailgate lining 4

#	OEM	部品名
1	73240-S3Y-003	Trim - RR. WINDSHIELD
3	90666-S3Y-003	Clip - PILLAR GARNISH
4	90667-ST8-003	Clip - SIDE LINING
6	91560-S84-A01	CLIP, DOOR LINING (NATURAL)

Taillight 26

#	OEM	部品名
1	33301-SA0-741	Bulb (12V 5W) - (12V 5W) (STANLEY)
2	33303-S2R-901	Bulb - 12V 21W
3	33303-692-003	Packing - STANLEY
3	33303-958-003	Gasket
4	33304-SF4-003	Screw - TAPPING, 4X45
5	33501-S3Y-J01	Lamp unit - R. TAIL
6	33506-S3Y-003	Cap - BOLT
7	33551-S3Y-J01	Lamp unit - L. TAIL
8	34101-S30-003	Lens
9	34102-S30-003	Housing
10	34103-SH3-A01	Packing
11	34104-S3Y-E01	Socket comp.
11	34104-S3Y-G01	Socket comp.
12	34400-SV2-G01	Light assy - R. RR. FOG
13	34401-SH3-G01	Lens
14	34450-SV2-G01	Light assy - L. RR. FOG
15	34901-S2K-003	Bulb - T16 18W
16	34906-S2K-003	Bulb - 12V 21/5W
17	34908-634-611	Bulb - 12V 21W) (ECE) (STANLEY
18	90001-S10-A00	Bolt-washer - 5X16
19	90321-S2X-003	Nut - SPECIAL, 5MM
20	90650-SL9-003	Grommet - R. RR. COMBINATION (WHITE)
21	90655-SL9-003	Grommet - L. RR. COMBINATION (GRAY)
22	91533-S04-003	Clip - COUPLER (NATURAL)
25	33503-S3Y-003	Socket comp.
26	91548-S84-003	Clip - HARNESS BAND (GRAY) (128MM)

Throttle body 15

#	OEM	部品名
1	11859-PHM-000	Tube - PRESSURE REGULATOR
2	16016-P2A-003	Screw set
3	16022-PHM-003	Valve set - ROTARY AIR CONTROL
4	16097-P2A-003	Cap - SEALING
5	16176-PHM-004	Gasket - THROTTLE BODY
6	16400-PHM-003	Throttle Body Assy - GY70A
7	16402-PHM-010	Spacer - THROTTLE BODY
8	16405-PHM-000	Cover comp. - THROTTLE DRUM
9	16456-P8A-A01	Gasket - ROTARY AIR CONTROL VALVE
10	17400-PHM-000	Pipe - INSTALL
11	37830-PHM-003	Sensor - MAP
12	37831-PHM-000	Stay - MAP
16	17417-PHM-000	Tube - 3.5X48
21	16411-PHM-003	Stay - THROTTLE WIRE
22	90001-PEJ-003	Screw-washer - 5X14

Tire/wheel disks 43

#	OEM	部品名
1	42700-S3Y-A21	Disk - ALUMINIUM WHEEL (14X4T) (ASAHI)
2	42700-S3Y-E31	Disk, ALUMINIUM WHEEL (14X5 1/2JJ) (ASAHI)
3	42751-S04-904	Tire - T115/70D14 88M) (BRIDGESTONE
3	42751-S04-905	Tire - T115/70D14 88M) (DUNLOP
4	42751-S3Y-G04	Tire - 165/65R14 79T) (BRIDGESTONE
4	42751-S3Y-G03	Tire - 165/65R14 79T) (BRIDGESTONE
5	42753-SH3-003	Valve - RIM (US PACIFIC)
5	42753-SB8-661	Valve - RIM (SCHRADER)
6	42767-SB0-600	Plate - SPARE TIRE CAUTION (T-TYPE) (ENGLISH)
6	42767-SS0-G20	Plate - SPARE TIRE CAUTION (T-TYPE) (GERMANY)
7	42767-SH3-E00	Plate - SPARE TIRE CAUTION (T-TYPE)
8	44722-SEA-N02	Weight - BALANCE (20G) (TOHO ZINC)
8	44730-SEA-N01	Weight - BALANCE (45G) (TOHO)
8	44728-SEA-N02	Weight - BALANCE (25G) (TOHO ZINC)
8	44723-SEA-N01	Weight - BALANCE (30G) (TOHO)
8	44726-TP6-A01	WEIGHT (30G)
8	44721-SEA-N02	Weight - BALANCE (10G) (TOHO ZINC)
8	44729-SEA-N01	Weight - BALANCE (35G) (TOHO)
8	44727-TP6-A01	WEIGHT (35G)
8	44727-SEA-N02	Weight - BALANCE (15G) (TOHO ZINC)
8	44725-SEA-N02	Weight - BALANCE (50G) (TOHO ZINC)
8	44722-SEA-N01	Weight - BALANCE (20G) (TOHO)
8	44724-TP6-A01	WEIGHT (20G)
8	44728-SEA-N01	Weight - BALANCE (25G) (TOHO)
8	44725-TP6-A01	WEIGHT (25G)
8	44726-SEA-N02	Weight - BALANCE (5G) (TOHO ZINC)
8	44724-SEA-N02	Weight - BALANCE (40G) (TOHO ZINC)
8	44721-SEA-N01	Weight - BALANCE (10G) (TOHO)
8	44721-S5A-A20	Weight - BALANCE (10G)
8	44730-SEA-N02	Weight - BALANCE (45G) (TOHO ZINC)
8	44727-SEA-N01	Weight - BALANCE (15G) (TOHO)
8	44723-TP6-A01	WEIGHT (15G)
8	44725-SEA-N01	Weight - BALANCE (50G) (TOHO)
8	44723-SEA-N02	Weight - BALANCE (30G) (TOHO ZINC)
8	44729-SEA-N02	Weight - BALANCE (35G) (TOHO ZINC)
8	44726-SEA-N01	Weight - BALANCE (5G) (TOHO)
8	44721-TP6-A01	WEIGHT, BALANCE (5G)
8	44724-SEA-N01	Weight - BALANCE (40G) (TOHO)
9	44732-S3Y-000	Cap, ALUMINIUM WHEEL CENTER
9	44732-S3Y-010	Cap, ALUMINIUM WHEEL CENTER
10	44739-S3Y-000	Set ring - CENTER CAP
11	74654-SE0-980	Bolt - ANCHOR (88MM)
12	90381-SL5-901	Nut - WHEEL(FUSE RASHI)

Tools/jack 11

#	OEM	部品名
1	74433-S3Y-000	Tag - RR. WHEELHOUSE SKIRT
2	74717-S50-000	Bolt, Eye
3	84703-S2K-000	Bag - EYEBOLT
4	89101-SW5-003	Bag - TOOL
5	89211-S3Y-003	Wrench - WHEEL
6	89310-S5A-013	Jack assy - PANTOGRAPH
7	89311-S5A-003	Plate - JACK CAUTION
8	89320-S2G-003	Bar - JACK
9	89331-S3Y-000	Cover - PANTOGRAPH JACK
10	89212-S3Y-000	Bag - WHEEL WRENCH
11	89000-S3Y-000	Tool set

Transmission case 54

#	OEM	部品名
1	21104-PHR-000	Plate m - OIL GUIDE
2	21210-PHR-000	Case - TRANSMISSION
3	21211-PHR-000	Plate - OIL GUTTER
4	21221-PHR-000	Hanger - TRANSMISSION
5	23947-P21-000	Shim q - 72MM(1.08)
5	23942-P21-000	Shim l - 72MM(0.93)
5	23969-P21-000	Shim am - 72MM(1.74)
5	23937-P21-000	Shim g - 72MM(0.78)
5	23932-P21-000	Shim b - 72MM(0.63)
5	23964-P21-000	Shim ah - 72MM(1.59)
5	23959-P21-000	Shim ac - 72MM(1.44)
5	23954-P21-000	Shim x - 72MM(1.29)
5	23949-P21-000	Shim s - 72MM(1.14)
5	23944-P21-000	Shim n - 72MM(0.99)
5	23971-P21-000	Shim ao - 72MM(1.80)
5	23939-P21-000	Shim i - 72MM(0.84)
5	23934-P21-000	Shim d - 72MM(0.69)
5	23966-P21-000	Shim aj - 72MM(1.65)
5	23961-P21-000	Shim ae - 72MM(1.50)
5	23956-P21-000	Shim z - 72MM(1.35)
5	23951-P21-000	Shim u - 72MM(1.20)
5	23946-P21-000	Shim p - 72MM(1.05)
5	23941-P21-000	Shim k - 72MM(0.90)
5	23968-P21-000	Shim al - 72MM(1.71)
5	23936-P21-000	Shim f - 72MM(0.75)
5	23931-P21-000	Shim a - 72MM(0.60)
5	23963-P21-000	Shim ag - 72MM(1.56)
5	23958-P21-000	Shim ab - 72MM(1.41)
5	23953-P21-000	Shim w - 72MM(1.26)
5	23948-P21-000	Shim r - 72MM(1.11)
5	23943-P21-000	Shim m - 72MM(0.96)
5	23970-P21-000	Shim an - 72MM(1.77)
5	23938-P21-000	Shim h - 72MM(0.81)
5	23933-P21-000	Shim c - 72MM(0.66)
5	23965-P21-000	Shim ai - 72MM(1.62)
5	23960-P21-000	Shim ad - 72MM(1.47)
5	23955-P21-000	Shim y - 72MM(1.32)
5	23950-P21-000	Shim t - 72MM(1.17)
5	23945-P21-000	Shim o - 72MM(1.02)
5	23940-P21-000	Shim j - 72MM(0.87)
5	23935-P21-000	Shim e - 72MM(0.72)
5	23967-P21-000	Shim ak - 72MM(1.68)
5	23962-P21-000	Shim af - 72MM(1.53)
5	23957-P21-000	Shim aa - 72MM(1.38)
5	23952-P21-000	Shim v - 72MM(1.23)
6	24455-PHR-000	Spring - BALL SETTING
7	24519-PB6-000	Screw - BALL SPRING SETTING
8	28700-PHR-003	Switch assy - BACK LIGHT (TOKAI)(GRAY)
9	90081-PX5-000	Screw - SEALING, 32MM
10	90082-PHR-000	Bolt - PLUG, 14MM
11	90083-PHR-000	Bolt - PLUG, 20MM
12	90380-S3Y-000	Bolt - STUD, 10X70
13	91205-PL3-A01	Oil seal - 35X56X8 (ARAI)
13	91205-PL3-A02	Oil seal - 35X56X8(NOK)

Trunk lining 9

#	OEM	部品名
2	84522-S3Y-000	Lid comp - SPARE TIRE
3	84525-S3Y-003	Box assy - CARGO
4	84580-S3Y-000	Spacer - L. FR. CARGO SIDE
5	84581-S3Y-000	Spacer - L. RR. CARGO SIDE
6	84614-S06-000	Hook assy - TIE DOWN
7	84614-S10-003	Hook assy - TIE DOWN
11	90609-SG0-003	Clip - PILLAR GARNISH
16	91560-S3Y-003	Clip - DOOR LINING
17	84631-S3Y-000	Mat - SPARE TIRE

Valve/rocker arm 16

#	OEM	部品名
1	14620-PHM-000	Arm assy. - IN. ROCKER
2	14623-PHM-000	Arm comp. a - EX. ROCKER
3	14624-PHM-000	Arm comp. b - EX. ROCKER
5	14647-PHM-000	Washer - THRUST
6	14711-PHM-000	Valve - IN.
7	14721-PHM-000	Valve - EX.
8	14744-PM3-000	Screw - TAPPET ADJUSTING
9	14744-PT0-004	Screw - TAPPET ADJUSTING
10	14761-PHM-003	Spring - IN. VALVE (LIGHT BLUE) (NIPPON HATSUJO)
11	14765-P08-000	Retainer - VALVE SPRING
12	14775-P08-000	Seat - VALVE SPRING
13	14781-PJ7-003	Cotter - VALVE (FUJI VALVE)
14	90006-PHM-003	Bolt - ROCKER ARM SHAFT
15	90206-PM3-004	Nut - TAPPET ADJUSTING (TOKAI TRW)
16	90206-PT0-004	Nut - TAPPET ADJUSTING
19	14631-PHM-010	Shaft comp. - ROCKER ARM

Water hose 3

#	OEM	部品名
1	19506-PHM-010	Hose - ROTARY AIR CONTROL VALVE IN.
2	19507-PHM-010	Hose - ROTARY AIR CONTROL VALVE OUTLET
3	19527-PHM-000	Hose - BREATHER HEATER

Water pump/sensor 29

#	OEM	部品名
1	19210-PHM-010	Pump set - WATER
2	19222-PHM-J01	Packing - WATER PUMP
3	19301-PHM-305	Thermostat assy - NIPPON THERMOSTAT
4	19305-PT0-000	Rubber - THERMOSTAT MOUNTING
4	19305-PLC-A00	Rubber - THERMOSTAT MOUNTING
5	19311-PHM-000	Cover - THERMOSTAT
6	19315-PHM-010	Cover comp. - WATER OUTLET
7	19320-PHM-000	Case comp. - THERMOSTAT
8	19503-PHM-000	Pipe comp - HEATER
9	19508-PHM-000	Hose - BYPASS OUTLET
10	19509-PHM-000	Hose - WATER IN.
11	19510-PHM-000	Pipe comp - BYPASS
12	19511-PV1-A01	Clip - WATER HOSE
13	19512-PC6-003	Clip - HOSE, 18.7MM
14	19516-PC1-000	Bolt - BREATHING WATER
17	32749-PHM-010	Stay k - ENGINE WIRE HARNESS
18	37510-PCX-003	Sensor assy - TDC
19	37760-PHM-004	Switch - THERMO (A-96)
20	37870-PK2-015	Sensor assy - WATER TEMP (HADSYS)
20	37870-PJ7-003	Sensor assy, WATER TEMP (TW5) (MATSUSHITA)
21	91304-PHM-003	O-ring - 32.8X3.1
22	91307-PK2-005	O-ring - 9.5X1.5(HONDA KIKAKI)
22	91307-PJ7-003	O-ring - 9.5X1.5 (MATSUSHITA)
23	91307-PN4-000	O-ring - 17.5X1.4
23	91307-PN3-000	O-ring,17.8x1.4
24	91315-PHM-003	O-ring - 19.6X3.8
25	91316-PHM-003	O-ring - 13.6X3.8
26	91333-PCX-003	O-ring
27	91657-SD5-000	Cap - SEALING (7.3MM)

Water valve (LH) 10

#	OEM	部品名
1	79710-S3Y-003	Valve assy. - WATER
2	79721-S3Y-010	Hose a - WATER IN.
3	79722-S3Y-000	Hose b - WATER IN.
4	79725-S3Y-000	Hose - WATER OUTLET
5	79731-SV4-000	Grommet - HEATER PIPE
6	79810-S3Y-A01	Duct - INTAKE
7	90661-S04-003	Clip - WATER HOSE
8	91405-PK1-003	Clip, WATER HOSE, 24MM
8	19513-PE0-003	Clamp - WATER HOSE (21.7MM) (CHUO SPRING)
10	90661-SL5-003	Clip, WATER HOSE

Water valve (RH) 10

#	OEM	部品名
1	79710-S3Y-003	Valve assy. - WATER
2	79721-S3Y-010	Hose a - WATER IN.
3	79722-S3Y-000	Hose b - WATER IN.
4	79725-S3Y-000	Hose - WATER OUTLET
5	79731-SV4-000	Grommet - HEATER PIPE
6	79810-S3Y-003	Duct - INTAKE
7	90661-S04-003	Clip - WATER HOSE
8	91405-PK1-003	Clip, WATER HOSE, 24MM
8	19513-PE0-003	Clamp - WATER HOSE (21.7MM) (CHUO SPRING)
10	90661-SL5-003	Clip, WATER HOSE

Windshield washer 23

#	OEM	部品名
1	38512-SF0-J01	Motor - WASHER (MITSUBA)
1	38512-SF0-013	Motor - WASHER (MITSUBA)
2	38516-SA0-671	Packing - PARALLEL TYPE) (MITSUBA
3	38516-SA5-671	Packing - T-TYPE) (MITSUBA
4	38519-SB0-003	Bush - WASHER TANK (MITSUBA)
5	76802-SL4-013	Cap unit - MOUTH
6	76806-SL0-E11	Motor - WASHER (HIGH) (MITSUBA)
6	76806-SL0-E01	Motor - WASHER (HIGH) (MITSUBA)
8	76815-SD5-003	Valve - ONE WAY (RR.) (MITSUBA)
10	76829-SM4-003	Joint i - WASHER
11	76830-SL0-003	Joint y - TUBE (MITSUBA)
12	76832-S2A-003	Tube - L. NOZZLE
13	76832-S3Y-003	Tube - R. NOZZLE
14	76837-S3Y-003	Tube
15	76839-SL0-G51	Tube f - 50MM) (BLACK
16	76840-S3Y-A01	Tank set - WASHER
17	76850-S3Y-A01	Nozzle assy. - RR. WINDSHIELD
18	76851-S30-003	Grommet - WASHER TUBE
19	91523-SM4-003	Clip - WASHER TUBE
20	91565-SK7-003	Clip - WASHER TUBE
21	91902-SJ8-003	Cushion - WIRE HARNESS (50X50)
26	91504-SR3-003	Clip - WASHER TUBE
27	76819-SX0-003	Cushion

Wire harness (LH) 19

#	OEM	部品名
1	32100-S3Y-G01	Harness - CABIN WIRE (AUTO A.C.)
1	32100-S3Y-G11	Harness - CABIN WIRE
2	32106-S3Y-G00	Sub cord - WIPER
3	32107-S3Y-G02	Harness - FLOOR WIRE
4	32108-S3Y-E00	Harness - RR. WIRE
5	32109-S3Y-A01	Cord - TAILGATE (RR. WIPER)
6	32117-S3Y-G11	Harness - INSTRUMENT WIRE
7	32150-S3Y-G13	Harness - DASHBOARD WIRE
8	32156-S3Y-A00	Cord assy - INTERIOR
9	32751-S3Y-G01	Harness - DRIVER DOOR WIRE
10	32752-S3Y-G00	Harness - PASSENGER DOOR WIRE
11	38235-SX8-003	Puller - MINI FUSE (TAIHEIYO)
13	39794-S04-003	Relay assy - POWER (4P) (MICRO ISO) (MITSUBA)
14	39794-S10-003	Relay assy - POWER(5P) (MICRO ISO)(MITSUBA)
16	90149-SE0-003	Bolt - EARTH, 6X16
17	90149-SE0-902	Bolt - EARTH, 6X24(SN)
24	32119-S3Y-305	Sub cord - TAILGATE
25	90106-SL0-000	Bolt-washer - 6X26
26	38300-S5T-003	Relay assy - TURN SIGNAL & HAZARD (FR-3321) (MITSUBA)

Wire harness (RH) 18

#	OEM	部品名
1	32100-S3Y-E11	Harness - CABIN WIRE
2	32106-S3Y-J00	Sub cord - WIPER
3	32107-S3Y-E02	Harness - FLOOR WIRE
4	32108-S3Y-E00	Harness - RR. WIRE
5	32109-S3Y-A01	Cord - TAILGATE (RR. WIPER)
6	32117-S3Y-E11	Harness - INSTRUMENT WIRE
7	32150-S3Y-E11	Harness - DASHBOARD WIRE
8	32156-S3Y-000	Cord assy - INTERIOR
9	32751-S3Y-J01	Harness - DRIVER DOOR WIRE
10	32752-S3Y-J00	Harness - PASSENGER DOOR WIRE
11	38235-SX8-003	Puller - MINI FUSE (TAIHEIYO)
13	39794-S04-003	Relay assy - POWER (4P) (MICRO ISO) (MITSUBA)
14	39794-S10-003	Relay assy - POWER(5P) (MICRO ISO)(MITSUBA)
16	90149-SE0-003	Bolt - EARTH, 6X16
17	90149-SE0-902	Bolt - EARTH, 6X24(SN)
23	32119-S3Y-305	Sub cord - TAILGATE
24	90106-SL0-000	Bolt-washer - 6X26
25	38300-S5T-003	Relay assy - TURN SIGNAL & HAZARD (FR-3321) (MITSUBA)
