YR39

Toyota LITEACE · 1992 · 4,488 parts · 206 categories
YR39 ×

← Back to categories

4,488 items

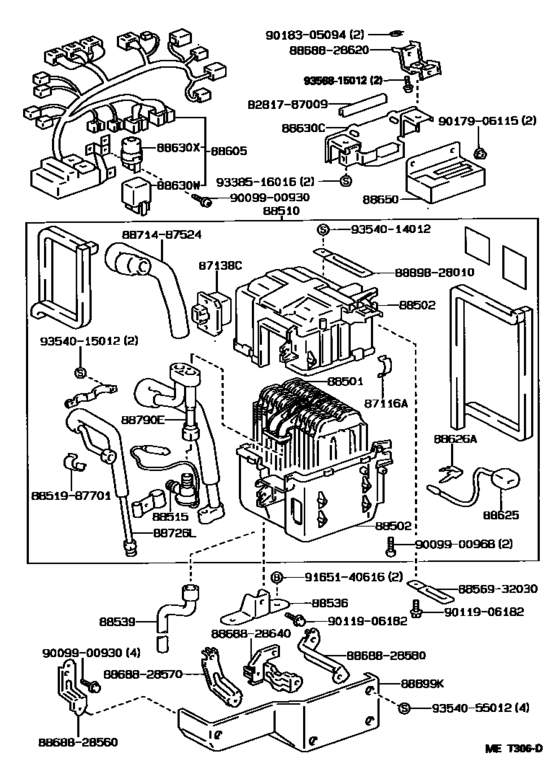

Heating & Air Conditioning - Cooler Unit ([01.1992 - ] FRONT(MAKER OPTION) (9201- )RHD) 58
#OEMPart name
87116 87116-14010 Spring, Heater Case Fastening
87138 87138-28050 Resistor, Heater Blower
88501 88501-28220 Evaporator Sub-Assy, Cooler, No.1
88501 88501-28221 Evaporator Sub-Assy, Cooler, No.1
88502 88502-28310 Case Sub-Assy, Cooling Unit
88502 88502-28320 Case Sub-Assy, Cooling Unit
88510 88510-28350 Unit Assy, Cooler
88510 88510-28540 Unit Assy, Cooler
88510 88510-28280 Unit Assy, Cooler
88510 88510-28500 Unit Assy, Cooler
88515 88515-28100 Valve, Cooler Expansion
88515 88515-87002 Valve, Cooler Expansion
88515 88515-28110 Valve, Cooler Expansion
88536 88536-28020 Bracket, Cooling Unit, No.1
88539 88539-87010 Hose, Cooler Unit Drain, No.1
88605 88605-2J110 Harness Sub-Assy, Cooler Wiring, No.1
88605 88605-28590 Harness Sub-Assy, Cooler Wiring, No.1
88605 88605-28740 Harness Sub-Assy, Cooler Wiring, No.1
88625 88625-28130 Thermistor, Cooler, No.1
88625 88625-90A00 Thermistor, Cooler, No.1
88625 88625-12070 Thermistor, Cooler, No.1
88626 88626-28010 Holder, Thermistor
88630 88631-28120 Bracket, Cooler Relay
88630 88631-28040 Bracket, Cooler Relay
88630 85913-30020 Relay, Ignition, No.1
88630 90987-03001 Relay
88650 88650-28150 Amplifier Assy, Cooler Stabilizer
88726 88716-2R160 Pipe, Cooler Refrigerant Liquid, L
88726 88716-2R161 Pipe, Cooler Refrigerant Liquid, L
88790 88710-2J660 Tube & Accessory Assy, Airconditioner
88790 88790-28060 Tube & Accessory Assy, Airconditioner
88790 88710-2J661 Tube & Accessory Assy, Airconditioner
88899 88899-28260 Plate, Cover
8281787009 82817-87009 Protector, Wiring Harness, No.1
8851987701 88519-87701 Holder, Remote Bulb
8856932030 88569-32030 Clamp (for Cooler Relay)
8868828560 88688-28560 Bracket, Cooler Diaphragm
8868828570 88688-28570 Bracket, Cooler Diaphragm
8868828580 88688-28580 Bracket, Cooler Diaphragm
8868828620 88688-28620 Bracket, Cooler Relay
8868828640 88688-28640 Bracket, Cooler Diaphragm
8871487524 88714-87524 Hose, Cooler Refrigerant Liquid, No.1
8889828010 88898-28010 Clamp (for Cooler Relay)
8889828010 88569-87003 Clamp (for Cooler Relay)
9009900930 90099-00930 New Genuine Part
9009900968 90099-00968 Screw(For Air Conditioner Unit)
9011906182 90119-06182 Bolt, W/washer (For Floor Shift)
9017906115 90179-06115 Nut (For Rear Wiper Arm Setting)
9018305094 90183-05094 NUT
9165140616 91651-40616 BOLT
9165140616 91621-60614 Bolt(For Transaxle & Engine Setting)
9165140616 90080-11395 New Genuine Part
9338516016 93385-16016 New Genuine Part
9354014012 93540-14012 Screw
9354015012 93540-15012 New Genuine Part
9354055012 93540-55012 SCREW, TAPPING
9356815012 93568-15012 SCREW
9356815012 93568-55012 SCREW
