YR39

Toyota LITEACE · 1992 · 4,488 parts · 206 categories
YR39 ×

← Back to categories

4,488 items

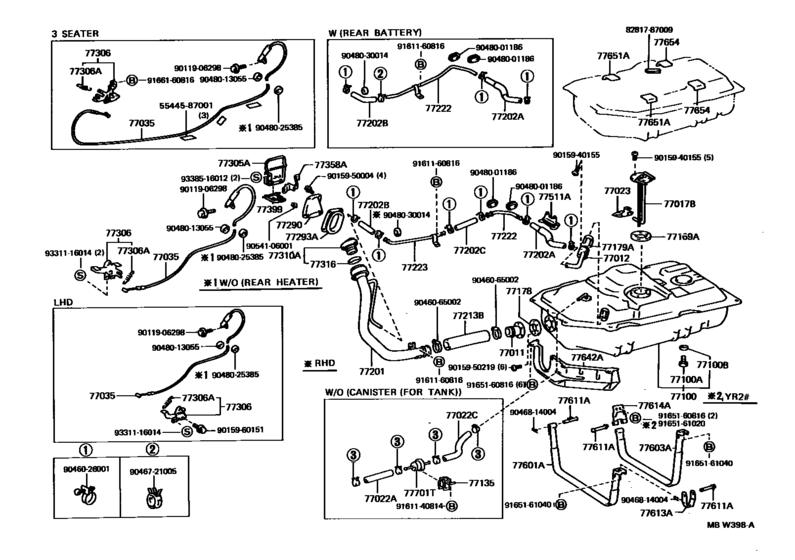

Fuel Tank & Tube ([01.1992 - ] (9201- )) 77
#OEMPart name
77011 77011-13010 Pipe Sub-Assy, Fuel Tank Filler, Lower
77012 77012-28020 Tube Sub-Assy, Fuel Tank Breather
77017 77017-28100 Tube Sub-Assy, Fuel Tank Vent
77022 95333-06020 Hose, Fuel(For Injection Pump To Fuel Pipe)
77022 95337-06020 Hose, Differential Pressure Control
77022 95333-06010 Hose, Fuel
77023 77023-10010 Filter Sub-Assy, Fuel Suction Tube
77035 77035-28010 Cable Sub-Assy, Fuel Lid Lock Control
77100 77001-28440 Tank Assy, Fuel
77100 90105-12116 Plug(For Fuel Tank)
77100 90430-12245 Gasket(For Fuel Tank)
77135 77277-28020 Bracket, Check Valve
77135 77277-28021 Bracket, Check Valve
77169 77169-14020 Gasket, Fuel Tank Vent
77178 77178-13020 Gasket, Fuel Tank Filler Pipe, Lower
77179 77179-14030 Retainer, Fuel Tank Mounting, Front
77201 77201-28070 Pipe Sub-Assy, Fuel Tank Inlet
77201 77201-28140 Pipe Sub-Assy, Fuel Tank Inlet
77202 77259-28030 Hose, Fuel, No.1 (For Breather Tube)
77202 90445-24029 Hose, Fuel, No.2 (For Breather Tube)
77202 90445-24010 Hose, Fuel, No.1(For Fuel Tank)
77213 77217-28010 Hose, Fuel Tank Sub Inlet
77222 77222-28030 Tube, Fuel, No.2 (For Breather Tube)
77223 77014-28010 Tube, Fuel Tank Breather, No.3
77290 77290-28010 Shield Assy, Fuel Tank Filler Pipe
77293 77293-28010 Shield, Fuel Tank Filler Pipe, No.3
77305 77305-28010 Lid Sub-Assy, Fuel Filler Opening
77306 64606-87001 Lever Sub-Assy, Fuel Lid Lock Open
77306 90506-09004 Spring, Tension(For Luggage Door Lock Open Lever)
77310 77310-16011 Cap Assy, Fuel Tank
77310 77310-12140 Cap Assy, Fuel Tank
77316 77316-16010 Gasket (For Fuel Tank Cap)
77358 77358-28030 Stopper, Fuel Filler Opening Lid
77399 77399-28020 Hanger, Fuel Tank Cap
77511 77511-28050 Bracket, Fuel Tank
77601 77601-28040 Band Sub-Assy, Fuel Tank, No.1
77603 77603-28050 Band Sub-Assy, Fuel Tank, No.2
77611 77653-28010 Pin (For Fuel Tank Band)
77611 90240-08020 Pin (For Fuel Tank Band)
77611 90240-08047 Pin (For Fuel Tank Band)
77613 77613-28040 Bracket Sub-Assy, Fuel Tank
77614 77614-28020 Band, Fuel Tank, No.2 Rh
77642 77606-28030 Protector, Fuel Tank, No.2
77651 77651-28010 Cushion, Fuel Tank, No.1
77654 77651-28020 Cushion, Fuel Tank, No.1
77701 90917-10069 Valve, Check (For Main Fuel Tank)
77701 90917-10082 Hose, Fuel, No.1 (For Breather Valve)
77701 90917-10067 Valve, Check (For Main Fuel Tank)
5544587001 55445-87001 Plate, Instrument Panel Finish
8281787009 82817-87009 Protector, Wiring Harness, No.1
9011906298 90119-06298 BOLT, W/WASHER
9015940155 90159-40155 SCREW WWASHER
9015950004 90159-50004 New Genuine Part
9015950219 90159-50219 BOLT
9015950219 90159-A0057 New Genuine Part
9015960151 90159-60151 New Genuine Part
9046026001 90460-26001 Clamp(For Oil Reservoir To Pump Hose)
9046065002 90460-65002 Clamp Or Clip(For Air Hose, No.1)
9046721005 90467-21005 Clip(For Suction Hose No.1)
9046721005 90467-21010 Clip(For Ventilation Hose No.2)
9046814004 90468-14004 Union, Auxiliary Fuel Band
9048001186 90480-01186 New Genuine Part
9048013055 90480-13055 Grommet, Dash Panel, No.3
9048025385 90480-25385 Grommet(For Instrument Panel)
9048030014 90480-30014 New Genuine Part
9054106001 90541-06001 Cushion(For Fuel Inlet Box Cover)
9161140814 91611-40814 Bolt(For Manual Transmission Oil Pan Setting)
9161140814 91611-60814 Bolt
9161160816 91611-60816 Screw Or Bolt(For Valve Rocker Shaft Lock)
9161160816 91611-B0816 Bolt
9165160816 91651-60816 BOLT
9165160816 90080-11396 Bolt
9165161020 91651-61020 Bolt, No.1 (For Center Support Bearing)
9165161040 91651-61040 Bolt (For Transfer Case)
9166160816 91661-60816 Bolt
9331116014 93311-16014 Screw
9338516012 93385-16012 New Genuine Part
