Search › Model › YR26

YR26

Toyota TOYOACE-TOWNACE-MASTERACE-LITEACE · 1982 · 4,807 parts · 187 categories

4,807 items

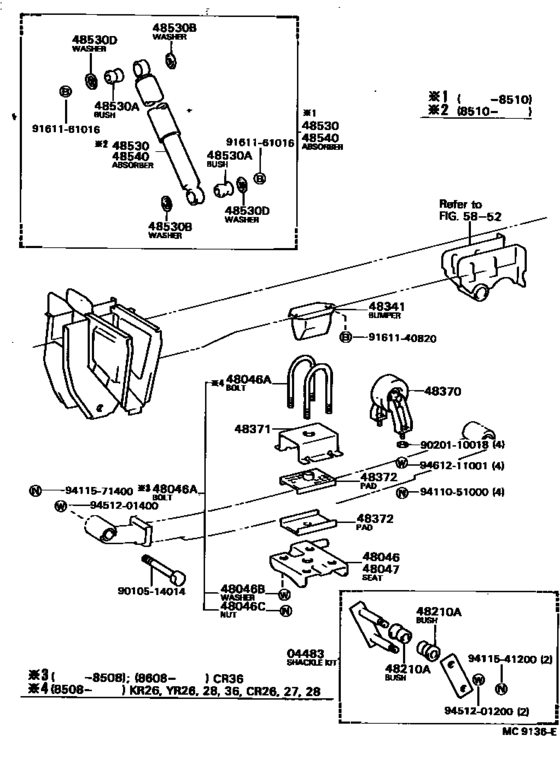

Rear Spring & Shock Absorber ([11.1982 - ] (8211- )CR26,27,28,36,37,KR26,YR26,28,36) 34

#	OEM	Part name
4483	04483-27021	Shackle Kit, Rear Spring
48046	48046-28030	Seat Sub-Assy, Spring U Bolt, Rh
48046	90117-13018	Bolt, U(For Rear Spring)
48046	90117-13017	Bolt, U(For Rear Spring)
48046	94512-01300	Washer(For Rear Spring U Bolt)
48046	94110-51300	Nut(For Rear Spring U Bolt)
48046	48046-26023	Seat Sub-Assy, Spring U Bolt, Rh
48046	90118-13103	Bolt, U(For Rear Spring)
48047	48047-28020	Seat Sub-Assy, Spring U Bolt, Lh
48047	48047-26023	Seat Sub-Assy, Spring U Bolt, Lh
48210	90385-15001	Bush(For Rear Spring Shackle Upper)
48341	48341-35020	Bumper Sub-Assy, Rear Spring
48371	48371-28050	Retainer, Rear Spring Pad
48372	48372-28010	Pad, Rear Spring
48530	48531-28080	Absorber Assy, Shock, Rear Rh
48530	48531-80594	Absorber Assy, Shock, Rear Rh
48530	48531-80018	Absorber Assy, Shock, Rear Rh
48530	90385-16001	Bush(For Shock Absorber)
48530	90385-16004	Cushion, Front Shock Absorber
48530	90948-03004	Retainer, Cushion, No.1(For Front Shock Absorber)
48530	90948-03007	Washer, Front Shock Absorber Cushion, No.1
9010514014	90105-14014	New Genuine Part
9020110018	90201-10018	New Genuine Part
9161140820	91611-40820	Bolt(For Intake Manifold To Exhaust Manifold)
9161161016	91611-61016	Bolt(For Dust Cover To Steering Knuckle Arm Setting)
9161161016	91612-61016	Bolt(For Dust Cover To Steering Knuckle Arm Setting)
9411051000	94110-51000	Nut(For Steering Center Arm)
9411541200	94115-41200	Nut
9411541200	94130-61200	Nut
9411571400	94115-71400	Nut, Timer Round
9411571400	94130-01402	Nut, Timer Round
9451201200	94512-01200	Washer
9451201400	94512-01400	Washer(For Rear Spring U Bolt)
9461211001	94612-11001	Washer, Plate (For Center Support Bearing Housing)

OEM	Part name	Category
04483-27021	Shackle Kit, Rear Spring	Rear Spring & Shock Absorber ([11.1982 - ] (8211- )CR26,27,28,36,37,KR26,YR26,28,36)
48046-26023	Seat Sub-Assy, Spring U Bolt, Rh	Rear Spring & Shock Absorber ([11.1982 - ] (8211- )CR26,27,28,36,37,KR26,YR26,28,36)
48046-28030	Seat Sub-Assy, Spring U Bolt, Rh	Rear Spring & Shock Absorber ([11.1982 - ] (8211- )CR26,27,28,36,37,KR26,YR26,28,36)
48047-26023	Seat Sub-Assy, Spring U Bolt, Lh	Rear Spring & Shock Absorber ([11.1982 - ] (8211- )CR26,27,28,36,37,KR26,YR26,28,36)
48047-28020	Seat Sub-Assy, Spring U Bolt, Lh	Rear Spring & Shock Absorber ([11.1982 - ] (8211- )CR26,27,28,36,37,KR26,YR26,28,36)
48341-35020	Bumper Sub-Assy, Rear Spring	Rear Spring & Shock Absorber ([11.1982 - ] (8211- )CR26,27,28,36,37,KR26,YR26,28,36)
48371-28050	Retainer, Rear Spring Pad	Rear Spring & Shock Absorber ([11.1982 - ] (8211- )CR26,27,28,36,37,KR26,YR26,28,36)
48372-28010	Pad, Rear Spring	Rear Spring & Shock Absorber ([11.1982 - ] (8211- )CR26,27,28,36,37,KR26,YR26,28,36)
48531-28080	Absorber Assy, Shock, Rear Rh	Rear Spring & Shock Absorber ([11.1982 - ] (8211- )CR26,27,28,36,37,KR26,YR26,28,36)
48531-80018	Absorber Assy, Shock, Rear Rh	Rear Spring & Shock Absorber ([11.1982 - ] (8211- )CR26,27,28,36,37,KR26,YR26,28,36)
48531-80594	Absorber Assy, Shock, Rear Rh	Rear Spring & Shock Absorber ([11.1982 - ] (8211- )CR26,27,28,36,37,KR26,YR26,28,36)
90105-14014	New Genuine Part	Rear Spring & Shock Absorber ([11.1982 - ] (8211- )CR26,27,28,36,37,KR26,YR26,28,36)
90117-13017	Bolt, U(For Rear Spring)	Rear Spring & Shock Absorber ([11.1982 - ] (8211- )CR26,27,28,36,37,KR26,YR26,28,36)
90117-13018	Bolt, U(For Rear Spring)	Rear Spring & Shock Absorber ([11.1982 - ] (8211- )CR26,27,28,36,37,KR26,YR26,28,36)
90118-13103	Bolt, U(For Rear Spring)	Rear Spring & Shock Absorber ([11.1982 - ] (8211- )CR26,27,28,36,37,KR26,YR26,28,36)
90201-10018	New Genuine Part	Rear Spring & Shock Absorber ([11.1982 - ] (8211- )CR26,27,28,36,37,KR26,YR26,28,36)
90385-15001	Bush(For Rear Spring Shackle Upper)	Rear Spring & Shock Absorber ([11.1982 - ] (8211- )CR26,27,28,36,37,KR26,YR26,28,36)
90385-16001	Bush(For Shock Absorber)	Rear Spring & Shock Absorber ([11.1982 - ] (8211- )CR26,27,28,36,37,KR26,YR26,28,36)
90385-16004	Cushion, Front Shock Absorber	Rear Spring & Shock Absorber ([11.1982 - ] (8211- )CR26,27,28,36,37,KR26,YR26,28,36)
90948-03004	Retainer, Cushion, No.1(For Front Shock Absorber)	Rear Spring & Shock Absorber ([11.1982 - ] (8211- )CR26,27,28,36,37,KR26,YR26,28,36)
90948-03007	Washer, Front Shock Absorber Cushion, No.1	Rear Spring & Shock Absorber ([11.1982 - ] (8211- )CR26,27,28,36,37,KR26,YR26,28,36)
91611-40820	Bolt(For Intake Manifold To Exhaust Manifold)	Rear Spring & Shock Absorber ([11.1982 - ] (8211- )CR26,27,28,36,37,KR26,YR26,28,36)
91611-61016	Bolt(For Dust Cover To Steering Knuckle Arm Setting)	Rear Spring & Shock Absorber ([11.1982 - ] (8211- )CR26,27,28,36,37,KR26,YR26,28,36)
91612-61016	Bolt(For Dust Cover To Steering Knuckle Arm Setting)	Rear Spring & Shock Absorber ([11.1982 - ] (8211- )CR26,27,28,36,37,KR26,YR26,28,36)
94110-51000	Nut(For Steering Center Arm)	Rear Spring & Shock Absorber ([11.1982 - ] (8211- )CR26,27,28,36,37,KR26,YR26,28,36)
94110-51300	Nut(For Rear Spring U Bolt)	Rear Spring & Shock Absorber ([11.1982 - ] (8211- )CR26,27,28,36,37,KR26,YR26,28,36)
94115-41200	Nut	Rear Spring & Shock Absorber ([11.1982 - ] (8211- )CR26,27,28,36,37,KR26,YR26,28,36)
94115-71400	Nut, Timer Round	Rear Spring & Shock Absorber ([11.1982 - ] (8211- )CR26,27,28,36,37,KR26,YR26,28,36)
94130-01402	Nut, Timer Round	Rear Spring & Shock Absorber ([11.1982 - ] (8211- )CR26,27,28,36,37,KR26,YR26,28,36)
94130-61200	Nut	Rear Spring & Shock Absorber ([11.1982 - ] (8211- )CR26,27,28,36,37,KR26,YR26,28,36)
94512-01200	Washer	Rear Spring & Shock Absorber ([11.1982 - ] (8211- )CR26,27,28,36,37,KR26,YR26,28,36)
94512-01300	Washer(For Rear Spring U Bolt)	Rear Spring & Shock Absorber ([11.1982 - ] (8211- )CR26,27,28,36,37,KR26,YR26,28,36)
94512-01400	Washer(For Rear Spring U Bolt)	Rear Spring & Shock Absorber ([11.1982 - ] (8211- )CR26,27,28,36,37,KR26,YR26,28,36)
94612-11001	Washer, Plate (For Center Support Bearing Housing)	Rear Spring & Shock Absorber ([11.1982 - ] (8211- )CR26,27,28,36,37,KR26,YR26,28,36)

Source: Public OEM parts-catalog data
Variants: 2 / 13
Category: 187
Collected: 2026-08-04
