Search › Model › YR26

YR26

Toyota TOYOACE-TOWNACE-MASTERACE-LITEACE · 1982 · 4,807 parts · 187 categories

4,807 items

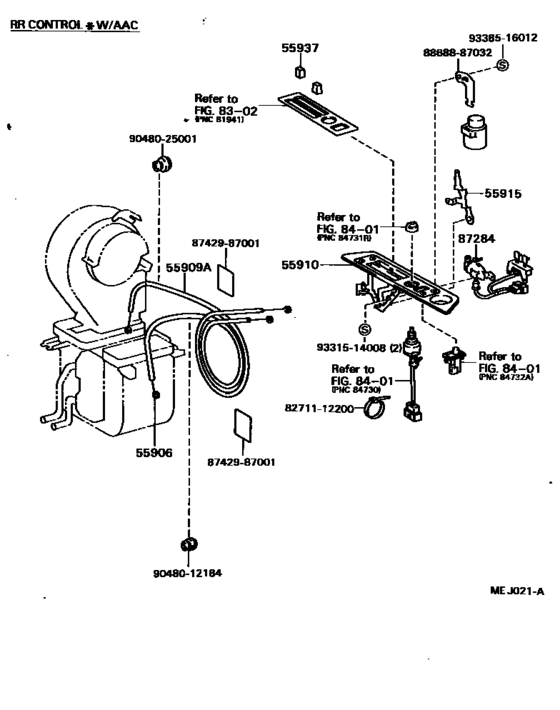

Heating & Air Conditioning - Control & Air Duct ([08.1985 - ] (8508- )YR20..HRF..E,Q ; (8508- )YR20..HRF ..5F..G ; (8508- )YR20..MRF..08S ,09S ; (8508- )CR2#,3#,KR26,YR21,26,28,3#) 52

#	OEM	Part name
55909	55909-87002	Cable Sub-Assy, Airmix Damper Control
55910	55910-87018	Control Assy, Heater Or Boost Ventilator
55910	55906-28140	Cable Sub-Assy, Defroster Damper Control
55910	55907-28011	Cable Sub-Assy, Water Valve Control
55910	55907-95D00	Cable Sub-Assy, Water Valve Control
55910	55908-28070	Cable Sub-Assy, Air Inlet Damper Control
55910	55909-28011	Cable Sub-Assy, Airmix Damper Control
55910	55909-95D00	Cable Sub-Assy, Airmix Damper Control
55910	55910-28150	Control Assy, Heater Or Boost Ventilator
55937	55905-12060	Knob, Heater Control
55937	55905-12070	Knob, Heater Control
87201	55086-87002	Duct Sub-Assy, Air, No.1
87201	55076-87001	Duct Sub-Assy, Air, No.2
87201	55086-87001	Duct Sub-Assy, Air, No.1
87202	55832-87001	Duct, Heater Air
87211	87201-87002	Duct, Air, No.1
87211	87201-87003	Duct, Air, No.2
87211	87211-87002	Duct, Air, No.4
87214	55084-87002	Duct Sub-Assy, Heater To Register, No.1
87214	55085-87002	Duct, Air, Side No.2 Rh
87214	87211-87004	Duct, Air, Side No.3 Rh
87214	87211-87005	Duct, Air, Side No.3 Rh
87214	55084-87001	Duct, Air, Side No.1 Rh
87214	55085-87001	Duct, Air, Side No.2 Rh
87215	55087-87002	Duct Sub-Assy, Heater To Register, No.4
87215	55088-87001	Duct, Air, Side No.2 Lh
87215	55087-87001	Duct, Air, Side No.1 Lh
88539	88539-22011	Hose, Cooler Unit Drain, No.1
88539	88539-12010	Hose, Cooler Unit Drain, No.1
8271112200	82711-12200	Clamp (For Fuel Lid Lock Control Cable)
8717387005	87173-87005	Protector, Water Valve, Heater
8721487007	87214-87007	Bracket, Air Duct
8721487008	87214-87008	Bracket, Air Duct
8721487010	87214-87010	Bracket, Air Duct
8742987001	87429-87001	Pipe, Combustion Heater Outlet
8868887032	88688-87032	Bracket, Cooler Diaphragm
9015950144	90159-50144	SCREW
9015960125	90159-60125	New Genuine Part
9015960125	90159-60383	SCREW WWASHER
9048012184	90480-12184	New Genuine Part
9048025001	90480-25001	New Genuine Part
9165540616	91655-40616	Bolt
9165540616	91651-60614	Bolt
9331514008	93315-14008	New Genuine Part
9338516012	93385-16012	New Genuine Part
9354015010	93540-15010	SCREW, TAPPING
9354015014	93540-15014	New Genuine Part
9356015014	93560-15014	SCREW
9356715012	93567-15012	New Genuine Part
9356715012	93568-55012	SCREW
9356715014	93567-15014	Direct
9356715014	93568-55014	Screw

OEM	Part name	Category
55076-87001	Duct Sub-Assy, Air, No.2	Heating & Air Conditioning - Control & Air Duct ([08.1985 - ] (8508- )YR20..HRF..E,Q ; (8508- )YR20..HRF ..5F..G ; (8508- )YR20..MRF..08S ,09S ; (8508- )CR2#,3#,KR26,YR21,26,28,3#)
55084-87001	Duct, Air, Side No.1 Rh	Heating & Air Conditioning - Control & Air Duct ([08.1985 - ] (8508- )YR20..HRF..E,Q ; (8508- )YR20..HRF ..5F..G ; (8508- )YR20..MRF..08S ,09S ; (8508- )CR2#,3#,KR26,YR21,26,28,3#)
55084-87002	Duct Sub-Assy, Heater To Register, No.1	Heating & Air Conditioning - Control & Air Duct ([08.1985 - ] (8508- )YR20..HRF..E,Q ; (8508- )YR20..HRF ..5F..G ; (8508- )YR20..MRF..08S ,09S ; (8508- )CR2#,3#,KR26,YR21,26,28,3#)
55085-87001	Duct, Air, Side No.2 Rh	Heating & Air Conditioning - Control & Air Duct ([08.1985 - ] (8508- )YR20..HRF..E,Q ; (8508- )YR20..HRF ..5F..G ; (8508- )YR20..MRF..08S ,09S ; (8508- )CR2#,3#,KR26,YR21,26,28,3#)
55085-87002	Duct, Air, Side No.2 Rh	Heating & Air Conditioning - Control & Air Duct ([08.1985 - ] (8508- )YR20..HRF..E,Q ; (8508- )YR20..HRF ..5F..G ; (8508- )YR20..MRF..08S ,09S ; (8508- )CR2#,3#,KR26,YR21,26,28,3#)
55086-87001	Duct Sub-Assy, Air, No.1	Heating & Air Conditioning - Control & Air Duct ([08.1985 - ] (8508- )YR20..HRF..E,Q ; (8508- )YR20..HRF ..5F..G ; (8508- )YR20..MRF..08S ,09S ; (8508- )CR2#,3#,KR26,YR21,26,28,3#)
55086-87002	Duct Sub-Assy, Air, No.1	Heating & Air Conditioning - Control & Air Duct ([08.1985 - ] (8508- )YR20..HRF..E,Q ; (8508- )YR20..HRF ..5F..G ; (8508- )YR20..MRF..08S ,09S ; (8508- )CR2#,3#,KR26,YR21,26,28,3#)
55087-87001	Duct, Air, Side No.1 Lh	Heating & Air Conditioning - Control & Air Duct ([08.1985 - ] (8508- )YR20..HRF..E,Q ; (8508- )YR20..HRF ..5F..G ; (8508- )YR20..MRF..08S ,09S ; (8508- )CR2#,3#,KR26,YR21,26,28,3#)
55087-87002	Duct Sub-Assy, Heater To Register, No.4	Heating & Air Conditioning - Control & Air Duct ([08.1985 - ] (8508- )YR20..HRF..E,Q ; (8508- )YR20..HRF ..5F..G ; (8508- )YR20..MRF..08S ,09S ; (8508- )CR2#,3#,KR26,YR21,26,28,3#)
55088-87001	Duct, Air, Side No.2 Lh	Heating & Air Conditioning - Control & Air Duct ([08.1985 - ] (8508- )YR20..HRF..E,Q ; (8508- )YR20..HRF ..5F..G ; (8508- )YR20..MRF..08S ,09S ; (8508- )CR2#,3#,KR26,YR21,26,28,3#)
55832-87001	Duct, Heater Air	Heating & Air Conditioning - Control & Air Duct ([08.1985 - ] (8508- )YR20..HRF..E,Q ; (8508- )YR20..HRF ..5F..G ; (8508- )YR20..MRF..08S ,09S ; (8508- )CR2#,3#,KR26,YR21,26,28,3#)
55905-12060	Knob, Heater Control	Heating & Air Conditioning - Control & Air Duct ([08.1985 - ] (8508- )YR20..HRF..E,Q ; (8508- )YR20..HRF ..5F..G ; (8508- )YR20..MRF..08S ,09S ; (8508- )CR2#,3#,KR26,YR21,26,28,3#)
55905-12070	Knob, Heater Control	Heating & Air Conditioning - Control & Air Duct ([08.1985 - ] (8508- )YR20..HRF..E,Q ; (8508- )YR20..HRF ..5F..G ; (8508- )YR20..MRF..08S ,09S ; (8508- )CR2#,3#,KR26,YR21,26,28,3#)
55906-28140	Cable Sub-Assy, Defroster Damper Control	Heating & Air Conditioning - Control & Air Duct ([08.1985 - ] (8508- )YR20..HRF..E,Q ; (8508- )YR20..HRF ..5F..G ; (8508- )YR20..MRF..08S ,09S ; (8508- )CR2#,3#,KR26,YR21,26,28,3#)
55907-28011	Cable Sub-Assy, Water Valve Control	Heating & Air Conditioning - Control & Air Duct ([08.1985 - ] (8508- )YR20..HRF..E,Q ; (8508- )YR20..HRF ..5F..G ; (8508- )YR20..MRF..08S ,09S ; (8508- )CR2#,3#,KR26,YR21,26,28,3#)
55907-95D00	Cable Sub-Assy, Water Valve Control	Heating & Air Conditioning - Control & Air Duct ([08.1985 - ] (8508- )YR20..HRF..E,Q ; (8508- )YR20..HRF ..5F..G ; (8508- )YR20..MRF..08S ,09S ; (8508- )CR2#,3#,KR26,YR21,26,28,3#)
55908-28070	Cable Sub-Assy, Air Inlet Damper Control	Heating & Air Conditioning - Control & Air Duct ([08.1985 - ] (8508- )YR20..HRF..E,Q ; (8508- )YR20..HRF ..5F..G ; (8508- )YR20..MRF..08S ,09S ; (8508- )CR2#,3#,KR26,YR21,26,28,3#)
55909-28011	Cable Sub-Assy, Airmix Damper Control	Heating & Air Conditioning - Control & Air Duct ([08.1985 - ] (8508- )YR20..HRF..E,Q ; (8508- )YR20..HRF ..5F..G ; (8508- )YR20..MRF..08S ,09S ; (8508- )CR2#,3#,KR26,YR21,26,28,3#)
55909-87002	Cable Sub-Assy, Airmix Damper Control	Heating & Air Conditioning - Control & Air Duct ([08.1985 - ] (8508- )YR20..HRF..E,Q ; (8508- )YR20..HRF ..5F..G ; (8508- )YR20..MRF..08S ,09S ; (8508- )CR2#,3#,KR26,YR21,26,28,3#)
55909-95D00	Cable Sub-Assy, Airmix Damper Control	Heating & Air Conditioning - Control & Air Duct ([08.1985 - ] (8508- )YR20..HRF..E,Q ; (8508- )YR20..HRF ..5F..G ; (8508- )YR20..MRF..08S ,09S ; (8508- )CR2#,3#,KR26,YR21,26,28,3#)
55910-28150	Control Assy, Heater Or Boost Ventilator	Heating & Air Conditioning - Control & Air Duct ([08.1985 - ] (8508- )YR20..HRF..E,Q ; (8508- )YR20..HRF ..5F..G ; (8508- )YR20..MRF..08S ,09S ; (8508- )CR2#,3#,KR26,YR21,26,28,3#)
55910-87018	Control Assy, Heater Or Boost Ventilator	Heating & Air Conditioning - Control & Air Duct ([08.1985 - ] (8508- )YR20..HRF..E,Q ; (8508- )YR20..HRF ..5F..G ; (8508- )YR20..MRF..08S ,09S ; (8508- )CR2#,3#,KR26,YR21,26,28,3#)
82711-12200	Clamp (For Fuel Lid Lock Control Cable)	Heating & Air Conditioning - Control & Air Duct ([08.1985 - ] (8508- )YR20..HRF..E,Q ; (8508- )YR20..HRF ..5F..G ; (8508- )YR20..MRF..08S ,09S ; (8508- )CR2#,3#,KR26,YR21,26,28,3#)
87173-87005	Protector, Water Valve, Heater	Heating & Air Conditioning - Control & Air Duct ([08.1985 - ] (8508- )YR20..HRF..E,Q ; (8508- )YR20..HRF ..5F..G ; (8508- )YR20..MRF..08S ,09S ; (8508- )CR2#,3#,KR26,YR21,26,28,3#)
87201-87002	Duct, Air, No.1	Heating & Air Conditioning - Control & Air Duct ([08.1985 - ] (8508- )YR20..HRF..E,Q ; (8508- )YR20..HRF ..5F..G ; (8508- )YR20..MRF..08S ,09S ; (8508- )CR2#,3#,KR26,YR21,26,28,3#)
87201-87003	Duct, Air, No.2	Heating & Air Conditioning - Control & Air Duct ([08.1985 - ] (8508- )YR20..HRF..E,Q ; (8508- )YR20..HRF ..5F..G ; (8508- )YR20..MRF..08S ,09S ; (8508- )CR2#,3#,KR26,YR21,26,28,3#)
87211-87002	Duct, Air, No.4	Heating & Air Conditioning - Control & Air Duct ([08.1985 - ] (8508- )YR20..HRF..E,Q ; (8508- )YR20..HRF ..5F..G ; (8508- )YR20..MRF..08S ,09S ; (8508- )CR2#,3#,KR26,YR21,26,28,3#)
87211-87004	Duct, Air, Side No.3 Rh	Heating & Air Conditioning - Control & Air Duct ([08.1985 - ] (8508- )YR20..HRF..E,Q ; (8508- )YR20..HRF ..5F..G ; (8508- )YR20..MRF..08S ,09S ; (8508- )CR2#,3#,KR26,YR21,26,28,3#)
87211-87005	Duct, Air, Side No.3 Rh	Heating & Air Conditioning - Control & Air Duct ([08.1985 - ] (8508- )YR20..HRF..E,Q ; (8508- )YR20..HRF ..5F..G ; (8508- )YR20..MRF..08S ,09S ; (8508- )CR2#,3#,KR26,YR21,26,28,3#)
87214-87007	Bracket, Air Duct	Heating & Air Conditioning - Control & Air Duct ([08.1985 - ] (8508- )YR20..HRF..E,Q ; (8508- )YR20..HRF ..5F..G ; (8508- )YR20..MRF..08S ,09S ; (8508- )CR2#,3#,KR26,YR21,26,28,3#)
87214-87008	Bracket, Air Duct	Heating & Air Conditioning - Control & Air Duct ([08.1985 - ] (8508- )YR20..HRF..E,Q ; (8508- )YR20..HRF ..5F..G ; (8508- )YR20..MRF..08S ,09S ; (8508- )CR2#,3#,KR26,YR21,26,28,3#)
87214-87010	Bracket, Air Duct	Heating & Air Conditioning - Control & Air Duct ([08.1985 - ] (8508- )YR20..HRF..E,Q ; (8508- )YR20..HRF ..5F..G ; (8508- )YR20..MRF..08S ,09S ; (8508- )CR2#,3#,KR26,YR21,26,28,3#)
87429-87001	Pipe, Combustion Heater Outlet	Heating & Air Conditioning - Control & Air Duct ([08.1985 - ] (8508- )YR20..HRF..E,Q ; (8508- )YR20..HRF ..5F..G ; (8508- )YR20..MRF..08S ,09S ; (8508- )CR2#,3#,KR26,YR21,26,28,3#)
88539-12010	Hose, Cooler Unit Drain, No.1	Heating & Air Conditioning - Control & Air Duct ([08.1985 - ] (8508- )YR20..HRF..E,Q ; (8508- )YR20..HRF ..5F..G ; (8508- )YR20..MRF..08S ,09S ; (8508- )CR2#,3#,KR26,YR21,26,28,3#)
88539-22011	Hose, Cooler Unit Drain, No.1	Heating & Air Conditioning - Control & Air Duct ([08.1985 - ] (8508- )YR20..HRF..E,Q ; (8508- )YR20..HRF ..5F..G ; (8508- )YR20..MRF..08S ,09S ; (8508- )CR2#,3#,KR26,YR21,26,28,3#)
88688-87032	Bracket, Cooler Diaphragm	Heating & Air Conditioning - Control & Air Duct ([08.1985 - ] (8508- )YR20..HRF..E,Q ; (8508- )YR20..HRF ..5F..G ; (8508- )YR20..MRF..08S ,09S ; (8508- )CR2#,3#,KR26,YR21,26,28,3#)
90159-50144	SCREW	Heating & Air Conditioning - Control & Air Duct ([08.1985 - ] (8508- )YR20..HRF..E,Q ; (8508- )YR20..HRF ..5F..G ; (8508- )YR20..MRF..08S ,09S ; (8508- )CR2#,3#,KR26,YR21,26,28,3#)
90159-60125	New Genuine Part	Heating & Air Conditioning - Control & Air Duct ([08.1985 - ] (8508- )YR20..HRF..E,Q ; (8508- )YR20..HRF ..5F..G ; (8508- )YR20..MRF..08S ,09S ; (8508- )CR2#,3#,KR26,YR21,26,28,3#)
90159-60383	SCREW WWASHER	Heating & Air Conditioning - Control & Air Duct ([08.1985 - ] (8508- )YR20..HRF..E,Q ; (8508- )YR20..HRF ..5F..G ; (8508- )YR20..MRF..08S ,09S ; (8508- )CR2#,3#,KR26,YR21,26,28,3#)
90480-12184	New Genuine Part	Heating & Air Conditioning - Control & Air Duct ([08.1985 - ] (8508- )YR20..HRF..E,Q ; (8508- )YR20..HRF ..5F..G ; (8508- )YR20..MRF..08S ,09S ; (8508- )CR2#,3#,KR26,YR21,26,28,3#)
90480-25001	New Genuine Part	Heating & Air Conditioning - Control & Air Duct ([08.1985 - ] (8508- )YR20..HRF..E,Q ; (8508- )YR20..HRF ..5F..G ; (8508- )YR20..MRF..08S ,09S ; (8508- )CR2#,3#,KR26,YR21,26,28,3#)
91651-60614	Bolt	Heating & Air Conditioning - Control & Air Duct ([08.1985 - ] (8508- )YR20..HRF..E,Q ; (8508- )YR20..HRF ..5F..G ; (8508- )YR20..MRF..08S ,09S ; (8508- )CR2#,3#,KR26,YR21,26,28,3#)
91655-40616	Bolt	Heating & Air Conditioning - Control & Air Duct ([08.1985 - ] (8508- )YR20..HRF..E,Q ; (8508- )YR20..HRF ..5F..G ; (8508- )YR20..MRF..08S ,09S ; (8508- )CR2#,3#,KR26,YR21,26,28,3#)
93315-14008	New Genuine Part	Heating & Air Conditioning - Control & Air Duct ([08.1985 - ] (8508- )YR20..HRF..E,Q ; (8508- )YR20..HRF ..5F..G ; (8508- )YR20..MRF..08S ,09S ; (8508- )CR2#,3#,KR26,YR21,26,28,3#)
93385-16012	New Genuine Part	Heating & Air Conditioning - Control & Air Duct ([08.1985 - ] (8508- )YR20..HRF..E,Q ; (8508- )YR20..HRF ..5F..G ; (8508- )YR20..MRF..08S ,09S ; (8508- )CR2#,3#,KR26,YR21,26,28,3#)
93540-15010	SCREW, TAPPING	Heating & Air Conditioning - Control & Air Duct ([08.1985 - ] (8508- )YR20..HRF..E,Q ; (8508- )YR20..HRF ..5F..G ; (8508- )YR20..MRF..08S ,09S ; (8508- )CR2#,3#,KR26,YR21,26,28,3#)
93540-15014	New Genuine Part	Heating & Air Conditioning - Control & Air Duct ([08.1985 - ] (8508- )YR20..HRF..E,Q ; (8508- )YR20..HRF ..5F..G ; (8508- )YR20..MRF..08S ,09S ; (8508- )CR2#,3#,KR26,YR21,26,28,3#)
93560-15014	SCREW	Heating & Air Conditioning - Control & Air Duct ([08.1985 - ] (8508- )YR20..HRF..E,Q ; (8508- )YR20..HRF ..5F..G ; (8508- )YR20..MRF..08S ,09S ; (8508- )CR2#,3#,KR26,YR21,26,28,3#)
93567-15012	New Genuine Part	Heating & Air Conditioning - Control & Air Duct ([08.1985 - ] (8508- )YR20..HRF..E,Q ; (8508- )YR20..HRF ..5F..G ; (8508- )YR20..MRF..08S ,09S ; (8508- )CR2#,3#,KR26,YR21,26,28,3#)
93567-15014	Direct	Heating & Air Conditioning - Control & Air Duct ([08.1985 - ] (8508- )YR20..HRF..E,Q ; (8508- )YR20..HRF ..5F..G ; (8508- )YR20..MRF..08S ,09S ; (8508- )CR2#,3#,KR26,YR21,26,28,3#)
93568-55012	SCREW	Heating & Air Conditioning - Control & Air Duct ([08.1985 - ] (8508- )YR20..HRF..E,Q ; (8508- )YR20..HRF ..5F..G ; (8508- )YR20..MRF..08S ,09S ; (8508- )CR2#,3#,KR26,YR21,26,28,3#)
93568-55014	Screw	Heating & Air Conditioning - Control & Air Duct ([08.1985 - ] (8508- )YR20..HRF..E,Q ; (8508- )YR20..HRF ..5F..G ; (8508- )YR20..MRF..08S ,09S ; (8508- )CR2#,3#,KR26,YR21,26,28,3#)
