YN87

Toyota HILUX-4RUNNER-TRUCK · 1988 · 3,104 parts · 174 categories

3,104 items

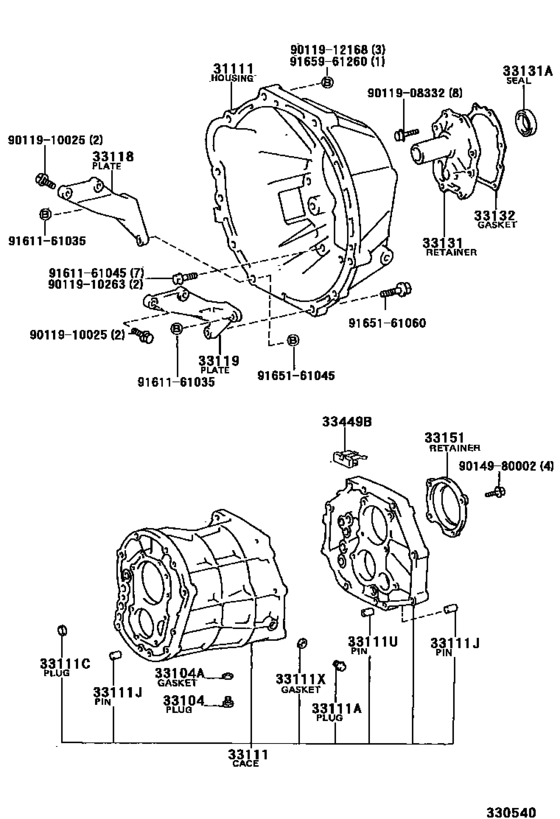

Clutch Housing & Transmission Case (Mtm) ([08.1988 - 08.1991] G5# (8808-9008)YN81,86..STD ; (8808-9108)YN81,85,86, 87,92..5F ; (9108-9909)YN80,85..GEN ; (9108-9909)YN8 5..RHD..5F ; (9108-9909)YN80,81,86,9#..5F) 31

#	OEM	Part name
31111	31111-30180	Housing, Clutch
33104	90341-18057	Drain Plug (with Magnet)
33104	90430-18008	Gasket
33104	90430-T0021	Gasket(For Manual Transmission Filler Plug)
33111	33101-35050	Case, Manual Transmission
33111	33101-71020	Case, Manual Transmission
33111	90341-18006	Plug (No magnet)
33111	90331-14004	Plug, Manual Transmission Case
33111	90250-12002	Pin, Straight(For Manual Transmission Case)
33111	90253-15001	Pin, Straight(For Clutch Housing Set)
33118	33118-28010	Plate, Stiffener, Rh(Mtm)
33119	33119-28010	Plate, Stiffener, Lh(Mtm)
33131	33131-26020	Retainer, Bearing, Front(Mtm)
33131	90311-30010	Seal, Oil(For Transmission Front Bearing Retainer)
33131	90311-30014	Seal, Oil(For Transmission Front Bearing Retainer)
33132	33132-28010	Gasket, Front Bearing Retainer(Mtm)
33151	33151-35030	Retainer, Output Shaft Rear Bearing(Mtm)
33449	33449-26010	Magnet, Transmission
9011908332	90119-08332	Bolt(For Manual Transmission Oil Pump Cover)
9011910025	90119-10025	Bolt (For Transmission Control Cable Bracket)
9011910025	91612-61030	Bolt (For Transmission Control Cable Bracket)
9011910263	90119-10263	New Genuine Part
9011910263	91651-61045	BOLT
9011912168	90119-12168	Bolt(For Transaxle & Engine Setting)
9014980002	90149-80002	BOLT
9161161035	91611-61035	BOLT
9161161035	91612-61035	Bolt(For Hybrid Vehicle Transaxle & Engine Setting)
9161161045	91611-61045	Bolt, Hexagon(For Idle Gear Bolt Lock)
9161161045	91612-61045	Bolt(For Transaxle & Engine Setting)
9165161060	91651-61060	New Genuine Part
9165961260	91659-61260	Bolt(For Transaxle & Engine Setting)

OEM	Part name	Category
31111-30180	Housing, Clutch	Clutch Housing & Transmission Case (Mtm) ([08.1988 - 08.1991] G5# (8808-9008)YN81,86..STD ; (8808-9108)YN81,85,86, 87,92..5F ; (9108-9909)YN80,85..GEN ; (9108-9909)YN8 5..RHD..5F ; (9108-9909)YN80,81,86,9#..5F)
33101-35050	Case, Manual Transmission	Clutch Housing & Transmission Case (Mtm) ([08.1988 - 08.1991] G5# (8808-9008)YN81,86..STD ; (8808-9108)YN81,85,86, 87,92..5F ; (9108-9909)YN80,85..GEN ; (9108-9909)YN8 5..RHD..5F ; (9108-9909)YN80,81,86,9#..5F)
33101-71020	Case, Manual Transmission	Clutch Housing & Transmission Case (Mtm) ([08.1988 - 08.1991] G5# (8808-9008)YN81,86..STD ; (8808-9108)YN81,85,86, 87,92..5F ; (9108-9909)YN80,85..GEN ; (9108-9909)YN8 5..RHD..5F ; (9108-9909)YN80,81,86,9#..5F)
33118-28010	Plate, Stiffener, Rh(Mtm)	Clutch Housing & Transmission Case (Mtm) ([08.1988 - 08.1991] G5# (8808-9008)YN81,86..STD ; (8808-9108)YN81,85,86, 87,92..5F ; (9108-9909)YN80,85..GEN ; (9108-9909)YN8 5..RHD..5F ; (9108-9909)YN80,81,86,9#..5F)
33119-28010	Plate, Stiffener, Lh(Mtm)	Clutch Housing & Transmission Case (Mtm) ([08.1988 - 08.1991] G5# (8808-9008)YN81,86..STD ; (8808-9108)YN81,85,86, 87,92..5F ; (9108-9909)YN80,85..GEN ; (9108-9909)YN8 5..RHD..5F ; (9108-9909)YN80,81,86,9#..5F)
33131-26020	Retainer, Bearing, Front(Mtm)	Clutch Housing & Transmission Case (Mtm) ([08.1988 - 08.1991] G5# (8808-9008)YN81,86..STD ; (8808-9108)YN81,85,86, 87,92..5F ; (9108-9909)YN80,85..GEN ; (9108-9909)YN8 5..RHD..5F ; (9108-9909)YN80,81,86,9#..5F)
33132-28010	Gasket, Front Bearing Retainer(Mtm)	Clutch Housing & Transmission Case (Mtm) ([08.1988 - 08.1991] G5# (8808-9008)YN81,86..STD ; (8808-9108)YN81,85,86, 87,92..5F ; (9108-9909)YN80,85..GEN ; (9108-9909)YN8 5..RHD..5F ; (9108-9909)YN80,81,86,9#..5F)
33151-35030	Retainer, Output Shaft Rear Bearing(Mtm)	Clutch Housing & Transmission Case (Mtm) ([08.1988 - 08.1991] G5# (8808-9008)YN81,86..STD ; (8808-9108)YN81,85,86, 87,92..5F ; (9108-9909)YN80,85..GEN ; (9108-9909)YN8 5..RHD..5F ; (9108-9909)YN80,81,86,9#..5F)
33449-26010	Magnet, Transmission	Clutch Housing & Transmission Case (Mtm) ([08.1988 - 08.1991] G5# (8808-9008)YN81,86..STD ; (8808-9108)YN81,85,86, 87,92..5F ; (9108-9909)YN80,85..GEN ; (9108-9909)YN8 5..RHD..5F ; (9108-9909)YN80,81,86,9#..5F)
90119-08332	Bolt(For Manual Transmission Oil Pump Cover)	Clutch Housing & Transmission Case (Mtm) ([08.1988 - 08.1991] G5# (8808-9008)YN81,86..STD ; (8808-9108)YN81,85,86, 87,92..5F ; (9108-9909)YN80,85..GEN ; (9108-9909)YN8 5..RHD..5F ; (9108-9909)YN80,81,86,9#..5F)
90119-10025	Bolt (For Transmission Control Cable Bracket)	Clutch Housing & Transmission Case (Mtm) ([08.1988 - 08.1991] G5# (8808-9008)YN81,86..STD ; (8808-9108)YN81,85,86, 87,92..5F ; (9108-9909)YN80,85..GEN ; (9108-9909)YN8 5..RHD..5F ; (9108-9909)YN80,81,86,9#..5F)
90119-10263	New Genuine Part	Clutch Housing & Transmission Case (Mtm) ([08.1988 - 08.1991] G5# (8808-9008)YN81,86..STD ; (8808-9108)YN81,85,86, 87,92..5F ; (9108-9909)YN80,85..GEN ; (9108-9909)YN8 5..RHD..5F ; (9108-9909)YN80,81,86,9#..5F)
90119-12168	Bolt(For Transaxle & Engine Setting)	Clutch Housing & Transmission Case (Mtm) ([08.1988 - 08.1991] G5# (8808-9008)YN81,86..STD ; (8808-9108)YN81,85,86, 87,92..5F ; (9108-9909)YN80,85..GEN ; (9108-9909)YN8 5..RHD..5F ; (9108-9909)YN80,81,86,9#..5F)
90149-80002	BOLT	Clutch Housing & Transmission Case (Mtm) ([08.1988 - 08.1991] G5# (8808-9008)YN81,86..STD ; (8808-9108)YN81,85,86, 87,92..5F ; (9108-9909)YN80,85..GEN ; (9108-9909)YN8 5..RHD..5F ; (9108-9909)YN80,81,86,9#..5F)
90250-12002	Pin, Straight(For Manual Transmission Case)	Clutch Housing & Transmission Case (Mtm) ([08.1988 - 08.1991] G5# (8808-9008)YN81,86..STD ; (8808-9108)YN81,85,86, 87,92..5F ; (9108-9909)YN80,85..GEN ; (9108-9909)YN8 5..RHD..5F ; (9108-9909)YN80,81,86,9#..5F)
90253-15001	Pin, Straight(For Clutch Housing Set)	Clutch Housing & Transmission Case (Mtm) ([08.1988 - 08.1991] G5# (8808-9008)YN81,86..STD ; (8808-9108)YN81,85,86, 87,92..5F ; (9108-9909)YN80,85..GEN ; (9108-9909)YN8 5..RHD..5F ; (9108-9909)YN80,81,86,9#..5F)
90311-30010	Seal, Oil(For Transmission Front Bearing Retainer)	Clutch Housing & Transmission Case (Mtm) ([08.1988 - 08.1991] G5# (8808-9008)YN81,86..STD ; (8808-9108)YN81,85,86, 87,92..5F ; (9108-9909)YN80,85..GEN ; (9108-9909)YN8 5..RHD..5F ; (9108-9909)YN80,81,86,9#..5F)
90311-30014	Seal, Oil(For Transmission Front Bearing Retainer)	Clutch Housing & Transmission Case (Mtm) ([08.1988 - 08.1991] G5# (8808-9008)YN81,86..STD ; (8808-9108)YN81,85,86, 87,92..5F ; (9108-9909)YN80,85..GEN ; (9108-9909)YN8 5..RHD..5F ; (9108-9909)YN80,81,86,9#..5F)
90331-14004	Plug, Manual Transmission Case	Clutch Housing & Transmission Case (Mtm) ([08.1988 - 08.1991] G5# (8808-9008)YN81,86..STD ; (8808-9108)YN81,85,86, 87,92..5F ; (9108-9909)YN80,85..GEN ; (9108-9909)YN8 5..RHD..5F ; (9108-9909)YN80,81,86,9#..5F)
90341-18006	Plug (No magnet)	Clutch Housing & Transmission Case (Mtm) ([08.1988 - 08.1991] G5# (8808-9008)YN81,86..STD ; (8808-9108)YN81,85,86, 87,92..5F ; (9108-9909)YN80,85..GEN ; (9108-9909)YN8 5..RHD..5F ; (9108-9909)YN80,81,86,9#..5F)
90341-18057	Drain Plug (with Magnet)	Clutch Housing & Transmission Case (Mtm) ([08.1988 - 08.1991] G5# (8808-9008)YN81,86..STD ; (8808-9108)YN81,85,86, 87,92..5F ; (9108-9909)YN80,85..GEN ; (9108-9909)YN8 5..RHD..5F ; (9108-9909)YN80,81,86,9#..5F)
90430-18008	Gasket	Clutch Housing & Transmission Case (Mtm) ([08.1988 - 08.1991] G5# (8808-9008)YN81,86..STD ; (8808-9108)YN81,85,86, 87,92..5F ; (9108-9909)YN80,85..GEN ; (9108-9909)YN8 5..RHD..5F ; (9108-9909)YN80,81,86,9#..5F)
90430-T0021	Gasket(For Manual Transmission Filler Plug)	Clutch Housing & Transmission Case (Mtm) ([08.1988 - 08.1991] G5# (8808-9008)YN81,86..STD ; (8808-9108)YN81,85,86, 87,92..5F ; (9108-9909)YN80,85..GEN ; (9108-9909)YN8 5..RHD..5F ; (9108-9909)YN80,81,86,9#..5F)
91611-61035	BOLT	Clutch Housing & Transmission Case (Mtm) ([08.1988 - 08.1991] G5# (8808-9008)YN81,86..STD ; (8808-9108)YN81,85,86, 87,92..5F ; (9108-9909)YN80,85..GEN ; (9108-9909)YN8 5..RHD..5F ; (9108-9909)YN80,81,86,9#..5F)
91611-61045	Bolt, Hexagon(For Idle Gear Bolt Lock)	Clutch Housing & Transmission Case (Mtm) ([08.1988 - 08.1991] G5# (8808-9008)YN81,86..STD ; (8808-9108)YN81,85,86, 87,92..5F ; (9108-9909)YN80,85..GEN ; (9108-9909)YN8 5..RHD..5F ; (9108-9909)YN80,81,86,9#..5F)
91612-61030	Bolt (For Transmission Control Cable Bracket)	Clutch Housing & Transmission Case (Mtm) ([08.1988 - 08.1991] G5# (8808-9008)YN81,86..STD ; (8808-9108)YN81,85,86, 87,92..5F ; (9108-9909)YN80,85..GEN ; (9108-9909)YN8 5..RHD..5F ; (9108-9909)YN80,81,86,9#..5F)
91612-61035	Bolt(For Hybrid Vehicle Transaxle & Engine Setting)	Clutch Housing & Transmission Case (Mtm) ([08.1988 - 08.1991] G5# (8808-9008)YN81,86..STD ; (8808-9108)YN81,85,86, 87,92..5F ; (9108-9909)YN80,85..GEN ; (9108-9909)YN8 5..RHD..5F ; (9108-9909)YN80,81,86,9#..5F)
91612-61045	Bolt(For Transaxle & Engine Setting)	Clutch Housing & Transmission Case (Mtm) ([08.1988 - 08.1991] G5# (8808-9008)YN81,86..STD ; (8808-9108)YN81,85,86, 87,92..5F ; (9108-9909)YN80,85..GEN ; (9108-9909)YN8 5..RHD..5F ; (9108-9909)YN80,81,86,9#..5F)
91651-61045	BOLT	Clutch Housing & Transmission Case (Mtm) ([08.1988 - 08.1991] G5# (8808-9008)YN81,86..STD ; (8808-9108)YN81,85,86, 87,92..5F ; (9108-9909)YN80,85..GEN ; (9108-9909)YN8 5..RHD..5F ; (9108-9909)YN80,81,86,9#..5F)
91651-61060	New Genuine Part	Clutch Housing & Transmission Case (Mtm) ([08.1988 - 08.1991] G5# (8808-9008)YN81,86..STD ; (8808-9108)YN81,85,86, 87,92..5F ; (9108-9909)YN80,85..GEN ; (9108-9909)YN8 5..RHD..5F ; (9108-9909)YN80,81,86,9#..5F)
91659-61260	Bolt(For Transaxle & Engine Setting)	Clutch Housing & Transmission Case (Mtm) ([08.1988 - 08.1991] G5# (8808-9008)YN81,86..STD ; (8808-9108)YN81,85,86, 87,92..5F ; (9108-9909)YN80,85..GEN ; (9108-9909)YN8 5..RHD..5F ; (9108-9909)YN80,81,86,9#..5F)
