YN65

Toyota HILUX-4RUNNER-TRUCK · 1983 · 4,870 parts · 310 categories
YN65 ×

← Back to categories

4,870 items

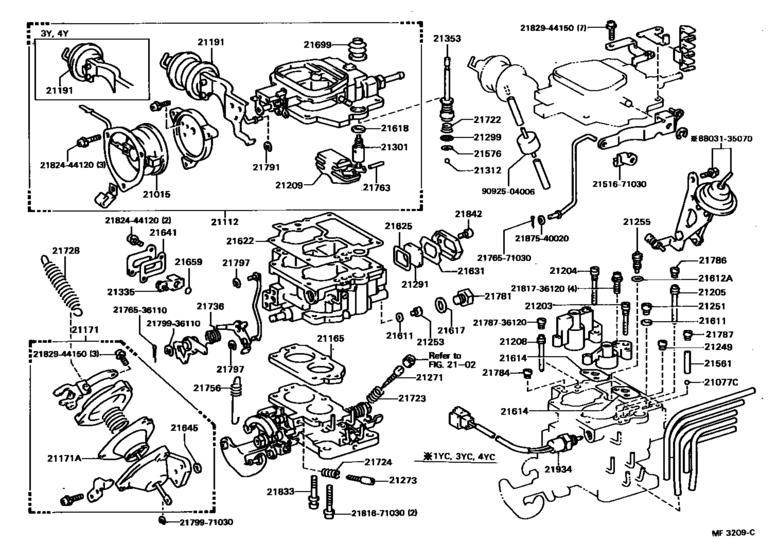

Carburetor ([08.1983 - 08.1986] (8308-8608)1YC,2Y,3Y..YN55,56,57,60,65..ARL,EUR ; (8508-8608)4Y ; (8608-8708)1YC,3Y ,4Y..YN55,57,6#.. ARL) 83
#OEMPart name
21015 21141-71060 Housing Sub-Assy, Coil
21015 21141-71090 Housing Sub-Assy, Coil
21077 21312-40020 Ball, Steel(For Auxiliary Acceleration Pump)
21112 21012-71060 Horn, Air
21165 21106-71030 Insulator
21165 21106-72250 Insulator
21165 21106-73150 Insulator
21165 21106-73340 Insulator
21171 21171-71030 Chamber, Diaphragm
21171 21173-71030 Diaphragm(For Didphragm Chamber)
21191 21039-71030 Opener
21203 21203-71030 Bleeder Sub-Assy, 1St Main Air
21203 21203-72210 Bleeder Sub-Assy, 1St Main Air
21204 21204-71030 Bleeder Sub-Assy, 2Nd Main Air
21204 21204-73190 Bleeder Sub-Assy, 2Nd Main Air
21205 21205-34400 Jet Sub-Assy, Slow
21205 21205-73220 Jet Sub-Assy, Slow
21208 21205-73190 Jet Sub-Assy, Step
21208 21208-44310 Jet Sub-Assy, Step
21209 21209-73110 Float Sub-Assy
21249 21249-71030 Jet, Air Bleed, No.2
21251 21244-71050 Jet, 1St Main
21251 21251-72210 Jet, 1St Main
21253 21253-71030 Jet, 2Nd Main
21253 21253-73140 Jet, 2Nd Main
21255 21302-71030 Jet, Power
21271 21207-34420 Screw, Idle Adjusting
21273 21272-71030 Screw, Throttle Adjusting
21291 21291-36120 Glass, Level Gage
21299 21299-31030 Net, Pump Filter
21301 21301-71030 Valve Sub-Assy, Needle
21335 21038-71030 Valve, Thermostatic
21353 21305-71030 Plunger, Pump
21561 21561-71030 Weight, Pump Discharge
21576 21576-31030 Clip, Pump Strainer
21611 21611-40021 Gasket, Main Jet
21612 21612-31100 Gasket, Power Valve
21614 21614-71030 Gasket, Venturi
21614 21614-72250 Gasket, Venturi
21617 21633-44150 Gasket, Main Passage Plug
21618 21637-71030 Gasket, Needle Valve Seat
21622 21622-71030 Gasket, Air Horn
21622 21622-71060 Gasket, Air Horn
21625 21625-36120 Gasket, Level Gage
21631 21631-36120 Gasket, Main Guide
21641 21626-71030 Gasket(For Thermostatic Valve Cover)
21645 21638-71030 Gasket, Diaphragm, Cap
21659 21655-31100 Ring, O(For Thermostatic Valve)
21699 21656-71030 Boot(For Pump Plunger)
21722 21735-71030 Spring, Pump Damping
21723 21723-30030 Spring, Idle Adjusting
21724 21723-71030 Spring, Throttle Adjusting
21728 21728-71030 Spring, Throttle Valve Return
21728 21728-73190 Spring, Throttle Valve Return
21736 21748-36110 Spring, 1St Idle Cam
21756 21727-71030 Spring, Back(For Throttle Shaft)
21756 21727-73190 Spring, Back(For Throttle Shaft)
21763 21768-73110 Pin, Float Lever
21781 21776-44310 Plug, Main Passage(For Carburetor Jet)
21784 21249-73190 Plug, Slow Passage
21784 21787-36120 Plug, Slow Passage
21787 21776-71030 Plug, Pump Jet
21787 21776-73190 Plug, Pump Jet
21791 21797-44050 Ring, Snap, No.1(For Carburetor Link)
21833 21804-71030 Screw, Set, No.1(For Carburetor Body Set)
21833 21804-73150 Screw, Set, No.1(For Carburetor Body Set)
21842 21832-36120 Screw, Set(For Carburetor Level Gage Clamp Set)
21934 21391-71030 Solenoid, Throttle Valve
21934 21391-71070 Solenoid, Throttle Valve
21934 21391-73150 Solenoid, Throttle Valve
21934 21391-71071 Solenoid, Throttle Valve
2151671030 21516-71030 Clamp, Connector
2176536110 21765-36110 Pin(for Pump Plunger)
2176571030 21765-71030 Pin(for Pump Plunger)
2179936110 21799-36110 Ring, E, Top
2179971030 21799-71030 Ring, E, Top
2181671030 21816-71030 Screw, Small Venturi Set, No.1
2181736120 21817-36120 New Genuine Part
2182444120 21824-44120 Screw, Set(for 1st Idle Cam Follower Set)
2182944150 21829-44150 Screw, High Speed Valve Set
2187540020 21875-40020 Washer, Throttle Opener Arm
8803135070 88031-35070 Actuator Set, Idle-Up
9092504006 90925-04006 Jet(For Opener)
