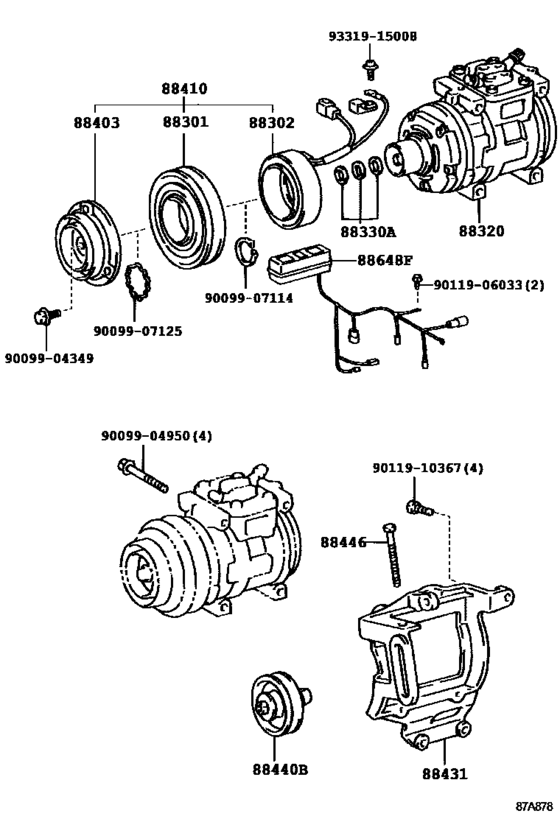

| 88320-22H91 |
Compressor Assy, Cooler |
Heating & Air Conditioning - Compressor ([09.1988 - ] (8809- )YN10#,130,8#) |
| 88320-35380 |
Compressor Assy, Cooler |
Heating & Air Conditioning - Compressor ([09.1988 - ] (8809- )YN10#,130,8#) |
| 88403-16011 |
Hub Sub-Assy, Magnet Clutch |
Heating & Air Conditioning - Compressor ([09.1988 - ] (8809- )YN10#,130,8#) |
| 88410-35140 |
Clutch Assy, Magnet |
Heating & Air Conditioning - Compressor ([09.1988 - ] (8809- )YN10#,130,8#) |
| 88411-35020 |
Stator Sub-Assy, Magnet Clutch |
Heating & Air Conditioning - Compressor ([09.1988 - ] (8809- )YN10#,130,8#) |
| 88411-3A010 |
Stator Sub-Assy, Magnet Clutch |
Heating & Air Conditioning - Compressor ([09.1988 - ] (8809- )YN10#,130,8#) |
| 88412-35040 |
Rotor Sub-Assy, Magnet Clutch |
Heating & Air Conditioning - Compressor ([09.1988 - ] (8809- )YN10#,130,8#) |
| 88431-35160 |
Bracket, Compressor Mounting, No.1 |
Heating & Air Conditioning - Compressor ([09.1988 - ] (8809- )YN10#,130,8#) |
| 88440-35020 |
Pulley Assy, Idle |
Heating & Air Conditioning - Compressor ([09.1988 - ] (8809- )YN10#,130,8#) |
| 88440-35040 |
Pulley Assy, Idle |
Heating & Air Conditioning - Compressor ([09.1988 - ] (8809- )YN10#,130,8#) |
| 88446-35030 |
Bolt, Idle Pulley |
Heating & Air Conditioning - Compressor ([09.1988 - ] (8809- )YN10#,130,8#) |
| 88648-89137 |
Wire, Magnet Clutch |
Heating & Air Conditioning - Compressor ([09.1988 - ] (8809- )YN10#,130,8#) |
| 90099-04349 |
Bolt, Magnet Clutch Setting |
Heating & Air Conditioning - Compressor ([09.1988 - ] (8809- )YN10#,130,8#) |
| 90099-04950 |
BOLT |
Heating & Air Conditioning - Compressor ([09.1988 - ] (8809- )YN10#,130,8#) |
| 90099-07114 |
Ring, Snap (For Magnet Clutch) |
Heating & Air Conditioning - Compressor ([09.1988 - ] (8809- )YN10#,130,8#) |
| 90099-07125 |
Ring, Snap |
Heating & Air Conditioning - Compressor ([09.1988 - ] (8809- )YN10#,130,8#) |
| 90119-06033 |
Bolt |
Heating & Air Conditioning - Compressor ([09.1988 - ] (8809- )YN10#,130,8#) |
| 90119-06157 |
Bolt |
Heating & Air Conditioning - Compressor ([09.1988 - ] (8809- )YN10#,130,8#) |
| 90119-10367 |
BOLT |
Heating & Air Conditioning - Compressor ([09.1988 - ] (8809- )YN10#,130,8#) |
| 93319-15008 |
SCREW |
Heating & Air Conditioning - Compressor ([09.1988 - ] (8809- )YN10#,130,8#) |
