YM60

Toyota LITE-TOWNACE · 1986 · 4,423 parts · 210 categories

← Back to categories

4,423 items

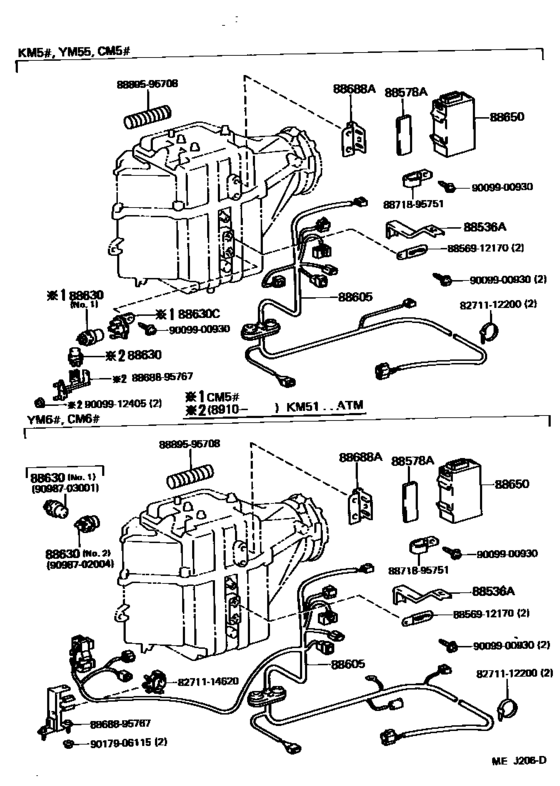

Heating & Air Conditioning - Cooler Unit ([10.1986 - ] (8610- )) 19

#	OEM	Part name
88536	88688-27080	Bracket, Cooling Unit, No.2
88536	88688-95774	Bracket, Cooling Unit, No.2
88578	88578-95703	Packing, Cooler Stabilizer Amplifier
88605	88605-27100	Harness Sub-Assy, Cooler Wiring, No.1
88605	88605-27130	Harness Sub-Assy, Cooler Wiring, No.1
88605	88605-95735	Harness Sub-Assy, Cooler Wiring, No.1
88630	90987-02004	Relay Assy, Starter
88650	88650-87101	Amplifier Assy, Cooler Stabilizer
88688	88688-14080	Bracket, Cooler Stabilizer Amplifier
8271112200	82711-12200	Clamp (For Fuel Lid Lock Control Cable)
8271114620	82711-14620	Bracket, Relay, No.3
8856912170	88569-12170	Clamp (for Cooler Relay)
8868895767	88688-95767	Bracket, Cooler Relay
8871895751	88718-95751	Pipe, Cooler Refrigerant Suction, No.2
8889595708	88895-95708	Insulator, Hose (For Idle Up Device)
9009900930	90099-00930	New Genuine Part
9009912405	90099-12405	New Genuine Part
9017906115	90179-06115	Nut (For Rear Wiper Arm Setting)
9098703001	90987-03001	Relay

OEM	Part name	Category
82711-12200	Clamp (For Fuel Lid Lock Control Cable)	Heating & Air Conditioning - Cooler Unit ([10.1986 - ] (8610- ))
82711-14620	Bracket, Relay, No.3	Heating & Air Conditioning - Cooler Unit ([10.1986 - ] (8610- ))
88569-12170	Clamp (for Cooler Relay)	Heating & Air Conditioning - Cooler Unit ([10.1986 - ] (8610- ))
88578-95703	Packing, Cooler Stabilizer Amplifier	Heating & Air Conditioning - Cooler Unit ([10.1986 - ] (8610- ))
88605-27100	Harness Sub-Assy, Cooler Wiring, No.1	Heating & Air Conditioning - Cooler Unit ([10.1986 - ] (8610- ))
88605-27130	Harness Sub-Assy, Cooler Wiring, No.1	Heating & Air Conditioning - Cooler Unit ([10.1986 - ] (8610- ))
88605-95735	Harness Sub-Assy, Cooler Wiring, No.1	Heating & Air Conditioning - Cooler Unit ([10.1986 - ] (8610- ))
88650-87101	Amplifier Assy, Cooler Stabilizer	Heating & Air Conditioning - Cooler Unit ([10.1986 - ] (8610- ))
88688-14080	Bracket, Cooler Stabilizer Amplifier	Heating & Air Conditioning - Cooler Unit ([10.1986 - ] (8610- ))
88688-27080	Bracket, Cooling Unit, No.2	Heating & Air Conditioning - Cooler Unit ([10.1986 - ] (8610- ))
88688-95767	Bracket, Cooler Relay	Heating & Air Conditioning - Cooler Unit ([10.1986 - ] (8610- ))
88688-95774	Bracket, Cooling Unit, No.2	Heating & Air Conditioning - Cooler Unit ([10.1986 - ] (8610- ))
88718-95751	Pipe, Cooler Refrigerant Suction, No.2	Heating & Air Conditioning - Cooler Unit ([10.1986 - ] (8610- ))
88895-95708	Insulator, Hose (For Idle Up Device)	Heating & Air Conditioning - Cooler Unit ([10.1986 - ] (8610- ))
90099-00930	New Genuine Part	Heating & Air Conditioning - Cooler Unit ([10.1986 - ] (8610- ))
90099-12405	New Genuine Part	Heating & Air Conditioning - Cooler Unit ([10.1986 - ] (8610- ))
90179-06115	Nut (For Rear Wiper Arm Setting)	Heating & Air Conditioning - Cooler Unit ([10.1986 - ] (8610- ))
90987-02004	Relay Assy, Starter	Heating & Air Conditioning - Cooler Unit ([10.1986 - ] (8610- ))
90987-03001	Relay	Heating & Air Conditioning - Cooler Unit ([10.1986 - ] (8610- ))

Source: Public OEM parts-catalog data
