Search › Model › YM20

YM20

Toyota LITEACE · 1984 · 2,909 parts · 147 categories

2,909 items

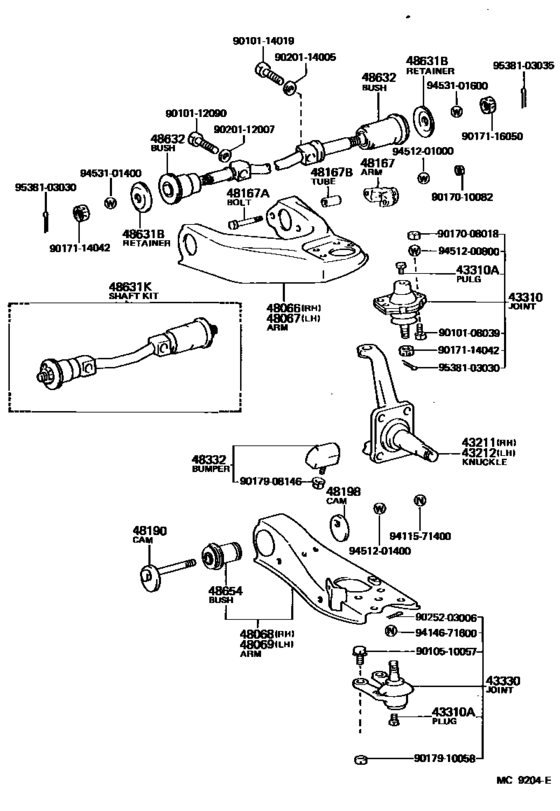

Front Axle Arm & Steering Knuckle ([10.1982 - ] (8210- )) 59

#	OEM	Part name
43211	43211-28020	Knuckle, Steering, Rh
43211	43211-28021	Knuckle, Steering, Rh
43310	43350-29036	Joint Assy, Upper Ball
43310	43350-29076	Joint Assy, Upper Ball
43310	43360-29056	Joint Assy, Upper Ball
43310	90345-06014	Plug (For Ball Joint)
43330	43330-29115	Joint Assy, Lower Ball, Front
43330	43330-29545	Joint Assy, Lower Ball, Front
43330	43340-29095	Joint Assy, Lower Ball, Front
48066	48601-28010	Arm Sub-Assy, Front Suspension, Upper Rh
48066	48601-28011	Arm Sub-Assy, Front Suspension, Upper Rh
48067	48602-28010	Arm Sub-Assy, Front Suspension, Upper Lh
48067	48602-28011	Arm Sub-Assy, Front Suspension, Upper Lh
48068	48068-28020	Arm Sub-Assy, Front Suspension, Lower No.1 Rh
48069	48069-28020	Arm Sub-Assy, Front Suspension, Lower No.1 Lh
48167	48106-28010	Arm, Torque
48167	91121-71085	Bolt(For Torque Arm Setting)
48167	90440-17029	Tube(For Torque Arm Setting Bolt)
48190	48190-20010	Cam Assy, Camber Adjust
48190	90179-14046	Nut
48190	48190-27020	Cam Assy, Camber Adjust
48198	48198-20010	Cam, Camber Adjust, No.2
48198	48198-27010	Cam, Camber Adjust, No.2
48332	48305-39015	Bumper, Front Spring, No.1
48332	48305-30030	Bumper Sub-Assy, Front Spring, No.2
48631	90948-02048	Retainer, Cushion(For Front Suspension Upper Arm)
48631	90948-02049	Retainer, Cushion(For Front Suspension Upper Arm)
48631	04485-28020	Shaft Kit, Upper Suspension Arm
48632	48632-27010	Bush, Upper Arm
48632	48632-30040	Bush, Upper Arm
48632	48635-28010	Bush, Upper Arm
48654	48061-28010	Bush, Lower Arm
48654	48061-28021	Bush, Lower Arm
9010108039	90101-08039	Bolt (For Propeller Shaft)
9010112090	90101-12090	New Genuine Part
9010114019	90101-14019	New Genuine Part
9010510057	90105-10057	Bolt (For Front Lower Ball Joint)
9017008018	90170-08018	Nut, No.1 (For Propeller Shaft & Differential Setting)
9017008018	90170-08015	Nut, No.1 (For Propeller Shaft & Differential Setting)
9017010082	90170-10082	Nut, Hexagon (For Control Rod Setting)
9017114042	90171-14042	Nut, Castle(For Pitman Arm)
9017116050	90171-16050	Nut, Castle (For Front Lower Ball Joint Setting)
9017908146	90179-08146	Nut
9017908146	90179-08204	Nut
9017910058	90179-10058	NUT
9017910058	90179-10213	NUT W/WASHER
9020112007	90201-12007	Washer, Spring(For Rear Differential Case)
9020114005	90201-14005	Washer, Plate
9025203006	90252-03006	New Genuine Part
9411571400	94115-71400	Nut, Timer Round
9411571400	94130-01402	Nut, Timer Round
9414671600	94146-71600	Nut, Castle (For Front Lower Ball Joint Setting)
9451200800	94512-00800	Washer, No.1 (For Propeller Shaft & Differential Setting)
9451201000	94512-01000	Washer, No.1 (For Propeller Shaft & Differential Setting)
9451201400	94512-01400	Washer(For Rear Spring U Bolt)
9453101400	94531-01400	New Genuine Part
9453101600	94531-01600	WASHER
9538103030	95381-03030	New Genuine Part
9538103035	95381-03035	New Genuine Part

OEM	Part name	Category
04485-28020	Shaft Kit, Upper Suspension Arm	Front Axle Arm & Steering Knuckle ([10.1982 - ] (8210- ))
43211-28020	Knuckle, Steering, Rh	Front Axle Arm & Steering Knuckle ([10.1982 - ] (8210- ))
43211-28021	Knuckle, Steering, Rh	Front Axle Arm & Steering Knuckle ([10.1982 - ] (8210- ))
43330-29115	Joint Assy, Lower Ball, Front	Front Axle Arm & Steering Knuckle ([10.1982 - ] (8210- ))
43330-29545	Joint Assy, Lower Ball, Front	Front Axle Arm & Steering Knuckle ([10.1982 - ] (8210- ))
43340-29095	Joint Assy, Lower Ball, Front	Front Axle Arm & Steering Knuckle ([10.1982 - ] (8210- ))
43350-29036	Joint Assy, Upper Ball	Front Axle Arm & Steering Knuckle ([10.1982 - ] (8210- ))
43350-29076	Joint Assy, Upper Ball	Front Axle Arm & Steering Knuckle ([10.1982 - ] (8210- ))
43360-29056	Joint Assy, Upper Ball	Front Axle Arm & Steering Knuckle ([10.1982 - ] (8210- ))
48061-28010	Bush, Lower Arm	Front Axle Arm & Steering Knuckle ([10.1982 - ] (8210- ))
48061-28021	Bush, Lower Arm	Front Axle Arm & Steering Knuckle ([10.1982 - ] (8210- ))
48068-28020	Arm Sub-Assy, Front Suspension, Lower No.1 Rh	Front Axle Arm & Steering Knuckle ([10.1982 - ] (8210- ))
48069-28020	Arm Sub-Assy, Front Suspension, Lower No.1 Lh	Front Axle Arm & Steering Knuckle ([10.1982 - ] (8210- ))
48106-28010	Arm, Torque	Front Axle Arm & Steering Knuckle ([10.1982 - ] (8210- ))
48190-20010	Cam Assy, Camber Adjust	Front Axle Arm & Steering Knuckle ([10.1982 - ] (8210- ))
48190-27020	Cam Assy, Camber Adjust	Front Axle Arm & Steering Knuckle ([10.1982 - ] (8210- ))
48198-20010	Cam, Camber Adjust, No.2	Front Axle Arm & Steering Knuckle ([10.1982 - ] (8210- ))
48198-27010	Cam, Camber Adjust, No.2	Front Axle Arm & Steering Knuckle ([10.1982 - ] (8210- ))
48305-30030	Bumper Sub-Assy, Front Spring, No.2	Front Axle Arm & Steering Knuckle ([10.1982 - ] (8210- ))
48305-39015	Bumper, Front Spring, No.1	Front Axle Arm & Steering Knuckle ([10.1982 - ] (8210- ))
48601-28010	Arm Sub-Assy, Front Suspension, Upper Rh	Front Axle Arm & Steering Knuckle ([10.1982 - ] (8210- ))
48601-28011	Arm Sub-Assy, Front Suspension, Upper Rh	Front Axle Arm & Steering Knuckle ([10.1982 - ] (8210- ))
48602-28010	Arm Sub-Assy, Front Suspension, Upper Lh	Front Axle Arm & Steering Knuckle ([10.1982 - ] (8210- ))
48602-28011	Arm Sub-Assy, Front Suspension, Upper Lh	Front Axle Arm & Steering Knuckle ([10.1982 - ] (8210- ))
48632-27010	Bush, Upper Arm	Front Axle Arm & Steering Knuckle ([10.1982 - ] (8210- ))
48632-30040	Bush, Upper Arm	Front Axle Arm & Steering Knuckle ([10.1982 - ] (8210- ))
48635-28010	Bush, Upper Arm	Front Axle Arm & Steering Knuckle ([10.1982 - ] (8210- ))
90101-08039	Bolt (For Propeller Shaft)	Front Axle Arm & Steering Knuckle ([10.1982 - ] (8210- ))
90101-12090	New Genuine Part	Front Axle Arm & Steering Knuckle ([10.1982 - ] (8210- ))
90101-14019	New Genuine Part	Front Axle Arm & Steering Knuckle ([10.1982 - ] (8210- ))
90105-10057	Bolt (For Front Lower Ball Joint)	Front Axle Arm & Steering Knuckle ([10.1982 - ] (8210- ))
90170-08015	Nut, No.1 (For Propeller Shaft & Differential Setting)	Front Axle Arm & Steering Knuckle ([10.1982 - ] (8210- ))
90170-08018	Nut, No.1 (For Propeller Shaft & Differential Setting)	Front Axle Arm & Steering Knuckle ([10.1982 - ] (8210- ))
90170-10082	Nut, Hexagon (For Control Rod Setting)	Front Axle Arm & Steering Knuckle ([10.1982 - ] (8210- ))
90171-14042	Nut, Castle(For Pitman Arm)	Front Axle Arm & Steering Knuckle ([10.1982 - ] (8210- ))
90171-16050	Nut, Castle (For Front Lower Ball Joint Setting)	Front Axle Arm & Steering Knuckle ([10.1982 - ] (8210- ))
90179-08146	Nut	Front Axle Arm & Steering Knuckle ([10.1982 - ] (8210- ))
90179-08204	Nut	Front Axle Arm & Steering Knuckle ([10.1982 - ] (8210- ))
90179-10058	NUT	Front Axle Arm & Steering Knuckle ([10.1982 - ] (8210- ))
90179-10213	NUT W/WASHER	Front Axle Arm & Steering Knuckle ([10.1982 - ] (8210- ))
90179-14046	Nut	Front Axle Arm & Steering Knuckle ([10.1982 - ] (8210- ))
90201-12007	Washer, Spring(For Rear Differential Case)	Front Axle Arm & Steering Knuckle ([10.1982 - ] (8210- ))
90201-14005	Washer, Plate	Front Axle Arm & Steering Knuckle ([10.1982 - ] (8210- ))
90252-03006	New Genuine Part	Front Axle Arm & Steering Knuckle ([10.1982 - ] (8210- ))
90345-06014	Plug (For Ball Joint)	Front Axle Arm & Steering Knuckle ([10.1982 - ] (8210- ))
90440-17029	Tube(For Torque Arm Setting Bolt)	Front Axle Arm & Steering Knuckle ([10.1982 - ] (8210- ))
90948-02048	Retainer, Cushion(For Front Suspension Upper Arm)	Front Axle Arm & Steering Knuckle ([10.1982 - ] (8210- ))
90948-02049	Retainer, Cushion(For Front Suspension Upper Arm)	Front Axle Arm & Steering Knuckle ([10.1982 - ] (8210- ))
91121-71085	Bolt(For Torque Arm Setting)	Front Axle Arm & Steering Knuckle ([10.1982 - ] (8210- ))
94115-71400	Nut, Timer Round	Front Axle Arm & Steering Knuckle ([10.1982 - ] (8210- ))
94130-01402	Nut, Timer Round	Front Axle Arm & Steering Knuckle ([10.1982 - ] (8210- ))
94146-71600	Nut, Castle (For Front Lower Ball Joint Setting)	Front Axle Arm & Steering Knuckle ([10.1982 - ] (8210- ))
94512-00800	Washer, No.1 (For Propeller Shaft & Differential Setting)	Front Axle Arm & Steering Knuckle ([10.1982 - ] (8210- ))
94512-01000	Washer, No.1 (For Propeller Shaft & Differential Setting)	Front Axle Arm & Steering Knuckle ([10.1982 - ] (8210- ))
94512-01400	Washer(For Rear Spring U Bolt)	Front Axle Arm & Steering Knuckle ([10.1982 - ] (8210- ))
94531-01400	New Genuine Part	Front Axle Arm & Steering Knuckle ([10.1982 - ] (8210- ))
94531-01600	WASHER	Front Axle Arm & Steering Knuckle ([10.1982 - ] (8210- ))
95381-03030	New Genuine Part	Front Axle Arm & Steering Knuckle ([10.1982 - ] (8210- ))
95381-03035	New Genuine Part	Front Axle Arm & Steering Knuckle ([10.1982 - ] (8210- ))
