YH53

Toyota HIACE · 1986 · 4,046 parts · 162 categories

4,046 items

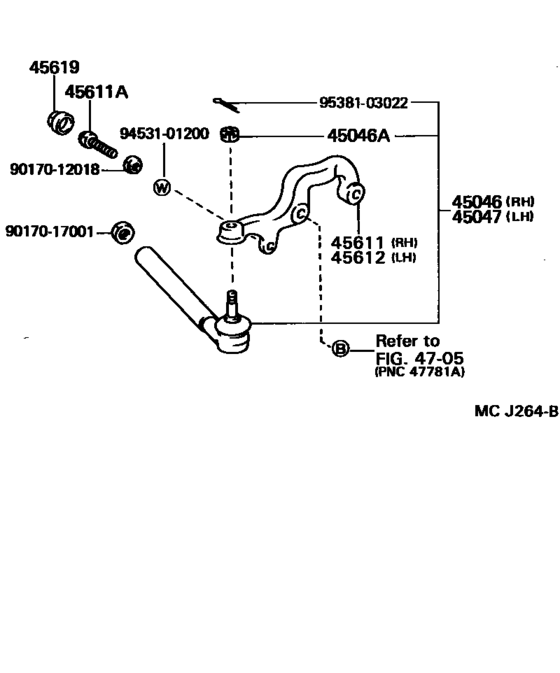

Front Steering Gear & Link ([06.1992 - ] (9206- )) 22

#	OEM	Part name
45046	45046-29125	End Sub-Assy, Tie Rod, Rh
45046	45046-39385	End Sub-Assy, Tie Rod
45046	45046-39256	End Sub-Assy, Tie Rod, Rh
45046	45046-29215	Tie Rod End Sub-Assy
45046	45046-29325	Tie Rod End Sub-Assy
45046	90171-14002	Nut (For Rear Steering Knuckle Arm)
45046	90171-14042	Nut, Castle(For Pitman Arm)
45611	45611-26040	Arm, Steering Knuckle, Rh
45611	45611-26060	Arm, Steering Knuckle, Rh
45611	45611-26091	Arm, Steering Knuckle, Rh
45611	45611-26110	Arm, Steering Knuckle, Rh
45611	90106-12005	Bolt, Round Hexagon (For Steering Knuckle Stopper Bolt)
45611	90106-12022	Bolt, Round Hexagon (For Steering Knuckle Stopper Bolt)
45612	45612-26040	Arm, Steering Knuckle, Lh
45612	45612-26060	Arm, Steering Knuckle, Lh
45612	45612-26091	Arm, Steering Knuckle, Lh
45612	45612-26110	Arm, Steering Knuckle, Lh
45619	45619-36010	Cover, Knuckle Stopper
9017012018	90170-12018	Nut (For Propeller Shaft)
9017017001	90170-17001	NUT HEXAGON
9453101200	94531-01200	WASHER
9538103022	95381-03022	Cotter pin

OEM	Part name	Category
45046-29125	End Sub-Assy, Tie Rod, Rh	Front Steering Gear & Link ([06.1992 - ] (9206- ))
45046-29215	Tie Rod End Sub-Assy	Front Steering Gear & Link ([06.1992 - ] (9206- ))
45046-29325	Tie Rod End Sub-Assy	Front Steering Gear & Link ([06.1992 - ] (9206- ))
45046-39256	End Sub-Assy, Tie Rod, Rh	Front Steering Gear & Link ([06.1992 - ] (9206- ))
45046-39385	End Sub-Assy, Tie Rod	Front Steering Gear & Link ([06.1992 - ] (9206- ))
45611-26040	Arm, Steering Knuckle, Rh	Front Steering Gear & Link ([06.1992 - ] (9206- ))
45611-26060	Arm, Steering Knuckle, Rh	Front Steering Gear & Link ([06.1992 - ] (9206- ))
45611-26091	Arm, Steering Knuckle, Rh	Front Steering Gear & Link ([06.1992 - ] (9206- ))
45611-26110	Arm, Steering Knuckle, Rh	Front Steering Gear & Link ([06.1992 - ] (9206- ))
45612-26040	Arm, Steering Knuckle, Lh	Front Steering Gear & Link ([06.1992 - ] (9206- ))
45612-26060	Arm, Steering Knuckle, Lh	Front Steering Gear & Link ([06.1992 - ] (9206- ))
45612-26091	Arm, Steering Knuckle, Lh	Front Steering Gear & Link ([06.1992 - ] (9206- ))
45612-26110	Arm, Steering Knuckle, Lh	Front Steering Gear & Link ([06.1992 - ] (9206- ))
45619-36010	Cover, Knuckle Stopper	Front Steering Gear & Link ([06.1992 - ] (9206- ))
90106-12005	Bolt, Round Hexagon (For Steering Knuckle Stopper Bolt)	Front Steering Gear & Link ([06.1992 - ] (9206- ))
90106-12022	Bolt, Round Hexagon (For Steering Knuckle Stopper Bolt)	Front Steering Gear & Link ([06.1992 - ] (9206- ))
90170-12018	Nut (For Propeller Shaft)	Front Steering Gear & Link ([06.1992 - ] (9206- ))
90170-17001	NUT HEXAGON	Front Steering Gear & Link ([06.1992 - ] (9206- ))
90171-14002	Nut (For Rear Steering Knuckle Arm)	Front Steering Gear & Link ([06.1992 - ] (9206- ))
90171-14042	Nut, Castle(For Pitman Arm)	Front Steering Gear & Link ([06.1992 - ] (9206- ))
94531-01200	WASHER	Front Steering Gear & Link ([06.1992 - ] (9206- ))
95381-03022	Cotter pin	Front Steering Gear & Link ([06.1992 - ] (9206- ))
