YH51G

Toyota HIACE · 1982 · 4,217 parts · 173 categories
YH51G ×

← Back to categories

4,217 items

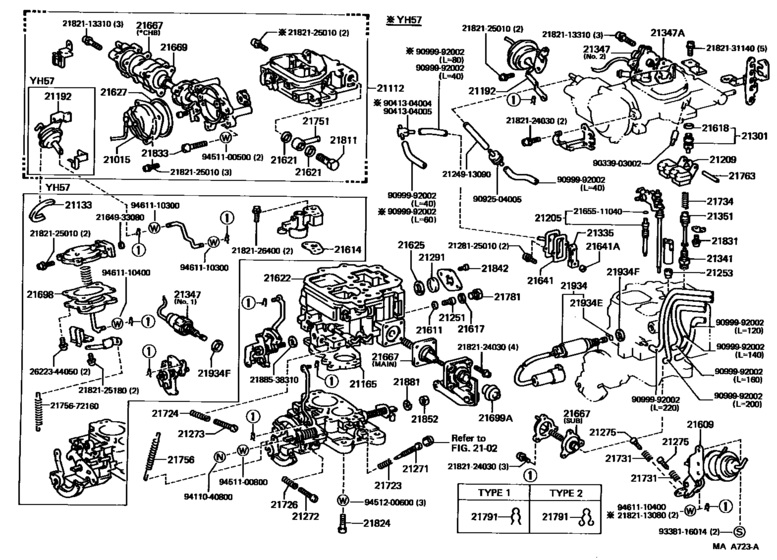

Carburetor ([08.1987 - ] (8708- )3YU) 90
#OEMPart name
21015 21015-73010 Housing Sub-Assy, Coil
21112 21112-73011 Horn, Air
21112 21112-73012 Horn, Air
21165 21165-71010 Insulator
21165 21165-73100 Insulator
21192 21192-73010 Breaker
21205 21205-73010 Jet Sub-Assy, Slow
21209 21209-37041 Float Sub-Assy
21251 90999-41111 Jet, 1St Main
21253 21253-73010 Jet, 2Nd Main
21271 21271-15230 Screw, Idle Adjusting
21272 21272-71010 Screw, 1St Idle Adjusting
21273 21273-71010 Screw, Throttle Adjusting
21273 21273-71011 Screw, Throttle Adjusting
21273 21273-35210 Screw, Throttle Adjusting
21291 21291-34320 Glass, Level Gage
21301 21301-35010 Valve Sub-Assy, Needle
21335 21335-34660 Valve, Thermostatic
21341 21304-61060 Valve, Power
21347 21347-73011 Valve, Solenoid
21347 21347-72310 Valve, Solenoid
21347 21641-35010 Gasket(For Valve, Solenoid)
21347 21641-35510 Gasket(For Valve, Solenoid)
21351 21351-37040 Piston, Power
21609 21667-73010 Opener
21611 21611-22010 Gasket, Main Jet
21617 21617-30010 Gasket, Main Passage Plug
21618 21618-14010 Gasket, Needle Valve Seat
21621 21633-24030 Gasket, Carburetor To Carburetor Hose Union Bolt
21622 21622-71010 Gasket, Air Horn
21625 21655-60200 Gasket, Level Gage
21627 21627-28150 Gasket, Coil Housing
21641 21641-37041 Gasket(For Thermostatic Valve Cover)
21641 21641-24030 Gasket(For Thermostatic Valve Cover No.2)
21667 21667-37040 Diaphragm
21667 21667-72200 Diaphragm
21667 21667-38310 Diaphragm
21667 21675-35510 Diaphragm
21667 21667-63090 Diaphragm
21667 21667-73370 Diaphragm
21669 21669-63010 Diaphragm
21669 21669-73370 Diaphragm
21699 21699-37040 Boot(For Acceleration Pump)
21723 21723-21030 Spring, Idle Adjusting
21724 21723-38330 Spring, Throttle Adjusting
21726 21726-38310 Spring, 1St Idle Adjusting
21734 21734-37040 Spring, Power Piston
21751 21894-71010 Union, Nipple
21756 21869-72030 Spring, Back(For Throttle Shaft)
21763 21763-34320 Pin, Float Lever
21781 21781-15230 Plug, Main Passage(For Carburetor Jet)
21791 21791-13010 Ring, Snap, No.1(For Carburetor Link)
21791 21791-60010 Ring, Snap, No.1(For Carburetor Link)
21811 21811-11060 Bolt, Union Nipple
21824 21844-26400 Screw, Set(For 1St Idle Cam Follower Set)
21833 21833-33010 Screw, Set, No.1(For Carburetor Body Set)
21842 21842-33010 Screw, Power Piston Stop
21852 21852-30010 Nut, Throttle Lever Set
21881 21881-60010 Washer, Lock(For Throttle Shaft)
21934 21062-73010 Solenoid, Throttle Valve
21934 21062-73011 Solenoid, Throttle Valve
21934 21655-44101 Ring, O(For Lifter Rod)
21934 21649-38010 Gasket
2124913090 21249-13090 Pipe Or Hose
2124913090 90999-92002 Air Hose (300 mm)
2128125010 21281-25010 Nozzle, Idle
2164933080 21649-33080 Gasket, Diaphragm Housing Cap
2165511040 21655-11040 Ring, O(For Pump Jet)
2175672160 21756-72160 Spring, Back(For Throttle Shaft)
2182113080 21821-13080 Screw, 2nd Throttle Valve Set
2182113310 21821-13310 Screw, 2Nd Throttle Valve Set
2182124030 21821-24030 Screw(For Vacuum Lock Diaphragm Ring Set)
2182125010 21821-25010 Screw, Coil Housing Set
2182125180 21821-25180 Screw, Set, No.2(For Carburetor Body Set)
2182126400 21821-26400 Screw, 2nd Throttle Valve Set
2182131140 21821-31140 Screw(For 2Nd Regulator Cover Set)
2188538310 21885-38310 New Genuine Part
2622344050 26223-44050 Screw, Set(for Power Valve Cam)
9033903002 90339-03002 PLUG
9041304004 90413-04004 Way, 3(For Canister)
9041304005 90413-04005 Way, 3, No.1 (For Front Drive Shift)
9092504005 90925-04005 Jet(For Carburetor)
9338116014 93381-16014 New Genuine Part
9411040800 94110-40800 Nut(For Steering Damper)
9411040800 94130-00802 Nut, No.1 (For Center Support Bearing)
9451100500 94511-00500 Washer, Cover Set, No.2
9451100800 94511-00800 WASHERSPRING
9451200600 94512-00600 Washer, Seal(For Head Cover Set)
9461110300 94611-10300 New Genuine Part
9461110400 94611-10400 New Genuine Part
