Accumulator body 25

#	OEM	部品名
1	22743-PW4-000	Pipe - 8X40
2	22744-PG4-000	Pipe - TOP CLUTCH
3	22748-P7Z-000	Pipe - 8X85
4	27263-PFL-000	Seat - VALVE SPRING
5	27551-RDK-000	Valve - LOW HOLD ACCUMULATOR
6	27552-RDK-000	Spring - LOW HOLD ACCUMULATOR
7	27561-R97-003	Piston - LOW ACCUMULATOR
8	27562-RJB-000	Spring a - LOW ACCUMULATOR
9	27564-RJB-000	Spring b - LOW ACCUMULATOR
10	27577-RJB-000	Spring - FOURTH ACCUMULATOR
11	27581-RDK-000	Spring - SECOND ACCUMULATOR
12	27587-RJB-010	Spring a - REVERSE ACCUMULATOR
13	27588-RJB-010	Spring b - REVERSE ACCUMULATOR
14	27591-RJB-000	Cover - ACCUMULATOR (26MM)
15	27812-RJB-E00	Plate - ACCUMULATOR SEPARATOR
16	27860-RJB-010	Body comp, ACCUMULATOR
17	28400-RDK-003	Solenoid assy.
18	28500-RJB-004	Solenoid assy.
19	90607-P6H-000	Ring - SNAP, 26MM
20	91301-P6H-003	O-ring - 7.6X1.9 (KEIHIN)
21	91301-P7Z-004	O-ring - 7.6X1.9 (DENSO)
22	91302-P6H-003	O-ring - 9.6X1.9 (KEIHIN)
22	91302-P7W-A00	O-ring - 9.6X1.9
23	91302-P7Z-004	O-ring - 9.6X1.9 (DENSO)
24	91331-PC9-003	O-ring

Air cleaner 14

#	OEM	部品名
1	17211-RN0-A00	Cover comp. - AIR CLEANER
2	17212-P2J-J00	Rubber, AIR CLEANER MOUNTING
3	17216-PN3-000	Collar - AIR CLEANER MOUNTING
4	17220-RN0-A00	Element assy. - AIR CLEANER
5	17228-RN0-A00	AIR FLOW TUBE
6	17244-RN0-A00	Case set - AIR CLEANER
7	17315-R40-003	Clamp - AIR FLOW (80)
8	17316-R70-A02	Clamp - AIR FLOW (95)
9	32744-RN0-A00	Stay d - ENGINE HARNESS
10	37980-RNA-A01	Meter assy - AIR FLOW
11	37985-RAD-L11	Gasket
12	90001-P0A-000	Bolt-washer - SPECIAL, 6X35
13	90091-RAA-A00	Bolt-washer - 5X28
14	90700-SB0-003	Clip - AIR BLEED TUBE

Air conditioner (COMPRESSOR) 14

#	OEM	部品名
1	38773-PR3-003	Clip - WIRE HARNESS
2	38801-P9K-E01	Valve sub assy. - SAFETY
3	38810-RN0-A01	Compressor comp.
4	38812-PH1-003	Ring b - SNAP
5	38812-671-003	Ring a - SNAP
6	38816-RYE-A01	Stay a - LEAD WIRE
7	38817-RYE-A01	Stay b - LEAD WIRE
8	38827-PH7-003	Screw-washer - 5X8
9	38829-PR3-003	Bolt - WASHER HEAD
10	38900-R70-A01	Clutch set
11	38912-PH1-N01	Plate set - WASHER
12	38924-RYE-A01	Stator set
13	38930-RN0-A00	Bracket comp. - COMPRESSOR
14	90023-P8A-A00	Bolt - FLANGE, 8X85

Air conditioner (CONDENSER) 6

#	OEM	部品名
1	80101-SFE-003	Filter sub assy.
2	80105-STX-A00	Bracket - R. CONDENSER UPPER
3	80106-STX-A00	Bracket - L. CONDENSER UPPER
4	80107-S2X-000	Mount - CONDENSER UPPER
5	80110-SZA-A01	Condenser assy
6	80175-S3V-A21	Mount - CONDENSER

Air conditioner (HOSES/PIPES) 19

#	OEM	部品名
1	80050-SP0-000	Label - AIR CONDITIONER CAUTION (HFC134A)
2	80311-STX-A01	Hose comp. - SUCTION
3	80315-SZA-A01	Hose comp. - DISCHARGE
4	80321-STX-A02	Pipe assy. - SUCTION
5	80341-STX-A51	Pipe comp. a - RECEIVER
6	80342-STX-A52	Pipe comp. b - RECEIVER
7	80361-SHJ-A00	Stay - SUCTION PIPE
8	80361-STX-A00	Clamp - SUCTION HOSE
9	80362-SHJ-A00	Stay - RECEIVER PIPE
10	80364-S84-A00	Clamp - SUCTION PIPE
11	80450-SFE-003	Sensor assy - PRESSURE
12	80865-SEP-A11	Cap - VALVE (H)
13	80866-SEP-A11	Cap - VALVE(L)
14	80871-ST7-000	O-ring - 5/8"
15	80872-ST7-000	O-ring - 1/2"
16	80873-ST7-000	O-ring - 8MM
17	90361-S7S-003	Nut - PAINT CUTTING, 6MM
18	91541-SEY-003	Clip - RECEIVER PIPE
19	91548-S3N-003	Clip - RECEIVER PIPE

Air conditioner (REAR HOSE/REAR PIPE) 5

#	OEM	部品名
1	80329-SZA-A01	Pipe comp - RR. SUCTION & RECEIVER
2	80363-SHJ-A00	Bracket a - AIR CONDITIONER PIPE
3	80363-S0X-A00	Bracket c - AIR CONDITIONER PIPE
4	90361-SV4-003	Nut - PAINT CUTTING, 6MM
5	90663-SB2-003	Grommet - SCREW, 6MM

Air conditioner (SENSOR) 4

#	OEM	部品名
1	39860-SJA-A01	Sensor assy - AUTO LIGHT
2	80525-SS0-942	Sensor - AMBIENT
3	80533-SZA-A40	Hose - ASPIRATOR
4	80590-STX-A02	Sensor assy - HUMIDITY

Alternator (DENSO) 15

#	OEM	部品名
1	31100-RGW-A01	Alternator assy - CSF92) (DENSO
2	31101-RDJ-A01	Rotor assy.
3	31105-RAA-A01	Holder assy. - BRUSH
4	31108-R70-A01	Frame assy - RR. STATOR
5	31111-PT0-003	Bearing - RR. GENERATOR
6	31114-PGK-A01	Bearing - FR.
7	31119-R70-A01	Bush - INSULATION
8	31135-R70-A01	Cover - RR. END
9	31138-PD1-004	Cover - BEARING
10	31141-RGM-A01	Pulley
11	31142-PD1-004	Nut - PULLEY LOCK
12	31145-PGK-A01	Bolt
13	31146-PE9-941	Screw-washer
14	31147-PT0-003	Screw-washer
15	90231-PGK-A01	Nut - HEX., 5MM

Alternator stay/tensioner 4

#	OEM	部品名
1	31113-R70-A00	Stay - ALTERNATOR
2	31170-R70-A01	Tensioner Assy - AUTO
3	90006-P8F-A00	Bolt-washer - 8X32
4	90051-PE0-000	Bolt - FLANGE, 12X70

Antenna 8

#	OEM	部品名
1	39155-SZA-A01	Antenna unit - GLASS
2	39159-SZA-A00	Sub feeder assy. - ANTENNA
3	39160-SZA-A10	Feeder assy. - GLASS ANTENNA
4	90148-SE0-003	Bolt - EARTH, 6X16 (WASHER 12.5MM) (ZN)
5	91507-SAA-003	Clip - WIRE HARNESS(NATURAL) (70MM)
6	91531-S04-003	Clip - WIRE HARNESS(NATURAL) (44MM)
7	91533-S04-003	Clip - COUPLER (NATURAL)
8	91540-S0A-003	Clip - HARNESS BAND(NATURAL) (96.9MM)

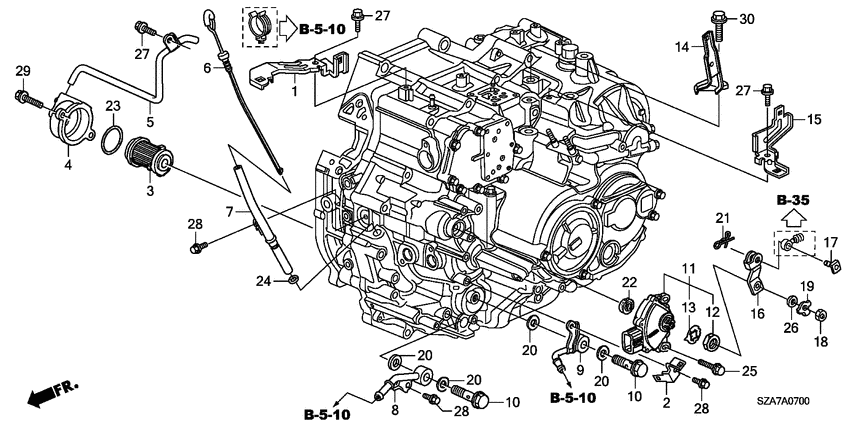

Atf pipe 24

#	OEM	部品名
1	19518-R70-A00	Bracket - WATER HOSE
2	21516-RWE-000	Stay - ATF TEMPERATURE SENSOR COUPLER
3	25450-P4V-013	Filter, AT
4	25471-RJB-000	Cover - ELEMENT
5	25475-RJF-T00	Pipe comp - ATF RETURN
6	25610-R36-003	Gauge comp. - ATF
7	25613-RYF-000	Pipe comp - ATF GAUGE
8	25910-RDK-010	Pipe comp. a - ATF
9	25920-PVG-000	Pipe comp. b - ATF
10	25951-RGR-000	Bolt - JOINT
11	28900-RYF-023	Sensor assy - POSITION
12	28921-P5H-003	Nut - HEX. SPECIAL, 16MM
13	28922-RJB-003	Washer - LOCK, 16MM
14	32416-SZA-A00	Bracket - STARTER CABLE TRANSMISSION
15	32742-R70-A50	Stay b - ENGINE WIRE HARNESS
16	54313-STK-A81	Lever comp - CONTROL
17	54314-SDA-A81	Pin - CONTROL WIRE
18	90002-RDK-000	Nut - HEX., 8MM
19	90439-RDK-000	Washer - LOCK, 8MM
20	90471-RGR-000	Washer - DRAIN PLUG, 12MM
21	90715-SDA-000	Pin - SNAP, 8MM
22	91209-612-003	Oil seal - 12X22X7 (ARAI)
23	91305-PN4-003	O-ring - 37.7X3.5 (ARAI)
24	91314-PC9-004	O-ring - 8.5X1.9 (NOK)

Audio unit 8

#	OEM	部品名
1	39100-SZA-Y22	Tuner assy - AUTO RADIO (PANASONIC)
2	39103-SZA-A31	Knob assy - VOLUME
3	39103-SZA-A41	Knob assy
4	39111-SZA-A00	Bracket - R. RADIO
5	39161-SZA-A00	Bracket - L. RADIO
6	90133-SM4-003	Bolt-washer - 5X16
7	90666-SDA-A01	Clip, Snap Fitting - SNAP FITTING(PO) (NATURAL)
8	91551-SE0-003	Bolt - FLANGE, 5X7

Battery 19

#	OEM	部品名
1	31500-SZA-R02	Battery assy - 80D26L-MF) (JOHNSON
2	31512-S0X-A00	Plate - BATTERY SETTING
3	31513-SM4-000	Bolt - BATTERY SETTING(195MM)
4	31521-SZA-A00	Sleeve - BATTERY
5	31522-SZA-A00	Base - BATTERY
6	32115-P64-003	Holder - CORRUGATED (DARK BLUE) (10MM)
7	32132-SM4-003	Band - WIRE HARNESS OFFSET (20) (BLACK) (122.5MM)
8	32410-SZA-A00	Cable assy - STARTER
9	32416-TA0-003	Holder - STARTER CABLE
10	32418-RBG-300	Cover - BATTERY TERMINAL
11	32600-SZA-A00	Cable - EARTH
12	32601-SK7-900	Bolt - BATTERY TERMINAL
13	32602-SK7-900	Nut - BATTERY TERMINAL
14	32607-SMJ-E01	Washer - BATTERY TERMINAL
15	90114-STX-A00	Bolt - 6X21
16	90149-SE0-003	Bolt - EARTH, 6X16
17	90337-SJ4-003	Nut - A.L.B.
18	91507-P01-003	Clip b - HARNESS BAND (DARK BROWN) (129.4MM)
19	91540-STK-003	Clip - HARNESS BAND (BLACK) (155.3MM)

Brake master cylinder/ master power 16

#	OEM	部品名
1	01469-SZA-A00	Power set - MASTER (10.5")
2	46100-SZA-A02	Cylinder assy. - MASTER
3	46151-SB2-003	Yoke - PUSH ROD (NISSIN)
4	46185-SE0-003	Seal - ROD
5	46191-SDA-A00	Gasket - MASTER POWER
6	46402-SZA-A01	Tube assy - MASTER POWER
7	46407-S84-A01	Clamp - TUBE
8	46512-S70-000	Pin - PEDAL
9	46661-SZA-A02	Reservoir set
10	46662-S9A-003	Cap comp. - RESERVE TANK
11	46665-S04-J01	Grommet
12	46666-S2K-003	Filter - BRAKE RESERVOIR
13	46669-S5A-003	Diaphragm
14	46911-S70-003	Pin, LOCK(8MM)
15	53729-671-003	Clamp d - 15.5MM
16	57515-S30-003	Pin - STOP

Brake pipe/hose (VSA) 24

#	OEM	部品名
1	01460-STX-A01	Hose set - R. RR. BRAKE(A)
2	01464-STX-A00	Hose set - FR. BRAKE
3	01466-STX-A00	Hose set - R. RR. BRAKE(B)
4	01468-STX-A00	Hose set - L. RR. BRAKE(B)
5	01470-STX-A01	Hose set - L. RR. BRAKE(A)
6	46330-SZA-A02	Pipe comp. c - BRAKE
7	46331-STX-A03	Pipe comp. e - R. BRAKE
8	46340-SZA-A02	Pipe comp. d - BRAKE
9	46361-STX-A03	Pipe comp. e - L. BRAKE
10	46374-SZA-A02	Pipe comp. u - BRAKE
11	46375-SZA-A02	Pipe comp. v - BRAKE
12	46376-SZA-A00	Pipe comp. w - BRAKE
13	46377-SZA-A00	Pipe comp. x - BRAKE
14	46380-SB0-000	Grommet a - BRAKE PIPE (BLACK)
15	46391-SHJ-A01	Clip - BRAKE PIPE
16	46391-STK-A01	Clip - BRAKE PIPE
17	46394-S9A-G71	Clip - BRAKE PIPE
18	46393-STX-A01	Clamp - BRAKE PIPE
19	46393-S9V-A01	Clip - BRAKE PIPE
20	46435-STX-A00	Bracket - R. RR. BRAKE HOSE
21	46436-STX-A00	Bracket - L. RR. BRAKE HOSE
22	46462-SE0-000	Bolt - OIL
23	46472-568-000	Packing - OIL BOLT
24	90651-SV1-A01	Clip - BRAKE HOSE

Breather tube 5

#	OEM	部品名
1	11856-R70-A00	Tube - PCV
2	17136-R70-A00	Tube comp - BREATHER
3	17137-RN0-A00	Pipe comp - BREATHER
4	91405-679-004	Clamp - TUBE (D17)
4	91405-PM5-004	Clamp - TUBE (D17)

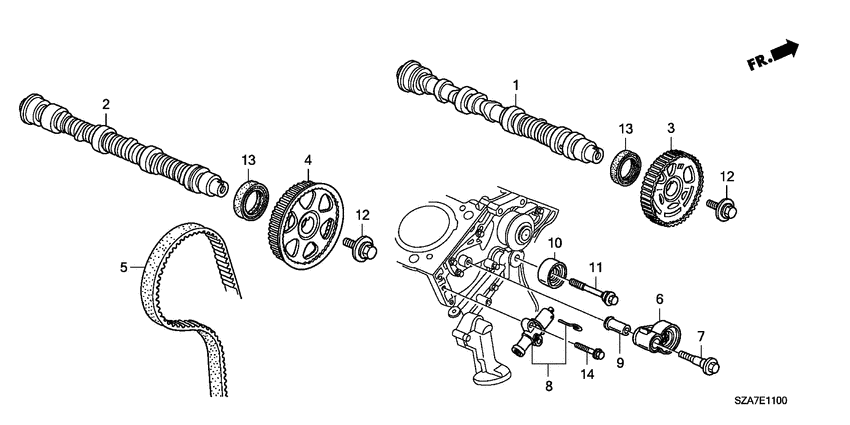

Camshaft/timing belt 13

#	OEM	部品名
1	14100-RGW-A02	Camshaft comp. - FR.
2	14200-RGW-A02	Camshaft comp. - RR.
3	14260-R70-A01	Pulley - FR. TIMING BELT DRIVEN
4	14270-RCA-A01	Pulley - RR. TIMING BELT DRIVEN
5	14400-RCA-A01	TIMING BELT (197YU20 VE-501) (UNITTA)
6	14510-RCA-A01	TIMING BELT Adjuster comp.
7	14513-RCA-A01	Bolt - TIMING BELT ADJUSTER
8	14520-RCA-A01	Timing Belt Auto Tensioner comp.
9	14530-P13-000	Collar - AUTO ADJUSTER
10	14550-RCA-A01	IDLER, TIMING BELT (KOYO SEIKO)
11	14551-RCA-A01	Bolt - TIMING BELT IDLER
12	90031-P8A-A01	Bolt-washer - 12X35
13	91213-R70-A02	Oil seal - 39X53X8 (NOK)

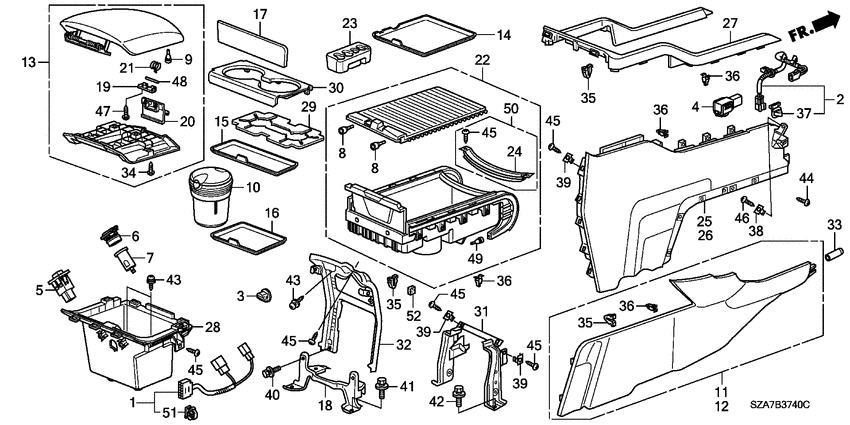

Center console (1) 27

#	OEM	部品名
1	32118-SZA-A00	Sub cord - CONSOLE
2	32159-SZA-A00	Sub cord - CONSOLE LIGHT
3	34750-S9V-A21	Lamp unit - CONSOLE
4	34760-TA0-J01	Light assy, Foot
5	39112-TA0-A01	Jack assy - AUX IN.
6	39620-TA0-003	Cap assy.
7	39624-SZ3-L01	Socket assy
8	66418-S04-000	Stopper
9	66418-688-000	Stopper - GLOVE BOX LID
16	83403-SZA-A01	Mat - BOX CONSOLE
18	83425-SZA-A00	Bracket comp. - RR. CONSOLE
19	83430-SZA-A01	Base - ARMREST LOCK
21	83432-SZA-A01	Spring - LOCK
29	83456-SZA-A01	Sheet - CUP HOLDER TAB
31	83464-SZA-A01	Bracket comp. - FR.
32	83465-SZA-A01	Bracket comp. - RR.
33	83498-S9V-000	Cap - 6MM
34	90144-SP0-000	Screw - TAPPING, 4X16 (PO)
35	90666-SDA-A01	Clip, Snap Fitting - SNAP FITTING(PO) (NATURAL)
36	90666-S84-A01	Clip - SNAP FITTING
37	91533-S04-003	Clip - COUPLER (NATURAL)
38	91640-SM4-003	Grommet - SCREW, 4MM
39	91641-SM4-003	Grommet - SCREW, 4MM
49	66418-579-000	Stopper - GLOVE BOX LID
50	83440-SZA-A02	Bar comp - CROSS
51	91534-SWA-003	Clip - COUPLER(DARK GRAY)
52	83466-SZA-A01	Seal - CLIP TOWER

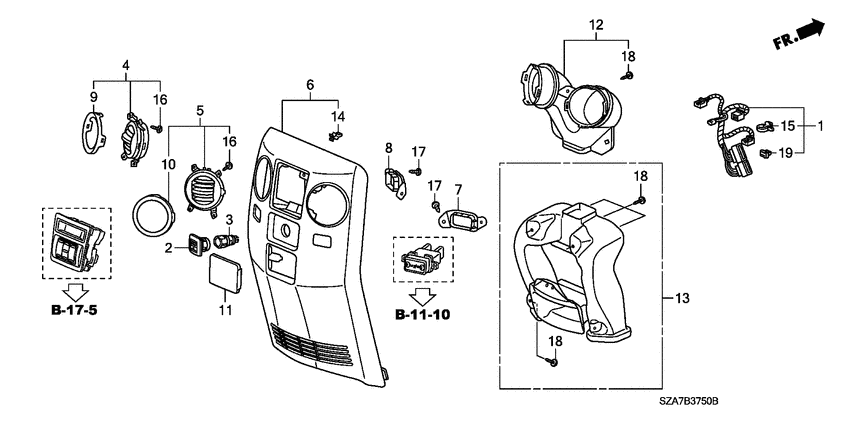

Center console (2) 8

#	OEM	部品名
1	32116-SZA-A01	Sub cord - RR. AIR CONDITIONER PANEL
2	39620-TA0-003	Cap assy.
3	39624-SZ3-L01	Socket assy
12	83462-SZA-A01	Duct comp - UPPER
13	83463-SZA-A01	Duct comp - LOWER
14	90666-SDA-A01	Clip, Snap Fitting - SNAP FITTING(PO) (NATURAL)
15	91542-SNA-003	Clip - HARNESS BAND(DARK BLUE) (164.5MM)
19	91534-SWA-003	Clip - COUPLER(DARK GRAY)

Center display 3

#	OEM	部品名
1	39710-SZA-X11	Display assy - CENTER INFORMATION
2	90666-TA0-A01	Clip - SNAP FITTING (PO) (ORANGE)
4	91640-SM4-003	Grommet - SCREW, 4MM

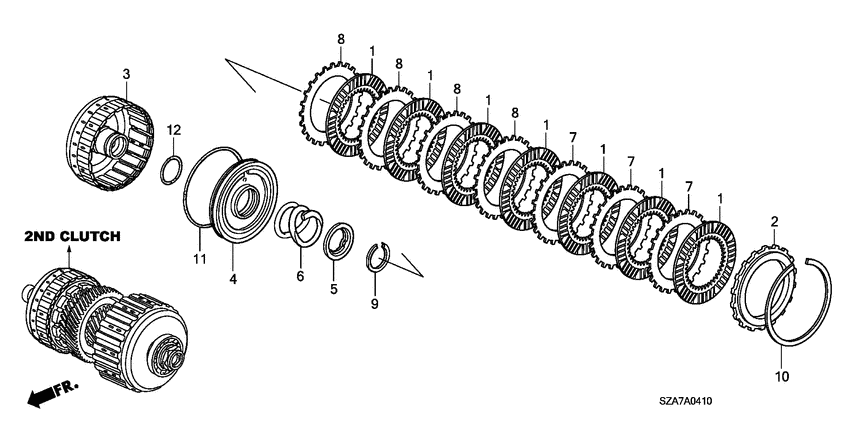

Clutch (2ND) 20

#	OEM	部品名
1	22545-R97-003	Disk - CLUTCH
2	22565-RDK-003	Plate - CLUTCH END (5) (2.5MM)
2	22567-RDK-003	Plate - CLUTCH END (7) (2.7MM)
2	22562-RDK-003	Plate - CLUTCH END (2) (2.2MM)
2	22569-RDK-003	Plate - CLUTCH END (9) (2.9MM)
2	22564-RDK-003	Plate - CLUTCH END (4) (2.4MM)
2	22566-RDK-003	Plate - CLUTCH END (6) (2.6MM)
2	22561-RDK-003	Plate - CLUTCH END (1) (2.1MM)
2	22568-RDK-003	Plate - CLUTCH END (8) (2.8MM)
2	22563-RDK-003	Plate - CLUTCH END (3) (2.3MM)
3	22610-RDK-033	Guide comp - SECOND CLUTCH
4	22620-RDK-053	Piston comp - SECOND CLUTCH
5	22633-RDK-003	Seat - RETURN SPRING
6	22641-RDK-003	Spring - CLUTCH RETURN
7	22643-PVL-003	Plate - CLUTCH WAVE (1.8MM)
8	22643-RDK-013	Plate - CLUTCH (1.8MM)
9	90603-P56-N00	Circlip - EXTERNAL, 42MM
10	90605-PX4-000	Ring - SNAP, 129MM
11	91303-PX4-004	O-ring - 114X2.2 (NOK)
12	91305-RDK-003	O-ring - 42.8X2.2 (F.C.C)

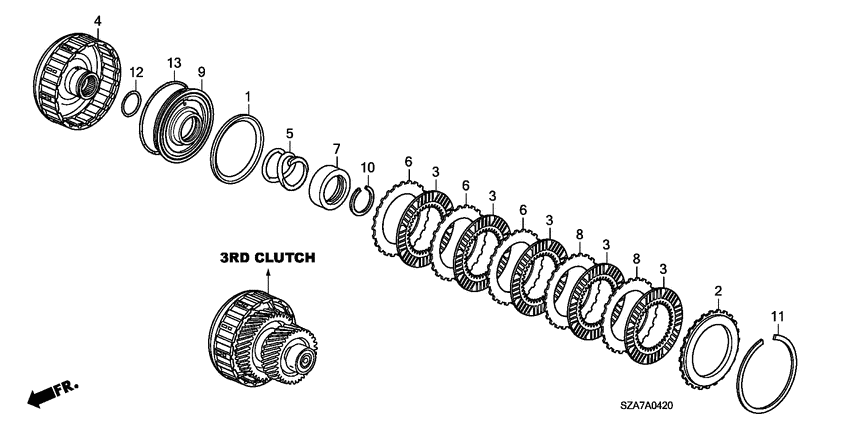

Clutch (3RD) 22

#	OEM	部品名
1	22539-RJF-003	Spring - CLUTCH DISK
2	22595-RJB-E01	Plate - CLUTCH END (5) (2.5MM)
2	22597-RJB-E01	Plate - CLUTCH END (7) (2.7MM)
2	22592-RJB-E01	Plate - CLUTCH END (2) (2.2MM)
2	22599-RJB-E01	Plate - CLUTCH END (9) (2.9MM)
2	22594-RJB-E01	Plate - CLUTCH END (4) (2.4MM)
2	22596-RJB-E01	Plate - CLUTCH END (6) (2.6MM)
2	22591-RJB-E01	Plate - CLUTCH END (1) (2.1MM)
2	22598-RJB-E01	Plate - CLUTCH END (8) (2.8MM)
2	22593-RJB-E01	Plate - CLUTCH END (3) (2.3MM)
3	22644-RJF-A01	Disk - CLUTCH
4	22651-PVL-003	Guide comp - THIRD CLUTCH
5	22652-P7W-003	Spring - CLUTCH RETURN
6	22653-RJB-E01	Plate - CLUTCH (2.0MM)
7	22654-P7W-003	Seat - RETURN SPRING
8	22655-RWE-003	Plate - CLUTCH WAVE (2.0MM)
9	22670-PVL-003	Piston comp - THIRD CLUTCH
10	90603-P24-A11	Circlip - EXTERNAL, 42MM (F.C.C.)
10	90603-PL4-000	Circlip - EXTERNAL, 42MM
11	90605-PY4-000	Ring - SNAP, 137MM
12	91302-PL4-003	O-ring - 41.8X2.2 (NOK)
13	91303-P7T-003	O-ring - 116.7X2.2 (F.C.C)

Clutch (4TH-5TH) 24

#	OEM	部品名
1	22533-RDK-003	Seat - RETURN SPRING
2	22537-PVL-003	Spring - CLUTCH DISK
3	22575-RJB-003	Plate - CLUTCH END (5) (2.5MM)
3	22579-RJB-003	Plate - CLUTCH END (9) (2.9MM)
3	22574-RJB-003	Plate - CLUTCH END (4) (2.4MM)
3	22578-RJB-003	Plate - CLUTCH END (8) (2.8MM)
3	22573-RJB-003	Plate - CLUTCH END (3) (2.3MM)
3	22577-RJB-003	Plate - CLUTCH END (7) (2.7MM)
3	22572-RJB-003	Plate - CLUTCH END (2) (2.2MM)
3	22576-RJB-003	Plate - CLUTCH END (6) (2.6MM)
3	22571-RJB-003	Plate - CLUTCH END (1) (2.1MM)
5	22642-RJB-A01	Spring - CLUTCH RETURN
6	22642-R97-003	Spring - CLUTCH RETURN
7	22645-RK3-003	Disk - CLUTCH
9	22654-RJB-003	Seat - RETURN SPRING
10	22657-RJB-013	Plate - CLUTCH (1.6MM)
12	22659-PVL-003	Plate - CLUTCH WAVE (1.6MM)
14	22661-RWE-003	Guide comp - CLUTCH (4-5)
15	22680-RWE-003	Piston comp - CLUTCH
16	22690-RWE-003	Piston comp - CLUTCH
17	90603-P0Z-000	Circlip - EXTERNAL, 44MM
18	90605-P0Z-000	Ring - SNAP, 141MM
19	91302-P0Z-003	O-ring - 44.1X2.2(NOK)
20	91303-PY4-004	O-ring - 119.1X2.3 (NOK)

Clutch (LOW) 29

#	OEM	部品名
1	22510-R36-003	Guide comp - LOW CLUTCH
2	22520-RJB-003	Piston comp - LOW CLUTCH
3	22533-P7W-003	Seat - RETURN SPRING
4	22537-P0Z-003	Spring - CLUTCH DISK
5	22539-RDK-013	Spring - CLUTCH DISK
6	22542-P7W-003	Spring - CLUTCH RETURN
7	22543-RJF-003	Plate - CLUTCH WAVE (1.6MM)
8	22544-R97-003	Disk - CLUTCH
9	22546-RJB-E01	Disk - CLUTCH
10	22557-RDK-003	Plate - CLUTCH END (7) (3.7MM)
10	22552-RDK-003	Plate - CLUTCH END (2) (3.2MM)
10	22559-RDK-003	Plate - CLUTCH END (9) (3.9MM)
10	22554-RDK-003	Plate - CLUTCH END (4) (3.4MM)
10	22556-RDK-003	Plate - CLUTCH END (6) (3.6MM)
10	22551-RDK-003	Plate - CLUTCH END (1) (3.1MM)
10	22558-RDK-003	Plate - CLUTCH END (8) (3.8MM)
10	22553-RDK-003	Plate - CLUTCH END (3) (3.3MM)
10	22555-RDK-003	Plate - CLUTCH END (5) (3.5MM)
11	22570-RJB-003	Piston comp - CLUTCH (L-H)
12	22673-PVL-003	Plate - CLUTCH WAVE (L-H)
13	22673-P7W-003	Plate - CLUTCH (L-H)
14	22675-RDK-003	Plate b - LOW-HOLD CLUTCH
15	90603-P0Z-000	Circlip - EXTERNAL, 44MM
16	90605-P0Z-000	Ring - SNAP, 141MM
17	91302-P0Z-003	O-ring - 44.1X2.2(NOK)
18	91303-PF4-004	O-ring - 110X2.2 (NOK)
19	91303-PY4-004	O-ring - 119.1X2.3 (NOK)
20	91303-P0Z-003	O-ring - 45.1X2.2 (NOK)
21	91304-P0Z-003	O-ring - 52.1X2.2 (NOK)

Combination switch 25

#	OEM	部品名
1	06350-SZA-Y04	Cylinder set - KEY
2	06351-SZA-A01	Lock assy - STEERING
3	35102-SV4-003	Bolt - BREAK HEAD
4	35103-S04-003	Screw - RECESSED
5	35108-S30-003	Holder - COLUMN
6	35111-SZA-Y04	Key comp. - IMMOBILIZER & TRANSMITTER
7	35111-TA0-A31	Key comp. - IMMOBILIZER (MAIN)
7	35112-TA0-A01	Key comp. - IMMOBILIZER(SUB)
8	35113-SNB-J01	Key comp. - TRANSMITTER TOP CASE
9	35113-SNB-305	Key comp. - TRANSMITTER TOP CASE (BLANK)
10	35114-SZA-Y01	Bottom comp. - TRANSMITTER KEY CASE
11	35116-SDA-A11	Screw - FLAT
12	35118-SZA-Y03	Key comp. - IMMOBILIZER & TRANSMITTER (BLANK)
13	35119-TA0-A00	Key comp. - IMMOBILIZER (SUB) (BLANK)
13	35118-TA0-A30	Key comp. - IMMOBILIZER(MAIN) (BLANK)
14	35130-SZA-901	Switch comp - STEERING
15	35251-TA0-B11	Sensor assy - STEERING & BODY SWITCH
16	35255-SZA-A11	Switch assy - LIGHTING & TURN
17	35256-SZA-A01	Switch assy - WIPER
18	35400-S5A-013	Switch assy - DOOR (MATSUSHITA)
19	39730-TA0-E02	Immobilizer & keyless unit
20	72118-ST7-003	Screw - TAPPING, 3X5
21	72147-SZA-Y04	Module assy. - KEYLESS
22	72148-S0A-000	Battery CR1616
23	90132-SFE-003	Screw - EARTH, 5X18

Control unit (CABIN; 1) 18

#	OEM	部品名
1	38182-SZ3-003	Cover - MULTI RELAY
2	38200-SZA-Y02	Box assy - FUSE
3	38211-SNA-A11	Fuse - BLOCK (30A)
4	38221-SNA-A31	Fuse - BLADE(7.5A)
5	38221-SNA-A41	Fuse - BLADE(10A)
6	38221-SNA-A51	Fuse - BLADE(15A)
7	38221-SNA-A61	Fuse - BLADE(20A)
8	38700-SZA-A03	Acm unit
9	39794-SDA-A03	Relay assy - POWER (MICRO ISO) (OMRON)
18	39794-S10-003	Relay assy - POWER(5P) (MICRO ISO)(MITSUBA)
21	39850-SZA-R01	Control unit - AUTO LIGHT
22	39960-SZA-A01	Sensor - YAW & 2GH
23	48310-RN7-013	Control unit - ELECTRONIC
25	78300-STX-A01	Compass unit
26	78301-SZA-A00	Bracket - COMPASS UNIT
27	90137-SF1-000	Bolt-washer - 6X25
28	90301-SS0-000	Nut - CLIP, 6MM
29	91560-SLJ-J01	Clip - DOOR LINING (LIGHT GRAY)

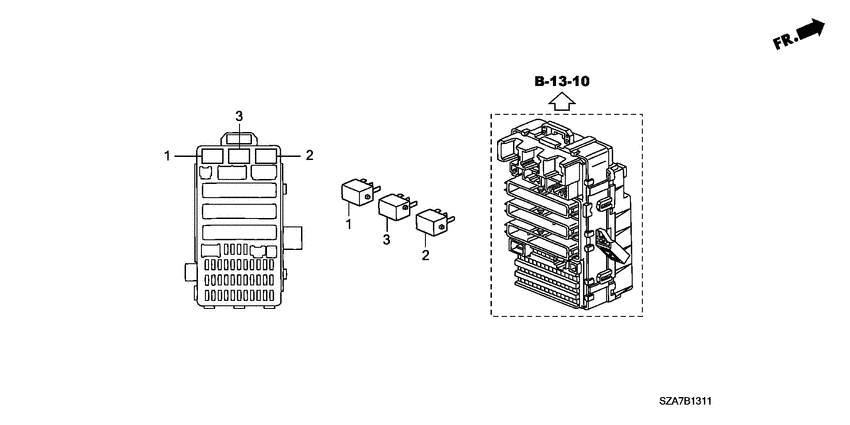

Control unit (CABIN; 2) 2

#	OEM	部品名
1	39794-SDA-A03	Relay assy - POWER (MICRO ISO) (OMRON)
3	39794-SDA-003	Relay assy - FUEL PUMP (MITSUBA)

Control unit (ENGINE ROOM; 1) 30

#	OEM	部品名
1	32146-SH3-003	Connector - DIODE(2P)
2	37820-RN0-K81	Control module - ENGINE (REWRITABLE)
3	37821-RN0-A00	Bracket - ENGINE CONTROL MODULE
4	37823-RYE-A01	Cover - ENGINE CONTROL MODULE
5	38100-STX-A02	Horn assy - LOW
7	38150-STX-A03	Horn assy - HIGH
10	38211-SNA-A11	Fuse - BLOCK (30A)
11	38211-SNA-A21	Fuse - BLOCK (40A)
12	38221-SNA-A31	Fuse - BLADE(7.5A)
13	38221-SNA-A41	Fuse - BLADE(10A)
14	38221-SNA-A51	Fuse - BLADE(15A)
15	38221-SNA-A61	Fuse - BLADE(20A)
16	38221-SNA-A81	Fuse - BLADE(30A)
17	38231-SFY-003	Fuse a - MULTI BLOCK(120A/70A)
18	38231-SNA-A11	Fuse a - MULTI BLOCK (80A/50A)
19	38231-SZA-R01	Cover - SUB FUSE BOX UPPER
20	38231-S04-003	Fuse - BLOCK (30A)
21	38231-S04-961	Fuse - BLOCK (40A)
22	38231-S10-003	Fuse - BLOCK (20A)
23	38232-SDA-A01	Fuse b - MULTI BLOCK (40A/50A)
24	38235-TA0-A01	Puller - FUSE
25	38243-SZA-A00	Bracket - MAIN FUSE BOX
26	38250-SZA-A51	Box assy - RELAY
27	38255-SNA-003	Detector unit - ELECTRONIC LOAD
28	38256-SZA-X01	Cover - RELAY BOX UPPER
29	38257-SNA-A02	Cover - LOWER
30	38258-SZA-A01	Cover - RELAY BOX (INPUT TERMINAL)
32	39794-S10-003	Relay assy - POWER(5P) (MICRO ISO)(MITSUBA)
33	90129-SX8-003	Screw-washer - 5X12
34	90150-S84-003	Bolt - EARTH, 8X16

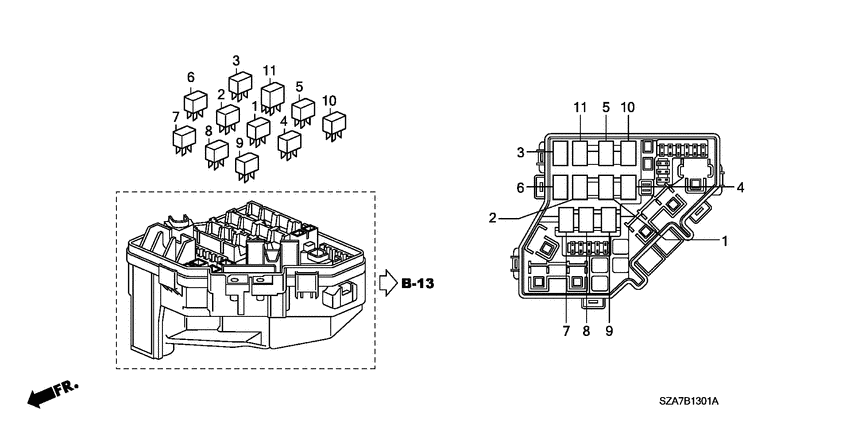

Control unit (ENGINE ROOM; 2) 6

#	OEM	部品名
1	39792-SDA-A01	Relay assy - MICRO ISO
3	39792-SJC-A01	Relay assy - POWER (MICRO ISO) (OMRON)
5	39794-SDA-A03	Relay assy - POWER (MICRO ISO) (OMRON)
9	39794-SDA-901	Relay assy, ENGINE CONTROL MODULE (MITSUBA)
9	39794-SDA-902	Relay assy, ENGINE CONTROL MODULE (DENSO)
11	39794-S10-003	Relay assy - POWER(5P) (MICRO ISO)(MITSUBA)

Converter 25

#	OEM	部品名
1	11941-RCA-A00	Stay - CONVERTER
2	11942-RN0-A00	Stay - FR. CONVERTER
3	18115-R70-A01	Gasket - EX. CHAMBER (NIPPON LEAKLESS)
4	18120-R70-A00	Cover a - FR. PRIMARY CONVERTER
5	18121-R70-A00	Cover b - FR. PRIMARY CONVERTER
6	18122-R70-A00	Cover comp. a - RR. PRIMARY CONVERTER
7	18123-R70-A00	Cover comp. b - RR. PRIMARY CONVERTER
8	18190-RN0-A01	Converter comp. - FR. PRIMARY
9	18290-RGW-A01	Converter comp. - RR. PRIMARY
10	18716-R70-A01	Gasket a - EGR PIPE
11	18717-RGW-A00	Pipe comp - EGR
12	18719-R70-A01	Gasket b - EGR PIPE
13	18720-R70-A00	Bolt - STUD, 8X29
14	36531-R70-A01	Sensor - FR. LAF
15	36532-R70-A01	Sensor, Fr. Oxygen
16	36536-RGW-A00	Stay - RR. OXYGEN SENSOR
17	36538-RDM-A01	Clip - WIRE HARNESS
18	36541-R70-A01	Sensor - RR. LAF
19	36542-R70-A01	Sensor - RR. OXYGEN
20	90003-RNA-A00	Bolt - FLANGE, 6X12
21	90004-RCA-A00	Bolt-washer - 8X16
22	90023-PR7-A01	BOLT, FLANGE (6X12) - 6X12 (IWATA BOLT)
23	90065-PG6-000	Bolt, STUD, 10X24
24	90212-RCA-A01	Nut - SELF-LOCK, 8MM
25	91506-RTA-003	Clip A - HARNESS BAND (DARK VIOLET)(129.4MM)

Countershaft 65

#	OEM	部品名
1	21215-R36-000	Holder comp - IDLE SHAFT
2	23221-R97-000	Countershaft
3	23421-RYF-000	Gear - COUNTERSHAFT LOW
4	23441-R36-000	Gear - COUNTERSHAFT SECOND
5	23471-RWE-000	Gear - COUNTERSHAFT FOURTH
6	23491-RWE-000	Gear - COUNTERSHAFT FIFTH
7	23515-RWE-000	Gear - COUNTERSHAFT IDLE
8	23531-RDK-000	Gear - COUNTERSHAFT REVERSE
9	23541-RDK-000	Gear - REVERSE IDLE
10	23565-RDK-000	Selector - REVERSE GEAR
11	23566-RDK-000	Hub - SELECTOR
12	90201-PRP-000	Nut - FLANGE, 24MM (LEFT HAND THREAD)
13	90402-P0Z-000	Washer - SPRING, 24MM
14	90404-RJB-E00	Washer - THRUST, 35X47X3
15	90408-PY4-000	Washer - THRUST, 14X30X1
16	90430-RJF-T00	Cotter - 40.5MM
17	90431-RJF-T00	Cotter - 42.2MM
18	90433-RJF-T00	Retainer - COTTER
19	90442-RDK-000	Collar - 31X40X14.5
20	90501-RJF-T00	Collar - 50.8MM
21	90519-RJF-T00	Washer a - 50.8MM (1.91)
21	90546-RJF-T00	Washer ab - 50.8MM (2.45)
21	90541-RJF-T00	Washer w - 50.8MM (2.35)
21	90536-RJF-T00	Washer r - 50.8MM (2.25)
21	90531-RJF-T00	Washer m - 50.8MM (2.15)
21	90526-RJF-T00	Washer h - 50.8MM (2.05)
21	90521-RJF-T00	Washer c - 50.8MM (1.95)
21	90543-RJF-T00	Washer y - 50.8MM (2.39)
21	90538-RJF-T00	Washer t - 50.8MM (2.29)
21	90533-RJF-T00	Washer o - 50.8MM (2.19)
21	90528-RJF-T00	Washer j - 50.8MM (2.09)
21	90523-RJF-T00	Washer e - 50.8MM (1.99)
21	90545-RJF-T00	Washer aa - 50.8MM (2.43)
21	90540-RJF-T00	Washer v - 50.8MM (2.33)
21	90535-RJF-T00	Washer q - 50.8MM (2.23)
21	90530-RJF-T00	Washer l - 50.8MM (2.13)
21	90525-RJF-T00	Washer g - 50.8MM (2.03)
21	90520-RJF-T00	Washer b - 50.8MM (1.93)
21	90542-RJF-T00	Washer x - 50.8MM (2.37)
21	90537-RJF-T00	Washer s - 50.8MM (2.27)
21	90532-RJF-T00	Washer n - 50.8MM (2.17)
21	90527-RJF-T00	Washer i - 50.8MM (2.07)
21	90522-RJF-T00	Washer d - 50.8MM (1.97)
21	90544-RJF-T00	Washer z - 50.8MM (2.41)
21	90539-RJF-T00	Washer u - 50.8MM (2.31)
21	90534-RJF-T00	Washer p - 50.8MM (2.21)
21	90529-RJF-T00	Washer k - 50.8MM (2.11)
21	90524-RJF-T00	Washer f - 50.8MM (2.01)
22	90586-RJF-T00	Washer e - 61MM (1.445)
22	90588-RJF-T00	Washer g - 61MM (1.405)
22	90583-RJF-T00	Washer b - 61MM (1.505)
22	90585-RJF-T00	Washer d - 61MM (1.465)
22	90587-RJF-T00	Washer f - 61MM (1.425)
22	90582-RJF-T00	Washer a - 61MM (1.525)
22	90584-RJF-T00	Washer c - 61MM (1.485)
23	90608-RJF-T00	Circlip - EXTERNAL, 46MM
24	90612-RJF-T00	Ring - SNAP, 94MM
25	90615-RDK-000	Ring - SNAP, 14MM
26	91003-RWE-005	Bearing - BALL, 31X94X9.5/21
27	91020-RJF-T01	Bearing - NEEDLE, 62X70X28.7
28	91024-PAX-006	Bearing - NEEDLE, 40X46X14.5 (TORRINGTON)
29	91025-PJ2-003	Bearing - NEEDLE, 14X18X15 (NTN)
30	91028-RJB-003	Bearing - NEEDLE, 35X41X28.8
31	91035-RJF-T01	Needle - THRUST, 70X88.1X4.5
32	91036-RJF-T01	Needle - THRUST, 61X92.3X5.5

Crankshaft/piston 35

#	OEM	部品名
1	13010-R70-A00	Piston set - STD.
1	13030-R70-A00	Piston set - OS 0.25
2	13021-R70-A01	Ring set - PISTON (OS 0.25) (RIKEN)
2	13011-R70-A02	Ring set - PISTON (STD.) (ALLIED RING)
2	13021-R70-A02	Ring set - PISTON (OS 0.25) (ALLIED RING)
3	13111-P8A-A00	Pin - PISTON
4	13115-P5A-000	Clip - PISTON PIN
5	13204-P8A-A01	Bolt - CONNECTING ROD
6	13210-R70-A00	Rod comp - CONNECTING
7	13212-P8F-A11	Bearing b - CONNECTING ROD (BROWN) (TAIHO)
7	13214-P8F-A11	Bearing d (YELLOW) - CONNECTING ROD (YELLOW) (TAIHO)
7	13211-P8F-A11	Bearing a (BLACK) - CONNECTING ROD (BLACK) (TAIHO)
7	13213-P8F-A11	Bearing c (GREEN) - CONNECTING ROD (GREEN) (TAIHO)
7	13215-P8F-A11	Bearing e (PINK) - CONNECTING ROD (PINK) (TAIHO)
8	13310-R70-A00	Crankshaft comp.
9	13326-RYE-A01	Bearing f - MAIN UPPER (RED) (TAIHO)
9	13321-RYE-A02	BEARING A - MAIN UPPER (BLACK) (TAIHO)
9	13323-RYE-A02	Bearing c - MAIN UPPER (GREEN) (TAIHO)
9	13325-RYE-A02	Bearing e - MAIN UPPER (PINK) (TAIHO)
9	13322-RYE-A02	Bearing b - MAIN UPPER (BROWN) (TAIHO)
9	13324-RYE-A02	Bearing d - MAIN UPPER (YELLOW) (TAIHO)
10	13331-P8A-A01	Washer - THRUST
11	13346-RYE-A01	Bearing f - MAIN LOWER (RED) (TAIHO)
11	13341-RYE-A02	BEARING A - MAIN LOWER (BLACK) (TAIHO)
11	13343-RYE-A02	Bearing c - MAIN LOWER (GREEN) (TAIHO)
11	13345-RYE-A02	Bearing e - MAIN LOWER (PINK) (TAIHO)
11	13342-RYE-A02	Bearing b - MAIN LOWER (BROWN) (TAIHO)
11	13344-RYE-A02	Bearing d - MAIN LOWER (YELLOW) (TAIHO)
12	13621-RCA-A11	Pulley - TIMING BELT DRIVE
13	13622-RJA-000	Plate - TIMING BELT GUIDE
14	13810-R70-A01	Pulley comp - CRANKSHAFT
15	13910-R70-A00	Plate - CRANK PULSER
16	90013-R70-A01	Bolt - SPECIAL, 8X11
17	90017-RJA-003	Bolt-washer - 16X49
18	90704-RCA-A00	Key - 4.5X24

Cylinder block/oil pan 30

#	OEM	部品名
1	11000-R70-A00	Block assy - CYLINDER
2	11103-R70-A01	Plate - PARTITION
3	11200-RN0-A00	Pan comp - OIL
4	11221-R70-A10	Plate - BAFFLE
5	11300-R70-A00	Case assy. - OIL SEAL
6	11910-RDJ-A00	Bracket - ENGINE SIDE MOUNTING
7	15140-P8A-A00	Orifice assy - OIL CONTROL
8	15142-P8A-A00	O-ring - 8.8X2.4
9	15280-R70-A00	Body - OIL JET
10	15290-RJA-000	Bolt comp - OIL JET
11	30530-RNA-A01	Sensor comp - KNOCK
12	37500-R40-A01	Sensor assy - CRANK
13	37503-RGW-A00	Cover comp. - CRANK SENSOR
14	90001-PM3-003	Bolt - DRAIN PLUG, 28MM
15	90006-P8A-A01	Bolt-washer - 10X109
16	90008-P8A-A01	Bolt-washer - 10X60
17	90009-PY3-000	DRAIN PLUG BOLT, 14MM
18	90009-P8A-A01	Bolt-washer - 10X80
19	90014-RCA-A01	Bolt-washer - 11X105
20	90030-PH7-000	Bolt - BREATHING
21	90040-P8A-A01	Bolt - DRAIN PLUG
22	90052-PH7-000	Bolt - FLANGE, 6X22
23	90139-R70-A00	Bolt - FLANGE, 6X20.5 (GUIDE)
24	90401-PR4-000	Washer - SEALING, 28MM
25	90401-P8A-A00	Washer - DRAIN, 18MM
26	90715-PH7-000	Dowel pin - 13X37
27	91214-RCA-A01	Oil seal - 80X98X8 (NOK)
27	91214-R70-A01	Oil seal - 80X98X8 (ARAI)
28	91308-PK1-003	O-ring - 26.2X2.4 (NOK)
29	91333-PNA-003	O-ring - 15X1.9

Cylinder head cover 22

#	OEM	部品名
1	12030-R70-A00	Packing set - HEAD COVER
2	12050-R70-A00	Packing set - RR. HEAD COVER
3	12310-R70-A00	Cover assy. FR. CYLINDER HEAD
4	12315-PLC-000	Bolt - STUD
5	12316-PLC-000	Washer
6	12316-R70-A00	Collar - PCV VALVE
7	12320-R70-A00	Cover comp. RR. CYLINDER HEAD
8	12341-R70-A00	Packing - FR. HEAD COVER
9	12342-P08-004	Seal
9	12342-RYE-004	Seal,spark plug t
10	12351-R70-A00	Packing - RR. HEAD COVER
11	15610-RGA-000	Cap assy. - OIL FILLER
12	15613-PC6-000	Packing, Oil Filler
13	15650-RCA-A02	Gauge comp. - OIL LEVEL
14	17130-RCA-A02	Valve assy. - PCV
15	30511-R70-A00	Insulator - FR. COIL HEAT
16	30512-R70-A00	Insulator - RR. COIL HEAT
17	90010-P8A-A00	Bolt a - HEAD COVER
18	90012-P8A-A00	Bolt b - HEAD COVER
19	90442-P8A-A00	Washer - HEAD COVER
20	91307-RCA-A01	O-ring - 10.2X1.8
21	91308-RCA-A01	O-ring - 14.8X1.8

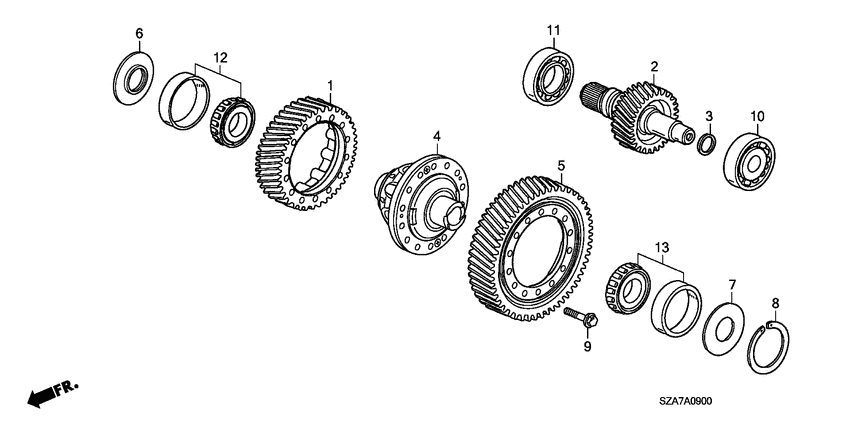

Differential 83

#	OEM	部品名
1	29011-RWE-000	Gear - TRANSFER DRIVE
2	29021-RJF-T00	Shaft - TRANSFER DRIVEN GEAR
3	29049-RDK-000	Shim s - 28.5MM (2.18)
3	29044-RDK-000	Shim n - 28.5MM (2.08)
3	29039-RDK-000	Shim i - 28.5MM (1.98)
3	29034-RDK-000	Shim d - 28.5MM (1.88)
3	29056-RDK-000	Shim z - 28.5MM (2.32)
3	29051-RDK-000	Shim u - 28.5MM (2.22)
3	29046-RDK-000	Shim p - 28.5MM (2.12)
3	29041-RDK-000	Shim k - 28.5MM (2.02)
3	29036-RDK-000	Shim f - 28.5MM (1.92)
3	29031-RDK-000	Shim a - 28.5MM (1.82)
3	29053-RDK-000	Shim w - 28.5MM (2.26)
3	29048-RDK-000	Shim r - 28.5MM (2.16)
3	29043-RDK-000	Shim m - 28.5MM (2.06)
3	29038-RDK-000	Shim h - 28.5MM (1.96)
3	29033-RDK-000	Shim c - 28.5MM (1.86)
3	29055-RDK-000	Shim y - 28.5MM (2.30)
3	29050-RDK-000	Shim t - 28.5MM (2.20)
3	29045-RDK-000	Shim o - 28.5MM (2.10)
3	29040-RDK-000	Shim j - 28.5MM (2.00)
3	29035-RDK-000	Shim e - 28.5MM (1.90)
3	29057-RDK-000	Shim aa - 28.5MM (2.34)
3	29052-RDK-000	Shim v - 28.5MM (2.24)
3	29047-RDK-000	Shim q - 28.5MM (2.14)
3	29042-RDK-000	Shim l - 28.5MM (2.04)
3	29037-RDK-000	Shim g - 28.5MM (1.94)
3	29032-RDK-000	Shim b - 28.5MM (1.84)
3	29054-RDK-000	Shim x - 28.5MM (2.28)
4	41100-RN3-000	Differential assy
5	41233-R36-000	Gear - FINAL DRIVEN
6	41381-RJF-T00	Spacer - 46X87X1
7	41382-RDK-000	Spacer - 46X85X1
8	41459-RGR-000	Shim t - 85MM (1.825)
8	41484-RGR-000	Shim as - 85MM (1.325)
8	41454-RGR-000	Shim o - 85MM (1.700)
8	41449-RGR-000	Shim j - 85MM (1.575)
8	41481-RGR-000	Shim ap - 85MM (1.250)
8	41476-RGR-000	Shim ak - 85MM (2.250)
8	41444-RGR-000	Shim e - 85MM (1.450)
8	41471-RGR-000	Shim af - 85MM (2.125)
8	41466-RGR-000	Shim aa - 85MM (2.000)
8	41461-RGR-000	Shim v - 85MM (1.875)
8	41456-RGR-000	Shim q - 85MM (1.750)
8	41451-RGR-000	Shim l - 85MM (1.625)
8	41478-RGR-000	Shim am - 85MM (2.300)
8	41446-RGR-000	Shim g - 85MM (1.500)
8	41473-RGR-000	Shim ah - 85MM (2.175)
8	41441-RGR-000	Shim b - 85MM (1.375)
8	41468-RGR-000	Shim ac - 85MM (2.050)
8	41463-RGR-000	Shim x - 85MM (1.925)
8	41458-RGR-000	Shim s - 85MM (1.800)
8	41483-RGR-000	Shim ar - 85MM (1.300)
8	41453-RGR-000	Shim n - 85MM (1.675)
8	41448-RGR-000	Shim i - 85MM (1.550)
8	41480-RGR-000	Shim ao - 85MM (2.350)
8	41475-RGR-000	Shim aj - 85MM (2.225)
8	41443-RGR-000	Shim d - 85MM (1.425)
8	41470-RGR-000	Shim ae - 85MM (2.100)
8	41465-RGR-000	Shim z - 85MM (1.975)
8	41460-RGR-000	Shim u - 85MM (1.850)
8	41455-RGR-000	Shim p - 85MM (1.725)
8	41450-RGR-000	Shim k - 85MM (1.600)
8	41482-RGR-000	Shim aq - 85MM (1.275)
8	41477-RGR-000	Shim al - 85MM (2.275)
8	41445-RGR-000	Shim f - 85MM (1.475)
8	41472-RGR-000	Shim ag - 85MM (2.150)
8	41440-RGR-000	Shim a - 85MM (1.350)
8	41467-RGR-000	Shim ab - 85MM (2.025)
8	41462-RGR-000	Shim w - 85MM (1.900)
8	41457-RGR-000	Shim r - 85MM (1.775)
8	41452-RGR-000	Shim m - 85MM (1.650)
8	41479-RGR-000	Shim an - 85MM (2.325)
8	41447-RGR-000	Shim h - 85MM (1.525)
8	41474-RGR-000	Shim ai - 85MM (2.200)
8	41442-RGR-000	Shim c - 85MM (1.400)
8	41469-RGR-000	Shim ad - 85MM (2.075)
8	41464-RGR-000	Shim y - 85MM (1.950)
9	90003-RWE-000	Bolt - SPECIAL, 11MM
10	91008-RJF-T12	Bearing - ANGULAR, 22X67X19
11	91009-RN3-005	Bearing - BALL, 40X80X16.5
12	91120-R36-005	Bearing - TAPER, 45X87X24.75
13	91122-R36-005	Bearing - TAPER, 45X85X24.7

Duct 7

#	OEM	部品名
1	77440-SZA-A00	Duct assy - AIR CONDITIONER
2	77460-SZA-A00	Duct assy - FR. DEFROSTER
4	83333-SZA-A00	Duct - R. THIRD ROW AIR CONDITIONER
5	83335-SZA-A00	Duct - THIRD ROW AIR CONDITIONER FR.
6	83341-SZA-A00	Duct assy - THIRD ROW HEATER
7	83383-SZA-A00	Duct - L. THIRD ROW AIR CONDITIONER
11	90104-S3V-000	Screw-washer - 4X16 (PO)

Emblems/caution labels 8

#	OEM	部品名
1	17669-PVF-A00	Label - FUEL FILLER CAUTION (UNLEADED FUEL ONLY)
2	19043-PLA-E00	Label - COOLANT INFORMATION
3	42760-SZA-X00	Plate - TIRE PRESSURE CAUTION
4	74691-SZA-A00	Label - HITCH CAUTION
5	75711-S9A-G00	Emblem - RR.(HONDA)
6	75719-SZA-A01	Emblem - RR.(4WD)
7	75722-SZA-A01	Emblem - RR. (PILOT)
9	78031-SDA-G80	Label - SIDE AIRBAG CAUTION

Engine assy./ transmission assy. 4

#	OEM	部品名
1	10002-RN0-A00	General assy. - CYLINDER BLOCK
2	10004-RN0-A04	General assy. - FR. CYLINDER HEAD
3	10005-RN0-X05	General assy. - RR. CYLINDER HEAD
4	20021-RN3-010	Transmission assy - PARTS MARK

Engine cover 7

#	OEM	部品名
1	17121-RN0-A10	Cover assy. - ENGINE
4	17147-RGW-A00	Stay assy - ENGINE COVER
5	90501-SS8-A01	Retainer
6	91501-PVJ-A01	Stud
7	91601-SS8-A01	Receptacle - 1.0
9	17123-RN0-A00	Rubber a - ENGINE COVER
10	17124-RN0-A00	Rubber b - ENGINE COVER

Engine hood 13

#	OEM	部品名
4	74120-SZA-A01	Lock assy - HOOD
5	74121-SZA-A00	Rubber - HOOD SEAL
6	74130-SZA-A00	Wire assy. - HOOD
8	74143-SZA-A00	Rubber - HOOD RR. SEAL
9	74145-SZA-A00	Stay - HOOD OPENER
10	74200-SZA-A00	Cowl top assy. - FR.
11	74215-SZA-A00	Lid - COWL TOP SIDE
12	74216-SZA-A00	Extension - R. HOOD HINGE COVER
13	74266-SZA-A00	Extension - L. HOOD HINGE COVER
14	90108-S0A-003	Bolt - FLANGE, 6X15
15	91501-SL4-003	Clip - FR. COWL
16	91504-SDA-003	Clip - HOOD OPEN WIRE
17	91568-SEP-003	Clip - DOOR WEATHERSTRIP

Engine mounts 21

#	OEM	部品名
1	32745-RN0-A00	Stay e - ENGINE HARNESS
2	36534-RYE-A00	Stay - FR. OXYGEN SENSOR
3	50610-SZA-A00	Bracket - ENGINE RR. MOUNTING
4	50620-SZA-A00	Bracket - ENGINE SIDE MOUNTING
5	50630-SZA-A00	Bracket - ENGINE FR. MOUNTING
6	50680-SZA-A00	Base - ENGINE RR. MOUNTING
7	50810-SZA-A01	Rubber assy. - ENGINE RR. MOUNTING
8	50816-SZA-A00	Shield - ENGINE RR. MOUNTING HEAT
9	50820-SHJ-A03	Rubber assy. - ENGINE SIDE MOUNTING
10	50825-S3V-A00	Damper - SIDE STOPPER DYNAMIC
11	50830-SZA-A01	Rubber assy. - ENGINE FR. MOUNTING
12	50835-SZA-A01	Stopper - ENGINE FR. MOUNT
13	50850-SZA-A02	Rubber assy. - TRANSMISSION MOUNTING
14	90161-SZA-A00	Bolt - FLANGE, 12X115
15	90163-SDA-A01	Bolt - FLANGE, 10X35
16	90163-SDB-A00	Bolt - FLANGE, 10X30
17	90163-SHJ-A00	Bolt - FLANGE, 12X83
18	90163-SJH-000	Bolt - FLANGE, 10X103
19	90163-S5A-000	Bolt - FLANGE, 10X20
20	90164-SHJ-A00	Bolt - FLANGE, 10X40
21	90371-SAA-010	Nut - FLANGE, 12MM

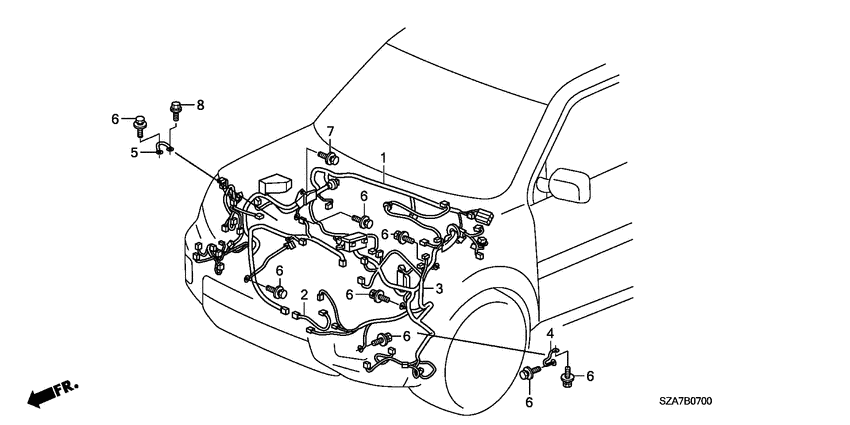

Engine wire harness 18

#	OEM	部品名
1	30531-R70-A00	Sub cord - KNOCK SENSOR
3	32110-RN0-A51	Harness - ENGINE WIRE
4	32113-R60-003	Holder - CORRUGATED(BLACK) (10MM)
5	32116-R40-003	Holder - CORRUGATED(DARK BROWN) (17MM)
6	32119-RKG-003	Holder - CORRUGATED(DARK BROWN) (22MM)
7	32129-RN0-A00	Holder comp. c - ENGINE HARNESS
8	32130-R70-A00	Holder comp. d - ENGINE HARNESS
9	32131-R70-A50	Holder comp. e - ENGINE HARNESS
10	32132-RGW-A00	Holder f - ENGINE HARNESS
11	32133-RGW-A00	Holder comp. g - ENGINE HARNESS
12	32134-RGW-A00	Holder comp. h - ENGINE HARNESS
13	32135-RN0-A01	Holder j - ENGINE WIRE HARNESS
14	32137-R70-A00	Holder - L. ENGINE HARNESS
15	90114-STX-A00	Bolt - 6X21
16	91506-RTA-003	Clip A - HARNESS BAND (DARK VIOLET)(129.4MM)
17	91507-RTA-003	Clip b - HARNESS BAND (DARK GREEN) (129.4MM)
18	91551-PNA-003	Band - WIRE HARNESS (BLACK) (172MM)
19	91705-RYE-A01	Cover - ENGINE CONTROL MODULE COUPLER

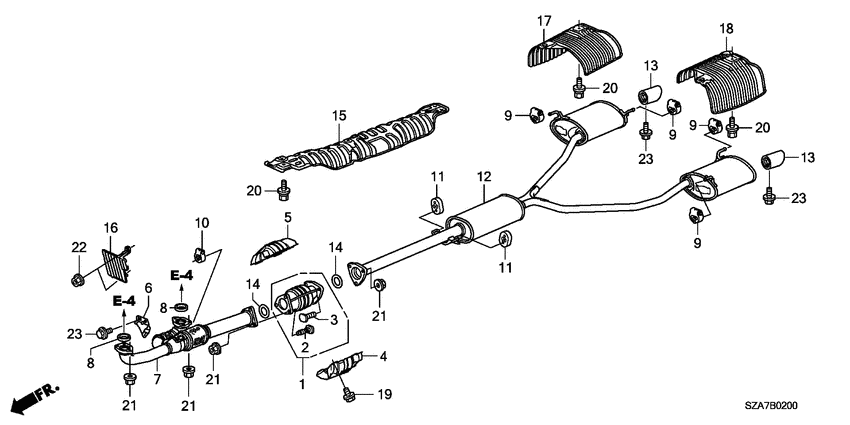

Exhaust pipe/silencer 23

#	OEM	部品名
1	18160-RN0-A00	Converter comp.
2	18176-PT0-003	Bolt - CONVERTER
3	18176-P08-003	Bolt - CONVERTER
4	18181-R70-A00	Cover - LOWER
5	18182-R70-A00	Cover - UPPER
6	18208-STX-A00	Cover - EX. MOUNTING
7	18210-SZA-A01	Pipe a - EX.
8	18212-SA7-003	Gasket - EX. PIPE (ISHINO)
9	18215-SHJ-A11	Rubber - EX. MOUNTING
10	18215-STX-A01	Rubber - EX. MOUNTING
11	18215-TA0-A11	Rubber - EX. MOUNTING
12	18307-SZA-A02	Silencer comp - EX.
13	18310-SZA-A01	Finisher - EX.
14	18393-SDB-A00	Gasket - PRE-CHAMBER
15	74601-SZA-A00	Plate a - FLOOR HEAT BAFFLE
16	74602-SZA-A00	Plate - ENGINE ROOM BAFFLE
17	74655-SZA-A00	Plate - R. SILENCER BAFFLE
18	74656-SZA-A00	Plate - L. SILENCER BAFFLE
19	90023-PK1-000	Bolt - FLANGE, 6X10
19	90023-PR7-A01	BOLT, FLANGE (6X12) - 6X12 (IWATA BOLT)
20	90126-SJC-A00	Bolt-washer - 6X16
21	90212-SA5-003	Nut - SELF-LOCK, 10MM
22	90301-SP0-003	Nut - PAINT CUTTING, 6MM

Floor mat 7

#	OEM	部品名
1	74251-SZA-A00	Insulator - DASHBOARD LOWER OUTER
2	74260-SZA-A00	Insulator - DASHBOARD
9	83650-SZA-A01	Holder - FLOOR MAT
18	90666-SDA-A01	Clip, Snap Fitting - SNAP FITTING(PO) (NATURAL)
20	91517-SE0-003	Clip - LOWER OUTER DASHBOARD INSULATOR
21	91560-SED-003	Clip - PILLAR GARNISH (PINK)
22	91560-SLJ-J01	Clip - DOOR LINING (LIGHT GRAY)

Floor panels 6

#	OEM	部品名
32	74690-SZA-A00	Hitch assy - TRAILER
33	74711-SZA-A01	Hoist - SPARE TIRE
34	90108-S0A-003	Bolt - FLANGE, 6X15
35	90168-ST3-E00	Bolt - FLANGE, 14X41
36	90178-STX-003	Bolt-washer - 6X16
39	74713-SZA-A10	Spacer - SPARE TIRE

Fog light 5

#	OEM	部品名
1	33165-S5A-003	Bulb - H11) (12V 55W) (STANLEY
1	33165-SAA-003	Bulb - H11) (12V 55W) (KOITO
2	33900-SZA-R01	Light assy - R. FR. FOG
3	33950-SZA-R01	Light assy - L. FR. FOG
4	90001-S10-A00	Bolt-washer - 5X16

Front brake 21

#	OEM	部品名
1	01463-SZA-A01	Caliper set - FR.
2	06455-STX-A00	Shim set - FR.
3	45215-671-672	Screw - BLEEDER
4	44300-STX-A01	Bearing Assy., FR. Hub
5	45018-SZA-A01	Caliper sub assy. - R. FR.
6	45019-SZA-A01	Caliper sub assy. - L. FR.
7	45022-SZA-A00	Pad set - FR.
8	45216-SZA-A01	Piston
9	45219-671-672	Cap - BLEEDER SCREW
10	45233-STX-A01	Bush
11	45235-SJC-A01	Pin - GUIDE
12	45237-STX-A01	Clip - PAD
13	45238-STX-A01	Clip - PAD
14	45240-SJC-A01	Bolt
15	45251-STX-A00	Disk - FR. BRAKE(17")
16	45255-STX-A00	Guard - FR. BRAKE SPLASH
17	45262-STX-A01	Pin - LOCK
18	90107-S3V-A00	Bolt - CALIPER MOUNT
19	90113-SHJ-A01	Bolt - WHEEL (MEIRA)
19	90113-SHJ-A02	Bolt - WHEEL (ROCKNEL FASTENER)
20	90160-STX-A00	Bolt - FLANGE, 12X74

Front bulkhead/dashboard 4

#	OEM	部品名
13	60440-SZA-A00	Bracket comp. - ATF COOLER
38	90105-634-000	Bolt-washer (8x20)
39	90110-SV4-000	Bolt-washer - 8X21
40	90671-SHJ-A02	Rivet - VIN PLATE

Front bumper 10

#	OEM	部品名
7	71140-SZA-A00	Beam - FR. BUMPER R. CORNER UPPER
8	71145-SZA-A00	Beam - FR. BUMPER L. CORNER UPPER
9	71180-SZA-A00	Base - FR. LICENSE PLATE
11	71193-SZA-A00	Spacer - R. FR. BUMPER SIDE
12	71198-SZA-A00	Spacer - L. FR. BUMPER SIDE
13	90103-SD4-000	Screw - TAPPING, 5X16
14	90110-SE7-000	Bolt-washer - 8X21
16	90306-SHJ-000	Nut - FLOATING, 5MM
17	90675-SA5-003	Nut - CLIP, 6MM
25	90103-SDA-A00	Screw - TAPPING, 5X20

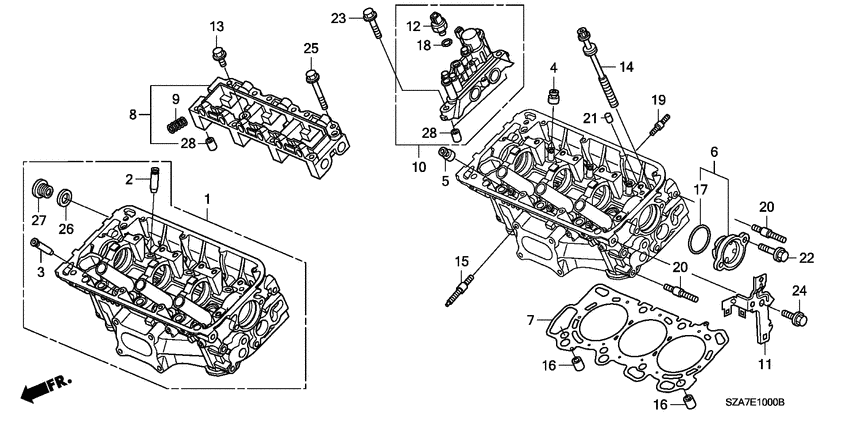

Front cylinder head 21

#	OEM	部品名
1	12100-R70-305	Head assy - FR. CYLINDER
2	12204-PJ7-305	Guide - IN. VALVE (OS)
3	12205-PJ7-305	Guide - EX. VALVE (OS)
4	12210-PZ1-004	SEAL A, VALVE STEM (NOK)
5	12211-PZ1-004	Seal b - VALVE STEM(NOK)
6	12230-P8A-A00	Cover assy. - FR. CAMSHAFT THRUST
7	12251-R70-A01	Gasket comp - FR. CYLINDER HEAD (NIPPON LEAKLESS)
8	12432-R70-A31	Bridge comp - ROCKER SHAFT
9	14820-R70-A01	Motion comp - LOST
10	15810-R70-A03	Valve assy. - FR. SPOOL
10	15810-R70-A04	VALVE ASSY FR SPO
11	36533-R70-A00	Stay - FR. LAF COUPLER
12	37240-R70-A03	Switch assy - OIL PRESSURE
13	90004-PE2-005	Bolt - SEALING, 10MM
14	90005-PAA-A01	Bolt-washer - 12X163
15	90026-P8A-A00	Bolt - STUD, 8X41
16	90705-PT0-000	Dowel pin - 16X22
17	91301-P8A-A00	O-ring - 48.5X2.4
18	91319-PAA-A01	O-ring - 13X1.5
26	12207-634-300	Washer - SEALING BOLT
27	12208-P8C-A01	Bolt - SEALING, 28MM

Front door glass/door reg ulator 13

#	OEM	部品名
1	39885-S5A-G11	Label - IMMOBILIZER & SECURITY
2	72210-SZA-A01	Regulator assy - R. FR. DOOR POWER
3	72230-SZA-A01	Sash - R. FR. DOOR FR. LOWER
4	72231-SZA-A01	Sash - R. FR. DOOR CENTER LOWER
5	72235-SZA-A01	Runchannel - R. FR. DOOR
6	72250-SZA-A01	Regulator assy - L. FR. DOOR POWER
7	72270-SZA-A01	Sash - L. FR. DOOR FR. LOWER
8	72271-SZA-A01	Sash - L. FR. DOOR CENTER LOWER
9	72275-SZA-A01	Runchannel - L. FR. DOOR
10	73300-SZA-E10	Glass assy - R. FR. DOOR (GREEN) (PPG)
11	73350-SZA-E10	Glass assy - L. FR. DOOR (GREEN) (PPG)
12	90021-SFA-000	Bolt - FLANGE, 6X10
13	90115-SFE-004	Bolt - FLANGE, 6X12

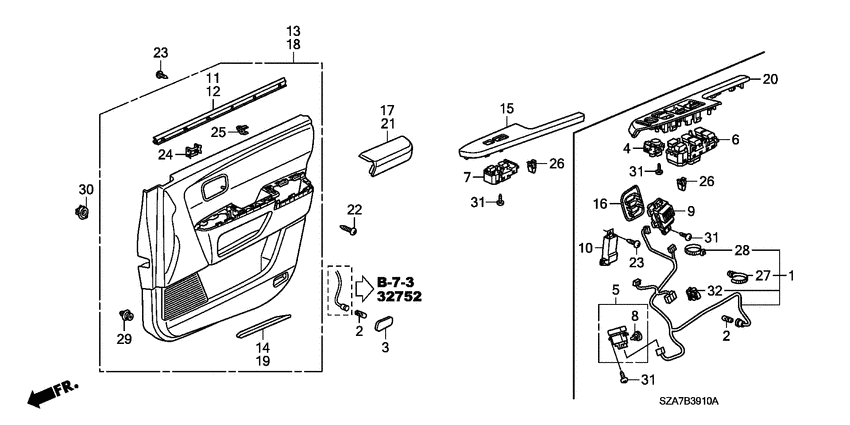

Front door lining 18

#	OEM	部品名
1	32756-SZA-A00	Sub cord - DRIVER DOOR
2	33301-S70-003	Bulb - 12V 3.8W 2CP
3	34261-SDA-A01	Lens
4	35190-TA0-A11	Switch assy - REMOTE CONTROL MIRROR
6	35750-SZA-A01	Switch assy - POWER WINDOW MASTER
7	35760-SZA-A01	Switch assy - POWER WINDOW PASSENGER
8	35854-SZA-A01	Bulb comp. - 14V 40MA
11	72335-SZA-A01	Weatherstrip - R. FR. DOOR INNER
12	72375-SZA-A01	Weatherstrip - L. FR. DOOR INNER
22	90102-S10-000	Screw - TAPPING, 5X25
23	90132-SE3-003	Screw - TAPPING, 4X12
24	90146-SDA-A00	Clip - DOOR LINING SKIN
25	90666-S84-A01	Clip - SNAP FITTING
26	90666-SDA-A01	Clip, Snap Fitting - SNAP FITTING(PO) (NATURAL)
27	91506-STX-A01	Clip - HARNESS BAND(BLACK) (148MM)
29	91560-SLJ-J01	Clip - DOOR LINING (LIGHT GRAY)
30	91561-S5P-A01	Screw - GROMMET, 5.23
32	91534-SWA-003	Clip - COUPLER(DARK GRAY)

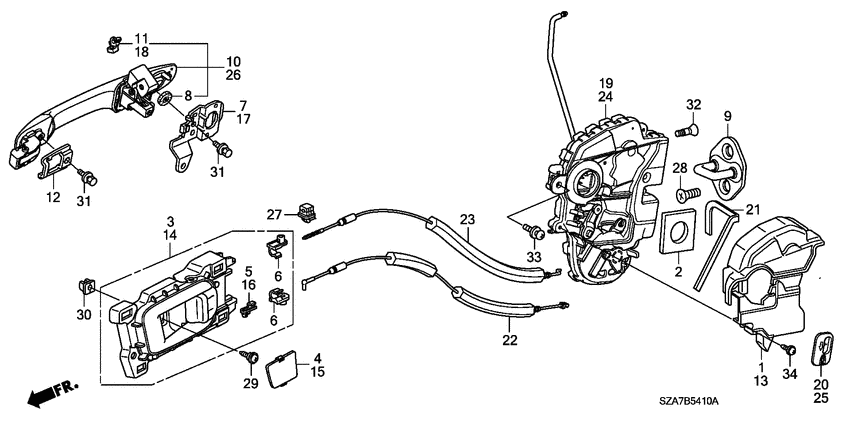

Front door locks/ outer handle 27

#	OEM	部品名
1	72110-SZA-A01	Latch assy - R. FR. DOOR POWER
2	72112-SZA-A01	Protector - R. DOOR LATCH
3	72117-SZA-A01	Seal - LOCK
4	72118-SJK-003	Screw - TAPPING
5	72119-SZA-A01	Seal - COUPLER
8	72123-TA5-A01	Snap - R.
9	72124-TA5-A01	Clip s - CABLE END(NATURAL)
9	72164-TA5-A01	Clip t - CABLE END(BLACK)
10	72130-SZA-A01	Protector - R. OUTER HANDLE
11	72131-SZA-A00	Cable - FR. INSIDE HANDLE
12	72133-SJC-A01	Packing
13	72133-SZA-A00	Cable - FR. DOOR LOCK
14	72135-SDA-A01	Striker assy - DOOR LOCK
16	72141-SNE-A00	Bush - R. JOINT
17	72144-SJD-003	Retainer
18	72146-S9A-003	Spacer - DOOR OUTSIDE HANDLE
19	72150-SZA-A11	Latch assy - L. FR. DOOR POWER
20	72152-SZA-A01	Protector - L. DOOR LATCH
23	72163-TA5-A01	Snap - L.
24	72170-SZA-A01	Protector - L. OUTER HANDLE
26	72181-SNE-A00	Bush - L. JOINT
27	72185-SZA-A01	Cylinder - L. DOOR
28	74387-S3C-003	Fastener
29	90101-SJK-003	Screw - TAPPING (ONE WAY)
30	90120-SV4-000	Bolt - LOCK STRIKER
31	90141-SDA-000	Screw - TAPPING, 5X12
32	90662-SB2-903	Grommet - SCREW, 5MM

Front door panels 18

#	OEM	部品名
9	72142-SM4-000	Stopper - DOOR
10	72310-SZA-A01	Weatherstrip - R. FR. DOOR
11	72311-SZA-A00	Clip - WEATHERSTRIP (SHORT)
12	72321-SZA-A01	Seal - R. FR. DOOR HOLE
13	72327-SZA-A01	Seal - R. FR. DOOR SIDE SILL
15	72340-SZA-A01	Checker comp. - R. FR. DOOR
16	72350-SZA-A01	Weatherstrip - L. FR. DOOR
17	72361-SZA-A01	Seal - L. FR. DOOR HOLE
18	72367-SDA-A00	Seal - OUTER HANDLE HOLE
19	72367-SZA-A01	Seal - L. FR. DOOR SIDE SILL
20	72380-SZA-A01	Checker comp. - L. FR. DOOR
21	75891-SA7-000	Stopper - DOOR
22	90101-SZ3-000	Bolt - FLANGE, 8X22 (8.5MM)
23	90102-S3N-003	Bolt - FLANGE, 8X24.5 (10.5MM)
23	90102-SFA-305	Bolt - FLANGE, 8X18 (SERVICE)
24	90141-S04-000	Bolt - FLANGE, 8X22
25	90815-SZA-A01	Grommet - 15MM
26	91563-SCV-003	Clip A

Front driveshaft/ half shaft 24

#	OEM	部品名
1	44014-SZA-A02	Joint set - OUTBOARD
2	44017-STX-A01	Boot set - INBOARD
3	44017-SZA-A01	Boot set - INBOARD
4	44018-STX-A03	Boot set - OUTBOARD
5	44305-SZA-A01	Driveshaft assy. - R.
6	44306-SZA-A01	Driveshaft assy. - L.
7	44310-STX-A11	Joint comp - INBOARD
8	44310-STX-305	Joint set - INBOARD
9	44318-STX-A11	Band - OUTBOARD BOOT
10	44319-SD4-010	Set ring - 30X2.2
11	44319-S0X-A01	Set ring - 30X2.2
12	44327-STX-A01	Band - SHAFT BOOT
13	44327-SV4-305	Band - JOINT BOOT (DOUBLE ROLLED BAND)
14	44329-SV4-305	Band - SHAFT BOOT (DOUBLE ROLLED BAND)
15	44337-SJC-A01	Ring - SNAP
16	44338-S0X-A01	Circlip
17	44500-S3V-A10	Shaft assy - HALF
18	44517-SDB-A00	Cover comp. - HEAT
19	90102-SF1-000	Bolt - HEX., 10X1.25
20	90165-SZA-A00	Bolt - FLANGE STUD, 10X37
21	90165-S5B-003	Bolt - FLANGE, 8X24
22	90305-S3V-A11	Nut - SPINDLE
23	91057-SH3-008	Bearing - HALF SHAFT (NTN)
24	91260-S3V-A01	Seal - HALF SHAFT OUTER

Front fenders 17

#	OEM	部品名
5	74101-SZA-A00	Fender - R. FR. INNER
6	74102-SZA-A00	Strake - R. FR.
7	74105-SZA-A00	Fairing - R. FR. FENDER
8	74111-SZA-A00	Shield - FR. SPLASH
9	74112-SZA-A00	Cover - SPLASH SHIELD
10	74151-SZA-A00	Fender, L. FR. INNER
11	74152-SZA-A00	Strake - L. FR.
12	74155-SZA-A00	Fairing - L. FR. FENDER
13	90101-S3V-A00	Bolt-washer - 6X26
15	90103-SDA-A00	Screw - TAPPING, 5X20
16	90108-S0A-003	Bolt - FLANGE, 6X15
17	90305-SM4-003	Nut - CLIP, 6MM
18	90331-SD5-003	Nut - SPRING, 5MM
19	91501-S04-003	Clip - INNER FENDER
20	91503-SZ3-003	Clip A
21	91503-SZ5-003	Clip - BUMPER FACE
22	91512-SX0-003	Clip - INNER FENDER CLIP

Front grille 6

#	OEM	部品名
1	71125-SZA-A00	Cover - FR. BULKHEAD
2	74175-SMA-000	Cushion - HOOD
6	75109-SZA-A01	Seal - FR. GRILLE
7	75700-SZA-A01	Emblem - FR. CENTER
8	90120-S0K-A00	Screw - TAPPING, 3X12
9	91503-SZ3-003	Clip A

Front knuckle 23

#	OEM	部品名
1	42522-STX-A00	Clamp a - R. WIRE
2	42523-STX-A00	Clamp a - L. WIRE
3	42524-SNA-003	Clip - COUPLER (BLACK)
4	51210-STX-A02	Knuckle comp - R. FR.
5	51215-STX-A02	Knuckle comp - L. FR.
6	51300-STX-A02	Spring - FR. STABILIZER
7	51306-SZA-A02	Bush - STABILIZER HOLDER
8	51308-SZ3-010	Bracket - STABILIZER
9	51320-S0X-C01	Link assy - FR. STABILIZER
10	51350-SZA-A04	Arm comp - R. FR. LOWER
11	51360-SZA-A04	Arm assy. - L. FR. LOWER
12	57450-STX-A01	Sensor assy - R. FR.
13	57455-STX-A01	Sensor assy - L. FR.
14	90118-SJC-A00	Bolt - FLANGE, 16X100
15	90118-STX-A00	Bolt - FLANGE, 14X68
16	90365-STX-A00	Nut - CASTLE, 14MM
17	90701-S3V-A01	Pin - SPLIT (M14)
22	90362-SZA-A00	Nut - FLANGE, 12MM
23	51394-STX-A02	Stopper - FR. LOWER ARM
24	51394-SZA-A01	Stopper - FR. LOWER ARM
25	90381-STX-A01	Nut - SELF-LOCK, 16MM(CLINCH)
26	51390-SZA-A03	Bracket comp. - R. FR.
27	51395-SZA-A03	Bracket comp. - L. FR.

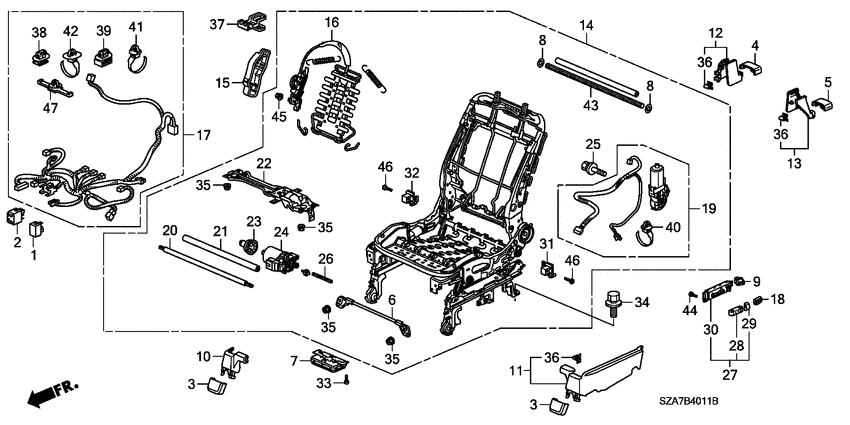

Front seat (L.) 14

#	OEM	部品名
1	04810-SB3-000	C clip set - TRIM FASTENER (30 PIECES)
3	78055-SZA-A20	Module assy. - L. SIDE
3	78055-SZA-A00	Module assy. - L. SIDE
4	81122-SZA-A01	Clip - PUSH
9	81302-SZA-A01	Screw - TAPPING, 5X10 (PAN HEAD)
12	81527-SZA-A41	Pad comp - L. FR. SEATBACK
12	81527-SZA-A01	Pad comp - L. FR. SEATBACK
15	81537-SZA-A41	Pad comp - L. FR. SEAT CUSHION
15	81537-SZA-A01	Pad comp - L. FR. SEAT CUSHION
26	82124-SZA-A01	Screw - TAPPING, (M5X16)
28	90321-SP0-A80	Nut-washer - 6MM
29	90610-SDA-003	Clip - GARNISH
30	90610-S10-003	Clip - GARNISH
33	81123-SZA-A01	Nut - PAL

Front seat (R.) 12

#	OEM	部品名
1	04810-SB3-000	C clip set - TRIM FASTENER (30 PIECES)
3	78050-SZA-A20	Module assy. - R. SIDE
3	78050-SZA-A00	Module assy. - R. SIDE
5	81122-SZA-A01	Clip - PUSH
6	81127-SZA-A01	Pad comp - R. FR. SEATBACK (WITH OPDS SENSOR)
9	81137-SZA-X41	Pad comp - R. FR. SEAT CUSHION (WITH SITTING SWITCH)
9	81137-SZA-X01	Pad comp - R. FR. SEAT CUSHION (WITH SITTING SWITCH)
19	81302-SZA-A01	Screw - TAPPING, 5X10 (PAN HEAD)
21	82124-SZA-A01	Screw - TAPPING, (M5X16)
23	90321-SP0-A80	Nut-washer - 6MM
24	90610-S10-003	Clip - GARNISH
26	81123-SZA-A01	Nut - PAL

Front seat components (L.) 10

#	OEM	部品名
7	81261-TA0-A01	Cap - RAIL END UPPER
8	81271-TA0-A01	Protector - LOWER
9	81302-SZA-A01	Screw - TAPPING, 5X10 (PAN HEAD)
14	81526-SZA-X01	Frame comp - L. FR. SEAT
18	81675-TA0-A01	Holder - SPRING
19	81676-TA0-A01	Spring - HANDLE(R.)
20	81677-TA0-A01	Spring - HANDLE(L.)
21	90135-SZA-A00	Bolt-washer - 10X31
22	90610-S10-003	Clip - GARNISH
23	91501-SZA-A01	Clip - ZIGZAG SPRING

Front seat components (L.; POWER) 28

#	OEM	部品名
6	81203-SZA-A41	Crossmember assy. - FR.
8	81236-SDB-A71	Nut - PUSH
9	81255-SZ3-A01	Switch assy - LUMBAR SUPPORT
14	81526-SZA-X41	Frame comp - L. FR. SEAT
15	81529-TE0-A41	Cover - LUMBAR MOTOR
16	81590-SZA-A41	Lumbar comp. - FR. SEATBACK
17	81606-SZA-X40	Cord - L. POWER SEAT (8WAY)
19	81612-SZA-A21	Motor comp - RECLINER
20	81642-SZA-A21	Cable - FLEXIBLE
21	81643-SZA-A41	Housing - CABLE
22	81644-SZA-A41	Bracket assy - HORIZONTAL
23	81645-SZA-A21	Grommet - RUBBER
24	81646-SZA-A21	Motor assy. - HORIZONTAL
25	81648-TA5-A71	Screw - HEX. FLANGE, 6X10
26	81649-TA5-A71	Cable - FLEXIBLE SHORT
30	81653-SDB-A71	Switch assy - L. (8WAY)
31	81653-TP6-A01	Cover - L. TRACK END UPPER
32	81654-TP6-A01	Cover - R. TRACK END UPPER
34	90135-SZA-A00	Bolt-washer - 10X31
35	90321-S3V-000	Nut-washer - 8MM
36	90610-S10-003	Clip - GARNISH
37	91501-SZA-A01	Clip - ZIGZAG SPRING
38	91534-SWA-003	Clip - COUPLER(DARK GRAY)
40	91540-STK-003	Clip - HARNESS BAND (BLACK) (155.3MM)
41	91540-TA0-003	Clip - HARNESS BAND(NATURAL) (100.1MM)
42	91542-SNA-003	Clip - HARNESS BAND(DARK BLUE) (164.5MM)
43	91641-TA5-A71	Tube - RECLINER TORSION
46	81620-TA5-A71	Screw - PAN

Front seat components (R.) 23

#	OEM	部品名
10	81126-SZA-X01	Frame comp - R. FR. SEAT
11	81162-SZA-X01	Cord - R. SEAT
12	81166-TE0-A01	Cover - R. FR. SEAT BACK ODS
13	81167-SZA-X01	Spacer comp - MANUAL
14	81169-SZA-X01	Opds unit
15	81203-SZA-A41	Crossmember assy. - FR.
17	81260-SZA-A01	Adjuster - R. FR. SEAT OUTER SLIDE
18	81261-TA0-A01	Cap - RAIL END UPPER
19	81270-SZA-A01	Adjuster - R. FR. SEAT INNER SLIDE
20	81271-TA0-A01	Protector - LOWER
21	81675-TA0-A01	Holder - SPRING
22	81676-TA0-A01	Spring - HANDLE(R.)
23	81677-TA0-A01	Spring - HANDLE(L.)
24	90135-SZA-A00	Bolt-washer - 10X31
25	90151-TA0-A01	Bolt - TORX, 8MM
26	90160-S5A-003	Screw - TRUSS, 6X12
27	90321-S3V-000	Nut-washer - 8MM
28	90351-SNA-A01	Nut - TORX(M10)
29	90610-S10-003	Clip - GARNISH
30	91501-SZA-A01	Clip - ZIGZAG SPRING
31	91534-SWA-003	Clip - COUPLER(DARK GRAY)
33	91540-TA0-003	Clip - HARNESS BAND(NATURAL) (100.1MM)
34	91542-SNA-003	Clip - HARNESS BAND(DARK BLUE) (164.5MM)

Front seat components (R.; POWER) 34

#	OEM	部品名
10	81126-SZA-X41	Frame comp - R. FR. SEAT
12	81166-TE0-A01	Cover - R. FR. SEAT BACK ODS
13	81167-SZA-X41	Spacer comp - POWER
14	81169-SZA-X01	Opds unit
17	81200-SZA-A41	Device comp. - R. FR. SEAT (4WAY)
18	81201-SZA-A41	Foot - RR. INNER
19	81202-SZA-A41	Foot - RR. OUTER
20	81203-SZA-A41	Crossmember assy. - FR.
21	81206-SZA-X40	Cord - R. POWER SEAT (4WAY)
22	81212-SZA-A61	Motor comp - RECLINER
25	81253-SDB-A71	Switch assy - R.(4WAY)
26	81620-TA5-A71	Screw - PAN
27	81642-SZA-A21	Cable - FLEXIBLE
28	81643-SZA-A41	Housing - CABLE
29	81644-SZA-A41	Bracket assy - HORIZONTAL
30	81645-SZA-A21	Grommet - RUBBER
31	81646-SZA-A21	Motor assy. - HORIZONTAL
32	81649-TA5-A71	Cable - FLEXIBLE SHORT
34	81653-TP6-A01	Cover - L. TRACK END UPPER
35	81654-TP6-A01	Cover - R. TRACK END UPPER
36	90135-SZA-A00	Bolt-washer - 10X31
37	90151-TA0-A01	Bolt - TORX, 8MM
38	90160-S5A-003	Screw - TRUSS, 6X12
39	90321-S3V-000	Nut-washer - 8MM
40	90351-SNA-A01	Nut - TORX(M10)
41	90610-S10-003	Clip - GARNISH
42	91501-SZA-A01	Clip - ZIGZAG SPRING
43	91534-SWA-003	Clip - COUPLER(DARK GRAY)
45	91540-STK-003	Clip - HARNESS BAND (BLACK) (155.3MM)
46	91540-TA0-003	Clip - HARNESS BAND(NATURAL) (100.1MM)
47	91542-SNA-003	Clip - HARNESS BAND(DARK BLUE) (164.5MM)
50	81236-SDB-A71	Nut - PUSH
51	81648-TA5-A71	Screw - HEX. FLANGE, 6X10
52	91641-TA5-A71	Tube - RECLINER TORSION

Front shock absorber 20

#	OEM	部品名
1	51401-SZA-A04	Spring - R. FR.
2	51402-SZA-A01	Cover - R. FR. DUST
3	51403-SZA-A01	Cover - L. FR. DUST
4	51406-SZA-A04	Spring - L. FR.
5	51601-SZA-A06	Absorber assy - R. FR. SHOCK
6	51602-SZA-A06	Absorber assy - L. FR. SHOCK
7	51605-SZA-A02	Absorber unit - R. FR. SHOCK
8	51606-SZA-A02	Absorber unit - L. FR. SHOCK
9	51684-SZA-A01	Rubber - FR. SPRING LOWER
10	51687-SZA-A01	Sleeve - BUMP STOP RUBBER
11	51688-SZA-A01	Seat - FR. SPRING UPPER
12	51722-SZA-A01	Rubber - BUMP STOPPER
13	51726-SZA-A01	Bearing - FR. SHOCK ABSORBER MOUNT
14	51920-SZA-A02	Rubber - FR. SHOCK ABSORBER MOUNTING
15	51923-S47-004	Washer - FR. SHOCK ABSORBER MOUNTING
16	90119-SJC-A00	Bolt - FLANGE, 18X76
17	90213-SJ6-004	Nut - SELF-LOCK, 12MM(NYLON)
18	90307-STX-A01	Nut - FLANGE, 10MM
19	90381-SJC-A00	Nut - FLANGE, 18MM
20	06511-SZA-A00	Adjust kit - CAMBER

Front sub frame 29

#	OEM	部品名
1	41400-PGJ-000	Label - VTM-4
2	50200-SZA-A01	Sub frame comp. - FR. SUSPENSION
3	50205-SZA-A01	Damper - FR. SUB FRAME DYNAMIC
4	50210-STX-A00	Stiffener comp - GEAR BOX
5	50230-SJC-A01	Insulator a - SUB FRAME MOUNTING
6	50231-S3V-A01	Insulator c - SUB FRAME MOUNTING UPPER
7	50232-STX-A01	Stay a - R. FR. SUB FRAME MOUNTING
8	50233-STX-A01	Stay a - L. FR. SUB FRAME MOUNTING
9	50237-S0X-A00	Stay b - R. SUB FRAME MOUNTING
10	50238-S0X-A00	Stay b - L. SUB FRAME MOUNTING
11	50240-SZA-A00	Stiffener - FR. SUB FRAME
12	50300-SZA-A01	Sub frame assy. - RR. SUSPENSION
13	50360-SZA-A02	Rubber - RR. SUB FRAME FR. MOUNTING
14	50361-SZA-A02	Rubber - RR. SUB FRAME FR. STOPPER
15	50365-SZA-A00	Washer - RR. SUB FRAME MOUNTING
16	50370-SZA-A02	Rubber - RR. SUB FRAME RR. MOUNTING
17	50371-SZA-A02	Rubber - RR. SUB FRAME RR. STOPPER
18	50712-S3V-A01	Rubber a - RR. DIFFERENTIAL INSULATOR
19	50713-S3V-A01	Stopper a - RR. DIFFERENTIAL MOUNTING
20	50730-SZA-A01	Mounting - DIFFERENTIAL R. RR.
21	50740-SZA-A01	Mounting - DIFFERENTIAL L. RR.
22	90161-SHJ-A00	Bolt - FLANGE, 12X30
23	90161-S3V-A01	Bolt - FLANGE, 10X107
24	90162-S9V-A00	Bolt - FLANGE, 14X92
25	90165-SHJ-A00	Bolt - FLANGE, 14X125
26	90167-SAA-010	Bolt - FLANGE, 10X25
27	90180-SDA-A00	Bolt - FLANGE, 14X125
28	90181-SK3-E00	Bolt - FLANGE, 12X28
29	90825-SZA-A00	Grommet - 23MM

Front windshield wiper 20

#	OEM	部品名
1	76505-TK4-A01	Motor comp - FR. WIPER
2	76516-SJC-A01	Rubber - MOUNTING
3	76516-SNA-A01	Rubber - MOUNTING
4	76516-SR3-003	Rubber - MOUNTING
5	76517-SJC-A01	Collar
6	76517-SM4-003	Collar
7	76520-SJC-A01	Link assy. a
8	76524-SL0-A01	Dust seal
9	76530-SZA-A01	Link comp - FR. WIPER (LH)
10	76540-SZA-A01	Rod unit a
11	76550-SZA-A01	Rod unit b
12	76561-SDA-A01	Cap - PIVOT
13	76600-SZA-A01	Arm - WINDSHIELD WIPER (DRIVER SIDE)
14	76610-SZA-A01	Arm - WINDSHIELD WIPER (PASSENGER SIDE)
15	76620-SZA-A01	Blade - WINDSHIELD WIPER (565MM)
17	76622-SZA-A01	Rubber - BLADE (565MM)
18	76630-SZA-A01	Blade - WINDSHIELD WIPER (525MM)
19	76632-SZA-A01	Rubber - BLADE (525MM)
21	90126-SR3-000	Bolt-washer - 6X32
22	90216-SL0-003	Nut - HEX. CAP, 12MM (SUS)

Front windshield/ quarter glass 14

#	OEM	部品名
1	73111-SZA-A20	Glass set - FR. WINDSHIELD (GREEN) (AGC)
1	73111-SZA-A00	Glass set - FR. WINDSHIELD (GREEN) (AGC)
2	73125-SZA-A00	Rubber a - FR. WINDSHIELD DAM
3	73126-SZA-A00	Rubber b - FR. WINDSHIELD DAM
4	73127-SZA-A00	Seal - FR. WINDSHIELD UPPER
5	73128-SJC-A00	Seal - FR. INSTRUMENT
6	73150-SZA-A01	Molding - FR. WINDSHIELD
8	73153-SZA-A00	Clip A - FR. WINDSHIELD SIDE GARNISH
10	73510-SZA-A00	Glass set - R. QUARTER (GREEN) (UNITED L-N GLASS)
11	73525-SZA-A00	Rubber - QUARTER WINDSHIELD DAM
12	73560-SZA-A00	Glass set - L. QUARTER (GREEN) (UNITED L-N GLASS)
13	91502-SCV-A01	Clip A - QUARTER GLASS
14	91568-SDA-A01	Clip - WINDSHIELD UPPER
15	91570-SZA-A01	Clip - FR. WINDSHIELD SIDE GARNISH

Fuel injector 14

#	OEM	部品名
1	16450-RCA-A01	Injector assy - FUEL
2	16451-RNV-M00	Clip - INJECTOR
3	16610-RN0-A01	Pipe comp - FR. FUEL
4	16620-RN0-A01	Pipe comp - RR. FUEL
5	16728-R70-A01	Hose comp. - FUEL JOINT
6	17050-RYE-A00	Base - FR. INJECTOR
7	17055-RYE-A01	Gasket - FR. INJECTOR BASE
8	17060-RYE-A00	Base - RR. INJECTOR
9	17065-RYE-A01	Gasket - RR. INJECTOR BASE
10	90041-R70-A00	Bolt - STUD, 6X28
11	90042-R70-A00	Bolt - STUD, 8X60
12	90043-R70-A00	Bolt - FLANGE, 8X18
13	91301-PLC-000	O-ring - 7.47X3.6
14	91302-PNA-003	O-ring - 7.45X3.61(NOK)

Fuel pipe 52

#	OEM	部品名
1	16720-RN0-A01	Hose comp. - FUEL FEED
2	16725-RAC-003	Clamp - FUEL HOSE (NATURAL)
3	16726-RYE-A01	Holder b - FUEL CONNECTOR (LIGHT GRAY)
4	16727-RKB-003	Cover - FUEL CONNECTOR
5	16731-PVJ-A00	Stay - FUEL HOSE
6	17011-SZA-X01	Canister assy
7	17259-PE0-661	Collar - MOUNTING
8	17260-PE0-670	Rubber - MOUNTING
9	17311-TA0-A01	Valve assy. - CANISTER VENT SHUT
10	17321-TA0-A01	Cap
11	17356-SZA-A00	Bracket - DRAIN JOINT
12	17357-S9V-A01	Joint - DRAIN TUBE
13	17358-SZA-A00	Bracket comp. - CANISTER
14	17371-S9A-003	Valve - TWO WAY
15	17374-SZA-A00	Tube d - CANISTER DRAIN
16	17377-SZA-A00	Tube e - CANISTER DRAIN
17	17378-STX-A00	Tube f - CANISTER DRAIN
18	17578-STX-A00	Cover - DRAIN PIPE
19	17700-SZA-A01	Pipe comp - FUEL FEED
20	17711-SDC-L01	Retainer - NATURAL) (TOKAI
21	17711-S0X-003	Retainer - ORANGE) (TOKAI
22	17711-S0X-931	Retainer - BLUE GREEN) (TOKAI
23	17711-S84-004	Retainer - WHITE)(SANOH
24	17717-SZA-A01	Hose assy - FUEL PURGE
25	17720-SZA-A01	Pipe - FUEL PURGE
26	17723-SZA-X00	Tube a - FUEL VENT
27	17724-SZA-A01	Tube comp - FUEL PURGE
28	17743-SZA-A01	Pipe c - CANISTER DRAIN
29	17744-SZA-A01	Tube comp - CANISTER DRAIN
30	17761-SZA-A00	Stay a - FUEL PIPE
31	17762-STX-A00	Stay b - FUEL PIPE
32	17763-SZA-A00	Stay c - FUEL PIPE
33	17764-SZA-A00	Stay d - FUEL PIPE
34	17765-SZA-A00	Stay e - FUEL PIPE
35	75353-671-000	Lock - SCREW
36	90001-P7J-000	Bolt - SPECIAL, 6X25
37	90361-SV4-003	Nut - PAINT CUTTING, 6MM
38	91391-TA0-A01	O-ring
39	91392-TA0-A01	O-ring
40	91404-TA0-G01	Clamp - FUEL TUBE (D10)
41	91412-SDC-L01	Clamp - FUEL TUBE(D15.5)
42	91591-SHJ-A01	Clamp a - FUEL PIPE (BLACK)
43	91591-SZA-A01	Clamp a - FUEL PIPE
44	91593-SNA-A01	Clip - DRAIN TUBE
45	91594-S3V-A51	Clamp d - FUEL PIPE
46	91597-SDB-A01	Clamp d - FUEL PIPE
47	91597-SZA-A01	Clamp b - FUEL PIPE
48	91598-STX-A01	Clamp b - FUEL PIPE
49	91599-SHJ-K01	Cap - WPC 2P 040F
50	91599-SZA-A00	Rubber a - FUEL PIPE INSULATOR
54	16730-RN0-A00	Stay assy - FUEL HOSE
55	16732-RN0-A00	Cover - FUEL STAY

Fuel tank 31

#	OEM	部品名
1	17044-STX-H02	Tank set - FUEL
2	17045-SZA-A00	Module set - FUEL PUMP
3	17046-STX-A00	Nut & packing set - FUEL LOCK
4	17047-STX-A00	Meter set
5	17048-STX-A00	Strainer set - FUEL
6	17052-STX-A00	Regulator set - PRESSURE
7	17519-STX-A00	Protector - FUEL TANK
8	17521-STX-A00	Band - R. FUEL TANK MOUNTING
9	17522-STX-A00	Band - L. FUEL TANK MOUNTING
10	17525-S3V-A00	Bolt-washer - 12X35
11	17576-STX-A51	Guard - FUEL TANK
12	17651-SZA-X01	Tube - FILLER NECK
13	17652-SDA-A31	Clip - FILLER TUBE
14	17652-SEL-003	Clip - FILLER TUBE (39MM)
15	17653-SZA-X01	Tube b - BREATHER
16	17655-SZA-X00	Pipe - BREATHER
17	17656-STX-A01	Clip assy. - VENT RETURN
18	17658-STX-H01	Tube assy. a - BREATHER
19	17660-SZA-X01	Pipe comp - FUEL FILLER
20	17670-SJA-013	Cap comp. FUEL FILLER
20	17670-T3W-003	CAP, FUEL FILLER
21	17722-SZA-X01	Tube comp - FUEL VENT
22	74660-SZA-A00	Cap assy. - FLOOR MAINTENANCE HOLE
23	90150-S04-003	Bolt - EARTH, 6X16
24	90361-S3V-A00	Nut - CAP, 6MM
25	91404-TA0-G01	Clamp - FUEL TUBE (D10)
26	91413-S5A-003	Clamp - FUEL TUBE (D17)
27	91462-SDA-003	Clamp - FUEL TUBE (D18)
28	91594-SNA-A01	Clip - FILLER CAP
29	91595-STX-A01	Clip - FUEL PIPE
30	91601-SH3-013	Grommet - SCREW, 5MM (BLACK)

Gasket kit 4

#	OEM	部品名
1	06110-R70-A00	Gasket kit - FR. CYLINDER HEAD
2	06111-R70-A00	Gasket kit - CYLINDER BLOCK
3	06112-RN3-000	Gasket kit - AT TRANSMISSION
4	06120-R70-A00	Gasket kit - RR. CYLINDER HEAD

Grommet (FRONT) 18

#	OEM	部品名
1	74209-S9V-A00	Cushion - HOOD FIT
2	82871-671-000	Grommet - DRAIN HOLE, 25MM
3	85268-SA0-000	Protection - TAILGATE, 20MM (CIRCLE)
4	90602-S10-003	Holder - ROD
5	90682-SB0-003	Grommet - SCREW, 5MM
6	90807-SNA-003	Grommet - 7MM
7	90810-SNA-003	Grommet - 10MM
8	90811-SNA-003	Grommet - 11MM
9	90812-SNA-003	Grommet - 12MM
10	90820-SNA-003	Grommet - 20MM
11	90825-SNA-003	Grommet - 25MM
12	90830-SNA-003	Grommet - 30MM
13	91601-SB0-003	Plug - BLIND, 31.6MM
14	91602-SZ3-003	Plug - HOLE, 20MM
15	91603-S9A-003	Cushion - HOOD(25MM-32MM)
16	91604-SNA-003	Grommet - HOOD STAY
18	90835-SNA-003	Grommet - 35MM
19	90851-SZA-A01	Seal - 63X75

Grommet (LOWER) 11

#	OEM	部品名
1	90101-SHJ-A01	Grommet - BUMPER SIDE
3	90815-SEP-A01	Grommet - 15MM
4	90815-SNA-003	Grommet - 15MM
5	90820-SNA-003	Grommet - 20MM
6	90825-SNA-003	Grommet - 25MM
7	90830-SNA-003	Grommet - 30MM
8	90835-SNA-003	Grommet - 35MM
9	90852-S3V-A00	Plug - HOLE(25X35)
10	91606-SK7-003	Plug - BLIND, 25MM
11	91615-SM4-000	Plug - BLIND, 20X30
12	91631-S5A-000	Plug - AIR CONDITIONER HOLE (36X74)

Grommet (REAR) 8

#	OEM	部品名
1	71504-S0X-A00	Cushion - RR. BUMPER
2	90810-SNA-003	Grommet - 10MM
3	90815-SNA-003	Grommet - 15MM
4	90820-SNA-003	Grommet - 20MM
5	90830-SNA-003	Grommet - 30MM
6	91534-S03-003	Clip - COUPLER (NATURAL) (SEAL)
7	91615-SEL-T01	Plug - HOLE(41X69)
8	90851-SZA-A01	Seal - 63X75

Grommet (SIDE) 4

#	OEM	部品名
1	90812-SNA-003	Grommet - 12MM
2	90820-SNA-003	Grommet - 20MM
3	91617-SZ3-000	Seal - HOLE, 40X40
4	91619-SE0-000	Seal - DOOR HOLE, 30MM(BLACK)

Harness band/bracket 42

#	OEM	部品名
2	32118-P72-003	Holder - CORRUGATED(DARK GREEN) (19MM)
4	32132-SM4-003	Band - WIRE HARNESS OFFSET (20) (BLACK) (122.5MM)
5	32133-SLA-003	Band - HARNESS OFFSET(30) (DARK GRAY)(145MM)
6	32133-SM4-003	Band - HARNESS OFFSET (30) (YELLOW) (122.5MM)
7	32134-SM4-003	Band - HARNESS OFFSET (10) (BROWN) (122.5MM)
8	32602-STX-A00	Bracket - MISSION EARTH CABLE
9	32611-SJC-A11	Bracket - SUB EARTH
10	72327-SD5-000	Seal b - FR. DOOR HOLE (30X50)
11	90627-SA5-003	Clip - WIRE HARNESS(BLUE) (HARNESS TAPING)(50MM)
12	91506-STX-A01	Clip - HARNESS BAND(BLACK) (148MM)
13	91507-P01-003	Clip b - HARNESS BAND (DARK BROWN) (129.4MM)
14	91507-SNA-003	Clip - HARNESS BAND(BROWN) (164.5MM)
15	91507-SYP-003	Clip - WIRE HARNESS (SEAL) (70MM)
16	91507-693-003	Clip - WIRE HARNESS (BLACK) (50MM) (HARNESS TAPING)
17	91531-SDA-003	Clip - HARNESS BAND (NATURAL) (145MM)
18	91531-SFA-003	Clip - HARNESS BAND, 6MM (NATURAL)(145MM)
19	91531-S04-003	Clip - WIRE HARNESS(NATURAL) (44MM)
20	91531-S84-003	Clip - WIRE HARNESS(NATURAL) (44MM)(WITH SEAL)
21	91533-SDA-003	Clip - COUPLER (BEIGE)
22	91533-STK-003	Clip - COUPLER(NATURAL)
23	91533-S04-003	Clip - COUPLER (NATURAL)
24	91533-S82-003	Clip - COUPLER(BLACK)
25	91540-STK-003	Clip - HARNESS BAND (BLACK) (155.3MM)
26	91540-S7S-003	Clip - HARNESS BAND(BLACK) (157.7MM)
27	91540-TA0-003	Clip - HARNESS BAND(NATURAL) (100.1MM)
28	91542-SNA-003	Clip - HARNESS BAND(DARK BLUE) (164.5MM)
29	91545-S2A-003	Clip - HARNESS BAND (BROWN) (151MM) (WITH SEAL)
30	91545-TA0-003	Clip - HARNESS BAND(NATURAL) (100.1MM)(WITH SEAL)
31	91547-SH3-003	Clip - BAND(NATURAL)(160MM)
32	91548-S84-003	Clip - HARNESS BAND (GRAY) (128MM)
33	91549-TA0-003	Clip - HARNESS BAND(BLACK) (140.3MM)
34	91559-ST5-003	Clip - HARNESS BAND OFFSET(30) (NATURAL)
35	91559-S47-003	Clip - HARNESS BAND(NATURAL) (167MM)
36	91565-SEL-003	Clip - COUPLER(BLACK)
37	91565-S0X-003	Clip - COUPLER (DARK GREEN)
38	91571-S10-003	Clip - WIRE HARNESS (NATURAL) (130MM)
39	91577-SS0-003	Clip - WIRE HARNESS (BLUE) (122.5MM)
41	91902-STX-A01	Plaster - WIRE HARNESS(50X100)
44	91534-SWA-003	Clip - COUPLER(DARK GRAY)
45	91535-TA0-003	Clip - COUPLER (DARK BROWN)
47	91558-SAA-003	Clip - HARNESS BAND(30)(BLACK) (151.5MM)
48	91542-TF0-003	Band - HARNESS OFFSET(20) (DARK BLUE)(145MM)

Headlight 13

#	OEM	部品名
1	33100-SZA-R01	Headlight assy - R.
2	33103-S3V-A01	Bulb - HEADLIGHT (HB3) (12V 60W) (SYLVANIA)
3	33104-ST7-000	Nut - SPECIAL
4	33126-SLA-003	Cover - RUBBER
5	33130-S2A-G01	Adjuster unit - HEADLIGHT
6	33150-SZA-R01	Headlight assy - L.
7	33165-SAA-003	Bulb - H11) (12V 55W) (KOITO
8	33302-S7A-003	Socket comp - T20
9	33303-SCK-003	Bulb - WEDGE(12V 21W)(AMBER)
10	34301-S1F-003	Socket comp - T10
11	34908-SB6-741	Bulb - 12V 5W
11	34351-657-921	Bulb - 12V/5W) (STANLEY
12	91512-SX0-003	Clip - INNER FENDER CLIP

Heater blower 14

#	OEM	部品名
1	79021-SDG-W41	Packing - LINK
2	79027-SHJ-A01	Seal - BLOWER OUTER
3	79028-SHJ-A01	Packing - AIR INTAKE
4	79028-STX-A01	Packing
5	79121-SHJ-A01	Screw-washer
6	79305-SZA-A03	Blower sub assy.
7	79310-STX-A01	Motor assy. - FAN
9	80291-SHJ-A41	Lid - BLOWER
10	80292-SHJ-A41	Element - FILTER
11	90127-S84-003	Screw - TAPPING, 4X16
12	90132-SR3-003	Screw - TAPPING, 5X16
13	90133-SR3-003	Screw-washer - 4X16
14	90321-SV4-003	Nut-washer - 6MM (PAINT CUTTING)
16	79350-TK4-A41	Motor assy. - FRESH & RECIRCULAR

Heater unit 44

#	OEM	部品名
1	91542-TF0-003	Band - HARNESS OFFSET(20) (DARK BLUE)(145MM)
2	32157-SZA-A11	Harness - AIR CONDITIONER SUB WIRE
3	39248-692-003	Packing - HEATER
4	79021-SDG-W41	Packing - LINK
5	79021-SZA-A01	Cover - HEATER CORE
6	79022-STX-A02	Duct assy - DRIVER HEATER
7	79023-SJC-A01	Duct assy - PASSENGER HEATER
8	79024-SHJ-A01	Seal a
9	79024-SZA-A01	Packing - DEFROSTER DUCT
10	79025-SHJ-A01	Joint a - DUCT
11	79026-SHJ-A01	Packing - E
12	79026-SJC-A01	Packing - FOOT DUCT
13	79107-SZA-A44	Heater sub assy.
14	79115-SZA-A02	Core sub assy. - HEATER
15	79140-SHJ-A01	Motor assy. - MODE
16	79160-STX-A41	Motor assy. - TEMPERATURE (DRIVER SIDE)
17	79170-STX-A41	Motor assy. - TEMPERATURE (PASSENGER SIDE)
18	79191-SHJ-A01	Clamp - HEATER PIPE
19	79191-SW5-003	Clamp - CASE HOLD
20	79330-SDG-W51	Transistor - POWER
21	79731-SDA-A00	Grommet - HEATER PIPE
22	80203-SHJ-A01	Plate - EVAPORATOR LOWER
23	80215-STX-A01	Evaporator sub assy.
24	80216-STX-A01	Pipe sub assy.
25	80219-S0X-A01	Packing d
26	80221-STX-A41	Valve sub assy. - EXPANSION
27	80271-SZA-A00	Hose - DRAIN
28	80534-SZA-A41	Aspirator
29	80560-SHJ-A01	Thermistor - AIR CONDITIONER
30	80871-SN7-003	O-ring - 5/8"
31	80872-SN7-003	O-ring - 1/2"
32	80873-SN7-003	O-ring - 8MM
33	90121-S1A-G01	Bolt - FLANGE
34	90127-SX0-003	Screw - TAPPING, 4X16
35	90127-S84-003	Screw - TAPPING, 4X16
36	90133-SR3-003	Screw-washer - 4X16
37	90321-SV4-003	Nut-washer - 6MM (PAINT CUTTING)
38	91531-S04-003	Clip - WIRE HARNESS(NATURAL) (44MM)
39	91533-S04-003	Clip - COUPLER (NATURAL)
40	91540-TA0-003	Clip - HARNESS BAND(NATURAL) (100.1MM)
41	91548-SV4-003	Clip - BAND (6MM BOSS)(NATURAL) (127MM)
42	91580-SM4-003	Clip - COUPLER(ORANGE)
43	91593-S9V-A01	Clip - FUEL TUBE
45	91549-TA0-003	Clip - HARNESS BAND(BLACK) (140.3MM)

Inner panels 5

#	OEM	部品名
1	63365-SZA-A01	Separator - QUARTER PILLAR OUTER
3	64135-SZA-A01	Separator - FR. PILLAR LOWER INSIDE
8	64325-SZA-A01	Separator - QUARTER PILLAR INNER
9	64327-SZA-A01	Separator - RR. WHEEL ARCH
17	90110-SE7-000	Bolt-washer - 8X21

Instrument panel 24

#	OEM	部品名
3	66844-SA7-000	Cap - INSTRUMENT PANEL STAY
5	77112-SZA-A00	Stay comp - INSTRUMENT LOWER R.
6	77117-SZA-A00	Stay comp - INSTRUMENT CENTER L.
7	77125-SZA-A00	Bracket - RELEASE LEVER
10	77172-SZA-A00	Stay - DRIVER INSTRUMENT UPPER
11	77173-SZA-A00	Stay - PASSENGER INSTRUMENT UPPER L.
12	77174-SZA-A00	Stay - PASSENGER INSTRUMENT UPPER R.
13	77205-S0X-A01	Clip - SNAP FITTING
16	77551-SZA-A00	Frame comp - GLOVE BOX
17	77851-SZA-G82	Module assy. - PASSENGER
18	77867-SZA-A81	Plate - REMOVABLE HOOK
19	77893-SZA-A11	Bracket set - SUPPORT
20	90001-S10-010	Bolt-washer - 5X16
21	90103-SZA-A00	Bolt-washer - 8X98
22	90110-SV4-000	Bolt-washer - 8X21
23	90110-S84-A00	Bolt-washer - 8X20
24	90111-SZA-A00	Bolt-washer - 8X122
25	90112-SZA-A00	Bolt-washer - 8X70.5
26	90178-STX-003	Bolt-washer - 6X16
27	90321-SP0-A80	Nut-washer - 6MM
28	90322-SR3-J80	Nut - LOCK (M5)
29	91533-S82-003	Clip - COUPLER(BLACK)
30	91545-S30-003	Clip - HARNESS BAND (NATURAL) (151.5MM) (WITH SEAL)
31	91641-SM4-003	Grommet - SCREW, 4MM

Instrument panel garnish (DRIVER SIDE) 13

#	OEM	部品名
1	34760-TA0-J01	Light assy, Foot
7	39610-S2H-G01	Knob assy
8	39620-S0X-003	Socket assy
9	39630-SFE-003	Ring assy - TYPE INCLUDING BULB
26	77301-SZA-A00	Adapter - HUMIDITY SENSOR
32	77628-S0X-A01	Label - OUTLET OPEN
33	77629-S0X-A01	Label - OUTLET SHUT
34	90101-S2K-000	Screw - TAPPING, 4X16(IT)
35	90133-SM4-003	Bolt-washer - 5X16
36	90666-SDA-A01	Clip, Snap Fitting - SNAP FITTING(PO) (NATURAL)
37	90666-SLJ-003	Clip - SNAP FITTING (PO)
38	90666-TA0-A21	Clip - SNAP FITTING (PO) (ORANGE)
39	91640-SM4-003	Grommet - SCREW, 4MM

Instrument panel garnish (PASSENGER SIDE) 14

#	OEM	部品名
1	34254-S3N-003	Lamp assy. - GLOVE BOX
2	66844-SA7-000	Cap - INSTRUMENT PANEL STAY
8	77506-SM4-900	Stopper - GLOVE BOX LID
10	77515-SZ3-A02	Hinge - GLOVE BOX
11	77520-SDA-A01	Cylinder - GLOVE BOX
13	77541-SZA-A00	Bracket assy - STRIKER
18	77628-S0X-A01	Label - OUTLET OPEN
19	77629-S0X-A01	Label - OUTLET SHUT
20	90001-S10-010	Bolt-washer - 5X16
21	90140-S9V-000	Bolt-washer - 5X22
22	90306-S9V-000	Nut - FLOATING, 5MM
23	90666-SDA-A01	Clip, Snap Fitting - SNAP FITTING(PO) (NATURAL)
24	90666-S84-A01	Clip - SNAP FITTING
25	91640-SM4-003	Grommet - SCREW, 4MM

Intake manifold 9

#	OEM	部品名
1	17105-RCJ-A01	Gasket - INTAKE MANIFOLD
2	17112-RKB-003	Seal - BORE PLATE
3	17140-RKB-013	Cover comp. - INTAKE MANIFOLD UPPER
4	17146-R70-A01	Packing - INTAKE MANIFOLD UPPER COVER
5	17150-RNA-A01	Actuator assy - BYPASS VALVE
6	17153-RCA-A01	Packing - BYPASS VALVE ACTUATOR
7	17160-RN0-A00	Manifold comp - INTAKE
8	17181-RCJ-A00	Pipe comp - EGR
9	17213-P0G-A00	Rubber - INTAKE COVER MOUNT

Interior light 15

#	OEM	部品名
1	34251-S5A-003	Lens
3	34253-671-003	Bulb - 12V 8W)(DAIICHI
3	04110-SWA-305	BULB T10X318W
4	34401-SDA-A21	Lens - R.
5	34401-SEP-A01	Lens - R.
6	34401-S84-A01	Bulb - T10 4CP) (12V 6.2W
7	34402-SDA-A21	Lens - L.
8	34402-SEP-A01	Lens - L.
11	34404-SDA-A22	Base comp.
14	35831-SMA-003	Bulb comp. - 14V 60MA
15	35833-SNA-A01	Seal - FOR BULB/LED
18	90139-SM4-003	Bolt-washer - 5X20
19	90148-S6A-013	Bolt - EARTH, 5X14
20	91560-TA0-A01	Clip - MAP LIGHT
23	91560-TE0-A01	Clip - MAP LIGHT

Main valve body 10

#	OEM	部品名
1	22748-PW4-000	Pipe - 8X62
2	25145-PA9-010	Shaft - OIL PUMP GEAR
3	27000-R36-A00	Body assy - MAIN VALVE
4	27112-RWE-000	Plate - MAIN SEPARATING
5	27122-P6H-A00	Cap - 12MM
6	27122-P6H-000	Cap - 12MM
7	27152-PLY-000	Cap - 13MM
8	27263-PX3-000	Seat - VALVE SPRING
9	27524-P6H-000	Clip - CAP
10	27750-PL5-J01	Filter - SECONDARY BODY

Mainshaft 13

#	OEM	部品名
1	22814-RDK-003	Seal - RING (31MM)
2	23210-RN3-305	Mainshaft set
3	23461-RJB-306	Gear set - MAINSHAFT FOURTH
4	23481-R97-A00	Gear - MAINSHAFT FIFTH
5	90201-RDK-000	Nut - FLANGE, 26MM
6	90402-RDK-000	Washer - 29X40X3.9
7	90501-RDK-000	Collar - 33X40X48.7
8	90603-P4R-000	Set ring - 23MM
9	91016-RDK-003	Bearing - NEEDLE, 40X46X34
10	91017-RJF-T01	Bearing - NEEDLE, 23X31X25.3
11	91022-RJF-T01	Needle - THRUST, 40X51.6X2.5
12	91031-RDK-003	Needle - THRUST, 40X59X3
13	91316-PR9-003	O-ring - 33X1.9 (ARAI)

Meter components (NS) 5

#	OEM	部品名
1	37115-SA0-601	Packing - NS
2	78100-SZA-Y11	Meter assy - COMBINATION
3	78156-SZA-A11	Lens
4	90302-SA4-003	Nut - SPRING, 4MM
5	91640-SM4-003	Grommet - SCREW, 4MM

Middle seat (L.) 19

#	OEM	部品名
1	04810-SB3-000	C clip set - TRIM FASTENER (30 PIECES)
4	81302-SZA-A01	Screw - TAPPING, 5X10 (PAN HEAD)
6	81324-SZA-A01	Plate - SERRATED
12	81718-SZA-A01	Bolt - (M6X18)
14	81722-SZA-A01	Pad comp - L. MIDDLE SEATBACK
16	81726-SZA-A01	Frame comp - L. MIDDLE SEATBACK
20	81732-SZA-A01	Pad comp - L. MIDDLE SEAT CUSHION
28	81763-SZA-A01	Cable b - L. MIDDLE SEAT RECLINING LEVER
29	81764-SZA-A01	Cable a - MIDDLE SEAT WALK-IN
30	81765-SZA-A01	Cable a - L. MIDDLE SEAT RECLINING LEVER
36	81783-SZA-A01	Bracket - R. MIDDLE SEAT ARMREST
37	81784-SZA-A01	Bracket - L. MIDDLE SEAT ARMREST
40	82128-STX-A01	Clip - RR. SEAT LOWER
41	82129-STX-A01	Clip - LOCATOR
44	90610-SR3-003	Clip - GARNISH (KATO)
45	90610-S10-003	Clip - GARNISH
46	91906-S9V-A01	Bolt - M6X12.6
47	91908-S3V-A11	Bolt - 8X25
48	91610-SCV-003	Clip - GARNISH

Middle seat (R.) 13

#	OEM	部品名
1	04810-SB3-000	C clip set - TRIM FASTENER (30 PIECES)
3	81302-SZA-A01	Screw - TAPPING, 5X10 (PAN HEAD)
5	81322-SZA-A01	Pad comp - R. MIDDLE SEATBACK
7	81324-SZA-A01	Plate - SERRATED
9	81326-SZA-A01	Frame comp - R. MIDDLE SEATBACK
14	81332-SZA-A01	Pad comp - R. MIDDLE SEAT CUSHION
24	81362-SZA-A01	Cable a - R. MIDDLE SEAT RECLINING LEVER
25	81364-SZA-A01	Cable - R. MIDDLE SEAT
31	82128-STX-A01	Clip - RR. SEAT LOWER
32	82129-STX-A01	Clip - LOCATOR
35	90610-SR3-003	Clip - GARNISH (KATO)
36	90610-S10-003	Clip - GARNISH
37	91908-S3V-A11	Bolt - 8X25

Middle seat components (L.) 19

#	OEM	部品名
3	81301-S3V-A11	Nut - 6X1.0
5	81314-SZA-A01	Cap - UPPER END
6	81314-S3V-A12	Cap - LOWER TRACK
7	81315-SZA-A01	Spring assy - ASSIST
8	81365-SZA-A02	Cable b - MIDDLE SEAT WALK-IN
9	81710-SZA-A01	Device comp. - L. MIDDLE SEAT
10	81714-SZA-A01	Cap - UPPER END
11	81736-SZA-A01	Frame comp - L. MIDDLE SEAT CUSHION
12	81769-SZA-A01	Cable d - MIDDLE SEAT WALK-IN
15	90135-S7A-J51	Bolt-washer - 10X25
16	90321-SZA-000	Nut - FLANGE (M10)
17	90321-S3V-000	Nut-washer - 8MM
18	90323-SZA-000	Nut - FLANGE (M6)
19	90610-S10-003	Clip - GARNISH
20	90656-PB1-003	Band - OIL HOSE
21	90666-SDA-A01	Clip, Snap Fitting - SNAP FITTING(PO) (NATURAL)
25	91906-S3V-A11	Bolt - 6X12.6
26	81317-SZA-A01	Nut - PUSH
27	81716-SZA-A01	Bar - L. TOWEL

Middle seat components (R.) 18

#	OEM	部品名
3	81301-S3V-A11	Nut - 6X1.0
5	81310-SZA-A01	Device comp. - R. MIDDLE SEAT
6	81314-SZA-A01	Cap - UPPER END
7	81314-S3V-A12	Cap - LOWER TRACK
8	81315-SZA-A01	Spring assy - ASSIST
9	81336-SZA-A01	Frame comp - R. MIDDLE SEAT CUSHION
10	81365-SZA-A02	Cable b - MIDDLE SEAT WALK-IN
11	81369-SZA-A01	Cable c - R. MIDDLE SEAT WALK-IN
16	81714-SZA-A01	Cap - UPPER END
17	90135-S7A-J51	Bolt-washer - 10X25
18	90321-SZA-000	Nut - FLANGE (M10)
19	90321-S3V-000	Nut-washer - 8MM
20	90610-S10-003	Clip - GARNISH
21	90656-PB1-003	Band - OIL HOSE
22	90666-SDA-A01	Clip, Snap Fitting - SNAP FITTING(PO) (NATURAL)
26	91906-S3V-A11	Bolt - 6X12.6
27	81316-SZA-A01	Bar - R. TOWEL
28	81317-SZA-A01	Nut - PUSH

Mirror 16

#	OEM	部品名
1	34300-SZA-A02	Light assy - R. SIDE TURN
2	34350-SZA-A02	Light assy - L. SIDE TURN
4	76203-SZA-Y01	Mirror sub assy. - R. (ARABIC) (1260)
6	76206-SZA-Y01	Harness sub assy. - R.
8	76210-SZA-A01	Actuator assy
10	76212-SZA-A01	Base - R. SEAT
13	76253-SZA-Y01	Mirror sub assy. - L. (ARABIC) (1260)
15	76256-SZA-Y01	Harness sub assy. - L.
18	76262-SZA-A01	Base - L. SEAT
20	76400-SZA-A11	Mirror assy - RR. VIEW (DAY/NIGHT)
21	76400-SZA-A82	Mirror assy - RR. VIEW (MONITOR)
22	76406-SZ3-A51	Screw - TORX,
23	76410-SHJ-A81	Cover - WIRE
24	90109-SDA-A11	Screw - TAPPING, 3.5X15
25	91560-S84-A01	CLIP, DOOR LINING (NATURAL)
26	91902-STX-A01	Plaster - WIRE HARNESS(50X100)

Molding/roof rail 23

#	OEM	部品名
1	72410-SZA-A01	Molding assy. - R. FR. DOOR
2	72430-SZA-A00	Garnish assy - R. FR. DOOR SASH
3	72450-SZA-A01	Molding assy. - L. FR. DOOR
4	72470-SZA-A00	Garnish assy - L. FR. DOOR SASH
5	72910-SZA-A01	Molding assy. - R. RR. DOOR
6	72930-SZA-A00	Garnish assy - R. RR. DOOR SASH
7	72950-SZA-A01	Molding assy. - L. RR. DOOR
8	72970-SZA-A00	Garnish assy - L. RR. DOOR SASH
9	74306-SZA-A20	Molding assy. a - R. ROOF
10	74306-SZA-A90	Molding b - R. ROOF
11	74316-SZA-A20	Molding assy. a - L. ROOF
12	74316-SZA-A90	Molding b - L. ROOF
15	75271-SZA-A01	Gasket - R. FR.
16	75273-SZA-A01	Gasket - R. RR.
17	75274-SZA-A01	Clip
20	75281-SZA-A01	Gasket - L. FR.
21	75283-SZA-A01	Gasket - L. RR.
26	75306-SZA-A01	Clip - DOOR CENTER MOLDING
29	90141-TA0-000	Screw - TAPPING, 4X10(PO)
30	90142-SWA-000	Screw - TAPPING, 4X10(PO)
31	90305-SZA-000	Nut - SPECIAL (M6)
32	91213-SZA-A01	Clip - B-PILLAR GARNISH
33	91501-SM5-A00	Clip - ROOF MOLDING (6MM) (GRAY)

Oil pump 19

#	OEM	部品名
1	14535-R70-A00	Plate - TIMING BELT STOPPER
2	15100-R70-A02	Pump assy. - OIL
3	15115-P8A-A01	Packing - OIL HOLE
4	15220-RYE-A01	Strainer comp. - OIL
5	15221-RYE-A01	O-ring
6	15231-PE0-000	Valve - RELIEF
7	15232-R70-A01	Spring - RELIEF VALVE
8	15233-R70-A01	Bolt - SEALING, 18MM
9	15301-RN0-A00	Base comp. - OIL FILTER
10	15302-RDV-J00	Packing - OIL FILTER BASE
11	15400-PLM-A02	OIL FILTER (HONEYWELL)
11	15400-RTA-003	OIL FILTER (MAHLE TENNEX)
12	37260-RNA-A01	Sensor - OIL PRESSURE
13	37263-RN0-A01	Cover - OIL PRESSURE SENSOR
14	90015-PH1-013	Holder - OIL FILTER
15	90051-P8A-A00	Bolt - FLANGE, 6X35 (SEAL)
16	91212-R70-A01	Oil seal - 41X56X7 (ARAI)
16	91212-R70-A02	Oil seal (auto) - 41X56X7 (NOK)
17	91319-R70-A01	O-ring - 10.2X1.9

Outer panels/roof panel 12

#	OEM	部品名
14	63229-SZA-A01	Separator - R. CENTER PILLAR INSIDE
19	63629-SZA-A01	Separator - L. CENTER PILLAR INSIDE
21	74411-SZA-A01	Cable - FUEL LID OPENER
22	74480-SZA-A01	Adapter assy - FUEL FILLER
24	74490-SZA-A01	Grommet - FUEL CAP
26	75450-SMA-003	Outlet assy - RR. AIR
27	90106-SE4-000	Bolt-washer - 6X18
28	90139-S2R-000	Bolt - FLANGE, 6X16(GUIDE)
29	90222-SB4-000	Nut-washer - 6MM
30	90684-SD4-003	Clip - FUEL LID OPENER
31	91507-S5A-003	Clip - TRUNK OPENER CABLE
32	91902-S2X-003	Plaster - WIRE HARNESS(50X100)

P.s. gear box 16

#	OEM	部品名
1	53010-SZA-A01	End set - RACK
2	53434-SJC-A01	Clip - TIE ROD
3	53436-SZA-A01	Cushion b - GEAR BOX
4	53438-SZA-A00	Bracket b - POWER STEERING GEAR BOX
5	53449-SZA-A01	Band - BELLOWS
6	53501-SZA-A00	Grommet - STEERING
7	53534-SZA-A02	Dust seal - TIE ROD
8	53536-SJC-A01	Washer - TIE ROD LOCK
9	53537-S3V-A01	Rubber - STOPPER
10	53540-STX-A02	End comp - R. TIE ROD
11	53546-STX-A02	Boot - TIE ROD END
12	53560-STX-A02	End comp - L. TIE ROD
13	53601-SZA-A02	Box comp - POWER STEERING GEAR
14	90107-STX-A01	Bolt - GEAR BOX MOUNTING
15	90301-SEP-003	Nut - HEX., 14MM
16	90362-SZA-A00	Nut - FLANGE, 12MM

P.s. gear box components 24

#	OEM	部品名
1	06531-SZA-A01	Seal kit a - POWER STEERING (ROTARY VALVE)
2	06532-S50-003	Oil seal set - ROTARY VALVE
3	06534-S84-A01	Ring set - POWER STEERING SEAL (ROTARY VALVE)
4	06535-S50-003	Ring set - POWER STEERING SEAL (ROTARY VALVE)
5	53413-SD4-951	Spring - RACK GUIDE PRESSURE
6	53414-S84-A01	Screw - RACK GUIDE
7	53416-TA0-A01	Guide comp - STEERING RACK
8	53449-SZA-A01	Band - BELLOWS
9	53458-S84-A01	Nut - LOCK
10	53536-SJC-A01	Washer - TIE ROD LOCK
11	53608-SZA-A01	Housing sub assy. - STEERING GEAR BOX
12	53626-SZA-A01	Rack comp - STEERING
13	53630-SZA-A01	End comp - CYLINDER
14	53641-SZA-A03	Valve sub assy. - STEERING
15	53645-SZA-A01	Housing comp - VALVE
16	53656-S84-A01	Circlip - EXTERNAL, 20MM
17	53660-S50-003	Oil seal - 27X38X5.5 (SHOWA)
18	53666-S50-003	O-ring - 41.5X2 (SHOWA)
19	53670-SZA-A01	Pipe comp. a - CYLINDER
20	53671-SZA-A01	Pipe comp. b - CYLINDER
21	53685-SZA-A01	Bush - GEAR BOX MOUNTING
22	53693-TA0-A01	Nut - SELF-LOCK
23	53694-TA0-A01	Bolt - BOTTOM
24	90105-S50-003	Bolt - FLANGE, 8X28

P.s. lines 21

#	OEM	部品名
1	53697-SB3-952	Cap - OIL TANK
2	53701-SZA-A01	Tank comp. - POWER STEERING OIL
3	53711-SZA-A00	Bracket comp. - POWER STEERING OIL TANK
4	53713-SZA-A02	Hose comp. - POWER STEERING FEED
5	53720-SP0-020	Pipe comp - RETURN, 10MM
6	53729-S0X-003	Clip - RETURN HOSE (NATURAL)
7	53729-671-003	Clamp d - 15.5MM
8	53730-SJC-A00	Clamp - FEED HOSE
9	53731-SZA-A00	Tube - SUCTION
10	53732-SZA-A02	Hose - OIL COOLER
11	53733-SZA-A01	Hose - OIL TANK
12	53734-SZA-A01	Hose - RETURN
13	53736-SZA-A00	Stay c - FEED HOSE
14	53745-STX-A00	Stay - FEED HOSE
15	53765-SZN-A02	Cooler comp - POWER STEERING OIL
16	53779-SZA-A03	Pipe comp. b - RETURN
17	56490-P0H-013	Switch assy - POWER STEERING PRESSURE (TEXAS)
18	90635-S5A-A02	Clip - OIL HOSE (NICHIRIN)
19	91304-P0H-013	O-ring - 7.8X1.9
20	91405-SS0-003	Clamp - TUBE (D21)
25	91370-TA0-000	O-ring - 14.4X1.9

Parking brake 14

#	OEM	部品名
1	47101-SZA-A01	Pedal set - FOOT PARKING BRAKE
2	47120-S6A-N01	Pad - PEDAL
3	47159-S6A-N01	Nut - PUSH
4	47210-SZA-A01	Wire a - PARKING BRAKE
6	47342-S9A-A01	Switch - PARKING BRAKE
7	47410-S6A-N01	Shock Absorber
8	47520-SZA-A02	Wire b - R. PARKING BRAKE
9	47538-S2R-000	Nut - ADJUSTER
10	47560-SZA-A02	Wire b - L. PARKING BRAKE
11	47572-S3V-A00	Base - WIRE GUIDE
12	47574-S0X-000	Spring - RETURN
13	90157-SA0-000	Bolt-washer - 8X25
14	90361-SV4-003	Nut - PAINT CUTTING, 6MM
15	90651-SV1-A01	Clip - BRAKE HOSE

Parking brake shoe 20

#	OEM	部品名
1	43110-SZA-A01	Plate comp - R. BACK
2	43120-SZA-A01	Plate comp - L. BACK
3	43153-STX-A01	Shoe comp. a - PARKING BRAKE
4	43154-STX-A01	Shoe comp. b - R. PARKING BRAKE
5	43155-STX-A01	Shoe comp. b - L. PARKING BRAKE
6	43171-SZA-A01	Spring - ROD
7	43172-S3V-A01	Spring a - BRAKE
8	43174-S3V-A01	Cup - SHOE HOLD DOWN
9	43176-S3V-A01	Spring - SHOE HOLD DOWN
10	43301-S3V-A01	Plate - SHOE GUIDE
11	43361-STX-A01	Lever - R. PARKING BRAKE
12	43362-S3V-A02	Rod - R. CONNECTING
13	43366-S3V-A01	Adjuster assy
14	43367-S9V-A01	Spring b - BRAKE
15	43371-STX-A01	Lever - L. PARKING BRAKE
16	43372-S3V-A02	Rod - L. CONNECTING
17	43375-S3V-A01	U-clip
18	43379-S3V-A01	Washer - WAVE
19	45175-STX-A01	Pin - TENSION
20	90367-SL0-000	Nut - FLANGE, 12MM

Parking sensor 2

#	OEM	部品名
1	39670-TL0-G01	Sensor unit - PARKING
5	39682-TL0-G01	Clamp

Pedal 9

#	OEM	部品名
1	17800-SZA-A01	Pedal assy - ACCELERATOR
2	36750-SMA-003	Switch assy - STOP & CRUISE (PANASONIC)
3	46505-SA5-000	Pad - PEDAL STOPPER
4	46530-SZA-A81	Spring assy - PEDAL RETURN
5	46545-S84-A81	Cover - PEDAL
6	46600-SZA-A81	Pedal assy - BRAKE
7	46991-SZA-A01	Bracket - FOOTREST
8	46992-SJC-A00	Plate - FOOTREST BRACKET
9	90301-SP0-003	Nut - PAINT CUTTING, 6MM

Pillar garnish 13

#	OEM	部品名
1	38205-SZA-X01	Label - FUSE
2	72315-SZA-A11	Seal - R. FR. DOOR OPENING
3	72355-SZA-A11	Seal - L. FR. DOOR OPENING
4	72815-SZA-A11	Seal - R. RR. DOOR OPENING
5	72855-SZA-A11	Seal - L. RR. DOOR OPENING
30	90126-SR3-000	Bolt-washer - 6X32
31	90132-SE3-003	Screw - TAPPING, 4X12
32	90134-SZA-A00	Bolt - TORX, 6X23
33	90610-SJC-000	Clip - GARNISH
34	91560-SLJ-J01	Clip - DOOR LINING (LIGHT GRAY)
35	91560-SYA-J01	Clip - PILLAR GARNISH (DARK GREEN)
36	91561-SJD-003	Clip - PILLAR
37	91561-TA0-A11	Clip - RR. PILLAR GARNISH

Plug hole coil/plug 4

#	OEM	部品名
1	12290-R70-A01	Plug - SPARK (ILZKR7B11) (NGK)
2	30520-RN0-A01	Coil comp - PLUG HOLE
3	30522-PFB-007	SEAL, PLUG HOLE
4	90207-RAA-A10	Nut - HEX. CAP, 6MM

Power steering pump/ bracket 21

#	OEM	部品名
1	32115-RCA-A00	Stay - KNOCK SENSOR COUPLER
2	56110-RN0-A03	Pump sub assy - POWER STEERING
3	56123-R70-A11	Joint - IN.
4	56141-PAA-A01	Shaft - POWER STEERING PUMP DRIVE
5	56483-RCA-A01	Pulley - POWER STEERING PUMP
6	56950-RCA-A01	Bracket - FR. POWER STEERING PUMP
7	56961-RCA-A00	Bracket - RR. POWER STEERING PUMP
8	56965-RCA-A02	Plate comp - ENGINE HANGER
9	56992-R70-A01	Belt - POWER STEERING PUMP (MITSUBOSHI)
10	90305-PAA-A01	Nut - POWER STEERING PULLEY
11	90693-P2A-003	Circlip - INTERNAL, 40MM
11	90693-PAA-A01	Circlip - INTERNAL, 40MM
12	91048-P2A-003	Bearing - RADIAL BALL, 17X40X12
13	91249-PNC-003	Seal - POWER STEERING PUMP
14	91345-R70-P01	O-ring - 14.8X1.9
15	91347-RP6-A01	O-ring - 18.7X1.8
16	91347-P2A-003	O-ring - 15.2X2.4
17	91348-P2A-003	O-ring - 51.0X2.4
18	91349-P2A-003	Seal - POWER STEERING PUMP COVER
19	91350-PLA-003	Bolt - FLANGE, 8X35
20	91350-P8C-A01	Bolt - FLANGE, 6X20

Propeller shaft 4

#	OEM	部品名
1	40100-SZA-A02	Shaft assy - PROPELLER
2	40540-STX-A00	Protector - NO.1 PROPELLER SHAFT
3	90113-S3V-A00	Bolt - FLANGE, 10X25
4	90382-SZA-003	Bolt-washer - 10X30

Radiator (DENSO) 24

#	OEM	部品名
1	19010-RN0-A52	Radiator comp - DENSO
2	19011-PH1-621	Bolt - DRAIN (DENSO)
3	19012-671-300	Packing - DRAIN (DENSO)
4	19014-RN0-A01	Seal - LOWER
5	19015-RN0-A01	Shroud comp.
6	19020-RN0-A71	Fan - COOLING
7	19030-RN0-A71	Motor - COOLING FAN
8	19045-RAA-003	Cap comp. - RADIATOR (DENSO)
9	19046-RAA-A00	Label - RADIATOR CAP
10	19047-PLC-003	Cover - RADIATOR CAP (DENSO)
11	32175-PDA-E01	Clip - HARNESS
12	37870-RTA-005	Sensor assy - WATER TEMP (DENSO)
13	37873-RN0-A00	Sub cord - TW SENSOR
14	38611-RYE-A01	Fan - COOLING
15	38615-RN0-A01	Sub shroud assy.
16	38616-RN0-A71	Motor - COOLING FAN
17	38619-RN0-A01	Cover - FAN MOTOR
18	90041-P3G-003	Screw-washer - 5X11
19	90042-PAA-A01	Bolt-washer - 6X16 (DENSO)
20	90043-PD2-003	Nut - HEX., 5MM (DENSO)
21	91307-RTA-005	O-ring - DENSO
22	91507-P01-003	Clip b - HARNESS BAND (DARK BROWN) (129.4MM)
23	91558-P8C-A01	Clip - HARNESS BAND (VIOLET) (150MM)
24	19046-PLC-Y00	Label - RADIATOR CAP (ARABIC)

Radiator hose/reserve tan k 28

#	OEM	部品名
1	17259-PG6-000	Collar - MOUNTING
2	17260-PE0-670	Rubber - MOUNTING
3	19101-RN0-A00	Tank - RESERVE
4	19102-RN0-A00	Cap - RESERVE TANK
5	19104-RN0-A00	Hose b - RESERVE TANK
6	19105-RYE-A00	Tube c - RESERVE TANK
7	19107-RYE-A00	Joint - TUBE
8	19108-PM0-003	Clamp - RESERVE TANK TUBE (BLACK)
9	19501-RN0-A00	Hose - WATER UPPER
10	19502-RN0-A00	Hose - WATER LOWER
11	19511-PH7-003	Clip, HOSE(36.5MM) (CHUO SPRING)
12	19511-PAH-T01	Clip - WATER HOSE (TOPY FASTENERS)
13	19519-RGL-A00	Clamp - WATER HOSE (BLACK)
14	25210-RN0-000	Pipe comp. c - ATF
15	25211-RYE-016	Hose - ATF, 200MM (NICHIRIN)
16	25212-RDA-000	Hose - ATF, 145MM
17	25212-RYE-006	Hose - ATF, 235MM
18	25214-RN0-000	Hose - ATF, 495MM
19	25215-RN0-000	Hose - ATF
20	25216-PR3-000	Clamp - ATF HOSE (BLACK)
21	25216-P72-003	Clip - ATF HOSE (BLACK)
22	25510-RN0-003	Cooler comp - ATF
23	74171-SHJ-A00	Bracket - RADIATOR MOUNT UPPER
24	74172-S87-A00	Cushion - RADIATOR MOUNTING LOWER
25	74173-SJ4-000	Cushion - RADIATOR MOUNTING UPPER
26	90001-P8F-000	Bolt-washer - SPECIAL
27	90635-PT0-802	Clip, Oil Pipe
27	90635-RV0-003	CLIP, OIL PIPE

Rear brake 20

#	OEM	部品名
1	01473-SZA-A00	Caliper set - RR.
2	06435-STX-A00	Shim set - RR.
3	42200-STX-A02	Bearing assy - RR. HUB UNIT
4	42510-SZA-A00	Disk - RR. BRAKE DRUM IN
5	42511-SP0-000	Cap - MAINTENANCE HOLE
6	43018-SZA-A00	Caliper sub assy. - R. RR.
7	43019-SZA-A00	Caliper sub assy. - L. RR.
8	43022-SZA-A00	Pad set - RR.
9	43215-SZA-A01	Piston
10	43237-STX-A01	Clip - PAD
11	43244-STX-A02	Clip - PAD
12	43262-STX-A01	Pin - LOCK
13	43352-SJC-A01	Screw - BLEEDER
14	45219-671-672	Cap - BLEEDER SCREW
15	45235-S9V-A11	Pin - GUIDE
16	45240-S01-A01	Bolt
17	90103-SHJ-000	Bolt - CALIPER MOUNTING(12X30)
18	90113-SHJ-A01	Bolt - WHEEL (MEIRA)
18	90113-SHJ-A02	Bolt - WHEEL (ROCKNEL FASTENER)
19	90160-SZB-000	Bolt-washer - 12X49

Rear bumper 17

#	OEM	部品名
4	71505-SZA-A00	Bracket - R. RR. BUMPER SIDE
7	71555-SZA-A00	Bracket - L. RR. BUMPER SIDE
9	71570-SZA-A00	Absorber - RR. BUMPER
10	71593-SZA-A00	Spacer - R. RR. BUMPER SIDE
11	71598-SZA-A00	Spacer - L. RR. BUMPER SIDE
12	90103-SDA-A00	Screw - TAPPING, 5X20
13	90103-SD4-000	Screw - TAPPING, 5X16
14	90105-SL4-000	Bolt-washer - 6X20
15	90108-S0A-003	Bolt - FLANGE, 6X15
16	90108-S9V-A01	Bolt - TAILGATE LOCK
17	90114-SZ3-000	Screw-washer - 5X20
19	90305-SM4-000	Nut - AIR SPOILER CLIP
20	90331-SD5-003	Nut - SPRING, 5MM
21	90682-SDA-A01	Grommet - SCREW, 5MM
22	91503-SZ3-003	Clip A
23	91503-SZ5-003	Clip - BUMPER FACE
24	91609-SE0-A00	Protection - CUSHION

Rear camera 2

#	OEM	部品名
1	39530-SZA-A11	Camera assy - RR. VIEW
2	91531-S04-003	Clip - WIRE HARNESS(NATURAL) (44MM)

Rear cylinder head 23

#	OEM	部品名
1	12204-PJ7-305	Guide - IN. VALVE (OS)
2	12205-PJ7-305	Guide - EX. VALVE (OS)
3	12210-PZ1-004	SEAL A, VALVE STEM (NOK)
4	12211-PZ1-004	Seal b - VALVE STEM(NOK)
5	12240-RDV-J00	Cover assy. - RR. CAMSHAFT THRUST
6	12261-R70-A01	Gasket comp - RR. CYLINDER HEAD (NIPPON LEAKLESS)
7	12300-R70-305	Head assy - RR. CYLINDER
8	12432-R70-A11	Bridge comp - ROCKER SHAFT
9	14820-R70-A01	Motion comp - LOST
10	15820-R70-A04	Valve assy. - RR. SPOOL
11	32746-R70-A00	Stay f - ENGINE HARNESS
12	36161-RN0-A00	Stay - PURGE JOINT
13	36535-RN0-A00	Stay - RR. LAF COUPLER
14	37240-R70-A03	Switch assy - OIL PRESSURE
15	90005-PAA-A01	Bolt-washer - 12X163
16	90026-P8A-A00	Bolt - STUD, 8X41
17	90705-PT0-000	Dowel pin - 16X22
18	91301-P8A-A00	O-ring - 48.5X2.4
19	91319-PAA-A01	O-ring - 13X1.5
30	12207-PC6-300	Washer - SEALING, 16MM
31	12207-634-300	Washer - SEALING BOLT
32	12208-P8C-A01	Bolt - SEALING, 28MM
33	90083-PG1-000	Bolt - SEALING, 16MM

Rear differential 25

#	OEM	部品名
1	41130-RN7-000	Tube assy - BREATHER
2	41200-RN7-000	Carrier assy - RR. DIFFERENTIAL
3	41930-RDL-003	Body assy - BREATHER END
4	41931-RDL-003	Joint - BREATHER TUBE
5	41932-RN7-A00	Grommet - BREATHER JOINT
6	41933-RN7-003	Box - BREATHER
7	41934-RYG-A01	Clip - BREATHER BOX
8	41940-RN7-000	Tube a - BREATHER
9	48160-PGJ-003	Sensor - OIL TEMPERATURE
10	48320-RN7-000	Sub cable assy. - RR. DIFFERENTIAL R.
11	48321-RN7-000	Stay a - RR. DIFFERENTIAL CABLE
12	48322-RN7-000	Stay b - RR. DIFFERENTIAL CABLE
13	48323-PVH-000	Stay c - RR. DIFFERENTIAL CABLE
14	48324-RN7-000	Stay d - RR. DIFFERENTIAL CABLE
15	48815-PVH-004	Washer - THRUST
16	90081-PVH-003	Bolt - PLUG, 18MM
17	90081-PWT-000	Bolt - DRAIN PLUG, 20MM
18	90471-PX4-000	Washer - DRAIN PLUG, 18MM
19	91206-PGJ-013	Dust seal - 40X55X7.5
20	91309-P6K-003	O-ring - 11.5X1.5
21	91507-P01-003	Clip b - HARNESS BAND (DARK BROWN) (129.4MM)
22	91540-S30-003	Clip - HARNESS BAND(NATURAL) (151.5MM)
23	91547-SH3-003	Clip - BAND(NATURAL)(160MM)
24	91565-SD5-003	Clip - COUPLER(NATURAL)
25	91565-S0X-003	Clip - COUPLER (DARK GREEN)

Rear door glass/door regu lator 15

#	OEM	部品名
1	72710-SZA-A01	Regulator assy - R. RR. DOOR POWER
2	72730-SZA-A01	Sash - R. RR. DOOR FR. LOWER
3	72731-SZA-A01	Sash - R. RR. DOOR CENTER LOWER
4	72735-SZA-A11	Runchannel - R. RR. DOOR
5	72750-SZA-A01	Regulator assy - L. RR. DOOR POWER
6	72770-SZA-A01	Sash - L. RR. DOOR FR. LOWER
7	72771-SZA-A01	Sash - L. RR. DOOR CENTER LOWER
8	72775-SZA-A11	Runchannel - L. RR. DOOR
9	73400-SZA-A00	Glass assy - R. RR. DOOR (GREEN) (PPG)
10	73405-SZA-A10	Glass assy - R. RR. DOOR QUARTER (GREEN) (PPG)
12	73450-SZA-A00	Glass assy - L. RR. DOOR (GREEN) (PPG)
13	73455-SZA-A10	Glass assy - L. RR. DOOR QUARTER (GREEN) (PPG)
15	76218-SB4-000	Collar b - RR. DOOR PANEL LOWER
16	90021-SFA-000	Bolt - FLANGE, 6X10
17	90115-SFE-004	Bolt - FLANGE, 6X12

Rear door lining 15

#	OEM	部品名
1	32758-SZA-A00	Sub cord - RR. DOOR
2	33301-S70-003	Bulb - 12V 3.8W 2CP
3	34261-SDA-A01	Lens
4	35770-TA0-A11	Switch assy - RR. POWER WINDOW
5	72835-SZA-A01	Weatherstrip - R. RR. DOOR INNER
6	72875-SZA-A01	Weatherstrip - L. RR. DOOR INNER
23	90102-S10-000	Screw - TAPPING, 5X25
24	90132-SE3-003	Screw - TAPPING, 4X12
25	90146-SDA-A00	Clip - DOOR LINING SKIN
26	90666-S84-A01	Clip - SNAP FITTING
27	90666-SDA-A01	Clip, Snap Fitting - SNAP FITTING(PO) (NATURAL)
28	91506-STX-A01	Clip - HARNESS BAND(BLACK) (148MM)
29	91533-STK-003	Clip - COUPLER(NATURAL)
30	91560-SLJ-J01	Clip - DOOR LINING (LIGHT GRAY)
31	91561-S5P-A01	Screw - GROMMET, 5.23

Rear door locks/ outer handle 25

#	OEM	部品名
1	72112-SZA-A01	Protector - R. DOOR LATCH
2	72119-SZA-A01	Seal - COUPLER
5	72123-TA5-A01	Snap - R.
6	72164-TA5-A01	Clip t - CABLE END(BLACK)
6	72124-TA5-A01	Clip s - CABLE END(NATURAL)
7	72130-SZA-A01	Protector - R. OUTER HANDLE
8	72133-SJC-A01	Packing
9	72135-SDA-A01	Striker assy - DOOR LOCK
11	72141-SNE-A00	Bush - R. JOINT
12	72146-S9A-003	Spacer - DOOR OUTSIDE HANDLE
13	72152-SZA-A01	Protector - L. DOOR LATCH
16	72163-TA5-A01	Snap - L.
17	72170-SZA-A01	Protector - L. OUTER HANDLE
18	72181-SNE-A00	Bush - L. JOINT
19	72610-SZA-A01	Latch assy - R. RR. DOOR POWER
20	72612-SNA-A00	Cap - R. CHILD LOCK
21	72117-SZA-A01	Seal - LOCK
22	72631-SZA-A00	Cable - RR. INSIDE HANDLE
23	72633-SZA-A00	Cable - RR. DOOR LOCK
24	72650-SZA-A01	Latch assy - L. RR. DOOR POWER
25	72652-SNA-A00	Cap - L. CHILD LOCK
27	74387-S3C-003	Fastener
28	90120-SV4-000	Bolt - LOCK STRIKER
29	90141-SDA-000	Screw - TAPPING, 5X12
30	90662-SB2-903	Grommet - SCREW, 5MM

Rear door panels 19

#	OEM	部品名
9	72142-SM4-000	Stopper - DOOR
10	72311-SZA-A00	Clip - WEATHERSTRIP (SHORT)
12	72367-SDA-A00	Seal - OUTER HANDLE HOLE
13	72810-SZA-A01	Weatherstrip - R. RR. DOOR
14	72821-SZA-A01	Seal - R. RR. DOOR HOLE
15	72827-SZA-A01	Seal - R. RR. DOOR SIDE SILL
16	72840-SZA-A01	Checker comp. - R. RR. DOOR
17	72850-SZA-A01	Weatherstrip - L. RR. DOOR
18	72861-SZA-A01	Seal - L. RR. DOOR HOLE
19	72867-SZA-A01	Seal - L. RR. DOOR SIDE SILL
20	72880-SZA-A01	Checker comp. - L. RR. DOOR
21	75891-SA7-000	Stopper - DOOR
22	90102-SFA-305	Bolt - FLANGE, 8X18 (SERVICE)
22	90102-S3N-003	Bolt - FLANGE, 8X24.5 (10.5MM)
23	90103-SLA-000	Bolt - FLANGE, 8X22 (TORX)
24	90141-S04-000	Bolt - FLANGE, 8X22
25	90815-SZA-A01	Grommet - 15MM
26	91561-SYP-003	Clip - DOOR WEATHERSTRIP
27	91563-SCV-003	Clip A

Rear driveshaft 15

#	OEM	部品名
1	42017-STK-A01	Boot set - INBOARD
2	42018-SZA-A01	Boot set - OUTBOARD
3	42310-SZA-A01	Driveshaft assy. - R.
4	42311-SZA-A01	Driveshaft assy. - L.
5	42317-SZA-A01	Band - DRIVESHAFT BOOT
6	42320-S3V-306	Joint comp - INBOARD
7	42327-S3V-A61	Ring - SNAP
8	42330-SZA-305	Joint set - OUTBOARD
9	42331-S3V-A61	Ring - SNAP
10	42336-SZA-A01	Band - OUTBOARD BOOT
11	44319-SD4-010	Set ring - 30X2.2
12	44327-SV4-305	Band - JOINT BOOT (DOUBLE ROLLED BAND)
13	44329-SV4-305	Band - SHAFT BOOT (DOUBLE ROLLED BAND)
14	44338-S0X-A01	Circlip
15	90305-SD4-003	Nut - SPINDLE (24MM)

Rear hatch glass 15

#	OEM	部品名
1	73210-SZA-A01	Hinge assy - R. HATCH
2	73211-SZA-Y01	Glass set - RR. WINDSHIELD (GREEN) (UNITED L-N GLASS)
3	73233-SZA-A01	Cover - TERMINAL
4	73234-SZA-A01	Base - TERMINAL COVER
5	73250-SZA-A01	Molding - RR. WINDSHIELD
6	73260-SZA-A01	Hinge assy - L. HATCH
7	74441-SZA-A01	Weatherstrip - GLASS HATCH
8	74813-SZA-A01	Striker assy - GLASS HATCH
9	74814-S9A-000	Knob - GLASS HATCH
10	74825-SZA-A01	Stay assy - R. GLASS HATCH OPENER
11	74875-SZA-A01	Stay assy - L. GLASS HATCH OPENER
12	90101-SZA-A01	Nut - GLASS HATCH HINGE
13	90104-SZA-A01	Bolt - GLASS HATCH
14	90109-SWA-A00	Stud - BALL
15	90115-S9A-003	Screw - FLAT, 6X12

Rear heater unit 33

#	OEM	部品名
1	79205-S0X-A00	Grommet - DRAIN
2	79206-STX-A01	Clamp b
3	79206-S3V-A51	Clamp a
4	79211-STX-A01	Core comp - HEATER
5	79211-S3V-A01	Net - DUST
6	79211-S3V-A51	Screw - TAPPING
7	79212-STX-A01	Packing
8	79212-S3V-A51	Clamp
9	79213-STX-A01	Packing - B
10	79214-STX-A01	Packing
11	79220-SZA-A01	Motor assy. - FAN
12	79260-STX-A01	Motor assy. - AIR MIX
13	79330-STX-A01	Transistor assy
14	80206-SX0-961	Holder
15	80221-STX-A01	Valve assy. - EXPANSION
16	80222-SZA-A01	Pipe assy. a
17	80223-STX-A01	Pipe assy. b
18	80224-STX-A01	Motor sub assy. - HEATER & COOLER
19	80225-SZA-A01	Evaporator assy.
20	80251-STX-A01	Insulator a - EXPANSION
21	80252-STX-A01	Insulator b - EXPANSION
22	80253-STX-A01	Insulator c - EXPANSION
23	80254-STX-A01	Insulator - PIPING
24	80560-SJA-A01	Thermistor - AIR CONDITIONER
25	80871-SN7-003	O-ring - 5/8"
26	80872-SN7-003	O-ring - 1/2"
27	80873-SN7-003	O-ring - 8MM
28	90105-STX-A00	Bolt-washer - 6X25
29	90121-S0X-A01	Bolt - FLANGE, 5X30
30	90122-SR3-003	Screw - TAPPING, 5X12
31	90127-SX0-003	Screw - TAPPING, 4X16
32	90132-SR3-003	Screw - TAPPING, 5X16
33	91580-SM4-003	Clip - COUPLER(ORANGE)

Rear lower arm 34

#	OEM	部品名
1	42524-SNA-003	Clip - COUPLER (BLACK)
2	51308-SZ3-010	Bracket - STABILIZER
3	52210-SZA-A02	Knuckle comp - R. RR.
4	52215-SZA-A02	Knuckle comp - L. RR.
5	52300-SZA-A01	Spring - RR. STABILIZER
6	52306-SZA-A01	Bush - RR. STABILIZER HOLDER
7	52320-STX-A02	Link comp - R. RR. STABILIZER
8	52325-STX-A02	Link comp - L. RR. STABILIZER
9	52338-SL0-003	Circlip - CONTROL ARM
10	52345-SZA-A02	Arm comp. a - RR. LOWER
11	52350-STX-A01	Arm comp. b - R. RR. LOWER
12	52360-STX-A01	Arm comp. b - L. RR. LOWER
13	52371-SZA-A01	Arm comp - R. RR. TRAILING
14	52372-SZA-A01	Arm comp - L. RR. TRAILING
15	52388-SHJ-A01	Plate - CAM
16	52390-STX-A01	Arm assy. - R. RR. UPPER
17	52400-STX-A01	Arm assy. - L. RR. UPPER
18	52454-SEP-A01	Boot - RR. UPPER DUST
19	57470-SZA-A02	Sensor assy - R. RR. ABS
20	57475-SZA-A02	Sensor assy - L. RR. ABS
21	57477-SXS-305	Seal - ABS SENSOR(BLACK)
22	90002-STX-A00	Nut - FLANGE, 10MM
23	90100-SHJ-A00	Bolt - FLANGE, 6X16.5
24	90162-SR3-000	Bolt - FLANGE, 14X60
25	90170-STX-A01	Bolt - 14X81
26	90173-STX-A02	Bolt b - LOWER ARM ADJUST
27	90215-SHJ-A00	Nut - SELF-LOCK, 12MM
28	90215-SJC-A00	Nut - SELF-LOCK, 14MM(CLINCH)
29	90306-SB2-013	Nut - SELF-LOCK, 10MM (CLINCH)
30	90362-STX-A01	Nut - SELF-LOCK, 14MM
31	90363-STX-A02	Nut - CASTLE, 12MM
32	90401-STX-A00	Washer - LOWER ARM
33	90651-SWA-000	Washer - RR. KNUCKLE
34	90701-SX0-000	Clip - UPPER ARM

Rear seat (L.) 17

#	OEM	部品名
1	04810-SB3-000	C clip set - TRIM FASTENER (30 PIECES)
3	82112-STX-A01	Bolt - FLANGE, 10X25
6	82124-SZA-A01	Screw - TAPPING, (M5X16)
7	82128-STX-A01	Clip - RR. SEAT LOWER
9	82129-STX-A01	Clip - LOCATOR
18	82247-SZA-A01	Cable c - RR. SEAT RECLINING LEVER
19	82248-SZA-A01	Cable d - RR. SEAT RECLINING LEVER
23	82522-SZA-A01	Pad comp - L. RR. SEATBACK
24	82526-SZA-A01	Frame comp - L. RR. SEATBACK
28	82532-SZA-A01	Pad comp - L. RR. SEAT CUSHION
29	82536-SZA-A01	Frame comp - L. RR. SEAT CUSHION
30	82620-SZA-A01	Adjuster - L. RR. SEAT RECLINING OUTER
33	82630-SZA-A01	Adjuster - L. RR. SEAT INNER RECLINING
36	81302-SZA-A01	Screw - TAPPING, 5X10 (PAN HEAD)
37	90135-SZA-A00	Bolt-washer - 10X31
38	90670-S3V-A12	Clip - RR. SEAT LOWER
39	91906-S3V-A11	Bolt - 6X12.6

Rear seat (R.) 17

#	OEM	部品名
1	04810-SB3-000	C clip set - TRIM FASTENER (30 PIECES)
3	82112-STX-A01	Bolt - FLANGE, 10X25
7	82122-SZA-A01	Pad comp - R. RR. SEATBACK
8	82124-SZA-A01	Screw - TAPPING, (M5X16)
9	82126-SZA-A01	Frame comp - R. RR. SEATBACK
11	82128-STX-A01	Clip - RR. SEAT LOWER
13	82129-STX-A01	Clip - LOCATOR
15	82132-SZA-A01	Pad comp - R. RR. SEAT CUSHION
16	82136-SZA-A01	Frame comp - R. RR. SEAT CUSHION
21	82220-SZA-A01	Adjuster - R. RR. SEAT RECLINING OUTER
24	82230-SZA-A01	Adjuster - R. RR. SEAT RECLINING INNER
27	82245-SZA-A01	Cable a - RR. SEAT RECLINING LEVER
28	82246-SZA-A01	Cable b - RR. SEAT RECLINING LEVER
34	81302-SZA-A01	Screw - TAPPING, 5X10 (PAN HEAD)
35	90135-SZA-A00	Bolt-washer - 10X31
36	90670-S3V-A12	Clip - RR. SEAT LOWER
37	91906-S3V-A11	Bolt - 6X12.6

Rear shock absorber 10

#	OEM	部品名
1	52441-STX-A03	Spring - RR.
2	52610-SZA-A04	Absorber assy - RR. SHOCK
3	52622-SZA-A01	Bush - SHOCK ABSORBER LOWER
4	52623-SZA-A01	Bush - RR. SHOCK ABSORBER UPPER
5	52686-STX-A01	Rubber - RR. SPRING MOUNTING
6	52720-STX-A01	Stopper assy - RR. BUMP
7	52748-STX-A00	Seat - RR. SPRING LOWER
8	90172-STX-A00	Bolt - DAMPER LOWER, 12X109
9	90182-SZA-A00	Bolt - RR. DAMPER, 10X39
12	52441-SZA-A01	Spring - RR.

Rear tray/trunk lining 7

#	OEM	部品名
2	83825-SZA-A01	Bracket - R. CARGO LINING
3	83875-SZA-A01	Bracket - L. CARGO LINING
7	84523-SZA-A02	Hinge
11	84527-SZA-A40	Strap assy
18	84629-SR3-000	Stopper - TRUNK BOX
22	84643-SZA-A01	Bar - SUPPORT
23	91560-STK-A01	Clip - GARNISH (SEAL)

Rear windshield wiper 10

#	OEM	部品名
1	76700-SZA-A01	Motor assy. - RR. WINDSHIELD WIPER
2	76701-S6A-003	Rubber - MOUNTING
3	76702-S6A-003	Collar
4	76711-SZA-A01	Cap - PIVOT WIPER
5	76720-SZA-A02	Arm - RR. WIPER
6	76721-SZA-A01	Cover - ARM
7	76730-SZA-A02	Blade - WINDSHIELD WIPER (356MM)
8	76731-SZA-A01	Cover - SLIDER
12	76722-SZA-A01	Rubber - BLADE (350MM)
13	76745-SZA-A00	Tape - RR. WIPER PROTECTION

Regulator body 20

#	OEM	部品名
1	24271-RWE-000	Shaft - SHIFT FORK
2	25155-RWE-000	Shaft assy - STATOR
3	27142-P6H-000	Cap - 15MM
4	27200-R36-A00	Body assy - REGULATOR
5	27212-RJB-E00	Plate - REGULATOR SEPARATING
6	27246-RDK-000	Cap - REGULATOR SPRING
7	27430-RPC-003	Bolt comp - AIR CHECK
8	27524-P6H-000	Clip - CAP
9	27561-PAX-000	Piston - LOW ACCUMULATOR
10	27583-RDK-000	Spring - THIRD ACCUMULATOR
11	27592-RJB-000	Cover - ACCUMULATOR
12	90001-PRP-000	Bolt - FLANGE, 6X30
13	90024-612-000	Bolt - SEALING, 8MM
14	90089-PK4-000	Bolt - STOPPER, 6MM
15	90471-580-000	Packing - 8MM
16	90472-RPC-000	Packing - 10MM
17	90702-RDK-000	Dowel pin - 7X71
18	91316-PY4-003	O-ring - 32.5X1.8 (ARAI)
19	91331-PC9-003	O-ring
20	91344-580-000	O-ring - 31X2.7 (ARAI)

Resonator chamber 8

#	OEM	部品名
1	17212-P2J-J00	Rubber, AIR CLEANER MOUNTING
2	17213-PV0-000	Rubber - AIR CLEANER CASE MOUNTING
3	17216-PN3-000	Collar - AIR CLEANER MOUNTING
4	17230-RN0-A00	Chamber assy - RESONATOR
5	17245-RN0-A00	Tube a - AIR INTAKE
6	17252-RN0-A00	Rubber b - SEAL
7	17253-RN0-A00	Rubber a - SEAL
8	90001-P0A-000	Bolt-washer - SPECIAL, 6X35

Roof lining 19

#	OEM	部品名
1	39210-SZA-A01	Microphone assy - ANC (UNBALANCED)
5	83218-SZA-A00	Bracket - COAT HOOK
7	83231-TA0-A91	Bulb
8	83232-TA0-A91	Lens a
9	83233-TA0-A91	Lens b
14	83247-SNA-A01	Clip - GRAB RAIL
17	83251-SDA-A01	Bush
18	83252-SZA-A01	Spring
19	83252-TA5-A01	Spring
20	83253-TA0-A01	Grommet - SCREW, 5MM
21	83254-TA0-A01	Screw - TAPPING, 5X12
22	83255-SDA-A01	Screw - TAPPING, 3X10
23	83256-SZA-A01	Cam set - LOCK
27	83267-SZA-A00	Bracket - THIRD SEATBELT COVER
35	90667-SZA-A01	Magnet assy
37	90682-SB0-003	Grommet - SCREW, 5MM
38	91560-SLJ-J01	Clip - DOOR LINING (LIGHT GRAY)
39	91560-SYA-J01	Clip - PILLAR GARNISH (DARK GREEN)
40	91638-SD5-003	Grommet - SCREW, 6MM

Seatbelts 29

#	OEM	部品名
18	81423-SHJ-A21	Washer - PLAIN
19	81423-SHJ-A31	Washer - PLAIN
20	81423-SJD-J11	Collar - 5H
21	81423-S3C-003	Collar - 5H
22	81425-SHJ-A01	Washer - SPRING
23	81425-S2H-003	Washer - SPRING
24	81430-S2H-003	Bearing
25	81441-SHJ-A01	Collar - 13H
26	81442-S2H-003	Bearing
27	81446-SWA-003	Washer - PLAIN
28	81446-S2H-003	Washer - WAVE
29	81448-S2H-003	Washer - PLAIN
33	81491-SZA-A00	Protector - R. FR. SEATBELT
34	81891-SZA-A00	Protector - L. FR. SEATBELT
35	82391-SZA-A00	Protector assy - R. MIDDLE SEATBELT
36	82791-SZA-A00	Protector assy - L. MIDDLE SEATBELT
37	90142-SEA-J01	Bolt-washer - 7/16"X25
38	90142-SHJ-A61	Bolt - 7/16"X33
39	90142-SHJ-A71	Bolt - 7/16"X33
40	90142-SZA-A01	Bolt-washer - 7/16"X17.6
41	90142-SZA-A11	Bolt - 7/16"X21
42	90142-SZA-A31	Bolt - 7/16"X32
43	90142-SZA-A41	Bolt - 7/16"X42
44	90142-SZA-A61	Bolt - 7/16"X32
45	90142-SZA-A71	Bolt-washer - 7/16"X25
46	90142-S10-J11	Bolt-washer - 7/16"X28
47	90142-S3A-J11	Bolt - 7/16"X30
48	90543-SZA-A01	Washer - PLAIN
49	90543-SZA-A11	Washer - PLAIN

Secondary body 6

#	OEM	部品名
1	27122-P6H-000	Cap - 12MM
2	27152-PLY-000	Cap - 13MM
3	27263-PX3-000	Seat - VALVE SPRING
4	27524-P6H-000	Clip - CAP
5	27700-R36-A00	Body assy - SECONDARY VALVE
6	27712-RJB-000	Plate - SECONDARY SEPARATING

Secondary shaft 34

#	OEM	部品名
1	22814-PRP-003	Ring - SEALING, 29MM
2	23230-RWE-010	Shaft comp. - SECONDARY
3	23411-RYF-000	Gear - SECONDARY SHAFT LOW
4	23418-RJB-E00	Hub - CLUTCH (L-H)
5	23420-RJF-T04	Hub comp - SECONDARY SHAFT LOW CLUTCH
6	23430-RWE-000	Gear comp - SECONDARY SHAFT SECOND
7	23495-RWE-000	Gear - SECONDARY SHAFT IDLE
8	90201-RDK-000	Nut - FLANGE, 26MM
9	90402-RDK-000	Washer - 29X40X3.9
10	90405-RJB-000	Washer - THRUST, 39X66X9.7
11	90443-RJB-000	Collar - 32X39X63.3
12	90511-RJF-T00	Washer j - 52MM (2.480)
12	90506-RJF-T00	Washer e - 52MM (2.605)
12	90513-RJF-T00	Washer l - 52MM (2.430)
12	90508-RJF-T00	Washer g - 52MM (2.555)
12	90503-RJF-T00	Washer b - 52MM (2.680)
12	90510-RJF-T00	Washer i - 52MM (2.505)
12	90505-RJF-T00	Washer d - 52MM (2.630)
12	90512-RJF-T00	Washer k - 52MM (2.455)
12	90507-RJF-T00	Washer f - 52MM (2.580)
12	90502-RJF-T00	Washer a - 52MM (2.705)
12	90514-RJF-T00	Washer m - 52MM (2.405)
12	90509-RJF-T00	Washer h - 52MM (2.530)
12	90504-RJF-T00	Washer c - 52MM (2.655)
13	90621-RDK-000	Ring - SNAP, 32MM
14	91005-RWE-003	Bearing - BALL, 29X65X9/11
15	91018-RDP-003	Bearing - NEEDLE, 43.5X59X2.5
16	91021-RJF-T01	Bearing - NEEDLE, 44X50X22.6
17	91022-RDP-003	Bearing - NEEDLE, 39X44X47
18	91032-RJB-013	Needle - THRUST, 44X66X3.5
19	91039-RWE-007	Needle - THRUST, 46X62.95X4.62 (TIMKEN)
20	91040-RDK-003	Needle - THRUST, 40X57X2.5
21	91307-PA9-003	O-ring 31.2X1.9 (ARAI)
22	91326-P4V-003	O-ring - 26.7X1.9(NOK)

Select lever 11

#	OEM	部品名
1	35505-TA5-A51	Bulb - 14V 1.4W
2	35740-SZA-A82	Switch set - PARKING PIN LAMP
3	39550-SZA-A82	Solenoid set - AT SHIFT LOCK
4	54023-TA5-A51	Stopper set - SHIFT LOCK
7	54200-SZA-A82	Bracket set - SELECT LEVER
8	54201-SZA-A00	Bracket - R. MOUNTING
9	54315-SZA-A81	Wire - CONTROL
11	90110-SE7-000	Bolt-washer - 8X21
12	90351-SB2-003	Nut - FLANGE, 8MM
13	90361-SV4-003	Nut - PAINT CUTTING, 6MM
14	91533-S04-003	Clip - COUPLER (NATURAL)

Sensor/solenoid 21

#	OEM	部品名
1	22740-RJF-T00	Pipe comp - 8X102.8
2	22750-RDK-010	Pipe comp - 8X53
3	22750-RJF-T00	Pipe comp - 8X55.3
4	22761-P7Z-000	Pipe - 8X25.2
5	22770-P7Z-000	Pipe - 8X36
6	28250-R97-004	Solenoid assy. - LINEAR
7	28252-RDK-000	Packing - LINEAR SOLENOID
8	28260-R97-003	Solenoid assy. - LINEAR
9	28262-RDK-000	Packing - LINEAR SOLENOID
10	28360-RDK-003	Harness - SOLENOID WIRE
11	28600-R97-003	Switch assy - AT OIL PRESSURE
12	28610-R97-003	Switch assy - AT OIL PRESSURE
13	28650-RWE-003	Sensor assy - ATF TEMPERATURE
14	28810-RWE-003	Pick up assy. - MATSUSHITA
15	28811-RWE-000	Washer - PICK UP
16	28820-RWE-003	Pick up assy. - MATSUSHITA
17	90471-PW7-A00	PACKING, 10MM
18	91301-PC9-003	O-ring - 7.7X2.3 (ARAI)
19	91303-RAY-003	O-ring - 12X2.4 (NOK)
20	91309-PX4-003	O-ring - 16X2.1 (NOK)
21	91329-PRP-003	O-ring - 23.3X2.4

Shift fork 15

#	OEM	部品名
1	21214-RWE-000	Plate comp - OIL SEPARATE
2	24000-R36-000	Shaft assy - CHANGE CONTROL
3	24111-RYF-000	Fork - REVERSE SHIFT
4	24282-634-000	Bolt - SHAFT FORK SETTING
5	24552-RDK-000	Spring - PARKING BRAKE PAWL
6	24561-RDH-000	Pawl - PARKING BRAKE
7	24562-RDK-A00	Shaft - PARKING
8	24630-R36-000	Arm comp - CHANGE DETENT
9	24634-PRP-060	Spring - DETENT LEVER
10	24635-RDK-000	Shaft - CHANGE DETENT ARM
11	25420-RN3-003	Strainer assy - ATF
12	90001-RDK-000	Bolt - FLANGE, 6X80
13	90433-639-000	Washer - LOCK, 6MM
14	90701-RDK-000	Dowel pin - 8X73
15	91308-PW4-003	O-ring - 21.8X1.9

Side lining 13

#	OEM	部品名
1	39620-SEC-A01	Cap assy.
2	39624-SZ3-L01	Socket assy
4	84612-S9V-A01	Pin - SPRING, 3X35
5	84613-S9V-A00	Spring - CARGO HOOK
11	84621-S0X-A01	Stopper - GLOVE BOX LID
15	84664-SZA-A01	Pad
18	84679-SZA-A00	Bracket - RR. TIE DOWN
23	90113-SZA-A00	Bolt - SHOULDER, 5X22
24	90132-SE3-003	Screw - TAPPING, 4X12
25	90666-SDA-A01	Clip, Snap Fitting - SNAP FITTING(PO) (NATURAL)
26	91560-SLJ-J01	Clip - DOOR LINING (LIGHT GRAY)
27	91561-S9V-A00	Clip - CARPET
28	91562-S84-A11	Grommet - DOOR LINING

Side sill garnish 13

#	OEM	部品名
3	74460-STX-A00	Reinforcement - L. FR. MUDGUARD
4	74551-SZA-A00	Cover - R. RR. FENDER
5	74556-SZA-A00	Cover - L. RR. FENDER
6	75890-SZA-A00	Tape - R. RR. DOOR PROTECTION
7	75895-SZA-A00	Tape - L. RR. DOOR PROTECTION
8	90103-SDA-A00	Screw - TAPPING, 5X20
9	90149-SA0-003	Bolt - BUMPER
10	90156-STX-A00	Bolt - FLANGE, 10X25
11	90331-SD5-003	Nut - SPRING, 5MM
12	90676-SA7-003	Grommet - SCREW, 5MM (BLACK)
13	91503-SZ3-003	Clip A
14	91512-SJK-003	Clip - TAILGATE GARNISH
15	91513-SM4-000	Clip - SIDE SILL UPPER GARNISH

Sliding roof 31

#	OEM	部品名
1	15771-551-000	Clip - OIL DRAIN TUBE
2	32132-SM4-003	Band - WIRE HARNESS OFFSET (20) (BLACK) (122.5MM)
3	70020-SDN-A01	Fastener - ROOF LINING
4	70050-STX-A00	Tube - FR. DRAIN VINYL
5	70052-SHJ-A40	Valve - FR. DRAIN
6	70057-SNA-A00	Clip - SUNROOF DRAIN TUBE
7	70060-SZA-A00	Tube assy - R. RR. DRAIN (SUNROOF)
8	70062-SJD-J00	Valve - RR. DRAIN (SUNROOF)
9	70065-SZA-A00	Tube assy - L. RR. DRAIN (SUNROOF)
11	70080-SZA-A02	Tube assy - SUNROOF CROSS
12	70081-SZA-A01	Seal b - TAPE
13	70082-SZA-A01	Foam - GLASS PAD
14	70110-SZA-A01	Frame assy - ROOF
15	70111-SZA-A01	Bracket - FR. CONSOLE
16	70112-SZA-A01	Screw - 5X8
17	70200-SZA-A01	Glass assy - ROOF
18	70229-SDN-A01	Screw - 5X7
19	70240-SZA-A01	Rail assy - DRIP
20	70242-SDN-A01	Shoe - R. DRIP
21	70243-SZA-A01	Seal - DRIP RAIL
22	70244-SZA-A01	Stopper - DRIP RAIL SUNSHADE
23	70247-SDN-A01	Shoe - L. DRIP
24	70450-SZA-A01	Motor assy.
25	70451-SDN-A01	Screw - PAN, 5X30
26	70500-SZA-A01	Deflector assy
28	70609-SZA-A01	Screw - TAPPING, 4X6
30	70617-SZA-A01	Screw - TAPPING, 4X7 (PO)
31	90682-SB3-003	Clip - WIRE HARNESS
32	91540-S30-003	Clip - HARNESS BAND(NATURAL) (151.5MM)
33	91562-SZA-A01	Clip - SUNROOF RR. DRAIN TUBE
34	90126-SK7-003	Bolt-washer - 6X20

Speaker 9

#	OEM	部品名
1	39120-SZA-A01	Speaker assy - TWEETER (PANASONIC)
2	39120-SZA-A21	Speaker assy - 17CM SINGLE) (PANASONIC
4	39120-SZA-A81	Box assy - SUB WOOFER (PANASONIC)
5	90109-SLJ-003	Screw - 5X40
6	90222-S04-003	Nut - SPECIAL, 6MM
7	90309-SLJ-003	Nut assy. - SPEAKER
8	91533-S04-003	Clip - COUPLER (NATURAL)
11	91531-SDA-003	Clip - HARNESS BAND (NATURAL) (145MM)
12	91555-ST0-003	Clip - COUPLER (RED) (SEAL)

Srs unit 17

#	OEM	部品名
1	77900-TA0-H11	Reel assy - CABLE (METHODE)
2	77960-SZA-X01	Srs unit - DENSO) (REWRITABLE
3	77970-SZA-A01	Sensor assy - SIDE IMPACT (DENSO)
4	77975-SZA-A01	Sensor assy - SATELLITE SAFING (DENSO)
5	78819-STK-A81	Clip - SIDE CURTAIN AIRBAG (8.5MM)
6	78820-SZA-A80	Bracket set - R. FR. GRAB RAIL
7	78830-SZA-A80	Bracket set - L. FR. GRAB RAIL
8	78870-SZA-A80	Module assy. - R. SIDE CURTAIN AIRBAG
9	78875-SZA-A80	Module assy. - L. SIDE CURTAIN AIRBAG
10	78880-SZA-A80	Bracket set - R. RR. GRAB RAIL
11	78890-SZA-A80	Bracket set - L. RR. GRAB RAIL
12	90137-S84-A01	Bolt - TORX EARTH, 6X20
13	90178-SNA-003	Bolt-washer - 6X19 (SIDE CURTAIN AIRBAG)
14	90178-S9V-000	Bolt-washer - 6X20
15	91533-STK-003	Clip - COUPLER(NATURAL)
16	91540-S0A-003	Clip - HARNESS BAND(NATURAL) (96.9MM)
19	91533-S5A-003	Clip - COUPLER (NATURAL)

Starter motor (DENSO) 27

#	OEM	部品名
1	30202-RYE-003	Collar - CLUTCH STOP
2	31200-RN0-A01	Motor assy. - STARTER (DU4V7) (DENSO)
3	31202-RYE-A01	Endframe comp. - COMMUTATOR
4	31203-RYE-A01	Lever - PINION DRIVE
5	31205-RYE-A01	Yoke comp.
6	31206-RYE-A01	Armature comp.
7	31207-RYE-A01	Clutch comp. - OVERRUNNING
8	31208-RYE-A01	Screw - PAN, 4MM
9	31213-RYE-A01	Shaft - DRIVE
10	31214-RYE-A01	Gear - INTERNAL
11	31215-RYE-A01	Gear comp - PLANETARY
12	31216-RYE-A01	Absorber comp - SHOCK
13	31217-RYE-A01	Plate - SEAL
14	31218-P3F-003	Washer a
15	31218-RYE-A01	Washer a
16	31219-RYE-A01	Washer b
17	31220-PH9-004	Nut - HEX., 8MM
18	31223-RYE-A01	Nut
19	31224-RYE-A01	Insulator
20	31225-RN0-A01	Plate comp - BRUSH HOLDER
21	31226-RYE-A01	Bolt - THROUGH
22	31227-RYE-A01	Cover
23	31228-RYE-A01	Ring - SNAP
24	31231-RYE-A01	Seal - LEVER
25	31270-RJA-A01	Gasket - STARTER MOTOR
26	31295-RYE-A01	Shaft set - IDLE
27	31296-R70-A51	Terminal set

Steering column 7

#	OEM	部品名
1	53200-SZA-A01	Column assy - STEERING
2	53320-SZA-Y00	Cover - STEERING JOINT
3	77873-S04-G80	Label - STEERING COLUMN CAUTION (ENGLISH/FRENCH/GERMAN/DUTCH)
4	90135-SJA-J00	Bolt - STEERING JOINT YOKE
5	90361-SR3-000	Nut - FLANGE, 8MM
6	90511-671-003	Washer - TOOTHED LOCK
7	90676-SB2-003	Clip - DASHBOARD INSULATOR

Steering wheel (SRS) 11

#	OEM	部品名
3	35880-SZA-A11	Switch assy - AUDIO REMOTE
4	36770-SZA-A11	Switch assy - CRUISE
6	77901-SZA-A10	Sub cord - CABLE REEL
8	78503-TA0-A81	Plate comp - HORN
15	78520-SZA-A81	Damper comp - STEERING
16	78522-TA0-A81	Rubber - WASHER
17	78523-TA0-A81	Spring - HORN
18	78524-TA0-A81	Bolt - TORX, (M5X8)
19	78525-TA0-A81	Plate - HOOK
20	90134-S6A-A80	Bolt - HEX., 6X23
21	90161-SV4-003	Bolt - STEERING HANDLE

Switch 9

#	OEM	部品名
3	35351-SZA-A01	Bulb comp. - 14V 40MA
6	35471-SZA-A01	Bulb comp. a - 14V 40MA
7	35472-SZA-A01	Bulb comp. b - 14V 60MA
8	35510-SZA-R01	Switch assy - HAZARD
9	35514-SZA-A01	Bulb comp. d - 14V 80MA
11	35551-SZA-A01	Bulb comp. a - 14V 70MA
12	35552-SZA-A01	Bulb comp. b - 14V 60MA
17	35850-SZA-A01	Bulb comp. a - 14V 60MA
18	35851-SZA-A01	Bulb comp. b - 14V 40MA

Tailgate 40

#	OEM	部品名
1	34271-SZA-A01	Lamp comp - HIGH MOUNT STOP
2	34272-SZA-A01	Cover comp. - HIGH MOUNT STOP
3	34274-SZA-A01	Cap
4	34276-SJC-A01	Tapping - SPECIAL, 4X10
5	34908-SB6-741	Bulb - 12V 5W
5	34351-657-921	Bulb - 12V/5W) (STANLEY
9	74440-SZA-A01	Weatherstrip - TAILGATE
10	74800-SMG-G01	Lock assy - TAILGATE
11	74805-SZA-A01	Lock assy - GLASS HATCH
13	74811-SZA-A01	Actuator assy - GLASS HATCH
14	74813-SHJ-A01	Striker assy - TAILGATE
15	74815-SZA-A01	Switch assy - TAILGATE OPENER
16	74820-SZA-A11	Stay assy - TAILGATE OPEN
17	74826-SZA-A00	Stopper - GLASS HATCH
20	74829-S9A-000	Stopper - TAILGATE
27	76829-SZA-A01	Tube
28	76830-SZA-A11	Connecter - I
29	76850-SZA-A01	Nozzle - RR. WINDSHIELD WASHER
30	76851-SZA-A00	Packing
31	76864-SZA-A21	Tube comp - RR.
32	90101-SLJ-003	Bolt - FLANGE, 8X18
33	90102-STK-A00	Bolt-washer - 5X12
34	90105-S10-000	Bolt - FLANGE, 8X30
35	90107-SEY-003	Bolt - TAILGATE LOCK
36	90109-S9V-A01	Stud - BALL
37	90120-SV4-000	Bolt - LOCK STRIKER
38	90143-SZA-A00	Screw - TAPPING, 4X10
39	90303-SA5-003	Nut - FR. COMBINATION LIGHT
40	90303-SHJ-A00	Bolt - GARNISH, 6MM
41	90307-SHJ-A01	Nut - CAP, 6MM
42	90308-SMG-E01	Nut - GARNISH (M5)
43	90321-SV4-003	Nut-washer - 6MM (PAINT CUTTING)
44	90852-671-003	Plug - HOLE
45	90856-S9V-A00	Plug - TAILGATE HOLE
46	91513-SJK-003	Clip - TAILGATE GARNISH
47	91513-SR3-003	Snap
56	74817-SZA-A02	Inner
57	74818-SZA-A02	Seal a
58	74819-SZA-A02	Seal b
61	74812-SZA-A01	Switch assy - TAILGATE OPENER

Tailgate lining 1

#	OEM	部品名
11	91560-SLJ-J01	Clip - DOOR LINING (LIGHT GRAY)

Taillight/license light 16

#	OEM	部品名
1	34906-S2K-003	Bulb - 12V 21/5W
4	33500-SZA-A01	Taillight assy. - R.
5	33502-SZA-A02	Cord comp - 1
6	33550-SZA-A01	Taillight assy. - L.
7	34101-SZA-A01	Housing comp
8	34101-S2K-902	Lens
9	34103-SMA-003	Bulb - 12V 5W
9	33301-SA0-741	Bulb (12V 5W) - (12V 5W) (STANLEY)
12	34901-S2K-003	Bulb - T16 18W
15	74895-S5A-000	Bolt - SPECIAL, 5MM
16	75701-SZA-A00	Emblem comp. - RR. (H)
17	90001-S10-A00	Bolt-washer - 5X16
18	91513-SJK-003	Clip - TAILGATE GARNISH
19	91512-S50-003	Clip - LICENSE GARNISH
20	91626-STK-A01	Grommet - TAILLIGHT
24	75523-SS0-000	Packing - SEAL

Third shaft 39

#	OEM	部品名
1	22816-P6H-003	Ring - SEAL (35MM)
2	23240-RWE-A00	Shaft comp. - THIRD
3	23451-RJF-A00	Gear - THIRDSHAFT THIRD
4	23475-RWE-000	Gear - THIRDSHAFT FOURTH
5	90430-RDK-000	Cotter - 19.8MM
6	90432-RDK-000	Retainer - COTTER
7	90559-RDK-000	Washer n - 53MM (4.255)
7	90554-RDK-000	Washer i - 53MM (4.155)
7	90549-RDK-000	Washer d - 53MM (4.055)
7	90556-RDK-000	Washer k - 53MM (4.195)
7	90551-RDK-000	Washer f - 53MM (4.095)
7	90546-RDK-000	Washer a - 53MM (3.995)
7	90558-RDK-000	Washer m - 53MM (4.235)
7	90553-RDK-000	Washer h - 53MM (4.135)
7	90548-RDK-000	Washer c - 53MM (4.035)
7	90555-RDK-000	Washer j - 53MM (4.175)
7	90550-RDK-000	Washer e - 53MM (4.075)
7	90557-RDK-000	Washer l - 53MM (4.215)
7	90552-RDK-000	Washer g - 53MM (4.115)
7	90547-RDK-000	Washer b - 53MM (4.015)
8	90575-RDK-000	Washer l - 26.5MM (1.93)
8	90570-RDK-000	Washer g - 26.5MM (1.53)
8	90565-RDK-000	Washer b - 26.5MM (1.13)
8	90577-RDK-000	Washer n - 26.5MM (2.09)
8	90572-RDK-000	Washer i - 26.5MM (1.69)
8	90567-RDK-000	Washer d - 26.5MM (1.29)
8	90574-RDK-000	Washer k - 26.5MM (1.85)
8	90569-RDK-000	Washer f - 26.5MM (1.45)
8	90564-RDK-000	Washer a - 26.5MM (1.05)
8	90576-RDK-000	Washer m - 26.5MM (2.01)
8	90571-RDK-000	Washer h - 26.5MM (1.61)
8	90566-RDK-000	Washer c - 26.5MM (1.21)
8	90578-RDK-000	Washer o - 26.5MM (0.97)
8	90573-RDK-000	Washer j - 26.5MM (1.77)
8	90568-RDK-000	Washer e - 26.5MM (1.37)
9	90601-RDK-000	Circlip - EXTERNAL, 24MM
10	91019-RDK-013	Bearing - NEEDLE, 30X36X32
11	91034-RDK-003	Needle - THRUST, 30X52X3
12	91326-P4V-003	O-ring - 26.7X1.9(NOK)

Throttle body 4

#	OEM	部品名
1	16176-RCA-A02	Gasket - THROTTLE BODY
2	16400-RN0-A01	Throttle body - ELECTRONIC CONTROL (GMC1E)
3	37830-RNA-A01	Sensor assy - MAP
4	37835-PGK-A01	O-ring

Timing belt cover 16

#	OEM	部品名
1	11810-RCA-A01	Cover assy. - TIMING BELT LOWER
2	11812-P8A-A00	Grommet - TIMING BELT COVER
3	11813-RCA-A00	Packing a - TIMING BELT LOWER COVER
4	11814-P8A-A00	Packing b - TIMING BELT LOWER COVER
5	11820-RCA-A00	Cover assy. - FR. TIMING BELT UPPER
6	11822-RCA-A00	Packing - FR. TIMING BELT UPPER
7	11823-P8A-A00	Label - TIMING BELT ADJUSTER INFORMATION
8	11830-RCA-A00	Cover assy. - RR. TIMING BELT UPPER
9	11832-RCA-A00	Packing - RR. TIMING BELT UPPER
10	11860-R70-A00	Plate assy. - FR. TIMING BELT BACK COVER
11	11862-RCA-A00	Packing - FR. TIMING BELT BACK
12	11870-RCA-A00	Plate assy. - RR. TIMING BELT BACK COVER
13	11872-RCA-A00	Packing - RR. TIMING BELT BACK
14	37840-R70-A01	Sensor assy - TDC
15	90007-679-000	Bolt a - TIMING BELT COVER
16	90017-P8A-A01	Bolt - SPECIAL, 8X29

Tire/wheel disks 39

#	OEM	部品名
1	42700-SZA-A12	Disk - ALUMINIUM WHEEL (17X7 1/2J) (AAP SAINT MARY'S)
4	42751-SZA-A02	Tire - P245/65R17 105T) (GOODYEAR
5	42753-SR1-003	Valve - RIM (US PACIFIC)
5	42753-671-003	Valve - RIM (TAIHEIYO)
5	42753-SB8-661	Valve - RIM (SCHRADER)
5	42753-SB8-662	Valve - RIM (EATON)
5	42753-SH3-003	Valve - RIM (US PACIFIC)
5	42753-SVB-003	Valve - RIM (TAIHEIYO)
5	42753-SE0-A02	Valve - RIM (SCHRADER)
6	44722-S5A-A11	Weight - BALANCE (20G) (PLOMBCO)
6	44721-SNE-A01	Weight - BALANCE (10G) (BTC LABS) (AL)
6	44729-SEA-J01	Weight - BALANCE (35G) (TOHO)
6	44727-S5A-A11	Weight - BALANCE (15G) (PLOMBCO)
6	44726-SNE-A01	Weight - BALANCE (5G) (BTC LABS) (AL)
6	44723-SEA-J02	Weight - BALANCE (30G) (YAMATE)
6	44722-SEA-J01	Weight - BALANCE (20G) (TOHO)
6	44729-SNE-A01	Weight - BALANCE (35G) (BTC LABS) (AL)
6	44728-SEA-J02	Weight - BALANCE (25G) (YAMATE)
6	44727-SEA-J01	Weight - BALANCE (15G) (TOHO)
6	44723-S5A-A11	Weight - BALANCE (30G) (PLOMBCO)
6	44722-SNE-A01	Weight - BALANCE (20G) (BTC LABS) (AL)
6	44721-SEA-J02	Weight - BALANCE (10G) (YAMATE)
6	44728-S5A-A11	Weight - BALANCE (25G) (PLOMBCO)
6	44727-SNE-A01	Weight - BALANCE (15G) (BTC LABS) (AL)
6	44726-SEA-J02	Weight - BALANCE (5G) (YAMATE)
6	44723-SEA-J01	Weight - BALANCE (30G) (TOHO)
6	44721-S5A-A11	Weight - BALANCE(10G)(PLOMBCO)
6	44729-SEA-J02	Weight - BALANCE (35G) (YAMATE)
6	44728-SEA-J01	Weight - BALANCE (25G) (TOHO)
6	44726-S5A-A11	Weight - BALANCE (5G) (PLOMBCO)
6	44723-SNE-A01	Weight - BALANCE (30G) (BTC LABS) (AL)
6	44722-SEA-J02	Weight - BALANCE (20G) (YAMATE)
6	44721-SEA-J01	Weight - BALANCE (10G) (TOHO)
6	44729-S5A-A11	Weight - BALANCE (35G) (PLOMBCO)
6	44728-SNE-A01	Weight - BALANCE (25G) (BTC LABS) (AL)
6	44727-SEA-J02	Weight - BALANCE (15G) (YAMATE)
6	44726-SEA-J01	Weight - BALANCE (5G) (TOHO)
7	44732-S0X-A01	Cap - ALUMINIUM WHEEL CENTER
9	90304-TK4-A01	Nut - WHEEL(M14)

Tools/jack 6

#	OEM	部品名
1	74717-STX-A00	Bolt - EYE (M20)
2	89211-SJC-A01	Wrench - WHEEL
3	89310-SJC-A02	Jack assy - SCREW
4	89320-SJC-A01	Tool assy - JACK
5	89321-SZA-A01	Extension - JACK
6	89332-SZA-A00	Box - TOOL & JACK

Torque converter 6

#	OEM	部品名
1	21350-RGL-000	Cover comp. - TORQUE CONVERTER CASE
2	26000-RN0-315	Converter assy - TORQUE
3	26251-RDJ-000	Plate - DRIVE
4	90023-PA9-000	Bolt - SPECIAL
5	90429-PC6-900	Washer - 40X86X2
6	91302-PGK-003	O-ring - 35.5X1.9

Torque converter case 31

#	OEM	部品名
1	21101-PRP-000	Plate - BEARING SETTING
1	21101-RG0-A00	Plate - BEARING SETTING
2	21110-RYF-000	Case comp. - TORQUE CONVERTER
3	21216-RJB-010	Plate - OIL CATCH
4	21221-RWE-000	Plate - THIRD BAFFLE
5	22747-PW4-000	Pipe - 57.5MM
6	22770-RDK-000	Pipe comp - JOINT
7	23225-RDK-000	Plate - OIL GUIDE
8	23235-RDK-000	Plate - OIL GUIDE
9	23237-RDK-010	Collar - OIL GUIDE
10	25313-RDK-000	Pipe - 10X123
11	25422-PN6-801	Magnet comp. - TRANSMISSION
12	90024-P1V-000	Bolt - SEALING, 10MM
13	90024-612-000	Bolt - SEALING, 8MM
14	90081-PX4-003	Bolt - PLUG, 18MM
15	90433-639-000	Washer - LOCK, 6MM
16	90471-PW7-A00	PACKING, 10MM
17	90471-PX4-000	Washer - DRAIN PLUG, 18MM
18	90471-580-000	Packing - 8MM
19	90701-RJB-000	Dowel pin - 14X25
20	90705-PF4-000	Dowel pin - 14X20
21	91001-R97-003	Bearing - BALL, 41X70X9.7/8.5
22	91006-RDK-004	Bearing - BALL, 28X52X12/8
23	91010-RJF-005	Bearing - BALL, 12X24X6
24	91101-RDK-003	Bearing - NEEDLE, 32X63X19
25	91102-RJF-T01	Bearing - NEEDLE, 40.5X74X24
26	91104-RDK-003	Bearing - NEEDLE, 29X39X9.5
27	91201-RDK-003	Oil seal - 48X65X7.5 (NOK)
28	91206-P0Z-005	Oil seal - 35X54X8 (NOK)
29	91207-PY4-004	Oil seal - 46X70X8 (ARAI)
30	91306-RDK-003	O-ring - 36.5X2.0

Transfer 100

#	OEM	部品名
1	29000-RDK-000	Transfer assy
2	29121-RJB-000	Cover - TRANSFER
3	29200-RDK-010	Gear set - TRANSFER HYPOID
4	29361-PH8-000	Washer - SPRING, 22MM
5	29371-RDK-000	Shim k - 40MM (1.02)
5	29366-RDK-000	Shim f - 40MM (0.87)
5	29361-RDK-000	Shim a - 40MM (0.72)
5	29373-RDK-000	Shim m - 40MM (1.08)
5	29368-RDK-000	Shim h - 40MM (0.93)
5	29363-RDK-000	Shim c - 40MM (0.78)
5	29375-RDK-000	Shim o - 40MM (1.14)
5	29370-RDK-000	Shim j - 40MM (0.99)
5	29365-RDK-000	Shim e - 40MM (0.84)
5	29372-RDK-000	Shim l - 40MM (1.05)
5	29367-RDK-000	Shim g - 40MM (0.90)
5	29362-RDK-000	Shim b - 40MM (0.75)
5	29374-RDK-000	Shim n - 40MM (1.11)
5	29369-RDK-000	Shim i - 40MM (0.96)
5	29364-RDK-000	Shim d - 40MM (0.81)
6	29411-P1C-000	Shim - 25MM(1.70)
6	29426-P1C-000	Shim - 25MM(2.15)
6	29417-P1C-000	Shim - 25MM(1.88)
6	29412-P1C-000	Shim - 25MM(1.73)
6	29428-P1C-000	Shim - 25MM(2.21)
6	29423-P1C-000	Shim - 25MM(2.06)
6	29419-P1C-000	Shim - 25MM(1.94)
6	29414-P1C-000	Shim - 25MM(1.79)
6	29425-P1C-000	Shim - 25MM(2.12)
6	29421-P1C-000	Shim - 25MM(2.00)
6	29416-P1C-000	Shim - 25MM(1.85)
6	29427-P1C-000	Shim - 25MM(2.18)
6	29422-P1C-000	Shim - 25MM(2.03)
6	29418-P1C-000	Shim - 25MM(1.91)
6	29413-P1C-000	Shim - 25MM(1.76)
6	29429-P1C-000	Shim - 25MM(2.24)
6	29424-P1C-000	Shim - 25MM(2.09)
6	29420-P1C-000	Shim - 25MM(1.97)
6	29415-P1C-000	Shim - 25MM(1.82)
7	29411-RN3-000	Tube comp - TRANSFER BREATHER
8	29421-RDK-000	Clamp - BREATHER TUBE
9	29431-RWE-000	Stay a - TRANSFER BREATHER
10	40441-PGH-000	Flange - COMPANION
11	41271-P6R-000	Spacer - PINION
12	41439-RDK-000	Shim am - 80MM (2.66)
12	41409-RDK-000	Shim i - 80MM (1.76)
12	41434-RDK-000	Shim ah - 80MM (2.51)
12	41404-RDK-000	Shim d - 80MM (1.61)
12	41431-RDK-000	Shim ae - 80MM (2.42)
12	41426-RDK-000	Shim z - 80MM (2.27)
12	41421-RDK-000	Shim u - 80MM (2.12)
12	41416-RDK-000	Shim p - 80MM (1.97)
12	41411-RDK-000	Shim k - 80MM (1.82)
12	41436-RDK-000	Shim aj - 80MM (2.57)
12	41406-RDK-000	Shim f - 80MM (1.67)
12	41401-RDK-000	Shim a - 80MM (1.52)
12	41428-RDK-000	Shim ab - 80MM (2.33)
12	41423-RDK-000	Shim w - 80MM (2.18)
12	41418-RDK-000	Shim r - 80MM (2.03)
12	41413-RDK-000	Shim m - 80MM (1.88)
12	41438-RDK-000	Shim al - 80MM (2.63)
12	41408-RDK-000	Shim h - 80MM (1.73)
12	41433-RDK-000	Shim ag - 80MM (2.48)
12	41403-RDK-000	Shim c - 80MM (1.58)
12	41430-RDK-000	Shim ad - 80MM (2.39)
12	41425-RDK-000	Shim y - 80MM (2.24)
12	41420-RDK-000	Shim t - 80MM (2.09)
12	41415-RDK-000	Shim o - 80MM (1.94)
12	41410-RDK-000	Shim j - 80MM (1.79)
12	41435-RDK-000	Shim ai - 80MM (2.54)
12	41405-RDK-000	Shim e - 80MM (1.64)
12	41432-RDK-000	Shim af - 80MM (2.45)
12	41427-RDK-000	Shim aa - 80MM (2.30)
12	41422-RDK-000	Shim v - 80MM (2.15)
12	41417-RDK-000	Shim q - 80MM (2.00)
12	41412-RDK-000	Shim l - 80MM (1.85)
12	41437-RDK-000	Shim ak - 80MM (2.60)
12	41407-RDK-000	Shim g - 80MM (1.70)
12	41402-RDK-000	Shim b - 80MM (1.55)
12	41429-RDK-000	Shim ac - 80MM (2.36)
12	41424-RDK-000	Shim x - 80MM (2.21)
12	41419-RDK-000	Shim s - 80MM (2.06)
12	41414-RDK-000	Shim n - 80MM (1.91)
13	41461-PH8-000	Washer - THRUST, 28.1X34X0.6
14	41931-P6R-000	Joint - BREATHER TUBE
15	41935-PZP-003	Box - BREATHER TUBE
16	90026-PS5-000	Bolt - FLANGE, 10X105
17	90081-PE9-000	Bolt - PLUG, 20MM
18	90201-PH8-000	Nut - HEX., 22MM
19	90705-PF4-000	Dowel pin - 14X20
20	91121-PGH-003	Bearing - TAPER, 25X52X19.25
21	91123-PS5-013	Bearing - TAPER, 28X58X20
22	91123-RDK-003	Bearing - TAPER, 40X75X24
23	91124-RDK-003	Bearing - TAPER, 50X80X24
24	91202-RDK-003	Oil seal - 48X67X7.5
25	91203-RDK-003	Oil seal - 38X62X9
26	91303-P4T-003	O-ring - 23X2.6(NOK)
27	91303-RDK-003	O-ring - 120.7X2.4 (NOK)
28	91304-P4T-003	Ring - BACK UP, 23MM
29	91506-RTA-003	Clip A - HARNESS BAND (DARK VIOLET)(129.4MM)
30	91553-PRC-003	Clamp - BAND

Transmission case 74

#	OEM	部品名
1	21210-RN3-000	Case comp. - TRANSMISSION
2	21230-RJF-T00	Cap assy. a - L. SIDE
3	21232-RDK-000	Hanger a - TRANSMISSION
4	21233-RDK-010	Hanger b - TRANSMISSION
5	21251-RJB-000	Cap b - L. SIDE
6	21260-RJF-T00	Cap comp. c - FEED PIPE
7	21320-RN3-000	Tube assy - BREATHER
8	21385-P5K-010	Clamp - BREATHER TUBE (8.5X39)
9	21811-RDK-000	Packing - TORQUE CONVERTER CASE
10	22713-PW4-000	Guide a - FEED PIPE
11	22725-RDK-000	Pipe comp. b - FEED
12	25614-PK4-000	Bolt - FILLER (ATF)
13	28450-RJF-T00	Cover - SOLENOID
14	28451-RDK-000	Packing - SOLENOID COVER
15	90004-RJB-000	Bolt - SPECIAL, 12X110
16	90005-RDK-000	Bolt - SPECIAL, 8X21
17	90024-612-000	Bolt - SEALING, 8MM
18	90041-PA5-000	Bolt - STUD, 6X28
19	90081-PE9-000	Bolt - PLUG, 20MM
20	90441-PK4-000	Washer - SEALING, 24MM
21	90491-RDK-000	Shim ae - 65MM (2.04)
21	90460-RDK-000	Shim 0a - 65MM (0.80)
21	90486-RDK-000	Shim z - 65MM (1.84)
21	90481-RDK-000	Shim u - 65MM (1.64)
21	90476-RDK-010	Shim p - 65MM (1.44)
21	90498-RDK-000	Shim al - 65MM (2.32)
21	90467-RDK-010	Shim g - 65MM (1.08)
21	90493-RDK-000	Shim ag - 65MM (2.12)
21	90462-RDK-010	Shim b - 65MM (0.88)
21	90488-RDK-000	Shim ab - 65MM (1.92)
21	90483-RDK-000	Shim w - 65MM (1.72)
21	90478-RDK-010	Shim r - 65MM (1.52)
21	90473-RDK-010	Shim m - 65MM (1.32)
21	90469-RDK-010	Shim i - 65MM (1.16)
21	90495-RDK-000	Shim ai - 65MM (2.20)
21	90464-RDK-010	Shim d - 65MM (0.96)
21	90490-RDK-000	Shim ad - 65MM (2.00)
21	90485-RDK-000	Shim y - 65MM (1.80)
21	90480-RDK-010	Shim t - 65MM (1.60)
21	90475-RDK-010	Shim o - 65MM (1.40)
21	90471-RDK-010	Shim k - 65MM (1.24)
21	90497-RDK-000	Shim ak - 65MM (2.28)
21	90466-RDK-010	Shim f - 65MM (1.04)
21	90492-RDK-000	Shim af - 65MM (2.08)
21	90461-RDK-010	Shim a - 65MM (0.84)
21	90487-RDK-000	Shim aa - 65MM (1.88)
21	90482-RDK-000	Shim v - 65MM (1.68)
21	90477-RDK-010	Shim q - 65MM (1.48)
21	90472-RDK-010	Shim l - 65MM (1.28)
21	90499-RDK-000	Shim am - 65MM (0.76)
21	90468-RDK-010	Shim h - 65MM (1.12)
21	90494-RDK-000	Shim ah - 65MM (2.16)
21	90463-RDK-010	Shim c - 65MM (0.92)
21	90489-RDK-000	Shim ac - 65MM (1.96)
21	90484-RDK-000	Shim x - 65MM (1.76)
21	90479-RDK-010	Shim s - 65MM (1.56)
21	90474-RDK-010	Shim n - 65MM (1.36)
21	90470-RDK-010	Shim j - 65MM (1.20)
21	90496-RDK-000	Shim aj - 65MM (2.24)
21	90465-RDK-010	Shim e - 65MM (1.00)
22	90471-580-000	Packing - 8MM
23	90602-RDK-000	Circlip - INTERNAL, 40MM
24	90615-P0Z-000	Ring - SNAP, 82MM
25	91002-RJF-T01	Bearing - BALL, 29X82X15/19.5
26	91006-RJF-005	Bearing - BALL, 9X20X6
27	91010-RJF-005	Bearing - BALL, 12X24X6
28	91011-RJF-T01	Bearing - BALL, 20X41X17.5
29	91205-P0X-005	Oil seal - 40X56X9 (NOK)
30	91302-RDK-003	O-ring - 28X2.2 (NOK)
31	91303-PC9-004	O-ring - 104X2.2 (NOK)
32	91304-RDK-003	O-ring - 43.5X2.2(NOK)
33	91305-PC9-003	O-ring - 34X1.9 (ARAI)
34	91314-PW4-003	O-ring - 11X1.9 (NOK)
35	91506-RTA-003	Clip A - HARNESS BAND (DARK VIOLET)(129.4MM)

Tubing 11

#	OEM	部品名
1	12315-PLC-000	Bolt - STUD
2	36162-RMX-A01	Valve assy. - PURGE CONTROL SOLENOID
3	36163-R70-A00	Stay comp - PURGE CONTROL SOLENOID
4	36166-RKG-A01	Joint - PURGE
5	36167-RDV-J00	Tube a - PURGE
6	36168-R70-A00	Tube c - PURGE
7	36169-R70-A00	Pipe - PURGE
8	36176-R70-A00	Tube b - PURGE
9	36641-PHM-A00	Collar
10	37978-PHM-A00	Rubber - MOUNT
11	91406-SAA-000	Clamp - TUBE (D12)

Valve/rocker arm (FRONT) 26

#	OEM	部品名
1	14610-R70-A02	Arm assy. - INTAKE ROCKER
2	14612-R70-A01	Arm assy. a - EX. ROCKER
3	14614-R70-A01	Arm assy. b - EX. ROCKER
4	14620-R71-A01	Arm assy. - INTAKE ROCKER
4	14620-RGW-A01	Arm assy. - INTAKE ROCKER
4	14620-RN0-A01	Arm assy. - INTAKE ROCKER
5	14624-RN0-A00	Arm assy. a - EX. ROCKER
5	14624-RGW-A00	Arm assy. a - EX. ROCKER
5	14624-R71-A00	Arm assy. a - EX. ROCKER
6	14627-RN0-A00	Arm assy. b - EX. ROCKER
6	14627-RGW-A00	Arm comp. b - EX. ROCKER
6	14627-R71-A00	Arm assy. b - EX. ROCKER
7	14631-R70-A03	Shaft comp. - FR. INTAKE ROCKER
8	14632-R70-A03	Shaft comp. - FR. EX. ROCKER
9	14646-R70-A00	Washer - THRUST
10	14711-RYE-A00	Valve - IN.
11	14721-P8E-A00	Valve - EX.
12	14744-PM3-000	Screw - TAPPET ADJUSTING
13	14744-R72-A01	Screw - TAPPET ADJUSTING
14	14761-R70-A01	Spring - IN. VALVE (LIGHT BLUE) (NIPPON HATSUJO)
15	14762-R70-A01	Spring - EX. VALVE (GREEN) (NIPPON HATSUJO)
16	14765-RDV-J00	Retainer - VALVE SPRING
17	14775-PM3-000	Seat - VALVE SPRING
18	14781-RGM-A01	Cotter - VALVE (FUJI VALVE)
19	90206-PM3-004	Nut - TAPPET ADJUSTING (TOKAI TRW)
20	90206-PT0-004	Nut - TAPPET ADJUSTING

Valve/rocker arm (REAR) 20

#	OEM	部品名
1	14620-R71-A01	Arm assy. - INTAKE ROCKER
1	14620-RGW-A01	Arm assy. - INTAKE ROCKER
1	14620-RN0-A01	Arm assy. - INTAKE ROCKER
2	14624-RGW-A00	Arm assy. a - EX. ROCKER
2	14624-R71-A00	Arm assy. a - EX. ROCKER
2	14624-RN0-A00	Arm assy. a - EX. ROCKER
3	14627-R71-A00	Arm assy. b - EX. ROCKER
3	14627-RN0-A00	Arm assy. b - EX. ROCKER
3	14627-RGW-A00	Arm comp. b - EX. ROCKER
4	14633-R70-A01	Shaft comp. - RR. INTAKE ROCKER
5	14634-R70-A01	Shaft comp. - RR. EX. ROCKER
6	14711-RYE-A00	Valve - IN.
7	14721-P8E-A00	Valve - EX.
8	14744-R72-A01	Screw - TAPPET ADJUSTING
9	14761-R70-A01	Spring - IN. VALVE (LIGHT BLUE) (NIPPON HATSUJO)
10	14762-R70-A01	Spring - EX. VALVE (GREEN) (NIPPON HATSUJO)
11	14765-RDV-J00	Retainer - VALVE SPRING
12	14775-PM3-000	Seat - VALVE SPRING
13	14781-RGM-A01	Cotter - VALVE (FUJI VALVE)
14	90206-PT0-004	Nut - TAPPET ADJUSTING

Vsa modulator 5

#	OEM	部品名
1	57101-TA0-003	Rubber - MOUNT
2	57110-SZA-A02	Modulator assy - VSA (REWRITABLE)
3	57115-SZA-A10	Bracket - MODULATOR
4	57376-SNA-A00	Bolt - MOUNTING
5	90126-SK7-003	Bolt-washer - 6X20

Water hose 3

#	OEM	部品名
1	19521-R70-A00	Hose a - WATER
2	19522-R70-A00	Hose b - WATER
3	19523-RGW-A00	Hose c - WATER

Water pipe/water hose 22

#	OEM	部品名
1	79326-S0X-A11	Bracket e - HEATER PIPE
2	79327-S0X-A01	Bracket f - HEATER PIPE
3	79328-S0X-A01	Bracket g - HEATER PIPE
4	79721-SZA-A00	Hose a - WATER IN.
5	79722-SZA-A00	Hose b - WATER IN.
6	79726-SZA-A00	Hose a - WATER OUTLET
7	79727-SZA-A00	Hose b - WATER OUTLET
8	79731-S0X-A00	Grommet - HEATER PIPE
9	79742-STX-A01	Bracket d - HEATER PIPE
10	79753-SHJ-A01	Clip A
11	79771-STX-A00	Hose - RR. WATER IN.
12	79776-SZA-A00	Hose - RR. WATER OUTLET
13	79791-SZA-A01	Pipe comp
14	79792-SZA-A01	Pipe comp
15	90129-S0X-A01	Nut
16	90361-SV4-003	Nut - PAINT CUTTING, 6MM
17	90661-SL5-003	Clip, WATER HOSE
18	90663-SB2-003	Grommet - SCREW, 6MM
19	91405-PK1-003	Clip, WATER HOSE, 24MM
19	19513-PE0-003	Clamp - WATER HOSE (21.7MM) (CHUO SPRING)
20	91557-S87-A01	Clamp - HEATER
21	91901-S0X-A00	Screw - PAN, 4X8

Water pump/sensor 14

#	OEM	部品名
1	18011-R70-A00	Valve set - EGR
2	18715-PB2-000	GASKET, EGR VALVE (ISHINO GASKET)
3	19200-RDV-J01	Water Pump comp. (YAMADA)
4	19222-P8A-A01	Packing - WATER PUMP (YAMADA)
5	19301-P8E-A10	Thermostat assy - NIPPON THERMOSTAT
6	19305-PR7-A00	Rubber - THERMOSTAT MOUNTING
7	19311-R70-A00	Cover - THERMOSTAT
8	19410-RN0-A00	Passage comp. - WATER
9	19411-P8A-A03	Gasket - FR. WATER PASSAGE (NIPPON LEAKLESS)
10	19412-P8A-A02	Gasket - RR. WATER PASSAGE (NIPPON LEAKLESS)
11	19505-RN0-A00	Pipe comp - CONNECTING
12	37870-RTA-005	Sensor assy - WATER TEMP (DENSO)
13	91307-RTA-005	O-ring - DENSO
14	91314-PH7-003	O-ring 31.2X4.1 (NOK)

Windshield washer 20

#	OEM	部品名
1	76802-SZA-A01	Cap - WASHER MOUTH
2	76806-SZA-A01	Motor assy. - WINDSHIELD WASHER
3	76809-SZA-000	Bush - LEVEL SENSOR
5	76811-SZA-A21	Tube comp. a - FR.
6	76813-SZA-A00	Packing
7	76823-SZA-A11	Grommet - WASHER TUBE
8	76825-SZA-A01	Cushion
9	76835-SZA-000	Level sensor
10	76838-SZA-A10	Clip - WASHER TUBE (10MM OFFSET)
11	76838-SZA-A21	Clip - WASHER TUBE
12	76838-SZA-A30	Clip - WASHER TUBE
13	76841-SZA-A01	Tank - WASHER (4.0L)
14	76843-SMG-E01	Filter
15	76862-SZA-A21	Tube comp. b - RR.
16	76863-SZA-A91	Tube comp. c - RR.
17	91506-STX-A01	Clip - HARNESS BAND(BLACK) (148MM)
18	91512-SX0-003	Clip - INNER FENDER CLIP
19	91531-SW5-003	Band - HARNESS, 6MM (NATURAL) (120MM)
20	91537-SR3-003	Clip - WIRE HARNESS (BROWN) (127MM)
21	91902-STX-A01	Plaster - WIRE HARNESS(50X100)

Wire harness (1) 8

#	OEM	部品名
1	32100-SZA-Y11	Harness - R. CABIN WIRE
1	32100-SZA-Y01	Harness - R. CABIN WIRE
2	32110-SZA-A00	Sub cord - FR. ACM SOLENOID
3	32120-SZA-Y11	Harness - L. CABIN WIRE
3	32120-SZA-Y01	Harness - L. CABIN WIRE
4	32601-STX-A01	Cable - MISSION EARTH
5	32610-STX-A00	Cable - SUB EARTH
6	90149-SE0-003	Bolt - EARTH, 6X16

Wire harness (2) 6

#	OEM	部品名
1	32117-SZA-Y11	Harness - INSTRUMENT WIRE
1	32117-SZA-Y01	Harness - INSTRUMENT WIRE
2	32158-SZA-Y02	Harness - HEATER SUB WIRE
3	35505-692-003	Bulb - 14V 1.4W
4	90137-S84-A01	Bolt - TORX EARTH, 6X20
5	90148-SE0-003	Bolt - EARTH, 6X16 (WASHER 12.5MM) (ZN)

Wire harness (3) 5

#	OEM	部品名
1	32107-SZA-Y11	Harness - FLOOR WIRE
1	32107-SZA-Y01	Harness - FLOOR WIRE
2	32108-SZA-X01	Harness - RR. WIRE
2	32108-SZA-A01	Harness - RR. WIRE
3	90148-SE0-003	Bolt - EARTH, 6X16 (WASHER 12.5MM) (ZN)

Wire harness (4) 15

#	OEM	部品名
1	32109-SZA-A11	Harness - TAILGATE WIRE
1	32109-SZA-A01	Harness - TAILGATE WIRE
2	32113-SZA-A00	Cord - RR. BUMPER
3	32114-SZA-A00	Sub cord - RR. SUB FRAME
4	32115-SZA-A00	Sub cord - LICENSE LIGHT
5	32119-SZA-A11	Sub harness - TAILGATE
5	32119-SZA-A01	Sub harness - TAILGATE
6	32129-SZA-A00	Sub cord - RR. DEFROSTER
7	32155-SZA-A01	Cord - INTERIOR
8	32155-SZA-X01	Cord - INTERIOR (SUN ROOF)
9	32751-SZA-Y01	Harness - DRIVER DOOR WIRE
10	32752-SZA-Y01	Harness - PASSENGER DOOR WIRE
11	32753-SZA-A00	Harness - R. RR. DOOR WIRE
12	32754-SZA-A00	Harness - L. RR. DOOR WIRE
13	90148-SE0-003	Bolt - EARTH, 6X16 (WASHER 12.5MM) (ZN)
