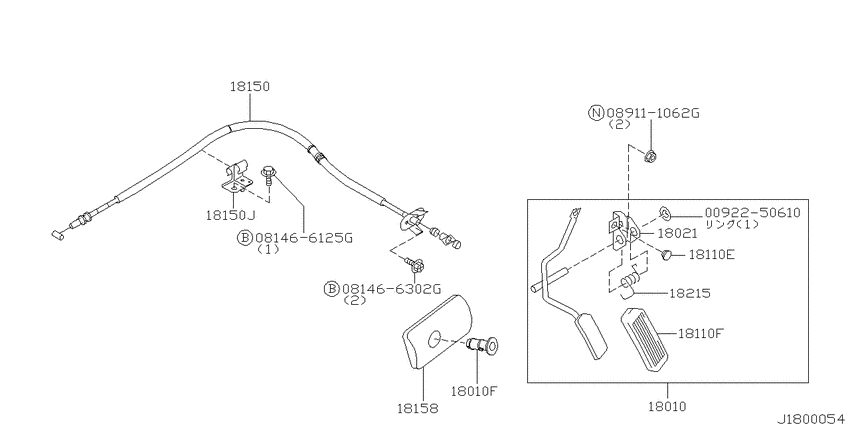

Accelerator linkage (2001-12-01 ~ ; VQ30DET) 9

#	OEM	Part name
18010	18005-AG000	Lever Assy-Pedal
18010	18159-AG005	Clip
18021	18021-AG000	Bracket-Pedal Lever
18110	18052-4P000	Stopper Rubber-Accelerator Pedal
18110	18016-4P000	Pad-Accelerator Pedal
18150	18201-AG000	Wire Assy-Accelerator
18150	18225-AG300	Clip
18158	18158-AG005	Cover-Accelerator Stopper
18215	18215-AG000	Spring-Return

Air cleaner (2001-12-01 ~ ; エア クリーナー; VQ30DET) 18

#	OEM	Part name
16500	16500-AG901	Air Cleaner
16516	16516-5Y700	Bolt-Center
16516	16516-CR400	Bolt-Center
16526	16526-2Y000	Air Cleaner Cover
16545	16544-31U00	Air Cleaner Caution Label
16557	16557-AG000	Mounting Rubber
16557	16557-91P00	Mounting Rubber
16559	14460-AG900	Pipe-Air Inlet
16576	16566-AG000	Retainer
16576	16576-AG900	Duct Assy-Air
16577	16554-CR800	Duct Assy-Air
16577	16556-CR400	Duct Assy-Air
16577	14464-10Y00	Clamp-Hose
16577	01555-00571	CLAMP-HOSE
16587	16599-84A10	Cap-Connector
16598	16598-53J01	Clip
22680	22680-6N201	Mass Air Flow
22680	22680-6N211	Mass Air Flow Sensor

Alternator (2001-12-01 ~ ; VQ30DET) 21

#	OEM	Part name
23100	23100-AG010	Alternator Assy
23100	23100-AL510	Alternator Assy
23102	23102-7B000	Stator Assy
23102	23102-AL510	Stator Assy
23108	23108-AG010	Rotor Assy
23108	23108-AL510	Rotor Assy
23118	23118-4P115	Cover Assy-Front
23118	23118-AL510	Cover Assy-Front
23120	23120-30R10	Bearing-Ball
23120	23120-0V017	Bearing-Ball
23120	23120-22J20	Bearing-Ball
23124	23124-AG010	Rectifier Assy
23124	23124-AL510	Rectifier Assy
23127	23127-AG010	Cover Assy-Rear
23127	23127-AL510	Cover Assy-Rear
23127	23131-20P10	Bolt-Through
23150	23150-AG010	Pulley Assy
23150	23153-70T12	Plate-Terminal
23156	23156-1E810	Terminal Assy-B
23200	23200-20P10	Screw Set
23215	23215-AG010	Regulator Assy-Ic

Alternator fitting (2001-12-01 ~ 2002-07-01; VQ30DET) 10

#	OEM	Part name
11713	23188-16V00	Nut-Stopper, Alternator
11715	11715-4P100	Bar-Adjusting, Alternator
11716	11916-0W003	Bolt
11716	11916-AG300	Bolt
11718	01121-05851	BOLT
11925	11925-AL500	Pulley Assy-Idler
11926	11928-AL500	Shaft-Idler Pulley
11931	11931-AL500	Specer-Idler Pulley
11932	11932-AL500	Collar-Idler Pulley
11948	11948-AL500	Bolt-Adjust, Idler Pulley

Alternator fitting (2002-07-01 ~ ; VQ30DET) 10

#	OEM	Part name
11713	23188-16V00	Nut-Stopper, Alternator
11715	11715-4P100	Bar-Adjusting, Alternator
11716	11916-0W003	Bolt
11716	11916-AG300	Bolt
11925	11925-AL500	Pulley Assy-Idler
11926	11928-AL500	Shaft-Idler Pulley
11931	11931-AL500	Specer-Idler Pulley
11932	11932-AL500	Collar-Idler Pulley
11948	11948-AL500	Bolt-Adjust, Idler Pulley
836051062	08360-51062	スクリユ-,マシン

Anti skid control (2001-12-01 ~ ; ABS部; K.VQ30DET) 14

#	OEM	Part name
38210	47960-AG060	Bracket-Sensor
38210	47961-AG060	Bracket-Sensor
47600	25628-40U00	Screw
47605	47605-CR800	Relay Assy-Actuator
47610	01221-00361	NUT
47620	01456-00641	SCREW
47840	47840-CR800	Bracket-Actuator
47850	47850-CR810	Module Assy-Anti Skid
47850	47850-CR800	Module Assy-Anti Skid
47900	47900-AG300	Sensor Assy-Anti Skid, Rear
47930	47930-CR800	Sensor Assy-G
47930	47930-CR80A	Sensor Assy-G
47950	47950-76T00	Sensor Rotor-Anti Skid Rear
47950	47950-AR000	Sensor Rotor-Anti Skid Rear

Audio & visual (2001-12-01 ~ ; ｱﾝﾃﾅ; K) 6

#	OEM	Part name
28060	28230-CR500	Amplifier-Antenna
28231	28231-CR000	Amplifier-Radio
28232	28232-CR000	Amplifier-Tv
28242	28243-AG000	Feeder-Antenna
28242	28243-CR500	Feeder-Antenna
28242	28243-CR000	Feeder-Antenna

Audio & visual (2001-12-01 ~ ; ｵｰﾃﾞｨｵ ﾕﾆｯﾄ-1; K) 14

#	OEM	Part name
25920	25920-VG201	Dvd-Rom, Map
25920	25920-VG202	Dvd-Rom, Map
27920	28116-CR500	Radio Unit, W/cassette
27920	28116-CR510	Radio Unit, W/cassette
27920	28116-CR520	Radio Unit, W/cassette
27920	28116-CR560	Radio Unit, W/cassette
28188	28188-CR300	Radio Unit, W/cd And Cassette
28188	28188-CR301	Radio Unit, W/cd And Cassette
28188	28188-CR310	Radio Unit, W/cd And Cassette
28188	28188-CR311	Radio Unit, W/cd And Cassette
28188	28188-CR320	Radio Unit, W/cd And Cassette
28188	28188-CR321	Radio Unit, W/cd And Cassette
28188	28188-CR360	Radio Unit, W/cd And Cassette
28188	28188-CR361	Radio Unit, W/cd And Cassette

Audio & visual (2001-12-01 ~ ; ｵｰﾃﾞｨｵ ﾕﾆｯﾄ-2; K) 16

#	OEM	Part name
25975	25975-AG300	Antenna Assy-Gps
27983	74999-4P700	Clip
28090	28090-AG300	Display Assy-Tv
28118	28118-CR000	Magazine-Cd
28118	28118-VE201	Magazine-Cd
28257	28268-CR000	Switch Assy-Remote
28360	01436-01841	SCREW
28395	28395-CR100	Switch Assy-Tv
28395	28395-CR110	Switch Assy-Tv
28395	28395-CR500	Switch Assy-Av & Navi
28395	28395-CR510	Switch Assy-Av & Navi
29301	28195-AG010	Bracket-Cassette Deck
29301	28196-AG010	Bracket-Cassette Deck
29301	28184-AG000	Deck-Cd
29301	28184-CR000	Deck-Cd
83405062	08340-5062A	SCREWMACHINE

Audio & visual (2001-12-01 ~ ; ﾕﾆｯﾄ; K) 17

#	OEM	Part name
25915	28330-CR500	Control Assy-Navigation
25915	28330-CR520	Control Assy-Navigation
25915	28330-CR521	Control Assy-Navigation
27900	28365-4P000	Terminal-Earth
27900	28365-AG000	Terminal-Earth
27983	11836-81T00	Clamp-Hose, B
28032	01436-01841	SCREW
28050	28050-CR000	Tuner Assy-Tv
28050	28050-CR001	Tuner Assy-Tv
28070	28055-CR500	Bracket-Av Unit
28070	28056-CR500	Bracket-Av Unit
28261	28260-CR000	Controller Assy-Audio
28340	24860-CR010	Bulb-Av Switch
28360	28360-V5014	Wire-Bonding
28363	28362-AG300	Coil-Noise Suppressor
28363	28362-AG310	Coil-Noise Suppressor
836051022	08360-51022	Bolt

Auto transmission control device (2001-12-01 ~ ; )VQ25DD.250SV +VQ30DD.300SV +VQ30DET.AT.F4) 21

#	OEM	Part name
31913	31913-4P000	Lever-Select Range
34013	01321-00181	WASHER
34409	34409-AH000	Pin-Pivot
34552	34552-11V00	Insulator
34902	34901-CR300	Device Assy-Transmission Control
34902	34901-CR301	Device Assy-Transmission Control
34910	34910-CR300	Knob Assy-Control Lever, Auto
34910	34910-CR301	Knob Assy-Control Lever, Auto
34918	34918-AH000	Cover-Dust
34921	34921-CR300	Button-Release Hand Lever
34935	34930-CR300	Rod-Selector
34951	34951-3J400	Adaptor-Compression Rod
34965	34965-4P000	Bush-Stopper
34970	34970-AG001	Solenoid Assy-Select Lock
34980	34980-AH000	Park Position Switch
34981	34981-AH000	Plate-Adaptor
36522	36522-68200	Washer-Plain
96935	96935-CR300	ブ-ツ,コンソ-ル
96943	96943-AH000	インデイケーター フレーム,オート トランスミツシヨン コントロール
89113442	08911-3442A	NUTHEX
89163442	08916-3442A	WASHERTOOTH

Auto transmission control device (2001-12-01 ~ ; VQ30DET.CVT) 20

#	OEM	Part name
31913	31913-6P000	Lever-Select Range
34013	01321-00181	WASHER
34409	34409-AH000	Pin-Pivot
34552	34552-11V00	Insulator
34902	34901-AJ304	Device Assy-Transmission Control
34902	34901-CR500	Device Assy-Transmission Control
34910	34910-CR300	Knob Assy-Control Lever, Auto
34918	34918-AH000	Cover-Dust
34921	34921-3J400	Button-Release Hand Lever
34921	34921-CR300	Button-Release Hand Lever
34935	34930-AH000	Rod-Selector
34951	34951-3J400	Adaptor-Compression Rod
34965	34965-4P000	Bush-Stopper
34970	34970-AG001	Solenoid Assy-Select Lock
34980	34980-AH000	Park Position Switch
34981	34981-AH000	Plate-Adaptor
36522	36522-68200	Washer-Plain
96935	96935-CR300	ブ-ツ,コンソ-ル
89113442	08911-3442A	NUTHEX
89163442	08916-3442A	WASHERTOOTH

Auto transmission,transaxle & fitting (2001-12-01 ~ 2002-04-01; &アッセンブリー&フィッティング パーツ; CVT) 15

#	OEM	Part name
30412	30412-4P100	Seal-Rubber.rear Engine
31020	31020-5P003	Transmission Assy-Automatic
31020	31020-5P006	Transmission Assy-Automatic
31020	31377-0E003	BOLT
31020	31377-0E00D	Bolt
31020	31377-0E004	BOLT
31020	31377-JL00A	Bolt
31036	31036-CS110	Control Unit-Shift
31037	31037-71L00	Resistor Assy-Auto Transmission
31080	31080-AH001	Pipe Assy-Oil Charging
31080	31080-AH00A	Pipe assy-oil c
31084	31083-7P800	Seal-O Ring
31086	31086-AH001	Gauge Assy-Oil Level
31098	31098-7P800	Hose-Breather
31237	31237-AH001	Repeater Assy-Revolution Sensor

Auto transmission,transaxle & fitting (2001-12-01 ~ 2002-04-01; &アッセンブリー&フィッティング パーツ; VQ30DET.AT.F4) 11

#	OEM	Part name
30412	30412-4P100	Seal-Rubber.rear Engine
31020	31020-55X02	Transmission Assy-Automatic
31020	31377-0E003	BOLT
31020	31377-0E00D	Bolt
31020	31377-0E004	BOLT
31020	31377-JL00A	Bolt
31036	31036-CS200	Control Unit-Shift
31037	31037-71L00	Resistor Assy-Auto Transmission
31080	31080-AG000	Pipe Assy-Oil Charging
31084	31084-20300	Seal-O Ring
31098	31098-AG900	Hose-Breather

Auto transmission,transaxle & fitting (2001-12-01 ~ ; オイルクーラー フロント; CVT) 15

#	OEM	Part name
15208	15208-7P800	Element Assy-Oil Filter
16439	01558-00181	CLAMP-HOSE
21305	21606-AG505	Cooler Assy-Oil
21613	21613-AH000	Bracket-Oil Cooler
21613	21613-AG510	Bracket-Oil Cooler
21632	21632-AH000	Hose-Automatic Transmission
21632	21632-AH010	Hose-Automatic Transmission
21635	21635-AH000	Hose-Radiator To Oil Cooler
21636	21636-AH000	Hose-Oil Cooler To Engine
21636	21636-AH010	Hose-Oil Cooler To Engine
21640	21640-AH000	Filter Assy-Automatic Transmission
21644	31068-AH000	Bracket-Tube
21644	31069-AG500	Bracket-Tube
31069	15238-AH000	Bracket
81466252	08146-6252H	Bolt-hexagon

Auto transmission,transaxle & fitting (2001-12-01 ~ ; オイルクーラー リヤ; CVT) 20

#	OEM	Part name
21611	21611-AH000	Valve-Bypass
21619	21619-AH006	Tube Assy-Oil Cooler
21623	21623-AH015	Tube Assy-Oil Cooler
21625	21625-F6105	Bolt-Connector
21630	21630-AH000	Valve Assy-Oil Cooler
21633	21633-AH000	Hose-Oil Cooler
21633	21633-AH011	Hose-Oil Cooler
21634	21634-AH011	Hose-Oil Cooler
21634	21634-AH010	Hose-Oil Cooler
21644	21644-AR401	Bracket-Tube Clamp
21644	21644-AR406	Bracket-Tube Clamp
21644	21644-AL500	Bracket-Tube Clamp
21644	31068-AH000	Bracket-Tube
21644	31069-AG500	Bracket-Tube
21647	21647-F6100	Clamp-Tube
21647	21647-8S000	Clamp-Tube
21647	21647-F6105	Clamp-Tube
21647	21647-4P100	Clamp-Tube
31081	31377-AH000	Bolt
31181	01558-00181	CLAMP-HOSE

Auto transmission,transaxle & fitting (2001-12-01 ~ ; オイルクーラーチューブパーツ; VQ30DET.AT.F4) 18

#	OEM	Part name
16439	01558-00181	CLAMP-HOSE
21305	21606-AG505	Cooler Assy-Oil
21613	21613-AG500	Bracket-Oil Cooler
21613	21613-AG510	Bracket-Oil Cooler
21621	21621-AG901	Tube Assy-Oil Cooler
21623	21623-AG901	Tube Assy-Oil Cooler
21625	21625-F6105	Bolt-Connector
21635	21635-AG500	Hose-Radiator To Oil Cooler
21636	21636-AG510	Hose-Oil Cooler To Engine
21644	21644-AR401	Bracket-Tube Clamp
21644	21644-AR406	Bracket-Tube Clamp
21644	21644-AL500	Bracket-Tube Clamp
21644	31069-AG500	Bracket-Tube
21647	21647-F6100	Clamp-Tube
21647	21647-8S000	Clamp-Tube
21647	21647-F6105	Clamp-Tube
21647	21647-4P100	Clamp-Tube
81466252	08146-6252H	Bolt-hexagon

Auto transmission,transaxle & fitting (2002-04-01 ~ ; &アッセンブリー&フィッティング パーツ; CVT) 16

#	OEM	Part name
30412	30412-4P100	Seal-Rubber.rear Engine
31020	31020-5P003	Transmission Assy-Automatic
31020	31020-5P006	Transmission Assy-Automatic
31020	31377-0E003	BOLT
31020	31377-0E00D	Bolt
31020	31377-0E004	BOLT
31020	31377-JL00A	Bolt
31036	31036-CS110	Control Unit-Shift
31037	31037-71L00	Resistor Assy-Auto Transmission
31080	31080-AH001	Pipe Assy-Oil Charging
31080	31080-AH00A	Pipe assy-oil c
31083	31377-AR000	Bolt-Spacer, Oil Charging Pipe
31084	31083-7P800	Seal-O Ring
31086	31086-AH001	Gauge Assy-Oil Level
31098	31098-7P800	Hose-Breather
31237	31237-AH001	Repeater Assy-Revolution Sensor

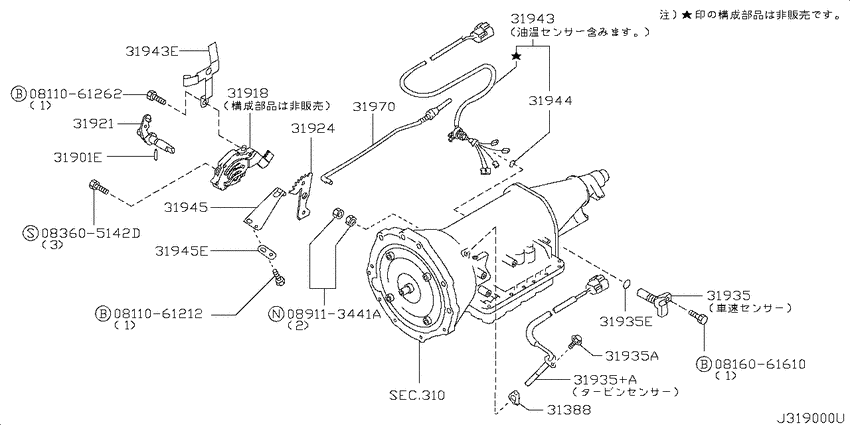

Auto transmission,transaxle & fitting (2002-04-01 ~ ; &アッセンブリー&フィッティング パーツ; VQ30DET.AT.F4) 12

#	OEM	Part name
30412	30412-4P100	Seal-Rubber.rear Engine
31020	31020-55X02	Transmission Assy-Automatic
31020	31377-0E003	BOLT
31020	31377-0E00D	Bolt
31020	31377-0E004	BOLT
31020	31377-JL00A	Bolt
31036	31036-CS200	Control Unit-Shift
31037	31037-71L00	Resistor Assy-Auto Transmission
31080	31080-AG000	Pipe Assy-Oil Charging
31083	31377-AR000	Bolt-Spacer, Oil Charging Pipe
31084	31084-20300	Seal-O Ring
31098	31098-AG900	Hose-Breather

Battery & battery mounting (2001-12-01 ~ ; VQ25DD +VQ30DD +VQ30DET +RB25DET) 3

#	OEM	Part name
24422	24425-89902	Rod-Battery Fix
24422	24425-4P100	Rod-Battery Fix
24431	24431-AR000	Cover-Battery

Body complete (2001-12-01 ~ ; K) 1

#	OEM	Part name
60100	60200-XXXXX	Body Assy-Cab Metal

Body side fitting (2001-12-01 ~ ; ﾌﾟﾗｸﾞ&ｲﾝｼｭﾚｰﾀ; K) 15

#	OEM	Part name
64891	64899-CR000	Plug-Rubber
76630	76884-AG020	Insulator-Rear Pillar, Inner
76630	76884-AG022	Insulator-Rear Pillar, Inner
76630	76884-AG024	Insulator-Rear Pillar, Inner
76630	76885-4P015	Insulator-Rear Pillar, Inner
76630	76884-4P015	Insulator-Rear Pillar, Inner
76630	76884-0P067	Insulator-Cowl Top
78162	78882-AG001	Insulator-Rear Fender
78408	82857-01M00	Grommet
78409	80854-AG000	Cover-Seal
79458	79458-AG000	Cover-Hole, Rh
79458	79458-AR001	Cover-Hole, Rh
79459	79459-AG000	Cover-Hole, Lh
79498	79498-AR000	Insulator-Parcel Shelf Side
96116	01658-00531	PLUG

Body side fitting (2001-12-01 ~ ; ﾏｯﾄﾞｶﾞｰﾄﾞ&ﾌｨｯﾃｨﾝｸﾞ; K) 8

#	OEM	Part name
63830	63850-AG010	Mudguard Set-Front Fender, Rh
63831	63851-AG010	Mudguard Set-Front Fender, Lh
76808	72796-AG001	Clip
76820	76818-AG000	Cover-Center Pillar, Rh
76821	76819-AG000	Cover-Center Pillar, Lh
76895	78810-AG000	Mudguard Set-Rear, Rh
76896	78811-AG000	Mudguard Set-Rear, Lh
76897	20882-AG000	Nut

Body side moulding (2001-12-01 ~ ; K) 19

#	OEM	Part name
63865	63874-AG013	Moulding-Front Fender, Rear Rh
63865	63874-CR004	Moulding-Front Fender, Rear Rh
63866	63875-AG013	Moulding-Front Fender, Rear Lh
63866	63875-AG014	Moulding-Front Fender, Rear Lh
63866	63875-CR004	Moulding-Front Fender, Rear Lh
76812	76860-AG000	Weatherstrip-Body Side, Rh
76812	76860-CR900	Weatherstrip-Body Side, Rh
76813	76861-AG000	Weatherstrip-Body Side, Lh
76813	76861-CR900	Weatherstrip-Body Side, Lh
76820	96706-AG000	Grommet-Screw
80872	80870-AG013	Moulding-Front Door, Rh
80872	80870-CR004	Moulding-Front Door, Rh
80873	80871-AG013	Moulding-Front Door, Lh
80873	80871-CR004	Moulding-Front Door, Lh
82872	82870-AG013	Moulding-Rear Door, Rh
82872	82870-CR003	Moulding-Rear Door, Rh
82872	82870-CR004	Moulding-Rear Door, Rh
82873	82871-AG013	Moulding-Rear Door, Lh
82873	82871-CR004	Moulding-Rear Door, Lh

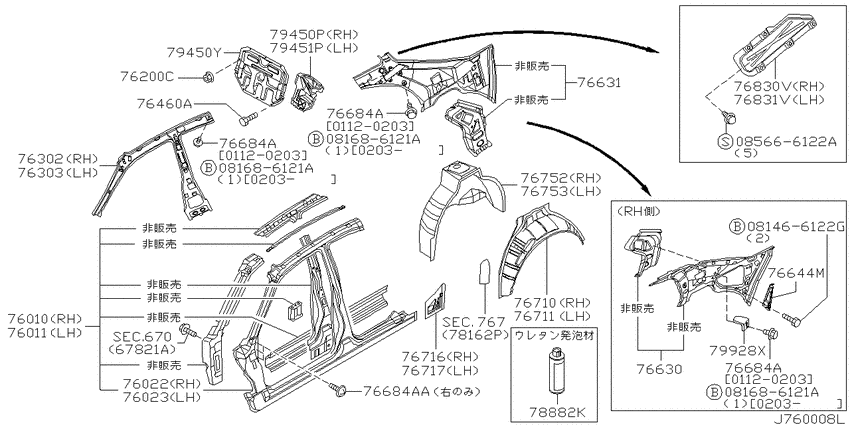

Body side panel (2001-12-01 ~ ; K) 22

#	OEM	Part name
76011	76021-CR030	Body Assy-Side, Lh
76302	76040-CR030	Panel-Side, Front Rh
76303	76041-CR030	Panel-Side, Front Lh
76630	76884-AG020	Insulator-Rear Pillar, Inner
76630	76884-AG022	Insulator-Rear Pillar, Inner
76630	76884-AG024	Insulator-Rear Pillar, Inner
76630	76885-4P015	Insulator-Rear Pillar, Inner
76630	76884-4P015	Insulator-Rear Pillar, Inner
76630	76884-0P067	Insulator-Cowl Top
76631	76631-AG000	Pillar-Rear, Inner Lh
76644	76644-AG000	Patch-Rear Pillar, Inner Rh
76644	76644-CR900	Patch-Rear Pillar, Inner Rh
76684	01456-00641	SCREW
76684	76838-AH300	Screw
76717	76717-AG000	Extension-Rear Wheel House Outer, Lh
76753	76751-AG030	Wheel House-Rear, Inner Lh
79450	76774-AG000	Support-Seat Back, Rh
79450	76774-AG001	Support-Seat Back, Rh
79450	76730-AG000	Support-Seat Back
79450	76730-AG001	Support-Seat Back
79451	76775-AG000	Support-Seat Back, Lh
79451	76775-AG001	Support-Seat Back, Lh

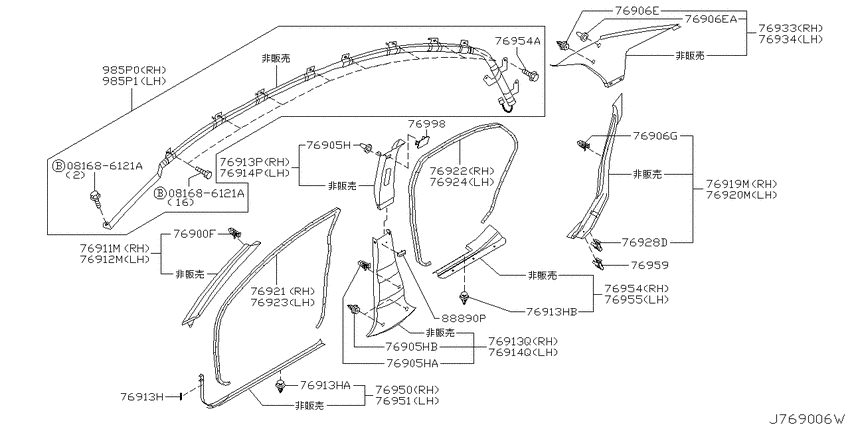

Body side trimming (2001-12-01 ~ ; カーテンエアバッグ付き; K) 34

#	OEM	Part name
76906	01553-09791	CLIP-FINISHER
76911	76911-CR010	Garnish Assy-Front Pillar, Rh
76913	76959-AG000	Clip-Trim
76913	76913-CR000	Garnish-Center Pillar, Upper Rh
76913	76915-AH604	Garnish-Center Pillar, Lower Rh
76913	76915-CR000	Garnish-Center Pillar, Lower Rh
76914	76914-CR000	Garnish-Center Pillar, Upper Lh
76914	76916-CR000	Garnish-Center Pillar, Lower Lh
76919	76917-AH604	Garnish-Rear Wheel House, Rh
76919	76917-CR000	Garnish-Rear Wheel House, Rh
76920	76918-AH604	Garnish-Rear Wheel House, Lh
76920	76918-CR000	Garnish-Rear Wheel House, Lh
76921	76921-CR000	Welt-Body Side, Front Rh
76921	76921-CR010	Welt-Body Side, Front Rh
76922	76923-CR000	Welt-Body Side, Rear Rh
76922	76923-CR001	Welt-Body Side, Rear Rh
76922	76923-CR010	Welt-Body Side, Rear Rh
76923	76922-CR000	Welt-Body Side, Front Lh
76923	76922-CR010	Welt-Body Side, Front Lh
76924	76924-CR000	Welt-Body Side, Rear Lh
76924	76924-CR001	Welt-Body Side, Rear Lh
76924	76924-CR010	Welt-Body Side, Rear Lh
76928	76988-60U00	Clip
76933	76934-CR000	Finisher-Rear Pillar, Rh
76934	76935-CR000	Finisher-Rear Pillar, Lh
76950	76951-CR200	Plate-Kicking, Front Rh
76950	76951-CR201	Plate-Kicking, Front Rh
76951	76952-CR200	Plate-Kicking, Front Lh
76954	76953-CR200	Plate-Kicking, Rear Rh
76954	76953-CR201	Plate-Kicking, Rear Rh
76955	76954-CR200	Plate-Kicking, Rear Lh
76959	76959-60U10	Grommet
76998	76988-AR002	Cap-Pillar
76998	76988-AR012	Cap-Pillar

Body side trimming (2001-12-01 ~ ; カーテンエアバッグ無し; K) 34

#	OEM	Part name
76906	01553-09791	CLIP-FINISHER
76911	76911-CR010	Garnish Assy-Front Pillar, Rh
76913	76959-AG000	Clip-Trim
76913	76913-CR000	Garnish-Center Pillar, Upper Rh
76913	76915-AH604	Garnish-Center Pillar, Lower Rh
76913	76915-CR000	Garnish-Center Pillar, Lower Rh
76914	76914-CR000	Garnish-Center Pillar, Upper Lh
76914	76916-CR000	Garnish-Center Pillar, Lower Lh
76919	76917-AH604	Garnish-Rear Wheel House, Rh
76919	76917-CR000	Garnish-Rear Wheel House, Rh
76920	76918-AH604	Garnish-Rear Wheel House, Lh
76920	76918-CR000	Garnish-Rear Wheel House, Lh
76921	76921-CR000	Welt-Body Side, Front Rh
76921	76921-CR010	Welt-Body Side, Front Rh
76922	76923-CR000	Welt-Body Side, Rear Rh
76922	76923-CR001	Welt-Body Side, Rear Rh
76922	76923-CR010	Welt-Body Side, Rear Rh
76923	76922-CR000	Welt-Body Side, Front Lh
76923	76922-CR010	Welt-Body Side, Front Lh
76924	76924-CR000	Welt-Body Side, Rear Lh
76924	76924-CR001	Welt-Body Side, Rear Lh
76924	76924-CR010	Welt-Body Side, Rear Lh
76928	76988-60U00	Clip
76933	76934-CR000	Finisher-Rear Pillar, Rh
76934	76935-CR000	Finisher-Rear Pillar, Lh
76950	76951-CR200	Plate-Kicking, Front Rh
76950	76951-CR201	Plate-Kicking, Front Rh
76951	76952-CR200	Plate-Kicking, Front Lh
76954	76953-CR200	Plate-Kicking, Rear Rh
76954	76953-CR201	Plate-Kicking, Rear Rh
76955	76954-CR200	Plate-Kicking, Rear Lh
76959	76959-60U10	Grommet
76998	76988-AR002	Cap-Pillar
76998	76988-AR012	Cap-Pillar

Brake & clutch pedal (2001-12-01 ~ ; &VQ25DD +VQ30DD +VQ30DET.AT.F4 +RB25DET) 4

#	OEM	Part name
46501	46501-AG010	Pedal Assy-Brake W/bracket
46512	46584-5P010	Stopper-Rubber
46520	46123-03W10	Pin-Clevis
92310810	00923-10810	PIN-SNAP

Brake & clutch pedal (2001-12-01 ~ ; VQ30DET.CVT) 4

#	OEM	Part name
46501	46501-AG010	Pedal Assy-Brake W/bracket
46512	46584-5P010	Stopper-Rubber
46520	46123-03W10	Pin-Clevis
92310810	00923-10810	PIN-SNAP

Brake master cylinder (2001-12-01 ~ ; トキコ／ACC仕様; 3*VQ30DET.300LX +*VQ30DET.300ULT.CVT +*VQ30DET.AT.F4) 20

#	OEM	Part name
46010	46010-CR825	Cylinder Assy-Brake Master
46010	46010-CR826	Cylinder Assy-Brake Master
46010	46010-CR827	Cylinder Assy-Brake Master
46010	46010-CR829	Cylinder Assy-Brake Master
46010	46010-CR828	ピストン キツト,タンデム ブレ-キ マスタ- シリンダ-
46010	46011-CR825	Piston Kit-Tandem Brake Master Cylinder
46010	46011-CR826	Piston Kit-Tandem Brake Master Cylinder
46010	46011-CR827	Piston Kit-Tandem Brake Master Cylinder
46015	46096-2U026	Seal Kit-O Ring
46015	46096-AN027	Seal Kit-O Ring
46020	46020-AL600	Cap Assy-Oil Reservoir Tank
46070	46032-70T00	Screw-Stopper
46070	46079-W1010	Packing-Stopper Screw
46070	46070-2U000	Stop Ring-Piston
46070	46070-AN020	Stop Ring-Piston
46090	46091-0P000	Tank-Oil Reservoir
46090	46091-AL600	Tank-Oil Reservoir
46090	46091-AR020	Tank-Oil Reservoir
46090	46091-CD000	Tank-Oil Reservoir
46093	46093-5V200	Strainer-Brake Oil

Brake master cylinder (2001-12-01 ~ ; ボッシュ／VDC仕様; 0VQ30DET.300LX +VQ30DET.300ULT.CVT +VQ30DET.AT.F4) 20

#	OEM	Part name
46010	46010-CR825	Cylinder Assy-Brake Master
46010	46010-CR826	Cylinder Assy-Brake Master
46010	46010-CR827	Cylinder Assy-Brake Master
46010	46010-CR829	Cylinder Assy-Brake Master
46010	46010-CR828	ピストン キツト,タンデム ブレ-キ マスタ- シリンダ-
46010	46011-CR825	Piston Kit-Tandem Brake Master Cylinder
46010	46011-CR826	Piston Kit-Tandem Brake Master Cylinder
46010	46011-CR827	Piston Kit-Tandem Brake Master Cylinder
46015	46096-2U026	Seal Kit-O Ring
46015	46096-AN027	Seal Kit-O Ring
46020	46020-AL600	Cap Assy-Oil Reservoir Tank
46032	46032-70T00	Screw-Stopper
46037	46037-5V200	Pin-Spring
46070	46070-2U000	Stop Ring-Piston
46070	46070-AN020	Stop Ring-Piston
46090	46091-0P000	Tank-Oil Reservoir
46090	46091-AL600	Tank-Oil Reservoir
46090	46091-AR020	Tank-Oil Reservoir
46090	46091-CD000	Tank-Oil Reservoir
46093	46093-5V200	Strainer-Brake Oil

Brake piping & control (2001-12-01 ~ ; クランプ&インシュレーター; K.VQ30DET) 14

#	OEM	Part name
46260	46260-AH500	Bracket-Brake Connector
46271	46271-AH500	Clip-Tube, Brake
46271	46271-1W213	Clamp
46271	46271-0P010	Clamp-Brake Tube
46271	46271-01B00	Clamp
46272	46272-01G03	Insulator
46272	46272-2S402	Spacer
46272	46272-AH500	Insulator
46272	46272-01G00	Spacer
46272	46272-2S400	Spacer-Brake Tube
46289	46289-10V10	Clamp
46289	46289-AG305	Clamp
49728	49728-55S00	Collar
49728	49728-55S0A	Collar-Insulator

Brake piping & control (2001-12-01 ~ ; パイピング; K.VQ30DET) 16

#	OEM	Part name
44020	55259-AG000	Bolt
46201	46206-2J000	Spring-Lock
46201	46356-0E000	BOLT-UNION,FRONT BRAKE HOSE
46240	46240-AH505	Tube Assy-Brake, Front Rh
46242	46242-AG015	Tube Assy-Brake, Front Lh
46250	46250-CR415	Tube Assy-Brake, Front Master Cylinder
46252	46252-CR415	Tube Assy-Brake, Rear Master Cylinder
46255	46364-AG211	Connector-Brake Tube
46282	46282-AH500	Tube Assy-Brake, Rear
46283	46283-AH500	Tube Assy-Brake, Rear
46284	46284-AG210	Tube Assy-Brake, Rear
46285	46285-AG211	Tube Assy-Brake, Rear
46285	46285-AG005	Tube Assy-Brake, Rear
74746	74746-AG905	Insulator-Heat, Antiskid Upper
74747	74747-AG905	Insulator-Heat, Antiskid Upper
81466305	08146-6305G	Bolt-hexagon

Brake servo & servo control (2001-12-01 ~ ; VQ30DET) 9

#	OEM	Part name
47030	16439-17B00	Clip
47030	47477-51E00	CLAMP
47210	47210-CR825	Booster Assy-Brake
47210	47210-CR826	Booster Assy-Brake
47474	47474-AH510	Hose-Booster
47474	47474-CR400	Hose-Booster
47474	47474-CR405	Hose-Booster
47475	47475-W0500	Connector-Booster Hose
47477	47477-AG005	Bracket

Camshaft & valve mechanism (2001-12-01 ~ 2002-04-01; カムシャフト選択基準; VQ30DET) 153

#	OEM	Part name
13020	13020-AG902	Camshaft Assy
13020	13020-AG903	Camshaft Assy
13020	13020-38U14	Camshaft Assy
13020	13020-38U15	Camshaft Assy
13024	13024-31U00	Sprocket-Camshaft
13024	13024-31U10	Sprocket-Camshaft
13024	13024-31U11	Sprocket-Camshaft
13024	13024-31U20	Sprocket-Camshaft
13024	13012-6N210	Bolt-Sprocket, Camshaft
13070	13070-31U03	Tensioner Assy-Chain
13070	13070-AL510	Tensioner Assy-Chain
13070	13070-AL51A	Tensioner Assy-Chain
13070	13070-JK21B	Tensioner Assy-Belt
13070	13070-AL515	Tensioner Assy-Chain
13070	13070-AL51B	Tensioner Assy-Chain
13070	13075-4W010	Bolt-Tensioner
13085	13085-31U03	Guide-Chain, Tension Side
13201	13201-2Y900	Valve-Intake
13201	13229-8P300	Shim-Valve
13201	13229-8P301	Shim-Valve
13201	13229-53F0A	Shim-valve
13201	13229-8P302	Shim-Valve
13201	13229-8P303	Shim-Valve
13201	13229-53F0B	Shim-valve
13201	13229-8P304	Shim-Valve
13201	13229-8P305	Shim-Valve
13201	13229-53F0C	Shim-valve
13201	13229-8P306	Shim-Valve
13201	13229-8P307	Shim-Valve
13201	13229-53F0D	Shim-valve
13201	13229-8P308	Shim-Valve
13201	13229-8P309	Shim-Valve
13201	13229-53F0E	Shim-valve
13201	13229-8P310	Shim-Valve
13201	13229-8P311	Shim-Valve
13201	13229-53F1A	Shim-valve
13201	13229-8P312	Shim-Valve
13201	13229-8P313	Shim-Valve
13201	13229-8P314	Shim-Valve
13201	13229-8P315	Shim-Valve
13201	13229-53F1C	Shim-valve
13201	13229-8P316	Shim-Valve
13201	13229-8P317	Shim-Valve
13201	13229-8P318	Shim-Valve
13201	13229-53F1E	Shim-valve
13201	13229-8P320	Shim-Valve
13201	13229-8P321	Shim-Valve
13201	13229-53F2A	Shim-valve
13201	13229-8P322	Shim-Valve
13201	13229-8P323	Shim-Valve
13201	13229-8P324	Shim-Valve
13201	13229-8P360	Shim-Valve
13201	13229-53F2C	Shim-valve
13201	13229-8P361	Shim-Valve
13201	13229-8P362	Shim-Valve
13201	13229-53F2D	Shim-valve
13201	13229-8P363	Shim-Valve
13201	13229-8P364	Shim-Valve
13201	13229-53F2E	Shim-valve
13201	13229-8P365	Shim-Valve
13201	13229-8P366	Shim-Valve
13201	13229-53F3A	Shim-valve
13201	13229-8P367	Shim-Valve
13201	13229-8P368	Shim-Valve
13201	13229-8P369	Shim-Valve
13201	13229-8P370	Shim-Valve
13201	13229-53F3C	Shim-valve
13201	13229-8P371	Shim-Valve
13201	13229-8P372	Shim-Valve
13201	13229-53F3D	Shim-valve
13201	13229-8P373	Shim-Valve
13201	13229-8P374	Shim-Valve
13201	13229-53F3E	Shim-valve
13201	13229-8P375	Shim-Valve
13201	13229-8P376	Shim-Valve
13201	13229-53F4A	Shim-valve
13201	13229-8P377	Shim-Valve
13201	13229-8P378	Shim-Valve
13201	13229-53F4B	Shim-valve
13201	13229-8P379	Shim-Valve
13201	13229-8P380	Shim-Valve
13201	13229-53F4C	Shim-valve
13201	13229-8P381	Shim-Valve
13201	13229-8P382	Shim-Valve
13201	13229-53F4D	Shim-valve
13201	13229-8P383	Shim-Valve
13201	13229-8P384	Shim-Valve
13201	13229-53F4E	Shim-valve
13201	13229-8P400	Shim-Valve
13201	13229-0Z806	Shim-Valve
13201	13229-8P401	Shim-Valve
13201	13229-53F5A	Shim-valve
13201	13229-8P402	Shim-Valve
13201	13229-8P403	Shim-Valve
13201	13229-53F5B	Shim-valve
13201	13229-8P404	Shim-Valve
13201	13229-8P405	Shim-Valve
13201	13229-53F5C	Shim-valve
13201	13229-8P406	Shim-Valve
13201	13229-8P407	Shim-Valve
13201	13229-53F5D	Shim-valve
13201	13229-8P408	Shim-Valve
13201	13229-8P409	Shim-Valve
13201	13229-53F5E	Shim-valve
13201	13229-8P410	Shim-Valve
13201	13229-8P411	Shim-Valve
13201	13229-53F6A	Shim-valve
13201	13229-8P412	Shim-Valve
13201	13229-8P413	Shim-Valve
13201	13229-53F6B	Shim-valve
13202	13202-AL600	Valve-Exhaust
13202	13202-AL601	Valve-Exhaust
13203	13203-AL610	Spring-Valve, Outer
13203	13203-AL611	Spring-Valve, Outer
13203	13203-AQ810	Spring-Valve, Outer
13205	13205-53Y00	Seat-Valve Spring, Outer
13207	13207-D4201	Seal-Oil, Valve
13209	13209-31U00	Retainer-valve spring
13209	13209-6N200	Retainer-valve spring
13210	13210-53Y00	Collet-Valve Spring
13231	13231-2Y800	Lifter-Valve
13231	13231-2Y802	Lifter-Valve
13231	13231-2Y822	Lifter-Valve
13231	13231-2Y824	Lifter-Valve
13231	13231-2Y861	Lifter-Valve
13231	13231-2Y865	Lifter-Valve
13231	13231-2Y867	Lifter-Valve
13231	13231-2Y900	Lifter-Valve
13231	13231-2Y902	Lifter-Valve
13231	13231-2Y904	Lifter-Valve
13231	13231-2Y906	Lifter-Valve
13231	13231-2Y908	Lifter-Valve
13231	13231-2Y910	Lifter-Valve
13231	13231-2Y912	Lifter-Valve
13231	13231-2Y914	Lifter-Valve
13231	13231-2Y916	Lifter-Valve
13231	13231-2Y918	Lifter-Valve
13231	13231-2Y920	Lifter-Valve
13231	13231-2Y922	Lifter-Valve
13231	13231-2Y924	Lifter-Valve
13231	13231-2Y961	Lifter-Valve
13231	13231-2Y963	Lifter-Valve
13231	13231-2Y965	Lifter-Valve
13231	13231-2Y975	Lifter-Valve
13231	13231-2Y977	Lifter-Valve
13231	13231-2Y979	Lifter-Valve
13231	13231-2Y981	Lifter-Valve
13231	13231-2Y983	Lifter-Valve
13231	13231-4W000	Lifter-Valve
13231	13231-4W001	Lifter-Valve
13231	13231-AR010	Lifter-Valve
13231	13231-WL001	Lifter-Valve
81208301	08120-8301F	Bolt-hexagon

Camshaft & valve mechanism (2002-04-01 ~ ; カムシャフト選択基準; VQ30DET) 153

#	OEM	Part name
13020	13020-AG902	Camshaft Assy
13020	13020-AG903	Camshaft Assy
13020	13020-38U14	Camshaft Assy
13020	13020-38U15	Camshaft Assy
13024	13024-31U00	Sprocket-Camshaft
13024	13024-31U10	Sprocket-Camshaft
13024	13024-31U11	Sprocket-Camshaft
13024	13024-31U20	Sprocket-Camshaft
13024	13012-6N210	Bolt-Sprocket, Camshaft
13070	13070-31U03	Tensioner Assy-Chain
13070	13070-AL510	Tensioner Assy-Chain
13070	13070-AL51A	Tensioner Assy-Chain
13070	13070-JK21B	Tensioner Assy-Belt
13070	13070-AL515	Tensioner Assy-Chain
13070	13070-AL51B	Tensioner Assy-Chain
13070	13075-4W010	Bolt-Tensioner
13085	13085-31U03	Guide-Chain, Tension Side
13201	13201-2Y900	Valve-Intake
13201	13229-8P300	Shim-Valve
13201	13229-8P301	Shim-Valve
13201	13229-53F0A	Shim-valve
13201	13229-8P302	Shim-Valve
13201	13229-8P303	Shim-Valve
13201	13229-53F0B	Shim-valve
13201	13229-8P304	Shim-Valve
13201	13229-8P305	Shim-Valve
13201	13229-53F0C	Shim-valve
13201	13229-8P306	Shim-Valve
13201	13229-8P307	Shim-Valve
13201	13229-53F0D	Shim-valve
13201	13229-8P308	Shim-Valve
13201	13229-8P309	Shim-Valve
13201	13229-53F0E	Shim-valve
13201	13229-8P310	Shim-Valve
13201	13229-8P311	Shim-Valve
13201	13229-53F1A	Shim-valve
13201	13229-8P312	Shim-Valve
13201	13229-8P313	Shim-Valve
13201	13229-8P314	Shim-Valve
13201	13229-8P315	Shim-Valve
13201	13229-53F1C	Shim-valve
13201	13229-8P316	Shim-Valve
13201	13229-8P317	Shim-Valve
13201	13229-8P318	Shim-Valve
13201	13229-53F1E	Shim-valve
13201	13229-8P320	Shim-Valve
13201	13229-8P321	Shim-Valve
13201	13229-53F2A	Shim-valve
13201	13229-8P322	Shim-Valve
13201	13229-8P323	Shim-Valve
13201	13229-8P324	Shim-Valve
13201	13229-8P360	Shim-Valve
13201	13229-53F2C	Shim-valve
13201	13229-8P361	Shim-Valve
13201	13229-8P362	Shim-Valve
13201	13229-53F2D	Shim-valve
13201	13229-8P363	Shim-Valve
13201	13229-8P364	Shim-Valve
13201	13229-53F2E	Shim-valve
13201	13229-8P365	Shim-Valve
13201	13229-8P366	Shim-Valve
13201	13229-53F3A	Shim-valve
13201	13229-8P367	Shim-Valve
13201	13229-8P368	Shim-Valve
13201	13229-8P369	Shim-Valve
13201	13229-8P370	Shim-Valve
13201	13229-53F3C	Shim-valve
13201	13229-8P371	Shim-Valve
13201	13229-8P372	Shim-Valve
13201	13229-53F3D	Shim-valve
13201	13229-8P373	Shim-Valve
13201	13229-8P374	Shim-Valve
13201	13229-53F3E	Shim-valve
13201	13229-8P375	Shim-Valve
13201	13229-8P376	Shim-Valve
13201	13229-53F4A	Shim-valve
13201	13229-8P377	Shim-Valve
13201	13229-8P378	Shim-Valve
13201	13229-53F4B	Shim-valve
13201	13229-8P379	Shim-Valve
13201	13229-8P380	Shim-Valve
13201	13229-53F4C	Shim-valve
13201	13229-8P381	Shim-Valve
13201	13229-8P382	Shim-Valve
13201	13229-53F4D	Shim-valve
13201	13229-8P383	Shim-Valve
13201	13229-8P384	Shim-Valve
13201	13229-53F4E	Shim-valve
13201	13229-8P400	Shim-Valve
13201	13229-0Z806	Shim-Valve
13201	13229-8P401	Shim-Valve
13201	13229-53F5A	Shim-valve
13201	13229-8P402	Shim-Valve
13201	13229-8P403	Shim-Valve
13201	13229-53F5B	Shim-valve
13201	13229-8P404	Shim-Valve
13201	13229-8P405	Shim-Valve
13201	13229-53F5C	Shim-valve
13201	13229-8P406	Shim-Valve
13201	13229-8P407	Shim-Valve
13201	13229-53F5D	Shim-valve
13201	13229-8P408	Shim-Valve
13201	13229-8P409	Shim-Valve
13201	13229-53F5E	Shim-valve
13201	13229-8P410	Shim-Valve
13201	13229-8P411	Shim-Valve
13201	13229-53F6A	Shim-valve
13201	13229-8P412	Shim-Valve
13201	13229-8P413	Shim-Valve
13201	13229-53F6B	Shim-valve
13202	13202-AL600	Valve-Exhaust
13202	13202-AL601	Valve-Exhaust
13203	13203-AL610	Spring-Valve, Outer
13203	13203-AL611	Spring-Valve, Outer
13203	13203-AQ810	Spring-Valve, Outer
13205	13205-53Y00	Seat-Valve Spring, Outer
13207	13207-D4201	Seal-Oil, Valve
13209	13209-31U00	Retainer-valve spring
13209	13209-6N200	Retainer-valve spring
13210	13210-53Y00	Collet-Valve Spring
13231	13231-2Y800	Lifter-Valve
13231	13231-2Y802	Lifter-Valve
13231	13231-2Y822	Lifter-Valve
13231	13231-2Y824	Lifter-Valve
13231	13231-2Y861	Lifter-Valve
13231	13231-2Y865	Lifter-Valve
13231	13231-2Y867	Lifter-Valve
13231	13231-2Y900	Lifter-Valve
13231	13231-2Y902	Lifter-Valve
13231	13231-2Y904	Lifter-Valve
13231	13231-2Y906	Lifter-Valve
13231	13231-2Y908	Lifter-Valve
13231	13231-2Y910	Lifter-Valve
13231	13231-2Y912	Lifter-Valve
13231	13231-2Y914	Lifter-Valve
13231	13231-2Y916	Lifter-Valve
13231	13231-2Y918	Lifter-Valve
13231	13231-2Y920	Lifter-Valve
13231	13231-2Y922	Lifter-Valve
13231	13231-2Y924	Lifter-Valve
13231	13231-2Y961	Lifter-Valve
13231	13231-2Y963	Lifter-Valve
13231	13231-2Y965	Lifter-Valve
13231	13231-2Y975	Lifter-Valve
13231	13231-2Y977	Lifter-Valve
13231	13231-2Y979	Lifter-Valve
13231	13231-2Y981	Lifter-Valve
13231	13231-2Y983	Lifter-Valve
13231	13231-4W000	Lifter-Valve
13231	13231-4W001	Lifter-Valve
13231	13231-AR010	Lifter-Valve
13231	13231-WL001	Lifter-Valve
81208301	08120-8301F	Bolt-hexagon

Catalyst converter (2001-12-01 ~ ; VQ30DET) 2

#	OEM	Part name
20851	20853-AG801	Lower Shelter
20851	20853-AG811	Lower Shelter

Caution plate & label (2001-12-01 ~ ; K) 3

#	OEM	Part name
34991	34990-AH000	Tag-Caution, Auto Transmission Control
99053	99053-C9968	ラベル,オイル コ-シヨン
99090	99090-AG016	プラカ-ド,タイヤ リミツト

Clutch & band servo (2001-12-01 ~ ; サーボパーツ; VQ30DET.AT.F4) 38

#	OEM	Part name
31510	31510-55X00	Clutch Assy-Reverse
31511	31511-55X00	Drum-Reverse Clutch
31514	31514-51X03	Piston Assy-Clutch
31516	31516-21X01	Seal-Lip
31517	31527-51X03	Seal-Lathe Cut Ring
31529	31535-51X05	Plate-Dished
31532	31532-51X13	Plate Assy-Drive
31536	31536-51X00	Plate-Driven
31538	31506-51X06	Ring-Snap
31538	31506-51X02	Ring-Snap
31552	31521-51X02	Retainer-Spring
31567	31537-51X00	Plate-Retaining
31567	31537-51X01	Plate-Retaining
31567	31537-51X02	Plate-Retaining
31567	31537-51X61	Plate-Retaining
31611	31611-51X02	Retainer-Servo Piston
31611	31377-51X04	Bolt
31615	31615-51X04	Piston-Band Servo
31615	31526-51X02	Seal-Lathe Cut Ring
31615	31526-48X04	Seal-O Ring, Accumulator
31615	31526-41X02	Seal-O Ring
31615	31526-4AX01	Seal-O Ring
31615	31695-51X02	Piston-Overdrive Servo
31616	31527-41X03	Seal-Lathe Cut Ring
31616	31527-41X04	Seal-Lathe Cut Ring
31616	31527-51X04	Seal-Ring, Overdrive Servo Piston
31618	31618-51X01	Stem-Band Servo Piston
31618	31365-41X00	Nut
31619	31619-01X00	Washer-Piston Stem
31621	31605-41X17	Spring-Servo
31621	31605-41X01	Spring-Servo
31622	31622-41X00	Retainer-Spring, Servo Piston
31623	31623-51X01	Gasket-Retainer, Servo
31624	31624-41X00	Strut-Band
31625	31625-41X01	Pin-Anchor End
31630	31630-51X05	Band Assy-Brake
31691	31691-51X02	Retainer-Piston, Overdrive Servo
92250500	00922-50500	リング,スナツプ

Clutch & band servo (2001-12-01 ~ ; ロー&リバースクラッチパーツ; VQ30DET.AT.F4) 49

#	OEM	Part name
31455	31455-41X04	Bearing-Needle, Radial
31540	31540-51X06	Clutch Assy-High
31542	31542-51X03	Drum-High Clutch
31544	31544-51X01	Piston Assy-High Clutch
31547	31527-41X08	Seal-Lathe Cut Ring
31547	31517-21X00	Seal-Lathe Cut Ring
31552	31521-51X03	Retainer-Spring
31552	31521-51X02	Retainer-Spring
31562	31532-51X12	Plate Assy-Drive
31566	31536-51X00	Plate-Driven
31567	31537-51X00	Plate-Retaining
31567	31537-51X01	Plate-Retaining
31567	31537-51X02	Plate-Retaining
31567	31537-51X03	Plate-Retaining
31567	31537-51X04	Plate-Retaining
31567	31537-51X61	Plate-Retaining
31568	31506-51X07	Ring-Snap
31568	31506-51X02	Ring-Snap
31570	31570-51X64	Clutch Assy-Foward
31571	31571-51X08	Drum Assy-Foward Clutch
31575	31575-51X02	Piston-Foward Clutch
31576	31527-41X06	Seal-Lathe Cut Ring
31576	31527-41X05	Seal-Lathe Cut Ring
31576	31527-51X05	Seal-Lathe Cut Ring
31577	31528-41X00	Seal-Lip
31582	31521-51X01	Retainer-Spring, Foward Clutch
31584	31584-51X01	Piston Assy-Overrun Clutch
31592	31532-51X02	Plate Assy-Drive, Overrun Clutch
31595	31529-51X00	Plate-Dished
31595	31535-51X02	Plate-Dished
31596	31536-51X07	Plate-Driven, Foward Clutch
31596	31536-51X02	Plate-Driven, Overrun Clutch
31597	31537-51X06	Plate-Retaining, Foward Clutch
31597	31537-51X07	Plate-Retaining, Foward Clutch
31597	31537-51X08	Plate-Retaining, Foward Clutch
31597	31537-51X09	Plate-Retaining, Foward Clutch
31597	31537-51X10	Plate-Retaining, Foward Clutch
31597	31537-51X11	Plate-Retaining, Overrun Clutch
31597	31537-51X12	Plate-Retaining, Overrun Clutch
31597	31537-51X69	Plate-Retaining, Foward Clutch
31597	31537-51X70	Plate-Retaining, Foward Clutch
31597	31537-51X13	Plate-Retaining, Overrun Clutch
31597	31537-51X14	Plate-Retaining, Overrun Clutch
31597	31537-51X15	Plate-Retaining, Overrun Clutch
31597	31537-51X64	Plate-Retaining, Overrun Clutch
31597	31537-51X65	Plate-Retaining, Foward Clutch
31598	31506-41X05	Ring-Snap, Foward Clutch
31598	31506-51X08	Ring-Snap, Foward Clutch
31598	31506-51X03	Ring-Snap, Foward Clutch

Clutch & band servo (2001-12-01 ~ ; ロー&リバースブレーキパーツ; VQ30DET.AT.F4) 14

#	OEM	Part name
31615	31526-41X02	Seal-O Ring
31615	31526-4AX01	Seal-O Ring
31621	31605-41X06	Spring-Servo
31621	31605-4AX03	Spring-Servo
31621	31605-55X00	Spring-Servo
31621	31605-41X02	Spring-Servo
31672	31526-48X04	Seal-O Ring, Accumulator
31675	31675-41X10	Piston-Accumulator Servo
31675	31675-41X20	Piston-Accumulator Servo
31675	31675-4AX03	Piston-Accumulator Servo
31675	31675-4AX00	Piston-Accumulator Servo
31675	31675-41X11	Piston-Accumulator Servo
31675	31675-41X21	Piston-Accumulator Servo
92250400	00922-50400	CLAMP-CABLE

Compressor (2001-12-01 ~ ; K) 4

#	OEM	Part name
27630	92600-AG000	Compressor-Cooler
27631	92610-AG000	Compressor Unit
27633	92660-AG000	Clutch Assy-Compressor
92225	92270-10Y01	バルブ アツセンブリ-,バイパス

Compressor mounting & fitting (2001-12-01 ~ ; VQ30DET) 14

#	OEM	Part name
11910	11910-4P100	Bracket-Compressor
11910	11916-4W013	Bolt
11910	11916-4W011	Bolt
11910	11916-AL500	Bolt
11910	11916-AL50A	Bolt
11925	11717-AG300	Bolt-Adjust
11925	11925-AG300	Pulley Assy-Idler, Compressor
11926	11928-AG300	Shaft-Idler Pulley
11926	11928-AL500	Shaft-Idler Pulley
11929	11929-AG300	Cover-Idler Pulley
11931	11931-4P105	Spacer-Idler Pulley
11931	11931-AL500	Specer-Idler Pulley
11932	11932-AL500	Collar-Idler Pulley
11935	11926-AG300	Bracket-Idler Pulley

Console box (2001-12-01 ~ ; K) 32

#	OEM	Part name
28318	28318-4P000	Jack-Vtr
68430	68430-CR000	Holder Assy-Cup
68643	68643-4P000	Rubber-Stopper
68794	68794-CR000	Grille-Center Ventilator
68794	68794-CR001	Grille-Center Ventilator
68961	68961-4P000	Pocket
96911	96911-AH304	ボデ-,コンソ-ル
96911	96911-CR000	ボデ-,コンソ-ル
96912	96912-AG010	マスク,コンソ-ル
96912	96917-4P010	マスク,コンソ-ル
96912	68477-CR000	マスク,コンソ-ル
96913	96913-AG000	パネル,コンソ-ル リヤ
96915	96915-AG000	コンソ-ル,ロア
96917	68191-51E00	NUT
96921	96920-CR000	リツド,コンソ-ル ボツクス
96921	96920-CR001	リツド,コンソ-ル ボツクス
96921	96920-CR011	リツド,コンソ-ル ボツクス
96921	96920-CR020	リツド,コンソ-ル ボツクス
96921	96920-CR021	リツド,コンソ-ル ボツクス
96923	96923-AG000	ヒンジ アツセンブリ-,コンソ-ル
96930	96928-CR000	ロツク アツセンブリ-,コンソ-ル
96938	96938-3H000	Clip
96941	96941-CR500	フイニツシヤ-,コンソ-ル インジケ-タ-
96941	96941-CR501	フイニツシヤ-,コンソ-ル インジケ-タ-
96941	96941-CR200	フイニツシヤ-,コンソ-ル インジケ-タ-
96960	96931-CR000	フイニツシヤ-,コンソ-ル
96960	96931-CR010	フイニツシヤ-,コンソ-ル
96964	96963-4P000	Bumper-Console
96990	96990-CR000	ブラケツト,コンソ-ル フロント
96991	96991-AG000	Bracket-Console, Rear
851351610	08513-51610	スクリユ-,タツピング
852341242	08523-41242	スクリユ-,タツピング

Control switch & system (2001-12-01 ~ ; CVT) 9

#	OEM	Part name
31051	31376-5P005	Clip
31051	31376-5P011	Clip
31051	31376-5P007	Clip
31051	31376-5P012	Clip
31051	31376-5P004	Clip
31051	31376-5P009	Clip
31051	21647-V0710	Clip
31051	21644-41X01	Bracket-Oil Cooler Tube
31918	31918-5P000	Switch Assy-Pnp(Inhibitor)

Control switch & system (2001-12-01 ~ ; VQ30DET.AT.F4) 12

#	OEM	Part name
31918	31918-42X61	Switch Assy-Pnp(Inhibitor)
31921	31920-41X00	Shaft Assy-Manual
31924	31924-41X03	Plate Assy-Manual
31935	31377-41X07	Bolt
31943	31376-55X00	Clip-Harness
31945	31945-41X02	Spring-Detent
31945	31437-41X04	Spacer
31970	31970-51X00	Rod Assy-Parking
83605142	08360-5142D	スクリユ-,マシン
89113441	08911-3441A	ナツト,ヘクサゴン
811061262	08110-61262	Bolt-hexagon
816061610	08160-61610	Bolt-hexagon

Control unit (2001-12-01 ~ ; K) 12

#	OEM	Part name
27054	27720-3AA0A	Sensor-Incar
27705	27721-4P000	Sensor Assy-Sun
27705	27721-3AA0A	Sensor Assy-Sun
27726	27760-CR000	Amplifier-Control, Air Conditioner
27726	27760-CR010	Amplifier-Control, Air Conditioner
27726	27760-CR011	Amplifier-Control, Air Conditioner
27726	27760-CR200	Amplifier-Control, Air Conditioner
27726	27760-CR210	Amplifier-Control, Air Conditioner
27726	27760-CR211	Amplifier-Control, Air Conditioner
27726	27760-CR500	Amplifier-Control, Air Conditioner
27726	27760-CR510	Amplifier-Control, Air Conditioner
27726	27760-CR511	Amplifier-Control, Air Conditioner

Control valve (atm) (2001-12-01 ~ ; アッパー; VQ30DET.AT.F4) 66

#	OEM	Part name
31050	01935-32007	PLATE-RETAINER,VALVE
31705	31705-55X03	Valve Assy-Control
31705	01121-02911	BOLT
31705	01121-01481	BOLT
31705	01121-02961	BOLT
31705	01121-03071	BOLT
31705	01121-03081	BOLT
31705	01121-03691	BOLT
31711	31711-4AX05	Body-Upper, Control Valve
31715	31715-4AX16	Plate-Separator
31715	31719-4AX00	Plate-Separator
31721	31721-4AX02	Plate-Side
31721	31721-41X02	Plate-Support, Accumulator
31725	31725-80X00	Pin-Parallel, Control Valve
31741	31741-80X00	Valve-Pressure Regulator
31743	31743-80X01	Seat-Spring, Pressure Regulator
31743	31743-27X61	Plate-Retainer
31743	31743-27X60	Plate-Retainer
31744	31744-4AX00	Plug-Pressure Regulator
31747	31745-4AX00	Sleeve-Plug, Pressure Regulator
31751	31751-41X02	Valve-Pressure Modifier
31755	31772-4AX05	Valve-Spool
31755	31772-41X06	Valve-Spool
31755	31772-41X01	Valve-Spool
31755	31772-41X12	Valve-Spool
31755	31772-71X00	Valve-Spool
31755	31772-21X00	Valve-Spool
31756	31742-4AX00	Spring-Spool Valve
31756	31742-41X19	Spring-Spool Valve
31756	31742-4AX01	Spring-Spool Valve
31756	31742-41X15	Spring-Valve
31756	31742-41X22	Spring-Spool Valve
31756	31742-4AX02	Spring-Spool Valve
31756	31742-41X63	Spring-Spool Valve
31756	31742-4AX03	Spring-Spool Valve
31756	31742-4AX04	Spring-Spool Valve
31756	31742-4AX06	Spring-Spool Valve
31756	31742-41X06	Spring-Spool Valve
31756	31742-4AX05	Spring-Spool Valve
31762	31762-41X01	Spring-Valve, Shift
31762	31762-4AX00	Spring-Valve, Shift
31766	31766-4AX00	Valve-Shift
31766	31766-51X03	Valve-Shift
31766	31766-4AX02	Valve-Shift
31766	31766-4AX01	Valve-Shift
31773	31845-4AX01	Plug
31773	31845-4AX02	Plug
31773	31845-31X08	Plug
31773	31845-4AX03	Plug
31773	31845-31X07	Plug
31773	31834-4AX00	Plug-Lock Up Control
31777	31777-4AX05	Sleeve-Valve
31777	31777-4AX02	Sleeve-Valve
31777	31777-4AX04	Sleeve-Valve
31780	31780-41X01	Valve-Relief
31829	01018-05557	BALL-STEEL
31832	31832-4AX01	Valve-Lock Up Control
31833	31833-4AX00	Sleeve-Lock Up Control
31940	31718-41X10	Clip-Harness
31940	31718-4AX01	Clip-Harness
31940	31718-4AX00	Clip-Harness
31940	31718-4AX02	Clip-Harness
31940	31718-4AX03	Clip-Harness
801064510	08010-64510	Bolt-hexagon
801065010	08010-65010	Bolt-hexagon
891543610	08915-43610	ワツシヤ-,プレ-ン

Control valve (atm) (2001-12-01 ~ ; ロアー; VQ30DET.AT.F4) 33

#	OEM	Part name
31050	31377-4AX01	Bolt
31050	31377-4AX02	Bolt
31050	31377-4AX03	Bolt
31069	31069-4AX00	Bracket
31705	31705-55X03	Valve Assy-Control
31705	01121-02911	BOLT
31705	01121-01481	BOLT
31705	01121-02961	BOLT
31705	01121-03071	BOLT
31705	01121-03081	BOLT
31705	01121-03691	BOLT
31713	31713-4AX00	Body-Lower, Control Valve
31715	31719-4AX00	Plate-Separator
31716	31716-4AX60	Gasket-Separator
31726	31726-4AX00	Filter Assy-Oil, Auto Transmission
31731	31731-41X03	Valve-Manual
31743	31743-27X60	Plate-Retainer
31755	31772-41X12	Valve-Spool
31755	31772-71X00	Valve-Spool
31755	31772-21X00	Valve-Spool
31756	31742-4AX06	Spring-Spool Valve
31756	31742-41X06	Spring-Spool Valve
31756	31742-4AX05	Spring-Spool Valve
31762	31762-41X01	Spring-Valve, Shift
31766	31766-4AX01	Valve-Shift
31773	31845-4AX03	Plug
31773	31845-31X07	Plug
31777	31777-4AX02	Sleeve-Valve
31940	31718-4AX01	Clip-Harness
31940	31718-4AX00	Clip-Harness
31940	31718-4AX02	Clip-Harness
31940	31718-4AX03	Clip-Harness
92211600	00922-11600	RINGSNAP

Cooling unit (2001-12-01 ~ ; K) 9

#	OEM	Part name
27152	27808-AR200	Seal
27229	27229-AG000	Bolt-Kit
27287	27287-AG000	Seal-Cooling Unit
27289	27289-AG001	Grommet
27293	27293-41B00	Bracket
27448	27081-0M001	Label
27611	27284-AG000	Case-Cooling Unit
27624	92200-2Y005	Valve Assy-Expansion
27624	92200-4Y800	Valve Assy-Expansion

Cowl top & fitting (2001-12-01 ~ ; K) 9

#	OEM	Part name
66320	66320-AG010	Cowl Top-Side, Rh
66321	66321-AG000	Cowl Top-Side, Lh
66816	66862-AG000	Cover-Cowl Top Grille, Rh
66817	66863-AG000	Cover-Cowl Top Grille, Lh
66822	66830-AG000	Sealing Rubber-Cowl Top
66894	66894-AG000	Cover-Front Fender, Rh
66895	66895-AG000	Cover-Front Fender, Lh
67100	67100-AG030	Dash Assy-Upper
67120	67120-AG000	Member Assy-Dash Upper Cross

Crankcase ventilation (2001-12-01 ~ ; VQ30DET) 8

#	OEM	Part name
11823	11823-AG901	Hose Assy-Blow By, A
11823	16439-V5001	Clamp-Hose, A
11823	16439-V5004	Clamp-Hose A
11823	16439-42L00	Clamp-Hose, A
11823	16439-42L01	Clamp-Hose A
11826	11823-4W00A	Hose Assy-Blow By, A
11826	11826-4P210	Hose-Blow By, A
11828	11836-81T00	Clamp-Hose, B

Cylinder block & oil pan (2001-12-01 ~ ; アッセンブリー; VQ30DET) 18

#	OEM	Part name
11010	11000-AL610	Block Assy-Cylinder
11010	11022-31U02	Dowel-Block To Oil Pump
11010	11022-42L02	Dowel-Block To Oil Pump
11010	11022-40F00	Dowel-Block To Oil Pump
11012	15066-31U00	Seal-O Ring
11110	11110-AG901	Pan Assy-Oil
11110	11110-AG910	Pan Assy-Oil
11110	01121-03851	BOLT
11110	11035-AG900	Bolt
11128	11128-01M00	Plug-Drain
11128	11026-01M00	Washer-Drain Plug
11140	11140-AG900	Gauge-Oil Level
11251	01121-06181	BOLT
11251	30417-31U00	Cover-Rear Plate
12121	11560-4P201	Jet Assy-Oil
12296	12296-31U11	Retainer Assy-Oil Seal, Rear
15241	15241-43U00	Valve-Oil Pressure Regulator
81208251	08120-8251E	Bolt-hexagon

Cylinder block & oil pan (2001-12-01 ~ ; シリンダーブロック構成; VQ30DET) 11

#	OEM	Part name
11010	11000-AL610	Block Assy-Cylinder
11010	11022-31U02	Dowel-Block To Oil Pump
11010	11022-42L02	Dowel-Block To Oil Pump
11010	11022-40F00	Dowel-Block To Oil Pump
11021	11051-31U02	Plug-Blind
11023	11051-53J00	Plug-Blind
11023	11051-31U00	Plug-Thread
11023	11051-31U01	Plug-Blind
11023	11026-31U00	Gasket
12293	12293-38U0A	Bolt-Main Bearing Cap
89313061	08931-3061A	PLUGTHREAD

Cylinder head & rocker cover (2001-12-01 ~ ; アッセンブリー; VQ30DET) 13

#	OEM	Part name
10005	10005-4P100	Slinger-Engine
10005	10004-4W000	Bolt-Engine Slinger
10006	10006-AL600	Slinger-Engine
10006	10006-AG010	Slinger-Engine
10006	10006-AG01A	Slinger-Engine
10006	10004-4W001	Bolt-Engine Slinger
11041	11040-38U15	Head Assy-Cylinder
11041	11090-38U15	Head Assy-Cylinder, Lh
11056	11056-31U01	Bolt-Cylinder Head
11095	11095-31U00	Tube-Spark Plug
11095	11095-31U0A	Tube-Spark Plug
13264	13224-AL601	Bolt-Rocker Cover
13264	13224-AL60C	Bolt-Rocker Cover

Cylinder head & rocker cover (2001-12-01 ~ ; シリンダーヘッド構成 右; VQ30DET) 12

#	OEM	Part name
11041	11040-38U15	Head Assy-Cylinder
11041	11090-38U15	Head Assy-Cylinder, Lh
11098	11098-38U60	Seat-Valve, Intake
11099	11099-38U60	Seat-Valve, Exhaust
13058	13058-31U01	Bolt-Camshaft Bracket
13058	13058-31U2A	Bolt-Camshaft Bracket
13058	13058-31U07	Bolt-Camshaft Bracket
13058	13058-31U0A	Bolt-Camshaft Bracket
13058	13056-31U00	Washer
13273	11026-53J00	Gasket
9331281	00933-1281A	Plug-Welch
893171800	08931-71800	PLUGTHREAD

Cylinder head & rocker cover (2001-12-01 ~ ; シリンダーヘッド構成 左; VQ30DET) 13

#	OEM	Part name
11041	11090-38U15	Head Assy-Cylinder, Lh
11098	11098-38U60	Seat-Valve, Intake
11099	11099-38U60	Seat-Valve, Exhaust
13058	13058-31U05	Bolt-Camshaft Bracket
13058	13058-31U0B	Bolt-Camshaft Bracket
13058	13058-31U01	Bolt-Camshaft Bracket
13058	13058-31U2A	Bolt-Camshaft Bracket
13058	13058-31U07	Bolt-Camshaft Bracket
13058	13058-31U0A	Bolt-Camshaft Bracket
13058	13056-31U00	Washer
13273	11026-53J00	Gasket
9331281	00933-1281A	Plug-Welch
893171800	08931-71800	PLUGTHREAD

Dash panel & fitting (2001-12-01 ~ ; K) 10

#	OEM	Part name
67100	18159-AG000	Clip-Canoe
67300	67300-AG430	Dash-Lower
67300	67300-CR830	Dash-Lower
67600	67600-AG000	Dash-Side, Rh
67601	67601-AG000	Dash-Side, Lh
67897	67355-AG000	Insulator-Dash Lower, Lh
67905	67810-AG000	Insulator-Dash Lower, Front
67905	67810-AH100	Insulator-Dash Lower, Front
75500	67840-AG005	Footrest Assy
76212	76252-AG000	Cover-Front Pillar, Rh

Dash trimming & fitting (2001-12-01 ~ ; K) 8

#	OEM	Part name
66900	66900-CR000	Finisher-Dash Side, Rh
66900	66900-CR001	Finisher-Dash Side, Rh
66900	76882-4P000	Clip
66900	74999-AR000	Clip
66901	66901-CR000	Finisher-Dash Side, Lh
66901	66901-CR001	Finisher-Dash Side, Lh
66916	73998-AG000	Clip-Dash Trim
67141	67141-AG000	Bracket Assy-Instrument

Distributor (2001-12-01 ~ ; VQ30DET) 2

#	OEM	Part name
22125	22125-AG001	Cover
812062033	08120-62033	Bolt-hexagon

Electrical unit (2001-12-01 ~ ; ETCS; K) 5

#	OEM	Part name
25377	96938-3H000	Clip
25377	24271-18V05	Protector-Harness
68275	68275-AH304	Pocket-Coin
68280	68280-AH314	Escutcheon-Column Cover
68280	68280-CR010	Escutcheon-Column Cover

Electrical unit (2001-12-01 ~ ; ｲﾝｽﾄ & ﾀﾞｯｼｭ; K) 9

#	OEM	Part name
18995	18995-CR500	Control Assy-Active Cruise Control
18995	18995-CR501	Control Assy-Active Cruise Control
18995	18995-CR600	Control Assy-Active Cruise Control
18995	18995-CR601	Control Assy-Active Cruise Control
28540	28540-AH300	Control Assy-Shift Lock
28540	28540-CR000	Control Assy-Shift Lock
28591	28591-AR005	Control Unit-Immobilizer
28591	28591-C9908	Control Unit-Immobilizer
28595	28595-AG000	Controler Assy-Key Less

Electrical unit (2001-12-01 ~ ; ｴﾝｼﾞﾝ ﾙｰﾑ; K) 10

#	OEM	Part name
25240	25240-4M400	Switch Assy-Oil Pressure
25385	01221-00361	NUT
26310	25610-AG000	Horn Assy-Electric High
26310	25628-3H000	Bolt
26310	25628-40U00	Screw
26330	25620-AA000	Horn Assy-Electric Low
26330	25605-AG000	Horn Assy-Antitheft
28437	28437-CR600	Sensor Assy-Distance
28437	28437-CR620	Sensor Assy-Distance
98583	98583-AG000	センサ-,エア バツグ フロント lh

Electrical unit (2001-12-01 ~ ; ﾎﾞﾃﾞｨ-1; K) 7

#	OEM	Part name
25554	25554-CR025	Wire Assy-Steering Air Bag
25554	25554-CR027	Wire Assy-Steering Air Bag
26350	25640-AG000	Buzzer Assy-Entry Card
28565	28565-4P012	Controller-Power Seat
28565	28565-4P013	Controller-Power Seat
28565	28565-AG010	Control Assy-Power Seat
28566	28566-0P310	Control Unit-Power Seat

Electrical unit (2001-12-01 ~ ; ﾎﾞﾃﾞｨ-2; K) 13

#	OEM	Part name
25231	74386-AG000	Bracket
25231	74386-AG100	Bracket
28491	28491-CR001	Control Assy
28491	28491-CR002	Control Assy
28491	28491-CR011	Control Assy
28556	28556-CR025	Sensor & Diagnosis-Air Bag
28556	28556-CR026	Sensor & Diagnosis-Air Bag
98805	01456-00641	SCREW
98820	98820-CR126	センサ-,サイド エア- バツク センタ-
98830	98830-8H325	Sensor-Side Air Bag, Rh
98830	98830-CN025	Sensor-Side Air Bag, Rh
98831	98831-8H325	Sensor-Side Air Bag, Lh
98831	98831-CN025	Sensor-Side Air Bag, Lh

Emblem & name label (2001-12-01 ~ ; K) 1

#	OEM	Part name
84815	84896-CR700	Emblem-Trunk Lid

Engine & transmission mounting (2001-12-01 ~ ; VQ30DET) 5

#	OEM	Part name
11340	11330-AH000	Member Assy-Engine Mounting, Rear
11340	11330-AG000	Member Assy-Engine Mounting, Rear
11510	11298-AG200	Bolt
11520	11298-AG001	Bolt
11520	11298-AG900	Bolt

Engine control module (2001-12-01 ~ ; VQ30DET) 15

#	OEM	Part name
22611	23710-CR860	Engine Control Module
22611	23710-CR861	Engine Control Module
22611	23710-CR862	Engine Control Module
22611	23710-CR863	Engine Control Module
22611	23710-CR870	Engine Control Module
22611	23710-CR871	Engine Control Module
22611	23710-CR872	Engine Control Module
22611	23710-CR800	Engine Control Module
22611	23710-CR801	Engine Control Module
22611	23710-CR810	Engine Control Module
22611	23710-CR811	Engine Control Module
22612	23714-AG001	Bracket-Control Unit
22612	23714-AG011	Bracket-Control Unit
22690	22690-CR400	Heated Oxygen Sensor
24230	24239-CR800	Bracket-Harness

Engine gasket kit (2001-12-01 ~ ; アッセンブリー; VQ30DET) 2

#	OEM	Part name
11011	10101-AG927	Gasket Kit-Engine Repair
11042	11042-AG927	Gasket Kit-Valve Regrind

Exhaust tube & muffler (2001-12-01 ~ ; VQ30DET) 16

#	OEM	Part name
20010	20010-AJ425	Tube Assy-Exhaust, Front
20100	20100-AG925	Muffler Assy-Exhaust Main
20300	20300-AG926	Muffler Assy-Exhaust, Sub
20535	20535-AG905	Insulator Assy-Center Tube, Upper
20560	20561-AG900	Clamp-Heat Insulator
20560	20561-AG300	Clamp-Heat Insulator
20602	20602-41G00	Nut-Fix, Exhaust Tube
20606	20606-AF400	Bolt-Special
20610	20610-AG000	Mounting Assy-Exhaust, Rubber
20675	20675-AG000	Clamp-Exhaust Tube
20711	20711-AQ800	Mounting Assy-Exhaust
20713	20713-AG900	Mounting Assy-Exhaust, Rubber
20785	20785-AG300	Insulator-Exhaust, Dynamic Damper
20785	20785-AG210	Insulator-Exhaust, Dynamic Damper
81468252	08146-8252G	Bolt-hexagon
81568451	08156-8451F	ボルト

Fin type (1999-06-01 ~ ; "スチールホイール(スノータイヤ用); ALL) 3

#	OEM	Part name
0	40300-04U20	Wheel Assy-Disc
0	40300-CR325	Aluminum Wheel
0	40342-16C10	Ornament-Disc Wheel

Fin type (1999-06-01 ~ ; ｱﾙﾐﾛｰﾄﾞﾎｲｰﾙ(ﾃﾞｨｯｼｭ&BBS 17X7.5JJ); ALL) 1

#	OEM	Part name
0	40300-CR325	Aluminum Wheel

Floor fitting (2001-12-01 ~ ; K) 22

#	OEM	Part name
57210	74810-40U00	Clamp-Spare Tire
64824	64824-AG001	Bracket Assy-Canister
70138	70138-AG000	Bracket-Stopper
74300	74816-6P000	Plug-Front Floor
74630	08368-6125G	スクリユ-
74754	74754-AG900	Insulator-Heat, Front Floor
74811	75890-AG010	Cover-Engine, Lower
74811	75831-AG400	Cover-Engine, Lower
74811	01648-00241	PLUG
74858	74858-AH000	Felt-Front Floor Tunnel
74870	74870-AG000	Stay Assy-Tunnel
74877	76988-55G00	Clip
74877	62828-AG000	Clip
74930	76884-AD013	Insulator-Rear Pillar, Inner
74930	76884-0P067	Insulator-Cowl Top
74981	74849-0E000	COVER-HOLE
74981	74849-4P000	Cover-Hole
74981	74849-AG000	Cover-Hole
74981	74849-0E010	COVER-HOLE
75886	75886-AG000	Bracket-Front Under Cover, Rh
75887	75887-AG000	Bracket-Front Under Cover, Lh
75898	75880-AG000	Cover-Front, Under

Floor panel (2001-12-01 ~ ; K) 4

#	OEM	Part name
74312	74320-AG030	Floor-Front, Rh
74314	74310-AG330	Floor-Front, Center
74320	76450-CR900	Sill-Inner, Rh
74321	76451-CR900	Sill-Inner, Lh

Floor panel (rear) (2001-12-01 ~ ; K) 9

#	OEM	Part name
74512	74512-AG030	Floor-Rear, Front
74514	74514-AG030	Floor-Rear, Rear
74514	74530-AG000	Floor-Rear, Rear Side Rh
74514	74533-AG000	Floor-Rear, Rear Side Lh
74546	74546-AG000	Reinforce Assy-Cross Mbr, Rr Seat
74560	74561-AG000	Bracket-Muffler Mounting
74570	74574-AR200	Reinforce-Anchor Belt, Rear Floor
74572	74520-AR000	Support Assy-Rear Seat Back
75630	74540-AG000	Member Assy-Cross, Rear Seat

Floor trimming (2001-12-01 ~ ; K) 2

#	OEM	Part name
74900	74902-CR000	Carpet Assy-Floor
74900	74902-CR001	Carpet Assy-Floor

Fog lamp (2001-12-01 ~ ; ﾌﾛﾝﾄ ﾌｫｸﾞﾗﾝﾌﾟ; K) 4

#	OEM	Part name
24100	26157-CR000	Harness Assy-Fog Lamp
26154	26154-8J000	Housing Assy-Fog Lamp, Rh
26154	26584-AG000	Housing Assy-Fog Lamp, Rh
26159	26159-8J000	Housing Assy-Fog Lamp, Lh

Fog lamp (2001-12-01 ~ ; ﾘﾔ ﾌｫｸﾞﾗﾝﾌﾟ; K) 7

#	OEM	Part name
26154	26584-AG000	Housing Assy-Fog Lamp, Rh
26250	26250-70F00	Socket Assy-Turn Signal Lamp
26582	26582-AG009	Rim-Rear Fog Lamp
26582	26582-AG012	Rim-Rear Fog Lamp
26582	26582-CR001	Rim-Rear Fog Lamp
26582	26582-CR003	Rim-Rear Fog Lamp
26582	26582-CR004	Rim-Rear Fog Lamp

Front apron & radiator core support (2001-12-01 ~ ; K) 2

#	OEM	Part name
62530	62530-AG000	Support-Radiator Core, Lower
62569	62569-CR000	Seal-Head Lamp Hole, Lh

Front axle (2001-12-01 ~ ; VQ25DD +VQ30DD +VQ30DET) 4

#	OEM	Part name
40207	40206-AR000	Rotor-Disc Brake, Front
40207	40206-AR002	Rotor-Disc Brake, Front
40210	40210-0P006	Bearing Assy-Front Wheel
40234	40234-65F6C	Cap-Hub, Front Wheel

Front brake (2001-12-01 ~ ; VQ30DET) 10

#	OEM	Part name
41000	41005-AG010	Bolt
41001	41001-AS500	Caliper Assy-Front Rh, W/o Pads Or Shims
41011	41011-AR000	Caliper Assy-Front Lh, W/o Pads Or Shims
41011	41011-AS500	Caliper Assy-Front Lh, W/o Pads Or Shims
41044	41044-6P010	Washer
41080	41080-AR025	Hardware Kit-Front Disc Brake Pad
41138	44141-N9500	Pin-Bolt
41151	41150-AR000	Plate-Baffle
41151	41160-AR000	Plate-Baffle
41217	44139-0V700	Pin

Front bumper (2001-12-01 ~ ; グロリア; K) 3

#	OEM	Part name
62256	62256-CR700	Grille-Front Bumper, Rh
62257	62257-CR600	Grille-Front Bumper, Lh
62652	62284-AG005	Grommet-Screw

Front bumper (2001-12-01 ~ ; セドリック; K) 3

#	OEM	Part name
62256	62256-CR700	Grille-Front Bumper, Rh
62257	62257-CR600	Grille-Front Bumper, Lh
62652	62284-AG005	Grommet-Screw

Front cover & fitting (2001-12-01 ~ ; フロントカバー; VQ30DET) 10

#	OEM	Part name
13035	13501-AG000	Cover Assy-Front
13035	13500-AG010	Cover Assy-Front
13042	13510-31U00	Seal-Oil, Crankshaft Front
13570	13570-AL620	Cover-Belt, Back
13570	13570-31U01	Cover-Belt, Back
16481	16481-AG000	Protector-Fuel Damper
80506252	08050-6252A	Bolt-hexagon
80708702	08070-8702A	Bolt-hexagon
805061610	08050-61610	Bolt-hexagon
805062010	08050-62010	Bolt-hexagon

Front door lock & handle (2001-12-01 ~ ; K) 20

#	OEM	Part name
80502	80502-AA200	Lock Assy-Front Door, Rh
80502	01413-00091	SCREW
80502	80599-AX000	Screw
80503	80503-AA200	Lock Assy-Front Door, Lh
80503	80503-CR000	ロツク アツセンブリ-,フロント ドア lh
80504	80845-01R00	Spacer
80510	80510-AG000	Rod-Lock Knob, Rh
80512	80532-AA101	Holder-Rod
80512	80532-85E00	HOLDER-ROD
80512	80506-AG000	Rod-Front Door Inside Handle, Rh
80514	80514-AG000	Rod-Key Lock, Rh
80515	80515-AG000	Rod-Key Lock, Lh
80562	80562-AA100	Cover-Front Door Lock, Rh
80563	80563-CR000	Cover-Front Door Lock, Lh
80670	80670-CR010	Handle Assy-Door Inside, Rh
80671	80671-AG000	Handle Assy-Door Inside, Lh
80673	80684-5L302	Escutcheon-Inside Handle, Rh
80673	80684-CR900	Escutcheon-Inside Handle, Rh
80674	80685-5L302	Escutcheon-Inside Handle, Lh
831341625	08313-41625	Болт

Front door panel & fitting (2001-12-01 ~ ; K) 26

#	OEM	Part name
80101	80864-AG000	Insulator
80210	01456-00651	SCREW
80320	01121-07261	BOLT
80344	80344-4P011	Stabilizer-Door Inner
80400	01121-01601	BOLT
80400	80498-40U00	Bolt
80400	80498-40U0B	Bolt
80400	80400-AG000	Hinge Assy-Front Door
80400	80401-AG000	Hinge Assy-Front Door
80430	80430-AG000	Check Link Assy-Front Door Rh
80820	80820-AG000	Moulding Assy-Front Door Outside, Rh
80820	80820-CR100	Moulding Assy-Front Door Outside, Rh
80820	80820-CR101	Moulding Assy-Front Door Outside, Rh
80820	01454-00311	SCREW
80821	80821-AG000	Moulding Assy-Front Door Outside, Lh
80821	80821-CR100	Moulding Assy-Front Door Outside, Lh
80824	80850-89902	Clip-Weatherstrip
80824	80850-89900	Clip-Weatherstrip
80830	80830-AG000	Weatherstrip-Front Door, Rh
80831	80831-AG000	Weatherstrip-Front Door, Lh
80834	80834-AG000	Seal Assy-Front Door Inside Rh
80835	80835-AG000	Seal Assy-Front Door Inside Lh
80858	80858-AG000	Pad-Front Door Outer, Rh
80859	80859-AG000	Pad-Front Door Outer, Lh
82120	82826-V0600	Plug
81468121	08146-8121G	Bolt-hexagon

Front door trimming (2001-12-01 ~ ; LH; K) 17

#	OEM	Part name
80683	80683-CR000	Escutcheon-Front Door Inside Handle, Lh
80683	80683-CR010	Escutcheon-Front Door Inside Handle, Lh
80900	01553-09791	CLIP-FINISHER
80900	01307-00101	CAP
80900	01307-01001	CAP-SCREW
80901	80901-CR000	Finisher Assy-Front Door, Lh
80901	80901-CR001	Finisher Assy-Front Door, Lh
80901	80901-CR005	Finisher Assy-Front Door, Lh
80901	80901-CR101	Finisher Assy-Front Door, Lh
80901	80901-CR205	Finisher Assy-Front Door, Lh
80901	80901-CR300	Finisher Assy-Front Door, Lh
80901	80901-CR301	Finisher Assy-Front Door, Lh
80901	80901-CR306	Finisher Assy-Front Door, Lh
80901	80901-CR400	Finisher Assy-Front Door, Lh
80901	80901-CR405	Finisher Assy-Front Door, Lh
80961	80961-CR000	Finisher-Power Window Switch, Front Lh
80986	80987-AG000	Bracket-Door Armrest, Lh Front

Front door trimming (2001-12-01 ~ ; RH; K) 22

#	OEM	Part name
80682	80682-CR000	Escutcheon-Front Door Inside Handle, Rh
80682	80682-CR010	Escutcheon-Front Door Inside Handle, Rh
80682	80682-CR100	Escutcheon-Front Door Inside Handle, Rh
80682	80682-CR110	Escutcheon-Front Door Inside Handle, Rh
80900	80900-CR000	Finisher Assy-Front Door, Rh
80900	80900-CR001	Finisher Assy-Front Door, Rh
80900	80900-CR005	Finisher Assy-Front Door, Rh
80900	80900-CR006	Finisher Assy-Front Door, Rh
80900	80900-CR101	Finisher Assy-Front Door, Rh
80900	80900-CR205	Finisher Assy-Front Door, Rh
80900	80900-CR300	Finisher Assy-Front Door, Rh
80900	80900-CR301	Finisher Assy-Front Door, Rh
80900	80900-CR306	Finisher Assy-Front Door, Rh
80900	80900-CR400	Finisher Assy-Front Door, Rh
80900	80900-CR405	Finisher Assy-Front Door, Rh
80900	01553-09791	CLIP-FINISHER
80900	01307-00101	CAP
80900	01307-01001	CAP-SCREW
80944	80944-4P002	Cap-Pull Handle
80944	80944-CR000	Cap-Pull Handle
80960	80960-CR000	Finisher-Power Window Switch, Front Rh
80986	80986-AG000	Bracket-Door Armrest, Rh Front

Front door window & regulator (2001-12-01 ~ ; K) 22

#	OEM	Part name
80250	80240-AG000	Guide Rail-Door Window, Front Rh
80251	80241-AG000	Guide Rail-Door Window, Front Lh
80300	80300-AG301	Glass Assy-Door Window, Rh
80301	80301-AG301	Glass Assy-Door Window, Lh
80311	80722-0V010	Stopper-Door Glass
80311	80722-CR000	Stopper-Door Glass
80311	80327-40Y00	Stopper-Door Glass
80322	80392-70T00	Washer-Window Glass
80322	82322-70T00	Washer-Window Glass
80323	80390-5L300	Bush-Window Glass
80338	80338-4P011	Shaft-Guide Roller
80345	80340-AG000	Guide-Door Glass Lower, Rh
80345	80215-AG000	Guide-Door Glass Lower, Lh
80345	80341-AG000	Guide-Door Glass Lower, Lh
80701	80721-AH214	Regulator Assy-Door Window, Lh
80710	80252-S0600	Nut
80730	80730-AG011	Motor Assy-Regulator, Rh
80731	80731-AH210	Motor Assy-Regulator, Lh
80760	80763-AA100	Sealer-Regulator
80760	80763-AA101	Sealer-Regulator
81468121	08146-8121G	Bolt-hexagon
831061262	08310-61262	スクリユ-,マシン

Front fender & fitting (2001-12-01 ~ ; K) 1

#	OEM	Part name
63141	63143-AG000	Bracket-Front Fender, Lh

Front final drive (2001-12-01 ~ ; VQ25DD +VQ30DD +VQ30DET +RB25DET) 5

#	OEM	Part name
81208251	08120-8251E	Bolt-hexagon
81210501	08121-0501E	Bolt-hexagon
812063028	08120-63028	Bolt-hexagon
826703210	08267-03210	STUD
836051214	08360-51214	スクリユ-,マシン

Front grille (2001-12-01 ~ ; グロリア; K) 1

#	OEM	Part name
85434105	08543-4105A	スクリユ-,タツピング

Front grille (2001-12-01 ~ ; セドリック; K) 1

#	OEM	Part name
85434105	08543-4105A	スクリユ-,タツピング

Front panel fitting (2001-12-01 ~ ; K) 2

#	OEM	Part name
62653	62653-CR100	Apron-Front, Lh
81466105	08146-6105G	Bolt-hexagon

Front seat (2001-12-01 ~ ; &LH パワーシート サイドエアバッグレス; K.VQ30DET.AT.F4) 75

#	OEM	Part name
86400	86400-CR000	Head Rest Assy-Front Seat
86400	86400-CR001	Head Rest Assy-Front Seat
86400	86400-CR221	Head Rest Assy-Front Seat
86400	86400-CR300	Head Rest Assy-Front Seat
86400	86400-CR301	Head Rest Assy-Front Seat
86400	86400-CR500	Head Rest Assy-Front Seat
86400	86400-CR501	Head Rest Assy-Front Seat
86400	86400-CR701	Head Rest Assy-Front Seat
86400	86400-CR800	Head Rest Assy-Front Seat
86400	86400-CR801	Head Rest Assy-Front Seat
86400	86430-CR020	Headrest Assy-Rear Seat
86400	86430-CR021	Headrest Assy-Rear Seat
86400	86430-CR320	Headrest Assy-Rear Seat
86400	86430-CR321	Headrest Assy-Rear Seat
87013	87013-4P212	Knob-Switch, Front Seat Reclining Rh
87019	87019-AG000	Harness Assy-Front Seat
87062	87062-CR610	Knob-Switch, Front Seat Slide Lh
87066	87066-4P212	Switch Assy-Front Seat, Lh
87066	87066-CR610	Switch Assy-Front Seat, Lh
87300	87350-CR610	Cushion Assy-Front Seat
87300	87350-CR611	Cushion Assy-Front Seat
87300	87350-CR711	Cushion Assy-Front Seat
87300	87350-CR810	Cushion Assy-Front Seat
87300	87350-CR811	Cushion Assy-Front Seat
87311	87361-AG510	Pad-Front Seat Cushion
87311	87361-AG710	Pad-Front Seat Cushion
87320	87370-CR610	Trim Assy-Front Seat Cushion
87320	87370-CR611	Trim Assy-Front Seat Cushion
87320	87370-CR711	Trim Assy-Front Seat Cushion
87320	87370-CR810	Trim Assy-Front Seat Cushion
87320	87370-CR811	Trim Assy-Front Seat Cushion
87372	87372-AH314	Finisher-Cushion, Front Seat Lh Rear
87372	87372-CR610	Finisher-Cushion, Front Seat Lh Rear
87380	87380-CR610	Finisher Assy-Cushion, Front Seat Lh
87381	87381-AH314	Finisher-Cushion, Front Seat Inner Lh
87381	87381-CR610	Finisher-Cushion, Front Seat Inner Lh
87451	87452-4P010	Device-Reclining, Lh Seat Inside
87452	87451-4P010	Device-Reclining, Lh Seat Outside
87505	87555-CR010	Cover-Seat Slide
87505	87557-CR010	Cover-Seat Slide
87505	87558-CR010	Cover-Seat Slide
87505	87559-CR010	Cover-Seat Slide
87551	87552-AG511	Slide-Lh Seat, Inside
87552	87551-AG511	Slide-Lh Seat, Outside
87600	87650-CR110	Back Assy-Front Seat
87600	87650-CR111	Back Assy-Front Seat
87600	87650-CR216	Back Assy-Front Seat
87600	87650-CR410	Back Assy-Front Seat
87600	87650-CR411	Back Assy-Front Seat
87601	87651-AG510	Frame Assy-Front Seat Back
87601	87651-CR110	Frame Assy-Front Seat Back
87602	87602-3H202	Holder Assy-Headrest, Lock
87602	87602-79917	Holder Assy-Headrest, Lock
87603	87603-3H202	Holder Assy-Headrest, Free
87603	87603-79917	Holder Assy-Headrest, Free
87611	87661-CR110	Pad-Front Seat Back
87611	87661-CR410	Pad-Front Seat Back
87611	87661-CR610	Pad-Front Seat Back
87611	87661-CR910	Pad-Front Seat Back
87620	87670-CR010	Trim Assy-Front Seat Back
87620	87670-CR011	Trim Assy-Front Seat Back
87620	87670-CR211	Trim Assy-Front Seat Back
87620	87670-CR310	Trim Assy-Front Seat Back
87620	87670-CR311	Trim Assy-Front Seat Back
87620	87670-CR610	Trim Assy-Front Seat Back
87620	87670-CR611	Trim Assy-Front Seat Back
87620	87670-CR711	Trim Assy-Front Seat Back
87620	87670-CR810	Trim Assy-Front Seat Back
87620	87670-CR811	Trim Assy-Front Seat Back
87640	87640-CR510	Board Assy-Front Seat Back
87640	87640-CR511	Board Assy-Front Seat Back
87640	87640-CR711	Board Assy-Front Seat Back
87640	87640-CR810	Board Assy-Front Seat Back
87640	87640-CR811	Board Assy-Front Seat Back
854351210	08543-51210	SCREWTAPPING

Front seat (2001-12-01 ~ ; &RH パワーシート サイドエアバッグレス; K.VQ30DET.AT.F4) 116

#	OEM	Part name
86400	86400-CR000	Head Rest Assy-Front Seat
86400	86400-CR001	Head Rest Assy-Front Seat
86400	86400-CR221	Head Rest Assy-Front Seat
86400	86400-CR300	Head Rest Assy-Front Seat
86400	86400-CR301	Head Rest Assy-Front Seat
86400	86400-CR500	Head Rest Assy-Front Seat
86400	86400-CR501	Head Rest Assy-Front Seat
86400	86400-CR701	Head Rest Assy-Front Seat
86400	86400-CR800	Head Rest Assy-Front Seat
86400	86400-CR801	Head Rest Assy-Front Seat
86400	86430-CR020	Headrest Assy-Rear Seat
86400	86430-CR021	Headrest Assy-Rear Seat
86400	86430-CR320	Headrest Assy-Rear Seat
86400	86430-CR321	Headrest Assy-Rear Seat
87012	87012-4P212	Knob-Switch, Front Seat Slide Rh
87012	87012-CR510	Knob-Switch, Front Seat Slide Rh
87013	87013-4P222	Knob-Switch, Front Seat Reclining Rh
87013	87013-4P212	Knob-Switch, Front Seat Reclining Rh
87016	87016-CR570	Switch Assy-Front Seat
87016	87016-4P442	Switch Assy-Front Seat
87019	87019-AG000	Harness Assy-Front Seat
87300	87300-CR510	Cushion Assy-Front Seat
87300	87300-CR511	Cushion Assy-Front Seat
87300	87300-CR711	Cushion Assy-Front Seat
87300	87300-CR810	Cushion Assy-Front Seat
87300	87300-CR811	Cushion Assy-Front Seat
87300	87350-CR610	Cushion Assy-Front Seat
87300	87350-CR611	Cushion Assy-Front Seat
87300	87350-CR711	Cushion Assy-Front Seat
87300	87350-CR810	Cushion Assy-Front Seat
87300	87350-CR811	Cushion Assy-Front Seat
87301	87301-4P010	Frame Assy-Front Seat Cushion
87311	87311-AG510	Pad-Front Seat Cushion
87311	87311-AG770	Pad-Front Seat Cushion
87311	87361-AG510	Pad-Front Seat Cushion
87311	87361-AG710	Pad-Front Seat Cushion
87316	87316-4P010	Cover-Hinge, Front Cushion
87320	87320-CR510	Trim Assy-Front Seat Cushion
87320	87320-CR511	Trim Assy-Front Seat Cushion
87320	87320-CR711	Trim Assy-Front Seat Cushion
87320	87320-CR810	Trim Assy-Front Seat Cushion
87320	87320-CR811	Trim Assy-Front Seat Cushion
87320	87370-CR610	Trim Assy-Front Seat Cushion
87320	87370-CR611	Trim Assy-Front Seat Cushion
87320	87370-CR711	Trim Assy-Front Seat Cushion
87320	87370-CR810	Trim Assy-Front Seat Cushion
87320	87370-CR811	Trim Assy-Front Seat Cushion
87322	87322-AH314	Finisher-Cushion, Front Seat Rh Rear
87322	87322-CR510	Finisher-Cushion, Front Seat Rh Rear
87330	87330-AH314	Finisher Assy-Cushion, Front Seat Rh
87330	87330-CR510	Finisher Assy-Cushion, Front Seat Rh
87331	87331-AH314	Finisher-Cushion, Front Seat Inner Rh
87331	87331-CR510	Finisher-Cushion, Front Seat Inner Rh
87400	87400-AG561	Adjuster Assy-Front Seat, Rh
87400	87400-AG571	Adjuster Assy-Front Seat, Rh
87401	87401-4P010	Device-Reclining, Rh Seat Outside
87505	87505-CR010	Cover-Seat Slide
87505	87507-CR010	Cover-Seat Slide
87505	87508-CR010	Cover-Seat Slide
87505	87509-CR010	Cover-Seat Slide
87505	87555-CR010	Cover-Seat Slide
87505	87557-CR010	Cover-Seat Slide
87505	87558-CR010	Cover-Seat Slide
87505	87559-CR010	Cover-Seat Slide
87600	87600-CR160	Back Assy-Front Seat
87600	87600-CR161	Back Assy-Front Seat
87600	87600-CR276	Back Assy-Front Seat
87600	87600-CR460	Back Assy-Front Seat
87600	87600-CR461	Back Assy-Front Seat
87600	87650-CR110	Back Assy-Front Seat
87600	87650-CR111	Back Assy-Front Seat
87600	87650-CR216	Back Assy-Front Seat
87600	87650-CR410	Back Assy-Front Seat
87600	87650-CR411	Back Assy-Front Seat
87601	87601-AG510	Frame Assy-Front Seat Back
87601	87601-CR160	Frame Assy-Front Seat Back
87601	87651-AG510	Frame Assy-Front Seat Back
87601	87651-CR110	Frame Assy-Front Seat Back
87602	87602-3H202	Holder Assy-Headrest, Lock
87602	87602-79917	Holder Assy-Headrest, Lock
87603	87603-3H202	Holder Assy-Headrest, Free
87603	87603-79917	Holder Assy-Headrest, Free
87611	87611-CR160	Pad-Front Seat Back
87611	87611-CR460	Pad-Front Seat Back
87611	87611-CR660	Pad-Front Seat Back
87611	87611-CR960	Pad-Front Seat Back
87611	87661-CR110	Pad-Front Seat Back
87611	87661-CR410	Pad-Front Seat Back
87611	87661-CR610	Pad-Front Seat Back
87611	87661-CR910	Pad-Front Seat Back
87620	87620-CR010	Trim Assy-Front Seat Back
87620	87620-CR011	Trim Assy-Front Seat Back
87620	87620-CR211	Trim Assy-Front Seat Back
87620	87620-CR310	Trim Assy-Front Seat Back
87620	87620-CR311	Trim Assy-Front Seat Back
87620	87620-CR510	Trim Assy-Front Seat Back
87620	87620-CR511	Trim Assy-Front Seat Back
87620	87620-CR711	Trim Assy-Front Seat Back
87620	87620-CR810	Trim Assy-Front Seat Back
87620	87620-CR811	Trim Assy-Front Seat Back
87620	87670-CR010	Trim Assy-Front Seat Back
87620	87670-CR011	Trim Assy-Front Seat Back
87620	87670-CR211	Trim Assy-Front Seat Back
87620	87670-CR310	Trim Assy-Front Seat Back
87620	87670-CR311	Trim Assy-Front Seat Back
87620	87670-CR610	Trim Assy-Front Seat Back
87620	87670-CR611	Trim Assy-Front Seat Back
87620	87670-CR711	Trim Assy-Front Seat Back
87620	87670-CR810	Trim Assy-Front Seat Back
87620	87670-CR811	Trim Assy-Front Seat Back
87640	87640-CR510	Board Assy-Front Seat Back
87640	87640-CR511	Board Assy-Front Seat Back
87640	87640-CR711	Board Assy-Front Seat Back
87640	87640-CR810	Board Assy-Front Seat Back
87640	87640-CR811	Board Assy-Front Seat Back
854351210	08543-51210	SCREWTAPPING

Front seat (2001-12-01 ~ ; LH パワーシート; K.(300LX+300LXVIP) +K.300ULT.CVT) 94

#	OEM	Part name
86400	86400-CR000	Head Rest Assy-Front Seat
86400	86400-CR001	Head Rest Assy-Front Seat
86400	86400-CR221	Head Rest Assy-Front Seat
86400	86400-CR300	Head Rest Assy-Front Seat
86400	86400-CR301	Head Rest Assy-Front Seat
86400	86400-CR500	Head Rest Assy-Front Seat
86400	86400-CR501	Head Rest Assy-Front Seat
86400	86400-CR701	Head Rest Assy-Front Seat
86400	86400-CR800	Head Rest Assy-Front Seat
86400	86400-CR801	Head Rest Assy-Front Seat
86400	86430-CR020	Headrest Assy-Rear Seat
86400	86430-CR021	Headrest Assy-Rear Seat
86400	86430-CR300	Headrest Assy-Rear Seat
86400	86430-CR301	Headrest Assy-Rear Seat
86400	86430-CR320	Headrest Assy-Rear Seat
86400	86430-CR321	Headrest Assy-Rear Seat
86400	86460-CR320	Headrest Assy-Rear Seat
86400	86460-CR321	Headrest Assy-Rear Seat
86607	86607-4P442	Grip Assy-Belt, Seat Back
86607	86607-4P447	Grip Assy-Belt, Seat Back
86607	86607-CR660	Grip Assy-Belt, Seat Back
87013	87013-4P212	Knob-Switch, Front Seat Reclining Rh
87016	87016-4P442	Switch Assy-Front Seat
87016	87016-CR615	Switch Assy-Front Seat
87019	87019-AG000	Harness Assy-Front Seat
87062	87062-CR610	Knob-Switch, Front Seat Slide Lh
87066	87066-4P212	Switch Assy-Front Seat, Lh
87066	87066-CR610	Switch Assy-Front Seat, Lh
87069	87069-4P340	Harness-Front Seat
87300	87350-CR610	Cushion Assy-Front Seat
87300	87350-CR611	Cushion Assy-Front Seat
87300	87350-CR711	Cushion Assy-Front Seat
87300	87350-CR810	Cushion Assy-Front Seat
87300	87350-CR811	Cushion Assy-Front Seat
87311	87361-AG510	Pad-Front Seat Cushion
87311	87361-AG710	Pad-Front Seat Cushion
87320	87370-CR610	Trim Assy-Front Seat Cushion
87320	87370-CR611	Trim Assy-Front Seat Cushion
87320	87370-CR711	Trim Assy-Front Seat Cushion
87320	87370-CR810	Trim Assy-Front Seat Cushion
87320	87370-CR811	Trim Assy-Front Seat Cushion
87372	87372-AH314	Finisher-Cushion, Front Seat Lh Rear
87372	87372-CR610	Finisher-Cushion, Front Seat Lh Rear
87380	87380-CR610	Finisher Assy-Cushion, Front Seat Lh
87381	87381-AH314	Finisher-Cushion, Front Seat Inner Lh
87381	87381-CR610	Finisher-Cushion, Front Seat Inner Lh
87451	87452-4P010	Device-Reclining, Lh Seat Inside
87452	87451-4P010	Device-Reclining, Lh Seat Outside
87505	87555-CR010	Cover-Seat Slide
87505	87557-CR010	Cover-Seat Slide
87505	87558-CR010	Cover-Seat Slide
87505	87559-CR010	Cover-Seat Slide
87551	87552-AG511	Slide-Lh Seat, Inside
87552	87551-AG511	Slide-Lh Seat, Outside
87600	87650-CR110	Back Assy-Front Seat
87600	87650-CR111	Back Assy-Front Seat
87600	87650-CR216	Back Assy-Front Seat
87600	87650-CR410	Back Assy-Front Seat
87600	87650-CR411	Back Assy-Front Seat
87600	87650-CR610	Back Assy-Front Seat With Side Air Bag
87600	87650-CR611	Back Assy-Front Seat With Side Air Bag
87600	87650-CR716	Back Assy-Front Seat With Side Air Bag
87600	87650-CR910	Back Assy-Front Seat With Side Air Bag
87600	87650-CR911	Back Assy-Front Seat With Side Air Bag
87600	87650-CR915	Back Assy-Front Seat With Side Air Bag
87600	87650-CR916	Back Assy-Front Seat With Side Air Bag
87601	87651-AG510	Frame Assy-Front Seat Back
87601	87651-CR110	Frame Assy-Front Seat Back
87602	87602-3H202	Holder Assy-Headrest, Lock
87602	87602-79917	Holder Assy-Headrest, Lock
87603	87603-3H202	Holder Assy-Headrest, Free
87603	87603-79917	Holder Assy-Headrest, Free
87611	87661-CR110	Pad-Front Seat Back
87611	87661-CR410	Pad-Front Seat Back
87611	87661-CR610	Pad-Front Seat Back
87611	87661-CR910	Pad-Front Seat Back
87620	87670-CR010	Trim Assy-Front Seat Back
87620	87670-CR011	Trim Assy-Front Seat Back
87620	87670-CR211	Trim Assy-Front Seat Back
87620	87670-CR310	Trim Assy-Front Seat Back
87620	87670-CR311	Trim Assy-Front Seat Back
87620	87670-CR610	Trim Assy-Front Seat Back
87620	87670-CR611	Trim Assy-Front Seat Back
87620	87670-CR711	Trim Assy-Front Seat Back
87620	87670-CR810	Trim Assy-Front Seat Back
87620	87670-CR811	Trim Assy-Front Seat Back
87640	87640-CR510	Board Assy-Front Seat Back
87640	87640-CR511	Board Assy-Front Seat Back
87640	87640-CR711	Board Assy-Front Seat Back
87640	87640-CR810	Board Assy-Front Seat Back
87640	87640-CR811	Board Assy-Front Seat Back
851362010	08513-62010	スクリユ-,タツピング
854071242	08540-71242	スクリユ-,タツピング
854351210	08543-51210	SCREWTAPPING

Front seat (2001-12-01 ~ ; LH パワーシート; K.VQ30DET.AT.F4) 84

#	OEM	Part name
86400	86400-CR000	Head Rest Assy-Front Seat
86400	86400-CR001	Head Rest Assy-Front Seat
86400	86400-CR221	Head Rest Assy-Front Seat
86400	86400-CR300	Head Rest Assy-Front Seat
86400	86400-CR301	Head Rest Assy-Front Seat
86400	86400-CR500	Head Rest Assy-Front Seat
86400	86400-CR501	Head Rest Assy-Front Seat
86400	86400-CR701	Head Rest Assy-Front Seat
86400	86400-CR800	Head Rest Assy-Front Seat
86400	86400-CR801	Head Rest Assy-Front Seat
86400	86430-CR020	Headrest Assy-Rear Seat
86400	86430-CR021	Headrest Assy-Rear Seat
86400	86430-CR320	Headrest Assy-Rear Seat
86400	86430-CR321	Headrest Assy-Rear Seat
86607	86607-4P442	Grip Assy-Belt, Seat Back
86607	86607-4P447	Grip Assy-Belt, Seat Back
86607	86607-CR660	Grip Assy-Belt, Seat Back
87013	87013-4P212	Knob-Switch, Front Seat Reclining Rh
87016	87016-4P442	Switch Assy-Front Seat
87019	87019-AG000	Harness Assy-Front Seat
87062	87062-CR610	Knob-Switch, Front Seat Slide Lh
87066	87066-4P212	Switch Assy-Front Seat, Lh
87066	87066-CR610	Switch Assy-Front Seat, Lh
87069	87069-4P340	Harness-Front Seat
87300	87350-CR610	Cushion Assy-Front Seat
87300	87350-CR611	Cushion Assy-Front Seat
87300	87350-CR711	Cushion Assy-Front Seat
87300	87350-CR810	Cushion Assy-Front Seat
87300	87350-CR811	Cushion Assy-Front Seat
87311	87361-AG510	Pad-Front Seat Cushion
87311	87361-AG710	Pad-Front Seat Cushion
87320	87370-CR610	Trim Assy-Front Seat Cushion
87320	87370-CR611	Trim Assy-Front Seat Cushion
87320	87370-CR711	Trim Assy-Front Seat Cushion
87320	87370-CR810	Trim Assy-Front Seat Cushion
87320	87370-CR811	Trim Assy-Front Seat Cushion
87372	87372-AH314	Finisher-Cushion, Front Seat Lh Rear
87372	87372-CR610	Finisher-Cushion, Front Seat Lh Rear
87380	87380-CR610	Finisher Assy-Cushion, Front Seat Lh
87381	87381-AH314	Finisher-Cushion, Front Seat Inner Lh
87381	87381-CR610	Finisher-Cushion, Front Seat Inner Lh
87451	87452-4P010	Device-Reclining, Lh Seat Inside
87452	87451-4P010	Device-Reclining, Lh Seat Outside
87505	87555-CR010	Cover-Seat Slide
87505	87557-CR010	Cover-Seat Slide
87505	87558-CR010	Cover-Seat Slide
87505	87559-CR010	Cover-Seat Slide
87551	87552-AG511	Slide-Lh Seat, Inside
87552	87551-AG511	Slide-Lh Seat, Outside
87600	87650-CR110	Back Assy-Front Seat
87600	87650-CR111	Back Assy-Front Seat
87600	87650-CR610	Back Assy-Front Seat With Side Air Bag
87600	87650-CR611	Back Assy-Front Seat With Side Air Bag
87600	87650-CR716	Back Assy-Front Seat With Side Air Bag
87600	87650-CR910	Back Assy-Front Seat With Side Air Bag
87600	87650-CR911	Back Assy-Front Seat With Side Air Bag
87601	87651-AG510	Frame Assy-Front Seat Back
87601	87651-CR110	Frame Assy-Front Seat Back
87602	87602-3H202	Holder Assy-Headrest, Lock
87602	87602-79917	Holder Assy-Headrest, Lock
87603	87603-3H202	Holder Assy-Headrest, Free
87603	87603-79917	Holder Assy-Headrest, Free
87611	87661-CR110	Pad-Front Seat Back
87611	87661-CR410	Pad-Front Seat Back
87611	87661-CR610	Pad-Front Seat Back
87611	87661-CR910	Pad-Front Seat Back
87620	87670-CR010	Trim Assy-Front Seat Back
87620	87670-CR011	Trim Assy-Front Seat Back
87620	87670-CR211	Trim Assy-Front Seat Back
87620	87670-CR310	Trim Assy-Front Seat Back
87620	87670-CR311	Trim Assy-Front Seat Back
87620	87670-CR610	Trim Assy-Front Seat Back
87620	87670-CR611	Trim Assy-Front Seat Back
87620	87670-CR711	Trim Assy-Front Seat Back
87620	87670-CR810	Trim Assy-Front Seat Back
87620	87670-CR811	Trim Assy-Front Seat Back
87640	87640-CR510	Board Assy-Front Seat Back
87640	87640-CR511	Board Assy-Front Seat Back
87640	87640-CR711	Board Assy-Front Seat Back
87640	87640-CR810	Board Assy-Front Seat Back
87640	87640-CR811	Board Assy-Front Seat Back
851362010	08513-62010	スクリユ-,タツピング
854071242	08540-71242	スクリユ-,タツピング
854351210	08543-51210	SCREWTAPPING

Front seat (2001-12-01 ~ ; LH リラックスシート; K.(300LX+300LXVIP) +K.300ULT.CVT) 72

#	OEM	Part name
86400	86400-CR000	Head Rest Assy-Front Seat
86400	86400-CR001	Head Rest Assy-Front Seat
86400	86400-CR221	Head Rest Assy-Front Seat
86400	86400-CR300	Head Rest Assy-Front Seat
86400	86400-CR301	Head Rest Assy-Front Seat
86400	86400-CR500	Head Rest Assy-Front Seat
86400	86400-CR501	Head Rest Assy-Front Seat
86400	86400-CR701	Head Rest Assy-Front Seat
86400	86400-CR800	Head Rest Assy-Front Seat
86400	86400-CR801	Head Rest Assy-Front Seat
86400	86430-CR020	Headrest Assy-Rear Seat
86400	86430-CR021	Headrest Assy-Rear Seat
86400	86430-CR300	Headrest Assy-Rear Seat
86400	86430-CR301	Headrest Assy-Rear Seat
86400	86430-CR320	Headrest Assy-Rear Seat
86400	86430-CR321	Headrest Assy-Rear Seat
86400	86460-CR320	Headrest Assy-Rear Seat
86400	86460-CR321	Headrest Assy-Rear Seat
86607	86607-4P442	Grip Assy-Belt, Seat Back
86607	86607-4P447	Grip Assy-Belt, Seat Back
86607	86607-CR660	Grip Assy-Belt, Seat Back
87013	87013-4P212	Knob-Switch, Front Seat Reclining Rh
87016	87016-4P442	Switch Assy-Front Seat
87016	87016-CR615	Switch Assy-Front Seat
87019	87019-AG000	Harness Assy-Front Seat
87062	87062-CR610	Knob-Switch, Front Seat Slide Lh
87066	87066-4P212	Switch Assy-Front Seat, Lh
87066	87066-CR610	Switch Assy-Front Seat, Lh
87069	87069-4P340	Harness-Front Seat
87300	87350-CR610	Cushion Assy-Front Seat
87300	87350-CR611	Cushion Assy-Front Seat
87300	87350-CR711	Cushion Assy-Front Seat
87300	87350-CR810	Cushion Assy-Front Seat
87300	87350-CR811	Cushion Assy-Front Seat
87311	87361-AG510	Pad-Front Seat Cushion
87311	87361-AG710	Pad-Front Seat Cushion
87320	87370-CR610	Trim Assy-Front Seat Cushion
87320	87370-CR611	Trim Assy-Front Seat Cushion
87320	87370-CR711	Trim Assy-Front Seat Cushion
87320	87370-CR810	Trim Assy-Front Seat Cushion
87320	87370-CR811	Trim Assy-Front Seat Cushion
87372	87372-AH314	Finisher-Cushion, Front Seat Lh Rear
87372	87372-CR610	Finisher-Cushion, Front Seat Lh Rear
87380	87380-CR610	Finisher Assy-Cushion, Front Seat Lh
87381	87381-AH314	Finisher-Cushion, Front Seat Inner Lh
87381	87381-CR610	Finisher-Cushion, Front Seat Inner Lh
87451	87452-4P010	Device-Reclining, Lh Seat Inside
87452	87451-4P010	Device-Reclining, Lh Seat Outside
87505	87555-CR010	Cover-Seat Slide
87505	87557-CR010	Cover-Seat Slide
87505	87558-CR010	Cover-Seat Slide
87505	87559-CR010	Cover-Seat Slide
87551	87552-AG511	Slide-Lh Seat, Inside
87552	87551-AG511	Slide-Lh Seat, Outside
87601	87651-AG510	Frame Assy-Front Seat Back
87601	87651-CR110	Frame Assy-Front Seat Back
87602	87602-3H202	Holder Assy-Headrest, Lock
87602	87602-79917	Holder Assy-Headrest, Lock
87603	87603-3H202	Holder Assy-Headrest, Free
87603	87603-79917	Holder Assy-Headrest, Free
87611	87661-CR110	Pad-Front Seat Back
87611	87661-CR410	Pad-Front Seat Back
87611	87661-CR610	Pad-Front Seat Back
87611	87661-CR910	Pad-Front Seat Back
812062010	08120-62010	Bolt-hexagon
831051626	08310-51626	スクリユ-,マシン
842061220	08420-61220	スクリユ-,マシン
851362010	08513-62010	スクリユ-,タツピング
854051210	08540-51210	スクリユ-,タツピング
854071242	08540-71242	スクリユ-,タツピング
854340812	08543-40812	Болт
854351210	08543-51210	SCREWTAPPING

Front seat (2001-12-01 ~ ; RH パワーシート; K.(300LX+300LXVIP) +K.300ULT.CVT) 143

#	OEM	Part name
86400	86400-CR000	Head Rest Assy-Front Seat
86400	86400-CR001	Head Rest Assy-Front Seat
86400	86400-CR221	Head Rest Assy-Front Seat
86400	86400-CR300	Head Rest Assy-Front Seat
86400	86400-CR301	Head Rest Assy-Front Seat
86400	86400-CR500	Head Rest Assy-Front Seat
86400	86400-CR501	Head Rest Assy-Front Seat
86400	86400-CR701	Head Rest Assy-Front Seat
86400	86400-CR800	Head Rest Assy-Front Seat
86400	86400-CR801	Head Rest Assy-Front Seat
86400	86430-CR020	Headrest Assy-Rear Seat
86400	86430-CR021	Headrest Assy-Rear Seat
86400	86430-CR300	Headrest Assy-Rear Seat
86400	86430-CR301	Headrest Assy-Rear Seat
86400	86430-CR320	Headrest Assy-Rear Seat
86400	86430-CR321	Headrest Assy-Rear Seat
86400	86460-CR320	Headrest Assy-Rear Seat
86400	86460-CR321	Headrest Assy-Rear Seat
86607	86607-4P442	Grip Assy-Belt, Seat Back
86607	86607-4P447	Grip Assy-Belt, Seat Back
86607	86607-CR660	Grip Assy-Belt, Seat Back
87012	87012-4P212	Knob-Switch, Front Seat Slide Rh
87012	87012-CR510	Knob-Switch, Front Seat Slide Rh
87013	87013-4P222	Knob-Switch, Front Seat Reclining Rh
87013	87013-4P212	Knob-Switch, Front Seat Reclining Rh
87016	87016-6P367	Switch Assy-Front Seat
87016	87016-CR570	Switch Assy-Front Seat
87016	87016-CR660	Switch Assy-Front Seat
87016	87016-4P442	Switch Assy-Front Seat
87016	87016-CR615	Switch Assy-Front Seat
87019	87019-4P361	Harness-Front Seat, Rh
87019	87019-AG000	Harness Assy-Front Seat
87300	87300-CR510	Cushion Assy-Front Seat
87300	87300-CR511	Cushion Assy-Front Seat
87300	87300-CR711	Cushion Assy-Front Seat
87300	87300-CR810	Cushion Assy-Front Seat
87300	87300-CR811	Cushion Assy-Front Seat
87300	87350-CR610	Cushion Assy-Front Seat
87300	87350-CR611	Cushion Assy-Front Seat
87300	87350-CR711	Cushion Assy-Front Seat
87300	87350-CR810	Cushion Assy-Front Seat
87300	87350-CR811	Cushion Assy-Front Seat
87301	87301-4P010	Frame Assy-Front Seat Cushion
87311	87311-AG510	Pad-Front Seat Cushion
87311	87311-AG770	Pad-Front Seat Cushion
87311	87361-AG510	Pad-Front Seat Cushion
87311	87361-AG710	Pad-Front Seat Cushion
87316	87316-4P010	Cover-Hinge, Front Cushion
87320	87320-CR510	Trim Assy-Front Seat Cushion
87320	87320-CR511	Trim Assy-Front Seat Cushion
87320	87320-CR711	Trim Assy-Front Seat Cushion
87320	87320-CR810	Trim Assy-Front Seat Cushion
87320	87320-CR811	Trim Assy-Front Seat Cushion
87320	87370-CR610	Trim Assy-Front Seat Cushion
87320	87370-CR611	Trim Assy-Front Seat Cushion
87320	87370-CR711	Trim Assy-Front Seat Cushion
87320	87370-CR810	Trim Assy-Front Seat Cushion
87320	87370-CR811	Trim Assy-Front Seat Cushion
87322	87322-AH314	Finisher-Cushion, Front Seat Rh Rear
87322	87322-CR510	Finisher-Cushion, Front Seat Rh Rear
87330	87330-AH314	Finisher Assy-Cushion, Front Seat Rh
87330	87330-CR510	Finisher Assy-Cushion, Front Seat Rh
87331	87331-AH314	Finisher-Cushion, Front Seat Inner Rh
87331	87331-CR510	Finisher-Cushion, Front Seat Inner Rh
87400	87400-AG561	Adjuster Assy-Front Seat, Rh
87400	87400-AG571	Adjuster Assy-Front Seat, Rh
87401	87401-4P010	Device-Reclining, Rh Seat Outside
87401	87401-4P360	Device-Reclining, Rh Seat Outside
87505	87505-CR010	Cover-Seat Slide
87505	87507-CR010	Cover-Seat Slide
87505	87508-CR010	Cover-Seat Slide
87505	87509-CR010	Cover-Seat Slide
87505	87555-CR010	Cover-Seat Slide
87505	87557-CR010	Cover-Seat Slide
87505	87558-CR010	Cover-Seat Slide
87505	87559-CR010	Cover-Seat Slide
87600	87600-CR160	Back Assy-Front Seat
87600	87600-CR161	Back Assy-Front Seat
87600	87600-CR276	Back Assy-Front Seat
87600	87600-CR460	Back Assy-Front Seat
87600	87600-CR461	Back Assy-Front Seat
87600	87600-CR660	Back Assy-Front Seat With Side Air Bag
87600	87600-CR661	Back Assy-Front Seat With Side Air Bag
87600	87600-CR776	Back Assy-Front Seat With Side Air Bag
87600	87600-CR960	Back Assy-Front Seat With Side Air Bag
87600	87600-CR961	Back Assy-Front Seat With Side Air Bag
87600	87650-CR110	Back Assy-Front Seat
87600	87650-CR111	Back Assy-Front Seat
87600	87650-CR216	Back Assy-Front Seat
87600	87650-CR410	Back Assy-Front Seat
87600	87650-CR411	Back Assy-Front Seat
87600	87650-CR610	Back Assy-Front Seat With Side Air Bag
87600	87650-CR611	Back Assy-Front Seat With Side Air Bag
87600	87650-CR716	Back Assy-Front Seat With Side Air Bag
87600	87650-CR910	Back Assy-Front Seat With Side Air Bag
87600	87650-CR911	Back Assy-Front Seat With Side Air Bag
87600	87650-CR915	Back Assy-Front Seat With Side Air Bag
87600	87650-CR916	Back Assy-Front Seat With Side Air Bag
87601	87601-AG510	Frame Assy-Front Seat Back
87601	87601-CR160	Frame Assy-Front Seat Back
87601	87651-AG510	Frame Assy-Front Seat Back
87601	87651-CR110	Frame Assy-Front Seat Back
87602	87602-3H202	Holder Assy-Headrest, Lock
87602	87602-79917	Holder Assy-Headrest, Lock
87603	87603-3H202	Holder Assy-Headrest, Free
87603	87603-79917	Holder Assy-Headrest, Free
87611	87611-CR160	Pad-Front Seat Back
87611	87611-CR460	Pad-Front Seat Back
87611	87611-CR660	Pad-Front Seat Back
87611	87611-CR960	Pad-Front Seat Back
87611	87661-CR110	Pad-Front Seat Back
87611	87661-CR410	Pad-Front Seat Back
87611	87661-CR610	Pad-Front Seat Back
87611	87661-CR910	Pad-Front Seat Back
87620	87620-CR010	Trim Assy-Front Seat Back
87620	87620-CR011	Trim Assy-Front Seat Back
87620	87620-CR211	Trim Assy-Front Seat Back
87620	87620-CR310	Trim Assy-Front Seat Back
87620	87620-CR311	Trim Assy-Front Seat Back
87620	87620-CR510	Trim Assy-Front Seat Back
87620	87620-CR511	Trim Assy-Front Seat Back
87620	87620-CR711	Trim Assy-Front Seat Back
87620	87620-CR810	Trim Assy-Front Seat Back
87620	87620-CR811	Trim Assy-Front Seat Back
87620	87670-CR010	Trim Assy-Front Seat Back
87620	87670-CR011	Trim Assy-Front Seat Back
87620	87670-CR211	Trim Assy-Front Seat Back
87620	87670-CR310	Trim Assy-Front Seat Back
87620	87670-CR311	Trim Assy-Front Seat Back
87620	87670-CR610	Trim Assy-Front Seat Back
87620	87670-CR611	Trim Assy-Front Seat Back
87620	87670-CR711	Trim Assy-Front Seat Back
87620	87670-CR810	Trim Assy-Front Seat Back
87620	87670-CR811	Trim Assy-Front Seat Back
87640	87640-CR510	Board Assy-Front Seat Back
87640	87640-CR511	Board Assy-Front Seat Back
87640	87640-CR711	Board Assy-Front Seat Back
87640	87640-CR810	Board Assy-Front Seat Back
87640	87640-CR811	Board Assy-Front Seat Back
87641	87641-4P012	Unit Assy-Seat Lumbar
81208121	08120-8121E	Bolt-hexagon
851362010	08513-62010	スクリユ-,タツピング
854351210	08543-51210	SCREWTAPPING

Front seat (2001-12-01 ~ ; RH パワーシート; K.VQ30DET.AT.F4) 127

#	OEM	Part name
86400	86400-CR000	Head Rest Assy-Front Seat
86400	86400-CR001	Head Rest Assy-Front Seat
86400	86400-CR221	Head Rest Assy-Front Seat
86400	86400-CR300	Head Rest Assy-Front Seat
86400	86400-CR301	Head Rest Assy-Front Seat
86400	86400-CR500	Head Rest Assy-Front Seat
86400	86400-CR501	Head Rest Assy-Front Seat
86400	86400-CR701	Head Rest Assy-Front Seat
86400	86400-CR800	Head Rest Assy-Front Seat
86400	86400-CR801	Head Rest Assy-Front Seat
86400	86430-CR020	Headrest Assy-Rear Seat
86400	86430-CR021	Headrest Assy-Rear Seat
86400	86430-CR320	Headrest Assy-Rear Seat
86400	86430-CR321	Headrest Assy-Rear Seat
86607	86607-4P442	Grip Assy-Belt, Seat Back
86607	86607-4P447	Grip Assy-Belt, Seat Back
86607	86607-CR660	Grip Assy-Belt, Seat Back
87012	87012-4P212	Knob-Switch, Front Seat Slide Rh
87012	87012-CR510	Knob-Switch, Front Seat Slide Rh
87013	87013-4P222	Knob-Switch, Front Seat Reclining Rh
87013	87013-4P212	Knob-Switch, Front Seat Reclining Rh
87016	87016-CR570	Switch Assy-Front Seat
87016	87016-4P442	Switch Assy-Front Seat
87019	87019-AG000	Harness Assy-Front Seat
87300	87300-CR510	Cushion Assy-Front Seat
87300	87300-CR511	Cushion Assy-Front Seat
87300	87300-CR711	Cushion Assy-Front Seat
87300	87300-CR810	Cushion Assy-Front Seat
87300	87300-CR811	Cushion Assy-Front Seat
87300	87350-CR610	Cushion Assy-Front Seat
87300	87350-CR611	Cushion Assy-Front Seat
87300	87350-CR711	Cushion Assy-Front Seat
87300	87350-CR810	Cushion Assy-Front Seat
87300	87350-CR811	Cushion Assy-Front Seat
87301	87301-4P010	Frame Assy-Front Seat Cushion
87311	87311-AG510	Pad-Front Seat Cushion
87311	87311-AG770	Pad-Front Seat Cushion
87311	87361-AG510	Pad-Front Seat Cushion
87311	87361-AG710	Pad-Front Seat Cushion
87316	87316-4P010	Cover-Hinge, Front Cushion
87320	87320-CR510	Trim Assy-Front Seat Cushion
87320	87320-CR511	Trim Assy-Front Seat Cushion
87320	87320-CR711	Trim Assy-Front Seat Cushion
87320	87320-CR810	Trim Assy-Front Seat Cushion
87320	87320-CR811	Trim Assy-Front Seat Cushion
87320	87370-CR610	Trim Assy-Front Seat Cushion
87320	87370-CR611	Trim Assy-Front Seat Cushion
87320	87370-CR711	Trim Assy-Front Seat Cushion
87320	87370-CR810	Trim Assy-Front Seat Cushion
87320	87370-CR811	Trim Assy-Front Seat Cushion
87322	87322-AH314	Finisher-Cushion, Front Seat Rh Rear
87322	87322-CR510	Finisher-Cushion, Front Seat Rh Rear
87330	87330-AH314	Finisher Assy-Cushion, Front Seat Rh
87330	87330-CR510	Finisher Assy-Cushion, Front Seat Rh
87331	87331-AH314	Finisher-Cushion, Front Seat Inner Rh
87331	87331-CR510	Finisher-Cushion, Front Seat Inner Rh
87400	87400-AG561	Adjuster Assy-Front Seat, Rh
87400	87400-AG571	Adjuster Assy-Front Seat, Rh
87401	87401-4P010	Device-Reclining, Rh Seat Outside
87505	87505-CR010	Cover-Seat Slide
87505	87507-CR010	Cover-Seat Slide
87505	87508-CR010	Cover-Seat Slide
87505	87509-CR010	Cover-Seat Slide
87505	87555-CR010	Cover-Seat Slide
87505	87557-CR010	Cover-Seat Slide
87505	87558-CR010	Cover-Seat Slide
87505	87559-CR010	Cover-Seat Slide
87600	87600-CR160	Back Assy-Front Seat
87600	87600-CR161	Back Assy-Front Seat
87600	87600-CR281	Back Assy-Front Seat
87600	87600-CR660	Back Assy-Front Seat With Side Air Bag
87600	87600-CR661	Back Assy-Front Seat With Side Air Bag
87600	87600-CR776	Back Assy-Front Seat With Side Air Bag
87600	87600-CR960	Back Assy-Front Seat With Side Air Bag
87600	87600-CR961	Back Assy-Front Seat With Side Air Bag
87600	87650-CR110	Back Assy-Front Seat
87600	87650-CR111	Back Assy-Front Seat
87600	87650-CR610	Back Assy-Front Seat With Side Air Bag
87600	87650-CR611	Back Assy-Front Seat With Side Air Bag
87600	87650-CR716	Back Assy-Front Seat With Side Air Bag
87600	87650-CR910	Back Assy-Front Seat With Side Air Bag
87600	87650-CR911	Back Assy-Front Seat With Side Air Bag
87601	87601-AG510	Frame Assy-Front Seat Back
87601	87601-CR160	Frame Assy-Front Seat Back
87601	87651-AG510	Frame Assy-Front Seat Back
87601	87651-CR110	Frame Assy-Front Seat Back
87602	87602-3H202	Holder Assy-Headrest, Lock
87602	87602-79917	Holder Assy-Headrest, Lock
87603	87603-3H202	Holder Assy-Headrest, Free
87603	87603-79917	Holder Assy-Headrest, Free
87611	87611-CR160	Pad-Front Seat Back
87611	87611-CR460	Pad-Front Seat Back
87611	87611-CR660	Pad-Front Seat Back
87611	87611-CR960	Pad-Front Seat Back
87611	87661-CR110	Pad-Front Seat Back
87611	87661-CR410	Pad-Front Seat Back
87611	87661-CR610	Pad-Front Seat Back
87611	87661-CR910	Pad-Front Seat Back
87620	87620-CR010	Trim Assy-Front Seat Back
87620	87620-CR011	Trim Assy-Front Seat Back
87620	87620-CR211	Trim Assy-Front Seat Back
87620	87620-CR310	Trim Assy-Front Seat Back
87620	87620-CR311	Trim Assy-Front Seat Back
87620	87620-CR510	Trim Assy-Front Seat Back
87620	87620-CR511	Trim Assy-Front Seat Back
87620	87620-CR711	Trim Assy-Front Seat Back
87620	87620-CR810	Trim Assy-Front Seat Back
87620	87620-CR811	Trim Assy-Front Seat Back
87620	87670-CR010	Trim Assy-Front Seat Back
87620	87670-CR011	Trim Assy-Front Seat Back
87620	87670-CR211	Trim Assy-Front Seat Back
87620	87670-CR310	Trim Assy-Front Seat Back
87620	87670-CR311	Trim Assy-Front Seat Back
87620	87670-CR610	Trim Assy-Front Seat Back
87620	87670-CR611	Trim Assy-Front Seat Back
87620	87670-CR711	Trim Assy-Front Seat Back
87620	87670-CR810	Trim Assy-Front Seat Back
87620	87670-CR811	Trim Assy-Front Seat Back
87640	87640-CR510	Board Assy-Front Seat Back
87640	87640-CR511	Board Assy-Front Seat Back
87640	87640-CR711	Board Assy-Front Seat Back
87640	87640-CR810	Board Assy-Front Seat Back
87640	87640-CR811	Board Assy-Front Seat Back
87641	87641-4P012	Unit Assy-Seat Lumbar
81208121	08120-8121E	Bolt-hexagon
851362010	08513-62010	スクリユ-,タツピング
854351210	08543-51210	SCREWTAPPING

Front seat belt (2001-12-01 ~ ; K) 12

#	OEM	Part name
86842	86842-AH304	Belt Assy-Front Seat Buckle
86842	86842-CR000	Belt Assy-Front Seat Buckle
86842	86842-CR100	Belt Assy-Front Seat Buckle
86842	86842-CR101	Belt Assy-Front Seat Buckle
86843	86843-AH304	Belt Assy-Front Seat Buckle, Lh
86843	86843-CR000	Belt Assy-Front Seat Buckle, Lh
86884	86884-CR001	Belt Assy-Tongue, Pretensioner Front Rh
86884	86884-CR700	Belt Assy-Tongue, Pretensioner Front Rh
86884	86884-CR701	Belt Assy-Tongue, Pretensioner Front Rh
86885	86885-CR700	Belt Assy-Tongue, Pretensioner Front Lh
87824	87824-CR000	Adjuster-Seat Belt
87844	87844-AU001	Cover-Belt Anchor

Front suspension (2001-12-01 ~ ; ストラツト&スプリング; VQ25DD +VQ30DD +VQ30DET) 3

#	OEM	Part name
54010	54010-AG001	Spring-Front
54040	54040-AG000	Seat Assy-Front Spring, Upper
54588	54588-AD002	Nut

Front suspension (2001-12-01 ~ ; メンバー, リンク&スタビライザー; VQ25DD +VQ30DD +VQ30DET) 8

#	OEM	Part name
54010	55269-2Y000	Nut
54368	54368-AG001	Bolt
54400	54400-AH000	Member Compl-Front Suspension
54400	54400-AG010	Member Compl-Front Suspension
54418	54418-AG000	Bolt
54588	54588-AD002	Nut
54611	54611-AG006	Stabilizer-Front
54614	54614-AG000	Clamp-Stabilizer

Front windshield (2001-12-01 ~ ; K) 4

#	OEM	Part name
72613	72700-AH310	Glass-Windshield
72613	72700-CR000	Glass-Windshield
72811	72796-AG000	Clip
96327	96327-4M400	Base Assy-Inside Mirror

Fuel Pump (2001-12-01 ~ ; VQ30DET) 1

#	OEM	Part name
22697	22698-AG900	Resistor Assy

Fuel piping (2001-12-01 ~ ; クランプ&インシュレーター; VQ30DET) 32

#	OEM	Part name
17050	13504-AG215	Bolt
17050	17571-AG005	Clamp
17050	17571-AG210	Clamp
17050	17571-AG200	Clamp
17050	17571-AG006	Clamp
17050	17571-AG202	Clamp
17050	17571-AG010	Clamp
17050	17571-AG003	Clamp
17050	17571-AG201	Clamp
17050	17571-AG008	Clamp
17050	17571-AG007	Clamp
17050	01558-00121	CLAMP
17050	01558-00401	CLAMP-HOSE
17050	17571-AG204	Clamp
17050	46272-AG200	Clip
17050	17561-6P003	Clip
17050	46272-AG201	Clip
17050	17561-AG010	Clip
17050	17561-AG020	Clip
17050	46272-1L000	Insulator
17050	24216-S5801	Clip-Wiring Harness
17330	17330-AG010	Tube Assy-Breather
17572	17572-AG201	Clip
17572	17572-AG202	Clip
17572	17561-AG000	Clamp-Tube
17572	17561-AG200	Clamp-Tube
46271	46271-1W213	Clamp
46271	46271-0P010	Clamp-Brake Tube
49728	49728-55S00	Collar
49728	49728-55S0A	Collar-Insulator
64840	64835-AG010	Rubber-Bush
81466352	08146-6352G	Bolt-hexagon

Fuel piping (2001-12-01 ~ ; フューエル パイピング; VQ30DET) 22

#	OEM	Part name
17050	11298-AG900	Bolt
17050	13504-AG215	Bolt
17050	01558-00121	CLAMP
17050	01558-00401	CLAMP-HOSE
17314	17314-AG200	Grommet-Fuel Hose
17326	17326-VB005	Clamp
17330	17330-AG010	Tube Assy-Breather
17335	17335-AG007	Hose-Evapolation
17336	17336-AG000	Hose-Breather
17336	17336-AG001	Hose-Breather
17338	17338-AG200	Tube-Breather
17338	17338-AG010	Tube-Breather
17502	17502-AG200	Tube Assy-Fuel Feed
17510	17510-AG200	Tube-Fuel Return
17572	17572-AG200	Clip
17572	17572-AG201	Clip
17572	17572-AG202	Clip
17575	17575-AG200	Protector-Fuel Tube
17575	17575-AG201	Protector-Fuel Tube
18791	18791-66J01	Hose-Drain, Canister
18795	18793-AG000	Tube-Drain, Canister
18795	18795-AR000	Separator-Water

Fuel strainer & fuel hose (2001-12-01 ~ ; VQ30DET) 21

#	OEM	Part name
16440	16440-AH103	Hose-Fuel
16440	16440-AG000	Hose-Fuel
16454	17530-AG000	Connector
16603	16600-AA500	Injector Assy-Fuel
16603	17571-5L300	Clamp-Injector
16883	24220-AH100	Clip
17520	17521-CR800	Tube Assy-Fuel
17520	17521-CR80A	Tube Assy-Fuel
17520	17520-AG901	Tube Assy-Fuel
17520	17520-AG911	Tube Assy-Fuel
17520	17520-CR800	Tube Assy-Fuel
17520	16614-D4200	Spacer-Fuel Tube
17522	16439-N4710	Clamp-Hose
17522	16439-AG000	Clamp-Hose
22670	22670-AG000	Regulator Assy-Pressure
22675	22675-AG021	Damper Assy-Fuel
22675	22675-CR600	Damper Assy-Fuel
22675	22675-CR60A	A damper fuel
22675	22675-AG910	Damper Assy-Fuel
815662033	08156-62033	Bolt-hexagon
831351062	08313-51062	スクリユ-,マシン

Fuel tank (2001-12-01 ~ 2003-04-01; VQ30DET +RB25DET) 27

#	OEM	Part name
17020	01352-00521	GASKET
17020	17561-3H000	Insulator
17020	08740-06039	HOSE-FUEL
17020	08740-14039	HOSE-FUEL
17042	17042-AG901	Pump Assy-Fuel
17043	17043-4P000	Support-Pump, Rubber
17065	17065-AG900	Valve Assy-Fuel
17201	17202-AG000	Tank Assy-Fuel
17201	17202-AG005	Tank Assy-Fuel
17201	01121-01051	BOLT
17201	01436-01401	SCREW
17202	74816-AG000	Plug
17202	16439-35F15	Clamp
17225	17225-AG000	Grommet-Filler Neck
17225	17225-AG002	Grommet-Filler Neck
17244	17244-AG000	Insulator-Fuel Tank
17244	17244-AG010	Insulator-Fuel Tank
17244	17244-AG012	Insulator-Fuel Tank
17270	17270-AG900	Tube Assy-Fuel Tank Outlet
17285	17285-AG000	Protector-Fuel Tank
17335	17335-0P020	Hose-Breather
17335	17335-CS100	Hose-Breather
17342	17342-AG000	Packing-Fuel Gauge
17351	18792-AG900	Connector-3 Way
17406	17406-AG000	Band Assy-Fuel Tank Mounting
25060	25060-AG901	Sender Unit-Fuel Gauge
831041025	08310-41025	スクリユ-,マシン

Fuel tank (2003-04-01 ~ ; VQ30DET +RB25DET) 27

#	OEM	Part name
17020	01352-00521	GASKET
17020	17561-3H000	Insulator
17020	08740-06039	HOSE-FUEL
17020	08740-14039	HOSE-FUEL
17042	17042-AG901	Pump Assy-Fuel
17043	17043-4P000	Support-Pump, Rubber
17065	17065-AG900	Valve Assy-Fuel
17201	17202-AG000	Tank Assy-Fuel
17201	17202-AG005	Tank Assy-Fuel
17201	01121-01051	BOLT
17201	01436-01401	SCREW
17202	74816-AG000	Plug
17202	16439-35F15	Clamp
17225	17225-AG000	Grommet-Filler Neck
17225	17225-AG002	Grommet-Filler Neck
17244	17244-AG000	Insulator-Fuel Tank
17244	17244-AG010	Insulator-Fuel Tank
17244	17244-AG012	Insulator-Fuel Tank
17270	17270-AG900	Tube Assy-Fuel Tank Outlet
17285	17285-AG000	Protector-Fuel Tank
17335	17335-0P020	Hose-Breather
17335	17335-CS100	Hose-Breather
17342	17342-AG000	Packing-Fuel Gauge
17351	18792-AG900	Connector-3 Way
17406	17406-AG000	Band Assy-Fuel Tank Mounting
25060	25060-AG901	Sender Unit-Fuel Gauge
831041025	08310-41025	スクリユ-,マシン

Gasket & seal kit (automatic) (2001-12-01 ~ ; VQ30DET.AT.F4) 1

#	OEM	Part name
31397	31397-51X91	Gasket & Seal Kit-Auto Transmission

Governor,power train & planetary gear (2001-12-01 ~ ; VQ30DET.AT.F4) 22

#	OEM	Part name
31420	31420-51X04	Carrier Assy-Front Planet
31435	31455-21X00	Bearing-Needle, Thrust
31435	31407-51X04	Bearing-Needle, Thrust
31435	31407-51X01	Bearing-Needle, Thrust
31435	31407-51X05	Bearing-Needle, Thrust
31436	31435-51X01	Race-Bearing
31438	31407-41X05	Bearing-Needle, Thrust
31438	31438-X0100	Bearing-Needle, Thrust
31440	31440-51X04	Carrier Assy-Rear Planet
31450	31450-51X00	Gear Assy-Internal
31460	31460-51X02	Gear Assy-Sun
31469	31469-51X02	Gear-Sun, Rear
31472	31377-51X06	Bolt
31472	31954-X6100	Seal-Oil
31472	31472-51X03	Race-Inner, One Way Clutch
31473	31484-71X00	Clutch Assy-One Way
31475	31487-51X01	Race-Outer, One Way Clutch
31476	31506-51X04	Ring-Snap
31486	31486-55X00	Gear-Parking
31487	31525-41X00	Ring-Seal
31550	31550-51X01	Hub-Clutch, High
31591	31591-51X03	Hub-Overrun Clutch

Head lamp (2001-12-01 ~ ; ハーネスコネクター一覧.; K.(300SV+300ULT)) 4

#	OEM	Part name
26010	26010-CR026	Lamp Assy-Rh
26010	26010-CR326	Lamp Assy-Rh
26010	26392-8V200	Bolt
26060	26060-CR326	Lamp Assy-Lh

Head lamp (2001-12-01 ~ ; ハーネスコネクター一覧; *K) 4

#	OEM	Part name
26010	26010-CR026	Lamp Assy-Rh
26010	26010-CR326	Lamp Assy-Rh
26010	26392-8V200	Bolt
26060	26060-CR326	Lamp Assy-Lh

Head lamp (2001-12-01 ~ ; ｷｾﾉﾝ ﾗﾝﾌﾟ ｸﾞﾛﾘﾔ; *K) 10

#	OEM	Part name
26010	26010-CR026	Lamp Assy-Rh
26010	26010-CR326	Lamp Assy-Rh
26010	26392-8V200	Bolt
26025	26025-CR010	Housing Assy-Head Lamp, Rh
26025	26025-CR310	Housing Assy-Head Lamp, Rh
26060	26060-CR326	Lamp Assy-Lh
26075	26075-CR010	Housing Assy-Head Lamp, Lh
26075	26075-CR310	Housing Assy-Head Lamp, Lh
26243	26243-AG000	Socket Assy
28474	28474-89901	Actuator Assy-Head Lamp

Head lamp (2001-12-01 ~ ; ｷｾﾉﾝ ﾗﾝﾌﾟ ｾﾄﾞﾘｯｸ; *K) 10

#	OEM	Part name
26010	26010-CR026	Lamp Assy-Rh
26010	26010-CR326	Lamp Assy-Rh
26010	26392-8V200	Bolt
26025	26025-CR010	Housing Assy-Head Lamp, Rh
26025	26025-CR310	Housing Assy-Head Lamp, Rh
26060	26060-CR326	Lamp Assy-Lh
26075	26075-CR010	Housing Assy-Head Lamp, Lh
26075	26075-CR310	Housing Assy-Head Lamp, Lh
26243	26243-AG000	Socket Assy
28474	28474-89901	Actuator Assy-Head Lamp

Head lamp (2001-12-01 ~ ; ｷｾﾉﾝ ﾗﾝﾌﾟ. ｸﾞﾛﾘﾔ; K.(300SV+300ULT)) 10

#	OEM	Part name
26010	26010-CR026	Lamp Assy-Rh
26010	26010-CR326	Lamp Assy-Rh
26010	26392-8V200	Bolt
26025	26025-CR010	Housing Assy-Head Lamp, Rh
26025	26025-CR310	Housing Assy-Head Lamp, Rh
26060	26060-CR326	Lamp Assy-Lh
26075	26075-CR010	Housing Assy-Head Lamp, Lh
26075	26075-CR310	Housing Assy-Head Lamp, Lh
26243	26243-AG000	Socket Assy
28474	28474-89901	Actuator Assy-Head Lamp

Head lamp (2001-12-01 ~ ; ｷｾﾉﾝ ﾗﾝﾌﾟ. ｾﾄﾞﾘｯｸ; K.(300SV+300ULT)) 10

#	OEM	Part name
26010	26010-CR026	Lamp Assy-Rh
26010	26010-CR326	Lamp Assy-Rh
26010	26392-8V200	Bolt
26025	26025-CR010	Housing Assy-Head Lamp, Rh
26025	26025-CR310	Housing Assy-Head Lamp, Rh
26060	26060-CR326	Lamp Assy-Lh
26075	26075-CR010	Housing Assy-Head Lamp, Lh
26075	26075-CR310	Housing Assy-Head Lamp, Lh
26243	26243-AG000	Socket Assy
28474	28474-89901	Actuator Assy-Head Lamp

Heater & blower unit (2001-12-01 ~ ; ﾌﾛﾝﾄ ﾋ-ﾀ- (ｱｼｽﾄ); K) 22

#	OEM	Part name
27010	27110-AG001	Heating Unit Assy-Front
27010	27110-AG011	Heating Unit Assy-Front
27010	27110-AG014	Heating Unit Assy-Front
27010	27111-2Y000	Screw
27015	27120-AG001	Case Assy-Front Heater
27015	27120-AR000	Case Assy-Front Heater
27112	27159-AG003	Link Assy-Side
27112	27155-AG001	Link Assy-Side
27118	27781-AG001	Rod
27125	27125-AG001	Duct Assy-Foot
27156	27156-AG001	Lever-Air Mix Door
27156	27137-D4000	Holder-Rod
27165	27111-2Y002	Screw
27168	27168-AG001	Lever-Foot
27169	27169-AG001	Lever Assy-Fresh Vent
27180	27180-AG000	Door-Front Heater
27185	27185-AG001	Door Assy-Foot
27290	27290-AG011	Net
27580	27580-AG000	Harness-Heater
27733	27732-AG001	Actuator Assy-Air Mix
27752	27752-AG001	Bracket-Actuator
27752	27752-AG011	Bracket-Actuator

Heater & blower unit (2001-12-01 ~ ; ﾌﾛﾝﾄ ﾋ-ﾀ- (ｾﾞﾝﾀｲ); K) 9

#	OEM	Part name
27010	27110-AG001	Heating Unit Assy-Front
27010	27110-AG011	Heating Unit Assy-Front
27010	27110-AG014	Heating Unit Assy-Front
27010	27111-2Y000	Screw
27015	27120-AG001	Case Assy-Front Heater
27015	27120-AR000	Case Assy-Front Heater
27115	27140-AR000	Core Assy-Front Heater
27157	27174-AG000	Packing
92580	27289-AG000	Grommet

Heater & blower unit (2001-12-01 ~ ; ﾌﾛﾝﾄ ﾋ-ﾀ- (ﾄﾞﾗｲﾊﾞ-); K) 39

#	OEM	Part name
27010	27110-AG001	Heating Unit Assy-Front
27010	27110-AG011	Heating Unit Assy-Front
27010	27110-AG014	Heating Unit Assy-Front
27010	27111-2Y000	Screw
27015	27120-AG001	Case Assy-Front Heater
27015	27120-AR000	Case Assy-Front Heater
27112	27159-AG002	Link Assy-Side
27112	27159-AG003	Link Assy-Side
27112	27155-AG000	Link Assy-Side
27112	27155-AG001	Link Assy-Side
27115	27140-AR000	Core Assy-Front Heater
27118	27781-AG000	Rod
27118	27781-AG001	Rod
27125	27125-AG005	Duct Assy-Foot
27125	27125-AG001	Duct Assy-Foot
27156	27156-AG000	Lever-Air Mix Door
27156	27156-AG001	Lever-Air Mix Door
27156	27137-D4000	Holder-Rod
27157	27174-AG000	Packing
27165	27165-AG000	Lever-Vent
27167	27167-AG000	Lever-Def
27168	27168-AG000	Lever-Foot
27168	27168-AG001	Lever-Foot
27169	27169-AG000	Lever Assy-Fresh Vent
27169	27169-AG001	Lever Assy-Fresh Vent
27181	27181-AG000	Door Assy-Vent, No.1
27185	27185-AG000	Door Assy-Foot
27185	27185-AG001	Door Assy-Foot
27188	27188-AG000	Door Assy-Def
27580	27580-AG000	Harness-Heater
27727	27727-AG000	Duct-Aspirator
27733	27731-AG000	Actuator Assy-Mode
27733	27732-AG000	Actuator Assy-Air Mix
27733	27732-AG001	Actuator Assy-Air Mix
27752	27752-AG000	Bracket-Actuator
27752	27752-AG010	Bracket-Actuator
27752	27752-AG001	Bracket-Actuator
27752	27752-AG011	Bracket-Actuator
92580	27289-AG000	Grommet

Heater & blower unit (2001-12-01 ~ ; ﾌﾞﾛﾜ- ﾕﾆｯﾄ; K) 14

#	OEM	Part name
27010	27111-2Y000	Screw
27020	27200-AG002	Blower Assy-Front
27021	27235-AR001	Case-Blower
27035	27152-AG000	Seal
27035	27152-AG001	Seal
27035	27152-AG002	Seal
27035	28713-AG000	Seal
27080	27730-AG000	Actuator-Air Intake Box
27238	27238-AG000	Bellmouth-Intake
27245	27245-AG000	Door-Intake Blower, Front
27245	27245-AG001	Door-Intake Blower, Front
27250	27253-AG000	Lever
27250	27253-AG001	Lever
27250	27250-AG000	Lever

Heater piping (2001-12-01 ~ ; K.(VQ25DD+VQ30DD+VQ30DET)) 15

#	OEM	Part name
27183	92402-AG000	Hose-Front Heater, 2
27185	92401-AG000	Hose-Front Heater, 3
27185	27185-AG000	Door Assy-Foot
27185	27185-AG001	Door Assy-Foot
92410	92410-CR000	Hose-Heater, Outlet
92417	92417-4P100	Connector-Heater
92500	92500-4P100	コネクタ-,ヒ-タ- ホ-ス
92500	92500-CR000	Connector-Heater Hose
92521	01555-00181	CLIP
92521	01555-00791	CLAMP
92521	01558-00291	CLIP
92521	01558-00331	CLIP
92521	01558-00211	CLIP
92522	92520-4P100	Clip
92522	92555-CR000	Clip

High mounting stop lamp (2001-12-01 ~ ; K) 7

#	OEM	Part name
26570	26260-85F00	Socket-Stop Lamp
26570	26590-AJ001	Lamp Assy-Stop, High Mounting
26570	26590-AJ011	Lamp Assy-Stop, High Mounting
26570	26590-CR001	Lamp Assy-Stop, High Mounting
26570	26590-CR011	Lamp Assy-Stop, High Mounting
26598	26598-AJ001	Rim-Stop Lamp
26598	26598-CR001	Rim-Stop Lamp

Hood ledge & fitting (2001-12-01 ~ ; フードリッジ; K) 12

#	OEM	Part name
64100	01658-00021	PLUG-RUBBER
64100	01658-01531	PLUG
64100	01658-01511	PLUG
64101	74816-AG010	Plug
64113	64113-AG000	Hoodledge-Upper, Lh
64132	64130-AG000	Hoodledge-Lower, Front Rh
64133	64131-AH100	Hoodledge-Lower, Front Lh
64135	64160-AG000	Bracket-Battery Support
64186	64186-AG000	Reinforce-Hoodledge, Rear Rh
64186	64186-CR900	Reinforce-Hoodledge, Rear Rh
64187	64187-AG000	Reinforce-Hoodledge, Rear Lh
64187	64187-CR900	Reinforce-Hoodledge, Rear Lh

Hood ledge & fitting (2001-12-01 ~ ; プラグ; K) 5

#	OEM	Part name
64100	01658-00021	PLUG-RUBBER
64100	01658-01531	PLUG
64100	01658-01511	PLUG
64101	74816-AG010	Plug
64836	77700-89913	Grommet

Hood lock control (2001-12-01 ~ ; K) 3

#	OEM	Part name
65610	01121-03181	BOLT
65620	65621-AG000	Cable Assy-Hood Lock
65630	65622-4P000	Handle Assy-Hood Lock

Hood panel, hinge & fitting (2001-12-01 ~ ; K) 8

#	OEM	Part name
62840	65829-AG000	Bumper-Hood
65100	65100-CR930	Hood
65430	65470-AG025	Stay Assy-Hood
65430	65471-AG025	Stay Assy-Hood, Lh
65820	65840-AG000	Insulator-Hood
65820	65840-CR910	Insulator-Hood
65850	65820-CR000	Seal-Hood Front
81168201	08116-8201G	Bolt-hexagon

Ignition System (2001-12-01 ~ ; VQ30DET) 6

#	OEM	Part name
22401	22401-1P117	Plug-Spark
22433	22448-CR810	Coil Assy-Ignition
22433	22448-CR815	Coil Assy-Ignition
22433	22433-CR815	Coil Assy-Ignition
22465	22465-CR815	Protector-Ignition Coil
815862033	08158-62033	BOLT

Instrument panel, pad & cluster lid (2001-12-01 ~ ; インスト フィッティング; K) 13

#	OEM	Part name
67870	67870-CR000	Member Assy-Steering
67870	67870-CR010	Member Assy-Steering
68101	68191-51E00	NUT
68120	68120-AG000	Bracket-Meter Panel
68127	68127-AG000	Reinforce-Instrument Side, Upper
68128	68128-AG000	Bracket-Instrument Side
68129	68129-AG000	Reinforce-Instrument Side
68130	01125-00931	SCREW
68162	68174-AG000	Bracket-Glove Box
68170	68170-AG000	Stay Assy-Instrument, Driver
68172	68172-AG000	Stay Assy-Instrument, Assist
68210	01125-03421	BOLT
68600	67844-AG000	Bracket-Hazard

Instrument panel, pad & cluster lid (2001-12-01 ~ ; インストパッド&クラスターリッド; K) 41

#	OEM	Part name
68101	68191-51E00	NUT
68106	68106-CR000	Panel-Instrument Lower, Driver
68106	68106-CR001	Panel-Instrument Lower, Driver
68106	68106-CR010	Panel-Instrument Lower, Driver
68132	68132-AG000	Reinforce-Instrument Panel
68210	96938-3H000	Clip
68241	68241-CR000	Lid-Cluster
68241	68241-CR001	Lid-Cluster
68420	68240-AH304	Lid-Cluster
68420	68240-CR000	Lid-Cluster
68440	98589-4P000	Screw
68470	68470-CR000	Mask-Radio
68475	68475-AG000	Pocket-Deck
68475	68475-AG010	Pocket-Deck
68491	68490-AR002	Mask-Switch Hole
68491	68490-AR203	Mask-Switch Hole
68513	68513-AG000	Damper Assy-Glove Box
68515	68515-AG200	Stopper-Glove Box Lid
68515	68515-AG210	Stopper-Glove Box Lid
68520	68270-AH304	Lid-Cluster
68520	68270-CR000	Lid-Cluster
68551	68551-EQ00A	Pin-glove box
68600	68500-CR000	Box-Glove
68600	68500-CR001	Box-Glove
68600	68500-CR100	Box-Glove
68600	68500-CR101	Box-Glove
68600	67844-AG000	Bracket-Hazard
68620	68643-S0100	Rubber-Stopper Shock
68621	68520-AG000	Cover-Glove Box Lid
68621	68520-CR000	Cover-Glove Box Lid
68630	68630-AH304	Lock Assy-Glove Box Lid
68630	68630-CR000	Lock Assy-Glove Box Lid
68640	68640-AG000	Striker-Glove Box Lid
68830	68830-AG000	Latch
68860	68956-63C00	Clip-Lower Cover
68860	68956-AG000	Clip
68901	68921-AG010	Cover-Instrument Lower, Lh
68960	68960-AH304	Mask-Switch
68960	68960-CR000	Mask-Switch
68965	68964-CR000	Lid-Fuse Block
96501	68800-CR001	アシユトレ-,インストルメント

Key set & blank key (2001-12-01 ~ ; K) 8

#	OEM	Part name
28590	28590-C9916	Ant Assy-Immobiliser
48700	48703-06F00	Screw-Steering Lock
48700	48700-AR026	Lock Set-Steering
48703	48720-AG000	Solenoid Assy-Steering Lock
48750	48750-D4000	Switch-Ignition
80603	80603-AG200	Switch Assy-Door Lock, Lh
84665	84665-CR000	Switch Assy-Trunk Lid Cylinder
851331010	08513-31010	スクリユ-,タツピング

Lamps (others) (2001-12-01 ~ ; K) 3

#	OEM	Part name
26420	26420-AG000	Lamp Assy-Door Step
26590	26470-60U00	Lamp Assy-Trunk Room
26890	26890-89910	Fusee Assy-Red

Licence plate lamp (2001-12-01 ~ ; K) 4

#	OEM	Part name
26510	26510-AG000	Lamp Assy-Licence Plate
26513	26513-AG000	Packing-Lens
26514	26251-AG000	Harness Assy-Licence Lamp
854041690	08540-41690	スクリユ-,タツピング

Lubricating system (2001-12-01 ~ ; VQ30DET) 3

#	OEM	Part name
15010	15010-8J101	Pump Assy-Oil
15050	15050-31U00	Strainer Assy-Oil
15208	15208-7P800	Element Assy-Oil Filter

Manifold (2001-12-01 ~ ; インテーク パーツ; VQ30DET) 6

#	OEM	Part name
14003	14070-31U01	Stud
14003	14070-4P107	Stud
14003	14070-AH110	Stud
14069	14069-31U01	Bolt
14069	14069-4P100	Bolt
14069	14069-4P110	Bolt

Manifold (2001-12-01 ~ ; エキゾースト パーツ; VQ30DET) 17

#	OEM	Part name
14002	14069-82F00	Bolt
14004	14004-4P200	Manifold-Exhaust
14004	14064-31U02	Stud
14004	14064-4P100	Stud
14004	14094-31U00	Nut
14004	14122-AD200	Nut
14008	14012-6P500	Tube-Balance
14008	14031-4P217	Bolt
14008	14031-4P105	Bolt
14018	14014-AG900	Support-Manifold
14036	14036-4P100	Gasket-Exhaust Manifold, A
14069	14069-4P100	Bolt
14069	14069-4P110	Bolt
14330	14330-AG900	Plate-Heat Shield, Sub
16590	16590-AG902	Cover-Exhaust Manifold
16590	16590-AG910	Cover-Exhaust Manifold
16590	16590-4P210	Cover-Exhaust Manifold

Manifold (2001-12-01 ~ ; エンジン カバー パーツ; VQ30DET) 14

#	OEM	Part name
14003	14070-AH110	Stud
14005	14041-CR801	Cover-Intake Manifold Collector
14008	14031-4P217	Bolt
14008	14031-4P105	Bolt
14013	14010-AG905	Collector-Intake Manifold
14013	14010-AG900	Collector-Intake Manifold
14041	16566-2Y500	Retainer
14041	16557-2Y500	Grommet
14049	14049-AG901	Bracket-Ornament
14049	14049-AG000	Bracket-Ornament
14372	14372-4M500	Nut
815661228	08156-61228	Bolt-hexagon
891120637	08911-20637	ナツト,ヘクサゴン
891820610	08918-20610	ナツト,ヘクサゴン

Member (2001-12-01 ~ ; K) 16

#	OEM	Part name
51150	51150-AG000	Hook-Rear Tie Down
74802	75110-AR030	Member-Side, Front Rh
74803	75101-CR030	Member-Side, Front Lh
74803	75111-AR030	Member-Side, Front Lh
74842	75508-CR010	Member-Side, Rear Rh
74842	75520-CR000	Extension-Side Member, Rear Rh
74843	75509-AG000	Member-Side, Rear Lh
74843	75521-AG000	Extension-Side Member, Rear Lh
75130	75132-AG000	Plate-Closing, Side Member Front Rh
75131	75131-CR000	Plate-Closing, Front Side Member Lh
75131	75133-AG000	Plate-Closing, Side Member Front Lh
75260	67406-AG000	Outrigger Assy-Side Member, Rh
75261	67407-AR000	Outrigger Assy-Side Member, Lh
75650	75650-AG000	Member Assy-Rear Cross Center
75921	75151-AG000	Bracket-Front Suspension Mounting, Lh
81570201	08157-0201F	BOLT

Nozzle & duct (2001-12-01 ~ ; ﾌﾛﾝﾄ; K) 4

#	OEM	Part name
27670	27860-AG002	Duct-Ventilator, Center
27800	27800-AG000	Nozzle-Defrostor
27810	27810-AG000	Nozzle-Side Defroster Driver
27811	27811-AG000	Nozzle-Side Defroster Assist

Nozzle & duct (2001-12-01 ~ ; ﾘﾔ; K) 16

#	OEM	Part name
27055	27111-2Y002	Screw
27055	27111-2Y000	Screw
27164	27156-AG010	Lever
27171	27830-AG000	Duct-Heater
27171	27830-CR000	Duct-Heater
27172	27832-AG000	Duct-Heater Floor, Rear Rh
27173	27833-AG000	Duct-Heater Floor, Rear Lh
27174	27931-AG003	Duct-Heater Floor
27174	01281-00601	GROMMET-SCREW
27288	27288-AG000	Insulator
27750	27175-AG010	Bracket
27765	27835-AR200	Plug-Blind
27831	27831-AG000	Duct-Heater Floor 2Nd
27840	27840-AR002	Nozzle-Heater
27840	27840-AR003	Nozzle-Heater
27841	27841-AR002	Nozzle-Heater, Assist

Oil cooler (2001-12-01 ~ ; VQ30DET) 9

#	OEM	Part name
21304	21304-JA11A	Ring-Rubber
21305	21305-4P200	Cooler Assy-Oil
21305	21313-43U00	Stud-Oil Cooler
21305	21606-AG505	Cooler Assy-Oil
21308	92431-G5405	Hose-Rear Heater, 2
21308	21307-AG900	Hose-Water
21308	21306-4P202	Hose-Water
21308	16439-17B00	Clip
81568161	08156-8161E	ボルト

Oil pump (2001-12-01 ~ ; VQ30DET.AT.F4) 28

#	OEM	Part name
31334	31377-31X00	Bolt
31340	31340-55X00	Pump Assy-Oil
31341	31341-4AX00	Housing Assy-Oil Pump
31341	31341-4AX01	Housing Assy-Oil Pump
31344	31375-4AX00	Seal-Oil Pump Housing
31346	31346-4AX03	Gear-Inner, Oil Pump
31347	31347-4AX00	Gear-Outer, Oil Pump
31350	31350-55X00	Cover Assy-Oil Pump
31361	31361-21X00	Ring-Seal
31362	31558-21X00	Ring-Seal
31362	31526-41X01	Seal-O Ring
31362	31526-41X12	Seal-O Ring
31366	31366-41X03	Gasket-Oil Pump
31375	31308-41X01	Pin-Knock
31528	31528-21X01	Washer-Thrust
31528	31528-21X02	Washer-Thrust
31528	31528-21X03	Washer-Thrust
31528	31528-21X04	Washer-Thrust
31528	31528-21X05	Washer-Thrust
31528	31528-21X06	Washer-Thrust
31555	31407-41X07	Bearing-Needle, Thrust
31556	31435-41X01	Race-Bearing
31556	31435-41X02	Race-Bearing
31556	31435-41X03	Race-Bearing
31556	31435-41X04	Race-Bearing
31556	31435-41X05	Race-Bearing
31556	31435-41X06	Race-Bearing
31556	31435-41X07	Race-Bearing

Parking brake control (2001-12-01 ~ 2002-01-01; VQ25DD +VQ30DD +VQ30DET) 14

#	OEM	Part name
36010	36385-18000	Nut
36010	01456-00641	SCREW
36011	36011-4P000	Switch Assy-Parking Brake Lamp
36011	54459-60U06	Bolt
36327	36327-4P012	Cable Assy-Release
36327	36327-CR000	Cable Assy-Release
36402	36402-AG000	Cable Assy-Parking Brake, Front
36402	44042-0P000	Pin-Clevis
36451	36530-AG000	Cable Assy-Brake, Rear Rh
36452	36531-AG000	Cable Assy-Brake, Rear Lh
36518	36057-2Y000	Bush
36534	36554-AG000	Bracket-Parking Brake Cable
36545	36545-0P001	Spring-Return, Parking Brake
81470162	08147-0162G	Bolt-hexagon

Parking brake control (2002-01-01 ~ ; VQ25DD +VQ30DD +VQ30DET) 14

#	OEM	Part name
36010	36385-18000	Nut
36010	01456-00641	SCREW
36011	36011-4P000	Switch Assy-Parking Brake Lamp
36011	54459-60U06	Bolt
36327	36327-4P012	Cable Assy-Release
36327	36327-CR000	Cable Assy-Release
36402	36402-AG000	Cable Assy-Parking Brake, Front
36402	44042-0P000	Pin-Clevis
36451	36530-AG000	Cable Assy-Brake, Rear Rh
36452	36531-AG000	Cable Assy-Brake, Rear Lh
36518	36057-2Y000	Bush
36534	36554-AG000	Bracket-Parking Brake Cable
36545	36545-0P001	Spring-Return, Parking Brake
81470162	08147-0162G	Bolt-hexagon

Piston,crankshaft & flywheel (2001-12-01 ~ ; ベアリング選択基準; VQ30DET) 16

#	OEM	Part name
12207	12207-31U10	Bearing-Crankshaft
12207	12207-31U11	Bearing-Crankshaft
12207	12207-31U12	Bearing-Crankshaft
12207	12207-31U13	Bearing-Crankshaft
12207	12207-31U14	Bearing-Crankshaft
12207	12207-31U15	Bearing-Crankshaft
12207	12207-31U16	Bearing-Crankshaft
12207	12207-31U17	Bearing-Crankshaft
12207	12207-AG010	Bearing-Crankshaft
12207	12207-AG011	Bearing-Crankshaft
12207	12207-AG012	Bearing-Crankshaft
12207	12207-AG013	Bearing-Crankshaft
12207	12207-AG014	Bearing-Crankshaft
12207	12207-AG015	Bearing-Crankshaft
12207	12207-AG016	Bearing-Crankshaft
12207	12208-31U25	Bearing Set-Crankshaft

Piston,crankshaft & flywheel (2001-12-01 ~ ; メインメタル選択基準; VQ30DET) 16

#	OEM	Part name
12207	12207-31U10	Bearing-Crankshaft
12207	12207-31U11	Bearing-Crankshaft
12207	12207-31U12	Bearing-Crankshaft
12207	12207-31U13	Bearing-Crankshaft
12207	12207-31U14	Bearing-Crankshaft
12207	12207-31U15	Bearing-Crankshaft
12207	12207-31U16	Bearing-Crankshaft
12207	12207-31U17	Bearing-Crankshaft
12207	12207-AG010	Bearing-Crankshaft
12207	12207-AG011	Bearing-Crankshaft
12207	12207-AG012	Bearing-Crankshaft
12207	12207-AG013	Bearing-Crankshaft
12207	12207-AG014	Bearing-Crankshaft
12207	12207-AG015	Bearing-Crankshaft
12207	12207-AG016	Bearing-Crankshaft
12207	12208-31U25	Bearing Set-Crankshaft

Piston,crankshaft & flywheel (2001-12-01 ~ ; 主運動部; VQ30DET) 35

#	OEM	Part name
12030	12030-AQ800	Bush-Piston Pin
12032	12032-F6500	Ring-Snap
12033	12033-47U03	Ring Set-Piston
12033	12035-47U03	Ring Set-Piston
12100	12100-AQ800	Rod Compl-Connecting
12100	12100-AQ801	Rod Compl-Connecting
12109	12109-4W001	Bolt-Connecting Rod
12109	12109-4W002	Bolt-Connecting Rod
12111	12111-4P110	Bearing-Connecting Rod
12111	12111-4P10B	Bearing-Connecting Rod
12111	12111-4P111	Bearing-Connecting Rod
12111	12111-4P112	Bearing-Connecting Rod
12111	12117-4P110	Bearing-Connecting Rod
12200	12200-4P120	Crankshaft Assy
12207	12207-31U10	Bearing-Crankshaft
12207	12207-31U11	Bearing-Crankshaft
12207	12207-31U12	Bearing-Crankshaft
12207	12207-31U13	Bearing-Crankshaft
12207	12207-31U14	Bearing-Crankshaft
12207	12207-31U15	Bearing-Crankshaft
12207	12207-31U16	Bearing-Crankshaft
12207	12207-31U17	Bearing-Crankshaft
12207	12207-AG010	Bearing-Crankshaft
12207	12207-AG011	Bearing-Crankshaft
12207	12207-AG012	Bearing-Crankshaft
12207	12207-AG013	Bearing-Crankshaft
12207	12207-AG014	Bearing-Crankshaft
12207	12207-AG015	Bearing-Crankshaft
12207	12207-AG016	Bearing-Crankshaft
12207	12208-31U25	Bearing Set-Crankshaft
12208	12280-31U10	Washer-Thrust
12209	12281-31U10	Washer-Thrust, Lower
12303	12309-31U0A	Bolt-Pulley, Crankshaft
12303	12309-31U0B	Bolt-Pulley, Crankshaft
12331	12331-4W000	Plate Assy-Drive & Gear

Power steering gear (2001-12-01 ~ ; VQ25DD +VQ30DD +VQ30DET.AT.F4) 26

#	OEM	Part name
48203	48204-5Y025	Boot Kit-Power Steering Gear
49001	49001-CR000	Gear & Linkage-Power Steering
49011	49297-AG027	Seal Kit-Rack, Power Steering Gear
49011	49297-CD425	Seal Kit-Rack, Power Steering Gear
49200	49200-CR000	Gear Assy-Power Steering
49200	49200-CR010	Gear Assy-Power Steering
49203	48054-AA000	Clamp-Boot
49210	49210-CR000	Gear Sub Assy-Power Steering
49262	49359-AA000	O-Ring Seal
49262	49359-CA000	Seal-O Ring
49271	49271-AG000	Rack Assy-Power Steering
49311	49311-AG001	Housing & Cylinder Assy-Power Steering
49311	49311-CR010	Housing & Cylinder Assy-Power Steering
49311	49366-AA000	Bolt-Housing
49369	49369-4M401	Cap-Rear Cover
49369	49369-8N000	Cap-Rear Cover
49520	49520-AL500	Cover Assy-Cylinder End
49520	48520-0P725	Socket Kit-Tie Rod, Outer
49521	48521-AG026	Socket Kit-Tie Rod, Inner
49521	48521-AG185	Socket Kit-Tie Rod, Inner
49541	49541-AG001	Tube Assy-Cylinder
49541	49541-CR010	Tube Assy-Cylinder
49542	49542-AG001	Tube Assy-Cylinder
49542	49542-CR010	Tube Assy-Cylinder
49731	49732-D0300	Clip
89118441	08911-8441A	ナツト,ヘクサゴン

Power steering gear (2001-12-01 ~ ; VQ30DET.CVT) 26

#	OEM	Part name
48203	48204-5Y025	Boot Kit-Power Steering Gear
49001	49001-CR500	Gear & Linkage-Power Steering
49011	49297-AG027	Seal Kit-Rack, Power Steering Gear
49011	49297-CD425	Seal Kit-Rack, Power Steering Gear
49200	49200-CR010	Gear Assy-Power Steering
49200	49200-CR500	Gear Assy-Power Steering
49203	48054-AA000	Clamp-Boot
49210	49210-CR500	Gear Sub Assy-Power Steering
49262	49359-AA000	O-Ring Seal
49262	49359-CA000	Seal-O Ring
49271	49271-AG000	Rack Assy-Power Steering
49311	49311-AG000	Housing & Cylinder Assy-Power Steering
49311	49311-CR010	Housing & Cylinder Assy-Power Steering
49311	49366-AA000	Bolt-Housing
49369	49369-4M401	Cap-Rear Cover
49369	49369-8N000	Cap-Rear Cover
49520	49520-AL500	Cover Assy-Cylinder End
49520	48520-0P725	Socket Kit-Tie Rod, Outer
49521	48521-AG026	Socket Kit-Tie Rod, Inner
49521	48521-AG185	Socket Kit-Tie Rod, Inner
49541	49541-CR010	Tube Assy-Cylinder
49541	49541-CR500	Tube Assy-Cylinder
49542	49542-CR010	Tube Assy-Cylinder
49542	49542-CR500	Tube Assy-Cylinder
49731	49732-D0300	Clip
89118441	08911-8441A	ナツト,ヘクサゴン

Power steering piping (2001-12-01 ~ ; VQ25DD +VQ30DD +VQ30DET) 23

#	OEM	Part name
49020	49738-4W000	Bolt
49125	49191-AG000	Bracket-Reservoir Tank
49719	49790-CR000	Tube Assy-Power Steering
49722	49720-CR000	Hose & Tube Assy-Pressure, Ps
49723	49721-CR000	Hose & Tube Assy-Power Steering
49725	49725-CR000	Hose-Return, Power Steering
49725	49725-CR005	Hose-Return, Power Steering
49728	49728-55S00	Collar
49728	49728-55S0A	Collar-Insulator
49729	49729-2J001	Clamp
49729	49729-2J016	Clamp
49730	49730-AG010	Bracket-Tube
49730	49730-AG002	Bracket-Tube
49730	49730-AG004	Bracket-Tube
49732	49732-79912	Clamp
49732	49732-AG000	Clamp
49733	49733-79900	Insulator
49733	49733-5L700	Insulator
49733	49733-01J60	Insulator
49763	49763-6N200	Sensor Assy-Pressure, Power Steering
49791	49791-28E00	CLIP
81566252	08156-6252F	Bolt-hexagon
83636125	08363-6125B	Bolt

Power steering pump (2001-12-01 ~ ; VQ25DD +VQ30DD +VQ30DET) 17

#	OEM	Part name
49110	49110-AH410	Pump Assy-Power Steering
49110	49591-6C925	Seal Kit-Power Steering Pump
49111	49132-AG025	Pulley Kit-Power Steering Pump
49116	49116-7P900	Cover-Rear, Power Steering Pump
49121	49121-4W000	Bracket Assy-Power Steering Pump
49121	49121-4W00A	Bracket Assy-Power Steering Pump
49140	49140-AG000	Rotor & Camring Set-Power Steering Pump
49144	49144-4U000	Plate-Side, Power Steering Pump
49144	49144-6C910	Plate-Side, Power Steering Pump
49148	49148-6C900	Pin-Camring, Power Steering Pump
49149	49149-4M409	Bolt-Bracket, Power Steering Pump
49149	49164-6C900	Bolt-Power Steering Pump
49160	49165-6C900	Valve Assy-Flow Control
49160	49168-AG200	Valve Assy-Flow Control
49161	49161-AG200	Connector-Inlet
49162	49167-6C900	Spring-Flow Control Valve
49162	49162-6C900	Seal-Inlet Connector

Power steering pump mounting (2001-12-01 ~ ; K.VQ30DET) 5

#	OEM	Part name
11940	11940-8P300	Bracket-Power Steering Oil Pump
11940	11940-8P30A	Bracket-Power Steering Oil Pump
11942	11916-4W011	Bolt
11942	11916-4W010	Bolt
11942	11916-4P103	Bolt

Propeller shaft (2001-12-01 ~ ; VQ30DET) 16

#	OEM	Part name
37000	37000-AG900	Shaft Assy-Propeller
37000	37000-AH011	Shaft Assy-Propeller
37000	37120-4P000	Bolt-Fix Propeller Shaft
37000	37120-4P00A	Bolt-Fix Propeller Shaft
37000	37120-AR500	Bolt-Fix Propeller Shaft
37000	37120-AH000	Bolt-Fix Propeller Shaft
37000	37171-0P000	Nut-Fix Propeller Shaft
37000	37171-0P00A	Nut-Fix Propeller Shaft
37000	37171-AH000	Nut-Fix Propeller Shaft
37000	37171-AL600	Nut-Fix Propeller Shaft
37000	37121-30P00	Washer-Lock
37000	37121-AH000	Washer-Lock
37511	37511-70T00	Bracket-Center Bearing
37511	37511-AH000	Bracket-Center Bearing
37512	37512-AH000	Bracket-Center Bearing
37521	37521-7P025	Bearing Kit-Center

Radiator, shroud & fitting (2001-12-01 ~ ; フィッティングパーツ; VQ30DET.AT.F4) 11

#	OEM	Part name
21400	64835-6P010	Bush-Rubber
21430	21430-7999C	Cap Assy-Radiator
21435	21435-89960	Label-Caution, Radiator
21501	01558-00261	CLAMP-HOSE
21501	01558-00731	CLAMP-HOSE
21503	01558-00181	CLAMP-HOSE
21510	21710-CR000	Tank Assy-Reserve
21510	01456-00451	SCREW
21515	21750-15U01	Clamp-Hose
21518	21745-AG000	Bracket Assy-Reserve
21631	21632-AG000	Hose-Auto Transmission Oil Cooler

Radiator, shroud & fitting (2001-12-01 ~ ; フィッティングパーツ; VQ30DET.CVT) 9

#	OEM	Part name
21400	64835-6P010	Bush-Rubber
21430	21430-7999C	Cap Assy-Radiator
21435	21435-89960	Label-Caution, Radiator
21501	01558-00261	CLAMP-HOSE
21501	01558-00731	CLAMP-HOSE
21510	21710-CR000	Tank Assy-Reserve
21510	01456-00451	SCREW
21515	21750-15U01	Clamp-Hose
21518	21745-AG000	Bracket Assy-Reserve

Radiator, shroud & fitting (2001-12-01 ~ ; ラジエーター; VQ30DET.AT.F4) 4

#	OEM	Part name
21400	64835-6P010	Bush-Rubber
21408	21411-AG917	Core Assy-Radiator
21412	21412-4P000	Tank-Radiator, Upper
21488	21496-6P020	Seal-Radiator Upper

Radiator, shroud & fitting (2001-12-01 ~ ; ラジエーター; VQ30DET.CVT) 4

#	OEM	Part name
21400	64835-6P010	Bush-Rubber
21408	21411-AG917	Core Assy-Radiator
21412	21412-4P000	Tank-Radiator, Upper
21488	21496-6P020	Seal-Radiator Upper

Radiator, shroud & fitting (2001-12-01 ~ ; ｼｭﾗｳﾄﾞ; VQ30DET.AT.F4) 3

#	OEM	Part name
21400	64835-6P010	Bush-Rubber
92122	92122-6P010	Motor-Condenser
92123	92123-CR000	シユラウド,コンデンサ-

Radiator, shroud & fitting (2001-12-01 ~ ; ｼｭﾗｳﾄﾞ; VQ30DET.CVT) 3

#	OEM	Part name
21400	64835-6P010	Bush-Rubber
92122	92122-6P010	Motor-Condenser
92123	92123-CR000	シユラウド,コンデンサ-

Rear axle (2001-12-01 ~ ; VQ25DD +VQ30DD +VQ30DET) 6

#	OEM	Part name
43052	43018-AG010	Housing-Rear Axle, Rh
43052	56219-AG000	Bush
43052	55148-AG000	Bush
43053	43019-AG010	Housing-Rear Axle, Lh
43207	43206-AG915	Rotor-Disc Brake, Rear
43222	43222-5V200	Bolt-Hub

Rear brake (2001-12-01 ~ ; ﾃﾞｨｽｸ ﾌﾞﾚｰｷ; VQ30DET +RB25DET) 3

#	OEM	Part name
44001	44001-AG000	Caliper Assy-Rear Rh, W/o Pads Or Shims
44011	44011-AG000	Caliper Assy-Rear Lh, W/o Pads Or Shims
44139	44140-5L300	Pin-Slide

Rear brake (2001-12-01 ~ ; ﾊﾟｰｷﾝｸﾞ ﾌﾞﾚｰｷ; VQ30DET +RB25DET) 15

#	OEM	Part name
44020	44020-AG000	Plate Assy-Back, Rear Brake Rh
44020	55259-AG000	Bolt
44030	44030-AG000	Plate Assy-Back, Rear Brake Lh
44042	44042-0P010	Pin
44051	44050-AG001	Lever-Toggle, Lh
44081	44081-AG000	Pin-Anti Shoe Rattle
44083	44083-AG001	Spring-Anti Shoe Rattle
44084	44084-01A00	Retainer-Spring, Anti Shoe Rattle
44090	44090-AG000	Spring-Return, Rear Brake Shoe
44091	44091-AG000	Spring-Return, Rear Brake Shoe
44152	44203-AG000	Sleeve-Adjuster
44200	44201-V0310	Nut-Adjuster
44202	44202-AG000	Screw-Adjuster
81108161	08110-8161C	Bolt-hexagon
92250400	00922-50400	CLAMP-CABLE

Rear bumper (2001-12-01 ~ ; 標準; K) 1

#	OEM	Part name
85080	85099-AG001	Grommet-Screw

Rear door lock & handle (2001-12-01 ~ ; K) 18

#	OEM	Part name
82502	82502-AG210	Lock Assy-Rear Door, Rh
82503	82503-AG210	Lock Assy-Rear Door, Lh
82512	01413-00091	SCREW
82512	80599-AX000	Screw
82512	82506-AG000	Rod-Rear Door Inside Handle, Rh
82547	82512-AG000	Rod-Lock Knob, Rh
82548	82513-AG000	Rod-Lock Knob, Lh
82562	82562-AG100	Cover-Rear Door Lock, Rh
82605	82606-AG000	Handle Assy-Rear Door Outside, Rh
82606	82607-AG000	Handle Assy-Rear Door Outside, Lh
82608	82608-AG000	Rod Assy-Outside Handle, Rear Rh
82609	82609-AG000	Rod Assy-Outside Handle, Rear Lh
82670	80670-AG000	Handle Assy-Rear Door Inside, Rh
82671	80671-AG000	Handle Assy-Door Inside, Lh
82673	80684-5L302	Escutcheon-Inside Handle, Rh
82673	80684-CR900	Escutcheon-Inside Handle, Rh
82674	80685-5L302	Escutcheon-Inside Handle, Lh
831341625	08313-41625	Болт

Rear door panel & fitting (2001-12-01 ~ ; K) 30

#	OEM	Part name
82101	82864-AG000	Insulator
82101	82865-AG000	Insulator
82253	01121-07261	BOLT
82344	80344-4P011	Stabilizer-Door Inner
82400	01121-01601	BOLT
82400	80498-40U00	Bolt
82400	80498-40U0B	Bolt
82400	80497-40U00	Nut-Spping
82400	82400-AG000	Hinge Assy-Rear Door
82400	82401-AG000	Hinge Assy-Rear Door
82400	82420-AG000	Hinge Assy-Rear Door
82400	82421-AG000	Hinge Assy-Rear Door
82430	82430-AG000	Check Link Assy-Rear Door, Rh
82820	82820-AG000	Moulding-Rear Door Outside, Rh
82820	82820-CR001	Moulding-Rear Door Outside, Rh
82820	82820-CR100	Moulding-Rear Door Outside, Rh
82820	82820-CR101	Moulding-Rear Door Outside, Rh
82821	82821-AG000	Moulding-Rear Door Outside, Lh
82821	82821-CR001	Moulding-Rear Door Outside, Lh
82821	82821-CR100	Moulding-Rear Door Outside, Lh
82821	82821-CR101	Moulding-Rear Door Outside, Lh
82821	01454-00311	SCREW
82824	80850-89907	Clip-Weatherstrip
82824	80850-89901	Clip-Weatherstrip
82824	80850-89900	Clip-Weatherstrip
82830	82830-AG000	Weatherstrip-Rear Door, Rh
82831	82831-AG000	Weatherstrip-Rear Door, Lh
82834	82834-AG000	Weatherstrip-Rear Door Inside, Rh
82840	82840-AG000	Cover-Child Lock Lever
81468121	08146-8121G	Bolt-hexagon

Rear door trimming (2001-12-01 ~ ; K) 41

#	OEM	Part name
82682	82682-CR000	Escutcheon-Rear Door Inside Handle, Rh
82682	82682-CR010	Escutcheon-Rear Door Inside Handle, Rh
82682	82682-CR100	Escutcheon-Rear Door Inside Handle, Rh
82682	82682-CR110	Escutcheon-Rear Door Inside Handle, Rh
82683	82683-CR000	Escutcheon-Rear Door Inside Handle, Lh
82683	82683-CR010	Escutcheon-Rear Door Inside Handle, Lh
82683	82683-CR200	Escutcheon-Rear Door Inside Handle, Lh
82683	82683-CR210	Escutcheon-Rear Door Inside Handle, Lh
82900	82900-CR000	Finisher Assy-Rear Door, Rh
82900	82900-CR001	Finisher Assy-Rear Door, Rh
82900	82900-CR005	Finisher Assy-Rear Door, Rh
82900	82900-CR006	Finisher Assy-Rear Door, Rh
82900	82900-CR101	Finisher Assy-Rear Door, Rh
82900	82900-CR106	Finisher Assy-Rear Door, Rh
82900	82900-CR205	Finisher Assy-Rear Door, Rh
82900	82900-CR300	Finisher Assy-Rear Door, Rh
82900	82900-CR301	Finisher Assy-Rear Door, Rh
82900	82900-CR306	Finisher Assy-Rear Door, Rh
82900	82900-CR400	Finisher Assy-Rear Door, Rh
82900	82900-CR405	Finisher Assy-Rear Door, Rh
82900	01553-09791	CLIP-FINISHER
82901	82901-CR000	Finisher Assy-Rear Door, Lh
82901	82901-CR001	Finisher Assy-Rear Door, Lh
82901	82901-CR005	Finisher Assy-Rear Door, Lh
82901	82901-CR006	Finisher Assy-Rear Door, Lh
82901	82901-CR101	Finisher Assy-Rear Door, Lh
82901	82901-CR106	Finisher Assy-Rear Door, Lh
82901	82901-CR205	Finisher Assy-Rear Door, Lh
82901	82901-CR300	Finisher Assy-Rear Door, Lh
82901	82901-CR301	Finisher Assy-Rear Door, Lh
82901	82901-CR306	Finisher Assy-Rear Door, Lh
82901	82901-CR400	Finisher Assy-Rear Door, Lh
82901	82901-CR405	Finisher Assy-Rear Door, Lh
82956	82956-AG000	Bracket-Rear Door Grip, Rh
82957	82957-AG000	Bracket-Rear Door Grip, Lh
82960	82960-AH604	Finisher-Power Window Switch, Rear Rh
82960	82960-CR000	Finisher-Power Window Switch, Rear Rh
82961	82961-AH604	Finisher-Power Window Switch, Rear Lh
82961	82961-CR000	Finisher-Power Window Switch, Rear Lh
96522	96522-AG010	ケ-ス アツセンブリ-,アツシユトレイ rh
96523	96523-AG010	ケ-ス アツセンブリ-,アツシユトレイ lh

Rear door window & regulator (2001-12-01 ~ ; K) 24

#	OEM	Part name
80394	80394-AG201	Lamp Assy-Glass Edge
82214	82214-AG000	Guide Channel-Rear Door Window, Rh
82215	82215-AG000	Guide Channel-Rear Door Window, Lh
82240	80340-4P012	Guide Rail-Door Window, Rear Rh
82241	80341-4P012	Guide Rail-Door Window, Rear Lh
82300	82300-AG201	Glass Assy-Rear Door Window, Rh
82300	82300-AG300	Glass Assy-Rear Door Window, Rh
82301	82301-AG201	Glass Assy-Rear Door Window, Lh
82301	82301-AG300	Glass Assy-Rear Door Window, Lh
82302	80252-S0600	Nut
82302	80392-70T00	Washer-Window Glass
82302	82322-70T00	Washer-Window Glass
82311	80722-0V010	Stopper-Door Glass
82311	80722-CR000	Stopper-Door Glass
82311	80327-40Y00	Stopper-Door Glass
82311	80390-5L300	Bush-Window Glass
82700	82720-AG013	Regulator Assy-Door Window, Rh
82701	82721-AG013	Regulator Assy-Door Window, Lh
82710	82240-AG000	Guide Assy-Door Window Regulator, Rh
82752	82730-AG010	Motor Assy-Regulator, Rh
82753	82731-AG010	Motor Assy-Regulator, Lh
82753	82731-AG011	Motor Assy-Regulator, Lh
831061262	08310-61262	スクリユ-,マシン
891553610	08915-53610	WASHER-LOCK

Rear drive shaft (2001-12-01 ~ ; 右側; VQ30DET.AT.F4) 12

#	OEM	Part name
39209	39209-2U600	Grease
39600	39600-CR400	Shaft Assy-Rear Drive
39600	39606-22P00	Bolt
39600	39607-03P00	Nut
39600	39735-03P00	Ring-Stopper
39604	39704-0P550	Shaft-Rear Drive, Rh
39611	39211-0P500	Joint Assy-Outer
39616	39716-88G00	Plug-Slide Joint
39626	39711-AR402	Joint Assy-Inner
39634	39234-31G00	Circlip-Drive Shaft
39654	39708-73L00	Ring-Snap
39658	39242-03P05	Band-Rubber Boot, Shaft

Rear drive shaft (2001-12-01 ~ ; 右側; VQ30DET.CVT) 13

#	OEM	Part name
39600	39600-0P500	Shaft Assy-Rear Drive
39600	39600-AG500	Shaft Assy-Rear Drive
39600	39606-22P00	Bolt
39600	39607-03P00	Nut
39600	39735-03P00	Ring-Stopper
39604	39704-0P550	Shaft-Rear Drive, Rh
39604	39704-17U50	Shaft-Rear Drive, Rh
39611	39211-0P500	Joint Assy-Outer
39616	39716-88G00	Plug-Slide Joint
39626	39711-73L02	Joint Assy-Inner
39634	39234-31G00	Circlip-Drive Shaft
39654	39708-73L00	Ring-Snap
39658	39242-03P05	Band-Rubber Boot, Shaft

Rear drive shaft (2001-12-01 ~ ; 左側; VQ30DET.AT.F4) 12

#	OEM	Part name
39209	39209-2U600	Grease
39600	39606-22P00	Bolt
39600	39607-03P00	Nut
39600	39735-03P00	Ring-Stopper
39601	39601-CR400	Shaft Assy-Rear Drive, Lh
39605	39705-0P500	Shaft-Rear Drive, Lh
39611	39211-0P500	Joint Assy-Outer
39616	39716-88G00	Plug-Slide Joint
39626	39711-AR402	Joint Assy-Inner
39634	39234-31G00	Circlip-Drive Shaft
39654	39708-73L00	Ring-Snap
39658	39242-03P05	Band-Rubber Boot, Shaft

Rear drive shaft (2001-12-01 ~ ; 左側; VQ30DET.CVT) 13

#	OEM	Part name
39600	39606-22P00	Bolt
39600	39607-03P00	Nut
39600	39735-03P00	Ring-Stopper
39601	39601-0P500	Shaft Assy-Rear Drive, Lh
39601	39601-6P600	Shaft Assy-Rear Drive, Lh
39605	39705-0P550	Shaft-Rear Drive, Lh
39605	39705-6P650	Shaft-Rear Drive, Lh
39611	39211-0P500	Joint Assy-Outer
39616	39716-88G00	Plug-Slide Joint
39626	39711-73L02	Joint Assy-Inner
39634	39234-31G00	Circlip-Drive Shaft
39654	39708-73L00	Ring-Snap
39658	39242-03P05	Band-Rubber Boot, Shaft

Rear fender & fitting (2001-12-01 ~ ; K) 4

#	OEM	Part name
76793	76793-AG000	Bracket-Harness Clip, Lh
78110	78100-AG030	Fender-Rear, Rh
78111	78101-AG030	Fender-Rear, Lh
78815	78836-AG000	Spring-Fuel Filler

Rear final drive (2001-12-01 ~ ; 2ピニオン; VQ30DET) 100

#	OEM	Part name
38100	38100-11T60	Gear Set-Final Drive
38100	38100-0C660	Gear Set-Final Drive
38102	38102-10V00	Bolt-Drive Gear
38120	38120-06P10	Bearing-Drive Pinion, Rear
38120	38120-1321A	Bearing-Drive Pinion, Rear
38125	38128-61001	Washer-Adjust, Drive Pinion Bearing
38125	38132-61001	Washer-Adjust, Drive Pinion Bearing
38125	38133-61001	Washer-Adjust, Drive Pinion Bearing
38125	38136-61001	Washer-Adjust, Drive Pinion Bearing
38125	38137-61001	Washer-Adjust, Drive Pinion Bearing
38125	38138-61001	Washer-Adjust, Drive Pinion Bearing
38125	38139-61001	Washer-Adjust, Drive Pinion Bearing
38140	38140-0C000	Bearing-Drive Pinion, Front
38154	38154-P6017	Washer-Adjust, Drive Pinion
38154	38154-P6018	Washer-Adjust, Drive Pinion
38154	38154-P6019	Washer-Adjust, Drive Pinion
38154	38154-P6020	Washer-Adjust, Drive Pinion
38154	38154-P6021	Washer-Adjust, Drive Pinion
38154	38154-P6022	Washer-Adjust, Drive Pinion
38154	38154-P6023	Washer-Adjust, Drive Pinion
38154	38154-P6024	Washer-Adjust, Drive Pinion
38154	38154-P6025	Washer-Adjust, Drive Pinion
38154	38154-P6028	Washer-Adjust, Drive Pinion
38154	38154-P6029	Washer-Adjust, Drive Pinion
38154	38154-P6030	Washer-Adjust, Drive Pinion
38154	38154-P6031	Washer-Adjust, Drive Pinion
38154	38154-P6032	Washer-Adjust, Drive Pinion
38154	38154-P6033	Washer-Adjust, Drive Pinion
38154	38154-P6034	Washer-Adjust, Drive Pinion
38154	38154-P6035	Washer-Adjust, Drive Pinion
38154	38154-P6036	Washer-Adjust, Drive Pinion
38154	38154-0C000	Washer-Adjust, Drive Pinion
38154	38154-0C001	Washer-Adjust, Drive Pinion
38154	38154-0C002	Washer-Adjust, Drive Pinion
38154	38154-0C004	Washer-Adjust, Drive Pinion
38154	38154-0C005	Washer-Adjust, Drive Pinion
38154	38154-0C006	Washer-Adjust, Drive Pinion
38154	38154-0C007	Washer-Adjust, Drive Pinion
38154	38154-0C008	Washer-Adjust, Drive Pinion
38154	38154-0C009	Washer-Adjust, Drive Pinion
38154	38154-0C010	Washer-Adjust, Drive Pinion
38154	38154-0C011	Washer-Adjust, Drive Pinion
38154	38154-0C012	Washer-Adjust, Drive Pinion
38154	38154-0C013	Washer-Adjust, Drive Pinion
38154	38154-0C014	Washer-Adjust, Drive Pinion
38154	38154-0C015	Washer-Adjust, Drive Pinion
38165	38165-B4003	Spacer-Drive Pinion Bearing
38165	38165-B4004	Spacer-Drive Pinion Bearing
38165	38165-0C010	Spacer-Drive Pinion Bearing
38189	38189-N3111	Seal-Oil, Drive Pinion
38189	38189-P0116	Seal-Oil, Drive Pinion
38210	38210-10M17	Flange Assy-Companion
38210	38210-21G15	Flange Assy-Companion
38210	38216-U3000	Nut
38210	38216-U301A	Nut-Drive Pinion
38210	47960-AG060	Bracket-Sensor
38210	47961-AG060	Bracket-Sensor
38210	38210-0C010	Flange Assy-Companion
38210	38210-0C011	Flange Assy-Companion
38220	38220-0V770	Flange Assy-Side
38220	38220-AR000	Flange Assy-Side
38225	38225-32W00	Circlip-Side Gear
38225	38225-40P71	Circlip-Side Gear
38300	38301-11M12	Final Drive Assy, W/eal Sensor
38300	38301-51M12	Final Drive Assy, W/eal Sensor
38300	38301-0C612	Final Drive Assy, W/eal Sensor
38310	38310-AG000	Carrier Compl-Gear
38310	38315-N3100	Bolt-Bearing Cap
38310	38310-0C000	Carrier Compl-Gear
38322	31098-AG020	Hose-Breather
38322	16439-N2100	Clamp-Hose
38322	36458-11C01	Clip-Cable
38323	17235-V6000	Connector-Breather
38351	38351-AG000	Cover-Rear, Final Drive
38351	38354-0C000	Stud
38351	32103-U8401	Plug-Drain
38351	38356-10Y10	Breather
38351	38351-0C000	Cover-Rear, Final Drive
38351	32103-4N211	Plug-Filler
38351	32103-1MG0D	Plug-Filler
38351	32103-4N200	Plug-Drain
38351	32103-1MB0C	Plug-Drain
38421	38421-12S06	Case-Differential
38421	38421-0C500	Case-Differential
38423	38423-N3101	Gear-Side
38423	38423-0C000	Gear-Side
38424	38424-N3112	Washer-Thrust, Side Gear
38424	38424-N3115	Washer-Thrust, Side Gear
38424	38424-N3116	Washer-Thrust, Side Gear
38424	38424-0C000	Washer-Thrust, Side Gear
38424	38424-0C001	Washer-Thrust, Side Gear
38424	38424-0C002	Washer-Thrust, Side Gear
38424	38424-0C003	Washer-Thrust, Side Gear
38424	38424-0C004	Washer-Thrust, Side Gear
38424	38424-0C005	Washer-Thrust, Side Gear
38424	38424-0C006	Washer-Thrust, Side Gear
38425	38425-21W00	Pinion-Mate
38426	38426-21W00	Washer-Thrust, Pinion Mate
38427	38427-0C000	Shaft-Pinion Mate
38454	38454-N3160	Spacer-Differential Side

Rear panel & fitting (2001-12-01 ~ ; K) 6

#	OEM	Part name
79110	79110-CR910	Panel-Rear, Upper
79420	79420-AG000	Shelf-Parcel
79432	79430-AG000	Parcel Shelf-Side, Rh
79433	79431-AG000	Parcel Shelf-Side, Lh
79841	01456-00641	SCREW
85240	85248-AG000	Retainer-Rear Bumper, Upper

Rear seat (2001-12-01 ~ ; アームレスト; K) 33

#	OEM	Part name
86450	87851-0P000	Washer-Plain
87667	87615-4P001	Finisher-Seat Back Side
88303	88709-0P000	Bolt-Special
88303	01125-00931	SCREW
88303	87850-0P000	Bolt
88604	87614-10V00	Bush
88700	88700-CR010	ア-ムレスト アツセンブリ-,リヤ シ-ト
88700	88700-CR011	ア-ムレスト アツセンブリ-,リヤ シ-ト
88700	88700-CR211	ア-ムレスト アツセンブリ-,リヤ シ-ト
88700	88700-CR310	ア-ムレスト アツセンブリ-,リヤ シ-ト
88700	88700-CR311	ア-ムレスト アツセンブリ-,リヤ シ-ト
88700	88700-CR320	ア-ムレスト アツセンブリ-,リヤ シ-ト
88700	88700-CR321	ア-ムレスト アツセンブリ-,リヤ シ-ト
88703	88703-6P000	Tray Box Assy-Rear Armrest
88703	88703-AG520	トレイ ボツクス アツセンブリ-,リヤ ア-ムレスト
88704	88704-4P310	Board Assy-Armrest Lid
88705	88705-0P110	Hinge-Armrest Lid
88715	88715-4P000	Bracket Assy-Armrest, Rh
88715	88715-4P310	Bracket Assy-Armrest, Rh
88718	88718-4P310	Lock-Armrest Lid
88720	88720-CR010	トリム&パツド&フレーム アツセンブリー,アームレスト ボツクス
88720	88720-CR011	トリム&パツド&フレーム アツセンブリー,アームレスト ボツクス
88720	88720-CR211	トリム&パツド&フレーム アツセンブリー,アームレスト ボツクス
88720	88720-CR310	トリム&パツド&フレーム アツセンブリー,アームレスト ボツクス
88720	88720-CR311	トリム&パツド&フレーム アツセンブリー,アームレスト ボツクス
88720	88720-CR320	トリム&パツド&フレーム アツセンブリー,アームレスト ボツクス
88720	88720-CR321	トリム&パツド&フレーム アツセンブリー,アームレスト ボツクス
88730	88730-CR020	リツド アツセンブリー,アームレスト
88730	88730-CR021	リツド アツセンブリー,アームレスト
88730	88730-CR211	リツド アツセンブリー,アームレスト
88730	88730-CR320	リツド アツセンブリー,アームレスト
88730	88730-CR321	リツド アツセンブリー,アームレスト
854051210	08540-51210	スクリユ-,タツピング

Rear seat (2001-12-01 ~ ; パワーシート LH & CTR; K) 55

#	OEM	Part name
76919	76919-AG000	Magic Fastener
86400	86430-CR020	Headrest Assy-Rear Seat
86400	86430-CR021	Headrest Assy-Rear Seat
86400	86430-CR300	Headrest Assy-Rear Seat
86400	86430-CR301	Headrest Assy-Rear Seat
86400	86430-CR320	Headrest Assy-Rear Seat
86400	86430-CR321	Headrest Assy-Rear Seat
86400	86460-CR320	Headrest Assy-Rear Seat
86400	86460-CR321	Headrest Assy-Rear Seat
88019	24216-S5800	Clip-Harness
88060	88060-AG540	Frame & Power Unit-Rear Seat, Lh
88069	88069-AG520	Harness Assy-Rear, Lh
88300	76988-10V10	Clip-Trim
88303	01125-00931	SCREW
88303	87850-0P000	Bolt
88310	88310-CR320	クツシヨン アツセンブリ-,リヤ シ-ト センタ-
88310	88310-CR321	クツシヨン アツセンブリ-,リヤ シ-ト センタ-
88316	88315-AG520	パツド & フレ-ム アツセンブリ-,クツシヨン リヤ センタ-
88330	88330-CR320	トリム アツセンブリ-,クツシヨン リヤ シ-ト センタ-
88330	88330-CR321	トリム アツセンブリ-,クツシヨン リヤ シ-ト センタ-
88335	88335-AG540	Heater Unit Assy-Rear Seat Cushion
88350	88350-CR340	クツシヨン アツセンブリ-,リヤ シ-ト lh
88350	88350-CR341	クツシヨン アツセンブリ-,リヤ シ-ト lh
88351	88351-AG520	Frame Assy-Rear Seat Cushion, Lh
88355	88355-AG920	パツド & フレ-ム アツセンブリ-,クツシヨン リヤ シ-ト lh
88370	88370-CR320	トリム アツセンブリ-,リヤ シ-ト クツシヨン lh
88370	88370-CR321	トリム アツセンブリ-,リヤ シ-ト クツシヨン lh
88551	88551-AG520	Slide-Lh Seat, Outside
88552	88552-AG520	Slide-Lh Seat, Inside
88553	88553-AG520	Motor & Unit Assy-Rear Seat, Lh
88604	87614-K0100	Bush-Rear Seat
88604	87614-Y8000	ブツシユ,リヤ シ-ト
88610	88610-CR320	バツク アツセンブリ-,リヤ シ-ト センタ-
88610	88610-CR321	バツク アツセンブリ-,リヤ シ-ト センタ-
88615	88615-AG520	パツド&フレ-ム アツセンブリ-,リヤ シ-ト バツク サイド rh
88630	88630-CR320	トリム アツセンブリ-,リヤ シ-ト センタ-
88630	88630-CR321	トリム アツセンブリ-,リヤ シ-ト センタ-
88635	88635-AG540	Heater Unit Assy-Rear Seat Back
88645	88716-AR442	Board-Rear Seat Back
88645	88716-AR482	Board-Rear Seat Back
88645	88716-AR603	Board-Rear Seat Back
88645	88716-AR683	Board-Rear Seat Back
88645	88716-CR000	ボ-ド,リヤ シ-ト バツク
88645	88716-CR001	ボ-ド,リヤ シ-ト バツク
88645	88716-CR201	ボ-ド,リヤ シ-ト バツク
88650	88650-CR340	バツク アツセンブリ-,リヤ シ-ト lh
88650	88650-CR341	バツク アツセンブリ-,リヤ シ-ト lh
88651	88651-AG520	Frame Assy-Rear Seat Back, Lh
88655	88655-AG520	パツド & フレ-ム アツセンブリ-,バツク リヤ シ-ト lh
88670	88670-CR320	トリム アツセンブリ-,リヤ シ-ト バツク lh
88670	88670-CR321	トリム アツセンブリ-,リヤ シ-ト バツク lh
88717	88717-CR020	プロテクタ-,ア-ムレスト スクリ-ン rh
88717	88717-CR021	プロテクタ-,ア-ムレスト スクリ-ン rh
88767	88767-CR020	プロテクタ-,ア-ムレスト スクリ ン lh
88767	88767-CR021	プロテクタ-,ア-ムレスト スクリ ン lh

Rear seat (2001-12-01 ~ ; パワーシート RH; K) 38

#	OEM	Part name
76919	76919-AG000	Magic Fastener
86400	86430-CR020	Headrest Assy-Rear Seat
86400	86430-CR021	Headrest Assy-Rear Seat
86400	86430-CR300	Headrest Assy-Rear Seat
86400	86430-CR301	Headrest Assy-Rear Seat
86400	86430-CR320	Headrest Assy-Rear Seat
86400	86430-CR321	Headrest Assy-Rear Seat
86400	86460-CR320	Headrest Assy-Rear Seat
86400	86460-CR321	Headrest Assy-Rear Seat
88010	88010-AG520	Frame & Power Unit-Rear Seat, Rh
88019	24216-S5800	Clip-Harness
88019	88019-AG520	Harness-Rear Seat
88300	88300-CR320	Cushion Assy-Rear Seat, Rh
88300	88300-CR321	Cushion Assy-Rear Seat, Rh
88301	88301-AG520	Frame Assy-Rear Seat Cushion
88303	01125-00931	SCREW
88303	87850-0P000	Bolt
88305	88305-AG920	パツド & フレ-ム アツセンブリ-,クツシヨン リヤ シ-ト rh
88320	88320-CR320	トリム アツセンブリ-,リヤ シ-ト クツシヨン rh
88320	88320-CR321	トリム アツセンブリ-,リヤ シ-ト クツシヨン rh
88501	88501-AG520	Slide-Rh Seat, Outside
88502	88502-AG520	Slide-Rh Seat, Inside
88503	88503-AG520	Motor & Unit Assy-Rear Seat, Rh
88600	88600-CR320	バツク アツセンブリ-,リヤ シ-ト rh
88600	88600-CR321	バツク アツセンブリ-,リヤ シ-ト rh
88601	88601-AG520	Frame Assy-Rear Seat Back, Rh
88604	87614-K0100	Bush-Rear Seat
88604	87614-Y8000	ブツシユ,リヤ シ-ト
88605	88605-AG520	パツド & フレ-ム アツセンブリ-,バツク リヤ シ-ト rh
88620	88620-CR320	トリム アツセンブリ-,リヤ シ-ト バツク rh
88620	88620-CR321	トリム アツセンブリ-,リヤ シ-ト バツク rh
88620	88620-CR010	トリム アツセンブリ-,リヤ シ-ト バツク
88620	88620-CR011	トリム アツセンブリ-,リヤ シ-ト バツク
88620	88620-CR070	トリム アツセンブリ-,リヤ シ-ト バツク
88620	88620-CR071	トリム アツセンブリ-,リヤ シ-ト バツク
88620	88620-CR271	トリム アツセンブリ-,リヤ シ-ト バツク
88620	88620-CR310	トリム アツセンブリ-,リヤ シ-ト バツク
88620	88620-CR311	トリム アツセンブリ-,リヤ シ-ト バツク

Rear seat (2001-12-01 ~ ; ベンチシート; K) 57

#	OEM	Part name
76884	76884-AD013	Insulator-Rear Pillar, Inner
86400	86430-CR020	Headrest Assy-Rear Seat
86400	86430-CR021	Headrest Assy-Rear Seat
86400	86430-CR300	Headrest Assy-Rear Seat
86400	86430-CR301	Headrest Assy-Rear Seat
86400	86430-CR320	Headrest Assy-Rear Seat
86400	86430-CR321	Headrest Assy-Rear Seat
86400	86460-CR320	Headrest Assy-Rear Seat
86400	86460-CR321	Headrest Assy-Rear Seat
88300	88300-CR000	Cushion Assy-Rear Seat
88300	88300-CR001	Cushion Assy-Rear Seat
88300	88300-CR201	Cushion Assy-Rear Seat
88300	88300-CR300	Cushion Assy-Rear Seat
88300	88300-CR301	Cushion Assy-Rear Seat
88300	88300-CR320	Cushion Assy-Rear Seat, Rh
88300	88300-CR321	Cushion Assy-Rear Seat, Rh
88300	76988-10V10	Clip-Trim
88303	01125-00931	SCREW
88303	87850-0P000	Bolt
88303	88303-AG500	Bracket Assy-Cushion, Rear Seat Rh
88305	88305-AG505	Pad & Frame Assy-Cushion, Rear Seat
88305	88305-AG705	Pad & Frame Assy-Cushion, Rear Seat
88320	88320-CR000	トリム アツセンブリ-,リヤ シ-ト クツシヨン
88320	88320-CR001	トリム アツセンブリ-,リヤ シ-ト クツシヨン
88320	88320-CR201	トリム アツセンブリ-,リヤ シ-ト クツシヨン
88320	88320-CR300	トリム アツセンブリ-,リヤ シ-ト クツシヨン
88320	88320-CR301	トリム アツセンブリ-,リヤ シ-ト クツシヨン
88320	88320-CR320	トリム アツセンブリ-,リヤ シ-ト クツシヨン rh
88320	88320-CR321	トリム アツセンブリ-,リヤ シ-ト クツシヨン rh
88353	88353-AG500	Bracket Assy-Cushion, Rear Seat Lh
88600	88600-CR010	バツク アツセンブリ-,リヤ シ-ト
88600	88600-CR011	バツク アツセンブリ-,リヤ シ-ト
88600	88600-CR070	バツク アツセンブリ-,リヤ シ-ト
88600	88600-CR071	バツク アツセンブリ-,リヤ シ-ト
88600	88600-CR271	バツク アツセンブリ-,リヤ シ-ト
88600	88600-CR310	バツク アツセンブリ-,リヤ シ-ト
88600	88600-CR311	バツク アツセンブリ-,リヤ シ-ト
88600	88600-CR320	バツク アツセンブリ-,リヤ シ-ト rh
88600	88600-CR321	バツク アツセンブリ-,リヤ シ-ト rh
88605	88605-AG600	パツド & フレ-ム アツセンブリ-,バツク リヤ シ-ト
88605	88605-AG710	パツド & フレ-ム アツセンブリ-,バツク リヤ シ-ト
88605	88605-AH670	パツド & フレ-ム アツセンブリ-,バツク リヤ シ-ト
88605	88605-AH770	パツド & フレ-ム アツセンブリ-,バツク リヤ シ-ト
88620	88620-CR010	トリム アツセンブリ-,リヤ シ-ト バツク
88620	88620-CR011	トリム アツセンブリ-,リヤ シ-ト バツク
88620	88620-CR070	トリム アツセンブリ-,リヤ シ-ト バツク
88620	88620-CR071	トリム アツセンブリ-,リヤ シ-ト バツク
88620	88620-CR271	トリム アツセンブリ-,リヤ シ-ト バツク
88620	88620-CR310	トリム アツセンブリ-,リヤ シ-ト バツク
88620	88620-CR311	トリム アツセンブリ-,リヤ シ-ト バツク
88645	88716-AR442	Board-Rear Seat Back
88645	88716-AR482	Board-Rear Seat Back
88645	88716-AR603	Board-Rear Seat Back
88645	88716-AR683	Board-Rear Seat Back
88645	88716-CR000	ボ-ド,リヤ シ-ト バツク
88645	88716-CR001	ボ-ド,リヤ シ-ト バツク
88645	88716-CR201	ボ-ド,リヤ シ-ト バツク

Rear seat belt (2001-12-01 ~ ; パワーシート; K) 18

#	OEM	Part name
76884	76884-AG017	Insulator-Pillar
87834	87834-AR002	Finisher-Seat Belt
88317	88317-4P000	Protector-Seat Belt
88805	87840-AA000	カバ-,リトラクタ-
88824	88854-AH404	ベルト アツセンブリ-,リヤ シ-ト タング
88824	88854-CR100	ベルト アツセンブリ-,リヤ シ-ト タング
88824	88854-CR700	ベルト アツセンブリ-,リヤ シ-ト タング
88824	88854-CR701	ベルト アツセンブリ-,リヤ シ-ト タング
88842	88842-AH304	ベルト アツセンブリ-,リヤ シ-ト バツクル
88842	88842-CR000	ベルト アツセンブリ-,リヤ シ-ト バツクル
88842	88852-AH304	ベルト アツセンブリ-,リヤ シ-ト バツクル
88842	88852-CR000	ベルト アツセンブリ-,リヤ シ-ト バツクル
88844	88844-CR000	ベルト アツセンブリ-,リヤ シ-ト タング
88844	88844-CR700	ベルト アツセンブリ-,リヤ シ-ト タング
88844	88844-CR701	ベルト アツセンブリ-,リヤ シ-ト タング
88850	88850-AH304	ベルト セツト,リヤ シ-ト センタ-
88850	88850-CR000	ベルト セツト,リヤ シ-ト センタ-
854041042	08540-41042	スクリユ-,タツピング

Rear seat belt (2001-12-01 ~ ; ベンチシート; K) 17

#	OEM	Part name
76884	76884-AG017	Insulator-Pillar
87834	87834-AR002	Finisher-Seat Belt
88805	87840-AA000	カバ-,リトラクタ-
88824	88854-AH404	ベルト アツセンブリ-,リヤ シ-ト タング
88824	88854-CR100	ベルト アツセンブリ-,リヤ シ-ト タング
88824	88854-CR700	ベルト アツセンブリ-,リヤ シ-ト タング
88824	88854-CR701	ベルト アツセンブリ-,リヤ シ-ト タング
88842	88842-AH304	ベルト アツセンブリ-,リヤ シ-ト バツクル
88842	88842-CR000	ベルト アツセンブリ-,リヤ シ-ト バツクル
88842	88852-AH304	ベルト アツセンブリ-,リヤ シ-ト バツクル
88842	88852-CR000	ベルト アツセンブリ-,リヤ シ-ト バツクル
88844	88844-CR000	ベルト アツセンブリ-,リヤ シ-ト タング
88844	88844-CR700	ベルト アツセンブリ-,リヤ シ-ト タング
88844	88844-CR701	ベルト アツセンブリ-,リヤ シ-ト タング
88850	88850-AH304	ベルト セツト,リヤ シ-ト センタ-
88850	88850-CR000	ベルト セツト,リヤ シ-ト センタ-
854041042	08540-41042	スクリユ-,タツピング

Rear suspension (2001-12-01 ~ ; ショツクアブソーバー; VQ25DD +VQ30DD +VQ30DET) 12

#	OEM	Part name
55020	55020-AG523	Spring-Rear Suspension
55036	55050-AG001	Seat-Rubber, Rear Spring
55040	55269-4U000	Nut
55201	55202-AG000	Bracket Assy-Rear Spring, Front Rh
55202	55203-AG000	Bracket Assy-Rear Spring, Front Lh
55248	55248-2Y000	Cover-Bound Bumper, Rear
55322	55322-AG003	Bracket Assy-Shock Absorber Mounting
55323	55323-AR000	Tube-Distance, Shock Absorber Mounting
56113	56113-4U000	Washer-Special
56204	56204-AG001	Cap-Rear Shock Absorber
56210	56280-AG001	Bolt
56210	56280-AQ000	Bolt

Rear suspension (2001-12-01 ~ ; メンバー, リンク&スタビライザー; VQ25DD +VQ30DD +VQ30DET) 28

#	OEM	Part name
55025	55479-4P000	Bolt
55045	55044-AG000	Stopper-Arm Bush
55060	54459-0P035	Bolt
55080	01125-03181	BOLT
55110	55080-AG002	Bolt-Fix, Link
55110	55080-AL500	Bolt-Fix, Link
55110	55110-AG000	Rod Compl-Radius
55148	55148-AG000	Bush
55226	55226-8J000	Bolt
55226	55226-JA01C	Bolt
55227	55227-8J000	Disc-Eccentric, Rear Suspension
55269	55269-AG005	Nut-Special
55400	55400-AH003	Member Compl-Rear Suspension
55424	55424-AG000	Bolt-Differential Mounting
55451	55451-AG001	Stay Assy-Rear Suspension Member Rh
55474	55474-AG011	Stopper-Differential Mounting, Upper
55475	55475-AG000	Stopper-Differential Mounting, Lower
55475	55475-AG010	Stopper-Differential Mounting, Lower
55482	55482-AG000	Washer-Special
55490	55490-AR001	Damper Assy-Dynamic, Rear Suspension
55501	55501-AG000	Arm Assy-Rear Suspension, Rh
55502	55502-AG000	Arm Assy-Rear Suspension, Lh
56230	56230-AG801	Stabilizer-Rear
56233	56233-AG000	Clip-Stabilizer Mounting
56243	54613-AG011	Bush-Rear Stabilizer
56261	56261-AG000	Rod-Connecting, Rear Stabilizer
56261	56261-AG010	Rod-Connecting, Rear Stabilizer
56271	54650-AG000	Bracket-Rear Stabilizer

Rear trimming (2001-12-01 ~ ; K) 21

#	OEM	Part name
79910	79910-AH614	Finisher-Rear Parcel Shelf
79910	79910-AH619	Finisher-Rear Parcel Shelf
79910	79910-AH674	Finisher-Rear Parcel Shelf
79910	79910-AH679	Finisher-Rear Parcel Shelf
79910	79910-CR000	Finisher-Rear Parcel Shelf
79910	79910-CR010	Finisher-Rear Parcel Shelf
79910	79910-CR011	Finisher-Rear Parcel Shelf
79910	79910-CR100	Finisher-Rear Parcel Shelf
79910	79910-CR110	Finisher-Rear Parcel Shelf
79910	79910-CR111	Finisher-Rear Parcel Shelf
79910	79910-CR200	Finisher-Rear Parcel Shelf
79910	79910-CR210	Finisher-Rear Parcel Shelf
79910	79910-CR211	Finisher-Rear Parcel Shelf
79910	79910-CR300	Finisher-Rear Parcel Shelf
79910	79910-CR310	Finisher-Rear Parcel Shelf
79910	79910-CR311	Finisher-Rear Parcel Shelf
79910	01553-07381	CLIP
79950	79944-AH604	Escutcheon-Air Drafter, Parcel Shelf Rh
79950	79944-CR000	Escutcheon-Air Drafter, Parcel Shelf Rh
79951	79945-AH604	Escutcheon-Air Drafter, Parcel Shelf Lh
79951	79945-CR000	Escutcheon-Air Drafter, Parcel Shelf Lh

Rear view mirror (2001-12-01 ~ ; K) 42

#	OEM	Part name
80290	80290-AG000	Cover-Front Door Corner, Outer Rh
80291	80291-AG000	Cover-Front Door Corner, Outer Lh
80292	80292-AG000	Cover-Front Door Corner, Inner Rh
80293	80293-AG000	Cover-Front Door Corner, Inner Lh
96300	01421-00191	SCREW
96301	96301-AG100	ミラ- アツセンブリ-,アウトサイド rh
96301	96301-AG500	ミラ- アツセンブリ-,ドア rh
96301	96301-AG509	ミラ- アツセンブリ-,ドア rh
96301	96301-AG513	ミラ- アツセンブリ-,ドア rh
96301	96301-AG514	ミラ- アツセンブリ-,ドア rh
96301	96301-AG600	ミラ- アツセンブリ-,ドア rh
96301	96301-AG609	ミラ- アツセンブリ-,ドア rh
96301	96301-AG613	ミラ- アツセンブリ-,ドア rh
96301	96301-AG614	ミラ- アツセンブリ-,ドア rh
96301	96301-CR002	ミラ- アツセンブリ-,ドア rh
96301	96301-CR003	ミラ- アツセンブリ-,ドア rh
96301	96301-CR004	ミラ- アツセンブリ-,ドア rh
96301	96301-CR101	ミラ- アツセンブリ-,ドア rh
96301	96301-CR102	ミラ- アツセンブリ-,ドア rh
96301	96301-CR103	ミラ- アツセンブリ-,ドア rh
96301	96301-CR104	ミラ- アツセンブリ-,ドア rh
96302	96302-AG100	ミラ- アツセンブリ-,アウトサイド lh
96302	96302-AG500	ミラ- アツセンブリ-,ドア lh
96302	96302-AG509	ミラ- アツセンブリ-,ドア lh
96302	96302-AG513	ミラ- アツセンブリ-,ドア lh
96302	96302-AG514	ミラ- アツセンブリ-,ドア lh
96302	96302-AG600	ミラ- アツセンブリ-,ドア lh
96302	96302-AG613	ミラ- アツセンブリ-,ドア lh
96302	96302-AG614	ミラ- アツセンブリ-,ドア lh
96302	96302-CR001	ミラ- アツセンブリ-,ドア lh
96302	96302-CR003	ミラ- アツセンブリ-,ドア lh
96302	96302-CR004	ミラ- アツセンブリ-,ドア lh
96302	96302-CR102	ミラ- アツセンブリ-,ドア lh
96302	96302-CR103	ミラ- アツセンブリ-,ドア lh
96302	96302-CR104	ミラ- アツセンブリ-,ドア lh
96305	96305-AG100	ブラケツト,アウトサイド ミラ- rh
96305	96306-AG100	ブラケツト,アウトサイド ミラ- lh
96321	96321-AL503	Mirror Assy-Inside
96365	96365-AG200	ガラス,ミラ- rh
96366	96366-AG200	ガラス,ミラ- lh
96369	96369-AG000	パワー フオールド ユニツト,ミラー rh
96370	96370-AG000	パワー フオールド ユニツト,ミラー lh

Rear window (2001-12-01 ~ ; K) 2

#	OEM	Part name
79713	79712-AG010	Glass-Rear Window
79713	79712-AG070	Glass-Rear Window

Relay (2001-12-01 ~ ; ｴﾝｼﾞﾝ ﾙｰﾑ-1; K) 6

#	OEM	Part name
25224	25230-79964	Relay
25224	25230-79915	Relay-Egi
25224	25230-79945	Relay
25224	25230-79971	Relay
25224	25230-C9962	Relay
25224	25230-79916	Relay

Relay (2001-12-01 ~ ; ｴﾝｼﾞﾝ ﾙｰﾑ-2; K) 5

#	OEM	Part name
25224	25230-79964	Relay
25224	25230-C9962	Relay
25224	25230-79915	Relay-Egi
25224	25230-79945	Relay
25238	25238-CR000	Bracket-Relay

Relay (2001-12-01 ~ ; ﾙｰﾑ; K) 6

#	OEM	Part name
25221	25230-79964	Relay
25224	25230-79915	Relay-Egi
25224	25230-79945	Relay
25237	25238-AG001	Bracket-Relay
25238	01456-00641	SCREW
25238	25238-AG000	Bracket-Harness Clip

Road wheel & tire (2001-12-01 ~ ; アルミホィール; K) 63

#	OEM	Part name
40224	40224-21001	Nut-Road Wheel
40300	40321-40P01	Weight-Wheel Balance
40300	40321-40P05	Weight-Wheel Balance
40300	40321-40P06	Weight-Wheel Balance
40300	40321-40P07	Weight-Wheel Balance
40300	40321-40P09	Weight-Wheel Balance
40300	40321-40P10	Weight-Wheel Balance
40300	40321-4P002	Weight-Wheel Balance
40300	40321-4P003	Weight-Wheel Balance
40300	40321-4P004	Weight-Wheel Balance
40300	40321-5M000	Weight-Wheel Balance
40300	40321-5M001	Weight-Wheel Balance
40300	40321-5M002	Weight-Wheel Balance
40300	40321-5M003	Weight-Wheel Balance
40300	40321-5M004	Weight-Wheel Balance
40300	40321-5M005	Weight-Wheel Balance
40300	40321-F5000	Weight-Wheel Balance
40300	40322-F5000	Weight-Wheel Balance
40300	40323-F5000	Weight-Wheel Balance
40300	40324-F5000	Weight-Wheel Balance
40300	40325-F5000	Weight-Wheel Balance
40300	40326-F5000	Weight-Wheel Balance
40300	40326-F5100	Weight-Wheel Balance
40300	40327-F5000	Weight-Wheel Balance
40300	40327-F5100	Weight-Wheel Balance
40300	40328-F5000	Weight-Wheel Balance
40300	40328-F5100	Weight-Wheel Balance
40300	40321-AA101	Weight-Wheel Balance
40300	40321-AA102	Weight-Wheel Balance
40300	40321-AA103	Weight-Wheel Balance
40300	40321-AA104	Weight-Wheel Balance
40300	40321-AA105	Weight-Wheel Balance
40300	40321-AA106	Weight-Wheel Balance
40300	40321-AA107	Weight-Wheel Balance
40300	40321-AA108	Weight-Wheel Balance
40300	40321-AA109	Weight-Wheel Balance
40300	40321-AA110	Weight-Wheel Balance
40300	40321-AA111	Weight-Wheel Balance
40300	40321-AA112	Weight-Wheel Balance
40300	40321-AA113	Weight-Wheel Balance
40300	40321-AA114	Weight-Wheel Balance
40300	40321-AA115	Weight-Wheel Balance
40300	40321-AA116	Weight-Wheel Balance
40300	40321-AA117	Weight-Wheel Balance
40300	40321-AA118	Weight-Wheel Balance
40300	40321-AA119	Weight-Wheel Balance
40300	40321-AA120	Weight-Wheel Balance
40300	40321-CD001	Weight-Wheel Balance
40300	40321-CD002	Weight-Wheel Balance
40300	40321-CD003	Weight-Wheel Balance
40300	40321-CD004	Weight-Wheel Balance
40300	40321-CD005	Weight-Wheel Balance
40300	40321-CD006	Weight-Wheel Balance
40300	40321-CD007	Weight-Wheel Balance
40300	40321-CD008	Weight-Wheel Balance
40300	40321-CD009	Weight-Wheel Balance
40300	40321-CD010	Weight-Wheel Balance
40300	40321-CD011	Weight-Wheel Balance
40300	40321-CD012	Weight-Wheel Balance
40300	40300-CR325	Aluminum Wheel
40300	40300-CR327	Aluminum Wheel
40343	40342-16C10	Ornament-Disc Wheel
40343	40315-AQ600	Ornament-Disc Wheel

Road wheel & tire (2001-12-01 ~ ; スチールホィール; K) 65

#	OEM	Part name
40224	40224-21001	Nut-Road Wheel
40300	40300-04U20	Wheel Assy-Disc
40300	40321-40P01	Weight-Wheel Balance
40300	40321-40P05	Weight-Wheel Balance
40300	40321-40P06	Weight-Wheel Balance
40300	40321-40P07	Weight-Wheel Balance
40300	40321-40P09	Weight-Wheel Balance
40300	40321-40P10	Weight-Wheel Balance
40300	40321-4P002	Weight-Wheel Balance
40300	40321-4P003	Weight-Wheel Balance
40300	40321-4P004	Weight-Wheel Balance
40300	40321-5M000	Weight-Wheel Balance
40300	40321-5M001	Weight-Wheel Balance
40300	40321-5M002	Weight-Wheel Balance
40300	40321-5M003	Weight-Wheel Balance
40300	40321-5M004	Weight-Wheel Balance
40300	40321-5M005	Weight-Wheel Balance
40300	40321-F5000	Weight-Wheel Balance
40300	40322-F5000	Weight-Wheel Balance
40300	40323-F5000	Weight-Wheel Balance
40300	40324-F5000	Weight-Wheel Balance
40300	40325-F5000	Weight-Wheel Balance
40300	40326-F5000	Weight-Wheel Balance
40300	40326-F5100	Weight-Wheel Balance
40300	40327-F5000	Weight-Wheel Balance
40300	40327-F5100	Weight-Wheel Balance
40300	40328-F5000	Weight-Wheel Balance
40300	40328-F5100	Weight-Wheel Balance
40300	40321-AA101	Weight-Wheel Balance
40300	40321-AA102	Weight-Wheel Balance
40300	40321-AA103	Weight-Wheel Balance
40300	40321-AA104	Weight-Wheel Balance
40300	40321-AA105	Weight-Wheel Balance
40300	40321-AA106	Weight-Wheel Balance
40300	40321-AA107	Weight-Wheel Balance
40300	40321-AA108	Weight-Wheel Balance
40300	40321-AA109	Weight-Wheel Balance
40300	40321-AA110	Weight-Wheel Balance
40300	40321-AA111	Weight-Wheel Balance
40300	40321-AA112	Weight-Wheel Balance
40300	40321-AA113	Weight-Wheel Balance
40300	40321-AA114	Weight-Wheel Balance
40300	40321-AA115	Weight-Wheel Balance
40300	40321-AA116	Weight-Wheel Balance
40300	40321-AA117	Weight-Wheel Balance
40300	40321-AA118	Weight-Wheel Balance
40300	40321-AA119	Weight-Wheel Balance
40300	40321-AA120	Weight-Wheel Balance
40300	40321-CD001	Weight-Wheel Balance
40300	40321-CD002	Weight-Wheel Balance
40300	40321-CD003	Weight-Wheel Balance
40300	40321-CD004	Weight-Wheel Balance
40300	40321-CD005	Weight-Wheel Balance
40300	40321-CD006	Weight-Wheel Balance
40300	40321-CD007	Weight-Wheel Balance
40300	40321-CD008	Weight-Wheel Balance
40300	40321-CD009	Weight-Wheel Balance
40300	40321-CD010	Weight-Wheel Balance
40300	40321-CD011	Weight-Wheel Balance
40300	40321-CD012	Weight-Wheel Balance
40300	40300-CR325	Aluminum Wheel
40300	40300-CR327	Aluminum Wheel
40300	40300-32P10	Wheel Assy-Spare Tire
40343	40342-16C10	Ornament-Disc Wheel
40343	40315-AQ600	Ornament-Disc Wheel

Roof panel & fitting (2001-12-01 ~ ; サン ルーフ; K) 6

#	OEM	Part name
73100	73100-AG035	Roof Assy
73210	73210-AG000	Rail-Front Roof
73210	73210-AG010	Rail-Front Roof
73210	01456-00641	SCREW
73222	73262-AG000	Bow-Roof, Rear
73230	73230-AG000	Rail-Rear Roof

Roof panel & fitting (2001-12-01 ~ ; 標準ルーフ; K) 8

#	OEM	Part name
73111	73112-AG030	Roof
73130	73255-CR000	Reinforce Assy-Roof
73210	73210-AG000	Rail-Front Roof
73210	73210-AG010	Rail-Front Roof
73210	01456-00641	SCREW
73220	73242-AG000	Bow-Roof, Front
73222	73262-AG000	Bow-Roof, Rear
73230	73230-AG000	Rail-Rear Roof

Roof trimming (2001-12-01 ~ ; サン ルーフ; K) 21

#	OEM	Part name
26463	26463-AG000	Bracket-Personal Lamp
73910	73998-AA000	Clip
73910	73998-10Y00	Clip
73910	73998-2Y000	Clip
73910	73982-AG000	Spacer-Headlining
73910	73982-CR004	Spacer-Headlining
73910	73982-AG001	Spacer-Headlining
73910	73982-CR003	Spacer-Headlining
73910	73982-AG002	Spacer-Headlining
73910	73982-AG003	Spacer-Headlining
73910	73982-AG004	Spacer-Headlining
73910	73982-AG005	Spacer-Headlining
73910	73982-CR001	Spacer-Headlining
73910	73910-CR000	Headlining Assy
73910	73910-CR010	Headlining Assy
73910	73910-CR015	Headlining Assy
73910	73910-CR100	Headlining Assy
73911	73980-AA000	Bracket-Headlining
73940	73940-CR000	Grip Assy-Assist
73940	73940-AR112	Grip Assy-Assist
73940	73940-CR010	Grip Assy-Assist

Roof trimming (2001-12-01 ~ ; ヒョウジュン ルーフ; K) 22

#	OEM	Part name
26463	26463-AG000	Bracket-Personal Lamp
73910	73998-AA000	Clip
73910	73998-10Y00	Clip
73910	73998-2Y000	Clip
73910	73982-AG000	Spacer-Headlining
73910	73982-CR004	Spacer-Headlining
73910	73982-AG001	Spacer-Headlining
73910	73982-CR003	Spacer-Headlining
73910	73982-AG002	Spacer-Headlining
73910	73982-AG003	Spacer-Headlining
73910	73982-AG004	Spacer-Headlining
73910	73982-AG005	Spacer-Headlining
73910	73982-CR001	Spacer-Headlining
73910	73910-CR000	Headlining Assy
73910	73910-CR010	Headlining Assy
73910	73910-CR015	Headlining Assy
73910	73910-CR100	Headlining Assy
73911	73980-AA000	Bracket-Headlining
73940	73940-CR000	Grip Assy-Assist
73940	73940-AR112	Grip Assy-Assist
73940	73940-CR010	Grip Assy-Assist
73996	73996-VE000	Fastener-Trim

Room lamp (2001-12-01 ~ ; K) 12

#	OEM	Part name
26130	01307-00101	CAP
26410	73980-AG000	Bracket-Room Lamp
26410	26267-66U00	Bulb
26415	26460-AR002	Lamp Assy-Personal
26430	26430-CR000	Lamp Assy-Map
26430	26430-CR010	Lamp Assy-Map
26430	26430-CR100	Lamp Assy-Map
26430	26430-CR110	Lamp Assy-Map
26439	26439-AG000	Bracket-Map Lamp
26442	26442-AT000	Lens-Map Lamp
96980	96980-AR002	Consol Assy-Roof
851351212	08513-51212	SCREW

Speaker (2001-12-01 ~ ; K) 8

#	OEM	Part name
27361	01466-00022	Bolt
27933	28138-AG005	Speaker Unit
27933	28156-AE000	Speaker Unit
27933	28148-5L300	Speaker Unit
27933	28149-5L300	Speaker Unit
28177	28176-AH300	Grille-Speaker, Front
28177	28176-CR000	Grille-Speaker, Front
28360	01553-09181	CLIP

Speedometer pinion (2001-12-01 ~ ; (VQ25DD+VQ30DD+VQ30DET).AT.F4) 4

#	OEM	Part name
32707	32707-AA000	Plug Assy-Speed Meter Pinion
32710	32710-AA000	Seal-O Ring, Speedometer Pinion
83636162	08363-6162D	スクリユ-,マシン
83636162	08360-6162D	Screw

Speedometer pinion (2001-12-01 ~ ; CVT) 4

#	OEM	Part name
32707	32707-AA000	Plug Assy-Speed Meter Pinion
32710	32710-AA000	Seal-O Ring, Speedometer Pinion
83636162	08363-6162D	スクリユ-,マシン
83636162	08360-6162D	Screw

Starter motor (2001-12-01 ~ ; VQ30DET) 36

#	OEM	Part name
23300	23300-AG910	Motor Assy-Starter
23300	01121-07111	BOLT
23300	23300-AG010	Motor Assy-Starter
23302	23302-AG910	Yoke Assy
23302	23302-AG010	Yoke Assy
23310	23310-8P410	Armature Assy
23310	23310-4P100	Armature Assy
23312	23312-4P100	Pinion Assy
23313	23361-8P410	Gear
23313	23361-4P100	Gear
23318	23318-AG910	Case Assy-Gear
23318	23318-AG010	Case Assy-Gear
23322	23322-4P100	Lever Set-Shift
23337	23337-AG911	Cover Assy-Rear
23337	23340-U7510	Bolt-Through
23337	23340-36A10	Bolt-Through
23337	23340-4W01B	Bolt-Through
23337	23337-AG011	Cover Assy-Rear
23337	23340-20P10	Bolt-Through
23338	23338-01N10	Metal-Rear Cover
23343	23343-AG010	Switch Assy-Magnetic
23354	23354-8P410	Clutch Assy
23354	23354-AG010	Clutch Assy
23357	23357-4P100	Shaft-Pinion
23357	23357-AG010	Shaft-Pinion
23360	23360-8P410	Gear & Shaft Set
23360	23360-4P100	Gear & Shaft Set
23378	23378-AG910	Holder Assy-Brush
23378	23378-AG010	Holder Assy-Brush
23383	23383-8P410	Bracket Assy-Center
23383	23383-4P100	Bracket Assy-Center
23385	23385-8P410	Packing
23385	23385-4P100	Packing
23465	23465-N5910	Stopper Set-Pinion
23465	23359-N5911	Ring-Snap
23480	23480-M0110	Screw Set

Steering column (2001-12-01 ~ ; *STDVY; *VQ30DET.300ULT.CVT) 28

#	OEM	Part name
48020	48935-5V101	Bolt
48020	48935-4P000	Bolt
48020	48935-4P060	Bolt
48020	48966-4M410	Bolt
48020	48966-4M41A	Bolt
48020	48935-4P061	Bolt
48020	48948-4P060	Screw
48035	48021-54Y10	Seal-O Ring
48035	48021-4P060	Seal-O Ring
48080	48080-AG300	Joint Assy-Steering, Lower
48080	48070-AG000	Joint Assy-Steering Column, Upper
48805	48805-AG115	Column Assy-Steering
48805	48805-AH560	Column Assy-Steering
48827	48827-AG361	Collar-Steering Column
48830	48822-AG000	Shaft Assy-Steering Column, Lower
48860	48850-AG361	Tube Assy-Jacket, Upper
48860	48862-4P060	Tube Assy-Jacket, Upper
48934	48933-4P060	Spring-Steering Column
48934	48933-AG115	Spring-Steering Column
48988	48988-AG361	Bracket
48990	48990-AG360	Motor Assy-Tilt
48991	48991-AH560	Motor Assy-Telescopic
48992	48992-AH560	Sensor Assy-Tilt
48993	48993-AR060	Sensor Assy-Telescopic
81208181	08120-8181A	Bolt-hexagon
81568251	08156-8251F	BOLTHEXPP WW
89128081	08912-8081A	NUTHEX
92211700	00922-11700	RINGSNAP

Steering column (2001-12-01 ~ ; @VQ25DD +VQ30DD.300SV +VQ30DET.300ULT.CVT +VQ30DET.AT.F4 +RB25DET) 19

#	OEM	Part name
48020	48935-5V101	Bolt
48020	48935-4P000	Bolt
48020	48935-4P060	Bolt
48020	48966-4M410	Bolt
48020	48966-4M41A	Bolt
48020	48935-4P061	Bolt
48079	48969-4M410	Stopper-Tilt Lever
48079	48965-4M410	Stopper-Tilt Lever
48080	48080-AG300	Joint Assy-Steering, Lower
48080	48070-AG000	Joint Assy-Steering Column, Upper
48805	48805-AG115	Column Assy-Steering
48805	48805-AH560	Column Assy-Steering
48827	48827-AG361	Collar-Steering Column
48830	48822-AG000	Shaft Assy-Steering Column, Lower
48934	48933-4P060	Spring-Steering Column
48934	48933-AG115	Spring-Steering Column
48960	48963-AG110	Clamp-Steering Column, Upper
48970	48970-AG110	Lever Assy-Adjust, Steering Column
81568251	08156-8251F	BOLTHEXPP WW

Steering column shell cover (2001-12-01 ~ ; K) 14

#	OEM	Part name
48470	48470-AH314	Cover Set-Steering Column
48470	48470-CR000	Cover Set-Steering Column
48470	48470-CR001	Cover Set-Steering Column
48470	48470-CR010	Cover Set-Steering Column
48470	96938-3H000	Clip
48474	48474-AH314	Cover-Steering Lock
48474	48474-CR010	Cover-Steering Lock
48484	24860-AU001	Bulb
48484	68280-AH314	Escutcheon-Column Cover
48484	68280-CR010	Escutcheon-Column Cover
48486	48476-AG000	Lamp Assy-Ignition Key
48486	48476-CR000	Lamp Assy-Ignition Key
68275	68275-AH364	Pocket-Coin
68275	68275-CR000	Pocket-Coin

Steering gear mounting (2001-12-01 ~ ; VQ30DET) 5

#	OEM	Part name
48353	54449-AG000	Bracket
48376	54444-AG001	Insulator
54459	54459-AA301	Bolt
54459	54459-AA30A	Bolt
54459	54459-4P000	Bolt

Steering wheel (2001-12-01 ~ ; K) 6

#	OEM	Part name
48400	48430-CR111	Wheel Assy-Steering, Less Pad
48400	48430-CR115	Wheel Assy-Steering, Less Pad
48400	48430-CR116	Wheel Assy-Steering, Less Pad
48433	87850-89900	Bolt
48467	48467-4Y900	Lid-Steering, Lower
48467	48467-AR002	Lid-Steering, Lower

Sun roof parts (2001-12-01 ~ ; メインパーツ; K) 30

#	OEM	Part name
73625	91357-79900	Stopper-Guide
73688	91254-79900	Stopper-Shade, Rear
91210	91210-AG010	リツド アツセンブリ-,サンル-フ スライド
91210	91229-AG000	Screw
91249	91249-10Y00	Shim-Lid
91249	91249-10Y05	Shim-Lid
91250	91250-CR010	シエ-ド アツセンブリ-,サンル-フ
91260	01552-00081	CLIP
91260	91361-79900	Clip
91260	73998-01U10	Clip
91275	91275-AR012	Knob-Finisher, Sunroof
91280	91280-AG010	デフレクタ- アツセンブリ-,サンル-フ
91295	91295-AG010	モ-タ- アツセンブリ-,サンル-フ
91318	76892-CR020	ブラケツト,サン ル-フ
91318	76892-CR010	ブラケツト,サン ル-フ
91350	91350-AG010	レ-ル アツセンブリ-,サンル-フ
91358	91358-3L010	Guide Assy-Sunroof, Rh
91359	91359-3L010	Guide Assy-Sunroof, Lh
91360	91360-AG016	Drain Assy-Rear
91380	91380-AG010	トリム,サンル-フ サイド rh
91380	91380-CR015	トリム,サンル-フ サイド rh
91380	74816-35F00	Plug
91381	91381-AG010	トリム,サンル-フ サイド lh
91381	91381-CR015	トリム,サンル-フ サイド lh
91390	91390-1P100	ホ-ス,ドレ-ン
91390	91390-AG020	ホ-ス,ドレ-ン
91740	91312-79900	Screw
831041291	08310-41291	スクリユ-,マシン
834040810	08340-40810	New Genuine Part
854340810	08543-40810	スクリユ-,タツピング

Sun roof parts (2001-12-01 ~ ; リンク&ワイヤー; K) 7

#	OEM	Part name
73622	91356-79900	Cap-Slide
73625	91357-79900	Stopper-Guide
91350	91350-AG010	レ-ル アツセンブリ-,サンル-フ
91370	91354-3L010	Guide Assy-Wire
91370	91355-3L010	Guide Assy-Wire
91371	91374-79900	Guide-Pipe
91371	91375-79900	Guide-Pipe

Sunvisor (2001-12-01 ~ ; K) 5

#	OEM	Part name
96400	96400-CR000	サンバイザ- アツセンブリ-,rh
96401	96401-CR010	サンバイザ- アツセンブリ-,lh
96409	96409-CR000	ホルダ-,サンバイザ-
96416	96416-5P110	レンズ,バニテイ ミラ-
96420	96420-AR002	Cover-Sunvisor

Switch (2001-12-01 ~ 2004-08-01; ﾎﾞﾃﾞｨ-1; K) 10

#	OEM	Part name
25381	25380-AG000	Switch Assy-Trunk Opener
25381	25380-F6610	Switch Assy-Trunk Opener
25491	25491-AG000	Switch Assy-Seat Memory
25494	25494-CR000	Switch Assy-Power Seat, Rear Rh
25496	25496-CR010	Switch Assy-Power Seat, Rear Lh
25560	25570-AG000	Switch Assy-Mirror Control
25560	25570-CR000	Switch Assy-Mirror Control
25750	25401-CR000	Switch Assy-Power Window, Main
831351212	08313-51212	スクリユ-,マシン
851351212	08513-51212	SCREW

Switch (2001-12-01 ~ ; ｲﾝｽﾄ-1; K) 9

#	OEM	Part name
25130	25315-AG000	Switch Assy-Drive Position
25195	25190-CR000	Switch Assy-Retractable Head Lamp
25340	25169-8N000	Bulb
25340	25358-CR000	Switch Assy-Deicer
25540	25540-AG061	Switch Assy-Turn Signal
25550	25551-AR012	Switch-Ascd, Steering
25550	25551-AR013	Switch-Ascd, Steering
27928	25552-AR002	Switch Assy-Radio
27928	25552-AR003	Switch Assy-Radio

Switch (2001-12-01 ~ ; ｲﾝｽﾄ-2; K) 3

#	OEM	Part name
25145	25145-CR010	Switch Assy-Traction Control
25910	25290-AG010	Switch Assy-Hazard
25910	25290-CR000	Switch Assy-Hazard

Switch (2001-12-01 ~ ; ｲﾝｽﾄ-3; K) 12

#	OEM	Part name
25130	25130-AH000	Switch-Power Shift
25130	25130-CR000	Switch-Power Shift
25330	25331-4P000	Lighter Compl-Cigarette
25330	25331-AG000	Lighter Compl-Cigarette
25330	25331-2Y900	Lighter Compl-Cigarette
25330	25331-2Y901	Lighter Compl-Cigarette
25330	25331-AA000	Lighter Compl-Cigarette
25330	25331-AA001	Lighter Compl-Cigarette
25330	25335-89980	Element Assy-Cigarette Lighter
25330	25335-AA000	Element Assy-Cigarette Lighter
25381	25380-F6610	Switch Assy-Trunk Opener
25720	25310-71L00	Switch Assy-Glove Box Lamp

Switch (2001-12-01 ~ ; ﾎﾞﾃﾞｨ-2; K) 2

#	OEM	Part name
25190	25450-AR000	Switch-Sunroof
25360	25365-30R00	Screw

Switch (2004-08-01 ~ ; ﾎﾞﾃﾞｨ-1; K) 10

#	OEM	Part name
25381	25380-AG000	Switch Assy-Trunk Opener
25381	25380-F6610	Switch Assy-Trunk Opener
25491	25491-AG000	Switch Assy-Seat Memory
25494	25494-CR000	Switch Assy-Power Seat, Rear Rh
25496	25496-CR010	Switch Assy-Power Seat, Rear Lh
25560	25570-AG000	Switch Assy-Mirror Control
25560	25570-CR000	Switch Assy-Mirror Control
25750	25401-CR000	Switch Assy-Power Window, Main
831351212	08313-51212	スクリユ-,マシン
851351212	08513-51212	SCREW

Telephone (2001-12-01 ~ ; K) 8

#	OEM	Part name
25232	25230-1L000	Relay
28335	28335-CR000	Adapter Unit-Telephone
28342	28342-CR000	Adapter Assy-Telephone
28368	28368-AG040	Buffer Assy-Telephone
28390	28390-CR000	Harness-Telephone
28390	24346-5L303	Clip
28391	24167-CR000	Harness-Telephone, Sub
836051022	08360-51022	Bolt

Throttle chamber (2001-12-01 ~ ; VQ30DET) 3

#	OEM	Part name
16292	16122-AG000	Bolt-Chamber
16292	16122-17B00	Bolt-Chamber
16298	16119-AG900	Chamber Assy-Throttle

Tool kit (2001-12-01 ~ ; K) 1

#	OEM	Part name
99550	99550-AR100	Jack Complete

Torque converter,housing & case (2001-12-01 ~ ; CVT) 6

#	OEM	Part name
31100	31100-5P001	Converter Assy-Torque
31100	31100-5P002	Converter Assy-Torque
31305	31305-5P000	Plug
31390	31377-80X09	Bolt
31390	31392-X5100	Magnet
31526	31526-5P009	Seal-O Ring

Torque converter,housing & case (2001-12-01 ~ ; VQ30DET.AT.F4) 53

#	OEM	Part name
31023	31377-41X00	Bolt
31023	31377-41X19	Bolt
31023	31377-41X22	Bolt
31100	31100-55X00	Converter Assy-Torque
31301	31301-41X70	Housing-Converter
31301	31309-X6600	Bolt
31305	31305-41X00	Plug-Thread
31305	31305-41X01	Plug-Thread
31305	31305-51X01	Plug-Thread
31310	31310-55X00	Case Assy-Automatic Transmission
31310	31308-41X00	Pin-Dowel
31319	31345-X6101	Plug
31327	31327-51X01	Plate-Baffle
31330	31376-55X03	Clip-Harness
31330	31376-55X02	Clip-Harness
31330	31376-55X01	Clip-Harness
31335	31338-51X00	Gasket-Extension
31381	31381-41X01	Breather-Air
31390	31390-51X04	Pan Assy-Oil
31390	21644-41X00	Bracket-Oil Cooler Tube
31397	31397-51X91	Gasket & Seal Kit-Auto Transmission
31411	31411-51X02	Shaft-Input
31605	31605-41X20	Spring
31645	31645-51X02	Piston Assy-Low & Reverse Brake
31646	31527-51X02	Seal-Lathe Cut Ring
31647	31528-51X00	Seal-O Ring
31650	31656-51X02	Retainer-Low & Reverse Brake
31651	31505-51X05	Spring-Piston Return
31651	31505-51X06	Spring-Piston Return
31652	31506-51X00	Ring-Snap
31662	31532-51X10	Plate Assy-Drive
31666	31666-51X01	Plate-Driven
31667	31667-51X00	Plate-Retaining
31667	31667-51X01	Plate-Retaining
31667	31667-51X02	Plate-Retaining
31667	31667-51X03	Plate-Retaining
31667	31667-51X04	Plate-Retaining
31667	31667-51X05	Plate-Retaining
31667	31667-51X06	Plate-Retaining
31667	31667-51X07	Plate-Retaining
31667	31667-51X08	Plate-Retaining
31667	31667-51X09	Plate-Retaining
31667	31667-51X10	Plate-Retaining
31667	31667-51X11	Plate-Retaining
31667	31667-51X12	Plate-Retaining
31667	31667-51X14	Plate-Retaining
31668	31535-51X04	Plate-Dished
31981	31981-41X02	Support-Parking Actuator
31986	31986-51X00	Shaft-Parking Pawl
31987	31437-51X00	Spacer-Parking Pawl
31988	31988-41X00	Spring-Return Pawl
31991	31991-41X01	Pawl-Parking
811061262	08110-61262	Bolt-hexagon

Trunk lid & fitting (2001-12-01 ~ ; K) 15

#	OEM	Part name
79915	80532-AG000	Holder
84510	01217-00251	NUT
84510	63848-9E002	NUT
84541	84550-S0601	Bumper Rubber-Hinge
84614	84632-3H000	Cover-Trunk Lid Lock
84640	84662-AG000	Rod-Trunk Lid Lock
84806	84830-AH300	Weatherstrip-Trunk Lid
84810	84810-AG512	Finisher Assy-Trunk Lid
84810	84810-AG513	Finisher Assy-Trunk Lid
84810	84810-AG514	Finisher Assy-Trunk Lid
84810	84810-CR601	Finisher Assy-Trunk Lid
84810	84810-CR602	Finisher Assy-Trunk Lid
84810	84810-CR603	Finisher Assy-Trunk Lid
84810	84810-CR604	Finisher Assy-Trunk Lid
81568401	08156-8401F	ボルト

Trunk opener (2001-12-01 ~ ; K) 4

#	OEM	Part name
28563	28563-AG010	Control Unit-Trunk Closure
84474	78805-5P200	Bolt
84623	84623-AH300	Closure Assy-Trunk Lid
854341242	08543-4122A	SCREWTAPPING

Trunk room trimming (2001-12-01 ~ ; K) 12

#	OEM	Part name
79131	79131-AG100	Bracket-Trunk Trim, Lh
84900	84910-CR000	Finisher Assy-Trunk, Front
84900	01456-00651	SCREW
84900	84966-AG000	Finisher-Trunk Lid
84902	84902-AG005	Carpet-Trunk Floor
84906	84906-AG000	Board Assy-Trunk Floor, Rh
84907	84907-AG000	Board Assy-Trunk Floor, Lh
84928	79130-AG100	Bracket-Trunk Trim, Rh
84931	84930-AG000	Felt-Trunk Floor
84941	84941-AG000	Finisher-Trunk Side, Lh
84975	84975-AG000	Box Assy-Trunk Side
84978	73982-AG006	Spacer-Luggage Floor

Turbo charger (2001-12-01 ~ ; "オイル & ウォーター パイピング; VQ30DET) 15

#	OEM	Part name
14056	16439-56S00	Clamp-Hose
14056	14056-88G01	Hose-Water
14411	14070-4P210	Stud
15188	15188-04U00	Bolt-Eye, Water Tube
15192	15192-AG900	Tube Assy-Oil
15192	16432-P9000	Bolt-Eye
15192	16432-04U00	Bolt-Eye
15192	14499-4P200	Tube Assy-Water Inlet
15192	14498-4P200	Tube Assy-Water Outlet
15197	15197-4P200	Turbocharger Oil Outlet
15198	15198-4P200	Turbocharger Oil Hose
15198	16439-26E00	CLAMP-HOSE
812061633	08120-61633	Bolt-hexagon
812061633	08120-6161F	Bolt-hexagon
891810610	08918-10610	NUTHEX

Turbo charger (2001-12-01 ~ ; インタークーラー&パイピング; VQ30DET) 29

#	OEM	Part name
14451	01121-03851	BOLT
14451	01436-01681	BOLT
14460	21506-15S00	Mounting Rubber-Radiator
14460	16579-4P200	Pipe-Blow By
14460	14460-AG901	Tube Assy-Inlet
14460	14460-AG907	Tube Assy-Inlet
14460	14460-AG908	Tube Assy-Inlet
14460	14460-AG904	Tube Assy-Inlet
14461	14467-AG900	Bracket-Air Inlet Pipe
14461	14070-4P210	Stud
14463	14463-AG904	Hose-Air Inlet
14463	14463-AG900	Hose-Air Inlet
14463	14463-AG903	Hose-Air Inlet
14463	14463-4P220	Hose-Air Inlet
14463	14463-AG906	Hose-Air Inlet
14463	14463-AG901	Hose-Air Inlet
14464	14464-27M00	Clamp-Hose
14464	14464-79904	Clamp-Hose
14465	14465-AG900	Gasket-Inlet Tube
14466	14489-AG900	Gasket-Valve Intake
14483	14483-4P201	Valve-Recirculation
14487	14486-AG900	Bracket-Intercooler
14487	14747-AG900	Collar
14496	14461-AG901	Charge Air Cooler
16585	16585-AG900	Resonator Assy
81208301	08120-8301F	Bolt-hexagon
81568251	08156-8251F	BOLTHEXPP WW
81568301	08156-8301F	BOLTHEXPP WW
81568701	08156-8701F	ボルト

Turbo charger (2001-12-01 ~ ; ターボチャージャー; VQ30DET) 16

#	OEM	Part name
14411	14070-4P210	Stud
14414	14414-AG900	Stud-Compressor Housing
14417	01211-00151	NUT
14440	14440-AG900	Outlet-Exhaust
14441	14441-AG900	Cover-Exhaust Outlet
14445	14445-4P200	Turbocharger Outlet Gasket
14450	14450-AG900	Insulator-Heat, Turbine Housing
14452	14452-4P200	Bracket-Heat Insulator, Rear
14460	14460-AG905	Tube Assy-Inlet
14460	21506-15S00	Mounting Rubber-Radiator
14460	16579-4P200	Pipe-Blow By
14460	14460-AG901	Tube Assy-Inlet
14460	14460-AG907	Tube Assy-Inlet
14460	14460-AG908	Tube Assy-Inlet
14460	14460-AG904	Tube Assy-Inlet
81568301	08156-8301F	BOLTHEXPP WW

Vacuum piping (2001-12-01 ~ ; VQ30DET) 34

#	OEM	Part name
14875	14960-AH100	Connector
14908	24220-51Y00	Clip-Breather Hose
14911	01558-00401	CLAMP-HOSE
14911	16439-56S00	Clamp-Hose
14911	16439-N2100	Clamp-Hose
14912	14912-AG915	Hose-Evap Control
14912	14912-AH100	Hose-Evap Control
14912	14912-CR800	Hose-Evap Control
14912	22320-CR810	Hose-Evap Control
14916	11836-AG900	Bracket-Crip
14920	14930-AH100	Valve Assy-Control
14956	14956-38U10	Valve Assy-Solenoid
14958	14830-AG900	Valve Assy-Check
14960	14960-AA500	Connector, A
14961	01552-00061	CLIP-BREATHER HOSE
14962	16439-0P002	Clamp-Hose
14962	16439-AG005	Clamp-Hose, B
14962	24220-79909	Clamp-Hose, B
14962	16439-N2103	Clip
16599	16599-N3600	Cap-Rubber
22310	22310-CR810	Gallery Assy-Vacuum
22310	22310-CR800	Gallery Assy-Vacuum
22310	02187-30903	HOSE-VACUUM CONTROL
22320	22320-AJ420	Hose-Vacuum Control, B
22320	22320-AJ400	Hose-Vacuum Control, B
22320	22320-AG065	Hose-Vacuum Control, B
22320	22320-CR800	Hose-Vacuum Control, B
22320	22320-AG900	Hose-Vacuum Control, B
22320	22320-AG915	Hose-Vacuum Control, B
22320	22320-AD104	Hose-Vacuum Control, B
22365	22365-6P500	Sensor-Boost
22652	25086-AG900	Bracket-Sensor
812061633	08120-61633	Bolt-hexagon
812061633	08120-6161F	Bolt-hexagon

Ventilator (2001-12-01 ~ ; K) 13

#	OEM	Part name
66550	68760-CR000	Ventilator Assy-Side
66551	68761-CR000	Ventilator Assy-Side
66551	68761-CR001	Ventilator Assy-Side
66570	68740-AH304	Grille-Side Defroster, Rh
66570	68740-CR000	Grille-Side Defroster, Rh
66571	68741-AH304	Grille-Side Defroster, Lh
66571	68741-CR000	Grille-Side Defroster, Lh
66590	68750-AH364	Ventilator Assy-Center
66590	68750-CR010	Ventilator Assy-Center
68742	68742-AH304	Grille-Front Defroster, Rh
68742	68742-CR000	Grille-Front Defroster, Rh
68743	68743-AH304	Grille-Front Defroster, Lh
68743	68743-CR000	Grille-Front Defroster, Lh

Water hose & piping (2001-12-01 ~ ; VQ30DET) 18

#	OEM	Part name
14053	13075-4W001	Bolt
14053	13075-4W00C	Bolt
14053	13075-4W002	Bolt-Hex
14053	21021-AG900	Pipe-Water
14053	14053-AG900	Pipe-Water
14053	21022-4P200	Pipe-Water
14053	14053-AG005	Pipe-Water
14055	01558-00211	CLIP
14055	92431-G5405	Hose-Rear Heater, 2
14056	16439-56S00	Clamp-Hose
14056	14056-AG001	Hose-Water
14056	14056-AG010	Hose-Water
14057	14076-4P100	Bracket-Heater Pipe
21069	01555-00291	CLAMP-HOSE
21069	16439-17B00	Clip
21069	16439-53J00	Clamp-Hose
812061633	08120-61633	Bolt-hexagon
812061633	08120-6161F	Bolt-hexagon

Water pump, cooling fan & thermostat (2001-12-01 ~ ; VQ30DET) 12

#	OEM	Part name
11060	11060-CR800	Outlet-Water
11060	11060-AE200	Outlet-Water
11060	14895-2Y520	Stud
11060	14075-4P100	Connector
11062	11062-AL500	Gasket-Water Outlet
11062	11062-AL51A	11062AL51A
13049	11916-31U05	Bolt
13049	11916-31U0B	Bolt
21010	21010-31U29	Pump Assy-Water
21082	21082-AG200	Coupling Assy-Fan
21200	21200-31U13	Thermostat Assy
812062033	08120-62033	Bolt-hexagon

Windshield washer (2001-12-01 ~ ; K) 22

#	OEM	Part name
27440	28930-AG000	Nozzle Assy-Washer, No 1
27440	28930-AG009	Nozzle Assy-Washer, No 1
27440	28930-AG013	Nozzle Assy-Washer, No 1
27440	28930-AG014	Nozzle Assy-Washer, No 1
27440	28930-CR001	Nozzle Assy-Washer, No 1
27440	28930-CR002	Nozzle Assy-Washer, No 1
27440	28930-CR003	Nozzle Assy-Washer, No 1
27440	28930-CR004	Nozzle Assy-Washer, No 1
27441	28931-AG000	Nozzle Assy-Washer, No 2
27441	28931-AG009	Nozzle Assy-Washer, No 2
27441	28931-AG013	Nozzle Assy-Washer, No 2
27441	28931-AG014	Nozzle Assy-Washer, No 2
27441	28931-CR001	Nozzle Assy-Washer, No 2
27441	28931-CR002	Nozzle Assy-Washer, No 2
27441	28931-CR004	Nozzle Assy-Washer, No 2
27460	28935-AG000	Hose-Washer
27460	28940-40F00	Hose-Washer
27460	28940-AG000	Hose-Washer
27480	28913-CR000	Cap-Windshield Washer Tank
27490	28911-V5000	Sensor Assy-Water
28916	28915-CR000	Inlet-Washer Tank
81468201	08146-8201G	Bolt-hexagon

Windshield wiper (2001-12-01 ~ ; K) 10

#	OEM	Part name
26380	28881-AG001	Arm Assy-Windshield Wiper
26380	28881-AG012	Arm Assy-Windshield Wiper
26380	28886-AG001	Arm Assy-Windshield Wiper
26381	28889-50J00	Nut-Wiper Arm
28810	28810-CR010	Motor Assy-Windshield Wiper
28810	28899-AD000	Screw
28810	28899-4M41A	Screw
28840	28840-CR000	Link Assy-Wiper
28840	28840-CR010	Link Assy-Wiper
28860	28841-CR000	Link Assy-Connecting, No 1

Wiring (2001-12-01 ~ ; ｲﾝｽﾄ 立体図; K.(300LX+300LXVIP) +K.300ULT.CVT) 8

#	OEM	Part name
24010	24010-CR000	Harness Assy-Main
24010	24010-CR001	Harness Assy-Main
24010	24010-CR002	Harness Assy-Main
24010	24010-CR003	Harness Assy-Main
24010	24010-CR010	Harness Assy-Main
24010	24010-CR011	Harness Assy-Main
24215	24019-AG000	Clip-Wiring Harness
24215	24216-S5801	Clip-Wiring Harness

Wiring (2001-12-01 ~ ; ｲﾝｽﾄ 立体図; K.VQ30DET.AT.F4) 4

#	OEM	Part name
24010	24010-CR005	Harness Assy-Main
24010	24010-CR007	Harness Assy-Main
24215	24019-AG000	Clip-Wiring Harness
24215	24216-S5801	Clip-Wiring Harness

Wiring (2001-12-01 ~ ; ｴﾝｼﾞﾝ ﾊｰﾈｽ; K.(300LX+300LXVIP) +K.300ULT.CVT) 8

#	OEM	Part name
24075	24072-AG000	Harness-Engine, Sub
24078	24011-CR001	Harness Assy-Egi
24217	24239-AG000	Bracket-Harness Clip
24217	24239-AG110	Bracket-Harness Clip
24217	24239-AG011	Bracket-Harness Clip
24276	24281-AG000	Protector-Harness
24276	24278-AG000	Protector-Harness
24276	24280-AG100	Protector-Harness

Wiring (2001-12-01 ~ ; ｴﾝｼﾞﾝ ﾊｰﾈｽ; K.VQ30DET.AT.F4) 7

#	OEM	Part name
24075	24072-AG000	Harness-Engine, Sub
24078	24011-CR003	Harness Assy-Egi
24217	24239-AG000	Bracket-Harness Clip
24217	24239-AG110	Bracket-Harness Clip
24217	24239-AG011	Bracket-Harness Clip
24276	24280-AG020	Protector-Harness
24276	24281-AG000	Protector-Harness

Wiring (2001-12-01 ~ ; ｴﾝｼﾞﾝ ﾙｰﾑ ﾊｰﾈｽ ﾌｨｯﾃｨﾝｸﾞﾊﾟｰﾂ; K.(300LX+300LXVIP) +K.300ULT.CVT) 14

#	OEM	Part name
24130	24335-79901	Diode
24130	24335-C9902	Diode
24229	24355-AG000	Bracket-Junction
24270	24280-AG000	Protector-Harness
24270	24280-AG010	Protector-Harness
24270	24282-AG000	Protector-Harness
24271	24239-CR810	Protector-Harness
24276	24280-AG020	Protector-Harness
24276	24281-AG000	Protector-Harness
24276	24276-AG000	Protector
24276	24278-AG000	Protector-Harness
24382	24372-AG010	Cover-Relay Box
24382	24382-4P200	Cover-Relay Box
24382	24382-CR010	Cover-Relay Box

Wiring (2001-12-01 ~ ; ｴﾝｼﾞﾝ ﾙｰﾑ ﾊｰﾈｽ ﾌｨｯﾃｨﾝｸﾞﾊﾟｰﾂ; K.VQ30DET.AT.F4) 12

#	OEM	Part name
24130	24335-79901	Diode
24130	24335-C9902	Diode
24229	24355-AG000	Bracket-Junction
24270	24280-AG000	Protector-Harness
24270	24280-AG010	Protector-Harness
24270	24282-AG000	Protector-Harness
24276	24276-AG000	Protector
24276	24280-AG020	Protector-Harness
24276	24281-AG000	Protector-Harness
24382	24372-AG010	Cover-Relay Box
24382	24382-4P200	Cover-Relay Box
24382	24382-CR010	Cover-Relay Box

Wiring (2001-12-01 ~ ; ｴﾝｼﾞﾝ ﾙｰﾑ ﾊｰﾈｽ; K.(300LX+300LXVIP) +K.300ULT.CVT) 16

#	OEM	Part name
24012	24012-CR001	Harness Assy-Engine Room
24012	01456-00641	SCREW
24079	24079-AQ800	Harness Assy-Engine Room Sub
24315	24315-AG000	Retainer-Fuse Block
24370	24370-C9924	Connector Assy-Fusible Link
24381	24381-AG000	Housing-Fusible Link Holder
24381	24381-AG010	Housing-Fusible Link Holder
24382	24372-AG000	Cover-Relay Box
24382	24372-AG001	Cover-Relay Box
24382	24372-AG002	Cover-Relay Box
24382	24372-AG003	Cover-Relay Box
24382	24372-AG010	Cover-Relay Box
24382	24382-CR010	Cover-Relay Box
24383	24383-AG001	Housing-Relay Box
24385	24385-AG000	Retainer-Fusible Link Holder
24385	24385-AG010	Retainer-Fusible Link Holder

Wiring (2001-12-01 ~ ; ｴﾝｼﾞﾝ ﾙｰﾑ ﾊｰﾈｽ; K.VQ30DET.AT.F4) 16

#	OEM	Part name
24012	24012-CR001	Harness Assy-Engine Room
24012	01456-00641	SCREW
24079	24079-AQ800	Harness Assy-Engine Room Sub
24315	24315-AG000	Retainer-Fuse Block
24370	24370-C9924	Connector Assy-Fusible Link
24381	24381-AG000	Housing-Fusible Link Holder
24381	24381-AG010	Housing-Fusible Link Holder
24382	24372-AG000	Cover-Relay Box
24382	24372-AG001	Cover-Relay Box
24382	24372-AG002	Cover-Relay Box
24382	24372-AG003	Cover-Relay Box
24382	24372-AG010	Cover-Relay Box
24382	24382-CR010	Cover-Relay Box
24383	24383-AG001	Housing-Relay Box
24385	24385-AG000	Retainer-Fusible Link Holder
24385	24385-AG010	Retainer-Fusible Link Holder

Wiring (2001-12-01 ~ ; ｴﾝｼﾞﾝ ﾙｰﾑ ﾊｰﾈｽ立体図; K.(300LX+300LXVIP) +K.300ULT.CVT) 7

#	OEM	Part name
24012	24012-CR001	Harness Assy-Engine Room
24012	01456-00641	SCREW
24078	24011-CR001	Harness Assy-Egi
24110	24110-AG000	Cable Assy-Battery To Starter Motor
24110	24110-CR000	Cable Assy-Battery To Starter Motor
24110	01121-05851	BOLT
24110	01125-00931	SCREW

Wiring (2001-12-01 ~ ; ｴﾝｼﾞﾝ ﾙｰﾑ ﾊｰﾈｽ立体図; K.VQ30DET.AT.F4) 9

#	OEM	Part name
24012	24012-CR001	Harness Assy-Engine Room
24012	01456-00641	SCREW
24075	24072-AG000	Harness-Engine, Sub
24078	24011-CR003	Harness Assy-Egi
24079	24079-AQ800	Harness Assy-Engine Room Sub
24110	24110-AG000	Cable Assy-Battery To Starter Motor
24110	24110-CR000	Cable Assy-Battery To Starter Motor
24110	01121-05851	BOLT
24110	01125-00931	SCREW

Wiring (2001-12-01 ~ ; ﾊﾞｯﾃﾘｰ ﾏﾜﾘ; K.(300LX+300LXVIP) +K.300ULT.CVT) 15

#	OEM	Part name
24110	24110-AG000	Cable Assy-Battery To Starter Motor
24110	24110-CR000	Cable Assy-Battery To Starter Motor
24110	01121-05851	BOLT
24110	01125-00931	SCREW
24215	24220-4P200	Clip
24217	24239-4P000	Bracket-Harness Clip
24217	24239-CR003	Bracket-Harness Clip
24217	24239-AG100	Bracket-Harness Clip
24217	24239-4P165	Bracket-Harness Clip
24217	24239-4P17A	Bracket-harness clip
24217	24239-AG001	Bracket-Harness Clip
24225	24360-AG000	Cap-Terminal
24270	24282-AG000	Protector-Harness
24340	24340-9E000	TERMINAL ASSY-BATTERY
24345	24345-AD010	Cover-Connector

Wiring (2001-12-01 ~ ; ﾊﾞｯﾃﾘｰ ﾏﾜﾘ; K.VQ30DET.AT.F4) 14

#	OEM	Part name
24110	24110-AG000	Cable Assy-Battery To Starter Motor
24110	24110-CR000	Cable Assy-Battery To Starter Motor
24110	01121-05851	BOLT
24110	01125-00931	SCREW
24217	24239-4P000	Bracket-Harness Clip
24217	24239-CR003	Bracket-Harness Clip
24217	24239-AG100	Bracket-Harness Clip
24217	24239-4P165	Bracket-Harness Clip
24217	24239-4P17A	Bracket-harness clip
24217	24239-AG001	Bracket-Harness Clip
24225	24360-AG000	Cap-Terminal
24270	24282-AG000	Protector-Harness
24340	24340-9E000	TERMINAL ASSY-BATTERY
24345	24345-AD010	Cover-Connector

Wiring (2001-12-01 ~ ; ﾎﾞﾃﾞｨ ﾊｰﾈｽ ﾌｨｯﾃｨﾝｸﾞﾊﾟｰﾂ; K.(300LX+300LXVIP) +K.300ULT.CVT) 10

#	OEM	Part name
24245	24276-AG000	Protector
24271	24277-AG000	Protector-Harness
24271	24239-CR810	Protector-Harness
24273	24277-AG015	Protector-Harness
24273	24278-AG000	Protector-Harness
24276	24273-AG000	Protector-Harness
24276	24272-AG000	Protector-Harness
24276	24280-AG020	Protector-Harness
24276	24281-AG000	Protector-Harness
24276	24280-AG100	Protector-Harness

Wiring (2001-12-01 ~ ; ﾎﾞﾃﾞｨ ﾊｰﾈｽ ﾌｨｯﾃｨﾝｸﾞﾊﾟｰﾂ; K.VQ30DET.AT.F4) 9

#	OEM	Part name
24245	24276-AG000	Protector
24271	24277-AG000	Protector-Harness
24271	24239-CR810	Protector-Harness
24273	24277-AG015	Protector-Harness
24273	24278-AG000	Protector-Harness
24276	24273-AG000	Protector-Harness
24276	24272-AG000	Protector-Harness
24276	24280-AG020	Protector-Harness
24276	24281-AG000	Protector-Harness

Wiring (2001-12-01 ~ ; ﾎﾞﾃﾞｨ ﾊｰﾈｽ; K.(300LX+300LXVIP) +K.300ULT.CVT) 19

#	OEM	Part name
24010	24010-CR000	Harness Assy-Main
24010	24010-CR001	Harness Assy-Main
24010	24010-CR002	Harness Assy-Main
24010	24010-CR003	Harness Assy-Main
24010	24010-CR010	Harness Assy-Main
24010	24010-CR011	Harness Assy-Main
24014	24014-CR000	Harness Assy-Body
24014	24014-CR001	Harness Assy-Body
24014	24014-CR002	Harness Assy-Body
24014	24014-CR003	Harness Assy-Body
24017	24017-CR002	Harness-Body, No2
24017	24017-CR003	Harness-Body, No2
24040	24045-CR000	Harness Assy-Air Conditioner, Rear
24058	24058-AG000	Harness-Defogger, Rear
24217	24238-AG001	Bracket-Harness Clip
24229	24356-AG001	Bracket-Junction
24229	24355-AG000	Bracket-Junction
24229	24356-AG000	Bracket-Junction
24229	24356-AG003	Bracket-Junction

Wiring (2001-12-01 ~ ; ﾎﾞﾃﾞｨ ﾊｰﾈｽ; K.VQ30DET.AT.F4) 14

#	OEM	Part name
24010	24010-CR005	Harness Assy-Main
24010	24010-CR007	Harness Assy-Main
24014	24014-CR000	Harness Assy-Body
24014	24014-CR001	Harness Assy-Body
24014	24014-CR002	Harness Assy-Body
24014	24014-CR003	Harness Assy-Body
24017	24017-CR002	Harness-Body, No2
24017	24017-CR003	Harness-Body, No2
24058	24058-AG000	Harness-Defogger, Rear
24217	24238-AG001	Bracket-Harness Clip
24229	24356-AG001	Bracket-Junction
24229	24355-AG000	Bracket-Junction
24229	24356-AG000	Bracket-Junction
24229	24356-AG003	Bracket-Junction

Wiring (2001-12-01 ~ ; ﾎﾞﾃﾞｨ ﾊｰﾈｽ立体図; K.(300LX+300LXVIP) +K.300ULT.CVT) 16

#	OEM	Part name
24010	24010-CR000	Harness Assy-Main
24010	24010-CR001	Harness Assy-Main
24010	24010-CR002	Harness Assy-Main
24010	24010-CR003	Harness Assy-Main
24010	24010-CR010	Harness Assy-Main
24010	24010-CR011	Harness Assy-Main
24014	24014-CR000	Harness Assy-Body
24014	24014-CR001	Harness Assy-Body
24014	24014-CR002	Harness Assy-Body
24014	24014-CR003	Harness Assy-Body
24017	24017-CR002	Harness-Body, No2
24017	24017-CR003	Harness-Body, No2
24040	24045-CR000	Harness Assy-Air Conditioner, Rear
24160	24060-CR000	Harness Assy-Room Lamp
24160	24060-CR001	Harness Assy-Room Lamp
24160	24060-CR020	Harness Assy-Room Lamp

Wiring (2001-12-01 ~ ; ﾎﾞﾃﾞｨ ﾊｰﾈｽ立体図; K.VQ30DET.AT.F4) 10

#	OEM	Part name
24010	24010-CR005	Harness Assy-Main
24010	24010-CR007	Harness Assy-Main
24014	24014-CR000	Harness Assy-Body
24014	24014-CR001	Harness Assy-Body
24014	24014-CR002	Harness Assy-Body
24014	24014-CR003	Harness Assy-Body
24017	24017-CR002	Harness-Body, No2
24017	24017-CR003	Harness-Body, No2
24160	24060-CR000	Harness Assy-Room Lamp
24160	24060-CR020	Harness Assy-Room Lamp

Wiring (2001-12-01 ~ ; ﾒｲﾝ ﾊｰﾈｽ ﾌｨｯﾃｨﾝｸﾞﾊﾟｰﾂ; K.(300LX+300LXVIP) +K.300ULT.CVT) 14

#	OEM	Part name
24012	01456-00641	SCREW
24136	24346-AG100	Bracket Assy-Connector
24136	24346-AH000	Bracket Assy-Connector
24215	24216-S5801	Clip-Wiring Harness
24276	24272-AG000	Protector-Harness
24276	24273-AG000	Protector-Harness
24312	24313-AG600	Label-Fuse Block
24329	24327-AG000	Bracket-Fuse Block
24329	24327-AG001	Bracket-Fuse Block
24329	24327-AG010	Bracket-Fuse Block
24329	24327-AG610	Bracket-Fuse Block
24350	24350-AG600	Block-Junction
24350	24350-AG610	Block-Junction
25410	24321-79910	Puller-Fuse

Wiring (2001-12-01 ~ ; ﾒｲﾝ ﾊｰﾈｽ ﾌｨｯﾃｨﾝｸﾞﾊﾟｰﾂ; K.VQ30DET.AT.F4) 14

#	OEM	Part name
24012	01456-00641	SCREW
24136	24346-AG100	Bracket Assy-Connector
24136	24346-AH000	Bracket Assy-Connector
24215	24220-4P200	Clip
24215	24216-S5801	Clip-Wiring Harness
24276	24272-AG000	Protector-Harness
24312	24313-AG600	Label-Fuse Block
24329	24327-AG000	Bracket-Fuse Block
24329	24327-AG001	Bracket-Fuse Block
24329	24327-AG010	Bracket-Fuse Block
24329	24327-AG610	Bracket-Fuse Block
24350	24350-AG600	Block-Junction
24350	24350-AG610	Block-Junction
25410	24321-79910	Puller-Fuse

Wiring (2001-12-01 ~ ; ﾒｲﾝ ﾊｰﾈｽ; K.(300LX+300LXVIP) +K.300ULT.CVT) 15

#	OEM	Part name
24010	24010-CR000	Harness Assy-Main
24010	24010-CR001	Harness Assy-Main
24010	24010-CR002	Harness Assy-Main
24010	24010-CR003	Harness Assy-Main
24010	24010-CR010	Harness Assy-Main
24010	24010-CR011	Harness Assy-Main
24012	01456-00641	SCREW
24215	24019-AG000	Clip-Wiring Harness
24215	24216-S5801	Clip-Wiring Harness
24229	24356-AG000	Bracket-Junction
24229	24356-AG003	Bracket-Junction
24329	24327-AG001	Bracket-Fuse Block
24329	24327-AG010	Bracket-Fuse Block
24329	24327-AG610	Bracket-Fuse Block
24350	24350-AG610	Block-Junction

Wiring (2001-12-01 ~ ; ﾒｲﾝ ﾊｰﾈｽ; K.VQ30DET.AT.F4) 11

#	OEM	Part name
24010	24010-CR005	Harness Assy-Main
24010	24010-CR007	Harness Assy-Main
24012	01456-00641	SCREW
24215	24019-AG000	Clip-Wiring Harness
24215	24216-S5801	Clip-Wiring Harness
24229	24356-AG000	Bracket-Junction
24229	24356-AG003	Bracket-Junction
24329	24327-AG001	Bracket-Fuse Block
24329	24327-AG010	Bracket-Fuse Block
24329	24327-AG610	Bracket-Fuse Block
24350	24350-AG610	Block-Junction

Wiring (2001-12-01 ~ ; ﾙｰﾌ & ﾄﾞｱ ﾊｰﾈｽ; K.(300LX+300LXVIP) +K.300ULT.CVT) 10

#	OEM	Part name
24160	24060-CR000	Harness Assy-Room Lamp
24160	24060-CR001	Harness Assy-Room Lamp
24160	24060-CR020	Harness Assy-Room Lamp
24302	24124-AG601	Harness Assy-Door, Front
24303	24125-CR000	Harness Assy-Door, Front
24303	24125-CR010	Harness Assy-Door, Front
24304	24126-AG601	Harness Assy-Door, Rear
24304	24126-AG603	Harness Assy-Door, Rear
24304	24126-CR000	Harness Assy-Door, Rear
24304	24126-CR002	Harness Assy-Door, Rear

Wiring (2001-12-01 ~ ; ﾙｰﾌ & ﾄﾞｱ ﾊｰﾈｽ; K.VQ30DET.AT.F4) 6

#	OEM	Part name
24160	24060-CR000	Harness Assy-Room Lamp
24160	24060-CR020	Harness Assy-Room Lamp
24303	24125-CR000	Harness Assy-Door, Front
24303	24125-CR010	Harness Assy-Door, Front
24304	24126-CR000	Harness Assy-Door, Rear
24304	24126-CR002	Harness Assy-Door, Rear

air conditioner (engine room) (2001-12-01 ~ ; K.(VQ25DD+VQ30DD+VQ30DET)) 14

#	OEM	Part name
27000	27090-79919	Label-Air Con
27640	92131-2Y960	Tank Assy-Liquid
27644	92471-N8210	O Ring
27673	17561-62J10	Insulator
27760	27722-31U00	Sensor Assy-Ambient
92136	92136-6J001	Sensor Assy-Pressure
92441	92441-AG900	Pipe-Front Cooler, High A
92441	92441-CR000	Pipe-Front Cooler, High A
92480	92480-CR800	Hose-Flexible, Low
92490	92490-CR000	Hose-Flexible, High
92524	46271-50L10	Clip
92525	92550-AG900	Clip
83605202	08360-5202D	SCREW
83606122	08360-6122D	Screw

meter & gauge (2001-12-01 ~ ; ﾌﾛﾝﾄ ﾋﾞｭｰ; K) 16

#	OEM	Part name
24813	24813-AH300	Cover-Front Meter
24823	24823-AJ300	Cover-Unit
24850	24820-CR010	Speedometer Assy
24850	24820-CR012	Speedometer Assy
24850	24820-CR111	Speedometer Assy
24850	24820-CR113	Speedometer Assy
24866	24866-WJ101	Knob-Meter
25010	24869-AD500	Bolt
25030	24814-CR810	Plate Assy-Printed Circuit
25030	24814-CR812	Plate Assy-Printed Circuit
25031	24812-AJ300	Housing-Meter Comb, Upper
25031	24811-CR000	Housing-Meter Comb, Lower
25038	26350-AG010	Chime Assy-Warning
25038	26350-0E000	BUZZER ASSY
25820	25820-CR012	Clock Assy-Digital
25820	25820-CR500	Clock Assy-Digital

meter & gauge (2001-12-01 ~ ; ﾘﾔ ﾋﾞｭｰ; K) 1

#	OEM	Part name
25010	24869-AD500	Bolt

steering (1999-06-01 ~ ; MOMO3本スポークステアリング; &VQ25DD,250FOUR(L,TX,T),300ULTIMA,300TX) 1

#	OEM	Part name
0	87850-89900	Bolt

steering (1999-06-01 ~ ; MOMOウッドステアリング; &VQ25DD,250FOUR(L,TX,T),300ULTIMA,300TX) 1

#	OEM	Part name
0	87850-89900	Bolt

steering (1999-06-01 ~ ; 木目調ウッドステアリング; &VQ25DD,250FOUR(L,TX,T),300ULTIMA,300TX) 1

#	OEM	Part name
0	87850-89900	Bolt

stereo, TV, navigator (1999-06-01 ~ ; ALL) 1

#	OEM	Part name
0	68275-AH304	Pocket-Coin

Зеркала (1999-06-01 ~ ; ミラー; ALL) 4

#	OEM	Part name
0	96365-AG010	ミラー ガラス rh
0	96365-AG210	ミラー ガラス rh
0	96366-AG010	ミラー ガラス lh
0	96366-AG210	ミラー ガラス lh

Передний стеклоочиститель (1999-06-01 ~ ; ロックバックアームセット; ALL) 2

#	OEM	Part name
0	28864-AG010	Frame Assy-Wiper Pivot
0	28881-AG012	Arm Assy-Windshield Wiper

ｴｱ ﾌﾟﾘﾌｱｲｱ- (2001-12-01 ~ ; K) 19

#	OEM	Part name
27230	27230-5P500	Fan Assy-Blower
27464	27420-5P500	Cover
27464	27420-AG001	Cover
27465	27464-AR002	Grille Assy-Air Purifier
27465	27464-AR003	Grille Assy-Air Purifier
27465	27465-AR002	Grille Assy-Air Purifier
27465	27465-AR003	Grille Assy-Air Purifier
27466	27466-AG005	Plate
27495	27493-5P500	Filter Kit-Air Purifire & Carbon
27581	27484-AG001	Harness
27726	27512-7P000	Amplifier
27850	27455-AG003	Air Purifier Assy
27852	27460-AG001	Case Assy
27854	27491-5P500	Collector Assy
27875	21489-5P500	Clip
27964	27495-5P500	Filter-Air Purifier
73430	27174-7P000	Packing
73430	27174-5P500	Packing
851351212	08513-51212	SCREW

ﾋﾟｭｱﾄﾛﾝ,ｿﾉﾀ ｸｳﾁｮｳｷｷ (1999-06-01 ~ ; ビルトイン型; ALL) 1

#	OEM	Part name
0	27493-5P500	Filter Kit-Air Purifire & Carbon

ﾍﾞｱ & ｼﾖ-ﾄ ｴﾝｼﾞﾝ ｱﾂｾﾝﾌﾞﾘ- (2001-12-01 ~ ; アッセンブリー; VQ30DET) 6

#	OEM	Part name
0	10102-CR8R0	エンジン アツセンブリ-,ベア リビルト
0	10102-CR8R6	エンジン アツセンブリ-,ベア リビルト
10102	10102-CR8A0	Engine Assy-Bare
10102	10102-CR8A6	Engine Assy-Bare
10103	10103-4P2A1	Engine Assy-Short
10103	10103-CR8A0	Engine Assy-Short
