Search › Model › XZU620

XZU620

Toyota DYNA-TOYOACE · 2011 · 3,714 parts · 245 categories

3,714 items

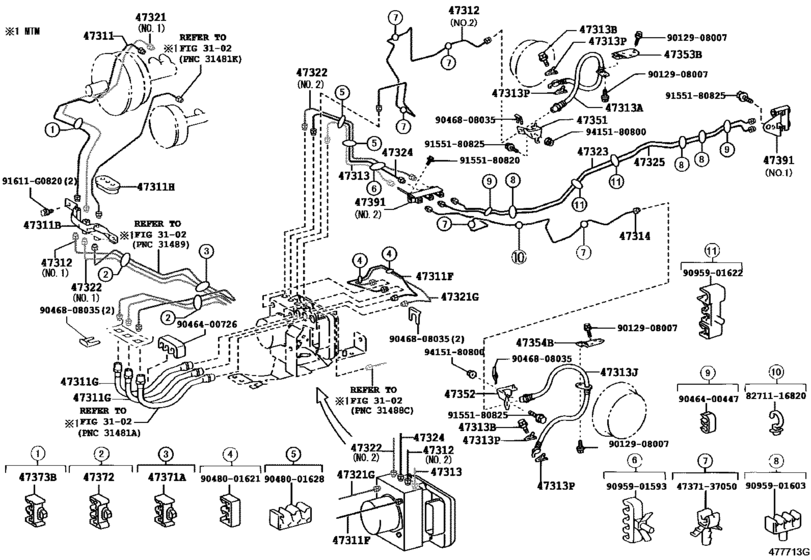

Brake Tube & Clamp ([07.2011 - ] (1107- )XZU610..5F ; (1107- )XZC610,630,XZ U620,630 ; (1107- )XZU600,640..5 F..IV4,IV7) 54

#	OEM	Part name
47311	47311-37592	Tube, Front Brake, No.1
47311	47391-37460	Way, No.1(For Front Brake Tube)
47311	47311-37611	Tube, Front Brake, No.1
47311	90947-02F90	Hose, Flexible(For Brake Tube)
47311	47256-37030	Grommet(For Brake Tube)
47311	47311-37590	Tube, Front Brake, No.1
47311	47311-37591	Tube, Front Brake, No.1
47311	47256-37020	Grommet(For Brake Tube)
47312	47312-37A71	Tube, Front Brake, No.2
47312	47312-37B20	Tube, Front Brake, No.2
47312	47312-37A80	Tube, Front Brake, No.2
47313	47313-37560	Tube, Front Brake, No.3
47313	90947-02A72	Hose, Flexible, No.1(For Front)
47313	90401-10015	Bolt, Union(For Clutch Mas Cylinder To Flexible Hose Tube)
47313	90947-02B27	Hose, Flexible, No.1(For Front)
47313	47389-30010	Gasket(For Clutch Master Cylinder To Flexible Hose Tube)
47314	47314-37800	Tube, Front Brake, No.4
47321	47321-37562	Tube, Rear Brake, No.1
47321	47321-37580	Tube, Rear Brake, No.1
47321	47321-37560	Tube, Rear Brake, No.1
47321	47321-37561	Tube, Rear Brake, No.1
47322	47322-37A81	Tube, Rear Brake, No.2
47322	47322-37B00	Tube, Rear Brake, No.2
47322	47322-37A90	Tube, Rear Brake, No.2
47322	47322-37A91	Tube, Rear Brake, No.2
47323	47323-37760	Tube, Rear Brake, No.3
47324	47324-37380	Tube, Rear Brake, No.4
47325	47325-37480	Tube, Rear Brake, No.5
47351	47351-37130	Bracket, Flexible Hose(For Front Rh)
47352	47352-37050	Bracket, Flexible Hose(For Front Lh)
47353	47353-37150	Bracket, Flexible Hose, No.3
47354	47354-37160	Bracket, Flexible Hose, No.4
47371	47371-37110	Clamp, Brake Tube, No.1
47371	47371-37150	Clamp, Brake Tube, No.1
47372	47371-37160	Clamp, Brake Tube, No.7
47373	47371-37360	Clamp, Brake Tube, No.3
47391	47391-37280	Way, Brake Tube
47391	47391-37300	Way, Brake Tube
91611	91611-G0820	Bolt
4737137050	47371-37050	Clamp, Brake Tube, No.6
8271116820	82711-16820	Clamp, Hood Lock Control Wire
9012908007	90129-08007	New Genuine Part
9046400447	90464-00447	Clamp, Brake Tube, No.3
9046400726	90464-00726	Clamp, Brake Tube, No.4
9046808035	90468-08035	CLIP
9046808035	90468-A0007	New Genuine Part
9048001621	90480-01621	Grommet(For Front Brake Tube)
9048001628	90480-01628	Grommet(For Brake Tube)
9095901593	90959-01593	Clamp, Brake Tube, No.6
9095901603	90959-01603	Clamp, Brake Tube, No.5
9095901622	90959-01622	New Genuine Part
9155180820	91551-80820	Bolt, W/washer (For Transmission Oil Pump Cover)
9155180825	91551-80825	Bolt(For Cylinder Head Set Sub)
9415180800	94151-80800	Nut (For Transmission Control Cable)

OEM	Part name	Category
47256-37020	Grommet(For Brake Tube)	Brake Tube & Clamp ([07.2011 - ] (1107- )XZU610..5F ; (1107- )XZC610,630,XZ U620,630 ; (1107- )XZU600,640..5 F..IV4,IV7)
47256-37030	Grommet(For Brake Tube)	Brake Tube & Clamp ([07.2011 - ] (1107- )XZU610..5F ; (1107- )XZC610,630,XZ U620,630 ; (1107- )XZU600,640..5 F..IV4,IV7)
47311-37590	Tube, Front Brake, No.1	Brake Tube & Clamp ([07.2011 - ] (1107- )XZU610..5F ; (1107- )XZC610,630,XZ U620,630 ; (1107- )XZU600,640..5 F..IV4,IV7)
47311-37591	Tube, Front Brake, No.1	Brake Tube & Clamp ([07.2011 - ] (1107- )XZU610..5F ; (1107- )XZC610,630,XZ U620,630 ; (1107- )XZU600,640..5 F..IV4,IV7)
47311-37592	Tube, Front Brake, No.1	Brake Tube & Clamp ([07.2011 - ] (1107- )XZU610..5F ; (1107- )XZC610,630,XZ U620,630 ; (1107- )XZU600,640..5 F..IV4,IV7)
47311-37611	Tube, Front Brake, No.1	Brake Tube & Clamp ([07.2011 - ] (1107- )XZU610..5F ; (1107- )XZC610,630,XZ U620,630 ; (1107- )XZU600,640..5 F..IV4,IV7)
47312-37A71	Tube, Front Brake, No.2	Brake Tube & Clamp ([07.2011 - ] (1107- )XZU610..5F ; (1107- )XZC610,630,XZ U620,630 ; (1107- )XZU600,640..5 F..IV4,IV7)
47312-37A80	Tube, Front Brake, No.2	Brake Tube & Clamp ([07.2011 - ] (1107- )XZU610..5F ; (1107- )XZC610,630,XZ U620,630 ; (1107- )XZU600,640..5 F..IV4,IV7)
47312-37B20	Tube, Front Brake, No.2	Brake Tube & Clamp ([07.2011 - ] (1107- )XZU610..5F ; (1107- )XZC610,630,XZ U620,630 ; (1107- )XZU600,640..5 F..IV4,IV7)
47313-37560	Tube, Front Brake, No.3	Brake Tube & Clamp ([07.2011 - ] (1107- )XZU610..5F ; (1107- )XZC610,630,XZ U620,630 ; (1107- )XZU600,640..5 F..IV4,IV7)
47314-37800	Tube, Front Brake, No.4	Brake Tube & Clamp ([07.2011 - ] (1107- )XZU610..5F ; (1107- )XZC610,630,XZ U620,630 ; (1107- )XZU600,640..5 F..IV4,IV7)
47321-37560	Tube, Rear Brake, No.1	Brake Tube & Clamp ([07.2011 - ] (1107- )XZU610..5F ; (1107- )XZC610,630,XZ U620,630 ; (1107- )XZU600,640..5 F..IV4,IV7)
47321-37561	Tube, Rear Brake, No.1	Brake Tube & Clamp ([07.2011 - ] (1107- )XZU610..5F ; (1107- )XZC610,630,XZ U620,630 ; (1107- )XZU600,640..5 F..IV4,IV7)
47321-37562	Tube, Rear Brake, No.1	Brake Tube & Clamp ([07.2011 - ] (1107- )XZU610..5F ; (1107- )XZC610,630,XZ U620,630 ; (1107- )XZU600,640..5 F..IV4,IV7)
47321-37580	Tube, Rear Brake, No.1	Brake Tube & Clamp ([07.2011 - ] (1107- )XZU610..5F ; (1107- )XZC610,630,XZ U620,630 ; (1107- )XZU600,640..5 F..IV4,IV7)
47322-37A81	Tube, Rear Brake, No.2	Brake Tube & Clamp ([07.2011 - ] (1107- )XZU610..5F ; (1107- )XZC610,630,XZ U620,630 ; (1107- )XZU600,640..5 F..IV4,IV7)
47322-37A90	Tube, Rear Brake, No.2	Brake Tube & Clamp ([07.2011 - ] (1107- )XZU610..5F ; (1107- )XZC610,630,XZ U620,630 ; (1107- )XZU600,640..5 F..IV4,IV7)
47322-37A91	Tube, Rear Brake, No.2	Brake Tube & Clamp ([07.2011 - ] (1107- )XZU610..5F ; (1107- )XZC610,630,XZ U620,630 ; (1107- )XZU600,640..5 F..IV4,IV7)
47322-37B00	Tube, Rear Brake, No.2	Brake Tube & Clamp ([07.2011 - ] (1107- )XZU610..5F ; (1107- )XZC610,630,XZ U620,630 ; (1107- )XZU600,640..5 F..IV4,IV7)
47323-37760	Tube, Rear Brake, No.3	Brake Tube & Clamp ([07.2011 - ] (1107- )XZU610..5F ; (1107- )XZC610,630,XZ U620,630 ; (1107- )XZU600,640..5 F..IV4,IV7)
47324-37380	Tube, Rear Brake, No.4	Brake Tube & Clamp ([07.2011 - ] (1107- )XZU610..5F ; (1107- )XZC610,630,XZ U620,630 ; (1107- )XZU600,640..5 F..IV4,IV7)
47325-37480	Tube, Rear Brake, No.5	Brake Tube & Clamp ([07.2011 - ] (1107- )XZU610..5F ; (1107- )XZC610,630,XZ U620,630 ; (1107- )XZU600,640..5 F..IV4,IV7)
47351-37130	Bracket, Flexible Hose(For Front Rh)	Brake Tube & Clamp ([07.2011 - ] (1107- )XZU610..5F ; (1107- )XZC610,630,XZ U620,630 ; (1107- )XZU600,640..5 F..IV4,IV7)
47352-37050	Bracket, Flexible Hose(For Front Lh)	Brake Tube & Clamp ([07.2011 - ] (1107- )XZU610..5F ; (1107- )XZC610,630,XZ U620,630 ; (1107- )XZU600,640..5 F..IV4,IV7)
47353-37150	Bracket, Flexible Hose, No.3	Brake Tube & Clamp ([07.2011 - ] (1107- )XZU610..5F ; (1107- )XZC610,630,XZ U620,630 ; (1107- )XZU600,640..5 F..IV4,IV7)
47354-37160	Bracket, Flexible Hose, No.4	Brake Tube & Clamp ([07.2011 - ] (1107- )XZU610..5F ; (1107- )XZC610,630,XZ U620,630 ; (1107- )XZU600,640..5 F..IV4,IV7)
47371-37050	Clamp, Brake Tube, No.6	Brake Tube & Clamp ([07.2011 - ] (1107- )XZU610..5F ; (1107- )XZC610,630,XZ U620,630 ; (1107- )XZU600,640..5 F..IV4,IV7)
47371-37110	Clamp, Brake Tube, No.1	Brake Tube & Clamp ([07.2011 - ] (1107- )XZU610..5F ; (1107- )XZC610,630,XZ U620,630 ; (1107- )XZU600,640..5 F..IV4,IV7)
47371-37150	Clamp, Brake Tube, No.1	Brake Tube & Clamp ([07.2011 - ] (1107- )XZU610..5F ; (1107- )XZC610,630,XZ U620,630 ; (1107- )XZU600,640..5 F..IV4,IV7)
47371-37160	Clamp, Brake Tube, No.7	Brake Tube & Clamp ([07.2011 - ] (1107- )XZU610..5F ; (1107- )XZC610,630,XZ U620,630 ; (1107- )XZU600,640..5 F..IV4,IV7)
47371-37360	Clamp, Brake Tube, No.3	Brake Tube & Clamp ([07.2011 - ] (1107- )XZU610..5F ; (1107- )XZC610,630,XZ U620,630 ; (1107- )XZU600,640..5 F..IV4,IV7)
47389-30010	Gasket(For Clutch Master Cylinder To Flexible Hose Tube)	Brake Tube & Clamp ([07.2011 - ] (1107- )XZU610..5F ; (1107- )XZC610,630,XZ U620,630 ; (1107- )XZU600,640..5 F..IV4,IV7)
47391-37280	Way, Brake Tube	Brake Tube & Clamp ([07.2011 - ] (1107- )XZU610..5F ; (1107- )XZC610,630,XZ U620,630 ; (1107- )XZU600,640..5 F..IV4,IV7)
47391-37300	Way, Brake Tube	Brake Tube & Clamp ([07.2011 - ] (1107- )XZU610..5F ; (1107- )XZC610,630,XZ U620,630 ; (1107- )XZU600,640..5 F..IV4,IV7)
47391-37460	Way, No.1(For Front Brake Tube)	Brake Tube & Clamp ([07.2011 - ] (1107- )XZU610..5F ; (1107- )XZC610,630,XZ U620,630 ; (1107- )XZU600,640..5 F..IV4,IV7)
82711-16820	Clamp, Hood Lock Control Wire	Brake Tube & Clamp ([07.2011 - ] (1107- )XZU610..5F ; (1107- )XZC610,630,XZ U620,630 ; (1107- )XZU600,640..5 F..IV4,IV7)
90129-08007	New Genuine Part	Brake Tube & Clamp ([07.2011 - ] (1107- )XZU610..5F ; (1107- )XZC610,630,XZ U620,630 ; (1107- )XZU600,640..5 F..IV4,IV7)
90401-10015	Bolt, Union(For Clutch Mas Cylinder To Flexible Hose Tube)	Brake Tube & Clamp ([07.2011 - ] (1107- )XZU610..5F ; (1107- )XZC610,630,XZ U620,630 ; (1107- )XZU600,640..5 F..IV4,IV7)
90464-00447	Clamp, Brake Tube, No.3	Brake Tube & Clamp ([07.2011 - ] (1107- )XZU610..5F ; (1107- )XZC610,630,XZ U620,630 ; (1107- )XZU600,640..5 F..IV4,IV7)
90464-00726	Clamp, Brake Tube, No.4	Brake Tube & Clamp ([07.2011 - ] (1107- )XZU610..5F ; (1107- )XZC610,630,XZ U620,630 ; (1107- )XZU600,640..5 F..IV4,IV7)
90468-08035	CLIP	Brake Tube & Clamp ([07.2011 - ] (1107- )XZU610..5F ; (1107- )XZC610,630,XZ U620,630 ; (1107- )XZU600,640..5 F..IV4,IV7)
90468-A0007	New Genuine Part	Brake Tube & Clamp ([07.2011 - ] (1107- )XZU610..5F ; (1107- )XZC610,630,XZ U620,630 ; (1107- )XZU600,640..5 F..IV4,IV7)
90480-01621	Grommet(For Front Brake Tube)	Brake Tube & Clamp ([07.2011 - ] (1107- )XZU610..5F ; (1107- )XZC610,630,XZ U620,630 ; (1107- )XZU600,640..5 F..IV4,IV7)
90480-01628	Grommet(For Brake Tube)	Brake Tube & Clamp ([07.2011 - ] (1107- )XZU610..5F ; (1107- )XZC610,630,XZ U620,630 ; (1107- )XZU600,640..5 F..IV4,IV7)
90947-02A72	Hose, Flexible, No.1(For Front)	Brake Tube & Clamp ([07.2011 - ] (1107- )XZU610..5F ; (1107- )XZC610,630,XZ U620,630 ; (1107- )XZU600,640..5 F..IV4,IV7)
90947-02B27	Hose, Flexible, No.1(For Front)	Brake Tube & Clamp ([07.2011 - ] (1107- )XZU610..5F ; (1107- )XZC610,630,XZ U620,630 ; (1107- )XZU600,640..5 F..IV4,IV7)
90947-02F90	Hose, Flexible(For Brake Tube)	Brake Tube & Clamp ([07.2011 - ] (1107- )XZU610..5F ; (1107- )XZC610,630,XZ U620,630 ; (1107- )XZU600,640..5 F..IV4,IV7)
90959-01593	Clamp, Brake Tube, No.6	Brake Tube & Clamp ([07.2011 - ] (1107- )XZU610..5F ; (1107- )XZC610,630,XZ U620,630 ; (1107- )XZU600,640..5 F..IV4,IV7)
90959-01603	Clamp, Brake Tube, No.5	Brake Tube & Clamp ([07.2011 - ] (1107- )XZU610..5F ; (1107- )XZC610,630,XZ U620,630 ; (1107- )XZU600,640..5 F..IV4,IV7)
90959-01622	New Genuine Part	Brake Tube & Clamp ([07.2011 - ] (1107- )XZU610..5F ; (1107- )XZC610,630,XZ U620,630 ; (1107- )XZU600,640..5 F..IV4,IV7)
91551-80820	Bolt, W/washer (For Transmission Oil Pump Cover)	Brake Tube & Clamp ([07.2011 - ] (1107- )XZU610..5F ; (1107- )XZC610,630,XZ U620,630 ; (1107- )XZU600,640..5 F..IV4,IV7)
91551-80825	Bolt(For Cylinder Head Set Sub)	Brake Tube & Clamp ([07.2011 - ] (1107- )XZU610..5F ; (1107- )XZC610,630,XZ U620,630 ; (1107- )XZU600,640..5 F..IV4,IV7)
91611-G0820	Bolt	Brake Tube & Clamp ([07.2011 - ] (1107- )XZU610..5F ; (1107- )XZC610,630,XZ U620,630 ; (1107- )XZU600,640..5 F..IV4,IV7)
94151-80800	Nut (For Transmission Control Cable)	Brake Tube & Clamp ([07.2011 - ] (1107- )XZU610..5F ; (1107- )XZC610,630,XZ U620,630 ; (1107- )XZU600,640..5 F..IV4,IV7)

Source: Public OEM parts-catalog data
Variants: 2 / 5
Category: 245
