Search › Model › XZU508

XZU508

Toyota DYNA-TOYOACE · 2006 · 3,937 parts · 204 categories

3,937 items

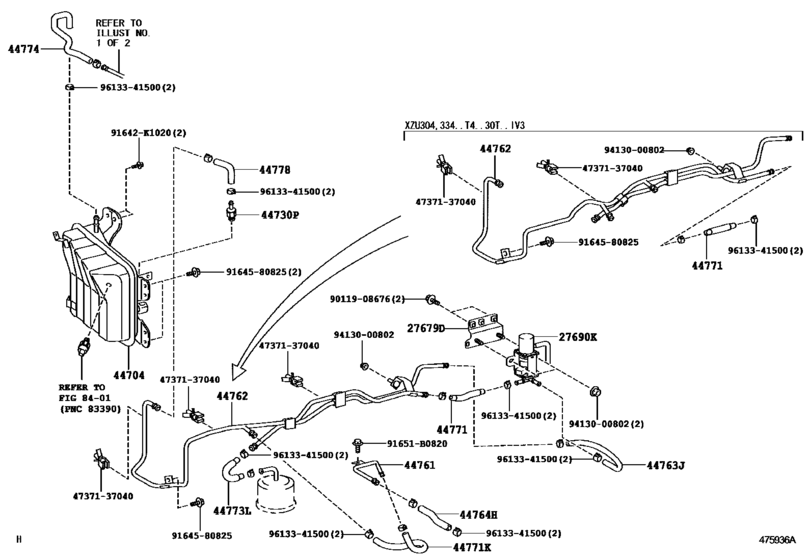

Brake Booster & Vacuum Tube ([10.2006 - ] ｺｳｼｮｻｷﾞｮｳｼｬ OR ﾚｲﾄｳｼｬ OR ﾎﾞﾄﾙｶｰ (0610- )XZU50#..T4..IV3 ; (0610- )XZU348.. SCB..T4..DCRTJ,DCRUE..IV3 ; (0610- )XZU344..T4..3 0T..DCRTJ,DCRUE..IV3) 28

#	OEM	Part name
27679	27679-78041	Bracket, Power Take-Off Solenoid
27690	27690-78140	Solenoid Assy, W/bracket(For Exhaust Brake)
27690	27690-78150	Solenoid Assy, W/bracket(For Exhaust Brake)
44704	44704-37190	Reservoir Sub-Assy, Vacuum
44704	44704-37191	Reservoir Sub-Assy, Vacuum
44704	44704-37250	Reservoir Sub-Assy, Vacuum
44704	44704-37251	Reservoir Sub-Assy, Vacuum
44730	44730-60050	Valve Assy, Vacuum Check(For Clutch Vacuum)
44761	44761-37540	Tube, Intake Manifold Or Vacuum Pump To Connector
44762	44702-37300	Tube, Booster Vacuum
44763	44771-37230	Hose, Vacuum Brake
44764	95446-09120	Hose, Vacuum Pump
44771	44771-37540	Hose, Vacuum Tube Connector
44771	44776-37270	Hose, Vacuum Tube Connector
44771	44771-37800	Hose, Vacuum Tube To Vacuum Pump
44773	44771-37410	Hose, Vacuum Tube Connector
44773	44773-37060	Hose, Solenoid To Exhaust Retarder
44774	44774-37320	Hose, Union To Connector Tube
44778	44778-37060	Hose, Solenoid To Vacuum Tube
91642	91642-K1020	BOLT WWASHER
91651	91651-B0820	Bolt, Radiator Side Support Plate
91651	90080-11347	New Genuine Part
4737137040	47371-37040	Clamp(For Clutch Tube)
9011908676	90119-08676	BOLT WWASHER
9164580825	91645-80825	BOLT WWASHER
9413000802	94130-00802	Nut, No.1 (For Center Support Bearing)
9413000802	90170-A0001	New Genuine Part
9613341500	96133-41500	Clamp Or Clip(For Air Hose, No.5)

OEM	Part name	Category
27679-78041	Bracket, Power Take-Off Solenoid	Brake Booster & Vacuum Tube ([10.2006 - ] ｺｳｼｮｻｷﾞｮｳｼｬ OR ﾚｲﾄｳｼｬ OR ﾎﾞﾄﾙｶｰ (0610- )XZU50#..T4..IV3 ; (0610- )XZU348.. SCB..T4..DCRTJ,DCRUE..IV3 ; (0610- )XZU344..T4..3 0T..DCRTJ,DCRUE..IV3)
27690-78140	Solenoid Assy, W/bracket(For Exhaust Brake)	Brake Booster & Vacuum Tube ([10.2006 - ] ｺｳｼｮｻｷﾞｮｳｼｬ OR ﾚｲﾄｳｼｬ OR ﾎﾞﾄﾙｶｰ (0610- )XZU50#..T4..IV3 ; (0610- )XZU348.. SCB..T4..DCRTJ,DCRUE..IV3 ; (0610- )XZU344..T4..3 0T..DCRTJ,DCRUE..IV3)
27690-78150	Solenoid Assy, W/bracket(For Exhaust Brake)	Brake Booster & Vacuum Tube ([10.2006 - ] ｺｳｼｮｻｷﾞｮｳｼｬ OR ﾚｲﾄｳｼｬ OR ﾎﾞﾄﾙｶｰ (0610- )XZU50#..T4..IV3 ; (0610- )XZU348.. SCB..T4..DCRTJ,DCRUE..IV3 ; (0610- )XZU344..T4..3 0T..DCRTJ,DCRUE..IV3)
44702-37300	Tube, Booster Vacuum	Brake Booster & Vacuum Tube ([10.2006 - ] ｺｳｼｮｻｷﾞｮｳｼｬ OR ﾚｲﾄｳｼｬ OR ﾎﾞﾄﾙｶｰ (0610- )XZU50#..T4..IV3 ; (0610- )XZU348.. SCB..T4..DCRTJ,DCRUE..IV3 ; (0610- )XZU344..T4..3 0T..DCRTJ,DCRUE..IV3)
44704-37190	Reservoir Sub-Assy, Vacuum	Brake Booster & Vacuum Tube ([10.2006 - ] ｺｳｼｮｻｷﾞｮｳｼｬ OR ﾚｲﾄｳｼｬ OR ﾎﾞﾄﾙｶｰ (0610- )XZU50#..T4..IV3 ; (0610- )XZU348.. SCB..T4..DCRTJ,DCRUE..IV3 ; (0610- )XZU344..T4..3 0T..DCRTJ,DCRUE..IV3)
44704-37191	Reservoir Sub-Assy, Vacuum	Brake Booster & Vacuum Tube ([10.2006 - ] ｺｳｼｮｻｷﾞｮｳｼｬ OR ﾚｲﾄｳｼｬ OR ﾎﾞﾄﾙｶｰ (0610- )XZU50#..T4..IV3 ; (0610- )XZU348.. SCB..T4..DCRTJ,DCRUE..IV3 ; (0610- )XZU344..T4..3 0T..DCRTJ,DCRUE..IV3)
44704-37250	Reservoir Sub-Assy, Vacuum	Brake Booster & Vacuum Tube ([10.2006 - ] ｺｳｼｮｻｷﾞｮｳｼｬ OR ﾚｲﾄｳｼｬ OR ﾎﾞﾄﾙｶｰ (0610- )XZU50#..T4..IV3 ; (0610- )XZU348.. SCB..T4..DCRTJ,DCRUE..IV3 ; (0610- )XZU344..T4..3 0T..DCRTJ,DCRUE..IV3)
44704-37251	Reservoir Sub-Assy, Vacuum	Brake Booster & Vacuum Tube ([10.2006 - ] ｺｳｼｮｻｷﾞｮｳｼｬ OR ﾚｲﾄｳｼｬ OR ﾎﾞﾄﾙｶｰ (0610- )XZU50#..T4..IV3 ; (0610- )XZU348.. SCB..T4..DCRTJ,DCRUE..IV3 ; (0610- )XZU344..T4..3 0T..DCRTJ,DCRUE..IV3)
44730-60050	Valve Assy, Vacuum Check(For Clutch Vacuum)	Brake Booster & Vacuum Tube ([10.2006 - ] ｺｳｼｮｻｷﾞｮｳｼｬ OR ﾚｲﾄｳｼｬ OR ﾎﾞﾄﾙｶｰ (0610- )XZU50#..T4..IV3 ; (0610- )XZU348.. SCB..T4..DCRTJ,DCRUE..IV3 ; (0610- )XZU344..T4..3 0T..DCRTJ,DCRUE..IV3)
44761-37540	Tube, Intake Manifold Or Vacuum Pump To Connector	Brake Booster & Vacuum Tube ([10.2006 - ] ｺｳｼｮｻｷﾞｮｳｼｬ OR ﾚｲﾄｳｼｬ OR ﾎﾞﾄﾙｶｰ (0610- )XZU50#..T4..IV3 ; (0610- )XZU348.. SCB..T4..DCRTJ,DCRUE..IV3 ; (0610- )XZU344..T4..3 0T..DCRTJ,DCRUE..IV3)
44771-37230	Hose, Vacuum Brake	Brake Booster & Vacuum Tube ([10.2006 - ] ｺｳｼｮｻｷﾞｮｳｼｬ OR ﾚｲﾄｳｼｬ OR ﾎﾞﾄﾙｶｰ (0610- )XZU50#..T4..IV3 ; (0610- )XZU348.. SCB..T4..DCRTJ,DCRUE..IV3 ; (0610- )XZU344..T4..3 0T..DCRTJ,DCRUE..IV3)
44771-37410	Hose, Vacuum Tube Connector	Brake Booster & Vacuum Tube ([10.2006 - ] ｺｳｼｮｻｷﾞｮｳｼｬ OR ﾚｲﾄｳｼｬ OR ﾎﾞﾄﾙｶｰ (0610- )XZU50#..T4..IV3 ; (0610- )XZU348.. SCB..T4..DCRTJ,DCRUE..IV3 ; (0610- )XZU344..T4..3 0T..DCRTJ,DCRUE..IV3)
44771-37540	Hose, Vacuum Tube Connector	Brake Booster & Vacuum Tube ([10.2006 - ] ｺｳｼｮｻｷﾞｮｳｼｬ OR ﾚｲﾄｳｼｬ OR ﾎﾞﾄﾙｶｰ (0610- )XZU50#..T4..IV3 ; (0610- )XZU348.. SCB..T4..DCRTJ,DCRUE..IV3 ; (0610- )XZU344..T4..3 0T..DCRTJ,DCRUE..IV3)
44771-37800	Hose, Vacuum Tube To Vacuum Pump	Brake Booster & Vacuum Tube ([10.2006 - ] ｺｳｼｮｻｷﾞｮｳｼｬ OR ﾚｲﾄｳｼｬ OR ﾎﾞﾄﾙｶｰ (0610- )XZU50#..T4..IV3 ; (0610- )XZU348.. SCB..T4..DCRTJ,DCRUE..IV3 ; (0610- )XZU344..T4..3 0T..DCRTJ,DCRUE..IV3)
44773-37060	Hose, Solenoid To Exhaust Retarder	Brake Booster & Vacuum Tube ([10.2006 - ] ｺｳｼｮｻｷﾞｮｳｼｬ OR ﾚｲﾄｳｼｬ OR ﾎﾞﾄﾙｶｰ (0610- )XZU50#..T4..IV3 ; (0610- )XZU348.. SCB..T4..DCRTJ,DCRUE..IV3 ; (0610- )XZU344..T4..3 0T..DCRTJ,DCRUE..IV3)
44774-37320	Hose, Union To Connector Tube	Brake Booster & Vacuum Tube ([10.2006 - ] ｺｳｼｮｻｷﾞｮｳｼｬ OR ﾚｲﾄｳｼｬ OR ﾎﾞﾄﾙｶｰ (0610- )XZU50#..T4..IV3 ; (0610- )XZU348.. SCB..T4..DCRTJ,DCRUE..IV3 ; (0610- )XZU344..T4..3 0T..DCRTJ,DCRUE..IV3)
44776-37270	Hose, Vacuum Tube Connector	Brake Booster & Vacuum Tube ([10.2006 - ] ｺｳｼｮｻｷﾞｮｳｼｬ OR ﾚｲﾄｳｼｬ OR ﾎﾞﾄﾙｶｰ (0610- )XZU50#..T4..IV3 ; (0610- )XZU348.. SCB..T4..DCRTJ,DCRUE..IV3 ; (0610- )XZU344..T4..3 0T..DCRTJ,DCRUE..IV3)
44778-37060	Hose, Solenoid To Vacuum Tube	Brake Booster & Vacuum Tube ([10.2006 - ] ｺｳｼｮｻｷﾞｮｳｼｬ OR ﾚｲﾄｳｼｬ OR ﾎﾞﾄﾙｶｰ (0610- )XZU50#..T4..IV3 ; (0610- )XZU348.. SCB..T4..DCRTJ,DCRUE..IV3 ; (0610- )XZU344..T4..3 0T..DCRTJ,DCRUE..IV3)
47371-37040	Clamp(For Clutch Tube)	Brake Booster & Vacuum Tube ([10.2006 - ] ｺｳｼｮｻｷﾞｮｳｼｬ OR ﾚｲﾄｳｼｬ OR ﾎﾞﾄﾙｶｰ (0610- )XZU50#..T4..IV3 ; (0610- )XZU348.. SCB..T4..DCRTJ,DCRUE..IV3 ; (0610- )XZU344..T4..3 0T..DCRTJ,DCRUE..IV3)
90080-11347	New Genuine Part	Brake Booster & Vacuum Tube ([10.2006 - ] ｺｳｼｮｻｷﾞｮｳｼｬ OR ﾚｲﾄｳｼｬ OR ﾎﾞﾄﾙｶｰ (0610- )XZU50#..T4..IV3 ; (0610- )XZU348.. SCB..T4..DCRTJ,DCRUE..IV3 ; (0610- )XZU344..T4..3 0T..DCRTJ,DCRUE..IV3)
90119-08676	BOLT WWASHER	Brake Booster & Vacuum Tube ([10.2006 - ] ｺｳｼｮｻｷﾞｮｳｼｬ OR ﾚｲﾄｳｼｬ OR ﾎﾞﾄﾙｶｰ (0610- )XZU50#..T4..IV3 ; (0610- )XZU348.. SCB..T4..DCRTJ,DCRUE..IV3 ; (0610- )XZU344..T4..3 0T..DCRTJ,DCRUE..IV3)
90170-A0001	New Genuine Part	Brake Booster & Vacuum Tube ([10.2006 - ] ｺｳｼｮｻｷﾞｮｳｼｬ OR ﾚｲﾄｳｼｬ OR ﾎﾞﾄﾙｶｰ (0610- )XZU50#..T4..IV3 ; (0610- )XZU348.. SCB..T4..DCRTJ,DCRUE..IV3 ; (0610- )XZU344..T4..3 0T..DCRTJ,DCRUE..IV3)
91642-K1020	BOLT WWASHER	Brake Booster & Vacuum Tube ([10.2006 - ] ｺｳｼｮｻｷﾞｮｳｼｬ OR ﾚｲﾄｳｼｬ OR ﾎﾞﾄﾙｶｰ (0610- )XZU50#..T4..IV3 ; (0610- )XZU348.. SCB..T4..DCRTJ,DCRUE..IV3 ; (0610- )XZU344..T4..3 0T..DCRTJ,DCRUE..IV3)
91645-80825	BOLT WWASHER	Brake Booster & Vacuum Tube ([10.2006 - ] ｺｳｼｮｻｷﾞｮｳｼｬ OR ﾚｲﾄｳｼｬ OR ﾎﾞﾄﾙｶｰ (0610- )XZU50#..T4..IV3 ; (0610- )XZU348.. SCB..T4..DCRTJ,DCRUE..IV3 ; (0610- )XZU344..T4..3 0T..DCRTJ,DCRUE..IV3)
91651-B0820	Bolt, Radiator Side Support Plate	Brake Booster & Vacuum Tube ([10.2006 - ] ｺｳｼｮｻｷﾞｮｳｼｬ OR ﾚｲﾄｳｼｬ OR ﾎﾞﾄﾙｶｰ (0610- )XZU50#..T4..IV3 ; (0610- )XZU348.. SCB..T4..DCRTJ,DCRUE..IV3 ; (0610- )XZU344..T4..3 0T..DCRTJ,DCRUE..IV3)
94130-00802	Nut, No.1 (For Center Support Bearing)	Brake Booster & Vacuum Tube ([10.2006 - ] ｺｳｼｮｻｷﾞｮｳｼｬ OR ﾚｲﾄｳｼｬ OR ﾎﾞﾄﾙｶｰ (0610- )XZU50#..T4..IV3 ; (0610- )XZU348.. SCB..T4..DCRTJ,DCRUE..IV3 ; (0610- )XZU344..T4..3 0T..DCRTJ,DCRUE..IV3)
95446-09120	Hose, Vacuum Pump	Brake Booster & Vacuum Tube ([10.2006 - ] ｺｳｼｮｻｷﾞｮｳｼｬ OR ﾚｲﾄｳｼｬ OR ﾎﾞﾄﾙｶｰ (0610- )XZU50#..T4..IV3 ; (0610- )XZU348.. SCB..T4..DCRTJ,DCRUE..IV3 ; (0610- )XZU344..T4..3 0T..DCRTJ,DCRUE..IV3)
96133-41500	Clamp Or Clip(For Air Hose, No.5)	Brake Booster & Vacuum Tube ([10.2006 - ] ｺｳｼｮｻｷﾞｮｳｼｬ OR ﾚｲﾄｳｼｬ OR ﾎﾞﾄﾙｶｰ (0610- )XZU50#..T4..IV3 ; (0610- )XZU348.. SCB..T4..DCRTJ,DCRUE..IV3 ; (0610- )XZU344..T4..3 0T..DCRTJ,DCRUE..IV3)
