Search › Model › XZU401

XZU401

Toyota DYNA-TOYOACE · 1999 · 3,586 parts · 210 categories

3,586 items

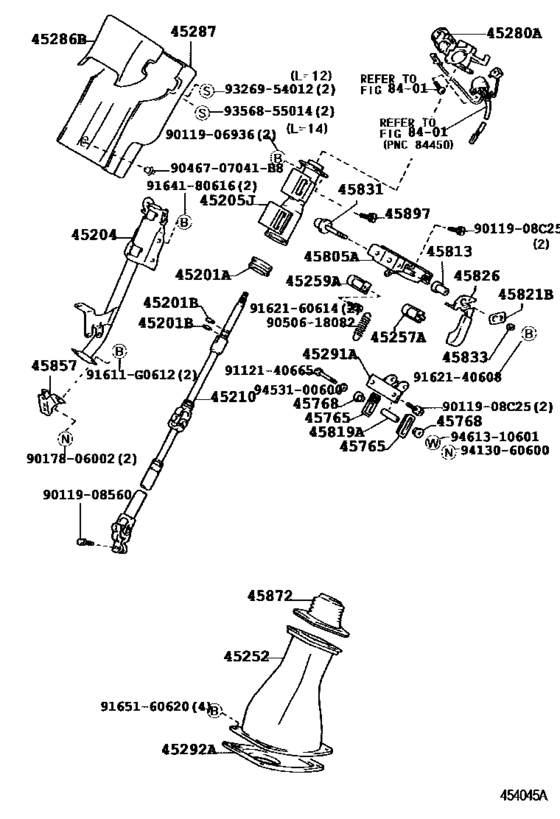

Steering Column & Shaft ([06.2004 - 10.2006] (0406-0610)BZU410,XZU40#,41#,42#,433) 46

#	OEM	Part name
45201	45274-37020	Bearing(For Steering Main Shaft)
45201	90520-17269	Ring, Shaft Snap(For Steering Main Shaft)
45204	45204-37130	Tube Assy, Steering Column, Lower
45205	45205-37090	Tube Sub-Assy, Steering Column, Upper
45210	45210-37200	Shaft Assy, Steering Main
45252	45252-37030-B0	Tube, Steering Column, Lower
45252	45252-37031-B0	Tube, Steering Column, Lower
45257	45257-37010	Plate, Steering Column Energy Absorbing
45259	45259-37010	Sheet, Column Hole Cover Silencer
45280	45280-37110	Bracket Assy, Steering Column, Upper
45286	45286-37080-B0	Cover, Steering Column, Upr
45286	45286-37081-B0	Cover, Steering Column, Upr
45287	45287-37080-B0	Cover, Steering Column, Lwr
45287	45287-37081-B0	Cover, Steering Column, Lwr
45291	45803-37010	Support, Steering Column Tube
45292	45292-37030	Cover, Main Shaft Lower Dust
45765	45765-37010	Guide, Telescopic Steering
45768	45768-37010	Bush, Telescopic Steering
45805	45805-37010	Support Sub-Assy, Tilt Steering
45813	45813-37010	Collar, Tilt Steering Support, No.1
45819	90387-06037	Collar(For Tilt Lever Retainer)
45821	45821-12010	Reinforce, Tilt Steering Support, No.1
45826	45826-37010	Lever, Steering Tilt
45831	45831-37010	Bolt, Tilt Lever Lock, No.1
45833	45833-37010	Nut, Tilt Steering Adjusting, No.1
45857	45857-37020	Bracket, Tilt Steering Column Tube, No.1
45872	45872-37010	Cover, Steering Column Tube
45897	45897-25010	Bolt, Steering Lock Set
91611	91611-G0612	Bolt
9011908	90119-08C25	BOLT WWASHER
9011906936	90119-06936	New Genuine Part
9011908560	90119-08560	Bolt, Hexagon
9011908560	90080-11555	Bolt w-washer
9017806002	90178-06002	NUT FLANGE
9046707041	90467-07041-B8	Clip(For Steering Column Cover)
9050618082	90506-18082	New Genuine Part
9112140665	91121-40665	New Genuine Part
9162140608	91621-40608	New Genuine Part
9162160614	91621-60614	Bolt(For Transaxle & Engine Setting)
9164180616	91641-80616	BOLT W-WASHER
9165160620	91651-60620	BOLTWWASHER
9326954012	93269-54012	SCREW
9356855014	93568-55014	Screw
9413060600	94130-60600	Nut, Wire Adjusting, No.1
9453100600	94531-00600	Washer(For Outer Lever Oil Setting)
9461310601	94613-10601	Washer (For Primary Regulator Valve)

OEM	Part name	Category
45204-37130	Tube Assy, Steering Column, Lower	Steering Column & Shaft ([06.2004 - 10.2006] (0406-0610)BZU410,XZU40#,41#,42#,433)
45205-37090	Tube Sub-Assy, Steering Column, Upper	Steering Column & Shaft ([06.2004 - 10.2006] (0406-0610)BZU410,XZU40#,41#,42#,433)
45210-37200	Shaft Assy, Steering Main	Steering Column & Shaft ([06.2004 - 10.2006] (0406-0610)BZU410,XZU40#,41#,42#,433)
45252-37030-B0	Tube, Steering Column, Lower	Steering Column & Shaft ([06.2004 - 10.2006] (0406-0610)BZU410,XZU40#,41#,42#,433)
45252-37031-B0	Tube, Steering Column, Lower	Steering Column & Shaft ([06.2004 - 10.2006] (0406-0610)BZU410,XZU40#,41#,42#,433)
45257-37010	Plate, Steering Column Energy Absorbing	Steering Column & Shaft ([06.2004 - 10.2006] (0406-0610)BZU410,XZU40#,41#,42#,433)
45259-37010	Sheet, Column Hole Cover Silencer	Steering Column & Shaft ([06.2004 - 10.2006] (0406-0610)BZU410,XZU40#,41#,42#,433)
45274-37020	Bearing(For Steering Main Shaft)	Steering Column & Shaft ([06.2004 - 10.2006] (0406-0610)BZU410,XZU40#,41#,42#,433)
45280-37110	Bracket Assy, Steering Column, Upper	Steering Column & Shaft ([06.2004 - 10.2006] (0406-0610)BZU410,XZU40#,41#,42#,433)
45286-37080-B0	Cover, Steering Column, Upr	Steering Column & Shaft ([06.2004 - 10.2006] (0406-0610)BZU410,XZU40#,41#,42#,433)
45286-37081-B0	Cover, Steering Column, Upr	Steering Column & Shaft ([06.2004 - 10.2006] (0406-0610)BZU410,XZU40#,41#,42#,433)
45287-37080-B0	Cover, Steering Column, Lwr	Steering Column & Shaft ([06.2004 - 10.2006] (0406-0610)BZU410,XZU40#,41#,42#,433)
45287-37081-B0	Cover, Steering Column, Lwr	Steering Column & Shaft ([06.2004 - 10.2006] (0406-0610)BZU410,XZU40#,41#,42#,433)
45292-37030	Cover, Main Shaft Lower Dust	Steering Column & Shaft ([06.2004 - 10.2006] (0406-0610)BZU410,XZU40#,41#,42#,433)
45765-37010	Guide, Telescopic Steering	Steering Column & Shaft ([06.2004 - 10.2006] (0406-0610)BZU410,XZU40#,41#,42#,433)
45768-37010	Bush, Telescopic Steering	Steering Column & Shaft ([06.2004 - 10.2006] (0406-0610)BZU410,XZU40#,41#,42#,433)
45803-37010	Support, Steering Column Tube	Steering Column & Shaft ([06.2004 - 10.2006] (0406-0610)BZU410,XZU40#,41#,42#,433)
45805-37010	Support Sub-Assy, Tilt Steering	Steering Column & Shaft ([06.2004 - 10.2006] (0406-0610)BZU410,XZU40#,41#,42#,433)
45813-37010	Collar, Tilt Steering Support, No.1	Steering Column & Shaft ([06.2004 - 10.2006] (0406-0610)BZU410,XZU40#,41#,42#,433)
45821-12010	Reinforce, Tilt Steering Support, No.1	Steering Column & Shaft ([06.2004 - 10.2006] (0406-0610)BZU410,XZU40#,41#,42#,433)
45826-37010	Lever, Steering Tilt	Steering Column & Shaft ([06.2004 - 10.2006] (0406-0610)BZU410,XZU40#,41#,42#,433)
45831-37010	Bolt, Tilt Lever Lock, No.1	Steering Column & Shaft ([06.2004 - 10.2006] (0406-0610)BZU410,XZU40#,41#,42#,433)
45833-37010	Nut, Tilt Steering Adjusting, No.1	Steering Column & Shaft ([06.2004 - 10.2006] (0406-0610)BZU410,XZU40#,41#,42#,433)
45857-37020	Bracket, Tilt Steering Column Tube, No.1	Steering Column & Shaft ([06.2004 - 10.2006] (0406-0610)BZU410,XZU40#,41#,42#,433)
45872-37010	Cover, Steering Column Tube	Steering Column & Shaft ([06.2004 - 10.2006] (0406-0610)BZU410,XZU40#,41#,42#,433)
45897-25010	Bolt, Steering Lock Set	Steering Column & Shaft ([06.2004 - 10.2006] (0406-0610)BZU410,XZU40#,41#,42#,433)
90080-11555	Bolt w-washer	Steering Column & Shaft ([06.2004 - 10.2006] (0406-0610)BZU410,XZU40#,41#,42#,433)
90119-06936	New Genuine Part	Steering Column & Shaft ([06.2004 - 10.2006] (0406-0610)BZU410,XZU40#,41#,42#,433)
90119-08560	Bolt, Hexagon	Steering Column & Shaft ([06.2004 - 10.2006] (0406-0610)BZU410,XZU40#,41#,42#,433)
90119-08C25	BOLT WWASHER	Steering Column & Shaft ([06.2004 - 10.2006] (0406-0610)BZU410,XZU40#,41#,42#,433)
90178-06002	NUT FLANGE	Steering Column & Shaft ([06.2004 - 10.2006] (0406-0610)BZU410,XZU40#,41#,42#,433)
90387-06037	Collar(For Tilt Lever Retainer)	Steering Column & Shaft ([06.2004 - 10.2006] (0406-0610)BZU410,XZU40#,41#,42#,433)
90467-07041-B8	Clip(For Steering Column Cover)	Steering Column & Shaft ([06.2004 - 10.2006] (0406-0610)BZU410,XZU40#,41#,42#,433)
90506-18082	New Genuine Part	Steering Column & Shaft ([06.2004 - 10.2006] (0406-0610)BZU410,XZU40#,41#,42#,433)
90520-17269	Ring, Shaft Snap(For Steering Main Shaft)	Steering Column & Shaft ([06.2004 - 10.2006] (0406-0610)BZU410,XZU40#,41#,42#,433)
91121-40665	New Genuine Part	Steering Column & Shaft ([06.2004 - 10.2006] (0406-0610)BZU410,XZU40#,41#,42#,433)
91611-G0612	Bolt	Steering Column & Shaft ([06.2004 - 10.2006] (0406-0610)BZU410,XZU40#,41#,42#,433)
91621-40608	New Genuine Part	Steering Column & Shaft ([06.2004 - 10.2006] (0406-0610)BZU410,XZU40#,41#,42#,433)
91621-60614	Bolt(For Transaxle & Engine Setting)	Steering Column & Shaft ([06.2004 - 10.2006] (0406-0610)BZU410,XZU40#,41#,42#,433)
91641-80616	BOLT W-WASHER	Steering Column & Shaft ([06.2004 - 10.2006] (0406-0610)BZU410,XZU40#,41#,42#,433)
91651-60620	BOLTWWASHER	Steering Column & Shaft ([06.2004 - 10.2006] (0406-0610)BZU410,XZU40#,41#,42#,433)
93269-54012	SCREW	Steering Column & Shaft ([06.2004 - 10.2006] (0406-0610)BZU410,XZU40#,41#,42#,433)
93568-55014	Screw	Steering Column & Shaft ([06.2004 - 10.2006] (0406-0610)BZU410,XZU40#,41#,42#,433)
94130-60600	Nut, Wire Adjusting, No.1	Steering Column & Shaft ([06.2004 - 10.2006] (0406-0610)BZU410,XZU40#,41#,42#,433)
94531-00600	Washer(For Outer Lever Oil Setting)	Steering Column & Shaft ([06.2004 - 10.2006] (0406-0610)BZU410,XZU40#,41#,42#,433)
94613-10601	Washer (For Primary Regulator Valve)	Steering Column & Shaft ([06.2004 - 10.2006] (0406-0610)BZU410,XZU40#,41#,42#,433)
