XZU401

Toyota DYNA-TOYOACE · 1999 · 3,586 parts · 210 categories
XZU401 ×

← Back to categories

3,586 items

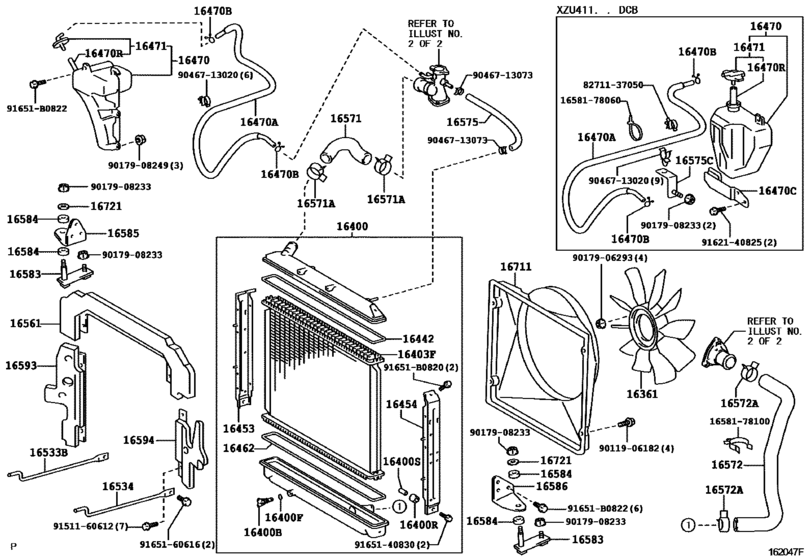

Radiator & Water Outlet ([06.2004 - 10.2006] (0406-0610)S05D) 81
#OEMPart name
16206 16206-78081 Pipe Sub-Assy, Water By-Pass
16264 90034-45087 Hose, Water By-Pass, No.2
16264 90034-67032 Clip(For Water By-Pass Hose No.1)
16267 90034-45088 Hose, Water By-Pass, No.3
16268 16268-78050 Pipe, Water By-Pass, No.1
16278 16268-78060 Pipe, Water By-Pass, No.2
16304 16304-78110 Outlet Sub-Assy, Water
16304 16304-E0080 Outlet Sub-Assy, Water
16321 16321-78010 Inlet, Water
16331 90038-33010 Thermostat
16331 90038-33017 Thermostat
16331 16545-78010 Cap Sub-Assy(For Water Outlet)
16331 16401-E0051 Cap Sub-Assy(For Water Outlet)
16333 16303-78082 Housing, Water Outlet
16346 16346-78020 Gasket, Thermostat
16361 16361-78030 Fan
16400 16400-78320 Radiator Assy
16400 90467-13128 Clamp Or Clip, Hose(For Water By-Pass Hose)
16400 16400-78321 Radiator Assy
16400 16575-78061 Hose, Radiator, No.5
16400 90467-15022 Clip Or Clamp(For Ventilation Hose)
16400 23322-54010 Plug,air(For Oil Cooler Drain Cock)
16400 96711-19007 Packing(For Radiator Drain Cock)
16400 16444-78100 Bushing(For Radiator)
16400 16445-78100 Collar(For Radiator)
16403 16403-78310 Core Sub-Assy, Radiator
16442 16442-78100 Ring, O(For Radiator Upper Tank)
16453 16453-78310 Plate, Radiator Side
16454 16454-78310 Plate, Radiator Side
16470 16470-78010 Tank Assy, Radiator Reserve
16470 16567-78070 Hose Or Pipe(For Radiator Reserve Tank)
16470 16567-78570 Hose Or Pipe(For Radiator Reserve Tank)
16470 90467-11085 Clamp Or Clip(For Radiator Breather Hose)
16470 90445-12078 Hose(For Radiator Breather)
16471 16405-78010 Cap Sub-Assy, Reserve Tank
16533 16533-78030 Support, Radiator, No.1
16533 16533-78031 Support, Radiator, No.1
16534 16534-78030 Support, Radiator, No.2
16534 16534-78031 Support, Radiator, No.2
16561 16561-78030 Seal, Radiator To Support, No.1
16571 16571-78090 Hose, Radiator, Inlet
16571 16581-78140 Clamp, Sub Radiator Inlet Hose
16571 16581-78191 Clamp, Sub Radiator Inlet Hose
16571 90460-55014 Clamp, Sub Radiator Inlet Hose
16572 16572-78071 Hose, Radiator, Outlet
16575 16575-78060 Hose, Radiator, No.5
16575 16575-78071 Hose, Radiator, No.5
16583 16583-78020 Bracket, Radiator, No.2
16584 16584-78010 Insulator, Radiator Mounting
16585 16585-78030 Bracket, Radiator, No.3
16586 16586-78020 Bracket, Radiator, No.4
16593 16593-78041 Guide, Radiator Air, No.1
16594 16594-78041 Guide, Radiator Air, No.2
16711 16711-78030 Shroud, Fan
16721 16721-78010 Plate, Holder
91651 91651-B0820 Bolt, Radiator Side Support Plate
91651 90080-11347 New Genuine Part
91651 91651-B0822 BOLT WWASHER
1658178060 16581-78060 New Genuine Part
1658178100 16581-78100 Clamp, Hose(For Water Hose)
8271137050 82711-37050 Wire, Fuse To Fuse(for Combustion Heater)
9003105123 90031-05123 Bolt(For Cylinder Head Cover)
9003105124 90031-05124 New Genuine Part
9003105135 90031-05135 New Genuine Part
9003105151 90031-05151 New Genuine Part
9003301047 90033-01047 Ring, O(For Water Pump)
9003301060 90033-01060 Ring, O(For Water Pump)
9003401010 90034-01010 Bolt, Union(For Turbo Oil Inlet Pipe)
9003445090 90034-45090 New Genuine Part
9003467027 90034-67027 Clamp Or Clip, Hose(For Water By-Pass Hose)
9011906182 90119-06182 Bolt, W/washer (For Floor Shift)
9017906293 90179-06293 NUT
9017908233 90179-08233 NUT
9017908249 90179-08249 New Genuine Part
9020214004 90202-14004 Gasket(For Turbo Oil Inlet Pipe)
9046713020 90467-13020 Clamp Or Clip(For Radiator Reserve Tank Hose No.2)
9046713073 90467-13073 Clamp Or Clip, Hose(For Water By-Pass Hose)
9151160612 91511-60612 BOLT
9162140825 91621-40825 New Genuine Part
9165140830 91651-40830 Bolt, Radiator Side Support Plate
9165160616 91651-60616 BOLT
