Search › Model › XZU401

XZU401

Toyota DYNA-TOYOACE · 1999 · 3,586 parts · 210 categories

3,586 items

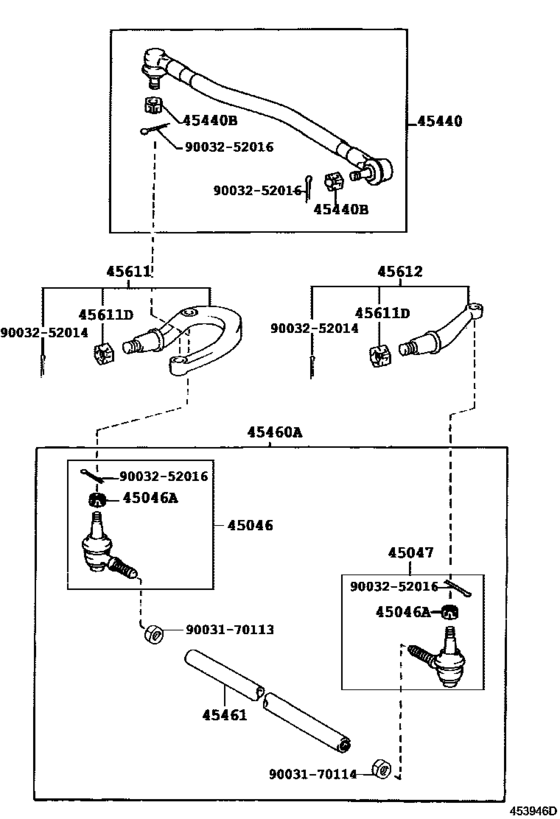

Front Steering Gear & Link ([06.2004 - ] (0406- )BZU410,XZU40#,41#,42#,433..30T,35T,40 T..CNG,DCR,DCRL,DSL,DSLL,LPG ; (061 0- )30T,35T,40 T..DCRTJ,DCRTK,DCRTL,DCRTM,DCRUE) 22

#	OEM	Part name
45046	45046-39645	End Sub-Assy, Tie Rod, Rh
45046	45046-39815	End Sub-Assy, Tie Rod, Rh
45046	45046-39745	End Sub-Assy, Tie Rod, Rh
45046	45046-39795	End Sub-Assy, Tie Rod, Rh
45046	90031-71018	Nut, Castle(For Tie Rod End)
45047	45047-39395	End Sub-Assy, Tie Rod, Lh
45047	45047-39535	End Sub-Assy, Tie Rod, Lh
45047	45047-39475	End Sub-Assy, Tie Rod, Lh
45047	45047-39515	End Sub-Assy, Tie Rod, Lh
45440	45440-39245	Link Assy, Steering Drag
45460	45460-39675	Rod Assy, Tie
45460	45460-80006	Rod Assy, Tie
45460	45460-80001	Rod Assy, Tie
45461	45461-37110	Rod, Steering Tie
45461	45461-37111	Rod, Steering Tie
45611	45611-39145	Arm, Steering Knuckle, Rh
45611	90171-27001	Nut(For Steering Knuckle Arm)
45612	45612-39265	Arm, Steering Knuckle, Lh
9003170113	90031-70113	Nut(For Steering Tie Rod Lock)
9003170114	90031-70114	Nut(For Steering Tie Rod Lock)
9003252014	90032-52014	New Genuine Part
9003252016	90032-52016	PIN

OEM	Part name	Category
45046-39645	End Sub-Assy, Tie Rod, Rh	Front Steering Gear & Link ([06.2004 - ] (0406- )BZU410,XZU40#,41#,42#,433..30T,35T,40 T..CNG,DCR,DCRL,DSL,DSLL,LPG ; (061 0- )30T,35T,40 T..DCRTJ,DCRTK,DCRTL,DCRTM,DCRUE)
45046-39745	End Sub-Assy, Tie Rod, Rh	Front Steering Gear & Link ([06.2004 - ] (0406- )BZU410,XZU40#,41#,42#,433..30T,35T,40 T..CNG,DCR,DCRL,DSL,DSLL,LPG ; (061 0- )30T,35T,40 T..DCRTJ,DCRTK,DCRTL,DCRTM,DCRUE)
45046-39795	End Sub-Assy, Tie Rod, Rh	Front Steering Gear & Link ([06.2004 - ] (0406- )BZU410,XZU40#,41#,42#,433..30T,35T,40 T..CNG,DCR,DCRL,DSL,DSLL,LPG ; (061 0- )30T,35T,40 T..DCRTJ,DCRTK,DCRTL,DCRTM,DCRUE)
45046-39815	End Sub-Assy, Tie Rod, Rh	Front Steering Gear & Link ([06.2004 - ] (0406- )BZU410,XZU40#,41#,42#,433..30T,35T,40 T..CNG,DCR,DCRL,DSL,DSLL,LPG ; (061 0- )30T,35T,40 T..DCRTJ,DCRTK,DCRTL,DCRTM,DCRUE)
45047-39395	End Sub-Assy, Tie Rod, Lh	Front Steering Gear & Link ([06.2004 - ] (0406- )BZU410,XZU40#,41#,42#,433..30T,35T,40 T..CNG,DCR,DCRL,DSL,DSLL,LPG ; (061 0- )30T,35T,40 T..DCRTJ,DCRTK,DCRTL,DCRTM,DCRUE)
45047-39475	End Sub-Assy, Tie Rod, Lh	Front Steering Gear & Link ([06.2004 - ] (0406- )BZU410,XZU40#,41#,42#,433..30T,35T,40 T..CNG,DCR,DCRL,DSL,DSLL,LPG ; (061 0- )30T,35T,40 T..DCRTJ,DCRTK,DCRTL,DCRTM,DCRUE)
45047-39515	End Sub-Assy, Tie Rod, Lh	Front Steering Gear & Link ([06.2004 - ] (0406- )BZU410,XZU40#,41#,42#,433..30T,35T,40 T..CNG,DCR,DCRL,DSL,DSLL,LPG ; (061 0- )30T,35T,40 T..DCRTJ,DCRTK,DCRTL,DCRTM,DCRUE)
45047-39535	End Sub-Assy, Tie Rod, Lh	Front Steering Gear & Link ([06.2004 - ] (0406- )BZU410,XZU40#,41#,42#,433..30T,35T,40 T..CNG,DCR,DCRL,DSL,DSLL,LPG ; (061 0- )30T,35T,40 T..DCRTJ,DCRTK,DCRTL,DCRTM,DCRUE)
45440-39245	Link Assy, Steering Drag	Front Steering Gear & Link ([06.2004 - ] (0406- )BZU410,XZU40#,41#,42#,433..30T,35T,40 T..CNG,DCR,DCRL,DSL,DSLL,LPG ; (061 0- )30T,35T,40 T..DCRTJ,DCRTK,DCRTL,DCRTM,DCRUE)
45460-39675	Rod Assy, Tie	Front Steering Gear & Link ([06.2004 - ] (0406- )BZU410,XZU40#,41#,42#,433..30T,35T,40 T..CNG,DCR,DCRL,DSL,DSLL,LPG ; (061 0- )30T,35T,40 T..DCRTJ,DCRTK,DCRTL,DCRTM,DCRUE)
45460-80001	Rod Assy, Tie	Front Steering Gear & Link ([06.2004 - ] (0406- )BZU410,XZU40#,41#,42#,433..30T,35T,40 T..CNG,DCR,DCRL,DSL,DSLL,LPG ; (061 0- )30T,35T,40 T..DCRTJ,DCRTK,DCRTL,DCRTM,DCRUE)
45460-80006	Rod Assy, Tie	Front Steering Gear & Link ([06.2004 - ] (0406- )BZU410,XZU40#,41#,42#,433..30T,35T,40 T..CNG,DCR,DCRL,DSL,DSLL,LPG ; (061 0- )30T,35T,40 T..DCRTJ,DCRTK,DCRTL,DCRTM,DCRUE)
45461-37110	Rod, Steering Tie	Front Steering Gear & Link ([06.2004 - ] (0406- )BZU410,XZU40#,41#,42#,433..30T,35T,40 T..CNG,DCR,DCRL,DSL,DSLL,LPG ; (061 0- )30T,35T,40 T..DCRTJ,DCRTK,DCRTL,DCRTM,DCRUE)
45461-37111	Rod, Steering Tie	Front Steering Gear & Link ([06.2004 - ] (0406- )BZU410,XZU40#,41#,42#,433..30T,35T,40 T..CNG,DCR,DCRL,DSL,DSLL,LPG ; (061 0- )30T,35T,40 T..DCRTJ,DCRTK,DCRTL,DCRTM,DCRUE)
45611-39145	Arm, Steering Knuckle, Rh	Front Steering Gear & Link ([06.2004 - ] (0406- )BZU410,XZU40#,41#,42#,433..30T,35T,40 T..CNG,DCR,DCRL,DSL,DSLL,LPG ; (061 0- )30T,35T,40 T..DCRTJ,DCRTK,DCRTL,DCRTM,DCRUE)
45612-39265	Arm, Steering Knuckle, Lh	Front Steering Gear & Link ([06.2004 - ] (0406- )BZU410,XZU40#,41#,42#,433..30T,35T,40 T..CNG,DCR,DCRL,DSL,DSLL,LPG ; (061 0- )30T,35T,40 T..DCRTJ,DCRTK,DCRTL,DCRTM,DCRUE)
90031-70113	Nut(For Steering Tie Rod Lock)	Front Steering Gear & Link ([06.2004 - ] (0406- )BZU410,XZU40#,41#,42#,433..30T,35T,40 T..CNG,DCR,DCRL,DSL,DSLL,LPG ; (061 0- )30T,35T,40 T..DCRTJ,DCRTK,DCRTL,DCRTM,DCRUE)
90031-70114	Nut(For Steering Tie Rod Lock)	Front Steering Gear & Link ([06.2004 - ] (0406- )BZU410,XZU40#,41#,42#,433..30T,35T,40 T..CNG,DCR,DCRL,DSL,DSLL,LPG ; (061 0- )30T,35T,40 T..DCRTJ,DCRTK,DCRTL,DCRTM,DCRUE)
90031-71018	Nut, Castle(For Tie Rod End)	Front Steering Gear & Link ([06.2004 - ] (0406- )BZU410,XZU40#,41#,42#,433..30T,35T,40 T..CNG,DCR,DCRL,DSL,DSLL,LPG ; (061 0- )30T,35T,40 T..DCRTJ,DCRTK,DCRTL,DCRTM,DCRUE)
90032-52014	New Genuine Part	Front Steering Gear & Link ([06.2004 - ] (0406- )BZU410,XZU40#,41#,42#,433..30T,35T,40 T..CNG,DCR,DCRL,DSL,DSLL,LPG ; (061 0- )30T,35T,40 T..DCRTJ,DCRTK,DCRTL,DCRTM,DCRUE)
90032-52016	PIN	Front Steering Gear & Link ([06.2004 - ] (0406- )BZU410,XZU40#,41#,42#,433..30T,35T,40 T..CNG,DCR,DCRL,DSL,DSLL,LPG ; (061 0- )30T,35T,40 T..DCRTJ,DCRTK,DCRTL,DCRTM,DCRUE)
90171-27001	Nut(For Steering Knuckle Arm)	Front Steering Gear & Link ([06.2004 - ] (0406- )BZU410,XZU40#,41#,42#,433..30T,35T,40 T..CNG,DCR,DCRL,DSL,DSLL,LPG ; (061 0- )30T,35T,40 T..DCRTJ,DCRTK,DCRTL,DCRTM,DCRUE)
