Search › Model › XZU401

XZU401

Toyota DYNA-TOYOACE · 1999 · 3,586 parts · 210 categories

3,586 items

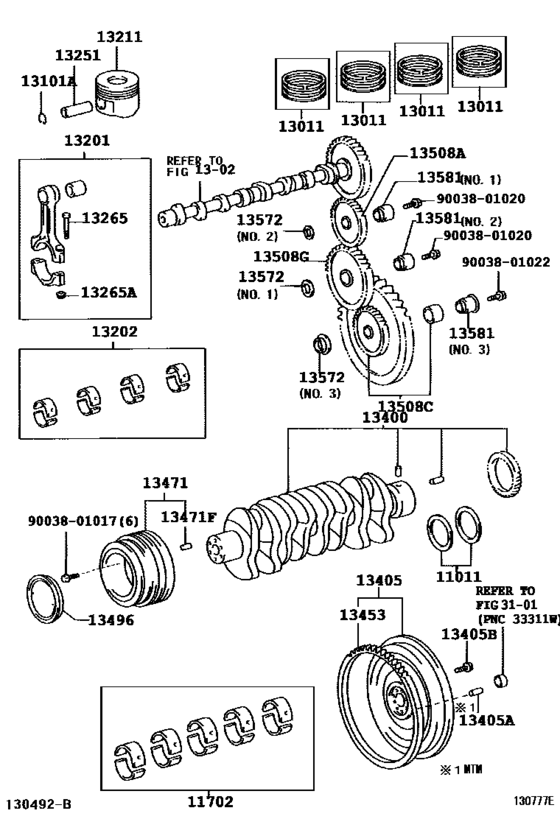

Crankshaft & Piston ([07.2004 - 05.2005] (0406-0407)J05D,S05D ; (0407-0505)S05D) 61

#	OEM	Part name
11011	11011-78020	Washer Set, Crankshaft Thrust
11011	11013-89104	Washer Set, Crankshaft Thrust
11702	11701-89104	Bearing Set, Crankshaft
11702	11704-89104	Bearing Set, Crankshaft
11702	11705-89104	Bearing Set, Crankshaft
11702	11706-89103	Bearing Set, Crankshaft
11702	11707-89103	Bearing Set, Crankshaft
13011	13011-78200	Ring Set, Piston
13101	90035-21020	Ring, Hole Snap(For Piston Pin)
13201	13260-78021	Rod Sub-Assy, Connecting
13201	13260-78040	Rod Sub-Assy, Connecting
13201	13260-78080	Rod Sub-Assy, Connecting
13201	13260-E0130	Rod Sub-Assy, Connecting
13202	13041-78160	Bearing Set, Connecting Rod
13202	13041-E0800	Bearing, Connecting Rod
13202	13041-78180	Bearing Set, Connecting Rod
13202	13041-E0810	Bearing, Connecting Rod
13202	13041-78200	Bearing Set, Connecting Rod
13202	13041-E0820	Bearing, Connecting Rod
13202	13041-78240	Bearing Set, Connecting Rod
13202	13041-E0830	Bearing, Connecting Rod
13202	13041-78250	Bearing Set, Connecting Rod
13202	13041-E0601	Bearing, Connecting Rod
13202	13041-89101	Bearing Set, Connecting Rod
13202	13204-89101	Bearing Set, Connecting Rod
13202	13205-89101	Bearing Set, Connecting Rod
13202	13206-89101	Bearing Set, Connecting Rod
13202	13207-89101	Bearing Set, Connecting Rod
13211	13218-78050	Piston
13211	13218-78051	Piston
13251	13251-89101	Pin, Piston
13251	13251-E0120	Pin, Piston
13265	13265-78020	Bolt, Connecting Rod
13265	13265-78030	Bolt, Connecting Rod
13265	13266-89102	Nut, Hexagon(For Connecting Rod Bolt)
13400	13400-78050	Crankshaft Assy
13400	13521-E0152	Gear Or Sprocket, Crankshaft Timing
13400	13400-78051	Crankshaft Assy
13405	13450-78020	Flywheel Sub-Assy
13405	13450-E0F30	Flywheel Assy, W/damper
13405	90031-09050	Bolt, Flywheel Setting
13453	13453-89102	Gear, Flywheel Ring
13453	13453-E0080	Gear, Flywheel Ring
13471	13470-78070	Pulley, Crankshaft
13471	13470-78140	Pulley, Crankshaft
13471	90250-08016	Pin, Straight, No.1
13496	13496-78010	Cover, Crankshaft Pully
13508	13508-78250	Gear Sub-Assy, Idle
13508	13508-78130	Gear Sub-Assy, Idle, No.2
13508	13508-78140	Gear Sub-Assy, Idle, No.2
13508	13508-E0590	Gear Sub-Assy, Idle, No.2
13572	13572-78010	Plate, Idle Gear Thrust
13572	13572-89104	Plate, Idle Gear Thrust
13572	13572-89105	Plate, Idle Gear Thrust
13581	13581-78030	Shaft, Idle Gear, No.1
13581	13581-78090	Shaft, Idle Gear, No.1
13581	13581-E0190	Shaft, Idle Gear, No.1
13581	13581-78100	Shaft, Idle Gear, No.1
9003801017	90038-01017	New Genuine Part
9003801020	90038-01020	New Genuine Part
9003801022	90038-01022	New Genuine Part

OEM	Part name	Category
11011-78020	Washer Set, Crankshaft Thrust	Crankshaft & Piston ([07.2004 - 05.2005] (0406-0407)J05D,S05D ; (0407-0505)S05D)
11013-89104	Washer Set, Crankshaft Thrust	Crankshaft & Piston ([07.2004 - 05.2005] (0406-0407)J05D,S05D ; (0407-0505)S05D)
11701-89104	Bearing Set, Crankshaft	Crankshaft & Piston ([07.2004 - 05.2005] (0406-0407)J05D,S05D ; (0407-0505)S05D)
11704-89104	Bearing Set, Crankshaft	Crankshaft & Piston ([07.2004 - 05.2005] (0406-0407)J05D,S05D ; (0407-0505)S05D)
11705-89104	Bearing Set, Crankshaft	Crankshaft & Piston ([07.2004 - 05.2005] (0406-0407)J05D,S05D ; (0407-0505)S05D)
11706-89103	Bearing Set, Crankshaft	Crankshaft & Piston ([07.2004 - 05.2005] (0406-0407)J05D,S05D ; (0407-0505)S05D)
11707-89103	Bearing Set, Crankshaft	Crankshaft & Piston ([07.2004 - 05.2005] (0406-0407)J05D,S05D ; (0407-0505)S05D)
13011-78200	Ring Set, Piston	Crankshaft & Piston ([07.2004 - 05.2005] (0406-0407)J05D,S05D ; (0407-0505)S05D)
13041-78160	Bearing Set, Connecting Rod	Crankshaft & Piston ([07.2004 - 05.2005] (0406-0407)J05D,S05D ; (0407-0505)S05D)
13041-78180	Bearing Set, Connecting Rod	Crankshaft & Piston ([07.2004 - 05.2005] (0406-0407)J05D,S05D ; (0407-0505)S05D)
13041-78200	Bearing Set, Connecting Rod	Crankshaft & Piston ([07.2004 - 05.2005] (0406-0407)J05D,S05D ; (0407-0505)S05D)
13041-78240	Bearing Set, Connecting Rod	Crankshaft & Piston ([07.2004 - 05.2005] (0406-0407)J05D,S05D ; (0407-0505)S05D)
13041-78250	Bearing Set, Connecting Rod	Crankshaft & Piston ([07.2004 - 05.2005] (0406-0407)J05D,S05D ; (0407-0505)S05D)
13041-89101	Bearing Set, Connecting Rod	Crankshaft & Piston ([07.2004 - 05.2005] (0406-0407)J05D,S05D ; (0407-0505)S05D)
13041-E0601	Bearing, Connecting Rod	Crankshaft & Piston ([07.2004 - 05.2005] (0406-0407)J05D,S05D ; (0407-0505)S05D)
13041-E0800	Bearing, Connecting Rod	Crankshaft & Piston ([07.2004 - 05.2005] (0406-0407)J05D,S05D ; (0407-0505)S05D)
13041-E0810	Bearing, Connecting Rod	Crankshaft & Piston ([07.2004 - 05.2005] (0406-0407)J05D,S05D ; (0407-0505)S05D)
13041-E0820	Bearing, Connecting Rod	Crankshaft & Piston ([07.2004 - 05.2005] (0406-0407)J05D,S05D ; (0407-0505)S05D)
13041-E0830	Bearing, Connecting Rod	Crankshaft & Piston ([07.2004 - 05.2005] (0406-0407)J05D,S05D ; (0407-0505)S05D)
13204-89101	Bearing Set, Connecting Rod	Crankshaft & Piston ([07.2004 - 05.2005] (0406-0407)J05D,S05D ; (0407-0505)S05D)
13205-89101	Bearing Set, Connecting Rod	Crankshaft & Piston ([07.2004 - 05.2005] (0406-0407)J05D,S05D ; (0407-0505)S05D)
13206-89101	Bearing Set, Connecting Rod	Crankshaft & Piston ([07.2004 - 05.2005] (0406-0407)J05D,S05D ; (0407-0505)S05D)
13207-89101	Bearing Set, Connecting Rod	Crankshaft & Piston ([07.2004 - 05.2005] (0406-0407)J05D,S05D ; (0407-0505)S05D)
13218-78050	Piston	Crankshaft & Piston ([07.2004 - 05.2005] (0406-0407)J05D,S05D ; (0407-0505)S05D)
13218-78051	Piston	Crankshaft & Piston ([07.2004 - 05.2005] (0406-0407)J05D,S05D ; (0407-0505)S05D)
13251-89101	Pin, Piston	Crankshaft & Piston ([07.2004 - 05.2005] (0406-0407)J05D,S05D ; (0407-0505)S05D)
13251-E0120	Pin, Piston	Crankshaft & Piston ([07.2004 - 05.2005] (0406-0407)J05D,S05D ; (0407-0505)S05D)
13260-78021	Rod Sub-Assy, Connecting	Crankshaft & Piston ([07.2004 - 05.2005] (0406-0407)J05D,S05D ; (0407-0505)S05D)
13260-78040	Rod Sub-Assy, Connecting	Crankshaft & Piston ([07.2004 - 05.2005] (0406-0407)J05D,S05D ; (0407-0505)S05D)
13260-78080	Rod Sub-Assy, Connecting	Crankshaft & Piston ([07.2004 - 05.2005] (0406-0407)J05D,S05D ; (0407-0505)S05D)
13260-E0130	Rod Sub-Assy, Connecting	Crankshaft & Piston ([07.2004 - 05.2005] (0406-0407)J05D,S05D ; (0407-0505)S05D)
13265-78020	Bolt, Connecting Rod	Crankshaft & Piston ([07.2004 - 05.2005] (0406-0407)J05D,S05D ; (0407-0505)S05D)
13265-78030	Bolt, Connecting Rod	Crankshaft & Piston ([07.2004 - 05.2005] (0406-0407)J05D,S05D ; (0407-0505)S05D)
13266-89102	Nut, Hexagon(For Connecting Rod Bolt)	Crankshaft & Piston ([07.2004 - 05.2005] (0406-0407)J05D,S05D ; (0407-0505)S05D)
13400-78050	Crankshaft Assy	Crankshaft & Piston ([07.2004 - 05.2005] (0406-0407)J05D,S05D ; (0407-0505)S05D)
13400-78051	Crankshaft Assy	Crankshaft & Piston ([07.2004 - 05.2005] (0406-0407)J05D,S05D ; (0407-0505)S05D)
13450-78020	Flywheel Sub-Assy	Crankshaft & Piston ([07.2004 - 05.2005] (0406-0407)J05D,S05D ; (0407-0505)S05D)
13450-E0F30	Flywheel Assy, W/damper	Crankshaft & Piston ([07.2004 - 05.2005] (0406-0407)J05D,S05D ; (0407-0505)S05D)
13453-89102	Gear, Flywheel Ring	Crankshaft & Piston ([07.2004 - 05.2005] (0406-0407)J05D,S05D ; (0407-0505)S05D)
13453-E0080	Gear, Flywheel Ring	Crankshaft & Piston ([07.2004 - 05.2005] (0406-0407)J05D,S05D ; (0407-0505)S05D)
13470-78070	Pulley, Crankshaft	Crankshaft & Piston ([07.2004 - 05.2005] (0406-0407)J05D,S05D ; (0407-0505)S05D)
13470-78140	Pulley, Crankshaft	Crankshaft & Piston ([07.2004 - 05.2005] (0406-0407)J05D,S05D ; (0407-0505)S05D)
13496-78010	Cover, Crankshaft Pully	Crankshaft & Piston ([07.2004 - 05.2005] (0406-0407)J05D,S05D ; (0407-0505)S05D)
13508-78130	Gear Sub-Assy, Idle, No.2	Crankshaft & Piston ([07.2004 - 05.2005] (0406-0407)J05D,S05D ; (0407-0505)S05D)
13508-78140	Gear Sub-Assy, Idle, No.2	Crankshaft & Piston ([07.2004 - 05.2005] (0406-0407)J05D,S05D ; (0407-0505)S05D)
13508-78250	Gear Sub-Assy, Idle	Crankshaft & Piston ([07.2004 - 05.2005] (0406-0407)J05D,S05D ; (0407-0505)S05D)
13508-E0590	Gear Sub-Assy, Idle, No.2	Crankshaft & Piston ([07.2004 - 05.2005] (0406-0407)J05D,S05D ; (0407-0505)S05D)
13521-E0152	Gear Or Sprocket, Crankshaft Timing	Crankshaft & Piston ([07.2004 - 05.2005] (0406-0407)J05D,S05D ; (0407-0505)S05D)
13572-78010	Plate, Idle Gear Thrust	Crankshaft & Piston ([07.2004 - 05.2005] (0406-0407)J05D,S05D ; (0407-0505)S05D)
13572-89104	Plate, Idle Gear Thrust	Crankshaft & Piston ([07.2004 - 05.2005] (0406-0407)J05D,S05D ; (0407-0505)S05D)
13572-89105	Plate, Idle Gear Thrust	Crankshaft & Piston ([07.2004 - 05.2005] (0406-0407)J05D,S05D ; (0407-0505)S05D)
13581-78030	Shaft, Idle Gear, No.1	Crankshaft & Piston ([07.2004 - 05.2005] (0406-0407)J05D,S05D ; (0407-0505)S05D)
13581-78090	Shaft, Idle Gear, No.1	Crankshaft & Piston ([07.2004 - 05.2005] (0406-0407)J05D,S05D ; (0407-0505)S05D)
13581-78100	Shaft, Idle Gear, No.1	Crankshaft & Piston ([07.2004 - 05.2005] (0406-0407)J05D,S05D ; (0407-0505)S05D)
13581-E0190	Shaft, Idle Gear, No.1	Crankshaft & Piston ([07.2004 - 05.2005] (0406-0407)J05D,S05D ; (0407-0505)S05D)
90031-09050	Bolt, Flywheel Setting	Crankshaft & Piston ([07.2004 - 05.2005] (0406-0407)J05D,S05D ; (0407-0505)S05D)
90035-21020	Ring, Hole Snap(For Piston Pin)	Crankshaft & Piston ([07.2004 - 05.2005] (0406-0407)J05D,S05D ; (0407-0505)S05D)
90038-01017	New Genuine Part	Crankshaft & Piston ([07.2004 - 05.2005] (0406-0407)J05D,S05D ; (0407-0505)S05D)
90038-01020	New Genuine Part	Crankshaft & Piston ([07.2004 - 05.2005] (0406-0407)J05D,S05D ; (0407-0505)S05D)
90038-01022	New Genuine Part	Crankshaft & Piston ([07.2004 - 05.2005] (0406-0407)J05D,S05D ; (0407-0505)S05D)
90250-08016	Pin, Straight, No.1	Crankshaft & Piston ([07.2004 - 05.2005] (0406-0407)J05D,S05D ; (0407-0505)S05D)
