Search › Model › XZU401

XZU401

Toyota DYNA-TOYOACE · 1999 · 3,586 parts · 210 categories

3,586 items

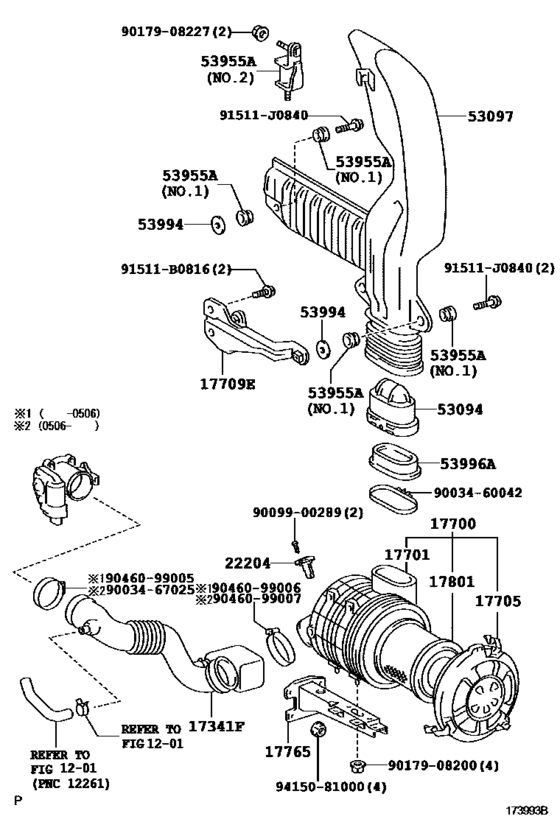

Air Cleaner ([06.2004 - ] (0406- )S05D..SCB) 29

#	OEM	Part name
17341	17030-78320	Hose, Air, No.1
17700	17700-78200	Cleaner Assy, Air
17700	17700-78201	Cleaner Assy, Air
17701	17701-78160	Case Sub-Assy, Air Cleaner
17701	17701-78161	Case Sub-Assy, Air Cleaner
17705	17705-78020	Cap Sub-Assy, Air Cleaner
17709	53773-37080	Bracket, Air Cleaner Inlet, No.2
17765	17706-78150	Stay, Air Cleaner, No.1
17801	17801-78020	Element Sub-Assy, Air Cleaner Filter
22204	22204-21010	Meter Sub-Assy, Intake Air Flow
53094	53094-37010	Inlet, Air Cleaner Pipe, No.3
53097	53097-37240	Inlet Sub-Assy
53955	53955-37020	Cushion, Air Cleaner Inlet No.1
53955	53955-37040	Cushion, Air Cleaner Inlet No.1
53994	53994-37020	Retainer, Air Cleaner Inlet Pipe
53996	53996-37040	Packing, Air Cleaner Inlet Pipe
91511	91511-B0816	BOLT
91511	90080-10159	New Genuine Part
91511	91511-J0840	Bolt(For Alternator)
9003460042	90034-60042	New Genuine Part
9003467025	90034-67025	Clamp Or Clip(For Air Hose, No.2)
9003467025	90034-60050	Clamp Or Clip(For Air Hose, No.2) - AIR, NO.2(FOR INTERCOOLER)
9009900289	90099-00289	SCREW
9017908200	90179-08200	New Genuine Part
9017908227	90179-08227	New Genuine Part
9046099005	90460-99005	Clamp(For Intake Air Connector)
9046099006	90460-99006	Clamp(For Air Cleaner Hose, No.1)
9046099007	90460-99007	Clamp(For Air Cleaner Hose, No.1)
9415081000	94150-81000	NUT FLANGE

OEM	Part name	Category
17030-78320	Hose, Air, No.1	Air Cleaner ([06.2004 - ] (0406- )S05D..SCB)
17700-78200	Cleaner Assy, Air	Air Cleaner ([06.2004 - ] (0406- )S05D..SCB)
17700-78201	Cleaner Assy, Air	Air Cleaner ([06.2004 - ] (0406- )S05D..SCB)
17701-78160	Case Sub-Assy, Air Cleaner	Air Cleaner ([06.2004 - ] (0406- )S05D..SCB)
17701-78161	Case Sub-Assy, Air Cleaner	Air Cleaner ([06.2004 - ] (0406- )S05D..SCB)
17705-78020	Cap Sub-Assy, Air Cleaner	Air Cleaner ([06.2004 - ] (0406- )S05D..SCB)
17706-78150	Stay, Air Cleaner, No.1	Air Cleaner ([06.2004 - ] (0406- )S05D..SCB)
17801-78020	Element Sub-Assy, Air Cleaner Filter	Air Cleaner ([06.2004 - ] (0406- )S05D..SCB)
22204-21010	Meter Sub-Assy, Intake Air Flow	Air Cleaner ([06.2004 - ] (0406- )S05D..SCB)
53094-37010	Inlet, Air Cleaner Pipe, No.3	Air Cleaner ([06.2004 - ] (0406- )S05D..SCB)
53097-37240	Inlet Sub-Assy	Air Cleaner ([06.2004 - ] (0406- )S05D..SCB)
53773-37080	Bracket, Air Cleaner Inlet, No.2	Air Cleaner ([06.2004 - ] (0406- )S05D..SCB)
53955-37020	Cushion, Air Cleaner Inlet No.1	Air Cleaner ([06.2004 - ] (0406- )S05D..SCB)
53955-37040	Cushion, Air Cleaner Inlet No.1	Air Cleaner ([06.2004 - ] (0406- )S05D..SCB)
53994-37020	Retainer, Air Cleaner Inlet Pipe	Air Cleaner ([06.2004 - ] (0406- )S05D..SCB)
53996-37040	Packing, Air Cleaner Inlet Pipe	Air Cleaner ([06.2004 - ] (0406- )S05D..SCB)
90034-60042	New Genuine Part	Air Cleaner ([06.2004 - ] (0406- )S05D..SCB)
90034-60050	Clamp Or Clip(For Air Hose, No.2) - AIR, NO.2(FOR INTERCOOLER)	Air Cleaner ([06.2004 - ] (0406- )S05D..SCB)
90034-67025	Clamp Or Clip(For Air Hose, No.2)	Air Cleaner ([06.2004 - ] (0406- )S05D..SCB)
90080-10159	New Genuine Part	Air Cleaner ([06.2004 - ] (0406- )S05D..SCB)
90099-00289	SCREW	Air Cleaner ([06.2004 - ] (0406- )S05D..SCB)
90179-08200	New Genuine Part	Air Cleaner ([06.2004 - ] (0406- )S05D..SCB)
90179-08227	New Genuine Part	Air Cleaner ([06.2004 - ] (0406- )S05D..SCB)
90460-99005	Clamp(For Intake Air Connector)	Air Cleaner ([06.2004 - ] (0406- )S05D..SCB)
90460-99006	Clamp(For Air Cleaner Hose, No.1)	Air Cleaner ([06.2004 - ] (0406- )S05D..SCB)
90460-99007	Clamp(For Air Cleaner Hose, No.1)	Air Cleaner ([06.2004 - ] (0406- )S05D..SCB)
91511-B0816	BOLT	Air Cleaner ([06.2004 - ] (0406- )S05D..SCB)
91511-J0840	Bolt(For Alternator)	Air Cleaner ([06.2004 - ] (0406- )S05D..SCB)
94150-81000	NUT FLANGE	Air Cleaner ([06.2004 - ] (0406- )S05D..SCB)
