Search › Model › XZU400

XZU400

Toyota DYNA-TOYOACE · 1999 · 4,961 parts · 238 categories

4,961 items

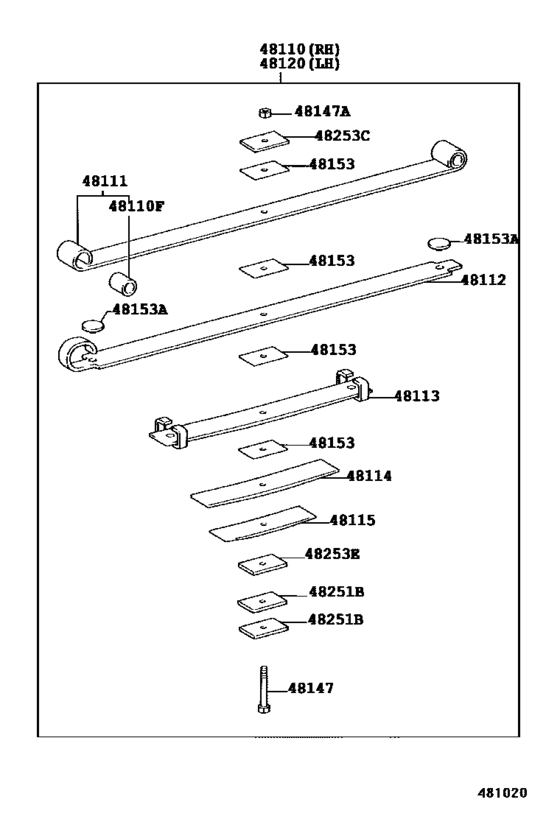

Front Spring & Shock Absorber ([05.1999 - 06.2004] 5-LEAF (9905-0406)XZU400..40T..CBU,IV3 ; (0406- )XZU 404..40T..DCRL ; (0610- )XZU404. .40T) 67

#	OEM	Part name
48110	48110-3V140	Spring Assy, Front, Rh
48110	48110-3V160	Spring Assy, Front, Rh
48110	48110-3V180	Spring Assy, Front, Rh
48110	48110-3V200	Spring Assy, Front, Rh
48110	48110-3V310	Spring Assy, Front, Rh
48110	48110-3V311	Spring Assy, Front, Rh
48110	48110-3V460	Spring Assy, Front, Rh
48110	48110-3V461	Spring Assy, Front, Rh
48110	90033-84013	Bimetal Formed Bush(For Front Spring)
48111	48101-3V140	Leaf, Front Spring, No.1
48111	48101-3V150	Leaf, Front Spring, No.1
48111	48101-3V160	Leaf, Front Spring, No.1
48111	48101-3V170	Leaf, Front Spring, No.1
48111	48101-3V310	Leaf, Front Spring, No.1
48111	48101-3V311	Leaf, Front Spring, No.1
48111	48101-3V410	Leaf, Front Spring, No.1
48111	48101-3V411	Leaf, Front Spring, No.1
48111	48101-3V460	Leaf, Front Spring, No.1
48111	48101-3V470	Leaf, Front Spring, No.1
48111	48101-3V471	Leaf, Front Spring, No.1
48112	48102-3V310	Leaf, Front Spring, No.2
48112	48102-3V311	Leaf, Front Spring, No.2
48112	48252-37521	Silencer, Front Spring, No.1
48112	48102-3V410	Leaf, Front Spring, No.2
48112	48102-3V411	Leaf, Front Spring, No.2
48112	48102-3V460	Leaf, Front Spring, No.2
48112	48102-3V470	Leaf, Front Spring, No.2
48112	48102-3V471	Leaf, Front Spring, No.2
48112	48112-3V140	Leaf, Front Spring, No.2
48112	48112-3V150	Leaf, Front Spring, No.2
48112	48112-3V160	Leaf, Front Spring, No.2
48112	48112-3V170	Leaf, Front Spring, No.2
48113	48104-3V140	Leaf, Front Spring, No.3
48113	48104-3V150	Leaf, Front Spring, No.3
48113	48104-3V160	Leaf, Front Spring, No.3
48113	48104-3V170	Leaf, Front Spring, No.3
48114	48114-3V140	Leaf, Front Spring, No.4
48114	48114-3V150	Leaf, Front Spring, No.4
48114	48114-3V160	Leaf, Front Spring, No.4
48114	48114-3V170	Leaf, Front Spring, No.4
48115	48115-3V140	Leaf, Front Spring, No.5
48115	48115-3V150	Leaf, Front Spring, No.5
48115	48115-3V160	Leaf, Front Spring, No.5
48115	48115-3V170	Leaf, Front Spring, No.5
48120	48110-3V150	Spring Assy, Front, Lh
48120	48110-3V170	Spring Assy, Front, Lh
48120	48110-3V190	Spring Assy, Front, Lh
48120	48110-3V210	Spring Assy, Front, Lh
48120	48110-3V410	Spring Assy, Front, Lh
48120	48110-3V411	Spring Assy, Front, Lh
48120	48110-3V470	Spring Assy, Front, Lh
48120	48110-3V471	Spring Assy, Front, Lh
48147	48147-37730	Bolt, Front Spring, Center
48147	48147-3V310	Bolt, Front Spring, Center
48147	48147-37X31	Bolt, Front Spring, Center
48147	48155-3B470	Nut, Front Spring Center Bolt
48147	48284-37130	Nut, Front Spring Center Bolt
48153	48152-37730	Spacer, Front Leaf Spring, No.1
48153	48251-36530	Spacer, Front Leaf Spring, No.1
48153	48252-37570	Silencer, Front Spring, No.1
48153	48252-3B800	Silencer, Front Spring, No.1
48251	48116-37780	Spacer(For Front Spring)
48251	48214-3B070	Spacer(For Front Spring)
48251	48253-36530	Spacer(For Front Spring)
48253	48116-37730	Spacer, Front Leaf Spring, No.2
48253	48216-3B060	Leaf, Rear Spring, No.6
48253	48117-37730	Spacer, Front Spring, No.3

OEM	Part name	Category
48101-3V140	Leaf, Front Spring, No.1	Front Spring & Shock Absorber ([05.1999 - 06.2004] 5-LEAF (9905-0406)XZU400..40T..CBU,IV3 ; (0406- )XZU 404..40T..DCRL ; (0610- )XZU404. .40T)
48101-3V150	Leaf, Front Spring, No.1	Front Spring & Shock Absorber ([05.1999 - 06.2004] 5-LEAF (9905-0406)XZU400..40T..CBU,IV3 ; (0406- )XZU 404..40T..DCRL ; (0610- )XZU404. .40T)
48101-3V160	Leaf, Front Spring, No.1	Front Spring & Shock Absorber ([05.1999 - 06.2004] 5-LEAF (9905-0406)XZU400..40T..CBU,IV3 ; (0406- )XZU 404..40T..DCRL ; (0610- )XZU404. .40T)
48101-3V170	Leaf, Front Spring, No.1	Front Spring & Shock Absorber ([05.1999 - 06.2004] 5-LEAF (9905-0406)XZU400..40T..CBU,IV3 ; (0406- )XZU 404..40T..DCRL ; (0610- )XZU404. .40T)
48101-3V310	Leaf, Front Spring, No.1	Front Spring & Shock Absorber ([05.1999 - 06.2004] 5-LEAF (9905-0406)XZU400..40T..CBU,IV3 ; (0406- )XZU 404..40T..DCRL ; (0610- )XZU404. .40T)
48101-3V311	Leaf, Front Spring, No.1	Front Spring & Shock Absorber ([05.1999 - 06.2004] 5-LEAF (9905-0406)XZU400..40T..CBU,IV3 ; (0406- )XZU 404..40T..DCRL ; (0610- )XZU404. .40T)
48101-3V410	Leaf, Front Spring, No.1	Front Spring & Shock Absorber ([05.1999 - 06.2004] 5-LEAF (9905-0406)XZU400..40T..CBU,IV3 ; (0406- )XZU 404..40T..DCRL ; (0610- )XZU404. .40T)
48101-3V411	Leaf, Front Spring, No.1	Front Spring & Shock Absorber ([05.1999 - 06.2004] 5-LEAF (9905-0406)XZU400..40T..CBU,IV3 ; (0406- )XZU 404..40T..DCRL ; (0610- )XZU404. .40T)
48101-3V460	Leaf, Front Spring, No.1	Front Spring & Shock Absorber ([05.1999 - 06.2004] 5-LEAF (9905-0406)XZU400..40T..CBU,IV3 ; (0406- )XZU 404..40T..DCRL ; (0610- )XZU404. .40T)
48101-3V470	Leaf, Front Spring, No.1	Front Spring & Shock Absorber ([05.1999 - 06.2004] 5-LEAF (9905-0406)XZU400..40T..CBU,IV3 ; (0406- )XZU 404..40T..DCRL ; (0610- )XZU404. .40T)
48101-3V471	Leaf, Front Spring, No.1	Front Spring & Shock Absorber ([05.1999 - 06.2004] 5-LEAF (9905-0406)XZU400..40T..CBU,IV3 ; (0406- )XZU 404..40T..DCRL ; (0610- )XZU404. .40T)
48102-3V310	Leaf, Front Spring, No.2	Front Spring & Shock Absorber ([05.1999 - 06.2004] 5-LEAF (9905-0406)XZU400..40T..CBU,IV3 ; (0406- )XZU 404..40T..DCRL ; (0610- )XZU404. .40T)
48102-3V311	Leaf, Front Spring, No.2	Front Spring & Shock Absorber ([05.1999 - 06.2004] 5-LEAF (9905-0406)XZU400..40T..CBU,IV3 ; (0406- )XZU 404..40T..DCRL ; (0610- )XZU404. .40T)
48102-3V410	Leaf, Front Spring, No.2	Front Spring & Shock Absorber ([05.1999 - 06.2004] 5-LEAF (9905-0406)XZU400..40T..CBU,IV3 ; (0406- )XZU 404..40T..DCRL ; (0610- )XZU404. .40T)
48102-3V411	Leaf, Front Spring, No.2	Front Spring & Shock Absorber ([05.1999 - 06.2004] 5-LEAF (9905-0406)XZU400..40T..CBU,IV3 ; (0406- )XZU 404..40T..DCRL ; (0610- )XZU404. .40T)
48102-3V460	Leaf, Front Spring, No.2	Front Spring & Shock Absorber ([05.1999 - 06.2004] 5-LEAF (9905-0406)XZU400..40T..CBU,IV3 ; (0406- )XZU 404..40T..DCRL ; (0610- )XZU404. .40T)
48102-3V470	Leaf, Front Spring, No.2	Front Spring & Shock Absorber ([05.1999 - 06.2004] 5-LEAF (9905-0406)XZU400..40T..CBU,IV3 ; (0406- )XZU 404..40T..DCRL ; (0610- )XZU404. .40T)
48102-3V471	Leaf, Front Spring, No.2	Front Spring & Shock Absorber ([05.1999 - 06.2004] 5-LEAF (9905-0406)XZU400..40T..CBU,IV3 ; (0406- )XZU 404..40T..DCRL ; (0610- )XZU404. .40T)
48104-3V140	Leaf, Front Spring, No.3	Front Spring & Shock Absorber ([05.1999 - 06.2004] 5-LEAF (9905-0406)XZU400..40T..CBU,IV3 ; (0406- )XZU 404..40T..DCRL ; (0610- )XZU404. .40T)
48104-3V150	Leaf, Front Spring, No.3	Front Spring & Shock Absorber ([05.1999 - 06.2004] 5-LEAF (9905-0406)XZU400..40T..CBU,IV3 ; (0406- )XZU 404..40T..DCRL ; (0610- )XZU404. .40T)
48104-3V160	Leaf, Front Spring, No.3	Front Spring & Shock Absorber ([05.1999 - 06.2004] 5-LEAF (9905-0406)XZU400..40T..CBU,IV3 ; (0406- )XZU 404..40T..DCRL ; (0610- )XZU404. .40T)
48104-3V170	Leaf, Front Spring, No.3	Front Spring & Shock Absorber ([05.1999 - 06.2004] 5-LEAF (9905-0406)XZU400..40T..CBU,IV3 ; (0406- )XZU 404..40T..DCRL ; (0610- )XZU404. .40T)
48110-3V140	Spring Assy, Front, Rh	Front Spring & Shock Absorber ([05.1999 - 06.2004] 5-LEAF (9905-0406)XZU400..40T..CBU,IV3 ; (0406- )XZU 404..40T..DCRL ; (0610- )XZU404. .40T)
48110-3V150	Spring Assy, Front, Lh	Front Spring & Shock Absorber ([05.1999 - 06.2004] 5-LEAF (9905-0406)XZU400..40T..CBU,IV3 ; (0406- )XZU 404..40T..DCRL ; (0610- )XZU404. .40T)
48110-3V160	Spring Assy, Front, Rh	Front Spring & Shock Absorber ([05.1999 - 06.2004] 5-LEAF (9905-0406)XZU400..40T..CBU,IV3 ; (0406- )XZU 404..40T..DCRL ; (0610- )XZU404. .40T)
48110-3V170	Spring Assy, Front, Lh	Front Spring & Shock Absorber ([05.1999 - 06.2004] 5-LEAF (9905-0406)XZU400..40T..CBU,IV3 ; (0406- )XZU 404..40T..DCRL ; (0610- )XZU404. .40T)
48110-3V180	Spring Assy, Front, Rh	Front Spring & Shock Absorber ([05.1999 - 06.2004] 5-LEAF (9905-0406)XZU400..40T..CBU,IV3 ; (0406- )XZU 404..40T..DCRL ; (0610- )XZU404. .40T)
48110-3V190	Spring Assy, Front, Lh	Front Spring & Shock Absorber ([05.1999 - 06.2004] 5-LEAF (9905-0406)XZU400..40T..CBU,IV3 ; (0406- )XZU 404..40T..DCRL ; (0610- )XZU404. .40T)
48110-3V200	Spring Assy, Front, Rh	Front Spring & Shock Absorber ([05.1999 - 06.2004] 5-LEAF (9905-0406)XZU400..40T..CBU,IV3 ; (0406- )XZU 404..40T..DCRL ; (0610- )XZU404. .40T)
48110-3V210	Spring Assy, Front, Lh	Front Spring & Shock Absorber ([05.1999 - 06.2004] 5-LEAF (9905-0406)XZU400..40T..CBU,IV3 ; (0406- )XZU 404..40T..DCRL ; (0610- )XZU404. .40T)
48110-3V310	Spring Assy, Front, Rh	Front Spring & Shock Absorber ([05.1999 - 06.2004] 5-LEAF (9905-0406)XZU400..40T..CBU,IV3 ; (0406- )XZU 404..40T..DCRL ; (0610- )XZU404. .40T)
48110-3V311	Spring Assy, Front, Rh	Front Spring & Shock Absorber ([05.1999 - 06.2004] 5-LEAF (9905-0406)XZU400..40T..CBU,IV3 ; (0406- )XZU 404..40T..DCRL ; (0610- )XZU404. .40T)
48110-3V410	Spring Assy, Front, Lh	Front Spring & Shock Absorber ([05.1999 - 06.2004] 5-LEAF (9905-0406)XZU400..40T..CBU,IV3 ; (0406- )XZU 404..40T..DCRL ; (0610- )XZU404. .40T)
48110-3V411	Spring Assy, Front, Lh	Front Spring & Shock Absorber ([05.1999 - 06.2004] 5-LEAF (9905-0406)XZU400..40T..CBU,IV3 ; (0406- )XZU 404..40T..DCRL ; (0610- )XZU404. .40T)
48110-3V460	Spring Assy, Front, Rh	Front Spring & Shock Absorber ([05.1999 - 06.2004] 5-LEAF (9905-0406)XZU400..40T..CBU,IV3 ; (0406- )XZU 404..40T..DCRL ; (0610- )XZU404. .40T)
48110-3V461	Spring Assy, Front, Rh	Front Spring & Shock Absorber ([05.1999 - 06.2004] 5-LEAF (9905-0406)XZU400..40T..CBU,IV3 ; (0406- )XZU 404..40T..DCRL ; (0610- )XZU404. .40T)
48110-3V470	Spring Assy, Front, Lh	Front Spring & Shock Absorber ([05.1999 - 06.2004] 5-LEAF (9905-0406)XZU400..40T..CBU,IV3 ; (0406- )XZU 404..40T..DCRL ; (0610- )XZU404. .40T)
48110-3V471	Spring Assy, Front, Lh	Front Spring & Shock Absorber ([05.1999 - 06.2004] 5-LEAF (9905-0406)XZU400..40T..CBU,IV3 ; (0406- )XZU 404..40T..DCRL ; (0610- )XZU404. .40T)
48112-3V140	Leaf, Front Spring, No.2	Front Spring & Shock Absorber ([05.1999 - 06.2004] 5-LEAF (9905-0406)XZU400..40T..CBU,IV3 ; (0406- )XZU 404..40T..DCRL ; (0610- )XZU404. .40T)
48112-3V150	Leaf, Front Spring, No.2	Front Spring & Shock Absorber ([05.1999 - 06.2004] 5-LEAF (9905-0406)XZU400..40T..CBU,IV3 ; (0406- )XZU 404..40T..DCRL ; (0610- )XZU404. .40T)
48112-3V160	Leaf, Front Spring, No.2	Front Spring & Shock Absorber ([05.1999 - 06.2004] 5-LEAF (9905-0406)XZU400..40T..CBU,IV3 ; (0406- )XZU 404..40T..DCRL ; (0610- )XZU404. .40T)
48112-3V170	Leaf, Front Spring, No.2	Front Spring & Shock Absorber ([05.1999 - 06.2004] 5-LEAF (9905-0406)XZU400..40T..CBU,IV3 ; (0406- )XZU 404..40T..DCRL ; (0610- )XZU404. .40T)
48114-3V140	Leaf, Front Spring, No.4	Front Spring & Shock Absorber ([05.1999 - 06.2004] 5-LEAF (9905-0406)XZU400..40T..CBU,IV3 ; (0406- )XZU 404..40T..DCRL ; (0610- )XZU404. .40T)
48114-3V150	Leaf, Front Spring, No.4	Front Spring & Shock Absorber ([05.1999 - 06.2004] 5-LEAF (9905-0406)XZU400..40T..CBU,IV3 ; (0406- )XZU 404..40T..DCRL ; (0610- )XZU404. .40T)
48114-3V160	Leaf, Front Spring, No.4	Front Spring & Shock Absorber ([05.1999 - 06.2004] 5-LEAF (9905-0406)XZU400..40T..CBU,IV3 ; (0406- )XZU 404..40T..DCRL ; (0610- )XZU404. .40T)
48114-3V170	Leaf, Front Spring, No.4	Front Spring & Shock Absorber ([05.1999 - 06.2004] 5-LEAF (9905-0406)XZU400..40T..CBU,IV3 ; (0406- )XZU 404..40T..DCRL ; (0610- )XZU404. .40T)
48115-3V140	Leaf, Front Spring, No.5	Front Spring & Shock Absorber ([05.1999 - 06.2004] 5-LEAF (9905-0406)XZU400..40T..CBU,IV3 ; (0406- )XZU 404..40T..DCRL ; (0610- )XZU404. .40T)
48115-3V150	Leaf, Front Spring, No.5	Front Spring & Shock Absorber ([05.1999 - 06.2004] 5-LEAF (9905-0406)XZU400..40T..CBU,IV3 ; (0406- )XZU 404..40T..DCRL ; (0610- )XZU404. .40T)
48115-3V160	Leaf, Front Spring, No.5	Front Spring & Shock Absorber ([05.1999 - 06.2004] 5-LEAF (9905-0406)XZU400..40T..CBU,IV3 ; (0406- )XZU 404..40T..DCRL ; (0610- )XZU404. .40T)
48115-3V170	Leaf, Front Spring, No.5	Front Spring & Shock Absorber ([05.1999 - 06.2004] 5-LEAF (9905-0406)XZU400..40T..CBU,IV3 ; (0406- )XZU 404..40T..DCRL ; (0610- )XZU404. .40T)
48116-37730	Spacer, Front Leaf Spring, No.2	Front Spring & Shock Absorber ([05.1999 - 06.2004] 5-LEAF (9905-0406)XZU400..40T..CBU,IV3 ; (0406- )XZU 404..40T..DCRL ; (0610- )XZU404. .40T)
48116-37780	Spacer(For Front Spring)	Front Spring & Shock Absorber ([05.1999 - 06.2004] 5-LEAF (9905-0406)XZU400..40T..CBU,IV3 ; (0406- )XZU 404..40T..DCRL ; (0610- )XZU404. .40T)
48117-37730	Spacer, Front Spring, No.3	Front Spring & Shock Absorber ([05.1999 - 06.2004] 5-LEAF (9905-0406)XZU400..40T..CBU,IV3 ; (0406- )XZU 404..40T..DCRL ; (0610- )XZU404. .40T)
48147-37730	Bolt, Front Spring, Center	Front Spring & Shock Absorber ([05.1999 - 06.2004] 5-LEAF (9905-0406)XZU400..40T..CBU,IV3 ; (0406- )XZU 404..40T..DCRL ; (0610- )XZU404. .40T)
48147-37X31	Bolt, Front Spring, Center	Front Spring & Shock Absorber ([05.1999 - 06.2004] 5-LEAF (9905-0406)XZU400..40T..CBU,IV3 ; (0406- )XZU 404..40T..DCRL ; (0610- )XZU404. .40T)
48147-3V310	Bolt, Front Spring, Center	Front Spring & Shock Absorber ([05.1999 - 06.2004] 5-LEAF (9905-0406)XZU400..40T..CBU,IV3 ; (0406- )XZU 404..40T..DCRL ; (0610- )XZU404. .40T)
48152-37730	Spacer, Front Leaf Spring, No.1	Front Spring & Shock Absorber ([05.1999 - 06.2004] 5-LEAF (9905-0406)XZU400..40T..CBU,IV3 ; (0406- )XZU 404..40T..DCRL ; (0610- )XZU404. .40T)
48155-3B470	Nut, Front Spring Center Bolt	Front Spring & Shock Absorber ([05.1999 - 06.2004] 5-LEAF (9905-0406)XZU400..40T..CBU,IV3 ; (0406- )XZU 404..40T..DCRL ; (0610- )XZU404. .40T)
48214-3B070	Spacer(For Front Spring)	Front Spring & Shock Absorber ([05.1999 - 06.2004] 5-LEAF (9905-0406)XZU400..40T..CBU,IV3 ; (0406- )XZU 404..40T..DCRL ; (0610- )XZU404. .40T)
48216-3B060	Leaf, Rear Spring, No.6	Front Spring & Shock Absorber ([05.1999 - 06.2004] 5-LEAF (9905-0406)XZU400..40T..CBU,IV3 ; (0406- )XZU 404..40T..DCRL ; (0610- )XZU404. .40T)
48251-36530	Spacer, Front Leaf Spring, No.1	Front Spring & Shock Absorber ([05.1999 - 06.2004] 5-LEAF (9905-0406)XZU400..40T..CBU,IV3 ; (0406- )XZU 404..40T..DCRL ; (0610- )XZU404. .40T)
48252-37521	Silencer, Front Spring, No.1	Front Spring & Shock Absorber ([05.1999 - 06.2004] 5-LEAF (9905-0406)XZU400..40T..CBU,IV3 ; (0406- )XZU 404..40T..DCRL ; (0610- )XZU404. .40T)
48252-37570	Silencer, Front Spring, No.1	Front Spring & Shock Absorber ([05.1999 - 06.2004] 5-LEAF (9905-0406)XZU400..40T..CBU,IV3 ; (0406- )XZU 404..40T..DCRL ; (0610- )XZU404. .40T)
48252-3B800	Silencer, Front Spring, No.1	Front Spring & Shock Absorber ([05.1999 - 06.2004] 5-LEAF (9905-0406)XZU400..40T..CBU,IV3 ; (0406- )XZU 404..40T..DCRL ; (0610- )XZU404. .40T)
48253-36530	Spacer(For Front Spring)	Front Spring & Shock Absorber ([05.1999 - 06.2004] 5-LEAF (9905-0406)XZU400..40T..CBU,IV3 ; (0406- )XZU 404..40T..DCRL ; (0610- )XZU404. .40T)
48284-37130	Nut, Front Spring Center Bolt	Front Spring & Shock Absorber ([05.1999 - 06.2004] 5-LEAF (9905-0406)XZU400..40T..CBU,IV3 ; (0406- )XZU 404..40T..DCRL ; (0610- )XZU404. .40T)
90033-84013	Bimetal Formed Bush(For Front Spring)	Front Spring & Shock Absorber ([05.1999 - 06.2004] 5-LEAF (9905-0406)XZU400..40T..CBU,IV3 ; (0406- )XZU 404..40T..DCRL ; (0610- )XZU404. .40T)
