XZU400

Toyota DYNA-TOYOACE · 1999 · 4,961 parts · 238 categories
XZU400 ×

← Back to categories

4,961 items

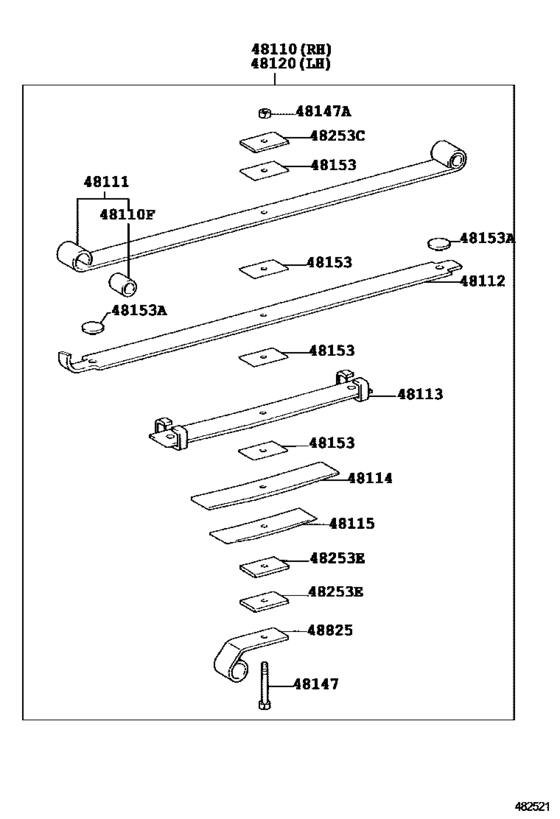

Front Spring & Shock Absorber ([05.1999 - 06.2004] 5-LEAF,ｱﾘ(ｽﾀﾋﾞﾗｲｻﾞ) & ｷﾖｳｶｻｽﾍﾟﾝｼﾖﾝ (9905-0406)BU420..40T ; (9905-0406)XZU400..IV6 ; (9905-0406)XZU410,420,430..40T..IV 3,IV6 ; (0406-050 5)XZU404,414..40T..IV3) 32
#OEMPart name
48110 48110-3V180 Spring Assy, Front, Rh
48110 48110-3V200 Spring Assy, Front, Rh
48110 90033-84013 Bimetal Formed Bush(For Front Spring)
48111 48101-3V140 Leaf, Front Spring, No.1
48111 48101-3V150 Leaf, Front Spring, No.1
48111 48101-3V160 Leaf, Front Spring, No.1
48111 48101-3V170 Leaf, Front Spring, No.1
48112 48112-3V140 Leaf, Front Spring, No.2
48112 48112-3V150 Leaf, Front Spring, No.2
48112 48112-3V160 Leaf, Front Spring, No.2
48112 48112-3V170 Leaf, Front Spring, No.2
48113 48104-3V140 Leaf, Front Spring, No.3
48113 48104-3V150 Leaf, Front Spring, No.3
48113 48104-3V160 Leaf, Front Spring, No.3
48113 48104-3V170 Leaf, Front Spring, No.3
48114 48114-3V140 Leaf, Front Spring, No.4
48114 48114-3V150 Leaf, Front Spring, No.4
48114 48114-3V160 Leaf, Front Spring, No.4
48114 48114-3V170 Leaf, Front Spring, No.4
48115 48115-3V140 Leaf, Front Spring, No.5
48115 48115-3V150 Leaf, Front Spring, No.5
48115 48115-3V160 Leaf, Front Spring, No.5
48115 48115-3V170 Leaf, Front Spring, No.5
48120 48110-3V190 Spring Assy, Front, Lh
48120 48110-3V210 Spring Assy, Front, Lh
48147 48147-37730 Bolt, Front Spring, Center
48147 48155-3B470 Nut, Front Spring Center Bolt
48153 48152-37730 Spacer, Front Leaf Spring, No.1
48153 48252-37570 Silencer, Front Spring, No.1
48253 48116-37730 Spacer, Front Leaf Spring, No.2
48253 48117-37730 Spacer, Front Spring, No.3
48825 48825-37020 Bracket, Stabilizer, No.2
