XZU282

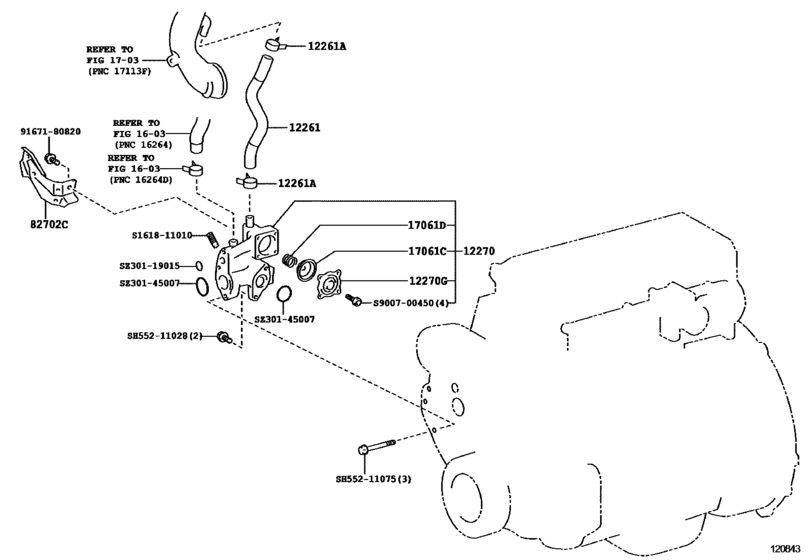

Ventilation Hose ([03.2012 - ] (1203- )) 7
| # | OEM | 部品名 |
|---|---|---|
| 12261 | 12261-78550 | Hose, Ventilation |
| 12261 | 96136-42901 | Clip Or Clamp(For Ventilation Hose) |
| 12270 | 12270-E0130 | Separator Assy, Oil |
| 12270 | 12270-E0131 | Separator Assy, Oil |
| 17061 | 17061-EV010 | Diaphragm Sub-Assy |
| 82702 | 82702-37A90 | Bracket Sub-Assy, Wiring Harness |
| 9167180820 | 91671-80820 | Bolt (For Transmission Control Cable Bracket) |
| OEM | 部品名 | カテゴリ |
|---|---|---|
| 12261-78550 | Hose, Ventilation | Ventilation Hose ([03.2012 - ] (1203- )) |
| 12270-E0130 | Separator Assy, Oil | Ventilation Hose ([03.2012 - ] (1203- )) |
| 12270-E0131 | Separator Assy, Oil | Ventilation Hose ([03.2012 - ] (1203- )) |
| 17061-EV010 | Diaphragm Sub-Assy | Ventilation Hose ([03.2012 - ] (1203- )) |
| 82702-37A90 | Bracket Sub-Assy, Wiring Harness | Ventilation Hose ([03.2012 - ] (1203- )) |
| 91671-80820 | Bolt (For Transmission Control Cable Bracket) | Ventilation Hose ([03.2012 - ] (1203- )) |
| 96136-42901 | Clip Or Clamp(For Ventilation Hose) | Ventilation Hose ([03.2012 - ] (1203- )) |
