Search › Model › XZU282

XZU282

Toyota QUICK-DELIVERY-URBAN-SUPPORTER · 2012 · 2,681 parts · 156 categories

2,681 items

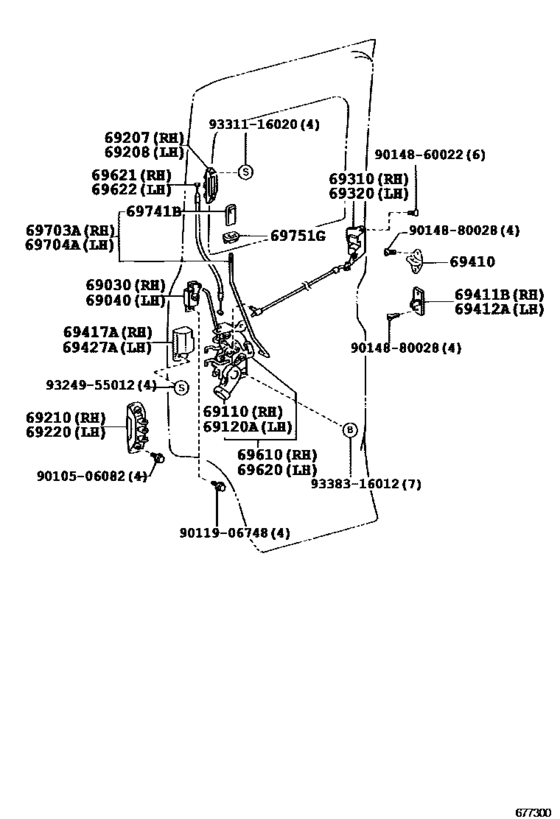

Front Door Lock & Handle ([03.2012 - ] (1203- )) 33

#	OEM	Part name
69030	69030-37100	Lock Assy, Front Slide Door Open, Rh
69040	69040-37071	Lock Assy, Front Slide Door Open, Lh
69110	85450-37021	Actuator Assy, Front Door Lock, Rh
69120	85460-37041	Actuator Assy, Front Door Lock, Lh
69207	69270-90D03-B0	Handle Sub-Assy, Front Door Inside, Rh
69208	69280-90D02-B0	Handle Sub-Assy, Front Door Inside, Lh
69210	69230-37020	Handle Assy, Front Door, Outside Rh
69220	69240-37020	Handle Assy, Front Door Outside, Lh
69310	69310-37110	Lock Assy, Front Door, Rh
69310	69310-37111	Lock Assy, Front Door, Rh
69320	69320-37100	Lock Assy, Front Door, Lh
69320	69320-37101	Lock Assy, Front Door, Lh
69410	69470-28070	Plate Assy, Front Door Lock Striker
69411	69411-37010	Striker, Front Slide Door Open, Rh
69412	69412-37011	Striker, Front Slide Door Open, Lh
69417	69417-25010-B0	Cover, Slide Door Open Stop, Rh
69427	69427-25010-B0	Cover, Slide Door Open Stop, Lh
69610	69610-37023	Control Assy, Front Slide Door Lock Remote, Rh
69620	69620-37024	Control Assy, Front Slide Door Lock Remote, Lh
69621	69621-37010	Wire, Front Slide Door Lock Control, Rh
69622	69622-37010	Wire, Front Slide Door Lock Control, Lh
69703	69703-37020-C0	Rod Sub-Assy, Slide Door Locking Control, Rh
69704	69704-37020-C0	Rod Sub-Assy, Slide Door Lock Control, Lh
69741	69741-90K00-C0	Knob, Front Door Lock Control
69751	69751-12020-C0	Holder, Door Locking(For Front Door)
9010506082	90105-06082	BOLT
9011906748	90119-06748	BOLT WWASHER
9014860022	90148-60022	BOLT
9014860022	90148-A0005	Hexalobular Screw
9014880028	90148-80028	SCREW, HEX LOBULAR
9324955012	93249-55012	New Genuine Part
9331116020	93311-16020	SCREW
9338316012	93383-16012	New Genuine Part

OEM	Part name	Category
69030-37100	Lock Assy, Front Slide Door Open, Rh	Front Door Lock & Handle ([03.2012 - ] (1203- ))
69040-37071	Lock Assy, Front Slide Door Open, Lh	Front Door Lock & Handle ([03.2012 - ] (1203- ))
69230-37020	Handle Assy, Front Door, Outside Rh	Front Door Lock & Handle ([03.2012 - ] (1203- ))
69240-37020	Handle Assy, Front Door Outside, Lh	Front Door Lock & Handle ([03.2012 - ] (1203- ))
69270-90D03-B0	Handle Sub-Assy, Front Door Inside, Rh	Front Door Lock & Handle ([03.2012 - ] (1203- ))
69280-90D02-B0	Handle Sub-Assy, Front Door Inside, Lh	Front Door Lock & Handle ([03.2012 - ] (1203- ))
69310-37110	Lock Assy, Front Door, Rh	Front Door Lock & Handle ([03.2012 - ] (1203- ))
69310-37111	Lock Assy, Front Door, Rh	Front Door Lock & Handle ([03.2012 - ] (1203- ))
69320-37100	Lock Assy, Front Door, Lh	Front Door Lock & Handle ([03.2012 - ] (1203- ))
69320-37101	Lock Assy, Front Door, Lh	Front Door Lock & Handle ([03.2012 - ] (1203- ))
69411-37010	Striker, Front Slide Door Open, Rh	Front Door Lock & Handle ([03.2012 - ] (1203- ))
69412-37011	Striker, Front Slide Door Open, Lh	Front Door Lock & Handle ([03.2012 - ] (1203- ))
69417-25010-B0	Cover, Slide Door Open Stop, Rh	Front Door Lock & Handle ([03.2012 - ] (1203- ))
69427-25010-B0	Cover, Slide Door Open Stop, Lh	Front Door Lock & Handle ([03.2012 - ] (1203- ))
69470-28070	Plate Assy, Front Door Lock Striker	Front Door Lock & Handle ([03.2012 - ] (1203- ))
69610-37023	Control Assy, Front Slide Door Lock Remote, Rh	Front Door Lock & Handle ([03.2012 - ] (1203- ))
69620-37024	Control Assy, Front Slide Door Lock Remote, Lh	Front Door Lock & Handle ([03.2012 - ] (1203- ))
69621-37010	Wire, Front Slide Door Lock Control, Rh	Front Door Lock & Handle ([03.2012 - ] (1203- ))
69622-37010	Wire, Front Slide Door Lock Control, Lh	Front Door Lock & Handle ([03.2012 - ] (1203- ))
69703-37020-C0	Rod Sub-Assy, Slide Door Locking Control, Rh	Front Door Lock & Handle ([03.2012 - ] (1203- ))
69704-37020-C0	Rod Sub-Assy, Slide Door Lock Control, Lh	Front Door Lock & Handle ([03.2012 - ] (1203- ))
69741-90K00-C0	Knob, Front Door Lock Control	Front Door Lock & Handle ([03.2012 - ] (1203- ))
69751-12020-C0	Holder, Door Locking(For Front Door)	Front Door Lock & Handle ([03.2012 - ] (1203- ))
85450-37021	Actuator Assy, Front Door Lock, Rh	Front Door Lock & Handle ([03.2012 - ] (1203- ))
85460-37041	Actuator Assy, Front Door Lock, Lh	Front Door Lock & Handle ([03.2012 - ] (1203- ))
90105-06082	BOLT	Front Door Lock & Handle ([03.2012 - ] (1203- ))
90119-06748	BOLT WWASHER	Front Door Lock & Handle ([03.2012 - ] (1203- ))
90148-60022	BOLT	Front Door Lock & Handle ([03.2012 - ] (1203- ))
90148-80028	SCREW, HEX LOBULAR	Front Door Lock & Handle ([03.2012 - ] (1203- ))
90148-A0005	Hexalobular Screw	Front Door Lock & Handle ([03.2012 - ] (1203- ))
93249-55012	New Genuine Part	Front Door Lock & Handle ([03.2012 - ] (1203- ))
93311-16020	SCREW	Front Door Lock & Handle ([03.2012 - ] (1203- ))
93383-16012	New Genuine Part	Front Door Lock & Handle ([03.2012 - ] (1203- ))
