XZB70

Toyota COASTER · 2017 · 3,479 parts · 252 categories
XZB70 ×
3,479 items
Abs & Vsc ([01.2017 - ] (1701- )RHD) 18
#OEMPart name
88263 88263-37020 Relay, Skid Control No.2
88263 88263-37010 Relay, Skid Control
89420 89420-36080 Sensor Assy, Vacuum
89516 89516-36071 Wire, Skid Control Sensor
89540 89540-36160 Computer Assy, Skid Control
89542 89542-36051 Sensor, Speed, Front Rh
89543 89543-36051 Sensor, Speed, Front Lh
89544 89544-36030 Sensor, Skid Control
91551 91551-A0616 New Genuine Part
91611 91611-B0816 Bolt
91611 91611-G0820 Bolt
91651 91651-B0814 Bolt with washer
91651 90119-A0109 New Genuine Part
9011908 90119-08A46 BOLT WWASHER
4896736020 48967-36020 End, Sensor Connecting Rod, No.1
4896836020 48968-36020 End, Sensor Connecting Rod, No.2
9167380616 91673-80616 Bolt, W/washer
9415180600 94151-80600 Nut, Cap(For Cylinder Head Cover)
Accelerator Link ([01.2017 - ] (1701- )TRB60,70,XZB60,70) 9
#OEMPart name
78100 78010-36060 Link Assy, Accelerator
78111 78111-95110 Pedal, Accelerator
4561936020 45619-36020 Cover, Knuckle Stopper
9054106038 90541-06038 Cushion(For Parking Brake Pedal)
9151160510 91511-60510 New Genuine Part
9167180865 91671-80865 New Genuine Part
9167380825 91673-80825 New Genuine Part
9356855014 93568-55014 Screw
9415120801 94151-20801 New Genuine Part

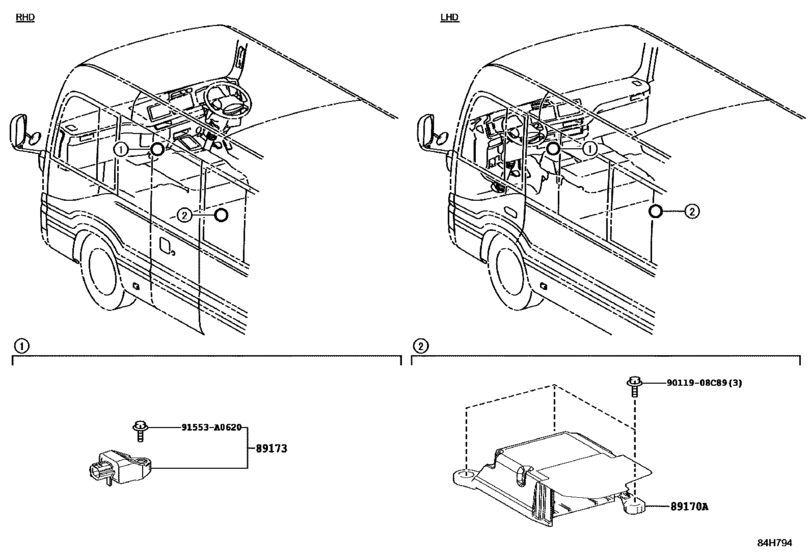

Air Bag ([01.2017 - ] (1701- )) 4
#OEMPart name
89170 89170-36010 Computer Assy, Air Bag
89173 89173-59315 Sensor, Air Bag, Front
91553 91553-A0620 New Genuine Part
9011908 90119-08C89 BOLT WWASHER
Air Cleaner ([01.2017 - ] (1701- )N04C..02S,17S,20S,22S) 32
#OEMPart name
17030 17030-78482 Hose, Air, No.2
17030 90460-80006 Clamp, Hose
17341 17030-78490 Hose, Air, No.1
17341 90460-63011 Clamp Or Clip(For Air Hose, No.1)
17341 17341-78260 Hose, Air, No.1(For Intercooler)
17341 96111-10900 Clamp, Hose
17341 96111-11180 Clamp, Hose
17342 17342-78150 Hose, Air, No.2(For Intercooler)
17342 90460-67008 Clamp Or Clip(For Air Hose, No.1)
17670 90467-12056 Clamp Or Clip(For Throttle Body Hose)
17670 90466-T0048 New Genuine Part
17700 17700-78310 Cleaner Assy, Air
17700 90175-08008 Nut, Wing(For Air Cleaner)
17705 17705-17180 Cap Sub-Assy, Air Cleaner
17801 17801-58040 Element Sub-Assy, Air Cleaner Filter
17807 17807-58020 Plate Sub-Assy, Air Cleaner Filter Set
17841 17841-68010 Gasket, Filter Element
17845 17845-58010 Gasket, Air Cleaner Cap
17911 52810-36030 Duct, Cool Air Intake, No.1
17940 17940-78150 Intercooler Assy
22204 22204-30010 Meter Sub-Assy, Intake Air Flow
55871 55871-36020 Seal, Air Duct
58257 58257-36050 Plate, Air Cleaner House
91631 91631-B0820 BOLT WWASHER
9003105144 90031-05144 Bolt(For Cylinder Head Set)
9009900289 90099-00289 SCREW
9163160816 91631-60816 BOLT
9165160616 91651-60616 BOLT
9167180820 91671-80820 Bolt (For Transmission Control Cable Bracket)
9167380616 91673-80616 Bolt, W/washer
9167380825 91673-80825 New Genuine Part
9415080800 94150-80800 NUT, FLANGE
Alternator ([01.2017 - ] 12V 130A (1701- )N04C) 17
#OEMPart name
27020 27060-78260 Alternator Assy
27039 27039-50430 Cover, Alternator Rear End
27310 27310-EV030 Frame Assy, Drive End, Alternator
27310 90099-10223 Bearing(For Alternator Drive End Frame)
27312 27312-72100 Plate, Bearing Retainer, Alternator
27330 27330-33090 Rotor Assy, Alternator
27360 27360-78260 Coil Assy, Alternator
27370 27370-58460 Holder Assy, Alternator Brush
27384 27384-50030 Holder, Alternator Brush, A
27387 27387-20130 Insulator, Terminal
27411 27411-78260 Pulley, Alternator
9009900197 90099-00197 Screw
9009900268 90099-00268 Screw(For Alternator Drive End Frame)
9009904539 90099-04539 BOLT
9009905171 90099-05171 Nut(For Alternator Pulley)
9009905284 90099-05284 NUT
9017906158 90179-06158 Nut, Rear Wiper Link Pivot, No.2
Antenna ([01.2017 - ] (1701- )RHD) 4
#OEMPart name
86101 86101-36130 Cord Sub-Assy, Antenna
86300 86300-36100 Antenna Assy, W/holder
827111 82711-1A750 Clamp, No.1(For Back Door Lock Control Cable)
9014840007 90148-40007 SCREW, HEXALOBULAR
Armrest & Visor ([01.2017 - ] (1701- )) 13
#OEMPart name
69271 69271-36020-B0 Handle, Front Door Inside, Rh
74310 74310-36210-B1 Visor Assy, Rh
74320 74320-36270-B0 Visor Assy, Lh
74603 74620-26010-B0 Grip Sub-Assy, Assist, Front
74611 74610-60060-B5 Grip, Assist
74617 74617-60010-B4 Plug, Assist Grip
74617 74615-60020-B3 Plug, Front Assist Grip, No.1 Rh
9011906911 90119-06911 BOLT WWASHER
9015960431 90159-60431 SCREW
9018906018 90189-06018 GROMMET
9167380616 91673-80616 Bolt, W/washer
9167380628 91673-80628 New Genuine Part
9326056025 93260-56025 New Genuine Part
Armrest & Visor ([01.2017 - ] (1701- )RHD) 1
#OEMPart name
9321016025 93210-16025 New Genuine Part
Ash Receptacle ([01.2017 - ] (1701- )) 1
#OEMPart name
9326915010 93269-15010 New Genuine Part
Automatic Door ([01.2017 - ] ACCEL INTER LOCK & RELAY (1701- )RHD) 4
#OEMPart name
85610 85610-36070 Actuator Assy, Accel Inter Lock
85980 85980-36120 Relay Assy, Door Control (For Automatic Door)
9011906255 90119-06255 New Genuine Part
9011906911 90119-06911 BOLT WWASHER
Automatic Door ([01.2017 - ] FOLDING TYPE (1701- )RHD) 28
#OEMPart name
69068 69068-36060 Cable Sub-Assy, Center Door Remote Control, No.2
69608 69608-36030 Link Sub-Assy, Center Door Remote Control
69638 69638-36020-B1 Cover, Center Door Remote Control, No.1
82023 82023-36010 Wiring Sub-Assy, Auto Door
84290 84290-36010 Switch Assy, Limit
84934 84934-36020 Cover, Door Control Switch
85620 85620-36600 Motor Assy, Automatic Door Regulator
85621 85621-36060 Switch & Base, Auto Door
85622 85622-36070 Motor & Gear, Automatic Door Regulator
85623 85623-36070 Link, Automatic Door Regulator
85625 85625-36030 Rack, Automatic Door
85628 85628-36210 Label, Automatic Door, No.2
85628 85628-36230 Label, Automatic Door No.6
85639 85639-36020 Plate, Automatic Door
85980 85980-36240 Relay Assy, Door Control, No.2 (For Automatic Door)
87116 87116-36010 Spring, Holding
89136 89136-36010 Cover, Ecu Aggregation, No.1
89343 89343-30010 Buzzer, Clearance Warning
89747 89747-30040 Buzzer, Wireless Door Lock
4645236030 46452-36030 Bracket, Cable Support, No.1
4645336060 46453-36060 Bracket, Cable Support, No.2
6339936010 63399-36010-B2 Cover, Visor Holder Hole
8563536010 85635-36010 Cable, Auto Door
9011908357 90119-08357 BOLT
9024008053 90240-08053 PIN WITH WHEEL
9046816028 90468-16028 New Genuine Part
9167380616 91673-80616 Bolt, W/washer
9167380835 91673-80835 New Genuine Part
Automatic Door ([01.2017 - ] GLIDING TYPE (1701- )RHD) 10
#OEMPart name
85620 85620-36600 Motor Assy, Automatic Door Regulator
85621 85621-36060 Switch & Base, Auto Door
85622 85622-36070 Motor & Gear, Automatic Door Regulator
85623 85623-36070 Link, Automatic Door Regulator
85625 85625-36030 Rack, Automatic Door
85980 85980-36240 Relay Assy, Door Control, No.2 (For Automatic Door)
9046312005 90463-12005 New Genuine Part
9155380614 91553-80614 BOLT FLANGE
9167380818 91673-80818 BOLT, FLANGE
9615001800 96150-01800 Ring, Snap(For Reaction Retainer)
Back Door Lock & Hinge ([01.2017 - ] DOUBLE SWING BACK DOOR (1701- )) 43
#OEMPart name
67287 67286-36010 Anti-Rattle, Back Door, Lower
68801 68801-36050 Hinge Sub-Assy, Back Door, Upper Rh
68803 68803-36050 Hinge Sub-Assy, Back Door, Lower Rh
68851 68851-90K00 Cover, Back Door Hinge, Upper
68852 68852-36010 Cover, Back Door Hinge
68861 68861-36010 Pad, Back Door Hinge
69042 69041-36010 Stopper Sub-Assy, Back Door, Upper
69090 69220-36010 Handle Assy, Back Door, Outside
69212 69212-60030-C0 Handle, Back Door Inside
69278 69278-60010-B1 Bezel, Door Inside Handle, Lh
69291 69206-60040-B2 Handle Assy, Back Door Inside
69321 69321-36011-B0 Cover, Back Door Lock
69350 69110-36060 Lock Assy, Back Door
69350 69880-36030 Lock Assy, Back Door, Upper
69380 69380-36020 Lock Assy, Back Door, Lower
69410 69410-90B01 Plate Assy, Front Door Lock Striker
69430 69430-95702 Striker Assy, Back Door Lock
69451 69451-36010 Striker, Back Door Upper Lock
69690 69690-36020 Control Assy, Back Door Remote
69749 90469-06005 Clamp(For Hood Lock Control Cable)
69759 69759-14050 Snap(For Rear Door Inside Handle)
69789 69789-36020 Silencer, Back Door Lock Control Link
69790 69777-36010 Link Assy, Back Door Lock Control
69792 69792-36020 Link, Back Door Lock Locking
9010508187 90105-08187 BOLTWATER BASED
9010510539 90105-10539 New Genuine Part
9010908128 90109-08128 BOLT
9014860022 90148-60022 BOLT
9014860022 90148-A0005 Hexalobular Screw
9014880028 90148-80028 SCREW, HEX LOBULAR
9014950064 90149-50064 SCREW
9015960303 90159-60303 SCREW
9018906018 90189-06018 GROMMET
9038610085 90386-10085 Grommet (For Accelerator Link Rod)
9038616007 90386-16007 BUSH
9046804049 90468-04049 Clamp, Jack Handle
9048018330 90480-18330 Grommet, No.3(For Front Brake Tube)
9155380818 91553-80818 BOLT FLANGE
9165140612 91651-40612 BOLT
9165140612 90080-11225 New Genuine Part
9167380616 91673-80616 Bolt, W/washer
9352054012 93520-54012 Screw
9454101000 94541-01000 New Genuine Part
Back Door Lock & Hinge ([01.2017 - ] LUGGAGE DOOR (1701- )) 6
#OEMPart name
69350 69110-36060 Lock Assy, Back Door
69430 69430-95702 Striker Assy, Back Door Lock
9011908 90119-08B78 BOLT, W/WASHER
9011906951 90119-06951 BOLT WWASHER
9155380618 91553-80618 Direct
9167380825 91673-80825 New Genuine Part
Back Door Panel & Glass ([01.2017 - ] *DSBD(BACK DOOR GLASS) (1701- )) 15
#OEMPart name
64813 56117-36020 Dam, Back Window Glass Adhesive
64827 64827-36010 Clip, Back Window Glass, Rh
64827 64827-36020 Clip, Back Window Glass, Rh
64827 64827-36030 Clip, Back Window Glass, Rh
64827 64827-36040 Clip, Back Window Glass, Rh
64828 64828-36010 Clip, Back Window Glass, Lh
64828 64828-36020 Clip, Back Window Glass, Lh
64828 64828-36030 Clip, Back Window Glass, Lh
64828 64828-36040 Clip, Back Window Glass, Lh
68131 68105-36010 Glass, Back Door
68131 68105-36030 Glass, Back Door, Lh
68131 68105-36050 Glass, Back Door, Lh
68294 68294-26030 Dam, Side Lower Window - BACK DOOR GLASS ADHESIVE
75573 75573-36010 Moulding, Back Window, Outside
75574 75574-36010 Moulding, Back Window, Outside Lh
Back Door Panel & Glass ([01.2017 - ] *DSBD(PANEL) (1701- )) 29
#OEMPart name
55521 55521-95260 Knob, Back Door Handle Cover
62384 62384-36021-B0 Cap, Side Window Clip
67005 67005-36110 Panel Sub-Assy, Back Door, Rh
67006 67006-36830 Panel Sub-Assy, Back Door, Lh
67199 67807-36010 Cover Sub-Assy, Back Door Service Hole
67754 67745-36121-B0 Moulding, Back Door Trim
67754 67745-36131-B0 Moulding, Back Door Trim
67847 67847-36020 Cover, Back Door Service Hole, Rh
67848 67848-36020 Cover, Back Door Service Hole, Lh
67853 67853-36010 Cover, Back Door Service Hole, No.3
67868 67867-12150 Clip(For Hood Air Intake Duct Seal)
67881 67881-36050 Weatherstrip, Back Door
67882 67882-36040 Weatherstrip, Back Door, No.2
67883 67883-36030 Weatherstrip, Back Door, No.3
67884 67884-36020 Weatherstrip, Back Door, Lower Lh
68650 68650-36020 Check Assy, Back Door, Rh
68660 68660-36020 Check Assy, Back Door, Lh
68868 68868-36010 Seal, Back Door Hinge
69411 69411-36020 Catch, Back Door
76811 76811-36040 Garnish, Back Door, Outside
76825 76825-36020 Protector, Back Door Outside Garnish
93540 93540-A4016 SCREW TAPPING
6786920030 67869-20030 Clip, Door Weatherstrip(For Front Door)
9010908295 90109-08295 BOLT
9017806011 90178-06011 NUT FLANGE
9017906274 90179-06274 Nut
9046709206 90467-09206 Clip, Front Air Shutter Seal
9167380616 91673-80616 Bolt, W/washer
9354014010 93540-14010 Clip, Headlining Retainer
Back Door Panel & Glass ([01.2017 - ] *DSBD(TRIM) (1701- )) 4
#OEMPart name
64780 64780-36020-B0 Panel Assy, Back Door Trim, Rh
64790 64790-36070-B0 Panel Assy, Back Door Trim, Lh
67751 90467-07054-B5 Clip(For Back Door Trim Board)
67772 67772-95J01 Retainer, Front Door Lower Frame Bracket Garnish
Back Door Panel & Glass ([01.2017 - ] LUGGAGE DOOR (1701- )) 8
#OEMPart name
67881 67881-36050 Weatherstrip, Back Door
67882 67882-36040 Weatherstrip, Back Door, No.2
76811 76811-36040 Garnish, Back Door, Outside
76825 76825-36020 Protector, Back Door Outside Garnish
93540 93540-A4016 SCREW TAPPING
9017906274 90179-06274 Nut
9046706158 90467-06158-C0 Clip, Cowl Top Ventilator Louver
9046709206 90467-09206 Clip, Front Air Shutter Seal
Battery & Battery Cable ([01.2017 - ] (1701- )XZB60,70) 6
#OEMPart name
28800 28800-67071 Battery
28800 82821-24010 Cover, Connector(For Battery Terminal)
28800 90982-06070 Terminal, Battery Negative
28800 82675-60030 Terminal, Battery Positive
28800 90982-06060 Terminal, Battery Negative
9415180801 94151-80801 NUT FLANGE
Battery Carrier ([01.2017 - ] (1701- )XZB60,70) 5
#OEMPart name
74411 74403-36060 Carrier, Battery
74413 74451-36100 Bolt, Battery Clamp
74453 74453-36090 Bar, Battery Set Plate
9011910764 90119-10764 New Genuine Part
9017910067 90179-10067 Nut (For Rear Axle Shaft)
Body Stripe ([01.2017 - ] (1701- )RHD) 23
#OEMPart name
75655 75916-36010 Tape, Center Pillar
75941 75941-36010-H0 Stripe, Center Pillar, No.1
75942 75942-36010-H0 Stripe, Center Pillar, No.2
75973 75973-36030-H0 Stripe, Front Side Panel, Rh
75974 75974-36030-H0 Stripe, Front Side Panel, Lh
75982 75982-36010-H0 Stripe, Fender, Lh
75982 75991-36050-H0 Stripe, Fender, Lh
75985 75985-36050-H0 Stripe, Front Door, Rh
75985 75985-36070-H0 Stripe, Side Panel, Rh
75986 75986-36060-H0 Stripe, Side Panel, Lh
75988 75999-36010-H0 Stripe, Rear Door Outside, Lh
75988 75998-36020-H0 Stripe, Rear Door, Outside Lh
75991 75991-36020-H0 Stripe, Quarter, Rh No.1
75991 75991-36030-H0 Stripe, Quarter, Rh
75991 75998-36010-H0 Stripe, Quarter Lower Rh
75992 75991-36060-H0 Stripe, Quarter, Lh No.1
75992 75991-36090-H0 Stripe, Quarter, Lh
75992 75991-36150-H0 Stripe, Quarter, Front Rh
75992 75991-36160-H0 Stripe, Quarter Rh
75993 75993-36040-H0 Stripe, Quarter, Rh No.2
75993 75993-36030-H0 Stripe, Quarter, Rear Rh
75994 75994-36030-H0 Strip, Quarter, Rear Lh
75996 75996-36050-H0 Stripe, Quarter, Upr Rh
Brake Band & Multiple Disc Clutch (Atm) ([01.2017 - ] (1701- )4FC) 32
#OEMPart name
35602 35602-36020 Piston Sub-Assy, Front Clutch
35602 90301-62004 Ring, O (For Front Clutch Piston)
35602 90301-99027 Ring, O (For Overdrive Direct Clutch Piston)
35603 35603-25010 Spring Sub-Assy, Forward Clutch Return
35604 35604-60010 Spring Sub-Assy, Forward Clutch Return
35604 90520-50001 Ring, Shaft Snap (For Overdrive Direct Clutch Return Spring)
35606 35606-60010 Piston Sub-Assy, Rear Clutch
35606 90301-99028 Ring, O (For Rear Clutch Piston)
35631 90374-32005 Bearing, Thrust(For Front Clutch Hub)
35631 35631-60030 Hub, Front Clutch
35633 35633-36040 Disc, Clutch (For Front Clutch)
35634 35634-36010 Plate, Clutch (For Overdrive)
35634 35634-36020 Plate, Front Clutch
35634 35634-36040 Plate, Front Clutch
35634 35634-36050 Plate, Front Clutch
35651 35651-60010 Drum, Rear Clutch
35651 35789-36020 Race, Thrust Bearing (For Overdrive Case Front)
35654 35654-36011 Hub, Rear Clutch
35654 90521-99017 Ring, Hole Snap (For Overdrive Clutch Flange)
35672 35672-36010 Plate, Clutch Cushion
35675 35675-60010 Flange, Overdrive Clutch
35675 35675-60020 Flange, Overdrive Clutch
35675 35675-60050 Flange, Overdrive Clutch
35675 35675-60060 Flange, Overdrive Clutch
35701 35701-60050 Shaft Sub-Assy, Input
35701 90374-34001 Bearing, Thrust(For Overdrive Planetary Ring Gear Flange)
35701 35789-36090 Race, Thrust Bearing(For Front Clutch Hub Front)
35701 35789-36100 Race, Thrust Bearing (For Input Shaft)
35701 35789-36110 Race, Thrust Bearing (For Input Shaft)
35701 35789-36120 Race, Thrust Bearing (For Input Shaft)
35701 35789-36130 Race, Thrust Bearing (For Input Shaft)
35701 35789-36140 Race, Thrust Bearing (For Input Shaft)
Brake Booster & Vacuum Tube ([01.2017 - ] (1701- )XZB60,70..RHD) 42
#OEMPart name
44610 44610-36670 Booster Assy, Brake
44621 44621-36070 Seal, Booster Body
44704 44704-36270 Reservoir Sub-Assy, Vacuum
44729 44729-36020 Gasket, Vacuum Tube
44730 90999-92002 Air Hose (300 mm)
44730 90413-09037 Way(For Booster Vacuum)
44730 44730-60050 Valve Assy, Vacuum Check(For Clutch Vacuum)
44753 44753-30320 Clamp, Vacuum Reservoir, No.2
44754 44754-36140 Bracket, Vacuum Tube, No.5
44754 44754-36090 Bracket, Vacuum Tube, No.1
44754 44754-36110 Bracket, Vacuum Tube, No.2
44754 44754-36150 Bracket, Vacuum Tube, No.3
44754 44754-36130 Bracket, Vacuum Tube, No.3
44754 44754-36190 Bracket, Vacuum Tube, No.5
44754 44754-36180 Bracket, Vacuum Tube
44757 44757-36060 Bracket, Vacuum Reservoir
44761 44761-36263 Tube, Vacuum Pump To Connector
44764 44764-36600 Tube, Connector To Brake Booster
44765 44765-36370 Tube, Connector To Brake Booster, No.2
44771 90445-17141 Hose, No.2(For Clutch Booster Vacuum)
44771 96133-41500 Clamp Or Clip(For Air Hose, No.5)
44772 44772-36100 Hose, Check Valve To Connector Tube
44774 44774-36430 Hose, Union To Connector Tube
44775 44775-36100 Hose, No.3(For Clutch Booster Vacuum)
44775 44775-36090 Hose, Way To Connector
44776 44776-36121 Hose, Brake Booster
44776 44776-36131 Hose, Vacuum Reservoir To Brake Booster
44799 90414-10043 Way(For Booster Vacuum)
47264 47264-50010 Clevis, Master Cylinder Push Rod
91651 91651-B0820 Bolt, Radiator Side Support Plate
91651 90080-11347 New Genuine Part
9011908 90119-08A46 BOLT WWASHER
9010508460 90105-08460 New Genuine Part
9017906161 90179-06161 Bolt, Union(For Clutch Accumulator)
9017908038 90179-08038 Nut
9017908233 90179-08233 NUT
9017910065 90179-10065 Nut, Master Cylinder Push Rod Clevis Lock
9046110754 90461-10754 New Genuine Part
9046110780 90461-10780 New Genuine Part
9046400682 90464-00682 New Genuine Part
9161160814 91611-60814 Bolt
9165160616 91651-60616 BOLT
Brake Master Cylinder ([01.2017 - ] (1701- )BZB60,70,XZB60,70..RHD) 27
#OEMPart name
4493 04493-36230 Cylinder Kit, Brake Master
47207 47207-37060 Cylinder Sub-Assy, Brake Master Less Reservoir Tank
47218 47218-36091 Plug, Master Cylinder Fluid Outlet
47218 90430-16013 Gasket(For Fluid Outlet Plug)
47220 47220-36070 Reservoir Assy, Brake Master Cylinder
47230 47230-20100 Cap Assy, Brake Master Cylinder Reservoir Filler
47230 47230-47090 Cap Assy, Brake Master Cylinder Reservoir Filler
47233 47233-36060 Bracket, Reservoir
47234 47234-36180 Tube, Reservoir, No.1
47234 96133-41500 Clamp Or Clip(For Air Hose, No.5)
47235 47235-36190 Tube, Brake Master Cyrinder Reservoir, No.2
47237 47237-36020 Stopper, Breke Master Cylinder Reservoir Tank
47239 47239-36020 Connector, Brake Master Cylinder Reservoir
47255 47255-52010 Grommet, Master Cylinder Reservoir
47281 47281-36010 Valve, Brake Master Cylinder Outlet Check
47281 90905-01054 Spring Compression(For Outlet Check Valve)
47282 47282-36010 Seat, Outlet Check Valve, No.1
47282 47282-36020 Seat, Outlet Check Valve, No.1
47299 47299-20060 Strainer, Brake Master Cylinder Reservoir
89637 89637-51010 Sensor, Oil Pressure
89637 90301-15014 Ring, O(For Drain Plug)
89637 90561-16009 Spacer(For Brake Booster Pump Oil Pressure Sensor)
9017908204 90179-08204 Nut
9017908204 90080-18070 NUT, WWASHER
9163540618 91635-40618 BOLT W-WASHER
9165160816 91651-60816 BOLT
9165160816 90080-11396 Bolt
Brake No.3, 1St & Reverse Brake (Atm) ([01.2017 - ] A444E (1701- )4FC) 12
#OEMPart name
35068 35068-36010 Spring Sub-Assy, 1St & Reverse Brake Return
35068 90520-87001 Ring, Shaft Snap (For 1St & Reverse Brake Return Spring)
35623 35623-60040 Piston, 1St & Reverse Brake
35623 90301-94002 Ring, O (For 1St & Reverse Brake)
35623 90301-99030 Ring, O (For Overdrive Brake Piston)
35632 35632-60070 Plate, Brake (For 1St & Reverse Brake)
35671 35671-36010 Plate, Brake Cushion
35676 35676-60050 Flange, Brake (For 1St & Reverse Brake)
35676 35676-60060 Flange, Brake (For 1St & Reverse Brake)
35676 35676-60070 Flange, Brake (For 1St & Reverse Brake)
35676 90521-99109 Ring, Hole Snap (For Overdrive Brake Return Spring)
35677 35633-60030 Disc, Clutch (For 1St & Reverse Brake)

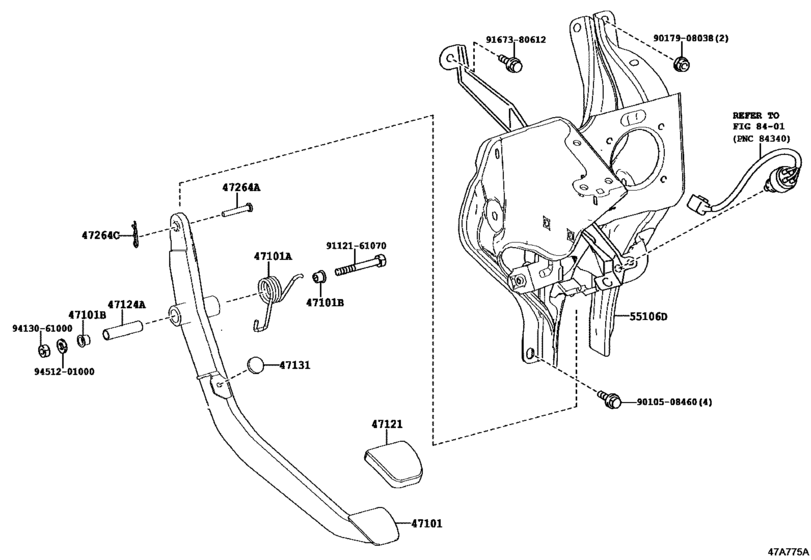

Brake Pedal & Bracket ([01.2017 - ] (1701- )4FC ; (1701- )TRB70..GEN ; (1701- )BB60,HZB70,TRB60..19S,23S,25S,2 6S,30S) 15
#OEMPart name
47101 47101-36130 Pedal Sub-Assy, Brake
47101 90508-35322 Spring(For Brake Pedal Return)
47101 90386-13007 Bush(For Clutch Pedal)
47121 31321-14020 Pad, Clutch Pedal
47124 90387-10004 Collar, Clutch Pedal Shaft
47131 90541-06036 Cushion, No.1(For Clutch Pedal)
47264 90240-10085 Pin, W/hole(For Brake Pedal Rod)
47264 90468-16142 Clip(For Push Rod Clevis Pin)
55106 55106-36130 Bracket Sub-Assy, Pedal
9010508460 90105-08460 New Genuine Part
9017908038 90179-08038 Nut
9112161070 91121-61070 Shaft, Clutch Pedal
9167380612 91673-80612 BOLT FLANGE
9413061000 94130-61000 Nut(For Clutch Pedal Stopper)
9451201000 94512-01000 Washer, No.1 (For Propeller Shaft & Differential Setting)
Brake Pedal & Bracket ([01.2017 - ] (1701- )BZB60,70,XZB60,70..ARL,GEN) 16
#OEMPart name
47101 47101-36130 Pedal Sub-Assy, Brake
47101 90508-35322 Spring(For Brake Pedal Return)
47101 90386-13007 Bush(For Clutch Pedal)
47121 31321-14020 Pad, Clutch Pedal
47124 90387-10004 Collar, Clutch Pedal Shaft
47131 90541-06036 Cushion, No.1(For Clutch Pedal)
47264 90240-10085 Pin, W/hole(For Brake Pedal Rod)
47264 90468-16142 Clip(For Push Rod Clevis Pin)
55106 55106-36130 Bracket Sub-Assy, Pedal
9010110085 90101-10085 Bolt(For Clutch Pedal Stopper)
9010508460 90105-08460 New Genuine Part
9017908038 90179-08038 Nut
9112161070 91121-61070 Shaft, Clutch Pedal
9167380612 91673-80612 BOLT FLANGE
9413061000 94130-61000 Nut(For Clutch Pedal Stopper)
9451201000 94512-01000 Washer, No.1 (For Propeller Shaft & Differential Setting)
Brake Tube & Clamp ([01.2017 - ] BRAKE ACTUATOR, W(ABS) (1701- )XZB70..RHD ; (1701- )BZB60,70,HZB7 0,XZB60) 4
#OEMPart name
44510 44510-36050 Actuator Assy, Brake
44590 44590-36030 Bracket Assy, Brake Actuator
9009905277 90099-05277 New Genuine Part
9017910071 90179-10071 NUT

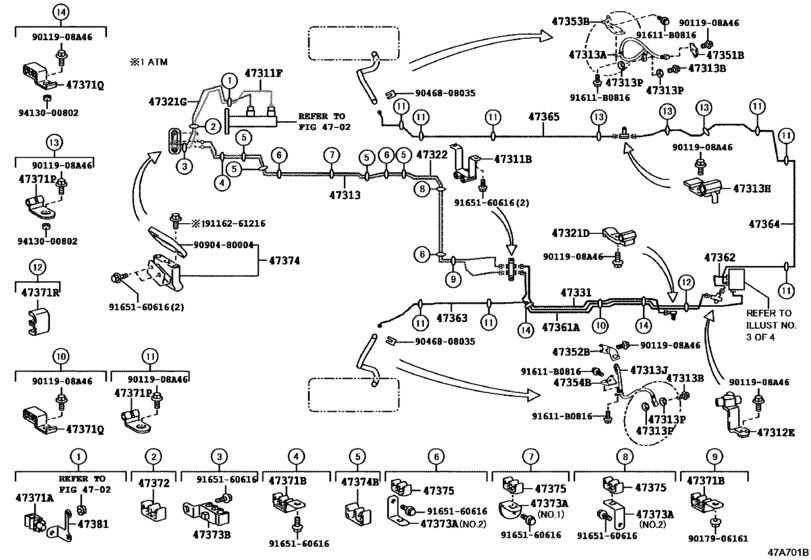

Brake Tube & Clamp ([01.2017 - ] FRONT BRAKE TUBE (1701- )ARL) 44
#OEMPart name
47311 90904-12083 Way, No.1(For Front Brake Tube)
47311 47311-36552 Tube, Front Brake, Frame No.1
47312 90904-13517 Way, No.2(For Front Brake Tube)
47313 47313-36442 Tube, Front Brake, No.3
47313 90947-02H77 Hose, Flexible, No.1(For Front)
47313 90401-10023 Bolt, Union(For Master Cylinder Fluid Outlet)
47313 90412-10311 Way, No.2(For Front Brake Tube)
47313 90430-10074 Gasket(For Oil Pressure Regulator)
47321 90412-10233 Way, No.1(For Rear Brake Tube)
47321 47321-36372 Tube, Rear Brake, Frame No.1
47322 47322-36542 Tube, Rear Brake, No.2
47331 47331-36271 Tube, Rear Brake, No.10
47351 47351-36211 Bracket, Flexible Hose, No.1
47352 47352-36201 Bracket, Flexible Hose, No.2
47353 47353-36260 Bracket, Flexible Hose, No.3
47354 47354-36150 Bracket, Flexible Hose, No.4
47361 47361-36100 Tube, Front Brake, No.10
47362 47362-36060 Tube, Front Brake, No.11
47363 47363-36130 Tube, Front Brake, No.12
47364 47364-36160 Tube, Front Brake, No.13
47365 47365-36120 Tube, Front Brake, No.14
47371 90949-01D13 Clamp, Brake Tube, No.9
47371 47371-28020 Clamp, Brake Tube, No.2
47371 90461-06112 Clamp, Brake Tube, No.6
47371 90949-01536 Clamp, Brake Tube, No.15
47371 90480-01555 Grommet(For Front Brake Tube)
47372 90464-00903 Clamp, Brake Tube, No.1 - BRAKE TUBE, NO.6
47373 47381-20320 Bracket, Brake Tube Clamp, No.2
47373 47381-36160 Bracket, Brake Tube Clamp No.1
47373 90949-04068 Clamp, Brake Tube, No.3
47374 47307-36110 Connector, Tube
47374 90464-00904 Clamp, Height Control Tube No.9
47375 90480-01619 Clamp, Brake Tube, No.5
47381 47381-36190 Bracket, Brake Tube Clamp No.1
91611 91611-B0816 Bolt
9011908 90119-08A46 BOLT WWASHER
9017906161 90179-06161 Bolt, Union(For Clutch Accumulator)
9046808035 90468-08035 CLIP
9046808035 90468-A0007 New Genuine Part
9090480004 90904-80004 New Genuine Part
9116261216 91162-61216 New Genuine Part
9165160616 91651-60616 BOLT
9413000802 94130-00802 Nut, No.1 (For Center Support Bearing)
9413000802 90170-A0001 New Genuine Part
Brake Tube & Clamp ([01.2017 - ] LOAD SENSING VALVE (1701- )XZB70..RHD ; (1701- )BZB60,70,HZB7 0,XZB60) 22
#OEMPart name
4477 04477-36030 Bush & Boot Kit, Load Sensing Spring
31478 31478-30010 Bleeder Plug Cap
47910 47910-36320 Valve Assy, Load Sensing Proportioning
47910 47547-27030 Plug, Bleeder(For Front Disc Brake)
47920 47920-36170 Spring Assy, Load Sensing
47920 90387-08099 Collar(For Load Sensing Spring)
47920 90467-31110 Clip(For Load Sensing Valve Boot)
47920 90202-10103 Washer(For Load Sensing Spring)
47931 47931-36120 Bracket, Load Sensing Valve
47933 47933-36320 Bracket, Load Sensing Shackle, No.1
47935 47935-35030 Shackle, Load Sensing Spring, No.1
47935 47924-35010 Bush, Load Sensing Valve
47935 90201-08062 Retainer(For Load Sensing Spring Shackle)
47936 47936-60030 Shackle, Load Sensing Spring, No.2
47937 47937-60010 Plate, Load Sensing Valve Set
90015 90015-AA103 New Genuine Part
9017008016 90170-08016 Nut
9020123360 90201-23360 WASHER
9413000802 94130-00802 Nut, No.1 (For Center Support Bearing)
9413000802 90170-A0001 New Genuine Part
9451200800 94512-00800 Washer, No.1 (For Propeller Shaft & Differential Setting)
9461210800 94612-10800 Washer, Plate(For Repair Actuator Set)
Brake Tube & Clamp ([01.2017 - ] REAR BRAKE TUBE, W(ABS) (1701- )ARL ; (1701- )HZB70) 30
#OEMPart name
47321 47325-36770 Tube, Rear Brake, No.1
47321 90947-02G82 Hose, Flexible(For Rear Brake Tube)
47321 90947-02H78 Hose, Flexible(For Rear Brake Tube)
47326 47318-36450 Tube, Rear Brake, No.6
47327 47327-36340 Tube, Rear Brake, No.7
47328 47328-36380 Tube, Rear Brake, No.8
47332 47332-36290 Tube, Rear Brake, No.11
47333 47333-36170 Tube, Rear Brake, No.12
47334 47334-36190 Tube, Rear Brake, No.13
47345 47345-36051 Tube, Wheel Cylinder, Rear Rh
47353 47353-36230 Bracket, Flexible Hose(For Rear)
47353 47355-36040 Bracket, Flexible Hose(For Rear)
47353 47354-36120 Way, No.2(For Rear Brake Tube)
47371 90949-01536 Clamp, Brake Tube, No.15
47371 90949-01249 Clamp, Brake Tube, No.18
47371 90949-01B98 Clamp, Brake Tube, No.20
47371 90464-00778 Clamp, Brake Tube, No.1
91611 91611-B0816 Bolt
91612 91612-B1020 Bolt (For Transfer Case)Cover No.2
91651 91651-B0814 Bolt with washer
91651 90119-A0109 New Genuine Part
9011908 90119-08A46 BOLT WWASHER
9011908703 90119-08703 New Genuine Part
9046108779 90461-08779 New Genuine Part
9046808035 90468-08035 CLIP
9046808035 90468-A0007 New Genuine Part
9094901006 90949-01006 CLAMP
9165160614 91651-60614 Bolt
9413000802 94130-00802 Nut, No.1 (For Center Support Bearing)
9413000802 90170-A0001 New Genuine Part
Cab Mounting & Body Mounting ([01.2017 - ] (1701- )BB60,HZB70,TRB60,70,XZB60,70) 14
#OEMPart name
52211 52211-36070 Cushion, Body Mounting, No.1 Upper
52211 91673-L1235 Bolt(For Body Mounting No.1 Cushion)
52221 90119-10995 Bolt(For Body Mount No.2 Cushion)
52231 90901-05014 Bolt(For Body Mounting No.1 Cushion)
52239 52239-36010 Plate, Body Mounting
91611 91611-G0820 Bolt
9010510362 90105-10362 New Genuine Part
9020110093 90201-10093 New Genuine Part
9020110093 90201-11093 New Genuine Part
9020110152 90201-10152 WASHER
9020112033 90201-12033 Washer, Shift Lever Shaft Housing, No.1
9418401001 94184-01001 Nut
9418801001 94188-01001 Nut(For Rear Support To Rear Shock Absorber Rh)
9418801201 94188-01201 NUT LOCK
Camshaft & Valve ([01.2017 - ] (1701- )N04C) 16
#OEMPart name
11811 11811-E0030 Bearing, Camshaft, No.1
11821 11821-E0020 Bearing, Camshaft, No.2
11831 11831-E0020 Bearing, Camshaft, No.3
13501 13501-E0610 Camshaft Sub-Assy
13508 13508-E0510 Gear Sub-Assy, Idle, No.1
13508 13508-E0520 Gear Sub-Assy, Idle, No.2
13581 13581-E0021 Shaft, Idle Gear, No.1
13581 13581-E0010 Shaft, Idle Gear. No.2
13613 13613-E0170 Gear, Injection Pump Drive
13751 13751-E0040 Lifter, Valve
13801 13811-E0190 Arm Sub-Assy, Valve Rocker, No.1
13802 13811-E0200 Arm Sub-Assy, Valve Rocker, No.2
13819 13819-E0050 Bridge, Valve
13901 13901-E0030 Shaft Sub-Assy, Valve Rocker, No.1
13951 13951-E0040 Support, Valve Rocker, No.1
13952 13951-E0050 Support, Valve Rocker, No.1
Caution Plate & Name Plate (Engine) ([01.2017 - ] (1701- )N04C,14B,1HZ) 2
#OEMPart name
17700 90917-07109 Plate, Engine Caution - AIR CLEANER CAUTION (FOR ENGINE MODEL)
74567 74567-E0030 Plate, E.c.e Approved Number
Caution Plate ([01.2017 - ] ENGINE ROOM & EXTERIOR(1/2) (1701- )) 5
#OEMPart name
35519 35519-36040 Plate, Automatic Transmission Caution
74537 74537-36020 Label, Emergency Back Door Caution
74538 74538-36010 Label, Emergency Exit Caution
74539 74539-36010 Label, Emergency Exit Side Caution
74559 74559-14030 Plate, Fuel Caution (DIESEL+Jap)
Caution Plate ([01.2017 - ] ENGINE ROOM & EXTERIOR(2/2) (1701- )) 4
#OEMPart name
74511 74511-48030 Label, Name (Identification Laser Label)
74751 74552-36A40 Label, Tire Pressure Information
82683 82683-36290 Label, Fuse Block Notice
85628 85628-36250 Label, Automatic Door
Caution Plate ([01.2017 - ] INTERIOR(1/2) (1701- )) 3
#OEMPart name
74531 69281-36020 Plate, Door Inside Handle Caution
74536 74536-36030 Label, Emergency Indicator Caution
74552 74552-60A20 Plate, Safety Caution
Caution Plate ([01.2017 - ] INTERIOR(2/2) (1701- )) 5
#OEMPart name
35518 35518-36020 Plate, Automatic Transmission Caution, No.2 - AUTOMATIC TRANSAXLE INFORMATION, NO.2
74526 74526-36020 Plate, Emergency Hammer Caution
74535 74535-36030 Plate, Back Door Caution
85628 85628-36191 Label, Automatic Door, No.1
88723 88723-20040 Label, Cooler Service Caution
Center Door Lock & Hinge ([01.2017 - ] FOLDING DOOR (1701- )) 12
#OEMPart name
69278 69278-36030-B0 Bezel, Door Inside Handle, No.1 Lh
69298 69298-36040-B0 Bezel, Door Inside Handle, No.2 Lh
69302 69302-36030-B1 Lock Sub-Assy, Center Door Inside Handle
69303 69303-36010 Handle Sub-Assy, Center Door Lock, Outside
69405 69405-90B00 Stopper, Center Inside Lock
91653 91653-A0616 BOLT WWASHER
6777158010 67771-58010 Clip, Front Pillar Garnish
9017905172 90179-05172 NUT
9017906266 90179-06266 New Genuine Part
9046710161 90467-10161 Clip
9163140614 91631-40614 БОЛТ BOLT
9326925010 93269-25010 SCREW
Center Door Lock & Hinge ([01.2017 - ] GLIDE DOOR (1701- )) 13
#OEMPart name
91635 91635-B0614 New Genuine Part
91673 91673-A0616 BOLT, FLANGE
9010508362 90105-08362 BOLT WASHER BASED
9010906122 90109-06122 BOLT
9010906196 90109-06196 BOLTFOLDING SEAT
9014880028 90148-80028 SCREW, HEX LOBULAR
9015940202 90159-40202 SCREW WWASHER
9020208039 90202-08039 WASHER
9155380608 91553-80608 New Genuine Part
9167380616 91673-80616 Bolt, W/washer
9167380830 91673-80830 New Genuine Part
9338315008 93383-15008 New Genuine Part
9413061000 94130-61000 Nut(For Clutch Pedal Stopper)
Center Door Panel & Glass ([01.2017 - ] CENTER DOOR COVER & SCUFF PLATE (1701- )) 8
#OEMPart name
67207 67207-36900 Cover Sub-Assy, Center Door, Outer
67266 67266-36020 Stopper, Center Door Rail
67895 67895-36020 Seal, Center Door Dust
75396 75396-36010 Clip, Outside Moulding, No.2
6265336120 62653-36120 Glass, Side Window, No.3, Front (For Slide Type)
9017906274 90179-06274 Nut
9323915016 93239-15016 Screw
9326915016 93269-15016 New Genuine Part
Center Door Panel & Glass ([01.2017 - ] FOLDING DOOR (1701- )) 48
#OEMPart name
61084 61084-36020 Rail Sub-Assy, Center Door
62267 62267-36080 Dam, Side Window Adhesive
62267 62267-36090 Dam, Side Window Adhesive
67003 67003-36420 Panel Sub-Assy, Center Door, Front
67004 67004-36130 Panel Sub-Assy, Center Door, Rear
67087 67897-36050 Plate Sub-Assy, Center Door Dust Seal, Front
67088 67898-36060 Plate Sub-Assy, Center Door Dust Seal, Rear
67219 67219-90501 Bush, Center Door Upper Bearing Case
67238 67897-36030 Cushion, Center Door
67253 67253-36050 Piece, Center Door Guide
67254 67254-90B00 Stopper, Center Door, Lower
67261 67261-36030 Case, Center Door Guide
67279 67279-36010 Cushion, Center Door Guide
67855 67855-36060 Weatherstrip, Center Door Front
67856 67856-36060 Weatherstrip, Center Door, Rear
67857 67857-36040 Weatherstrip, Center Door, Center
67867 67867-50100 Retainer, Door Weatherstrip, Rh
67869 67869-90B00 Clip, Center Door Weatherstrip
67874 67874-36030 Weatherstrip, Center Door, Upper No.2
68111 62202-36010 Glass, Center Door
68112 62202-36030 Glass, Center Door, No.2
68217 68217-36160 Pin, Center Door Fix Window, No.1
68217 68217-36170 Pin, Center Door Fix Window, No.2
68218 68218-36031-B0 Bush, Center Door Fix Window
68705 68705-36010 Hinge Sub-Assy, Center Door, Outer No.1
68706 68706-36010 Hinge Sub-Assy, Center Door, Outer No.1
68706 68706-90B01 Hinge Sub-Assy, Center Door, Outer
68709 68709-36010 Case Sub-Assy, Center Door Upper Bearing
68723 68723-36010 Pad, Door Upper Hinge
68737 68737-36030 Case, Center Door Lower Bearing
68739 68739-90B01 Ball, Center Door Front Lower Bearing
74642 74642-90B00 Handle Sub-Assy, Center Door Inside Pull
91553 91553-A0622 New Genuine Part
9015940052 90159-40052 New Genuine Part
9017606027 90176-06027 NUT CAP
9020110092 90201-10092 Washer, Plate(For Cylinder Head Set)
9036310001 90363-10001 BEARINGBAL1026
9046707201 90467-07201 Clamp(For Cool Air Intake)
9052308001 90523-08001 E Ring (For Tilt Motor Shaft, Lower)
9054109125 90541-09125 Cushion, Luggage Compartment Door, No.2
9155180612 91551-80612 Bolt (For Front Differential Breather Plug Oil Deflector)
9155180816 91551-80816 Bolt(For Manual Transmission Oil Separator)
9165340820 91653-40820 BOLT, W/WASHER
9167180640 91671-80640 New Genuine Part
9331516020 93315-16020 Screw
9338126030 93381-26030 SCREW WWASHER
9354013012 93540-13012 SCREWTAPPING
9461211001 94612-11001 Washer, Plate (For Center Support Bearing Housing)
Center Door Panel & Glass ([01.2017 - ] GLIDE DOOR (1701- )) 10
#OEMPart name
62267 62267-36080 Dam, Side Window Adhesive
67867 67867-50100 Retainer, Door Weatherstrip, Rh
68217 68217-36160 Pin, Center Door Fix Window, No.1
68217 68217-36170 Pin, Center Door Fix Window, No.2
9033340001 90333-40001 Plate, Noise Control, No.1
9046709206 90467-09206 Clip, Front Air Shutter Seal
9095001866 90950-01866 Plug, Hole(For Front Door Panel)
9167380616 91673-80616 Bolt, W/washer
9323915016 93239-15016 Screw
9326915016 93269-15016 New Genuine Part
Center Stop Lamp ([01.2017 - ] (1701- )) 5
#OEMPart name
81570 81570-36090 Lamp Assy, Center Stop
81977 81977-36020 Cover, Center Stop Lamp
81977 76817-26040 Clip, Back Door Outside Garnish
9015960621 90159-60621 SCREW, W/WASHER
9018906242 90189-06242 GROMMET SCREW
Center Support & Planetary Sun Gear (Atm) ([01.2017 - ] A444E (1701- )4FC) 24
#OEMPart name
35608 35608-60010 Spring Sub-Assy, 2Nd Brake Piston Return
35620 90521-99109 Ring, Hole Snap (For Overdrive Brake Return Spring)
35621 35621-60010 Piston, Brake, No.1
35621 90301-99030 Ring, O (For Overdrive Brake Piston)
35621 90301-99031 Ring, O (For Overdrive Brake Piston)
35632 35632-60060 Plate, Brake
35632 35633-36060 Disc, Clutch (For Brake)
35676 35676-60010 Flange, Overdrive Brake, No.1
35676 35676-60020 Flange, Brake, No.1
35676 35676-60030 Flange, Brake, No.1
35676 35676-60040 Flange, Brake, No.1
35706 35706-60060 Gear Sub-Assy, Planetary Sun
35706 90520-33009 Ring, Shaft Snap (For Front Planetary Sun Gear)
35709 35709-60050 Support Sub-Assy, Center
35709 90301-09008 Ring, O (For Overdrive Case)
35709 35617-36020 Ring, Clutch Drum Oil Seal (For Overdrive)
35709 90209-52005 Washer (For Center Support)
35709 90209-52006 Washer (For Center Support)
35709 90209-52007 Washer (For Center Support)
35709 90209-52008 Washer (For Center Support)
35709 90209-52009 Washer (For Center Support)
35709 90105-12307 Bolt (For Overdrive Case & Transaxle Case Setting)
35719 35719-60040 Gear, Rear Planetary Sun
35785 35785-36010 Retainer, Center Support Ring
Console Box & Bracket ([01.2017 - ] (1701- )4FC) 2
#OEMPart name
58841 58841-36041-B1 Cover, Shifting Hole
9354055012 93540-55012 SCREW, TAPPING

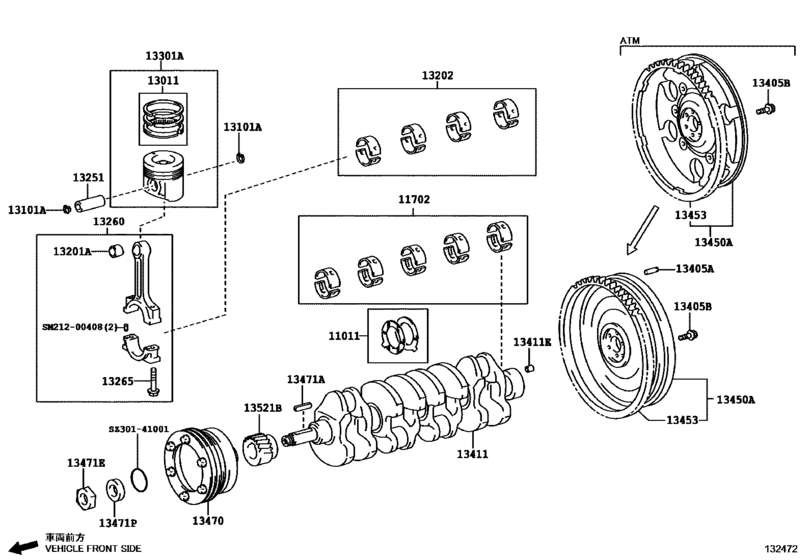

Crankshaft & Piston ([01.2017 - ] (1701- )N04C) 15
#OEMPart name
11011 11011-E0030 Washer Set, Crankshaft Thrust
11702 11701-E0070 Bearing Set, Crankshaft
11702 11704-E0040 Bearing Set, Crankshaft
11702 11705-E0040 Bearing Set, Crankshaft
11702 11706-E0020 Bearing Set, Crankshaft
11702 11707-E0020 Bearing Set, Crankshaft
13202 13041-E0690 Bearing, Connecting Rod
13251 13251-E0120 Pin, Piston
13260 13260-E0050 Rod Sub-Assy, Connecting
13260 13260-E0052 ROD ASSY, CONNE
13265 13265-E0010 Bolt, Connecting Rod
13411 13411-E0071 Crankshaft
13450 13450-E0L40 Flywheel Sub-Assy
13453 13453-E0080 Gear, Flywheel Ring
13470 13470-E0361 Pulley Assy, Crankshaft
Cylinder Block ([01.2017 - ] (1701- )N04C) 5
#OEMPart name
11401 11410-E0E41 Block Sub-Assy, Cylinder
11409 11409-E0300 Guide Sub-Assy, Oil Level Gage
12101 12101-E0320 Pan Sub-Assy, Oil
15301 15301-E0330 Gage Sub-Assy, Oil Level
15605 15602-E0010 Valve Sub-Assy, Oil Check
Cylinder Head ([01.2017 - ] (1701- )N04C) 13
#OEMPart name
11101 11101-78210 Head Sub-Assy, Cylinder
11101 11101-78221 HEAD SUBASSY
11115 11115-E0030 Gasket, Cylinder Head
11115 11115-78101 GASKET, CYLINDER
11115 11115-E0031 Gasket, Cylinder Head
11135 11135-E0010 Seat, Exhaust Valve
11201 11201-E0050 Cover Sub-Assy, Cylinder Head
11202 11211-E0011 Cover Sub-Assy, Cylinder Head, No.2
11213 11213-78070 Gasket, Cylinder Head Cover
11213 11213-78071 GASKET CYLINDER
11228 11228-78050 Cushion, Cylinder Head Cover
12180 12180-E0010 Cap Sub-Assy, Oil Filler
12281 12081-E0021 Hanger, Engine, No.1
Disc Wheel & Wheel Cap ([01.2017 - ] BALANCE WEIGHT (1701- )) 4
#OEMPart name
9094203362 90942-03362 Weight, Balance (For Disc Wheel)
9094203364 90942-03364 Weight, Balance (For Disc Wheel)
9094203366 90942-03366 Weight, Balance (For Disc Wheel)
9094203368 90942-03368 Weight, Balance (For Disc Wheel)
Disc Wheel & Wheel Cap ([01.2017 - ] DISC WHEEL (1701- )) 7
#OEMPart name
42601 42601-36721 Wheel, Disc (For Spare)
42601 42633-55030 Nut, Hub (For Axle)
42601 42634-55030 Nut, Hub (For Axle)
42601 90942-01107 Nut, Hub (For Axle)
42601 90942-01108 Nut, Hub (For Axle)
42611 90942-05023 Valve (For Tubeless Tire)
42652 42652-36171 Tire
Disc Wheel & Wheel Cap ([01.2017 - ] WHEEL CAP (1701- )) 12
#OEMPart name
42618 42618-36030 Retainer, Wheel Cap
42621 42621-36160 Cap, Wheel
42621 42621-36170 Cap, Wheel
42621 42621-36180 Cap, Wheel
42621 42623-36030 Cap, Wheel
42622 42622-36040 Holder, Wheel Cap
42622 42622-36050 Holder, Wheel Cap
91651 91651-B0825 Bolt, Hexagon(For Steering Column Bracket)
9010110202 90101-10202 BOLT HEXAGON
9020110137 90201-10137 WASHER PLATE
9020610015 90206-10015 WASHER WAVE
9323925010 93239-25010 SCREW
Electronic Controled Diesel (Ecd) ([01.2017 - ] (1701- )XZB60,70) 12
#OEMPart name
89421 89420-37030 Sensor Assy, Turbo Pressure
89661 89661-36750 Computer, Engine Control
89667 89667-36150 Bracket, Engine Control Computer, No.1
89668 89668-36160 Bracket, Engine Control Computer, No.2
89870 89870-36050 Driver Assy, Injector
89871 89871-71020 Driver, Injector
89879 89879-36030 Bracket, Injector Driver
9017906158 90179-06158 Nut, Rear Wiper Link Pivot, No.2
9165160620 91651-60620 BOLTWWASHER
9167380616 91673-80616 Bolt, W/washer
9167380820 91673-80820 Bolt (For Transmission Control Cable Bracket)
9331915010 93319-15010 SCREW
Emblem & Name Plate ([01.2017 - ] (1701- )) 3
#OEMPart name
75311 90975-02095 Emblem, Radiator Grille (Or Front Panel)
75431 90975-02106 Emblem, Back Door, No.1
75472 75472-36020 Plate, Rear Name, No.2 (Model Mark)
Engine Oil Cooler ([01.2017 - ] (1701- )N04C..02S,17S,20S,22S) 4
#OEMPart name
15700 15700-E0023 Cooler Assy, Oil W/bracket
15700 82702-E1530 Bracket(For Oil Cooler)
15710 15725-E0020 Gasket(For Oil Cooler)
15785 15785-EV010 Gasket, Oil Cooler Cover
Engine Oil Pump ([01.2017 - ] (1701- )N04C) 3
#OEMPart name
15012 15012-E0121 Cover Sub-Assy, Oil Pump
15100 15110-E0321 Pump Assy, Oil
15122 15122-E0110 Gear, Oil Pump Driven
Engine Overhaul Gasket Kit ([01.2017 - ] (1701- )N04C..02S,17S,20S,22S) 2
#OEMPart name
4111 04111-78B20 Gasket Kit, Engine Overhaul
4111 04111-78B21 Gasket Kit, Engine Overhaul

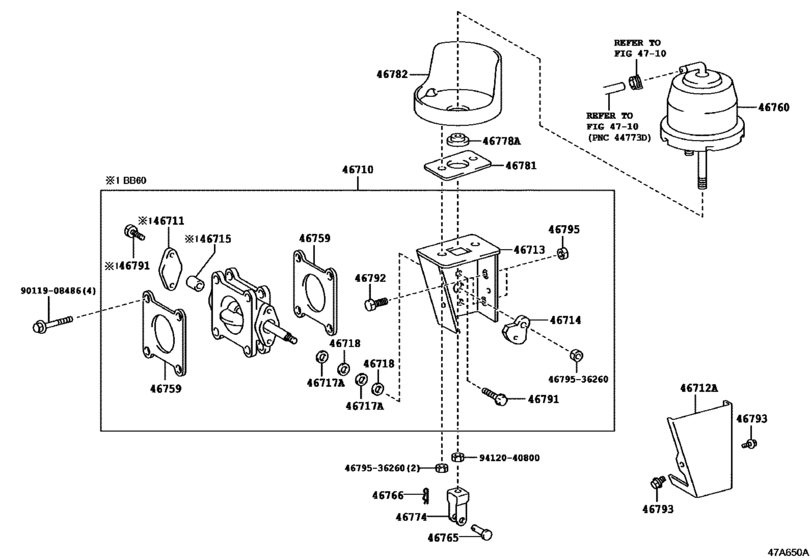

Exhaust Brake Assembly & Vacuum Cylinder ([01.2017 - ] EXCEPT EURO 4 (1701- )BB60,HZB70,XZB60,70) 21
#OEMPart name
46710 46710-36270 Valve Assy, Exhaust Brake
46712 46712-36270 Cover, Exhaust Brake Bracket
46713 46713-36270 Bracket, Exhaust Valve
46714 46714-36010 Lever, Exhaust Valve
46717 46717-36270 Ring, Exhaust Valve Seal, No.1
46718 46718-36270 Ring, Exhaust Valve Seal, No.2
46759 46759-36040 Gasket, Exhaust Retarder
46760 46760-36260 Chamber Assy, Exhaust Brake
46765 46765-36010 Pin, Vacuum Cylinder Clevis
46766 46766-36010 Pin, Vacuum Cylinder Clevis Snap
46774 46774-36270 Clevis, Exhaust Brake Rod Clevis
46778 46778-36060 Bearing, Vacuum Cylinder
46781 46781-28010 Insulator, Exhaust Brake Chamber, No.1
46782 46782-36130 Insulator, Exhaust Brake Chamber, No.2
46791 46791-25041 Bolt, Exhaust Valve Cover
46792 46792-36010 Bolt, Exhaust Valve Stopper
46793 46793-36010 Bolt, Exhaust Valve Link Cover
46795 46795-36010 Nut, Exhaust Valve Bracket
4679536260 46795-36260 Nut, Exhaust Valve Bracket
9011908486 90119-08486 BOLT WWASHER
9412040800 94120-40800 Nut(For Clutch Pedal Stopper)
Exhaust Brake Tube & Clamp ([01.2017 - ] (1701- )XZB60,70) 19
#OEMPart name
27690 27690-56160 Solenoid Assy, W/bracket(For Exhaust Brake)
44736 44736-36050 Bracket, Air Cleaner
44763 44763-36043 Tube, Hose To Hose, No.1
44763 44763-36091 Tube, Hose To Hose, No.2
44773 44773-36170 Hose, Solenoido To Retarder
44778 44775-36100 Hose, No.3(For Clutch Booster Vacuum)
44779 44779-36121 Hose, Connector Tube To Solenoid, No.1
44779 44779-36110 Hose, Connector Tube To Solenoid, No.1
46740 46740-36090 Cleaner Assy, Exhaust Retarder
46740 90401-12097 Bolt, Union(For Turbo Oil Inlet Pipe)
9011908 90119-08A46 BOLT WWASHER
9040451319 90404-51319 Union, No.1
9043012247 90430-12247 Gasket(For Solenoid To Air Cleaner Assy)
9046110780 90461-10780 New Genuine Part
9155180816 91551-80816 Bolt(For Manual Transmission Oil Separator)
9165140614 91651-40614 Bolt
9165160616 91651-60616 BOLT
9613341500 96133-41500 Clamp Or Clip(For Air Hose, No.5)
9613641801 96136-41801 Clip(For Fuel Vapor Feed Hose, No.2)
Exhaust Gas Recirculation System ([01.2017 - ] (1701- )N04C..02S,17S,20S,22S) 6
#OEMPart name
16206 16206-E0440 Pipe Sub-Assy, Water By-Pass
21893 21893-E0C70 Bush, Choke Rod Bellcrank Shaft
25608 25608-E0220 Cooler Sub-Assy, Egr
25620 25620-E0012 Valve Assy, EGR
25625 25625-E0040 Bracket, Egr Valve
25627 17173-E0140 Gasket, Egr Valve

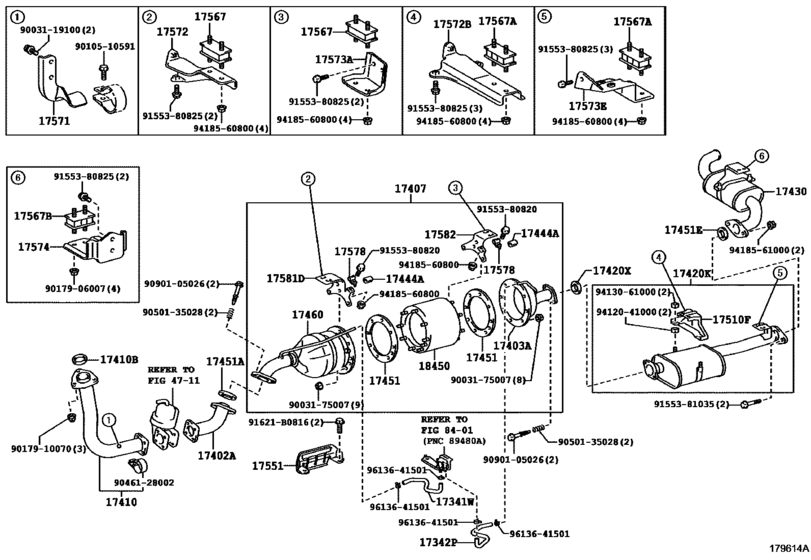

Exhaust Pipe ([01.2017 - ] (1701- )N04C..XZB70..02S,20S,22S) 49
#OEMPart name
17341 17341-78380 Hose, Air, No.1
17342 17342-78210 Hose, Air, No.2
17402 17402-78040 Pipe Sub-Assy, Exhaust, Front No.2
17403 17404-78012 Pipe Assy, Exhaust, Center
17407 17403-78A71 Pipe Sub-Assy, Exhaust, Center No.2
17410 17410-78010 Pipe Assy, Exhaust, Front
17410 90917-06067 Gasket, Exhaust Pipe
17420 17420-78330 Pipe Assy, Exhaust, Center No.2
17420 17451-74040 Gasket, Exhaust Pipe
17430 17430-78100 Pipe Assy, Exhaust, Tail
17444 17444-78020 Spacer, Exhaust Front Pipe
17451 17451-78020 Gasket, Exhaust Pipe
17451 17451-67010 Gasket, Exhaust Pipe, Center
17451 90917-06054 Gasket, Exhaust Pipe
17460 17460-78030 Converter Assy, Catalytic W/pipe
17510 17576-56040 Clamp No.1, Exhaust Pipe Center, Center
17551 17551-78050 Insulator, Exhaust Pipe Heat, No.1
17567 17567-75050 Cushion, Exhaust Pipe Support
17567 17567-58010 Cushion, Exhaust Pipe Front (For Rear)
17567 17567-75060 Cushion, Exhaust Pipe Support, No.3
17571 17571-78110 Bracket, Exhaust Pipe Support, No.1
17572 17572-78271 Bracket, Exhaust Pipe No.1 Support
17572 17574-78120 Bracket, Exhaust Tail Pipe(For Center)
17573 17573-78290 Bracket, Exhaust Pipe Support, No.3
17573 17573-17010 Bracket, Exhaust Pipe Support, No.3
17574 17574-58170 Bracket, Exhaust Pipe Support, No.4
17578 17578-78170 Clamp, Pipe
17581 17581-78010 Bracket, Catalytic Converter Support
17582 17582-78010 Bracket, Catalytic Converter Support, Upper
18450 18450-78271 Converter Assy, Monolithic
91621 91621-B0816 BOLT WWASHER
9003119100 90031-19100 New Genuine Part
9003175007 90031-75007 NUTFLANGE
9010510591 90105-10591 Bolt, No.2(For Alternator)
9017906007 90179-06007 Nut
9017910070 90179-10070 Nut, Exhaust Pipe Set Stud Bolt
9017910070 90080-17187 Nut, Exhaust Pipe Set Stud Bolt
9046128002 90461-28002 CLAMP
9050135028 90501-35028 Spring, Exhaust Pipe
9090105026 90901-05026 Bolt, Exhaust Pipe Support
9155380820 91553-80820 BOLTFLANGE
9155380825 91553-80825 New Genuine Part
9155381035 91553-81035 BOLT, FLANGE
9412041000 94120-41000 Nut(For Clutch Pedal Stopper)
9412041000 90170-A0002 Nut
9413061000 94130-61000 Nut(For Clutch Pedal Stopper)
9418560800 94185-60800 NUT
9418561000 94185-61000 NUTLOCK
9613641501 96136-41501 Clamp Or Clip, Hose(For Water By-Pass Hose)
Extension Housing (Atm) ([01.2017 - ] A444E (1701- )4FC) 9
#OEMPart name
35108 90311-46005 Seal, Oil (For Automatic Transmission Extension Housing)
35181 35181-36040 Housing Sub-Assy, Extension (Atm)
35182 35182-60010 Gasket, Transmission Case Adapter
9010110073 90101-10073 Shaft, Clutch Pedal
9011910372 90119-10372 New Genuine Part
9011910796 90119-10796 New Genuine Part
9011910800 90119-10800 New Genuine Part
9161261045 91612-61045 Bolt(For Transaxle & Engine Setting)
9453101000 94531-01000 WASHER
Floor Mat & Silencer Pad ([01.2017 - ] FRONT (1701- )RHD) 16
#OEMPart name
58323 58343-36050-B0 Mat, Footrest, Lh
58510 58510-36E20-B0 Mat Assy, Front Floor, Front No.1
58515 58540-36A70-B0 Mat, Front Floor, Rear No.1
58516 58540-36B90-B0 Mat, Front Floor, Rear No.2
58520 64726-26010-B0 Clip(For Front Floor Mat)
58521 58521-36180-B0 Mat, Engine Service Hole Cover
58530 64779-26020 Clip(For Front Floor Carpet)
58651 58651-36030-B0 Plate, Front Door Mat, No.1
58665 58665-36110-B0 Plate, Rear Floor, Center Lower No.1 Lh
58694 58694-36140-B0 Plate, Mat Set, Upper
58694 90189-05140 Grommet(For Mat Set Plate)
58694 93560-55016 Screw(For Mat Set Plate)
58697 58697-36030-B0 Plate, Rear Floor Mat Vertical, No.3
67923 62566-36010 Clamp, Door Scuff Plate, No.1
9046705164 90467-05164-B5 Clip(For Deck Boad)
9053006001 90530-06001 Fastener, Hook
Floor Mat & Silencer Pad ([01.2017 - ] REAR (1701- )RHD) 24
#OEMPart name
58512 58323-36020 Mat, Floor, No.2
58581 58581-3EF80-B0 Mat, Rear Floor
58614 58614-36040-B0 Plate, Mat Set, No.4
58617 58617-36070 Plate, Rear Wheel House Mat
58617 58615-36030 Plate, Rear Wheel House Mat
58625 58625-36050 Plate, Rear Wheel House Mat, No.1
58625 58625-36080 Plate, Rear Wheel House Mat, No.1
58626 58626-36090 Plate, Rear Floor Mat, No.2
58627 58627-36080 Plate, Rear Wheel House Mat, Lh
58643 58624-36060 Plate, Mat Set, No.2 A
58671 58671-36090-B0 Plate, Center Door Step Mat, Front
58671 93560-55010 Screw(For Mat Set Plate)
58671 93560-55016 Screw(For Mat Set Plate)
58672 58672-36070-B0 Plate, Center Door Step Mat, Rear
58673 58673-36100-B0 Plate, Center Door Step Mat Side
58675 58675-36060-B0 Plate, Center Door Pillar Mat, Front
58676 58676-36060-B0 Plate, Center Door Pillar Mat, Rear
58687 58615-36040 Plate, Mat Set, No.7
9016235002 90162-35002 New Genuine Part
9016240037 90162-40037 New Genuine Part
9018904035 90189-04035 GROMMET
9018905182 90189-05182 New Genuine Part
9354015014 93540-15014 New Genuine Part
9356014014 93560-14014 SCREW
Frame ([01.2017 - ] W(BODY MOUNTING CUSHION=RUBBER) (1701- )XZB70..DX,STD) 25
#OEMPart name
51100 51001-36B51 Frame Sub-Assy
51202 51201-36150 Crossmember Sub-Assy, Frame, No.1
51204 51203-36360 Crossmember Sub-Assy, Frame, No.3
51205 51204-36193 Crossmember Sub-Assy, Frame, No.4
51205 51205-36171 Crossmember Sub-Assy, Frame, No.5
51206 51206-36090 Crossmember Sub-Assy, Frame, No.6
51207 51207-36111 Crossmember Sub-Assy, Frame, No.7
51208 51208-36040 Crossmember Sub-Assy, Frame, No.8
51371 51371-36070 Gusset, Frame No.7 Crossmember, No.1
51401 51421-36210 Bracket Sub-Assy, Engine Front Mounting, Rh
51505 51505-36030 Support Sub-Assy, Upper Control Arm
51506 51506-36120 Support Sub-Assy, Upper Control Arm, Lh
51511 51511-36080 Seat, Front Spring Support
51717 51717-36010 Plate, Body Support Bracket
51751 51751-36060 Bracket, Body Support, No.1
51753 51753-36051 Bracket, Body Support, No.2
51757 51758-36020 Bracket, Body Support, No.4 Rh
51761 51761-36041 Bracket, Body Support, No.5 Rh
51763 51765-36060 Bracket, Body Support, No.6
51767 51767-36140 Bracket, Frame Body Mounting, No.8 Rh
57107 57121-36020 Bracket Sub-Assy, Strut Bar, Rh
57108 57122-36020 Bracket Sub-Assy, Strut Bar, Lh
9011910719 90119-10719 BOLT WWASHER
9095001743 90950-01743 PLUG HOLE
9512101028 95121-01028 RIVET
Front Axle Arm & Steering Knuckle ([01.2017 - ] (1701- )) 42
#OEMPart name
43132 43132-36080 Stopper, Steering Knuckle, Rh
43133 43133-36040 Stopper, Steering Knuckle, Lh
43211 43211-36906 Knuckle, Steering, Rh
43212 43212-36906 Knuckle, Steering, Lh
43330 90345-06014 Plug (For Ball Joint)
43346 43346-36010 Protector, Lower Ball Joint Dust Cover
43350 43350-39095 Joint Assy, Front Upper Ball
43350 90171-20001 Nut, Castle (For Front Lower Ball Joint Rh)
48066 48601-39075 Arm Sub-Assy, Front Suspension, Upper Rh
48067 48602-39065 Arm Sub-Assy, Front Suspension, Upper Lh
48068 48605-39015 Arm Sub-Assy, Front Suspension, Lower No.1 Rh
48068 48607-36010 Arm Sub-Assy, Front Suspension, Lower No.2 Rh
48068 90171-22001 Nut(For Front Suspension Lower Arm No.1 Rh)
48068 90901-01002 Bolt(For Front Suspension Lower Arm No.1 Rh)
48069 48606-39015 Arm Sub-Assy, Front Suspension, Lower No.1 Lh
48167 48106-36020 Arm, Front Suspension Torque, Rh
48167 90101-16012 Bolt(For Torque Arm Setting)
48194 48190-36010 Cam Assy, Camber Adjust
48194 48198-36020 Cam, Front Suspension Camber Adjust, No.2
48194 48190-36020 Cam, Front Suspension Camber Adjust, No.3 Rh
48331 48304-36170 Bumper, Front Spring, No.1 Rh
48332 48332-36030 Bumper, Front Spring, No.2 Rh
48631 96459-00609 Fitting, Grease
48654 48061-36020 Bush, Front Lower Arm, No.1 Rh
48655 48655-36010 Bush, Front Lower Arm, No.2 Rh
48691 48691-36010 Insulator, Upper Arm Bush, Heat
48827 48827-36090 Bracket, Stabilizer, No.2 Rh
48828 48828-36070 Bracket, Stabilizer, No.2 Lh
9010116013 90101-16013 BOLT
9010116014 90101-16014 BOLT
9010514015 90105-14015 Bolt, Upper Arm Set
9010516014 90105-16014 Bolt, Upper Arm Set
9011908251 90119-08251 BOLT
9011910792 90119-10792 BOLT WWASHER
9017014008 90170-14008 NUT
9017016003 90170-16003 NUT
9017018003 90170-18003 NUT
9025204005 90252-04005 PIN COTTER
9167480820 91674-80820 BOLT FLANGE
9413001602 94130-01602 Nut(For Dust Cover To Steering Knuckle Arm Setting)
9418561000 94185-61000 NUTLOCK
9462211800 94622-11800 WASHER
Front Axle Hub ([01.2017 - ] DISC BRAKE (1701- )) 19
#OEMPart name
42627 42627-36020 Bolt, Front Wheel Cap Set
43226 43226-37020 Spacer, Steering Knuckle
43501 90942-02071 Bolt, Hub (For Rear Axle Rh)
43501 90311-68002 Seal, Oil (For Front Axle Hub Rh)
43501 90178-28001 Nut (For Front Axle Shaft Rh)
43501 90214-29001 Washer, Claw (For Front Axle Hub Rh)
43501 90366-50069 Bearing (For Front Axle Hub Inner Rh)
43501 90366-35105 Bearing (For Front Axle Hub Outer Rh)
43502 90942-02072 Bolt, Hub (For Rear Axle Lh)
43510 43510-39196 Hub & Disc(Drum) Assy, Front Axle, Rh
43512 43512-36182 Disc, Front
43514 43514-37050 Cap, Front Axle Hub Grease, Rh
43515 43515-37010 Rotor, Skid Control, Front
43520 43520-39176 Hub & Disc(Drum) Assy, Front Axle, Lh
43525 43525-37010 Cap, Front Wheel Adjusting Lock, Rh
9010514101 90105-14101 BOLT WASHER BASED
9020110075 90201-10075 WASHER
9046710205 90467-10205 CLIP
9538104035 95381-04035 PIN
Front Axle Hub ([01.2017 - ] DRUM BRAKE (1701- )) 15
#OEMPart name
42627 42627-36020 Bolt, Front Wheel Cap Set
43226 43226-37020 Spacer, Steering Knuckle
43501 90942-02071 Bolt, Hub (For Rear Axle Rh)
43501 90311-68002 Seal, Oil (For Front Axle Hub Rh)
43501 90178-28001 Nut (For Front Axle Shaft Rh)
43501 90214-29001 Washer, Claw (For Front Axle Hub Rh)
43501 90366-50069 Bearing (For Front Axle Hub Inner Rh)
43501 90366-35105 Bearing (For Front Axle Hub Outer Rh)
43502 90942-02072 Bolt, Hub (For Rear Axle Lh)
43514 43514-37050 Cap, Front Axle Hub Grease, Rh
43525 43525-37010 Cap, Front Wheel Adjusting Lock, Rh
9010514101 90105-14101 BOLT WASHER BASED
9020110075 90201-10075 WASHER
9046710205 90467-10205 CLIP
9538104035 95381-04035 PIN
Front Bumper & Bumper Stay ([01.2017 - ] (1701- )) 19
#OEMPart name
52115 52115-36030 Support, Front Bumper Side, Rh
52116 52116-36030 Support, Front Bumper Side, Lh
52119 52119-36900 Cover, Front Bumper
52141 52141-36060 Stay, Front Bumper, Rh
52142 52142-36060 Stay, Front Bumper, Lh
52161 52161-16010 Clip
52161 52161-0K040 Clip
52161 52161-02020 Clip
53112 53112-36020 Grille, Radiator, Lower Rh
53113 53113-36020 Grille, Radiator, Lower Lh
9010508187 90105-08187 BOLTWATER BASED
9010906388 90109-06388 BOLT
9010906388 90109-A0061 Bolt
9015950311 90159-50311 SCREW
9015950311 90159-A0034 SCREW WWASHER
9016750063 90167-50063 SCREW PAN TAPPING
9017906349 90179-06349 NUT
9018906193 90189-06193 Grommet(For Engine Under Cover)
9046710203 90467-10203 Direct
Front Disc Brake Caliper & Dust Cover ([01.2017 - ] (1701- )) 28
#OEMPart name
4465 04465-36080 Pad Kit, Disc Brake, Front
4465 04465-36090 Pad Kit, Disc Brake, Front
4479 04479-36020 Cylinder Kit, Disc Brake, Front
4945 04945-36010 Shim Kit, Anti Squeal, Front
4947 04947-36020 Fitting Kit, Disc Brake, Front
31478 31478-30010 Bleeder Plug Cap
47547 47547-12010 Plug, Bleeder(For Release Cylinder)
47703 47703-36090 Cover Sub-Assy, Disc Brake Dust, Front Rh
47704 47704-36090 Cover Sub-Assy, Disc Brake Dust, Front Lh
47715 90119-08992 Bolt(For Front Disc Brake Cylinder Slide)
47715 90119-12256 Bolt(For Front Disc Brake Cylinder Slide)
47716 47716-36020 Plate, Pad Support, No.1(For Front Disc Brake)
47717 47717-36020 Plate, Pad Support, No.2(For Front Disc Brake)
47721 47721-36040 Mounting, Front Disc Brake Cylinder, Rh
47722 47722-36040 Mounting, Front Disc Brake Cylinder, Lh
47730 47730-36040 Cylinder Assy, Front Disc Brake, Rh
47731 47731-36020 Piston, Front Disc Brake
47731 90522-61001 Ring, Set(For Front Disc Brake Piston)
47737 47737-32010 Seal, Front Disc Brake Cylinder Piston
47743 47743-36020 Spring, Anti-Squeal(For Front Disc Brake)
47750 47750-36040 Cylinder Assy, Disc Brake, Lh
47769 47769-36030 Bush, Cylinder Slide, No.1(For Front Disc Brake)
47775 47775-36040 Boot, Bush Dust, No.1
47775 47775-36050 Boot, Bush Dust, No.1
47779 47779-36010 Bush, Cylinder Slide, No.2(For Front Disc Brake)
47781 94130-01602 Nut(For Dust Cover To Steering Knuckle Arm Setting)
47781 90105-16044 Bolt(For Backing Plate To Steering Knuckle Arm Setting)
47781 90105-16045 Bolt(For Backing Plate To Steering Knuckle Arm Setting)
Front Door Lock & Handle ([01.2017 - ] (1701- )) 16
#OEMPart name
69205 69205-60040-B2 Handle Sub-Assy, Front Door Inside, Rh
69210 69210-36010 Handle Assy, Front Door, Outside Rh
69277 69277-60010-B1 Bezel, Front Door Inside Handle, Rh
69310 69310-36030 Lock Assy, Front Door, Rh
69410 69410-87001 Plate Assy, Front Door Lock Striker
69410 69410-AA020 Plate Assy, Front Door Lock Striker
69749 69749-12010 Clamp(For Hood Lock Control Cable)
69759 69759-24070 Snap(For Rear Door Inside Handle)
9014860022 90148-60022 BOLT
9014860022 90148-A0005 Hexalobular Screw
9014880028 90148-80028 SCREW, HEX LOBULAR
9015960081 90159-60081 SCREW
9018906018 90189-06018 GROMMET
9165140612 91651-40612 BOLT
9165140612 90080-11225 New Genuine Part
9352054012 93520-54012 Screw
Front Door Panel & Glass ([01.2017 - ] DOOR PANEL (1701- )) 16
#OEMPart name
62311 62311-36020-B0 Weatherstrip, Front Door Opening Trim, Rh
67001 67001-36340 Panel Sub-Assy, Front Door, Rh
67001 67819-60010 Cushion, Front Door Panel
67831 67831-36030 Cover, Front Door Service Hole
67835 67833-36030 Cover, Front Door Service Hole Sub
67861 67861-36030 Weatherstrip, Front Door, Rh
67863 67863-36030 Weatherstrip, Front Door, No.2 Rh
67867 67867-12150 Clip(For Hood Air Intake Duct Seal)
68610 68610-36020 Check Assy, Front Door
6739536010 67395-36010 Protector, Back Door, Lower
9010908295 90109-08295 BOLT
9046706084 90467-06084 Clip(For Headlamp Cover Seal)
9095001808 90950-01808 PLUG HOLE
9095001959 90950-01959 Cover, Console Box Hole
9095001960 90950-01960 Plug, Hole(For Floor Panel)
9167380616 91673-80616 Bolt, W/washer
Front Door Panel & Glass ([01.2017 - ] DOOR TRIM (1701- )) 8
#OEMPart name
62778 62778-36040-B1 Cap, Side Window Front Sash
67601 67610-36160-B0 Board Sub-Assy, Front Door Trim, Rh
67601 67773-47010 Clip(For Front Door Trim Board)
67615 62375-36030-B1 Trim, Front Door, Upper Rh
67701 90467-09206 Clip, Front Air Shutter Seal
67777 67777-36020-B0 Pocket, Front Door Trim, Rh
9016840048 90168-40048 New Genuine Part
9046805116 90468-05116 CLIP
Front Door Panel & Glass ([01.2017 - ] DOOR WINDOW (1701- )) 19
#OEMPart name
62035 62035-36080 Frame Sub-Assy, Front Door Window, Outer Rh
62039 62039-36050 Frame Sub-Assy, Front Door Window, Center Rh
62229 62229-95J00 Packing, Side Window
62269 62269-90K01 Film, Side Window Frame
62315 62315-36070 Glass, Front Door Window, Front Rh
62317 62317-36070 Glass, Front Door Window, Rear Rh
62385 62385-36040 Seal, Front Door Window, No.1
62385 62385-36050 Seal, Side Window, No.1
62411 62411-36040 Run, Front Door Window, Rh
62746 62746-36010 Packing, Quarter Window
62777 62777-36030 Cap, Side Window Center Sash
62792 62792-95A00 Packing, Side Rear Window, Rh
62793 62793-95J00 Retainer, Side Window Lock, No.1
62910 62910-36010 Lock Assy, Side Window
67120 62391-36010 Stopper, Side Window, No.1 Lh
9025403007 90254-03007 New Genuine Part
9354024008 93540-24008 SCREW
9354024010 93540-24010 Screw, Roof Headlining Trim
9354054014 93540-54014 SCREW
Front Door Window Regulator & Hinge ([01.2017 - ] (1701- )) 4
#OEMPart name
68710 68730-36020 Hinge Assy, Front Door, Upper Rh
68730 68740-36020 Hinge Assy, Front Door, Lower Rh
9010508448 90105-08448 BOLT FLANGE
9151281025 91512-81025 Bolt(For Torque Arm Setting)
Front Floor Panel & Front Floor Member ([01.2017 - ] (1701- )) 13
#OEMPart name
51771 51770-36010 Step, Rh
58115 58115-36820 Reinforcement, Front Floor Panel
58132 58132-36090 Panel, Front Floor, Center
58172 58172-36030 Bracket, Computer Mounting, No.3
58175 58175-36032 Reinforcement, Parking Brake Base, No.1
58243 58243-36070 Panel, Floor Side, Rear Rh
58244 58244-36070 Panel, Floor Side, Rear Lh
58256 58256-36020 Bracket, Air Cleaner, Rear
8271136110 82711-36110 Wire, Fuse To Fuse(for Combustion Heater)
8271436010 82714-36010 New Genuine Part
8271526720 82715-26720 Bracket, Wiring Harness Clamp
9011906324 90119-06324 Bolt
9167380614 91673-80614 BOLT, FLANGE W/WASER
Front Floor Panel & Front Floor Member ([01.2017 - ] (1701- )RHD) 94
#OEMPart name
53711 53711-36050 Apron, Front Fender, Rh
53712 53712-36011 Apron, Front Fender, Lh
55123 55123-36020 Reinforcement, Steering Support
55141 55141-36010 Bracket, Foot Rest Mounting
55161 55161-36040 Bracket, Heater Mounting, Rh
57011 57011-36180 Member Sub-Assy, Floor, Rh
57012 57012-36250 Menber Sub-Assy
57021 57021-36120 Strength Sub-Assy, Anchor Side, No.1
57023 57023-36090 Strength Sub-Assy, Anchor Side, No.1
57023 57023-36190 Strength Sub-Assy, Anchor Side, No.2
57101 57101-36080 Crossmember Sub-Assy, Floor, No.1
57102 57102-36230 Crossmenber Sub-Assy, Floor, No.2
58015 58015-36050 Panel Sub-Assy, Front Floor Housing, Front Rh
58016 58016-36030 Panel Sub-Assy, Front Floor Housing, Front Lh
58017 58017-36060 Panel Sub-Assy, Front Floor Housing, Rear Rh
58018 58018-36060 Panel Sub-Assy, Front Floor Housing, Rear Lh
58103 58103-36010 Reinforcement Sub-Assy, Front Floor, Front
58111 58111-36300 Pan, Front Floor, Rh
58112 58112-36300 Panel, Front Floor, Lh
58113 58113-36180 Panel, Front Floor, Center
58116 58116-36040 Panel, Front Floor Rear Upper Side, Rh
58118 58118-36010 Reinforcement, Front Floor Panel, No.2
58123 58123-36250 Panel, Front Floor, Center Lh
58126 58126-36020 Panel, Front Floor Rear Upper Side, Lh
58157 58157-36010 Stay, Front Floor Housing, Rear Rh
58158 58158-36010 Stay, Front Floor Housing, Rear Lh
58171 58107-36040 Reinforcement, Parking Brake Base
58173 58043-36100 Angle, Front Floor Side, Rh
58174 58174-36060 Angle Sub-Assy, Front Floor Side, Lh
58177 58177-36010 Extension, Front Floor Panel, Rh
58178 58178-36010 Extention, Front Floor Panel, Lh
58179 58179-36010 Bracket, Accelerator Cable Clamp
58181 58181-36010 Bracket, Front Seat Inside Mounting, Front Rh
58182 58182-36050 Bracket, Front Seat Inside Mounting, Front Lh
58183 58184-36030 Bracket, Front Seat Mounting, Outside
58188 58188-36010 Bracket, Accelerator Pedal Stopper
58193 58193-36040 Bracket, Instrument Panel Brace Mounting
58194 58193-36050 Bracket, Instrument Panel Brace Mounting, Lh
58197 58197-36010 Plate, Vacuum Tube Bracket, Rh
58209 58209-36010 Cover Sub-Assy, Heater Air Intake
58217 58217-36030 Plate, Front Floor
58251 58251-36010 Reinforcement, Front Seat, Front Rh
58256 58256-36040 Bracket, Front Floor Harness
58269 58269-36020 Cover, Parking Brake Cable, Rh
58410 58410-36120-B0 Cover, Engine Service Hole
58420 58420-36140 Cover Assy, Engine Service Hole, No.2
58431 58431-36102 Silencer, Engine Room Side, Front Rh
58432 58432-36080 Silencer, Engine Room Side, Rear Rh
58433 58433-36200 Silencer, Engine Room Side End
58441 58441-36180 Silencer, Enging Room Side, Front Lh
58442 58442-36100 Silencer, Enging Room Side, Rear Lh
58444 58444-36050 Packing, Engine Sub Cover
58492 58492-36010 Packing, Relay Block Hole Cover
58493 58493-36010-B2 Retainer, Engine Cover, No.3
58701 58701-36300 Panel Sub-Assy, Engine Service Cover, Front
58704 58704-36041 Hook Sub-Assy, Engine Service Cover Catch, Rear
58709 58709-36031 Catch Sub-Assy, Engine Service Cover
58724 58724-90B00 Cushion, Engine Service Cover, No.2
58726 58726-36010 Plate, Engine Service Cover, Front Upper
58728 58728-36010 Plate, Engine Service Cover, No.2
58733 58733-36070 Weatherstrip, Engine Service Cover, Front
58734 58734-36100 Weatherstrip, Engine Service Cover, Rear
58755 58755-95D00 Knob, Battery Service Hole Cover
59263 59263-95D00 Hook, Engine Cover Lock
65579 65579-36010 Bracket, Heater Pipe
76621 76621-36080 Mudguard, Front Body, Front Rh
76622 76622-36070 Mudguard, Front Body, Front Lh
76623 76623-36040 Mudguard, Front Body, Rear Rh
76624 76624-36040 Mudguard, Front Body, Rear Lh
8271136110 82711-36110 Wire, Fuse To Fuse(for Combustion Heater)
8271436010 82714-36010 New Genuine Part
9011906242 90119-06242 New Genuine Part
9011906375 90119-06375 Bolt (For Transmission Housing & Case Setting)
9011906786 90119-06786 BOLT WWASHER
9011906900 90119-06900 BOLT WWASHER
9011906911 90119-06911 BOLT WWASHER
9011906952 90119-06952 New Genuine Part
9015960496 90159-60496 SCREW WWASHER
9018906065 90189-06065 CLIP
9046707132 90467-07132 Clip
9046707138 90467-07138-C0 Clip
9046709050 90467-09050 Clip(For Hood Insulator)
9054006004 90540-06004 Cushion, Rear Seat Back, No.1
9054109080 90541-09080 Cushion(For Luggage Compartment Door Panel)
9090467033 90904-67033 Clip(For Deck Board No.1)
9165140616 91651-40616 BOLT
9165140616 91621-60614 Bolt(For Transaxle & Engine Setting)
9165140616 90080-11395 New Genuine Part
9167380616 91673-80616 Bolt, W/washer
9167380625 91673-80625 New Genuine Part
9331116012 93311-16012 Screw, Rear Axle Bearing Lock Nut
9356714512 93567-14512 SCREW
9356754514 93567-54514 SCREW TAPPING
9356754514 93567-A5014 SCREW TAPPING
Front Floor Panel & Front Floor Member ([01.2017 - ] FOOT REST (1701- )RHD) 15
#OEMPart name
51774 51774-36010-B0 Cover, Step Plate, Lh
58108 58108-36150-B0 Panel Sub-Assy, Footrest
58116 58116-36120-B0 Panel, Front Floor Rear Upper Side, Rh
58191 58191-36010 Footrest, Front Floor
58316 58316-36010-B1 Plate, Footrest, Rear
8281736090 82817-36090 Protector, Wiring Harness, No.1
9011906775 90119-06775 BOLT WWASHER
9011906782 90119-06782 BOLT WWASHER
9011906911 90119-06911 BOLT WWASHER
9015960120 90159-60120 New Genuine Part
9016750062 90167-50062 New Genuine Part
9017906206 90179-06206 Nut
9324056010 93240-56010 SCREW
9353053012 93530-53012 New Genuine Part
9356055016 93560-55016 Screw(For Mat Set Plate)
Front Panel & Windshield Glass ([01.2017 - ] (1701- )) 20
#OEMPart name
53301 53301-36260 Panel Sub-Assy, Front
53802 53813-47040 Extension, Front Fender, Lh
55211 55211-36010 Silencer, Front Panel
55211 55212-36010 Silencer, Front Panel
55241 55241-36040 Silencer, Front Panel Side, No.1 Rh
55242 55242-36050 Silencer, Front Panel Side, No.1 Lh
55243 55243-36040 Silencer, Front Panel Side, No.2 Rh
55244 55244-36040 Silencer, Front Panel Side, No.2 Lh
56111 56111-36140 Glass, Windshield
56114 56114-36010 Retainer, Windshield Glass
56115 56115-36010 Stopper, Windshield Glass
56116 56116-36010 Stopper, Windshield Glass, No.2
61191 61191-36040 Plate, Front Pillar End Cover, Rh
61192 61191-36050 Plate, Front Pillar End Cover, Lh
61195 61195-36020 Cover, Front Pillar End, Rh
61196 61196-36010 Cover, Front Pillar End, Lh
64818 64819-36010 Spacer, Back Window Glass
75535 75535-36010 Moulding, Windshield, Outside Lower
6221736010 62217-36010 Cover, Rail Roof Side, Inner Center
9010506333 90105-06333 BOLT FLANGE
Front Spring & Shock Absorber ([01.2017 - ] (1701- )) 29
#OEMPart name
48107 48107-36030 Arm Sub-Assy, Anchor, Rh
48108 48108-36030 Arm Sub-Assy, Anchor, Lh
48161 48161-36100 Spring, Torsion Bar, Rh
48162 48162-36100 Spring, Torsion Bar, Lh
48169 48169-36020 Swivel, Anchor Arm, Rh
48173 48173-36010 Seat, Anchor Arm Adjuster
48174 48174-36010 Cover, Torsion Bar Dust
48510 48511-80176 Absorber Assy, Shock, Front
48510 90948-01004 Cushion, Front Shock Absorber
48510 90948-02009 Retainer, Cushion, No.1(For Front Shock Absorber)
48510 90948-02054 Retainer, Cushion, No.1(For Front Shock Absorber)
48514 48514-36050 Bracket, Front Shock Absorber, Lower Rh
48810 48820-36022 Link Assy, Front Stabilizer
48811 48811-36090 Bar, Stabilizer, Front
48815 48815-36060 Bush, Front Stabilizer Bar, No.1
48820 90179-12151 Nut(For Front Stabilizer Link)
48823 48823-36080 Cover, Front Stabilizer Bracket
48836 48836-36050 Bracket, Front Stabilizer End, Rh
48837 48837-36040 Bracket, Front Stabilizer End, Lh
91674 91674-K1028 BOLT FLANGE
9010118002 90101-18002 BOLT
9010912013 90109-12013 BOLT
9011908251 90119-08251 BOLT
9017018002 90170-18002 NUT
9017912016 90179-12016 NUT
9116261270 91162-61270 BOLT
9413061200 94130-61200 Nut
9451201200 94512-01200 Washer
9462211200 94622-11200 WASHER
Front Steering Gear & Link ([01.2017 - ] STEERING GEAR(1/2) (1701- )) 14
#OEMPart name
4445 04445-37040 Gasket Kit, Power Steering Gear(For Recirculating Ball)
44110 44110-36370 Gear Assy, Power Steering
44251 90170-30001 Nut, Castle(For Pitman Arm)
44251 90204-30040 Washer(For Pitman Arm)
45312 45312-36240 Bracket, Steering Gear Housing
45411 45411-36610 Arm, Pitman
9010114042 90101-14042 BOLT HEXAGON
9010612005 90106-12005 Bolt, Round Hexagon (For Steering Knuckle Stopper Bolt)
9017012018 90170-12018 Nut (For Propeller Shaft)
9017014026 90170-14026 Nut(For Front Support To Front Shock Absorber Rh)
9090101003 90901-01003 BOLT HEXAGON
9090101004 90901-01004 New Genuine Part
9462211600 94622-11600 WASHER
9462251400 94622-51400 Washer(For Front Suspension Lower Arm No.1 Rh)
Front Steering Gear & Link ([01.2017 - ] STEERING GEAR(2/2) (1701- )) 9
#OEMPart name
44011 44011-36370 Piston Sub-Assy, Power
44015 44015-36350 Shaft Sub-Assy, Sector
44107 44107-36350 Housing Sub-Assy, Power Steering Gear
44108 44108-37160 Cover Sub-Assy, Sector
44110 44110-36370 Gear Assy, Power Steering
44142 94130-61400 Nut, Lock
45357 90029-02302 Screw, Sector Shaft Adjusting
9002901001 90029-01001 New Genuine Part
9002934002 90029-34002 New Genuine Part
Front Steering Gear & Link ([01.2017 - ] STEERING LINK (1701- )RHD) 47
#OEMPart name
45046 45046-39275 End Sub-Assy, Tie Rod
45046 90171-18003 Nut, Castle(For Relay Rod)
45070 45070-36030 Bracket Assy, Idler Arm
45403 90501-32033 Spring, Compression(For Bracket, Idler Arm)
45406 45047-39165 Rod Sub-Assy, Tie, Rh
45410 45410-36031 Bracket Assy, Center Arm
45421 45421-36020 Arm, Steering Center
45422 45422-36010 Shaft, Center Arm
45422 90311-36003 Seal(For Center Arm Shaft)
45422 90204-27020 Washer(For Pitman Arm)
45434 45434-36011 Cap, Center Arm Bracket
45434 90345-06014 Plug (For Ball Joint)
45440 45440-39105 Link Assy, Steering Drag
45450 45450-39215 Rod Assy, Steering Relay
45460 45460-80007 Rod Assy, Tie, Rh
45461 45461-36120 Rod, Steering Tie
45470 45470-39355 Rod Assy, Tie, Lh
45479 45479-36030 Seal, Dust(For Tie Rod)
45490 45490-39425 Arm Assy, Steering Idler
45490 90171-14006 Nut, Castle(For Idler Arm)
45495 45495-36010 Shaft, Idler Arm
45495 90311-25009 Seal, Type T Oil(For Bracket, Idler Arm)
45497 45497-36020 Cap, Idler Arm Bracket
45611 45611-36242 Arm, Steering Knuckle, Rh
45611 90106-12015 Bolt, Round Hexagon (For Steering Knuckle Stopper Bolt)
45612 45612-36152 Arm, Steering Knuckle, Lh
45619 45619-26020 Cover, Knuckle Stopper
45700 45700-69135 Damper Assy, Steering
45721 45721-36020 Bracket, Steering Damper, No.3
9010116011 90101-16011 BOLT HEXAGON
9010512200 90105-12200 Bolt(For Torque Arm Setting)
9010514097 90105-14097 Bolt (For Rear Axle Bearing Case Rh)
9010612005 90106-12005 Bolt, Round Hexagon (For Steering Knuckle Stopper Bolt)
9017012018 90170-12018 Nut (For Propeller Shaft)
9017021001 90170-21001 New Genuine Part
9017021002 90170-21002 New Genuine Part
9017027033 90170-27033 Nut, Castle(For Pitman Arm)
9020416001 90204-16001 Washer(For Center Arm Shaft)
9025204003 90252-04003 PIN
9052230034 90522-30034 Ring, Set(For Power Steering Rack End Dust Seal)
9052234002 90522-34002 Ring, Set(For Tie Rod End Dust Seal)
9116281235 91162-81235 Bolt(for Dust Cover Setting)
9413061600 94130-61600 Nut, Hexagon(for Sector Shaft To Pitman Arm Setting)
9418401601 94184-01601 NUT LOCK
9418461201 94184-61201 Nut, Lock(For Power Steering Control Valve)
9461211600 94612-11600 Washer, Shift Lever Shaft Housing, No.2
9538103025 95381-03025 PIN
Fuel Filter ([01.2017 - ] FRAME SIDE (1701- )N04C) 11
#OEMPart name
23322 23388-64470 Plug, Drain(For Fuel Filter)
23322 23344-54010 O-Ring (For Drain Plug)
23338 23344-64010 O-Ring (For Level Warning Switch)
23380 23380-78351 Cap Assy, Fuel Filter
23389 23389-78350 Clamp, Fuel Filter
23390 23390-78280 Element Sub-Assy, Fuel Filter
23921 23921-17040 Support, Fuel Filter
84461 84461-28041 Switch, Level Warning
91673 91673-A0820 BOLT FLANGE
91673 91673-A0830 New Genuine Part
9331914008 93319-14008 SCREW
Fuel Tank & Tube ([01.2017 - ] FUEL LID OPENER (1701- )BB60,HZB70,XZB60,70..RHD) 7
#OEMPart name
77030 77030-36010 Lock Assy, Fuel Lid W/motor
77350 77350-36040 Lid Assy, Fuel Filler Opening
77366 77366-52010 Spring, Fuel Filler Opening Lid Hinge
77377 77377-75010 Retainer, Fuel Filler Opening Lid Lock
9011906848 90119-06848 BOLT WWASHER
9026906017 90269-06017 RIVET
9054106070 90541-06070 CUSHION
Fuel Tank & Tube ([01.2017 - ] FUEL TANK (1701- )BB60,HZB70,XZB60,70) 48
#OEMPart name
77011 77011-36020 Pipe Sub-Assy, Fuel Tank Filler, Lower
77017 77017-36470 Tube Sub-Assy, Fuel Tank Vent
77023 77023-60010 Filter Sub-Assy, Fuel Suction Tube
77026 77026-36020 Tube Sub-Assy, Fuel Evaporation, No.1
77100 77001-3B262 Tank Assy, Fuel
77100 90105-12116 Plug(For Fuel Tank)
77100 90430-12245 Gasket(For Fuel Tank)
77135 77135-36040 Bracket, Check Valve
77169 77169-14020 Gasket, Fuel Tank Vent
77178 77178-34010 Gasket, Fuel Tank Filler Pipe, Lower
77179 77179-26011 Gasket, Fuel Suction Tube Set, No.1
77201 95313-13017 Hose, Fuel, No.1(For Fuel Tank Inlet Pipe)
77210 77210-36010 Pipe Assy, Fuel Tank Filler
77211 90460-46005 Clamp (For Fuel Filler Pipe)
77213 77213-36090 Hose, Fuel Tank To Filler Pipe
77259 77259-36090 Hose, Fuel
77259 77259-36380 Hose, Fuel, No.1
77259 77259-36390 Hose, Fuel
77291 77291-36010 Shield, Fuel Tank Filler Pipe
77310 77300-12030 Cap Assy, Fuel Tank (For Diesel)
77316 77316-52040 Gasket, Fuel Tank Cap
77380 77380-26010 Valve Assy, Fuel Cut Off
77391 77391-28020 Ring, Fuel Inlet Box
77391 77391-52040 Ring, Fuel Inlet Box
77420 77420-26010 Valve Assy, Fuel Cut Off, No.2
77611 77601-36120 Band, Fuel Tank
77611 90240-08047 Pin (For Fuel Tank Band)
77613 77613-36030 Bracket, Fuel Tank Band, No.1
77651 77651-36130 Cushion, Fuel Tank, No.1
77652 77652-36010 Cushion, Fuel Tank, No.2
77653 77653-36010 Cushion, Fuel Tank, No.3
77655 77653-36020 Cushion, Fuel Tank, No.3
77681 77681-36050 Seat, Fuel Tank Band
77701 90917-10020 Valve, Check (For Main Fuel Tank)
91673 91673-A0616 BOLT, FLANGE
91674 91674-A1035 BOLT FLANGE
93319 93319-A4010 SCREW WWASHER
9011908 90119-08C76 New Genuine Part
9015950219 90159-50219 BOLT
9015950219 90159-A0057 New Genuine Part
9015960008 90159-60008 SCREW
9017905042 90179-05042 NUT
9046022002 90460-22002 CLAMP
9046022002 90460-22001 CLAMP
9046718008 90467-18008 Clip(For Water By-Pass Hose No.2)
9046814004 90468-14004 Union, Auxiliary Fuel Band
9048014003 90480-14003 New Genuine Part
9613341101 96133-41101 Clip(For Fuel Hose No.1)
Fuel Tank & Tube ([01.2017 - ] FUEL TUBE, W(FUEL COOLER) (1701- )XZB70) 34
#OEMPart name
23917 23917-78010 Cooler, Fuel
77205 77205-36A70 Tube Sub-Assy, Fuel Main
77206 77206-36610 Tube Sub-Assy, Fuel Main, No.2
77207 77207-36340 Tube Sub-Assy, Fuel Main, No.3
77208 77208-36260 Tube Sub-Assy, Fuel Main, No.4
77251 77259-36450 Hose, Fuel, No.1 (For Main Tube, No.1)
77251 77259-36440 Hose, Fuel, No.2(For Fuel Main No.2 Tube)
77253 95338-12026 Hose, Fuel, No.1(For Fuel Main No.3 Tube)
77255 77255-36B40 Tube, Fuel Return
77255 95337-08019 Hose, Fuel, No.2 (For Fuel Return Tube) - FUEL, NO.1(FOR FUEL MAIN TUBE)
77256 77256-36420 Tube, Fuel Return, No.2
77257 95337-08022 Hose, Fuel
77259 77259-36090 Hose, Fuel
77259 77259-36380 Hose, Fuel, No.1
77259 77259-36390 Hose, Fuel
77259 77259-36400 Hose, Fuel
77259 77259-36410 Hose, Fuel
77259 95338-08020 Hose, Fuel - FUEL, NO.1(FOR FUEL RETURN NO.3 TUBE)
77259 77259-36181 Hose, Fuel
77278 95337-08034 Hose, Fuel, No.2
77281 77281-36030 Bracket, Fuel Main Tube, No.1
77281 77281-36100 Clamp, Fuel Hose(For Rear Fuel Main)
77282 77281-36140 Bracket, Fuel Main Tube, No.2
77283 77281-36130 Bracket, Fuel Main Tube, No.1
77285 77285-60670 Clamp, Fuel Tube W/grommet, No.1
77285 77285-36290 Clamp, Fuel Tube, No.1
77285 77285-26100 Clamp, Fuel Tube, No.1
77285 77285-42110 Support, Fuel Return And Main Tube
77285 77285-35800 Clamp, Fuel Tube, No.1
77295 77295-53020 Grommet, Fuel Tube
91673 91673-A0616 BOLT, FLANGE
91673 91673-A0820 BOLT FLANGE
9046718008 90467-18008 Clip(For Water By-Pass Hose No.2)
9613341301 96133-41301 Clip(For Fuel Vapor Feed Hose, No.2)
Fuel Tank & Tube ([01.2017 - ] FUEL TUBE, W/O(FUEL COOLER) (1701- )XZB70) 22
#OEMPart name
77205 77205-36A70 Tube Sub-Assy, Fuel Main
77206 77206-36610 Tube Sub-Assy, Fuel Main, No.2
77207 77207-36340 Tube Sub-Assy, Fuel Main, No.3
77208 77208-36260 Tube Sub-Assy, Fuel Main, No.4
77251 77259-36450 Hose, Fuel, No.1 (For Main Tube, No.1)
77251 77259-36440 Hose, Fuel, No.2(For Fuel Main No.2 Tube)
77253 95338-12026 Hose, Fuel, No.1(For Fuel Main No.3 Tube)
77255 95337-08019 Hose, Fuel, No.2 (For Fuel Return Tube) - FUEL, NO.1(FOR FUEL MAIN TUBE)
77257 95337-08022 Hose, Fuel
77259 77259-36181 Hose, Fuel
77278 95337-08034 Hose, Fuel, No.2
77281 77281-36030 Bracket, Fuel Main Tube, No.1
77281 77281-36100 Clamp, Fuel Hose(For Rear Fuel Main)
77282 77281-36140 Bracket, Fuel Main Tube, No.2
77283 77281-36130 Bracket, Fuel Main Tube, No.1
77285 77285-60670 Clamp, Fuel Tube W/grommet, No.1
77285 77285-36290 Clamp, Fuel Tube, No.1
77285 77285-35800 Clamp, Fuel Tube, No.1
91673 91673-A0616 BOLT, FLANGE
91673 91673-A0820 BOLT FLANGE
9046718008 90467-18008 Clip(For Water By-Pass Hose No.2)
9613341301 96133-41301 Clip(For Fuel Vapor Feed Hose, No.2)
Headlamp ([01.2017 - ] DUAL BEAM HEADLAMP (1701- )) 23
#OEMPart name
55721 55721-36010 Bracket, Headlamp
81110 90981-13046 Bulb(For Headlamp, No.1) (12V, 65W)
81110 90981-13075 Bulb(For Headlamp, No.1)
81110 81117-36710 Gear Unit Assy, Rh No.1
81116 81116-36710 Bracket, Headlamp, Rh
81118 81118-36660 Bracket, Headlamp, Rh No.1
81118 81118-36710 Bracket, Headlamp, Rh No.2
81118 81158-36700 Bracket, Headlamp, Lh No.2
81125 81125-36710 Cord, Headlamp, Rh
81135 81130-36660 Unit Assy, Headlamp, Rh
81136 81136-36710 Cover, Headlamp, No.1 Rh
81138 81138-36660 Socket & Wire, Headlamp
81139 90075-65006 Cover, Headlamp Back, No.1
81156 81156-36700 Bracket, Headlamp, Lh
81175 81170-36650 Unit Assy, Headlamp, Lh
81176 81176-36700 Cover, Headlamp, No.1 Lh
81510 90981-15021 Bulb (For Front Turn Signal Lamp)
81610 99132-12050 Bulb (12V 5W)
81610 90080-81053 Bulb(For Clearance Lamp)
8127924010 81279-24010 Screw, Side Turn Signal Lamp
9007502415 90075-02415 Screw, Headlamp
9015960621 90159-60621 SCREW, W/WASHER
9018906238 90189-06238 GROMMET SCREW
Headlamp ([01.2017 - ] SINGLE BEAM HEADLAMP (1701- )) 20
#OEMPart name
55721 55721-36010 Bracket, Headlamp
81110 90981-13046 Bulb(For Headlamp, No.1) (12V, 65W)
81110 81117-36710 Gear Unit Assy, Rh No.1
81116 81116-36710 Bracket, Headlamp, Rh
81118 81118-36660 Bracket, Headlamp, Rh No.1
81118 81118-36710 Bracket, Headlamp, Rh No.2
81118 81158-36700 Bracket, Headlamp, Lh No.2
81125 81125-36710 Cord, Headlamp, Rh
81135 81130-36660 Unit Assy, Headlamp, Rh
81136 81136-36710 Cover, Headlamp, No.1 Rh
81156 81156-36700 Bracket, Headlamp, Lh
81175 81170-36650 Unit Assy, Headlamp, Lh
81176 81176-36700 Cover, Headlamp, No.1 Lh
81510 90981-15021 Bulb (For Front Turn Signal Lamp)
81610 99132-12050 Bulb (12V 5W)
81610 90080-81053 Bulb(For Clearance Lamp)
8127924010 81279-24010 Screw, Side Turn Signal Lamp
9007502415 90075-02415 Screw, Headlamp
9015960621 90159-60621 SCREW, W/WASHER
9018906238 90189-06238 GROMMET SCREW
Heating & Air Conditioning - Compressor ([01.2017 - ] (1701- )XZB60,70..WC) 15
#OEMPart name
88320 88320-36530 Compressor Assy, Cooler
88330 88335-12050 Washer (For Magnet Clutch)
88410 88410-36520 Clutch Assy, Magnet
88420 88420-E0011 Pulley Assy, Idle, W/bracket
88431 88431-E0150 Bracket, Compressor Mounting, No.1
88440 88440-36130 Pulley Assy, Idle
88446 90099-04306 Bolt, Idle Pulley
88688 88688-3B120 Bracket, Cooler Compressor
9009120608 90091-20608 BOLT
9009905163 90099-05163 NUT
9009907132 90099-07132 SNAP RING
9009935012 90099-35012 CLIP
9010510221 90105-10221 Bolt, Hexagon(For Air Pump Bracket Setting)
9017910132 90179-10132 Nut
9338115008 93381-15008 SCREWWWASHER
Heating & Air Conditioning - Control & Air Duct ([01.2017 - ] FRONT HEATER AIR DUCT (1701- )RHD) 15
#OEMPart name
55084 55085-36030 Duct Sub-Assy, Heater To Register, No.1
55085 55084-36040 Duct Sub-Assy, Heater To Register, No.2
55086 55086-36010 Duct Sub-Assy, Heater To Register, Center
55845 55845-36030 Duct, Rear Heater To Register, No.3
55950 55950-36040 Nozzle Assy, Defroster
87114 87114-36030 Cover, Heater
87210 87210-36170 Case Assy, Air Damper
87211 87211-36170 Duct, Air, No.1
87211 87211-36160 Duct, Air, No.2
87211 90467-05170 Clip, Rear Bumper Side
87212 90467-07117 Clip, Radiator Support To Frame
87441 87441-36030 Filter, Heater Air
9011906983 90119-06983 New Genuine Part
9015950267 90159-50267 SCREW WWASHER
904670504522 90467-05045-22 Clip(For Front Fender Seal)
Heating & Air Conditioning - Control & Air Duct ([01.2017 - ] HEATER CONTROL PANEL (1701- )RHD) 18
#OEMPart name
55519 55519-36030 Plate, Heater Control Name
55519 55519-36080 Plate, Heater Control Name
55519 55519-36070 Plate, Heater Control Name
55905 55905-36040 Knob Sub-Assy, Control
55906 55906-36070 Cable Sub-Assy, Defroster Damper Control
55907 55907-36120 Cable Sub-Assy, Water Valve Control
55908 55908-36080 Cable Sub-Assy, Air Inlet Damper Control
55909 55907-36070 Cable Sub-Assy, Water Valve Control
55910 55910-36250 Control Assy, Heater
84660 84660-36050 Switch Assy, Cooler Control
84732 84732-35010 Switch Assy, Heater Blower
84732 84732-36060 Switch Assy, Heater Blower
84732 84998-10050 Cap, Satellite Switch
84732 90981-11014 Bulb, Position Indicator Lamp
84732 84732-36080 Switch, Rear Heater Blower
9046400298 90464-00298 Clamp, No.2 (For Transfer Vacuum)
9046400458 90464-00458 New Genuine Part
9155380620 91553-80620 BOLT FLANGE
Heating & Air Conditioning - Control & Air Duct ([01.2017 - ] ROOF DUCT 1/2 (1701- )WC) 6
#OEMPart name
63610 63640-36020-B0 Register Assy, Air Outlet, No.1
63830 87106-36100 Servo Sub-Assy, Damper(For Roof Ventilator)
88430 88430-36340 Duct Assy, Air, No.1
88430 88430-36330 Duct Assy, Air, No.2
88568 88568-36060 Filter, Air
9046710206 90467-10206 Clip, Front Fender Liner, No.3
Heating & Air Conditioning - Control & Air Duct ([01.2017 - ] ROOF DUCT 2/2 (1701- )BZB70,HZB70,TRB70,XZB70..WC) 18
#OEMPart name
63610 63640-36020-B0 Register Assy, Air Outlet, No.1
63911 63911-36160 Duct, Cooler, Outer Rh
63912 63921-36020 Duct, Cooler, Outer Lh
63915 63950-36050-B0 Duct, Cooler, Inner No.1 Rh
63916 63930-36040-B0 Duct, Cooler, Inner No.2 Rh
63917 63930-36130-B0 Duct, Cooler, Inner No.3 Rh
63917 63930-36170-B0 Duct, Cooler, Inner No.3 Lh
63925 63960-36030-B0 Duct, Cooler, Inner No.1 Lh
63926 63930-36110-B0 Duct, Cooler, Inner No.2 Lh
63927 63927-36060 Cover, Cooler Duct End, No.1
63928 63928-36060 Cover, Cooler Duct End, No.2
63930 63930-36070-B0 Duct, Cooler, Inner No.4 Rh
63940 63940-36050-B0 Duct, Cooler, Inner No.4 Lh
6777128150 67771-28150 Clip(For Front Body Pillar Garnish)
9018305050 90183-05050 NUT SPRING
9046709050 90467-09050 Clip(For Hood Insulator)
9326955016 93269-55016 New Genuine Part
9356855014 93568-55014 Screw
Heating & Air Conditioning - Cooler Piping ([01.2017 - ] CONDENSER (1701- )BB60,HZB70,XZB60,70..RHD) 18
#OEMPart name
88450 88450-36360 Condenser Assy, W/receiver
88453 16361-13030 Fan
88454 88454-36150 Shroud, Fan
88454 88454-36081 Shroud, Fan
88461 88461-36040 Core, Cooler Condenser
88461 88461-36020 Core, Cooler Condenser, No.2
88461 88461-36030 Core, Cooler Condenser, No.3
88471 88471-50020 Receiver & Dryer Assy, Cooler
88550 88550-36111 Motor Assy, Blower (For Condenser)
88605 88605-36460 Harness Sub-Assy, Air Conditioner Wiring
88645 88645-60030 Switch, Pressure No.1
88715 88715-36740 Pipe, Cooler Refrigerant Discharge, A
88715 88715-36760 Pipe, Cooler Refrigerant Discharge, B
88716 88716-36A80 Pipe, Cooler Refrigerant Liquid, A
88716 88716-36A90 Pipe, Cooler Refrigerant Liquid, B
9009914119 90099-14119 Ring, O(For Cooler Refrigerant Liquid Pipe)
9009914119 90099-14119-TH O RING
9009914120 90099-14120 O-Ring, Cooler Evaporator No.1(Discharge)
Heating & Air Conditioning - Cooler Piping ([01.2017 - ] CONDENSER BRACKET (1701- )BB60,HZB70,XZB60,70..RHD) 12
#OEMPart name
88415 88415-36300 Cover, Dust, No.8
88463 88688-36490 Bracket, Cooler Condenser, No.1
88463 88688-36A10 Bracket, Cooler Condenser, No.2
88463 88688-36A30 Bracket, Cooler Condenser, No.3
88467 88467-90B00 Cushion, Cooler Condenser, No.1
88467 88467-90B01 Cushion, Cooler Condenser, No.2
88469 88469-90B00 Collar, Condenser Bracket, No.1
9046707215 90467-07215 Clip
9155380840 91553-80840 New Genuine Part
9162160614 91621-60614 Bolt(For Transaxle & Engine Setting)
9165160816 91651-60816 BOLT
9165160816 90080-11396 Bolt
Heating & Air Conditioning - Cooler Piping ([01.2017 - ] PIPING(FLOOR) (1701- )XZB60,70..RHD) 29
#OEMPart name
88374 88374-30010 Valve, Service, No.1
88375 88375-30280 Cap, Service Valve (For Cooler Pipe)
88467 88467-12030 Cushion, Cooler Condenser, No.1
88569 88569-36190 Clamp, Cooler, No.1
88569 88569-36220 Clamp, Cooler, No.2
88569 88569-36270 Clamp, Piping, No.1
88569 88569-30560 Clamp, Piping, No.2
88689 88688-36260 Bracket, Cooler, No.1
88689 88688-36A00 Bracket, Cooler, No.2
88706 88706-36170 Pipe Sub-Assy, Liquid
88710 88710-36470 Tube & Accessory Assy, Air Conditioner
88711 88711-36740 Hose, Cooler Refrigerant Discharge, No.1
88712 88712-36692 Hose, Cooler Refrigerant Suction, No.1
88715 88715-36770 Tube, Discharge, K
88716 88716-36A50 Pipe, Cooler Refrigerant Liquid, E
88718 88718-6A160 Clamp(For Cooler Refrigerant Pipe), No.5
88720 88720-36220 Hose & Accessory, Air Conditioner
9003105107 90031-05107 New Genuine Part
9009914119 90099-14119 Ring, O(For Cooler Refrigerant Liquid Pipe)
9009914119 90099-14119-TH O RING
9009914120 90099-14120 O-Ring, Cooler Evaporator No.1(Discharge)
9009914126 90099-14126 OIL SEAL
9010506018 90105-06018 Bolt (For Throttle Valve Cam Set)
9017906206 90179-06206 Nut
9017906274 90179-06274 Nut
9046723009 90467-23009 Clip Or Clamp(For Ventilation Hose)
9155380622 91553-80622 BOLT FLANGE
9163160816 91631-60816 BOLT
9165160616 91651-60616 BOLT
Heating & Air Conditioning - Cooler Piping ([01.2017 - ] PIPING(ROOF) (1701- )RHD) 16
#OEMPart name
88578 88578-90B01 Packing, Cooler Pipe, No.1
88716 88716-36A30 Pipe, Cooler Refrigerant Liquid, D
88717 88717-36480 Pipe, Cooler Refrigerant Suction, A
88717 88717-36490 Pipe, Cooler Refrigerant Suction, B
88718 88718-36300 Clamp(For Cooler Refrigerant Pipe), No.1
88718 88718-36310 Clamp(For Cooler Refrigerant Pipe), No.2
88718 88718-36320 Clamp(For Cooler Refrigerant Pipe), No.3
88718 90469-22001 Clamp, Piping
88726 88716-36A20 Pipe, Cooler Refrigerant Liquid, C
88897 88897-36040 Grommet, Cooler
8856936110 88569-36110 Clamp (for Cooler Relay)
8963936030 89639-36030 Wire, Brake Control
9009914119 90099-14119 Ring, O(For Cooler Refrigerant Liquid Pipe)
9009914119 90099-14119-TH O RING
9009914126 90099-14126 OIL SEAL
9167380616 91673-80616 Bolt, W/washer
Heating & Air Conditioning - Cooler Unit ([01.2017 - ] COOL BOX (1701- )RHD) 20
#OEMPart name
58880 58880-36120 Leg Assy, Cooling Box
58880 58880-36100 Leg Assy, Cooling Box, No.2
58899 58899-36030 Bracket, Cooling Box, No.2
89903 89903-36011 Motor Sub-Assy, Cooler Box Fan
89910 89910-36024 Box Assy, Cooler
89911 89911-36022 Door, Cooler Box
89912 89912-36022 Tray, Cooler Box
89915 89915-36022 Dial, Cooler Control
89916 89916-36021 Lock, Cooler Box
89920 89920-36024 Unit Assy, Cooler Drive Mechanism
89921 89921-36022 Case, Cooler Drive Unit
89923 89923-36023 Thermistor, Cooler Box
89930 89930-36023 Parts Assy, Cooler Box Electrical
8271133270 82711-33270 Wire, Fuse To Fuse(for Combustion Heater)
9011906953 90119-06953 BOLT WWASHER
9011910875 90119-10875 New Genuine Part
9038708016 90387-08016 Collar(For Intake Air Connector)
9048016005 90480-16005 Grommet(For Air Cleaner Bracket)
9167380616 91673-80616 Bolt, W/washer
9167381022 91673-81022 BOLT FLANGE
Heating & Air Conditioning - Cooler Unit ([01.2017 - ] DRAIN HOSE (1701- )RHD) 4
#OEMPart name
88539 88539-36240 Hose, Cooler Unit Drain, No.1
88539 88539-36250 Hose, Cooler Unit Drain, No.2
9046400166 90464-00166 Clamp, Automatic Transmission Oil Cooler Tube, No.7
9046721152 90467-21152 Clip Or Clamp(For Ventilation Hose)
Heating & Air Conditioning - Cooler Unit ([01.2017 - ] ECU (1701- )) 2
#OEMPart name
88650 88650-36200 Amplifier Assy, Air Conditioner
9155380620 91553-80620 BOLT FLANGE
Heating & Air Conditioning - Cooler Unit ([01.2017 - ] UNIT (1701- )) 11
#OEMPart name
87103 87103-36010 Motor Sub-Assy, Blower W/fan
87138 87138-41020 Resistor, Blower
88501 88501-36120 Evaporator Sub-Assy, Cooler, No.1
88510 88510-36290 Unit Assy, Cooler
88515 88515-36010 Valve, Cooler Expansion
88605 88605-36490 Harness Sub-Assy, Cooler Wiring, No.1
88625 88625-36140 Thermistor, Cooler, No.1
88716 88716-36B00 Tube, Liquid, No.1
88717 88717-36510 Tube, Suction, No.1
9011906 90119-06A06 BOLT WWASHER
9155380825 91553-80825 New Genuine Part
Heating & Air Conditioning - Heater Unit & Blower ([01.2017 - ] FRONT BOOST VENTILATOR (1701- )RHD) 6
#OEMPart name
87103 87103-36030 Case Sub-Assy, Front Heater Blower
87110 87110-36B40 Heater Assy
87138 87138-36370 Resistor, Heater Blower
9011906983 90119-06983 New Genuine Part
9155380614 91553-80614 BOLT FLANGE
9167380816 91673-80816 Bolt (For Transmission Control Cable Bracket)
Heating & Air Conditioning - Heater Unit & Blower ([01.2017 - ] FRONT HEATER (1701- )RHD) 10
#OEMPart name
87103 87103-36030 Case Sub-Assy, Front Heater Blower
87107 87107-36091 Unit Sub-Assy, Heater Radiator
87110 87110-36B40 Heater Assy
87138 87138-36370 Resistor, Heater Blower
87248 87248-36550 Pipe, Front Heater Radiator Water
87248 87248-36560 Pipe, Front Heater Radiator Water
9011906983 90119-06983 New Genuine Part
9155380614 91553-80614 BOLT FLANGE
9167380816 91673-80816 Bolt (For Transmission Control Cable Bracket)
9676119016 96761-19016 RING
Heating & Air Conditioning - Heater Unit & Blower ([01.2017 - ] REAR (1701- )ARL) 7
#OEMPart name
87103 87103-36020 Case Sub-Assy, Rear Heater Blower
87107 87107-36240 Unit Sub-Assy, Rear Heater
87120 87110-36C50 Heater Assy, Rear
87138 87138-36360 Resistor, Rear Heater Blower
87187 87187-36430 Wire, Blower Motor Lead
9011906977 90119-06977 BOLT WWASHER
9017906206 90179-06206 Nut
Heating & Air Conditioning - Water Piping ([01.2017 - ] FRONT (1701- )ARL) 16
#OEMPart name
87208 87208-36G30 Pipe Sub-Assy, Heater Water, A
87208 87209-36J50 Pipe Sub-Assy, Heater Water, B
87209 87209-36J00 Hose Sub-Assy, Water
87240 87240-36120 Valve Assy, Heater Water
87245 87245-3C500 Hose, Heater Water, Inlet A
87245 87245-36A30 Hose, Heater Water, Inlet B
87245 87209-36A80 Hose, Heater Water, Inlet A
87245 87245-36A60 Hose, Heater Water, Inlet D
87245 87245-3C410 Hose, Heater Water, Inlet E
87246 87245-3C490 Hose, Heater Water, Outlet A
87246 87245-3B330 Hose, Heater Water, Outlet B
87246 87245-3C380 Hose, Heater Water, Outlet B
9017906206 90179-06206 Nut
9165160616 91651-60616 BOLT
9613652701 96136-52701 Clamp Or Clip(For Water By-Pass Hose No.3)
9613842501 96138-42501 Clip, Hose(For Radiator Hose Sub-Assy)
Heating & Air Conditioning - Water Piping ([01.2017 - ] REAR (1701- )ARL) 11
#OEMPart name
87208 87208-36G60 Pipe Sub-Assy, Heater Water, G
87208 87208-36G70 Pipe Sub-Assy, Heater Water, G
87209 87209-36F50 Hose Sub-Assy, Water, D
87255 87245-36K20 Hose, Rear Heater Water Inlet, D
87255 87245-36M60 Hose, Rear Heater Water Inlet, G
87256 87245-36M80 Hose, Rear Heater Water Outlet, G
8712436040 87124-36040 Clamp, Heater
8712436810 87124-36810 Clamp, Heater
9165160616 91651-60616 BOLT
9613652701 96136-52701 Clamp Or Clip(For Water By-Pass Hose No.3)
9613842501 96138-42501 Clip, Hose(For Radiator Hose Sub-Assy)
Hole Plug ([01.2017 - ] (1701- )) 18
#OEMPart name
6297736010 62977-36010 Bracket, Roof Side Vent Inlet
6871450040 68714-50040 Plug, Hole(For Deck Trim Side Cover)
8712836050 87128-36050 Grommet, Heater
9033325001 90333-25001 Plug, Hole(For Hood)
9033330004 90333-30004 PLUG
9095001189 90950-01189 Plug, Hole, No.3(For Dash Panel)
9095001348 90950-01348 New Genuine Part
9095001450 90950-01450 Plug
9095001506 90950-01506 Plug, Hole(For Luggage Compartment Door Panel)
9095001865 90950-01865 PLUG HOLE
9095001871 90950-01871 PLUG
9095001919 90950-01919 Cushion, Rear Seat
9095001948 90950-01948 PLUG HOLE
9095001954 90950-01954 PLUG HOLE
9095001957 90950-01957 PLUG HOLE
9095001958 90950-01958 Plug, Hole(For Back Door Panel)
9095001960 90950-01960 Plug, Hole(For Floor Panel)
9095006034 90950-06034 New Genuine Part
Horn ([01.2017 - ] (1701- )) 3
#OEMPart name
86520 86520-20300 Horn Assy, Low Pitched
86591 86591-36020 Bracket, Horn
9010508478 90105-08478 New Genuine Part
Injection Nozzle ([01.2017 - ] (1701- )N04C) 6
#OEMPart name
11177 23682-E0050 Gasket, Injection Nozzle Seat
23627 21811-E0050 Screw, Follow(For Nozzle)
23670 23670-E9293 Injector Assy
23670 15518-E0010 Ring, O(For Water Outlet Housing)
23670 15518-E0011 Ring, O(For Injector Assy)
23760 21811-E0060 Bolt, Union(For Nozzle Lekage Pipe No.3)
Injection Pump Assembly ([01.2017 - ] EXCEPT EURO 4, FUEL PIPING (1701- )N04C) 22
#OEMPart name
23271 23271-78550 Hose, Fuel, No.1
23273 23273-78311 Hose, Fuel(For Injection Pump To Fuel Pipe)
23273 96136-41501 Clamp Or Clip, Hose(For Water By-Pass Hose)
23274 23271-78680 Hose Or Pipe, Fuel(For Injection Pump To Fuel Filter)
23274 90467-18008 Clip(For Water By-Pass Hose No.2)
23280 23280-E0010 Limitter Assy, Fuel Pressure
23681 23681-78030 SEAL NOZZLE HOLDER
23701 23701-E0012 Pipe Sub-Assy, Injection, No.1
23702 23702-E0012 Pipe Sub-Assy, Injection, No.2
23703 23703-E0012 Pipe Sub-Assy, Injection, No.3
23704 23704-E0012 Pipe Sub-Assy, Injection, No.4
23741 23742-66020 Clamp, Injection Pipe
23801 23816-E0021 Pipe Sub-Assy, Fuel Return
23803 23803-E0060 Pipe Sub-Assy, Fuel, No.4
23810 23810-E0011 Rail Assy, Common
23810 23810-E0012 Rail Assy, Common
23811 23801-E0021 Pipe, Fuel(For Fuel Filter To Injection Pump)
23815 23816-E0012 Pipe Sub-Assy, Nozzle Leakage, No.3
23815 21811-E0060 Bolt, Union(For Nozzle Lekage Pipe No.3)
23849 23849-E0020 Support, Fuel
23849 23849-E0010 Support, Fuel
82702 82702-E1W50 Bracket Sub-Assy, Wiring Harness
Injection Pump Assembly ([01.2017 - ] EXCEPT EURO 4, SUPPLY PUMP (1701- )N04C) 6
#OEMPart name
0 90099-18005 Screw, Fuel Inlet Follow
0 90099-18010 Screw, Fuel Pipe Follow
0 90099-01502 Washer(For Inlet Follow Screw)
4226 04226-E0022 Valve Kit, Suction Control
22100 22100-E0067 Pump Assy, Injection Or Supply
695160000000000 69516-E0010 New Genuine Part
Inside Trim Board ([01.2017 - ] PILLAR GARNISH (1701- )RHD) 18
#OEMPart name
62211 62210-36230-B0 Garnish, Front Pillar, Rh
62212 62220-36100-B0 Garnish, Front Pillar, Lh
62217 90467-10161 Clip
62413 62413-36060-B0 Garnish, Center Pillar, Lower Rh
62425 62421-36060-B0 Cover, Center Pillar Garnish
62537 62538-36160-B0 Garnish, Pillar No.3, Rh
62539 62538-36120-B0 Garnish, Pillar No.3, Rh
62547 62538-36140-B0 Garnish, Pillar No.3, Lh
62638 62638-36130-B0 Garnish, Quarter Pillar, Rh
62639 62639-36050-B0 Garnish, Quarter Pillar, Lh
62989 62989-36030-B0 Cover, Center Door Lock
63951 63951-36230-B0 Cover, Cooler Pipe
64342 67771-28150 Clip(For Front Body Pillar Garnish)
67745 67745-36100-B0 Moulding, Center Door Trim
67771 90467-10188 Clip(For Deck Boad)
6777144010 67771-44010 Retainer, Cowl Side Trim
9046709240 90467-09240 Clip (For Roof Side, Inner Upper Garnish)
9056012041 90560-12041 SPACER
Inside Trim Board ([01.2017 - ] REAR GARNISH (1701- )) 15
#OEMPart name
62227 64163-36010-B0 Cover, Quarter Pillar, Lower, Rh
62228 64164-36010-B0 Cover, Quarter Pillar, Lower Lh
62471 62471-36260-B0 Garnish, Rear Pillar, Upper Rh
62471 90467-10161 Clip
62472 62472-36280-B0 Garnish, Rear Pillar, Upper Lh
62472 90467-10167 Clip(For Rear Floor Finish Plate)
62487 62487-36030-B0 Cover, Roof Side Inner Garnish, Rh
62488 62488-36010-B0 Cover, Roof Side Inner Garnish, Lh
62510 67771-26230-B6 Retainer, Quarter Trim
62511 62570-36280-B0 Trim, Rear Body Inside, Rear Rh
62512 62580-36070-B0 Trim, Rear Body Inside, Rear Lh
62586 67771-44010 Retainer, Cowl Side Trim
62630 67771-28150 Clip(For Front Body Pillar Garnish)
64745 64745-36070-B0 Cover, Rear Combination Lamp Service, Rh
64746 64746-36100-B0 Cover, Rear Combination Lamp Service, Lh
Inside Trim Board ([01.2017 - ] SIDE GARNISH & TRIM (1701- )BZB70,XZB70..RHD) 34
#OEMPart name
62471 90467-08104-B4 Clip
62510 62550-36230-B0 Trim Assy, Side No.1, Rh
62515 62515-36210-B0 Cover, Side Trim Base, No.1 Rh
62516 62516-36100-B0 Cover, Side Trim Base, No.2 Rh
62516 62516-36220 Cover, Side Trim Base, No.6 Rh
62520 62520-36880-B0 Trim Assy, Side No.1, Lh
62525 62525-36210-B0 Cover, Side Trim Base, No.1 Lh
62526 62526-36090-B0 Cover, Side Trim Base, No.2 Lh
62530 62550-36440-B0 Trim Assy, Side No.2, Rh
62540 62540-36410-B0 Trim Assy, Side No.2, Lh
62550 62550-36310-B0 Trim Assy, Side No.2, Rh
62551 90467-10161 Clip
62560 62560-36440-B0 Trim Assy, Side, No.3 Lh
62570 62570-36230-B0 Trim Assy, Side No.4
62570 62580-36110-B0 Trim Assy, Side No.4
62597 75867-12040 Clip - ROCKER PANEL MOULDING
62611 63395-12150 Clip (For Center Pillar Garnish Panel, Upper)
62611 62611-36070-B0 Board, Side Trim No.1, Rh
62612 62612-36A50-B1 Board, Side Trim No.2, Rh
62613 62613-36440-B0 Board, Side Trim No.3, Rh
62614 62614-36680-B1 Board, Side Trim No.4, Rh
62615 62615-36B50-B1 Board, Side Trim No.5, Rh
62621 62217-13010 Clip(For Rear Floor Mat Plate)
62622 62622-36810-B1 Board, Side Trim No.2, Lh
62623 62623-36790-B0 Board, Side Trim No.3, Lh
62624 62624-36740-B1 Board, Side Trim No.4, Lh
62625 62625-36B00-B1 Board, Side Trim No.5, Lh
62627 64718-36010-B1 Cover, Side Trim, No.1
62671 62517-36160-B0 Cover, Side Trim Board, No.1 Rh
62672 62518-36160-B0 Cover, Side Trim Board, No.1 Lh
64745 67771-26230-B6 Retainer, Quarter Trim
67676 67676-36070-B1 Cover, Side Trim Board, Front Lh
6777144010 67771-44010 Retainer, Cowl Side Trim
9015950322 90159-50322 SCREW WWASHER
Instrument Panel & Glove Compartment ([01.2017 - ] (1701- )RHD) 57
#OEMPart name
55123 55123-36030 Reinforcement, Steering Support
55301 55311-36130-B0 Panel Sub-Assy, Instrument
55305 55305-36050 Reinforcement Sub-Assy, Instrument Panel
55306 55306-36050 Brace Sub-Assy, Instrument Panel, No.1
55307 55307-36050 Brace Sub-Assy, Instrument Panel, No.2
55312 90467-07117 Clip, Radiator Support To Frame
55330 55330-36010 Reinforcement Assy, Instrument Panel
55341 55341-36010 Brace, Instrument Panel, No.1
55349 55349-36010 Bracket, Instrument Panel Brace Mounting, Lower
55366 55366-36020 Bracket, Radio Mounting, No.1
55376 55376-36020 Bracket, Instrument Panel Mounting, No.1
55377 55377-36010 Bracket, Instrument Panel Mounting, No.2
55391 55391-36020 Panel, Instrument Panel Reinf, Inner No.1
55410 55411-36090 Panel Assy, Instrument Cluster Finish
55412 90467-08186-C3 Clip(For Front Bumper), No.1
55412 55412-36050-C0 Panel, Instrument Cluster Finish, Center
55429 55429-36010 Protector, Instrument Cluster Finish Panel
55432 55432-36050-B0 Door, Reservoir Tank
55433 55433-36010-C0 Panel, Instrument Panel Finish, Lower No.2
55447 55447-36010-C0 Base, Switch Hole, No.2
55458 55458-36040-B0 Cover, Instrument, Lwr
55470 55470-36010-B1 Garnish Assy, Instrument Cluster Finish Panel
55474 55474-36010-B0 Garnish, Instrument Cluster Finish Panel, No.1
55480 55480-36010-B0 Panel Assy, Instrument Panel Finish, Lwr
55521 55521-44020 Cover, Stereo Opening
55522 55522-52020 Cover, Stereo Opening
55539 55539-58130-C0 Cover, Spare Switch Hole
55547 55547-20020-C0 Cover, Remote Control Mirror Hole
55548 55548-47020-C0 Cover, Instrument Panel Hole
55601 55601-36010-C0 Tray Sub-Assy, Instrument Panel Under
55619 55630-36010 Holder, Instrument Panel Cup, No.2
55620 55620-36010-C0 Holder Assy, Instrument Panel Cup
55633 55633-58030 Support, Instrument Panel Cup Holder
55650 55650-36040 Register Assy, Instrument Panel, No.1
55660 55660-36040-B0 Register Assy, Instrument Panel, No.2
55670 55660-36040-C0 Register Assy, Instrument Panel, Center
55961 55961-36040-B0 Nozzle, Side Defroster, Rh
55962 55962-36030-B0 Nozzle, Side Defroster, Lh
73970 73970-36010-B0 Air Bag Assy, Instrument Panel Passenger
9011908 90119-08D23 New Genuine Part
9010508460 90105-08460 New Genuine Part
9011906942 90119-06942 BOLT WWASHER
9011906983 90119-06983 New Genuine Part
9015950267 90159-50267 SCREW WWASHER
9015950311 90159-50311 SCREW
9015950311 90159-A0034 SCREW WWASHER
9017906278 90179-06278 NUT
9017908241 90179-08241 NUT
9018305094 90183-05094 NUT
9046705171 90467-05171 Clip, Instrument Panel
9046709241 90467-09241 Clip(For Back Door Side Garnish)
9155380620 91553-80620 BOLT FLANGE
9167380816 91673-80816 Bolt (For Transmission Control Cable Bracket)
9356855012 93568-55012 SCREW
9356855014 93568-55014 Screw
9415180600 94151-80600 Nut, Cap(For Cylinder Head Cover)
9415180800 94151-80800 Nut (For Transmission Control Cable)
Interior Lamp ([01.2017 - ] (1701- )RHD) 14
#OEMPart name
81027 81027-36030 Lens, Room Lamp
81230 81230-30200 Lamp Assy, Courtesy
81230 90981-12010 Bulb (For Lower Back Finish Panel Emblem)
81240 81240-36180 Lamp Assy, Room
81240 90467-10161 Clip
81240 99132-11100 Bulb, Room Lamp, No.1
81361 81361-90511 Lens, Step Lamp
81364 81364-90501 Gasket, Step Lamp
81380 81380-36021 Lamp Assy, Step
81380 99132-12050 Bulb (12V 5W)
81380 90080-81053 Bulb(For Clearance Lamp)
81840 81840-36040-B0 Lamp Assy, Door Indicator
81871 81871-36010 Lens, Key Illumination
9324914020 93249-14020 New Genuine Part
Lock Cylinder Set ([01.2017 - ] (1701- )RHD) 6
#OEMPart name
69051 69051-36071 Cylinder & Key Set, Door Lock, Rh
69054 69052-36031 Cylinder & Key Set, Door Lock, Lh
69057 69053-36010 Cylinder & Key Set, Door Lock, Rh
69057 69057-36100 Cylinder & Key Set, Ignition Switch Lock
69503 69005-36C00 Cylinder Set, Lock
69503 69515-36070 Key, Blank
Manifold ([01.2017 - ] (1701- )N04C..02S,17S,20S,22S) 14
#OEMPart name
15407 15407-78150 Pipe Sub-Assy, Turbo Oil Inlet
17107 17107-E0012 Insulator Sub-Assy, Exhaust Manifold Heat
17111 17111-E0230 Manifold, Intake
17113 17103-E0412 Pipe, Intake
17113 17113-E0A50 Pipe, Intake
17113 17113-E0332 Pipe, Intake, No.1
17138 17138-E0441 Stay, Intake Pipe
17141 17141-E0370 Manifold, Exhaust
17173 17173-78080 Gasket, Exhaust Manifold To Head
17201 17201-E0701 Turbocharger Sub-Assy
17271 17271-E0190 Insulator, Turbo, No.1
17279 17451-E0110 Gasket, Exhaust Pipe
17291 17291-E0020 Elbow, Turbine Outlet
9223372036854775807 17444-E0060 Spacer, Exhaust Pipe, No.4
Meter ([01.2017 - ] METER (1701- )) 4
#OEMPart name
83100 83800-36E80 Meter Assy, Combination
83138 83852-36D20 Glass, Combination Meter
9015950311 90159-50311 SCREW
9015950311 90159-A0034 SCREW WWASHER
Meter ([01.2017 - ] TACHOGRAPH ASSY (1701- )) 3
#OEMPart name
9015950311 90159-50311 SCREW
9015950311 90159-A0034 SCREW WWASHER
9015960602 90159-60602 SCREW
Mirror ([01.2017 - ] INNER MIRROR (1701- )) 5
#OEMPart name
87810 87810-36100-B0 Mirror Assy, Inner Rear View
87827 87828-30010 Absorber, Inner Rear View Mirror
87827 87828-32010 Absorber, Inner Rear View Mirror
87827 87828-92600 Absorber, Inner Rear View Mirror
87834 87834-20080-B6 Cover, Inner Rear View Mirror Stay Holder
Mirror ([01.2017 - ] OUTER MIRROR (1701- )RHD) 15
#OEMPart name
87901 87901-36160 Mirror Sub-Assy, Outer Rear View, Rh
87902 87902-36090 Arm Sub-Assy, Outer Rear View Mirror, Rh
87905 87905-36110 Arm Sub-Assy, Outer Rear View Mirror, Lh
87907 87907-36030 Mirror Sub-Assy, Outer Under View
87910 87910-36180 Mirror Assy, Outer Rear View, Rh
87914 87914-36010 Cover, Outer Mirror Knob, Rh
87917 87929-26020 Screw, Outer Mirror
87917 62955-50010 Retainer, Quarter Vent Louver
87940 87940-36190 Mirror Assy, Outer Rear View, Lh
87941 87941-36010 Gasket, Outer Rear View Mirror, Lh
87945 87945-36010 Cover, Outer Mirror, Lh
87945 87944-36010 Cover, Outer Mirror, Lh
87965 87965-37030 Grommet, Outer Mirror
9011908 90119-08C56 BOLT WWASHER
9415180800 94151-80800 Nut (For Transmission Control Cable)
Mirror ([01.2017 - ] REAR UNDER MIRROR (1701- )) 3
#OEMPart name
87907 87907-95J02 Mirror Sub-Assy, Outer Under View
87950 87950-36080 Mirror Assy, Outer Under Rear View
9011906911 90119-06911 BOLT WWASHER
Moulding ([01.2017 - ] (1701- )) 10
#OEMPart name
53105 53105-36010-A0 Garnish Sub-Assy, Radiator Grille
53181 53107-36010-A0 Cover, Headlamp, Rh
53182 53108-36090-A0 Cover, Headlamp, Lh
75039 62217-13010 Clip(For Rear Floor Mat Plate)
75039 90467-09206 Clip, Front Air Shutter Seal
75505 75551-36010 Garnish Sub-Assy, Roof Side, Front Rh
75551 75551-36021 Moulding, Roof Drip Side, Rh
75552 75552-36021 Moulding, Roof Drip Side, Lh
75561 75561-52020 Clip, Roof Drip Side Finish Moulding, No.1
6295550010 62955-50010 Retainer, Quarter Vent Louver
Mounting ([01.2017 - ] (1701- )N04C) 16
#OEMPart name
12311 12311-E0180 Bracket, Engine Mounting, Front No.1 Rh
12315 12315-E0100 Bracket, Engine Mounting, Front No.1 Lh
12321 12321-78400 Bracket, Engine Mounting, Rear, No.1
12325 12325-78380 Bracket, Engine Mounting, No.3
12341 12319-51010 Spacer, Engine Mounting
12361 12361-78142 Insulator, Engine Mounting, Front
12371 12371-78030 Insulator, Engine Mounting, Rear No.1
12381 12381-78071 Stabilizer, Engine Mounting
12382 12382-78070 Stabilizer, Engine Mounting, Lh
9017912024 90179-12024 NUT
9017912127 90179-12127 Nut
9017912127 90178-A0071 New Genuine Part
9020110031 90201-10031 WASHERPLATE
9155281025 91552-81025 BOLT TLANGE
9415011001 94150-11001 NUT
9418801241 94188-01241 Nut(For Front Support To Front Shock Absorber)
Oil Cooler & Tube (Atm) ([01.2017 - ] A444E (1701- )4FC) 33
#OEMPart name
32907 32907-36150 Tube Sub-Assy, Oil Cooler, No.2
32909 32909-65010 Clamp Sub-Assy, Oil Cooler Hose
32910 32910-36060 Cooler Assy, Oil
32913 32913-36070 Bracket, Oil Cooler
32913 32913-36080 Bracket, Oil Cooler
32921 32921-36160 Tube, Oil Cooler Inlet, No.1
32921 90301-11006 O Ring, Transaxle Case Elbow
32921 90407-20007 Union(For Oil Cooler Tube)
32922 32922-36170 Tube, Oil Cooler Outlet, No.1
32922 90407-20004 Union(For Oil Cooler Tube)
32922 32922-36160 Tube, Oil Cooler Outlet, No.1
32923 32923-36040 Clamp, Automatic Transmission Oil Cooler Tube
32923 32923-65030 Clamp, Automatic Transmission Oil Cooler Tube
32923 32923-65040 Clamp, Automatic Transmission Oil Cooler Tube, No.1
32924 90462-12076 Clamp, Automatic Transmission Oil Cooler Tube
32926 32926-60010 Cushion, Oil Cooler Tube(Atm)
32931 32921-36150 Tube, Oil Cooler Inlet, No.1
32941 90445-17152 Hose, Oil Cooler Inlet, No.1
32941 90445-17117 Hose(For Oil Cooler Inlet)
32942 32942-36050 Hose, Oil Cooler Outlet, No.1
32942 90445-17074 Hose(For Oil Cooler Inlet)
32942 90445-17101 Hose, Oil Cooler Water Outlet
32943 32942-36060 Hose, Transmission Oil Cooler, No.1
32943 90445-17100 Hose, Oil Cooler Tube
32943 32941-36120 Hose, Transmission Oil Cooler, No.3
32943 90466-16004 Clip(For Ventilation Hose No.2)
91611 91611-B0616 Bolt(For Transaxle Case Receiver)
91611 91611-B0816 Bolt
91611 91611-G0820 Bolt
9017808021 90178-08021 New Genuine Part
9094901993 90949-01993 Clamp, Automatic Transmission Oil Cooler Tube, No.1
9165160816 91651-60816 BOLT
9165160816 90080-11396 Bolt
Oil Filter ([01.2017 - ] (1701- )N04C) 1
#OEMPart name
15613 15613-E0080 Filter Sub-Assy, Oil
Overdrive & Electronic Controlled Transmission ([01.2017 - ] A444E (1701- )4FC) 6
#OEMPart name
84722 84722-36040-C0 Switch, Transmission Control
89413 89413-32010 SENSOR, TRANSMISSION REVOLUTION
89413 89413-32011 SENSOR, TRANSMISSION REVOLUTION
89413 90301-11008 Ring,o (For Speedometer Driven Hole Cover)
89429 89429-34010 Sensor, Temperature
91611 91611-B0616 Bolt(For Transaxle Case Receiver)
Overdrive Gear (Atm) ([01.2017 - ] A444E (1701- )4FC) 41
#OEMPart name
34101 34101-60040 Case Sub-Assy, Overdrive
34101 90301-09008 Ring, O (For Overdrive Case)
34601 34601-36020 Drum Sub-Assy, Overdrive Direct Clutch
34602 34602-60020 Piston Sub-Assy, Overdrive Direct Clutch
34602 90301-64007 Ring, O (For Overdrive Direct Clutch Piston)
34602 90301-99027 Ring, O (For Overdrive Direct Clutch Piston)
34603 34603-60010 Spring Sub-Assy, Overdrive Brake Return
34603 90521-99109 Ring, Hole Snap (For Overdrive Brake Return Spring)
34604 34604-60020 Spring Sub-Assy, Overdrive Clutch Return
34613 90520-50001 Ring, Shaft Snap (For Overdrive Direct Clutch Return Spring)
34615 35675-60070 Flange, Overdrive Clutch
34615 35675-60080 Flange, Overdrive Clutch
34615 35675-60090 Flange, Overdrive Clutch
34615 35675-60100 Flange, Overdrive Clutch
34615 90521-99115 Ring, Hole Snap (For Overdrive Clutch Flange)
34622 34622-60010 Piston, Overdrive Brake
34622 90301-99030 Ring, O (For Overdrive Brake Piston)
34622 90301-99031 Ring, O (For Overdrive Brake Piston)
34625 34625-60020 Flange, Overdrive Brake, No.1
34710 34710-36020 Gear Assy, Overdrive Planetary
34710 90374-23001 Bearing, Thrust Needle Roller(For Overdrive Planetary Gear)
34710 90374-28012 Bearing, Thrust Needle Roller(For Overdrive Planetary Gear)
34713 34713-36010 Race, 1 Way Clutch Outer (For Overdrive)
34714 35791-36010 Clutch, 1 Way(For Overdrive)
34714 90521-90002 Ring, Hole Snap(For 1 Way Clutch)
34731 34731-36020 Gear, Overdrive Planetary Ring
34731 90520-99093 Ring, Hole Snap (For Overdrive Planetary Ring Gear)
34732 34732-36020 Flange, Overdrive Planetary Ring Gear
34732 90374-34007 Bearing, Thrust(For Overdrive Planetary Ring Gear Flange)
34735 34737-60020 Washer, Overdrive Planetary Gear Thrust, No.1
34736 34738-36010 Washer, Overdrive Planetary Gear Thrust, No.2
35617 35617-36020 Ring, Clutch Drum Oil Seal (For Overdrive)
35632 35632-60050 Plate, Brake (For Overdrive)
35633 35633-60050 Disc, Clutch (For Overdrive Direct Clutch)
35634 35634-60010 Plate, Clutch (For Overdrive Direct Clutch)
35634 35632-60010 Plate, Brake (For Overdrive)
35677 35633-60060 Disc, Clutch (For Overdrive Direct Clutch)
35712 35712-36010 Ring, Oil Seal (For Overdrive Planetary Ring Gear Flange)
35785 35785-36010 Retainer, Center Support Ring
35789 35789-60030 Race, Thrust Bearing (For Overdrive Case Front)
35789 35789-60020 Race, Thrust Bearing (For Overdrive Planetary Gear)
Parking Brake & Cable ([01.2017 - ] (1701- )) 19
#OEMPart name
46210 46210-36040-B2 Lever Assy, Parking Brake
46241 46241-36020-B2 Boot, Parking Brake Lever
46243 46243-36050-B0 Cover, Parking Brake Lever
46410 46410-36540 Cable Assy, Parking Brake, No.1
46420 90949-01841 Clamp, No.1(For Parking Brake Cable)
46420 90949-01B36 Clamp, No.1(For Parking Brake Cable)
46441 94130-60600 Nut, Wire Adjusting, No.1
46441 90339-04024 Cap, Transfer, Rear Case
46451 46451-36060 Bracket, Parking Brake Cable Support
46464 46464-36020 Plate, Cable Clamp Support
91611 91611-G0820 Bolt
91651 91651-B0820 Bolt, Radiator Side Support Plate
91651 90080-11347 New Genuine Part
91651 91651-B0825 Bolt, Hexagon(For Steering Column Bracket)
9011906315 90119-06315 BOLT
9046808001 90468-08001 CLIP
9165140814 91651-40814 BOLT
9165140814 90080-11228 New Genuine Part
9331955016 93319-55016 New Genuine Part
Parking Brake & Cable ([01.2017 - ] (1701- )XZB70 ; (1701- )HZB70..LHD) 23
#OEMPart name
46201 90507-20020 Spring, Tension
46201 90507-20021 Spring, Tension
46405 47405-36010 Screw Set, Shoe Adjusting, Rh
46501 46501-36210 Drum Sub-Assy, Parking Brake
46501 90114-11124 Bolt (For Transfer Output Shaft Companion Flange)
46503 46503-37710 Plate Sub-Assy, Parking Brake
46540 46540-37040 Shoe Assy, Parking Brake, Rh Or Center No.1
46550 46550-37040 Shoe Assy, Parking Brake, Rh Or Center No.2
46550 90905-06020 Spring, Tension, No.1(For Parking Brake Shoe Return)
46550 90213-06003 Washer, Type C(For Parking Brake Shoe)
46550 90506-14054 Spring, Tension, No.2(For Parking Brake Shoe Return)
46550 90506-23049 Spring, Tension, No.2(For Parking Brake Shoe Return)
46555 90501-16108 Spring, Brake Shoe Hold Down
46557 47449-20011 Cup, Brake Shoe Hold Down
46601 46601-36051 Lever Sub-Assy, Parking Brake Shoe
46612 46612-36050 Strut, Parking Brake Shoe Lever
46612 90504-10010 Spring, Compression(For Parking Brake Shoe Strut)
47447 47447-20030 Pin, Shoe Hold Down Spring
47456 47456-35010 Plate, Shoe Guide(For Parking Brake)
47459 47459-30010 Bolt, Parking Brake Shoe Guide Plate Set
47491 47491-22020 Plug, Shoe Adjusting Hole (For Parking Brake)
9011906315 90119-06315 BOLT
9011910398 90119-10398 BOLT
Partial Engine Assembly ([01.2017 - ] (1701- )) 2
#OEMPart name
11000 19000-78M13 Engine Assy, Partial
11000 19000-78M14 Engine Assy, Partial
Planetary Gear, Reverse Piston & Counter Gear(Atm) ([01.2017 - ] A444E (1701- )4FC) 26
#OEMPart name
33481 33481-36290 Gear, Speedometer Drive (Atm)
35073 35073-36050 Shaft Sub-Assy, Output
35073 90179-22008 Nut (For Manual Transmission Output Shaft Rear Set)
35073 90301-29002 Ring, O(For Manual Transmisson Output Shaft Rear Set Nut)
35073 90363-45008 Bearing, Radial Ball (For Output Shaft Front)
35073 90363-36007 Bearing, Radial Ball (For Output Shaft Rear)
35073 90521-78001 Ring, Hole Snap (For Output Shaft Rear Bearing)
35073 90521-99042 Ring, Hole Snap (For Output Shaft)
35469 35469-36030 Spacer, Parking Lock Gear
35703 90301-99076 Ring, O (For Output Shaft)
35713 35713-60030 Shaft, Intermediate
35720 35720-60030 Gear Assy, Front Planetary
35733 35733-36020 Gear, Parking Lock
35737 35737-60011 Washer, Planetary Carrier Thrust, No.1
35738 35738-36020 Washer, Planetary Carrier Thrust, No.2
35743 35743-60030 Gear, Front Planetary Ring
35743 90521-99018 Ring, Hole Snap (For Direct Clutch Flange)
35748 35748-36010 Ring, Intermediate Shaft Oil Seal
35760 35760-60050 Gear Assy, Rear Planetary
35761 35761-60030 Gear, Rear Planetary Ring
35762 35762-60030 Flange, Rear Planetary Ring Gear
35762 90374-32006 Bearing, Thrust Needle Roller (For Rear Planetary Flange)
35762 90521-99041 Ring, Hole Snap (For Output Shaft)
35762 90520-23063 Ring, Shaft Snap (For Rear Planetary Ring Gear)
35790 35790-36020 Clutch Assy, 1 Way
35790 90521-99109 Ring, Hole Snap (For Overdrive Brake Return Spring)
Power Steering Tube ([01.2017 - ] (1701- )XZB60,70..RHD) 18
#OEMPart name
44327 44327-30030 Gasket(For Pressure Hose)
44348 44348-36360 Hose, Oil Reservoir To Pump, No.1
44410 44410-36150 Tube Assy, Pressure Feed
44411 44411-36550 Hose, Pressure Feed
44411 96341-41603 Bolt, Union(For Rear Stabilizer Contorol Tube)
44412 90445-18137 Hose, Return
44416 44416-36410 Tube, Return(For Steering Gear Outlet)
44416 44412-36040 Hose(For Return Tube To Reservior)
44416 90401-14003 Bolt, Union(For Oil Cooler)
44416 90430-14014 Gasket(For Return Tube)
44447 44447-36200 Bracket, Hose Support, No.1
9046716019 90467-16019 Clip(For Return No.1)
9046716031 90467-16031 CLIP
9046721010 90467-21010 Clip(For Ventilation Hose No.2)
9046808045 90468-08045 CLIP
9163160840 91631-60840 New Genuine Part
9164180825 91641-80825 BOLT WWASHER
9461310800 94613-10800 Spacer (For Control Select Lever Support)
Propeller Shaft & Universal Joint ([01.2017 - ] PROPELLER SHAFT (1701- )BZB70,HZB70,TRB70,XZB70) 43
#OEMPart name
4371 04371-36050 Spider Kit, Universal Joint(For Propeller Shaft)
4371 04371-60210 Spider Kit, Universal Joint(For Propeller Shaft)
37100 37100-36924 Shaft Assy, Propeller W/center Bearing
37100 90105-11013 Bolt, No.1 (For Propeller Shaft & Differential Setting)
37100 90179-11005 Nut, No.1 (For Propeller Shaft & Differential Setting)
37100 90201-11013 Washer, No.1 (For Propeller Shaft & Differential Setting)
37110 37110-36740 Shaft Assy, Propeller, Rear
37120 90179-20006 Nut (For Propeller Intermediate Shaft Setting)
37120 37120-36550 Shaft Assy, Propeller, Center
37140 37120-36730 Shaft Assy, Propeller, Front
37207 37207-35011 Cushion Sub-Assy, Center Support Bearing, No.1
37230 37230-36141 Bearing Assy, Center Support, No.1
37230 90363-30029 Bearing, No.1 (For Center Support)
37230 90521-66077 Ring, Snap, No.1 (For Center Support Bearing)
37230 90522-97001 Ring, Set, No.1 (For Center Support Bearing Cushion)
37230 94512-00800 Washer, No.1 (For Propeller Shaft & Differential Setting)
37230 90101-08157 Bolt, No.1 (For Center Support Bearing)
37230 94130-00802 Nut, No.1 (For Center Support Bearing)
37230 90170-A0001 New Genuine Part
37230 37230-36131 Bearing Assy, Center Support, No.2
37231 37231-36021 Housing, Center Support Bearing, No.1
37233 37233-36080 Housing, Center Support Bearing, No.2
37233 37233-36050 Retainer, Center Support Bearing
37342 37342-36010 Deflector, Propeller Shaft Dust, No.2
37344 37344-36010 Deflector, Propeller Shaft Dust, No.3
37345 37345-36010 Deflector, Propeller Shaft Dust, No.4
37401 90520-29024 Ring, Hole Snap (For Spider Bearing)
37401 90520-29025 Ring, Hole Snap (For Spider Bearing)
37401 90520-29026 Ring, Hole Snap (For Spider Bearing)
37401 90520-29027 Ring, Hole Snap (For Spider Bearing)
37401 90520-29039 Ring, Hole Snap (For Spider Bearing)
37401 90520-29040 Ring, Hole Snap (For Spider Bearing)
37401 90520-29041 Ring, Hole Snap (For Spider Bearing)
37401 90520-29042 Ring, Hole Snap (For Spider Bearing)
37401 90520-29043 Ring, Hole Snap (For Spider Bearing)
37401 90520-29044 Ring, Hole Snap (For Spider Bearing)
37401 90520-29045 Ring, Hole Snap (For Spider Bearing)
37401 90520-29046 Ring, Hole Snap (For Spider Bearing)
37401 90520-29047 Ring, Hole Snap (For Spider Bearing)
37401 90520-29048 Ring, Hole Snap (For Spider Bearing)
9017910213 90179-10213 NUT W/WASHER
9038710143 90387-10143 Bolt, No.1 (For Center Support Bearing)
9164281050 91642-81050 New Genuine Part
Propeller Shaft & Universal Joint ([01.2017 - ] PROPELLER SHAFT GUARD (1701- )) 3
#OEMPart name
37110 51569-36180 Guard, Propeller Shaft
37110 51569-36190 Guard, Propeller Shaft
9011908686 90119-08686 BOLT
Protector Pipe, Roll Bar & Handrail ([01.2017 - ] FOLDING DOOR (1701- )RHD..EX,STD) 5
#OEMPart name
74730 74730-36250 Frame Assy, Hand Grip
9026005001 90260-05001 New Genuine Part
9026906006 90269-06006 PIN
9167380616 91673-80616 Bolt, W/washer
9167380635 91673-80635 New Genuine Part
Radiator & Water Outlet ([01.2017 - ] ENGINE SIDE (1701- )N04C..02S,17S,20S,22S) 18
#OEMPart name
16027 16895-E0120 Pipe Sub-Assy, Turbo Water, No.1
16028 16895-E0090 Pipe Sub-Assy, Turbo Water, No.2
16206 16206-E0660 Pipe Sub-Assy, Water By-Pass
16206 16206-E0420 Pipe Sub-Assy, Water By-Pass, No.3
16260 16260-E0070 Pipe Sub-Assy, Water By-Pass
16261 16261-E0051 Hose, Water By-Pass
16261 16261-E0060 Hose, Water By-Pass
16328 16328-78010 Gasket, Water Inlet Pipe
16331 16331-E0120 Outlet Sub-Assy, Water
16333 16303-78150 Housing, Water Outlet
16333 16303-78151 RADIATOR & WATER OUTLET
16333 15518-E0010 Ring, O(For Water Outlet Housing)
16341 16346-E0040 Gasket, Water Outlet
16577 16577-78132 Pipe, Radiator
9033916001 90339-16001 Plug, Heater Water
9155180820 91551-80820 Bolt, W/washer (For Transmission Oil Pump Cover)
9613842501 96138-42501 Clip, Hose(For Radiator Hose Sub-Assy)
448510000000000 44851-E0010 Valve, Drain Cock
Radiator & Water Outlet ([01.2017 - ] RADIATOR SIDE (1701- )N04C..RHD) 42
#OEMPart name
16261 16261-78230 Hose, Water By-Pass
16261 90466-13001 Clamp Or Clip, Hose(For Water By-Pass Hose)
16261 90467-17021 Clamp Or Clip, Hose(For Water By-Pass Hose)
16361 16361-67040 Fan
16400 16400-78752 Radiator Assy
16400 16417-30170 Cock Sub-Assy, Radiator Drain
16400 16418-15520 Packing(For Radiator Drain Cock)
16400 16444-67130 Bushing(For Radiator)
16400 16445-67130 Collar(For Radiator)
16453 16453-78291 Plate, Radiator Side
16454 16454-78291 Plate, Radiator Side
16455 16455-61160 Bolt, Radiator Side Support Plate
16455 16455-67130 Bolt, Radiator Side Support Plate
16470 16470-17062 Tank Assy, Radiator Reserve
16471 16405-17030 Cap Sub-Assy, Reserve Tank
16520 16520-78020 Filler Assy, Water
16520 16401-36020 Cap Sub-Assy, Radiator
16549 16549-61010 Collar, Radiator Support, No.2
16567 16567-78390 Hose(For Radiator Reserve Tank)
16567 90467-11085 Clamp Or Clip(For Radiator Breather Hose)
16571 16571-78290 Hose, Radiator, Inlet
16571 90467-43002 Clamp Or Clip, Hose(For Radiator Inlet)
16572 16572-78300 Hose, Radiator, Outlet
16573 16573-78111 Hose, Radiator, No.3
16573 96136-53601 Clamp Or Clip, Radiator Hose, No.3
16582 16582-78110 Bracket, Radiator, No.1
16583 16583-17010 Bracket, Radiator, No.2
16584 16584-61020 Insulator, Radiator Mounting
16585 16585-78080 Bracket, Radiator, No.3
16611 16611-16010 Bracket(For Radiator Reserve Tank)
16612 16612-17011 Bracket, Radiator Reserve Tank, No.2
16711 16711-78240 Shroud Sub-Assy, Fan
91621 91621-B0816 BOLT WWASHER
91651 91651-B0620 New Genuine Part
9011908 90119-08C37 BOLT WWASHER
9017906110 90179-06110 New Genuine Part
9017906293 90179-06293 NUT
9017908143 90179-08143 NUT
9046400460 90464-00460 Clamp Or Clip(For Radiator Reserve Tank Hose No.2)
9167180850 91671-80850 BOLT FLANGE
9167380616 91673-80616 Bolt, W/washer
9167380822 91673-80822 New Genuine Part
Radiator Grille ([01.2017 - ] (1701- )) 6
#OEMPart name
53101 53101-36080 Grille Sub-Assy, Radiator
9010906388 90109-06388 BOLT
9010906388 90109-A0061 Bolt
9016750063 90167-50063 SCREW PAN TAPPING
9046709206 90467-09206 Clip, Front Air Shutter Seal
9054106008 90541-06008 Cushion, No.1(For Clutch Pedal)
Radiator Support & Wind Guide ([01.2017 - ] (1701- )) 8
#OEMPart name
53167 16533-78140 Rod, Radiator Brace, Rh
53168 16534-78120 Rod, Radiator Brace, Lh
53188 53168-36010 Bracket, Radiator Brace Rod, Rh
9044011043 90440-11043 Tube(For Radiator Brace Rod)
9054010022 90540-10022 Cushion(For Engine Under Cover Bracket)
9167380822 91673-80822 New Genuine Part
9415080800 94150-80800 NUT, FLANGE
9461310800 94613-10800 Spacer (For Control Select Lever Support)
Radio Receiver & Amplifier & Condenser ([01.2017 - ] (1701- )RHD) 8
#OEMPart name
86211 86211-36050 Bracket, Radio, No.1
86212 86212-36050 Bracket, Radio, No.2
86285 86285-36070 Bracket, Amplifier, No.1
86286 86286-36050 Bracket, Amplifier, No.2
9015350010 90153-50010 BOLT
9015950311 90159-50311 SCREW
9015950311 90159-A0034 SCREW WWASHER
9155380620 91553-80620 BOLT FLANGE
Rear Axle Housing & Differential ([01.2017 - ] REAR AXLE HOUSING (1701- )) 13
#OEMPart name
4412 04412-36120 Gasket Kit, Rear Differential Carrier
41110 90116-10226 Bolt, No.1 (For Rear Differential Carrier Set)
42110 42110-3B221 Housing Assy, Rear Axle
42110 90341-18006 Plug (No magnet)
42110 12157-10010 Gasket (For Drain Plug)
42110 90930-03138 Plug, Breather (For Rear Axle Housing)
42110 90341-18057 Drain Plug (with Magnet)
42139 42108-36050 Deflector, Rear Axle Housing Oil
42181 42181-36060 Gasket, Rear Differential Carrier
9011910283 90119-10283 Bolt, No.1 (For Rear Differential Carrier Set)
9011910283 90119-10069 Bolt, No.1 (For Rear Differential Carrier Set)
9413001002 94130-01002 Nut, Booster Sleeve Cylinder
9453101000 94531-01000 WASHER
Rear Axle Housing & Differential ([01.2017 - ] REAR DIFFERENTIAL CARRIER (1701- )) 81
#OEMPart name
41101 41101-37010 Carrier Sub-Assy, Differential, Rear
41110 41110-37091 Carrier Assy, Differential, Rear
41114 90105-16022 Bolt, Rear Differential Bearing Cap
41115 41115-37010 Ring, Differential Oil Storage
41201 41201-80601 Final Gear Kit, Differential, Rear
41201 90366-40100 Bearing (For Rear Drive Pinion Rear)
41201 90366-35108 Bearing (For Rear Drive Pinion Front)
41201 90311-48024 Seal, Oil (For Front Differential Carrier)
41201 90564-40004 Washer, Plate (For Rear Differential Drive Pinion)
41201 90564-40006 Washer, Plate (For Rear Differential Drive Pinion)
41201 90564-40007 Washer, Plate (For Rear Differential Drive Pinion)
41201 90564-40008 Washer, Plate (For Rear Differential Drive Pinion)
41201 90564-40009 Washer, Plate (For Rear Differential Drive Pinion)
41201 90564-40010 Washer, Plate (For Rear Differential Drive Pinion)
41201 90564-40011 Washer, Plate (For Rear Differential Drive Pinion)
41201 90564-40012 Washer, Plate (For Rear Differential Drive Pinion)
41201 90564-40013 Washer, Plate (For Rear Differential Drive Pinion)
41201 90564-40014 Washer, Plate (For Rear Differential Drive Pinion)
41201 90564-40015 Washer, Plate (For Rear Differential Drive Pinion)
41201 90564-40016 Washer, Plate (For Rear Differential Drive Pinion)
41201 90564-40017 Washer, Plate (For Rear Differential Drive Pinion)
41201 90564-40018 Washer, Plate (For Rear Differential Drive Pinion)
41201 90564-40019 Washer, Plate (For Rear Differential Drive Pinion)
41201 90564-40020 Washer, Plate (For Rear Differential Drive Pinion)
41201 90564-40021 Washer, Plate (For Rear Differential Drive Pinion)
41201 90564-40022 Washer, Plate (For Rear Differential Drive Pinion)
41201 90564-40023 Washer, Plate (For Rear Differential Drive Pinion)
41201 90564-40024 Washer, Plate (For Rear Differential Drive Pinion)
41201 90564-40025 Washer, Plate (For Rear Differential Drive Pinion)
41201 90564-35019 Shim (For Rear Diff Drive Pinion Spacer Front Adjust)
41201 90564-35020 Shim (For Rear Diff Drive Pinion Spacer Front Adjust)
41201 90564-35021 Shim (For Rear Diff Drive Pinion Spacer Front Adjust)
41201 90564-35022 Shim (For Rear Diff Drive Pinion Spacer Front Adjust)
41201 90564-35023 Shim (For Rear Diff Drive Pinion Spacer Front Adjust)
41201 90564-35024 Shim (For Rear Diff Drive Pinion Spacer Front Adjust)
41201 90564-35025 Shim (For Rear Diff Drive Pinion Spacer Front Adjust)
41201 90564-35026 Shim (For Rear Diff Drive Pinion Spacer Front Adjust)
41201 90564-35027 Shim (For Rear Diff Drive Pinion Spacer Front Adjust)
41201 90564-35028 Shim (For Rear Diff Drive Pinion Spacer Front Adjust)
41201 90564-35029 Shim (For Rear Diff Drive Pinion Spacer Front Adjust)
41201 90564-35030 Shim (For Rear Diff Drive Pinion Spacer Front Adjust)
41201 90564-35031 Shim (For Rear Diff Drive Pinion Spacer Front Adjust)
41201 90564-35032 Shim (For Rear Diff Drive Pinion Spacer Front Adjust)
41201 90564-35033 Shim (For Rear Diff Drive Pinion Spacer Front Adjust)
41201 90564-35034 Shim (For Rear Diff Drive Pinion Spacer Front Adjust)
41201 90564-35035 Shim (For Rear Diff Drive Pinion Spacer Front Adjust)
41201 90564-35036 Shim (For Rear Diff Drive Pinion Spacer Front Adjust)
41201 90564-35037 Shim (For Rear Diff Drive Pinion Spacer Front Adjust)
41201 90564-35038 Shim (For Rear Diff Drive Pinion Spacer Front Adjust)
41201 90564-35039 Shim (For Rear Diff Drive Pinion Spacer Front Adjust)
41201 90564-35040 Shim (For Rear Diff Drive Pinion Spacer Front Adjust)
41204 41204-36090 Flange Sub-Assy, Rear Drive Pinion Companion, Rear
41204 90179-22029 Nut (For Rear Drive Pinion)
41214 41214-37010 Slinger, Rear Differential Drive Pinion Oil
41222 41222-36020 Plate, Rear Differential Ring Gear Set Bolt Lock
41222 90101-14315 Bolt (For Rear Differential Ring Gear Set)
41231 41231-36040 Spacer, Rear Differential Drive Pinion Bearing
41252 41252-37020 Deflector, Dust (For Rear Differential)
41301 41301-36030 Case Sub-Assy, Rear Differential
41301 90366-52004 Bearing(For Rear Differential Case)
41302 90105-12087 Bolt(For Rear Differential Case)
41315 41315-36011 Nut, Rear Differential Bearing Adjusting
41316 41316-36011 Lock, Rear Differential Bearing Adjusting Nut
41316 41317-36011 Lock, Rear Differential Bearing Adjusting Nut
41331 41331-36020 Gear, Rear Differential Side
41341 41341-55013 Pinion, Rear Differential
41351 41351-35011 Washer, Rear Differential Pinion Thrust
41361 41361-60011 Washer, Rear Differential Side Gear Thrust, No.1
41361 41361-60021 Washer, Rear Differential Side Gear Thrust, No.1
41361 41361-60031 Washer, Rear Differential Side Gear Thrust, No.1
41361 41361-60041 Washer, Rear Differential Side Gear Thrust, No.1
41361 41361-60480 Washer, Rear Differential Side Gear Thrust, No.1
41361 41361-60490 Washer, Rear Differential Side Gear Thrust, No.1
41361 41361-60500 Washer, Rear Differential Side Gear Thrust, No.1
41361 41361-60510 Washer, Rear Differential Side Gear Thrust, No.1
41361 41361-60520 Washer, Rear Differential Side Gear Thrust, No.1
41361 41361-60530 Washer, Rear Differential Side Gear Thrust, No.1
41361 41361-60540 Washer, Rear Differential Side Gear Thrust, No.1
41361 41361-60550 Washer, Rear Differential Side Gear Thrust, No.1
41371 41371-36011 Spider, Rear Differential
9161160814 91611-60814 Bolt
Rear Axle Shaft & Hub ([01.2017 - ] (1701- )) 27
#OEMPart name
42311 90179-10067 Nut (For Rear Axle Shaft)
42311 42311-36210 Shaft, Rear Axle, Rh
42311 90942-02071 Bolt, Hub (For Rear Axle Rh)
42311 90310-38033 Seal, Oil (For Rear Axle Shaft)
42312 90942-02072 Bolt, Hub (For Rear Axle Lh)
42321 42321-36060 Gasket, Rear Axle Shaft, Rh
42323 42323-36010 Washer, Cone (For Rear Axle Shaft)
42401 42407-36031 Hub, Rear Axle, Rh
42401 90116-10191 Bolt, Stud (For Rear Axle Hub Rh)
42401 90250-10055 Pin, Straight (For Rear Axle Hub Rh)
42401 90366-60012 Bearing (For Rear Axle Hub Inner Rh)
42401 90366-55054 Bearing(For Rear Differential Case)
42401 90311-78001 Seal, Oil (For Rear Axle Shaft Rh)
42402 42408-36031 Hub, Rear Axle, Lh
42403 42431-37080 Drum Sub-Assy, Rear Brake
42403 90937-01122 Piece, Balance (For Rear Brake Drum)
42419 93311-16012 Screw, Rear Axle Bearing Lock Nut
42420 42420-39135 Hub (Or Shaft) & Brake Drum Rear Axle, Rh
42427 42427-37020 Nut, Rear Axle Bearing Lock
42428 42428-36020 Plate, Rear Axle Lock Nut
42430 42430-39135 Hub (Or Shaft) & Brake Drum Rear Axle, Lh
42627 42627-36020 Bolt, Front Wheel Cap Set
42631 42631-55031 Bolt, Double Wheel Stop, Rh
42632 42632-55031 Bolt, Double Wheel Stop, Lh
43517 43517-37010 Rotor, Skid Control, Rear
9010514030 90105-14030 BOLT
9020110075 90201-10075 WASHER
Rear Bumper & Bumper Stay ([01.2017 - ] W(BACK STEP) (1701- )) 20
#OEMPart name
52087 52087-36010 Stay Sub-Assy, Rear Bumper Side, Rh
52088 52088-36010 Stay Sub-Assy, Rear Bumper Side, Lh
52157 52157-36030 Support, Rear Bumper Side, No.2 Rh
52158 52158-36040 Support, Rear Bumper Side, No.2 Lh
52162 52161-16010 Clip
52162 52161-0K040 Clip
52162 52161-02020 Clip
9011908 90119-08C20 BOLT WWASHER
9010508095 90105-08095 BOLT
9010908168 90109-08168 New Genuine Part
9011906983 90119-06983 New Genuine Part
9015960621 90159-60621 SCREW, W/WASHER
9017908053 90179-08053 Nut (For Differential Side Gear Shaft)
9018906238 90189-06238 GROMMET SCREW
9020108065 90201-08065 Washer, Plate(For Control Select Lever)
9020211008 90202-11008 New Genuine Part
9046709237 90467-09237 Clip, Rear Bumper Side
9155380820 91553-80820 BOLTFLANGE
9323026012 93230-26012 New Genuine Part
9417060600 94170-60600 NUT CAP
Rear Bumper & Bumper Stay ([01.2017 - ] W/O(BACK STEP) (1701- )) 14
#OEMPart name
52087 52087-36010 Stay Sub-Assy, Rear Bumper Side, Rh
52088 52088-36010 Stay Sub-Assy, Rear Bumper Side, Lh
52157 52157-36030 Support, Rear Bumper Side, No.2 Rh
52158 52158-36040 Support, Rear Bumper Side, No.2 Lh
52159 52159-36903 Cover, Rear Bumper
52162 52161-16010 Clip
52162 52161-0K040 Clip
52162 52161-02020 Clip
52162 52162-36900 Plate, Rear Bumper, No.1
9011906983 90119-06983 New Genuine Part
9015960621 90159-60621 SCREW, W/WASHER
9018906238 90189-06238 GROMMET SCREW
9046709237 90467-09237 Clip, Rear Bumper Side
9046710203 90467-10203 Direct
Rear Combination Lamp ([01.2017 - ] (1701- )) 18
#OEMPart name
52562 52562-36010 Retainer, Rear Bumper, Upper Rh
52563 52563-36010 Retainer, Rear Bumper, Upper Lh
81496 81496-52020 Guide, Rear Combination Lamp
81550 76817-26040 Clip, Back Door Outside Garnish
81550 90981-13044 Bulb(For Rear Combination Lamp) (12V 21/5W)
81550 90981-15021 Bulb (For Front Turn Signal Lamp)
81550 90981-11059 Bulb(For Rear Combination Lamp) (12V 16W)
81551 81551-36550 Lens & Body, Rear Combination Lamp, Rh
81552 81552-36540 Packing, Rear Combination Lamp Body, Rh
81555 81555-36540 Cord, Rear Combination Lamp, Rh
81558 81558-24040 Gasket, Rear Combination Lamp Body, No.1 Rh
81561 81561-36380 Lens & Body, Rear Combination Lamp, Lh
81562 81562-36380 Packing, Rear Combination Lamp Body, Lh
81565 81565-36380 Cord, Rear Combination Lamp, Lh
9015960431 90159-60431 SCREW
9017905102 90179-05102 Nut
9018906228 90189-06228 Grommet(For Rear Bumper)
9046709206 90467-09206 Clip, Front Air Shutter Seal
Rear Drum Brake Wheel Cylinder & Backing Plate ([01.2017 - ] W(AUTO ADJUSTER) (1701- )) 32
#OEMPart name
4474 04474-36041 Cylinder Kit, Rear Wheel
4474 04474-36051 Cylinder Kit, Rear Wheel
4495 04494-36300 Shoe Kit, Rear Brake
4906 04906-36181 Cup Kit, Rear Wheel Cylinder
4941 04941-36010 Spring Kit, Rear Brake Shoe Hold Down
4942 04942-36010 Spring Kit, Rear Brake
4949 04949-25040 Plug Kit, Rear Brake
47043 47043-37060 Plate Sub-Assy, Brake Backing, Rear Rh
47043 94130-01002 Nut, Booster Sleeve Cylinder
47043 90114-10063 Bolt, No.1(For Rear Brake Backing Plate Rh)
47044 47044-37060 Plate Sub-Assy, Brake Backing, Rear Lh
47475 47553-36070 Bolt, Rear Wheel Cylinder Adjusting, Rh (For Rear Brake)
47476 47554-36070 Bolt, Rear Wheel Cylinder Adjusting, Lh(For Rear Brake)
47491 47491-36020 Plug, Hole(For Rear Brake)
47506 47506-36020 Nut, Rear Wheel Cylinder Adjusting, Rh(For Rear Brake)
47507 47507-36020 Nut, Rear Wheel Cylinder Adjusting, Lh(For Rear Brake)
47529 47529-36010 Seal, Front Wheel Brake Cylinder Adjust Dust
47547 47547-27020 Plug, Bleeder(For Front Drum Brake)
47548 31478-30010 Bleeder Plug Cap
47549 47549-37091 Seat, Rear Brake Automatic Adjust Nut, Rh
47550 47550-37112 Cylinder Assy, Rear Wheel Brake(For Rh, Front Or Upper)
47550 47550-37113 Cylinder Assy, Rear Wheel Brake(For Rh, Front Or Upper)
47550 90101-10127 Bolt(For Front Wheel Cylinder)
47559 47559-36010 Sping, Front Automatic Adjust Lever Support
47560 47560-37082 Cylinder Assy, Rear Wheel Brake(For Rh, Rear Or Lower)
47560 47560-37083 Cylinder Assy, Rear Wheel Brake(For Rh, Rear Or Lower)
47570 47570-37072 Cylinder Assy, Rear Wheel Brake(For Lh, Front Or Upper)
47570 47570-37073 Cylinder Assy, Rear Wheel Brake(For Lh, Front Or Upper)
47580 47580-37072 Cylinder Assy, Rear Wheel Brake(For Lh, Rear Or Lower)
47580 47580-37073 Cylinder Assy, Rear Wheel Brake(For Lh, Rear Or Lower)
9014950037 90149-50037 SCREW
9020110287 90201-10287 Washer(For Front Wheel Cylinder)
Rear Drum Brake Wheel Cylinder & Backing Plate ([01.2017 - ] W/O(AUTO ADJUSTER) (1701- )) 27
#OEMPart name
4474 04474-36041 Cylinder Kit, Rear Wheel
4474 04474-36051 Cylinder Kit, Rear Wheel
4495 04494-36300 Shoe Kit, Rear Brake
4906 04906-36181 Cup Kit, Rear Wheel Cylinder
4941 04941-36010 Spring Kit, Rear Brake Shoe Hold Down
4942 04942-36010 Spring Kit, Rear Brake
4949 04949-25040 Plug Kit, Rear Brake
47043 47043-37060 Plate Sub-Assy, Brake Backing, Rear Rh
47043 94130-01002 Nut, Booster Sleeve Cylinder
47043 90114-10063 Bolt, No.1(For Rear Brake Backing Plate Rh)
47044 47044-37060 Plate Sub-Assy, Brake Backing, Rear Lh
47475 47553-36070 Bolt, Rear Wheel Cylinder Adjusting, Rh (For Rear Brake)
47476 47554-36070 Bolt, Rear Wheel Cylinder Adjusting, Lh(For Rear Brake)
47491 47491-36020 Plug, Hole(For Rear Brake)
47547 47547-27020 Plug, Bleeder(For Front Drum Brake)
47548 31478-30010 Bleeder Plug Cap
47550 47550-37112 Cylinder Assy, Rear Wheel Brake(For Rh, Front Or Upper)
47550 47550-37113 Cylinder Assy, Rear Wheel Brake(For Rh, Front Or Upper)
47550 90101-10127 Bolt(For Front Wheel Cylinder)
47560 47560-37082 Cylinder Assy, Rear Wheel Brake(For Rh, Rear Or Lower)
47560 47560-37083 Cylinder Assy, Rear Wheel Brake(For Rh, Rear Or Lower)
47570 47570-37072 Cylinder Assy, Rear Wheel Brake(For Lh, Front Or Upper)
47570 47570-37073 Cylinder Assy, Rear Wheel Brake(For Lh, Front Or Upper)
47580 47580-37072 Cylinder Assy, Rear Wheel Brake(For Lh, Rear Or Lower)
47580 47580-37073 Cylinder Assy, Rear Wheel Brake(For Lh, Rear Or Lower)
9015950146 90159-50146 SCREW
9020110287 90201-10287 Washer(For Front Wheel Cylinder)
Rear Floor Panel & Rear Floor Member ([01.2017 - ] CROSS MEMBER 1/2 (1701- )BZB70,HZB70,XZB70..RHD) 21
#OEMPart name
57023 57023-36240 Strength Sub-Assy, Anchor Side, No.3
57025 57025-36180 Strength, Sub-Assy, Crossmember Floor, No.2 Sub
57031 57025-36190 Strength Sub-Assy, Anchor Side, No.1
57031 57031-36050 Strength Sub-Assy, Anchor Side, No.2
57103 57103-36470 Crossmember Sub-Assy, Floor, No.3
57104 57104-36370 Crossmember Sub-Assy, Floor, No.4
57105 57105-36370 Crossmember Sub-Assy, Floor, No.5
57202 57202-36270 Strength Sub-Assy, Anchor, No.2
57203 57203-36200 Strength Sub-Assy, Anchor No.3
57203 57203-36210 Strength Sub-Assy, Anchor, No.4
57204 57204-36150 Strength Sub-Assy, Anchor, No.3 Lh
57204 57204-36160 Strength Sub-Assy, Anchor, No.4
57302 57302-36130 Panel Sub-Assy, Battery Box
58440 58440-36100-B0 Cover Assy, Battery Service Hole
58449 58733-36090 Packing, Battery Service Hole Cover
58497 58497-36010-B2 Plate, Battery Service Hole Cover Lock
58755 58755-95D00 Knob, Battery Service Hole Cover
59263 59263-95D00 Hook, Engine Cover Lock
9324016008 93240-16008 New Genuine Part
9331116012 93311-16012 Screw, Rear Axle Bearing Lock Nut
9354055014 93540-55014 New Genuine Part
Rear Floor Panel & Rear Floor Member ([01.2017 - ] CROSS MEMBER 2/2 (1701- )) 15
#OEMPart name
57027 57027-36060 Strength Sub-Assy, Anchor Side, No.7
57106 57106-36160 Crossmember Sub-Assy, Floor, No.6
57107 57107-36140 Crossmember Sub-Assy, Floor, No.7
57108 57108-36160 Crossmember Sub-Assy, Floor, No.8
57205 57205-36210 Strength Sub-Assy, Anchor, No.5
57206 57206-36150 Strength Sub-Assy, Anchor
57207 57207-36280 Strength Sub-Assy, Anchor, No.7
57215 57215-36080 Strength, Anchor, No.5
57216 57216-36120 Strength, Anchor, No.6
57272 57272-36020 Strength, Rear Floor Housing, Side, Rh
57282 57282-36040 Strength, Rear Floor Housing, Side, Lh
57409 57409-36050 Strength Sub-Assy, Rear Floor Housing
57475 57475-36030 Strength, Rear Floor Housing
58038 58038-36090 Plate Sub-Assy, Rear Floor Finish
58371 58371-36040 Panel, Body Lower Back, Upper
Rear Floor Panel & Rear Floor Member ([01.2017 - ] FLOOR BOARD 1/3 (1701- )) 13
#OEMPart name
58037 58037-36050 Plate Sub-Assy, Floor Side, Rear
58455 58455-36090 Panel, Rear Floor Board, No.1
58458 58458-36020 Panel, Rear Floor Board, No.4 A
58466 58466-36100 Panel, Rear Floor Board, No.2 B
58469 58469-36010 Panel, Rear Floor Board, No.5 B
82816 82816-36041 Bracket, Wiring Harness Grommet
5877590 58775-90B00 Retainer, Jack Rest
9011908 90119-08C20 BOLT WWASHER
5789936010 57899-36010 Seal, Rear Floor, Rear
5938136010 59381-36010 Retainer, Floor Inverter, No.2
9016140029 90161-40029 SCREW COUNTERSUNK
9353054012 93530-54012 New Genuine Part
9354014010 93540-14010 Clip, Headlining Retainer
Rear Floor Panel & Rear Floor Member ([01.2017 - ] FLOOR BOARD 2/3 (1701- )RHD) 3
#OEMPart name
9011908 90119-08C20 BOLT WWASHER
5789936010 57899-36010 Seal, Rear Floor, Rear
9016140029 90161-40029 SCREW COUNTERSUNK
Rear Floor Panel & Rear Floor Member ([01.2017 - ] FLOOR BOARD 3/3 (1701- )) 7
#OEMPart name
58398 58398-36020 Cover, Floor Under, No.1
5877590 58775-90B00 Retainer, Jack Rest
9011908 90119-08C20 BOLT WWASHER
5789936010 57899-36010 Seal, Rear Floor, Rear
5877536030 58775-36030 Support, Jack Handle Rod, No.1
9016140029 90161-40029 SCREW COUNTERSUNK
9354014010 93540-14010 Clip, Headlining Retainer
Rear Floor Panel & Rear Floor Member ([01.2017 - ] FLOOR PANEL (1701- )) 15
#OEMPart name
57405 57405-36430 Housing Sub-Assy, Rear Floor, Rh
57406 57406-36260 Housing Sub-Assy, Rear Floor, Lh
58305 58305-36580 Panel Sub-Assy, Center Door Step
58311 58311-36160 Pan, Rear Floor
58750 58750-36010-B2 Cover Assy, Fuel Tank Inspection Hole
76625 76625-36050 Mudguard, Rear Body, Rh
76626 76626-36040 Mudguard, Rear Body, Lh
76665 76665-36040 Brace, Rear Mudguard
77277 77277-36030 Protector, Fuel Tank Filler Pipe
9011906615 90119-06615 BOLT, WWASHER
9015960496 90159-60496 SCREW WWASHER
9018905016 90189-05016 Grommet, Screw
9018906065 90189-06065 CLIP
9165160616 91651-60616 BOLT
9353055012 93530-55012 New Genuine Part
Rear Floor Panel & Rear Floor Member ([01.2017 - ] FOOT REST (1701- )) 5
#OEMPart name
58316 58316-36080-B0 Plate, Footrest, Rear
58316 58316-36090-B0 Plate, Footrest, Rear
9011906775 90119-06775 BOLT WWASHER
9011906911 90119-06911 BOLT WWASHER
9017906206 90179-06206 Nut
Rear License Plate Lamp ([01.2017 - ] (1701- )) 5
#OEMPart name
81270 81270-36270 Lamp Assy, License Plate
81270 99132-12050 Bulb (12V 5W)
81270 90080-81053 Bulb(For Clearance Lamp)
81273 81273-48010 Body, License Plate Lamp
81275 81275-36270 Socket And Wire, License Plate Lamp
Rear Monitor Display & Camera ([01.2017 - ] (1701- )ARL) 2
#OEMPart name
86790 86790-36080 Camera Assy, Television, Rr
9015960303 90159-60303 SCREW
Rear Side Marker Lamp ([01.2017 - ] (1701- )) 5
#OEMPart name
81750 81750-36030 Lamp Assy, Side Marker & Reflector
81750 90075-99109 Plug Assy, Front Turn Signal Lamp
81750 99132-12050 Bulb (12V 5W)
81750 90080-81053 Bulb(For Clearance Lamp)
81751 81751-36030 Lens & Body, Side Marker & Reflector Lamp
Rear Spring & Shock Absorber ([01.2017 - ] (1701- )) 34
#OEMPart name
4483 04483-36120 Shackle Kit, Rear Spring, Rh
48046 48046-36240 Seat Sub-Assy, Spring U Bolt, Rh
48046 90117-16042 Bolt, U(For Rear Spring Rh)
48047 48047-36240 Seat Sub-Assy, Spring U Bolt, Lh
48210 90385-23002 Bush(For Front Spring Pin)
48341 48306-36090 Bumper, Rear Spring, No.2 Rh
48344 48344-36450 Stopper, Bumper, Rear
48345 48345-36060 Stopper, Bumper, Rear
48414 48414-36320 Bracket, Spring, No.3 Rh
48415 48415-36100 Bracket, Spring, No.3 Lh
48416 48416-36301 Bracket, Spring, No.4 Rh
48417 48417-36171 Bracket, Spring, No.4 Lh
48422 48422-37010 Support, Front Spring Pin
48530 48531-80807 Absorber Assy, Shock, Rear
48531 90385-19006 Cushion, Shock Absorber
48531 90948-03011 Washer, Front Shock Absorber Cushion, No.1
48812 48812-36031 Bar, Stabilizer, Rear
48818 48818-36030 Bush, Stabilizer, Rear Rh
48818 48818-36040 Bush, Stabilizer, Rear Lh
48823 48823-36090 Cover, Rear Stabilizer Bracket
48830 94151-21241 Nut(For Front Stabilizer Link)
48830 48830-36021 Link Assy, Rear Stabilizer, Rh
91651 91651-B0814 Bolt with washer
91651 90119-A0109 New Genuine Part
91674 91674-K1028 BOLT FLANGE
9010116026 90101-16026 BOLT HEXAGON
9011912088 90119-12088 BOLT
9017016016 90170-16016 NUT HEXAGON
9017016021 90170-16021 NUT HEXAGON
9090105006 90901-05006 BOLT WASHER BASED
9418401601 94184-01601 NUT LOCK
9418461001 94184-61001 Nut(For Front Stabilizer Bar)
9462211600 94622-11600 WASHER
9512101036 95121-01036 RIVET
Rear Spring & Shock Absorber ([01.2017 - ] 2-LEAF (1701- )BZB60,70,HZB70,TRB70,XZB60,70) 13
#OEMPart name
48210 48210-3C020 Spring Assy, Rear Rh
48210 90389-16018 Bush(For Rear Spring Leaf)
48210 90389-16015 Bimetal Formed Bush(For Front Spring)
48210 90389-16030 BUSH
48211 48201-3C010 Leaf, Rear Spring, No.1
48211 48201-3C020 Leaf, Rear Spring, No.1
48212 48202-3C010 Leaf, Rear Spring, No.2
48212 48202-3C020 Leaf, Rear Spring, No.2
48220 48210-3C010 Spring Assy, Rear Rh
48247 48247-3B840 Bolt, Rear Spring, Center
48252 48252-3B800 Silencer, Front Spring, No.1
48253 48253-3B730 Spacer, Rear Spring, No.1
48284 48284-37130 Nut, Front Spring Center Bolt
Rear Ventilator & Roof Ventilator ([01.2017 - ] (1701- )) 4
#OEMPart name
62906 62906-36040-A0 Louver, Quater Ventilation, Lh
62933 90467-05171 Clip, Instrument Panel
62955 62955-50010 Retainer, Quarter Vent Louver
62960 62960-36040 Duct Assy, Quarter Vent, No.2 Lh
Rear Washer ([01.2017 - ] (1701- )) 1
#OEMPart name
9011906767 90119-06767 Bolt, W/washer(For Engine Under Cover)
Reflex Reflector ([01.2017 - ] (1701- )) 4
#OEMPart name
81910 81910-36010 Reflector Assy, Reflex, Rh
81910 75392-35200 Retainer
81920 81920-36020 Reflector Assy, Reflex, Lh
6777128150 67771-28150 Clip(For Front Body Pillar Garnish)
Roof Headlining & Silencer Pad ([01.2017 - ] CENTER ROOF (1701- )BZB70,HZB70,TRB70,XZB70..WC) 17
#OEMPart name
63310 63399-26050-B0 Clip
63322 63313-36650-B0 Board, Roof, No.2
63323 63313-36710-B0 Board, Roof, No.3
63323 63313-36730-B0 Board, Roof, No.3
63324 63314-36A70-B0 Board, Roof, No.4
63324 63314-36C20-B0 Board, Roof, No.4
63371 63371-36160-B0 Moulding, Roof Board Set, No.1
63372 63371-36170-B0 Moulding, Roof Board Set, No.2
63372 63371-36210-B0 Moulding, Roof Board Set, No.2
63372 63371-36200-B0 Moulding, Roof Board Set, No.3
63372 63371-36290-B0 Moulding, Roof Board Set, No.3
63372 63374-36060-B0 Moulding, Roof Board Set, No.4
63373 63373-36100-B0 Moulding, Roof Board Set, No.3
63373 63373-36110-B0 Moulding, Roof Board Set, No.3
63374 63374-36050-B0 Moulding, Roof Board Set
63379 63379-36050-B0 Cover, Roof Headlining Moulding End
63399 63399-26030 Clip, Roof Headlining
Roof Headlining & Silencer Pad ([01.2017 - ] FRONT ROOF (1701- )WC) 12
#OEMPart name
63310 63310-36070-B1 Headlining Assy, Roof
63310 63310-36190-B0 Headlining Assy, Roof
63310 90467-10161 Clip
63317 67771-44010 Retainer, Cowl Side Trim
63375 63375-36040-B0 Moulding, Roof Headlining, Front Rh
63376 63399-26050-B0 Clip
63376 63376-36030-B0 Moulding, Roof Headlinig, No.1 Lh
63651 63651-36020-B0 Net, Air Intake
63656 63656-36020-B0 Cover, Air Intake, Center
9046705171 90467-05171 Clip, Instrument Panel
9046707214 90467-07214 Clip, Front Fender Liner
9046710203 90467-10203 Direct
Roof Headlining & Silencer Pad ([01.2017 - ] REAR ROOF (1701- )) 11
#OEMPart name
62541 62541-36100-B0 Moulding, Quarter Trim
63311 63399-26050-B0 Clip
63316 63316-36370-B1 Headlining, Roof, No.6
63332 67771-44010 Retainer, Cowl Side Trim
63349 63349-36060-B0 Garnish, Roof Headlining, Rear
63365 63367-36030 Plate, Roof Headlining Set
63377 63377-36080-B0 Moulding, Roof Headlining, Rear Rh
63378 63378-36070-B0 Moulding, Roof Headlining, Rear Lh
64709 64749-36010-B0 Cover, Back Door Striker
7586712040 75867-12040 Clip - ROCKER PANEL MOULDING
9046710161 90467-10161 Clip
Roof Headlining & Silencer Pad ([01.2017 - ] ROOF SILENCER (1701- )) 15
#OEMPart name
63341 63341-36040 Pad, Roof Silencer, No.1
63343 63343-36070 Pad, Roof Silencer, No.3
63344 63344-36070 Pad, Roof Silencer, No.4
63346 63346-36030 Pad, Roof Silencer, No.6
63347 63347-36090 Pad, Roof Silencer, No.7
63348 63348-36080 Pad, Roof Silencer, No.8
63349 63349-36070 Pad, Roof Silencer, No.9
63351 63351-36040 Pad, Roof Silencer, No.10
63352 63352-36040 Pad, Roof Silencer, No.11
63353 63353-36030 Pad, Roof Silencer, No.12
63354 63354-36030 Pad, Roof Silencer, No.13
63355 63355-36030 Pad, Roof Silencer, No.14
63356 63356-36020 Pad, Roof Silencer, No.15
63357 63357-36180 Pad, Roof Silencer, No.16
63358 63692-36010 Pad, Roof Silencer, No.17
Roof Panel & Back Panel ([01.2017 - ] BACK GLASS & PANEL (1701- )) 10
#OEMPart name
63019 63019-36040 Panel Sub-Assy, Roof, Rear
63109 63109-36060 Panel Sub-Assy, Back Window, Upper
64813 64810-36030 Glass, Back Window Corner, Rh
64813 64813-36140 Dam, Back Window Glass Adhesive
64814 64810-36040 Glass, Back Window Corner, Lh
64827 64827-36050 Clip, Back Window Glass
64827 64827-36060 Clip, Back Window Glass
64828 64828-36050 Clip, Back Window Glass, Lh
64828 64828-36060 Clip, Back Window Glass, Lh
68299 68294-26030 Dam, Side Lower Window - BACK DOOR GLASS ADHESIVE
Roof Panel & Back Panel ([01.2017 - ] ROOF PANEL (1701- )) 5
#OEMPart name
63101 63101-36040 Panel Sub-Assy, Roof
63111 63111-36110 Panel, Roof, No.1
63112 63112-36150 Panel, Roof, No.2
63113 63113-36230 Panel, Roof, No.3
63235 63236-36030 Bracket, Room Speaker
Roof Panel & Back Panel ([01.2017 - ] ROOF RACK & LADDER (1701- )) 2
#OEMPart name
9011908 90119-08C27 BOLT WWASHER
9011908 90119-08D16 Bolt, Instrument Panel
Roof Panel & Back Panel ([01.2017 - ] ROOF VENTILATOR (1701- )RHD) 23
#OEMPart name
55788 55788-36010 Protector, Cowl Top Ventilator Louver, Rh
63085 63085-36040 Louver Sub-Assy, Roof Ventilator, Rh
63086 63086-36040 Louver Sub-Assy, Roof Ventilator, Lh
63830 63830-36090 Duct Assy, Roof Ventilator
63849 63805-36030 Hose, Roof Ventilator Drain
63859 63806-36020 Hose, Roof Ventilator Drain, No.2
63873 63874-36030 Moulding, Roof Ventilator, Rh
87243 87246-36010 Hose, Water, No.4
6366936010 63669-36010 Grommet, Sliding Roof Drain
6382936030 63829-36030 New Genuine Part
6382936040 63829-36040 New Genuine Part
6382936050 63829-36050 New Genuine Part
6382936060 63829-36060 New Genuine Part
8119936010 81199-36010 Joint, Headlamp Hose
8271134480 82711-34480 Clamp, Wiring Harness
8271148210 82711-48210 Wire, Fuse To Fuse(For Combustion Heater)
8271152090 82711-52090 Clamp
9046709241 90467-09241 Clip(For Back Door Side Garnish)
9046710162 90467-10162 Clip, Front Wheel Opening Extensoion
9046710167 90467-10167 Clip(For Rear Floor Finish Plate)
9155380614 91553-80614 BOLT FLANGE
9613641801 96136-41801 Clip(For Fuel Vapor Feed Hose, No.2)
9613641901 96136-41901 Clip Or Clamp(For Ventilation Hose)
Roof Panel & Back Panel ([01.2017 - ] STRENGTH & REINFORCEMENT (1701- )BZB70,HZB70,TRB70,XZB70) 16
#OEMPart name
63043 63044-36060 Reinforcement Sub-Assy, Roof Panel, No.1
63045 63044-36080 Reinforcement Sub-Assy, Roof Panel, No.3
63102 63104-36060 Reinforcement Sub-Assy, Roof Panel, Front
63104 63043-36060 Reinforcement Sub-Assy, Roof Panel, No.2
63105 63103-36020 Reinforcement Sub-Assy, Roof Panel, Rear
63105 63103-36040 Reinforcement Sub-Assy, Roof Panel, Rear
63253 63253-36020 Strength, Roof Panel, Center No.3
63254 63254-36010 Strength, Roof Panel, Center No.4
63255 63255-36030 Strength, Roof Panel, Center No.5
63257 63257-36030 Strength, Roof Panel, Center No.7 Rh
63259 63258-36020 Strength, Roof Panel, Center No.9
63267 63259-36010 Strength, Roof Panel, Center No.7 Lh
63273 63273-36050 Strength, Roof Panel, No.3
63274 63274-36030 Strength, Roof Panel, No.4
63275 63275-36010 Strength, Roof Panel, No.5
63279 63279-36070 Strength, Roof Panel, No.9
Room Curtain & Room Rack ([01.2017 - ] CURTAIN (1701- )BZB70,HZB70,XZB70..RHD) 4
#OEMPart name
6592336010 65923-36010 Hook, Curtain, No.1
9046815004 90468-15004 CLIP
9046815004 90468-15001 CLIP
9354015020 93540-15020 Screw
Room Curtain & Room Rack ([01.2017 - ] ROOM RACK (1701- )BZB70,HZB70,XZB70..RHD) 11
#OEMPart name
63075 63075-36110-B0 Cover Sub-Assy, Room Rack
63372 63372-36070-B0 Moulding, Roof Board Set
63435 63402-36080-B0 Frame, Room Rack, No.1
63435 63435-36080-B0 Frame, Room Rack, No.1
63436 63402-36090-B0 Frame, Room Rack, No.2
63725 63725-36010-B1 Plate, Room Rack Cover, Front
63726 63726-36010-B1 Plate, Room Rack Cover, Rear
4561914010 45619-14010 Cover, Knuckle Stopper
9011406002 90114-06002 New Genuine Part
9017606022 90176-06022 New Genuine Part
9167380835 91673-80835 New Genuine Part
Seat & Seat Track ([01.2017 - ] CLIP (1701- )) 2
#OEMPart name
9046816019 90468-16019 Clip (For Rear Seat Back)
9046818008 90468-18008 Clip (For Rear Seat Back)
Seat & Seat Track ([01.2017 - ] DRIVER SEAT (1701- )RHD) 38
#OEMPart name
55560 72250-36010-C0 Lock Assy, Seat Under Tray
71071 71071-36190-E0 Cover, Front Seat Cushion, Rh(For Separate Type)
71073 71073-36220-E1 Cover, Front Seat Back, Rh(For Separate Type)
71073 71073-36390-E0 Cover, Front Seat Back, Rh(For Separate Type)
71108 71108-36012-C0 Leg Sub-Assy, Front Seat, Rh
71149 71149-36010 Wire, Front Seat Cushion Connecting
71511 71501-36011 Pad, Front Seat Cushion, Rh(For Separate Type)
71521 71521-60030 Pad, Front Seat Cushion Silencer, A
71524 71524-36010 Pad, Front Seat Cushion Silencer, D
71551 71551-36010 Pad, Front Seat Back, Rh(For Separate Type)
71610 71610-36020 Spring Assy, Front Seat Cushion, Rh(For Separate Type)
71630 71630-36130 Spring Assy, Front Seat Back, Rh(For Separate Type)
71750 71750-36010-C0 Tray Assy, Front Seat Under
71811 71811-20160-C0 Shield, Front Seat Cushion, Rh
71910 71910-36081-E1 Headrest Assy, Front Seat
71931 71930-52030-C0 Support Assy, Front Seat Headrest
71931 71931-42020-C0 Support Assy, Front Seat Headrest
72110 72110-36010 Track Assy, Front Seat, Outer Rh
72130 72130-36011 Track Assy, Front Seat, Inner Rh
72301 72301-60020 Wire Sub-Assy, Seat Track Equalizing
72510 72510-36020 Adjuster Assy, Reclining Seat Back, Rh
72525 72525-60030-C0 Handle, Reclining Adjuster Release, Rh
72750 72750-22081 Adjuster Assy, Lumbar Support, Rh
72791 72791-20030-C0 Lever, Lumbar Support
9011905008 90119-05008 BOLT
9011908079 90119-08079 Bolt(For Transmission Input Damper Cover & Flywheel)
9011908080 90119-08080 BOLT
9011908873 90119-08873 New Genuine Part
9011910037 90119-10037 BOLT
9011910578 90119-10578 Bolt, Hexagon(For Rear Caliper)
9016740044 90167-40044 BOLT
9017608039 90176-08039 NUT, CAP
9020214007 90202-14007 WASHER
9038612051 90386-12051 Bush (For Front Seat Hinge Pin)
9052001274 90520-01274 Ring, Shaft Snap(For Front Door Window Regulator Handle)
9166540616 91665-40616 Screw(For Steering Column Tube)
9166540616 90080-11247 New Genuine Part
9356054012 93560-54012 Screw
Seat & Seat Track ([01.2017 - ] LAST ROW SEAT(NO.8)=2+1 TYPE (1701- )BZB60,XZB60,70..RHD) 39
#OEMPart name
71148 71148-36060-C1 Cover, Rear Seat Leg, Outer
71148 71148-36180-C1 Cover, Rear Seat Leg, Outer
71149 71149-36330-C0 Cover, Rear Seat Leg, Inner
71149 71149-36310-C0 Cover, Rear Seat Leg, Inner
71811 71811-36240-C0 Cover, Reclining Adjuster, Rh
71812 71812-36150-C0 Cover, Reclining Adjuster Inside, Lh
71861 71868-36220-C0 Shield, Rear Seat Cushion, Inner No.1 Rh
71862 71867-36110-C0 Shield, Rear Seat Cushion, Inner No.1 Lh
71867 71867-36120-C0 Shield, Rear Seat Cushion, Inner No.1 Lh
71873 71873-36030-C0 Shield, Rear Seat Cushion, Lower Rh
71874 71874-36040-C0 Shield, Rear Seat Cushion, Lower Lh
71875 71812-36250-C0 Cover, Reclining Adjuster Inside, Rh
71876 71812-36230-C0 Cover, Reclining Adjuster, Lh
72345 72345-36010 Pipe, Reclining Connecting
72995 72995-36020 Cover, Rear Seat
73175 73375-36010 Cover, Rear Seat Shoulder Belt, Lh
73373 73373-36020 Cover, Rear Seat Shoulder Belt Hole, Rh
73373 73373-36040 Cover, Rear Seat Shoulder Belt Hole
73373 73373-36010 Cover, Rear Seat Shoulder Belt, Rh
73375 73375-36020 Cover, Rear Seat Shoulder Belt Hole, Lh
73375 73375-36040 Cover, Rear Seat Shoulder Belt Hole
79081 79021-36D30-B1 Cover Sub-Assy, No.8 Seat Cushion, Rh
79082 79012-36K00-B1 Cover Sub-Assy, No.5 Seat Cushion, Lh
79083 79013-36830-B3 Cover Sub-Assy, No.3 Seat Back, Rh
79083 79014-36350-B3 Cover Sub-Assy, No.3 Seat Back, Rh
79085 79235-36300 Pad Sub-Assy, No.8 Seat Cushion, Rh
79086 79136-36320 Pad Sub-Assy, No.1 Seat Cushion, Lh
79087 79175-36230 Pad Sub-Assy, No.2 Seat Back, Rh
79087 79185-36030 Pad Sub-Assy, No.2 Seat Back, Rh
79805 79105-36A90 Leg Sub-Assy, No.8 Seat, Rh
79806 79106-36C00 Leg Sub-Assy, No.8 Seat, Lh
79880 79280-36220 Spring Assy, No.8 Seat Back, Rh
79880 79290-36180 Spring Assy, No.8 Seat Back, Rh
91673 91673-G1025 New Genuine Part
9010511058 90105-11058 BOLT FLANGE
9011910875 90119-10875 New Genuine Part
9016740044 90167-40044 BOLT
9046710132 90467-10132-C0 Clip
9356855014 93568-55014 Screw
Seat & Seat Track ([01.2017 - ] LAST ROW SEAT(NO.8)=FIXED TYPE (1701- )BB60,HZB70,TRB60,70,XZB70..STD) 13
#OEMPart name
79083 79013-36830-B3 Cover Sub-Assy, No.3 Seat Back, Rh
79083 79014-36350-B3 Cover Sub-Assy, No.3 Seat Back, Rh
79085 79235-36300 Pad Sub-Assy, No.8 Seat Cushion, Rh
79086 79136-36320 Pad Sub-Assy, No.1 Seat Cushion, Lh
79087 79175-36230 Pad Sub-Assy, No.2 Seat Back, Rh
79087 79185-36030 Pad Sub-Assy, No.2 Seat Back, Rh
9010510494 90105-10494 BOLT FLANGE
9010911064 90109-11064 New Genuine Part
9011910875 90119-10875 New Genuine Part
9015940223 90159-40223 SCREW WWASHER
9017910132 90179-10132 Nut
9165161020 91651-61020 Bolt, No.1 (For Center Support Bearing)
9167381022 91673-81022 BOLT FLANGE
Seat & Seat Track ([01.2017 - ] LAST ROW SEAT(NO.8)=FOLDING TYPE (1701- )HZB70,XZB70..WC) 31
#OEMPart name
79083 79013-36830-B3 Cover Sub-Assy, No.3 Seat Back, Rh
79083 79014-36350-B3 Cover Sub-Assy, No.3 Seat Back, Rh
79085 79235-36300 Pad Sub-Assy, No.8 Seat Cushion, Rh
79086 79136-36320 Pad Sub-Assy, No.1 Seat Cushion, Lh
79087 79175-36230 Pad Sub-Assy, No.2 Seat Back, Rh
79087 79185-36030 Pad Sub-Assy, No.2 Seat Back, Rh
91673 91673-L1035 New Genuine Part
6477836020 64778-36020 Fastener, Spare Wheel Cover
7296960010 72969-60010 Pin, Seat Turn Lock Guide
7896736020 78967-36020 New Genuine Part
8271112120 82711-12120 Clamp(Rear Seat)
9010510494 90105-10494 BOLT FLANGE
9010908277 90109-08277 BOLT
9010911064 90109-11064 New Genuine Part
9011910875 90119-10875 New Genuine Part
9015940223 90159-40223 SCREW WWASHER
9016840043 90168-40043 SCREW
9017610008 90176-10008 NUT
9017910132 90179-10132 Nut
9020509003 90205-09003 New Genuine Part
9020612003 90206-12003 Washer, Wave (For Selecting Bellcrank No.1)
9020615002 90206-15002 New Genuine Part
9038710069 90387-10069 New Genuine Part
9038910031 90389-10031 New Genuine Part
9050608035 90506-08035 New Genuine Part
9050610038 90506-10038 New Genuine Part
9155281025 91552-81025 BOLT TLANGE
9165161020 91651-61020 Bolt, No.1 (For Center Support Bearing)
9165161022 91651-61022 Bolt
9165161030 91651-61030 Bolt (For Transfer Case)
9331516020 93315-16020 Screw
Seat & Seat Track ([01.2017 - ] REAR SEAT FITTING PARTS (1701- )17S,20S,22S) 4
#OEMPart name
91672 91672-G1035 New Genuine Part
91673 91673-G1025 New Genuine Part
9011910578 90119-10578 Bolt, Hexagon(For Rear Caliper)
9011910875 90119-10875 New Genuine Part
Seat & Seat Track ([01.2017 - ] REAR SEAT(LH SIDE) NO.1 (1701- )ARL) 17
#OEMPart name
71308 71308-36160 Leg Sub-Assy, Rr Seat, Rh
71331 71331-36020 Pin, Rear Seat Hinge
71812 71812-36400-C0 Cover, Reclining Adjuster, Lh
71862 71867-36200-C0 Shield, Rear Seat Cushion, Inner Lh
71868 71868-36190-C0 Shield, Rear Seat Cushion, Inner No.1 Lh
71876 71812-36120-C0 Cover, Reclining Adjuster, Lh
72345 72345-36010 Pipe, Reclining Connecting
79012 79012-36E90-B3 Cover Sub-Assy, No.1 Seat Cushion, Lh
79014 79014-36470-B0 Cover Sub-Assy, No.1 Seat Back, Lh
79016 79136-36320 Pad Sub-Assy, No.1 Seat Cushion, Lh
79018 79185-36080 Pad Sub-Assy, No.1 Seat Back, Lh
79106 79106-36B50 Leg Sub Assy, No.1 Seat, Lh
79190 79280-36290 Spring Assy, No.1 Seat Back, Lh
79967 79967-36170-C0 Cover, Rear Seat Leg Side No.2
79967 79967-36180-C0 Cover, Rear Seat Leg Side, No.4
79968 79968-36040-C0 Cover, Rear Seat Leg Side, No.5
9016740044 90167-40044 BOLT
Seat & Seat Track ([01.2017 - ] REAR SEAT(LH SIDE) NO.2 (1701- )ARL) 24
#OEMPart name
71148 71148-36180-C1 Cover, Rear Seat Leg, Outer
71149 71149-36070-C1 Cover, Rear Seat Leg, Inner
71308 71308-36170 Leg Sub-Assy, Rear Seat, Rh
71331 71331-36020 Pin, Rear Seat Hinge
71812 71812-36120-C0 Cover, Reclining Adjuster, Lh
71862 71867-36040-C0 Shield, Rear Seat Cushion, Inner Lh
71868 71868-36190-C0 Shield, Rear Seat Cushion, Inner No.1 Lh
71876 71811-36160-C0 Cover, Reclining Adjuster Inside, Lh
72345 72345-36010 Pipe, Reclining Connecting
73173 73373-36010 Cover, Rear Seat Shoulder Belt, Rh
73373 73373-36020 Cover, Rear Seat Shoulder Belt Hole, Rh
73373 73373-36040 Cover, Rear Seat Shoulder Belt Hole
79022 79012-36G80-B1 Cover Sub-Assy, No.2 Seat Cushion, Lh
79024 79013-36780-B6 Cover Sub-Assy, No.2 Seat Back, Lh
79026 79135-36300 Pad Sub-Assy, No.2 Seat Cushion, Lh
79028 79175-36170 Pad Sub-Assy, No.2 Seat Back, Lh
79206 79106-36B60 Leg Sub-Assy, No.2 Seat, Lh
79290 79280-36130 Spring Assy, No.2 Seat Back, Lh
79967 79967-36170-C0 Cover, Rear Seat Leg Side No.2
79967 79967-36180-C0 Cover, Rear Seat Leg Side, No.4
79968 79968-36040-C0 Cover, Rear Seat Leg Side, No.5
79968 90467-10132-C0 Clip
9016740044 90167-40044 BOLT
9356855014 93568-55014 Screw
Seat & Seat Track ([01.2017 - ] REAR SEAT(LH SIDE) NO.4-NO.7 (1701- )ARL) 33
#OEMPart name
71148 71148-36410-C0 Cover, Rear Seat Leg, Outer
71148 71148-36180-C1 Cover, Rear Seat Leg, Outer
71149 71149-36260-C0 Cover, Rear Seat Leg, Inner
71149 71149-36330-C0 Cover, Rear Seat Leg, Inner
71331 71331-36020 Pin, Rear Seat Hinge
71812 71811-36180-C0 Cover, Reclining Adjuster, Lh
71862 71867-36110-C0 Shield, Rear Seat Cushion, Inner No.1 Lh
71868 71868-36200-C0 Shield, Rear Seat Cushion, Inner No.1 Lh
71876 71811-36250-C0 Cover, Reclining Adjuster Inside, Lh
71876 71812-36140-C0 Cover, Reclining Adjuster Inside, Lh
72345 72345-36010 Pipe, Reclining Connecting
73375 73375-36020 Cover, Rear Seat Shoulder Belt Hole, Lh
73375 73375-36010 Cover, Rear Seat Shoulder Belt, Lh
73375 73375-36040 Cover, Rear Seat Shoulder Belt Hole
79042 79012-36F80-B3 Cover Sub-Assy, No.4 Seat Cushion, Lh
79044 79014-36350-B3 Cover Sub-Assy, No.3 Seat Back, Rh
79046 79136-36280 Pad Sub-Assy, No.4 Seat Cushion, Lh
79048 79185-36030 Pad Sub-Assy, No.2 Seat Back, Rh
79052 79012-36K00-B1 Cover Sub-Assy, No.5 Seat Cushion, Lh
79056 79136-36320 Pad Sub-Assy, No.1 Seat Cushion, Lh
79062 79012-36J70-B1 Cover Sub-Assy, No.6 Seat Cushion, Lh
79066 79136-36330 Pad Sub-Assy, No.6 Seat Cushion, Lh
79072 79012-36J90-B1 Cover Sub-Assy, No.7 Seat Cushion, Lh
79076 79136-36340 Pad Sub-Assy, No.7 Seat Cushion, Lh
79108 79644-36130 Leg Sub-Assy, No.6 Seat, Rear
79406 79106-36B70 Leg Sub-Assy, No.4 Seat, Lh
79490 79290-36170 Spring Assy, No.2 Seat Back, Rh
79506 79106-36B40 Leg Sub-Assy, No.5 Seat, Lh
79606 79106-36B80 Leg Sub-Assy, No.6 Seat, Lh
79706 79106-36B90 Leg Sub-Assy, No.7 Seat, Lh
79968 90467-10132-C0 Clip
9016740044 90167-40044 BOLT
9356855014 93568-55014 Screw
Seat & Seat Track ([01.2017 - ] REAR SEAT(RH SIDE) NO.2-NO.7 (1701- )ARL) 49
#OEMPart name
71148 71148-36170-C1 Cover, Rear Seat Leg, Outer
71148 71148-36230-C0 Cover, Rear Seat Leg, Outer
71148 71148-36060-C1 Cover, Rear Seat Leg, Outer
71149 71149-36220-C0 Cover, Rear Seat Leg, Inner
71149 71149-36300-C0 Cover, Rear Seat Leg, Inner
71149 71149-36310-C0 Cover, Rear Seat Leg, Inner
71331 71331-36020 Pin, Rear Seat Hinge
71811 71811-36170-C0 Cover, Reclining Adjuster, Rh
71861 71868-36210-C0 Shield, Rear Seat Cushion, Inner No.1 Rh
71867 71867-36100-C0 Shield, Rear Seat Cushion, Inner No.1 Rh
71873 71873-36030-C0 Shield, Rear Seat Cushion, Lower Rh
71874 71874-36040-C0 Shield, Rear Seat Cushion, Lower Lh
71875 71812-36270-C0 Cover, Reclining Adjuster Inside, Rh
72345 72345-36010 Pipe, Reclining Connecting
72995 72995-36020 Cover, Rear Seat
73175 73375-36010 Cover, Rear Seat Shoulder Belt, Lh
73373 73373-36020 Cover, Rear Seat Shoulder Belt Hole, Rh
73373 73373-36040 Cover, Rear Seat Shoulder Belt Hole
73373 73373-36010 Cover, Rear Seat Shoulder Belt, Rh
73375 73375-36020 Cover, Rear Seat Shoulder Belt Hole, Lh
73375 73375-36040 Cover, Rear Seat Shoulder Belt Hole
79021 79021-36B70-B3 Cover Sub-Assy, No.2 Seat Cushion, Rh
79023 79013-36A40-B0 Cover Sub-Assy, No.2 Seat Back, Rh
79023 79014-36500-B0 Cover Sub-Assy, No.2 Seat Back, Rh
79025 79235-36250 Pad Sub-Assy, No.2 Seat Cushion, Rh
79027 79175-36260 Pad Sub-Assy, No.2 Seat Back, Rh
79027 79185-36090 Pad Sub-Assy, No.2 Seat Back, Rh
79031 79021-36B90-B3 Cover Sub-Assy, No.3 Seat Cushion, Rh
79033 79013-36830-B3 Cover Sub-Assy, No.3 Seat Back, Rh
79033 79014-36350-B3 Cover Sub-Assy, No.3 Seat Back, Rh
79035 79235-36240 Pad Sub-Assy, No.3 Seat Cushion, Rh
79037 79175-36230 Pad Sub-Assy, No.2 Seat Back, Rh
79037 79185-36030 Pad Sub-Assy, No.2 Seat Back, Rh
79061 79021-36C10-B3 Cover Sub-Assy, No.6 Seat Cushion, Rh
79065 79235-36260 Pad Sub-Assy, No.6 Seat Cushion, Rh
79071 79021-36C30-B3 Cover Sub-Assy, No.7 Seat Cushion, Rh
79075 79235-36230 Pad Sub-Assy, No.7 Seat Cushion, Rh
79107 79644-36150 Leg Sub-Assy, No.6 Seat, Rear
79205 79105-36A60 Leg Sub-Assy, No.2 Seat, Rh
79280 79280-36200 Spring Assy, No.2 Seat Back, Rh
79280 79290-36170 Spring Assy, No.2 Seat Back, Rh
79305 79105-36A50 Leg Sub-Assy, No.3 Seat, Rh
79605 79105-36A70 Leg Sub-Assy, No.6 Seat, Rh
79705 79105-36A80 Leg Sub-Assy, No.7 Seat, Rh
79959 79959-36020-C1 Cover, Seat Leg
79967 79967-36170-C0 Cover, Rear Seat Leg Side No.2
79968 90467-10132-C0 Clip
9016740044 90167-40044 BOLT
9356855014 93568-55014 Screw
Seat & Seat Track ([01.2017 - ] SEAT RAIL (1701- )BZB60,70,XZB60,70..RHD) 6
#OEMPart name
71250 71250-36010 Bracket Assy, Seat, Outer Rh
71250 71250-36020 Bracket Assy, Seat, Outer Rh
71250 71250-36030 Bracket Assy, Seat, Outer Rh
71260 71260-36010 Bracket Assy, Seat, Outer Lh
71260 71260-36020 Bracket Assy, Seat, Outer Lh
91673 91673-L1030 New Genuine Part
Seat Belt ([01.2017 - ] *DRS & *RES(NO.1) & SUB SEAT(NO.1) (1701- )RHD) 11
#OEMPart name
73210 73210-36140-C0 Belt Assy, Front Seat Outer, Rh
73220 73370-36130-C0 Belt Assy, Front Seat Outer, Lh
73224 73173-36030-B0 Cover, Front Seat Belt Retractor, Lh
73230 73230-36100-C0 Belt Assy, Front Seat Inner, Rh
73233 73233-60020-C1 Cover, Lap Belt Outer Anchor
73240 73380-36210-C1 Belt Assy, Front Seat Inner, Lh
9010511058 90105-11058 BOLT FLANGE
9046707221 90467-07221 Retainer, Side Mudguard, No.3
9090119040 90901-19040 BOLT WWASHER
9090119040 90084-11055 New Genuine Part
9155380614 91553-80614 BOLT FLANGE
Seat Belt ([01.2017 - ] LAST ROW SEAT(NO.8) (1701- )BZB60,XZB60,70..RHD) 14
#OEMPart name
73030 73360-36140-C0 Belt Assy, Rear Seat Lap Type, Rh
73040 73370-36100-C0 Belt Assy, Rear Seat Lap Type, Lh
73178 73178-36060-C0 Cap, Seat Belt Anchor Cover
73178 73179-36010-C0 Cap, Seat Belt Anchor Cover
73187 73343-36010-C0 Guide, Rear Seat Shoulder Belt
73237 73137-36010 Cover, Shoulder Belt Anchor, Rh
73237 73138-36010 Cover, Shoulder Belt Anchor, Lh
73239 73373-36050-C0 Cover, Rear Seat Shoulder Belt, Rh
73380 73380-36160-C0 Belt Assy, Rear Seat 3 Point Type, Inner, Rh
73389 73375-36050-C0 Cover, Rear Seat Shoulder Belt, Lh
73390 73380-36190-C0 Belt Sub-Assy, Rear Seat Outer
73580 73380-36170-C0 Belt Assy, Rear Seat, Inner
73580 73350-36060-C0 Belt Assy, Rear Seat, Outer Center
9010511058 90105-11058 BOLT FLANGE
Seat Belt ([01.2017 - ] REAR SEAT(NO.2-NO.7) (1701- )RHD) 14
#OEMPart name
73135 73137-36010 Cover, Shoulder Belt Anchor, Rh
73136 73138-36010 Cover, Shoulder Belt Anchor, Lh
73178 73178-36060-C0 Cap, Seat Belt Anchor Cover
73179 73179-36010-C0 Cap, Seat Belt Anchor Cover
73302 73380-36190-C0 Belt Sub-Assy, Rear Seat Outer
73306 73360-36140-C0 Belt Assy, Rear Seat Lap Type, Rh
73343 73343-36010-C0 Guide, Rear Seat Shoulder Belt
73350 73350-36060-C0 Belt Assy, Rear Seat, Outer Center
73370 73370-36100-C0 Belt Assy, Rear Seat Lap Type, Lh
73373 73373-36050-C0 Cover, Rear Seat Shoulder Belt, Rh
73375 73375-36050-C0 Cover, Rear Seat Shoulder Belt, Lh
73380 73380-36160-C0 Belt Assy, Rear Seat 3 Point Type, Inner, Rh
73390 73380-36170-C0 Belt Assy, Rear Seat, Inner
9010511058 90105-11058 BOLT FLANGE
Seat Belt ([01.2017 - ] TONGUE STOPPER (1701- )) 3
#OEMPart name
73219 73219-33010 Stopper, Tongue Plate
73219 73219-33020 Stopper, Tongue Plate
73219 73219-33030 Stopper, Tongue Plate
Shift Lever & Retainer ([01.2017 - ] (1701- )4FC) 54
#OEMPart name
33054 33054-36030 Lever Sub-Assy, Shift, No.2(For Floor Shift)
33058 33058-36050 Bracket Sub-Assy, Shift Lock Solenoid
33502 33502-36130 Plate Sub-Assy, Shift Lever
33503 33503-36130 Lever Sub-Assy, Shift(For Floor Shift)
33504 90159-40109 Bolt Or Pin (For Shift Lever Knob Setting)
33504 33542-20100-C0 Knob Sub-Assy, Shift Lever (Urethane) Black
33511 33511-32020 Shaft, Control (For Floor Shift)
33511 90386-10012 Bush (For Control Shaft)
33511 90387-08091 Collar (For Control Shaft)
33550 90541-03018 Cushion(For Floor Shift)
33550 90981-11036 Bulb, Position Indicator Lamp
33550 90339-09001 Cap, Position Indicator Lamp
33554 33554-36010 Cover, Shift Lock Release Button
33564 33564-36040 Link, Shift Lock Release, No.1
33564 90501-04024 Spring, Compression (For Shift Lock Release Link)
33623 33623-20060-C0 Button, Shift Lever Knob
33623 90501-07009 Spring, Compression (For Shift Lever Knob)
33625 33625-24010 Sleeve, Shift Lever Knob
33631 33631-36030 Rod, Detent
33631 90501-07074 Spring, Compression (For Detent Rod)
33631 90256-04003 Pin, Slotted Spring (For Detent Rod)
33635 33635-36010 Guide, Wire, No.1 (For Shift Lever)
33636 33636-35010 Protector, Wire
33647 33647-32010 Shaft, Control Link (For Floor Shift)
33723 33723-28010 Swivel, Connecting Rod (For Column Shift)
33820 33820-36212 Cable Assy, Transmission Control
33821 33829-36230 Clamp, No.1 (For Transmission Control Cable)
33823 33823-36140 Bracket, Transmission Control Cable, No.1
33826 33826-36200 Bracket, Transmission Control Cable, No.2
33828 33828-36070 Bracket, Transmission Control Cable, No.4
33878 33878-36020 Label, Shift Lock Information, No.2
33886 33886-20020 Stopper, Shift Lever
35906 35906-36080 Wire Sub-Assy, Indicator Lamp
35921 35921-36060 Plate, Control Position Indicator
35971 35971-36020 Housing, Position Indicator, Upper
35974 35974-28030 Housing, Position Indicator, Lower
35975 35975-28020 Cover, Slide (For Position Indicator)
9017908204 90179-08204 Nut
9017908204 90080-18070 NUT, WWASHER
9020110042 90201-10042 Washer, Plate (For Transfer Control Cable)
9020610003 90206-10003 Washer, Wave (For Control Link Shaft)
9046814004 90468-14004 Union, Auxiliary Fuel Band
9046814016 90468-14016 CLIP
9094901039 90949-01039 CLAMP
9165140820 91651-40820 Bolt
9165160616 91651-60616 BOLT
9165160816 91651-60816 BOLT
9165160816 90080-11396 Bolt
9331515010 93315-15010 New Genuine Part
9331914006 93319-14006 SCREW WITH WASHER
9413000802 94130-00802 Nut, No.1 (For Center Support Bearing)
9413000802 90170-A0001 New Genuine Part
9451200800 94512-00800 Washer, No.1 (For Propeller Shaft & Differential Setting)
9461210800 94612-10800 Washer, Plate(For Repair Actuator Set)
Short Block Assembly ([01.2017 - ] (1701- )) 1
#OEMPart name
11400 11400-78A21 Block Assy, Short
Side Member ([01.2017 - ] CENTER DOOR OPENING(FOLDING DOOR) (1701- )RHD) 28
#OEMPart name
61119 61119-36050 Panel, Center Door Orening, Lower Inner Front
61129 61129-36050 Panel, Center Door Opening, Lower Inner Rear
61216 61216-36100 Pillar, No.3
61217 61217-36080 Pillar, No.4
61265 61265-36260 Pillar, No.3 Inner, Upper Lh
61266 61266-36110 Pillar, No.3 Inner, Lower Lh
61267 61267-36350 Pillar, No.4 Inner, Upper Lh
61268 61268-36090 Pillar, No.4 Inner, Lower Lh
61288 61288-36100 Pillar, No.3 Corner, Lh
61289 61289-36160 Pillar, No.4 Corner, Lh
61319 61319-36010 Plate, Center Body Pillar, Outer Rh
61329 61329-36010 Plate, Center Body Pillar, Outer Lh
61337 61397-36070 Patch, Center Body Pillar
61406 61427-36070 Rail Sub-Assy, No.7 Lower Inner, Lower Lh
61471 61471-36100 Rail, Center Door, Outer
61481 61406-36110 Rail, Center Door, Lower Outer
61561 61561-36020 Gusset, Rear Seat
61566 61566-36070 Gusset, Pillar To Rail, No.1 Lh
61587 61587-36020 Gusset, Center Door Pillar, Front Lh
61588 61588-36020 Gusset, Center Door Pillar, Rear Lh
61598 61598-36020 Bracket, Stiffener, No.5
61671 61568-36020 Plate, Quarter Panel, Upper No.1
61823 61818-36040 Plate, Dust Proof, No.1 Lh
61824 61828-36040 Plate, Dust Ploof, No.2 Lh
61973 61973-36010 Reinforcement, Center Pillar, No.3
61974 61974-36030 Reinforcement, Center Pillar, No.4
67128 61678-36060 Plate, Center Door Panel
76587 76587-36040 Protector, Center Pillar Outer
Side Member ([01.2017 - ] CENTER DOOR OPENING(GLIDE DOOR) (1701- )RHD) 20
#OEMPart name
61216 61216-36100 Pillar, No.3
61217 61217-36080 Pillar, No.4
61265 61265-36260 Pillar, No.3 Inner, Upper Lh
61266 61266-36110 Pillar, No.3 Inner, Lower Lh
61267 61267-36350 Pillar, No.4 Inner, Upper Lh
61268 61268-36090 Pillar, No.4 Inner, Lower Lh
61288 61288-36100 Pillar, No.3 Corner, Lh
61289 61289-36160 Pillar, No.4 Corner, Lh
61406 61427-36070 Rail Sub-Assy, No.7 Lower Inner, Lower Lh
61471 61471-36100 Rail, Center Door, Outer
61481 61406-36110 Rail, Center Door, Lower Outer
61561 61561-36020 Gusset, Rear Seat
61566 61566-36070 Gusset, Pillar To Rail, No.1 Lh
61587 61587-36020 Gusset, Center Door Pillar, Front Lh
61588 61588-36020 Gusset, Center Door Pillar, Rear Lh
61598 61598-36020 Bracket, Stiffener, No.5
61823 61818-36040 Plate, Dust Proof, No.1 Lh
61824 61828-36040 Plate, Dust Ploof, No.2 Lh
61973 61973-36010 Reinforcement, Center Pillar, No.3
61974 61974-36030 Reinforcement, Center Pillar, No.4
Side Member ([01.2017 - ] FRONT DOOR OPENING & FRONT PILLAR (1701- )RHD) 39
#OEMPart name
52133 52133-36020 Bracket, Front Bumper, Rh
52143 52143-36040 Blacket, Front Bumper Side, Rh
53257 53257-36010 Bracket, Front End Panel Mounting, Rh
53354 53354-36010 Gusset, Hood Reinforcement, Lh
53827 53827-36020 Protector, Front Fender Side Panel, Rh
53837 53837-36010 Bracket, Front Side Panel, No.2 Rh
53838 53838-36010 Extension, Front Fender Rear, Rh
61027 61027-36130 Pillar Sub-Assy, Front Body, Outer Rh
61032 61032-36080 Pillar Sub-Assy, No.1 Inner, Rh
61042 61042-36100 Pillar Sub-Assy, No.1 Inner, Lh
61051 61711-36010 Panel, Roof Side Outer Front, Rh
61052 61712-36010 Panel, Roof Side Outer Front, Lh
61131 61131-36030 Pillar, Front Body, Upper Outer Rh
61131 61143-36030 Pillar, Front Body, Outer Rh
61133 61145-36020 Pillar, Front Body, Lower Outer Rh
61135 61135-36030 Reinforcement, Front Body Pillar, Outer
61136 61136-36010 Reinforcement, Front Body Pillar, Outer
61145 61146-36010 Gusset, Front Body Pillar, Lower Rh
61167 55725-36010 Brace, Front Body Pillar, Inner Rh
61168 55726-36010 Brace, Front Body Pillar, Inner Lh
61176 61176-36020 Reinforcement, No.1 Pillar, Upper Rh
61177 61177-36020 Bracket, Door Check Arm
61178 61178-36020 Reinforcement, No.1 Pillar, Lower Rh
61222 61222-36020 Pillar, No.1 Outer, Lower Lh
61311 61311-36030 Rail, No.1 Upper Outer, Rh
61321 61321-36030 Rail, No.1 Upper Outer, Lh
61422 61421-36020 Panel, Fender, Inner Lh
61476 58219-26010 Patch, Front Door Pillar, Rh
61651 61651-36060 Gusset, Pillar Shear, No.1 Rh
61713 61713-36010 Reinforce, Roof Side, Outer Rh
61714 61714-36010 Reinforce, Roof Side, Outer Lh
61859 61859-36010 Cover, Front Door Step, Rh
61938 61938-36010 Retainer, Outer Side Mirror, Lh
65104 65104-36010 Bracket Sub-Assy, Mounting, Lh
6786830030 67868-30030 Clip, Roof Side Rail Weatherstrip
9010506344 90105-06344 BOLT FLANGE
9017904026 90179-04026 New Genuine Part
9017908184 90179-08184 NUT
9167380820 91673-80820 Bolt (For Transmission Control Cable Bracket)
Side Member ([01.2017 - ] OUTER PANEL LH (1701- )RHD) 23
#OEMPart name
52144 61823-36030 Bracket, Front Bumper Side, Lh
55173 55173-36010 Bracket, Electrical Part
59401 61705-36900 Cover Sub-Assy, Cooler Condenser
61039 61395-36050 Step Sub-Assy, Emergency
61112 61122-36300 Panel, Front Side, Outer Lh
61121 61221-36030 Panel, No.1 Side, Lh
61126 61704-36030 Panel, Back Side, Lh
61199 61169-36010 Bracket, Side Panel To Rear Mudguard, Lh
61367 61367-36040 Channel, Roof Drip Side, Center No.1
61395 61395-36040 Base, Emergency Step
61488 61488-36020 Bracket, Mudguard, Front Lh
61688 61688-36020 Bracket, Mudguard, Rear Lh
61712 61123-36030 Panel, Roof Side, Outer Lh
61712 61226-36030 Panel, Roof Side, Outer Lh, No.2
61725 61725-36020 Box, Fuel Inlet
61888 61888-36040 Rail, Side Panel Dust Proof, No.1 Lh
61896 61896-36060 Rail, Side Panel Dust Proof, No.2 Lh
61898 61898-36040 Rail, Side Panel Dust Proof, No.3 Lh
65416 65416-36400 Panel, Rear Body, Front Lh
65614 65614-36090 Panel, Rear Body, Rear Lh
9015950267 90159-50267 SCREW WWASHER
9018905074 90189-05074 GROMMET SCREW
9090119031 90901-19031 New Genuine Part
Side Member ([01.2017 - ] OUTER PANEL RH (1701- )RHD) 19
#OEMPart name
59401 61705-36900 Cover Sub-Assy, Cooler Condenser
61039 61395-36050 Step Sub-Assy, Emergency
61111 61007-36060 Panel, Front Side, Outer Rh
61116 61703-36040 Panel, Back Side, Rh
61199 61159-36020 Bracket, Side Panel To Rear Mudguard
61395 61395-36040 Base, Emergency Step
61478 61478-36020 Bracket, Mudguard, Front Rh
61687 61687-36020 Bracket, Mudguard, Rear Rh
61711 61113-36020 Panel, Roof Side, Outer Rh
61711 61225-36020 Panel, Roof Side, Outer Rh, No.2
61887 61887-36030 Rail, Side Panel Dust Proof, No.1 Rh
61895 61895-36050 Rail, Side Panel Dust Proof, No.2 Rh
61897 61897-36030 Rail, Side Panel Dust Proof, No.3 Rh
65415 65415-36230 Panel, Rear Body, Front Rh
65417 65417-36090 Panel, Rear Body, Rear Rh
91631 91631-J0612 BRACKET
9015950267 90159-50267 SCREW WWASHER
9018905074 90189-05074 GROMMET SCREW
9090119031 90901-19031 New Genuine Part
Side Member ([01.2017 - ] PILLAR & ROOF SIDE RAIL, LH (1701- )BZB70,HZB70,XZB70..RHD) 18
#OEMPart name
60132 60132-36010 Pillar Sub-Assy, Center Body, No.2 Lh
61022 61022-36050 Pillar Sub-Assy, No.2 Lh
61023 61023-36160 Pillar Sub-Assy, No.3 Lh
61026 61054-36080 Pillar Sub-Assy, No.4 Rh
61027 61018-36200 Pillar Sub-Assy, No.5 Rh
61028 61025-36270 Pillar Sub-Assy, No.8 Lh
61047 61035-36090 Pillar Sub-Assy, No.5 Inner, Rh
61048 61035-36080 Pillar Sub-Assy, No.5 Inner, Rh
61061 61603-36010 Brace Sub-Assy, Rear Wheel, Upper Rear Rh
61062 61609-36130 Brace Sub-Assy, Rear Wheel, Upper Front Rh
61214 61204-36030 Rail, Roof Side, Outer Rear Lh
61214 61212-36050 Rail, Roof Side, Outer No.2 Lh
61216 61210-36050 Rail, Roof Side, Outer No.3 Lh
61218 61210-36020 Rail, Roof Side, Outer No.4 Lh
61232 61234-36030 Rail, Roof Side, Inner Lh
61234 61238-36050 Rail, Roof Side, Inner No.2 Lh
61236 61247-36030 Rail, Roof Side, Inner No.3 Rh
61346 61241-36020 Rail, No.5 Upper Inner, Lh
Side Member ([01.2017 - ] PILLAR & ROOF SIDE RAIL, RH (1701- )BZB70,HZB70,XZB70..RHD) 18
#OEMPart name
61013 61013-36270 Pillar Sub-Assy, No.3 Rh
61014 61054-36080 Pillar Sub-Assy, No.4 Rh
61015 61018-36200 Pillar Sub-Assy, No.5 Rh
61016 61054-36070 Pillar Sub-Assy, No.6 Rh
61018 61015-36290 Pillar Sub-Assy, No.8 Rh
61033 61033-36110 Pillar Sub-Assy, No.2 Inner, Rh
61036 61035-36090 Pillar Sub-Assy, No.5 Inner, Rh
61038 61035-36080 Pillar Sub-Assy, No.5 Inner, Rh
61051 61609-36130 Brace Sub-Assy, Rear Wheel, Upper Front Rh
61052 61603-36010 Brace Sub-Assy, Rear Wheel, Upper Rear Rh
61213 61203-36050 Rail, Roof Side, Outer Rear Rh
61213 61201-36040 Rail, Roof Side, Outer No.2 Rh
61215 61210-36010 Rail, Roof Side, Outer No.3 Rh
61231 61231-36010 Rail, Roof Side, Inner Rh
61233 61235-36050 Rail, Roof Side, Inner No.2 Rh
61235 61247-36030 Rail, Roof Side, Inner No.3 Rh
61336 61241-36010 Rail, No.5 Upper Inner, Rh
61737 61715-36010 Reinforcement, Roof Side, Inner Rh
Side Member ([01.2017 - ] REAR PILLAR(DOUBLE SWING BACK DOOR) (1701- )) 35
#OEMPart name
61028 61272-36220 Pillar Sub-Assy, Rear Inner, Rh
61029 61282-36240 Pillar Sub-Assy, Rear Inner, Lh
61031 61031-36090 Pillar Sub-Assy, No.10 Rh
61041 61041-36080 Pillar Sub-Assy, No.10, Lh
61057 61317-36020 Rail Sub-Assy, Rear Side, Rh
61067 61327-36010 Rail Sub-Assy, Rear Side, Lh
61098 61098-36020 Stiffener Sub-Assy, Pillar No.10, Inner Rh
61099 61099-36030 Stiffener Sub-Assy, Pillar No.10, Inner Lh
61274 61274-36050 Pillar, No.10 Inner, Rh
61284 61284-36050 Pillar, No.10 Inner, Lh
61311 61959-36030 Pillar, Rear Rh
61312 61969-36020 Pillar, Rear Lh
61320 61310-36020 Panel, Rear Body Front Side, Rh
61330 61320-36020 Panel, Rear Body Front Side, Lh
61386 61343-36020 Panel, Rear Side, Upper Rh
61396 61344-36040 Panel, Rear Side, Upper Lh
61491 61491-36050 Bracket, Side Panel Strength, No.1
61491 61492-36040 Bracket, Side Panel Strength, No.1 Lh
61492 61491-36060 Bracket, Side Panel Strength, No.2 Rh
61492 61492-36050 Bracket, Side Panel Strength, No.2 Lh
61513 61958-36060 Pillar, Rear Upper Side Panel, Rh
61514 61968-36010 Pillar, Rear Upper Side Panel, Lh
61539 61539-36050 Gusset, Seat Anchor, No.9
61557 61557-36030 Gusset, Pillar To Rail, No.2
61567 61567-36030 Gusset, Pillar To Rail, No.2 Lh
61637 61977-36020 Reinforcement, Rear Pillar, Inner Upper Rh
61638 61987-36020 Reinforcement, Rear Pillar, Inner Upper Lh
61697 61697-36010 Housing, Quarter Panel End, Rh
61698 61698-36010 Housing, Quarter Panel End, Lh
61741 61973-36030 Reinforcement, Back Door Opening, Upper Rh
61741 61741-36020 Reinforcement, Back Window Opening, Rh
61742 61983-36010 Reinforcement, Back Door Opening, Upper Lh
61742 61742-36020 Reinforcement, Back Window Opening, Lh
66243 66248-36010 Protector, Rear Body, No.1
91553 91553-A0816 BOLT FLANGE
Side Member ([01.2017 - ] REAR PILLAR(LUGGAGE DOOR) (1701- )) 31
#OEMPart name
61028 61272-36220 Pillar Sub-Assy, Rear Inner, Rh
61029 61282-36240 Pillar Sub-Assy, Rear Inner, Lh
61031 61031-36090 Pillar Sub-Assy, No.10 Rh
61041 61041-36080 Pillar Sub-Assy, No.10, Lh
61057 61317-36020 Rail Sub-Assy, Rear Side, Rh
61067 61327-36010 Rail Sub-Assy, Rear Side, Lh
61098 61098-36020 Stiffener Sub-Assy, Pillar No.10, Inner Rh
61099 61099-36030 Stiffener Sub-Assy, Pillar No.10, Inner Lh
61274 61274-36050 Pillar, No.10 Inner, Rh
61284 61284-36050 Pillar, No.10 Inner, Lh
61311 61959-36030 Pillar, Rear Rh
61312 61969-36020 Pillar, Rear Lh
61320 61310-36020 Panel, Rear Body Front Side, Rh
61330 61320-36020 Panel, Rear Body Front Side, Lh
61491 61491-36050 Bracket, Side Panel Strength, No.1
61491 61492-36040 Bracket, Side Panel Strength, No.1 Lh
61492 61491-36060 Bracket, Side Panel Strength, No.2 Rh
61492 61492-36050 Bracket, Side Panel Strength, No.2 Lh
61513 61958-36060 Pillar, Rear Upper Side Panel, Rh
61514 61968-36010 Pillar, Rear Upper Side Panel, Lh
61539 61539-36050 Gusset, Seat Anchor, No.9
61557 61557-36030 Gusset, Pillar To Rail, No.2
61567 61567-36030 Gusset, Pillar To Rail, No.2 Lh
61637 61977-36020 Reinforcement, Rear Pillar, Inner Upper Rh
61638 61987-36020 Reinforcement, Rear Pillar, Inner Upper Lh
61697 61697-36010 Housing, Quarter Panel End, Rh
61698 61698-36010 Housing, Quarter Panel End, Lh
61741 61741-36020 Reinforcement, Back Window Opening, Rh
61742 61742-36020 Reinforcement, Back Window Opening, Lh
66243 66248-36010 Protector, Rear Body, No.1
91553 91553-A0816 BOLT FLANGE
Side Member ([01.2017 - ] SIDE RAIL(CENTER) (1701- )RHD) 19
#OEMPart name
61053 61053-36050 Rail Sub-Assy, No.1 Center, Inner
61055 61058-36050 Rail, Sub-Aasy, No.2 Center, Inner, Rh
61058 61059-36080 Rail Sub-Assy, No.3 Center, Inner, Rh
61059 61373-36020 Rail Sub-Assy, No.4 Center, Inner, Rh
61063 61474-36020 Rail Sub-Assy, No.1 Center, Inner Lh
61161 61163-36030 Stiffener, Side Panel, No.1 Rh
61162 61166-36020 Stiffener, Side Panel, No.2 Rh
61163 61172-36040 Stiffener, Side Panel, No.3 Rh
61164 61529-36010 Stiffener, Side Panel, No.4 Rh
61171 61164-36030 Stiffener, Side Panel, No.1
61189 65545-36010 Reinforcement, No.2 Pillar, Center Lh
61191 62207-36020 Reinforcement, Side Lower Window, Lh
61351 61351-36040 Rail, No.1 Center Outer, Rh
61352 61352-36070 Rail, No.2 Center Outer, Rh
61354 61353-36040 Rail, No.4 Center Outer, Rh
61361 61925-36010 Rail, No.1 Center Outer, Lh
61501 61501-36150 Rail Sub-Assy, Seat Anchor, Lh
61502 61503-36580 Rail Sub-Assy, No.2 Seat Anchor, Lh
61599 61599-36030 Bracket, Stiffener, No.6, Rh
Side Member ([01.2017 - ] SIDE RAIL(LOWER) (1701- )RHD) 20
#OEMPart name
61091 61405-36020 Rail Sub-Assy, No.2 Lower Inner, Rh
61092 61092-36050 Rail Sub-Assy, No.3 Lower Inner, Rh
61093 61408-36020 Rail Sub-Assy, No.2 Lower Inner, Lh
61094 61094-36050 Rail Sub-Assy, No.3 Lower Inner, Lh
61411 61411-36020 Rail, No.1 Lower Outer, Rh
61412 61412-36020 Rail, No.2 Lower Outer, Rh
61413 61077-36040 Rail, No.3 Lower Outer, Rh
61414 61401-36010 Rail,no.4 Lower Outer, Rh
61415 61403-36030 Rail, No.5 Lower Outer, Rh
61417 61415-36020 Rail, No.7 Lower Outer, Rh
61422 61404-36060 Rail, No.2 Lower Outer, Lh
61423 61087-36010 Rail, No.3 Lower Outer, Lh
61424 61424-36010 Rail, No.4 Lower Outer, Lh
61425 61403-36040 Rail, No.5 Lower Outer, Lh
61441 61441-36050 Rail, No.1 Lower Inner, Lh
61479 61479-36020 Bracket, Front Mudguard
61631 61631-36020 Panel, Rear Wheel House, Outer Rh
61632 61632-36020 Panel, Rear Wheel House, Outer Lh
61633 61633-36040 Panel, Wheel House
77689 77689-36020 Bracket, Fuel Tank Filler Pipe Protector, No.3
Side Turn Signal Lamp & Outer Mirror Lamp ([01.2017 - ] (1701- )) 9
#OEMPart name
81279 90075-22013 Washer, Side Turn Signal Lamp
81730 81730-36070 Lamp Assy, Side Turn Signal, Rh
81730 90075-60028 Socket, Headlamp, Bulb
81730 90981-15021 Bulb (For Front Turn Signal Lamp)
81731 81731-36070 Lens & Body, Side Turn Signal Lamp, Rh
81740 81740-36070 Lamp Assy, Side Turn Signal, Lh
81741 81741-36070 Lens & Body, Side Turn Signal Lamp, Lh
9016240034 90162-40034 SCREW OVAL
9018904073 90189-04073 New Genuine Part
Side Window ([01.2017 - ] FRONT SIDE WINDOW (1701- )RHD) 24
#OEMPart name
62109 62109-36100 Glass Sub-Assy, Side Lower Window, Lh
62121 62121-36070 Glass, Front Side Window, Front Lh
62179 68294-26030 Dam, Side Lower Window - BACK DOOR GLASS ADHESIVE
62211 62221-36160 Glass, Side Window, Rear Lh
62279 62763-36020 Spacer, Side Window Frame, Upper
62375 62375-36050 Clip, Side Window, No.1
62375 62375-36060 Clip, Side Window, No.1
62375 62375-36070 Clip, Side Window, No.1
62720 62203-36010 Window Assy, Side, Front Lh
62763 62763-36010 Retainer, Side Window Frame
62763 62763-36030 Retainer, Quarter Window Glass, Upper
62785 62785-36020 Spacer, Quarter Window Glass
62785 62785-36030 Spacer, Quarter Window Glass
62785 62785-36040 Spacer, Quarter Window Glass
62792 62792-95A00 Packing, Side Rear Window, Rh
62793 62793-36010 Retainer, Side Window Lock, Lh
62793 62793-95J00 Retainer, Side Window Lock, No.1
62910 62910-36010 Lock Assy, Side Window
68217 68217-36080 Pin, Side Window , No.1
68217 68217-36090 Pin, Side Window , No.1
68217 68217-36100 Pin, Side Window , No.1
9025403007 90254-03007 New Genuine Part
9354054014 93540-54014 SCREW
9354054016 93540-54016 SCREW
Side Window ([01.2017 - ] REAR NO.1(SASH TYPE) (1701- )RHD) 14
#OEMPart name
62211 62221-36130 Glass, Side Window, Rear Rh
62211 62211-36160 Glass, Side Window, Front Rh
62763 62763-36010 Retainer, Side Window Frame
62763 62763-36020 Spacer, Side Window Frame, Upper
62785 62375-36040 Spacer, Side Window Glass
62785 62375-36050 Clip, Side Window, No.1
62785 62375-36060 Clip, Side Window, No.1
62792 62792-95A00 Packing, Side Rear Window, Rh
62793 62793-95J00 Retainer, Side Window Lock, No.1
62793 62793-36010 Retainer, Side Window Lock, Lh
62910 62910-36010 Lock Assy, Side Window
9025403007 90254-03007 New Genuine Part
9354054014 93540-54014 SCREW
9354054016 93540-54016 SCREW
Side Window ([01.2017 - ] REAR NO.2(SASH TYPE),FOLDING DOOR (1701- )) 15
#OEMPart name
62211 62211-36160 Glass, Side Window, Front Rh
62211 62711-36120 Glass, Side Window, Front Lh
62221 62221-36130 Glass, Side Window, Rear Rh
62763 62763-36020 Spacer, Side Window Frame, Upper
62785 62375-36040 Spacer, Side Window Glass
62785 62375-36050 Clip, Side Window, No.1
62785 62375-36060 Clip, Side Window, No.1
62792 62792-95A00 Packing, Side Rear Window, Rh
62793 62793-95J00 Retainer, Side Window Lock, No.1
62793 62793-36010 Retainer, Side Window Lock, Lh
62910 62910-36010 Lock Assy, Side Window
6276336010 62763-36010 Retainer, Side Window Frame
9025403007 90254-03007 New Genuine Part
9354054014 93540-54014 SCREW
9354054016 93540-54016 SCREW
Side Window ([01.2017 - ] REAR NO.2(SASH TYPE),GLIDING DOOR (1701- )RHD) 15
#OEMPart name
62211 62211-36160 Glass, Side Window, Front Rh
62211 62711-36120 Glass, Side Window, Front Lh
62221 62221-36130 Glass, Side Window, Rear Rh
62763 62763-36020 Spacer, Side Window Frame, Upper
62785 62375-36040 Spacer, Side Window Glass
62785 62375-36050 Clip, Side Window, No.1
62785 62375-36060 Clip, Side Window, No.1
62792 62792-95A00 Packing, Side Rear Window, Rh
62793 62793-95J00 Retainer, Side Window Lock, No.1
62793 62793-36010 Retainer, Side Window Lock, Lh
62910 62910-36010 Lock Assy, Side Window
6276336010 62763-36010 Retainer, Side Window Frame
9025403007 90254-03007 New Genuine Part
9354054014 93540-54014 SCREW
9354054016 93540-54016 SCREW
Side Window ([01.2017 - ] REAR NO.3(SASH TYPE) (1701- )ARL) 19
#OEMPart name
62211 62711-36120 Glass, Side Window, Front Lh
62221 62211-36160 Glass, Side Window, Front Rh
62221 62221-36130 Glass, Side Window, Rear Rh
62730 62073-36170 Window Assy, Side, Rear Rh
62740 62073-36180 Window Assy, Side, Rear Lh
62763 62763-36030 Retainer, Quarter Window Glass, Upper
62763 62763-36020 Spacer, Side Window Frame, Upper
62763 62763-36010 Retainer, Side Window Frame
62785 62785-36020 Spacer, Quarter Window Glass
62785 62785-36030 Spacer, Quarter Window Glass
62785 62785-36040 Spacer, Quarter Window Glass
62785 62375-36040 Spacer, Side Window Glass
62785 62375-36050 Clip, Side Window, No.1
62785 62375-36060 Clip, Side Window, No.1
62792 62792-95A00 Packing, Side Rear Window, Rh
62793 62793-95J00 Retainer, Side Window Lock, No.1
62910 62910-36010 Lock Assy, Side Window
9025403007 90254-03007 New Genuine Part
9354054014 93540-54014 SCREW
Spare Wheel Carrier ([01.2017 - ] (1701- )) 6
#OEMPart name
51900 51900-36190 Carrier Assy, Spare Wheel
51933 51903-36071 Stopper, Spare Wheel, No.1
51934 51904-36051 Stopper, Spare Wheel, No.2
51941 51941-36050 Bracket, Spare Wheel Carrier
91611 91611-G0820 Bolt
91612 91612-B1020 Bolt (For Transfer Case)Cover No.2
Speaker ([01.2017 - ] (1701- )) 2
#OEMPart name
86150 86150-36170-B0 Speaker Assy, W/box, No.1
9046710167 90467-10167 Clip(For Rear Floor Finish Plate)
Speedometer Driven Gear (Atm) ([01.2017 - ] A444E (1701- )4FC) 3
#OEMPart name
33403 33482-39645 Gear Sub-Assy, Speedometer Driven (Atm)
33404 90468-12005 Clip (For Mtm Speedometer Shaft Sleeve)
91611 91611-G0820 Bolt
Standard Tool ([01.2017 - ] (1701- )) 15
#OEMPart name
9110 09111-36331 Jack Assy
9113 09113-36170 Handle, Jack
9120 09120-36070 Bag, Tool
9130 99913-11500 Pliers (China) - No Toyota stamp
9135 99915-10700 Driver, Screw - No Toyota stamp
9135 90089-99009 Driver, Screw (ATC) (Thailand) - Screw Driver (ATC)
9141 99914-10810 Spanner (China) - No Toyota stamp
9141 09141-0K030 Spanner (ATC) (Thailand) - 8x10
9141 99914-11214 Spanner (China) - No Toyota stamp
9141 09141-0K040 Spanner (Thailand)
9145 99911-11200 Monkey Wrench (China) No Toyota Stamp
9150 09150-37030 Wrench, Hub Nut Box
9187 09187-36070 Handle, Spare Wheel Carrier
61890 61890-36020 Hammer Assy, Back Window Glass
9155380620 91553-80620 BOLT FLANGE
Starter ([01.2017 - ] 12V 2.7KW (1701- )N04C) 15
#OEMPart name
28011 28011-51060 Clutch Sub-Assy, Starter
28100 28100-78150 Starter Assy
28110 28110-78150 Housing Assy, Starter Drive
28113 28113-51060 Lever, Starter Pinion Drive
28117 28117-51060 Rubber(For Starter Yoke)
28120 28120-51060 Yoke Assy, Starter
28140 28140-78150 Holder Assy, Starter Brush
28150 28150-51060 Switch Assy, Magnet Starter
28160 28160-51060 Armature Assy, Starter
28213 28213-78150 Pinion, Starter Clutch
28226 28226-51060 Starter Kit, Repair Service
28256 28256-51060 Gear, Starter Internal
91552 91552-G1450 New Genuine Part
9017910195 90179-10195 NUT WWASHER
9415121401 94151-21401 NUT FLANGE
Steering Column & Shaft ([01.2017 - ] (1701- )ARL ; (1701- )4FC..GEN) 43
#OEMPart name
45020 45280-36420 Actuator Or Upper Bracket Assy, Steering Lock
45025 45025-36150 Cover Sub-Assy, Steering Column Hole, No.1
45201 90363-19006 Bearing(For Steering Main Shaft)
45201 90520-17269 Ring, Shaft Snap(For Steering Main Shaft)
45201 96152-00300 Ring, Hole Snap (For Differential Side Gear Shaft)
45204 45204-36220 Tube Assy, Steering Column, Lower
45205 45205-36240 Tube Sub-Assy, Steering Column, Upper
45210 45210-36120 Shaft Assy, Steering Main
45225 45225-26010 Ring, Shaft Snap(For Steering Main Shaft)
45257 45257-37010 Plate, Steering Column Energy Absorbing
45259 45259-36010 Sheet, Column Hole Cover Silencer
45263 45263-32010 Ring, Steering Column, No.1
45271 45271-36010 Clamp, Steering Column, Upper
45286 45286-36870-C0 Cover, Steering Column, Upr
45287 45287-36390-C0 Cover, Steering Column, Lwr
45291 45803-37010 Support, Steering Column Tube
45292 45292-36060 Cover, Main Shaft Lower Dust
45765 45765-37010 Guide, Telescopic Steering
45768 45768-37010 Bush, Telescopic Steering
45805 45805-36010 Support Sub-Assy, Tilt Steering
45813 45813-37010 Collar, Tilt Steering Support, No.1
45819 90387-06037 Collar(For Tilt Lever Retainer)
45821 45821-12010 Reinforce, Tilt Steering Support, No.1
45826 45826-37010 Lever, Steering Tilt
45831 45831-37010 Bolt, Tilt Lever Lock, No.1
45833 45833-37010 Nut, Tilt Steering Adjusting, No.1
45872 45872-36040 Cover, Steering Column Tube
45874 45874-36010 Protector, Steering Column, No.1
45897 45897-12050 Bolt, Steering Lock Set
91611 91611-G0820 Bolt
91631 91631-B0820 BOLT WWASHER
91673 91673-J0820 New Genuine Part
4523852010 45238-52010 Clamp, Bolt(For Steering Flexible Coupling)
9011908560 90119-08560 Bolt, Hexagon
9011908560 90080-11555 Bolt w-washer
9050618082 90506-18082 New Genuine Part
9112140665 91121-40665 New Genuine Part
9162140608 91621-40608 New Genuine Part
9162160614 91621-60614 Bolt(For Transaxle & Engine Setting)
9356855014 93568-55014 Screw
9413060600 94130-60600 Nut, Wire Adjusting, No.1
9453100600 94531-00600 Washer(For Outer Lever Oil Setting)
9461310601 94613-10601 Washer (For Primary Regulator Valve)
Steering Wheel ([01.2017 - ] 2-SPOKE (1701- )) 5
#OEMPart name
45100 45100-37090-C0 Wheel Assy, Steering
45130 45130-37170-C0 Button Assy, Horn
45180 45180-37050-C0 Cover Sub-Assy, Steering Wheel
45201 90179-12071 Nut, Steering Wheel Set
9016840113 90168-40113 Screw, Steering Wheel Pad Attaching
Suspension Crossmember & Under Cover ([01.2017 - ] (1701- )ARL,TAIW) 21
#OEMPart name
51201 51201-36160 Crossmember Sub-Assy, Front Suspension, Rh
51202 51202-36171 Crossmenber Sub-Assy, Front Suspension, Lower
51203 51203-36330 Crossmenber Sub-Assy, Front Suspension, Lh
51328 51328-36020 Support, Front Suspension Member, Rh
51329 51329-36010 Support, Front Suspension Member, Lh
51441 51441-36350 Cover, Engine Under
51445 51445-36080 Bracket, Engine Under Cover, Rh
51446 51446-36070 Bracket, Engine Under Cover, Lh
51455 51455-36040 Bracket, Engine Under Cover, Rear Rh
51456 51456-36090 Bracket, Engine Under Cover, Rear Lh
51456 51456-36081 Seal, Engine Under Cover, No.2
51963 51963-36060 Hook, Transport, Rear Lh
9010514092 90105-14092 New Genuine Part
9010514093 90105-14093 New Genuine Part
9011908815 90119-08815 Bolt
9011912170 90119-12170 New Genuine Part
9015960477 90159-60477 SCREW, WWASHER
9017014026 90170-14026 Nut(For Front Support To Front Shock Absorber Rh)
9095001958 90950-01958 Plug, Hole(For Back Door Panel)
9167480820 91674-80820 BOLT FLANGE
9462251400 94622-51400 Washer(For Front Suspension Lower Arm No.1 Rh)
Switch & Relay & Computer ([01.2017 - ] BACK DOOR (1701- )) 6
#OEMPart name
84231 84231-36080 Switch, Courtesy Lamp
84535 84535-22080 Switch Assy, Courtesy Lamp(For Back Door)
85980 85980-36170 Relay Assy, Door Lock, No.1
85980 85980-36180 Relay Assy, Door Lock, No.2
9090148003 90901-48003 Screw Hex Lobular
9155380614 91553-80614 BOLT FLANGE
Switch & Relay & Computer ([01.2017 - ] COWL (1701- )RHD) 43
#OEMPart name
28371 90987-02027 Relay
81980 81980-36150 Flasher Assy, Turn Signal
82210 90982-08295 Fusible Link
82600 90982-09019 Instrument Panel Fuse
82600 90982-09020 Fusible Link
82600 90982-09021 Fusible Link
82600 90982-09022 Instrument Panel Fuse
82600 90982-09023 Instrument Panel Fuse
82600 90982-09025 Instrument Panel Fuse
82616 82616-58010 Puller, Fuse
82641 82641-36010 Relay, Integration No.1
82660 82741-36010 Block Assy, Relay, Cowl Side
82660 82660-36040 Block Assy, Relay
82660 82660-36030 Block Assy, Relay
82662 82662-36060 Cover, Relay Block, Upper, No.2
82663 82663-36030 Cover, Relay Block, Lower, No.3
82666 82666-36230 Holder, Connector
82672 82672-36010 Cover, Junction Block
82672 82672-36020 Cover, Junction Block
82673 82673-36020 Bracket, Junction Block
82673 82673-36030 Bracket, Junction Block
82730 82730-36010 Block Assy, Instrument Panel Junction
84340 84340-36080 Switch Assy, Stop Lamp
84550 84550-36030 Switch Assy, Parking Brake
84727 33805-35030 Plate Sub-Assy, Shift Lock (For Floor Shift)
84956 84956-36040 Bracket, Hand Brake Signal Switch
85431 85431-36060 Solenoid, Shift Lock
85915 90987-04004 Relay, Starter Cut
85916 90987-02025 Relay
85933 85933-36050 Computer, Shift Lock Control
85980 85980-36170 Relay Assy, Door Lock, No.1
85980 85980-36180 Relay Assy, Door Lock, No.2
85996 85996-36010 Bracket, Relay, No.2
85999 82715-36660 Bracket, Relay
86530 90987-02012 Relay, Ignition, No.1
91621 91621-G0818 Bolt(For Automatic Transmission Case Protector)
9011906775 90119-06775 BOLT WWASHER
9017908026 90179-08026 Nut (For Front Wiper Arm Setting)
9155380620 91553-80620 BOLT FLANGE
9165160616 91651-60616 BOLT
9412041000 94120-41000 Nut(For Clutch Pedal Stopper)
9412041000 90170-A0002 Nut
9415180600 94151-80600 Nut, Cap(For Cylinder Head Cover)
Switch & Relay & Computer ([01.2017 - ] DOOR (1701- )RHD) 4
#OEMPart name
84231 84231-36020 Switch, Courtesy Lamp
84233 84231-53010 Switch Assy, Courtesy Lamp (For Front Door)
84962 84962-36010 Switch, Power Slide Door Main
9016670001 90166-70001 Screw Hex Lobular
Switch & Relay & Computer ([01.2017 - ] ENGINE & TRANSMISSION (1701- )XZB60,70) 21
#OEMPart name
0 82715-E1170 Bracket,wiring Harness Clamp
83181 83181-36020 Sensor, Speedometer
83181 90301-18004 Ring, O (For Atm Speedometer Driven Hole Cover)
83530 83530-E0220 Switch Assy, Oil Pressure (For Engine)
83530 83530-E0250 SWITCH ASSY OIL
84540 84540-65010 Switch Assy, Neutral Start
89424 89424-E0060 Sensor,inlet Air Temperature
89425 89425-36090 Sensor, Exhaust Gas Temperature
89425 89425-36101 Sensor, Exhaust Gas Temperature, No.2
89480 89480-36030 Sensor Assy, Differential Pressure
91651 91651-B0820 Bolt, Radiator Side Support Plate
91651 90080-11347 New Genuine Part
8270200 82702-E2L21 Bracket Sub-assy, Wiring Harness
8271536260 82715-36260 Bracket,wiring Harness Clamp
8271536400 82715-36400 Bracket,wiring Harness Clamp
8271536410 82715-36410 Bracket,wiring Harness Clamp
9043018008 90430-18008 Gasket
9043018008 90430-T0021 Gasket(For Manual Transmission Filler Plug)
9155180816 91551-80816 Bolt(For Manual Transmission Oil Separator)
9165140825 91651-40825 Bolt(For Clutch Release Cylinder Setting)
9165160616 91651-60616 BOLT
Switch & Relay & Computer ([01.2017 - ] ENGINE ROOM (1701- )) 4
#OEMPart name
84930 84931-36050 Switch Assy, Door Control
9011905007 90119-05007 New Genuine Part
9017906161 90179-06161 Bolt, Union(For Clutch Accumulator)
9155380614 91553-80614 BOLT FLANGE
Switch & Relay & Computer ([01.2017 - ] ENGINE ROOM RELAY BLOCK (1701- )RHD) 33
#OEMPart name
28300 90987-02025 Relay
28371 90987-02027 Relay
82210 90982-08274 Fusible Link
82210 90982-08286 Fusible Link
82210 90982-08294 Fusible Link
82210 90982-08295 Fusible Link
82210 90982-08296 Fusible Link
82210 90982-08301 Fusible Link
82210 90982-08305 Fusible Link
82210 90982-08308 Fusible Link
82600 90982-09020 Fusible Link
82600 90982-09021 Fusible Link
82600 90982-09022 Instrument Panel Fuse
82600 90982-09023 Instrument Panel Fuse
82600 90982-09025 Instrument Panel Fuse
82616 82616-58010 Puller, Fuse
82641 82641-26110 Relay, Integration No.1
82660 82660-36050 Block Assy, Relay
82660 82660-36060 Block Assy, Relay
82660 82660-36070 Block Assy, Relay
82660 82660-36080 Block Assy, Relay
82662 82662-36030 Cover, Relay Block, Upper, No.1
82663 82663-36040 Cover, Relay Block, Lower
82663 82663-36050 Cover, Relay Block, Lower, No.2
82715 82715-36720 Bracket,wiring Harness Clamp
82741 82741-36020 Block, Engine Room Relay
82742 82741-36030 Block, Engine Room Relay, No.2
82821 82821-47090 Cover, Connector
85959 85959-36060 Holder, Relay
87299 90987-04010 Relay Assy (For Heater Blower Motor)
9017906288 90179-06288 NUT
9165160616 91651-60616 BOLT
9165160620 91651-60620 BOLTWWASHER
Switch & Relay & Computer ([01.2017 - ] INSTRUMENT PANEL (1701- )RHD) 11
#OEMPart name
84152 84152-60060 Switch, Headlamp Leveling
84170 84170-36100 Switch Assy, Room Lamp No.1
84170 84170-36110 Switch Assy, Room Lamp No.2
84270 84270-60160 Switch Assy, Dpr
84330 84332-36150 Switch Assy, Hazard Warning Signal
84330 90010-01171 Bulb, Hazard Warning Signal Switch
84790 84790-36070 Switch Assy, Rear Window Defogger
84841 84841-47020 Switch, Fuel Lid Opener
84931 84930-36030 Switch, Door Control
85530 85530-42010 Socket Assy, Power Outlet, No.1
85535 85535-28070-C0 Cover, Power Outlet Socket, No.1
Switch & Relay & Computer ([01.2017 - ] ROOF & FLOOR (1701- )) 12
#OEMPart name
83320 83320-80525 Gage Assy, Fuel Sender
83390 83390-36020 Switch Assy, Vacuum Warning
83910 83910-36080-B0 Clock Assy
83916 83916-36030-B0 Clip, Clock, No.1
83916 83916-36040-B0 Clip, Clock, No.2
86650 86650-36210 Buzzer Assy, Back
89530 89530-36300 Computer Assy, Transmission Control
91611 91611-B0825 Bolt(For Clutch Release Cylinder Setting)
93319 93319-A4010 SCREW WWASHER
9017906158 90179-06158 Nut, Rear Wiper Link Pivot, No.2
9155380614 91553-80614 BOLT FLANGE
9167380616 91673-80616 Bolt, W/washer
Switch & Relay & Computer ([01.2017 - ] STEERING (1701- )) 6
#OEMPart name
84140 84140-37141 Switch Assy, Headlamp Dimmer
84306 84306-36010 Cable Sub-Assy, Spiral
84450 84450-36180 Switch Assy, Ignition Or Starter
84650 84652-37300 Switch Assy, Windshield Wiper
9016840129 90168-40129 SCREW TAPPING
9331913012 93319-13012 New Genuine Part
Throttle Link & Valve Lever (Atm) ([01.2017 - ] A444E (1701- )4FC) 14
#OEMPart name
35501 35501-36040 Rod Sub-Assy, Parking Lock
35505 35505-36040 Lever Sub-Assy, Manual Valve
35505 90560-20008 Spacer (For Manual Valve Lever)
35505 90254-04012 Pin, Slotted Spring (For Manual Valve Lever)
35506 90311-12002 Oil Seal, Type T
35556 35556-36010 Shaft, Parking Lock Pawl
35556 90201-16012 Washer, Plate (For Parking Lock Pawl Shaft)
35557 35557-36020 Pawl, Parking Lock
35557 90508-30010 Spring, Torsion (For Parking Lock Pawl)
35561 35561-36010 Shaft, Manual Valve Lever
35573 35573-36040 Lever, Transmission Control Shaft, Lh
35595 35595-36020 Bracket, Parking Lock Pawl
9011908 90119-08A43 New Genuine Part
9411050800 94110-50800 Nut(For Repair Actuator Set)
Timing Gear Cover & Rear End Plate ([01.2017 - ] (1701- )N04C) 12
#OEMPart name
11301 89411-E0040 Sensor, Crank Position
11308 90950-01458 Cover(For Flywheel Housing)
11321 11310-E0151 Case, Timing Gear
11321 11310-78081 Case, Timing Gear
11321 12511-E0021 Bracket Sub-Assy, Alternator
11351 11351-E0A50 Housing, Flywheel
11351 11353-E0060 Stay, Lh(For Flywheel Housing)
11354 11354-E0060 Seal, Flywheel Housing Dust
87208 16206-E0100 Pipe Sub-Assy, Water
9033916001 90339-16001 Plug, Heater Water
9613842501 96138-42501 Clip, Hose(For Radiator Hose Sub-Assy)
9223372036854775807 21814-E0120 Bolt, Fuel Inlet
Tool Box & License Plate Bracket ([01.2017 - ] (1701- )) 12
#OEMPart name
58705 58705-36020 Band Sub-Assy, Tool Bag
58706 58706-36030 Clamp Sub-Assy, Jack Handle
58785 58785-90B00 Bracket, Tool Bag Band
58785 58785-90B00-02 Bracket, Tool Bag Band
58796 58796-20012 Hook, Jack Clamp
75298 75298-95400 Plate, Jack Holder
75299 75299-36020 Base, Jack Holder
9011906775 90119-06775 BOLT WWASHER
9015960477 90159-60477 SCREW, WWASHER
9046106188 90461-06188 Clamp, Oil Cooler Tube, No.3
9155380612 91553-80612 BOLT FLANGE
9427100800 94271-00800 Nut, Wing(For Air Cleaner)
Torque Converter, Front Oil Pump & Chain (Atm) ([01.2017 - ] A444E (1701- )4FC) 30
#OEMPart name
32000 32000-37020 Converter Assy, Torque
32101 90119-10789 Bolt(For Drive Plate & Torque Converter Setting)
32101 90119-10954 Bolt(For Drive Plate & Torque Converter Setting)
32111 32111-65031 Plate, Pump Impeller Drive
32117 32117-37050 Spacer, Drive Plate, Rear
35301 35301-60020 Body Sub-Assy, Front Oil Pump
35301 90311-42010 Seal, Oil (For Front Oil Pump)
35301 90301-99029 Ring, O (For Front Oil Pump Body)
35301 90105-08212 Bolt (For Front Oil Pump Setting)
35301 90105-08213 Bolt (For Front Oil Pump Setting)
35308 35308-60080 Cover Sub-Assy, Front Oil Pump
35308 35789-36040 Race, Thrust Bearing (For Front Oil Pump Cover)
35308 35789-36050 Race, Thrust Bearing (For Front Oil Pump Cover)
35308 35789-36060 Race, Thrust Bearing (For Front Oil Pump Cover)
35313 35313-60010 Gasket, Front Oil Pump Cover
35321 35321-60040 Gear, Front Oil Pump Drive
35321 35321-60050 Gear, Front Oil Pump Drive
35321 35321-60060 Gear, Front Oil Pump Drive
35321 35321-60070 Gear, Front Oil Pump Drive
35321 35321-60080 Gear, Front Oil Pump Drive
35322 35322-60040 Gear, Front Oil Pump Driven
35322 35322-60050 Gear, Front Oil Pump Driven
35322 35322-60060 Gear, Front Oil Pump Driven
35322 35322-60070 Gear, Front Oil Pump Driven
35322 35322-60080 Gear, Front Oil Pump Driven
35427 35427-60010 Seat, Check Valve Spring
35495 35495-60010 Ball, Check
35495 90501-18106 Spring, Compression (For Check Ball)
35617 35617-60010 Ring, Clutch Drum Oil Seal
91511 91511-J0820 Bolt, Washer Based Head Hexagon (For Transfer Case Cover)
Transaxle Or Transmission Assy & Gasket Kit (Atm) ([01.2017 - ] A444E (1701- )4FC) 2
#OEMPart name
4351 04351-60311 Gasket Kit, Automatic Transmission Overhaul
35000 35000-36590 Transmission Assy, Automatic
Transmission Case & Oil Pan (Atm) ([01.2017 - ] A444E (1701- )4FC) 25
#OEMPart name
35013 35013-36140 Tube Sub-Assy, Transmission Oil Filler
35103 35103-36100 Gage Sub-Assy, Transmission Oil Level
35104 35104-60131 Case Sub-Assy, Automatic Transmission
35104 90930-03094 Plug, Breather, No.1 (Atm)
35104 90341-13001 Plug, W/head Straight Screw, No.3(For Transaxle Hsg & Case)
35104 90341-08001 Plug, Transaxle Case, No.1
35104 90301-10189 Ring, O(For Oil Cooler Tube Union)
35104 90301-06196 O Ring, Transaxle Case, No.1
35104 35121-36010 Hose (For Breather Plug)
35104 90301-06005 Ring, O (For Breather Plug)
35104 90301-99067 Ring, O (For Automatic Transmission Case)
35106 35106-37020 Pan Sub-Assy, Automatic Transmission Oil
35106 90341-18057 Drain Plug (with Magnet)
35106 12157-10010 Gasket (For Drain Plug)
35106 91611-B0616 Bolt(For Transaxle Case Receiver)
35111 35111-65020 Housing, Automatic Transmission
35111 90119-10898 Bolt(For Clutch Housing & Transmission Case Setting)
35111 90119-12294 Bolt (For Transmission Housing & Case Setting)
35111 90119-12295 Bolt (For Transmission Housing & Case Setting)
35336 90301-09173 Ring, O(For Transmission Oil Filler Tube)
35394 35394-30011 Magnet, Oil Cleaner (For Transmission)
9165160816 91651-60816 BOLT
9165160816 90080-11396 Bolt
9613251000 96132-51000 Clip Or Clamp(For Ventilation Hose)
9613341001 96133-41001 New Genuine Part
V-Belt ([01.2017 - ] (1701- )) 1
#OEMPart name
88310 90916-02444 Belt, V(For Fan & Alternator)
Vacuum Piping ([01.2017 - ] EXCEPT EURO 4 (1701- )N04C) 3
#OEMPart name
25760 25760-78030 Hose Assy, Vacuum Transmitting
9046607002 90466-07002 Clamp Or Clip(For Air Hose)
9092901394 90929-01394 New Genuine Part
Vacuum Pump ([01.2017 - ] (1701- )N04C) 4
#OEMPart name
19971 87207-E0081 Pipe, Vacuum
29300 29300-E0090 Pump Assy, Vacuum
29601 29601-E0320 Pipe Sub-Assy, Oil(For Vacuum Pump)
9223372036854775807 21811-E0070 Bolt, Union(For Fuel Return Pipe)
Valve Body & Oil Strainer (Atm) ([01.2017 - ] A444E (1701- )4FC) 60
#OEMPart name
34421 34421-37010 Piston, Overdrive Brake Accumulator
34421 90301-26003 Ring, O (For Overdrive Brake Accumulator Piston)
34421 90301-29003 Ring, O (For Overdrive Brake Accumulator Piston)
34421 90501-32041 Spring (For Overdrive Brake Accumulator Piston)
35112 35112-60010 Cover, Front Clutch Accumulator
35113 35113-60020 Gasket, Front Clutch Accumlator, No.2
35114 35114-60020 Gasket, Front Clutch Accumlator, No.1
35115 35115-60010 Plate, Front Clutch Accumulator
35240 85420-60060 Solenoid Assy, Transmission
35240 85420-60050 Solenoid Assy, Transmission
35250 85420-60070 Solenoid Assy, Transmission
35261 35261-60010 Cylinder, Throttle Pressure Accumulator
35290 35290-60010 Solenoid Assy, Line Pressure Control
35330 35330-36020 Strainer Assy, Valve Body Oil
35339 35339-60030 Gasket, Oil Strainer
35410 35410-36220 Body Assy, Transmission Valve
35419 35419-60010 Valve, Check, No.5
35419 35419-60020 Valve, Check, No.6
35419 90501-18114 Spring, Compression (For Check Valve No.2)
35419 90501-18115 Spring, Compression (For Check Valve No.3)
35419 90501-20157 Spring, Compression (For Check Valve No.4)
35424 35424-60020 Piston, C-1 Accumulator
35424 90501-26083 Spring, Compression (For C-1 Accumulator Piston)
35424 90301-22003 Ring, O (For C-1 Accumulator Piston)
35424 90301-28003 Ring, O (For C-1 Accumulator Piston)
35425 35405-60060 Piston, C-2 Accumulator
35425 90501-18113 Spring (For Overdrive Brake Accumulator Piston)
35425 90501-32040 Spring, Compression (For C-2 Accumulator Piston)
35425 90301-33006 Ring, O (For C-2 Accumulator Piston)
35427 90501-22044 Spring, Compression (For Accumulator Piston No.2)
35427 90501-38007 Spring, Compression (For Accumulator Piston No.2)
35427 35402-60020 Piston, Accumulator, No.2
35427 90301-37004 Ring (For Accumulator Piston No.2)
35893 35893-36010 Gasket, Center Support Apply
82125 82125-25230 Wire, Transmission
82125 96721-24020 O-Ring
91611 91611-B0625 Bolt (For Automatic Transmission Oil Pan)
91611 91611-G0612 Bolt
9094901 90949-01B63 New Genuine Part
9094901 90949-01B86 New Genuine Part
9010506060 90105-06060 New Genuine Part
9010506069 90105-06069 Bolt (For Governor Body)
9010506070 90105-06070 New Genuine Part
9010506072 90105-06072 New Genuine Part
9010506073 90105-06073 New Genuine Part
9010506079 90105-06079 Bolt
9010506202 90105-06202 Bolt(For Cylinder Head Cover)
9010506209 90105-06209 New Genuine Part
9010506210 90105-06210 New Genuine Part
9010506212 90105-06212 New Genuine Part
9010506262 90105-06262 New Genuine Part
9010506263 90105-06263 New Genuine Part
9011905011 90119-05011 New Genuine Part
9011905015 90119-05015 New Genuine Part
9011905043 90119-05043 New Genuine Part
9030106004 90301-06004 Ring, O No.3(For Transmission Solenoid)
9056005016 90560-05016 New Genuine Part
9094902118 90949-02118 New Genuine Part
9161160620 91611-60620 Screw Or Bolt(For Valve Rocker Shaft Lock)
9615102400 96151-02400 New Genuine Part
Vane Pump & Reservoir (Power Steering) ([01.2017 - ] (1701- )XZB60,70) 14
#OEMPart name
4446 04446-60130 Gasket Kit, Power Steering Pump
44310 44310-36310 Pump Assy, Vane
44310 90301-60002 Ring, O(For Vane Pump)
44337 44337-60170 Union(For Vane Pump)
44337 90301-15025 Ring, O(For Power Steering Suction Port)
44338 44338-36020 Union, Pressure Port
44360 44360-36421 Reservoir Assy, Vane Pump Oil
44391 44391-36040 Plate, Power Steering Oil Reservoir Caution
91651 91651-B0820 Bolt, Radiator Side Support Plate
91651 90080-11347 New Genuine Part
9011908 90119-08B61 New Genuine Part
9010510479 90105-10479 New Genuine Part
9012908007 90129-08007 New Genuine Part
9162160822 91621-60822 Bolt, W/washer(For Repair Actuator Set)
Ventilation Hose ([01.2017 - ] (1701- )N04C..02S,17S,20S,22S) 3
#OEMPart name
12260 12261-E0251 Hose, Ventilation
12261 90467-28007 Clip Or Clamp(For Ventilation Hose)
12270 12270-E0013 Separator Assy, Oil
Venturi ([01.2017 - ] EXCEPT EURO 4 (1701- )N04C) 2
#OEMPart name
26100 26100-E0061 Venturi Assy
26100 26100-E0062 Venturi Assy
Water Pump ([01.2017 - ] (1701- )N04C) 5
#OEMPart name
16100 16100-E0B60 Pump Assy, Engine Water
16100 16100-E0B61 Pump Assy, Engine Water
16371 16107-E0040 Pulley, Fan
16603 16603-E0031 Pulley Sub-Assy, Idler, No.1
16630 16630-E0321 Pulley Assy, Idler
Windshield Washer ([01.2017 - ] (1701- )) 18
#OEMPart name
85035 85381-36030 Nozzle Sub-Assy, Washer
85310 85330-60140 Motor And Pump Assy, Windshield Washer
85330 85315-36130 Jar Assy, Windshield Washer
85330 90099-32089 Bush, Headlamp Cleaner Washer Jar
85330 90068-32002 Bush, Windshield Washer Jar
85332 85316-36130 Cap, Windshield Washer Jar
85348 85349-89122 Valve Sub-Assy, Washer
85355 85321-28020 Valve Sub-Assy, Washer
85361 85361-95A02 Bracket Assy, Windshield Washer
85369 82711-52090 Clamp
85371 85355-14481 Joint, Windshield Washer Elbow, No.1
85372 90099-33080 Hose, Windshield Washer (From Motor To Joint)
85372 90446-07001 Hose, Windshield Washer (From Motor To Joint)
85383 85383-36010 Holder, Front Washer Nozzle
8271112200 82711-12200 Clamp (For Fuel Lid Lock Control Cable)
8533937130 85339-37130 Cap Sub-assy, Reserve Tank
9017906158 90179-06158 Nut, Rear Wiper Link Pivot, No.2
9321915012 93219-15012 New Genuine Part
Windshield Wiper ([01.2017 - ] (1701- )RHD) 14
#OEMPart name
85070 85070-36100 Motor & Bracket Assy, Front Wiper
85150 85150-36040 Link Assy, Wiper
85168 85113-36010 Nut, Windshield Wiper Link Pivot
85169 85152-36010 Washer, Windshield Wiper Link Pivot, No.1
85169 85152-36020 Washer, Windshield Wiper Link Pivot, No.1
85178 90182-10006 Nut (For Front Wiper Arm Setting)
85211 85211-36040 Arm, Front Wiper, Rh
85212 85212-26130 Blade, Fr Wiper, Rh
85214 85214-48010 Rubber, Wiper, Rh
85214 85214-24051 Rubber, Wiper, Rh
85221 85221-36040 Arm, Front Wiper, Lh
85222 85212-26051 Blade, Fr Wiper, Rh
85292 85292-13010 Cover, Windshield Wiper Arm
9010508448 90105-08448 BOLT FLANGE
Wiring & Clamp ([01.2017 - ] CLAMP & BRACKET (1701- )) 90
#OEMPart name
0 82715-E0710 Bracket,wiring Harness Clamp
82702 82702-E0S60 Bracket Sub-assy, Wiring Harness
82715 82715-E0Q90 Bracket,wiring Harness Clamp
91611 91611-B0610 Bolt (For Transfer Oil Receiver No.1)
91611 91611-G0612 Bolt
91611 91611-G0820 Bolt
91612 91612-B1020 Bolt (For Transfer Case)Cover No.2
91621 91621-J0612 BOLT W-WASHER
91641 91641-H0820 Bolt
91651 91651-B0820 Bolt, Radiator Side Support Plate
91651 90080-11347 New Genuine Part
91671 91671-A0612 BOLT FLANGE
827020 82702-E1S00 Bracket Sub-assy, Wiring Harness
827020 82702-E1S12 Bracket Sub-assy, Wiring Harness
827020 82702-E1R90 Bracket Sub-assy, Wiring Harness
827112 82711-2B660 Clamp, Wiring Harness
827150 82715-E1P00 Bracket,wiring Harness Clamp
827150 82715-E1X50 Bracket,wiring Harness Clamp
8271195 82711-95J12 Wire, Fuse To Fuse(for Combustion Heater)
8271526 82715-26G10 Bracket,wiring Harness Clamp
8271535 82715-35A90 Bracket,wiring Harness Clamp
8271535 82715-35B10 Bracket,wiring Harness Clamp
8271122270 82711-22270 Clamp(For Transfer Vacuum Tube)
8271126070 82711-26070 Wire, Fuse To Fuse(for Combustion Heater)
8271136130 82711-36130 Wire, Fuse To Fuse(for Combustion Heater)
8271160150 82711-60150 Wire, Fuse To Fuse(for Combustion Heater)
8271160410 82711-60410 Wire, Fuse To Fuse(for Combustion Heater)
8271195015 82711-95015 Wire, Fuse To Fuse(for Combustion Heater)
8271236060 82712-36060 Hose, Suction
8271525150 82715-25150 Bracket,wiring Harness Clamp
8271525830 82715-25830 Bracket,wiring Harness Clamp
8271525850 82715-25850 Bracket,wiring Harness Clamp
8271526240 82715-26240 Bracket,wiring Harness Clamp
8271528360 82715-28360 Bracket,wiring Harness Clamp
8271535780 82715-35780 Bracket,wiring Harness Clamp
8271536010 82715-36010 Bracket,wiring Harness Clamp
8271536020 82715-36020 Bracket,wiring Harness Clamp
8271536030 82715-36030 Bracket,wiring Harness Clamp
8271536040 82715-36040 Bracket,wiring Harness Clamp
8271536050 82715-36050 Bracket,wiring Harness Clamp
8271536060 82715-36060 Bracket,wiring Harness Clamp
8271536070 82715-36070 Bracket,wiring Harness Clamp
8271536080 82715-36080 Bracket,wiring Harness Clamp
8271536100 82715-36100 Bracket,wiring Harness Clamp
8271536110 82715-36110 Bracket,wiring Harness Clamp
8271536120 82715-36120 Bracket,wiring Harness Clamp
8271536130 82715-36130 Bracket,wiring Harness Clamp
8271536150 82715-36150 Bracket,wiring Harness Clamp
8271536160 82715-36160 Bracket,wiring Harness Clamp
8271536170 82715-36170 Bracket,wiring Harness Clamp
8271536360 82715-36360 Bracket,wiring Harness Clamp
8271536370 82715-36370 Bracket,wiring Harness Clamp
8271536390 82715-36390 Bracket,wiring Harness Clamp
8271536400 82715-36400 Bracket,wiring Harness Clamp
8271536460 82715-36460 Bracket,wiring Harness Clamp
8271536470 82715-36470 Bracket,wiring Harness Clamp
8271536480 82715-36480 Bracket,wiring Harness Clamp
8271536500 82715-36500 Bracket,wiring Harness Clamp
8271536510 82715-36510 Bracket,wiring Harness Clamp
8271536530 82715-36530 Bracket,wiring Harness Clamp
8271536550 82715-36550 Bracket,wiring Harness Clamp
8271536560 82715-36560 Bracket,wiring Harness Clamp
8271536570 82715-36570 Bracket,wiring Harness Clamp
8271536580 82715-36580 Bracket,wiring Harness Clamp
8271536670 82715-36670 Bracket,wiring Harness Clamp
8271536700 82715-36700 Bracket,wiring Harness Clamp
8271536730 82715-36730 Bracket,wiring Harness Clamp
8271560040 82715-60040 Bracket,wiring Harness Clamp
8271560170 82715-60170 Bracket,wiring Harness Clamp
8271560380 82715-60380 Bracket,wiring Harness Clamp
8271560790 82715-60790 Bracket,wiring Harness Clamp
9011908944 90119-08944 Bolt(For Rear Bearing Retainer)
9017906161 90179-06161 Bolt, Union(For Clutch Accumulator)
9046110275 90461-10275 New Genuine Part
9046315002 90463-15002 Clamp (For Accelerator Wire Set)
9046400783 90464-00783 New Genuine Part
9151160612 91511-60612 BOLT
9155180816 91551-80816 Bolt(For Manual Transmission Oil Separator)
9155281014 91552-81014 New Genuine Part
9165140616 91651-40616 BOLT
9165140616 91621-60614 Bolt(For Transaxle & Engine Setting)
9165140616 90080-11395 New Genuine Part
9165160616 91651-60616 BOLT
9165160816 91651-60816 BOLT
9165160816 90080-11396 Bolt
9167180814 91671-80814 BOLT FLANGE WWASER
9167180814 90119-A0165 New Genuine Part
9167380612 91673-80612 BOLT FLANGE
9413000802 94130-00802 Nut, No.1 (For Center Support Bearing)
9413000802 90170-A0001 New Genuine Part
Wiring & Clamp ([01.2017 - ] CONNECTER (1701- )) 8
#OEMPart name
9098012 90980-12A03 New Genuine Part
9098010619 90980-10619 Housing, Connector
9098010942 90980-10942 Housing, Connector
9098010997 90980-10997 HOUSING CONNECTOR
9098011019 90980-11019 HOUSING, CONNECTOR
9098011155 90980-11155 Socket, Clearance Lamp
9098011194 90980-11194 HOUSING CONNECTOR
9098012790 90980-12790 HOUSING CONNECTOR
Wiring & Clamp ([01.2017 - ] COWL & INSTRUMENT PANEL (1701- )RHD) 11
#OEMPart name
82131 82131-36W00 Wire, Cowl
82132 82132-36270 Wire, Cowl, No.2
82133 82133-36080 Wire, Cowl, No.3
82141 82141-36B80 Wire, Instrument Panel
82142 82140-36010 Wire, Instrument Panel, No.2
82666 82666-36110 Holder, Connector No.2
82666 82666-36130 Holder, Connector No.3
82666 82666-36180 Holder, Connector No.4
82666 82666-36150 Holder, Connector No.10
9011906 90119-06A06 BOLT WWASHER
9011906775 90119-06775 BOLT WWASHER
Wiring & Clamp ([01.2017 - ] DOOR (1701- )) 5
#OEMPart name
82151 82151-36040 Wire, Front Door, Rh
82184 82184-36300 Wire, Back Door, No.1
82186 82186-36070 Wire, Rear Window, No.1
9011906 90119-06A06 BOLT WWASHER
9098012978 90980-12978 HOUSING CONNECTOR
Wiring & Clamp ([01.2017 - ] ENGINE (1701- )XZB60,70..RHD) 15
#OEMPart name
82121 82121-36800 Wire, Engine
82122 82122-36310 Wire, Engine, No.2
82122 82121-E1Y50 Wire, Engine
82123 82123-36010 Wire, Engine, No.3
82123 82121-E1390 Wire, Sensor
82124 82124-36060 Wire, Engine, No.4
82124 82121-E2P90 Wire, Engine, No.5
82670 82670-25010 Block Assy, Junction, No.1
82823 82823-22050 Cap, Terminal, No.1
91651 91651-B0820 Bolt, Radiator Side Support Plate
91651 90080-11347 New Genuine Part
9011908 90119-08C69 New Genuine Part
9011908 90119-08C92 New Genuine Part
9011906915 90119-06915 BOLT W-WASHER
9017906158 90179-06158 Nut, Rear Wiper Link Pivot, No.2
Wiring & Clamp ([01.2017 - ] ENGINE ROOM (1701- )RHD) 16
#OEMPart name
82111 82111-36Y90 Wire, Engine Room Main
82149 82149-36040 Wire, Pillar, No.3
82214 82214-36590 Wire, Lamp
82670 82670-25010 Block Assy, Junction, No.1
82815 82815-36020 Cover, Wiring Harness Protector
82817 82817-36370 Protector, Wiring Harness, No.2
82821 82821-21020 Cover, Connector
82823 82823-22050 Cap, Terminal, No.1
5379736010 53797-36010 Protector, Side Turn Signal Lamp
5399736010 53997-36010 Packing, Air Cleaner Inlet
8271536380 82715-36380 Bracket,wiring Harness Clamp
9011906915 90119-06915 BOLT W-WASHER
9017906158 90179-06158 Nut, Rear Wiper Link Pivot, No.2
9165160614 91651-60614 Bolt
9165160616 91651-60616 BOLT
9165160620 91651-60620 BOLTWWASHER
Wiring & Clamp ([01.2017 - ] FLOOR & ROOF (1701- )) 15
#OEMPart name
82161 82161-36A20 Wire, Floor
82163 82163-36040 Wire, Floor, No.3
82164 82164-36052 Wire, Frame
82171 82171-36240 Wire, Roof, No.1
82171 82171-36250 Wire, Roof, No.1
82172 82172-36300 Wire, Roof, No.2
82173 82173-36150 Wire, Roof, No.3
82174 82174-36060 Wire, Roof, No.4
82214 82214-36580 Wire, Lamp, Rear
82281 82281-36080 Wire, Gage
82666 82666-36160 Holder, Connector No.5
82666 82666-36210 Holder, Connector No.6
82666 82666-36200 Holder, Connector No.9
9011906 90119-06A06 BOLT WWASHER
9011906923 90119-06923 BOLT WWASHER
Source
Public OEM parts-catalog data
Variants
1 / 24
Category
252
Collected
2026-08-02
