XZB53

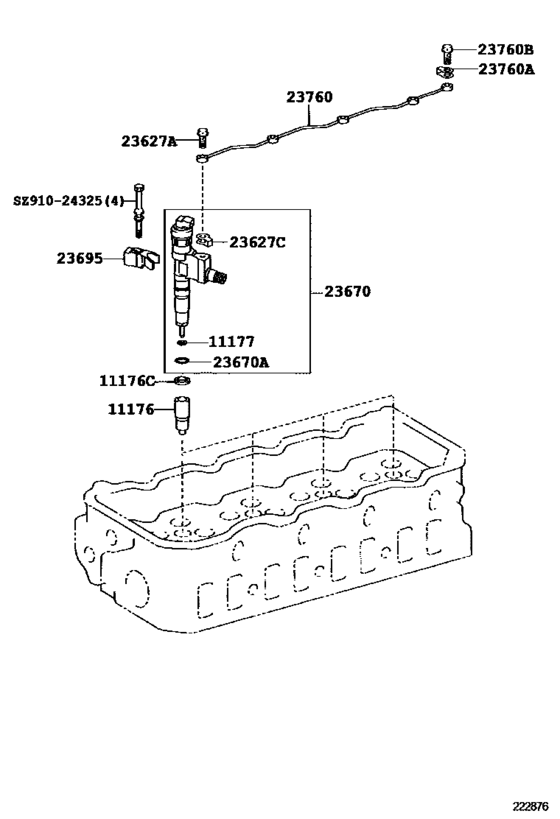

Injection Nozzle ([03.2014 - ] (1403- )N041) 5
| # | OEM | Part name |
|---|---|---|
| 11177 | 23682-E0050 | Gasket, Injection Nozzle Seat |
| 23627 | 21811-E0050 | Screw, Follow(For Nozzle) |
| 23670 | 23670-E9260 | Injector Assy |
| 23670 | 23670-E9264 | INJECTOR ASSY |
| 23760 | 21811-E0060 | Bolt, Union(For Nozzle Lekage Pipe No.3) |
| OEM | Part name | Category |
|---|---|---|
| 21811-E0050 | Screw, Follow(For Nozzle) | Injection Nozzle ([03.2014 - ] (1403- )N041) |
| 21811-E0060 | Bolt, Union(For Nozzle Lekage Pipe No.3) | Injection Nozzle ([03.2014 - ] (1403- )N041) |
| 23670-E9260 | Injector Assy | Injection Nozzle ([03.2014 - ] (1403- )N041) |
| 23670-E9264 | INJECTOR ASSY | Injection Nozzle ([03.2014 - ] (1403- )N041) |
| 23682-E0050 | Gasket, Injection Nozzle Seat | Injection Nozzle ([03.2014 - ] (1403- )N041) |
