XZB53

Toyota COASTER · 2007 · 3,563 parts · 193 categories
XZB53 ×

← Back to categories

3,563 items

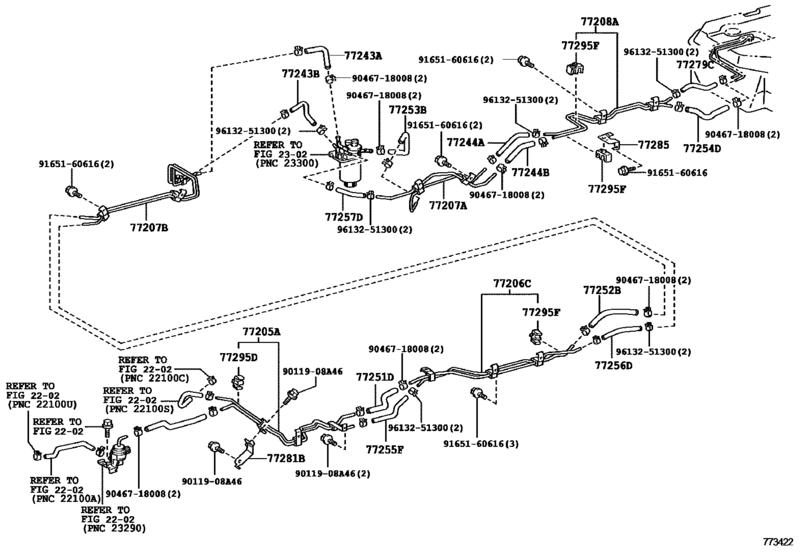

Fuel Tank & Tube ([03.2014 - 07.2015] FUEL TUBE (1403-1507)XZB53) 20
#OEMPart name
77205 77205-0S010 Tube Sub-Assy, Fuel Main
77206 77206-36550 Tube Sub-Assy, Fuel Main, No.2
77207 77207-36310 Tube Sub-Assy, Fuel Return - FUEL MAIN
77207 77207-36300 Tube Sub-Assy, Fuel Main, No.3
77208 77208-36250 Tube Sub-Assy, Fuel Main, No.4
77243 77259-36270 Hose, Fuel, No.1 (For Main Tube, No.3)
77243 77259-36280 Hose, Fuel, No.2 (For Main Tube, No.3)
77244 95333-08030 Hose Or Pipe, Fuel(For Injection Pump To Fuel Filter)
77244 95332-12024 Hose, Fuel, No.1 (For Main Tube, No.2)
77251 95332-12020 Hose, Fuel, No.1 (For Main Tube, No.1)
77253 95332-12014 Hose, Fuel, No.1 (For Main Tube, No.3)
77254 95332-12018 Hose, Fuel, No.1 (For Main Tube, No.2)
77257 95337-08020 Hose, Fuel(For Fuel Evaporative Separator) - FUEL, NO.1(FOR RETURN TUBE, NO.1)
77281 77281-36100 Clamp, Fuel Hose(For Rear Fuel Main)
77285 77281-36010 Bracket, Fuel Tube
77295 77295-36040 Grommet, Fuel Tube
9011908 90119-08A46 BOLT WWASHER
9046718008 90467-18008 Clip(For Water By-Pass Hose No.2)
9165160616 91651-60616 BOLT
9613251300 96132-51300 Clip(For Ventilation Hose No.2)
