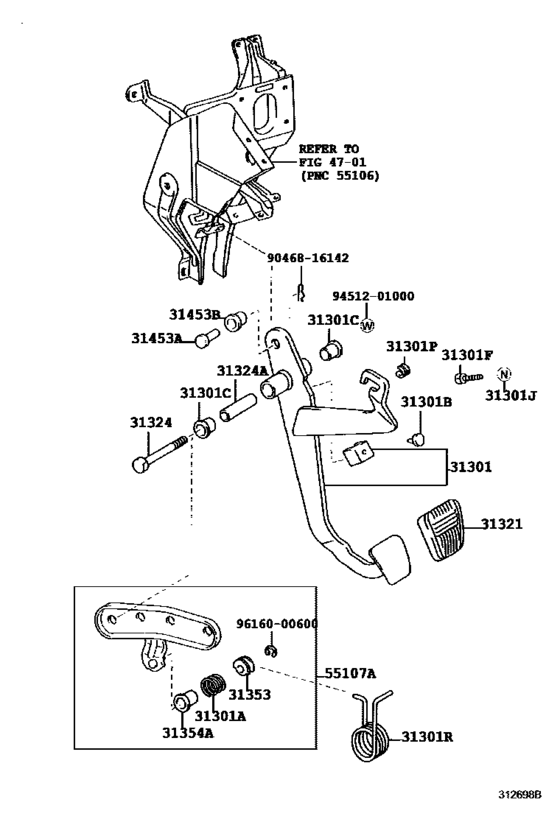

| 31310-36090 |
Pedal Sub-Assy, Clutch |
Clutch Pedal & Flexible Hose ([01.2013 - ] (1301- )GRB53,XZB53) |
| 31321-14020 |
Pad, Clutch Pedal |
Clutch Pedal & Flexible Hose ([01.2013 - ] (1301- )GRB53,XZB53) |
| 31353-14010 |
Holder, Clutch Pedal Spring |
Clutch Pedal & Flexible Hose ([01.2013 - ] (1301- )GRB53,XZB53) |
| 55105-36010 |
Support Sub-Assy, Clutch Pedal |
Clutch Pedal & Flexible Hose ([01.2013 - ] (1301- )GRB53,XZB53) |
| 90240-08006 |
Pin, W/hole(For Clutch Master Cylinder Push Rod Clevis) |
Clutch Pedal & Flexible Hose ([01.2013 - ] (1301- )GRB53,XZB53) |
| 90386-05017 |
Bush(For Clutch Pedal Turnover) |
Clutch Pedal & Flexible Hose ([01.2013 - ] (1301- )GRB53,XZB53) |
| 90386-08002 |
Bush(For Clutch Pedal Over Center Spring Pin) |
Clutch Pedal & Flexible Hose ([01.2013 - ] (1301- )GRB53,XZB53) |
| 90386-13007 |
Bush(For Clutch Pedal) |
Clutch Pedal & Flexible Hose ([01.2013 - ] (1301- )GRB53,XZB53) |
| 90386-13015 |
Bush(For Clutch Pedal) |
Clutch Pedal & Flexible Hose ([01.2013 - ] (1301- )GRB53,XZB53) |
| 90387-10004 |
Collar, Clutch Pedal Shaft |
Clutch Pedal & Flexible Hose ([01.2013 - ] (1301- )GRB53,XZB53) |
| 90468-16142 |
Clip(For Push Rod Clevis Pin) |
Clutch Pedal & Flexible Hose ([01.2013 - ] (1301- )GRB53,XZB53) |
| 90541-06036 |
Cushion, No.1(For Clutch Pedal) |
Clutch Pedal & Flexible Hose ([01.2013 - ] (1301- )GRB53,XZB53) |
| 90949-03010 |
Spring(For Clutch Pedal) |
Clutch Pedal & Flexible Hose ([01.2013 - ] (1301- )GRB53,XZB53) |
| 90949-03092 |
Spring, Compression(For Turn Over Spring Seat) |
Clutch Pedal & Flexible Hose ([01.2013 - ] (1301- )GRB53,XZB53) |
| 91121-61070 |
Shaft, Clutch Pedal |
Clutch Pedal & Flexible Hose ([01.2013 - ] (1301- )GRB53,XZB53) |
| 94130-61000 |
Nut(For Clutch Pedal Stopper) |
Clutch Pedal & Flexible Hose ([01.2013 - ] (1301- )GRB53,XZB53) |
| 94512-01000 |
Washer, No.1 (For Propeller Shaft & Differential Setting) |
Clutch Pedal & Flexible Hose ([01.2013 - ] (1301- )GRB53,XZB53) |
| 96160-00600 |
Ring, E(For Clutch Pedal Pawl) |
Clutch Pedal & Flexible Hose ([01.2013 - ] (1301- )GRB53,XZB53) |
