WZE110

Toyota COROLLA · 1999 · 3,467 parts · 181 categories

← Back to categories

3,467 items

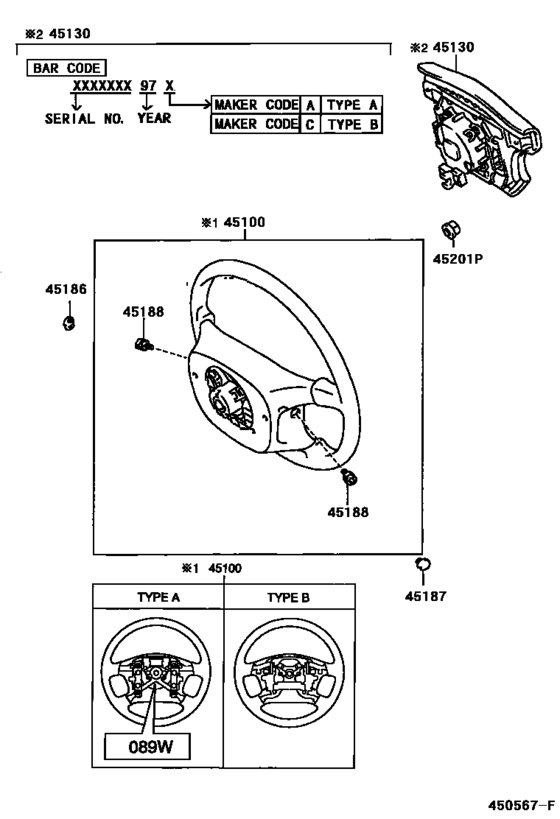

Steering Wheel ([04.1997 - ] 4-SPOKE,W(ELECTRICAL TYPE *80) (9704- )) 8

#	OEM	Part name
45100	45100-13010-B0	Wheel Assy, Steering
45100	45100-13010-B1	Wheel Assy, Steering
45130	45130-1A180-B0	Button Assy, Horn
45130	45130-1A180-B1	Button Assy, Horn
45186	45186-33050-B1	Cover, Steering Wheel, Lower No.2
45186	45186-33050-C0	Cover, Steering Wheel, Lower No.2
45188	90148-60011	Screw, Steering Wheel Pad Attaching
45201	90179-12071	Nut, Steering Wheel Set

OEM	Part name	Category
45100-13010-B0	Wheel Assy, Steering	Steering Wheel ([04.1997 - ] 4-SPOKE,W(ELECTRICAL TYPE *80) (9704- ))
45100-13010-B1	Wheel Assy, Steering	Steering Wheel ([04.1997 - ] 4-SPOKE,W(ELECTRICAL TYPE *80) (9704- ))
45130-1A180-B0	Button Assy, Horn	Steering Wheel ([04.1997 - ] 4-SPOKE,W(ELECTRICAL TYPE *80) (9704- ))
45130-1A180-B1	Button Assy, Horn	Steering Wheel ([04.1997 - ] 4-SPOKE,W(ELECTRICAL TYPE *80) (9704- ))
45186-33050-B1	Cover, Steering Wheel, Lower No.2	Steering Wheel ([04.1997 - ] 4-SPOKE,W(ELECTRICAL TYPE *80) (9704- ))
45186-33050-C0	Cover, Steering Wheel, Lower No.2	Steering Wheel ([04.1997 - ] 4-SPOKE,W(ELECTRICAL TYPE *80) (9704- ))
90148-60011	Screw, Steering Wheel Pad Attaching	Steering Wheel ([04.1997 - ] 4-SPOKE,W(ELECTRICAL TYPE *80) (9704- ))
90179-12071	Nut, Steering Wheel Set	Steering Wheel ([04.1997 - ] 4-SPOKE,W(ELECTRICAL TYPE *80) (9704- ))
