Search › Model › WZE110
WZE110

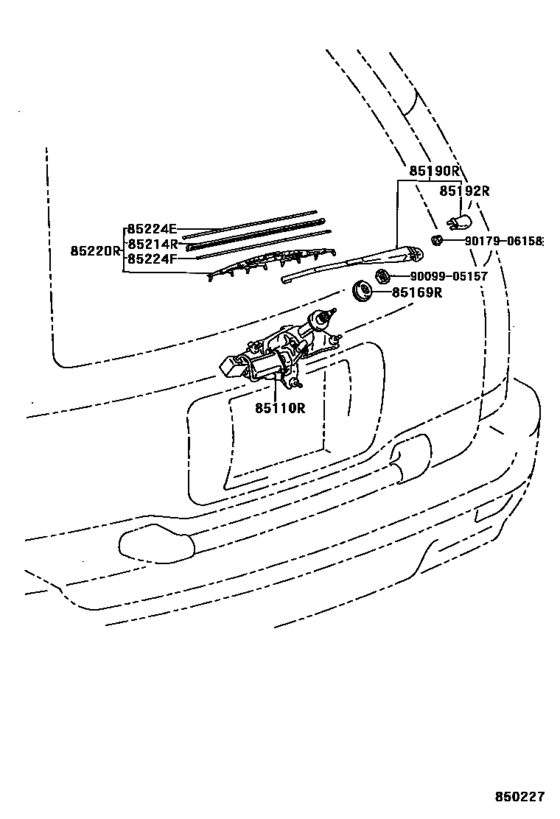

Rear Wiper ([04.1997 - ] (9704- )WG) 9
| # | OEM | Part name |
|---|---|---|
| 85110 | 85130-12860 | Motor Assy, Rear Wiper |
| 85169 | 85134-13070 | Washer, Rear Wiper Link Pivot, No.1 |
| 85190 | 85241-13040 | Arm Assy, Rear Wiper |
| 85192 | 85192-13060 | Cover, Rear Wiper Arm |
| 85214 | 85214-60050 | Rubber, Rear Wiper |
| 85220 | 85242-60021 | Blade Assy, Rear Wiper |
| 85224 | 85224-60080 | Plate, Rear Wiper Rubber Backing, No.1 |
| 9009905157 | 90099-05157 | Nut, Windshield Wiper Link Pivot |
| 9017906158 | 90179-06158 | Nut, Rear Wiper Link Pivot, No.2 |
| OEM | Part name | Category |
|---|---|---|
| 85130-12860 | Motor Assy, Rear Wiper | Rear Wiper ([04.1997 - ] (9704- )WG) |
| 85134-13070 | Washer, Rear Wiper Link Pivot, No.1 | Rear Wiper ([04.1997 - ] (9704- )WG) |
| 85192-13060 | Cover, Rear Wiper Arm | Rear Wiper ([04.1997 - ] (9704- )WG) |
| 85214-60050 | Rubber, Rear Wiper | Rear Wiper ([04.1997 - ] (9704- )WG) |
| 85224-60080 | Plate, Rear Wiper Rubber Backing, No.1 | Rear Wiper ([04.1997 - ] (9704- )WG) |
| 85241-13040 | Arm Assy, Rear Wiper | Rear Wiper ([04.1997 - ] (9704- )WG) |
| 85242-60021 | Blade Assy, Rear Wiper | Rear Wiper ([04.1997 - ] (9704- )WG) |
| 90099-05157 | Nut, Windshield Wiper Link Pivot | Rear Wiper ([04.1997 - ] (9704- )WG) |
| 90179-06158 | Nut, Rear Wiper Link Pivot, No.2 | Rear Wiper ([04.1997 - ] (9704- )WG) |
