WZE110

Toyota カローラ · 1999 · 3,467 部品 · 181 カテゴリ

← カテゴリ一覧に戻る

3,467 件

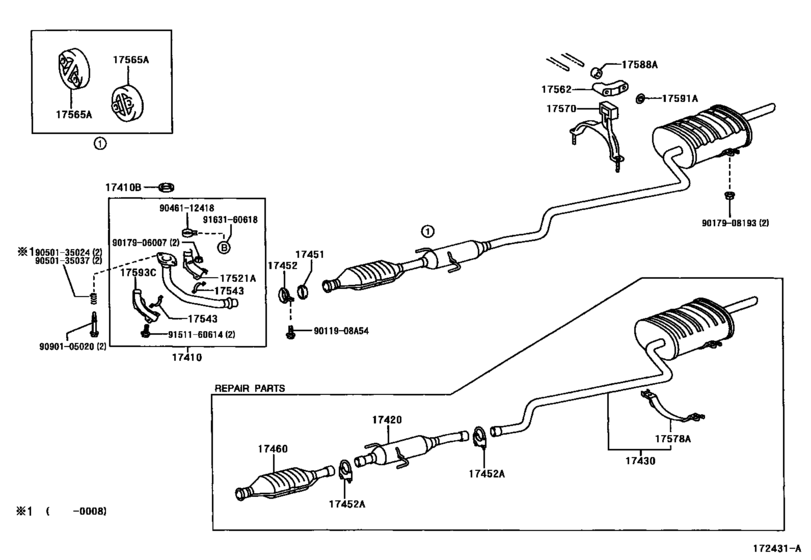

Exhaust Pipe ([01.2000 - ] (0001- )1WZ) 28

#	OEM	部品名
17410	17410-53010	Pipe Assy, Exhaust, Front
17410	90917-06080	Gasket, Exhaust Pipe
17420	17420-53010	Pipe Assy, Exhaust, Center
17430	17430-53040	Pipe Assy, Exhaust, Tail
17451	90917-06082	Gasket, Exhaust Pipe, Center
17452	90461-15013	Clamp, Exhaust Pipe
17452	17452-16120	Clamp, Exhaust Pipe
17460	17460-53010	Converter Assy, Catalytic W/pipe
17521	17521-64180	Protector, Exhaust Pipe, Upper No.1
17543	17543-26010	Stay, Exhaust Pipe Protector, No.3
17562	17562-16240	Support, Exhaust Pipe, No.2
17565	17565-11160	Support, Exhaust Pipe, No.1
17570	17570-16040	Bracket Assy, Exhaust Pipe Support
17578	17578-11030	Clamp, Muffler
17588	17588-16020	Spacer, Exhaust Pipe Hanger
17591	17591-16020	Stopper, Exhaust Pipe Support
17593	17593-64150	Protector, Exhaust Pipe, Lower No.1
9011908	90119-08A54	BOLT WWASHER
9017906007	90179-06007	Nut
9017908193	90179-08193	NUT
9046112418	90461-12418	Clamp
9050135024	90501-35024	SPRING COMPRESSION
9050135037	90501-35037	Spring, Exhaust Pipe
9090105020	90901-05020	Bolt Or Ring, Exhaust Pipe Front (For Front)
9151160614	91511-60614	LEXBOLT
9151160614	91511-B0614	BOLT, FLANGE
9163160618	91631-60618	BOLT WWASHER
9163160618	91631-B0618	BOLT WWASHER

OEM	部品名	カテゴリ
17410-53010	Pipe Assy, Exhaust, Front	Exhaust Pipe ([01.2000 - ] (0001- )1WZ)
17420-53010	Pipe Assy, Exhaust, Center	Exhaust Pipe ([01.2000 - ] (0001- )1WZ)
17430-53040	Pipe Assy, Exhaust, Tail	Exhaust Pipe ([01.2000 - ] (0001- )1WZ)
17452-16120	Clamp, Exhaust Pipe	Exhaust Pipe ([01.2000 - ] (0001- )1WZ)
17460-53010	Converter Assy, Catalytic W/pipe	Exhaust Pipe ([01.2000 - ] (0001- )1WZ)
17521-64180	Protector, Exhaust Pipe, Upper No.1	Exhaust Pipe ([01.2000 - ] (0001- )1WZ)
17543-26010	Stay, Exhaust Pipe Protector, No.3	Exhaust Pipe ([01.2000 - ] (0001- )1WZ)
17562-16240	Support, Exhaust Pipe, No.2	Exhaust Pipe ([01.2000 - ] (0001- )1WZ)
17565-11160	Support, Exhaust Pipe, No.1	Exhaust Pipe ([01.2000 - ] (0001- )1WZ)
17570-16040	Bracket Assy, Exhaust Pipe Support	Exhaust Pipe ([01.2000 - ] (0001- )1WZ)
17578-11030	Clamp, Muffler	Exhaust Pipe ([01.2000 - ] (0001- )1WZ)
17588-16020	Spacer, Exhaust Pipe Hanger	Exhaust Pipe ([01.2000 - ] (0001- )1WZ)
17591-16020	Stopper, Exhaust Pipe Support	Exhaust Pipe ([01.2000 - ] (0001- )1WZ)
17593-64150	Protector, Exhaust Pipe, Lower No.1	Exhaust Pipe ([01.2000 - ] (0001- )1WZ)
90119-08A54	BOLT WWASHER	Exhaust Pipe ([01.2000 - ] (0001- )1WZ)
90179-06007	Nut	Exhaust Pipe ([01.2000 - ] (0001- )1WZ)
90179-08193	NUT	Exhaust Pipe ([01.2000 - ] (0001- )1WZ)
90461-12418	Clamp	Exhaust Pipe ([01.2000 - ] (0001- )1WZ)
90461-15013	Clamp, Exhaust Pipe	Exhaust Pipe ([01.2000 - ] (0001- )1WZ)
90501-35024	SPRING COMPRESSION	Exhaust Pipe ([01.2000 - ] (0001- )1WZ)
90501-35037	Spring, Exhaust Pipe	Exhaust Pipe ([01.2000 - ] (0001- )1WZ)
90901-05020	Bolt Or Ring, Exhaust Pipe Front (For Front)	Exhaust Pipe ([01.2000 - ] (0001- )1WZ)
90917-06080	Gasket, Exhaust Pipe	Exhaust Pipe ([01.2000 - ] (0001- )1WZ)
90917-06082	Gasket, Exhaust Pipe, Center	Exhaust Pipe ([01.2000 - ] (0001- )1WZ)
91511-60614	LEXBOLT	Exhaust Pipe ([01.2000 - ] (0001- )1WZ)
91511-B0614	BOLT, FLANGE	Exhaust Pipe ([01.2000 - ] (0001- )1WZ)
91631-60618	BOLT WWASHER	Exhaust Pipe ([01.2000 - ] (0001- )1WZ)
91631-B0618	BOLT WWASHER	Exhaust Pipe ([01.2000 - ] (0001- )1WZ)
