WZE110

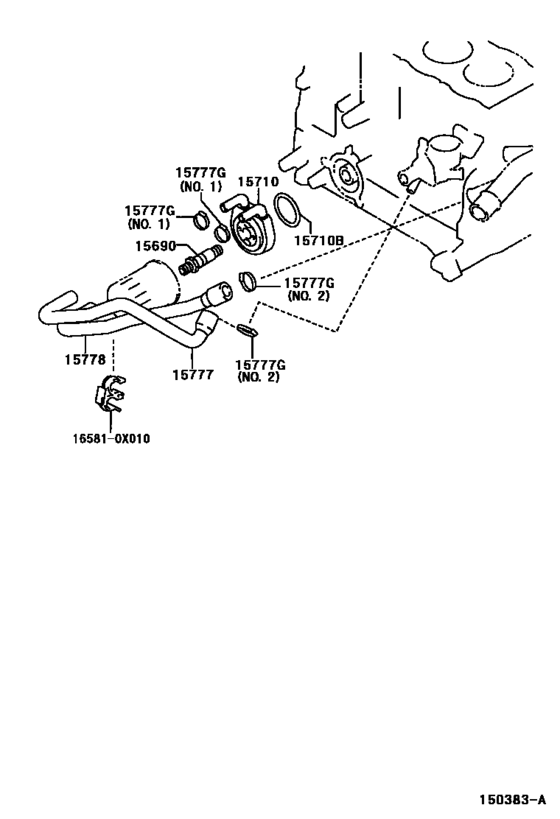

Engine Oil Cooler ([01.2000 - ] (0001- )1WZ) 6
| # | OEM | Part name |
|---|---|---|
| 15690 | 15695-0X010 | Valve Assy, Oil Cooler Relief |
| 15710 | 15710-0X010 | Cooler Assy, Oil |
| 15777 | 15777-0X010 | Hose, Oil Cooler |
| 15777 | 90080-46296 | Clamp Or Crip, Hose |
| 15778 | 15778-0X010 | Hose, Oil Cooler, No.2 |
| 165810 | 16581-0X010 | Clamp, Hose(for Water Hose) |
| OEM | Part name | Category |
|---|---|---|
| 15695-0X010 | Valve Assy, Oil Cooler Relief | Engine Oil Cooler ([01.2000 - ] (0001- )1WZ) |
| 15710-0X010 | Cooler Assy, Oil | Engine Oil Cooler ([01.2000 - ] (0001- )1WZ) |
| 15777-0X010 | Hose, Oil Cooler | Engine Oil Cooler ([01.2000 - ] (0001- )1WZ) |
| 15778-0X010 | Hose, Oil Cooler, No.2 | Engine Oil Cooler ([01.2000 - ] (0001- )1WZ) |
| 16581-0X010 | Clamp, Hose(for Water Hose) | Engine Oil Cooler ([01.2000 - ] (0001- )1WZ) |
| 90080-46296 | Clamp Or Crip, Hose | Engine Oil Cooler ([01.2000 - ] (0001- )1WZ) |
