Search › Model › WWE185
WWE185

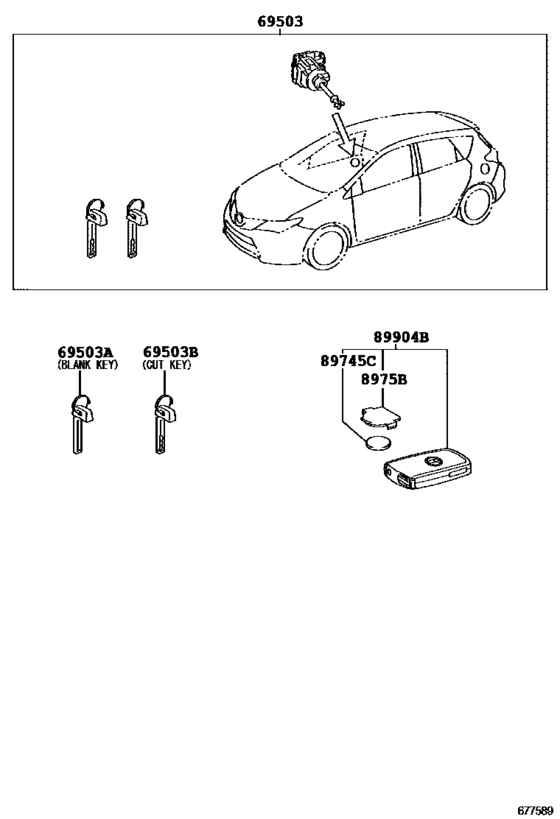

Lock Cylinder Set ([10.2012 - ] W(SMART ENTRY) (1210- )RHD) 6
| # | OEM | Part name |
|---|---|---|
| 69503 | 69005-02830 | Cylinder Set, Lock |
| 69503 | 89704-02600 | Cylinder Set, Lock |
| 69503 | 69515-33100 | Key, Blank |
| 69503 | 69515-33090 | Key, Cut |
| 89745 | 89745-50020 | Battery, Transmitter |
| 89904 | 89904-0D130 | Transmitter Sub-Assy, Electrical Key |
| OEM | Part name | Category |
|---|---|---|
| 69005-02830 | Cylinder Set, Lock | Lock Cylinder Set ([10.2012 - ] W(SMART ENTRY) (1210- )RHD) |
| 69515-33090 | Key, Cut | Lock Cylinder Set ([10.2012 - ] W(SMART ENTRY) (1210- )RHD) |
| 69515-33100 | Key, Blank | Lock Cylinder Set ([10.2012 - ] W(SMART ENTRY) (1210- )RHD) |
| 89704-02600 | Cylinder Set, Lock | Lock Cylinder Set ([10.2012 - ] W(SMART ENTRY) (1210- )RHD) |
| 89745-50020 | Battery, Transmitter | Lock Cylinder Set ([10.2012 - ] W(SMART ENTRY) (1210- )RHD) |
| 89904-0D130 | Transmitter Sub-Assy, Electrical Key | Lock Cylinder Set ([10.2012 - ] W(SMART ENTRY) (1210- )RHD) |
