Search › Model › WWE185

WWE185

Toyota AURIS-COROLLA · 2015 · 3,115 parts · 183 categories

3,115 items

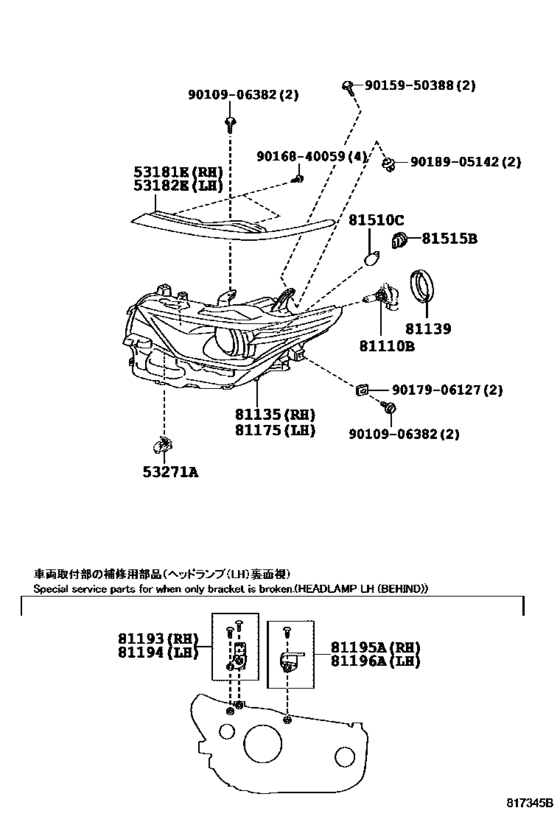

Headlamp ([05.2015 - ] HALOGEN HEADLAMP (1505- )) 22

#	OEM	Part name
53181	53181-02090	Cover, Headlamp, Rh
53181	53181-02140	Cover, Headlamp, Rh
53182	53182-02090	Cover, Headlamp, Lh
53182	53182-02140	Cover, Headlamp, Lh
53271	53271-44010	Bracket, Headlamp Mounting
81110	90981-13089	Bulb(For Headlamp, No.1)
81135	81130-02K40	Unit Assy, Headlamp, Rh
81135	81130-02K70	Unit Assy, Headlamp, Rh
81139	81139-02E20	Cover, Headlamp Socket
81175	81170-02K40	Unit Assy, Headlamp, Lh
81175	81170-02K70	Unit Assy, Headlamp, Lh
81193	81193-12180	Retainer, Headlamp Protector, Upper Rh
81194	81194-12180	Retainer, Headlamp Protector, Upper Lh
81195	81195-12240	Retainer, Headlamp Protector, Lower Rh
81196	81196-12240	Retainer, Headlamp Protector, Lower Lh
81510	90981-15011	Bulb (For Turn Signal Lamp) 12V 21W, AMBER
81515	90069-81116	Socket, Front Turn Signal Lamp
9010906382	90109-06382	BOLT
9015950388	90159-50388	SCREW, W/WASHER
9016840059	90168-40059	Screw, Headlamp
9017906127	90179-06127	Bracket, Front Licence Plate Mounting
9018905142	90189-05142	GROMMET, SCREW

OEM	Part name	Category
53181-02090	Cover, Headlamp, Rh	Headlamp ([05.2015 - ] HALOGEN HEADLAMP (1505- ))
53181-02140	Cover, Headlamp, Rh	Headlamp ([05.2015 - ] HALOGEN HEADLAMP (1505- ))
53182-02090	Cover, Headlamp, Lh	Headlamp ([05.2015 - ] HALOGEN HEADLAMP (1505- ))
53182-02140	Cover, Headlamp, Lh	Headlamp ([05.2015 - ] HALOGEN HEADLAMP (1505- ))
53271-44010	Bracket, Headlamp Mounting	Headlamp ([05.2015 - ] HALOGEN HEADLAMP (1505- ))
81130-02K40	Unit Assy, Headlamp, Rh	Headlamp ([05.2015 - ] HALOGEN HEADLAMP (1505- ))
81130-02K70	Unit Assy, Headlamp, Rh	Headlamp ([05.2015 - ] HALOGEN HEADLAMP (1505- ))
81139-02E20	Cover, Headlamp Socket	Headlamp ([05.2015 - ] HALOGEN HEADLAMP (1505- ))
81170-02K40	Unit Assy, Headlamp, Lh	Headlamp ([05.2015 - ] HALOGEN HEADLAMP (1505- ))
81170-02K70	Unit Assy, Headlamp, Lh	Headlamp ([05.2015 - ] HALOGEN HEADLAMP (1505- ))
81193-12180	Retainer, Headlamp Protector, Upper Rh	Headlamp ([05.2015 - ] HALOGEN HEADLAMP (1505- ))
81194-12180	Retainer, Headlamp Protector, Upper Lh	Headlamp ([05.2015 - ] HALOGEN HEADLAMP (1505- ))
81195-12240	Retainer, Headlamp Protector, Lower Rh	Headlamp ([05.2015 - ] HALOGEN HEADLAMP (1505- ))
81196-12240	Retainer, Headlamp Protector, Lower Lh	Headlamp ([05.2015 - ] HALOGEN HEADLAMP (1505- ))
90069-81116	Socket, Front Turn Signal Lamp	Headlamp ([05.2015 - ] HALOGEN HEADLAMP (1505- ))
90109-06382	BOLT	Headlamp ([05.2015 - ] HALOGEN HEADLAMP (1505- ))
90159-50388	SCREW, W/WASHER	Headlamp ([05.2015 - ] HALOGEN HEADLAMP (1505- ))
90168-40059	Screw, Headlamp	Headlamp ([05.2015 - ] HALOGEN HEADLAMP (1505- ))
90179-06127	Bracket, Front Licence Plate Mounting	Headlamp ([05.2015 - ] HALOGEN HEADLAMP (1505- ))
90189-05142	GROMMET, SCREW	Headlamp ([05.2015 - ] HALOGEN HEADLAMP (1505- ))
90981-13089	Bulb(For Headlamp, No.1)	Headlamp ([05.2015 - ] HALOGEN HEADLAMP (1505- ))
90981-15011	Bulb (For Turn Signal Lamp) 12V 21W, AMBER	Headlamp ([05.2015 - ] HALOGEN HEADLAMP (1505- ))
