Search › Model › WU650

WU650

Toyota DYNA-TOYOACE · 2011 · 2,806 parts · 175 categories

2,806 items

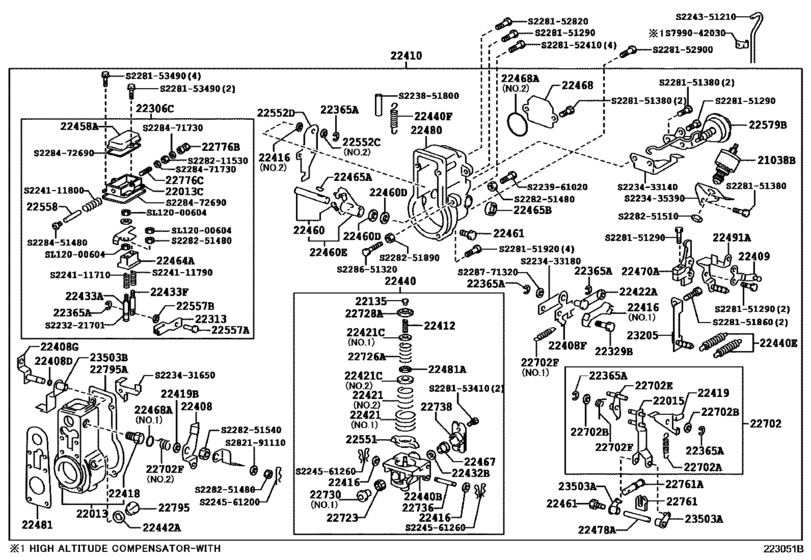

Mechanical Governor ([07.2011 - ] (1107- )W04D..WT..DCRTH ; (1107- )W04D..WU 600..ST..CBU ; (1107- )W04D..WU6 00..ST..GCC..IV3) 62

#	OEM	Part name
0	22554-78030	Screw, Adapter(For Sliding Block)
0	22567-78130	Nut, Arm
0	90099-04996	New Genuine Part
0	22411-78030	Spring(For Adapter Screw)
0	22338-54410	Pin, Lever Connecting
0	90091-20608	BOLT
0	90091-20615	Bolt
0	90092-10101	Nut (For Front Wiper Arm Setting)
0	22581-78140	Nut
0	22113-77090	Washer, Drain Screw
0	22443-68150	Screw, Stop
0	94511-00600	Washer, Lock, No.2
22329	22329-78130	Bolt, Diaphragm Connecting, No.3
22365	22421-47030	Washer, Plate(For Connecting Pin)
22412	22412-78030	Spring, Mechanical Governor
22416	22416-58270	Bush, Cam Plate
22419	22014-78031	Arm, Floating
22421	22737-78034	Washer, Idling Spring
22432	22713-58230	Shim
22432	22713-58231	Shim
22432	22713-58232	Shim
22432	22713-58233	Shim
22432	22713-58234	Shim
22432	22713-58235	Shim
22432	22713-58236	Shim
22432	22713-58237	Shim
22432	22713-58238	Shim
22432	22713-58239	Shim
22440	22432-78031	Spring, Return(For Cam Plate)
22461	22446-78030	Plug, Screw
22465	90099-13013	Key, Woodruff(For Adjusting Lever)
22465	90099-15036	Seal, Oil(For Adjusting Lever)
22468	22458-78030	Cover, Plate
22468	90099-14005	Ring, O(For Stopper Lever)
22468	90099-14069	O, Ring
22478	22558-78031	Shaft, Lever Supporting
22551	22551-78030	Seat, Spring(For Flyweight)
22557	22423-78030	Pin, Connecting(For Full Stop Cam)
22557	90099-01540	Ring, O(For Injection Pump Positioner)
22557	90099-01541	Ring, O(For Injection Pump Positioner)
22558	22558-78030	Shaft, Sliding Block
22702	22702-78030	Lever Assy, Floating
22702	22432-78032	Spring, Floating Arm
22702	90099-30610	Washer, Plate(For Connecting Pin)
22702	90099-01519	Washer, Plate(For Connecting Pin)
22702	90099-01505	Washer, Plate(For Connecting Pin)
22702	90099-01334	Washer, Plate(For Connecting Pin)
22702	22490-78030	Lever Sub-Assy, Control
22702	22432-78033	Spring, Floating Arm
22702	22432-78030	Spring, Return(For Arm)
22723	22723-68150	Damper, Flyweight Holder
22728	22728-78031	Guide, Spring
22730	22730-58230	Bushing Assy, Camshaft
22761	22761-78031	Slider(For Speed Control)
22761	22752-78030	Shaft, Sliding Weight
22761	22752-78031	Shaft, Sliding Weight
22761	22752-78032	Shaft, Sliding Weight
22761	22752-78033	Shaft, Sliding Weight
22761	22752-78034	Shaft, Sliding Weight
22761	22752-78035	Shaft, Sliding Weight
22761	22752-78036	Shaft, Sliding Weight
22795	22795-77121	Plug, Screw

OEM	Part name	Category
22014-78031	Arm, Floating	Mechanical Governor ([07.2011 - ] (1107- )W04D..WT..DCRTH ; (1107- )W04D..WU 600..ST..CBU ; (1107- )W04D..WU6 00..ST..GCC..IV3)
22113-77090	Washer, Drain Screw	Mechanical Governor ([07.2011 - ] (1107- )W04D..WT..DCRTH ; (1107- )W04D..WU 600..ST..CBU ; (1107- )W04D..WU6 00..ST..GCC..IV3)
22329-78130	Bolt, Diaphragm Connecting, No.3	Mechanical Governor ([07.2011 - ] (1107- )W04D..WT..DCRTH ; (1107- )W04D..WU 600..ST..CBU ; (1107- )W04D..WU6 00..ST..GCC..IV3)
22338-54410	Pin, Lever Connecting	Mechanical Governor ([07.2011 - ] (1107- )W04D..WT..DCRTH ; (1107- )W04D..WU 600..ST..CBU ; (1107- )W04D..WU6 00..ST..GCC..IV3)
22411-78030	Spring(For Adapter Screw)	Mechanical Governor ([07.2011 - ] (1107- )W04D..WT..DCRTH ; (1107- )W04D..WU 600..ST..CBU ; (1107- )W04D..WU6 00..ST..GCC..IV3)
22412-78030	Spring, Mechanical Governor	Mechanical Governor ([07.2011 - ] (1107- )W04D..WT..DCRTH ; (1107- )W04D..WU 600..ST..CBU ; (1107- )W04D..WU6 00..ST..GCC..IV3)
22416-58270	Bush, Cam Plate	Mechanical Governor ([07.2011 - ] (1107- )W04D..WT..DCRTH ; (1107- )W04D..WU 600..ST..CBU ; (1107- )W04D..WU6 00..ST..GCC..IV3)
22421-47030	Washer, Plate(For Connecting Pin)	Mechanical Governor ([07.2011 - ] (1107- )W04D..WT..DCRTH ; (1107- )W04D..WU 600..ST..CBU ; (1107- )W04D..WU6 00..ST..GCC..IV3)
22423-78030	Pin, Connecting(For Full Stop Cam)	Mechanical Governor ([07.2011 - ] (1107- )W04D..WT..DCRTH ; (1107- )W04D..WU 600..ST..CBU ; (1107- )W04D..WU6 00..ST..GCC..IV3)
22432-78030	Spring, Return(For Arm)	Mechanical Governor ([07.2011 - ] (1107- )W04D..WT..DCRTH ; (1107- )W04D..WU 600..ST..CBU ; (1107- )W04D..WU6 00..ST..GCC..IV3)
22432-78031	Spring, Return(For Cam Plate)	Mechanical Governor ([07.2011 - ] (1107- )W04D..WT..DCRTH ; (1107- )W04D..WU 600..ST..CBU ; (1107- )W04D..WU6 00..ST..GCC..IV3)
22432-78032	Spring, Floating Arm	Mechanical Governor ([07.2011 - ] (1107- )W04D..WT..DCRTH ; (1107- )W04D..WU 600..ST..CBU ; (1107- )W04D..WU6 00..ST..GCC..IV3)
22432-78033	Spring, Floating Arm	Mechanical Governor ([07.2011 - ] (1107- )W04D..WT..DCRTH ; (1107- )W04D..WU 600..ST..CBU ; (1107- )W04D..WU6 00..ST..GCC..IV3)
22443-68150	Screw, Stop	Mechanical Governor ([07.2011 - ] (1107- )W04D..WT..DCRTH ; (1107- )W04D..WU 600..ST..CBU ; (1107- )W04D..WU6 00..ST..GCC..IV3)
22446-78030	Plug, Screw	Mechanical Governor ([07.2011 - ] (1107- )W04D..WT..DCRTH ; (1107- )W04D..WU 600..ST..CBU ; (1107- )W04D..WU6 00..ST..GCC..IV3)
22458-78030	Cover, Plate	Mechanical Governor ([07.2011 - ] (1107- )W04D..WT..DCRTH ; (1107- )W04D..WU 600..ST..CBU ; (1107- )W04D..WU6 00..ST..GCC..IV3)
22490-78030	Lever Sub-Assy, Control	Mechanical Governor ([07.2011 - ] (1107- )W04D..WT..DCRTH ; (1107- )W04D..WU 600..ST..CBU ; (1107- )W04D..WU6 00..ST..GCC..IV3)
22551-78030	Seat, Spring(For Flyweight)	Mechanical Governor ([07.2011 - ] (1107- )W04D..WT..DCRTH ; (1107- )W04D..WU 600..ST..CBU ; (1107- )W04D..WU6 00..ST..GCC..IV3)
22554-78030	Screw, Adapter(For Sliding Block)	Mechanical Governor ([07.2011 - ] (1107- )W04D..WT..DCRTH ; (1107- )W04D..WU 600..ST..CBU ; (1107- )W04D..WU6 00..ST..GCC..IV3)
22558-78030	Shaft, Sliding Block	Mechanical Governor ([07.2011 - ] (1107- )W04D..WT..DCRTH ; (1107- )W04D..WU 600..ST..CBU ; (1107- )W04D..WU6 00..ST..GCC..IV3)
22558-78031	Shaft, Lever Supporting	Mechanical Governor ([07.2011 - ] (1107- )W04D..WT..DCRTH ; (1107- )W04D..WU 600..ST..CBU ; (1107- )W04D..WU6 00..ST..GCC..IV3)
22567-78130	Nut, Arm	Mechanical Governor ([07.2011 - ] (1107- )W04D..WT..DCRTH ; (1107- )W04D..WU 600..ST..CBU ; (1107- )W04D..WU6 00..ST..GCC..IV3)
22581-78140	Nut	Mechanical Governor ([07.2011 - ] (1107- )W04D..WT..DCRTH ; (1107- )W04D..WU 600..ST..CBU ; (1107- )W04D..WU6 00..ST..GCC..IV3)
22702-78030	Lever Assy, Floating	Mechanical Governor ([07.2011 - ] (1107- )W04D..WT..DCRTH ; (1107- )W04D..WU 600..ST..CBU ; (1107- )W04D..WU6 00..ST..GCC..IV3)
22713-58230	Shim	Mechanical Governor ([07.2011 - ] (1107- )W04D..WT..DCRTH ; (1107- )W04D..WU 600..ST..CBU ; (1107- )W04D..WU6 00..ST..GCC..IV3)
22713-58231	Shim	Mechanical Governor ([07.2011 - ] (1107- )W04D..WT..DCRTH ; (1107- )W04D..WU 600..ST..CBU ; (1107- )W04D..WU6 00..ST..GCC..IV3)
22713-58232	Shim	Mechanical Governor ([07.2011 - ] (1107- )W04D..WT..DCRTH ; (1107- )W04D..WU 600..ST..CBU ; (1107- )W04D..WU6 00..ST..GCC..IV3)
22713-58233	Shim	Mechanical Governor ([07.2011 - ] (1107- )W04D..WT..DCRTH ; (1107- )W04D..WU 600..ST..CBU ; (1107- )W04D..WU6 00..ST..GCC..IV3)
22713-58234	Shim	Mechanical Governor ([07.2011 - ] (1107- )W04D..WT..DCRTH ; (1107- )W04D..WU 600..ST..CBU ; (1107- )W04D..WU6 00..ST..GCC..IV3)
22713-58235	Shim	Mechanical Governor ([07.2011 - ] (1107- )W04D..WT..DCRTH ; (1107- )W04D..WU 600..ST..CBU ; (1107- )W04D..WU6 00..ST..GCC..IV3)
22713-58236	Shim	Mechanical Governor ([07.2011 - ] (1107- )W04D..WT..DCRTH ; (1107- )W04D..WU 600..ST..CBU ; (1107- )W04D..WU6 00..ST..GCC..IV3)
22713-58237	Shim	Mechanical Governor ([07.2011 - ] (1107- )W04D..WT..DCRTH ; (1107- )W04D..WU 600..ST..CBU ; (1107- )W04D..WU6 00..ST..GCC..IV3)
22713-58238	Shim	Mechanical Governor ([07.2011 - ] (1107- )W04D..WT..DCRTH ; (1107- )W04D..WU 600..ST..CBU ; (1107- )W04D..WU6 00..ST..GCC..IV3)
22713-58239	Shim	Mechanical Governor ([07.2011 - ] (1107- )W04D..WT..DCRTH ; (1107- )W04D..WU 600..ST..CBU ; (1107- )W04D..WU6 00..ST..GCC..IV3)
22723-68150	Damper, Flyweight Holder	Mechanical Governor ([07.2011 - ] (1107- )W04D..WT..DCRTH ; (1107- )W04D..WU 600..ST..CBU ; (1107- )W04D..WU6 00..ST..GCC..IV3)
22728-78031	Guide, Spring	Mechanical Governor ([07.2011 - ] (1107- )W04D..WT..DCRTH ; (1107- )W04D..WU 600..ST..CBU ; (1107- )W04D..WU6 00..ST..GCC..IV3)
22730-58230	Bushing Assy, Camshaft	Mechanical Governor ([07.2011 - ] (1107- )W04D..WT..DCRTH ; (1107- )W04D..WU 600..ST..CBU ; (1107- )W04D..WU6 00..ST..GCC..IV3)
22737-78034	Washer, Idling Spring	Mechanical Governor ([07.2011 - ] (1107- )W04D..WT..DCRTH ; (1107- )W04D..WU 600..ST..CBU ; (1107- )W04D..WU6 00..ST..GCC..IV3)
22752-78030	Shaft, Sliding Weight	Mechanical Governor ([07.2011 - ] (1107- )W04D..WT..DCRTH ; (1107- )W04D..WU 600..ST..CBU ; (1107- )W04D..WU6 00..ST..GCC..IV3)
22752-78031	Shaft, Sliding Weight	Mechanical Governor ([07.2011 - ] (1107- )W04D..WT..DCRTH ; (1107- )W04D..WU 600..ST..CBU ; (1107- )W04D..WU6 00..ST..GCC..IV3)
22752-78032	Shaft, Sliding Weight	Mechanical Governor ([07.2011 - ] (1107- )W04D..WT..DCRTH ; (1107- )W04D..WU 600..ST..CBU ; (1107- )W04D..WU6 00..ST..GCC..IV3)
22752-78033	Shaft, Sliding Weight	Mechanical Governor ([07.2011 - ] (1107- )W04D..WT..DCRTH ; (1107- )W04D..WU 600..ST..CBU ; (1107- )W04D..WU6 00..ST..GCC..IV3)
22752-78034	Shaft, Sliding Weight	Mechanical Governor ([07.2011 - ] (1107- )W04D..WT..DCRTH ; (1107- )W04D..WU 600..ST..CBU ; (1107- )W04D..WU6 00..ST..GCC..IV3)
22752-78035	Shaft, Sliding Weight	Mechanical Governor ([07.2011 - ] (1107- )W04D..WT..DCRTH ; (1107- )W04D..WU 600..ST..CBU ; (1107- )W04D..WU6 00..ST..GCC..IV3)
22752-78036	Shaft, Sliding Weight	Mechanical Governor ([07.2011 - ] (1107- )W04D..WT..DCRTH ; (1107- )W04D..WU 600..ST..CBU ; (1107- )W04D..WU6 00..ST..GCC..IV3)
22761-78031	Slider(For Speed Control)	Mechanical Governor ([07.2011 - ] (1107- )W04D..WT..DCRTH ; (1107- )W04D..WU 600..ST..CBU ; (1107- )W04D..WU6 00..ST..GCC..IV3)
22795-77121	Plug, Screw	Mechanical Governor ([07.2011 - ] (1107- )W04D..WT..DCRTH ; (1107- )W04D..WU 600..ST..CBU ; (1107- )W04D..WU6 00..ST..GCC..IV3)
90091-20608	BOLT	Mechanical Governor ([07.2011 - ] (1107- )W04D..WT..DCRTH ; (1107- )W04D..WU 600..ST..CBU ; (1107- )W04D..WU6 00..ST..GCC..IV3)
90091-20615	Bolt	Mechanical Governor ([07.2011 - ] (1107- )W04D..WT..DCRTH ; (1107- )W04D..WU 600..ST..CBU ; (1107- )W04D..WU6 00..ST..GCC..IV3)
90092-10101	Nut (For Front Wiper Arm Setting)	Mechanical Governor ([07.2011 - ] (1107- )W04D..WT..DCRTH ; (1107- )W04D..WU 600..ST..CBU ; (1107- )W04D..WU6 00..ST..GCC..IV3)
90099-01334	Washer, Plate(For Connecting Pin)	Mechanical Governor ([07.2011 - ] (1107- )W04D..WT..DCRTH ; (1107- )W04D..WU 600..ST..CBU ; (1107- )W04D..WU6 00..ST..GCC..IV3)
90099-01505	Washer, Plate(For Connecting Pin)	Mechanical Governor ([07.2011 - ] (1107- )W04D..WT..DCRTH ; (1107- )W04D..WU 600..ST..CBU ; (1107- )W04D..WU6 00..ST..GCC..IV3)
90099-01519	Washer, Plate(For Connecting Pin)	Mechanical Governor ([07.2011 - ] (1107- )W04D..WT..DCRTH ; (1107- )W04D..WU 600..ST..CBU ; (1107- )W04D..WU6 00..ST..GCC..IV3)
90099-01540	Ring, O(For Injection Pump Positioner)	Mechanical Governor ([07.2011 - ] (1107- )W04D..WT..DCRTH ; (1107- )W04D..WU 600..ST..CBU ; (1107- )W04D..WU6 00..ST..GCC..IV3)
90099-01541	Ring, O(For Injection Pump Positioner)	Mechanical Governor ([07.2011 - ] (1107- )W04D..WT..DCRTH ; (1107- )W04D..WU 600..ST..CBU ; (1107- )W04D..WU6 00..ST..GCC..IV3)
90099-04996	New Genuine Part	Mechanical Governor ([07.2011 - ] (1107- )W04D..WT..DCRTH ; (1107- )W04D..WU 600..ST..CBU ; (1107- )W04D..WU6 00..ST..GCC..IV3)
90099-13013	Key, Woodruff(For Adjusting Lever)	Mechanical Governor ([07.2011 - ] (1107- )W04D..WT..DCRTH ; (1107- )W04D..WU 600..ST..CBU ; (1107- )W04D..WU6 00..ST..GCC..IV3)
90099-14005	Ring, O(For Stopper Lever)	Mechanical Governor ([07.2011 - ] (1107- )W04D..WT..DCRTH ; (1107- )W04D..WU 600..ST..CBU ; (1107- )W04D..WU6 00..ST..GCC..IV3)
90099-14069	O, Ring	Mechanical Governor ([07.2011 - ] (1107- )W04D..WT..DCRTH ; (1107- )W04D..WU 600..ST..CBU ; (1107- )W04D..WU6 00..ST..GCC..IV3)
90099-15036	Seal, Oil(For Adjusting Lever)	Mechanical Governor ([07.2011 - ] (1107- )W04D..WT..DCRTH ; (1107- )W04D..WU 600..ST..CBU ; (1107- )W04D..WU6 00..ST..GCC..IV3)
90099-30610	Washer, Plate(For Connecting Pin)	Mechanical Governor ([07.2011 - ] (1107- )W04D..WT..DCRTH ; (1107- )W04D..WU 600..ST..CBU ; (1107- )W04D..WU6 00..ST..GCC..IV3)
94511-00600	Washer, Lock, No.2	Mechanical Governor ([07.2011 - ] (1107- )W04D..WT..DCRTH ; (1107- )W04D..WU 600..ST..CBU ; (1107- )W04D..WU6 00..ST..GCC..IV3)
