VZN167

Toyota HILUX-4RUNNER-TRUCK · 2002 · 3,372 parts · 188 categories
VZN167 ×
3,372 items
Abs & Vsc ([08.1997 - ] 4WD (9708- )LN166 ; (9708- )KDN145,150,155,16# ,KZN165,190,LN14#,15#,167,17#,19#,R ZN14#,154,16#,174 ,19#,VZN167,172,YN140..ARL,GCC,GEN,SA,TH) 28
#OEMPart name
85999 85999-35100 Bracket, Relay
88263 88263-24030 Relay, Skid Control
88263 88263-14110 Relay Assy, Circuit Opening (For Esc)
88266 88266-35600 Clamp, Skid Control Sensor, No.1
89411 96723-19021 Ring, O (For Speed Sensor)
89441 89440-35040 Sensor, Deceleration
89516 89516-35060 Wire, Skid Control Sensor
89540 89540-35150 Computer Assy, Skid Control
89542 89542-35090 Sensor, Speed, Front Rh
89543 89543-35090 Sensor, Speed, Front Lh
89545 89545-35020 Sensor, Speed
89546 89546-35020 Sensor, Speed
89771 89771-12010 Cover, Abs Relay Block, Upper
89772 89772-12010 Cover, Abs Relay Block, Lower
90119 90119-T0073 New Genuine Part
90119 90119-T0074 New Genuine Part
90119 90119-T0075 New Genuine Part
91621 91621-J0612 BOLT W-WASHER
91645 91645-H0818 New Genuine Part
91645 91641-H0816 New Genuine Part
91651 91651-B0618 BOLT WWASHER
91651 91651-B0625 New Genuine Part
9011908 90119-08B17 New Genuine Part
9011906801 90119-06801 New Genuine Part
9011908413 90119-08413 New Genuine Part
9011908983 90119-08983 New Genuine Part
9017908099 90179-08099 New Genuine Part
9017908237 90179-08237 New Genuine Part
Accelerator Link ([08.2002 - ] (0208- )VZN167,172) 16
#OEMPart name
78110 90959-03089 Spring (For Accelerator Pedal Rod)
78110 90386-08063 Bush (For Accelerator Pedal Rod)
78120 78120-35230 Rod Assy, Accelerator Pedal
78180 78180-35510 Cable Assy, Accelerator Control
78184 78184-35090 Bracket, Accelerator Control Cable
78185 78185-35070 Clamp, Accelerator Control Cable, No.2
78185 78185-35080 Clamp, Accelerator Control Cable, No.2
78187 78187-35010 Bracket, Accelerator Pull Back Spring
78188 78188-35130 Clamp, Accelerator Control Cable, No.5
91512 91512-B1020 Bolt(For Front Transaxle Case Cover)
91512 90105-A0050 Bolt(For Front Transaxle Case Cover)
91611 91611-G0612 Bolt
91621 91621-J0612 BOLT W-WASHER
91631 91631-B0616 BOLT WWASHER
9011908413 90119-08413 New Genuine Part
9020107008 90201-07008 New Genuine Part
Air Bag ([08.1999 - ] (9908- )KDN145,15#,16#,190,KZN165,190,LN14#,1 5#,167,17#,19#,RZN14#,154,16#,174,1 9#,VZN167,172,YN1 40..ARL,GCC,GEN,MA,SA,TH) 6
#OEMPart name
89170 89170-35110 Sensor Assy, Air Bag
89173 89173-39345 Sensor, Air Bag, Front Rh
89174 89174-39115 Sensor, Air Bag, Front Lh
9011906922 90119-06922 Bolt
9011906922 91621-J0612 BOLT W-WASHER
9014880005 90148-80005 New Genuine Part
Air Cleaner ([08.2002 - 02.2005] (0208-0502)5VZFE) 20
#OEMPart name
17700 17700-62130 Cleaner Assy, Air
17705 17705-62100 Cap Sub-Assy, Air Cleaner
17801 17801-62010 Element Sub-Assy, Air Cleaner Filter
17805 96111-10500 Clamp, Sub Radiator Inlet Hose
17861 17659-62010 Connector, Air
17881 17881-62190 Hose, Air Cleaner, No.1
17881 90460-73002 Clamp, Hose
17881 96111-10900 Clamp, Hose
17882 17882-62020 Hose, Air Cleaner, No.2
17882 96111-10830 Clamp, Hose(For Air Connector)
17893 17893-62080 Resonator, Intake Air
17911 52810-35010 Duct, Cool Air Intake, No.1
22204 22204-21010 Meter Sub-Assy, Intake Air Flow
53807 53807-35050 Duct Sub-Assy, Front Fender Air, Rh
93313 93313-A3020 New Genuine Part
9011908 90119-08B66 BOLT WWASHER
9011906171 90119-06171 BOLT
9011906299 90119-06299 New Genuine Part
9038707016 90387-07016 Collar(For Intake Air Connector)
9048014021 90480-14021 GROMMET
Alternator ([08.2002 - ] 12V 70A (0208- )5VZFE) 8
#OEMPart name
27020 27060-62190 Alternator Assy
27020 90105-10101 Bolt(For Alternator)
27330 27330-67100 Rotor Assy, Alternator
27357 27357-67100 Holder, Alternator, W/rectifier
27370 27370-35060 Holder Assy, Alternator Brush
27411 27411-70200 Pulley, Alternator
27700 27700-50030 Regulator Assy, Generator
9017906158 90179-06158 Nut, Rear Wiper Link Pivot, No.2
Antenna ([08.1997 - ] (9708- )) 7
#OEMPart name
86300 86300-35120 Antenna Assy, W/holder
86392 86392-35010 Ornament, Antenna
86396 86396-16020 Nut, Antenna
91621 91621-J0612 BOLT W-WASHER
9011906390 90119-06390 BOLT WWASHER
9046709025 90467-09025 Clamp(For Hood Lock Control Cable)
9356015014 93560-15014 SCREW
Armrest & Visor ([08.1997 - ] ARMREST (9708- )) 19
#OEMPart name
55524 55524-35010-C0 Cover, Switch Base Hole
74210 74210-35090-B1 Armrest Assy, Front, Rh
74210 74210-89105-B1 Armrest Assy, Front, Rh
74210 74210-35110-B0 Armrest Assy, Front, Rh
74220 74220-35090-B1 Armrest Assy, Front, Lh
74231 74231-35030-C0 Panel, Front Armrest Base, Upper Rh
74231 74231-35050-C0 Panel, Front Armrest Base, Upper Rh
74232 74232-35030-C0 Panel, Front Armrest Base, Upper Lh
74233 74233-35030-B0 Panel, Front Door Armrest Base, Lower Rh
74234 74234-35030-B0 Panel, Front Door Armrest Base, Lower Lh
90167 90167-T0004 Screw, Pan Tapping
9015960571 90159-60571 New Genuine Part
9016740021 90167-40021 SCREW
9016840025 90168-40025 SCREW
9018906121 90189-06121 CLIP
9046804147 90468-04147 Clip(For Back Door Trim Board)
9046805125 90468-05125 Clip (For Roof Side Inner Garnish)
9354054012 93540-54012 Screw, Headlamp
9354056040 93540-56040 SCREW TAPPING
Armrest & Visor ([08.1997 - ] VISOR (9708- )) 11
#OEMPart name
74310 74310-35290-B1 Visor Assy, Rh
74310 74310-35800-B0 Visor Assy, Rh
74320 74320-35270-B1 Visor Assy, Lh
74348 74348-22020-B4 Holder, Visor
74610 74611-89101-B1 Grip Sub-Assy, Assist
74610 74611-89101-B2 Grip Sub-Assy, Assist
9015260046 90152-60046 New Genuine Part
9015960254 90159-60254 New Genuine Part
9015960515 90159-60515 New Genuine Part
9015960531 90159-60531 New Genuine Part
9353045020 93530-45020 SCREW
Ash Receptacle ([08.1997 - ] (9708- )) 7
#OEMPart name
74102 74102-89108 Box Sub-Assy, Front Ash Receptacle
74104 74104-89107 Retainer Sub-Assy, Front Ash Receptacle
90167 90167-T0003 New Genuine Part
90167 90164-T0008 SCREW BINDING TAPPI
9011906428 90119-06428 New Genuine Part
9353014025 93530-14025 New Genuine Part
9356015014 93560-15014 SCREW
Battery & Battery Cable ([08.1997 - ] (9708- )) 6
#OEMPart name
28800 28800-42041 Battery
28800 28800-42042 Battery
28800 28800-42061 Battery
28800 28800-42062 Battery
28800 90982-05035 Terminal, Battery Positive
28800 82821-35020 Cover, Connector(For Battery Terminal)
Battery Carrier ([08.1997 - ] (9708- )) 6
#OEMPart name
74403 74404-35150 Carrier Sub-Assy, Battery
74413 74451-35050 Bolt, Battery Clamp
74431 74431-35030 Tray, Battery
9011908974 90119-08974 BOLT W-WASHER
9017908220 90179-08220 NUT
9020109015 90201-09015 Washer, Plate(For Cylinder Head Set)
Body Stripe ([08.2001 - ] TYPE G (0108- )KZN165,LN16#,192,RZN16#,VZN167..SCB,T HSCB) 8
#OEMPart name
75975 75975-35450 Stripe, Front Door Outside, Front Rh
75976 75976-35460 Stripe, Front Door Outside, Front Lh
75981 75981-35360 Stripe, Fender, Rh
75982 75982-35350 Stripe, Fender, Lh
75991 75991-35640 Stripe, Quarter, Rh
75992 75992-35580 Stripe, Quarter, Lh
75996 75996-3D200 Stripe, Rear Body, Rh
75997 75997-35860 Stripe, Rear Body, Lh
Brake Booster & Vacuum Tube ([08.1997 - ] (9708- )RZN142,147,149,154,169,174,194,VZN167 ,172,YN140..RHD) 13
#OEMPart name
44610 44610-3D750 Booster Assy, Brake
44730 44730-10010 Valve Assy, Vacuum Check(For Brake)
44730 95446-09100 Hose, Vacuum, No.1
44730 96133-41500 Clamp Or Clip(For Air Hose, No.5)
44730 90404-51319 Union, No.1
44731 44731-35090 Bracket, Brake Booster, Front
44758 44758-35070 Bracket, Vacuum Check Valve
44763 44763-35030 Tube, Booster Vacuum
44772 44772-35340 Hose, Check Valve To Brake Booster
44774 44774-35230 Hose, Union To Connector Tube
44785 44785-35020 Gasket, Brake Booster Bracket
91621 91621-J0612 BOLT W-WASHER
9017908057 90179-08057 NUT
Brake Master Cylinder ([08.1997 - ] (9708- )RHD) 18
#OEMPart name
4493 04493-60290 Cylinder Kit, Brake Master
4493 04493-60300 Cylinder Kit, Brake Master
47201 47201-3D320 Cylinder Sub-Assy, Brake Master
47201 47201-3D340 Cylinder Sub-Assy, Brake Master
47202 47220-35010 Reservoir Sub-Assy, Brake Master Cylinder
47202 47220-60080 Reservoir Sub-Assy, Brake Master Cylinder
47210 90430-06104 Gasket(For Brake Actuator)
47210 90109-06077 Bolt(For Brake Master Cylinder)
47230 47230-12040 Cap Assy, Brake Master Cylinder Reservoir Filler
47255 47255-16010 Grommet, Master Cylinder Reservoir
47264 47264-28010 Clevis, Master Cylinder Push Rod
47275 47275-12020 Gasket, Brake Master Cylinder
47299 47299-24010 Strainer, Brake Master Cylinder Reservoir
91621 91621-J0612 BOLT W-WASHER
9014940006 90149-40006 Bolt
9017908204 90179-08204 Nut
9017908204 90080-18070 NUT, WWASHER
9017910065 90179-10065 Nut, Master Cylinder Push Rod Clevis Lock
Brake Pedal & Bracket ([08.1997 - ] (9708- )RHD) 14
#OEMPart name
47101 47101-35350 Pedal Sub-Assy, Brake
47101 90507-17002 Spring(For Brake Pedal Return)
47101 90386-13015 Bush(For Clutch Pedal)
47121 31321-14020 Pad, Clutch Pedal
47124 90101-10039 Shaft, Clutch Pedal
47124 90387-10003 Collar, Clutch Pedal Shaft
47131 90541-06036 Cushion, No.1(For Clutch Pedal)
47264 47148-35010 Pin(For Brake Master Cylinder Push Rod)
55106 55106-35100 Support Sub-Assy, Brake Pedal
90119 90119-T0083 New Genuine Part
9012908009 90129-08009 Bolt
9012908009 91661-60816 Bolt
9046816012 90468-16012 Pin, Sub Seat Cushion Pin
9451201000 94512-01000 Washer, No.1 (For Propeller Shaft & Differential Setting)
Brake Tube & Clamp ([08.1997 - ] (9708- )LN145,152..ARL,SA ; (9708- )KDN16# ,190,KZN165,190,LN140,147,RZN142,14 7,149,154,VZN167, 172,YN140..ARL,MA,SA,TH) 42
#OEMPart name
47311 47311-35450 Tube, Front Brake, No.1
47311 47311-60490 Tube, Front Brake, No.1
47311 90904-13041 Way(For Front Brake Tube)
47311 90904-13043 Way(For Front Brake Tube)
47311 90904-12055 Way, No.1(For Front Brake Tube)
47311 90904-13038 Way, No.1(For Front Brake Tube)
47312 47312-3D350 Tube, Front Brake, No.2
47313 47313-3D150 Tube, Front Brake, No.3
47313 90947-02957 Hose, Flexible, No.1(For Front)
47314 47314-35280 Tube, Front Brake, No.4
47315 47315-35330 Tube, Front Brake, No.5
47316 90947-02958 Hose, Flexible(For Rear Brake Tube)
47321 47321-35780 Tube, Rear Brake, No.1
47321 90904-13516 Way, No.1(For Rear Brake Tube)
47322 47322-35750 Tube, Rear Brake, No.2
47323 47323-35190 Tube, Rear Brake, No.3
47324 47324-35250 Tube, Rear Brake, No.4
47325 47325-35290 Tube, Rear Brake, No.5
47341 47341-35170 Tube, Wheel Cylinder, Front Rh No.1
47343 47343-35170 Tube, Wheel Cylinder, Front Lh No.1
47351 47351-35300 Bracket, Flexible Hose(For Front Rh)
47351 47351-35310 Bracket, Flexible Hose(For Front Rh)
47352 47352-35350 Bracket, Flexible Hose(For Front Lh)
47352 47352-35360 Bracket, Flexible Hose(For Front Lh)
47371 47371-35230 Clamp, Brake Tube, No.1
47371 47372-35080 Clamp, Brake Tube, No.8
47373 47373-35060 Clamp, Brake Tube, No.3
47374 47372-35150 Clamp, Brake Tube, No.2
47375 47372-35030 Clamp, Brake Tube, No.2
47383 47383-35020 Bracket, Connector
90119 90119-T0028 New Genuine Part
90119 90119-T0030 New Genuine Part
90119 90119-T0036 New Genuine Part
91611 91611-B0614 Bolt (For Rear Differential Breather Plug Oil Deflector)
91611 91611-F0812 New Genuine Part
91611 90119-08846 BOLT WWASHER
91641 91641-H0820 Bolt
9046808035 90468-08035 CLIP
9046808035 90468-A0007 New Genuine Part
9094901457 90949-01457 Clamp, Brake Tube, No.5
9161160814 91611-60814 Bolt
9622134905 96221-34905 Clamp
Brake Tube & Clamp ([08.1997 - ] W(ABS) (9708- )KDN145,150,151,16#,190,KZN165,LN147,1 52,167,172,RZN147,149,154,174,VZN16 7,172..DCR,DEFI,D SL,EFI,TDE..ARL,SA,TH) 6
#OEMPart name
44510 44050-35020 Actuator Assy, Brake
44545 44545-35080 Holder, Brake Actuator Bolt
44546 44546-35090 Cushion, Brake Actuator Bolt
44590 44590-35030 Bracket Assy, Brake Actuator
9017906074 90179-06074 Nut(For Suspension Control Oil Cooler)
9163160814 91631-60814 New Genuine Part
Brake Tube & Clamp ([08.1997 - ] W(ABS) (9708- )KDN16#,190,KZN165,190,LN167,172,192,R ZN174,VZN167,172..ARL,SA,TH) 44
#OEMPart name
47311 47311-35450 Tube, Front Brake, No.1
47311 47311-60490 Tube, Front Brake, No.1
47311 90904-13041 Way(For Front Brake Tube)
47311 90904-13043 Way(For Front Brake Tube)
47311 90904-12055 Way, No.1(For Front Brake Tube)
47311 90904-13038 Way, No.1(For Front Brake Tube)
47312 47312-3D350 Tube, Front Brake, No.2
47313 90947-02957 Hose, Flexible, No.1(For Front)
47315 47315-35330 Tube, Front Brake, No.5
47316 47316-35230 Tube, Front Brake, No.6
47316 90947-02958 Hose, Flexible(For Rear Brake Tube)
47317 47317-35050 Tube, Front Brake, No.7
47318 47318-35170 Tube, Front Brake, No.8
47321 90904-13516 Way, No.1(For Rear Brake Tube)
47322 47322-35750 Tube, Rear Brake, No.2
47323 47323-35190 Tube, Rear Brake, No.3
47324 47324-35250 Tube, Rear Brake, No.4
47325 47325-35290 Tube, Rear Brake, No.5
47326 47326-35070 Tube, Rear Brake, No.6
47327 47327-35040 Tube, Rear Brake, No.7
47341 47341-35170 Tube, Wheel Cylinder, Front Rh No.1
47343 47343-35170 Tube, Wheel Cylinder, Front Lh No.1
47351 47351-35300 Bracket, Flexible Hose(For Front Rh)
47351 47351-35310 Bracket, Flexible Hose(For Front Rh)
47352 47352-35350 Bracket, Flexible Hose(For Front Lh)
47352 47352-35360 Bracket, Flexible Hose(For Front Lh)
47371 47371-35230 Clamp, Brake Tube, No.1
47371 47372-35080 Clamp, Brake Tube, No.8
47373 47373-35060 Clamp, Brake Tube, No.3
47374 47372-35150 Clamp, Brake Tube, No.2
47375 47372-35030 Clamp, Brake Tube, No.2
47378 47378-35020 Protector, Brake Tube
47383 47383-35020 Bracket, Connector
90119 90119-T0028 New Genuine Part
90119 90119-T0030 New Genuine Part
91611 91611-B0614 Bolt (For Rear Differential Breather Plug Oil Deflector)
91611 91611-F0812 New Genuine Part
91611 90119-08846 BOLT WWASHER
91641 91641-H0820 Bolt
9010514043 90105-14043 Bolt(For Steering Knuckle Arm Rh)
9046808035 90468-08035 CLIP
9046808035 90468-A0007 New Genuine Part
9094901457 90949-01457 Clamp, Brake Tube, No.5
9622134905 96221-34905 Clamp
Brake Tube & Clamp ([08.2001 - ] W(LSPV) (0108- )KDN145,15#,KZN190,LN14#,150,155,157,1 6#,17#,19#,RZN14#,154,16#,174,19#,V ZN167,172..DCB,SC B,XTR) 25
#OEMPart name
4477 04477-26010 Bush & Boot Kit, Load Sensing Spring
31478 31478-30010 Bleeder Plug Cap
47910 47910-35420 Valve Assy, Load Sensing Proportioning
47910 47910-35440 Valve Assy, Load Sensing Proportioning
47910 47547-27030 Plug, Bleeder(For Front Disc Brake)
47920 47920-35080 Spring Assy, Load Sensing
47920 90387-08099 Collar(For Load Sensing Spring)
47920 90467-31110 Clip(For Load Sensing Valve Boot)
47920 90202-10103 Washer(For Load Sensing Spring)
47924 47924-35010 Bush, Load Sensing Valve
47931 47931-35110 Bracket, Load Sensing Valve
47933 47933-35071 Bracket, Load Sensing Shackle, No.1
47935 47935-35030 Shackle, Load Sensing Spring, No.1
47936 47936-35050 Shackle, Load Sensing Spring, No.2
47937 47937-60010 Plate, Load Sensing Valve Set
91641 91641-H0820 Bolt
9011908 90119-08B11 BOLT WWASHER
9017008016 90170-08016 Nut
9020108062 90201-08062 Retainer(For Load Sensing Spring Shackle)
9020123360 90201-23360 WASHER
9113150840 91131-50840 BOLT
9413000802 94130-00802 Nut, No.1 (For Center Support Bearing)
9413000802 90170-A0001 New Genuine Part
9451200800 94512-00800 Washer, No.1 (For Propeller Shaft & Differential Setting)
9461210800 94612-10800 Washer, Plate(For Repair Actuator Set)
Cab Mounting & Body Mounting ([08.1997 - ] SINGLE CAB,STANDARD ROOF WAGON (9708- )SCB,SRWGN,THSCB) 18
#OEMPart name
52201 52201-35120 Cushiion Sub-Assy, Cab Mounting, No.1 Upper
52202 52202-35110 Cushiion Sub-Assy, Cab Mounting, No.1 Lower
52203 52203-35230 Cushion Sub-Assy, Cab Mounting, No.2
52204 52204-35140 Cushion Sub-Assy, Cab Mounting, No.2 Lower
52205 52205-35170 Cushiion Sub-Assy, Cab Mounting, No.3 Upper
52206 52206-35050 Cushion Sub-Assy, Cab Mounting, No.3 Lower
52217 52217-35070 Bolt, Body Mounting
52217 52217-35010 Bolt, Body Mounting
52217 52217-35080 Bolt, Body Mounting
9011910545 90119-10545 Bolt(For Body Mounting No.1 Cushion)
9020110002 90201-10002 New Genuine Part
9020110023 90201-10023 WASHER
9020110029 90201-10029 WASHER
9020115019 90201-15019 Washer, Plate, No.1(For Rear Lateral Control Rod)
9038715031 90387-15031 New Genuine Part
9044016007 90440-16007 Spacer(For Body Mounting No.1 Cushion)
9418401001 94184-01001 Nut
9418461401 94184-61401 Nut(For Idler Arm Support)

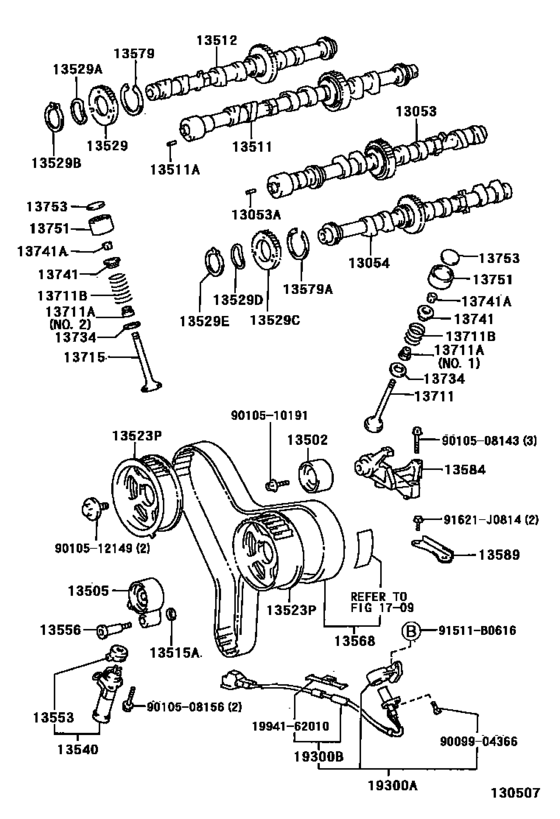

Camshaft & Valve ([08.2002 - 02.2005] (0208-0502)5VZFE) 59
#OEMPart name
13053 13053-62050 Camshaft Sub-Assy, No.3
13053 90250-05121 Pin, Straight, No.3(For Camshaft Knock)
13054 13054-62030 Camshaft Sub-Assy, No.4
13502 13503-62040 Idler Sub-Assy, Timing Belt, No.2
13505 13505-62070 Idler Sub-Assy, Timing Belt, No.1
13511 13501-62050 Camshaft
13512 13502-62030 Camshaft, No.2
13515 90201-10098 Washer, Plate(For Distributor Drive Gear)
13523 13051-62030 Pulley, Camshaft Timing
13523 13528-62020 Pulley, Camshaft Timing
13529 13529-62901 Gear, Camshaft Sub
13529 90206-42001 Washer, Wave(For Camshaft Sub Gear)
13529 90520-41004 Ring, Shaft Snap(For Camshaft Sub Gear)
13540 13540-62021 Tensioner Assy, Chain, No.1
13553 13553-62020 Cover, Chain Tensioner Dust
13556 13556-62010 Shaft, Timing Belt Idler
13568 13568-69095 Belt, Timing
13579 13579-62010 Washer, Camshaft Timing Gear Bolt
13579 13579-50020 Washer, Camshaft Timing Gear Bolt
13584 13584-62050 Bracket, Timing Belt Idler
13589 13589-62020 Stay, Idler Bracket
13711 13711-62030 Valve, Intake
13711 90913-02095 Seal Or Ring, O(For Valve Stem Oil)
13711 90913-02103 Seal Or Ring, O(For Valve Stem Oil)
13711 90501-31013 Spring, Compression(For Inner)
13715 13715-62050 Valve, Exhaust
13734 13734-62020 Washer, Plate(For Valve Spring Seat)
13741 13741-62010 Retainer, Valve Spring
13741 13741-46020 Retainer, Valve Spring
13741 90913-03021 Seal Or Ring, O(For Valve Stem Oil)
13751 13751-74020 Lifter, Valve
13753 13753-74010 Shim, Valve Adjusting
13753 13753-74030 Shim, Valve Adjusting
13753 13753-74050 Shim, Valve Adjusting
13753 13753-74070 Shim, Valve Adjusting
13753 13753-74090 Shim, Valve Adjusting
13753 13753-74110 Shim, Valve Adjusting
13753 13753-74130 Shim, Valve Adjusting
13753 13753-74150 Shim, Valve Adjusting
13753 13753-74170 Shim, Valve Adjusting
13753 13753-74190 Shim, Valve Adjusting
13753 13753-74210 Shim, Valve Adjusting
13753 13753-74230 Shim, Valve Adjusting
13753 13753-74250 Shim, Valve Adjusting
13753 13753-74270 Shim, Valve Adjusting
13753 13753-74290 Shim, Valve Adjusting
13753 13753-74310 Shim, Valve Adjusting
13753 13753-74330 Shim, Valve Adjusting
19300 19300-62010 Sensor Assy, Cam Position
19300 90919-05021 Sensor, Cam Position
91511 91511-B0616 BOLT, FLANGE
91511 90080-10164 BOLT, FLANGE
91621 91621-J0814 Bolt (For Transmission Control Cable Bracket)
1994162010 19941-62010 Clamp, Resistive Cord, No.1
9009904366 90099-04366 New Genuine Part
9010508143 90105-08143 BOLT
9010508156 90105-08156 BOLT WASHER BASED
9010510191 90105-10191 BOLT
9010512149 90105-12149 Bolt(For Camshaft Timing Gear)
Caution Plate & Name Plate (Engine) ([08.1997 - ] (9708- )) 4
#OEMPart name
11288 11288-62010 Plate, Engine System
11289 11289-62020 Plate, Spark Plug Caution
11296 11296-27020 Plate, Engine service information
1356410010 13564-10010 Plate, Timing Belt Caution
Caution Plate ([08.1997 - ] (9708- )) 8
#OEMPart name
36369 36369-35390 Label, Transfer Information
37199 37199-35320 Plate, Maintenance Caution
74559 74559-14050 Plate, Fuel Caution
74559 74559-01010 Plate, Fuel Caution - FUEL INFORMATION
74751 42661-35181 Label, Tire Pressure Information
88723 88723-20040 Label, Cooler Service Caution
9026903029 90269-03029 RIVET
9026903049 90269-03049 RIVET
Clutch & Release Fork ([08.1997 - ] (9708- )LN14#,15#,16#,17#,19#,RZN14#,154,16#, 174,19#,VZN167,172,YN140..MTM) 14
#OEMPart name
31126 31126-34010 Boot, Clutch Release Fork
31204 31204-35031 Fork Sub-Assy, Clutch Release
31210 31210-35210 Cover Assy, Clutch
31210 31210-35291 Cover Assy, Clutch
31230 31230-35110 Bearing Assy, Clutch Release
31232 31232-35020 Clip Or Spring, Release Bearing Hub
31232 31232-35030 Clip Or Spring, Release Bearing Hub
31236 31236-35030 Ball, Release Fork
31250 31250-35352 Disc Assy, Clutch
31250 31250-60411 Disc Assy, Clutch
33311 90363-12002 Bearing (For Input Shaft)
33311 90363-12024 Bearing, Radial Ball
90119 90119-T0102 Bolt (For Transmission Control Cable Bracket)
9011908079 90119-08079 Bolt(For Transmission Input Damper Cover & Flywheel)
Clutch Housing & Transmission Case (Mtm) ([08.2002 - 01.2005] R151 (0208-0501)VZN167,172..MTM) 20
#OEMPart name
31111 31111-35090 Housing, Clutch
31111 90119-12005 Bolt(For Transaxle Case & Engine Setting)
31111 90119-12287 Bolt(For Transaxle & Engine Setting)
33101 90341-18006 Plug (No magnet)
33101 90430-18008 Gasket
33101 90430-T0021 Gasket(For Manual Transmission Filler Plug)
33101 90341-16013 Plug, W/head Straight Screw, No.1(For Cylinder Block)
33111 33101-60050 Case, Manual Transmission
33111 33101-60051 Case, Manual Transmission
33111 90331-14004 Plug, Manual Transmission Case
33111 96411-41800 Plug, Tight, No.1
33111 90253-15001 Pin, Straight(For Clutch Housing Set)
33131 33131-35031 Retainer, Bearing, Front(Mtm)
33131 33131-35032 RETAINER BEARING
33131 90311-32012 Seal, Oil(For Transmission Front Bearing Retainer)
33151 33151-35020 Retainer, Output Shaft Rear Bearing(Mtm)
33449 33449-35030 Magnet, Transmission
91611 91611-G0820 Bolt
9011908332 90119-08332 Bolt(For Manual Transmission Oil Pump Cover)
9161261045 91612-61045 Bolt(For Transaxle & Engine Setting)
Clutch Master Cylinder ([08.1999 - ] (9708- )LN141,145,146,155,166,171,191,RZN144, 149,154,169..LHD..MTM ; (9908- ) KZN165,190,VZN167 ,172,YN140..MTM) 16
#OEMPart name
4311 04311-34020 Cylinder Kit, Clutch Master
31402 31402-35140 Reservoir Sub-Assy, Clutch Master Cylinder
31410 31410-60580 Cylinder Assy, Clutch Master
31415 31415-10010 Gasket, Clutch Master Cylinder
31417 31417-35010 Grommet
31426 31426-30011 Float, Clutch Master Cylinder Reservoir
31440 31405-35020 Cap Assy, Clutch Master Cylinder Reservoir Filler
31451 31451-35070 Rod, Clutch Master Cylinder Push
31453 31453-35010 Clevis, Clutch Master Cylinder Push Rod
31454 31454-16010 Boot, Clutch Master Cylinder
31490 31490-60090 Accumulator Assy, Master Cylinder
31490 31490-60091 Accumulator Assy, Master Cylinder
31490 90430-16005 Gasket(For Clutch Master Cylinder Accumulator)
9017908057 90179-08057 NUT
9025405009 90254-05009 New Genuine Part
9412040800 94120-40800 Nut(For Clutch Pedal Stopper)
Clutch Pedal & Flexible Hose ([08.1997 - ] (9708- )KDN151,16#,KZN165,190,RZN149,154,169, 174,194,VZN167,172..RHD..MTM ; (030 3- )KDN190..MA) 22
#OEMPart name
31301 31310-35060 Pedal Sub-Assy, Clutch
31301 90949-03017 Spring(For Clutch Pedal)
31301 90949-03035 Spring(For Clutch Pedal)
31301 90541-06036 Cushion, No.1(For Clutch Pedal)
31301 90386-13015 Bush(For Clutch Pedal)
31301 90101-10369 Bolt(For Clutch Pedal Stopper)
31301 90389-06055 Bush(For Clutch Pedal Turnover)
31321 31321-14020 Pad, Clutch Pedal
31324 90101-10177 Shaft, Clutch Pedal
31324 90387-10082 Collar, Clutch Pedal Shaft
31353 31353-35010 Holder, Clutch Pedal Spring
31453 47148-34010 Pin, W/hole(For Clutch Master Cylinder Push Rod Clevis)
31453 90386-08033 Bush(For Clutch Master Cylinder Push Rod Clevis)
55107 55107-60170 Support Sub-Assy, Clutch Pedal
90119 90119-T0083 New Genuine Part
9012908009 90129-08009 Bolt
9012908009 91661-60816 Bolt
9046816012 90468-16012 Pin, Sub Seat Cushion Pin
9413001002 94130-01002 Nut, Booster Sleeve Cylinder
9413061000 94130-61000 Nut(For Clutch Pedal Stopper)
9451201000 94512-01000 Washer, No.1 (For Propeller Shaft & Differential Setting)
9616000600 96160-00600 Ring, E(For Clutch Pedal Pawl)
Clutch Pedal & Flexible Hose ([08.2002 - ] (0208- )VZN167,172) 9
#OEMPart name
31481 31481-35490 Tube, Clutch Master Cylinder To Flexible Hose
31481 90947-02953 Hose, Clutch, No.1
31482 31482-35380 Tube, Clutch Release Cylinder To Flexible Hose
31484 31484-35360 Bracket, Clutch Tube, No.1
31484 31484-35361 Bracket, Clutch Tube, No.1
91611 91611-B0812 Bolt
9046112413 90461-12413 New Genuine Part
9046808035 90468-08035 CLIP
9046808035 90468-A0007 New Genuine Part
Clutch Release Cylinder ([08.1997 - ] (9708- )LN14#,15#,16#,17#,19#,VZN167,172..MTM) 6
#OEMPart name
31470 31470-35120 Cylinder Assy, Clutch Release
31470 91611-G0820 Bolt
31473 31473-35050 Rod, Clutch Release Cylinder Push, No.1
31476 31476-22010 Boot, Clutch Release Cylinder
31477 47547-12010 Plug, Bleeder(For Release Cylinder)
31478 31478-30010 Bleeder Plug Cap
Console Box & Bracket ([08.1997 - ] (9708- )) 22
#OEMPart name
58808 58808-35200-B0 Cover Sub-Assy, Shifting Hole
58811 58802-35120-B0 Box, Console, Front
58901 58901-35191-B0 Box Sub-Assy, Console, Rear
58905 58905-35061-B0 Door Sub-Assy, Console Compartment
58908 58908-32050 Lock Sub-Assy, Console Compartment Door
58916 58916-35030 Insert, Console Box, Rear
58919 58919-35020 Plate, Console Box
58964 58964-16010 Stopper, Console Compartment Door, No.1
58965 58965-16010 Stopper, Console Compartment Door, No.1
58993 58993-35040 Bracket, Console Box Mounting, Rear
90119 90119-T0087 New Genuine Part
90167 90167-T0001 New Genuine Part
90167 90167-T0009 Screw, Pan Tapping
9011906428 90119-06428 New Genuine Part
9016126008 90161-26008 New Genuine Part
9016750020 90167-50020 SCREW PAN TAPPING
9018905039 90189-05039 New Genuine Part
9018905045 90189-05045 New Genuine Part
9054103078 90541-03078 Cushion(For Cup Holder)
9054104079 90541-04079 Cushion(For Glove Compartment Door)
9356754514 93567-54514 SCREW TAPPING
9356754514 93567-A5014 SCREW TAPPING
Cowl Panel & Windshield Glass ([08.1997 - ] (9708- )) 26
#OEMPart name
55701 55700-35660 Panel Sub-Assy, Cowl
55713 55713-35011 Panel, Cowl Top Side, Rh
55714 55714-35011 Panel, Cowl Top Side, Lh
55715 55715-35010 Brace, Cowl Top To Apron, Rh
55716 55716-35010 Brace, Cowl Top To Apron, Lh
55717 55717-35020 Panel, Cowl Top Side, Inner Rh
55718 55718-35020 Panel, Cowl Top Side, Inner Lh
55781 55708-35031 Louver, Cowl Top Ventilator
55781 55708-35032 Louver, Cowl Top Ventilator
56111 56111-35012 Glass, Windshield
56111 56111-35042 Glass, Windshield
56111 56111-35043 Glass, Windshield
56115 56116-35050 Stopper, Windshield Glass, No.1
56117 56117-47010 Dam Kit, Back Window Glass Adhesive
56117 56117-52040 Dam, Window Glass Adhesive
56117 56117-74010 Dam, Window Glass Adhesive
91631 91631-J0612 BRACKET
9008046288 90080-46288 TY STANDARD PARTS REF ART
9008046289 90080-46289 New Genuine Part
9011906407 90119-06407 New Genuine Part
9016440093 90164-40093 SCREW, BINDING
9018904184 90189-04184 GROMMET SCREW
9026903029 90269-03029 RIVET
9046708184 90467-08184 Clip, Cowl Top Ventilator Louver
9095006119 90950-06119 New Genuine Part
904670704522 90467-07045-22 Clip (For Center Lower Garnish)
Crankshaft & Piston ([08.2002 - 02.2005] (0208-0502)5VZFE) 42
#OEMPart name
11011 11011-62010 Washer Set, Crankshaft Thrust
11702 11704-65013 Bearing Set, Crankshaft
11711 11071-65011-01 Bearing, Crankshaft
11711 11071-65011-02 Bearing, Crankshaft
11711 11071-65011-03 Bearing, Crankshaft
11711 11071-65011-04 Bearing, Crankshaft
11711 11071-65011-05 Bearing, Crankshaft
11711 11701-62022-01 Bearing, Crankshaft
11711 11701-62022-02 Bearing, Crankshaft
11711 11701-62022-03 Bearing, Crankshaft
11711 11701-62022-04 Bearing, Crankshaft
11711 11701-62022-05 Bearing, Crankshaft
11711 11701-62022-06 Bearing, Crankshaft
13011 13011-62100 Ring Set, Piston
13011 13013-62100 Ring Set, Piston
13041 13041-62030-01 Bearing, Connecting Rod
13041 13041-62030-02 Bearing, Connecting Rod
13041 13041-62030-03 Bearing, Connecting Rod
13101 13101-62060-01 Piston Sub-Assy, W/pin
13101 13101-62060-02 Piston Sub-Assy, W/pin
13101 13101-62060-03 Piston Sub-Assy, W/pin
13101 13103-62060 Piston Sub-Assy, W/pin
13101 90521-25004 Ring, Hole Snap(For Piston Pin)
13101 90520-22025 Ring, Hole Snap(For Piston Pin)
13201 13201-69145 Rod Sub-Assy, Connecting
13201 90999-73130 Bush(For Connecting Rod Small End)
13202 13204-62030 Bearing Set, Connecting Rod
13265 13265-62030 Bolt, Connecting Rod
13265 13265-74030 Bolt, Connecting Rod
13265 90179-08118 Nut, Hexagon(For Connecting Rod Bolt)
13405 13405-62030 Flywheel Sub-Assy
13405 90250-08120 Pin, Straight, No.1
13405 90105-10138 Bolt, Flywheel Setting
13411 13401-62030 Crankshaft
13411 13401-62040 Crankshaft
13411 13408-62060 Pulley, Crankshaft
13453 13453-65010 Gear, Flywheel Ring
13471 13408-62040 Pulley, Crankshaft
13471 90280-05005 Key(For Oil Pump Drive Spline)
13471 90119-16006 Bolt(For Crankshaft Pulley Set)
13521 13521-62031 Pulley, Crankshaft Timing
13566 13567-62010 Guide, Timing Belt
Cylinder Block ([08.2002 - 02.2005] (0208-0502)5VZFE) 26
#OEMPart name
11401 11401-69577 Block Sub-Assy, Cylinder
11401 90406-08023 Union(For Cylinder Block Llc Drain)
11415 96431-23814 Plug, Water Drain Cock(For Cylinder Block)
11416 90910-02072 Bolt(For Crankshaft Bearing Cap Set)
11416 90910-02176 Bolt(For Crankshaft Bearing Cap Set)
11421 90116-06119 Bolt, Stud(For Oil Pan)
11431 90331-35005 Plug, Tight, No.1(For Cylinder Block)
11432 90344-53015 Plug, W/head Taper Screw, No.1
11434 90250-10113 Pin, Straight(For Timing Gear Cover Set)
11434 90250-06015 Pin, Straight(For Clutch Housing Set)
11434 90253-16001 Pin, Straight (For Cylinder Head Set)
11434 90253-11021 Pin, Ring
11452 11452-62090 Guide, Oil Level Gage
11452 96721-19010 Ring, O(For Oil Level Gage Guide)
11452 90405-10033 Union(For Oil Level Gage Guide)
12101 12101-62100 Pan Sub-Assy, Oil
12101 90341-12012 Plug(For Oil Pan Drain)
12101 90341-T0004 Plug(For Oil Pan Drain)
12101 90430-12031 Gasket (For Oil Pan Drain Plug)
12121 12122-62040 Plate, Oil Pan Baffle, No.1
15301 15301-62060 Gage Sub-Assy, Oil Level
91621 91621-J0612 BOLT W-WASHER
9011906727 90119-06727 BOLT W-WASHER
9011906727 90080-11177 New Genuine Part
9017906299 90179-06299 Nut, Wire Adjusting, No.1
9162160614 91621-60614 Bolt(For Transaxle & Engine Setting)
Cylinder Head ([08.2002 - 02.2005] (0208-0502)5VZFE) 38
#OEMPart name
11101 11101-69136 Head Sub-Assy, Cylinder
11101 90910-02077 Bolt(For Cylinder Head Set)
11101 90201-11028 Washer, Plate(For Cylinder Head Set)
11115 11115-62080 Gasket, Cylinder Head
11115 11115-62081 Gasket, Cylinder Head
11116 11116-62080 Gasket, Cylinder Head, No.2
11116 11116-62081 Gasket, Cylinder Head, No.2
11116 96411-43000 Plug, Tight, No.1
11117 90341-24011 Plug, W/head Taper Screw, No.1
11117 90430-24013 Gasket(For Water Hole)
11122 11122-16010 Bush, Intake Valve Guide
11122 11122-16020 Bush, Intake Valve Guide
11122 11123-16010 Bush, Intake Valve Guide
11122 90520-10004 Ring, Shaft Snap (For Valve Guide Bush)
11131 11131-62050 Seat, Intake Valve
11131 11132-62050 Seat, Intake Valve
11135 11135-20040 Seat, Exhaust Valve
11135 11136-20040 Seat, Exhaust Valve
11151 90311-38051 Seal, Oil(For Camshaft Setting)
11155 90253-10004 Pin, Ring W/head
11181 11181-62031 Plate, Cylinder Head, Rear
11183 11183-20010 Plug, Semicircular
11188 11188-62010 Plug, Camshaft Housing
11193 11193-70010 Gasket(For Spark Plug Tube)
11201 11201-62040 Cover Sub-Assy, Cylinder Head
11202 11202-62050 Cover Sub-Assy, Cylinder Head, Lh
11213 11213-62020 Gasket, Cylinder Head Cover
12108 12180-55010 Cap Sub-Assy, Oil Filler
12108 90430-37004 Gasket(For Oil Filler Cap)
91511 91511-J0625 Bolt(For Cylinder Head Cover)
91621 91621-B0610 New Genuine Part
91621 91651-B0612 Bolt
9011008013 90110-08013 BOLT
9011907005 90119-07005 Bolt(For Head To Camshaft Bearing Cap)
9011907005 90119-07009 Bolt(For Camshaft Housing Set)
9017906074 90179-06074 Nut(For Suspension Control Oil Cooler)
9021005007 90210-05007 WASHER SEAL
9212260612 92122-60612 Bolt, Stud(For Engine Rear Oil Seal Retainer)
Disc Wheel & Wheel Cap ([08.1997 - ] (9708- )) 42
#OEMPart name
42601 42610-60281 Wheel, Disc (For Spare)
42601 90942-01075 Nut, Hub (For Axle)
42613 42613-60051 Ring, Disc Wheel Side
42652 42605-35081 Tire Tube Set Or Tubeless Tire
9094203079 90942-03079 Weight, Balance (For Disc Wheel)
9094203079 90942-03362 Weight, Balance (For Disc Wheel)
9094203080 90942-03080 Weight, Balance (For Disc Wheel)
9094203080 90942-03364 Weight, Balance (For Disc Wheel)
9094203081 90942-03081 Weight, Balance (For Disc Wheel)
9094203081 90942-03366 Weight, Balance (For Disc Wheel)
9094203082 90942-03082 Weight, Balance (For Disc Wheel)
9094203082 90942-03368 Weight, Balance (For Disc Wheel)
9094203083 90942-03083 Weight, Balance (For Disc Wheel)
9094203084 90942-03084 Weight, Balance (For Disc Wheel)
9094203085 90942-03085 Weight, Balance (For Disc Wheel)
9094203107 90942-03107 Weight, Balance (For Disc Wheel)
9094203107 90942-03360 Weight, Balance (For Disc Wheel)
9094203146 90942-03146 Weight, Balance (For Disc Wheel)
9094203147 90942-03147 Weight, Balance (For Disc Wheel)
9094203148 90942-03148 Weight, Balance (For Disc Wheel)
9094203149 90942-03149 Weight, Balance (For Disc Wheel)
9094203150 90942-03150 Weight, Balance (For Disc Wheel)
9094203151 90942-03151 Weight, Balance (For Disc Wheel)
9094203152 90942-03152 Weight, Balance (For Disc Wheel)
9094203153 90942-03153 Weight, Balance (For Disc Wheel)
9094203154 90942-03154 Weight, Balance (For Disc Wheel)
9094203155 90942-03155 Weight, Balance (For Disc Wheel)
9094203156 90942-03156 Weight, Balance (For Disc Wheel)
9094203167 90942-03167 Weight, Balance (For Disc Wheel)
9094203218 90942-03218 Weight, Balance (For Disc Wheel)
9094203218 90942-03369 Weight, Balance (For Disc Wheel)
9094203219 90942-03219 Weight, Balance (For Disc Wheel)
9094203219 90942-03361 Weight, Balance (For Disc Wheel)
9094203220 90942-03220 Weight, Balance (For Disc Wheel)
9094203220 90942-03363 Weight, Balance (For Disc Wheel)
9094203221 90942-03221 Weight, Balance (For Disc Wheel)
9094203221 90942-03365 Weight, Balance (For Disc Wheel)
9094203222 90942-03222 Weight, Balance (For Disc Wheel)
9094203222 90942-03367 Weight, Balance (For Disc Wheel)
9094203223 90942-03223 Weight, Balance (For Disc Wheel)
9094203224 90942-03224 Weight, Balance (For Disc Wheel)
9094203225 90942-03225 Weight, Balance (For Disc Wheel)
Electronic Fuel Injection System ([08.2002 - ] (0208- )VZN167,172) 11
#OEMPart name
85910 90987-02012 Relay, Ignition, No.1
89422 89422-35010 Sensor, Water Temperature (For E.f.i.)
89452 89452-35020 Sensor, Throttle Position (For E.f.i.)
89661 89661-3D700 Computer, Engine Control
89667 89667-60180 Bracket, Engine Control Computer
89668 89668-60200 Bracket, Engine Control Computer, No.2
89669 89669-35070 Bracket, Engine Control Computer, No.3
9043012005 90430-12005 Gasket(For Water Hole)
9161660616 91616-60616 BOLT
9331915010 93319-15010 SCREW
9356055014 93560-55014 SCREW
Emblem & Name Plate ([08.1997 - ] (9708- )) 20
#OEMPart name
75311 75311-35200 Emblem, Radiator Grille (Or Front Panel)
75312 75312-35050 Emblem, Radiator Grille, No.2
75363 75361-35010 Plate, Door Name
75363 75362-35100 Plate, Door Name No.2
75471 75471-35030 Plate, Rear Body Name, No.1
75471 75471-89122-A2 Plate, Rear Body Name, No.1
75471 75471-35030-A2 Plate, Rear Body Name, No.1
75471 75471-89122-A3 Plate, Rear Body Name, No.1
75471 75471-35030-A3 Plate, Rear Body Name, No.1
75471 75471-89122-A4 Plate, Rear Body Name, No.1
75471 75471-35030-A4 Plate, Rear Body Name, No.1
75472 75472-35130 Plate, Rear Body Name, No.2
75472 75472-89131-A2 Plate, Rear Body Name, No.2
75472 75472-35130-A2 Plate, Rear Body Name, No.2
75472 75472-89131-A3 Plate, Rear Body Name, No.2
75472 75472-35130-A3 Plate, Rear Body Name, No.2
75472 75472-89131-A4 Plate, Rear Body Name, No.2
75472 75472-35130-A4 Plate, Rear Body Name, No.2
75474 75472-35120 Plate, Rear Body Name, No.4
9017910080 90179-10080 NUT BONNET EMBLEM
Engine Oil Cooler ([08.2002 - 02.2005] (0208-0502)5VZFE) 8
#OEMPart name
15690 15695-62010 Valve Assy, Oil Cooler Relief
15710 90301-67004 Ring, O(For Oil Thermostat Housing)
15710 15710-62040 Cooler Assy, Oil, No.2
15777 15777-62020 Hose, Oil Cooler
15777 15778-62030 Hose, Oil Cooler
15777 96134-41900 Clip Or Clamp(For Ventilation Hose)
15777 90404-53070 Union(For Cylinder Block)
9021022001 90210-22001 Ring, O(For Oil Cooler)
Engine Oil Pump ([08.2002 - 02.2005] (0208-0502)5VZFE) 16
#OEMPart name
15100 15100-62040 Pump Assy, Oil
15100 90311-40022 Oil Seal (For Oil Pump)
15100 90919-05020 Sensor, Crank Position
15104 15104-62070 Strainer Sub-Assy, Oil
15104 15147-62020 Gasket(For Oil Strainer)
15131 15131-24010 Valve, Oil Pump Relief
15132 15132-20020 Spring, Oil Pump Relief Valve
15133 15133-24010 Plug, Oil Pump Relief Valve
91511 91511-B0616 BOLT, FLANGE
91511 90080-10164 BOLT, FLANGE
91511 91511-J0820 Bolt, Washer Based Head Hexagon (For Transfer Case Cover)
91511 91511-J0840 Bolt(For Alternator)
91621 91621-J0612 BOLT W-WASHER
9017906299 90179-06299 Nut, Wire Adjusting, No.1
9151261030 91512-61030 Bolt (For Transaxle Case Upper Cover)
9672124020 96721-24020 O-Ring
Engine Overhaul Gasket Kit ([08.2002 - 02.2005] (0208-0502)5VZFE) 2
#OEMPart name
4111 04111-62190 Gasket Kit, Engine Overhaul
4112 04112-62160 Gasket Kit, Engine Valve Grind
Exhaust Pipe ([08.2002 - ] (0208- )5VZFE) 20
#OEMPart name
17410 17410-62150 Pipe Assy, Exhaust, Front
17410 90179-10070 Nut, Exhaust Pipe Set Stud Bolt
17410 90080-17187 Nut, Exhaust Pipe Set Stud Bolt
17410 90917-06067 Gasket, Exhaust Pipe
17430 17405-62120 Pipe Assy, Exhaust, Tail
17451 90917-06057 Gasket, Exhaust Pipe, Center
17562 17565-74290 Support, Exhaust Pipe, No.2
17565 17566-35030 Bolt Or Ring, Exhaust Tail Pipe (For Rear)
17571 17571-62050 Bracket, Exhaust Pipe Support, No.1
17575 17575-75040 Bracket, Exhaust Pipe Support, No.5
18435 18435-62060 Protector, Monolithic Converter
91511 91511-B0614 BOLT, FLANGE
91641 91641-H0820 Bolt
9010506011 90105-06011 BOLT
9010510388 90105-10388 BOLT
9017906007 90179-06007 Nut
9017910133 90179-10133 NUT
9046132039 90461-32039 New Genuine Part
9151261030 91512-61030 Bolt (For Transaxle Case Upper Cover)
9161261035 91612-61035 Bolt(For Hybrid Vehicle Transaxle & Engine Setting)
Floor Insulator ([08.1997 - ] (9708- )) 4
#OEMPart name
58042 58042-35020 Insulator Sub-Assy, Front Floor Heat, No.2
58151 58151-35110 Insulator, Front Floor Heat, No.1
9011906706 90119-06706 New Genuine Part
9017906161 90179-06161 Bolt, Union(For Clutch Accumulator)
Floor Mat & Silencer Pad ([08.1997 - ] (9708- )SCB,THSCB) 15
#OEMPart name
58511 58510-3G060-B0 Mat, Floor, Front
58511 58510-3G061-B0 Mat, Floor, Front
58511 58510-3G750-B0 Mat, Floor, Front
58511 58510-3G751-B0 Mat, Floor, Front
58511 90467-06049-22 Clip(For Front Floor Mat)
58513 58513-35020-B0 Mat, Floor, Front Center
58513 58513-35021-B0 Mat, Floor, Front Center
58513 58513-35030-B0 Mat, Floor, Front Center
58513 58513-35031-B0 Mat, Floor, Front Center
58540 58540-35150-B0 Mat Assy, Floor, Rear Rh
58550 58550-35010-B0 Mat Assy, Floor, Rear Lh
67913 67913-35030-B0 Plate, Front Door Scuff, Rh
67914 67914-35030-B0 Plate, Front Door Scuff, Lh
9016450049 90164-50049 SCREW BINDING
9354055040 93540-55040 New Genuine Part
Frame ([11.1997 - ] (9708- )KZN165,190,LN16#,192,RZN16#,194..SCB, THSCB ; (9711- )VZN167..SCB) 45
#OEMPart name
47383 47383-35020 Bracket, Connector
51071 51741-35090 Bracket Sub-Assy, Rear Body Mounting, No.1 Rh
51073 51742-35120 Bracket Sub-Assy, Rear Body Mounting, No.2 Rh
51074 51743-35120 Bracket Sub-Assy, Rear Body Mounting, No.2 Lh
51100 51001-3M330 Frame Sub-Assy
51112 51112-35070 Extension, Side Rail, Rh
51112 51112-35080 Extension, Side Rail, Rh
51203 51203-35270 Crossmember Sub-Assy, Frame, No.2
51204 51202-35460 Crossmember Sub-Assy, Frame, No.3
51204 51202-35420 Crossmember Sub-Assy, Frame, No.3
51205 51204-35820 Crossmember Sub-Assy, Frame, No.4
51205 51205-35260 Crossmember Sub-Assy, Frame, No.5
51207 51207-35010 Bracket Sub-Assy, Differential Support, Rh
51254 51254-35010 Bracket, Differential Support, Lh
51291 51209-35200 Crossmember, Frame, Rear
51296 51296-35010 Reinforcement, Differential Bracket, Lh
51321 51321-35050 Bracket, Frame No.2 Crossmember, Rh
51401 51047-35030 Bracket Sub-Assy, Engine Mounting & Upper Arm, Rh
51402 51048-35030 Bracket Sub-Assy, Engine Mounting & Upper Arm, Lh
51501 51501-35130 Support Sub-Assy, Suspension Arm, Rh
51502 51502-35130 Support Sub-Assy, Suspension Arm, Lh
51505 51505-35100 Support Sub-Assy, Anchor Arm, Rh
51506 51506-35020 Support Sub-Assy, Anchor Arm, Lh
51631 51061-35010 Stopper, Front Suspension Rebound, Rh
51701 51701-35170 Bracket Sub-Assy, Cab Mounting, No.1 Rh
51702 51702-35140 Bracket Sub-Assy, Cab Mounting, No.1 Lh
51703 51703-35130 Bracket Sub-Assy, Cab Mounting, No.2, Rh
51704 51704-35120 Bracket Sub-Assy, Cab Mounting, No.2 Lh
51705 51705-35130 Bracket Sub-Assy, Cab Mounting, No.3 Rh
51755 51755-35010 Bracket, Body Support, No.3 Rh
51963 51963-35070 Hook, Transport, Front Rh
51964 51964-35050 Hook, Transport, Front Lh
77512 77512-35090 Bracket, Fuel Tank, Rear
91611 91611-B0825 Bolt(For Clutch Release Cylinder Setting)
9010112176 90101-12176 New Genuine Part
9010512016 90105-12016 New Genuine Part
9010512160 90105-12160 New Genuine Part
9011910536 90119-10536 BOLT WWASHER
9011910566 90119-10566 New Genuine Part
9011910566 90119-10393 New Genuine Part
9017012014 90170-12014 New Genuine Part
9116281235 91162-81235 Bolt(for Dust Cover Setting)
9136281240 91362-81240 New Genuine Part
9461211200 94612-11200 Washer
9462211200 94622-11200 WASHER
Front Axle Arm & Steering Knuckle ([08.1997 - ] (9708- )KDN16#,190,KZN165,190,LN16#,17#,19#,R ZN16#,174,19#,VZN167,172) 43
#OEMPart name
4485 04485-35040 Shaft Kit, Upper Suspension Arm
43211 43201-34011 Knuckle, Steering, Rh
43211 43201-34021 Knuckle, Steering, Rh
43211 90106-12012 Bolt, Round Hexagon (For Steering Knuckle Stopper)
43211 90316-60004 Seal, Oil (For Steering Knuckle)
43211 90381-30003 Bush (For Steering Knuckle)
43211 90381-32001 Bush (For Steering Knuckle Rh)
43212 43202-34011 Knuckle, Steering, Lh
43212 43202-34021 Knuckle, Steering, Lh
43330 43330-39315 Joint Assy, Lower Ball, Front Rh
43330 43330-39835 Joint Assy, Lower Ball, Front Rh
43340 43340-39245 Joint Assy, Lower Ball, Front Lh
43350 43350-39085 Joint Assy, Front Upper Ball, Rh
43360 43360-39085 Joint Assy, Front Upper Ball, Lh
43511 90313-92001 Seal, Dust(For Front Axle Hub Rh)
43511 90313-98001 Seal, Dust(For Front Axle Hub Rh)
43511 90313-98002 Seal, Dust(For Front Axle Hub Lh)
48066 48066-35100 Arm Sub-Assy, Front Suspension, Upper Rh
48067 48067-35040 Arm Sub-Assy, Front Suspension, Upper Lh
48068 48068-35090 Arm Sub-Assy, Front Suspension, Lower No.1 Rh
48069 48069-35090 Arm Sub-Assy, Front Suspension, Lower No.1 Lh
48167 48106-35011 Arm, Torque
48190 48190-35020 Cam Assy, Camber Adjust
48198 48198-35010 Cam, Camber Adjust, No.2
48631 90948-02065 Retainer, Cushion(For Front Suspension Upper Arm Rh)
48631 90948-02142 Retainer, Cushion(For Front Suspension Upper Arm Rh) - REAR (refer to scheme)
48632 48632-26010 Bush, Upper Arm - FRONT (refer to scheme)
48632 48635-26010 Bush, Upper Arm
48654 48061-35011 Bush, Lower Arm
90119 90119-T0179 New Genuine Part
9010512112 90105-12112 Bolt(For Torque Arm Setting)
9010514064 90105-14064 BOLT, WASHER BASED
9011910832 90119-10832 Bolt
9017008204 90170-08204 Nut (For Propeller Shaft)
9017912021 90179-12021 NUT
9017916013 90179-16013 NUT
9017918004 90179-18004 Nut
9025204002 90252-04002 PIN
9034506014 90345-06014 Plug (For Ball Joint)
9036430011 90364-30011 Bearing, Needle Roller(For Steering Knuckle Rh)
9413061200 94130-61200 Nut
9414641600 94146-41600 New Genuine Part
9462210800 94622-10800 WASHER PLATE
Front Axle Housing & Differential ([08.2002 - ] (9708- )LN167..DSL ; (9708- )LN167..XTR..D EFI ; (9708- )LN167..DEFI..ARL,S A ; (9708- )LN 166,17#,RZN16#,174 ; (0208- )VZN167,172..DLX) 88
#OEMPart name
41039 41039-34030 Gear Kit, Differential, Rear
41101 41101-35060 Carrier Sub-Assy, Differential, Front
41110 41110-35350 Carrier Assy, Differential, Front - FRONT AXLE
41114 90105-12053 Bolt (For Rear Differential Carrier)
41181 41108-35010 Cover, Front Differential Carrier
41181 90930-03031 Plug, Breather(For Parking Cover)
41181 90930-03077 Plug, Breather (For Automatic Transmission Case)
41181 90341-18006 Plug (No magnet)
41181 90341-18030 Plug (For Rear Differential Carrier Cover)
41181 12157-10010 Gasket (For Drain Plug)
41201 41201-80110 Final Gear Kit, Differential, Rear
41204 41204-35050 Flange Sub-Assy, Rear Drive Pinion Companion, Rear
41211 90366-30078 Bearing (For Rear Drive Pinion Front)
41211 90366-35023 Bearing (For Rear Drive Pinion Rear)
41214 41214-35020 Slinger, Rear Differential Drive Pinion Oil
41222 90101-11353 Bolt (For Rear Differential Ring Gear Set)
41222 41222-35030 Plate, Rear Differential Ring Gear Set Bolt Lock
41231 41231-22010 Spacer, Rear Differential Drive Pinion Bearing
41252 41252-30010 Deflector, Dust (For Rear Differential)
41304 41304-35020 Shaft Sub-Assy, Differential Side Gear, Rh
41304 90114-12011 Bolt, Serration (For Differential Side Gear Shaft)
41304 90521-29002 Ring, Hole Snap (For Differential Side Gear Shaft)
41304 90311-35032 Seal, Oil (For Differential Side Gear Shaft)
41309 41309-35010 Shaft Sub-Assy, Differential Side Gear, Lh
41309 90369-36009 Bearing (For Front Differntial Side Gear Shaft Rh)
41309 90520-33008 Ring, Hole Snap (For Differential Side Gear Shaft)
41311 90201-50003 Washer, Plate (For Front Differential Case)
41311 90201-50004 Washer, Plate (For Front Differential Case)
41311 90201-50005 Washer, Plate (For Front Differential Case)
41311 90201-50006 Washer, Plate (For Front Differential Case)
41311 90201-50007 Washer, Plate (For Front Differential Case)
41311 90201-50008 Washer, Plate (For Front Differential Case)
41311 90201-50009 Washer, Plate (For Front Differential Case)
41311 90201-50010 Washer, Plate (For Front Differential Case)
41311 90201-50011 Washer, Plate (For Front Differential Case)
41311 90201-50012 Washer, Plate (For Front Differential Case)
41311 90201-50013 Washer, Plate (For Front Differential Case)
41311 90201-50014 Washer, Plate (For Front Differential Case)
41311 90201-50015 Washer, Plate (For Front Differential Case)
41311 90201-50016 Washer, Plate (For Front Differential Case)
41311 90201-50017 Washer, Plate (For Front Differential Case)
41311 90201-50018 Washer, Plate (For Front Differential Case)
41311 90201-50019 Washer, Plate (For Front Differential Case)
41311 90201-50020 Washer, Plate (For Front Differential Case)
41311 90201-50021 Washer, Plate (For Front Differential Case)
41311 90201-50022 Washer, Plate (For Front Differential Case)
41311 90201-50023 Washer, Plate (For Front Differential Case)
41311 90201-50024 Washer, Plate (For Front Differential Case)
41311 90201-50025 Washer, Plate (For Front Differential Case)
41320 41320-35011 Tube Assy, Front Differential
41336 41336-22010 Cover, Dust(For Rear Differential Side Gear Shaft)
41336 41336-28010 Cover, Dust(For Front Differential Side Gear Shaft)
41342 90250-06058 Pin, Straight(For Timing Gear Case)
41342 41342-22021 Shaft, Rear Differential Pinion
41351 41351-30060 Washer, Rear Differential Pinion Thrust
41361 41361-30040 Washer, Rear Differential Side Gear Thrust, No.1
41361 41361-30050 Washer, Rear Differential Side Gear Thrust, No.1
41361 41361-30060 Washer, Rear Differential Side Gear Thrust, No.1
41361 41361-30070 Washer, Rear Differential Side Gear Thrust, No.1
41361 41361-30080 Washer, Rear Differential Side Gear Thrust, No.1
41361 41361-30090 Washer, Rear Differential Side Gear Thrust, No.1
41361 41361-30100 Washer, Rear Differential Side Gear Thrust, No.1
43631 41311-22060 Case Sub-Assy, Rear Differential
43631 90368-50006 Bearing(For Rear Differential Case)
43637 90179-18020 Nut (For Transfer Gear)
43640 90201-35396 Washer, Plate (For Rear Differential Drive Pinion)
43640 90201-35397 Washer, Plate (For Rear Differential Drive Pinion)
43640 90201-35398 Washer, Plate (For Rear Differential Drive Pinion)
43640 90201-35399 Washer, Plate (For Rear Differential Drive Pinion)
43640 90201-35400 Washer, Plate (For Rear Differential Drive Pinion)
43640 90201-35401 Washer, Plate (For Rear Differential Drive Pinion)
43640 90201-35402 Washer, Plate (For Rear Differential Drive Pinion)
43640 90201-35403 Washer, Plate (For Rear Differential Drive Pinion)
43640 90201-35404 Washer, Plate (For Rear Differential Drive Pinion)
43640 90201-35438 Washer, Plate (For Rear Differential Drive Pinion)
43640 90201-35439 Washer, Plate (For Rear Differential Drive Pinion)
43640 90201-35440 Washer, Plate (For Rear Differential Drive Pinion)
43640 90201-35441 Washer, Plate (For Rear Differential Drive Pinion)
43640 90201-35515 Washer, Plate (For Rear Differential Drive Pinion)
43640 90201-35516 Washer, Plate (For Rear Differential Drive Pinion)
43640 90201-35517 Washer, Plate (For Rear Differential Drive Pinion)
43640 90201-35518 Washer, Plate (For Rear Differential Drive Pinion)
43640 90311-38047 Seal, Oil (For Differential Carrier)
9010114036 90101-14036 New Genuine Part
9010510361 90105-10361 Bolt (For Rear Differential Carrier Cover Setting)
9010512235 90105-12235 BOLT
9017914033 90179-14033 NUT
9462311400 94623-11400 New Genuine Part
Front Axle Hub ([08.1997 - ] (9708- )KDN16#,KZN165,LN16#,17#,RZN16#,174,VZ N167,172) 33
#OEMPart name
42323 42323-60010 Washer, Cone (For Axle Shaft)
43410 90520-27023 Ring, Snap (For Front Drive Shaft)
43410 90560-27005 Spacer (For Drive Shaft)
43410 90560-27010 Spacer (For Drive Shaft)
43410 90560-27011 Spacer (For Drive Shaft)
43421 90250-07057 Pin, Straight (For Axle Hub)
43421 90116-08325 Bolt, Stud (For Axle Hub)
43422 43422-60010 Gasket, Axle Shaft
43501 43503-29015 Hub Sub-Assy, Front Axle
43501 43503-29085 Hub Sub-Assy, Front Axle (For ABS)
43501 43511-39015 Hub Sub-Assy, Front Axle
43501 43502-29095 Hub Sub-Assy, Front Axle
43501 90942-02049 Bolt, Hub
43501 90942-02082 Bolt, Hub
43501 90311-66003 Seal, Oil (For Front Axle Hub )
43501 90214-42030 Washer, Claw (For Rear Axle Shaft)
43501 90080-36064 Bearing (For Rear Axle Shaft Inner)
43501 90368-49084 Bearing (For Axle Shaft Inner)
43501 90080-36067 Bearing (For Rear Axle Shaft Outer)
43501 90368-45087 Bearing (For Axle Shaft Outer)
43508 43508-35050 Body Sub-Assy, Free Wheel Hub
43509 43509-35030 Cover Sub-Assy, Free Wheel Hub
43512 43512-35190 Disc, Front
43521 43521-60011 Nut, Front Wheel Adjusting
43523 90215-42025 Washer, Front Wheel Adjusting Lock
43531 43531-60010 Gasket, Free Wheel Hub - (manual free-wheel hub)
43532 43532-60010 Ring, Free Wheel Hub
90119 90119-T0177 New Genuine Part
9011908466 90119-08466 BOLT
9011910396 90119-10396 Bolt(For Backing Plate To Rear Axle Housing Setting)
9017008204 90170-08204 Nut (For Propeller Shaft)
9020108042 90201-08042 WASHER
9164180616 91641-80616 BOLT W-WASHER
Front Bumper & Bumper Stay ([09.2001 - ] (0108-0109)GCC,GEN ; (0109- )DCB,SCB,THDCB,TH SCB,THXTR,XTR..ARL,GCC,GEN,MA,TH ; (0203-0504)SA ; ( 0206- )CO) 12
#OEMPart name
52111 52101-35600 Bar, Front Bumper
52111 52101-35610 Bar, Front Bumper - Chrome plated
52141 52141-35080 Arm, Front Bumper, Rh
52142 52142-35080 Arm, Front Bumper, Lh
52145 52145-89102 Bracket, Front Bumper Side Mounting
9011910608 90119-10608 New Genuine Part
9011910608 90119-10530 BOLT WWASHER
9017908017 90179-08017 NUT
9017908063 90179-08063 NUT
9017908142 90179-08142 NUT
9054008018 90540-08018 CUSHION
9165160860 91651-60860 New Genuine Part
Front Disc Brake Caliper & Dust Cover ([08.1997 - ] (9708- )KDN16#,190,KZN165,190,LN16#,17#,19#,R ZN16#,174,19#,VZN167,172) 19
#OEMPart name
4465 04465-35260 Pad Kit, Disc Brake, Front
4479 04479-35010 Cylinder Kit, Disc Brake, Front
4945 04945-35040 Shim Kit, Anti Squeal, Front
4947 04947-60050 Fitting Kit, Disc Brake, Front
31478 31478-30010 Bleeder Plug Cap
47547 47547-20030 Plug, Bleeder(For Power Steering By-Pass Valve)
47710 90101-12144 Bolt, Hexagon(For Front Disc Brake Caliper)
47730 47730-35140 Cylinder Assy, Front Disc Brake, Rh
47731 47731-35050 Piston, Front Disc Brake
47731 90522-48044 Ring, Set(For Front Disc Brake Piston)
47748 47748-60010 Spring, Anti-Rattle, No.1(For Front Disc Brake)
47748 90468-12015 Clip(For Front Disc Brake Anti-Rattle)
47748 90240-06158 Pin, W/hole(For Front Disc Brake Anti-Rattle)
47750 47750-35140 Cylinder Assy, Disc Brake, Lh
47781 47703-35062 Cover Sub-Assy, Disc Brake Dust, Front Rh
47782 47704-35062 Cover Sub-Assy, Disc Brake Dust, Front Lh
90119 90119-T0035 New Genuine Part
9161160814 91611-60814 Bolt
9451201200 94512-01200 Washer
Front Door Lock & Handle ([08.1997 - ] (9708- )) 39
#OEMPart name
69110 69110-35040 Actuator Assy, Front Door Lock, Rh
69120 69120-35040 Actuator Assy, Front Door Lock, Lh
69205 69205-10070-B1 Handle Sub-Assy, Front Door Inside, Rh
69206 69206-10070-B1 Handle Sub-Assy, Inside
69210 69210-35130 Handle Assy, Front Door, Outside Rh
69210 69210-35140 Handle Assy, Front Door, Outside Rh
69210 90541-04014 Cushion, Console Box
69220 69220-35130 Handle Assy, Front Door Outside, Lh
69220 69220-35140 Handle Assy, Front Door Outside, Lh
69293 69293-12030 Snap, Front Door Outside Handle
69293 69293-12040 Snap, Front Door Outside Handle
69310 69310-35390 Lock Assy, Front Door, Rh
69310 69310-35430 Lock Assy, Front Door, Rh
69320 69320-35390 Lock Assy, Front Door, Lh
69320 69320-35450 Lock Assy, Front Door, Lh
69410 69410-87001 Plate Assy, Front Door Lock Striker
69410 69410-AA020 Plate Assy, Front Door Lock Striker
69711 69711-35060 Link, Front Door Lock Remote Control, Rh
69712 69712-35060 Link, Front Door Lock Remote Control, Lh
69725 69725-35030 Protector, Front Door Inside Locking Link, Rh
69726 69726-35050 Protecter, Front Door Inside Locking Link, Lh
69741 69741-12040-B1 Knob, Front Door Lock Control (GRAY)
69749 69749-12070 Clamp, Front Door Lock Link
69759 69759-20040 Snap, Auxiliary Catch Release Lever Control Link
69759 69759-20050 Snap(For Rear Door Lock)
69759 69759-24010 Snap(For Rear Door Inside Handle)
69759 69759-24020 Snap(For Rear Door Inside Handle)
69759 69759-20060 Snap(For Rear Door Inside Handle)
69759 69759-20070 Snap(For Rear Door Inside Handle)
90119 90119-T0085 New Genuine Part
90168 90168-T0002 New Genuine Part
9014860022 90148-60022 BOLT
9014860022 90148-A0005 Hexalobular Screw
9014880027 90148-80027 Screw Hex Lobular
9015940202 90159-40202 SCREW WWASHER
9016250020 90162-50020 SCREW, OVAL COUNTERS
9153160608 91531-60608 BOLT FLANGE
9165140612 91651-40612 BOLT
9165140612 90080-11225 New Genuine Part
Front Door Panel & Glass ([08.1997 - ] DOOR PANEL (9708- )) 62
#OEMPart name
67001 67001-35540 Panel Sub-Assy, Front Door, Rh
67001 67001-35530 Panel Sub-Assy, Front Door, Rh
67002 67002-35570 Panel Sub-Assy, Front Door, Lh
67002 67002-35560 Panel Sub-Assy, Front Door, Lh
67002 67002-35640 Panel Sub-Assy, Front Door, Lh
67111 67111-35160 Panel, Front Door, Outer Rh
67111 67111-35150 Panel, Front Door, Outer Rh
67112 67112-35160 Panel, Front Door, Outer Lh
67112 67112-35150 Panel, Front Door, Outer Lh
67118 67118-35020 Retainer, Outer Rear View Mirror, Rh
67119 67119-35010 Retainer, Outer Rear View Mirror, Lh
67121 67121-35030 Reinforcement, Front Door Outside Panel, Rh
67122 67122-35030 Reinforcement, Front Door Outside Panel, Lh
67401 67401-35050 Frame Sub-Assy, Front Door, Front Lower Rh
67402 67402-35060 Frame Sub-Assy, Front Door, Front Lower Lh
67403 67403-35080 Frame Sub-Assy, Front Door, Rear Lower Rh
67403 67403-35081 Frame Sub-Assy, Front Door, Rear Lower Rh
67404 67404-35080 Frame Sub-Assy, Front Door, Rear Lower Lh
67404 67404-35081 Frame Sub-Assy, Front Door, Rear Lower Lh
67481 67481-35020 Seal, Front Door Front Lower Frame, Rh
67482 67482-35010 Seal, Front Door Front Lower Frame, Lh
67495 67091-35010 Cover, Front Door Front Lower Frame, Upper Rh
67496 67092-35010 Cover, Front Door Front Lower Frame, Upper Lh
67831 67831-35110 Cover, Front Door Service Hole, Rh
67831 67831-35120 Cover, Front Door Service Hole, Rh
67832 67832-35060 Cover, Front Door Service Hole, Lh
67832 67832-35070 Cover, Front Door Service Hole, Lh
67861 67861-35070 Weatherstrip, Front Door, Rh
67862 67862-35060 Weatherstrip, Front Door, Lh
67867 67867-89103 Retainer(For Front Door Weatherstrip)
67868 67868-89101 Retainer(For Front Door Weatherstrip)
68101 68111-35240 Glass Sub-Assy, Front Door, Rh
68101 68101-35130 Glass Sub-Assy, Front Door, Rh
68102 68112-35240 Glass Sub-Assy, Front Door, Lh
68102 68102-35130 Glass Sub-Assy, Front Door, Lh
68141 68141-35060 Run, Front Door Glass, Rh
68141 68141-35050 Run, Front Door Glass, Rh
68151 68151-35060 Run, Front Door Glass, Lh
68151 68151-35050 Run, Front Door Glass, Lh
68160 68161-35050 Weatherstrip Assy, Front Door Glass, Outer Rh
68160 68161-35051 Weatherstrip Assy, Front Door Glass, Outer Rh
68160 68161-35040 Weatherstrip Assy, Front Door Glass, Outer Rh
68160 68161-35041 Weatherstrip Assy, Front Door Glass, Outer Rh
68210 68162-35050 Weatherstrip Assy, Front Door Glass, Outer Lh
68210 68162-35051 Weatherstrip Assy, Front Door Glass, Outer Lh
68210 68162-35040 Weatherstrip Assy, Front Door Glass, Outer Lh
68210 68162-35041 Weatherstrip Assy, Front Door Glass, Outer Lh
68610 68610-35050 Check Assy, Front Door
68617 68617-20011 Pin(For Door Check)
9011906769 90119-06769 New Genuine Part
9016750022 90167-50022 SCREW
9017906274 90179-06274 Nut
9033325001 90333-25001 Plug, Hole(For Hood)
9033335004 90333-35004 Plate, Noise Control, No.1
9054109006 90541-09006 Cushion, Front Door Panel
9054109046 90541-09046 Cushion, No.3
9054109064 90541-09064 Cushion, Front Door Panel
9090119029 90901-19029 New Genuine Part
9095001620 90950-01620 PLUG HOLE
9095006051 90950-06051 Protector, Rear Body, No.1
9162140612 91621-40612 BOLT W-WASHER
9353024012 93530-24012 New Genuine Part
Front Door Panel & Glass ([08.1997 - ] DOOR TRIM (9708- )) 26
#OEMPart name
67601 67610-35A00-BO Board Sub-Assy, Front Door Trim, Rh
67601 67650-35670-B3 Board Sub-Assy, Front Door Trim, Rh
67601 67771-16120 Retainer(For Front Door Trim Board)
67601 67921-95501-E0 Retainer(For Front Door Trim Board)
67601 90467-10161 Clip
67601 67650-35630-B1 Board Sub-Assy, Front Door Trim, Rh
67601 67650-35680-B6 Board Sub-Assy, Front Door Trim, Rh
67602 67050-35100-B0 Board Sub-Assy, Front Door Trim, Lh
67602 67050-35210-B3 Board Sub-Assy, Front Door Trim, Lh
67602 67050-35220-B6 Board Sub-Assy, Front Door Trim, Lh
67777 67777-35020-B0 Pocket, Front Door Trim, Rh
67778 67778-35010-B0 Pocket, Front Door Trim, Lh
68171 68171-35070 Weatherstrip, Front Door Glass, Inner Rh
68171 68171-35071 Weatherstrip, Front Door Glass, Inner Rh
68171 68171-35060 Weatherstrip, Front Door Glass, Inner Rh
68171 68171-35061 Weatherstrip, Front Door Glass, Inner Rh
68172 68172-35060 Weatherstrip, Front Door Glass, Inner Lh
68172 68172-35061 Weatherstrip, Front Door Glass, Inner Lh
90164 90164-T0001 Screw,tapping
9015450040 90154-50040 New Genuine Part
9015960370 90159-60370 SCREW WWASHER
9016740028 90167-40028 New Genuine Part
9016840025 90168-40025 SCREW
9018906094 90189-06094 GROMMET SCREW
9018906121 90189-06121 CLIP
9356054010 93560-54010 SCREW
Front Door Ventilator Window ([08.1997 - ] (9708- )LN166 ; (9708- )KDN145,15#,16#,190 ,KZN165,190,LN14#,15#,167,17#,19#,R ZN14#,154,16#,174 ,19#,VZN167,172,YN140..ARL,CO,GCC,GEN,SA,TH) 29
#OEMPart name
67463 67463-20011 Washer, Front Door Ventilating Wihdow Lower Pivot
67466 67466-89101 Washer, Lock(For Vent Window Glass Frame)
67501 67501-35020 Frame Sub-Assy, Vent Window Glass, Rh
67502 67502-35020 Frame Sub-Assy, Vent Window Glass, Lh
67507 67507-35010 Pivot Sub-Assy, Vent Window, Upper Rh
67508 67508-35010 Pivot Sub-Assy, Vent Window, Upper Lh
67517 67517-89101 Retainer, Vent Window Upper Pivot Hinge
67533 67533-35030 Seal, Front Door Division Bar, Rh
67534 67534-35020 Seal, Front Door Division Bar, Lh
67550 67550-35020 Frame Assy, Front Door Vent Window, Rh
67560 67560-35020 Frame Assy, Front Door Vent Window, Lh
67577 67577-89101 Stoper, Front Door Bent Window Opening, Rh
67837 67837-35040 Seal, Front Door Vent, Rh
68121 68121-35020 Glass, Vent Window, Rh
68122 68122-35020 Glass, Vent Window, Lh
68141 68143-35010 Run, Front Door Glass, Rh
68175 68175-35020 Weatherstrip, Front Door Vent Window Glass, Rh
68176 68176-35020 Weatherstrip, Door Vent Window Glass, Lh
68181 68181-35020 Weatherstrip, Front Door Vent Window, Rh
68182 68182-35020 Weatherstrip, Door Vent Window, Lh
9011906769 90119-06769 New Genuine Part
9016130002 90161-30002 Screw
9020208003 90202-08003 Gasket, Vent Window Pivot, Upper No.1
9050140205 90501-40205 Spring, Compression(For Vent Window Glass Frame)
9056108026 90561-08026 New Genuine Part
9323985010 93239-85010 New Genuine Part
9356014014 93560-14014 SCREW
9413060600 94130-60600 Nut, Wire Adjusting, No.1
9461310601 94613-10601 Washer (For Primary Regulator Valve)
Front Door Window Regulator & Hinge ([08.1997 - ] (9708- )) 21
#OEMPart name
68710 68710-04010 Hinge Assy, Front Door, Upper Rh
68720 68730-04010 Hinge Assy, Front Door, Upper Lh
69260 69260-89104-B1 Handle Assy, Front Door Window Regulator
69260 90520-01274 Ring, Shaft Snap(For Front Door Window Regulator Handle)
69272 69285-22010 Escutcheon, Door Regulator Handle(For Front Door)
69272 69285-22010-08 Escutcheon, Window Regulator Handle
69801 69801-35130 Regulator Sub-Assy, Front Door Window, Rh
69801 69801-35150 Regulator Sub-Assy, Front Door Window, Rh
69801 69801-35140 Regulator Sub-Assy, Front Door Window, Rh
69802 69802-35130 Regulator Sub-Assy, Front Door Window, Lh
69802 69802-35150 Regulator Sub-Assy, Front Door Window, Lh
69802 69802-35140 Regulator Sub-Assy, Front Door Window, Lh
85710 85710-35120 Motor Assy, Power Window Regulator, Rh
85720 85720-35090 Motor Assy, Power Window Regulator, Lh
9010508187 90105-08187 BOLTWATER BASED
9010508291 90105-08291 BOLT
9016850040 90168-50040 SCREW TAPPING
9020908014 90209-08014 WASHER
9153160608 91531-60608 BOLT FLANGE
9165140612 91651-40612 BOLT
9165140612 90080-11225 New Genuine Part
Front Door Window Regulator & Hinge ([08.1997 - ] W(VENT WINDOW) (9708- )) 24
#OEMPart name
68710 68710-04010 Hinge Assy, Front Door, Upper Rh
68720 68730-04010 Hinge Assy, Front Door, Upper Lh
69260 69260-89104-B1 Handle Assy, Front Door Window Regulator
69260 90520-01274 Ring, Shaft Snap(For Front Door Window Regulator Handle)
69272 69285-22010 Escutcheon, Door Regulator Handle(For Front Door)
69272 69285-22010-08 Escutcheon, Window Regulator Handle
69801 69801-35130 Regulator Sub-Assy, Front Door Window, Rh
69801 69801-35150 Regulator Sub-Assy, Front Door Window, Rh
69801 69801-35140 Regulator Sub-Assy, Front Door Window, Rh
69802 69802-35130 Regulator Sub-Assy, Front Door Window, Lh
69802 69802-35150 Regulator Sub-Assy, Front Door Window, Lh
69802 69802-35140 Regulator Sub-Assy, Front Door Window, Lh
69901 69901-35020 Channel Sub-Assy, Front Door Glass, Rh
69975 69971-35040 Filler, Rear Door Glass Channel
69975 69975-33010 Filler, Rear Door Glass Channel
85710 85710-35120 Motor Assy, Power Window Regulator, Rh
85720 85720-35090 Motor Assy, Power Window Regulator, Lh
90119 90119-T0173 New Genuine Part
9010508187 90105-08187 BOLTWATER BASED
9016850040 90168-50040 SCREW TAPPING
9020908014 90209-08014 WASHER
9153160608 91531-60608 BOLT FLANGE
9165140612 91651-40612 BOLT
9165140612 90080-11225 New Genuine Part
Front Drive Shaft ([08.1997 - ] (9708- )KDN16#,KZN165,LN16#,17#,RZN16#,174,VZ N167,172) 20
#OEMPart name
4438 04428-35010 Boot Kit, Front Drive Shaft
4438 04428-35012 Boot Kit, Front Drive Shaft
4438 04438-35022 Boot Kit, Front Drive Shaft
4438 04438-35012 Boot Kit, Front Drive Shaft Inboard Joint
4438 04437-25011 Boot Kit, Front Drive Shaft Inboard Joint
4438 04437-25013 BOOT KIT, FR DRIVE
4438 04438-35070 Boot Kit, Front Drive Shaft Inboard Joint
43403 43403-35020 Joint Set, Front Axle Inboard, Rh
43403 43403-26010 Joint Assy, Front Drive Inboard
43410 43430-35022 Shaft Assy, Front Drive
43410 43430-35023 Shaft Assy, Front Drive
43411 90520-29028 Ring, Snap (For Rear Drive Shaft)
43447 90949-01221 Clamp, Rear Drive Shaft Boot
43447 90949-01135 Clamp, No.2 (For Front Axle Outboard Joint Boot Setting)
43448 90949-01222 Clamp (For Rear Drive Shaft Outboard Joint Boot)
43460 43460-39175 Shaft Assy, Front Drive Outboard Joint, Rh
43460 43460-39276 Shaft Assy, Front Drive Outboard Joint
43460 43460-39275 Shaft Assy, Front Drive Outboard Joint, Rh
43501 90304-76005 Seal, Dust(For Front Axle Outer Shaft)
9017912047 90179-12047 Nut(For Front Stabilizer Link)
Front Fender Apron & Dash Panel ([08.1997 - ] (9708- )) 56
#OEMPart name
53201 53201-35190 Support Sub-Assy, Radiator
53217 53217-35050 Brace, Hood Lock Support
53265 53266-35030 Bracket, Battery Carrier Mounting, No.1 Lh
53483 53483-35010 Protector, Hood Support Rod
53701 53701-35641 Apron Sub-Assy, Front Fender, Rh
53701 53701-3D120 Apron Sub-Assy, Front Fender, Rh
53701 53701-35671 Apron Sub-Assy, Front Fender, Rh
53701 53701-3D130 Apron Sub-Assy, Front Fender, Rh
53702 53702-3D510 Apron Sub-Assy, Front Fender, Lh
53702 53702-3D530 Apron Sub-Assy, Front Fender, Lh
53704 53704-35060 Support Sub-Assy, Battery, Lh
53705 53705-35070 Brace Sub-Assy, Fender Apron, Rh
53706 53706-35070 Brace Sub-Assy, Fender Apron, Lh
53707 53707-35020 Apron Sub-Assy, Fender Side, Rh
53717 53717-35010 Gusset, Fender Apron, Rh
53718 53718-35010 Gusset, Fender Apron, Lh
53731 53731-35050 Member, Front Apron To Cowl Side, Upper Rh
53732 53732-35050 Member, Front Apron To Cowl Side, Upper Lh
53735 53735-35040 Seal, Front Fender Apron, Upper
53735 53735-35041 Seal, Front Fender Apron, Upper
53735 53735-35050 Seal, Front Fender Apron, Upper
53735 53735-35051 Seal, Front Fender Apron, Upper
53736 90467-10186 Clip(For Front Fender Apron Seal)
53743 53743-35020 Reinforcement, Front Fender Apron, Front Rh
53744 53744-35020 Reinforcement, Front Fender Apron, Front Lh
53754 53754-35020 Bracket, Relay Box Mounting, No.2
53882 53882-16030 Pad, Rear Bumper, Center
55101 55101-3M440 Panel Sub-Assy, Dash
55101 55101-3M903 Panel Sub-Assy, Dash
55127 55127-35020 Reinforcement, Parking Brake
55133 55133-35010 Plate, Front Fender Apron Set, Lower Rh
55134 55134-35010 Plate, Front Fender Apron Set, Lower Lh
55210 55210-35210 Insulator Assy, Dash Panel
55210 55210-35211 Insulator Assy, Dash Panel
55211 55211-35040 Cover, Dash Panel Insulator
55222 55222-35010 Insulator, Dash Panel, Outer Center
55223 55225-35131 Insulator, Dash Panel Heat, No.1
57104 57104-35041 Member Sub-Assy, Front Cross
57649 57649-35010 Bracket, Wiring Harness
90182 90182-T0008 New Genuine Part
91611 91611-B0614 Bolt (For Rear Differential Breather Plug Oil Deflector)
91631 91631-J0612 BRACKET
91635 91635-G0616 BOLTWWASHER
91651 91651-F0616 BOLT
9011506144 90115-06144 New Genuine Part
9011906416 90119-06416 New Genuine Part
9017906308 90179-06308 NUT
9018305047 90183-05047 New Genuine Part
9046708178 90467-08178 Clip
9046713035 90467-13035 Clip
9095001526 90950-01526 Plug, Hole(For Heater Control Cable Hole)
9095001770 90950-01770 New Genuine Part
9095001866 90950-01866 Plug, Hole(For Front Door Panel)
9095001871 90950-01871 PLUG
9095001895 90950-01895 PLUG HOLE
9095001917 90950-01917 New Genuine Part
Front Floor Panel & Front Floor Member ([08.1997 - ] (9708- )SCB,THSCB) 45
#OEMPart name
57023 57023-35050 Bracket Sub-Assy, Body Mounting, No.2 Rh
57024 57024-35050 Bracket Sub-Assy, Body Mounting, No.2 Lh
57025 57025-35060 Bracket Sub-Assy, Body Mounting, No.3 Rh
57026 57026-35080 Bracket Sub-Assy, Body Mounting, No.3 Lh
57051 57051-35041 Member Sub-Assy, Front Floor Cross, Rh
57052 57052-35041 Member Sub-Assy, Front Floor Cross, Lh
57401 57401-35010 Member Sub-Assy, Floor Side, Inner Rh
57402 57402-35010 Member Sub-Assy, Floor Side, Inner Lh
57411 57411-35050 Member, Floor Side, Inner Rh
57412 57412-35050 Member, Floor Side, Inner Lh
57417 57417-35040 Reinforcement, Front Floor Under, Rh
57418 57418-35040 Reinforcement, Front Floor Under, Lh
57427 57427-35010 Reinforcement, Front Floor, No.3 Rh
57428 57428-35010 Reinforcement, Front Floor, No.3 Lh
57486 57486-35020 Reinforcement, Floor Side Member, No.1 Rh
57487 57487-35020 Reinforcement, Floor Side Member, No.1 Lh
57512 57512-35021 Reinforcement, Front Floor, Rh
57513 57513-35021 Reinforcement, Front Floor, Lh
58111 58111-35231 Pan, Front Floor
58123 58123-35052 Support, Shift & Select Lever
58191 58190-35020 Footrest, Front Floor
58193 58193-35040 Bracket, Instrument Panel Brace Mounting
58199 58199-20030 Clip, Footrest, No.2
58286 58286-35160 Boot, Shift & Select Lever, No.1
58287 58287-35080 Retainer, Shift Lever Boot
58289 58289-35150 Boot, Shift Lever, No.2
58386 58386-35010 Gusset, Lower Back Panel, No.2
58995 58995-35030 Bracket, Console Box Mounting, No.1
58996 58996-35010 Bracket, Console Box Mounting, No.2
9010508341 90105-08341 BOLT WASHER BASED
9011506144 90115-06144 New Genuine Part
9015960038 90159-60038 SCREWTAPPING
9016850054 90168-50054 SCREW TAPPING
9017908096 90179-08096 NUT
9017908096 90080-18061 New Genuine Part
9018906029 90189-06029 GROMMET
9026905048 90269-05048 RIVET
9033301008 90333-01008 New Genuine Part
9033320001 90333-20001 PLUG
9033335002 90333-35002 Plug, Hole(For Rear Door Panel)
9095001086 90950-01086 PLUG
9095001234 90950-01234 Cover, Rear Floor Hole
9095001872 90950-01872 Plug, Hole, No.3(For Dash Panel)
9095001890 90950-01890 PLUG, HOLE
9095006060 90950-06060 New Genuine Part
Front Spring & Shock Absorber ([08.1997 - ] (9708- )KDN16#,190,KZN165,190,LN16#,17#,19#,R ZN16#,174,19#,VZN167,172) 35
#OEMPart name
48107 48107-35050 Arm Sub-Assy, Anchor, Rh
48108 48108-35050 Arm Sub-Assy, Anchor, Lh
48161 48161-35130 Spring, Torsion Bar, Rh
48162 48162-35130 Spring, Torsion Bar, Lh
48173 48173-35010 Swivel, Anchor Arm
48173 48173-35020 Seat, Anchor Arm Adjuster
48174 48174-26010 Cover, Torsion Bar Dust
48179 48179-35030 Protector, Torsion Bar Dust Cover, Lh
48304 48304-35180 Bumper Sub-Assy, Front Spring, No.1
48305 48305-35020 Bumper Sub-Assy, Front Spring, No.2
48510 48511-80065 Absorber Assy, Shock, Front Rh
48811 48811-35330 Bar, Stabilizer, Front
48815 48815-14160 Bush, Front Stabilizer Bar, No.1
48824 48824-35080 Bracket, Stabilizer, Front
48829 48829-35050 Bracket, Stabilizer
90119 90119-T0091 New Genuine Part
9010110140 90101-10140 Bolt(For Front Stabilizer)
9010112159 90101-12159 Bolt, Hexagon(For Anchor Arm Adjusting)
9010516027 90105-16027 BOLT
9011908671 90119-08671 Bolt
9011908686 90119-08686 BOLT
9017016011 90170-16011 NUT HEXAGON
9017912074 90179-12074 NUT
9044014003 90440-14003 Collar(For Stabilizer Bar)
9094801002 90948-01002 Cushion
9094801003 90948-01003 Rubber Cushion
9094801045 90948-01045 Cushion, Front Shock Absorber
9094802002 90948-02002 Retainer, Steering Damper Cushion
9094802034 90948-02034 Retainer, Cushion, No.2(For Front Stabilizer Bar)
9094802119 90948-02119 Retainer, Cushion, No.2(For Front Shock Absorber)
9094802190 90948-02190 RETAINER CUSHION
9418041000 94180-41000 Nut
9418461000 94184-61000 Nut(For Rear Spring)
9418461000 48284-37U70 Nut(For Rear Spring)
9462231600 94622-31600 WASHER PLAIN
Front Steering Gear & Link ([08.1997 - ] (9708- )) 27
#OEMPart name
44107 44107-35170 Housing Sub-Assy, Power Steering Gear
44107 90364-36006 Bearing, Needle Roller(For Power Steering Gear Housing)
44107 90301-37006 Ring, O(For Power Steering Gear Housing)
44107 90301-69002 Ring, O(For Power Steering Gear Housing)
44107 96711-19010 Ring, O(For Oil Level Gage Guide)
44107 90562-35001 Ring(For Power Steering Gear Housing)
44107 90562-36002 Ring(For Power Steering Gear Housing)
44107 90521-48002 Ring, Hole Snap(For Power Steering Gear Housing)
44107 90311-36005 Seal, Oil(For Power Steering Gear Housing)
44108 44108-60020 Cover Sub-Assy, Side
44108 90301-64002 Ring, O(For Side Cover)
44111 44111-60030 Shaft, Cross
44120 44120-35320 Valve Assy, W/ball Nut
44142 44142-60020 Nut, Lock
44152 44152-30020 Plunger, Power Piston
44152 90501-20095 Spring, Compression(For Power Piston Plunger)
44153 44153-30020 Guide, Power Piston Plunger
44154 44154-30020 Nut, Power Piston Plunger Guide
44154 96711-19014 O-Ring
44257 90210-10001 Washer, Seal(For Cross Shaft Adjusting Screw)
44447 44447-35030 Bracket, Hose Support, No.1
45357 45357-60030 Screw, Cross Shaft Adjusting
9008011145 90080-11145 New Genuine Part
9008011392 90080-11392 New Genuine Part
9011910070 90119-10070 New Genuine Part
9011910582 90119-10582 New Genuine Part
9017010208 90170-10208 NUT
Front Steering Gear & Link ([08.1997 - ] (9708- )KDN16#,190,KZN165,190,LN16#,172,192,R ZN169,174,194,VZN167,172..RHD) 32
#OEMPart name
45046 45046-39385 End Sub-Assy, Tie Rod
45046 90171-14042 Nut, Castle(For Pitman Arm)
45401 90170-22058 Nut, Hexagon(For Cross Shaft To Pitman Arm Setting)
45406 45406-39185 Rod Sub-Assy, Tie
45409 90201-14010 Washer, Plate(For Idler Arm Rubber Bush)
45409 94184-61401 Nut(For Idler Arm Support)
45409 90389-21004 Bush(For Idler Arm)
45409 90304-31012 Seal, Dust(For Idler Arm Support)
45450 45451-39305 Rod Assy, Steering Relay
45460 45460-39505 Rod Assy, Tie, Rh
45461 45465-35040 Rod, Steering Tie
45466 45466-30020 Clamp, Tie Rod End
45490 45490-39446 Arm Assy, Steering Idler
45490 90171-12028 Nut, Castle(For Pitman Arm)
45497 45497-28010 Cap, Idler Arm Bracket
45611 45611-35130 Arm, Steering Knuckle, Rh
45611 90105-14043 Bolt(For Steering Knuckle Arm Rh)
45612 45612-35150 Arm, Steering Knuckle, Lh
45700 45700-39046 Damper Assy, Steering
45700 45700-39085 Damper Assy, Steering
9010108057 90101-08057 BOLT
9010512110 90105-12110 BOLT
9010512113 90105-12113 New Genuine Part
9010612014 90106-12014 New Genuine Part
9017912020 90179-12020 Nut(For Parking Brake Plate To Rear Axle Housing)
9161261045 91612-61045 Bolt(For Transaxle & Engine Setting)
9411041000 94110-41000 Nut(For Steering Damper)
9411050800 94110-50800 Nut(For Repair Actuator Set)
9413061200 94130-61200 Nut
9451200800 94512-00800 Washer, No.1 (For Propeller Shaft & Differential Setting)
9462211200 94622-11200 WASHER
9538103225 95381-03225 PIN COTTER
Front Steering Gear & Link ([08.1997 - ] POWER STEERING (9708- )KDN145,15#,16#,190,KZN165,190,LN14#,1 52,155,157,16#,17#,19#,RZN144,147,1 48,149,154,16#,17 4,19#,VZN167,172) 13
#OEMPart name
4445 04445-35180 Gasket Kit, Power Steering Gear(For Rack & Pinion)
4455 04455-35100 Gasket Kit, Power Steering Control Valve Overhole
44110 44110-35330 Gear Assy, Power Steering
45401 45401-35260 Arm Sub-Assy, Pitman
45401 90170-22058 Nut, Hexagon(For Cross Shaft To Pitman Arm Setting)
45401 90171-14042 Nut, Castle(For Pitman Arm)
9010112152 90101-12152 Bolt, Hexagon(For Idler Arm Support Setting)
9010112153 90101-12153 Bolt, Hexagon(For Idler Arm Support Setting)
9010512110 90105-12110 BOLT
9010512113 90105-12113 New Genuine Part
9017012027 90170-12027 New Genuine Part
9017912020 90179-12020 Nut(For Parking Brake Plate To Rear Axle Housing)
9462211200 94622-11200 WASHER
Front Turn Signal Lamp ([08.2001 - ] NOT USE 81515 (0108- )) 8
#OEMPart name
81510 90981-13043 Bulb (12V 21W)
81511 81511-35280 Lens, Front Turn Signal Lamp, Rh
81515 90075-99080 Cover, Fog Lamp
81515 90075-99109 Plug Assy, Front Turn Signal Lamp
81521 81521-35270 Lens, Front Turn Signal Lamp, Lh
81610 99132-12050 Bulb (12V 5W)
81610 90080-81053 Bulb(For Clearance Lamp)
9046709195 90467-09195 CLIP
Front Turn Signal Lamp ([08.2001 - ] NOT USE 81515 (0108- )LN166 ; (0108- )KDN145,15#,16#,190 ,KZN165,190,LN14#,15#,167,17#,19#,R ZN14#,154,16#,174 ,19#,VZN167,172..ARL,CO,GCC,GEN,SA,TH) 8
#OEMPart name
81510 90981-13043 Bulb (12V 21W)
81511 81511-35280 Lens, Front Turn Signal Lamp, Rh
81515 90075-99080 Cover, Fog Lamp
81515 90075-99109 Plug Assy, Front Turn Signal Lamp
81521 81521-35270 Lens, Front Turn Signal Lamp, Lh
81610 99132-12050 Bulb (12V 5W)
81610 90080-81053 Bulb(For Clearance Lamp)
9046709195 90467-09195 CLIP
Front Turn Signal Lamp ([08.2001 - ] USE PNC=81515 (0108- )) 6
#OEMPart name
81510 90981-13043 Bulb (12V 21W)
81511 81511-35280 Lens, Front Turn Signal Lamp, Rh
81521 81521-35270 Lens, Front Turn Signal Lamp, Lh
81610 99132-12050 Bulb (12V 5W)
81610 90080-81053 Bulb(For Clearance Lamp)
9046709195 90467-09195 CLIP
Front Turn Signal Lamp ([08.2001 - ] USE PNC=81515 (0108- )LN166 ; (0108- )KDN145,15#,16#,190 ,KZN165,190,LN14#,15#,167,17#,19#,R ZN14#,154,16#,174 ,19#,VZN167,172..ARL,CO,GCC,GEN,SA,TH) 6
#OEMPart name
81510 90981-13043 Bulb (12V 21W)
81511 81511-35280 Lens, Front Turn Signal Lamp, Rh
81521 81521-35270 Lens, Front Turn Signal Lamp, Lh
81610 99132-12050 Bulb (12V 5W)
81610 90080-81053 Bulb(For Clearance Lamp)
9046709195 90467-09195 CLIP
Fuel Injection System ([08.2002 - ] (0208- )5VZFE) 44
#OEMPart name
22203 22202-62190 Dash Pot Sub-Assy(For Throttle Body)
22210 22210-62250 Body Assy, Throttle
22215 22215-62180 Gasket, Throttle Body Cover
22270 22270-62050 Valve Assy, Idle Speed Control(For Thlottle Body)
22271 22271-62040 Gasket, Throttle Body
23217 23217-46090 Filter, Fuel Pump
23220 23221-46010 Pump Assy, Fuel
23229 23229-16010 Clip(For Fuel Pump Filter)
23229 23219-03010 Clip(For Fuel Pump Filter)
23233 23239-11010 Hose, Fuel Pump
23233 90467-12067 Clip(For Fuel Pump Hose)
23249 23249-74610 Rubber, Cushion(For Fuel Pump)
23250 23209-62040 Injector Assy, Fuel
23250 90301-07024 Ring, O(For Fuel Injector)
23280 23280-62030 Regulator Assy, Fuel Pressure
23291 23291-20010 Insulator, Injector Vibration
23300 23300-62060 Filter, Fuel(For Efi)
23300 90430-12026 Gasket
23300 90401-12097 Bolt, Union(For Turbo Oil Inlet Pipe)
23801 23801-62110 Pipe Sub-Assy, Fuel, No.1
23801 23801-62120 Pipe Sub-Assy, Fuel, No.1
23802 90401-12036 Bolt, Union(For Fuel Pipe No.2)
23803 23803-62010 Pipe Sub-Assy, Fuel, No.3
23807 90561-08020 Spacer, No.1(For Delivery Pipe)
23811 95333-06020 Hose, Fuel(For Injection Pump To Fuel Pipe)
23811 95337-06020 Hose, Differential Pressure Control
23811 90467-11065 Clip(For Fuel Hose No.2)
23812 23812-62041 Pipe, Fuel, No.2
23814 23814-62050 Pipe, Fuel Delivery
23814 23814-62051 Pipe, Fuel Delivery
23815 23815-62050 Pipe, Fuel Delivery, No.2
23815 23815-62051 Pipe, Fuel Delivery, No.2
77277 90445-12302 Hose, Fuel(For Return Hose)
77277 96135-51100 Clamp Or Clip(For Turbo Oil Outlet Hose)
91511 91511-B0850 Bolt
91631 91631-B0618 BOLT WWASHER
2182125180 21821-25180 Screw, Set, No.2(For Carburetor Body Set)
9007911003 90079-11003 New Genuine Part
9010508267 90105-08267 BOLT WASHER BASED
9011608159 90116-08159 Bolt, Stud(For Water Pump Set)
9017908183 90179-08183 NUT
9033903002 90339-03002 PLUG
9046400231 90464-00231 Clamp, Fuel Pipe(Hose), No.1
9162160614 91621-60614 Bolt(For Transaxle & Engine Setting)
Fuel Tank & Tube ([08.2002 - ] (0208- )VZN167,172) 32
#OEMPart name
77241 95333-06030 Hose, Fuel
77241 95338-06030 HOSE, FUEL
77249 77249-35120 Hose, Fuel Emission
77249 95333-06020 Hose, Fuel(For Injection Pump To Fuel Pipe)
77249 95337-06020 Hose, Differential Pressure Control
77251 77251-3D420 Tube, Fuel Main
77252 77209-35350 Tube, Fuel Main, No.2
77255 77255-3D040 Tube, Fuel Return
77256 77256-35050 Tube, Fuel Return, No.2
77261 77261-35570 Tube, Fuel Tank To Canister
77262 77262-35060 Tube, Fuel Tank To Canister, No.2
77273 77273-35020 Clamp, Fuel Tube W/grommet, No.6
77285 77285-35320 Clamp, Fuel Tube, No.1
77285 77285-35600 Clamp, Fuel Tube W/grommet, No.1
77286 77286-35020 Clamp, Fuel Tube, No.2
77289 77289-35020 Clamp, Fuel Tube, No.3
77295 77295-35160 Grommet, Fuel Tube
77298 77298-35010 Clamp, Fuel Tube, No.4
77439 77439-35030 Hose, Fuel Return
77704 77704-35380 Canister Sub-Assy, Charcoal
77751 77751-35140 Bracket, Charcoal Canister Base
77754 77754-35380 Hose, Charcoal Canister Outlet, No.1
77779 77779-35080 Tube, Charcoal Canister Outlet
91611 91611-B0614 Bolt (For Rear Differential Breather Plug Oil Deflector)
91621 91621-J0612 BOLT W-WASHER
91641 91641-H0820 Bolt
9011906816 90119-06816 New Genuine Part
9017906161 90179-06161 Bolt, Union(For Clutch Accumulator)
9046110669 90461-10669 New Genuine Part
9048012018 90480-12018 New Genuine Part
9162160614 91621-60614 Bolt(For Transaxle & Engine Setting)
9613251100 96132-51100 Clip (For Hose)
Fuel Tank & Tube ([10.2001 - ] (0110- )KDN15#,16#,190,VZN167,172..SCB,SRWGN, XTR) 52
#OEMPart name
77011 77011-04020 Pipe Sub-Assy, Fuel Tank Filler, Lower
77011 77011-35210 Pipe Sub-Assy, Fuel Tank Filler, Lower
77018 77018-35060 Tube Sub-Assy, Fuel Tank Evaporation Vent
77100 77001-3D910 Tank Assy, Fuel
77131 77131-35060 Bracket, Fuel Tank Filler Pipe Support
77161 77606-35030 Protector, Fuel Tank, Lower
77162 77162-35020 Bracket, Fuel Tank Rear Protector
77169 77169-14010 Gasket, Fuel Pump Bracket
77178 77178-04010 Gasket, Fuel Tank Filler Pipe, Lower
77178 77178-34010 Gasket, Fuel Tank Filler Pipe, Lower
77179 77179-26010 Gasket, Fuel Tank Evap/vent Tube
77179 77179-26011 Gasket, Fuel Suction Tube Set, No.1
77201 77201-35770 Pipe Sub-Assy, Fuel Tank Inlet
77201 77269-35010 Hose, Fuel, No.1(For Fuel Tank Inlet Pipe)
77201 77201-35590 Pipe Sub-Assy, Fuel Tank Inlet
77201 95313-13022 Hose, Fuel, No.1(For Fuel Tank Inlet Pipe)
77203 77203-35520 Tube Sub-Assy, Fuel Suction
77213 77213-35350 Hose, Fuel Tank To Filler Pipe
77213 77213-35310 Hose, Fuel Tank To Filler Pipe
77290 77290-35050 Shield Assy, Fuel Tank Filler Pipe
77292 77292-35200 Stay, Fuel Tank Fillar Upper Pipe
77295 77295-35140 Grommet, Fuel Tube
77305 77305-35061 Lid Sub-Assy, Fuel Filler Opening
77310 77310-48010 Cap Assy, Fuel Tank
77316 77316-16010 Gasket (For Fuel Tank Cap)
77380 77380-26010 Valve Assy, Fuel Cut Off
90167 90167-T0003 New Genuine Part
90167 90164-T0008 SCREW BINDING TAPPI
91621 91621-J0614 BOLT W-WASHER
93319 93319-A4010 SCREW WWASHER
9008054035 90080-54035 CUSHION
9008054035 90541-06058 CUSHION
9010512116 90105-12116 Plug(For Fuel Tank)
9011906595 90119-06595 BOLT WWASHER
9011908667 90119-08667 BOLT
9014950057 90149-50057 New Genuine Part
9015950219 90159-50219 BOLT
9015950219 90159-A0057 New Genuine Part
9015960032 90159-60032 Screw W Washer
9020106547 90201-06547 New Genuine Part
9026904059 90269-04059 RIVET
9043012245 90430-12245 Gasket(For Fuel Tank)
9046026001 90460-26001 Clamp(For Oil Reservoir To Pump Hose)
9046046003 90460-46003 Clamp (For Fuel Filler Pipe)
9046046003 90460-46005 Clamp (For Fuel Filler Pipe)
9046400042 90464-00042 Clamp (For Fuel Lid Lock Control Cable)
9046400786 90464-00786 New Genuine Part
9046711061 90467-11061 CLIP
9054109024 90541-09024 CUSHION
9161160618 91611-60618 Bolt(For Oil Receiver Pipe)
9356015014 93560-15014 SCREW
9413060600 94130-60600 Nut, Wire Adjusting, No.1
Gear Shift Fork & Lever Shaft (Mtm) ([08.1999 - ] R150,R151 (9908- )KDN151,16#,KZN165,190,VZN167,172..MTM) 33
#OEMPart name
33211 33211-35050 Fork, Reverse Shift
33211 90360-10003 Ball(For Transmission Oil Pump Cover)
33212 33212-35032 Fork, Gear Shift, No.1
33213 90254-05016 Pin, Slotted Spring(For Shift Lever Shaft Set)
33213 90105-06077 Bolt(For Shift Fork Set)
33213 33213-35040 Fork, Gear Shift, No.2
33214 33230-35010 Fork, Gear Shift, No.3
33214 33230-35012 Fork, Gear Shift, No.3
33214 33230-35011 Fork, Gear Shift, No.3
33221 33221-35050 Arm, Reverse Shift
33221 96160-01000 Ring, E(For Clutch Booster Air Valve)
33228 33228-35030 Bracket, Reverse Shift Arm
33241 33244-35060 Shaft, Reverse Shift Fork
33242 33242-60090 Shaft, Gear Shift Fork, No.1
33242 90520-12003 Ring(For Reverse Shift Head)
33243 33243-60120 Shaft, Gear Shift Fork, No.2
33245 33245-35090 Shaft, Gear Shift Fork, No.4
33251 33251-35150 Lever, Shift & Select
33251 33251-35152 Lever, Shift & Select
33251 90109-08305 Pin Or Bolt (For Shift Lever Housing)
33251 33251-35151 Lever, Shift & Select
33264 90250-05029 Pin, Or Ball, Shift Inter Lock, No.1
33264 90361-10003 Pin, Or Ball, Shift Inter Lock, No.1
33275 90341-12008 Plug, W/head Straight Screw(For Transfer Adapter)
33275 90341-12014 Plug, W/head Straight Screw, No.1(For Cylinder Block)
33275 90501-16143 Spring, Compression (For Shift Detent Ball Low Side)
33280 33280-27011 Pin Assy, Reverse Restrict
33280 33280-35021 Pin Assy, Reverse Restrict
33283 33280-35100 Pin Assy, Reverse Restrict
33283 90254-05001 Pin, Slotted Spring(For Shift Lever Shaft Set)
33521 33521-35260 Housing, Shift Lever
33521 90105-08079 Bolt(For 5Th Shift Arm)
91611 91611-G0820 Bolt
Headlamp ([08.1997 - ] (9708- )RZN169..DCB..SA ; (9708- )RZN169.. DLX..SA ; (9708- )RZN169..ARL,GC C,GEN ; (9708- )KZN190,RZN168,VZN167..DLX) 15
#OEMPart name
81110 81110-35160 Headlamp Assy, Rh
81110 81130-89149 UNIT ASSY HEADLAMP
81110 90981-04H21 Sealed Beam Unit (2 pcs set) Halogen
81110 90981-04H22 SEALED BEAM UNIT, H4 (2 pcs set)
81110 90981-04044 Sealed Beam Unit, No.1
81111 81111-16020 Ring, Sealed Beam Retaining
81113 81113-89149 Ring, Sealed Beam Mounting, No.1 Rh
81121 81121-14670 Spring, Headlamp Tension
81150 81150-35080 Headlamp Assy, Lh
81150 81170-89149 Unit Assy, Headlamp Daytime Running Light, Lh
81153 81153-89149 Ring, Sealed Beam Mounting, No.1 Lh
81195 81195-35010 Screw, Headlamp
81195 81195-89101 Screw, Headlamp
8112489101 81124-89101 Plate, Headlamp
8113612571 81136-12571 Screw
Heating & Air Conditioning - Compressor ([08.1997 - ] COMPONET OF COMPRESSOR (9708- )) 3
#OEMPart name
9009904370 90099-04370 Bolt, Compressor, No.1
9009904924 90099-04924 Bolt, Service Valve
9009908058 90099-08058 Pin, Cylinder Block
Heating & Air Conditioning - Compressor ([08.2002 - ] (0208- )VZN167,172) 19
#OEMPart name
88320 88320-37080 Compressor Assy, Cooler
88330 88335-14020 Washer
88410 88410-35380 Clutch Assy, Magnet
88431 88431-35220 Bracket, Compressor Mounting, No.1
88443 88443-36010 Collar, Idle Pulley
88595 88440-35060 Pulley Assy, Idle
88605 88605-35410 Harness Sub-Assy, Air Conditioner Wiring
88605 88605-35420 Harness Sub-Assy, Air Conditioner Wiring
88688 88688-35590 Bracket, Cooler
9011908 90119-08B42 BOLT WWASHER
8271535530 82715-35530 Bracket,wiring Harness Clamp
9009904306 90099-04306 Bolt, Idle Pulley
9009904349 90099-04349 Bolt, Magnet Clutch Setting
9009907065 90099-07065 SNAP RING
9009907114 90099-07114 Ring, Snap (For Magnet Clutch)
9010510438 90105-10438 New Genuine Part
9017910132 90179-10132 Nut
9151281085 91512-81085 Bolt(For Alternator)
9331915008 93319-15008 SCREW
Heating & Air Conditioning - Control & Air Duct ([08.1997 - ] AIR DUCTS (9708- )) 19
#OEMPart name
55835 55835-35030 Duct, Heater To Register, Center
55843 55843-35020 Duct, Heater To Register, No.1
55844 55844-35020 Duct, Heater To Register, No.2
55846 55846-35030 Duct, Heater To Register, No.4
87138 87138-35080 Resistor, Heater Blower
87201 87201-35010 Duct Sub-Assy, Air, No.1
87211 87211-35200 Duct, Air, No.1
87211 87211-35180 Duct, Air, No.2
90167 90167-T0010 New Genuine Part
90167 90167-T0011 New Genuine Part
8857835080 88578-35080 Paking, Cooler Air Duct
8857835080 88578-35100 Paking, Cooler Air Duct
8857835090 88578-35090 Paking, Cooler Air Duct
9008018045 90080-18045 New Genuine Part
9015960195 90159-60195 New Genuine Part
9018305094 90183-05094 NUT
9356014012 93560-14012 SCREW
9356855014 93568-55014 Screw
9356855016 93568-55016 Screw
Heating & Air Conditioning - Control & Air Duct ([08.1997 - ] DIAL TYPE HEATER CONTROL (9708- )ARL,GCC,SA,TH) 11
#OEMPart name
55519 55519-35170 Plate, Heater Control Name
55900 90981-11014 Bulb, Position Indicator Lamp
55905 55905-89115 Knob, Heater Control
55905 55905-35160 Knob, Heater Control, No.2
55906 55906-35110 Cable Sub-Assy, Defroster Damper Control
55908 55908-35040 Cable Sub-Assy, Air Inlet Damper Control
55909 55909-35100 Cable Sub-Assy, Airmix Damper Control
55910 55910-35130 Control Assy, Heater Or Boost Ventilator
90167 90167-T0013 New Genuine Part
9046709043 90467-09043 Clamp, Hood Lock Control Cable
9356855016 93568-55016 Screw
Heating & Air Conditioning - Cooler Piping ([03.2002 - ] (0203- )VZN167,172) 38
#OEMPart name
88460 88460-35290 Condenser Assy, Cooler
88463 88463-35120 Bracket, Cooler Condenser, No.1
88463 88463-35180 Bracket, Cooler Condenser, No.5
88467 88467-35030 Cushion, Cooler Condenser, No.1
88471 88471-34010 Receiver & Dryer Assy, Cooler
88472 88472-35050 Bracket, Receiver Tank, No.1
88710 88710-35490 Tube Assy, Air Conditioner - AIRCONDITIONER
88711 88711-35710 Hose, Cooler Refrigerant Discharge, No.3
88712 88712-35650 Hose, Cooler Refrigerant Suction
88716 88716-35590 Pipe, Cooler Refrigerant Liquid, A
88717 88717-35180 Pipe, Cooler Refrigerant Suction, No.1
88727 88727-35040 Tube, Suction, No.2
88891 53381-35040 Seal, Hood To Radiator Support
88891 53381-35041 Seal, Hood To Radiator Support
88891 88578-89119 Packing A (For Cooler)
88891 88578-35120 Packing B (For Cooler)
91511 91511-G0625 BOLT FLANGE
91651 91651-F0616 BOLT
91651 91651-F0625 BOLT WWASHER
887181 88718-1A280 Pipe, Cooler Refrigerant Suction, No.2
8846735040 88467-35040 Cushion, Cooler Condenser, No.1
8856935120 88569-35120 Clamp (for Cooler Relay)
8856935140 88569-35140 Clamp (for Cooler Relay)
8856935180 88569-35180 Clamp (for Cooler Relay)
8856935190 88569-35190 Clamp (for Cooler Relay)
8868835500 88688-35500 Bracket, Cooler Diaphragm
8871832160 88718-32160 Pipe, Cooler Refrigerant Suction, No.2
9009120637 90091-20637 New Genuine Part
9009900264 90099-00264 SCREW
9015960187 90159-60187 SCREW
9017906274 90179-06274 Nut
9046400414 90464-00414 CLAMP
9046400520 90464-00520 New Genuine Part
9046708011 90467-08011 Clip(For Headlamp Cover Seal)
9046708011 90467-08011-TH CLIP
9046708011 90467-08011-83 Clip(For Headlamp Cover Seal)
9151140616 91511-40616 New Genuine Part
9151160630 91511-60630 BOLT
Heating & Air Conditioning - Cooler Piping ([08.1997 - ] O RING (9708- )) 5
#OEMPart name
9009914119 90099-14119 Ring, O(For Cooler Refrigerant Liquid Pipe)
9009914119 90099-14119-TH O RING
9009914120 90099-14120 O-Ring, Cooler Evaporator No.1(Discharge)
9009914121 90099-14121 O-Ring, Cooler Evaporator No.1(Suction)
9009914122 90099-14122 O-RING
Heating & Air Conditioning - Cooler Unit ([08.1997 - 04.2004] (0208- )DEALER OPTION (9708-0404)RHD) 22
#OEMPart name
88501 88501-35060 Evaporator Sub-Assy, Cooler, No.1
88510 88510-3D070 Unit Assy, Cooler
88510 90480-24008 Grommet (For Cooler Unit)
88510 90099-32137 Grommet (For Cooler Unit)
88510 90480-26022 Grommet (For Cooler Unit)
88539 88539-89113 Hose, Cooler Unit Drain, No.1
88605 88605-35220 Harness Sub-Assy, Cooler Wiring, No.1
88625 88625-35040 Thermistor, Cooler, No.1
88650 88650-35060 Amplifier Assy, Cooler Stabilizer
88716 88726-35260 Pipe, Cooler Refrigerant Liquid, F
88894 88894-35060 Connector, Drain Hose
8871495 88714-95J03 Insulator, Cooler Refrigerant Hose, No.1
8851922030 88519-22030 Holder, Remote Bulb
8856920160 88569-20160 Holder, Thermistor
8871428010 88714-28010 Hose, Cooler Refrigerant Liquid, No.1
8871487524 88714-87524 Hose, Cooler Refrigerant Liquid, No.1
8871489105 88714-89105 Hose, No.4(For Radiator Reserve Tank)
9009900968 90099-00968 Screw(For Air Conditioner Unit)
9015960195 90159-60195 New Genuine Part
9015960213 90159-60213 New Genuine Part
9018305094 90183-05094 NUT
9356855016 93568-55016 Screw
Heating & Air Conditioning - Cooler Unit ([08.1997 - ] O RING (9708- )) 5
#OEMPart name
9009914119 90099-14119 Ring, O(For Cooler Refrigerant Liquid Pipe)
9009914119 90099-14119-TH O RING
9009914120 90099-14120 O-Ring, Cooler Evaporator No.1(Discharge)
9009914121 90099-14121 O-Ring, Cooler Evaporator No.1(Suction)
9009914122 90099-14122 O-RING
Heating & Air Conditioning - Cooler Unit ([08.2002 - ] MAKER OPTION (0208- )RHD) 18
#OEMPart name
88501 88501-35060 Evaporator Sub-Assy, Cooler, No.1
88510 88510-3D070 Unit Assy, Cooler
88510 90480-24008 Grommet (For Cooler Unit)
88510 90099-32137 Grommet (For Cooler Unit)
88510 90480-26022 Grommet (For Cooler Unit)
88539 88539-89113 Hose, Cooler Unit Drain, No.1
88605 88605-35220 Harness Sub-Assy, Cooler Wiring, No.1
88625 88625-35040 Thermistor, Cooler, No.1
88650 88650-35060 Amplifier Assy, Cooler Stabilizer
88716 88726-35260 Pipe, Cooler Refrigerant Liquid, F
88894 88894-35060 Connector, Drain Hose
8851987301 88519-87301 Holder, Remote Bulb, Parts
8857830360 88578-30360 Packing, Cooler Pipe, No.1
8871487524 88714-87524 Hose, Cooler Refrigerant Liquid, No.1
8889935040 88899-35040 Cover, Evaporator
9009900968 90099-00968 Screw(For Air Conditioner Unit)
9009914120 90099-14120 O-Ring, Cooler Evaporator No.1(Discharge)
9015960195 90159-60195 New Genuine Part
Heating & Air Conditioning - Heater Unit & Blower ([08.1997 - ] (9708- )RHD) 18
#OEMPart name
87103 87103-35030 Motor Sub-Assy, Heater Blower, W/fan
87107 87107-35070 Unit Sub-Assy, Heater Radiator
87111 87111-35220 Case, Heater
87111 87111-35230 Case, Heater
87130 87130-35090 Blower Assy, Heater, Front
87150 87150-35230 Radiator Assy, Heater
87248 87156-35100 Pipe, Front Heater Radiator Water
87248 87156-35130 Pipe, Front Heater Radiator Water
90119 90119-T0090 New Genuine Part
90179 90179-T0001 New Genuine Part
8712420020 87124-20020 Clamp, Heater Control
8712435040 87124-35040 Clamp, Heater, No.3
8739889104 87398-89104 Band Assy (For Combustion Heater)
9011906074 90119-06074 Bolt
9016850013 90168-50013 SCREW
9017906274 90179-06274 Nut
9331314008 93313-14008 New Genuine Part
9676119016 96761-19016 RING
Heating & Air Conditioning - Heater Unit & Blower ([08.1997 - ] BOOST VENTILATOR (9708- )) 5
#OEMPart name
87111 87111-35220 Case, Heater
87111 87111-35230 Case, Heater
8712420020 87124-20020 Clamp, Heater Control
9011906074 90119-06074 Bolt
9017906274 90179-06274 Nut
Heating & Air Conditioning - Water Piping ([08.2002 - ] (0208- )VZN167,172) 10
#OEMPart name
87208 87208-35430 Pipe Sub-Assy, Heater Water
87245 87245-3D400 Hose, Heater Water, Inlet A
87245 87245-3D410 Hose, Heater Water, Inlet B
87246 87245-3D360 Hose, Heater Water, Outlet A
87246 87246-35100 Hose, Heater Water, Outlet B
87265 87265-35470 Connector, Heater Water Hose
9046721010 90467-21010 Clip(For Ventilation Hose No.2)
9046723009 90467-23009 Clip Or Clamp(For Ventilation Hose)
9048001405 90480-01405 Grommet, Heater Hose
9165160616 91651-60616 BOLT
Hood & Front Fender ([09.2001 - ] (0108-0109)GCC,GEN ; (0109- )DCB,SCB,XTR..ARL ,GCC,GEN ; (0203- )SA ; (0206- )CO ; (0209- )LN166..MA ; (0302- )KDN165,190..MA) 39
#OEMPart name
52512 52512-35070 Filler, Front Bumper, Rh
52513 52513-35070 Filler, Front Bumper, Lh
53301 53301-35100 Hood Sub-Assy
53301 90541-15004 Cushion, Hood Bumper
53384 53384-35010 Bumper, Fender To Hood
53801 53801-35460 Fender Sub-Assy, Front Rh
53802 53802-35540 Fender Sub-Assy, Front Lh
53813 53813-35040 Extension, Front Fender, Rh
53814 53814-35040 Extension, Front Fender, Lh
53849 53849-35010 Cap, Front Wheel Opening
53875 53875-35080 Liner, Front Fender, Rh
53876 53876-35070 Liner, Front Fender, Lh
53911 53911-35390 Panel, Front Valance
53931 53931-35010 Panel, Front End
53935 53935-35010 Protector, Front End Panel
53935 53936-35010 Protector, Front End Panel
76621 76621-35050 Mudguard, Front Body, Rh
76622 76622-35050 Mudguard, Front Body, Lh
91631 91631-B0616 BOLT WWASHER
93540 93540-A4014 SCREW TAPPING
7539535040 75395-35040 Clip, Outside Moulding, No.1
9011906225 90119-06225 New Genuine Part
9011906374 90119-06374 BOLT
9011906374 91653-A0614 BOLT WWASHER
9011906779 90119-06779 BOLT W-WASHER
9015960476 90159-60476 SCREW WWASHER
9015960478 90159-60478 SCREW WWASHER
9017906127 90179-06127 Bracket, Front Licence Plate Mounting
9018306027 90183-06027 Clip, Outside Moulding, No.1
9018904099 90189-04099 New Genuine Part
9018906212 90189-06212 GROMMET SCREW
9018906220 90189-06220 GROMMET SCREW
9026904059 90269-04059 RIVET
9046708185 90467-08185 Reinforcement, Front Spring Support, No.3
9046709166 90467-09166 CLIP
9046709195 90467-09195 CLIP
9090467036 90904-67036 Clip, Outside Moulding, No.1
9090467037 90904-67037 Clip, Outside Moulding, No.1
904671001722 90467-10017-22 Clip(For Front Door No.2 Weatherstrip)
Hood Lock & Hinge ([03.2002 - ] (0108-0109)GCC,GEN ; (0109-0203)ARL,GCC,GEN,TH ; (0203- )) 26
#OEMPart name
53410 53410-35030 Hinge Assy, Hood, Rh
53420 53420-35030 Hinge Assy, Hood, Lh
53441 53441-35050 Support, Hood
53451 90480-15027 Grommet(For Hood Support)
53452 53455-35010 Holder, Hood Stay
53497 53497-35020 Pad, Hood Hinge, No.1
53497 53497-35030 Pad, Hood Hinge, No.1
53497 53497-35040 Pad, Hood Hinge, No.1
53510 53510-35200 Lock Assy, Hood
53510 53510-35201 Lock Assy, Hood
53510 90506-07021 Spring, Tension(For Hood Lock)
53510 90506-20008 Spring, Tension(For Hood Lock)
53577 53577-33010 Bolt, Hood Lock
53579 53579-50010 Cap, Hood Lock Nut
53601 53601-10020-B3 Lever Sub-Assy, Hood Lock Control
53601 53601-10020-C0 Lever Sub-Assy, Hood Lock Control
53630 53630-35050 Cable Assy, Hood Lock Control
90167 90167-T0003 New Genuine Part
90167 90164-T0008 SCREW BINDING TAPPI
8271144010 82711-44010 Wire, Fuse To Fuse(for Combustion Heater)
9010508031 90105-08031 Bolt
9011906543 90119-06543 BOLT
9011908735 90119-08735 New Genuine Part
9016720001 90167-20001 New Genuine Part
9046711061 90467-11061 CLIP
9356015014 93560-15014 SCREW
Horn ([08.1997 - ] (9708- )) 6
#OEMPart name
86520 86520-28050 Horn Assy, Low Pitched
86520 86520-28080 Horn Assy, Low Pitched
9011908157 90119-08157 New Genuine Part
9011908157 90119-08718 BOLT WWASHER
9017906159 90179-06159 Nut, Rear Wiper Link Pivot, No.1
9017906159 90080-17210 Nut, Rear Wiper Link Pivot, No.1
Ignition Coil & Spark Plug ([08.2002 - 02.2005] (0208-0502)5VZFE) 20
#OEMPart name
19100 90919-01192 Spark Plug (Denso K16TR11)
19500 90919-02212 Coil Assy, Ignition
19539 19539-11040 Holder, Resistive Code, No.4
19539 19539-11030 Holder, Resistive Code, No.4
19901 19037-62010 Cord Set, Coil & Spark, W/resistive
19901 19037-62050 CORD SET, SPARK PLUG
19901 90919-15417 Cord, Spark Plug Resistive, No.1
19901 90919-15551 CORD SPARK PLUG
19901 90919-15418 Cord, Spark Plug Resistive, No.2
19901 90919-15552 CORD SPARK PLUG
19901 90919-15419 Cord, Spark Plug Resistive, No.3
19901 90919-15553 CORD SPARK PLUG
19944 19944-62010 Plate, Resistive Cord Clamp Support, No.2
91511 91511-G0622 BOLT, FLANGE
1994165040 19941-65040 Clamp(For Resistive Cord)
9046400542 90464-00542 New Genuine Part
9046400556 90464-00556 Clamp, Resistive Cord, No.1
9046400561 90464-00561 Clamp, Resistive Cord, No.1
9046905012 90469-05012 New Genuine Part
9092901348 90929-01348 New Genuine Part
Inside Trim Board ([08.1997 - ] (9708- )SCB,THSCB) 18
#OEMPart name
62111 62111-35020-B0 Board, Cowl Side Trim, Rh
62112 62112-35040-B0 Board, Cowl Side Trim, Lh
62211 62211-35050-B0 Garnish, Front Pillar, Rh
62212 62212-35050-B0 Garnish, Front Pillar, Lh (Gray)
62313 62313-35020-B0 Trim, Front Door Opening, Rh
62313 62313-35021-B0 Trim, Front Door Opening, Rh
62511 62511-35070-B0 Board, Quarter Inside Trim, Rh
62511 67771-12050 Clip, Radiator Grille
62511 90467-09158 Clip(For Cowl Side Trim)
62512 62512-35070-B0 Board, Quarter Inside Trim, Lh
62513 62513-35010-B0 Panel, Quarter Trim, Lower Rh
62514 62514-35010-B0 Panel, Quarter Trim, Lower Lh
64261 64261-35040-B0 Garnish, Back Panel, Upper
64271 64271-35010-B0 Trim, Back Panel
64271 90467-05027-B0 Clip (For Quarter Inside Trim Board)
9046804101 90468-04101 Clip, Roof Headlining
9046805060 90468-05060 Clip
9046805125 90468-05125 Clip (For Roof Side Inner Garnish)
Instrument Panel & Glove Compartment ([08.1997 - ] (9708- )RHD) 77
#OEMPart name
55045 55045-35040-B0 Panel Sub-Assy, Instrument Panel Finish, Lower
55301 55301-35090-B0 Panel Sub-Assy, Instrument
55301 55301-35100-B0 Panel Sub-Assy, Instrument
55301 55301-35110-B0 Panel Sub-Assy, Instrument
55306 55306-35040 Brace Sub-Assy, Instrument Panel, No.1
55306 55306-35060 Brace Sub-Assy, Instrument Panel, No.1
55307 55307-35040 Brace Sub-Assy, Instrument Panel, No.2
55308 55308-35020 Bracket Sub-Assy, Instrument Panel, Center
55331 55330-35071 Reinforcement, Instrument Panel
55405 55405-35010 Panel Sub-Assy, Instrument Cluster Finish, Center
55411 55404-35171 Panel, Instrument Cluster Finish, No.1
55411 55404-35200 Panel, Instrument Cluster Finish, No.1
55433 55433-35030 Panel, Instrument Panel Finish, Lower No.2
55441 55440-35010-B0 Box, Instrument Panel
55443 55443-35010-B0 Knob, Instrument Panel Box Door
55444 55444-35010 Spring, Instrument Panel Box
55460 55460-35010 Lock Assy, Instrument Panel Box
55461 55461-35040 Box, Instrument Panel, Center
55477 55477-35010 Bezel, Cigarette Lighter Hole
55479 55407-35050-B0 Cover, Instrument, Lower Center
55479 90467-07041 Clip(For Instrument Lower Cover)
55479 90467-07041-B5 Clip(For Instrument Lower Cover)
55479 90467-07076-P4 Clip(For Instrument Lower Cover)
55479 90467-07076-P6 Clip(For Deck Trim Side Cover)
55503 90541-05080 Cushion(For Glove Compartment)
55510 55550-35010-B0 Door Sub-Assy, Glove Compartment
55510 58871-30020 Cushion(For Glove Compartment Door)
55521 55521-89102 Cover, Stereo Opening
55521 55521-37030 Cover, Stereo Opening
55531 55531-89105-B1 Cover, Choke Knob Hole
55533 55533-35030 Cover, Auto Clock Hole
55539 55539-32010-C0 Cover, Cooler Switch Hole (BLACK)
55539 55539-12130-B2 Cover, Spare Switch Hole
55539 55539-12130-C0 Cover, Spare Switch Hole
55545 55545-35010-B0 Cover, Fuse Box Opening
55558 55558-35030 Reinforcement, Glove Compartment Door
55560 55560-34020-B0 Lock Assy, Glove Compartment Door
55573 55573-32010 Hinge Sub-Assy, Glove Compartment Door
55574 90254-04016 Shaft, Glove Compartment Door Hinge
55606 55606-60010 Cover Sub-Assy, Instrument Panel Under, No.1
55620 55620-35050 Holder Assy, Instrument Panel Cup
55650 55650-35050 Register Assy, Instrument Panel, No.1
55660 55660-35070 Register Assy, Instrument Panel, No.2
55950 55950-35010 Nozzle Assy, Defroster
61181 61181-35020 Bracket, Instrument Panel Side
73970 73970-0W090-B0 Air Bag Assy, Instrument Panel Passenger
74598 74598-20010 Label, Driver & Passenger Air Bag Caution
90119 90119-T0086 New Genuine Part
90119 90119-T0088 New Genuine Part
90167 90167-T0006 New Genuine Part
90167 90167-T0010 New Genuine Part
90167 90167-T0011 New Genuine Part
91621 91621-J0814 Bolt (For Transmission Control Cable Bracket)
91631 91631-J0620 New Genuine Part
9011908 90119-08B72 BOLT WWASHER
5557435010 55574-35010 Shaft, Glove Compartment Door Hinge
9011906022 90119-06022 BOLT
9011906022 90080-11127 New Genuine Part
9014950032 90149-50032 Screw
9015960411 90159-60411 SCREW WWASHER
9017906156 90179-06156 Nut (For Transmission Control Cable)
9017908102 90179-08102 NUT
9018305094 90183-05094 NUT
9046708023 90467-08023 Clip, Wiper Motor Cover, Outer
9046710203 90467-10203 Direct
9046714023 90467-14023 Clip, Instrument Panel, No.1
9046715020 90467-15020 CLIP
9046804177 90468-04177 Clip(For Instrument Panel Under Cover)
9054103015 90541-03015 Cushion, Instrument Panel Box
9161660616 91616-60616 BOLT
9353053008 93530-53008 New Genuine Part
9354054014 93540-54014 SCREW
9356053008 93560-53008 New Genuine Part
9356055016 93560-55016 Screw(For Mat Set Plate)
9356855012 93568-55012 SCREW
9356855014 93568-55014 Screw
9356855016 93568-55016 Screw
Interior Lamp ([08.1997 - ] (9708- )) 2
#OEMPart name
9016445005 90164-45005 SCREW
9046706132 90467-06132 CLIP
Lock Cylinder Set ([08.2002 - ] (0208- )) 16
#OEMPart name
69051 69051-35110 Cylinder & Key Set, Door Lock, Rh
69052 69052-35110 Cylinder & Key Set, Door Lock, Lh
69057 69057-35110 Cylinder & Key Set, Ignition Switch Lock
69058 69058-35110 Cylinder & Key Set, Fuel Filler Lid
69058 69058-60141 Cylinder & Key Set, Fuel Filler Lid
69058 69058-35170 Cylinder & Key Set, Fuel Filler Lid
69058 69058-35180 Cylinder & Key Set, Fuel Filler Lid
69503 69005-35590 Cylinder Set, Lock
69503 90999-00130 Key, Blank
69503 90999-00153 Key, Blank
69503 90999-00132 Key, Blank
69503 90999-00174 Key, Blank
69503 69005-35531 Cylinder Set, Lock
69513 69513-32010 Pad, Lock Cylinder
69581 69511-32010 Retainer, Front Door Lock Cylinder
9356854512 93568-54512 SCREW
Manifold ([08.2002 - 02.2005] (0208-0502)5VZFE) 31
#OEMPart name
17106 17106-62040 Pipe Sub-Assy, Exhaust Crossover
17106 17106-62041 Pipe Sub-Assy, Exhaust Crossover
17106 90917-06083 Gasket, Exhaust Pipe
17111 17101-62020 Manifold, Intake
17125 17125-62041 Stay, Surge Tank, No.1
17129 17109-62090 Tank, Intake Air Surge
17141 17141-62110 Manifold, Exhaust
17142 17142-62110 Manifold, Exhaust, Lh
17159 90116-08251 Bolt, Stud(For Manifold To Cylinder Head)
17159 90116-10150 Bolt, Stud(For Manifold To Cylinder Head)
17173 17173-62060 Gasket, Exhaust Manifold To Head
17176 17176-62040 Gasket, Air Surge Tank To Intake Manifold
17177 17177-62060 Gasket, Intake Manifold To Head, No.1
17861 17861-62012 Connector, Intake Air
91511 91511-B0816 BOLT
91511 90080-10159 New Genuine Part
9010508020 90105-08020 Bolt(For Transaxle Case & Transmission Case Setting)
9010508185 90105-08185 New Genuine Part
9011610149 90116-10149 Bolt, Stud(For Manifold To Exhaust Pipe)
9011908609 90119-08609 New Genuine Part
9011908609 90148-80018 New Genuine Part
9011910684 90119-10684 New Genuine Part
9014880002 90148-80002 New Genuine Part
9014880002 90148-80017 New Genuine Part
9014980022 90149-80022 New Genuine Part
9017908183 90179-08183 NUT
9017908230 90179-08230 New Genuine Part
9017910070 90179-10070 Nut, Exhaust Pipe Set Stud Bolt
9017910070 90080-17187 Nut, Exhaust Pipe Set Stud Bolt
9211260825 92112-60825 Bolt, Stud(For Oil Filter)
9462310800 94623-10800 Spacer, Shift Lever
Meter ([08.1997 - ] CLOCK & REVOLUTION DETECTOR (9708- )) 1
#OEMPart name
83910 83910-26020 Clock Assy
Meter ([08.1997 - ] COMBINATION METER, W/O(TACHOMETER) (9708- )LN166 ; (9708- )KDN145,15#,16#,190 ,KZN165,190,LN14#,15#,167,17#,19#,R ZN14#,154,16#,174 ,19#,VZN167,172,YN140..ARL,CO,GCC,GEN,SA,TH) 17
#OEMPart name
83100 83120-60020 Bulb, Combination Meter, No.1
83100 90010-06006 Bulb, Combination Meter, No.1
83100 90010-06007 Bulb, Combination Meter, No.1
83110 83220-35780 Speedometer Assy
83110 83220-35781 Speedometer Assy
83132 83841-3G190 Case, Combination Meter
83138 83852-35020 Glass, Speedometer
83243 83882-3G120 Gauge Sub-Assy, Fuel Receiver
83244 83883-3G030 Gauge Sub-Assy, Water Temperature Receiver
83247 83861-3D640 Plate, Meter Circuit
83247 83861-3G190 Plate, Meter Circuit
8319387501 83193-87501 New Genuine Part
8319387501 90099-00929 New Genuine Part
8319487502 83194-87502 New Genuine Part
9009900226 90099-00226 New Genuine Part
9009900917 90099-00917 New Genuine Part
9356855014 93568-55014 Screw
Meter ([08.2002 - ] COMBINATION METER, W(TACHOMETER) (0208- )VZN167,172) 23
#OEMPart name
83100 83120-60020 Bulb, Combination Meter, No.1
83100 90010-06006 Bulb, Combination Meter, No.1
83100 90010-06007 Bulb, Combination Meter, No.1
83110 83220-35780 Speedometer Assy
83110 83220-35781 Speedometer Assy
83132 83841-3G190 Case, Combination Meter
83136 83851-35580 Cover, Combination Meter
83138 83852-35020 Glass, Speedometer
83145 83831-35590 Lens, Meter, No.1
83145 83831-35580 Lens, Meter, No.1
83145 83831-35600 Lens, Meter, No.2
83145 83833-26010 Lens, Meter, No.1
83242 83881-3D640 Tachometer Assy, Engine
83243 83882-3G120 Gauge Sub-Assy, Fuel Receiver
83244 83883-3G030 Gauge Sub-Assy, Water Temperature Receiver
83247 83861-3D640 Plate, Meter Circuit
83247 83861-3G190 Plate, Meter Circuit
8316120800 83161-20800 Case, Combination Meter Mirror, No.1
8316220140 83162-20140 Case, Combination Meter Mirror, No.2
9007600005 90076-00005 New Genuine Part
9007600018 90076-00018 New Genuine Part
9356855014 93568-55014 Screw
9223372036854775807 83161-1E020 Case, Combination Meter Mirror, No.1
Meter ([09.2001 - ] SPEEDMETER SENSOR (0109- )) 3
#OEMPart name
83181 83181-12020 Sensor, Speedometer
83181 96711-24030 Ring,o (For Speedometer Driven Hole Cover)
9165140825 91651-40825 Bolt(For Clutch Release Cylinder Setting)
Mirror ([08.1997 - ] (9708- )) 20
#OEMPart name
87810 87810-89140-B0 Mirror Assy, Inner Rear View (LT.BLUISH GRAY)
87810 99132-13050 Bulb(For Courtesy Lamp)
87810 00234-13050 Bulb,Room Lamp
87834 87834-89104 Cover, Inner Rear View Mirror Stay Holder
87901 87931-35700 Mirror Sub-Assy, Outer Rear View, Rh
87906 87961-35420 Mirror Sub-Assy, Outer Rear View, Lh
87910 87910-35510 Mirror Assy, Outer Rear View, Rh
87910 87910-35700 Mirror Assy, Outer Rear View, Rh
87911 87911-35020 Gasket, Outer Rear View Mirror, Rh
87915 87915-89106 Cover, Outer Mirror, Rh
87940 87940-35480 Mirror Assy, Outer Rear View, Lh
87940 87940-35650 Mirror Assy, Outer Rear View, Lh
87941 87941-35020 Gasket, Outer Rear View Mirror, Lh
87945 87945-89106 Cover, Outer Mirror, Lh
91511 91511-B0616 BOLT, FLANGE
91511 90080-10164 BOLT, FLANGE
9015760010 90157-60010 New Genuine Part
9015950236 90159-50236 New Genuine Part
9351016020 93510-16020 New Genuine Part
9354016020 93540-16020 New Genuine Part
Moulding ([08.1997 - ] (9708- )SCB,THSCB) 6
#OEMPart name
75531 75531-35120 Moulding, Windshield, Outer Upper
75531 75531-35160 Moulding, Windshield, Outer Upper
75551 75551-35040 Moulding, Roof Drip Side Finish, Rh
75552 75552-35040 Moulding, Roof Drip Side Finish, Lh
9015960476 90159-60476 SCREW WWASHER
9015960478 90159-60478 SCREW WWASHER
Mounting ([08.2002 - 02.2005] (0208-0502)5VZFE) 17
#OEMPart name
12311 12311-62070 Bracket, Engine Mounting, Front No.1 Rh
12315 12315-62080 Bracket, Engine Mounting, Front No.1 Lh
12361 12361-62150 Insulator, Engine Mounting, Front
12371 12371-62190 Insulator, Engine Mounting, Rear No.1
12381 12381-62020 Stabilizer, Engine Mounting
12382 12382-62010 Stabilizer, Engine Mounting
12392 12392-62040 Insulator, Engine Mounting Heat, Rear
12511 12511-62010 Bracket, Alternator, No.1
91511 91511-B0825 Bolt (For Transfer Stiffener Plate)
91641 91641-K0816 BOLT WWASHER
91642 91642-H1022 BOLT W-WASHER
9011910521 90119-10521 New Genuine Part
9011910777 90119-10777 New Genuine Part
9017910201 90179-10201 NUT
9017912087 90179-12087 New Genuine Part
9165140814 91651-40814 BOLT
9165140814 90080-11228 New Genuine Part
Oil Filter ([08.2002 - 02.2005] (0208-0502)5VZFE) 4
#OEMPart name
15600 90404-19013 Union(For Cylinder Block)
15601 90915-20003 Oil Filter Sub-Assy (THAILAND) - MADE IN THAILAND
15601 90915-YZZD2 Oil Filter (THAILAND) - Made in Thailand
15601 90915-20005 Oil Filter (THAILAND)
Parking Brake & Cable ([08.1997 - ] (9708- )KDN16#,190,KZN165,190,LN16#,172,192,R ZN169,174,194,VZN167,172..RHD) 37
#OEMPart name
46104 46104-35050 Handle Sub-Assy, Parking Brake Control
46114 46114-20010 Pin(For Parking Brake Handle Set)
46144 46144-30020 Anti-Rattle, Parking Brake Plunger
46301 46301-04020 Lever Sub-Assy, Parking Brake Intermediate
46301 46301-35200 Lever Sub-Assy, Parking Brake Intermediate
46304 46341-35030 Equalizer Sub-Assy, Parking Brake
46304 90385-12012 Bush(For Parking Brake Equalizer)
46410 46410-35810 Cable Assy, Parking Brake, No.1
46420 46420-35750 Cable Assy, Parking Brake, No.2
46441 46441-30030 Nut, Wire Adjusting, No.1
46471 46471-30010 Pulley, Wire
91611 91611-B0816 Bolt
91631 91631-J0612 BRACKET
91641 91641-H0820 Bolt
9094901 90949-01B14 New Genuine Part
9094901 90949-01B15 New Genuine Part
9094901 90949-01B16 New Genuine Part
9094901 90949-01B17 New Genuine Part
9010908244 90109-08244 BOLT
9017906161 90179-06161 Bolt, Union(For Clutch Accumulator)
9017908204 90179-08204 Nut
9017908204 90080-18070 NUT, WWASHER
9024008017 90240-08017 Pin, W/hole(For Parking Brake Cable)
9024008040 90240-08040 Pin, W/hole(For Clutch Master Cylinder Push Rod Clevis)
9024008059 90240-08059 Pin, W/hole(For Intermediate Lever)
9046803006 90468-03006 CLIP
9046806063 90468-06063 CLIP
9046808001 90468-08001 CLIP
9046814033 90468-14033 CLIP
9046814039 90468-14039 CLIP
9046816012 90468-16012 Pin, Sub Seat Cushion Pin
9050625003 90506-25003 Spring, Tension(For Intermediate Lever)
9094901959 90949-01959 Clamp, No.2(For Parking Brake Cable)
9094901964 90949-01964 Clamp, No.4(For Parking Brake Cable)
9413060800 94130-60800 Nut(For Clutch Pedal Stopper)
9413060800 90170-A0003 New Genuine Part
9461211001 94612-11001 Washer, Plate (For Center Support Bearing Housing)
Partial Engine Assembly ([08.1997 - ] (9708- )) 1
#OEMPart name
11000 19000-62510 Engine Assy, Partial
Power Steering Tube ([08.2002 - ] (0208- )VZN167,172) 18
#OEMPart name
44327 44327-26020 Gasket, Pressure Port, No.1
44327 44327-30040 Gasket, Pressure Port, No.1
44410 44410-35680 Tube Assy, Pressure Feed
44410 90401-16034 Bolt, Union(For Pressure Feed Tube)
44412 44412-35310 Hose, Return, No.1
44416 44416-35100 Tube, Return(For Steering Gear Outlet)
44443 44443-35080 Bracket, Pump
44446 44446-35010 Strut, Adjusting
44469 44469-35010 Slider, Power Steering Belt Adjusting
91641 91641-H0820 Bolt
91651 91651-B0814 Bolt with washer
91651 90119-A0109 New Genuine Part
9011908 90119-08A31 New Genuine Part
9010510390 90105-10390 Bolt(For Vane Pump Bracket Settinng)
9017910209 90179-10209 New Genuine Part
9046716019 90467-16019 Clip(For Return No.1)
9056010008 90560-10008 New Genuine Part
9151261030 91512-61030 Bolt (For Transaxle Case Upper Cover)
Propeller Shaft & Universal Joint ([08.1997 - ] FRONT (9708- )RZN16# ; (9708- )LN16#,172,RZN174, VZN167,172..ARL,GCC,SA,TH) 93
#OEMPart name
4371 04371-60070 Spider Kit, Propeller Shaft Universal Joint
37101 90937-01132 Piece, Balance, No.1 (For Propeller Shaft)
37101 90937-01136 Piece, Balance, No.1 (For Propeller Shaft)
37101 90937-01147 Piece, Balance, No.1 (For Propeller Shaft)
37101 90937-01148 Piece, Balance, No.1 (For Propeller Shaft)
37101 90937-01149 Piece, Balance, No.1 (For Propeller Shaft)
37101 90937-01150 Piece, Balance, No.1 (For Propeller Shaft)
37101 90937-01151 Piece, Balance, No.1 (For Propeller Shaft)
37101 90937-01152 Piece, Balance, No.1 (For Propeller Shaft)
37101 90937-01153 Piece, Balance, No.1 (For Propeller Shaft)
37101 90937-01154 Piece, Balance, No.1 (For Propeller Shaft)
37101 90937-01155 Piece, Balance, No.1 (For Propeller Shaft)
37101 90937-01156 Piece, Balance, No.1 (For Propeller Shaft)
37101 90937-01157 Piece, Balance, No.1 (For Propeller Shaft)
37101 90937-01158 Piece, Balance, No.1 (For Propeller Shaft)
37101 90937-01201 Piece, Balance, No.1 (For Propeller Shaft)
37101 90937-01202 Piece, Balance, No.1 (For Propeller Shaft)
37101 90937-01203 Piece, Balance, No.1 (For Propeller Shaft)
37101 90937-01204 Piece, Balance, No.1 (For Propeller Shaft)
37101 90937-01205 Piece, Balance, No.1 (For Propeller Shaft)
37101 90937-01206 Piece, Balance, No.1 (For Propeller Shaft)
37101 90937-01207 Piece, Balance, No.1 (For Propeller Shaft)
37101 90937-01208 Piece, Balance, No.1 (For Propeller Shaft)
37101 90937-01209 Piece, Balance, No.1 (For Propeller Shaft)
37101 90937-01210 Piece, Balance, No.1 (For Propeller Shaft)
37101 90937-01211 Piece, Balance, No.1 (For Propeller Shaft)
37101 90937-01396 Piece, Balance, No.1 (For Propeller Shaft)
37101 90937-01397 Piece, Balance, No.1 (For Propeller Shaft)
37101 90937-01398 Piece, Balance, No.1 (For Propeller Shaft)
37101 90937-01399 Piece, Balance, No.1 (For Propeller Shaft)
37101 90937-01400 Piece, Balance, No.1 (For Propeller Shaft)
37101 90937-01401 Piece, Balance, No.1 (For Propeller Shaft)
37101 90937-01402 Piece, Balance, No.1 (For Propeller Shaft)
37101 90937-01184 Piece, Balance, No.1 (For Propeller Shaft)
37101 90937-01191 Piece, Balance, No.1 (For Propeller Shaft)
37101 90937-01192 Piece, Balance, No.1 (For Propeller Shaft)
37101 90937-01193 Piece, Balance, No.1 (For Propeller Shaft)
37101 90937-01194 Piece, Balance, No.1 (For Propeller Shaft)
37101 90937-01198 Piece, Balance, No.1 (For Propeller Shaft)
37101 90937-01199 Piece, Balance, No.1 (For Propeller Shaft)
37101 90937-01200 Piece, Balance, No.1 (For Propeller Shaft)
37101 90937-01268 Piece, Balance, No.1 (For Propeller Shaft)
37101 90937-01269 Piece, Balance, No.1 (For Propeller Shaft)
37101 90937-01270 Piece, Balance, No.1 (For Propeller Shaft)
37101 90937-01271 Piece, Balance, No.1 (For Propeller Shaft)
37101 90937-01272 Piece, Balance, No.1 (For Propeller Shaft)
37101 90937-01273 Piece, Balance, No.1 (For Propeller Shaft)
37101 90937-01274 Piece, Balance, No.1 (For Propeller Shaft)
37140 37140-35210 Shaft Assy, Propeller, Front
37140 90105-10085 Bolt, No.1 (For Propeller Shaft & Differential Setting)
37140 90080-10294 Bolt, No.1 (For Propeller Shaft & Differential Setting)
37140 90179-10059 Nut, No.1 (For Propeller Shaft & Differential Setting)
37140 90080-17239 Nut, No.2 (For Propeller Shaft & Differential Setting)
37140 90204-10002 Washer, No.1 (For Propeller Shaft & Differential Setting)
37140 90560-10H00 Washer, No.1 (For Propeller Shaft & Differential Setting)
37302 37302-35050 Yoke Sub-Assy, Universal Joint Sleeve
37315 37315-35070 Yoke, Universal Joint Flange
37331 37305-35020 Cover Sub-Assy, Sliding Shaft Dust
37401 90520-25039 Ring, Hole Snap (For Spider Bearing)
37401 90520-25040 Ring, Hole Snap (For Spider Bearing)
37401 90520-25041 Ring, Hole Snap (For Spider Bearing)
37401 90520-25042 Ring, Hole Snap (For Spider Bearing)
37401 90520-25043 Ring, Hole Snap (For Spider Bearing)
37401 90520-25044 Ring, Hole Snap (For Spider Bearing)
37401 90520-25045 Ring, Hole Snap (For Spider Bearing)
37401 90520-25046 Ring, Hole Snap (For Spider Bearing)
37401 90520-25047 Ring, Hole Snap (For Spider Bearing)
37401 90520-25048 Ring, Hole Snap (For Spider Bearing)
37401 90520-25049 Ring, Hole Snap (For Spider Bearing)
37401 90520-25050 Ring, Hole Snap (For Spider Bearing)
37401 90520-25051 Ring, Hole Snap (For Spider Bearing)
37401 90520-25052 Ring, Hole Snap (For Spider Bearing)
37401 90520-25053 Ring, Hole Snap (For Spider Bearing)
37401 90520-25054 Ring, Hole Snap (For Spider Bearing)
37401 90520-25055 Ring, Hole Snap (For Spider Bearing)
37401 90520-25056 Ring, Hole Snap (For Spider Bearing)
37401 90520-25057 Ring, Hole Snap (For Spider Bearing)
37401 90520-25058 Ring, Hole Snap (For Spider Bearing)
37402 37402-30011 Bearing Sub-Assy, Universal Joint Spider
37402 04371-60100 Spider Kit, Universal Joint(For Propeller Shaft)
37402 37402-30021 Bearing Sub-Assy, Universal Joint Spider
37701 37701-35071 Cover Sub-Assy, Propeller Shaft Dust
37713 37713-35070 Cover, Propeller Shaft Dust, No.2
37714 37714-35051 Stay, Propeller Shaft Dust Cover
9011908167 90119-08167 New Genuine Part
9011910046 90119-10046 Bolt, No.1 (For Center Support Bearing)
9017908204 90179-08204 Nut
9017908204 90080-18070 NUT, WWASHER
9041606004 90416-06004 FITTING
9041606007 90416-06007 New Genuine Part
9041606008 90416-06008 New Genuine Part
9151160810 91511-60810 BOLT
9645100600 96451-00600 Fitting, Grease Small(For Tail Gate Lock Link)
Propeller Shaft & Universal Joint ([08.1997 - ] REAR (9708- )RZN16#,VZN167,172 ; (9807- )LN167. .SA) 92
#OEMPart name
4371 04371-35051 Spider Kit, Universal Joint(For Propeller Shaft)
4371 04371-60070 Spider Kit, Propeller Shaft Universal Joint
37100 37100-3D420 Shaft Assy, Propeller W/center Bearing
37100 90105-10085 Bolt, No.1 (For Propeller Shaft & Differential Setting)
37100 90080-10294 Bolt, No.1 (For Propeller Shaft & Differential Setting)
37100 90179-10059 Nut, No.1 (For Propeller Shaft & Differential Setting)
37100 90080-17239 Nut, No.2 (For Propeller Shaft & Differential Setting)
37100 90204-10002 Washer, No.1 (For Propeller Shaft & Differential Setting)
37100 90560-10H00 Washer, No.1 (For Propeller Shaft & Differential Setting)
37101 90937-01132 Piece, Balance, No.1 (For Propeller Shaft)
37101 90937-01136 Piece, Balance, No.1 (For Propeller Shaft)
37101 90937-01147 Piece, Balance, No.1 (For Propeller Shaft)
37101 90937-01148 Piece, Balance, No.1 (For Propeller Shaft)
37101 90937-01149 Piece, Balance, No.1 (For Propeller Shaft)
37101 90937-01150 Piece, Balance, No.1 (For Propeller Shaft)
37101 90937-01151 Piece, Balance, No.1 (For Propeller Shaft)
37101 90937-01152 Piece, Balance, No.1 (For Propeller Shaft)
37101 90937-01153 Piece, Balance, No.1 (For Propeller Shaft)
37101 90937-01154 Piece, Balance, No.1 (For Propeller Shaft)
37101 90937-01155 Piece, Balance, No.1 (For Propeller Shaft)
37101 90937-01156 Piece, Balance, No.1 (For Propeller Shaft)
37101 90937-01157 Piece, Balance, No.1 (For Propeller Shaft)
37101 90937-01158 Piece, Balance, No.1 (For Propeller Shaft)
37101 90937-01201 Piece, Balance, No.1 (For Propeller Shaft)
37101 90937-01202 Piece, Balance, No.1 (For Propeller Shaft)
37101 90937-01203 Piece, Balance, No.1 (For Propeller Shaft)
37101 90937-01204 Piece, Balance, No.1 (For Propeller Shaft)
37101 90937-01205 Piece, Balance, No.1 (For Propeller Shaft)
37101 90937-01206 Piece, Balance, No.1 (For Propeller Shaft)
37101 90937-01207 Piece, Balance, No.1 (For Propeller Shaft)
37101 90937-01208 Piece, Balance, No.1 (For Propeller Shaft)
37101 90937-01209 Piece, Balance, No.1 (For Propeller Shaft)
37101 90937-01210 Piece, Balance, No.1 (For Propeller Shaft)
37101 90937-01211 Piece, Balance, No.1 (For Propeller Shaft)
37101 90937-01396 Piece, Balance, No.1 (For Propeller Shaft)
37101 90937-01397 Piece, Balance, No.1 (For Propeller Shaft)
37101 90937-01398 Piece, Balance, No.1 (For Propeller Shaft)
37101 90937-01399 Piece, Balance, No.1 (For Propeller Shaft)
37101 90937-01400 Piece, Balance, No.1 (For Propeller Shaft)
37101 90937-01401 Piece, Balance, No.1 (For Propeller Shaft)
37101 90937-01402 Piece, Balance, No.1 (For Propeller Shaft)
37101 90937-01184 Piece, Balance, No.1 (For Propeller Shaft)
37101 90937-01191 Piece, Balance, No.1 (For Propeller Shaft)
37101 90937-01192 Piece, Balance, No.1 (For Propeller Shaft)
37101 90937-01193 Piece, Balance, No.1 (For Propeller Shaft)
37101 90937-01194 Piece, Balance, No.1 (For Propeller Shaft)
37101 90937-01198 Piece, Balance, No.1 (For Propeller Shaft)
37101 90937-01199 Piece, Balance, No.1 (For Propeller Shaft)
37101 90937-01200 Piece, Balance, No.1 (For Propeller Shaft)
37101 90937-01268 Piece, Balance, No.1 (For Propeller Shaft)
37101 90937-01269 Piece, Balance, No.1 (For Propeller Shaft)
37101 90937-01270 Piece, Balance, No.1 (For Propeller Shaft)
37101 90937-01271 Piece, Balance, No.1 (For Propeller Shaft)
37101 90937-01272 Piece, Balance, No.1 (For Propeller Shaft)
37101 90937-01273 Piece, Balance, No.1 (For Propeller Shaft)
37101 90937-01274 Piece, Balance, No.1 (For Propeller Shaft)
37110 37110-3D530 Shaft Assy, Propeller, Rear
37120 37120-3D050 Shaft Assy, Propeller Intermediate
37120 90201-18182 Washer, Plate (For Propeller Intermediate Shaft Set)
37120 90179-18009 Nut (For Propeller Intermediate Shaft Setting)
37230 37230-35130 Bearing Assy, Center Support, No.1
37230 90201-25006 Washer, Plate (For Propeller Intermediate Shaft Set)
37230 90119-10865 Bolt, No.1 (For Center Support Bearing)
37302 37302-35050 Yoke Sub-Assy, Universal Joint Sleeve
37304 37304-35041 Flange Sub-Assy, Universal Joint
37315 37315-35070 Yoke, Universal Joint Flange
37331 37305-35020 Cover Sub-Assy, Sliding Shaft Dust
37401 90520-25039 Ring, Hole Snap (For Spider Bearing)
37401 90520-25040 Ring, Hole Snap (For Spider Bearing)
37401 90520-25041 Ring, Hole Snap (For Spider Bearing)
37401 90520-25042 Ring, Hole Snap (For Spider Bearing)
37401 90520-25043 Ring, Hole Snap (For Spider Bearing)
37401 90520-25044 Ring, Hole Snap (For Spider Bearing)
37401 90520-25045 Ring, Hole Snap (For Spider Bearing)
37401 90520-25046 Ring, Hole Snap (For Spider Bearing)
37401 90520-25047 Ring, Hole Snap (For Spider Bearing)
37401 90520-25048 Ring, Hole Snap (For Spider Bearing)
37401 90520-25049 Ring, Hole Snap (For Spider Bearing)
37401 90520-25050 Ring, Hole Snap (For Spider Bearing)
37401 90520-25051 Ring, Hole Snap (For Spider Bearing)
37401 90520-25052 Ring, Hole Snap (For Spider Bearing)
37401 90520-25053 Ring, Hole Snap (For Spider Bearing)
37401 90520-25054 Ring, Hole Snap (For Spider Bearing)
37401 90520-25055 Ring, Hole Snap (For Spider Bearing)
37401 90520-25056 Ring, Hole Snap (For Spider Bearing)
37401 90520-25057 Ring, Hole Snap (For Spider Bearing)
37401 90520-25058 Ring, Hole Snap (For Spider Bearing)
37402 37402-30011 Bearing Sub-Assy, Universal Joint Spider
37402 04371-60100 Spider Kit, Universal Joint(For Propeller Shaft)
37402 37402-30021 Bearing Sub-Assy, Universal Joint Spider
9041606004 90416-06004 FITTING
9645100600 96451-00600 Fitting, Grease Small(For Tail Gate Lock Link)
Radiator & Water Outlet ([08.2002 - ] (0208- )5VZFE) 46
#OEMPart name
16261 16261-62060 Hose, Water By-Pass
16261 96135-51300 Clamp, Hose
16268 16268-62060 Pipe, Water By-Pass, No.1
16321 16321-62020 Inlet, Water
16325 16325-62010 Gasket, Water Inlet Housing, No.1
16331 16331-62040 Outlet, Water
16331 90916-03075 Thermostat
16341 16341-62040 Gasket, Water Outlet
16361 16361-62010 Fan
16381 16381-62041 Bar, Fan Belt Adjusting
16385 16385-62020 Slider, Fan Belt Adjusting
16400 16400-62210 Radiator Assy
16400 16400-62220 Radiator Assy
16400 23322-54010 Plug,air(For Oil Cooler Drain Cock)
16400 16492-21050 Ring, O(For Oil Cooler Drain Cock)
16400 16444-75180 Bushing(For Radiator)
16400 16445-75180 Collar(For Radiator)
16401 16401-5B630 Cap Sub-Assy, Radiator
16401 16401-31650 Cap Sub-Assy, Radiator
16453 16453-67190 Plate, Radiator Side
16454 16454-67190 Plate, Radiator Side
16455 91651-B0820 Bolt, Radiator Side Support Plate
16455 90080-11347 New Genuine Part
16470 16470-75060 Tank Assy, Radiator Reserve
16470 90480-25025 Grommet, Radiator Reserve Tank Hose
16471 16405-75050 Cap Sub-Assy, Reserve Tank
16561 16561-54050 Seal, Radiator To Support, No.1
16571 16571-62080 Hose, Radiator, No.1
16571 90467-37005 Clip(For Water Inlet Hose)
16572 16572-62100 Hose, Radiator, No.2
16711 16711-62070 Shroud, Fan
16712 16712-62050 Shroud, Fan, No.2
16712 90468-06092 Clip(For Fan Shroud No.2)
91621 91621-J0814 Bolt (For Transmission Control Cable Bracket)
91626 91626-G0616 BOLT WWASHER
91631 91631-B0616 BOLT WWASHER
9011606119 90116-06119 Bolt, Stud(For Oil Pan)
9011606127 90116-06127 Bolt, Stud(For Oil Pan)
9011908493 90119-08493 BOLT
9011910038 90119-10038 New Genuine Part
9017906080 90179-06080 NUT
9017906293 90179-06293 NUT
9017906299 90179-06299 Nut, Wire Adjusting, No.1
9017908183 90179-08183 NUT
9162160614 91621-60614 Bolt(For Transaxle & Engine Setting)
9955610300 99556-10300 Hose, Turbo Water, No.1
Radiator Grille ([09.2001 - ] (0108-0109)GCC,GEN ; (0109- )DCB,SCB,XTR..ARL ,GCC,GEN ; (0203- )SA ; (0206- )CO ; (0209- )LN166..MA ; (0302- )KDN165,190..MA) 10
#OEMPart name
53111 53101-35040 Grille, Radiator
53111 53101-35050 Grille, Radiator
53131 53131-35150 Door, Headlamp, Rh
53132 53132-35150 Door, Headlamp, Lh
90119 90119-T0170 New Genuine Part
93560 93560-A5016 SCREW TAPPING
9011906374 90119-06374 BOLT
9011906374 91653-A0614 BOLT WWASHER
9018906006 90189-06006 Grommet
9046712040 90467-12040 CLIP
Radio Receiver & Amplifier & Condenser ([08.1997 - ] CONDENSER,DISC PLAYER,RECEIVER & BK (9708- )) 6
#OEMPart name
86011 90980-04083 Condenser
86211 86211-89111 Bracket, Radio, No.1
86212 86212-89111 Bracket, Radio, No.2
9014950032 90149-50032 Screw
9015350010 90153-50010 BOLT
9015950238 90159-50238 SCREW WWASHER
Radio Receiver & Amplifier & Condenser ([08.1997 - ] KNOB, RADIO RECEIVER (9708- )) 6
#OEMPart name
8612804010 86128-04010 Knob, Radio Receiver
8612835010 86128-35010 Knob, Radio Receiver
8612835050 86128-35050 Knob, Radio Receiver
8612837030 86128-37030 Knob, Radio Receiver
9001123001 90011-23001 KNOB RADIO RECEIVER
9001123002 90011-23002 New Genuine Part
Radio Receiver & Amplifier & Condenser ([08.1997 - ] KNOB, RADIO RECEIVER (9708- )LN166 ; (9708- )KDN145,15#,16#,190 ,KZN165,190,LN14#,15#,167,17#,19#,R ZN14#,154,16#,174 ,19#,VZN167,172,YN140..ARL,CO,GCC,GEN,SA,TH) 19
#OEMPart name
8612802020 86128-02020 Knob, Radio Receiver
8612802030 86128-02030 Knob, Radio Receiver
8612804010 86128-04010 Knob, Radio Receiver
8612812160 86128-12160 Knob, Radio Receiver
8612812180 86128-12180 Knob, Radio Receiver Balance
8612814150 86128-14150 Knob, Radio Receiver Switch
8612814170 86128-14170 Knob, Radio Receiver Balance
8612814190 86128-14190 Knob, Radio Receiver Tone
8612816300 86128-16300 Knob, Radio Receiver Switch
8612817290 86128-17290 Knob, Radio Receiver
8612817310 86128-17310 Knob, Radio Receiver Switch
8612817330 86128-17330 Knob, Radio Receiver Tone
8612817410 86128-17410 Knob, Radio Receiver
8612817470 86128-17470 Knob, Radio Receiver Balance
8612817470 86128-37030 Knob, Radio Receiver
8612835010 86128-35010 Knob, Radio Receiver
8612837010 86128-37010 Knob, Radio Receiver
9001125101 90011-25101 New Genuine Part
9001125102 90011-25102 New Genuine Part
Rear Axle Housing & Differential ([08.1997 - ] (9708- )KDN145,15#,16#,190,KZN165,190,LN140,1 45,147,15#,16#,17#,19#,RZN148,154,1 6#,174,19#,VZN167 ,172,YN140) 15
#OEMPart name
41110 90116-08233 Bolt, No.1 (For Rear Differential Carrier Set)
41110 90116-08329 Bolt, No.1 (For Rear Differential Carrier Set)
41991 41991-22010 Caution Plate, Rear Differential (LSD)
42110 42110-35640 Housing Assy, Rear Axle
42110 42110-35650 Housing Assy, Rear Axle
42110 42110-35651 Housing Assy, Rear Axle
42110 90341-18006 Plug (No magnet)
42110 12157-10010 Gasket (For Drain Plug)
42110 90930-03031 Plug, Breather(For Parking Cover)
42110 90341-18057 Drain Plug (with Magnet)
42139 42139-40010 Deflector, Rear Axle Housing Oil
42181 42181-60020 Gasket, Rear Differential Carrier
42181 42181-0K030 Gasket, Rear Differential Carrier
9017008204 90170-08204 Nut (For Propeller Shaft)
9451200800 94512-00800 Washer, No.1 (For Propeller Shaft & Differential Setting)
Rear Axle Housing & Differential ([08.2002 - ] LIMITED SLIP DIFFERENTIAL (0110- )KDN151,16#,190..TH ; (0208- )VZN16 7,172) 66
#OEMPart name
41039 41039-34070 Gear Kit, Differential, Rear
41101 41101-35170 Carrier Sub-Assy, Differential, Rear
41101 41101-35172 Carrier Sub-Assy, Differential, Rear
41101 41115-35010 Ring, Differential Oil Storage
41110 41110-3D060 Carrier Assy, Differential, Rear
41110 41110-3D062 Carrier Assy, Differential, Rear
41114 90105-12053 Bolt (For Rear Differential Carrier)
41201 41201-80179 Final Gear Kit, Differential, Rear
41201 41201-80724 Final Gear Kit, Differential, Rear
41201 90366-35087 Bearing , Tapered Roller (for front drive pinion)
41201 90366-30067 Bearing (For Rear Drive Pinion Front)
41201 90311-41009 Seal, Oil (For Front Differential Carrier)
41201 90201-35497 Washer, Plate (For Rear Differential Drive Pinion)
41201 90201-35498 Washer, Plate (For Rear Differential Drive Pinion)
41201 90201-35499 Washer, Plate (For Rear Differential Drive Pinion)
41201 90201-35500 Washer, Plate (For Rear Differential Drive Pinion)
41201 90201-35501 Washer, Plate (For Rear Differential Drive Pinion)
41201 90201-35502 Washer, Plate (For Rear Differential Drive Pinion)
41201 90201-35503 Washer, Plate (For Rear Differential Drive Pinion)
41201 90201-35504 Washer, Plate (For Rear Differential Drive Pinion)
41201 90201-35505 Washer, Plate (For Rear Differential Drive Pinion)
41201 90201-35506 Washer, Plate (For Rear Differential Drive Pinion)
41201 90201-35507 Washer, Plate (For Rear Differential Drive Pinion)
41201 90201-35508 Washer, Plate (For Rear Differential Drive Pinion)
41201 90201-35509 Washer, Plate (For Rear Differential Drive Pinion)
41201 90201-35510 Washer, Plate (For Rear Differential Drive Pinion)
41201 90201-35511 Washer, Plate (For Rear Differential Drive Pinion)
41201 90201-35512 Washer, Plate (For Rear Differential Drive Pinion)
41201 90201-35513 Washer, Plate (For Rear Differential Drive Pinion)
41201 90201-35514 Washer, Plate (For Rear Differential Drive Pinion)
41201 90201-35515 Washer, Plate (For Rear Differential Drive Pinion)
41201 90201-35516 Washer, Plate (For Rear Differential Drive Pinion)
41201 90201-35517 Washer, Plate (For Rear Differential Drive Pinion)
41201 90201-35518 Washer, Plate (For Rear Differential Drive Pinion)
41204 41204-35081 Flange Sub-Assy, Rear Drive Pinion Companion, Rear
41204 41204-35082 Flange Sub-Assy, Rear Drive Pinion Companion, Rear
41204 90177-22003 Nut (For Rear Drive Pinion)
41214 41214-26011 Slinger, Rear Differential Drive Pinion Oil
41222 41222-35020 Plate, Rear Differential Ring Gear Set Bolt Lock
41222 90101-11353 Bolt (For Rear Differential Ring Gear Set)
41231 41231-24010 Spacer, Rear Differential Drive Pinion Bearing
41252 41252-35041 Deflector, Dust (For Rear Differential)
41301 90366-50007 Bearing(For Rear Differential Case)
41302 41302-35040 Case Sub-Assy, Rear Differential
41302 41302-35041 CASE SUBASSY
41302 90105-11063 Bolt (For Rear Differential Ring Gear Set)
41302 90105-10084 Bolt(For Rear Differential Case)
41302 90105-10570 Bolt(For Rear Differential Case)
41315 41315-35020 Nut, Rear Differential Bearing Adjusting
41316 41316-35010 Lock, Rear Differential Bearing Adjusting Nut
41331 90501-65003 Spring, Compression
41351 41351-30060 Washer, Rear Differential Pinion Thrust
41361 41361-35160 Washer, Rear Differential Side Gear Thrust, No.1
41361 41361-35161 Washer, Rear Differential Side Gear Thrust, No.1
41361 41361-35290 Washer, Rear Differential Side Gear Thrust, No.1
41361 41361-35291 Washer, Rear Differential Side Gear Thrust, No.1
41361 90564-50001 Washer, Plate (For Rear Differential Side Gear Shaft)
41361 90564-50002 Washer, Plate (For Rear Differential Side Gear Shaft)
41361 90564-50003 Washer, Plate (For Rear Differential Side Gear Shaft)
41361 90564-50004 Washer, Plate (For Rear Differential Side Gear Shaft)
41361 90564-50005 Washer, Plate (For Rear Differential Side Gear Shaft)
41371 41306-35040 Spider Sub-Assy, Front Differential
41385 41385-35010 Plate, clutch
41387 41308-35010 Member Kit, Clutch
41388 41388-35020 Retainer Sub-Assy, Spring
9161160814 91611-60814 Bolt
Rear Axle Shaft & Hub ([08.1997 - ] (9708- )KDN16#,190,KZN165,190,LN16#,17#,19#,R ZN16#,174,19#,VZN167,172) 20
#OEMPart name
42311 42311-35310 Shaft, Rear Axle
42311 42311-35320 Shaft, Rear Axle
42311 90313-54001 Seal, Oil (For Rear Axle Shaft Outer)
42311 90363-40068 Bearing (For Axle Shaft)
42311 90520-36045 Ring, Snap (For Rear Axle Shaft)
42311 90310-50006 Seal, Oil (For Rear Axle Shaft)
42403 42431-35180 Drum Sub-Assy, Rear Brake
42403 90937-01117 Piece, Balance (For Rear Brake Drum)
42403 90937-01118 Piece, Balance (For Rear Brake Drum)
42403 90937-01119 Piece, Balance (For Rear Brake Drum)
42403 90937-01195 Piece, Balance (For Rear Brake Drum)
42403 90937-01196 Piece, Balance (For Rear Brake Drum)
42421 42421-35050 Case, Rear Axle Bearing
42423 42423-20010 Retainer, Rear Axle Bearing, Inner
42424 90301-88077 Ring, O (For Rear Axle Bearing Case)
42441 42441-35020 Deflector, Brake Drum Oil
42443 42443-55020 Gasket, Brake Drum Oil Deflector
42444 42444-35050 Gasket, Brake Drum (For Rear Axle)
42611 90942-02052 Bolt, Hub (For Rear Axle)
43517 43517-35010 Rotor, Skid Control, Rear
Rear Body Floor & Fender ([08.1997 - ] (9708- )SCB,THSCB,THXTR,XTR ; (0208- )SCB, THSCB,THXTR,XTR) 16
#OEMPart name
65241 65240-35050 Sill, Rear Cross
65241 65240-35090 Sill, Rear Cross
65311 65311-89129 Panel, Floor, Center
65739 65739-89103 Bumper, Tail Gate
76625 76625-35140 Mudguard, Rear Body, Rh
76626 76626-35140 Mudguard, Rear Body, Lh
76645 76645-35020 Bracket, Rear Body Mudguard, Rh
76646 76646-35010 Bracket, Rear Body Mudguard, Lh
76647 76647-35050 Support, Rear Body Mudguard, Rh
76648 76648-35040 Support, Rear Body Mudguard, Lh
9011906877 90119-06877 BOLT WWASHER
9015940232 90159-40232 New Genuine Part
9015960478 90159-60478 SCREW WWASHER
9163140614 91631-40614 БОЛТ BOLT
9165140620 91651-40620 BOLT
9326955016 93269-55016 New Genuine Part
Rear Body Floor & Fender ([08.2002 - ] (9708- )SCB,THSCB,THXTR,XTR ; (0208- )SCB, THSCB,THXTR,XTR) 16
#OEMPart name
65241 65240-35050 Sill, Rear Cross
65241 65240-35090 Sill, Rear Cross
65311 65311-89129 Panel, Floor, Center
65739 65739-89103 Bumper, Tail Gate
76625 76625-35140 Mudguard, Rear Body, Rh
76626 76626-35140 Mudguard, Rear Body, Lh
76645 76645-35020 Bracket, Rear Body Mudguard, Rh
76646 76646-35010 Bracket, Rear Body Mudguard, Lh
76647 76647-35050 Support, Rear Body Mudguard, Rh
76648 76648-35040 Support, Rear Body Mudguard, Lh
9011906877 90119-06877 BOLT WWASHER
9015940232 90159-40232 New Genuine Part
9015960478 90159-60478 SCREW WWASHER
9163140614 91631-40614 БОЛТ BOLT
9165140620 91651-40620 BOLT
9326955016 93269-55016 New Genuine Part
Rear Body Guard Frame & Tail Gate ([08.1997 - ] (9708- )) 44
#OEMPart name
65414 65414-89102 Stopper, Guard Frame
65470 65470-35110 Board Assy, Header
65700 65700-35090 Gate Assy, Rear Body Tail
65700 65700-35100 Gate Assy, Rear Body Tail
65710 65710-35010 Rail Assy, Tail Gate Top
65737 65737-89105 Stop, Tail Gate
65759 65759-89102 Cover, Tail Gate Service Hole
65768 65768-89102 Striker, Tail Gate Lock
65770 65770-35010 Stay Assy, Tail Gate
65778 65778-35010 Stopper, Tail Gate Stay
65780 65780-35030 Lock Assy, Tail Gate, Rh
66110 66110-89108 Hinge Assy, Tail Gate
66120 66120-89102 Hinge Assy, Tail Gate
66311 66311-89109 Hook, Rope
66321 66321-89109 Bumper, Gate Rubber
68965 68965-35010 Shaft, Tail Gate Stay
69090 69090-89101 Handle Assy, Tail Gate
69090 69090-0K060 Handle Assy, Tail Gate (Chrome plated)
69090 69090-89102 Handle Assy, Tail Gate (Black)
69090 69759-20100 Snap, Tail Gate Handle
69090 69759-20110 Snap, Auxiliary Catch Release Lever Control Link
69759 69759-35020 Silencer, Tail Gate Lock Link
90105 90105-T0034 New Genuine Part
91511 91511-B0814 BOLT
9011908 90119-08A75 New Genuine Part
9010906022 90109-06022 Bolt
9011906146 90119-06146 New Genuine Part
9011908686 90119-08686 BOLT
9011910510 90119-10510 BOLT
9014980020 90149-80020 SCREW
9015960535 90159-60535 SCREW WWASHER
9016860009 90168-60009 New Genuine Part
9017906016 90179-06016 New Genuine Part
9018906010 90189-06010 Clip(For Front Door Inside Handle)
9038910042 90389-10042 COLLAR
9090107002 90901-07002 BOLT HEX LOBULAR
9165140616 91651-40616 BOLT
9165140616 91621-60614 Bolt(For Transaxle & Engine Setting)
9165140616 90080-11395 New Genuine Part
9165160816 91651-60816 BOLT
9165160816 90080-11396 Bolt
9326056010 93260-56010 SCREW
9333018016 93330-18016 New Genuine Part
9461310800 94613-10800 Spacer (For Control Select Lever Support)
Rear Body Mounting ([08.1997 - ] (9708- )SCB,THSCB) 8
#OEMPart name
64189 64189-35010 Bolt, Rear Body Mounting
64189 64189-35040 Bolt, Rear Body Mounting
64189 64189-35050 Bolt, Rear Body Mounting
66441 90950-04030 Shim, Mounting, No.1
9020112061 90201-12061 Washer
9054013006 90540-13006 Shim, Mounting, No.2
9418461200 94184-61200 Nut, Lock(For Power Steering Control Valve)
9418461201 94184-61201 Nut, Lock(For Power Steering Control Valve)
Rear Body Side Panel ([08.1997 - ] (9708- )SCB,THSCB) 43
#OEMPart name
61727 61727-35010 Plate, Fuel Inlet Box Shield
65500 65500-35790 Panel Assy, Rear Body Side, Rh
65503 65503-35040 Post Sub-Assy, Side Panel Front End, Rh
65504 65504-35040 Post Sub-Assy, Side Panel Front End, Lh
65505 65505-35020 Post Sub-Assy, Side Panel Rear End, Rh
65506 65506-35020 Post Sub-Assy, Side Panel Rear End, Lh
65510 65510-89145 Rail Assy, Side Panel Top, Rh
65520 65520-89145 Rail Assy, Side Panel Top, Lh
65553 65553-35010 Plate, Side Panel Rear End Post, Upper Rh
65554 65554-35010 Plate, Side Panel Rear End Post, Upper Lh
65563 65563-35010 Plate, Side Panel Rear End Post, Lower Rh
65564 65564-35010 Plate, Side Panel Rear End Post, Lower Lh
65571 65571-35010 Frame, Side Panel, Front Rh
65571 65572-35010 Frame, Side Panel, Front Rh
65593 65593-35020 Plate, Side Panel Rear End Post Inside, Rh
65594 65594-35020 Plate, Side Panel Rear End Post Inside, Lh
65600 65600-35680 Panel Assy, Rear Body Side, Lh
65631 65631-89113 Plate, Rear Wheel House, Front Rh
65632 65632-89112 Plate, Rear Wheel House, Front Lh
65635 65635-35020 Panel, Wheel House, Rear Rh
65636 65636-35020 Panel, Wheel House, Rear Lh
65637 65637-35030 Liner, Rear Wheel House, Rh
65638 65638-35030 Liner, Rear Wheel House, Lh
65655 65655-89103 Bracket, Wheel House Seal, Front
65671 65671-35010 Brace, Side Panel Skirt, Front Rh
65672 65672-35010 Brace, Side Panel Skirt, Front Lh
65677 65677-35010 Patch, Wheel House, Rear Rh
65678 65678-35010 Patch, Wheel House, Rear Lh
65695 65695-35020 Bracket, Wheel House Brace, No.2
65816 65816-35160 Panel, Rear Body Side, Rh
65817 65817-35160 Panel, Rear Body Side, Lh
65826 65826-89111 Panel, Rear Body Side, Inner Rh
65827 65827-89111 Panel, Rear Body Side, Inner Lh
66301 66312-34010 Hook Sub-Assy, Rope
66311 66311-89109 Hook, Rope
9011908 90119-08A75 New Genuine Part
9015980060 90159-80060 SCREW WWASHER
9018906212 90189-06212 GROMMET SCREW
9018906220 90189-06220 GROMMET SCREW
9046710018 90467-10018 Clip, Radiator Support To Frame
9095001561 90950-01561 New Genuine Part
9163140614 91631-40614 БОЛТ BOLT
9324018016 93240-18016 SCREW
Rear Bumper & Bumper Stay ([08.1997 - ] STEP BUMPER (9708- )KZN165,190,LN14#,15#,16#,17#,19#,RZN1 4#,154,16#,174,19#,VZN167,172,YN140 ; (0110- )KDN 145,15#,16#,190..DCB,SCB,XTR) 10
#OEMPart name
52150 52105-35180 Bumper Assy, Rear (Gray)
52150 52105-35320 Bumper Assy, Rear (Chrome)
52159 52159-35030 Plate, Rear Bumper (Center)
52163 52163-35030 Plate, Rear Bumper, Rh
52164 52164-35030 Plate, Rear Bumper, Lh
52181 52181-35040 Arm, Rear Bumper, Rh
52182 52182-35040 Arm, Rear Bumper, Lh
9011912038 90119-12038 BOLT
9011912163 90119-12163 New Genuine Part
9011912178 90119-12178 New Genuine Part
Rear Combination Lamp ([08.2001 - ] (0108- )THAILAND PRODUCT (9708-0108)IV1,IV3 ; (0108- )IV1,IV3) 14
#OEMPart name
81550 81550-35061 Lamp Assy, Rear Combination, Rh
81550 99132-11210 Bulb (12V 21W)
81550 99132-21210 Bulb, Cornering Lamp
81551 81551-35061 Lens, Rear Combination Lamp, Rh
81553 81553-35061 Body, Rear Combination Lamp, Rh
81554 81552-26040 Gasket, Rear Combination Lamp Lens, Rh
81558 81557-26040 Cover, Rear Combination Lamp, Rh
81560 81560-35061 Lamp Assy, Rear Combination, Lh
81561 81561-35061 Lens, Rear Combination Lamp, Lh
81563 81563-35061 Body, Rear Combination Lamp, Lh
81564 81562-26040 Gasket, Rear Combination Lamp Body, Lh
9017905004 90179-05004 NUT
9321964020 93219-64020 Screw
9321964020 81559-10050 Screw
Rear Combination Lamp ([08.2001 - ] PLANT NO.P11 (0108- )DCB,SCB,THDCB,THSCB,THXTR,XTR..CBU) 13
#OEMPart name
81550 90981-15009 Bulb(For Headlamp, No.2)
81550 99132-21210 Bulb, Cornering Lamp
81551 81551-35150 Lens, Rear Combination Lamp, Rh
81553 81553-35250 Body, Rear Combination Lamp, Rh
81554 81554-35130 Gasket, Rear Combination Lamp Body, Rh
81558 81557-35130 Shade, Rear Combination Lamp, No.1 Rh
81561 81561-35150 Lens, Rear Combination Lamp, Lh
81563 81563-35210 Body, Rear Combination Lamp, Lh
81568 81567-35130 Shade, Rear Combination Lamp, No.1 Lh
8127991 81279-91D01 Bracket,foglamp,rh No.2
8151987010 81519-87010 Bracket, Front Turn Signal Lamp, Rh
9007510019 90075-10019 NUT
9007599119 90075-99119 CAP
Rear Combination Lamp ([08.2001 - ] PLANT NO.P11 (0108- )IV1,IV3) 12
#OEMPart name
81550 99132-11210 Bulb (12V 21W)
81550 99132-21210 Bulb, Cornering Lamp
81551 81551-35061 Lens, Rear Combination Lamp, Rh
81553 81553-35061 Body, Rear Combination Lamp, Rh
81554 81552-26040 Gasket, Rear Combination Lamp Lens, Rh
81558 81557-26040 Cover, Rear Combination Lamp, Rh
81561 81561-35061 Lens, Rear Combination Lamp, Lh
81563 81563-35061 Body, Rear Combination Lamp, Lh
81564 81562-26040 Gasket, Rear Combination Lamp Body, Lh
9017905004 90179-05004 NUT
9321964020 93219-64020 Screw
9321964020 81559-10050 Screw
Rear Combination Lamp ([08.2001 - ] THAILAND PRODUCT (0108- )KDN15#,166,KZN165,190,LN14#,15#,16#,1 7#,19#,RZN14#,154,16#,174,19#,VZN16 7,172..DCB,SCB,TH DCB,THSCB,THXTR,XTR..CBU) 15
#OEMPart name
81550 90981-15009 Bulb(For Headlamp, No.2)
81550 99132-21210 Bulb, Cornering Lamp
81550 99132-11210 Bulb (12V 21W)
81551 81551-35150 Lens, Rear Combination Lamp, Rh
81553 81553-35250 Body, Rear Combination Lamp, Rh
81554 81554-35130 Gasket, Rear Combination Lamp Body, Rh
81558 81557-35130 Shade, Rear Combination Lamp, No.1 Rh
81561 81561-35150 Lens, Rear Combination Lamp, Lh
81563 81563-35210 Body, Rear Combination Lamp, Lh
81568 81567-35130 Shade, Rear Combination Lamp, No.1 Lh
8127991 81279-91D01 Bracket,foglamp,rh No.2
8151987010 81519-87010 Bracket, Front Turn Signal Lamp, Rh
9007510019 90075-10019 NUT
9007599119 90075-99119 CAP
9018904144 90189-04144 CLIP
Rear Drum Brake Wheel Cylinder & Backing Plate ([08.1997 - ] (9708- )KDN16#,190,KZN165,190,LN16#,17#,19#,R ZN16#,174,19#,VZN167,172) 48
#OEMPart name
4474 04474-35080 Cylinder Kit, Rear Wheel
4495 04495-35230 Shoe Kit, Rear Brake
4906 04906-35100 Cup Kit, Rear Wheel Cylinder
47043 47043-35170 Plate Sub-Assy, Brake Backing, Rear Rh
47043 90114-10002 Bolt, Serration (For Rear Axle Flange)
47043 90179-10067 Nut (For Rear Axle Shaft)
47044 47044-35160 Plate Sub-Assy, Brake Backing, Rear Lh
47061 47061-60011 Strut Set, Parking Brake Shoe, Rh
47062 47062-60011 Strut Set, Parking Brake Shoe, Rh
47430 90501-20604 Spring(For Rear Brake Shoe Hold Down)
47430 90506-18031 Spring, Tension(For Rear Brake Shoe Return)
47430 90506-26011 Spring, Tension(For Rear Brake Shoe Return)
47430 90506-26014 Spring, Tension(For Rear Brake Shoe Return)
47430 90506-12031 Spring, Tension(For Rear Brake Automatic Adjust Lever)
47447 47447-30020 Pin, Shoe Hold Down Spring(For Front Brake)
47449 47449-30020 Cup, Shoe Hold Down Spring(For Front Brake)
47491 47491-20011 Plug, Hole(For Rear Brake)
47492 47492-28010 Plug, Shoe Inspection(For Rear Brake)
47492 47492-06010 Plug, Shoe Inspection(For Rear Brake)
47547 47547-60020 Plug, Bleeder(For Release Cylinder)
47548 31478-30010 Bleeder Plug Cap
47550 47550-35190 Cylinder Assy, Rear Wheel Brake(For Rh, Front Or Upper)
47550 90029-60011 Spring Sub-Assy, Rear Wheel Cylinder Piston
47601 47611-35040 Lever Sub-Assy, Parking Brake Shoe, Rh(For Rear Brake)
47601 90213-07010 Washer, Type C(For Parking Brake Shoe)
47601 96160-00500 Ring, E(For Over Center Lever)
47602 47612-35040 Lever Sub-Assy, Parking Brake Shoe, Rh(For Rear Brake)
47603 90249-08068 Pin, W/hole(For Rear Brake)
47603 90213-06013 Washer, Type C(For Parking Brake Shoe)
47616 47616-35020 Wire, Parking Brake, Rh
47617 46361-35100 Wire, Parking Brake, No.2
47623 90506-20033 Spring, Tension(For Parking Brake Shoe Strut)
47624 47624-35060 Crank, Parking Brake Bell, Rh
47625 47625-35060 Crank, Parking Brake Bell, Lh
47626 47626-35010 Crank, Parking Brake Bell, No.3
47628 47628-35020 Bracket, Rear Brake Bellcrank
47631 47631-35010 Cover, Rear Brake Bellcrank Dust
47633 47633-35020 Boot, Parking Brake Bellcrank
47643 47643-60010 Lever, Rear Brake Automatic Adjust, Rh
47644 47644-60010 Lever, Rear Brake Automatic Adjust, Rh
9011410021 90114-10021 Bolt, No.2(For Rear Brake Backing Plate Rh)
9011906084 90119-06084 Bolt(For Rear Wheel Cylinder)
9014360002 90143-60002 Bolt, Bellcrank Stopper(For Parking Brake)
9020610059 90206-10059 Washer, Wave(For Rear Brake)
9056011015 90560-11015 Spacer (For Control Shaft Bracket Upper Shaft)
9161160814 91611-60814 Bolt
9413060600 94130-60600 Nut, Wire Adjusting, No.1
9413061000 94130-61000 Nut(For Clutch Pedal Stopper)
Rear Floor Panel & Rear Floor Member ([08.1997 - ] (9708- )DCB,SADCB,SCB,THDCB,THSCB) 4
#OEMPart name
57605 57605-35260 Member Sub-Assy, Rear Floor Cross
57605 57605-35270 Member Sub-Assy, Rear Floor Cross
57605 57605-35280 Member Sub-Assy, Rear Floor Cross
57605 57605-35290 Member Sub-Assy, Rear Floor Cross
Rear License Plate Lamp ([08.1997 - ] (9708- )) 10
#OEMPart name
81270 99132-12050 Bulb (12V 5W)
81270 90080-81053 Bulb(For Clearance Lamp)
81271 81271-89110 Lens, License Plate Lamp
81271 81271-25031 LENS, LICENSE LAMP
81271 81271-35110 Lens, License Plate Lamp
81272 81272-89110 Gasket, License Plate Lamp Lens
81273 81273-89124 Body, License Plate Lamp
8127989118 81279-89118 Washer, Side Turn Signal Lamp
9018904014 90189-04014 CLIP
9046400165 90464-00165 Clamp, No.2(For Luggage Door Lock Control Cable)
Rear License Plate Lamp ([08.1997 - ] FLAT STEP BUMPER (9708- )) 7
#OEMPart name
81270 99132-12050 Bulb (12V 5W)
81270 90080-81053 Bulb(For Clearance Lamp)
81271 81271-89110 Lens, License Plate Lamp
81271 81271-25031 LENS, LICENSE LAMP
81271 81271-35110 Lens, License Plate Lamp
81275 90075-99012 Socket And Wire, License Plate Lamp
9018904014 90189-04014 CLIP
Rear License Plate Lamp ([08.1997 - ] ROUND 2 TYPE (9708- )) 6
#OEMPart name
81270 99132-12050 Bulb (12V 5W)
81270 90080-81053 Bulb(For Clearance Lamp)
81271 81271-89110 Lens, License Plate Lamp
81271 81271-25031 LENS, LICENSE LAMP
81271 81271-35110 Lens, License Plate Lamp
81275 90075-99012 Socket And Wire, License Plate Lamp
Rear Spring & Shock Absorber ([08.1997 - ] (9708- )KDN16#,190,KZN165,190,LN16#,17#,19#,R ZN16#,174,19#,VZN167,172) 26
#OEMPart name
4483 04483-35120 Shackle Kit, Rear Spring
48046 48046-35170 Seat Sub-Assy, Spring U Bolt, Rh
48046 90117-14044 Bolt, U(For Rear Spring)
48210 90385-18019 Bush(For Rear Spring Shackle Upper)
48210 90385-18020 Bush(For Rear Spring Pin)
48306 48306-35110 Bumper Sub-Assy, Rear Spring
48344 48344-35020 Stopper, Bumper, Rear
48414 48414-35130 Bracket, Spring, No.3 Rh
48415 48415-35060 Bracket, Spring, No.3 Lh
48416 48416-35080 Bracket, Spring, No.4
48516 48505-35070 Bracket, Rear Shock Absorber, Upper Rh
48517 48506-35010 Bracket, Rear Shock Absorber, Upper Lh
48530 48531-80669 Absorber Assy, Shock, Rear
48530 90948-03011 Washer, Front Shock Absorber Cushion, No.1
48530 90948-03020 Washer, Rear Shock Absorber Cushion, No.1
48530 90385-19007 Bush, Rear Shock Absorber
48540 48541-39316 Absorber Assy, Shock, Rear Lh
90178 90178-T0034 NUT
90178 90178-T0035 New Genuine Part
91619 91619-G1220 New Genuine Part
9010514025 90105-14025 BOLT
9017914019 90179-14019 Nut
9017914039 90179-14039 NUT
9020114005 90201-14005 Washer, Plate
9020115012 90201-15012 Washer(For Rear Spring U Bolt)
9413001432 94130-01432 NUT
Rear Spring & Shock Absorber ([08.2002 - ] 5-LEAF (0208- )KDN166,VZN167) 21
#OEMPart name
48191 48191-35070 Wedge, Caster(For Rear Leaf Spring)
48210 48210-3D210 Spring Assy, Rear Rh
48210 90389-14004 Bush(For Rear Spring Leaf)
48211 48201-3D210 Leaf, Rear Spring, No.1
48211 48201-3D180 Leaf, Rear Spring, No.1
48212 48212-3D210 Leaf, Rear Spring, No.2
48212 48212-3D180 Leaf, Rear Spring, No.2
48213 48202-3D210 Leaf, Rear Spring, No.3
48213 48202-3D180 Leaf, Rear Spring, No.3
48214 48203-3D210 Leaf, Rear Spring, No.4
48214 48203-3D111 Leaf, Rear Spring, No.4
48215 48215-3D210 Leaf, Rear Spring, No.5
48215 48215-3D111 Leaf, Rear Spring, No.5
48246 48146-60070 Case(For Rear Spring Clip Bolt)
48247 48147-27020 Bolt, Rear Spring, Center
48252 48252-26070 Silencer, Front Spring
48253 48253-3D180 Spacer, Rear Spring, No.1
48256 48256-36570 Bolt, Front Spring Clip
48284 48284-37130 Nut, Front Spring Center Bolt
9413000802 94130-00802 Nut, No.1 (For Center Support Bearing)
9413000802 90170-A0001 New Genuine Part
Rear Ventilator & Roof Ventilator ([08.1997 - ] (9708- )DCB,SADCB,SCB,THDCB,THSCB,THXTR,XTR) 2
#OEMPart name
62905 62930-35010 Louver, Quater Ventilation, Rh
62906 62940-35030 Louver, Quater Ventilation, Lh
Reflex Reflector ([08.1997 - ] (9708- )) 5
#OEMPart name
81910 81910-95A01 Reflector Assy, Reflex, Rh
81910 81910-35040 Reflector Assy, Reflex, Rh
81920 81920-35030 Reflector Assy, Reflex, Lh
9017905095 90179-05095 NUT
9017905095 90179-05004 NUT
Roof Headlining & Silencer Pad ([08.1997 - ] (9708- )KZN165,190,LN14#,15#,16#,17#,19#,RZN1 4#,154,16#,174,19#,VZN167,172,YN140 ; (0110- )KDN 145,15#,16#,190..DCB,SCB,XTR) 4
#OEMPart name
63310 63311-35160-B0 Headlining Assy, Roof
63310 90467-05027-B0 Clip (For Quarter Inside Trim Board)
63310 90467-05027-B3 Clip (For Quarter Inside Trim Board)
63341 63341-35120 Pad, Roof Silencer, No.1
Roof Headlining & Silencer Pad ([08.1997 - ] W(MOON ROOF) (9708- )KZN165,190,LN14#,15#,16#,17#,19#,RZN1 4#,154,16#,174,19#,VZN167,172,YN140 ; (0110- )KDN 145,15#,16#,190..DCB,SCB,XTR) 5
#OEMPart name
63310 63311-35160-B0 Headlining Assy, Roof
63310 90467-05027-B0 Clip (For Quarter Inside Trim Board)
63310 90467-05027-B3 Clip (For Quarter Inside Trim Board)
9323915010 93239-15010 New Genuine Part
9323955008 93239-55008 New Genuine Part
Roof Panel & Back Panel ([08.1997 - ] (9708- )SCB,THSCB) 38
#OEMPart name
63111 63111-35150 Panel, Roof
63126 63126-35030 Damper, Windshield Header Panel
63132 63132-35030 Panel, Windshield Header, Inner
63135 63135-35070 Panel, Back Window, Upper Inner
64111 64101-35050 Panel, Back
64111 64101-35060 Panel, Back
64807 64807-35010 Glass Sub-Assy, Back Window Slide, Rh
64808 64808-35010 Channel Sub-Assy, Back Window Slide Glass
64809 64809-35010 Glass Sub-Assy, Back Window Slide, Lh
64810 64810-35010 Window Assy, Back
64811 64811-35010 Glass, Back Window
64812 64812-35030 Weatherstrip, Back Window Glass
64812 64812-35040 Weatherstrip, Back Window Glass
64813 64813-35010 Glass, Back Window Corner, Rh
64814 64814-35010 Glass, Back Window Corner, Lh
64818 64818-89101 Spacer, Back Window Glass
64825 64825-35030 Run, Back Window Channel, Upper
64826 64826-35010 Run, Back Window Channel, Lower
64831 64831-35010 Weatherstrip, Back Window Glass
64833 64833-89114 Weatherstrip, Back Window Center Channel
64834 64834-89101 Weatherstrip, Back Window Glass, No.2
64835 64835-89101 Weatherstrip, Back Window Glass, Center
64837 64837-35010 Weatherstrip, Back Window Corner Glass
64851 64851-89103 Stop, Back Window Slide Glass
64883 64881-35010 Frame, Back Window
64885 64885-35010 Channel, Back Window Glass, Rh
64886 64886-35010 Channel, Back Window Glass, Lh
69370 69370-35010 Lock Assy, Back Window
69374 69374-89103 Catch, Back Window Lock
69375 69375-89103 Retainer, Back Window Lock
69376 69376-89103 Packing, Back Window Lock
9015940143 90159-40143 Foot Rest Screw
9016140013 90161-40013 SCREW
9046711058 90467-11058 New Genuine Part
9095001865 90950-01865 PLUG HOLE
9095001867 90950-01867 PLUG HOLE
9095001882 90950-01882 Cover, Hole
9353054020 93530-54020 New Genuine Part
Seat & Seat Track ([08.1997 - ] FRONT 6:4 SPLIT SEAT (9708- )) 63
#OEMPart name
71071 71071-3G250-B0 Cover, Front Seat Cushion, Rh(For Separate Type)
71072 71072-35170-B0 Cover, Front Seat Cushion, Lh(For Separate Type)
71073 71073-3G330-B0 Cover, Front Seat Back, Rh(For Separate Type)
71074 71074-35570-B0 Cover, Front Seat Back, Lh(For Separate Type)
71147 71147-35010 Silencer, Seat Spring
71318 71318-35030 Reinforcement, Center Seat Cushion
71511 71511-35080 Pad, Front Seat Cushion, Rh(For Separate Type)
71512 71512-35030 Pad, Front Seat Cushion, Lh (For Separate Type)
71551 71551-35070 Pad, Front Seat Back, Rh(For Separate Type)
71552 71552-35020 Pad, Front Seat Back, Lh(For Separate Type)
71587 71587-35050 Protector, Front Seat Back Edge
71587 71587-35060 Protector, Front Seat Back Edge
71587 71587-60080 Protector, Front Seat Back Edge
71588 71588-60030 Protector, Front Seat Back Edge, No.2
71610 71610-35090 Spring Assy, Front Seat Cushion, Lh(For Separate Type)
71620 71620-35020 Spring Assy, Front Seat Cushion, Lh(For Separate Type)
71630 71630-35130 Spring Assy, Front Seat Back, Rh(For Separate Type)
71640 71640-35040 Spring Assy, Front Seat Back, Lh(For Separate Type)
71811 71811-35100-B0 Shield, Front Seat Cushion, Rh
71812 71812-35120-B0 Shield, Front Seat Cushion, Lh
71831 71831-35050 Cover, Front Seat Hinge, Rh
71832 71832-35050 Cover, Front Seat Hinge, Lh
71861 71861-35050-B0 Shield, Front Seat Cushion, Inner Rh
71862 71862-35060-B0 Shield, Front Seat Cushion, Inner Lh
71862 71862-35070-B0 Shield, Front Seat Cushion, Inner Lh
71875 71875-35040-B0 Cover, Reclining Adjuster Inside, Rh
71875 71875-35050-B0 Cover, Reclining Adjuster Inside, Rh
71876 71876-35040-B0 Cover, Reclining Adjuster Inside, Lh
71876 71876-35050-B0 Cover, Reclining Adjuster Inside, Lh
71876 71876-35060-B0 Cover, Reclining Adjuster Inside, Lh
71910 71910-35580-B0 Headrest Assy, Front Seat
71910 71910-35620-B0 Headrest Assy, Front Seat
71931 71930-13030-B2 Support, Front Seat Headrest
71931 71931-12040-P6 Support, Front Seat Headrest
72011 72011-35150 Adjuster Sub-Assy, Front Seat, Outer Rh
72012 72012-35180 Adjuster Sub-Assy, Front Seat, Outer Lh
72021 72021-35110 Adjuster Sub-Assy, Front Seat, Inner Rh
72022 72022-35130 Adjuster Sub-Assy, Front Seat, Inner Lh
72022 72072-35010 Adjuster Sub-Assy, Front Seat, Inner Lh
72125 72125-10010 Cover, Seat Track, Upper Rear
72125 72125-44010 Cover, Seat Track, Upper Rear
72129 72129-12010 Protector, Seat Track Lower Rail, No.1
72129 72129-44030 Protector, Seat Track Lower Rail, No.1
72140 72140-35100 Track Assy, Front Seat,inner Lh
72211 72211-35010 Handle, Seat Track Adjusting
72211 72212-35010 Handle, Seat Track Adjusting
72501 72501-35010 Pipe Sub-Assy, Reclining Connecting, Rh
72501 72345-44020 Pipe,reclining Connecting, Rh
72501 72501-35030 Pipe Sub-Assy, Reclining Connecting, Lh
72525 72525-35030-B0 Handle, Reclining Adjuster Release, Rh
72525 72525-35030-C0 Handle, Reclining Adjuster Release, Rh
90119 90119-T0108 New Genuine Part
9011910825 90119-10825 Bolt
9016840043 90168-40043 SCREW
9046818071 90468-18071 Clip (For Front Seat Cushion Cover)
9046818071 90468-16019 Clip (For Rear Seat Back)
9151261018 91512-61018 New Genuine Part
9151261018 91532-61018 New Genuine Part
9161560825 91615-60825 Bolt(For Intake Manifold To Exhaust Manifold)
9161560825 91611-60822 Bolt
9324954006 93249-54006 Screw
9324954008 93249-54008 New Genuine Part
9418560800 94185-60800 NUT
Seat & Seat Track ([08.1997 - ] FRONT BENCH SEAT (9708- )) 9
#OEMPart name
71587 71587-35050 Protector, Front Seat Back Edge
71587 71587-35060 Protector, Front Seat Back Edge
90119 90119-T0108 New Genuine Part
9008010143 90080-10143 New Genuine Part
9011908830 90119-08830 Bolt(For Oil Receiver Pipe)
9011908830 47327-60232 Tube, Rear Brake, No.7
9011910825 90119-10825 Bolt
9046818071 90468-18071 Clip (For Front Seat Cushion Cover)
9046818071 90468-16019 Clip (For Rear Seat Back)
Seat & Seat Track ([08.1997 - ] FRONT SEPARATE SEAT (9708- )) 65
#OEMPart name
71071 71071-3G250-B0 Cover, Front Seat Cushion, Rh(For Separate Type)
71072 71072-35170-B0 Cover, Front Seat Cushion, Lh(For Separate Type)
71073 71073-3G330-B0 Cover, Front Seat Back, Rh(For Separate Type)
71074 71074-35570-B0 Cover, Front Seat Back, Lh(For Separate Type)
71147 71147-35010 Silencer, Seat Spring
71511 71511-35080 Pad, Front Seat Cushion, Rh(For Separate Type)
71512 71512-35030 Pad, Front Seat Cushion, Lh (For Separate Type)
71551 71551-35070 Pad, Front Seat Back, Rh(For Separate Type)
71552 71552-35020 Pad, Front Seat Back, Lh(For Separate Type)
71587 71587-35050 Protector, Front Seat Back Edge
71587 71587-35060 Protector, Front Seat Back Edge
71587 71587-60080 Protector, Front Seat Back Edge
71588 71588-60030 Protector, Front Seat Back Edge, No.2
71610 71610-35090 Spring Assy, Front Seat Cushion, Lh(For Separate Type)
71620 71620-35020 Spring Assy, Front Seat Cushion, Lh(For Separate Type)
71630 71630-35130 Spring Assy, Front Seat Back, Rh(For Separate Type)
71640 71640-35040 Spring Assy, Front Seat Back, Lh(For Separate Type)
71811 71811-35100-B0 Shield, Front Seat Cushion, Rh
71812 71812-35120-B0 Shield, Front Seat Cushion, Lh
71831 71831-35050 Cover, Front Seat Hinge, Rh
71832 71832-35050 Cover, Front Seat Hinge, Lh
71861 71861-35050-B0 Shield, Front Seat Cushion, Inner Rh
71862 71862-35060-B0 Shield, Front Seat Cushion, Inner Lh
71862 71862-35070-B0 Shield, Front Seat Cushion, Inner Lh
71875 71875-35040-B0 Cover, Reclining Adjuster Inside, Rh
71875 71875-35050-B0 Cover, Reclining Adjuster Inside, Rh
71876 71876-35040-B0 Cover, Reclining Adjuster Inside, Lh
71876 71876-35050-B0 Cover, Reclining Adjuster Inside, Lh
71876 71876-35060-B0 Cover, Reclining Adjuster Inside, Lh
71910 71910-35580-B0 Headrest Assy, Front Seat
71910 71910-35620-B0 Headrest Assy, Front Seat
71931 71930-13030-B2 Support, Front Seat Headrest
71931 71931-12040-P6 Support, Front Seat Headrest
72011 72011-35150 Adjuster Sub-Assy, Front Seat, Outer Rh
72012 72012-35180 Adjuster Sub-Assy, Front Seat, Outer Lh
72021 72021-35110 Adjuster Sub-Assy, Front Seat, Inner Rh
72022 72022-35130 Adjuster Sub-Assy, Front Seat, Inner Lh
72022 72072-35010 Adjuster Sub-Assy, Front Seat, Inner Lh
72125 72125-10010 Cover, Seat Track, Upper Rear
72125 72125-44010 Cover, Seat Track, Upper Rear
72129 72129-12010 Protector, Seat Track Lower Rail, No.1
72129 72129-44030 Protector, Seat Track Lower Rail, No.1
72211 72211-35010 Handle, Seat Track Adjusting
72211 72212-35010 Handle, Seat Track Adjusting
72501 72501-35010 Pipe Sub-Assy, Reclining Connecting, Rh
72501 72345-44020 Pipe,reclining Connecting, Rh
72501 72501-35030 Pipe Sub-Assy, Reclining Connecting, Lh
72525 72525-35030-B0 Handle, Reclining Adjuster Release, Rh
72525 72525-35030-C0 Handle, Reclining Adjuster Release, Rh
72526 72526-35020-B0 Handle, Reclining Adjuster Release, Lh
72526 72526-35020-C0 Handle, Reclining Adjuster Release, Lh
90119 90119-T0108 New Genuine Part
9011910825 90119-10825 Bolt
9016840011 90168-40011 SCREW
9016840043 90168-40043 SCREW
9046818071 90468-18071 Clip (For Front Seat Cushion Cover)
9046818071 90468-16019 Clip (For Rear Seat Back)
9052001006 90520-01006 Ring, Shaft Snap(For Lumber Support Lever)
9151261018 91512-61018 New Genuine Part
9151261018 91532-61018 New Genuine Part
9161560825 91615-60825 Bolt(For Intake Manifold To Exhaust Manifold)
9161560825 91611-60822 Bolt
9165160614 91651-60614 Bolt
9324954006 93249-54006 Screw
9324954008 93249-54008 New Genuine Part
Seat & Seat Track ([11.1997 - ] REAR SEAT (9711- )KDN165,190,KZN165,190,LN14#,15#,16#,1 7#,19#,RZN14#,154,16#,174,193,VZN16 7,172,YN140..DLX) 2
#OEMPart name
90119 90119-T0105 New Genuine Part
9011908 90119-08B62 New Genuine Part
Seat Belt ([08.1997 - ] FRONT SEAT BELT (9708- )) 18
#OEMPart name
73130 73130-35020-B0 Belt Assy, Front Seat Lap Type, Rh
73140 73140-35010-B0 Belt Assy, Front Seat Lap Type, Lh
73210 73210-35700-B0 Belt Assy, Front Seat Outer, Rh
73210 73210-35710-B0 Belt Assy, Front Seat Outer, Rh
73220 73220-35570-B0 Belt Assy, Front Seat Outer, Lh
73220 73220-35580-B0 Belt Assy, Front Seat Outer, Lh
73230 73230-35700-B0 Belt Assy, Front Seat Inner, Lh
73240 73230-35690-B0 Belt Assy, Front Seat Inner, Lh
90105 90105-T0036 New Genuine Part
90105 90105-T0037 New Genuine Part
90109 90109-T0004 New Genuine Part
91511 91511-B0612 BOLT FLANGE
9010511046 90105-11046 New Genuine Part
9010911043 90109-11043 New Genuine Part
9017911010 90179-11010 NUT
9020116028 90201-16028 WASHER
9020615002 90206-15002 New Genuine Part
9046400537 90464-00537 New Genuine Part
Shift Lever & Retainer ([08.1997 - ] (9708- )KDN16#,KZN165,LN167,172,VZN167,172..M TM) 16
#OEMPart name
33105 33144-35030 Deflector Sub-Assy, Extension Housing Oil(Mtm)
33504 33504-12180-B2 Knob Sub-Assy, Shift Lever
33504 33504-12180-B7 Knob Sub-Assy, Shift Lever
33505 33505-35030 Seat Sub-Assy, Shift Lever
33505 33505-0K010 Seat Sub-Assy, Shift Lever
33506 33506-35140 Retainer Sub-Assy, Control Shift Lever (For Floor Shift)
33506 90930-03075 Plug, Breather
33530 33530-35530 Lever Assy, Shift (For Floor Shift)
33530 90502-26008 Spring, Conical (For Shift Lever)
33530 90502-26009 SPRING, CONICAL
33548 33548-31010 Bush, Shift Lever
33554 33554-30012 Cap, Shift Lever
33555 33555-60030 Boot, Shift Lever
9161160825 91611-60825 Bolt(For Head To Camshaft Bearing Cap)
9161160825 91611-B0825 Bolt(For Clutch Release Cylinder Setting)
9161160830 91611-60830 Bolt(For Clutch Release Cylinder Setting)
Short Block Assembly ([08.1997 - ] (9708- )) 3
#OEMPart name
11400 11400-62082 Block Assy, Short
11400 11400-62083 Block Assy, Short
11400 13408-62060 Pulley, Crankshaft
Side Member ([08.1997 - ] (9708- )SCB,THSCB) 49
#OEMPart name
61023 61023-35200 Pillar Sub-Assy, Front Body, Inner Rh
61023 61023-35190 Pillar Sub-Assy, Front Body, Inner Rh
61024 61024-35110 Pillar Sub-Assy, Front Body, Inner Lh
61024 61024-35100 Pillar Sub-Assy, Front Body, Inner Lh
61036 61036-35010 Bracket Sub-Assy, Instrument Panel To Cowl Side, Lh
61108 61108-35030 Reinforce Sub-Assy, Front Body Pillar, Lower Rh
61109 61109-35030 Reinforce Sub-Assy, Front Body Pillar, Lower Lh
61127 61127-35040 Reinforcement, Cowl Side Panel, No.2 Rh
61128 61128-35040 Reinforcement, Cowl Side Panel, No.2 Lh
61131 61131-35030 Pillar, Front Body, Outer Rh
61132 61132-35030 Pillar, Front Body, Outer Lh
61211 61211-35030 Rail, Roof Side, Outer Rh
61212 61212-35030 Rail, Roof Side, Outer Lh
61231 61231-35160 Rail, Roof Side, Inner Rh
61232 61232-35150 Rail, Roof Side, Inner Lh
61315 61315-22020 Retainer, Door Lock Striker Plate
61411 61411-35070 Panel, Rocker, Outer Rh
61412 61412-35070 Panel, Rocker, Outer Lh
61413 61413-35030 Reinforcement, Rocker Panel, No.2 Rh
61414 61414-35030 Reinforcement, Rocker Panel, No.2 Lh
61423 61423-35020 Reinforcement, Rocker Panel, No.3 Rh
61424 61424-35020 Reinforcement, Rocker Panel, No.3 Lh
61517 61517-35010 Reinforcement, Quarter Lock Pillar, Rh
61518 61518-35010 Reinforcement, Quarter Lock Pillar, Lh
61527 61527-35010 Reinforcement, Quarter Lock Piller, Lower Rh
61528 61528-35010 Reinforcement, Quarter Lock Piller, Lower Lh
61531 61531-35010 Panel, Cab Rear Pillar, Inner Rh
61531 61531-35030 Panel, Cab Rear Pillar, Inner Rh
61532 61532-35010 Panel, Cab Rear Pillar, Inside Lh
61532 61532-35030 Panel, Cab Rear Pillar, Inside Lh
61567 61567-35020 Plate, Quarter Panel End, Rh
61568 61568-35020 Plate, Quarter Panel End, Lh
61611 61611-35090 Panel, Quarter, Rh
61612 61612-35080 Panel, Quarter, Lh
61671 61671-35020 Reinforcement, Quarter Wheel House, Rh
61825 62151-20170 Pad, Noise Shutter, No.1
61825 62151-52010 Pad, Cowl Side Silencer
62155 62155-89101 Pad, Cowl Side Lower Silencer
62156 62156-35020 Insulator, Cowl Side, Rh
62157 62157-35020 Insulator, Cowl Side, Lh
91631 91631-J0612 BRACKET
91651 91651-B0814 Bolt with washer
91651 90119-A0109 New Genuine Part
9017908102 90179-08102 NUT
9046707151 90467-07151 Clip(For Luggage Compartment Trim Inner Cover)
9095001353 90950-01353 Plug, Hole(For Rocker Inner Panel)
9095001506 90950-01506 Plug, Hole(For Luggage Compartment Door Panel)
9095001646 90950-01646 New Genuine Part
9095001872 90950-01872 Plug, Hole, No.3(For Dash Panel)
Side Turn Signal Lamp & Outer Mirror Lamp ([08.1997 - ] (9708- )ARL,GCC,GEN,MA,SA,TH) 8
#OEMPart name
81730 81730-20191 Lamp Assy, Side Turn Signal, Rh
81730 81730-20192 Lamp Assy, Side Turn Signal
81730 99132-12050 Bulb (12V 5W)
81730 90080-81053 Bulb(For Clearance Lamp)
81731 81731-20191 Lens, Side Turn Signal Lamp, Rh
81731 81731-20192 Lens, Side Turn Signal Lamp
81732 81732-20190 Gasket, Side Turn Signal Lamp Lens
81735 90075-99012 Socket And Wire, License Plate Lamp
Spare Wheel Carrier ([08.1997 - ] (9708- )DCB,SADCB,SCB,THDCB,THSCB,THXTR,XTR) 3
#OEMPart name
51900 51900-35371 Carrier Assy, Spare Wheel
51933 51933-34010 Stopper, Spare Wheel Carrier, Rh
9165140818 91651-40818 BOLT, W-WASHER
Speaker ([08.1997 - ] (9708- )) 4
#OEMPart name
86160 86160-35160 Speaker Assy, Front No.1
90167 90167-T0008 New Genuine Part
9018905097 90189-05097 GROMMET SCREW
9356855016 93568-55016 Screw
Speedometer Driven Gear (Mtm) ([03.2002 - ] W(SENSOR) (0109-0203)KDN145,15#,165,KZN165,LN147,152,167,1 72..ARL,TH ; (0203- )KDN145,15#, 16#,KZN165,190,LN 147,152,167,172,192,VZN167,172) 6
#OEMPart name
33403 33403-39345 Gear Sub-Assy, Speedometer Driven (Mtm)
33404 90468-12005 Clip (For Mtm Speedometer Shaft Sleeve)
90119 90119-T0072 New Genuine Part
91611 91611-G0820 Bolt
9161160828 91611-60828 Bolt(For Clutch Release Cylinder Setting)
9165140828 91651-40828 New Genuine Part
Standard Tool ([08.1997 - ] (9708- )) 13
#OEMPart name
9110 09111-35170 Jack Assy
9113 09113-35130 Handle, Jack
9120 09120-12011 Bag, Tool (Black)
9130 99913-11500 Pliers (China) - No Toyota stamp
9135 99915-10700 Driver, Screw - No Toyota stamp
9135 90089-99009 Driver, Screw (ATC) (Thailand) - Screw Driver (ATC)
9141 99914-10810 Spanner (China) - No Toyota stamp
9141 09141-0K030 Spanner (ATC) (Thailand) - 8x10
9141 99914-11214 Spanner (China) - No Toyota stamp
9141 09141-0K040 Spanner (Thailand)
9150 09150-35070 Wrench, Hub Nut Box
9155 09155-74010 Wrench, Spark Plug
9183 09183-60010 Replacer, Wheel Cap
Starter ([08.2002 - ] 12V 1.4KW (0208- )5VZFE) 10
#OEMPart name
28011 28011-76070 Clutch Sub-Assy, Starter
28100 28100-62050 Starter Assy
28120 28120-66040 Yoke Assy, Starter
28140 28140-35060 Holder Assy, Starter Brush
28150 28150-62050 Switch Assy, Magnet Starter
28160 28160-74070 Armature Assy, Starter
9010510221 90105-10221 Bolt, Hexagon(For Air Pump Bracket Setting)
9017908204 90179-08204 Nut
9017908204 90080-18070 NUT, WWASHER
9151261065 91512-61065 Bolt(For Transaxle & Engine Setting)
Steering Column & Shaft ([08.1997 - ] (9708- )) 37
#OEMPart name
45025 45025-35320 Cover Sub-Assy, Steering Column Hole, No.1
45201 90520-17042 Ring, Shaft Snap(For Steering Main Shaft)
45201 90520-17269 Ring, Shaft Snap(For Steering Main Shaft)
45205 45205-35280 Tube Sub-Assy, Steering Column
45206 45206-35070 Yoke Sub-Assy, Steering Sliding W/shaft
45209 45209-35110 Yoke Sub-Assy, Steering Sliding
45210 45210-12480 Shaft Assy, Steering Main
45246 45246-12110 Guide, Steering Energy Absorbing Plate
45254 45254-35150 Shield, Steering Column Hole
45257 45257-12070 Plate, Steering Column Energy Absorbing
45271 45271-16020 Clamp, Steering Column, Upper
45273 45273-12020 Bush, Steering Main Shaft
45280 45280-12321 Bracket Assy, Steering Column, Upper
45280 45280-12341 Bracket Assy, Steering Column, Upper
45286 45286-35460-C0 Cover, Steering Column, Upr
45287 45287-35350-C0 Cover, Steering Column, Lwr
45636 45636-35040 Protector, Intermediate Link Joint
45801 45875-12010 Support Sub-Assy, Steering Post
45805 45805-35020 Support Sub-Assy, Tilt Steering
45817 45817-35030 Stopper, Steering Shaft Thrust
45860 45860-35220 Shaft Assy, Steering Intermediate, No.2
45860 45860-35221 Shaft Assy, Steering Intermediate, No.2
45879 45879-12050 Capsule, Break Away
45897 45897-12020 Bolt, Steering Lock Set
91621 91621-J0814 Bolt (For Transmission Control Cable Bracket)
91631 91631-B0618 BOLT WWASHER
9011908560 90119-08560 Bolt, Hexagon
9011908560 90080-11555 Bolt w-washer
9011908982 90119-08982 New Genuine Part
9011910478 90119-10478 New Genuine Part
9017008008 90170-08008 New Genuine Part
9017910132 90179-10132 Nut
9046308154 90463-08154 New Genuine Part
9165160616 91651-60616 BOLT
9331514012 93315-14012 Screw with washer
9356615514 93566-15514 Direct
9356615514 93568-55014 Screw
Steering Column & Shaft ([08.1997 - ] TILT STEERING (9708- )) 48
#OEMPart name
45025 45025-35320 Cover Sub-Assy, Steering Column Hole, No.1
45201 90520-17042 Ring, Shaft Snap(For Steering Main Shaft)
45201 90520-17269 Ring, Shaft Snap(For Steering Main Shaft)
45205 45205-35280 Tube Sub-Assy, Steering Column
45205 90949-03027 Spring(For Steering Column Tube)
45206 45206-35070 Yoke Sub-Assy, Steering Sliding W/shaft
45209 45209-35110 Yoke Sub-Assy, Steering Sliding
45210 45210-12480 Shaft Assy, Steering Main
45246 45246-12110 Guide, Steering Energy Absorbing Plate
45254 45254-35150 Shield, Steering Column Hole
45257 45257-12070 Plate, Steering Column Energy Absorbing
45271 45271-16020 Clamp, Steering Column, Upper
45273 45273-12020 Bush, Steering Main Shaft
45280 45280-12321 Bracket Assy, Steering Column, Upper
45280 45280-12341 Bracket Assy, Steering Column, Upper
45286 45286-35460-C0 Cover, Steering Column, Upr
45287 45287-35350-C0 Cover, Steering Column, Lwr
45636 45636-35040 Protector, Intermediate Link Joint
45801 45875-12010 Support Sub-Assy, Steering Post
45805 45805-35020 Support Sub-Assy, Tilt Steering
45813 45813-12010 Collar, Tilt Steering Support, No.1
45817 45817-35030 Stopper, Steering Shaft Thrust
45821 45821-12010 Reinforce, Tilt Steering Support, No.1
45826 45826-35050 Lever, Steering Tilt
45827 45827-12030 Lever, Steering Tilt Sub
45831 45831-12020 Bolt, Tilt Lever Lock, No.1
45833 45833-12010 Nut, Tilt Steering Adjusting, No.1
45860 45860-35220 Shaft Assy, Steering Intermediate, No.2
45860 45860-35221 Shaft Assy, Steering Intermediate, No.2
45878 45878-12220 Bracket, Steering Column Upper Support
45879 45879-12050 Capsule, Break Away
45880 45832-12010 Bolt(For Steering Tilt Lever)
45897 45897-12020 Bolt, Steering Lock Set
45897 45897-12040 Bolt, Tilt Steering Pawl Set
91631 91631-B0618 BOLT WWASHER
9011908560 90119-08560 Bolt, Hexagon
9011908560 90080-11555 Bolt w-washer
9011908982 90119-08982 New Genuine Part
9011910478 90119-10478 New Genuine Part
9017008008 90170-08008 New Genuine Part
9017910132 90179-10132 Nut
9046308154 90463-08154 New Genuine Part
9165160616 91651-60616 BOLT
9331514012 93315-14012 Screw with washer
9356615514 93566-15514 Direct
9356615514 93568-55014 Screw
9418360601 94183-60601 New Genuine Part
9461310601 94613-10601 Washer (For Primary Regulator Valve)
Steering Wheel ([08.1997 - ] 2-SPOKE (9708- )) 11
#OEMPart name
45100 45100-26290-C0 Wheel Assy, Steering
45100 45100-60250-C0 Wheel Assy, Steering
45105 45105-30220 Plate Sub-Assy, Horn Button Contact, No.1
45130 45130-35380-C0 Button Assy, Horn
45130 45130-43010-C0 Button Assy, Horn
45180 45180-60070-C0 Cover Sub-Assy, Steering Wheel (Black)
45186 45186-33050-C0 Cover, Steering Wheel, Lower No.2
45201 90179-12071 Nut, Steering Wheel Set
9016740054 90167-40054 New Genuine Part
9016840103 90168-40103 New Genuine Part
9356014020 93560-14020 New Genuine Part
Steering Wheel ([08.1997 - ] 2-SPOKE,W(*80) (9708- )) 9
#OEMPart name
45100 45100-26290-C0 Wheel Assy, Steering
45100 45100-60250-C0 Wheel Assy, Steering
45130 45130-35380-C0 Button Assy, Horn
45130 45130-43010-C0 Button Assy, Horn
45186 45186-33050-C0 Cover, Steering Wheel, Lower No.2
45188 45188-60010 Screw, Steering Wheel Pad Attaching
45201 90179-12071 Nut, Steering Wheel Set
9014860011 90148-60011 Screw, Steering Wheel Pad Attaching
9015950238 90159-50238 SCREW WWASHER
Steering Wheel ([08.1997 - ] 3-SPOKE (9708- )) 9
#OEMPart name
45100 45100-26290-C0 Wheel Assy, Steering
45100 45100-60250-C0 Wheel Assy, Steering
45105 45105-30220 Plate Sub-Assy, Horn Button Contact, No.1
45130 45130-35380-C0 Button Assy, Horn
45130 45130-43010-C0 Button Assy, Horn
45180 45180-60070-C0 Cover Sub-Assy, Steering Wheel (Black)
45201 90179-12071 Nut, Steering Wheel Set
9015950238 90159-50238 SCREW WWASHER
9016840113 90168-40113 Screw, Steering Wheel Pad Attaching
Steering Wheel ([08.1999 - ] 4-SPOKE,W(AIR BAG) (9908- )) 8
#OEMPart name
45100 45100-26290-C0 Wheel Assy, Steering
45100 45100-60250-C0 Wheel Assy, Steering
45130 45130-35380-C0 Button Assy, Horn
45130 45130-43010-C0 Button Assy, Horn
45186 45186-33050-C0 Cover, Steering Wheel, Lower No.2
45188 45188-60010 Screw, Steering Wheel Pad Attaching
45201 90179-12071 Nut, Steering Wheel Set
9016840113 90168-40113 Screw, Steering Wheel Pad Attaching
Suspension Crossmember & Under Cover ([08.1997 - ] (9708- )) 20
#OEMPart name
51201 51201-35330 Crossmember Sub-Assy, Front Suspension
51276 51250-35011 Bracket, Differential Support
51277 51260-35021 Bracket Assy, Differential Support, Lh
51441 51405-35062 Cover Sub-Assy, Engine Under, No.1
51445 51445-35080 Bracket, Engine Under Cover
51447 51447-35031 Protector, Transfer Case
51961 51961-35020 Hook, No.1
51962 51962-35020 Hook, No.2
51963 51963-35080 Stopper, Hook Wire
52283 52283-35011 Stopper, Differential Support Member, Lower
9010114026 90101-14026 New Genuine Part
9011908300 90119-08300 New Genuine Part
9011908671 90119-08671 Bolt
9011908763 90119-08763 New Genuine Part
9011908941 90119-08941 BOLT, W/WASHER
9011910349 90119-10349 BOLT
9011910349 91651-G1020 BOLT
9011912140 90119-12140 New Genuine Part
9017914018 90179-14018 New Genuine Part
9462311400 94623-11400 New Genuine Part
Switch & Relay & Computer ([08.1997 - ] COMBINATION SWITCH (9708- )RHD) 13
#OEMPart name
84140 84140-26170 Switch Assy, Headlamp Dimmer
84306 84306-26070 Cable Sub-Assy, Spiral
84310 84310-35790 Switch Assy, Turn Signal
84310 84319-10010 Housing, Steering Wheel Switch
84310 84652-60790 Switch Assy, Windshield Wiper
84310 84310-35810 Switch Assy, Turn Signal
84310 84310-3D080 Switch Assy, Turn Signal
84310 84310-3D090 Switch Assy, Turn Signal
84312 84312-26010 Plate, Horn Contact
84450 84450-12200 Switch Assy, Ignition Or Starter
84650 84652-35540 Switch Assy, Windshield Wiper
9331914012 93319-14012 New Genuine Part
9331915012 93319-15012 Screw
Switch & Relay & Computer ([08.1997 - ] COWL RELAY (9708- )RHD) 26
#OEMPart name
81980 81980-12110 Flasher Assy, Turn Signal
81980 81980-32010 Flasher Assy, Turn Signal
82600 90982-09008 Fusible Link
82600 90982-09009 Fusible Link
82600 90982-09010 Fusible Link
82600 90982-09011 Fusible Link
82600 82683-35090 Plate, Caution(For Fuse)
82600 90982-10001 Instrument Panel Fusible Link
82641 82641-35220 Relay, Integration No.1
82641 82641-35230 Relay, Integration No.1
82731 82731-35010 Block, Driver Side Junction
82731 82731-35040 Block, Driver Side Junction
82733 82733-35010 Block, Passenger Side Junction
82734 82734-35020 Block, Center Junction
84340 84340-35020 Switch Assy, Stop Lamp
84550 84550-35020 Switch Assy, Parking Brake
85930 90987-02012 Relay, Ignition, No.1
86530 86530-20070 Relay Assy, Horn
91611 91611-B0614 Bolt (For Rear Differential Breather Plug Oil Deflector)
9161660616 91616-60616 BOLT
9162160610 91621-60610 New Genuine Part
9162160610 91651-B0612 Bolt
9331915010 93319-15010 SCREW
9356055014 93560-55014 SCREW
9413060800 94130-60800 Nut(For Clutch Pedal Stopper)
9413060800 90170-A0003 New Genuine Part
Switch & Relay & Computer ([08.1997 - ] DOOR & FLOOR SWITCHES (9708- )) 11
#OEMPart name
83320 83320-80406 Gage Assy, Fuel Sender
84233 84230-20120 Switch Assy, Courtesy Lamp (For Front Door)
84233 84231-22060 Switch Assy, Courtesy Lamp (For Front Door)
93319 93319-A4010 SCREW WWASHER
9011906121 90119-06121 New Genuine Part
9011906121 90119-06361 BOLT WWASHER
9011906601 90119-06601 New Genuine Part
9017906026 90179-06026 Nut, Cap(For Cylinder Head Cover)
9017906026 90179-06274 Nut
9162640820 91626-40820 New Genuine Part
9162640820 91621-40816 BOLTWWASHER
Switch & Relay & Computer ([08.1997 - ] INSTRUMENT PANEL SWITCHES (9708- )RHD) 17
#OEMPart name
84118 84118-20011 Knob, Light Control Rheostat
84119 84119-20082 Rheostat, Light Control
84119 90170-09002 Nut, Tunnel Mode Select Switch
84330 84332-35060 Switch Assy, Hazard Warning Signal
84330 84999-10860 Bulb, Hazard Warning Signal Switch
84660 84660-35030 Switch, Cooler
84660 88607-16010 Bulb(For Cooler Switch)
84810 84810-12080 Switch Assy, Power Window Regulator
84820 84820-10090 Master Switch Assy, Power Window Regulator
84870 84870-34010 Switch Assy, Outer Mirror
84930 84930-14090 Switch Assy, Door Control
84930 84930-52080 Switch Assy, Door Control
85500 85500-12240 Lighter Assy, Cigarette
85510 85510-16040 Socket & Retainer Assy, Cigarlighter
85513 85513-12020 Cover, Cigarette Lighter
85520 85520-28010 Knob And Element Assy, Cigarette Lighter
85533 85533-26010 Lens, Cigarette Lighter Indicator
Switch & Relay & Computer ([08.2002 - ] ENGINE & TRANSMISSION (0208- )VZN167,172) 15
#OEMPart name
83420 83420-16020 Gage Assy, Water Temperature Sender
83530 83530-28020 Switch Assy, Oil Pressure (For Engine)
83530 83530-60020 Switch Assy, Oil Pressure (For Engine) - ＹＡＺＡＫＩ→ＤＥＮＳＯ
83530 83530-0E010 Switch Assy, Oil Pressure (For Engine)
84210 84210-12040 Switch Assy, Back-Up Lamp
84210 84210-52050 Switch Assy, Back-Up Lamp
84222 84222-35060 Switch, Transfer Indicator, No.1
84222 84222-35080 Switch, Transfer Indicator, No.1
89465 89465-35610 Sensor, Oxygen
89615 89615-12040 Sensor, Knock Control
89615 89615-12050 Sensor, Knock Control
89615 89615-12090 Sensor, Knock Control
9043018008 90430-18008 Gasket
9043018008 90430-T0021 Gasket(For Manual Transmission Filler Plug)
9165140830 91651-40830 Bolt, Radiator Side Support Plate
Switch & Relay & Computer ([08.2002 - ] ENGINE ROOM (0208- )VZN167,172) 17
#OEMPart name
82600 90982-09008 Fusible Link
82600 90982-09009 Fusible Link
82600 90982-09010 Fusible Link
82600 90982-09011 Fusible Link
82616 82616-20010 Puller, Fuse
82663 82663-35070 Cover, Relay Block, Lower
82740 82741-35080 Block Assy, Engine Room Relay
85910 90987-04002 Relay, Ignition, No.1
85916 90987-02012 Relay, Ignition, No.1
85916 90987-02006 Relay
89438 89438-33010 Switch, Power Steering Oil Pressure
89620 89621-35020 Igniter Assy
89629 89629-35060 Bracket, Igniter Assy
89701 89701-12010 Block Sub-Assy, Abs Relay
91621 91621-J0614 BOLT W-WASHER
93319 93319-A5012 New Genuine Part
9011906005 90119-06005 New Genuine Part
Timing Gear Cover & Rear End Plate ([08.2002 - ] (0208- )5VZFE) 19
#OEMPart name
11302 11321-62900 Cover Sub-Assy, Timing Chain Or Belt
11307 11323-62050 Cover, Sub-Assy, Timing Belt, No.3
11319 11319-20010 Gasket, Timing Belt Cover, No.3
11322 11322-62901 Cover, Timing Belt, No.2
11328 11328-20020 Gasket, Timing Belt Cover, No.1
11329 11329-20010 Gasket, Timing Belt Or Chain Cover, No.2
11355 11355-65011 Plate, Rear End
11361 11361-62010 Cover, Flywheel Housing Under
11366 11366-65010 Seal, Flywheel Housing Under Cover Dust
11366 11366-65011 Seal, Flywheel Housing Under Cover Dust
11381 11381-62010 Retainer, Engine Rear Oil Seal
11381 90311-92006 Seal, Engine Rear Oil
11381 90311-92010 Seal, Engine Rear Oil
12282 12282-62070 Hanger, Engine, No.2
91511 91511-B0614 BOLT, FLANGE
91621 91621-B0610 New Genuine Part
91621 91651-B0612 Bolt
9010906247 90109-06247 New Genuine Part
9011910684 90119-10684 New Genuine Part
Tool Box & License Plate Bracket ([08.1997 - ] (9708- )) 3
#OEMPart name
58780 58780-89102 Band Assy, Tool Box
58796 58796-20012 Hook, Jack Clamp
9011906547 90119-06547 New Genuine Part
Transaxle Or Transmission Assy & Gasket Kit (Mtm) ([08.1999 - 04.2005] R150,R151 (9908-0504)KZN165,VZN167,172..MTM) 2
#OEMPart name
4331 04331-34021 Gasket Kit, Manual Transmission Overhaul
33030 33030-3G180 Transmission Unit Assy, Manual
Transfer Assembly & Gasket Kit ([08.1997 - ] (9708- )KDN166,LN16#,172,RZN174,VZN167,172..A RL,GCC,SA,TH ; (9908- )KZN165..S R ; (9908- )KZ N165..DCB..DLX..CBU) 4
#OEMPart name
4362 04362-35061 Gasket Kit, Transfer Overhaul
4362 04362-35062 GASKET KIT, TRANSFER
36100 36100-3D440 Transfer Assy
36100 36100-3D450 Transfer Assy
Transfer Case & Extension Housing ([08.1999 - ] (9908- )KDN16#,KZN165,VZN167,172..MTM) 43
#OEMPart name
33124 33124-35100 Pipe, Oil Receiver(For Transfer)
33183 33183-35050 Damper, Transfer Dynamic
33309 33309-35061 Flange Sub-Assy, Output Shaft Companion
33309 33309-35063 Flange Sub-assy, Transfer Output Shaft Companion
33309 90311-41013 Seal, Oil (For Transfer Case)
33309 90311-41017 Seal, Oil (For Transfer Case)
33309 33309-35100 Flange Sub-Assy, Output Shaft Companion
33309 90312-23001 Seal, Oil(For Transfer Output Shaft Companion Flange)
33449 33449-32020 Magnet, Transmission
36101 36101-35110 Case Sub-Assy, Transfer
36101 36101-35111 Case Sub-assy, Transfer
36102 36102-35051 Cover Sub-Assy, Transfer Case
36102 90311-40021 Seal, Type T Oil (For Transfer Cover)
36103 90119-08A28 Bolt (For Transfer Case)
36104 90179-22016 Nut (For Manual Transmission Output Shaft Rear Set)
36111 90311-41010 Seal, Oil (For Transfer Case)
36111 90311-41012 Seal, Oil (For Transfer Case)
36111 90430-18008 Gasket
36111 90430-T0021 Gasket(For Manual Transmission Filler Plug)
36111 90341-18006 Plug (No magnet)
36111 90250-10214 Pin, Straight(For End Plate)
36112 36112-35070 Case, Transfer, Rear
36115 36105-35040 Housing Sub-Assy, Transfer Extension, Front
36115 90311-41007 Seal, Oil (Transfer Extension Front Housing Sub-Assy)
36115 90311-41020 Oil Seal (Transfer Extension Housing Sub-Assy)
36117 36107-35180 Adapter, Transfer
36117 90311-40007 Seal, Oil(For Transfer Case Adapter Rear)
36117 90930-03075 Plug, Breather
36117 90331-21003 Plug(For Transfer Adapter)
36117 90441-05001 Tube (For Transfer Case)
36143 36143-35030 Gasket, Transfer Case, Front
82710 82710-35040 Clamp Assy, Wiring Harness
9011908336 90119-08336 BOLT
9011910186 90119-10186 BOLT
9024107003 90241-07003 Pin, Slotted Spring (For Transfer Case)
9025011003 90250-11003 Pin, Ring(For Transfer Case)
9034114012 90341-14012 Plug (For Transfer Case)
9046210128 90462-10128 New Genuine Part
9050120091 90501-20091 Spring, Compression (For Transfer Case)
9161160822 91611-60822 Bolt
9161261045 91612-61045 Bolt(For Transaxle & Engine Setting)
9161961235 91619-61235 BOLT
9223372036854775807 82711-1E300 Clamp, Wiring Harness
Transfer Gear ([08.1997 - ] (9708- )KZN165,LN166,172,RZN174,VZN167,172..D LX..ARL,GCC) 75
#OEMPart name
33368 33367-14010 Ring, Synchronizer, No.1
33371 33371-14010 Spring, Synchromesh Shifting Key, No.1
33385 33385-35010 Retainer, Shifting Key (For Transfer Front Drive Clutch)
33481 33481-35111 Gear, Speedometer Drive (For Transfer)
33481 90360-05012 Ball, Reverse Shift Restrict
36205 36205-35070 Sprocket Sub-Assy, Transfer Drive
36210 90363-75001 Bearing (For Transfer Input Shaft)
36211 36201-35040 Shaft, Transfer Input
36212 90520-72001 Ring, Hole Snap (For Transfer Input Shaft)
36212 90520-72002 Ring, Hole Snap (For Transfer Input Shaft)
36212 90520-72003 Ring, Hole Snap (For Transfer Input Shaft)
36212 90520-72004 Ring, Hole Snap (For Transfer Input Shaft)
36212 90520-72005 Ring, Hole Snap (For Transfer Input Shaft)
36213 36213-35020 Stopper, Transfer Input Gear
36213 90520-44003 Ring, Shaft Snap (For Transfer Input Gear Stopper)
36213 90520-44004 Ring, Shaft Snap (For Transfer Input Gear Stopper)
36213 90520-44005 Ring, Shaft Snap (For Transfer Input Gear Stopper)
36213 90520-44006 Ring, Shaft Snap (For Transfer Input Gear Stopper)
36213 90520-44007 Ring, Shaft Snap (For Transfer Input Gear Stopper)
36213 90520-44008 Ring, Shaft Snap (For Transfer Input Gear Stopper)
36213 90520-44009 Ring, Shaft Snap (For Transfer Input Gear Stopper)
36213 90520-44010 Ring, Shaft Snap (For Transfer Input Gear Stopper)
36213 90520-44011 Ring, Shaft Snap (For Transfer Input Gear Stopper)
36213 90520-44012 Ring, Shaft Snap (For Transfer Input Gear Stopper)
36213 90520-44013 Ring, Shaft Snap (For Transfer Input Gear Stopper)
36213 90520-44014 Ring, Shaft Snap (For Transfer Input Gear Stopper)
36213 90520-44015 Ring, Shaft Snap (For Transfer Input Gear Stopper)
36213 90520-44016 Ring, Shaft Snap (For Transfer Input Gear Stopper)
36213 90520-44017 Ring, Shaft Snap (For Transfer Input Gear Stopper)
36213 90520-44018 Ring, Shaft Snap (For Transfer Input Gear Stopper)
36213 90520-44019 Ring, Shaft Snap (For Transfer Input Gear Stopper)
36213 90520-44020 Ring, Shaft Snap (For Transfer Input Gear Stopper)
36213 90520-44021 Ring, Shaft Snap (For Transfer Input Gear Stopper)
36216 36216-35011 Ring, Transfer Input Shaft Seal, No.1
36216 36216-35012 Ring, Transfer Input Shaft Seal, No.1
36231 36231-71010 Shaft, Transfer Output, Rear
36231 90364-28004 Bearing, Needle Roller (For Transfer Output Shaft Front)
36231 90520-71221 Ring, Shaft Snap (For Front Bearing)
36231 90363-32006 Bearing (For Transfer Counter Gear)
36235 36235-35021 Sleeve, Transfer High & Low Clutch
36235 36235-35H00 Piece, Transfer Low Planetary Gear Spline
36235 36235-35H01 Piece, Transfer Low Planetary Gear Spline
36236 36236-35040 Sleeve, Front Drive Clutch
36237 36237-35030 Hub, Transfer Clutch
36237 90520-39004 Ring, Shaft Snap (For Transfer Clutch Hub)
36237 90520-39005 Ring, Shaft Snap (For Transfer Clutch Hub)
36237 90520-39006 Ring, Shaft Snap (For Transfer Clutch Hub)
36237 90520-39007 Ring, Shaft Snap (For Transfer Clutch Hub)
36237 90520-39008 Ring, Shaft Snap (For Transfer Clutch Hub)
36237 90520-39009 Ring, Shaft Snap (For Transfer Clutch Hub)
36237 90520-39010 Ring, Shaft Snap (For Transfer Clutch Hub)
36237 90520-39011 Ring, Shaft Snap (For Transfer Clutch Hub)
36237 90520-39012 Ring, Shaft Snap (For Transfer Clutch Hub)
36237 90520-39013 Ring, Shaft Snap (For Transfer Clutch Hub)
36237 90520-39014 Ring, Shaft Snap (For Transfer Clutch Hub)
36245 36245-35040 Piece, Transfer Front Drive Gear
36245 36245-35041 Piece, Transfer Front Drive Gear
36249 36249-35030 Key, Synchromesh Shifting, Transfer Drive, No.2
36255 36255-35020 Spacer, Transfer Output Shaft, No.1
36270 36270-35900 Gear Assy, Transfer Low Planetary
36270 90364-47001 Bearing (For Transfer Input Shaft)
36270 90364-47013 Bearing (For Transfer Input Shaft)
36270 90374-49001 Bearing, Thrust (For Transfer Input Shaft)
36270 90521-99056 Ring, Shaft Snap (For Transfer Low Planetary Gear)
36270 90520-99072 Ring, Shaft Snap(For Transfer Low Planetary Gear Bearing)
36273 36273-35030 Gear, Transfer Low Planetary Ring
36273 90520-99078 Ring, Shaft Snap (For Transfer Low Planetary Gear)
36278 36278-35020 Washer, Manual Transfer Planetary Carrier
36284 36284-35021 Piece, Transfer Low Planetary Gear Spline
36288 36288-28010 Race, Transfer Thrust Bearing, No.1
36291 90364-37013 Bearing (For Transfer Drive Sprocket)
36292 36292-35020 Sprocket, Transfer Driven
36292 90363-28004 Bearing, Radial Ball (For Transfer Input Gear)
36292 90363-32030 Bearing (For Transfer Driven Sprocket)
36293 36293-35040 Chain, Transfer Front Drive
Transfer Lever & Shift Rod ([08.1997 - ] (9708- )KZN165,LN166,VZN167..DLX..ARL,GCC ; ( 9708- )KZN165,LN167,RZN169..CBR, DEFI,EFI,TDE..GCC ,GEN,SA,TH) 22
#OEMPart name
36264 90250-10020 Pin Or Roller, Shift Inter-Lock
36275 90341-12014 Plug, W/head Straight Screw, No.1(For Cylinder Block)
36275 90501-16116 Spring, Compression (For Shift Detent Ball)
36275 90360-10003 Ball(For Transmission Oil Pump Cover)
36303 36303-35140-B1 Knob Sub-Assy, Shift Lever
36303 36303-35140-C0 Knob Sub-Assy, Shift Lever
36304 36304-35041 Retainer Sub-Assy, Transfer Control Shift Lever
36311 90254-05001 Pin, Slotted Spring(For Shift Lever Shaft Set)
36311 90501-20088 Spring, Compresion (For Shift Fork)
36311 36311-35020 Fork, Transfer Gear Shift, No.1
36312 36312-35040 Fork, Transfer Gear Shift, No.2
36313 36313-35120 Shaft, Transfer Front Drive Shift Fork
36314 36314-35130 Shaft, Transfer High And Low Shift Fork
36317 36317-35030 Stopper, Transfer Shift Shaft
36318 33555-35190 Boot, Transfer Front Drive Shift
36321 90521-49003 Ring, Snap (For Shift Lever Spring Sheet)
36349 36349-35010 Spring, Transfer Select Return
36360 36360-35530 Lever Assy, Transfer High & Low Shift
8271035030 82710-35030 Harness Assy, Oil Heater
8271035030 82711-1E300 Clamp, Wiring Harness
8271035030 82715-3D190 Bracket,wiring Harness Clamp
9011908336 90119-08336 BOLT
Transfer Oil Pump ([08.1997 - ] (9708- )KZN190..SR ; (9708- )LN166..GCC ; (9708- )KDN16#,KZN165,LN167,172, RZN16#,174,VZN167 ,172) 7
#OEMPart name
36104 36104-35040 Separator Sub-Assy, Transfer Oil
36104 96721-19009 Ring, O(For Oil Level Gage)
36106 36106-35040 Body Sub-Assy, Transfer Oil Pump
36227 36227-35020 Gear, Transfer Oil Pump
36227 36227-35021 GEAR TRANSFER OIL
91631 91631-B0618 BOLT WWASHER
9011906775 90119-06775 BOLT WWASHER
Transmission Gear (Mtm) ([08.1999 - ] R150,R151 (9908- )KDN16#,KZN165,VZN167,172..MTM) 116
#OEMPart name
33037 33037-60040 Ring Set, Synchronizer, No.1
33037 33037-35030 Ring Set, Synchronizer, No.1
33311 33301-35090 Shaft, Input
33311 33301-60130 Shaft, Input
33311 90363-40050 Bearing (For Input Shaft Front)
33311 90363-40092 Bearing (For Input Shaft Front)
33311 90520-38008 Ring, Shaft Snap (For Front Bearing)
33311 90520-38009 Ring, Shaft Snap (For Front Bearing)
33311 90520-38010 Ring, Shaft Snap (For Front Bearing)
33311 90520-38011 Ring, Shaft Snap (For Front Bearing)
33311 90520-38012 Ring, Shaft Snap (For Front Bearing)
33311 90520-38013 Ring, Shaft Snap (For Front Bearing)
33311 90520-38014 Ring, Shaft Snap (For Front Bearing)
33311 90364-25012 Bearing, Input Shaft
33311 90520-88001 Ring, Shaft Snap (For Front Bearing)
33318 33318-35040 Piece, Gear Spline, No.5
33321 33321-35140 Shaft, Output
33321 33321-35141 Shaft, Output
33321 90363-30075 Bearing (For Output Shaft Rear)
33321 90520-28031 Ring, Shaft Snap (For Output Shaft Bearing)
33321 90520-28032 Ring, Shaft Snap (For Output Shaft Bearing)
33321 90520-28033 Ring, Shaft Snap (For Output Shaft Bearing)
33321 90520-28034 Ring, Shaft Snap (For Output Shaft Bearing)
33321 90520-28035 Ring, Shaft Snap (For Output Shaft Bearing)
33321 90520-28037 Ring, Shaft Snap (For Output Shaft Bearing)
33321 90520-28039 Ring, Shaft Snap (For Output Shaft Bearing)
33321 90520-28042 Ring, Shaft Snap (For Output Shaft Bearing)
33321 90520-28043 Ring, Shaft Snap (For Output Shaft Bearing)
33321 90520-28045 Ring, Shaft Snap (For Output Shaft Bearing)
33321 90520-28046 Ring, Shaft Snap (For Output Shaft Bearing)
33321 90520-28047 Ring, Shaft Snap (For Output Shaft Bearing)
33321 90520-28048 Ring, Shaft Snap (For Output Shaft Bearing)
33321 90520-28049 Ring, Shaft Snap (For Output Shaft Bearing)
33321 90520-28050 Ring, Shaft Snap (For Output Shaft Bearing)
33321 90520-28051 Ring, Shaft Snap (For Output Shaft Bearing)
33321 90520-28052 Ring, Shaft Snap (For Output Shaft Bearing)
33321 90520-81001 Ring, Shaft Snap (For Output Shaft Bearing)
33321 90520-30014 Ring, Shaft Snap (For Output Shaft Bearing)
33321 90520-30015 Ring, Shaft Snap (For Output Shaft Bearing)
33321 90520-30016 Ring, Shaft Snap (For Clutch Hub Set)
33321 90520-30017 Ring, Shaft Snap (For Clutch Hub Set)
33321 90520-30018 Ring, Shaft Snap (For Clutch Hub Set)
33321 90520-30019 Ring, Shaft Snap (For Clutch Hub Set)
33321 90520-30020 Ring, Shaft Snap (For Clutch Hub Set)
33321 90520-36007 Ring, Shaft Snap (For Output Shaft Bearing)
33321 90520-36008 Ring, Shaft Snap (For Output Shaft Bearing)
33321 90520-36009 Ring, Shaft Snap (For Output Shaft Bearing)
33321 90520-36010 Ring, Shaft Snap (For Output Shaft Bearing)
33321 90520-36011 Ring, Shaft Snap (For Output Shaft Bearing)
33321 90520-36012 Ring, Shaft Snap (For Output Shaft Bearing)
33321 90520-36013 Ring, Shaft Snap (For Output Shaft Bearing)
33321 90561-30005 Spacer (For Output Shaft)
33321 90363-35039 Bearing (For Output Shaft Center)
33321 90363-35078 Bearing (For Output Shaft Center)
33331 33331-60040 Gear, Reverse
33331 33331-60H00 Gear, Reverse
33331 33331-60H01 Gear, Reverse
33332 33033-60040 Gear, 2Nd
33332 90364-47003 Bearing, Needle Roller (For 2Nd Gear)
33332 90364-47014 Bearing, Needle Roller (For 2Nd Gear)
33333 33034-60030 Gear, 3Rd
33333 33034-60090 Gear, 3Rd
33333 90364-38011 Bearing, Needle Roller (For 3Rd Gear)
33335 33032-60050 Gear, 1St
33335 33032-60051 Gear, 1St
33335 90560-39002 Spacer(For 1St Gear Bearing)
33335 90364-39005 Bearing, Needle Roller(For 1St Gear)
33335 90364-39016 Bearing, Needle Roller(For 1St Gear)
33336 33336-35100 Gear, 5Th
33336 33336-26020 Gear, 5Th
33348 33348-35010 Washer, 1St Gear Thrust
33348 90250-05026 Pin, Straight (For Gear Thrust Washer)
33349 33346-35020 Washer, 5Th Gear Thrust
33349 33346-71010 Washer, 5Th Gear Thrust
33361 33361-35040 Hub, Transmission Clutch, No.1
33361 33361-71010 Hub, Transmission Clutch, No.1
33362 33362-35030 Hub, Transmission Clutch, No.2
33364 33364-35050 Sleeve, Transmission Hub, No.2
33365 33365-35040 Key, Synchromesh Shifting, No.1
33365 33365-35060 Key, Synchromesh Shifting, No.1
33365 90501-08212 Spring, Compression
33366 33366-35030 Key, Synchromesh Shifting, No.2
33367 33367-35080 Ring, Synchronizer, No.1
33368 33368-35030 Ring, Synchronizer, No.2
33368 33368-35040 Ring, Synchronizer, No.2
33384 33384-35011 Ring, Synchronizer, Outer No.3
33387 33387-34010 Ring, Reverse Synchronizer
33388 33388-60010 Ring, Reverse Synchronizer Pull
33389 33389-60010 Ring, Synchronizer Cone
33391 33391-25030 Spring, Synchromesh Shifting Key (For No.3 Clutch Hub)
33394 33394-35030 Key, Synchromesh Shifting, No.3
33394 90501-07104 Spring, Compression
33395 33395-35031 Sleeve, Transmission Hub, No.3
33402 33402-35060 Gear Sub-Assy, Reverse Idler
33411 90365-25019 Bearing Or Roller(For Counter Gear Front)
33411 90520-56002 Ring, Counter Gear Front Bearing Snap, No.1
33411 90365-34005 Bearing Or Roller(For Counter Gear Rear)
33411 90520-23057 Ring, Counter Gear Front Bearing Snap, No.2
33411 90520-23058 Ring, Counter Gear Front Bearing Snap, No.2
33411 90520-23059 Ring, Counter Gear Front Bearing Snap, No.2
33411 90520-23060 Ring, Counter Gear Front Bearing Snap, No.2
33411 90520-23061 Ring, Counter Gear Front Bearing Snap, No.2
33411 90520-23062 Ring, Counter Gear Front Bearing Snap, No.2
33421 33421-60180 Gear, Counter
33421 33421-60220 Gear, Counter
33421 90520-22016 Ring, Shaft Snap(For Counter Gear Rear)
33421 90520-22017 Ring, Shaft Snap(For Counter Gear Rear)
33421 90520-22018 Ring, Shaft Snap(For Counter Gear Rear)
33421 90520-22019 Ring, Shaft Snap(For Counter Gear Rear)
33421 90520-22020 Ring, Shaft Snap(For Counter Gear Rear)
33421 90520-22021 Ring, Shaft Snap(For Counter Gear Rear)
33421 90520-22022 Ring, Shaft Snap(For Counter Gear Rear)
33428 33428-60030 Gear, Countershaft 5Th
33428 33428-60031 Gear, Countershaft 5Th
33428 90364-30009 Bearing (For Counter 5Th Gear)
33451 33451-35030 Shaft, Reverse Idler Gear
V-Belt ([08.1997 - ] (9708- )) 3
#OEMPart name
16361 90080-91090 Belt, V(For Fan & Alternator)
44310 99364-81070 Belt, V(For Fan & Alternator)
88310 99364-30860 Belt, V (Cooler Compressor To Crankshaft Pulley), No.1
V-Belt ([08.2002 - ] (0208- )) 3
#OEMPart name
16361 90080-91090 Belt, V(For Fan & Alternator)
44310 99364-81070 Belt, V(For Fan & Alternator)
88310 99364-30860 Belt, V (Cooler Compressor To Crankshaft Pulley), No.1
Vacuum Piping ([08.2002 - 02.2005] (0208-0502)5VZFE) 20
#OEMPart name
17303 17303-62020 Pipe Sub-Assy, Air, No.1
17341 17341-62060 Hose, Air, No.1
17342 17342-62080 Hose, Air, No.2
17343 17343-62110 Hose, No.3(For Idle-Up)
17343 17343-62080 Hose, Air, No.3
17343 90904-13015 Way, 3(For Air Hose)
17360 17360-62011 Tube Assy, Air
17360 90445-12284 Hose(For Air Pipe)
23820 23820-62060 Hose Assy, Fuel Vapor Feed
23826 95328-07004 Hose, Fuel Vapor Feed, No.1
23826 96132-51300 Clip(For Ventilation Hose No.2)
23827 90445-14182 Hose, Fuel Vapor Feed, No.2
23829 23829-62050 Hose, Fuel, No.1(For Charcoal Canister)
23829 96132-51100 Clip (For Hose)
25701 25701-62050 Valve Set, Emission Control
25719 25719-62060 Tank, Vacuum Surge
91621 91621-J0814 Bolt (For Transmission Control Cable Bracket)
9092901431 90929-01431 New Genuine Part
9099992002 90999-92002 Air Hose (300 mm)
9162160614 91621-60614 Bolt(For Transaxle & Engine Setting)
Vane Pump & Reservoir (Power Steering) ([08.2002 - ] (0208- )VZN167,172) 47
#OEMPart name
4446 04446-53030 Gasket Kit, Power Steering Pump
44302 44302-34020 Housing Sub-Assy, Vane Pump, Front
44302 90311-18015 Seal, Oil, No.2(For Vane Pump Housing)
44305 44305-50010 Cap Sub-Assy, Vane Pump Oil Reservoir
44305 44305-50020 Cap Sub-Assy, Vane Pump Oil Reservoir
44308 44308-26041 Union Sub-Assy, Pressure Port
44311 44311-34030 Pulley, Vane Pump
44312 44312-32020 Shaft, Vane Pump
44312 90520-10003 Ring, Snap, No.1(For Vane Pump Shaft)
44313 44313-26060 Rotor, Vane Pump
44313 44313-26070 Rotor, Vane Pump
44313 44313-26080 Rotor, Vane Pump
44313 44313-26090 Rotor, Vane Pump
44313 44313-26100 Rotor, Vane Pump
44320 44310-35630 Pump Assy, Vane
44324 44324-34020 Housing, Pump, Rear
44326 44325-32270 Ring, Cam(For Vane Pump)
44326 44325-32280 Ring, Cam(For Vane Pump)
44326 44325-32290 Ring, Cam(For Vane Pump)
44326 44325-32300 Ring, Cam(For Vane Pump)
44326 44325-32310 Ring, Cam(For Vane Pump)
44326 90250-04071 Pin, Straight(For Vane Pump Cam Ring)
44327 44327-26010 Gasket, Vane Pump Housing
44330 44330-26071 Valve Assy, Flow Control
44330 44330-26081 Valve Assy, Flow Control
44330 44330-26091 Valve Assy, Flow Control
44330 44330-26101 Valve Assy, Flow Control
44330 44330-26111 Valve Assy, Flow Control
44330 44330-26121 Valve Assy, Flow Control
44330 90501-13034 Spring, Compression(For Flow Control Valve)
44337 90301-11016 Ring, O(For Power Steering Suction Port)
44338 90301-19018 Ring, O(For Pressure Port Union)
44342 44342-26020 Plate, Vane Pump Side, Rear
44342 90301-18007 Ring, O(For Pump Housing Rear)
44342 90301-47001 Ring, O(For Vane Pump Side Plate Rear)
44345 44345-26010 Plate, Vane Pump
44345 44345-26020 Plate, Vane Pump
44345 44345-26030 Plate, Vane Pump
44345 44345-26040 Plate, Vane Pump
44345 44345-26050 Plate, Vane Pump
44360 44306-35300 Reservoir Sub-Assy, Vane Pump Oil
9010508194 90105-08194 New Genuine Part
9010508271 90105-08271 Bolt
9011908469 90119-08469 Bolt(for Dust Cover To Steering Knuckle Arm Setting)
9017812003 90178-12003 Nut(For Vane Pump Pulley)
9020631001 90206-31001 WASHER WAVE
9041006006 90410-06006 Seat, Union(Pressure Control Valve Assy)
Ventilation Hose ([08.2002 - 02.2005] (0208-0502)5VZFE) 7
#OEMPart name
12204 12204-62010 Valve Sub-Assy, Ventilation
12204 12204-62030 Valve Sub-Assy, Ventilation
12204 90480-18001 Grommet(For Ventilation System)
12251 12251-62010 Clamp, Ventilation Tube
12261 12261-62041 Hose, Ventilation
12262 12262-62060 Hose, Ventilation, No.2
9162160614 91621-60614 Bolt(For Transaxle & Engine Setting)
Water Pump ([08.2002 - 02.2005] (0208-0502)5VZFE) 16
#OEMPart name
16100 16100-69396 Pump Assy, Engine Water
16100 16100-69545 Pump Assy, Engine Water
16100 16100-69397 Pump Assy, Engine Water
16100 16100-69398 Pump Assy, Engine Water
16100 90116-08270 Bolt, Stud(For Water Pump Set)
16210 16210-62040 Coupling Assy, Fluid
16271 16271-62010 Gasket, Water Pump
16271 16271-62011 Gasket, Water Pump
16307 16307-62040 Bracket Sub-Assy, Fan
16371 16371-62010 Pulley, Fan
16372 16372-65010 Pulley, Fan, No.2
91511 91511-B0825 Bolt (For Transfer Stiffener Plate)
9010510092 90105-10092 Bolt(For Alternator)
9011610144 90116-10144 New Genuine Part
9017908123 90179-08123 Nut (For Front Wiper Arm Setting)
9017910147 90179-10147 New Genuine Part
Windshield Washer ([08.1997 - ] TYPE A:JAR 2.5L(FENDER APRON REAR) (9708- )) 14
#OEMPart name
85031 85375-12520 Valve Sub-Assy, Washer
85035 85381-35040 Nozzle Sub-Assy, Washer
85310 85310-95J03 Motor And Pump Assy, Windshield Washer
85330 85315-35300 Jar Assy, Windshield Washer
85330 90099-32089 Bush, Headlamp Cleaner Washer Jar
85330 90068-32002 Bush, Windshield Washer Jar
85348 85348-12250 Joint, Windshield Washer Hose, No.1
85348 85377-34010 Joint, Windshield Washer Elbow, No.3
85348 85349-89122 Valve Sub-Assy, Washer
85349 85377-32220 Joint, Windshield Washer Elbow, No.1
85372 90099-33299 Joint, Windshield Washer Elbow, No.2
85372 90446-07001 Hose, Windshield Washer (From Motor To Joint)
9011906698 90119-06698 New Genuine Part
9048025025 90480-25025 Grommet, Radiator Reserve Tank Hose
Windshield Washer ([08.1997 - ] TYPE B:JAR 4.6L (9708- )) 22
#OEMPart name
85031 85375-12520 Valve Sub-Assy, Washer
85035 85381-35040 Nozzle Sub-Assy, Washer
85301 85301-35050 Inlet Sub-Assy, Washer
85310 85310-95J03 Motor And Pump Assy, Windshield Washer
85330 85315-35300 Jar Assy, Windshield Washer
85330 90099-32089 Bush, Headlamp Cleaner Washer Jar
85330 90068-32002 Bush, Windshield Washer Jar
85332 85316-33050 Cap, Washer, Inlet
85348 85348-12250 Joint, Windshield Washer Hose, No.1
85348 85355-20200 Joint, Windshield Washer Hose, No.1
85348 85377-34010 Joint, Windshield Washer Elbow, No.3
85348 85349-89122 Valve Sub-Assy, Washer
85349 85377-32220 Joint, Windshield Washer Elbow, No.1
85361 85361-35060 Bracket, Windshield Washer, No.1
85372 90099-33299 Joint, Windshield Washer Elbow, No.2
85372 90446-07001 Hose, Windshield Washer (From Motor To Joint)
827113 82711-3F030 Wire, Fuse To Fuse(for Combustion Heater)
827113 82711-3H430 Wire, Fuse To Fuse(for Combustion Heater)
8271116820 82711-16820 Clamp, Hood Lock Control Wire
8271117190 82711-17190 Wire, Fuse To Fuse(for Combustion Heater)
9011906520 90119-06520 BOLT WWASHER
9095901136 90959-01136 BRACKET
Windshield Washer ([08.1997 - ] TYPE C:JAR 2.5L(FENDER APRON FRONT) (9708- )) 13
#OEMPart name
85035 85381-35040 Nozzle Sub-Assy, Washer
85310 85310-95J03 Motor And Pump Assy, Windshield Washer
85330 85315-35300 Jar Assy, Windshield Washer
85330 90099-32089 Bush, Headlamp Cleaner Washer Jar
85330 90068-32002 Bush, Windshield Washer Jar
85348 85348-12250 Joint, Windshield Washer Hose, No.1
85348 85349-89122 Valve Sub-Assy, Washer
85349 85377-32220 Joint, Windshield Washer Elbow, No.1
85372 90099-33299 Joint, Windshield Washer Elbow, No.2
85372 90446-07001 Hose, Windshield Washer (From Motor To Joint)
9011906698 90119-06698 New Genuine Part
9048025025 90480-25025 Grommet, Radiator Reserve Tank Hose
9095901136 90959-01136 BRACKET
Windshield Wiper ([08.2002 - ] (0208- )DCB..IV3 ; (0208- )KDN165,190..SRW GN ; (0208- )KDN151,166,LN166,VZ N167,172..ARL,MA, TH) 16
#OEMPart name
85110 85110-35250 Motor Assy, Windshield Wiper
85110 85110-35190 Motor Assy, Windshield Wiper
85160 85150-35190 Link Assy, Windshield Wiper
85178 90179-08113 Nut (For Front Wiper Arm Setting)
85192 85192-12800 Cover, Windshield Wiper Arm
85192 85292-12020 Cover, Windshield Wiper Arm
85211 85211-35110 Arm, Front Wiper, Rh
85212 85212-35100 Blade, Fr Wiper, Rh
85212 85212-35101 Blade, Fr Wiper, Rh
85214 85214-12300 Rubber, Wiper, Lh
85214 85214-12301 Rubber, Wiper, Rh
85214 85214-51030 Rubber, Wiper, Lh
85221 85221-35110 Arm, Front Wiper, Lh - FR WIPER, LH
85222 85222-28090 Blade, Fr Wiper, Lh
85222 85222-52121 Blade, Fr Wiper, Lh
9011906490 90119-06490 BOLT W-WASHER
Wiring & Clamp ([08.1997 - ] CONNECTOR (9708- )) 12
#OEMPart name
9098010162 90980-10162 HOUSING CONNECTOR
9098010173 90980-10173 New Genuine Part
9098010216 90980-10216 HOUSING CONNECTOR
9098010359 90980-10359 HOUSING CONNECTOR
9098010619 90980-10619 Housing, Connector
9098011019 90980-11019 HOUSING, CONNECTOR
9098011140 90980-11140 HOUSING, CONNECTOR
9098011142 90980-11142 New Genuine Part
9098011149 90980-11149 Connector, housing
9098011162 90980-11162 Housing, Connector
9098011248 90980-11248 New Genuine Part
9098011314 90980-11314 HOUSING, CONNECTOR
Wiring & Clamp ([08.1997 - ] COWL WIRE (9708- )RHD) 18
#OEMPart name
82131 82131-3S060 Wire, Cowl
82131 82131-3S070 Wire, Cowl
82133 82133-35010 Wire, Cowl, No.3
90119 90119-T0093 New Genuine Part
90119 90119-T0095 New Genuine Part
90167 90167-T0003 New Genuine Part
90167 90164-T0008 SCREW BINDING TAPPI
827113 82711-3F230 Clamp, Sliding Roof Drain Hose
8271130380 82711-30380 Wire, Fuse To Fuse(for Combustion Heater)
8271135230 82711-35230 Wire, Fuse To Fuse(for Combustion Heater)
8271135470 82711-35470 Wire, Fuse To Fuse(for Combustion Heater)
8271235010 82712-35010 Hose, Suction
8271535640 82715-35640 Bracket,wiring Harness Clamp
9011906915 90119-06915 BOLT W-WASHER
9014950032 90149-50032 Screw
9161660616 91616-60616 BOLT
9163160622 91631-60622 Screw
9356015014 93560-15014 SCREW
Wiring & Clamp ([08.1997 - ] ROOF,DOOR,FRAME & DIFF. WIRE (9708- )) 23
#OEMPart name
82151 82151-35300 Wire, Front Door, Rh
82152 82151-35190 Wire, Front Door, Rh
82152 82152-35130 Wire, Front Door, Lh
82152 82152-35150 Wire, Front Door, Rh
82164 82164-3G500 Wire, Frame
82164 82164-3G510 Wire, Frame
82164 82164-3G240 Wire, Frame
82164 82164-3G250 Wire, Frame
82171 82171-35370 Wire, Roof, No.1
82817 82817-35420 Protector, Wiring Harness, No.2
82817 82817-35430 Protector, Wiring Harness, No.3
827110 82711-0A050 Wire, Fuse To Fuse(for Combustion Heater)
827112 82711-2A720 Wire, Fuse To Fuse(for Combustion Heater)
8271135480 82711-35480 Wire, Fuse To Fuse(for Combustion Heater)
8271160270 82711-60270 Wire, Fuse To Fuse(for Combustion Heater)
8271504030 82715-04030 Bracket,wiring Harness Clamp
8826635600 88266-35600 Clamp, Skid Control Sensor, No.1
9011906390 90119-06390 BOLT WWASHER
9011906915 90119-06915 BOLT W-WASHER
9017908230 90179-08230 New Genuine Part
9017908237 90179-08237 New Genuine Part
9046400165 90464-00165 Clamp, No.2(For Luggage Door Lock Control Cable)
9090189028 90901-89028 New Genuine Part
Wiring & Clamp ([08.2002 - ] CABLE BOND (0208- )VZN167,172) 4
#OEMPart name
82001 90980-07381 Cable, Bond, No.1
8271134310 82711-34310 Clamp(For Hood Lock Control Cable)
9011906915 90119-06915 BOLT W-WASHER
9011908856 90119-08856 BOLT W-WASHER
Wiring & Clamp ([08.2002 - ] ENGINE ROOM WIRE (0208- )VZN167,172) 11
#OEMPart name
82111 82111-3M370 Wire, Engine Room Main
82112 82112-35040 Wire, Engine Room, No.2
82210 90982-08202 Fusible Link
82210 90982-08246 Fusible Link
82210 90982-08280 Fusible Link
82210 90982-08281 Fusible Link
82210 90982-08282 Fusible Link
82210 90982-08283 Fusible Link
82210 90982-08284 Fusible Link
82210 90982-08285 Fusible Link
82662 82662-35700 Cover, Relay Block, Upper
Wiring & Clamp ([08.2002 - ] ENGINE ROOM WIRE CLAMPS & BRACKETS (0208- )VZN167,172) 35
#OEMPart name
0 82711-1E350 Clamp, Wiring Harness
0 82711-06050 Clamp, Door Scuff Plate, No.2
91611 91611-B0614 Bolt (For Rear Differential Breather Plug Oil Deflector)
91611 91611-G0612 Bolt
91612 91612-B1014 BOLT WWASHER
91621 91621-B0610 New Genuine Part
91621 91651-B0612 Bolt
91621 91621-J0612 BOLT W-WASHER
827150 82715-0C060 Bracket,wiring Harness Clamp
827153 82715-3D370 Bracket,wiring Harness Clamp
8271135420 82711-35420 Wire, Fuse To Fuse(for Combustion Heater)
8271522070 82715-22070 Bracket,wiring Harness Clamp
8271534250 82715-34250 Bracket,wiring Harness Clamp
8271534260 82715-34260 Bracket,wiring Harness Clamp
8271534270 82715-34270 Bracket,wiring Harness Clamp
8271534300 82715-34300 Bracket,wiring Harness Clamp
8271534310 82715-34310 Bracket,wiring Harness Clamp
8271534320 82715-34320 Bracket,wiring Harness Clamp
8271534390 82715-34390 Bracket,wiring Harness Clamp
8271535230 82715-35230 Bracket,wiring Harness Clamp
8271535520 82715-35520 Bracket,wiring Harness Clamp
8271535530 82715-35530 Bracket,wiring Harness Clamp
8271535680 82715-35680 Bracket,wiring Harness Clamp
8271535790 82715-35790 Bracket,wiring Harness Clamp
8271535830 82715-35830 Bracket,wiring Harness Clamp
8271535880 82715-35880 Bracket,wiring Harness Clamp
8271589108 82715-89108 Bracket,wiring Harness Clamp
8272935010 82729-35010 New Genuine Part
8272935030 82729-35030 New Genuine Part
8281935140 82819-35140 Grommet, Wiring Harness
9011908671 90119-08671 Bolt
9011910550 90119-10550 New Genuine Part
9011910550 90080-11399 New Genuine Part
9161160814 91611-60814 Bolt
9162160614 91621-60614 Bolt(For Transaxle & Engine Setting)
Wiring & Clamp ([08.2002 - ] ENGINE WIRE (0208- )VZN167,172) 14
#OEMPart name
82121 82121-3M380 Wire, Engine
82122 82122-3D140 Wire, Engine, No.2
82127 82127-35250 Wire, Differential
82219 82219-34010 Wire, Sensor
82219 82219-34020 Wire, Thermo Sensor
82823 82823-22050 Cap, Terminal, No.1
82823 82823-35050 Cap, Terminal, No.1
91612 91612-B1014 BOLT WWASHER
91621 91621-B0610 New Genuine Part
91621 91651-B0612 Bolt
827113 82711-3A540 Clamp, Sliding Roof Drain Hose
9017906178 90179-06178 Nut (For Rear Wiper Arm Setting)
9017908053 90179-08053 Nut (For Differential Side Gear Shaft)
9162160614 91621-60614 Bolt(For Transaxle & Engine Setting)
Source
Public OEM parts-catalog data
Variants
2 / 6
Category
188
Collected
2026-08-04
