VZJ90

Toyota LAND-CRUISER-PRADO · 1996 · 5,194 parts · 245 categories

5,194 items

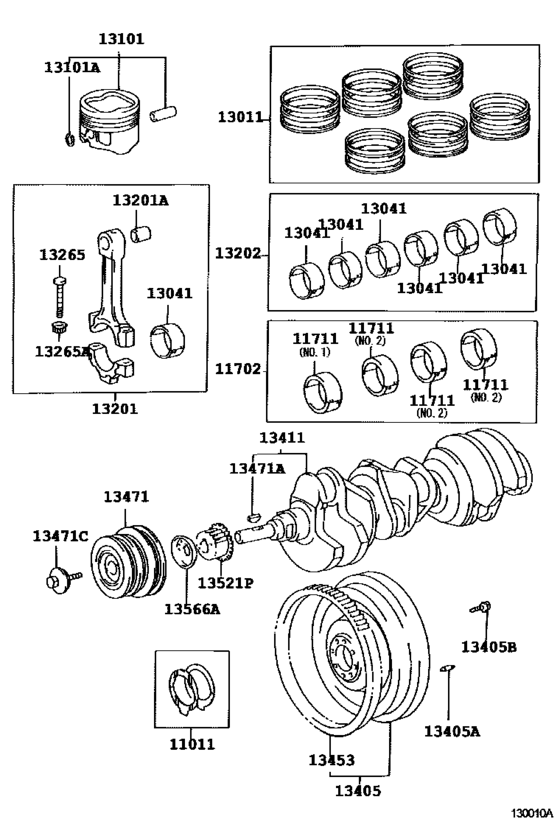

Crankshaft & Piston ([04.1996 - ] (9604- )5VZFE) 46

#	OEM	Part name
11011	11011-62010	Washer Set, Crankshaft Thrust
11702	11704-65013	Bearing Set, Crankshaft
11711	11071-65011-01	Bearing, Crankshaft
11711	11071-65011-02	Bearing, Crankshaft
11711	11071-65011-03	Bearing, Crankshaft
11711	11071-65011-04	Bearing, Crankshaft
11711	11071-65011-05	Bearing, Crankshaft
11711	11701-62022-01	Bearing, Crankshaft
11711	11701-62022-02	Bearing, Crankshaft
11711	11701-62022-03	Bearing, Crankshaft
11711	11701-62022-04	Bearing, Crankshaft
11711	11701-62022-05	Bearing, Crankshaft
11711	11701-62022-06	Bearing, Crankshaft
13011	13011-62100	Ring Set, Piston
13011	13011-62120	Ring Set, Piston
13011	13013-62100	Ring Set, Piston
13011	13013-62120	Ring Set, Piston
13041	13041-62030-01	Bearing, Connecting Rod
13041	13041-62030-02	Bearing, Connecting Rod
13041	13041-62030-03	Bearing, Connecting Rod
13101	13101-62060-01	Piston Sub-Assy, W/pin
13101	13101-62060-02	Piston Sub-Assy, W/pin
13101	13101-62060-03	Piston Sub-Assy, W/pin
13101	13103-62060	Piston Sub-Assy, W/pin
13101	90521-25004	Ring, Hole Snap(For Piston Pin)
13101	90520-22025	Ring, Hole Snap(For Piston Pin)
13201	13201-69145	Rod Sub-Assy, Connecting
13201	90999-73130	Bush(For Connecting Rod Small End)
13202	13204-62030	Bearing Set, Connecting Rod
13265	13265-62030	Bolt, Connecting Rod
13265	13265-74030	Bolt, Connecting Rod
13265	90179-08118	Nut, Hexagon(For Connecting Rod Bolt)
13405	13405-62030	Flywheel Sub-Assy
13405	90250-08120	Pin, Straight, No.1
13405	90105-10138	Bolt, Flywheel Setting
13411	13401-62030	Crankshaft
13411	13401-62040	Crankshaft
13411	13408-62060	Pulley, Crankshaft
13453	13453-65010	Gear, Flywheel Ring
13471	13408-62040	Pulley, Crankshaft
13471	90280-05005	Key(For Oil Pump Drive Spline)
13471	90105-16031	Bolt(For Crankshaft Pulley Set)
13471	90119-16006	Bolt(For Crankshaft Pulley Set)
13521	13521-62030	Pulley, Crankshaft Timing
13521	13521-62031	Pulley, Crankshaft Timing
13566	13567-62010	Guide, Timing Belt

OEM	Part name	Category
11011-62010	Washer Set, Crankshaft Thrust	Crankshaft & Piston ([04.1996 - ] (9604- )5VZFE)
11071-65011-01	Bearing, Crankshaft	Crankshaft & Piston ([04.1996 - ] (9604- )5VZFE)
11071-65011-02	Bearing, Crankshaft	Crankshaft & Piston ([04.1996 - ] (9604- )5VZFE)
11071-65011-03	Bearing, Crankshaft	Crankshaft & Piston ([04.1996 - ] (9604- )5VZFE)
11071-65011-04	Bearing, Crankshaft	Crankshaft & Piston ([04.1996 - ] (9604- )5VZFE)
11071-65011-05	Bearing, Crankshaft	Crankshaft & Piston ([04.1996 - ] (9604- )5VZFE)
11701-62022-01	Bearing, Crankshaft	Crankshaft & Piston ([04.1996 - ] (9604- )5VZFE)
11701-62022-02	Bearing, Crankshaft	Crankshaft & Piston ([04.1996 - ] (9604- )5VZFE)
11701-62022-03	Bearing, Crankshaft	Crankshaft & Piston ([04.1996 - ] (9604- )5VZFE)
11701-62022-04	Bearing, Crankshaft	Crankshaft & Piston ([04.1996 - ] (9604- )5VZFE)
11701-62022-05	Bearing, Crankshaft	Crankshaft & Piston ([04.1996 - ] (9604- )5VZFE)
11701-62022-06	Bearing, Crankshaft	Crankshaft & Piston ([04.1996 - ] (9604- )5VZFE)
11704-65013	Bearing Set, Crankshaft	Crankshaft & Piston ([04.1996 - ] (9604- )5VZFE)
13011-62100	Ring Set, Piston	Crankshaft & Piston ([04.1996 - ] (9604- )5VZFE)
13011-62120	Ring Set, Piston	Crankshaft & Piston ([04.1996 - ] (9604- )5VZFE)
13013-62100	Ring Set, Piston	Crankshaft & Piston ([04.1996 - ] (9604- )5VZFE)
13013-62120	Ring Set, Piston	Crankshaft & Piston ([04.1996 - ] (9604- )5VZFE)
13041-62030-01	Bearing, Connecting Rod	Crankshaft & Piston ([04.1996 - ] (9604- )5VZFE)
13041-62030-02	Bearing, Connecting Rod	Crankshaft & Piston ([04.1996 - ] (9604- )5VZFE)
13041-62030-03	Bearing, Connecting Rod	Crankshaft & Piston ([04.1996 - ] (9604- )5VZFE)
13101-62060-01	Piston Sub-Assy, W/pin	Crankshaft & Piston ([04.1996 - ] (9604- )5VZFE)
13101-62060-02	Piston Sub-Assy, W/pin	Crankshaft & Piston ([04.1996 - ] (9604- )5VZFE)
13101-62060-03	Piston Sub-Assy, W/pin	Crankshaft & Piston ([04.1996 - ] (9604- )5VZFE)
13103-62060	Piston Sub-Assy, W/pin	Crankshaft & Piston ([04.1996 - ] (9604- )5VZFE)
13201-69145	Rod Sub-Assy, Connecting	Crankshaft & Piston ([04.1996 - ] (9604- )5VZFE)
13204-62030	Bearing Set, Connecting Rod	Crankshaft & Piston ([04.1996 - ] (9604- )5VZFE)
13265-62030	Bolt, Connecting Rod	Crankshaft & Piston ([04.1996 - ] (9604- )5VZFE)
13265-74030	Bolt, Connecting Rod	Crankshaft & Piston ([04.1996 - ] (9604- )5VZFE)
13401-62030	Crankshaft	Crankshaft & Piston ([04.1996 - ] (9604- )5VZFE)
13401-62040	Crankshaft	Crankshaft & Piston ([04.1996 - ] (9604- )5VZFE)
13405-62030	Flywheel Sub-Assy	Crankshaft & Piston ([04.1996 - ] (9604- )5VZFE)
13408-62040	Pulley, Crankshaft	Crankshaft & Piston ([04.1996 - ] (9604- )5VZFE)
13408-62060	Pulley, Crankshaft	Crankshaft & Piston ([04.1996 - ] (9604- )5VZFE)
13453-65010	Gear, Flywheel Ring	Crankshaft & Piston ([04.1996 - ] (9604- )5VZFE)
13521-62030	Pulley, Crankshaft Timing	Crankshaft & Piston ([04.1996 - ] (9604- )5VZFE)
13521-62031	Pulley, Crankshaft Timing	Crankshaft & Piston ([04.1996 - ] (9604- )5VZFE)
13567-62010	Guide, Timing Belt	Crankshaft & Piston ([04.1996 - ] (9604- )5VZFE)
90105-10138	Bolt, Flywheel Setting	Crankshaft & Piston ([04.1996 - ] (9604- )5VZFE)
90105-16031	Bolt(For Crankshaft Pulley Set)	Crankshaft & Piston ([04.1996 - ] (9604- )5VZFE)
90119-16006	Bolt(For Crankshaft Pulley Set)	Crankshaft & Piston ([04.1996 - ] (9604- )5VZFE)
90179-08118	Nut, Hexagon(For Connecting Rod Bolt)	Crankshaft & Piston ([04.1996 - ] (9604- )5VZFE)
90250-08120	Pin, Straight, No.1	Crankshaft & Piston ([04.1996 - ] (9604- )5VZFE)
90280-05005	Key(For Oil Pump Drive Spline)	Crankshaft & Piston ([04.1996 - ] (9604- )5VZFE)
90520-22025	Ring, Hole Snap(For Piston Pin)	Crankshaft & Piston ([04.1996 - ] (9604- )5VZFE)
90521-25004	Ring, Hole Snap(For Piston Pin)	Crankshaft & Piston ([04.1996 - ] (9604- )5VZFE)
90999-73130	Bush(For Connecting Rod Small End)	Crankshaft & Piston ([04.1996 - ] (9604- )5VZFE)
