Search › Model › VCK20

VCK20

Toyota T100 · 1992 · 4,470 parts · 168 categories

4,470 items

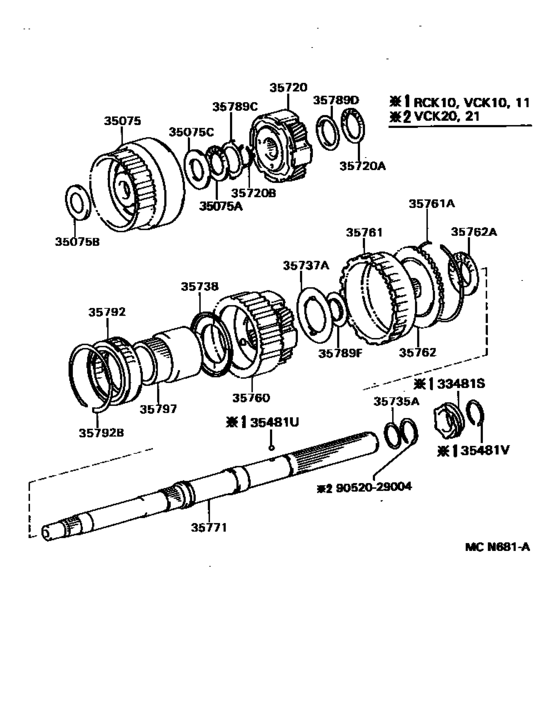

Planetary Gear, Reverse Piston & Counter Gear(Atm) ([08.1992 - ] A340E,A340F (9208- )ATM) 27

#	OEM	Part name
35075	35075-30011	Gear Sub-Assy, Front Planetary Ring
35075	35075-50010	Gear Sub-Assy, Front Planetary Ring
35075	90374-32004	Bearing, Thrust(For Overdrive Planetary Ring Gear Flange)
35075	90374-35004	Bearing, Thrust Needle Roller (For Front Planetary Ring)
35075	35789-30120	Race, Thrust Bearing (For Front Planetary Ring Gear Front)
35075	35789-30130	Race, Thrust Bearing (For Front Planetary Ring Gear Rr)
35720	35720-30080	Gear Assy, Front Planetary
35720	90374-35001	Bearing, Thrust Needle Roller (For Front Planetary Gear)
35720	90520-24026	Ring, Shaft Snap (For Front Planetary Gear)
35735	35735-30020	Ring, Planetary Output Shaft Oil Seal
35737	35737-30030	Washer, Planetary Carrier Thrust, No.1
35738	35739-30030	Washer, Planetary Carrier Thrust, No.2
35760	35705-30010	Gear Assy, Rear Planetary
35761	35761-30020	Gear, Rear Planetary Ring
35761	90521-99024	Ring, Hole Snap (For Overdrive Planetary Ring Gear)
35762	35762-30040	Flange, Rear Planetary Ring Gear
35762	35762-50010	Flange, Rear Planetary Ring Gear
35762	90374-39001	Bearing, Thrust Needle Roller (For Rear Planetary Flange)
35762	90374-38003	Bearing, Thrust Needle Roller (For Rear Planetary Flange)
35771	35073-35020	Shaft, Output
35789	35789-30080	Race, Thrust Bearing (For Overdrive Support Front)
35789	35789-30100	Race, Thrust Bearing (For Front Planetary Gear Rear)
35789	35789-30160	Race, Thrust Bearing (For Rear Planetary Flange)
35792	35792-14020	Clutch, 1 Way, No.2
35792	90521-87001	Ring, Hole Snap (For Rear Planetary Ring Gear)
35797	35797-50010	Race, 1 Way Clutch Inner
9052029004	90520-29004	Ring, Shaft Snap (For Atm Speedmeter Drive Gear)

OEM	Part name	Category
35073-35020	Shaft, Output	Planetary Gear, Reverse Piston & Counter Gear(Atm) ([08.1992 - ] A340E,A340F (9208- )ATM)
35075-30011	Gear Sub-Assy, Front Planetary Ring	Planetary Gear, Reverse Piston & Counter Gear(Atm) ([08.1992 - ] A340E,A340F (9208- )ATM)
35075-50010	Gear Sub-Assy, Front Planetary Ring	Planetary Gear, Reverse Piston & Counter Gear(Atm) ([08.1992 - ] A340E,A340F (9208- )ATM)
35705-30010	Gear Assy, Rear Planetary	Planetary Gear, Reverse Piston & Counter Gear(Atm) ([08.1992 - ] A340E,A340F (9208- )ATM)
35720-30080	Gear Assy, Front Planetary	Planetary Gear, Reverse Piston & Counter Gear(Atm) ([08.1992 - ] A340E,A340F (9208- )ATM)
35735-30020	Ring, Planetary Output Shaft Oil Seal	Planetary Gear, Reverse Piston & Counter Gear(Atm) ([08.1992 - ] A340E,A340F (9208- )ATM)
35737-30030	Washer, Planetary Carrier Thrust, No.1	Planetary Gear, Reverse Piston & Counter Gear(Atm) ([08.1992 - ] A340E,A340F (9208- )ATM)
35739-30030	Washer, Planetary Carrier Thrust, No.2	Planetary Gear, Reverse Piston & Counter Gear(Atm) ([08.1992 - ] A340E,A340F (9208- )ATM)
35761-30020	Gear, Rear Planetary Ring	Planetary Gear, Reverse Piston & Counter Gear(Atm) ([08.1992 - ] A340E,A340F (9208- )ATM)
35762-30040	Flange, Rear Planetary Ring Gear	Planetary Gear, Reverse Piston & Counter Gear(Atm) ([08.1992 - ] A340E,A340F (9208- )ATM)
35762-50010	Flange, Rear Planetary Ring Gear	Planetary Gear, Reverse Piston & Counter Gear(Atm) ([08.1992 - ] A340E,A340F (9208- )ATM)
35789-30080	Race, Thrust Bearing (For Overdrive Support Front)	Planetary Gear, Reverse Piston & Counter Gear(Atm) ([08.1992 - ] A340E,A340F (9208- )ATM)
35789-30100	Race, Thrust Bearing (For Front Planetary Gear Rear)	Planetary Gear, Reverse Piston & Counter Gear(Atm) ([08.1992 - ] A340E,A340F (9208- )ATM)
35789-30120	Race, Thrust Bearing (For Front Planetary Ring Gear Front)	Planetary Gear, Reverse Piston & Counter Gear(Atm) ([08.1992 - ] A340E,A340F (9208- )ATM)
35789-30130	Race, Thrust Bearing (For Front Planetary Ring Gear Rr)	Planetary Gear, Reverse Piston & Counter Gear(Atm) ([08.1992 - ] A340E,A340F (9208- )ATM)
35789-30160	Race, Thrust Bearing (For Rear Planetary Flange)	Planetary Gear, Reverse Piston & Counter Gear(Atm) ([08.1992 - ] A340E,A340F (9208- )ATM)
35792-14020	Clutch, 1 Way, No.2	Planetary Gear, Reverse Piston & Counter Gear(Atm) ([08.1992 - ] A340E,A340F (9208- )ATM)
35797-50010	Race, 1 Way Clutch Inner	Planetary Gear, Reverse Piston & Counter Gear(Atm) ([08.1992 - ] A340E,A340F (9208- )ATM)
90374-32004	Bearing, Thrust(For Overdrive Planetary Ring Gear Flange)	Planetary Gear, Reverse Piston & Counter Gear(Atm) ([08.1992 - ] A340E,A340F (9208- )ATM)
90374-35001	Bearing, Thrust Needle Roller (For Front Planetary Gear)	Planetary Gear, Reverse Piston & Counter Gear(Atm) ([08.1992 - ] A340E,A340F (9208- )ATM)
90374-35004	Bearing, Thrust Needle Roller (For Front Planetary Ring)	Planetary Gear, Reverse Piston & Counter Gear(Atm) ([08.1992 - ] A340E,A340F (9208- )ATM)
90374-38003	Bearing, Thrust Needle Roller (For Rear Planetary Flange)	Planetary Gear, Reverse Piston & Counter Gear(Atm) ([08.1992 - ] A340E,A340F (9208- )ATM)
90374-39001	Bearing, Thrust Needle Roller (For Rear Planetary Flange)	Planetary Gear, Reverse Piston & Counter Gear(Atm) ([08.1992 - ] A340E,A340F (9208- )ATM)
90520-24026	Ring, Shaft Snap (For Front Planetary Gear)	Planetary Gear, Reverse Piston & Counter Gear(Atm) ([08.1992 - ] A340E,A340F (9208- )ATM)
90520-29004	Ring, Shaft Snap (For Atm Speedmeter Drive Gear)	Planetary Gear, Reverse Piston & Counter Gear(Atm) ([08.1992 - ] A340E,A340F (9208- )ATM)
90521-87001	Ring, Hole Snap (For Rear Planetary Ring Gear)	Planetary Gear, Reverse Piston & Counter Gear(Atm) ([08.1992 - ] A340E,A340F (9208- )ATM)
90521-99024	Ring, Hole Snap (For Overdrive Planetary Ring Gear)	Planetary Gear, Reverse Piston & Counter Gear(Atm) ([08.1992 - ] A340E,A340F (9208- )ATM)
