VCK20

Toyota T100 · 1992 · 4,470 parts · 168 categories
VCK20 ×

← Back to categories

4,470 items

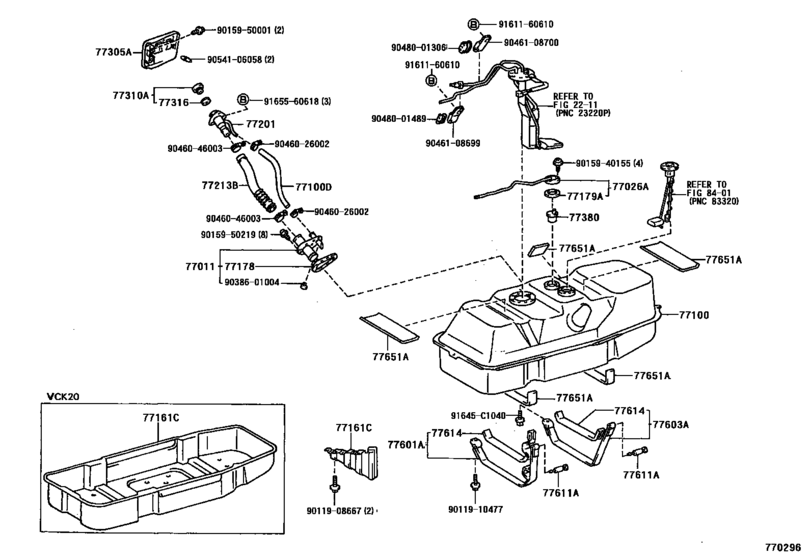

Fuel Tank & Tube ([08.1992 - 08.1994] (9208-9408)VCK10,20) 82
#OEMPart name
23091 23091-65010 Tube Sub-Assy, Fuel Pump
77011 77011-34010 Pipe Sub-Assy, Fuel Tank Filler, Lower
77026 77026-34010 Tube Sub-Assy, Fuel Evaporation, No.1
77026 77026-34011 Tube Sub-Assy, Fuel Evaporation, No.1
77100 77001-34010 Tank Assy, Fuel
77100 77001-34050 Tank Assy, Fuel (lpg)
77100 77026-34012 Cover Sub-assy, Fuel Sender Gage
77100 90445-24041 Hose, Fuel, No.1(For Fuel Tank)
77161 77161-34020 Protector, Fuel Tank, Lower
77178 77178-34010 Gasket, Fuel Tank Filler Pipe, Lower
77179 77179-26010 Gasket, Fuel Tank Evap/vent Tube
77179 77179-26011 Gasket, Fuel Suction Tube Set, No.1
77201 77201-34010 Pipe Sub-Assy, Fuel Tank Inlet
77213 77213-34020 Hose, Fuel Tank To Filler Pipe
77251 77251-34020 Tube, Fuel Main
77252 77252-34020 Tube, Fuel Main, No.2
77255 77255-34010 Tube, Fuel Return
77255 95333-06060 Hose, Fuel
77261 77261-34010 Tube, Fuel Tank To Canister
77261 95333-06030 Hose, Fuel
77261 95338-06030 HOSE, FUEL
77261 95333-06048 Hose, Fuel, No.2 (For Fuel Tank To Canister Tube)
77277 23271-65020 Hose, Fuel, No.1(For Return Tube, No.1)
77305 77305-34010 Lid Sub-Assy, Fuel Filler Opening
77310 77310-35080 Cap Assy, Fuel Tank
77316 77316-16010 Gasket (For Fuel Tank Cap)
77380 77380-26010 Valve Assy, Fuel Cut Off
77601 77601-34020 Band Sub-Assy, Fuel Tank, No.1
77603 77603-34020 Band Sub-Assy, Fuel Tank, No.2
77611 77653-34010 Pin (For Fuel Tank Band)
77614 77681-34010 Seat, Fuel Tank Band
77614 77681-34020 Seat, Fuel Tank Band
77651 77651-34010 Cushion, Fuel Tank, No.1
77651 77651-34011 Cushion, Fuel Tank, No.1
77651 77651-34020 Cushion, Fuel Tank, No.1
77651 77651-34021 Cushion, Fuel Tank, No.1
77651 77651-34030 Cushion, Fuel Tank, No.1
77651 77651-34040 Cushion, Fuel Tank, No.1
77740 77740-34010 Canister Assy, Charcoal
77750 23826-65010 Hose, Fuel, No.3 (For Charcoal Canister)
77754 77754-34020 Hose, Charcoal Canister Outlet, No.1
91645 91645-C1040 BOLT WWASHER
91651 91651-G0816 New Genuine Part
91651 90119-08856 BOLT W-WASHER
4737235050 47372-35050 Clamp, Brake Tube, No.2
7728535140 77285-35140 Bracket, Fuel Tube
9011908667 90119-08667 BOLT
9011908744 90119-08744 New Genuine Part
9011910477 90119-10477 New Genuine Part
9011910477 91655-B1040 BOLT WWASHER
9015940155 90159-40155 SCREW WWASHER
9015950001 90159-50001 New Genuine Part
9015950219 90159-50219 BOLT
9015950219 90159-A0057 New Genuine Part
9017906161 90179-06161 Bolt, Union(For Clutch Accumulator)
9038601004 90386-01004 New Genuine Part
9046026002 90460-26002 Clamp(For Oil Reservoir To Pump Hose)
9046026002 90460-26001 Clamp(For Oil Reservoir To Pump Hose)
9046046003 90460-46003 Clamp (For Fuel Filler Pipe)
9046046003 90460-46005 Clamp (For Fuel Filler Pipe)
9046108334 90461-08334 New Genuine Part
9046108418 90461-08418 New Genuine Part
9046108699 90461-08699 New Genuine Part
9046108700 90461-08700 New Genuine Part
9046110722 90461-10722 Clamp, Fuel Tube, No.1
9046110779 90461-10779 New Genuine Part
9046400403 90464-00403 Clamp, Vacuum Tube
9046400500 90464-00500 New Genuine Part
9046711009 90467-11009 Clamp Or Clip, Hose(For Water By-Pass Hose)
9046711009 96135-51100 Clamp Or Clip(For Turbo Oil Outlet Hose)
9048001306 90480-01306 New Genuine Part
9048001489 90480-01489 New Genuine Part
9048018005 90480-18005 New Genuine Part
9054106058 90541-06058 CUSHION
9161160610 91611-60610 Bolt (For Transfer Oil Receiver No.1)
9161160610 91611-B0610 Bolt (For Transfer Oil Receiver No.1)
9161160614 91611-60614 Screw Or Bolt(For Valve Rocker Shaft Lock)
9161160614 91611-B0614 Bolt (For Rear Differential Breather Plug Oil Deflector)
9165560618 91655-60618 Bolt (For Rear Differential Breather Plug Oil Deflector)
9165560618 91651-60614 Bolt
9613241100 96132-41100 Clamp Or Clip(For Radiator Reserve Tank Hose)
9613241100 96132-51100 Clip (For Hose)
